#21 Kanedge

Kanedge

    MCM Avid Poster

  • Members
  • PipPipPipPipPip
  • 493 posts
  • Location:Sydney, Australia
  • Full Name:Kane

Posted 07 February 2011 - 12:33 AM

Cool build, those wheels are made for it.

Edited by Kanedge, 07 February 2011 - 12:34 AM.


#22 Cesar Bossolani

Cesar Bossolani

    MCM Avid Poster

  • Members
  • PipPipPipPipPip
  • 334 posts
  • Location:Brazil
  • Full Name:Cesar Bossolani

Posted 07 February 2011 - 07:32 AM

Bro, it's looking sweet! Let's see some paint soon  Just a tip Cesar... Get the headlight lenses fitted ( glued onto chrome surround ) before installing them otherwise they're very troublesome to get into place after the chrome surround is put in place 
This Magnum with your cool wheels & in black with a Hemi will be a cool looking hearse... I would love to be carried off in a black-beauty like it! Lol!
Cheers Cliffo 


Thanks Cliffo! Soon as possible I'll paint, promisse!!! Today I'll restart law school... my holyday it's over... cool tip brother, thanks... My most miserable things in my models are clear parts... Always I do wrong things...


Cool build, those wheels are made for it.


Thanks Kane!! Yes, they are... Actually, I did machined aluminium lips and plastic wheels mods right for use in my Magnum. I don't damaged chrome plated and they fitted like as glove. I'm glad, I'm still learning use a lathe!!!

Cesar Bossolani

Edited by Cesar Bossolani, 07 February 2011 - 07:36 AM.


#23 gautreau

gautreau

    MCM Avid Poster

  • Members
  • PipPipPipPipPip
  • 325 posts
  • Location:Kitscoty, AB Canada
  • Full Name:Jeremy

Posted 07 February 2011 - 04:21 PM

Cesar,
great lookin' build as always.I have to ask what size styrene do you use to build your 4-link suspensions?Also what size do you use for all the brackets for them?

#24 Cesar Bossolani

Cesar Bossolani

    MCM Avid Poster

  • Members
  • PipPipPipPipPip
  • 334 posts
  • Location:Brazil
  • Full Name:Cesar Bossolani

Posted 15 February 2011 - 11:59 AM

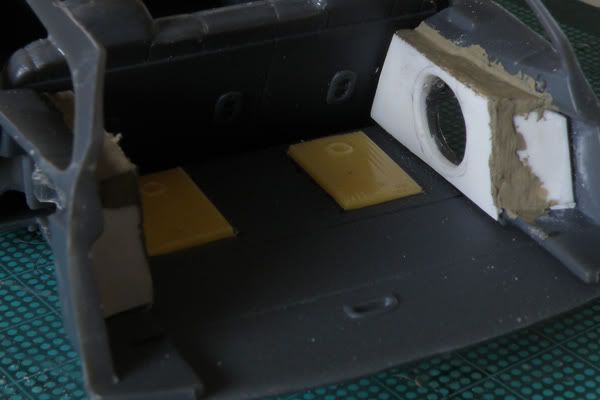

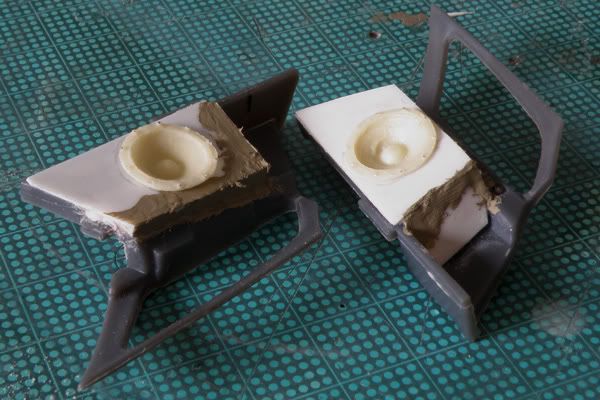

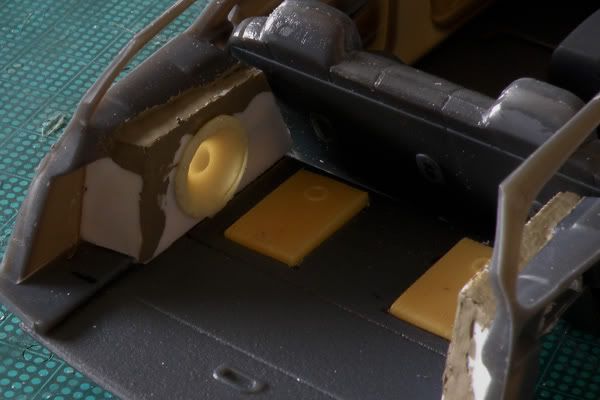

I'm started interior mods.

Posted Image
Posted Image
Posted Image
Posted Image

I hope you like it!All feedback are welcome!

Thanks to see

Cesar Bossolani

#25 Cesar Bossolani

Cesar Bossolani

    MCM Avid Poster

  • Members
  • PipPipPipPipPip
  • 334 posts
  • Location:Brazil
  • Full Name:Cesar Bossolani

Posted 15 February 2011 - 12:06 PM

Cesar,
great lookin' build as always.I have to ask what size styrene do you use to build your 4-link suspensions?Also what size do you use for all the brackets for them?


Thanks! You would like to know about Mustang 4-link? For bars I'd used 1.0mm and 2.0mm round rods, I did brackets from 0.5mm sheet... But I'll redo all of them... Today I got 3.0mm square tube. Gift from my super friend Cliffo!!! When Magnum will be finished I'll re-start my Stang. Thanks for interesting bro!

Cesar Bossolani

#26 Guest_Sickfish_*

Guest_Sickfish_*
  • Guests

Posted 16 February 2011 - 01:42 AM

I can hear the Boom! Boom! Boom! From those subwoofers already bro! Nice !
Cheers Meu amigo, Cliffo!

I can hear the Boom! Boom! Boom! From those subwoofers already bro! Nice !
Cheers Meu amigo, Cliffo!

I can hear the Boom! Boom! Boom! From those subwoofers already bro! Nice !
Cheers Meu amigo, Cliffo!

#27 gautreau

gautreau

    MCM Avid Poster

  • Members
  • PipPipPipPipPip
  • 325 posts
  • Location:Kitscoty, AB Canada
  • Full Name:Jeremy

Posted 17 February 2011 - 07:12 PM

Thanks! You would like to know about Mustang 4-link? For bars I'd used 1.0mm and 2.0mm round rods, I did brackets from 0.5mm sheet... But I'll redo all of them... Today I got 3.0mm square tube. Gift from my super friend Cliffo!!! When Magnum will be finished I'll re-start my Stang. Thanks for interesting bro!

Cesar Bossolani

Thanx Cesar,
Now for another question.What size and type of styrene do you use for the brackets on the chassis?

#28 Guest_Sickfish_*

Guest_Sickfish_*
  • Guests

Posted 18 February 2011 - 06:49 AM

Thanx Cesar,
Now for another question.What size and type of styrene do you use for the brackets on the chassis?

gautreau... I don't know what size the original brackets were but Cesar is my good mate & whilst I've been working on a couple of Mopars, both with 4-Link set-ups, which I previewed to Cesar, he asked me what size I used for my brackets, as I figured out an easier, less fiddly, way to make them, using 3mm tubing. I have since sent him some because it's not avail' in his hometown of Brazil. I'm absolutely stoked that he liked my version & he has since told me he's going to re-do his 4-link set up on his Mustang, a similar way 
Here's a pic of mine...
Posted Image
Posted Image
I shaved/cut off 1 side of the square tubing then cut them at the angle I needed to fit the chassis 
Cheers Cliffo

#29 gautreau

gautreau

    MCM Avid Poster

  • Members
  • PipPipPipPipPip
  • 325 posts
  • Location:Kitscoty, AB Canada
  • Full Name:Jeremy

Posted 18 February 2011 - 04:48 PM

gautreau... I don't know what size the original brackets were but Cesar is my good mate & whilst I've been working on a couple of Mopars, both with 4-Link set-ups, which I previewed to Cesar, he asked me what size I used for my brackets, as I figured out an easier, less fiddly, way to make them, using 3mm tubing. I have since sent him some because it's not avail' in his hometown of Brazil. I'm absolutely stoked that he liked my version & he has since told me he's going to re-do his 4-link set up on his Mustang, a similar way 
Here's a pic of mine...
Posted Image
Posted Image
I shaved/cut off 1 side of the square tubing then cut them at the angle I needed to fit the chassis 
Cheers Cliffo

Thanx for sharing that Cliffo.Are you using sqare tubing?Just wondering for when I start putting 4-links in almost everything I'll be woring one.
Thanx Jeremy,

#30 Guest_Sickfish_*

Guest_Sickfish_*
  • Guests

Posted 18 February 2011 - 07:27 PM

Thanx for sharing that Cliffo.Are you using sqare tubing?Just wondering for when I start putting 4-links in almost everything I'll be woring one.
Thanx Jeremy,

Jeremy.... Yes mate, using 3mm x 3mm square tubing, with 1 side trimmed off 
Cheers Cliffo

#31 gautreau

gautreau

    MCM Avid Poster

  • Members
  • PipPipPipPipPip
  • 325 posts
  • Location:Kitscoty, AB Canada
  • Full Name:Jeremy

Posted 18 February 2011 - 07:31 PM

Jeremy.... Yes mate, using 3mm x 3mm square tubing, with 1 side trimmed off 
Cheers Cliffo

Thanx Cliff.

#32 Cesar Bossolani

Cesar Bossolani

    MCM Avid Poster

  • Members
  • PipPipPipPipPip
  • 334 posts
  • Location:Brazil
  • Full Name:Cesar Bossolani

Posted 20 February 2011 - 02:50 PM

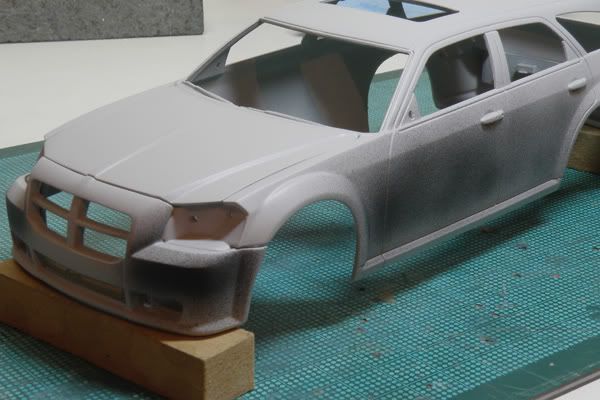

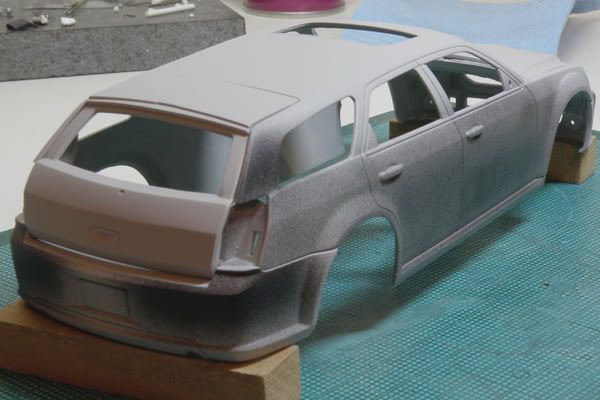

Re-primered... Still needs some work...

Posted Image
Posted Image


Cesar Bossolani

#33 Cesar Bossolani

Cesar Bossolani

    MCM Avid Poster

  • Members
  • PipPipPipPipPip
  • 334 posts
  • Location:Brazil
  • Full Name:Cesar Bossolani

Posted 20 February 2011 - 03:05 PM

Jeremy, sorry for my delay. Actually, agree with Cliffo and I'll re-do my Mustang rear end based on his job!!! He is the guy!!! He sent me a lot of tubes and I could make 100~120 rears ends!!! LOL!!! It's perfect to do it!

Actually they both Mopars Cliffo's are building has the mostly accurate 4-link in scale, made from scratch I was ever seen. They inspire me... I just sent to him couple pics and he did a gorgeous job IMO.

Cliffo THANKS for your help brother!!! Your rides are going to blowing minds for sure!!!

Cheers!

Cesar Bossolani

Edited by Cesar Bossolani, 20 February 2011 - 03:09 PM.


#34 Custom Mike

Custom Mike

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,369 posts
  • Location:Whiteville, NC
  • Full Name:Mike

Posted 20 February 2011 - 04:10 PM

Cesar, I wish I had thought of those rims before you, they're just right for this car! And the speakers/amps in the back look great. I'm waiting for you to get the 4-link done, I want to see how you guys pull that off!

#35 Cesar Bossolani

Cesar Bossolani

    MCM Avid Poster

  • Members
  • PipPipPipPipPip
  • 334 posts
  • Location:Brazil
  • Full Name:Cesar Bossolani

Posted 21 February 2011 - 02:03 AM

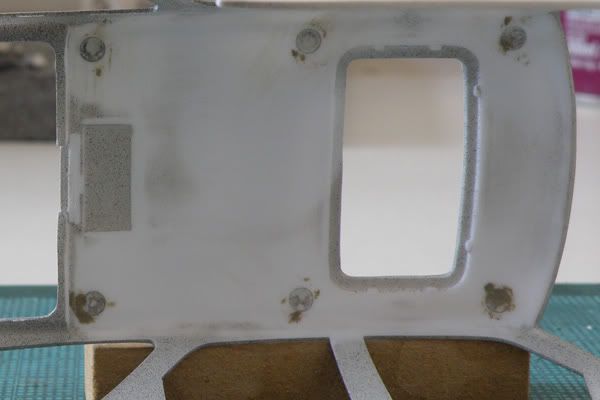

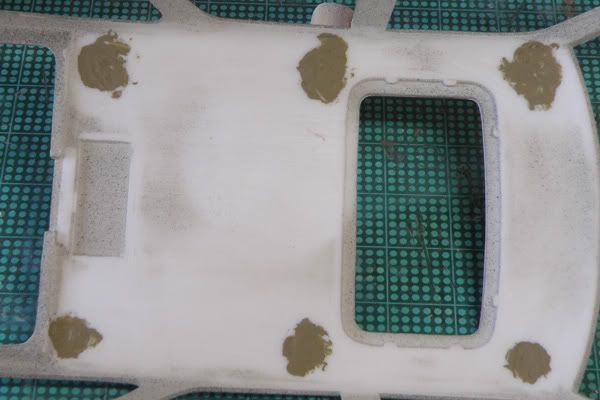

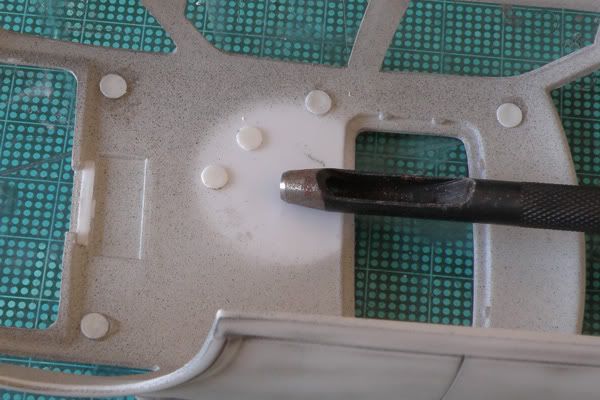

Thanks Mike!! Those rims fits perfect to Magnum, huh? The 4-link set-up its for 67 Mustang, not for Magnum... This model are simple and fast build!!



Posted Image

Posted Image

Posted Image

I hope you like it, I saw this tech in a Scale Auto Magazine I think. It works!!

Cesar Bossolani

Edited by Cesar Bossolani, 21 February 2011 - 02:09 AM.


#36 pharr7226

pharr7226

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 928 posts
  • Location:Atlanta, GA
  • Full Name:Rick

Posted 24 February 2011 - 07:51 PM

Cliffo,

That four link looks awesome. What size hardware did you use for the bolts and screws?

Edited by pharr7226, 24 February 2011 - 07:53 PM.


#37 Cesar Bossolani

Cesar Bossolani

    MCM Avid Poster

  • Members
  • PipPipPipPipPip
  • 334 posts
  • Location:Brazil
  • Full Name:Cesar Bossolani

Posted 07 March 2011 - 11:44 AM

Rick I think Cliffo used 0.7mm...

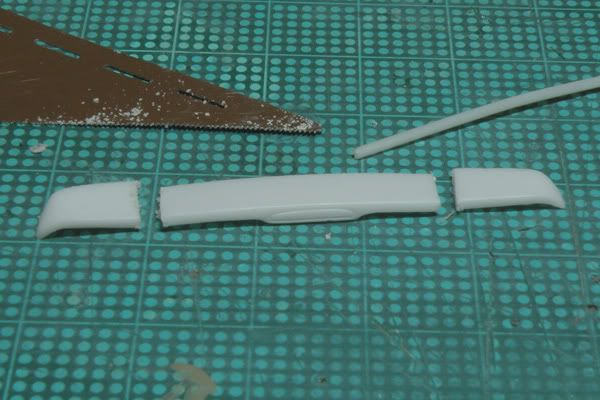

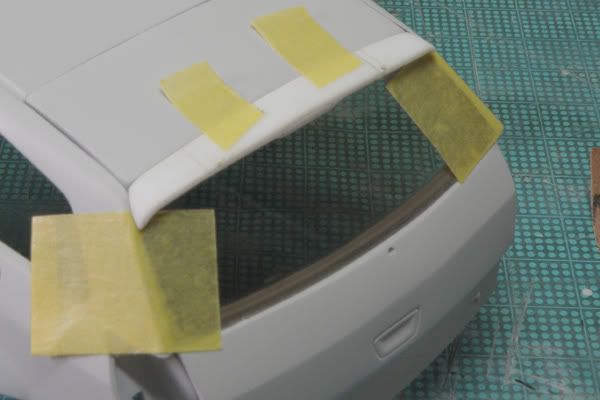

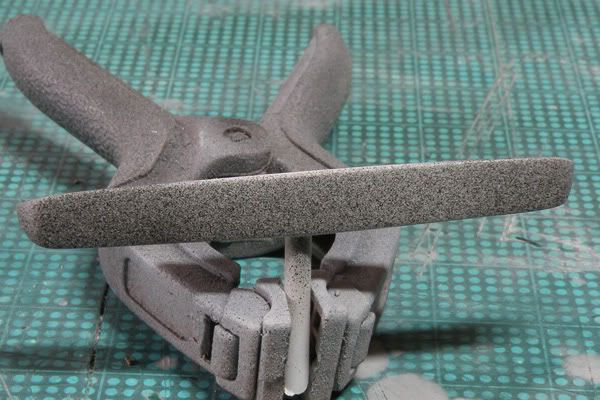

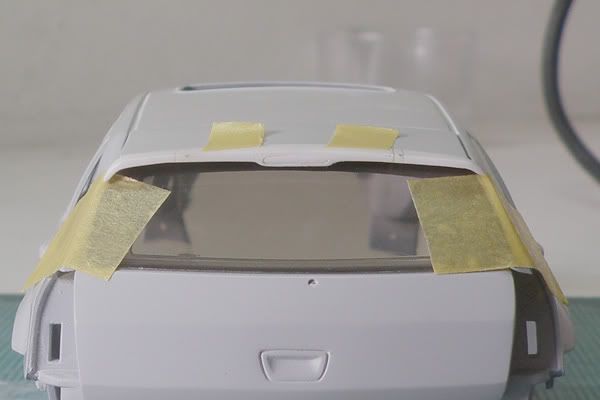

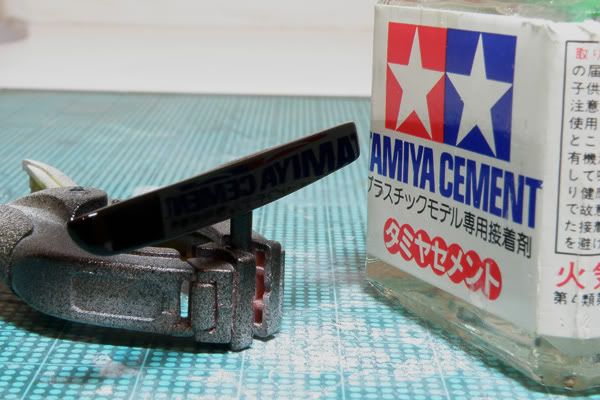

Undersized rear wing was widened 2mm (1mm each side) and painted with uretane black. I'll cover with CF decal.

Posted Image
Posted Image
Posted Image
Posted Image
Posted Image
Posted Image
Posted Image


Cesar Bossolani

#38 Guest_Sickfish_*

Guest_Sickfish_*
  • Guests

Posted 07 March 2011 - 01:37 PM

Rick, Cesar was close, I used 0.8mm Scale Hardware nuts/bolts. I recommend their products & service to anyone & everyone! They're great! 
Posted Image

Cesar... The Magnum's sure gunna fly now! Lol! 
Cheers Cliffo 

#39 pharr7226

pharr7226

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 928 posts
  • Location:Atlanta, GA
  • Full Name:Rick

Posted 07 March 2011 - 08:13 PM

Cesar, nice job stretching the wing. It looks great.

Cliffo, thanks for the info on the hardware. I will definitely pick some up.

#40 Cesar Bossolani

Cesar Bossolani

    MCM Avid Poster

  • Members
  • PipPipPipPipPip
  • 334 posts
  • Location:Brazil
  • Full Name:Cesar Bossolani

Posted 12 March 2011 - 09:49 AM

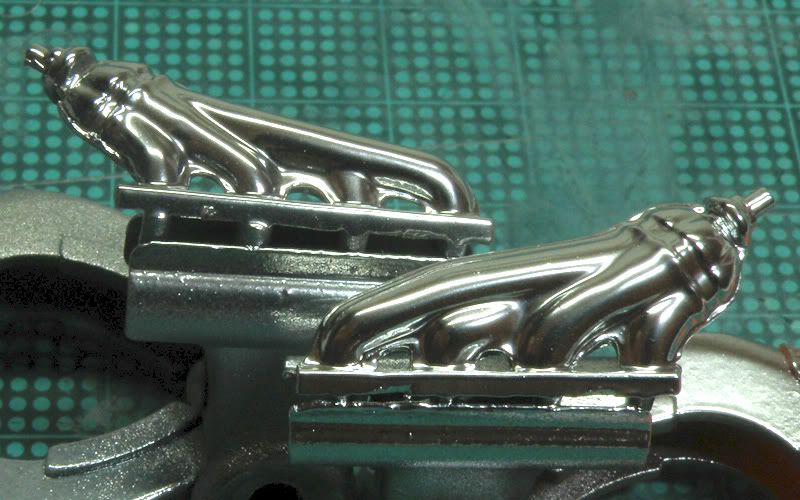

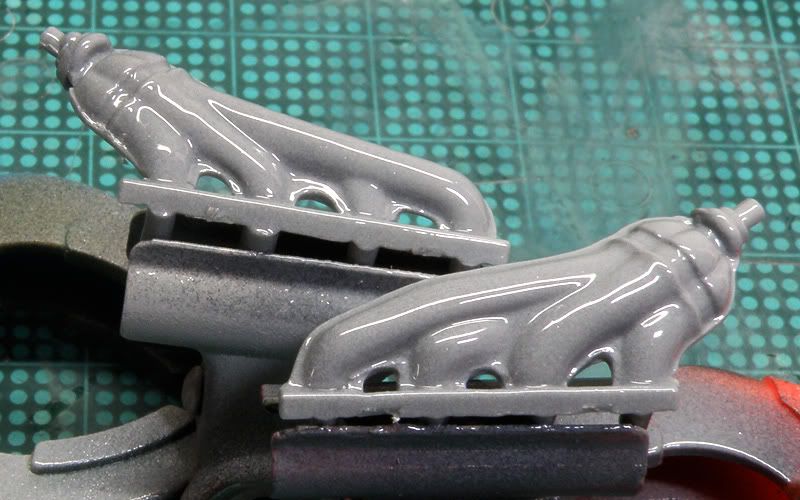

Krome Day!!!

1 shot of gray primer + 1 shot of uretane clear + 2 shot of HOK Kosmic Krome

Posted Image

Posted Image

In a week 1 shot of Future floor wax, after cured 1 shot of uretane clear coat.

Thanks to see.

Cesar Bossolani
