The I-Sheet describe the main guns as 40MM Cannons.
The way they are molded make them look too solid and chunky so I drilled mine out at the flash suppressor muzzle

Posted Image


Posted Image
I used a sewing needle and a magnifier lens to make a centered pilot hole for the 1/16" drill bit to follow


Posted Image
The flash suppressor muzzle detail was then shaped out with a No. 11 blade

After painting these will look much more detailed. However I have seen some delicately painted without the drilling out and they look good too. Just depends on your own style and how far you want to take this

#23 Edward Gore

Edward Gore

    MCM Avid Poster

  • Members
  • PipPipPipPipPip
  • 385 posts
  • Location:Easter Island
  • Full Name:Pacific Ocean

Posted 22 August 2012 - 07:02 AM

Posted Image
The headlight dome detail is cast together as one piece with the black plastic of the Munitions Cluster.
They can be painted to the desired effect because it's so small at 3/32" (2 mm). I couldn't however let this go and decided to drill it out for a clear lens.


Posted Image
The same 1/16 drill bit was used and then a micro rat tail file cleaned it up to the final cavity shape and size.
The dome shaped lenses are casting tabs from the clear parts sprue of the Revell '66 Chevelle Station Wagon 85-2890
They'll be cut and shaped at the dotted lines until they fit the look

#24 Edward Gore

Edward Gore

    MCM Avid Poster

  • Members
  • PipPipPipPipPip
  • 385 posts
  • Location:Easter Island
  • Full Name:Pacific Ocean

Posted 23 August 2012 - 10:39 AM

stance noun \ˈstan(t)s\
a : a way of standing or being placed : posture
b : intellectual or emotional attitude
Synonyms: attitude, carriage, poise, posture, station
from: merriam-webster.com

While dry fitting some of the parts together I played around with the stance.
This can be adjustable depending on the position that the Rear Wheel Assembly is inserted over the Chassis Assembly peg part.
I-Sheet page 4

Posted Image
Prototype stance as designed

Posted Image
riding high

Posted Image
down low

#25 su27rules

su27rules

    MCM Regular

  • Members
  • PipPipPip
  • 81 posts
  • Location:EU
  • Full Name:Davor File

Posted 23 August 2012 - 11:47 AM

Nice work!!

#26 Edward Gore

Edward Gore

    MCM Avid Poster

  • Members
  • PipPipPipPipPip
  • 385 posts
  • Location:Easter Island
  • Full Name:Pacific Ocean

Posted 23 August 2012 - 11:50 AM

Thank you

#27 Edward Gore

Edward Gore

    MCM Avid Poster

  • Members
  • PipPipPipPipPip
  • 385 posts
  • Location:Easter Island
  • Full Name:Pacific Ocean

Posted 25 August 2012 - 03:12 PM

Posted Image
Found this in my spares parts box. I don't remember what military kit this was from but it's 1/76 - 1/72


Posted Image
This replicates something close to what the prototype CO2 plumbing looks like.
This part is glued to the CO2 Cartridges parts but not to the Munitions Cluster so they can be removed as a separate subassembly for painting

#28 Edward Gore

Edward Gore

    MCM Avid Poster

  • Members
  • PipPipPipPipPip
  • 385 posts
  • Location:Easter Island
  • Full Name:Pacific Ocean

Posted 26 August 2012 - 12:37 PM

This is the part I'm trying to replicate. These parts are not included in the kit

Posted Image

next: Hand grip controls and the plumbing and area

thanks for looking . . .

#29 Edward Gore

Edward Gore

    MCM Avid Poster

  • Members
  • PipPipPipPipPip
  • 385 posts
  • Location:Easter Island
  • Full Name:Pacific Ocean

Posted 26 August 2012 - 01:35 PM

The hand grips and control details required a lot of web searching for the prototype in 1/1. It's tiny up there I know and I've seen some builds with cables running from the stock kit box parts and they look fine.
But, I couldn't let this go. I had to try and replicate this to some degree of accuracy because I admire the design of this vehicle so I wanted to make something cool with mine




Posted Image
This sensor thing is not included in the kit so I made one with styrene and stretched sprue


Posted Image
The drilling and most of the work was done before mounting them to the handle bars


Posted Image
The Hand Grips should be glued to the Handle Bars in a position looking more like the front box art image instead of how the I-sheets indicate.
The "brake" and "clutch" levers should point slightly inward and the whole grip part pointed slightly downward.
This will conflict with the shape of the casted parts and their joining points.
This may be the reason why Moebius didn't include a Riding figure because the loose design of the fitting of the; Foot Rests, Knee Rests, Seat, Elbow Pads, Handle Bars, and Hand Grips.
Or maybe the figure is what a lot of model builders with this kit was waiting for before they start their Bat-Pod to fit the Rider in properly

This is what I came up with using various wire, solder, stretched sprue, and reference from the internets...

Posted Image
Posted Image
Posted Image
notice the thumb control buttons included


another I-Sheet error alert:

Posted Image

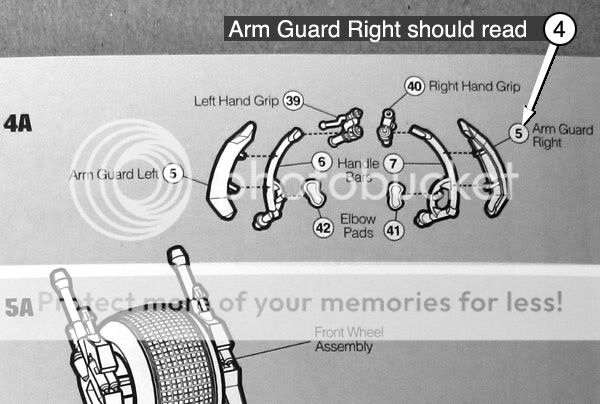

When installing the Arm Guard parts (4) and (5), follow the text instructions which are correct and not the illustrated picture. The picture above clarifies this
