Posted 05 December 2010 - 10:08 AM

Here's a bookmark place for this build ... I'm sure I'll have to answer to someone when Dec '11 comes around and it's not finished! B)

This year I'm not putting cookies and milk out for Santa .. it's gonna be sandpaper and glue so he'll give a helping hand. and maybe a brush to get the shavings out of his beard .. ;)

Posted Image

#102 Nick Winter

Nick Winter

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 4,924 posts
  • Location:Whitby,Ontario, Canada
  • Full Name:Nicholas J. Winter

Posted 05 December 2010 - 10:10 AM

Nice Dog B)

#103 Foxer

Foxer

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 5,900 posts
  • Location:The Berkshires, Massachusetts
  • Full Name:Mike DeRagon

Posted 05 December 2010 - 11:25 AM

Nice Dog ;)

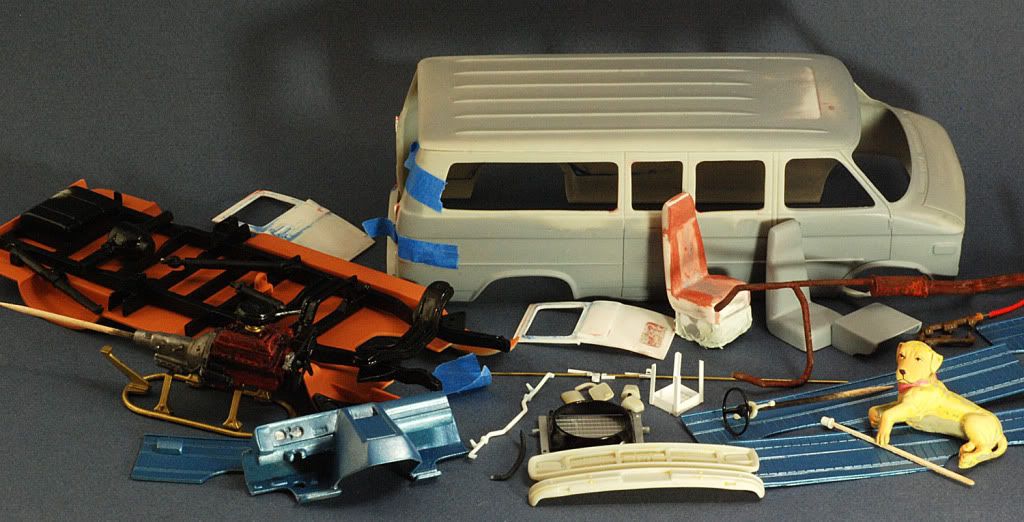

eheh .. that's Toby. I'm going to have to learn a little figure painting to get him in shape. Here he is by the van ...
Posted Image

He's going to be sitting inside, so I HAVE the get the hinges working!

#104 Foxer

Foxer

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 5,900 posts
  • Location:The Berkshires, Massachusetts
  • Full Name:Mike DeRagon

Posted 07 December 2010 - 09:59 AM

Casting of the door handle and hinges on some spare bodies took some time as I searched for some working material to make the molds. The Tamiya Epoxy Putty I had was too dried up to use so I went to Michael's to see if something there was usable. All they had was some Mighty Putty ... an epoxy putty in a cylinder you just slice and mix. It had Billy Mays photo on the package, so I was leery about this product. It worked as advertised, but was much too grainy for mold making and was very sticky and messy. The squish molds I tried were very undefined.

My LHS was open today so I went up to see what he had for epoxy putty. He had Milliput so I added that to my arsenal. Then, I remembered the RTV Silicone Putty I still had from a Micro-Mark resin kit I had from over 10 years ago. I really liked that material and figured I had nothing to lose mixing the 2 part putty and giving it a try despite it's age. Low and behold, IT WORKED! The molds came out with well defined impressions that will be fully useable. I'm going to cut out a square at the door handles and insert the casting as recommended by Danno in another post I had asked about this ... Thanks Danno! B)
Posted Image

Yeah, while I was at it I figured a cast of the VW emblem off my OTHER van project would be a good use of the leftover silicone. ;)

#105 cposada

cposada

    MCM Member

  • Members
  • PipPip
  • 12 posts
  • Location:home
  • Full Name:Cory Posada

Posted 07 December 2010 - 10:43 AM

Love that exhaust! It turned out so nice. The interior pod and the panels look perfect. The color seems to be spot on and it actually looks like the material used for the 1:1 vehicle. Nice work! Looking forward to more of this.

cposada...

#106 Danno

Danno

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 12,008 posts
  • Location:Okay. By now you all know ~ Aridzona.
  • Full Name:Nameless Natural Luminary

Posted 07 December 2010 - 11:17 AM

My pleasure, Mike. Good luck with the process. Be sure to let us know & see how it turns out.

:(

#107 Foxer

Foxer

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 5,900 posts
  • Location:The Berkshires, Massachusetts
  • Full Name:Mike DeRagon

Posted 09 December 2010 - 04:56 AM

The door handle for the side door is in and just got the first primer coat to check for finish bodywork needed. Small spots and finishing up the door edges needed. I decided to just cut out the handle from a spare body rather than cast it. It was much easier than constructing the mold. B) The hinges I need did work well by squish casting some and pouring molten plastic into the molds ... just plastic sprue and Ambroid. It took about 8 tries to get 4 good hinges but it was simple and can just glue them to body now with regular cement.

Cut handle out of spare body:
Posted Image

cut out hole for handle and glued a backing plate on:
Posted Image

After first primer coat: (ignore that run!) :D
Posted Image

Edited by Foxer, 08 March 2011 - 06:47 AM.


#108 Foxer

Foxer

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 5,900 posts
  • Location:The Berkshires, Massachusetts
  • Full Name:Mike DeRagon

Posted 09 December 2010 - 06:59 AM

I've also been back on the hinges. I chucked some 3/32" (.0938") round plastic tubing into the Dremel and turned it down to about .074" with a sanding stick. This was as small as I dared as the wall was getting thin. The aluminum tube I have been trying is .0625". I thought the tube still looked large but in the photo below it doesn't seem that much larger. These hinges ARE out of scale no matter what, but there's not much choice. The aluminum scales to 1.56" and the plastic to 1.85" ... not that much difference.

I was going to ask if anyone thought they would look too gross with the plastic tubes, but looking at the numbers as I type this makes me say .. screw it.. the plastic tubes win! These will "weld" to the attachment tabs with no problem and will solve my glue problem! B)

Thanks for all the input along the way to solve the glue problem I was having. It's SO good to have you all here to bounce things off of!! :D

Posted Image

Edited by Foxer, 08 March 2011 - 06:49 AM.


#109 Blake Rogers

Blake Rogers

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,028 posts
  • Location:fort mcmurray AB
  • Full Name:bubba

Posted 09 December 2010 - 10:01 AM

All I can say is, you had me at GMC :unsure:

http://www.modelcars...tyle_emoticons/default/ph34r.gif

#110 Foxer

Foxer

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 5,900 posts
  • Location:The Berkshires, Massachusetts
  • Full Name:Mike DeRagon

Posted 10 December 2010 - 08:09 AM

Here's some shots of the hinge mold process. I used RTV silicone putty and squish cast them on an old body. Then I tried something different and used melted sprue to cast them. It wasn't the best material to use but it worked. The toughest part was getting the sprue to fill the mold as it wanted to lift out. After adding more Ambroid to the mix it behaved better. I probably cast over a dozen hinges trying to get 4, but it was quick and cheap. You can see it got stringy as it was out of the jar longer. The photo's are of a set that had air bubbles and were recycled!
Posted Image
Posted Image

They are now glued (with regular styrene glue!) to the body and I got the window trim installed using .02 x .04 strips. The small window looks like it needs to be redone. It was protesting the bending and twist going around the small radius.
Posted Image

Edited by Foxer, 10 December 2010 - 08:10 AM.


#111 Chuck Most

Chuck Most

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 9,747 posts
  • Location:Michiganistan
  • Full Name:^See Above

Posted 10 December 2010 - 08:14 AM

Love watching this one progress, Mike! :)

#112 Danno

Danno

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 12,008 posts
  • Location:Okay. By now you all know ~ Aridzona.
  • Full Name:Nameless Natural Luminary

Posted 10 December 2010 - 08:59 AM

Nice!

:(

#113 crowe-t

crowe-t

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 512 posts
  • Location:New York
  • Full Name:Michael

Posted 10 December 2010 - 09:43 AM

Mike,

The new hinges look perfect and appear to be in scale too! Great work so far.

Mike.

#114 Foxer

Foxer

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 5,900 posts
  • Location:The Berkshires, Massachusetts
  • Full Name:Mike DeRagon

Posted 10 December 2010 - 10:28 AM

Mike,

The new hinges look perfect and appear to be in scale too! Great work so far.

Mike.



Thanks everyone. Unfortunately, these aren't the hinges that have been giving glue troubles. Those are for the back doors, but I think a solution is at hand. :(

#115 crowe-t

crowe-t

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 512 posts
  • Location:New York
  • Full Name:Michael

Posted 10 December 2010 - 10:41 AM

Thanks everyone. Unfortunately, these aren't the hinges that have been giving glue troubles. Those are for the back doors, but I think a solution is at hand. :lol:


What was I thinking! :lol: It's the opening doors you are having some trouble with.

Still, the side door hinges do look great.

#116 Foxer

Foxer

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 5,900 posts
  • Location:The Berkshires, Massachusetts
  • Full Name:Mike DeRagon

Posted 13 December 2010 - 11:18 AM

The small side window trim is being done over and thought I should show how I did the window trim. I taped a piece of index card behind the window opening to give something to act as a stop and guide to get the trim even with the inside edge of the body. I used .02" x .04" Evergreen strip as the body was a hair over .04" thick at the windows and the .02" thickness bent tight into the window radius. I worked around the window about 1/8" at a time as I positioned the trim strip and touched a fine brush of Ambroid plastic cement.

Posted Image

With this trim complete I can finally put a coat of primer on the whole body and start getting the little areas needing smoothing! :P

Note the fine hair focus on my camera! :lol:

Edited by Foxer, 08 March 2011 - 06:53 AM.


#117 charlie8575

charlie8575

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 6,512 posts
  • Location:Marlborough, Ma.
  • Full Name:Charlie

Posted 13 December 2010 - 11:25 AM

Impressive work with the window trim and those hinges, Mike. You're giving me ideas for a very challenging rebuild I'll have coming up.

Charlie Larkin

#118 Foxer

Foxer

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 5,900 posts
  • Location:The Berkshires, Massachusetts
  • Full Name:Mike DeRagon

Posted 13 December 2010 - 05:28 PM

Impressive work with the window trim and those hinges, Mike. You're giving me ideas for a very challenging rebuild I'll have coming up.

Charlie Larkin


Awesome, Charlie! If I remotely gave you a idea for one of your builds, I've done my job. :)

#119 cruz

cruz

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 4,563 posts
  • Location:Maryland
  • Full Name:Marcos Cruz

Posted 14 December 2010 - 10:07 AM

Love all those small and subtle details! :lol:

#120 Foxer

Foxer

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 5,900 posts
  • Location:The Berkshires, Massachusetts
  • Full Name:Mike DeRagon

Posted 16 December 2010 - 06:44 AM

Not on the body, but was a good first test of the paint. It looks like I got the wrong color from Paintscratch.com ... my fault. I was in another model where Medium Blue Metallic was the darkest color. I thought it looked light, but you never know from a computer image. This is definitely too light. I went back and put in the correct model, G3500, and there was a Dark Blue Metallic. This HAS to be the one, so maybe it will come by the time bodywork is done. A darn good chance there! :P

Anyway, this paint went on like butter as usual. I find their paints to go on very even and is easy to get a good paint job. It comes as a brush touch up paint so I added about a twice the paint amount in lacquer thinner to spray it.

Posted Image

Edited by Foxer, 08 March 2011 - 06:54 AM.
