85 GMC Van W.I.P. 1-28-13 DONE! DONE! DONE!


  • You cannot reply to this topic
400 replies to this topic

#121 charlie8575

charlie8575

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 6,512 posts
  • Location:Marlborough, Ma.
  • Full Name:Charlie

Posted 19 December 2010 - 06:37 AM

To my eye, Mike, that looks a lot like the blue vinyl GM used in its trucks at that time. It's a pretty color, too.

Charlie Larkin

#122 RyanSilva

RyanSilva

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 745 posts
  • Location:Massachusetts
  • Full Name:Ryan

Posted 19 December 2010 - 09:37 PM

Looking good Mike!

Update on the wheels are, I got the first master in silicone now curing, tomorrow I will see what my copy will look like, then I can fit one of my 8 bolt 3/4ton hub in the center. (stole it from a amt dirt track car)

What do the front wheels look like, just a dust cap conical type center?

#123 Foxer

Foxer

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 5,900 posts
  • Location:The Berkshires, Massachusetts
  • Full Name:Mike DeRagon

Posted 20 December 2010 - 05:41 AM

Looking good Mike!

Update on the wheels are, I got the first master in silicone now curing, tomorrow I will see what my copy will look like, then I can fit one of my 8 bolt 3/4ton hub in the center. (stole it from a amt dirt track car)

What do the front wheels look like, just a dust cap conical type center?



AWESOME! I will defiantly be getting a set! :)

#124 carchub

carchub

    MCM Avid Poster

  • Members
  • PipPipPipPipPip
  • 251 posts
  • Location:Portland, OR

Posted 20 December 2010 - 08:42 AM

This is so cool! This is what I hope to do in the future, I've always wanted to junk an old van like this! My dad used to have a Chrysler one from Holliday Inn, the only expense we ever made on it was gas prices (full tank was $67 in 2005!) because we bought it for $600 and sold it to a boneyard for $600!

Edited by carchub, 20 December 2010 - 08:43 AM.


#125 Foxer

Foxer

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 5,900 posts
  • Location:The Berkshires, Massachusetts
  • Full Name:Mike DeRagon

Posted 20 December 2010 - 11:23 AM

This is so cool! This is what I hope to do in the future, I've always wanted to junk an old van like this! My dad used to have a Chrysler one from Holliday Inn, the only expense we ever made on it was gas prices (full tank was $67 in 2005!) because we bought it for $600 and sold it to a boneyard for $600!


THIS is what I'm talking about! My daughter said she bought this van for $500 and sold it for the same :blink:

Don't know if any Chrysler vans are around, though.

Edited by Foxer, 25 December 2010 - 04:24 AM.


#126 carchub

carchub

    MCM Avid Poster

  • Members
  • PipPipPipPipPip
  • 251 posts
  • Location:Portland, OR

Posted 20 December 2010 - 12:54 PM

Don't know if any Chrysler vans are around, though.


It was more of a Dodge but it had the old Chrysler logo all over it

#127 RyanSilva

RyanSilva

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 745 posts
  • Location:Massachusetts
  • Full Name:Ryan

Posted 20 December 2010 - 02:12 PM

I just have one short section to fill with clay and it should be good to go, then I can work on the fronts, which would be very easy with the lathe.
I will keep the 3/4ton floater hub separate, so it can be used a 2wd truck also.. I will add a smooth slightly recessed center after.
Posted Image
Posted Image

Edited by RyanSilva, 20 December 2010 - 02:14 PM.


#128 Eshaver

Eshaver

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 3,868 posts
  • Location:Richmond Virginia for now
  • Full Name:Ed Shaver

Posted 20 December 2010 - 02:59 PM

Generally, I don't follow too many W I P stories here anymore. This time , the outstanding photography and actual storytelling caught my eye . Great body work as I used to manufacture parts for these vans . Ed Shaver

#129 Clay

Clay

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 2,758 posts
  • Location:Virginia Beach Va
  • Full Name:Clay Jones

Posted 20 December 2010 - 03:46 PM

Mike, you are doing an excellent job on this!! Maybe you can finish something this year!

#130 Foxer

Foxer

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 5,900 posts
  • Location:The Berkshires, Massachusetts
  • Full Name:Mike DeRagon

Posted 20 December 2010 - 05:12 PM

Ed and Clay, I really appreciate the comments. I'd have to bet it will be next year for a finish .. really do! B)

I got the new paint today and it IS the right stuff. I'll repaint the interior this week. The body is in primer and only needs me to get back and add the hinges before I start denting and rust holing it. (wow .. "holing" passed the spell check!)

Now, Ryan ... those rims look fantastic! B) When you're done, you be sure to post them in their own thread. I'm not sure how many have really seen them, though it seems there's plenty of lookers here. I'm sure you will have many takers for this set!

Now, tell me those AREN'T my rims! B)
Posted Image

Edited by Foxer, 20 December 2010 - 05:40 PM.


#131 Curtis v.

Curtis v.

    MCM Regular

  • Members
  • PipPipPip
  • 58 posts
  • Location:California
  • Full Name:Curtis

Posted 20 December 2010 - 06:16 PM

im not sure why but this really caught my eye and attention. i like the van builds and i like when people build replicas of their 1:1 cars. it looks really good an looking farward to more

#132 Foxer

Foxer

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 5,900 posts
  • Location:The Berkshires, Massachusetts
  • Full Name:Mike DeRagon

Posted 21 December 2010 - 11:01 AM

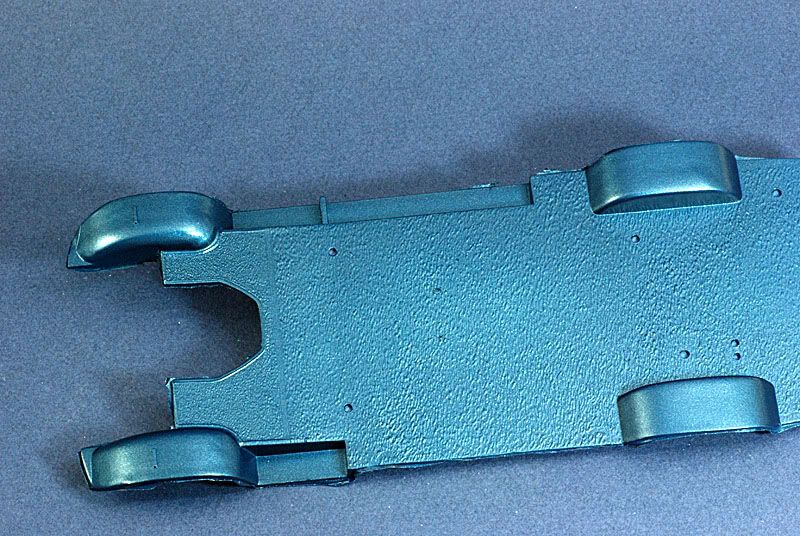

I'm back on the job after a few things got in my way. First, here's the correct Dark Blue paint.
Posted Image

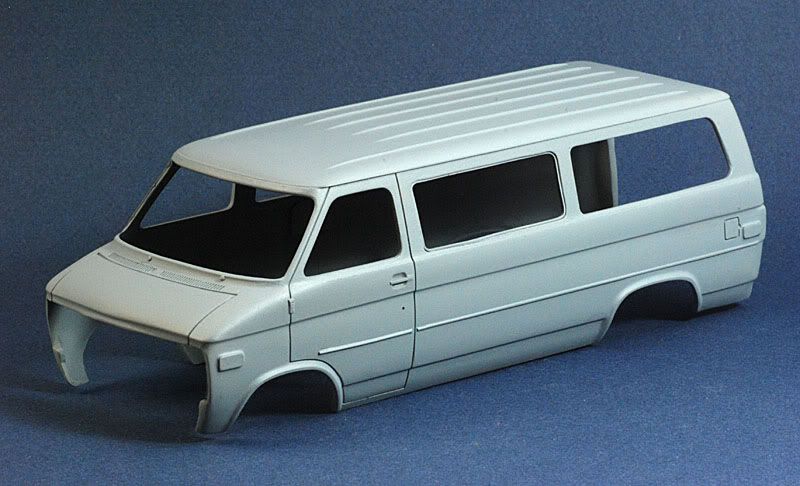

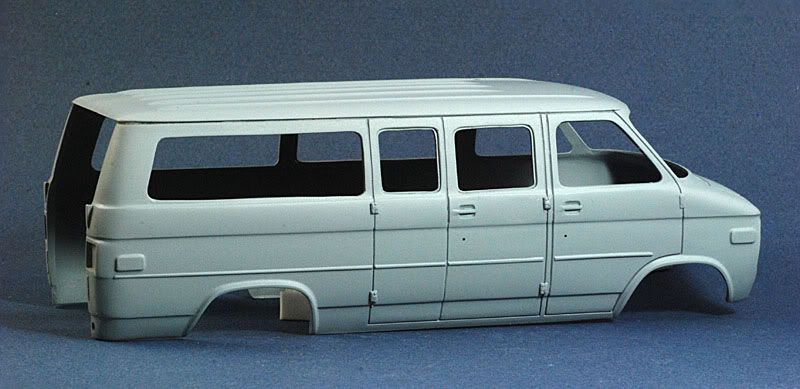

The body is in full primer and only awaits the hinges ....
Posted Image
Posted Image

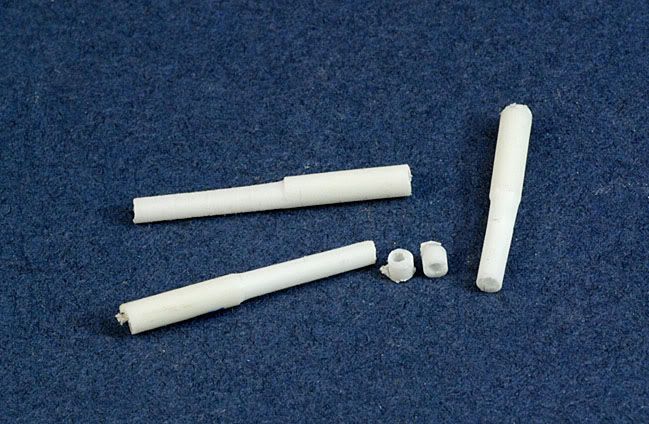

Speaking of hinges, I finally bit the bullet and started cutting the whittled down plastic tube into hinge lengths. While filing down the 3/32" (.0928) tube the inner hole became off center. The tube was chucked in a Dremel and I used a heavy sanding stick to take down the OD. I'm not sure why it ended with one wall thinner on one side using this method, but looking now at the photo I see I must have exerted uneven pressure on the sanding stick end to end along the tube. I had to stop around .073" OD as the wall got thin, but it's much better than the original ... even if 1.75" OD hinges ARE big! I feel good finally about these. :)
Posted Image

Edited by Foxer, 21 December 2010 - 11:04 AM.


#133 W-409

W-409

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 5,334 posts
  • Location:Vantaa, Finland
  • Full Name:Niko Lindström

Posted 21 December 2010 - 07:26 PM

I have been watching your GMC Van project. This one looks very good so far. Lots of modifications you have done, all of them are very nicely made, I mean that everything looks like how they are in 1:1 and those parts are sanded smooth. Awesome job with it so far, can't wait to see, what is coming in next update. :lol:

#134 Foxer

Foxer

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 5,900 posts
  • Location:The Berkshires, Massachusetts
  • Full Name:Mike DeRagon

Posted 23 December 2010 - 10:40 AM

First, the hinges have have continued fighting me and getting absolutely dangerous! As I was cutting the tube and trimming the cut, I dropped the knife and instinctively closed my legs to catch it ... I did ... completely horizontal between my thighs and drove the blade into one thigh. It bled like a stuffed pig but did finally stop and close. Just another day in the shop. :lol:

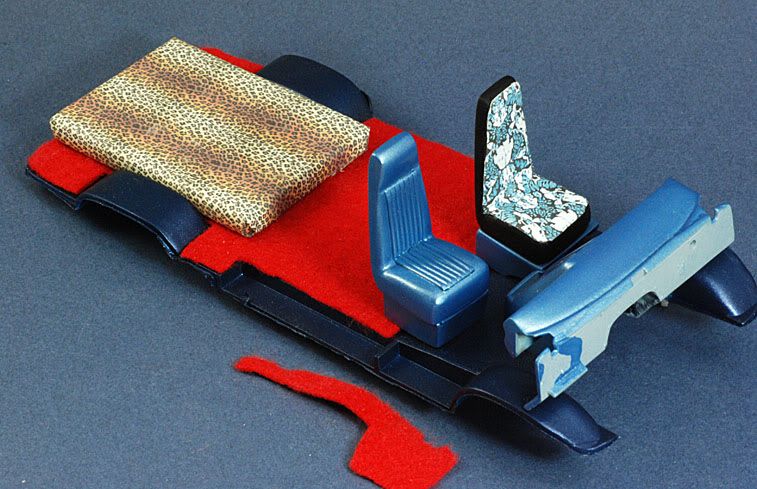

So, I went on to finish the seats and made the mattress for the rear. Both patterns were printed out on good quality paper and stuck with Household Goo. That worked well. The passenger seat is the stock one with some half rounds giving the pattern on the new molded seat.

Posted Image

Edited by Foxer, 23 December 2010 - 10:42 AM.


#135 Clay

Clay

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 2,758 posts
  • Location:Virginia Beach Va
  • Full Name:Clay Jones

Posted 23 December 2010 - 10:52 AM

Great Job on it Mike! You are getting closer to finishing this one!

#136 Foxer

Foxer

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 5,900 posts
  • Location:The Berkshires, Massachusetts
  • Full Name:Mike DeRagon

Posted 23 December 2010 - 10:58 AM

Great Job on it Mike! You are getting closer to finishing this one!


Thanks, Clay ..but I don't understand that "finishing" word you used .... :lol:

#137 Curtis v.

Curtis v.

    MCM Regular

  • Members
  • PipPipPip
  • 58 posts
  • Location:California
  • Full Name:Curtis

Posted 23 December 2010 - 11:10 AM

wow it looks like its comin together real nice.

#138 crowe-t

crowe-t

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 512 posts
  • Location:New York
  • Full Name:Michael

Posted 23 December 2010 - 11:15 AM

Mike,

The interior is incredible! The pattern on the driver's seat is exact. Where did you find it?

Edited by crowe-t, 23 December 2010 - 11:15 AM.


#139 charlie8575

charlie8575

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 6,512 posts
  • Location:Marlborough, Ma.
  • Full Name:Charlie

Posted 23 December 2010 - 11:19 AM

I've really enjoyed watching this Mike. Great work on this project.

Charlie Larkin

#140 Clay

Clay

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 2,758 posts
  • Location:Virginia Beach Va
  • Full Name:Clay Jones

Posted 23 December 2010 - 11:31 AM

Thanks, Clay ..but I don't understand that "finishing" word you used .... :lol:

Its when you run out of parts to put on a build, that's called "finished", they go in the "finished" section.
You know the section right underneath this section, its called the Under Glass section. Thats where the "finished" models go.
