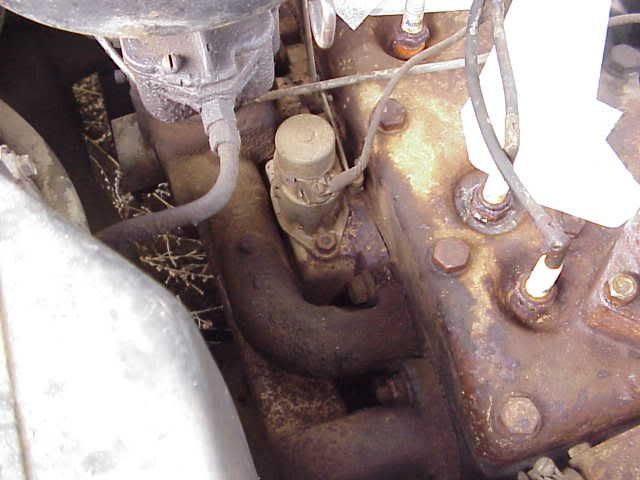

I'm thinking of getting back to the build of my '51 Plymouth straight 6 engine and one thing that put a pause on it was modeling the spark plug connectors. These are those old metal connectors .. made from sheet metal with a 90 degree bend and clamped around the wire with a press fit to the plug. They were all bare metal and were about the wire insulation diameter. I found one photo below.

Some thoughts I had were slitting the plug wire insulation so it would bend to 90 degrees, gluing and painting silver. I think this might be a tough glue job without making some jig.

I do have some rubber spark plug boots that I could just paint silver but these are large compared to the plug wire. Last possibility I will just use there as is. I do have some cast spark plugs I'd like to use and these would cover more of the plug that I want to.

Any thoughts on this would be greatly appreciated.

Posted Image

Edited by Foxer, 29 March 2011 - 09:49 AM.


#2 Jantrix

Jantrix

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 6,821 posts
  • Location:Tampa, FL. USA
  • Full Name:Rob Mattis

Posted 29 March 2011 - 11:51 AM

Wrap end of wire with BMF, bend the wrapped end 90 degrees over a sharp angle. A small piece of styrene rod will do for the spark plug. That aughta do it, aside from weathering.

#3 southpier

southpier

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 2,480 posts
  • Location:northeast coast
  • Full Name:joe smythe

Posted 10 January 2015 - 04:46 AM

the model plane guys take this to the max:  http://www.ww1aircra...com/page47.html



Wingnuts plane kits are generally 1/32 scale.

Attached Files



#4 blunc

blunc

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,358 posts
  • Location:phx, az
  • Full Name:mike cassidy

Posted 10 January 2015 - 09:57 AM

photo research has shown these engines with straight plug boots, 90-deg boots and no boots at all.



if you are trying to replicate the plug wires in your photo, I suggest making your own plugs...



drill a hole into plastic rod that you will use as the porcelain part of the plug and insert the bare plug wire (remove the outer insulating layer) with a crisp 90-deg bend into the drilled rod, then drill a hole into some Plastruct hex rod to insert the "porcelain" rod into, mount this into the spark plug holes and complete the paint detailing.



#5 my80malibu

my80malibu

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,903 posts
  • Location:Gilbert Arizona
  • Full Name:GABRIEL SOTO

Posted 10 January 2015 - 12:28 PM

You could  center drill the spark plug, then strip the insulation back some,  insert the wire securely, then add a little putty, or sculpt the porcelain. Almost to the top leaving a small bit of expsoed wire.



#6 Foxer

Foxer

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 6,373 posts
  • Location:The Berkshires, Massachusetts
  • Full Name:Mike DeRagon

Posted 10 January 2015 - 01:14 PM

Wow .. new answers!  Thanks guys ... I haven't done this yet, so it's much appreciated.  I have some sparkplugs already so don't have to do those.



I was going to try Jantrix's suggestion ... may just do it.



#7 Tom Geiger

Tom Geiger

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 6,482 posts
  • Location:Exton, PA
  • Full Name:Tom Geiger

Posted 11 January 2015 - 04:47 PM

Mike, I have an album with some 1:1 engine pictures....



http://public.fotki...._flat_head_six/












And some pictures of the one I built, that sits in my '34 Ford sedan...



#8 Foxer

Foxer

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 6,373 posts
  • Location:The Berkshires, Massachusetts
  • Full Name:Mike DeRagon

Posted 12 January 2015 - 04:14 AM

Thanks for the photo link. Tom. Like all my builds, I'll get back to the engine eventually. :lol: :D



Now I'm thinking of notching the smallest aluminum tube available and bending it to 90 degrees. That might be oversize but look right after some corrosion is applied.


Edited by Foxer, 12 January 2015 - 04:17 AM.


#9 southpier

southpier

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 2,480 posts
  • Location:northeast coast
  • Full Name:joe smythe

Posted 12 January 2015 - 05:50 AM

I think that's what spoils the illusion, especially on what gets used for "boots". looks like garden hose compared to fine plug wires.





I've ordered parts and am going to try these (from the cylinder above). if the 1/35 scale guys can do it ....   he says in fine print ...





Attached Files
