This is a build of the 1967 TR4A I had when I exited the Army in 1969. I have an Airfix TR4A kit which is pretty detailed for a 1/32 model including a full engine. But, I'm a scale tyrant and I like all the builds on my shelf to match, so 1/25 - 1/24 is my preference. Therefore I picked up the Air-Trax TR4 resin kit. The link has some photos of what is included in this resin kit. A Gunze Sangyo Triumph TR3 is the recommended donor kit and the Minicraft 1858 Triumph TR3A kit is mentioned as another possible donor. I have both kits so will show a bit of both and how I decided which to use.

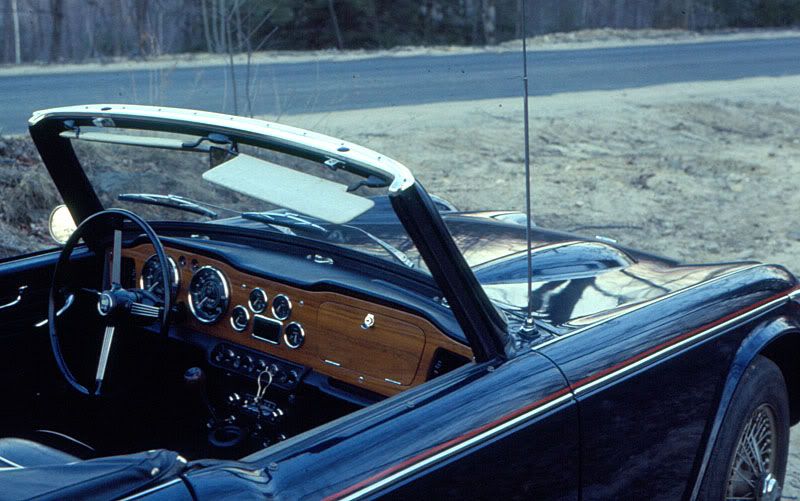

So here's a few shots of my 1:1 to start. I drove it all year as I was stationed about a hour and half away at Ft. Devens, MA waiting for my Medical discharge. Just throw some chains on for those bad days. :unsure:

Posted Image
Posted Image
Posted Image

Edited by Foxer, 18 July 2011 - 03:35 PM.


#2 Foxer

Foxer

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 5,975 posts
  • Location:The Berkshires, Massachusetts
  • Full Name:Mike DeRagon

Posted 11 June 2011 - 07:12 AM

The Air-Trax body is pretty thick and needed some grinding to fit the "frame/wheel wells" from the donor kits. The Gunze kit has the floor pan molded separately needing the firewall and front wheel wells added. I glued them with superglue so I could test fit. Below is the body and a couple shots after grinding.

Posted Image
Posted Image

Here is the Gunze Sangyo frame assembly stuck into the body. This will need additional massaging to fit.
Posted Image
Posted Image

The Minicraft frame is all one piece and I like how it fits. I cut about an eight of an inch off the back and cut it flush to the wheel wells at the front. I think this one is gonna be the keeper for the build. The rear of the front wheel wells needs to be rebuilt to slope backwards to match the body openings.
Posted Image
Posted Image


I welcome all questions, comments, or criticisms

Edited by Foxer, 08 July 2011 - 04:39 AM.


#3 DanielG

DanielG

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 617 posts
  • Location:left coast
  • Full Name:Daniel

Posted 11 June 2011 - 08:13 AM

Ouch! I had a Sunbeam Alpine the first winter that I spent in Saskatoon. I drained it and parked it for the winter and sold it the next fall.

#4 crazyjim

crazyjim

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 11,759 posts
  • Location:Citrus Springs, FL

Posted 11 June 2011 - 09:47 AM

Somebody had a TR4A IRS when I was in college and I wanted one. Never got it. Nice looking cars.

#5 charlie8575

charlie8575

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 6,628 posts
  • Location:Marlborough, Ma.
  • Full Name:Charlie

Posted 11 June 2011 - 10:14 AM

I'll be watching with interest Mike, as Airtrax has a couple of kits that are kinda on my "watch" list.

Charlie Larkin

#6 Foxer

Foxer

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 5,975 posts
  • Location:The Berkshires, Massachusetts
  • Full Name:Mike DeRagon

Posted 11 June 2011 - 10:32 AM

Somebody had a TR4A IRS when I was in college and I wanted one. Never got it. Nice looking cars.


The TR4A introduced IRS (Independent Rear Suspension) to the Triumph line. Would you believe, I sold the TR4A when I went back to college assuming I could never get my speakers and gear in it for the 14 hour drive to Indiana. I got a VW Beetle for that move. :o I was always sorry for it .... ^_^

The Air-Trax kit actually comes with a one piece engine and a few pieces that look like the intake manifold (they are all out in the Westley's Bleach right now and can't look). I keep thinking it would be great to open the hood and drop the engine in, but it would triple the work I'd have to do and my competition rate has been bad enough as it is! :P

Edited by Foxer, 11 June 2011 - 10:37 AM.


#7 Jim Gibbons

Jim Gibbons

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 762 posts
  • Location:Poughkeepsie, NY
  • Full Name:Jim Gibbons

Posted 11 June 2011 - 03:24 PM

Very cool! Back in the late '70s, a friend had a red TR4, along with a really cool Triumph Herald drophead. Looking forward to your progress.

#8 Terry Sumner

Terry Sumner

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,456 posts
  • Location:Connecticut
  • Full Name:Terry Sumner Sr.

Posted 11 June 2011 - 04:38 PM

In 1971 I owned a 1968 TR250. For those who don't know, this was the transition year when Triumph went from the TR4A to the TR6. It was basically the TR4A body and frame with the TR6 6 cylinder engine. Mine was red with a sliver stripe across the front end. Loved that little car but there was ALWAYS some small thing going wrong with it, especially with the Lucas electrics!!! I mean mostly small things like switches breaking, a door handle falling off...things like that. Then one day I backed out of the driveway, put it in first to take off and the tranny went! I was a student in Trade School for Tool and Die making at the time and I ended up making new gears in school. Sometimes I wish I still had that car but I'd have a hard time getting into it now! :)

#9 W-409

W-409

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 5,519 posts
  • Location:Vantaa, Finland
  • Full Name:Niko Lindström

Posted 11 June 2011 - 09:03 PM

Interesting project going on. Great to see these Finnish resin kits being built. I like that car, body design is good. Progress looks great too, can't wait to see this one finished. Great Job.

#10 Foxer

Foxer

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 5,975 posts
  • Location:The Berkshires, Massachusetts
  • Full Name:Mike DeRagon

Posted 12 June 2011 - 02:00 AM

Loved that little car but there was ALWAYS some small thing going wrong with it, especially with the Lucas electrics!!! I mean mostly small things like switches breaking, a door handle falling off...things like that.



Now I remember why I sold it ... B)

#11 Jackson

Jackson

    MCM Regular

  • Members
  • PipPipPip
  • 36 posts
  • Location:USA
  • Full Name:Jackson Taylor

Posted 12 June 2011 - 05:25 AM

Looks like a fun project!

#12 roadhawg

roadhawg

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,251 posts
  • Location:Canton GA
  • Full Name:Tommy Logan

Posted 12 June 2011 - 10:46 AM

Very cool project, and I'll be watching too. I really love those ol' Triumphs. My best friend in middle school had a big brother that owned a TR6, and I guess I just developed a soft spot for them.

#13 Erik Smith

Erik Smith

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 2,815 posts
  • Location:Spokane, WA
  • Full Name:Erik Smith

Posted 12 June 2011 - 01:09 PM

Nice project. I am a fan of most 60s era two seat roadsters and really like the looks of the TR-4. I too have the 1/32 airfix kit bit would love to see this 1/24 version go together.
How is the quality of the body and other parts on the Air-Trax kit?

Edited by Coyotehybrids, 12 June 2011 - 01:11 PM.


#14 vintagercr

vintagercr

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 730 posts
  • Location:Belleville, ON
  • Full Name:Stephen Martin

Posted 12 June 2011 - 02:36 PM

I vintage raced a 62 TR 4 in the mid 80's and then kids came along. It was a fun car to race at Mosport.

#15 Foxer

Foxer

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 5,975 posts
  • Location:The Berkshires, Massachusetts
  • Full Name:Mike DeRagon

Posted 12 June 2011 - 03:32 PM

I'm overwhelmed at the TR experience and love here. :unsure:

I DO have to put in a bad word for SU carb syncing, though. :D




Body has been soaking in the Westly's last day or so but grinding will recommence tomorrow.

#16 Foxer

Foxer

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 5,975 posts
  • Location:The Berkshires, Massachusetts
  • Full Name:Mike DeRagon

Posted 13 June 2011 - 04:23 AM

A lot more grinding and fitting today, mostly on the interior panels as the frame is fitting well. I will need to make a floor, hopefully the Minicraft TR3 floor will work with some mods.

The need for reshaping of the rear of the wheel wells can be seen in this photo. This is due to the difference in shape for the TR4 and TR3 wheel openings. It should only need some trimming and added sheet plastic to get the slope.
Posted Image

The interior panels need considerable sanding to get a fit along the body edges. The photo gives an idea of the work required and much more needed. I will have to make a tonneau cover for the top so most of the edges won't be seen and I can ease up on this a bit. I wonder if some kit has something I could adopt for the tonneau cover?

Posted Image

The seats from the Gunze kit are close to the correct shape for an American TR4A and I'll be using them. The black seat is the Gunze and the white one is the resin Air-Trax seat. It is shaped like a TR3 seat and maybe the European TR4's were the same.
Posted Image

Edited by Foxer, 08 July 2011 - 04:40 AM.


#17 Foxer

Foxer

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 5,975 posts
  • Location:The Berkshires, Massachusetts
  • Full Name:Mike DeRagon

Posted 28 June 2011 - 07:47 AM

I made some progress finishing off the body. There were pinholes along the bottom edges and along one front fender top chrome strip.
Posted Image

The bottom edge of the trunk was really a mess with holes spaced along the edge. I did some putty on it and scraped the line but most of the putty came out before the primer coat to check things. I may have to fill the whole thing and re-scribe a new line.
Posted Image

I also did more grinding on the body edges and wheel wells thinning to less than half the original thickness. The front grill area needs shaping with putty on the driver's side to proper shape. I will have to create the rear wheel wells that intrude on the interior. The rear and side pieces that come with the kit are contoured to fit around them but neither TR3 donor kit has these sections of wheel well with them. The TR3's use separate interior pieces that are not correct for a TR4.

As a whole the body is good but it is very thick and the areas mentioned need bodywork to bring back the shape. I wouldn't recommend this one to a beginner. I believe the later body's by Air-Trax are much higher quality.
Posted Image
Posted Image

The PE pieces for the grill, logos and steering wheel do look fantastic.
