OL 10.5 / ODR Corvette


  • You cannot reply to this topic
43 replies to this topic

#1 Dom87SS

Dom87SS

    MCM Regular

  • Members
  • PipPipPip
  • 83 posts
  • Location:Mchenry, IL
  • Full Name:Dom

Posted 02 January 2012 - 03:41 PM

this is my first attempt at trying to build a Outlaw 10.5/Outlaw Drag Radial type car. its to be based on a new ZR1 vette, and im not certain exactly all what i want to do as far as engine and detail etc. i was on the fence about doing this because well diving into a project like this can be a bit much. So enough chatter here are a few pics of what i started this weekend.

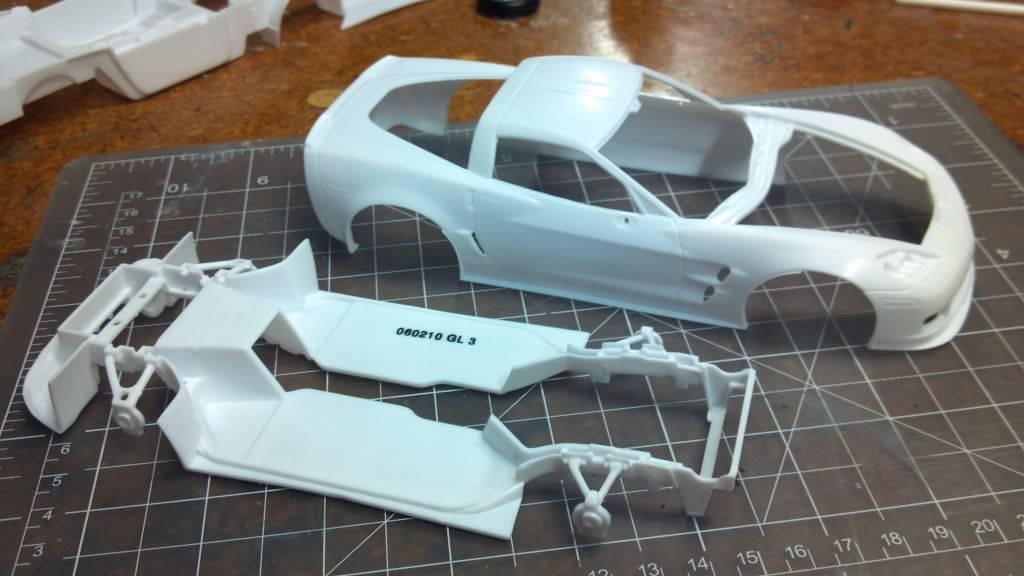

right out of the box

Posted Image

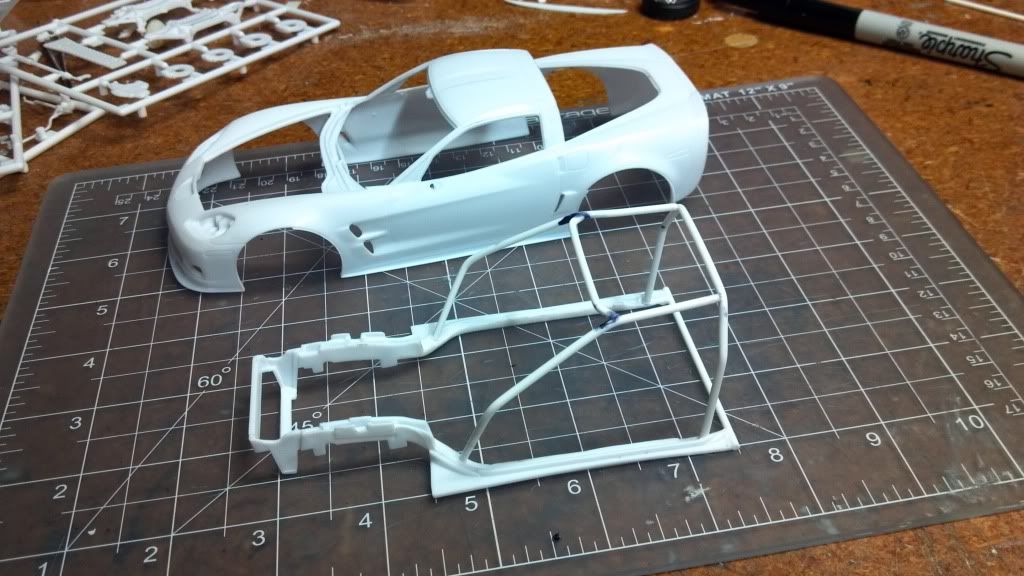

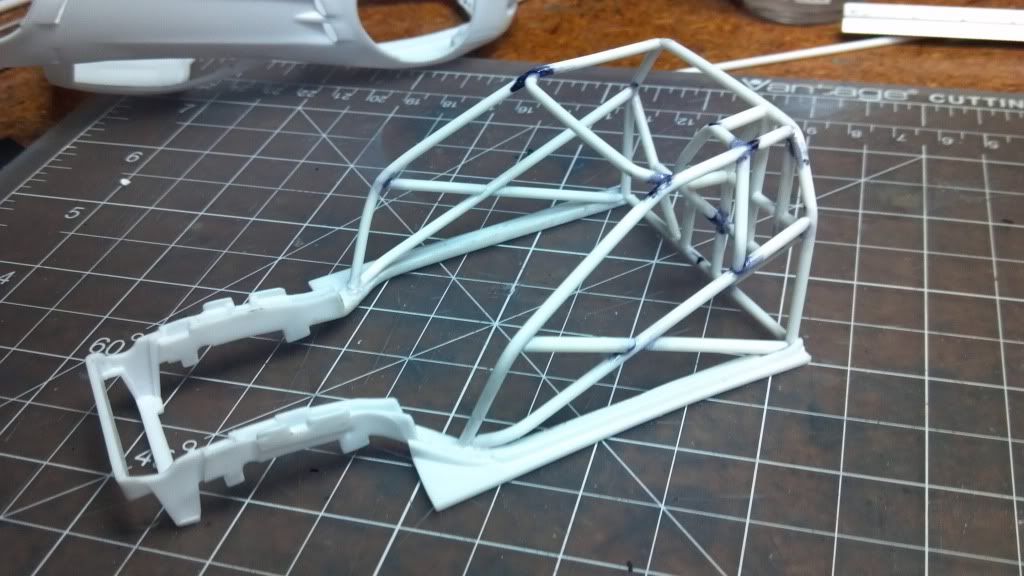

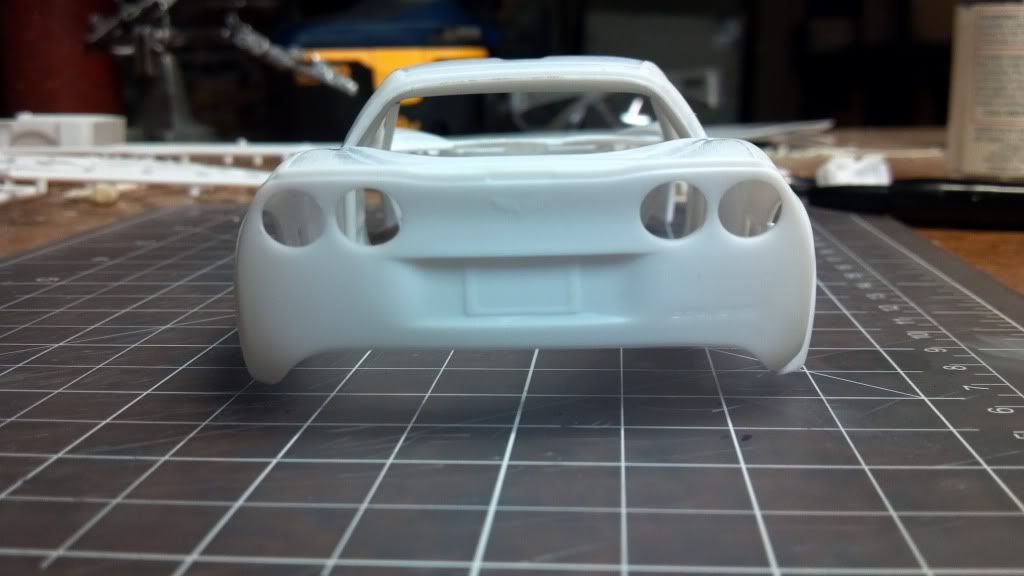

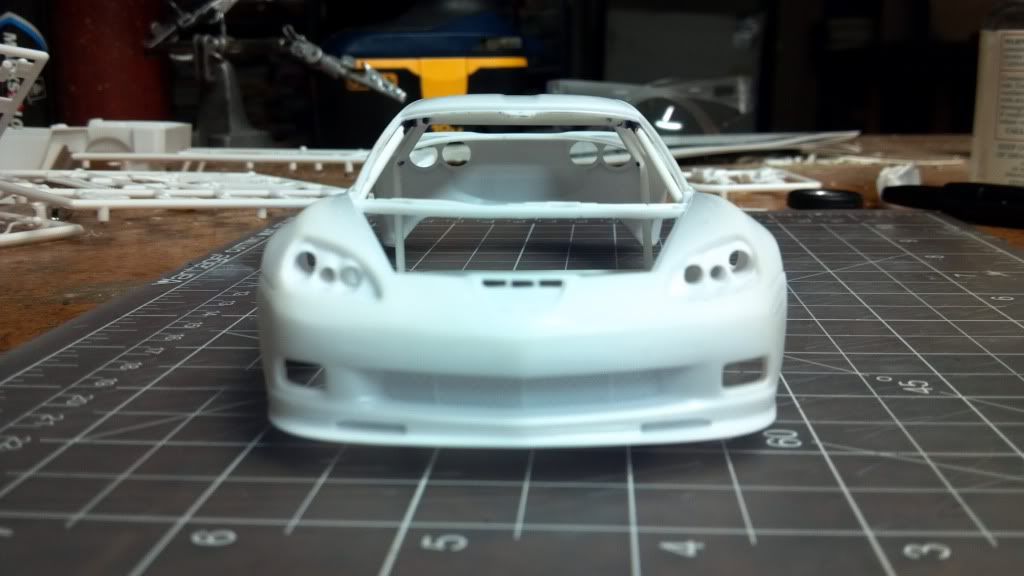

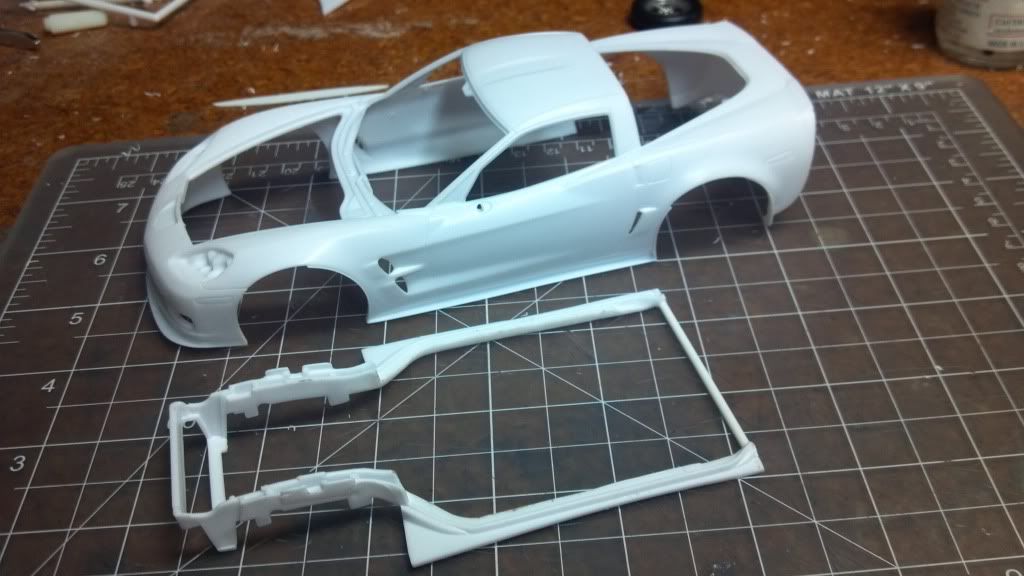

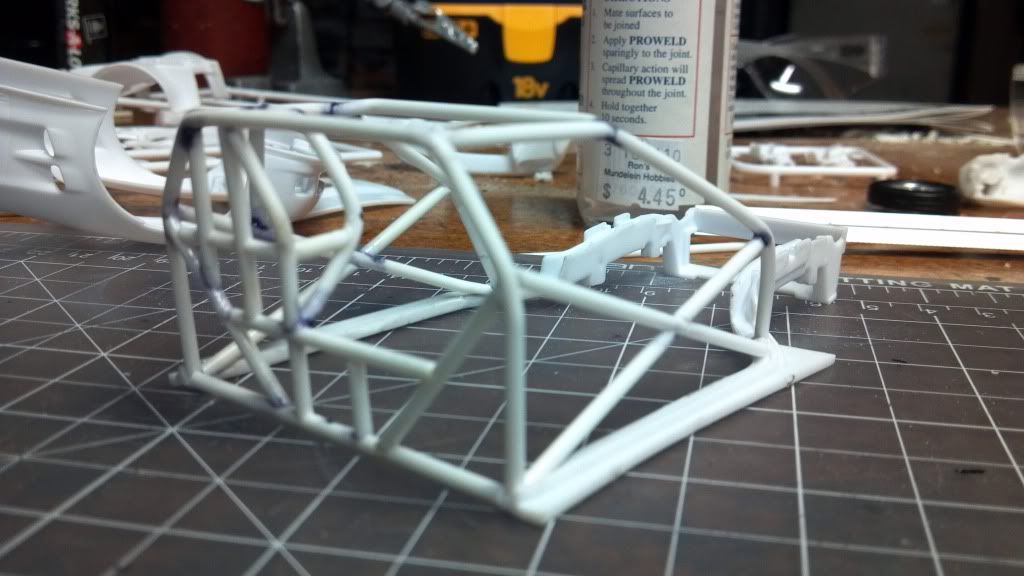

and the cutting got under way'

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Edited by Dom87SS, 02 January 2012 - 03:45 PM.


#2 Dom87SS

Dom87SS

    MCM Regular

  • Members
  • PipPipPip
  • 83 posts
  • Location:Mchenry, IL
  • Full Name:Dom

Posted 02 January 2012 - 03:45 PM

Posted Image

Posted Image

#3 thumper86

thumper86

    MCM Avid Poster

  • Members
  • PipPipPipPipPip
  • 398 posts
  • Location:sault ste. marie
  • Full Name:robert quimby

Posted 02 January 2012 - 03:48 PM

Way to go Dom looking killer!

#4 tyrone

tyrone

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,914 posts
  • Location:Augusta, Georgia
  • Full Name:Tyrone Price

Posted 02 January 2012 - 03:53 PM

this looks awesome so far....

#5 Prostreet

Prostreet

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,314 posts
  • Location:PA
  • Full Name:Joe Beard

Posted 02 January 2012 - 03:57 PM

Nice start Dom, i seen your impala, can't wait to see where you go with this.

#6 Dom87SS

Dom87SS

    MCM Regular

  • Members
  • PipPipPip
  • 83 posts
  • Location:Mchenry, IL
  • Full Name:Dom

Posted 02 January 2012 - 04:02 PM

yeah the impala is why im doing this. i took it out and couldnt figure out what to do next. a lot needs to be done on it but i am at a stand still on it. So a new project has begun. This is now my 3rd cage im doing, and im learning a little more each time i make new pieces.

#7 outlaw105

outlaw105

    MCM Friend

  • Members
  • PipPipPipPip
  • 134 posts
  • Location:Va
  • Full Name:RG Jr.

Posted 02 January 2012 - 04:12 PM

Looks good Dom... Have you decided on a power adder yet?


EDIT: I just read your first post

Edited by outlaw105, 02 January 2012 - 04:13 PM.


#8 Dom87SS

Dom87SS

    MCM Regular

  • Members
  • PipPipPip
  • 83 posts
  • Location:Mchenry, IL
  • Full Name:Dom

Posted 02 January 2012 - 04:58 PM

Right now I'm thinking a 737 BBC with twin 88s. Not certain though but I have a new Ross Gibson engine that would fit the bill. Time will tell I guess.

#9 W-409

W-409

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 5,152 posts
  • Location:Vantaa, Finland
  • Full Name:Niko Lindström

Posted 02 January 2012 - 09:40 PM

This is great project, I'll be watching it for sure. I've been wanting to build Corvette Drag Car too-and I mean this kind of Corvette. Great job on the cage so far, keep it coming.

#10 pharr7226

pharr7226

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 922 posts
  • Location:Atlanta, GA
  • Full Name:Rick

Posted 03 January 2012 - 08:40 AM

The chassis is looking great.

#11 Dom87SS

Dom87SS

    MCM Regular

  • Members
  • PipPipPip
  • 83 posts
  • Location:Mchenry, IL
  • Full Name:Dom

Posted 06 January 2012 - 08:29 AM

just made the turbos today, its going to have twin 91mm's and most likely will feed the 737 BBC which will be injected. So i need to design a new intake manifold and get that made next.

#12 Dom87SS

Dom87SS

    MCM Regular

  • Members
  • PipPipPip
  • 83 posts
  • Location:Mchenry, IL
  • Full Name:Dom

Posted 06 January 2012 - 08:40 AM

here is the 91mm turbo, i made it with 4 different clock positions because i didnt know exactly where i want to put them or how i want to mount them yet.

Posted Image

#13 jeff ewaskey

jeff ewaskey

    MCM Friend

  • Members
  • PipPipPipPip
  • 234 posts
  • Location:Weirton.WV
  • Full Name:Jeff Ewaskey

Posted 06 January 2012 - 08:49 AM

I am seriously diggin your Vette build and those turbos look absolutely killer. Great job so far so keep it rolling. I will be watching this.

#14 outlaw105

outlaw105

    MCM Friend

  • Members
  • PipPipPipPip
  • 134 posts
  • Location:Va
  • Full Name:RG Jr.

Posted 06 January 2012 - 09:30 AM

The turbos are looking good Dom...

#15 tyrone

tyrone

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,914 posts
  • Location:Augusta, Georgia
  • Full Name:Tyrone Price

Posted 06 January 2012 - 09:44 AM

Those are some of the BEST turbos I've ever seen....

Edited by tyrone, 06 January 2012 - 12:16 PM.


#16 Dom87SS

Dom87SS

    MCM Regular

  • Members
  • PipPipPip
  • 83 posts
  • Location:Mchenry, IL
  • Full Name:Dom

Posted 06 January 2012 - 11:38 AM

they arent totally accurate (too many blades, space between compressor and exhaust housing, exhaust housing size) but for me they are good enough and im not redesigning them because they took a while to get them where they are. either way they should look sweet once all done up.

#17 thumper86

thumper86

    MCM Avid Poster

  • Members
  • PipPipPipPipPip
  • 398 posts
  • Location:sault ste. marie
  • Full Name:robert quimby

Posted 06 January 2012 - 12:01 PM

Those are some of the BEST turbos I've ever saw....

X2

#18 Dom87SS

Dom87SS

    MCM Regular

  • Members
  • PipPipPip
  • 83 posts
  • Location:Mchenry, IL
  • Full Name:Dom

Posted 06 January 2012 - 03:45 PM

so i started putting the motor together tonight. had an extra intake layin around so i put it on just to see, and low n behold it fit under the stock hood. granted the intake is for a standard deck BBC, but was still cool to see it under there. im going to have to lengthen it front to back, add some length to the runners so i can add a second set of injectors, and make the runners bigger. so it most likely wont fit under the hood, but itll be close and wont need a lot of modifying which was the hope.

Posted Image

Posted Image

#19 Prostreet

Prostreet

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,314 posts
  • Location:PA
  • Full Name:Joe Beard

Posted 06 January 2012 - 06:31 PM

Nice work on the turbos, they look great.

#20 custompainter

custompainter

    MCM Member

  • Members
  • PipPip
  • 21 posts
  • Location:Gurnee Il.
  • Full Name:Don

Posted 07 January 2012 - 03:27 PM

Which kit did you start with? I would like to do one myself. Great job!
