How to: Zip ties.
Discovered this a few days ago and figure it might be helpful to any one building in large scale.

You’ll need some heat shrink tube, pin vise and tiny drill bit, and some scissors. Sorry if my descriptions don’t make sense the pictures should make up for it.

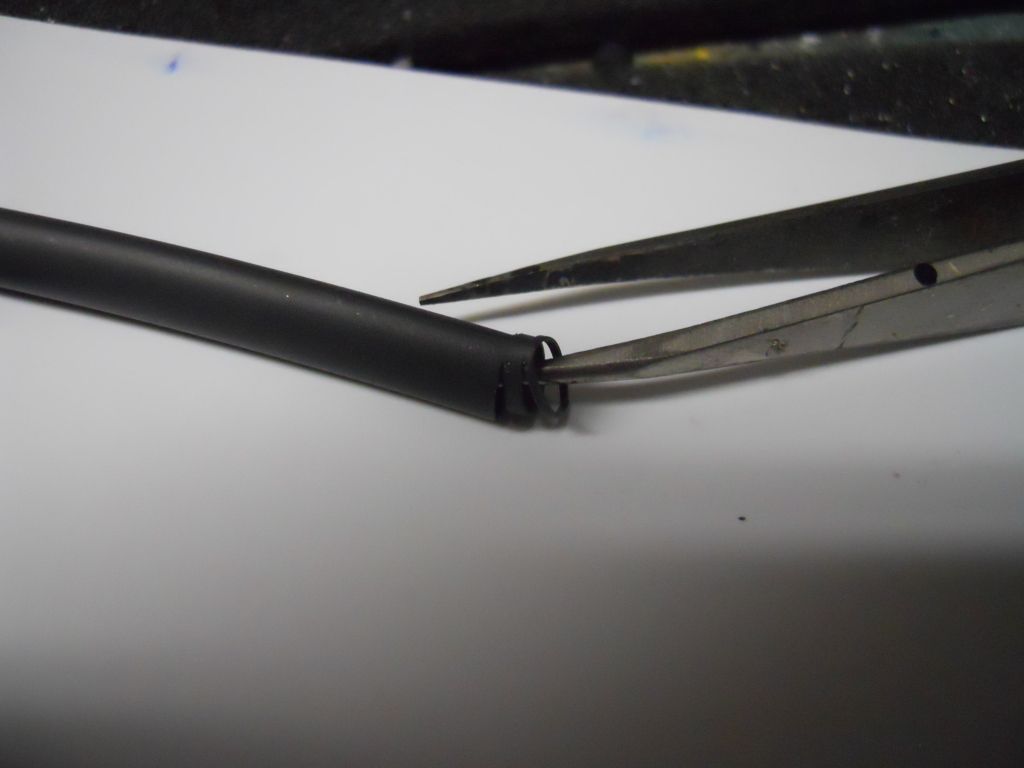

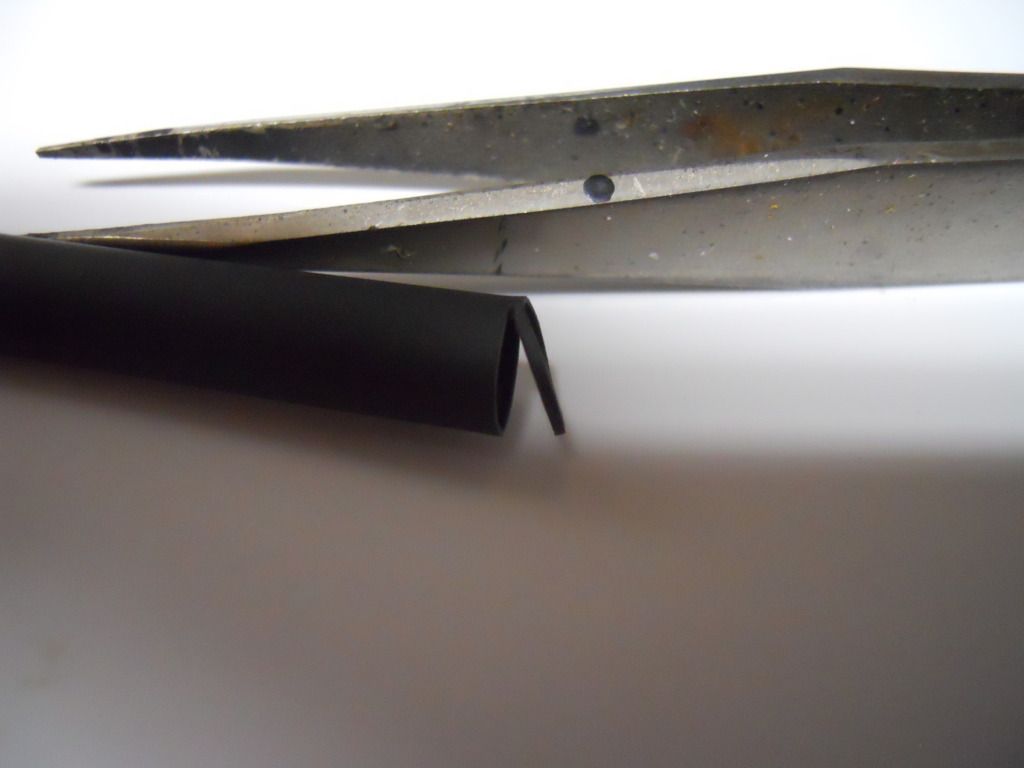

First Square up the end of the tube then cut up on the tube leaving but stops the cut before cutting all of the tube.

Posted Image

On the top there should be 2-3 ish mm left.

Posted Image

Then do the same thing again a few mm next to it, in this picture I made the zip tie way to wide, which can be fixed later.

Posted Image

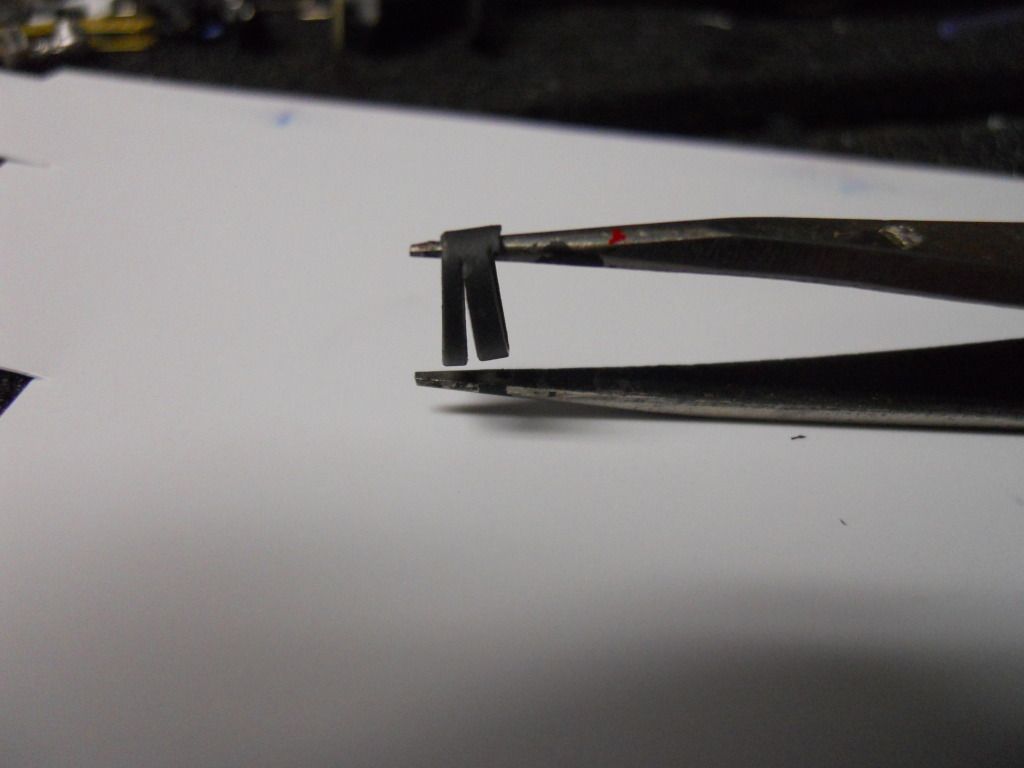

Now about an mm away cut the tube all the way, and then cut in on where you have left some of the tube. The Right side has had this done.

Posted Image

Continue doing this on the other side, you should end up with a watch shaped thing.

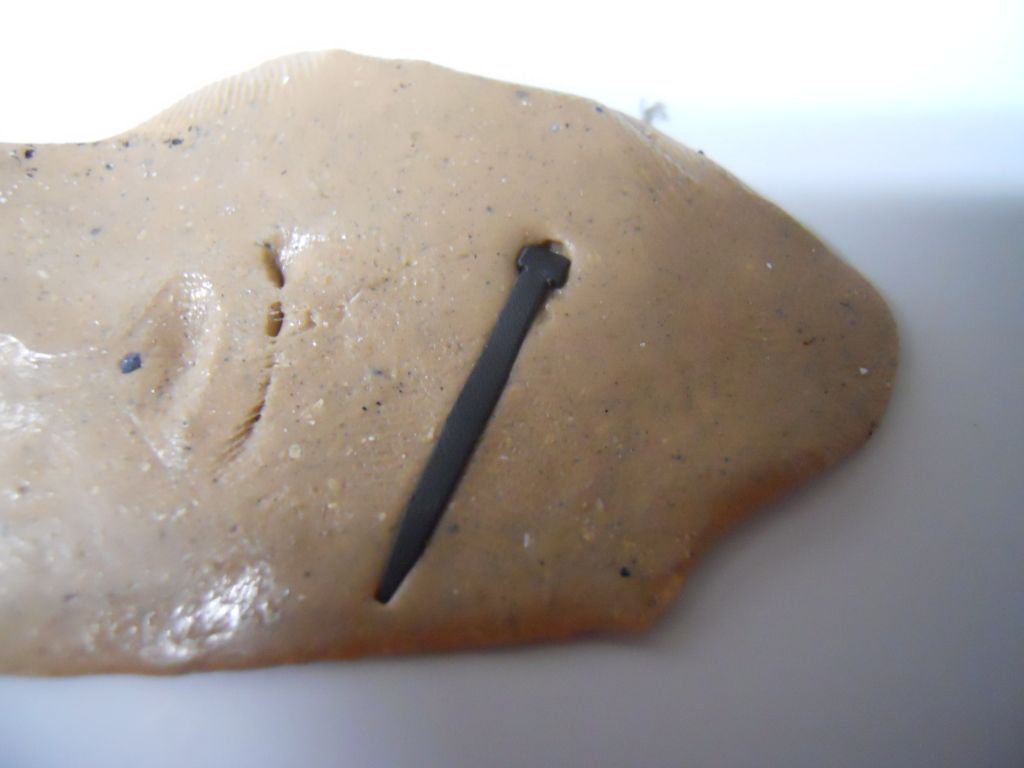

Now on one side of the rectangle cut the piece separate. Shape the new piece like this: (at this point the zip tie is still in a circle form, so I flatten it out in silly putty while you work on it)

Posted Image

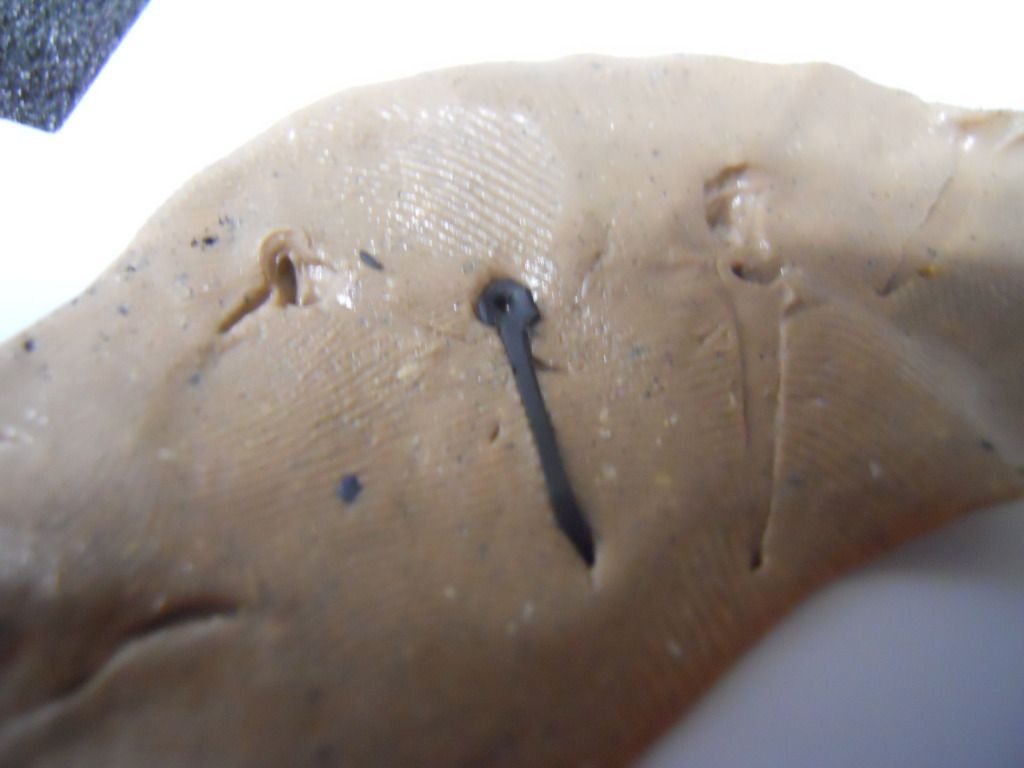

Then drill a hole in the top and round off the edges, at this point I realized this was way too wide so I cut it down.

Posted Image

The next part pretty self-explanatory just act like normal zip ties.

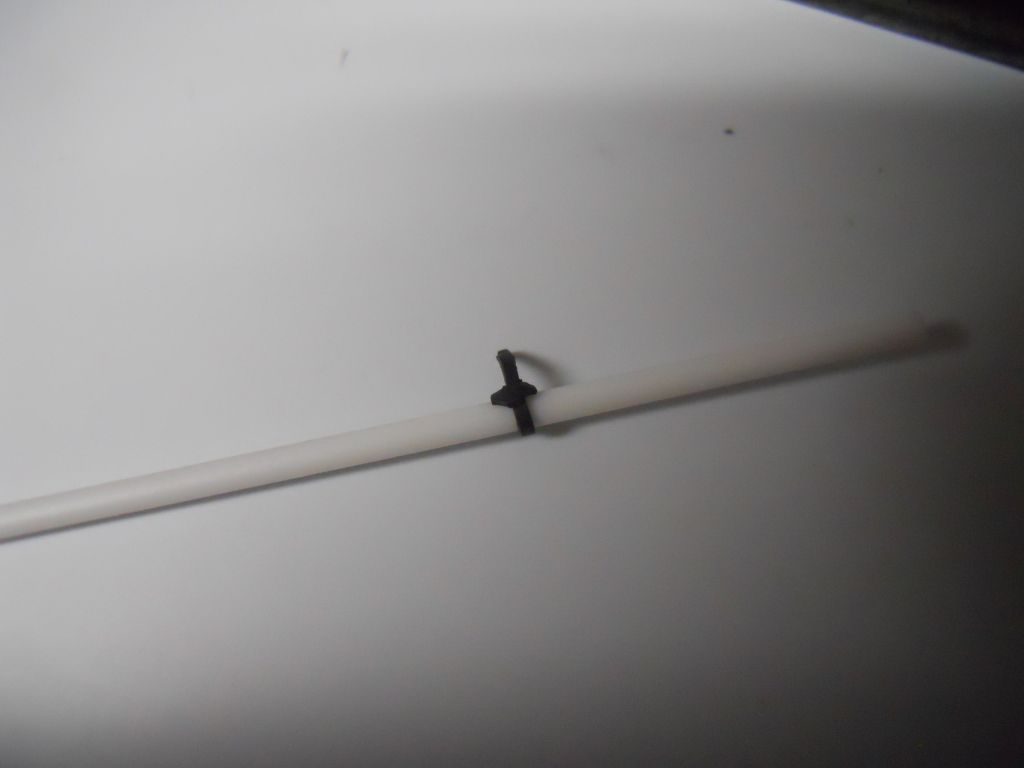

Here’s it installed:

Posted Image

I just did this in less then 5 min, if you when slightly slower it would probably be a lot cleaner.

Hope this help’s someone and an update follows.

#60 Hippie

Hippie

    MCM Friend

  • Members
  • PipPipPipPip
  • 215 posts
  • Location:Over Here
  • Full Name:Erik H

Posted 10 June 2012 - 01:31 AM

Update time!!!

First off pro tech braided line showed up yesterday and is already installed:

Posted Image

Posted Image

Posted Image

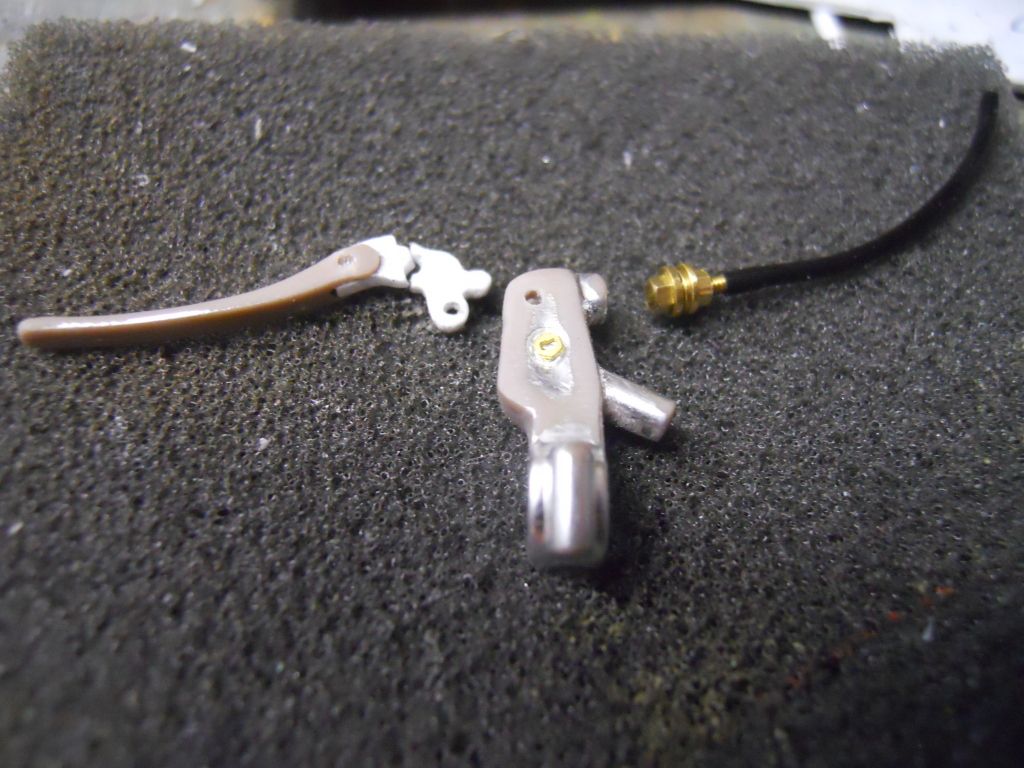

The hand controls are also done, on one side, I found a tiny spring that's inside them so it all actually works.
