Built myself a Paint Booth


  • You cannot reply to this topic
21 replies to this topic

#1 Prostreet

Prostreet

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,355 posts
  • Location:PA
  • Full Name:Joe Beard

Posted 26 February 2012 - 02:33 PM

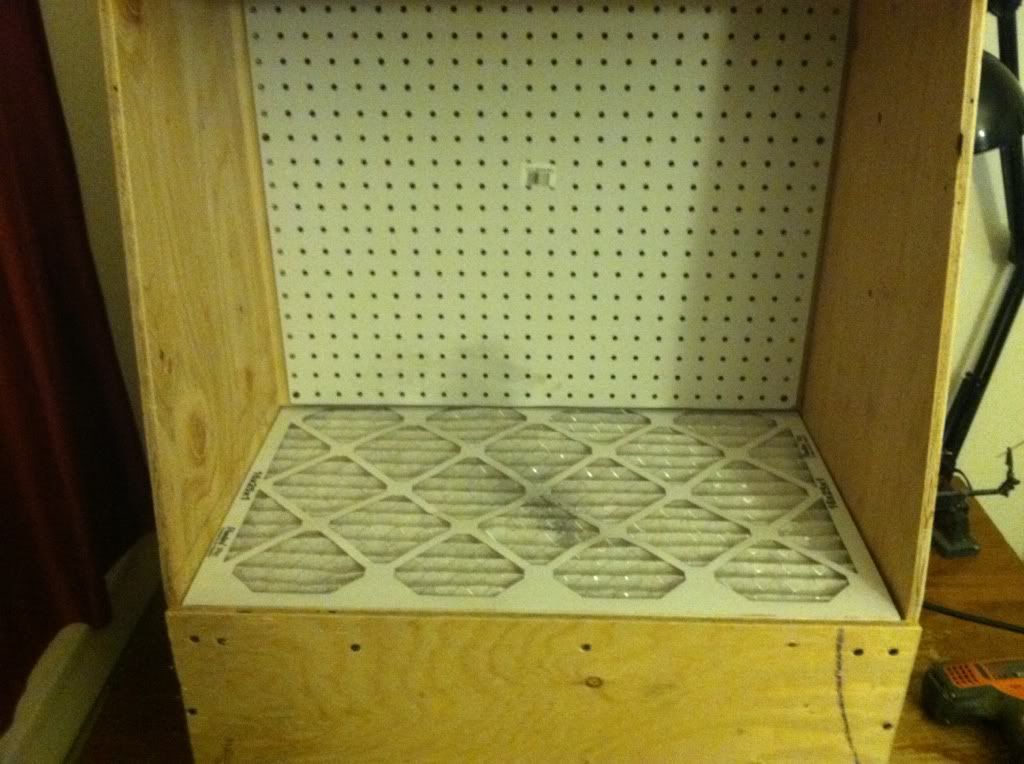

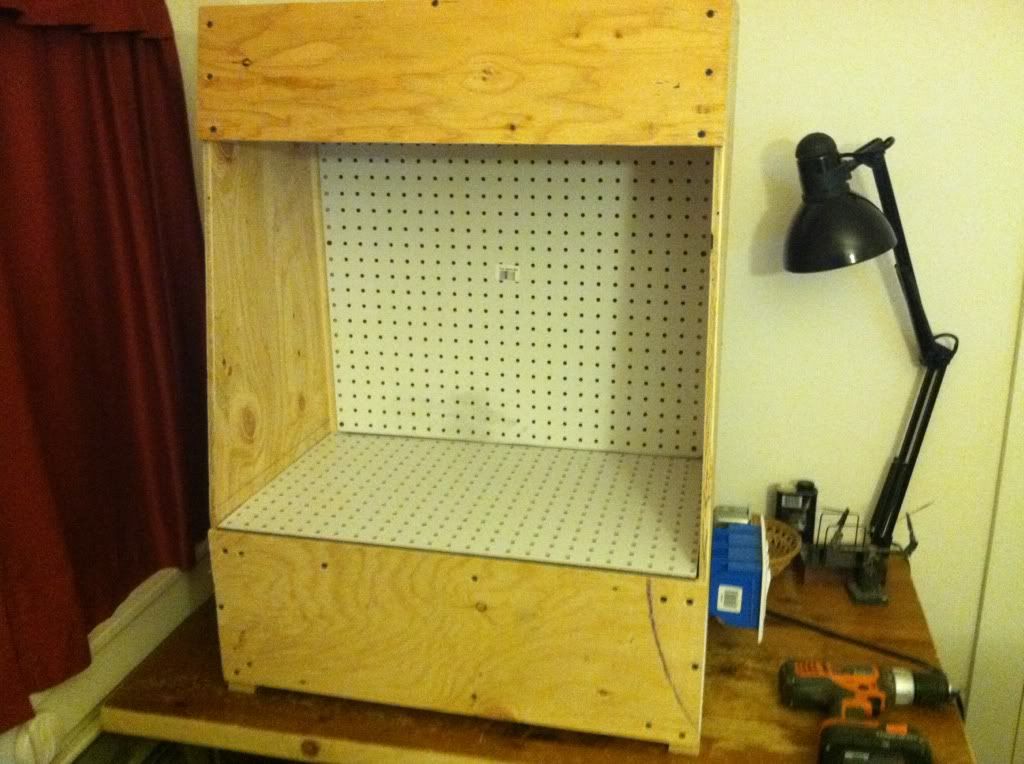

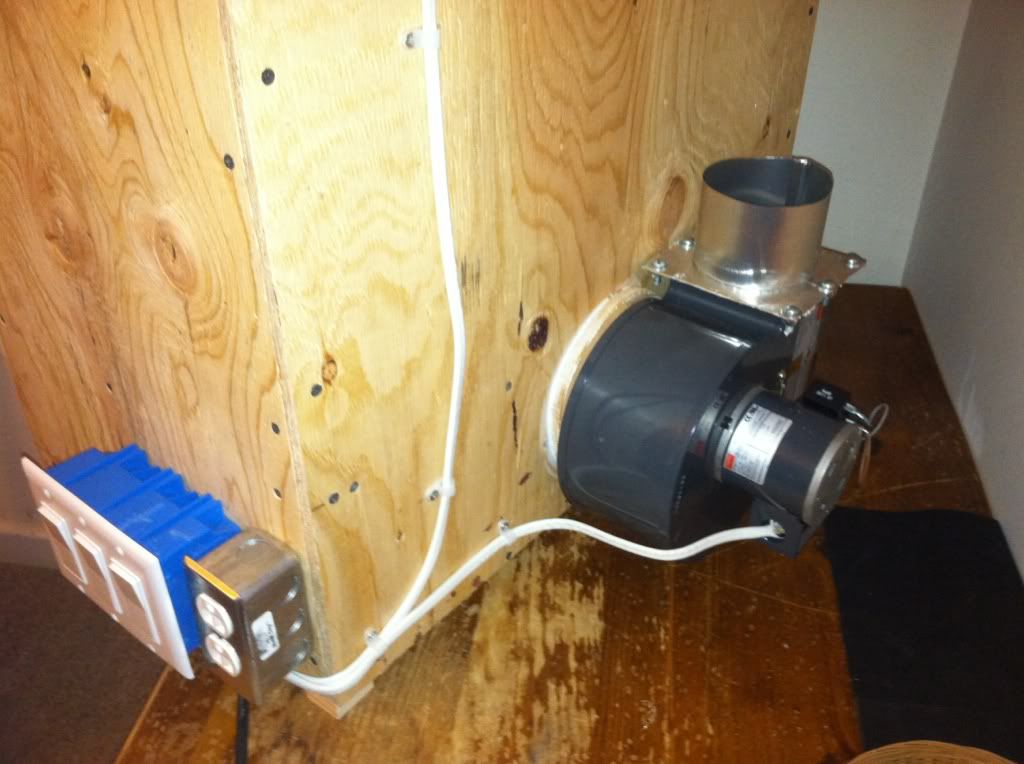

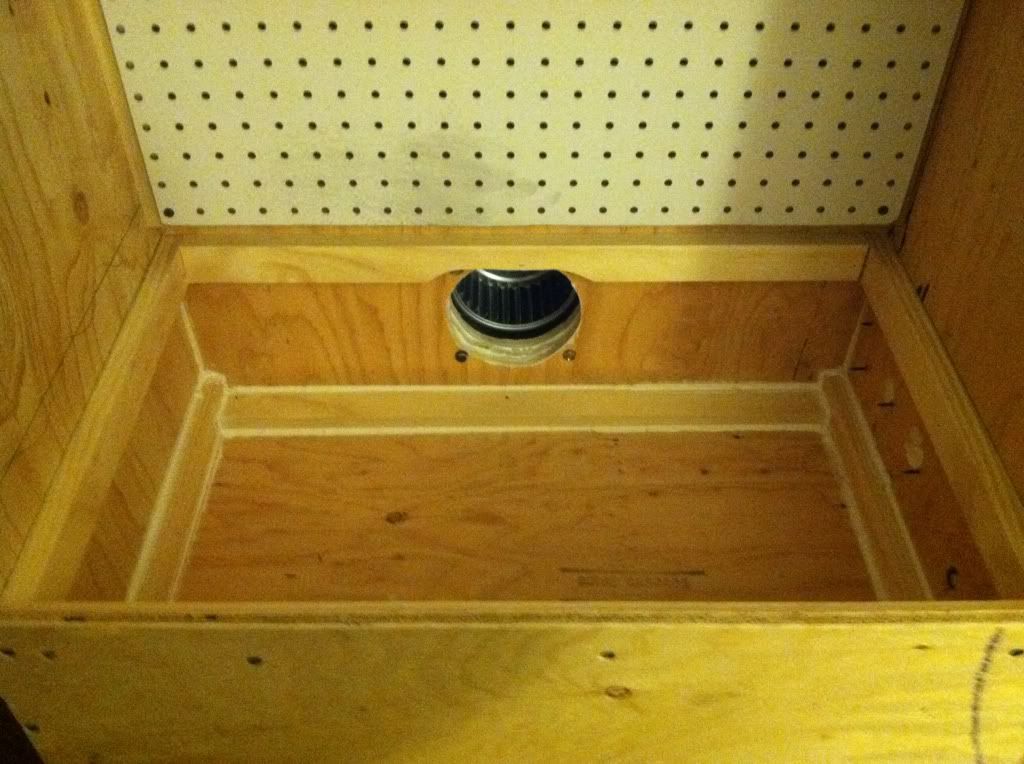

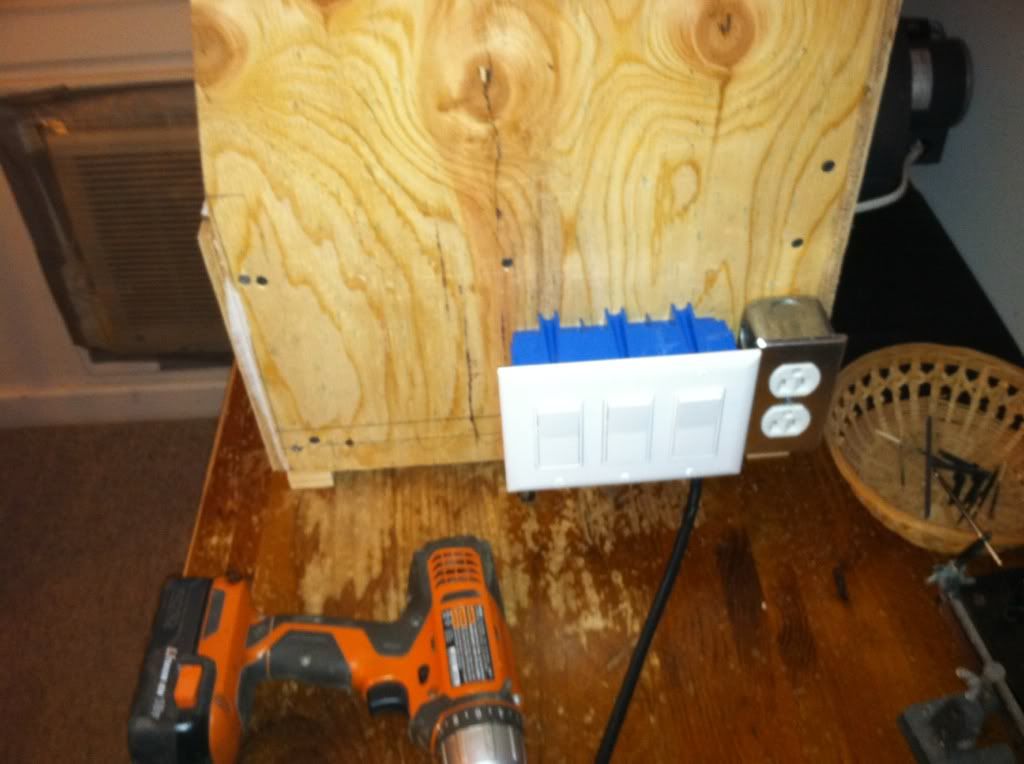

Well i decided it was time for a paint booth, I really wanted a pace booth but i was on a budget and figured i could build one cheaper. Keep in mind i'm no wood worker but i think it turned out good and will serve it's purpose just fine. It seems to draw air in good even with the peg board floor, Won't know till the first spray. If it doesn't i can make the lower chamber smaller or try a floor with larger holes. It is 16" deep and 25" wide, I put 3 switches on it. 1 for the blower,1 for the light and 1 for the outlet. i have 1 25" wide single flourecent light up top. All thats left to do is make my board for the window for the exhaust. I ended up having $165 in it including a brandnew dayton cage blower from grainger that is 273 cfm and about 8 hours in time.

Posted Image
Posted Image
Posted Image
Posted Image
Posted Image

#2 BOSWELL891

BOSWELL891

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 958 posts
  • Location:Kentucky
  • Full Name:Cole Boswell

Posted 26 February 2012 - 02:42 PM

Looks cool

#3 jonno356SC

jonno356SC

    MCM Regular

  • Members
  • PipPipPip
  • 98 posts
  • Location:Toronto, ONT, Canada
  • Full Name:Jon Finkelstein

Posted 26 February 2012 - 03:07 PM

Great job!

#4 Ben

Ben

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 2,928 posts
  • Location:San Antonio, Tx.
  • Full Name:Ben Wicker

Posted 26 February 2012 - 03:36 PM

I like it! Looks like it works well!

#5 my80malibu

my80malibu

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,665 posts
  • Location:Gilbert Arizona
  • Full Name:Gabriel Soto

Posted 26 February 2012 - 03:39 PM

That looks really cool, You would never know you are not a wood worker

#6 Big Daddy

Big Daddy

    MCM Avid Poster

  • Members
  • PipPipPipPipPip
  • 478 posts
  • Location:Guelph Ontario Canada
  • Full Name:daryl turner

Posted 26 February 2012 - 04:02 PM

looks good , i did one just like this a couple months ago and it works very good
Posted Image

#7 Mooneyzs

Mooneyzs

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 4,839 posts
  • Location:Gilbert, Arizona
  • Full Name:-Chris

Posted 26 February 2012 - 04:15 PM

Joe... Very nice job on the paint booth. It looks great.

#8 cruz

cruz

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 4,614 posts
  • Location:Maryland
  • Full Name:Marcos Cruz

Posted 26 February 2012 - 04:55 PM

Great job! And the best thing? You saved a boatload of money on something I am sure will work as well as a 500 dollar unit. Looks like you had some fun building that thing, I sure had fun building mine and it didn't come out as nice as yours!

#9 Rob McKee

Rob McKee

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 846 posts
  • Location:Coquitlam BC
  • Full Name:Rob McKee

Posted 26 February 2012 - 07:47 PM

Looks great Joe!

#10 crazyjim

crazyjim

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 11,762 posts
  • Location:Citrus Springs, FL

Posted 27 February 2012 - 03:22 AM

Sure hope you didn't use silicone caulk in there. Just the fumes from silicone caulk is enough to cause fisheye.

#11 Prostreet

Prostreet

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,355 posts
  • Location:PA
  • Full Name:Joe Beard

Posted 27 February 2012 - 04:43 AM

Sure hope you didn't use silicone caulk in there. Just the fumes from silicone caulk is enough to cause fisheye.



Really? I have seen lots of people do that, I would think once it's dry there shouldn't be any fumes. Not even sure if that was silicone caulk, will have to check when I get home. If i do have a problem with fisheye's I will know why.

#12 crazyjim

crazyjim

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 11,762 posts
  • Location:Citrus Springs, FL

Posted 27 February 2012 - 08:19 AM

A bunch of us helped put up a spray booth for a friend that owns a body shop - Ethics Auto Body out near Sycamore, IL. Got it all up and a construction friend decided to seal it all up real good by caulking all the joints. LT, the owner, couldn't figure out why the fisheye in everyone of his paint jobs. After some checking with paint reps, the culprit was discovered - silicone caulk. We spent more time digging out that stuff then we did putting up the booth. We completed by caulking all over with latex based caulk.

#13 cruz

cruz

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 4,614 posts
  • Location:Maryland
  • Full Name:Marcos Cruz

Posted 27 February 2012 - 11:31 AM

A bunch of us helped put up a spray booth for a friend that owns a body shop - Ethics Auto Body out near Sycamore, IL. Got it all up and a construction friend decided to seal it all up real good by caulking all the joints. LT, the owner, couldn't figure out why the fisheye in everyone of his paint jobs. After some checking with paint reps, the culprit was discovered - silicone caulk. We spent more time digging out that stuff then we did putting up the booth. We completed by caulking all over with latex based caulk.

Was this a 1/1 spray booth? I don't think you will have those issues with a scale or smaller type booth... :blink: Would you? :blink:

#14 Big Daddy

Big Daddy

    MCM Avid Poster

  • Members
  • PipPipPipPipPip
  • 478 posts
  • Location:Guelph Ontario Canada
  • Full Name:daryl turner

Posted 27 February 2012 - 11:42 AM

i used silicone on mine and have not had a problem ,,

#15 Prostreet

Prostreet

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,355 posts
  • Location:PA
  • Full Name:Joe Beard

Posted 27 February 2012 - 11:44 AM

Just checked ,I used Dap dyna flex 230, It's an acrylic latex.

#16 DavidChampagne

DavidChampagne

    MCM Friend

  • Members
  • PipPipPipPip
  • 196 posts
  • Location:Lockport, La.
  • Full Name:David Champagne

Posted 27 February 2012 - 12:25 PM

Anything special needed on the fan, like explosion proof or anything else? I want to build one also.
Looks like they are set up in the house. No fume problems in other rooms?

#17 crazyjim

crazyjim

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 11,762 posts
  • Location:Citrus Springs, FL

Posted 27 February 2012 - 01:04 PM

Yeah, Cruz. It's in a 1:1 shop - Ethics Auto Body in Maple Park, IL. Just a across Route 64 from the Sycamore Speedway.

#18 Dr. Cranky

Dr. Cranky

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 15,416 posts
  • Location:Transylvania, Florida
  • Full Name:Virgil "Doctor Cranky" Suarez

Posted 27 February 2012 - 01:10 PM

I really like the way this one has turned out . . . one of these fine days, I am going to build by own walk-in booth.

#19 Prostreet

Prostreet

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,355 posts
  • Location:PA
  • Full Name:Joe Beard

Posted 27 February 2012 - 01:39 PM

Anything special needed on the fan, like explosion proof or anything else? I want to build one also.
Looks like they are set up in the house. No fume problems in other rooms?


Dave, if you use a fan like Daryl and myself did you will be fine. Mine is setup in my hobby/computer room at the back of the house, I made a board for the window with a dryer vent. I just tested it using model masters enamel out of a can and it works great no fumes at all, Very happy with it. Thx. for checking it out guys.



Dave here is the Part No. for the fan i used. dayton 1TDR3 , i picked it up from graingers. If you decide to do it and need any help or more pictures or measurements feel free to Pm me.


Joe

Edited by Prostreet, 27 February 2012 - 01:40 PM.


#20 Viperfanboy

Viperfanboy

    MCM Member

  • Members
  • PipPip
  • 9 posts
  • Location:New Jersey
  • Full Name:Robert Sisco

Posted 27 February 2012 - 02:38 PM

What's the average price to build a booth? I'm looking at buying the Artograph 1530, but the price is killing me. I know building one would save me money but how much?
