Midland Belly Dump Trailer Build


  • You cannot reply to this topic
59 replies to this topic

#21 scale trucker

scale trucker

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 897 posts
  • Location:new hampshire
  • Full Name:gordon berry

Posted 19 April 2012 - 05:20 AM

that is super cool..what length is the trailer ??

#22 Aaron Corey

Aaron Corey

    MCM Regular

  • Members
  • PipPipPip
  • 44 posts
  • Location:Canada
  • Full Name:Aaron Corey

Posted 19 April 2012 - 06:00 AM

The photo of the actual 1:1 trailer in my first post shows the 32 foot version; however, I'm building the 29 foot version (approximately 14 inches in 1:25 scale). So mine will have a much smaller gap between the hopper and the wheels compared to that photo. Midland also sells 40 and 42 foot version with tri-axle setups.

Edited by Aaron Corey, 19 April 2012 - 06:01 AM.


#23 Rich_S

Rich_S

    MCM Regular

  • Members
  • PipPipPip
  • 93 posts
  • Location:Baden, PA
  • Full Name:Richard Shirey

Posted 19 April 2012 - 08:11 AM

Hi Aaron,
Very nice modeling, your trailer is looking great :) I do have a question that maybe you or another member maybe able to help me with, Does anyone make a scale ruler for 1/25th scale? What I'm getting at, currently there are scale rulers that model railroader use for 1:160, 1:87, 1:64 and 1:48 scales, where all the measurements on the rulers are in foot and inches. Does this type of ruler exists for 1/25?

Thanks in Advance,
Rich S.

#24 Aaron Corey

Aaron Corey

    MCM Regular

  • Members
  • PipPipPip
  • 44 posts
  • Location:Canada
  • Full Name:Aaron Corey

Posted 19 April 2012 - 12:50 PM

I'll need to pick up one of those scale rulers someday. Up until now I've just been using a calculator, and once in awhile I'll mess up one of my measurements.

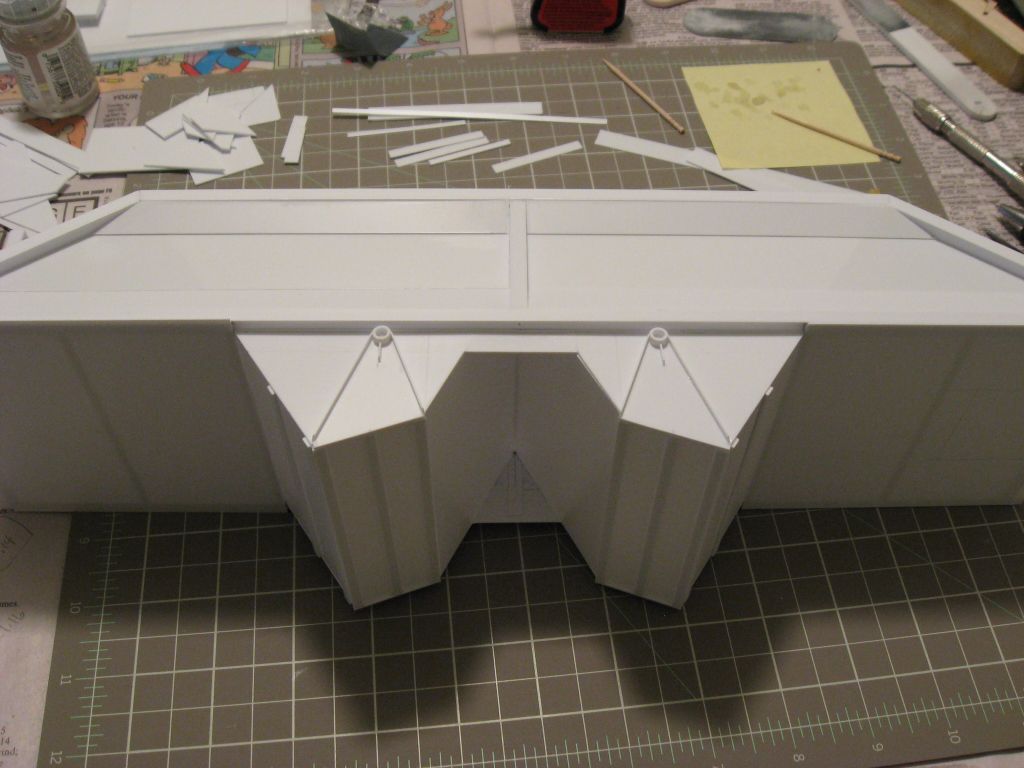

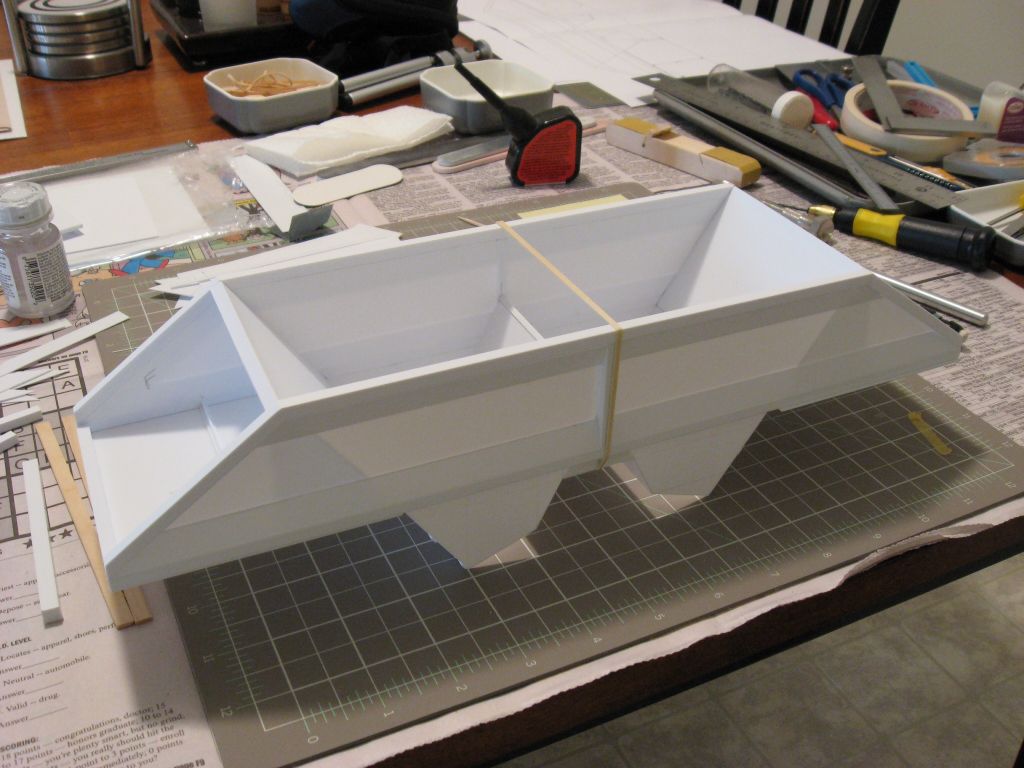

Here's my latest progress; the hopper is attached to the main body:

Posted Image

Posted Image

#25 Old Albion

Old Albion

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,214 posts
  • Location:Great Britain

Posted 19 April 2012 - 07:09 PM

Aaron,

An excellent topic and build, its great to see how you have gone about the works so far.

#26 Aaron Corey

Aaron Corey

    MCM Regular

  • Members
  • PipPipPip
  • 44 posts
  • Location:Canada
  • Full Name:Aaron Corey

Posted 25 April 2012 - 12:36 PM

Here's my lastest update

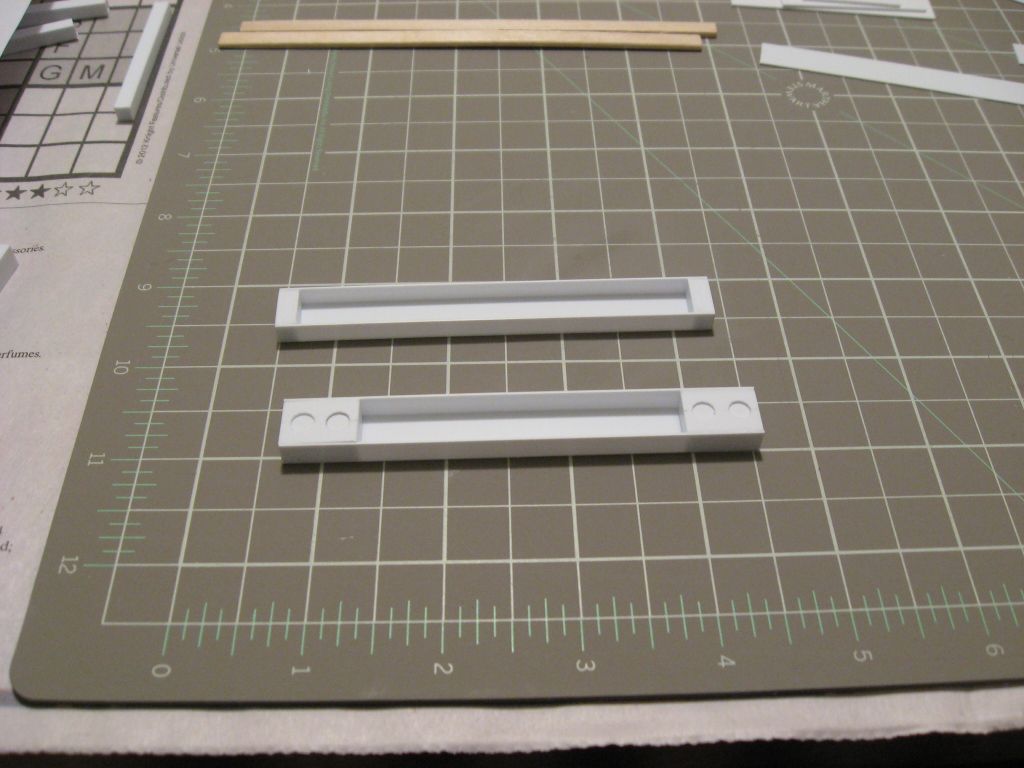

The front and rear "bumpers":

Posted Image

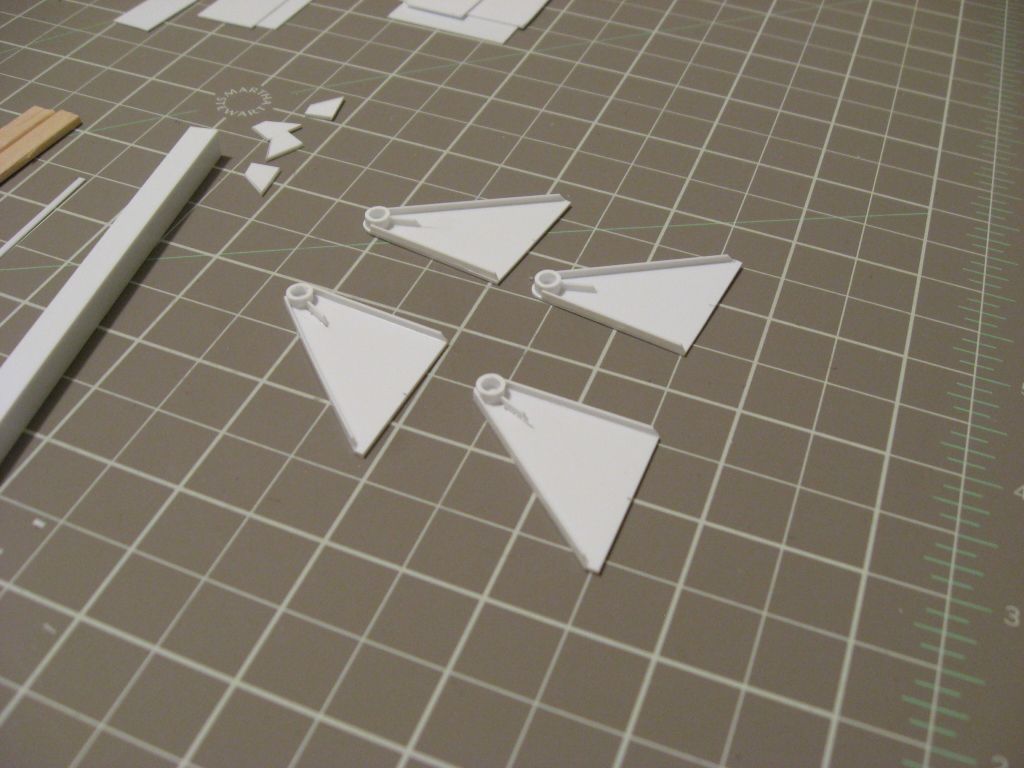

The hopper doors:

Posted Image

Posted Image

Next, I'll be taking the suspension from the AMT Fruehauf flatbed trailer and adapting it for this project...

#27 Harry P.

Harry P.

    MCM Ohana

  • Administrators
  • PipPipPipPipPipPip
  • 22,862 posts
  • Location:NW suburban Chicago
  • Full Name:A mere layman...

Posted 25 April 2012 - 01:01 PM

Very nice scratchbuilding! B)

#28 Guest_JamesDE_*

Guest_JamesDE_*
  • Guests

Posted 26 April 2012 - 08:49 AM

Man that is way cool!

#29 Aaron Corey

Aaron Corey

    MCM Regular

  • Members
  • PipPipPip
  • 44 posts
  • Location:Canada
  • Full Name:Aaron Corey

Posted 26 April 2012 - 12:35 PM

Thanks guys, I'm really having fun with this project.

Now I understand why the real trailers are built the way they are: Even though I'm mainly using 0.020" styrene (which is pretty flexible on its own), the fully assembled trailer body is surprisingly strong and stiff.

Aaron

#30 Jantrix

Jantrix

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 6,441 posts
  • Location:Tampa, FL. USA
  • Full Name:Rob Mattis

Posted 26 April 2012 - 01:20 PM

Whoa, some cool work going on here. I don't usually check out the semi truck threads, but I'll be checking back on this one.

#31 lonebear43

lonebear43

    MCM Regular

  • Members
  • PipPipPip
  • 30 posts
  • Location:manitoba canada
  • Full Name:jw fraser

Posted 29 April 2012 - 11:27 AM

wow nice build, found a future project idea

#32 Aaron Corey

Aaron Corey

    MCM Regular

  • Members
  • PipPipPip
  • 44 posts
  • Location:Canada
  • Full Name:Aaron Corey

Posted 02 May 2012 - 02:20 PM

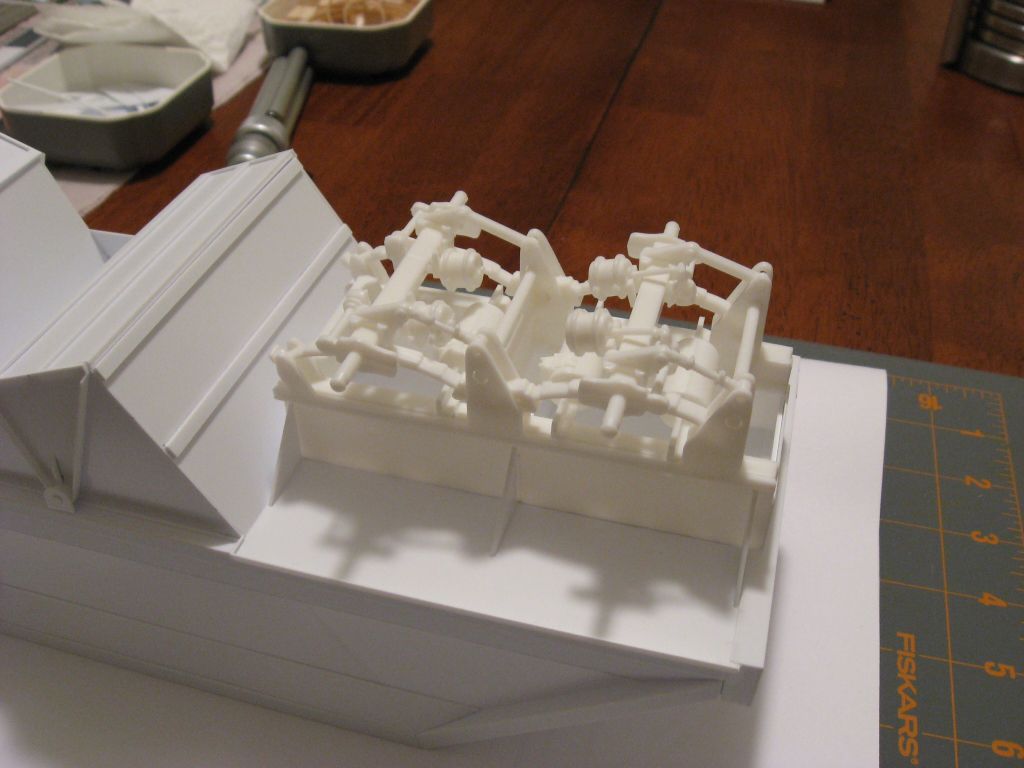

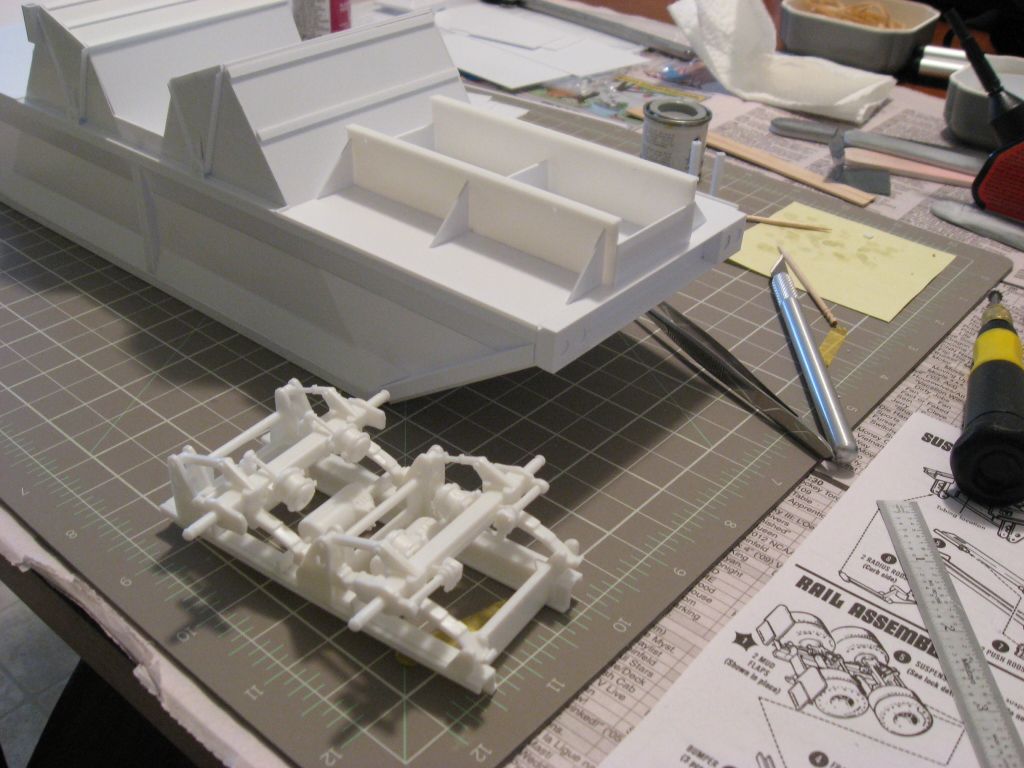

I've assembled the suspension, and attached the frame rails to the bottom of the trailer. The suspension came from the AMT Fruehauf flatbed. The frame rails are 4 inch sections cut from the frame rails in the AMT kit.

Posted Image

Posted Image

#33 scale trucker

scale trucker

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 897 posts
  • Location:new hampshire
  • Full Name:gordon berry

Posted 02 May 2012 - 06:45 PM

not to pick but the boggie is backwards

#34 Aaron Corey

Aaron Corey

    MCM Regular

  • Members
  • PipPipPip
  • 44 posts
  • Location:Canada
  • Full Name:Aaron Corey

Posted 03 May 2012 - 01:38 AM

Good catch with the backwards suspension, it was actually a deliberate decision on my part. When I was mocking up the rear suspension I discovered that I had to put the bogie on backwards in order to prevent the rear tires from interfering with the mudflaps.

Now that I look at the photo, I realize that could solve the issue by trimming the front of the suspension (the part that grips the frame rails) to allow it to sit further forward on the frame rails...

Aaron

#35 jekylljr

jekylljr

    MCM Avid Poster

  • Members
  • PipPipPipPipPip
  • 282 posts
  • Location:Erin,ontario canada
  • Full Name:steve lyons

Posted 03 May 2012 - 09:45 AM

Great work ! Cant wait for more pics ... rich try micro mark they have everything to do with scale building

#36 Truck parts

Truck parts

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,689 posts
  • Location:peoria,il
  • Full Name:gordon d.dickerson

Posted 03 May 2012 - 03:32 PM

That's one outstanding build. Looking forward to seeing it done.

#37 Aaron Corey

Aaron Corey

    MCM Regular

  • Members
  • PipPipPip
  • 44 posts
  • Location:Canada
  • Full Name:Aaron Corey

Posted 04 May 2012 - 12:25 PM

Thanks for the great comments guys

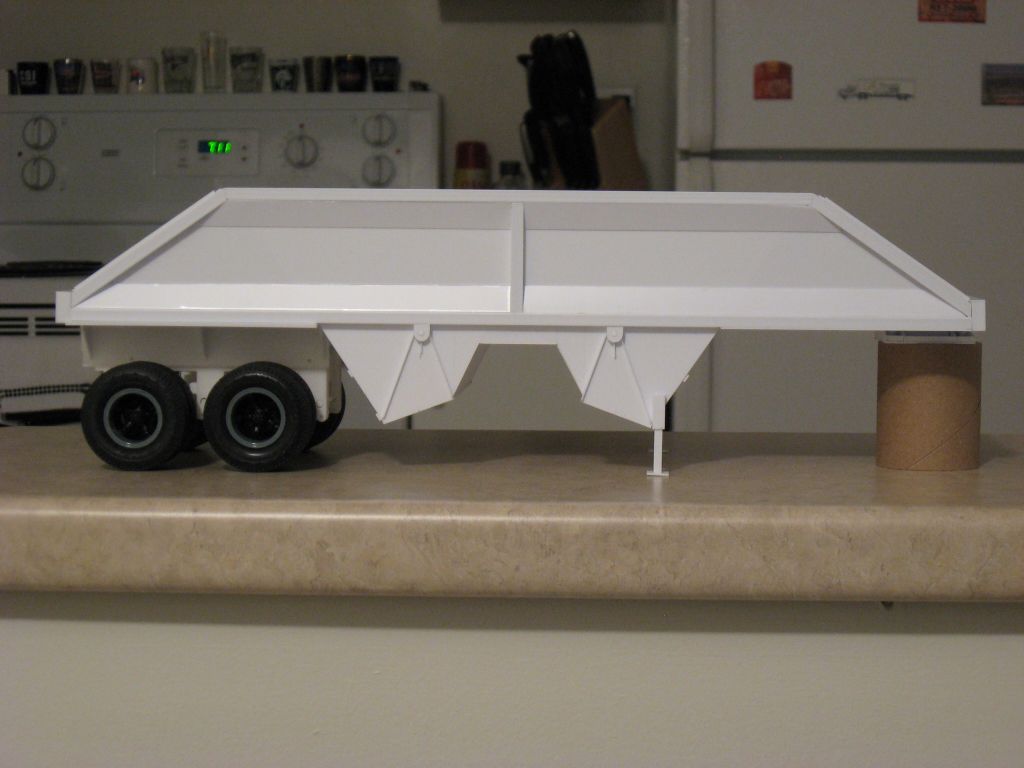

I've fixed the suspension. Here's a mockup to see how everthing fits together:

Posted Image

Now, I just need to add a few more details (push block, air cylinders for the hopper doors, mudflaps etc.) and then it'll be time to paint.

#38 Aaron Corey

Aaron Corey

    MCM Regular

  • Members
  • PipPipPip
  • 44 posts
  • Location:Canada
  • Full Name:Aaron Corey

Posted 04 May 2012 - 01:02 PM

I've also created the artwork for my decals. It's based on the actual paint scheme used by the manufacturer.

Posted Image

#39 Aaron Corey

Aaron Corey

    MCM Regular

  • Members
  • PipPipPip
  • 44 posts
  • Location:Canada
  • Full Name:Aaron Corey

Posted 18 May 2012 - 08:19 AM

Now I've added the push block and mudflap brackets:

Posted Image

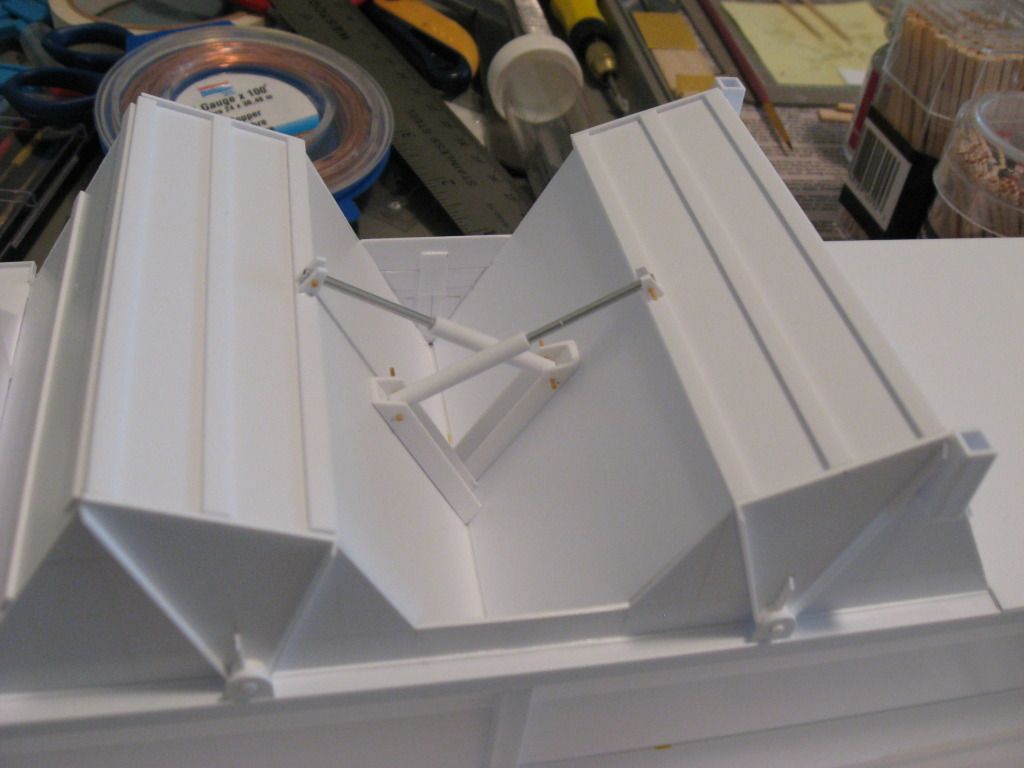

...and the air cylinders for the hopper doors:

Posted Image

Now I just need to paint and decal, and this thing will be done.

Edited by Aaron Corey, 18 May 2012 - 08:21 AM.


#40 Edsel-Dan

Edsel-Dan

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,388 posts
  • Location:Pocomoke, Maryland
  • Full Name:Daniel Lee Gunter

Posted 18 May 2012 - 12:21 PM

I like this too
I may convert it to 1/32 scale.

I have a set of aluminum scale rulers from Murphey.
Murphey's Rule 3 has 1/25 & 1/43 scale

Murphey's original has 1/72 & 1/48
Rule 2 has 1/32 & 1/35. (have to find where I hid that one!!)

I ordered these several years ago from an ad in a model 'Enthusiast' magazine,
so I am not sure if they are still made.
