I have been working on this but I was out a camera for a few weeks. Progress is a little slow because I have a lot of other stuff going on right now.
STewart

#22 wraith

wraith

    MCM Avid Poster

  • Members
  • PipPipPipPipPip
  • 465 posts
  • Location:Sioux Falls, SD
  • Full Name:Darrick Aulner

Posted 23 May 2012 - 12:18 PM

Looking very cool!

#23 bryan_m

bryan_m

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 2,501 posts
  • Location:Lost in America
  • Full Name:Bryan Mccallum

Posted 23 May 2012 - 01:12 PM

i love the mopar "M" cut out of the skid plate! nice touch.

cheers
bryan

#24 Badluck 13

Badluck 13

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 857 posts
  • Location:Akron,Ohio
  • Full Name:Mike Stiles

Posted 24 May 2012 - 06:39 AM

Sweet,Sweet,Sweet,you ain't missing nothing on this rig.....lookin' so correct!!

#25 Jordan White

Jordan White

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,714 posts
  • Location:Anoka, MN
  • Full Name:Name Full

Posted 24 May 2012 - 07:01 AM

The scratchbuilding is looking good so far. I'm just curious as to why you decided to go with an IFS? In the 1:1 world this would be seen as counter-intuitive, especially since you're making a portal axle for the rear.

#26 stewart

stewart

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 635 posts
  • Location:Portland Oregon
  • Full Name:STewart Terrall

Posted 24 May 2012 - 08:48 AM

The scratchbuilding is looking good so far. I'm just curious as to why you decided to go with an IFS? In the 1:1 world this would be seen as counter-intuitive, especially since you're making a portal axle for the rear.

Yeah I thought of that. It does seem kind of strange to do a portal axle and then IFS. I figured for a trail rig, IFS for the front would be good. I was looking at Baja rigs and a lot of them have IFS, and I thought that independent suspensions were better for trailblazing while solid axles were more for extreme offroading and rock-crawling. I would be interested in hearing more thoughts on this. Should I make it a solid axle? Your input is very much appreciated.
STewart

#27 Jordan White

Jordan White

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,714 posts
  • Location:Anoka, MN
  • Full Name:Name Full

Posted 24 May 2012 - 09:11 AM

Baja trucks have IFS since they do a lot of high speed dune runs where they will need to soak up large bumps and ruts, plus they are only RWD. For the most part though, people swap in solid axles since they allow for more flex, simpler operation, and less chance for breakage. When I think of trail rig, I think of driving down dirt roads or rutted trails in the woods. These roads don't really favor one suspension type over the other, so it's a draw. Portal axles are used when you want the benefits of a solid axle, but would like more ground clearance, which is generally for more extreme conditions. Personally, I think you should stick with standard solid axles front and rear, and mount the springs over the axles for a bit of lift. If you want more lift, you can heat up the springs slightly and re-arch them.

#28 stewart

stewart

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 635 posts
  • Location:Portland Oregon
  • Full Name:STewart Terrall

Posted 24 May 2012 - 01:01 PM

Thanks for the input Jordan. I guess since I already have this one mostly done, I will stick with what I've got. The portal axle does seem a bit extreme but I wanted to try making one because I want to use them on upcoming builds. Also, I know that old-school leaf springs work well but I like the 4-link suspensions better. I guess its probably because Iike building them.
More pictures of this build tonight.
STewart

#29 Jordan White

Jordan White

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,714 posts
  • Location:Anoka, MN
  • Full Name:Name Full

Posted 25 May 2012 - 07:11 AM

Yeah, by all means build it how you want. That's the fun in building! B)

#30 stewart

stewart

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 635 posts
  • Location:Portland Oregon
  • Full Name:STewart Terrall

Posted 27 September 2012 - 06:46 PM

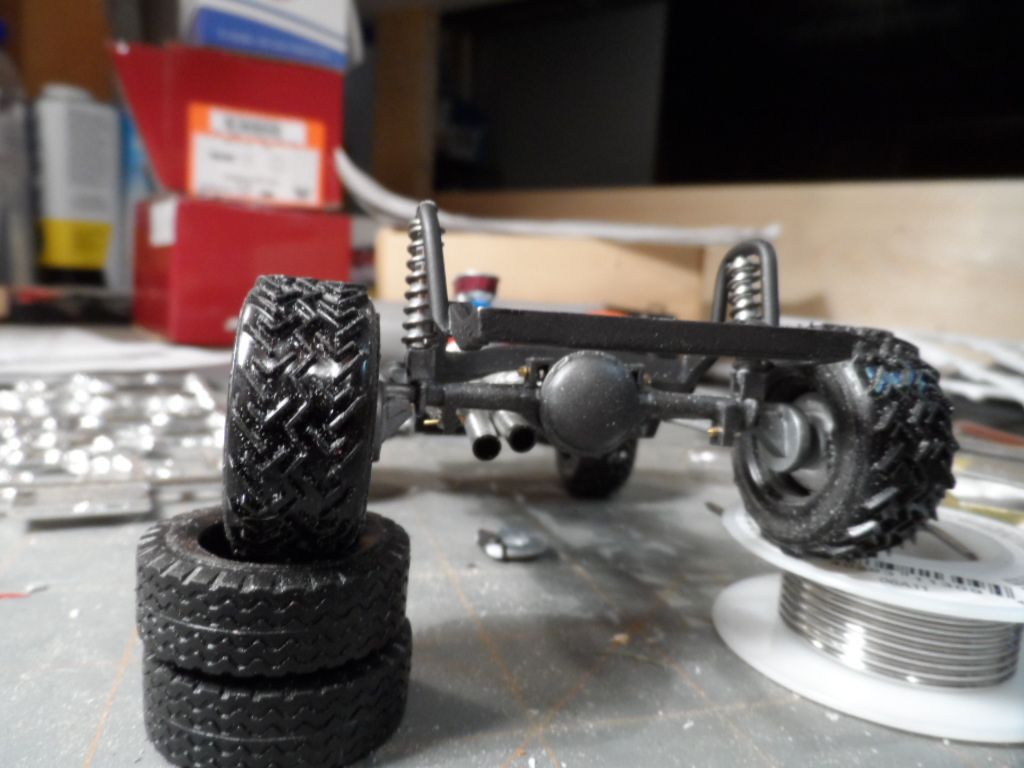

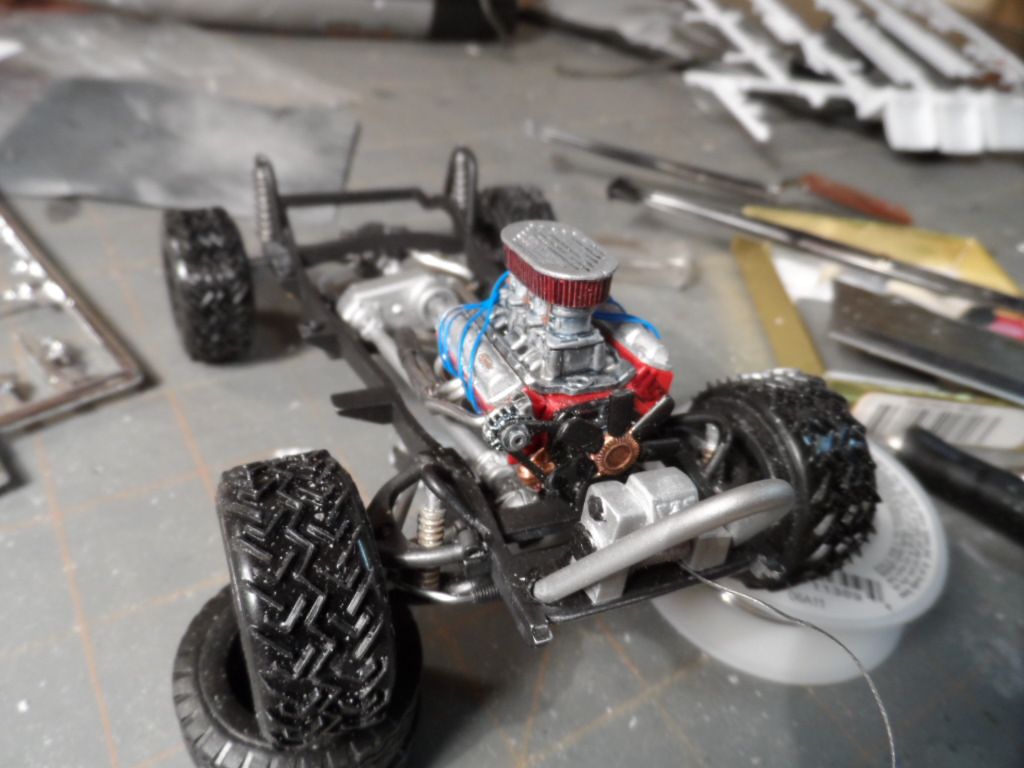

Ok, it's been awhile. I have been really busy this summer with work, as in 65 hours or so a week, so I haven't had time at the bench :( . However, since school started, I have a more relaxed schedule so I picked up this jeep again. It is almost complete. Just needs some final assembly and paint and it will be done. I have the chassis all setup and the engine mostly done. Still have to hook up brake lines and a few other odds and ends.
Posted Image
Posted Image
Posted Image
Posted Image

#31 stewart

stewart

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 635 posts
  • Location:Portland Oregon
  • Full Name:STewart Terrall

Posted 28 September 2012 - 04:46 PM

A few details left but it is basically finished. The rest of the pics are in Under Glass
Posted Image
Stewart

#32 Randy D

Randy D

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 575 posts
  • Location:Colorado
  • Full Name:Randy Ditton

Posted 28 September 2012 - 05:21 PM

Hi Stewart,

Really enjoyed reading thru this one! Impressive scratch work and mods.


Randy

#33 Davewilly

Davewilly

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,736 posts
  • Location:Surprise, Arizona
  • Full Name:Dave Wilmore

Posted 01 October 2012 - 08:52 AM

Nice looking Jeep!
