Does anyone have any scale drawings for a 1/25 hauler used for top fuel dragsters. I know there was a thread started about trailers in this forum and had a link to a resin one on ebay. Unfortunately it doesnt fit the part. Figured it would be more worth my time to scratch one. I only need the profile as im using this as a diorama backdrop for the car as you would see in the pits. Id look to build it half the width since im not planning to detail out the inside. Can anyon help?

#2 crazyjim

crazyjim

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 11,846 posts
  • Location:Citrus Springs, FL

Posted 13 April 2012 - 12:32 PM

Does this help? You can size it to any dimensions.

Posted Image

Posted Image

#3 dragcavy

dragcavy

    MCM Regular

  • Members
  • PipPipPip
  • 42 posts
  • Location:oswego IL
  • Full Name:Darren H

Posted 13 April 2012 - 01:12 PM

unfortunately i was looking more for the featherlite full double stack style but i appreciate the post. hopefully that can aid others that are looking for that style.

#4 Truck parts

Truck parts

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,674 posts
  • Location:peoria,il
  • Full Name:gordon d.dickerson

Posted 13 April 2012 - 01:16 PM

Thanks for information

#5 Big Daddy

Big Daddy

    MCM Avid Poster

  • Members
  • PipPipPipPipPip
  • 478 posts
  • Location:Guelph Ontario Canada
  • Full Name:daryl turner

Posted 13 April 2012 - 02:20 PM

I'll use it thanks jim

#6 tbusch

tbusch

    MCM Friend

  • Members
  • PipPipPipPip
  • 104 posts
  • Location:St. Louis
  • Full Name:Terry Buschmann

Posted 13 April 2012 - 04:33 PM

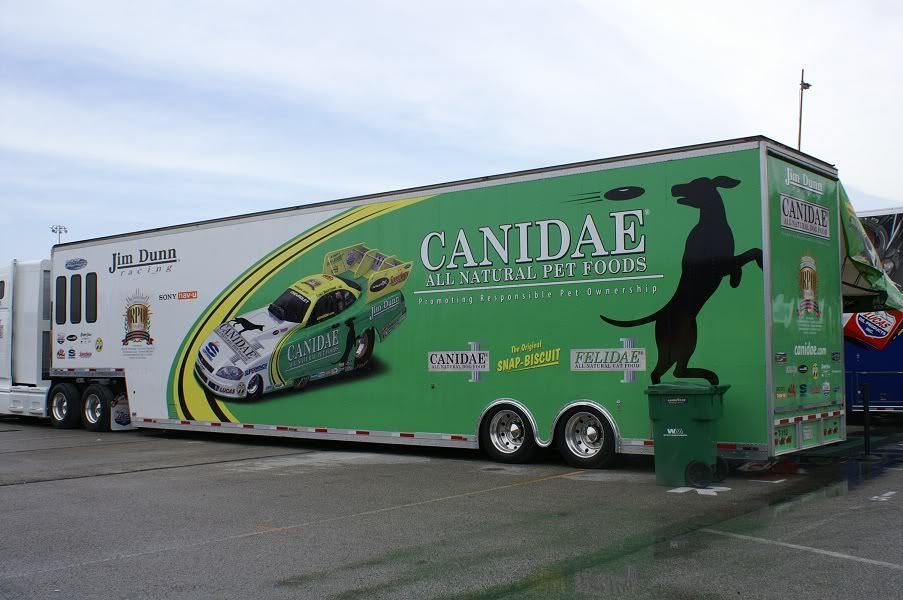

Is this what you are looking for?

Posted Image


If so I have a friend who scratched one I can get the dimensions from him.

Most states legal is 53' long and 13'6" tall

Edited by tbusch, 13 April 2012 - 04:53 PM.


#7 dragcavy

dragcavy

    MCM Regular

  • Members
  • PipPipPip
  • 42 posts
  • Location:oswego IL
  • Full Name:Darren H

Posted 14 April 2012 - 01:17 AM

yup exactly

#8 J Smith

J Smith

    MCM Regular

  • Members
  • PipPipPip
  • 86 posts
  • Location:Ky.
  • Full Name:Jimmy Smith

Posted 14 April 2012 - 09:46 AM

Here is one i've been working on for the past year

Attached File  IMG_0111.JPG   344.42KB   18 downloads

Edited by J Smith, 14 April 2012 - 09:51 AM.


#9 crazyjim

crazyjim

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 11,846 posts
  • Location:Citrus Springs, FL

Posted 14 April 2012 - 11:51 AM

Thanks for information

I'll use it thanks jim


Just trying to help out. Don't forget to post after you build 'em.

#10 tbusch

tbusch

    MCM Friend

  • Members
  • PipPipPipPip
  • 104 posts
  • Location:St. Louis
  • Full Name:Terry Buschmann

Posted 30 April 2012 - 05:03 AM

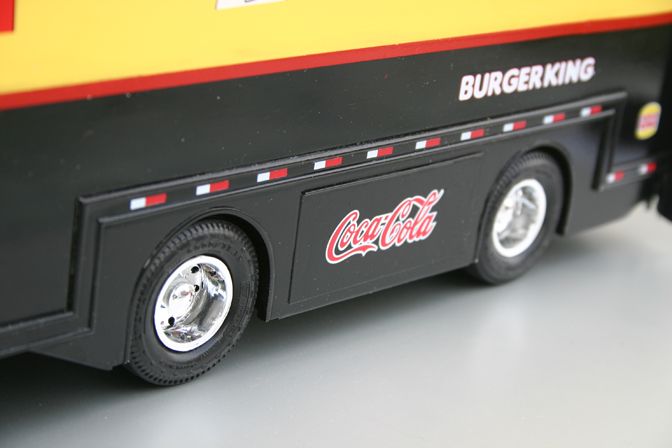

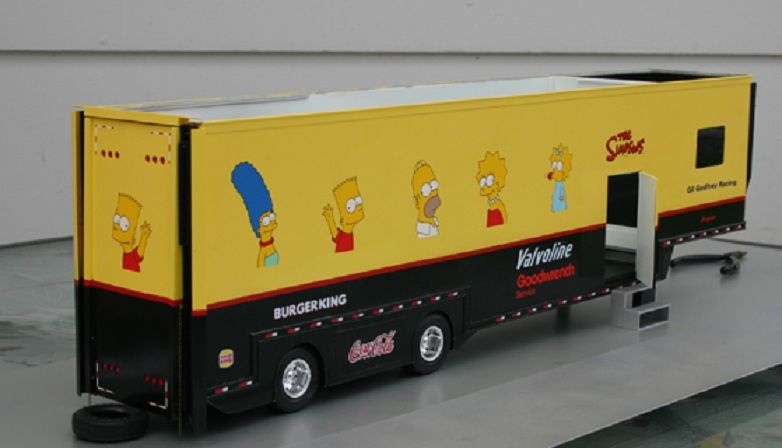

Here is Mike George's Scratch built one

Posted Image


Posted Image

He gave me dimensions on it that were roughed skethed on a piece of paper, hoping to lay it out on auto cad then I will post it here within the next couple of days,
Darren send me a pm with your e-mail and I will send the full size drawing to you when i get them done

Terry

forgot these dimensions came right from Featherlite and are based on a NASCAR hauler

Edited by tbusch, 30 April 2012 - 05:05 AM.
