SQUARING UP YOUR TIRES & CHASSIS


  • You cannot reply to this topic
31 replies to this topic

#1 Dr. Cranky

Dr. Cranky

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 15,418 posts
  • Location:Transylvania, Florida
  • Full Name:Virgil "Doctor Cranky" Suarez

Posted 29 April 2012 - 07:58 AM

Here's a quick how-to using my MICROMARK handy metal jig. I have used this puppy for years and have never had any trouble getting all my wheels to touch the surface of the road.

WATCH THE VIDEO HERE:

#2 1930fordpickup

1930fordpickup

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 3,387 posts
  • Location:Michigan/Ohio border
  • Full Name:Andy Lemble

Posted 29 April 2012 - 01:58 PM

Nice video DR.

#3 JunkPile

JunkPile

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 975 posts
  • Location:Kansas, USA
  • Full Name:Chuck Saxton

Posted 30 April 2012 - 12:20 AM

That sure makes it easy. Thanks

#4 crazyjim

crazyjim

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 11,777 posts
  • Location:Citrus Springs, FL

Posted 30 April 2012 - 02:44 AM

I use the little Testors paint bottles to square up the tires. Used just like the printers things.

#5 Draggon

Draggon

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 2,854 posts
  • Location:Home of the Fremont Drag Strip
  • Full Name:Glenn Asher

Posted 30 April 2012 - 06:16 AM

Thanks, Doc!! Did you get the blocks from micromark, and are they 2"x2"? Also, how about running a metal straight edge between the blocks to make sure both tires on each side are pointed in the same direction? Seems i can either get the camber right, or them pointed the same way, but rarely both.

#6 Dr. Cranky

Dr. Cranky

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 15,418 posts
  • Location:Transylvania, Florida
  • Full Name:Virgil "Doctor Cranky" Suarez

Posted 30 April 2012 - 03:58 PM

Glenn, I sure did. They are in fact the 2"x2"s . . .

#7 southpier

southpier

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,807 posts
  • Location:northeast coast
  • Full Name:joe smythe

Posted 30 April 2012 - 11:02 PM

i noticed that too

#8 Art Anderson

Art Anderson

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 2,989 posts

Posted 08 May 2012 - 06:30 AM

Only one comment: Bear in mind that the front wheels of almost every car ever made have a bit of positive camber to them (tops of the wheels are farther out than the bottom (the part that touches the road). This is very noticeable if you look at pics of say, any Bugatti, or certainly any solid front axle Ford, but trust me, positive camber is a feature of virtually every independent front suspension as well!

Art

#9 Roncla

Roncla

    MCM Avid Poster

  • Members
  • PipPipPipPipPip
  • 409 posts
  • Location:Auckland,New Zealand
  • Full Name:Ron Clarkson

Posted 11 May 2012 - 08:48 PM

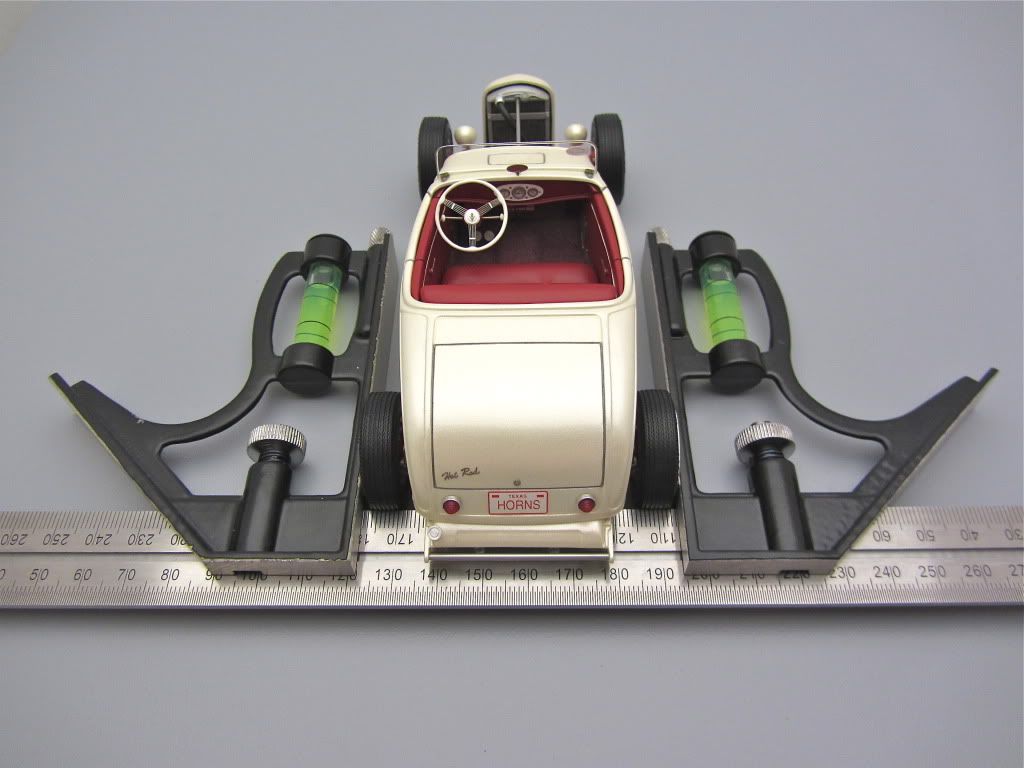

For my squaring duties I purchased a couple of adjustable squares and by adding one to the other I have a quick and easy way get things aligned. This works a treat on getting the rear wings on F1 cars squared up too.

Posted Image

#10 Chief Joseph

Chief Joseph

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 565 posts
  • Location:Alabamastan
  • Full Name:Joseph Osborn

Posted 12 May 2012 - 04:13 AM

For my squaring duties I purchased a couple of adjustable squares and by adding one to the other I have a quick and easy way get things aligned. This works a treat on getting the rear wings on F1 cars squared up too.


That's bloody brilliant!

#11 Dr. Cranky

Dr. Cranky

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 15,418 posts
  • Location:Transylvania, Florida
  • Full Name:Virgil "Doctor Cranky" Suarez

Posted 12 May 2012 - 04:25 AM

Ron, this is why I love this forum, you always find out new ways of doing things. THANK YOU. That IS brilliant!

#12 Dr. Cranky

Dr. Cranky

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 15,418 posts
  • Location:Transylvania, Florida
  • Full Name:Virgil "Doctor Cranky" Suarez

Posted 12 May 2012 - 05:49 AM

Dave, that's an excellent option too. Very cool, thanks for sharing.

#13 Art Anderson

Art Anderson

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 2,989 posts

Posted 21 May 2012 - 06:49 AM

are you 100% sure about that Art?


Model Factory Hiro has this,

http://www.hlj.com/product/MFHBC-323

a little expensive maybe, but any good tool should never be cheap.


James, yes I am sure. There are three angles from vertical that are a part of any automoitive steerable front end: Camber, Caster and Rake. Now, rake can be seen on the front fork of any bicycle, motor scooter or motorcycle--just look at how the front fork angles forward from the pivot point to the front axle. That has the effect of making the bike or scooter steer predictably. Caster is just as the name implies--it's the ever so slight "spacing" of the centerline (think spindle here on an automobile front suspension, be it independent or a beam or solid front axle) slightly to the rear of the center line of the front kingpins or side-to-side pivot point of the front uprights--caster aids in making the steerable front wheels "self centering". Caster is exactly what the front wheels of a grocery shopping cart have, but much more pronounced!. Camber is almost always used as "positive camber", that is, with the front wheels pointed straight ahead (any automotive front end will have the wheels slightly "toe'd in", or seemingly steered slightly toward each other), the tops of the wheels will be farther apart than the "bottoms" of the wheels--this also makes steering easier, and helps minimize tire wear.

You can easily see positive camber in almost any 2wd car or truck, particularly any Model T through 1948 Ford passenger car or pickup--very prominent on Model A's and even the '32 Ford--the front end, when steered straight ahead will have the tires appearing almost "bowlegged". This is even more pronounced on any Classic Era Bugatti. But even a car with independent front suspension will show it as well. Take your own personal car, crank the steering wheel hard over either to the right or to the left, all the way to the limit. Now look at the two wheels: The wheel on the "inside" of this turning car will show as leaning over, well out of vertical--the opposite wheel will seem standing straight up and down.--that's camber--and it may well vary from car to car.

Only a few model car kits ever got this at all right--the best examples I can think of are the Revell '29 Model A Ford Pickup, and their '31 Model A Ford 2dr Sedan/Woodie Station Wagon--Revell's designers actually managed to get both camber and rake tooled into the front axle and radius rod assemblies; and assembled carefully, you can see it clearly when you pose the front wheels cranked all the way to one side or the other, to the limit. Monogram's '27 Bugatti Type 35B and the Italeri Bugatti Type 41 Royale also show the severe positive camber that is so characteristic of those old, solid-front-axle Bugs. Not likely that it shows in the Lindberg Bugatti Royale, or any of the Heller Bugatti kits though.

Hope this helps!

Art

#14 Hedgehog

Hedgehog

    MCM Friend

  • Members
  • PipPipPipPip
  • 231 posts
  • Location:Los Angeles
  • Full Name:Wilbert flores

Posted 30 May 2012 - 09:45 PM

Dr Cranky you said you got the kit that includes the 2x2 blocks and 8 magnets but I was checking the website and the description of the item didn't say the blocks are included. Am I wrong? :) let me know thank u and keep on creating

Edited by Hedgehog, 31 May 2012 - 09:22 PM.


#15 Terry Sumner

Terry Sumner

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,456 posts
  • Location:Connecticut
  • Full Name:Terry Sumner Sr.

Posted 16 June 2012 - 03:04 PM

Art... camber is the departure in angle of a tire from vertical....not toed in or out. In other words...if you look at a tire from directly in front of the car and the tire is perfectly straight up and down...a perfect 90° ..it has 0° camber. If the top of the tire leans inward slightly, then you have so many degrees negative camber. If the top of the tire leans out you have so many degrees positive camber. Camber is not toe. Toe is the parallelism of the front tires when looking down on them from the top. If the front of the tires are leaning slightly inwards as viewed from above you have toe IN. If the front of the tires are bowed slightly outward you have toe OUT. I've done a lot of front end alignments and rake never comes into play on a car except in the fact that rake and caster are the same thing....simply the angle from vertical.. As you said, the rake term is used predominately in motorcycle front ends in conjunction with measuring trail....which has a heckuva lot to do with how the bike handles!!!

Like you said.. we usually build in a very slight degree of toe IN on a front end because at speed, the front tires have a natural tendency to spread in the front...or...toe out. So with the slight built-in toe IN...at speed...the tires actually track more parallel....just like you said...but that's not camber.



I've attached a few illustrations so those fellas who are interested can see a reference graphic to make it easier to understand

Here's an illustration of camber. This is looking at the tires from directly in front...
Posted ImageHosted on Fotki

And this is Toe...looking down on the tires from above...
Posted ImageHosted on Fotki

And this is caster...looking at the vehicle from it's side.
Posted ImageHosted on Fotki

#16 Longbox55

Longbox55

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,622 posts
  • Location:Danville Il
  • Full Name:Bill Burmeister

Posted 16 June 2012 - 04:14 PM

Exellent description of alignment angles, Terry. I've been in the alignment and front end business myself for 20 years. I will agree with Art on the vehicles he listed as having noticable positive camber, and even add one to the list; the '88-'98 GM 4x4 full size trucks, especially if they're lifted any. The camber is very noticable, even though it's on .2-.5 degrees.

#17 Harry P.

Harry P.

    MCM Ohana

  • Administrators
  • PipPipPipPipPipPip
  • 22,463 posts
  • Location:NW suburban Chicago
  • Full Name:A mere layman...

Posted 16 June 2012 - 04:22 PM

There are three angles from vertical that are a part of any automoitive steerable front end: Camber, Caster and Rake. Now, rake can be seen on the front fork of any bicycle, motor scooter or motorcycle--just look at how the front fork angles forward from the pivot point to the front axle. That has the effect of making the bike or scooter steer predictably. Caster is just as the name implies--it's the ever so slight "spacing" of the centerline (think spindle here on an automobile front suspension, be it independent or a beam or solid front axle) slightly to the rear of the center line of the front kingpins or side-to-side pivot point of the front uprights--caster aids in making the steerable front wheels "self centering". Caster is exactly what the front wheels of a grocery shopping cart have, but much more pronounced!. Camber is almost always used as "positive camber", that is, with the front wheels pointed straight ahead (any automotive front end will have the wheels slightly "toe'd in", or seemingly steered slightly toward each other), the tops of the wheels will be farther apart than the "bottoms" of the wheels--this also makes steering easier, and helps minimize tire wear.


I think you have your caster, camber and toe muddled up a bit.

Caster and camber involve the degree of offset from straight vertical, toe in (or out) refers to whether or not the front tires are parallel to each other (when viewed from above). Caster, camber and toe are all independent of each other.

#18 Harry P.

Harry P.

    MCM Ohana

  • Administrators
  • PipPipPipPipPipPip
  • 22,463 posts
  • Location:NW suburban Chicago
  • Full Name:A mere layman...

Posted 16 June 2012 - 04:26 PM

Terry... why does your toe diagram have the steering wheel on the wrong side??? :lol:

#19 JunkPile

JunkPile

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 975 posts
  • Location:Kansas, USA
  • Full Name:Chuck Saxton

Posted 16 June 2012 - 05:20 PM

Terry... why does your toe diagram have the steering wheel on the wrong side??? :lol:

I don't think left or right hand drive would make any difference.

#20 Terry Sumner

Terry Sumner

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,456 posts
  • Location:Connecticut
  • Full Name:Terry Sumner Sr.

Posted 17 June 2012 - 01:31 AM

Terry... why does your toe diagram have the steering wheel on the wrong side??? :lol:


LOL...I noticed that too! Looks normal to our across the pond brothers though!
