#61 Casey

Casey

    MCM Ohana

  • Moderator
  • PipPipPipPipPipPip
  • 8,341 posts
  • Location:Milwaukee, WI
  • Full Name:Casey Littmann

Posted 09 July 2012 - 04:40 AM

Whatever you do, please don't lose the "forward lean" of the front end. It would be cool to incorporate some sharper peaks into the headrest blisters, to tie them in with the quarter panel peaks.

#62 AUGIEDOGGIE

AUGIEDOGGIE

    MCM Friend

  • Members
  • PipPipPipPip
  • 140 posts
  • Location:SAN FERNANDO VALLEY
  • Full Name:AUGIE GONZALEZ

Posted 09 July 2012 - 04:45 AM

NICE!! ill be watching this one

#63 pharr7226

pharr7226

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 956 posts
  • Location:Atlanta, GA
  • Full Name:Rick

Posted 09 July 2012 - 07:16 PM

Bill,

Incredible work on what was an ugly duckling. I have not been to an ACME meeting in a while... life kinda got in the way. But I plan on coming to the next one. Do you plan on bringing the Dart to the next club meeting?

#64 route66modeler

route66modeler

    MCM Avid Poster

  • Members
  • PipPipPipPipPip
  • 447 posts
  • Location:st.louis mo
  • Full Name:steve doing

Posted 14 July 2012 - 10:27 AM

nice work. Where do you get the scale fiberglass mesh at? Thanks,Steve

#65 Ace-Garageguy

Ace-Garageguy

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 7,673 posts
  • Location:Down two, then left.
  • Full Name:Bill Engwer

Posted 14 July 2012 - 01:39 PM

Again, thanks for the interest in saving this little car. It was such an oddball, I really didn't expect it to be very popular.

Casey, I'm definitely keeping the forward lean of the front fenders, but I'll probably stay with a more rounded look for the tonneau to harmonize with the door tops.

Rick (pharr7226), I'll definitely have it far enough along to bring to the next ACME meeting. Hope to see you there.

Steve (route66modeler) The glass cloth is something I've had on hand for a while. It's not really scale, but it's the finest weave I've seen yet. We use it to repair control surfaces on sailplanes where weight is absolutely critical. I'll contact my associate in Arizona and get a supplier name for you. OR, I have enough to last me a lifetime, and I'll be glad to send you some if you want.

I've got progress shots, but my last camera battery died just moments ago. I'm sure the tail-lights will not be to everyone's liking.

#66 Casey

Casey

    MCM Ohana

  • Moderator
  • PipPipPipPipPipPip
  • 8,341 posts
  • Location:Milwaukee, WI
  • Full Name:Casey Littmann

Posted 14 July 2012 - 07:21 PM

Again, thanks for the interest in saving this little car. It was such an oddball, I really didn't expect it to be very popular.


It's such a bizarre car, styling wise, as there is so much going on at every corner, and along every edge. You'd never think it all works together, but somehow, it does. :)

Keep up the nice work. I have a feeling this is going to be one of the nicest builds of 2012 here on the forum. ^_^

#67 Ace-Garageguy

Ace-Garageguy

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 7,673 posts
  • Location:Down two, then left.
  • Full Name:Bill Engwer

Posted 15 July 2012 - 01:21 PM

Thank you Casey. That's quite a compliment.

A bunch of chassis work.....had to c-notch the frame so much to get the stance I wanted that the frame rails needed extending upwards over the notch. Here they're beginning to get roughed in. There are also holes that need to be dealt with and the iinner fenders need to be extended upwards to clear the tires.

Posted Image

New panel to go up-and-over the new rails and clear the pumpkin and new raised tunnel. Inner fenders have been extended .100" with styrene strip, and pockets for the coil springs are fabbed in.

Posted Image

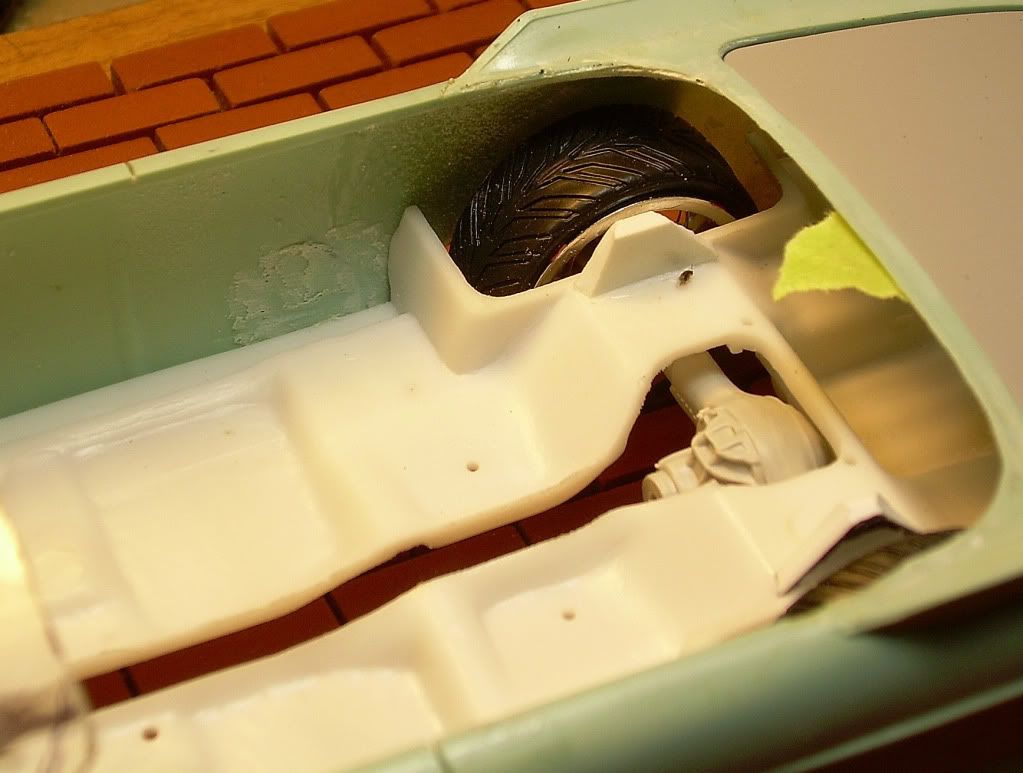

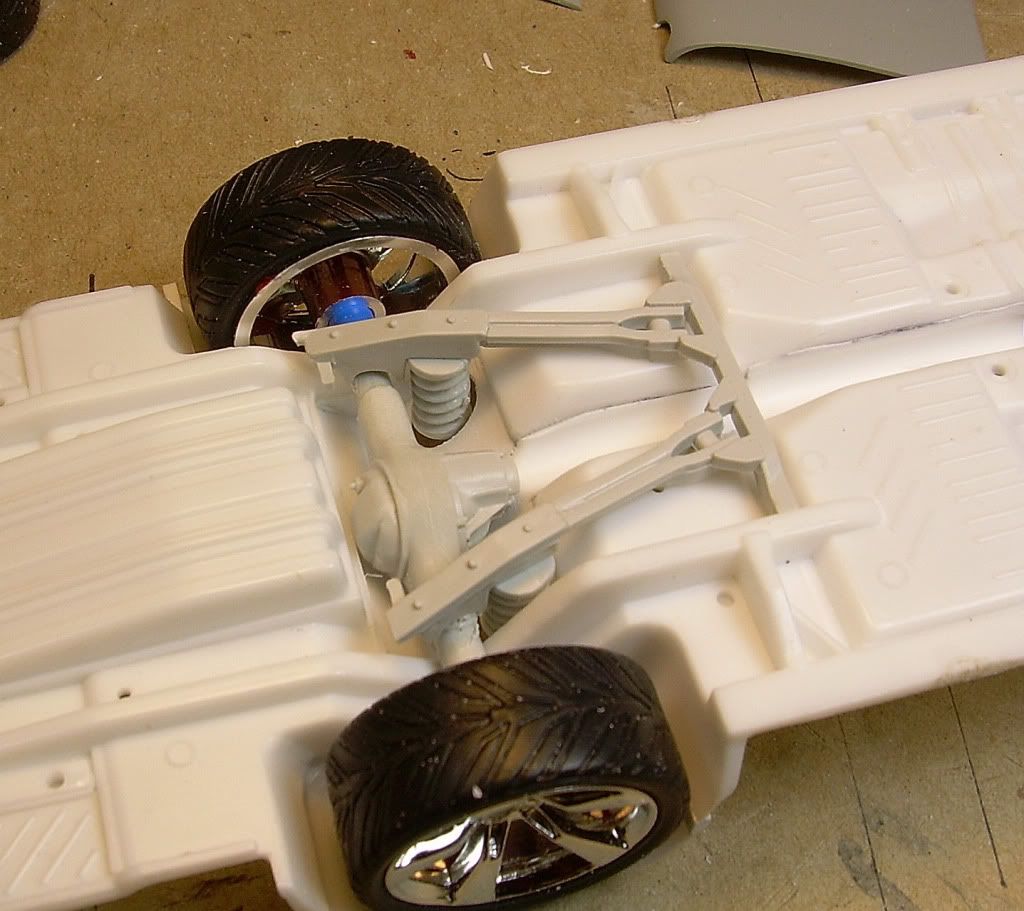

Semi-complete rear suspension with the new "sheetmetal" in place, and springs living happily in pockets.

Posted Image

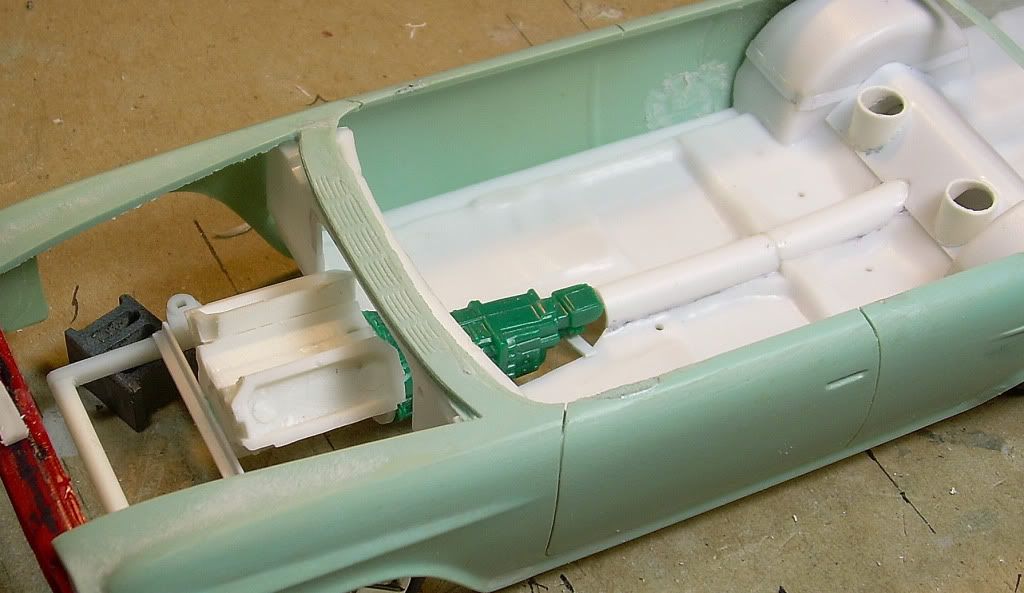

Top of the chassis showing the rear mods and the new front tubular crossmember. It was necessary to fab this type in order to clear the new front pan. The revised front suspension shown much earlier will work with this setup. Also, the firewall has been opened up more, allowing additional engine setback. I think I may need all the room I can get ahead of the engine. The piece of angle stuck to the block is just for temporary setup.

Posted Image

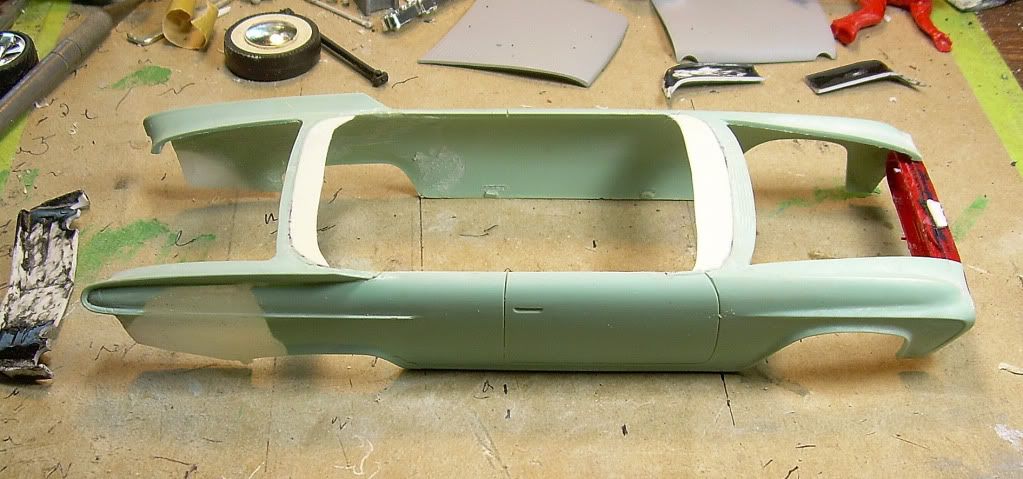

This is pretty much the final mockup of the new nose treatment.

Posted Image

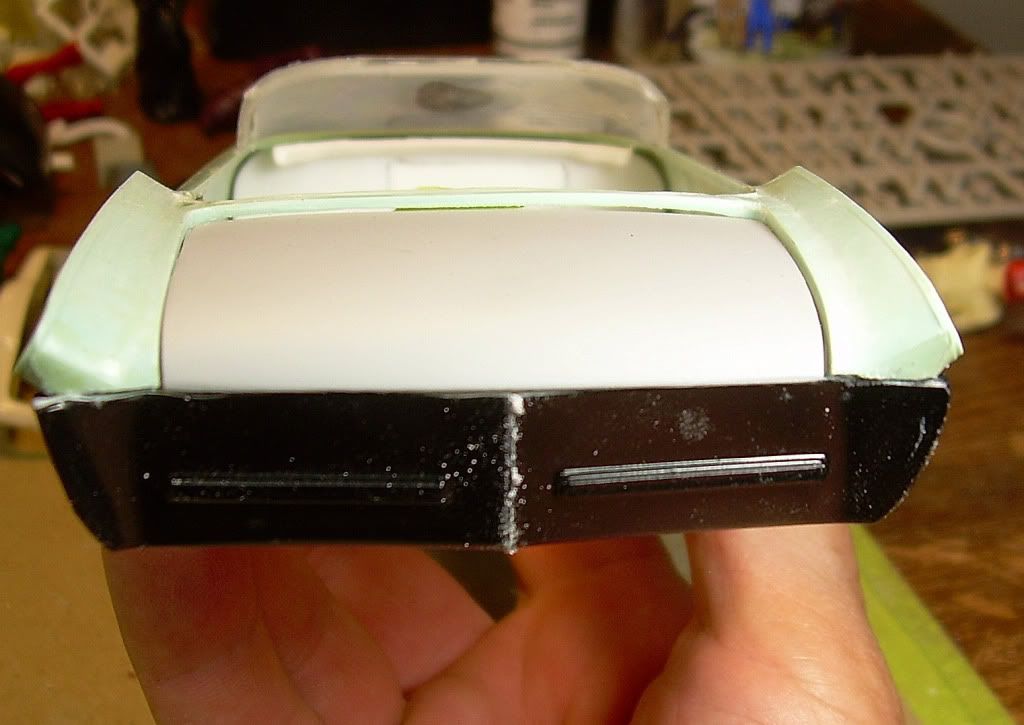

....and here's a better shot of the rough tail design, which mimics some elements from the front.

Posted Image

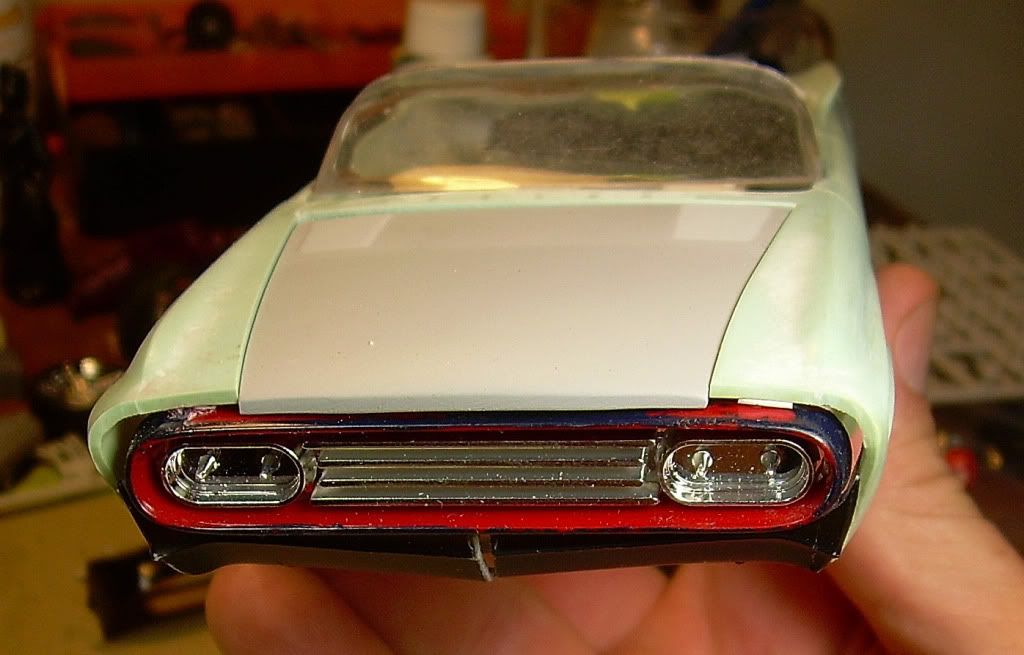

....and the taillights. I decided to go with the kind of rocket-ship look that this car seems to want, but with a little restraint to keep from becoming cartoonish. The lights, 4 of them to echo the quad headlights, are vintage Revell Parts Pack pieces I've been saving for something special. The peaks in the center of the pans will be softened slightly to better match the curves of the hood and rear deck. They won't be eliminated though, because I like the tension the slight mis-match of some of the design elements creates in the overall theme.

Posted Image

Edited by Ace-Garageguy, 15 July 2012 - 01:27 PM.


#68 c-man405

c-man405

    MCM Regular

  • Members
  • PipPipPip
  • 51 posts
  • Location:ill
  • Full Name:carter pelletier

Posted 15 July 2012 - 02:03 PM

whats the rear end set upfrom?

#69 Ace-Garageguy

Ace-Garageguy

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 7,673 posts
  • Location:Down two, then left.
  • Full Name:Bill Engwer

Posted 15 July 2012 - 02:30 PM

whats the rear end set upfrom?


If you look halfway down page 2 of this thread, there's a shot of the rear-end setup before modifications. It's a generic Nascar truck-arm style rig with a reinforced Ford 9", available sometimes as part of a donor kit from GMS Customs on ebay. One of the reasons I decided to use it was to give me room to route the exhaust system after the severe lowering job. The leaf springs would have been in the way, and it would have taken a LOT more chassis mods to make that setup work.

#70 Ira

Ira

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 6,516 posts
  • Location:Sonoma County
  • Full Name:Ira Dahm

Posted 15 July 2012 - 02:45 PM

GREAT PROGRESS BILL!!!

#71 S. Svendsen

S. Svendsen

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,044 posts
  • Location:Columbus, Ohio
  • Full Name:Sean Svendsen

Posted 16 July 2012 - 09:21 AM

That thing is looking wild!!

#72 Psychographic

Psychographic

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 985 posts
  • Location:Bethlehem, PA
  • Full Name:David Gilmour

Posted 16 July 2012 - 04:47 PM

Posted Image

H O L Y C R A P is that nice!

You my friend, have a great build on your hands, that is absolutely stunning.

#73 Scalefinishes

Scalefinishes

    MCM Avid Poster

  • Members
  • PipPipPipPipPip
  • 276 posts
  • Location:Utah
  • Full Name:Jameston Kroon

Posted 16 July 2012 - 05:10 PM

When you decide on a color email me. That is a wild looking custom, I LOVE IT!!!

Jameston
Scalefinishes.com

#74 Tony T

Tony T

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 2,639 posts
  • Location:Greely ON Canada
  • Full Name:Tony

Posted 16 July 2012 - 05:44 PM

Coming along great...love the overall look of this...fantastic...even the taillights!

#75 David G.

David G.

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 2,644 posts
  • Location:Phoenix, AZ
  • Full Name:David A. Gudzinas

Posted 17 July 2012 - 03:43 AM

This just keeps getting better with each update.

It also looks like it would make a great hover-car.

David G.

#76 Ace-Garageguy

Ace-Garageguy

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 7,673 posts
  • Location:Down two, then left.
  • Full Name:Bill Engwer

Posted 29 July 2012 - 04:54 PM

Thank you all again for the interest and kind comments.

Not a jell of a lot of progress, but some is better than none. I've extended the front and rear cowl panels.

In front, I'm moving the windshield back, so I need more sheetmetal under it. Also, the windshield frame is going to be more of a removable roadster style, so I want the illusion that the cowl flows all the way into the top of the instrument panel. Think Porsche Speedster.

In the rear, the very thin strip between the backlight and the decklid was just too narrow, so it got widened too. The body is also very fragile, and adding this little reinforcement will stabilize things, a lot.

Posted Image

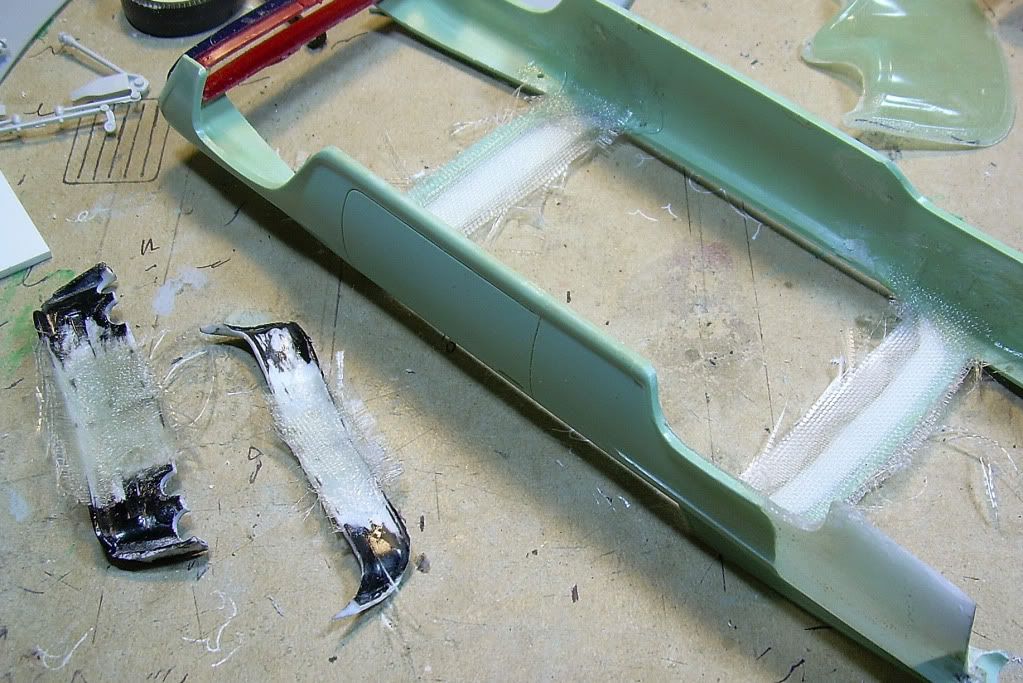

On the underside, I've reinforced the fitted styrene filler panels with fiberglass and epoxy resin. I've also reinforced the insides of the front and rear pans or valences the same way. There's a lot of bodywork to do everywhere, and I hate to have things cracking as I'm working, so I go for overkill at this stage.

Posted Image

#77 Pat Minarick

Pat Minarick

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,704 posts
  • Location:Wood River Il.
  • Full Name:Pat Minarick

Posted 29 July 2012 - 05:34 PM

Thank you all again for the interest and kind comments.

Not a jell of a lot of progress, but some is better than none. I've extended the front and rear cowl panels.

In front, I'm moving the windshield back, so I need more sheetmetal under it. Also, the windshield frame is going to be more of a removable roadster style, so I want the illusion that the cowl flows all the way into the top of the instrument panel. Think Porsche Speedster.

In the rear, the very thin strip between the backlight and the decklid was just too narrow, so it got widened too. The body is also very fragile, and adding this little reinforcement will stabilize things, a lot.

Posted Image

On the underside, I've reinforced the fitted styrene filler panels with fiberglass and epoxy resin. I've also reinforced the insides of the front and rear pans or valences the same way. There's a lot of bodywork to do everywhere, and I hate to have things cracking as I'm working, so I go for overkill at this stage.

Posted Image

Very nice work!

#78 Johan020

Johan020

    MCM Friend

  • Members
  • PipPipPipPip
  • 233 posts
  • Location:Amsterdam the Netherlands
  • Full Name:Johan

Posted 30 July 2012 - 08:59 AM

This is a great Looking Dart in progress
Cant wait to see it in paint

#79 Ace-Garageguy

Ace-Garageguy

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 7,673 posts
  • Location:Down two, then left.
  • Full Name:Bill Engwer

Posted 05 August 2012 - 12:56 PM

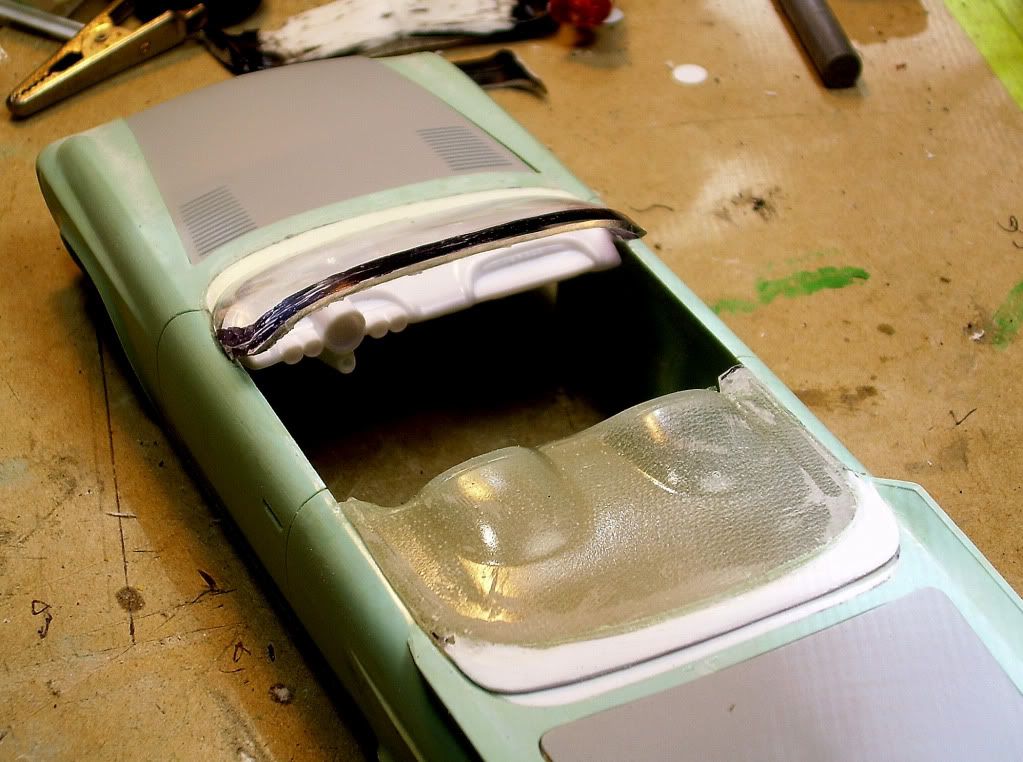

Trimmed up the extended front and rear cowl fillers, began lengthening the copied Saleen hard tonneau, and found a nice Impala dash that picks up the shapes of the head fairings, and echos the quad taillights.

Posted Image

This is pretty much the final top-down profile, seat location, etc. The black on the windshield is a mockup for a somewhat thinner surround similar to that found on the last production T-bird.

EDIT: Think I may have to raise the extreme rear of the bottom of the quarter panel just a little.......and the fairing for the headrest needs to come forward a bit, and up just a bit to more fully shroud the seat. It needs to be a little stronger and cleaner.......and the taillight lens is drooping just slightly........yeah, that'll fix it.

Posted Image

Edited by Ace-Garageguy, 05 August 2012 - 02:00 PM.


#80 Dr. Cranky

Dr. Cranky

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 15,422 posts
  • Location:Transylvania, Florida
  • Full Name:Virgil "Doctor Cranky" Suarez

Posted 05 August 2012 - 01:06 PM

That's a killer look. Wow.
