'32 Ford roadster gluebomb rework. Oct 13, minor adjustment


  • You cannot reply to this topic
184 replies to this topic

#81 bryan_m

bryan_m

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 2,501 posts
  • Location:Lost in America
  • Full Name:Bryan Mccallum

Posted 26 August 2012 - 05:30 PM

Will, i love how youve got the exhaust coming out of the engine side covers! very nice touch, and that quick change rear diff looks great as well.

one question: where did you get the duvall windshield? i love those, they look all mean and laid back........like theyre goin fast just standing still!
lemme know, thanks will!

cheers
bryan

#82 Ace-Garageguy

Ace-Garageguy

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 7,627 posts
  • Location:Down two, then left.
  • Full Name:Bill Engwer

Posted 27 August 2012 - 01:40 AM

Thanks Bryan.

The DuVall is from the AMT '32 Phantom Vickie.

#83 doggie427

doggie427

    MCM Avid Poster

  • Members
  • PipPipPipPipPip
  • 331 posts
  • Location:currently 10th dimension;considering a move to the 13th
  • Full Name:wayne sauchuk

Posted 27 August 2012 - 01:36 PM

Beautiful work !

#84 vintagedragfan

vintagedragfan

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 2,636 posts
  • Location:Richmond Mo,
  • Full Name:Bill Davis

Posted 28 August 2012 - 01:30 AM

great work William!, keep at it buddy

#85 Ace-Garageguy

Ace-Garageguy

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 7,627 posts
  • Location:Down two, then left.
  • Full Name:Bill Engwer

Posted 22 September 2012 - 01:36 PM

First off, please pardon the fuzzy pix. Seems I'm a camera doofus today. Had to rebuild my Dremel and dropped some little parts too. Doofus all around today.

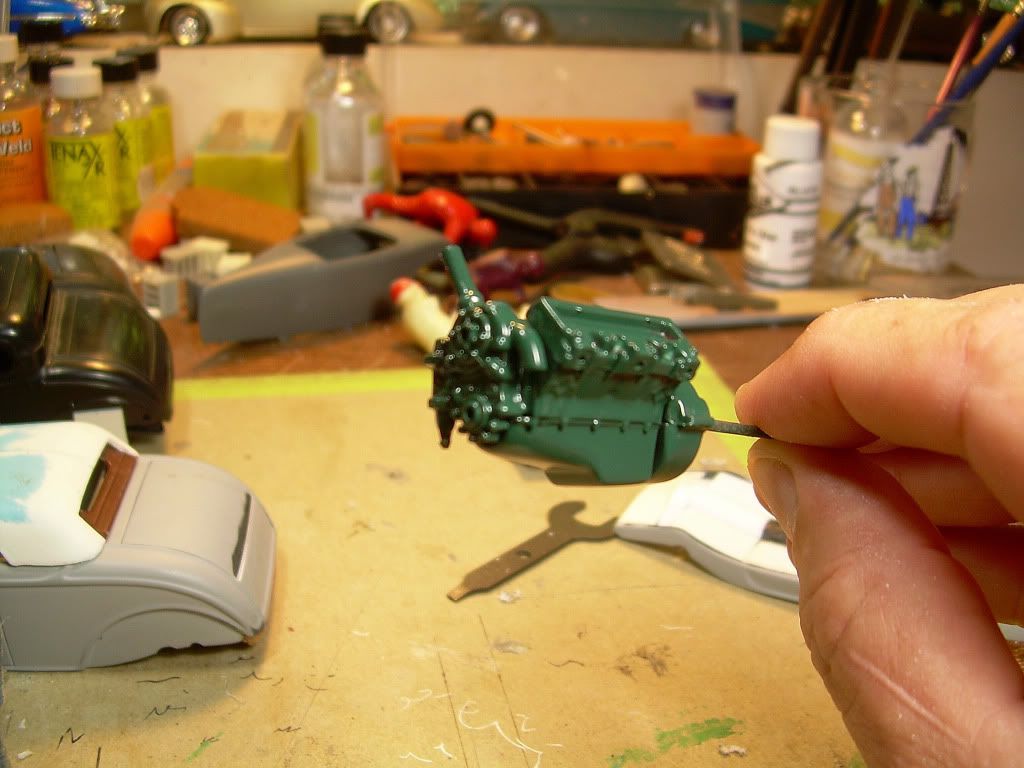

Painted the engine about the right green for a 303 Olds after drilling the spark plug holes and the oil filler tube.

Posted Image

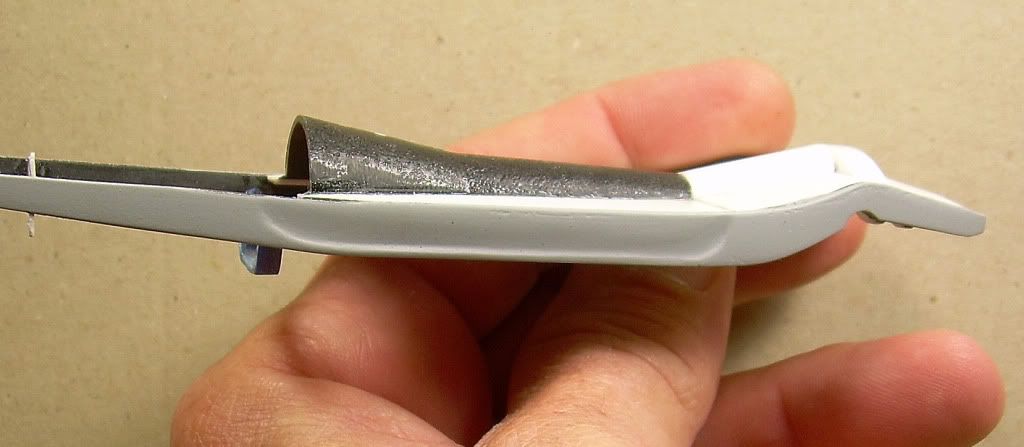

.....Started making up a Carson-style top from a '55 T-Bird unit.....

Posted Image

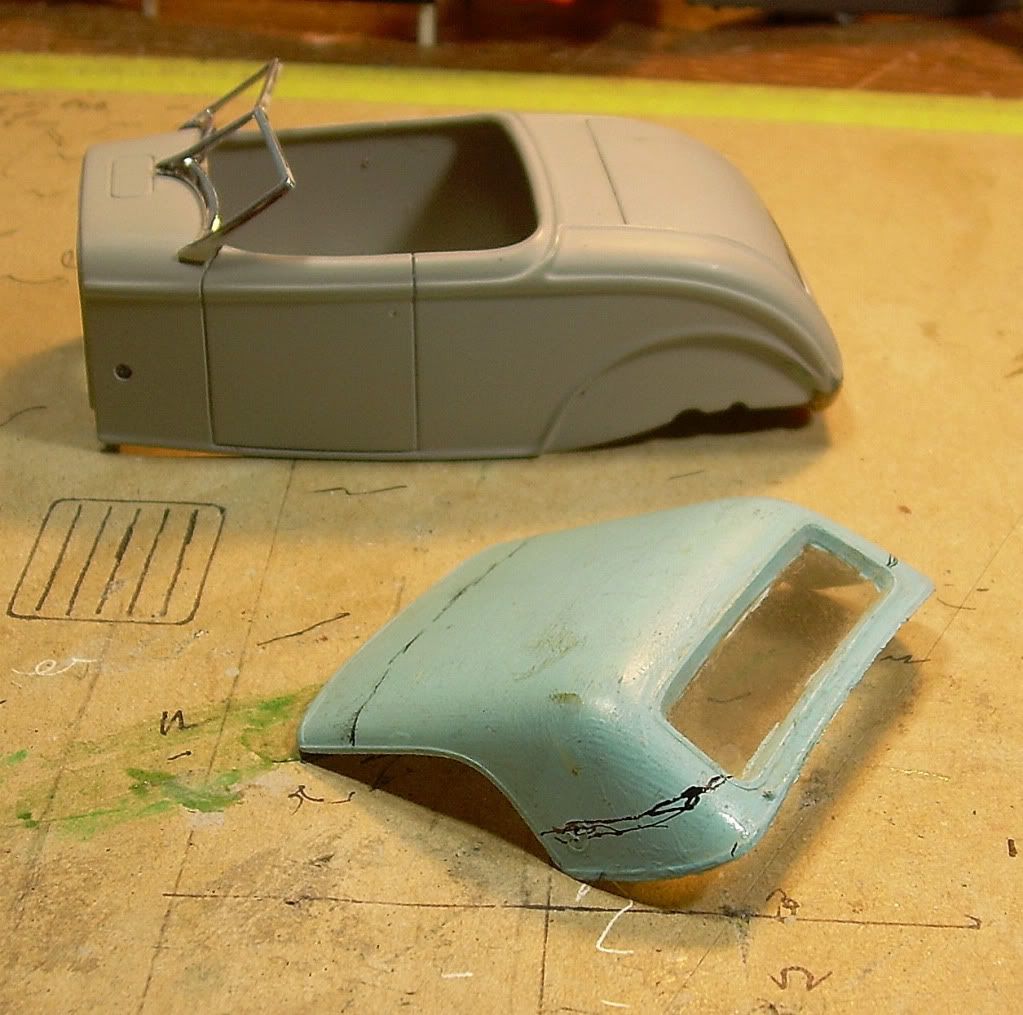

Chopped it to get the profile...

Posted Image

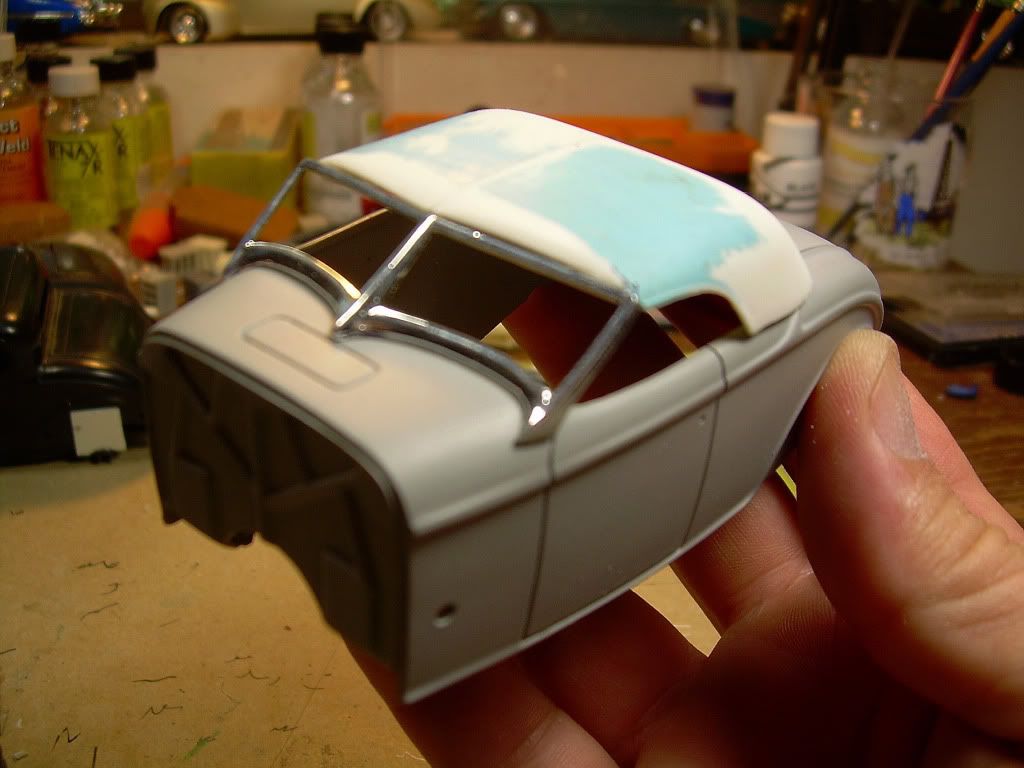

Narrowed it, shaped it to match the Vee of the DuVall, and will have to make corner extensions to match.....

Posted Image

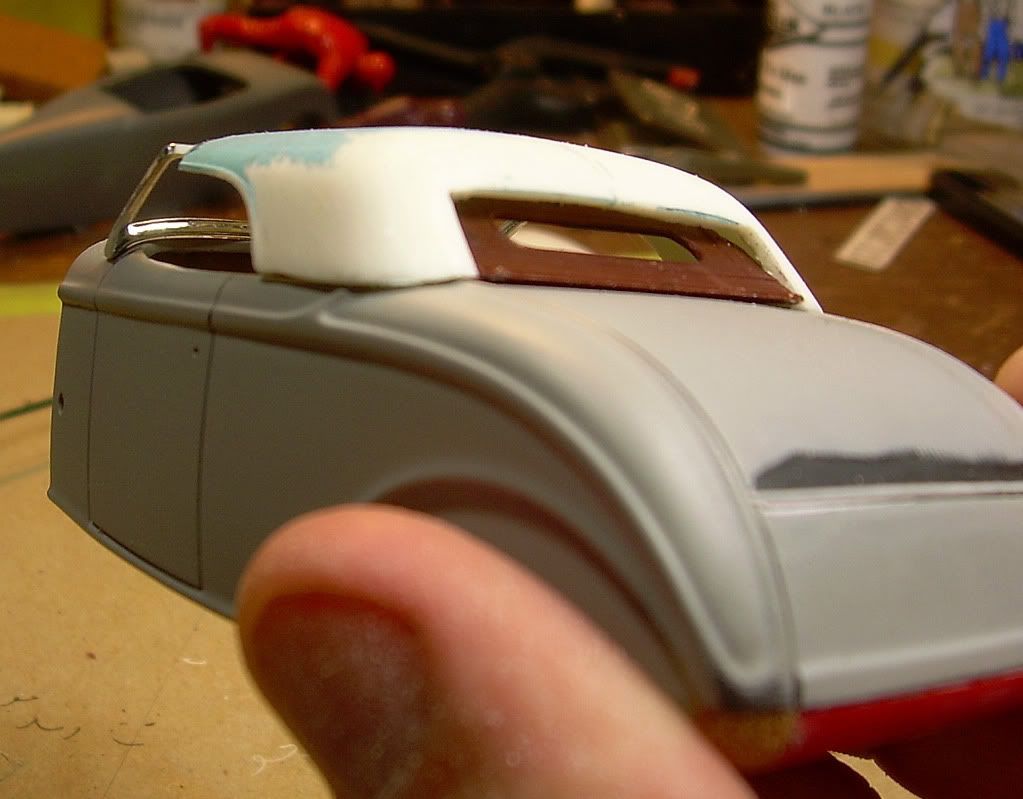

And will set in an oval back glass from another parts-bin top....

Posted Image

#86 aksarben

aksarben

    MCM Friend

  • Members
  • PipPipPipPip
  • 209 posts
  • Location:Wolbach, NE
  • Full Name:Steve Deisley

Posted 22 September 2012 - 07:16 PM

That top is looking cool Bill, nice mod.

#87 Ace-Garageguy

Ace-Garageguy

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 7,627 posts
  • Location:Down two, then left.
  • Full Name:Bill Engwer

Posted 23 September 2012 - 01:22 PM

Thanks. I promise the top will look WAY mo' cooler in a bit. It looks pretty not-so-hot at the moment, but it's progressing well......have to build the front corners up and add a little material back to the bottom, but there's a plan in action.

Again, sorry about the blurry pix. A good reminder to not get in a hurry.

#88 Ace-Garageguy

Ace-Garageguy

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 7,627 posts
  • Location:Down two, then left.
  • Full Name:Bill Engwer

Posted 30 September 2012 - 05:58 AM

Rear rolled pan with the rigid-foam corner-fillers filled with epoxy/cotton flock slurry, as well as the corners of the Carson-style top. This stuff is WAY stronger than bondo or any other conglomeration of baking soda / superglue or whatever...I don't like to have my work break and fall off. Or shrink excessively.

I've also reinforced the inside of the pan-to-body joint with fine glass cloth, as I want to deeply scribe the joint line on the outside.

Posted Image

.....the result, just about ready for primer....

Posted Image

Edited by Ace-Garageguy, 30 September 2012 - 10:58 AM.


#89 Bernard Kron

Bernard Kron

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 2,719 posts
  • Location:Seattle, WA
  • Full Name:Bernard Kron

Posted 30 September 2012 - 07:25 AM

Hi Bill. Looks very nice. The proportion and depth on that pan looks just right!

Since I can't use CA at all I am always on the lookout for alternatives. And I have not exactly been in love with most hobby-level fillers, so this approach has caught my eye. Can you give us more detail on the epoxy/cotton thing and maybe the rigid foam thing, too... Oh, and the fine glass cloth, which I have seen you use before but have neglected to ask about... Presumably all this is held together with your epoxy weapon of choice. Thanx!

#90 MachinistMark

MachinistMark

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,196 posts
  • Location:nova scotia
  • Full Name:Mark fulmore

Posted 30 September 2012 - 12:43 PM

This looks fantastic. Really really fantastic

#91 Ace-Garageguy

Ace-Garageguy

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 7,627 posts
  • Location:Down two, then left.
  • Full Name:Bill Engwer

Posted 03 October 2012 - 03:52 AM

Again, thatks for the interest. Bernard, I'm going to do a how-to on some of the epoxy stuff shortly.

Only recent progress is the fitting of the stock 303 Olds valve covers I've been waiting for ever since the Revell '50 Olds kit was announced. In truth, their announced pending-availability was a large part of the inspiration for this bilid. Years ago. Alloy adapter and top-shift LaSalle almost done too, so the shifter hole can go in the right place in the trans hump now.

Posted Image

FYI: For anybody who didn't see my post in the '50 Olds kit review thread, the new Revell Olds engine is in the background for reference. It comes with a 3-speed manual Olds-Cad-LaSalle side-shift gearbox, appropriate for many hot-rod applications. ALL the speed equipment from prior AMT and Revell Olds 303-324-371-394 ('49-'63) engines will fit the new engine in the new Revell '50 Olds kit. The finned valve covers on it are small block Chevy (later Olds valve covers would have 3 bolt-holes on the bottom rail, not two) but the Olds parts fit just as well.

Edited by Ace-Garageguy, 03 October 2012 - 01:44 PM.


#92 Ace-Garageguy

Ace-Garageguy

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 7,627 posts
  • Location:Down two, then left.
  • Full Name:Bill Engwer

Posted 07 October 2012 - 03:38 PM

Frame rail reveals about done....

Posted Image

....as is the rear rolled-pan.

Posted Image

#93 bryan_m

bryan_m

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 2,501 posts
  • Location:Lost in America
  • Full Name:Bryan Mccallum

Posted 07 October 2012 - 03:57 PM

very nice! the frame and the roll pan look excellent

cheers
bryan

#94 Ace-Garageguy

Ace-Garageguy

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 7,627 posts
  • Location:Down two, then left.
  • Full Name:Bill Engwer

Posted 21 October 2012 - 05:45 AM

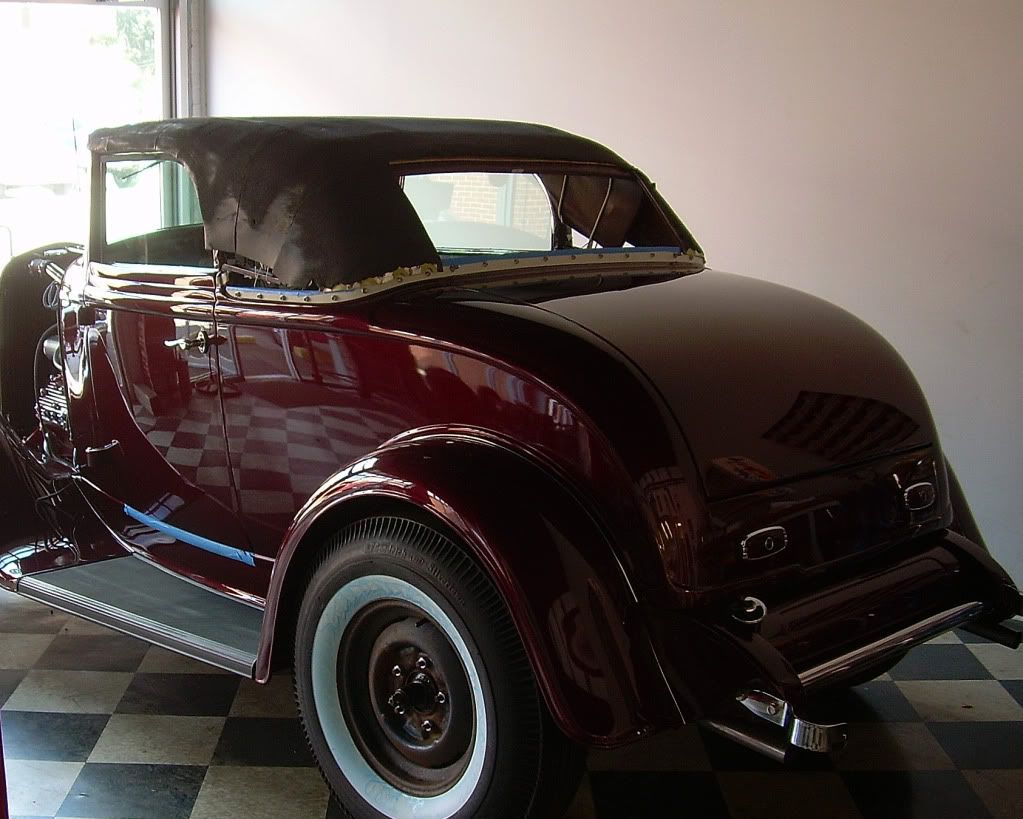

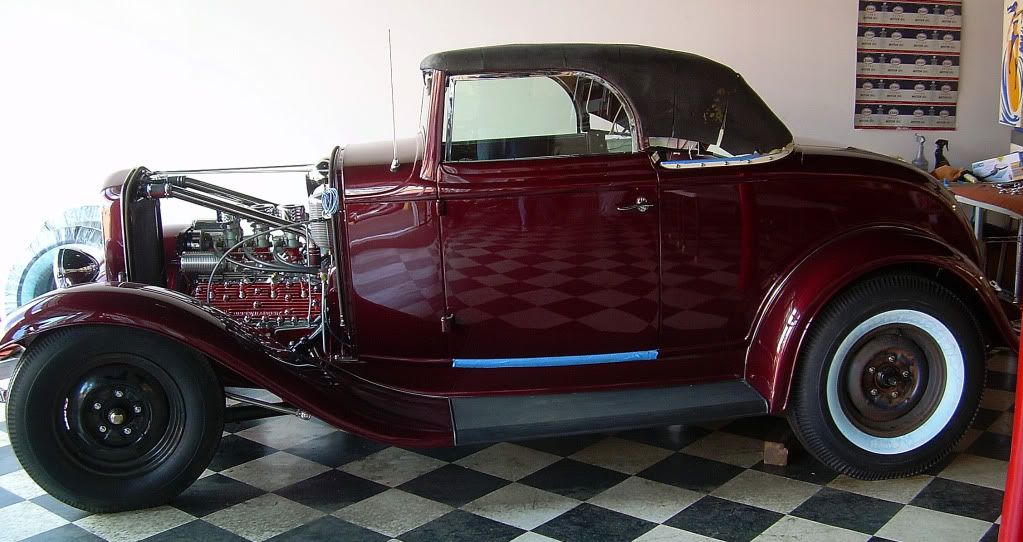

The inspiration for the Carson-style top idea came from the Bill Cox '32 cabriolet, a February 1961 Rod and Custom feature car, currently nearing completion in Josh Mills' shop here. It's being restored to its '61 condition, after having been through a succession of owners and modifications. It's slated to be re-introduced at the Grand National Roadster Show in Pomona, Ca., in January. Just for the record, I've had NOTHING to do with the work on this car in Josh's shop.

Anyway, I liked the lines of this custom top so much that I decided to do something similar for this build. Though the 1:1 Cox car doesn't have the laid-back DuVall windshield, this is the look I'm going for, with the curved side-window opening, etc.


The rear 3/4 view works very nicely with the rear line of the '32 body.




Edited by Ace-Garageguy, 14 July 2013 - 07:16 AM.


#95 Joker

Joker

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,809 posts
  • Location:Old Dominion
  • Full Name:James Scott

Posted 21 October 2012 - 06:59 AM

Keeping an eye on your engine build Bill.
I've got a '50 Olds in the works and I'm looking
to "hot rod" the engine even tho it's going
into a Kustom.Waiting to see what kind of intake
manifold you install as well as the carbs (number of).

#96 Joker

Joker

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,809 posts
  • Location:Old Dominion
  • Full Name:James Scott

Posted 21 October 2012 - 07:01 AM

Forgot to say that the Carson Top is another feature
I'm keeping an eye on too.

Thanks for sharing the body work pics Bill

#97 crazyrichard

crazyrichard

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 4,081 posts
  • Location:netherlands on styrene clogs
  • Full Name:richard gelens

Posted 21 October 2012 - 07:38 AM

very very cool build !!

#98 Ace-Garageguy

Ace-Garageguy

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 7,627 posts
  • Location:Down two, then left.
  • Full Name:Bill Engwer

Posted 25 October 2012 - 02:20 PM

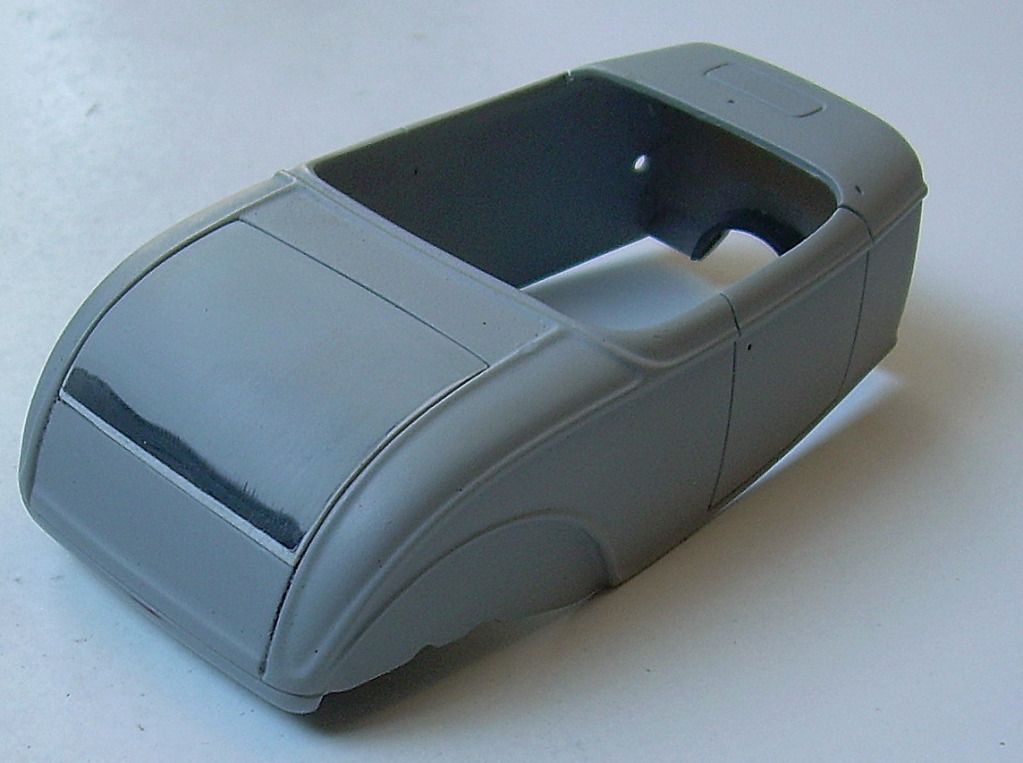

Getting real close to paint, and I've never been 100% happy about the way the decklid fit the opening. So, now's the time to fix it. Added a little styrene strip to the bottom edge of the lid, and a little to the right side. Then started squaring up the hole. I just can't bear wonky.

The deck will be hinged from the front as a decklid, not from the rear as a rumble seat.

Posted Image

#99 MachinistMark

MachinistMark

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,196 posts
  • Location:nova scotia
  • Full Name:Mark fulmore

Posted 25 October 2012 - 03:37 PM

Amazing work bill. Simply amazing. I love it.

#100 Pat Minarick

Pat Minarick

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,697 posts
  • Location:Wood River Il.
  • Full Name:Pat Minarick

Posted 25 October 2012 - 04:02 PM

Looking good !
