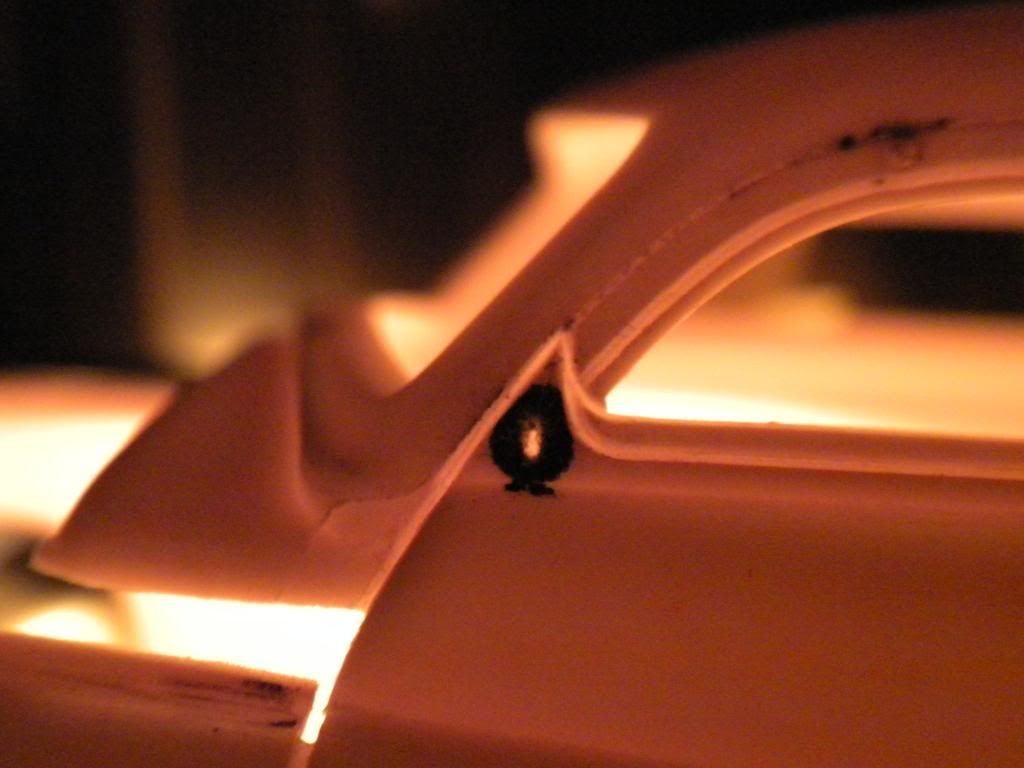

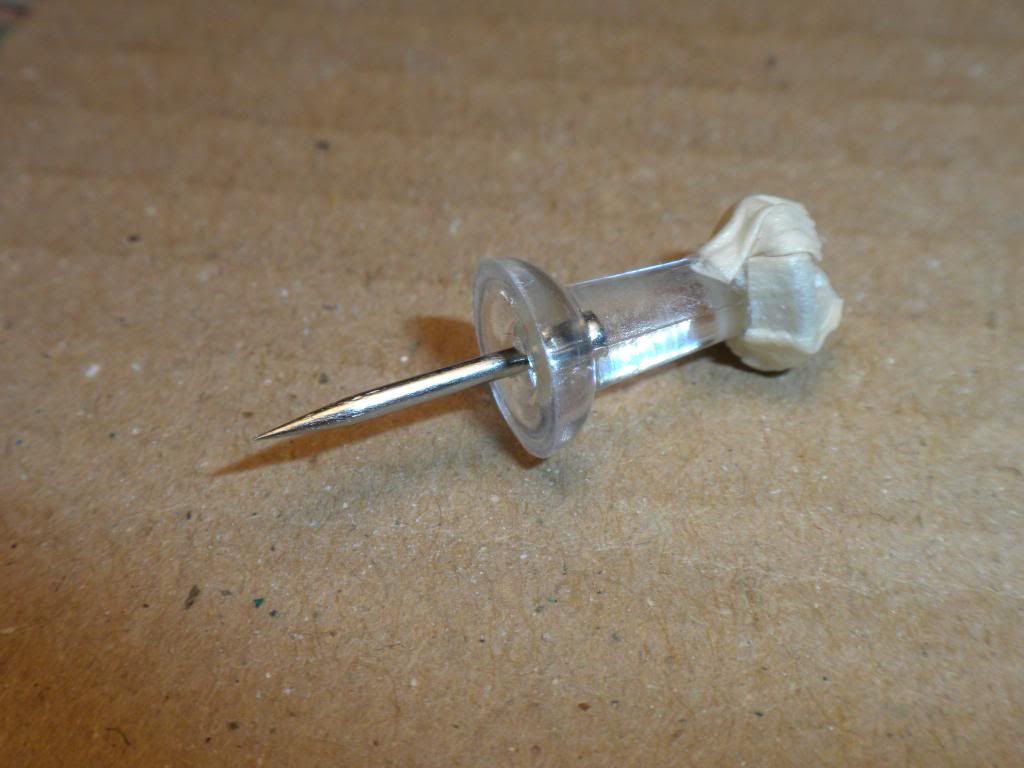

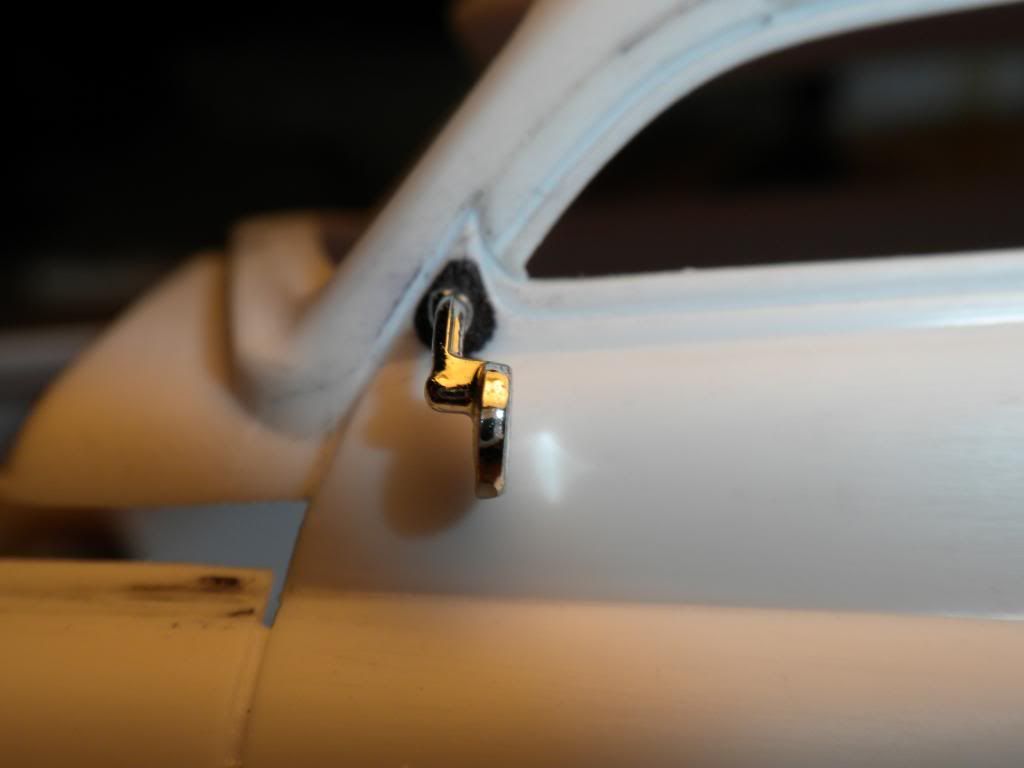

I started by moving the mirror down onto the door. Thought it looked better then were it was so I made a tiny hole with a thumb tac (only thing i had small enough to make the hole).
I use black marker as an etching guide

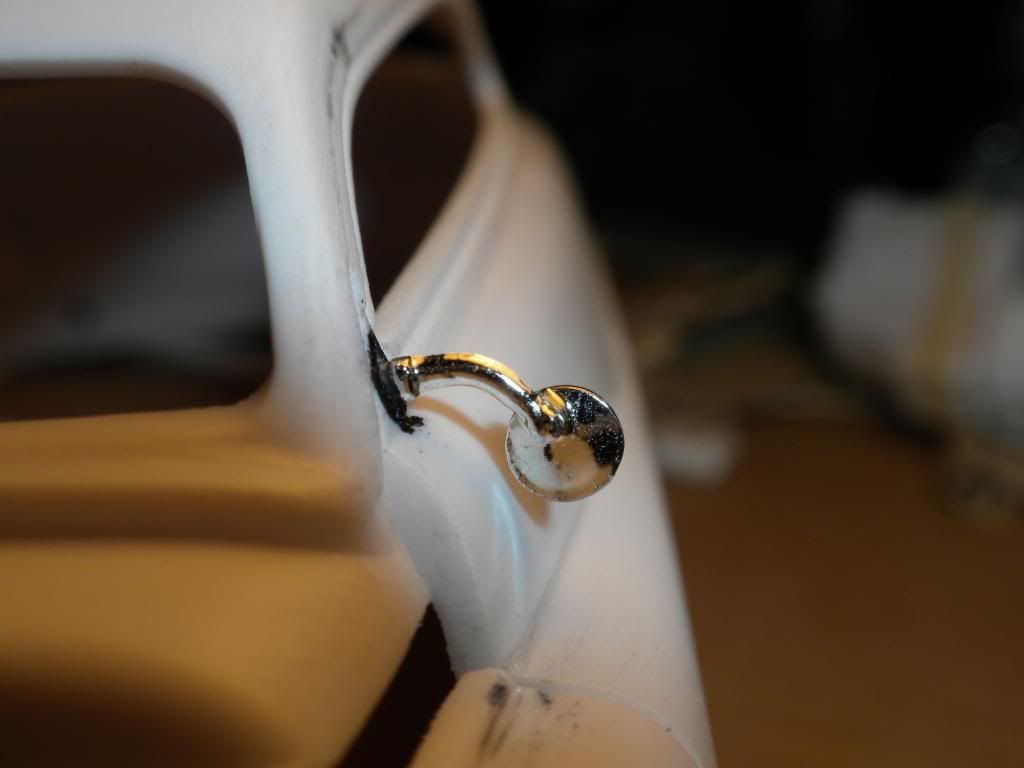

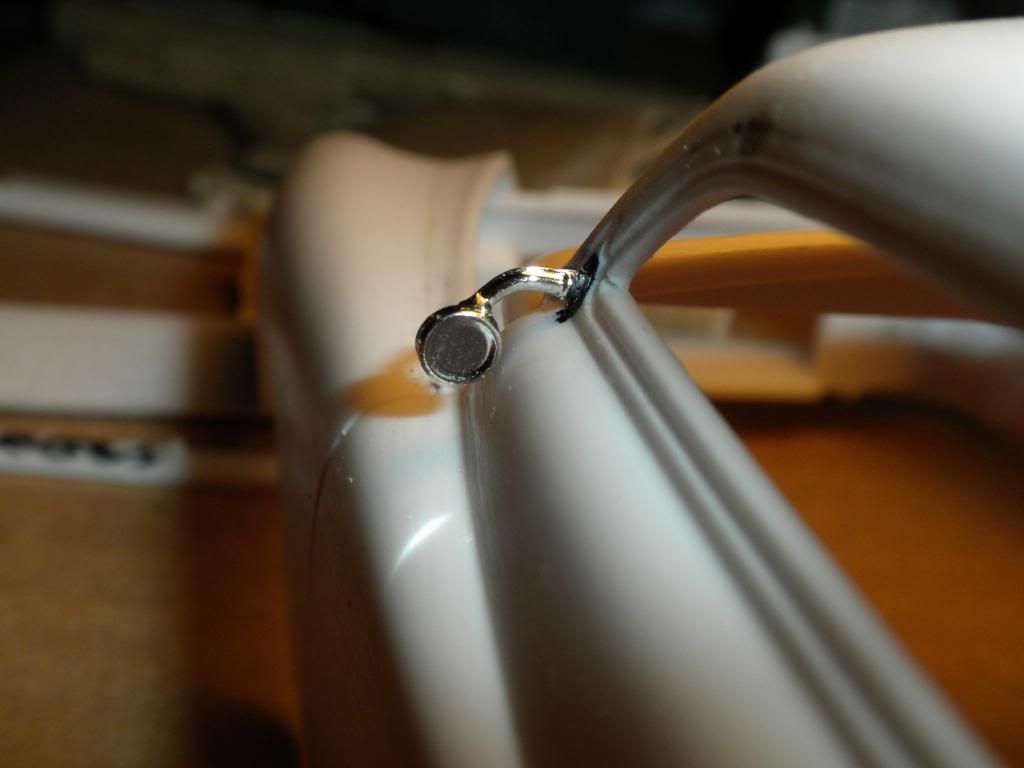

Then I made it flow with the body.DSCN6537.jpgDSCN6535.jpg

Edited by JasonFL, 16 March 2013 - 12:10 AM.


#185 JasonFL

JasonFL

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 957 posts
  • Location:South Florida
  • Full Name:Jason Brackney

Posted 16 March 2013 - 12:12 AM

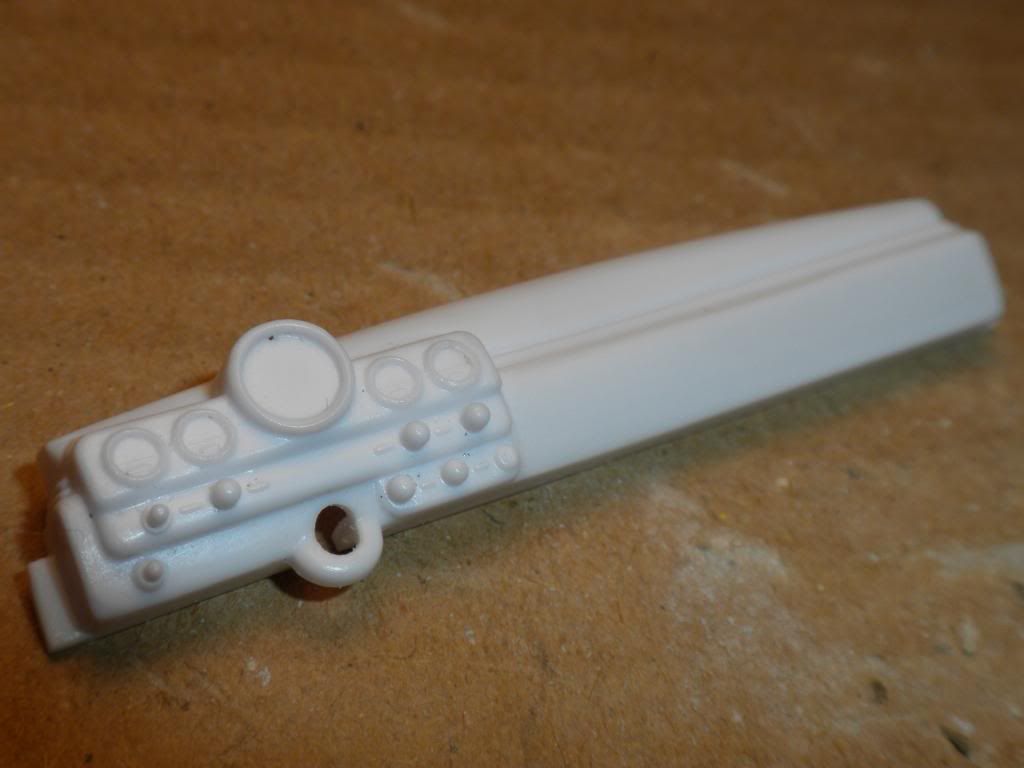

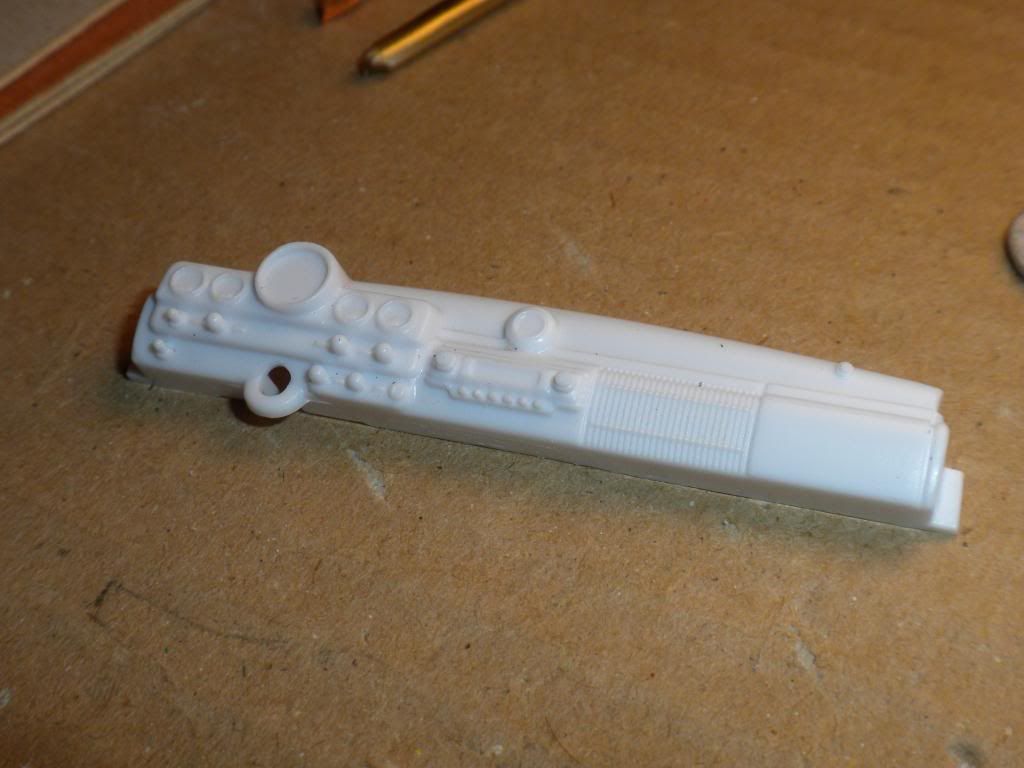

Just to clean the interior up a bit I shaved the dashboard smooth of the clock, radio, glovebox/lock, and those lines, not to sure what they are.
Then I followed that nice body line all the way through.

Edited by JasonFL, 16 March 2013 - 12:23 AM.


#186 JasonFL

JasonFL

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 957 posts
  • Location:South Florida
  • Full Name:Jason Brackney

Posted 16 March 2013 - 12:17 AM

I also shaved the tires down a bit to help with clearance and get it down a bit lower.

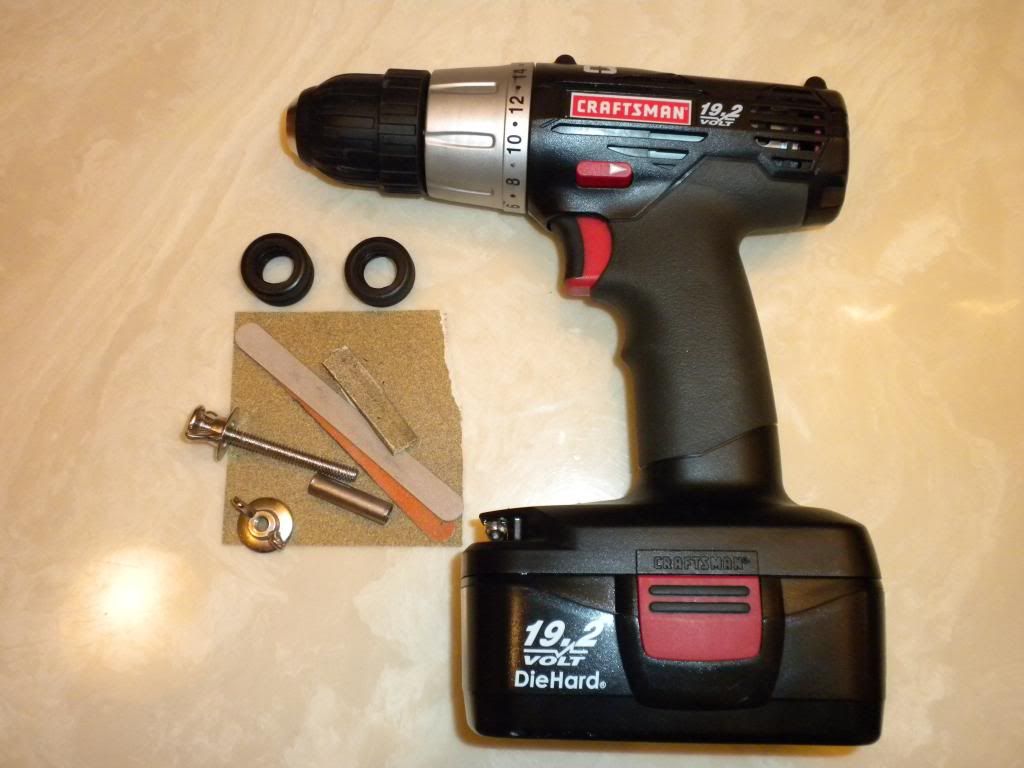

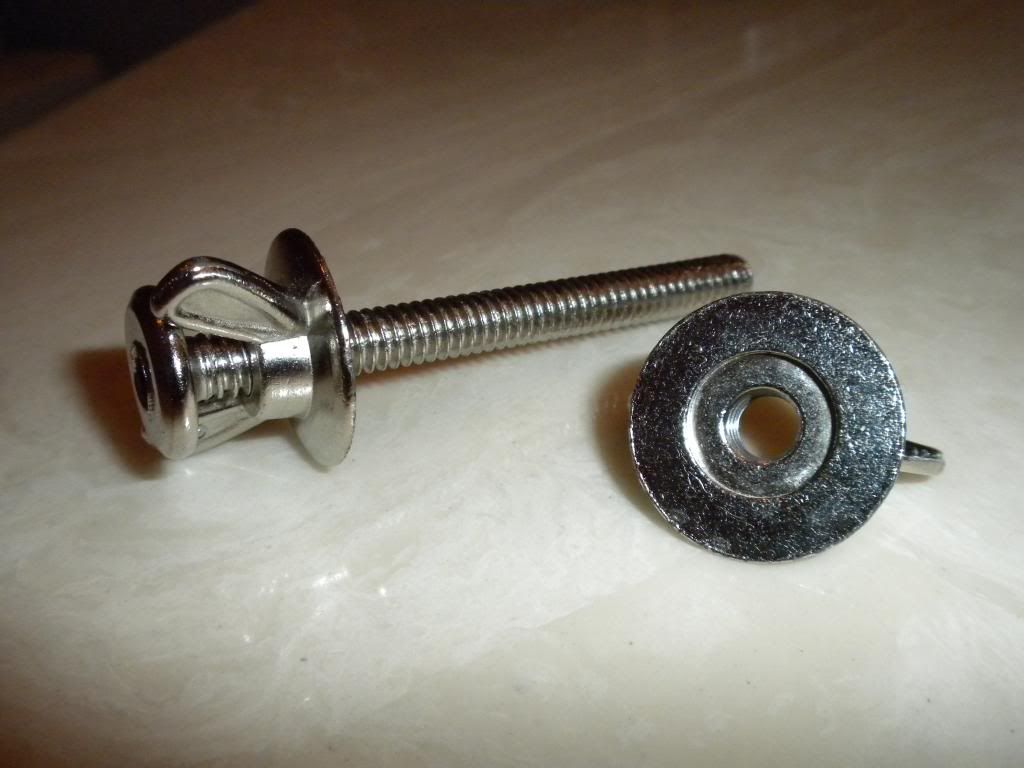

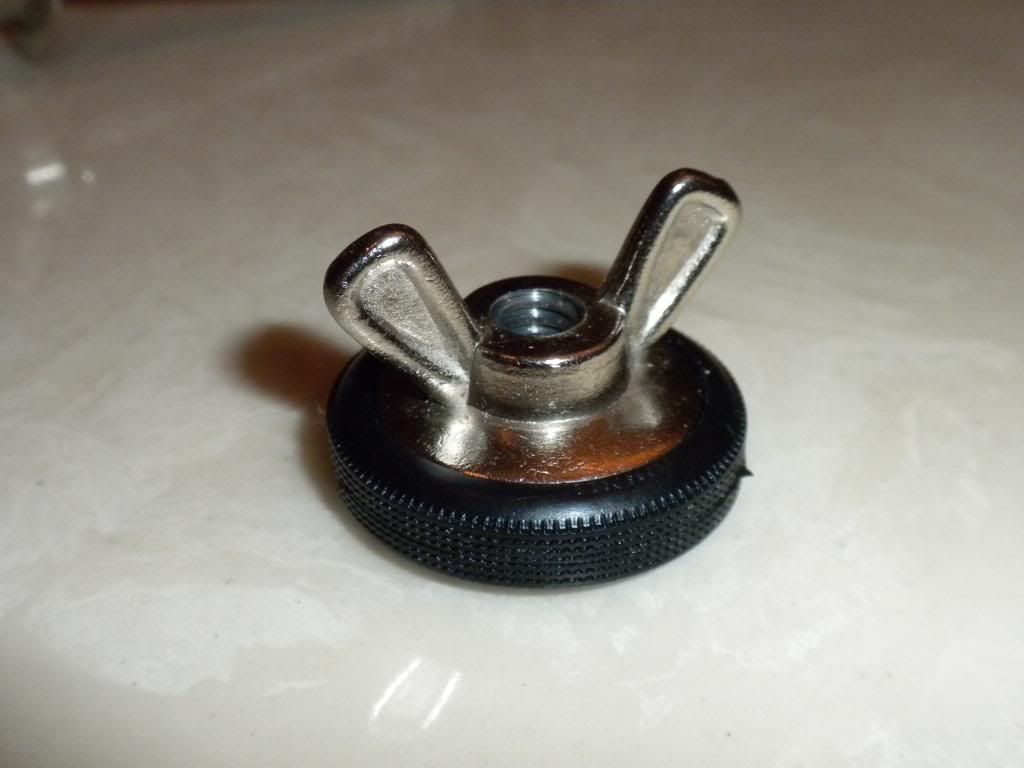

Weapons of choice: power drill, bolt, 2 wing nuts, a spacer, and some sanding materials.
I used wing nuts with a smooth side so the ridges didn't dig into the tire.
They also fit perfectly into the tire.

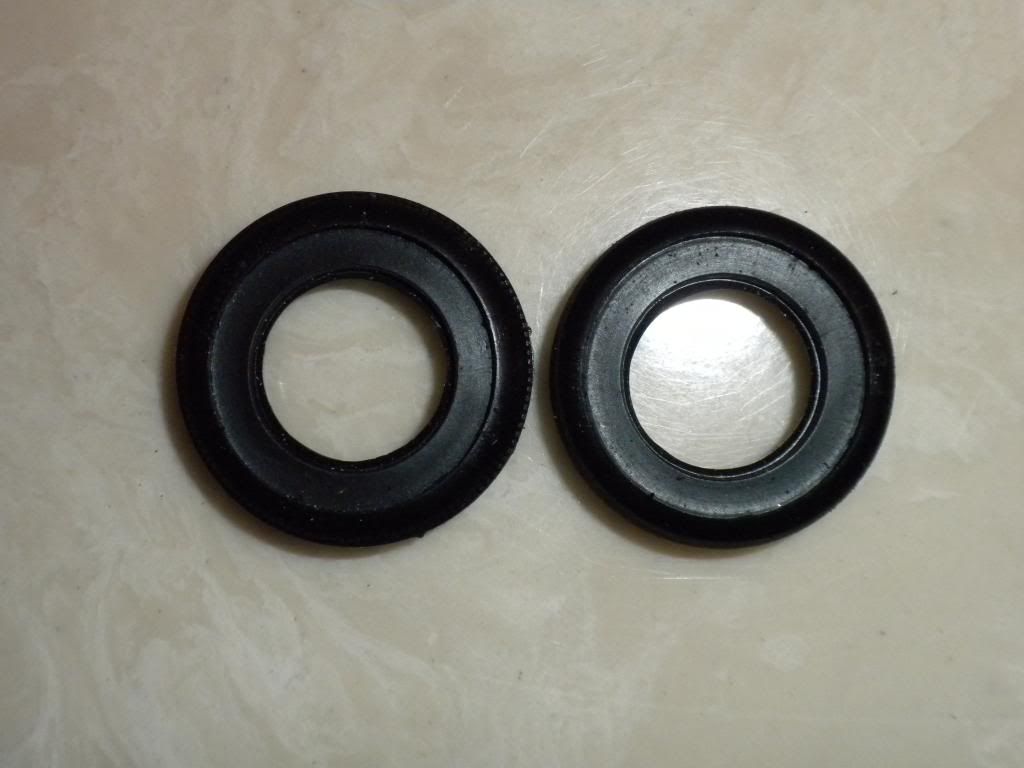

Left side: unshaven
Right side : shaved
Not much difference but you can see its a little smaller then the original.

That's it for right now. I'll try and get some progress photos up of the rear frame section soon. Thanks for looking.

Edited by JasonFL, 16 March 2013 - 12:19 AM.


#187 TooOld

TooOld

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 3,613 posts
  • Location:Citrus Park , Florida
  • Full Name:Bob Spedding

Posted 16 March 2013 - 03:36 AM

Every thing is looking great Jason !   I really like the smooth dash ,  what a difference !

 Nice job with the tires too ,  I've been doing it that way for a long time .

 Keep up the good work !



#188 JasonFL

JasonFL

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 957 posts
  • Location:South Florida
  • Full Name:Jason Brackney

Posted 18 March 2013 - 10:17 PM

Every thing is looking great Jason !   I really like the smooth dash ,  what a difference !
 Nice job with the tires too ,  I've been doing it that way for a long time .
 Keep up the good work !

Thanks Bob, I appreciate it. Glad you like it

#189 JasonFL

JasonFL

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 957 posts
  • Location:South Florida
  • Full Name:Jason Brackney

Posted 16 June 2013 - 06:19 AM

Sorry for the lack of updates but its a pain in the a$$ to get my photos up.

After some broken parts and a lot of trial n error, I finally finished the rear set up. This was the first time ever scratch building this small so it took a lot longer then expected but I'm pretty satisfied with the results.

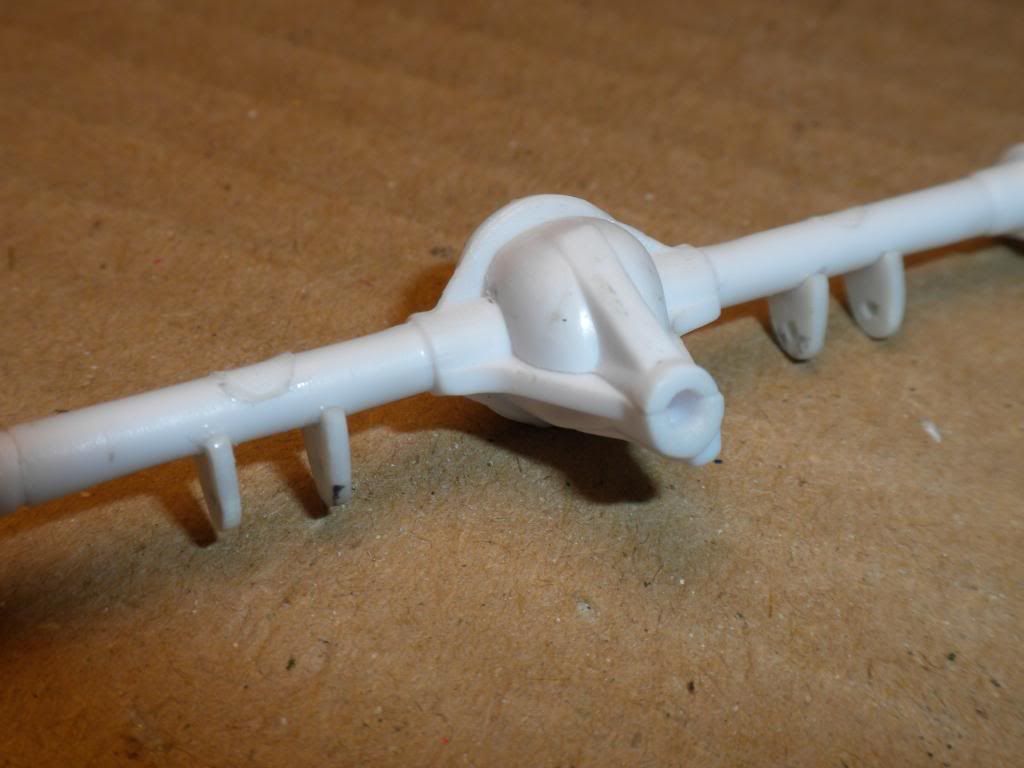

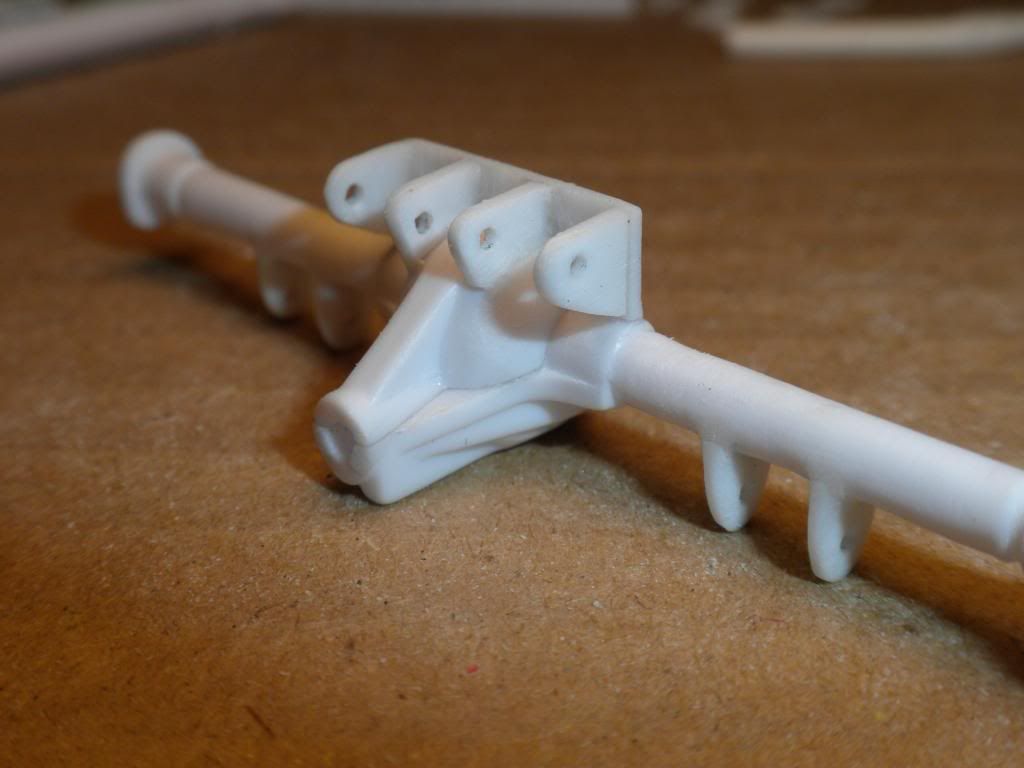

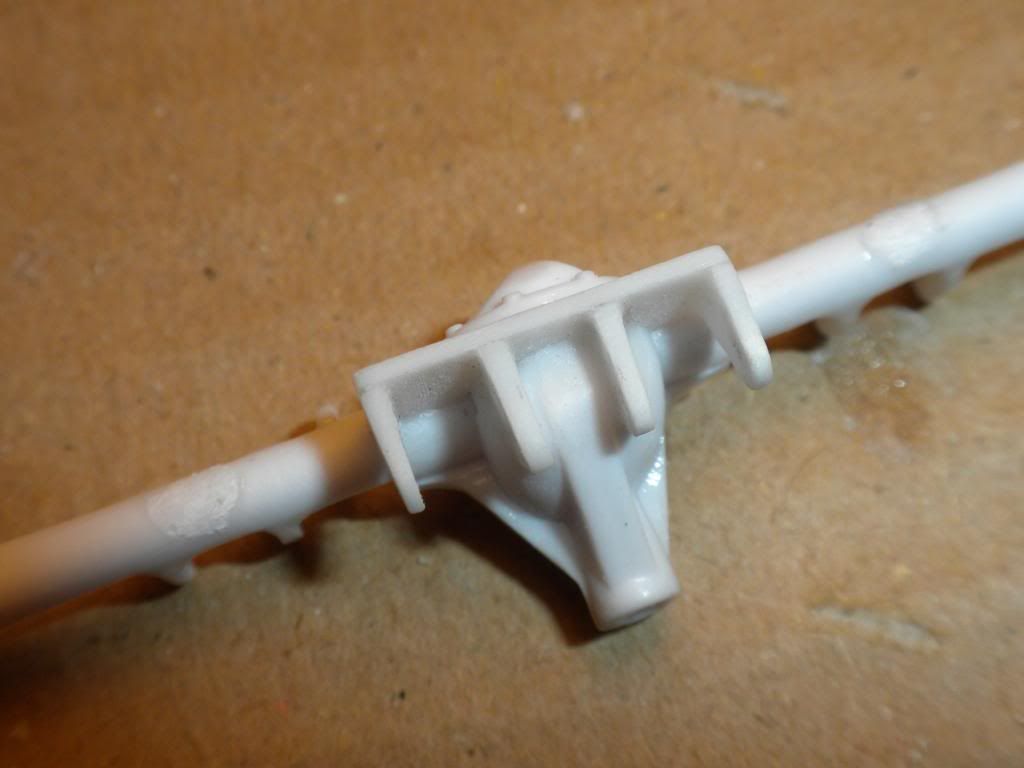

I decided to go with a 4 link. The first thing I did was make a cross member so I can attach the tabs to it.

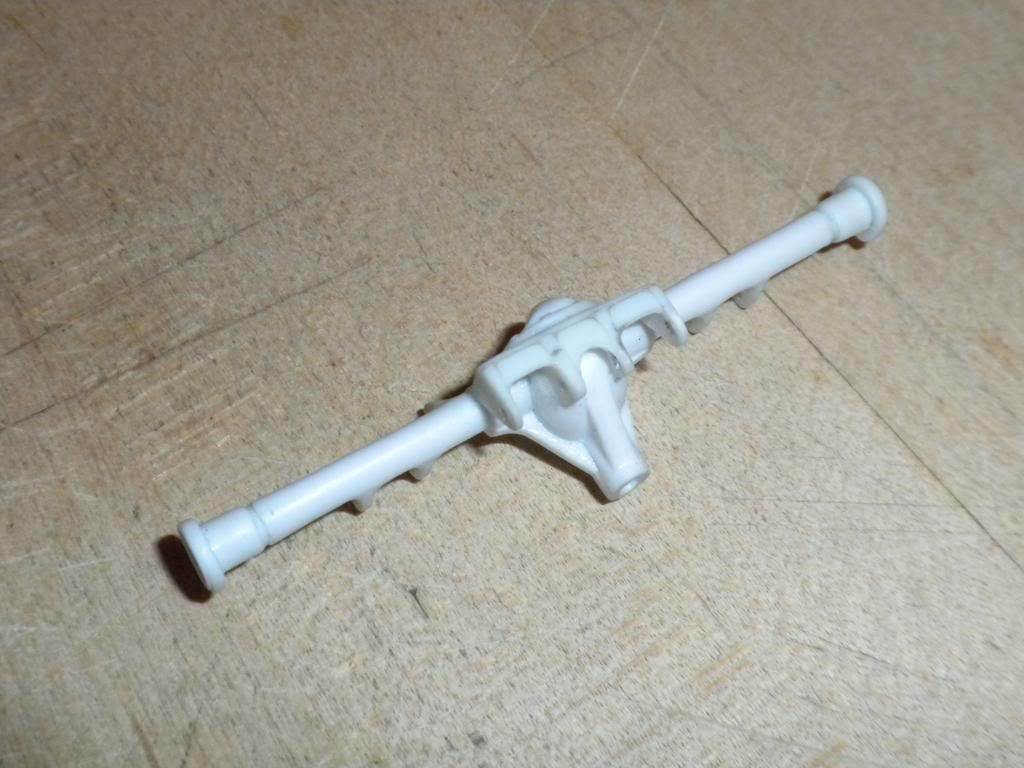

I found this piece of old parts tree that fits perfectly.

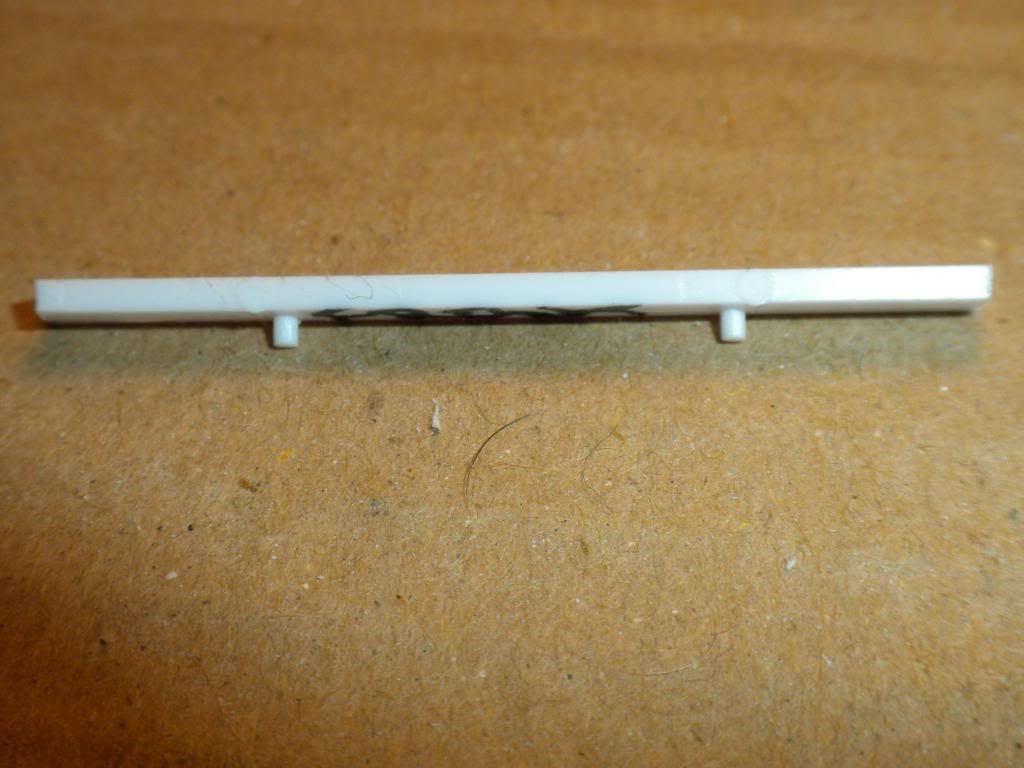

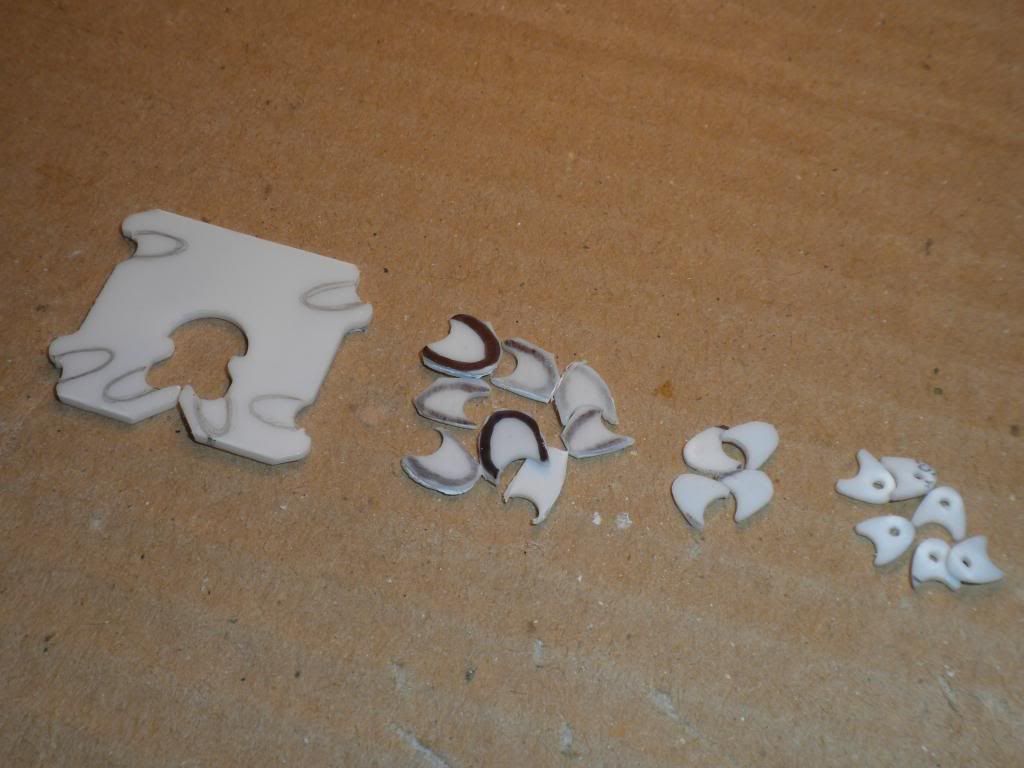

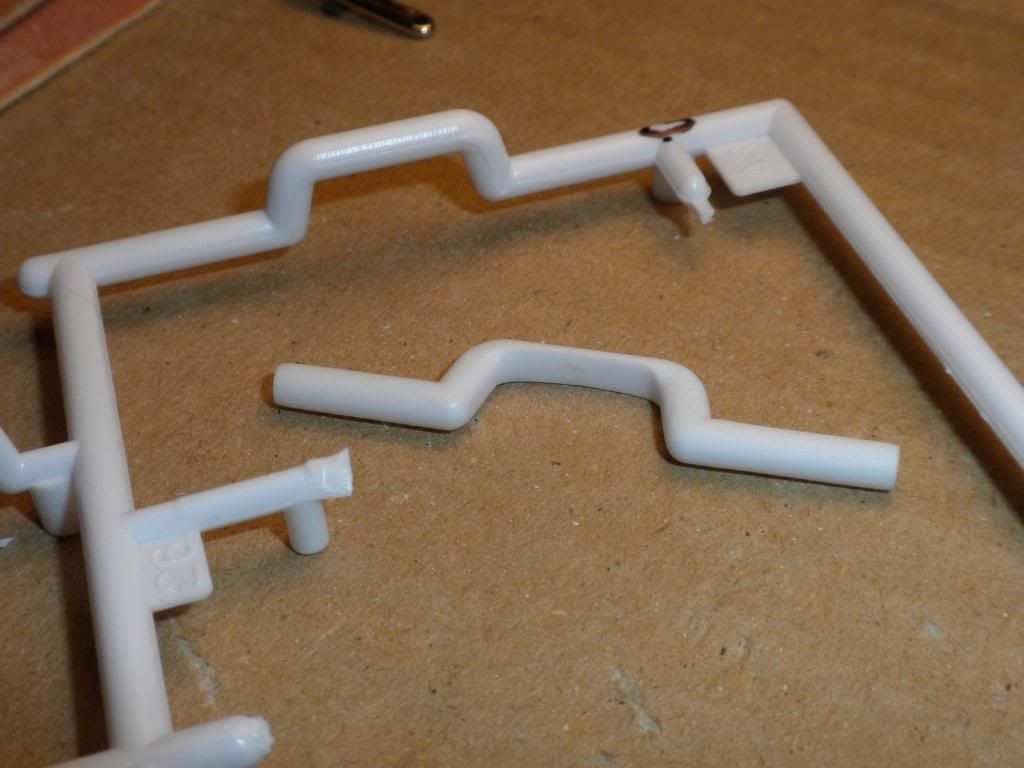

Then I made a bunch of tabs out of some old bread plastic clips.

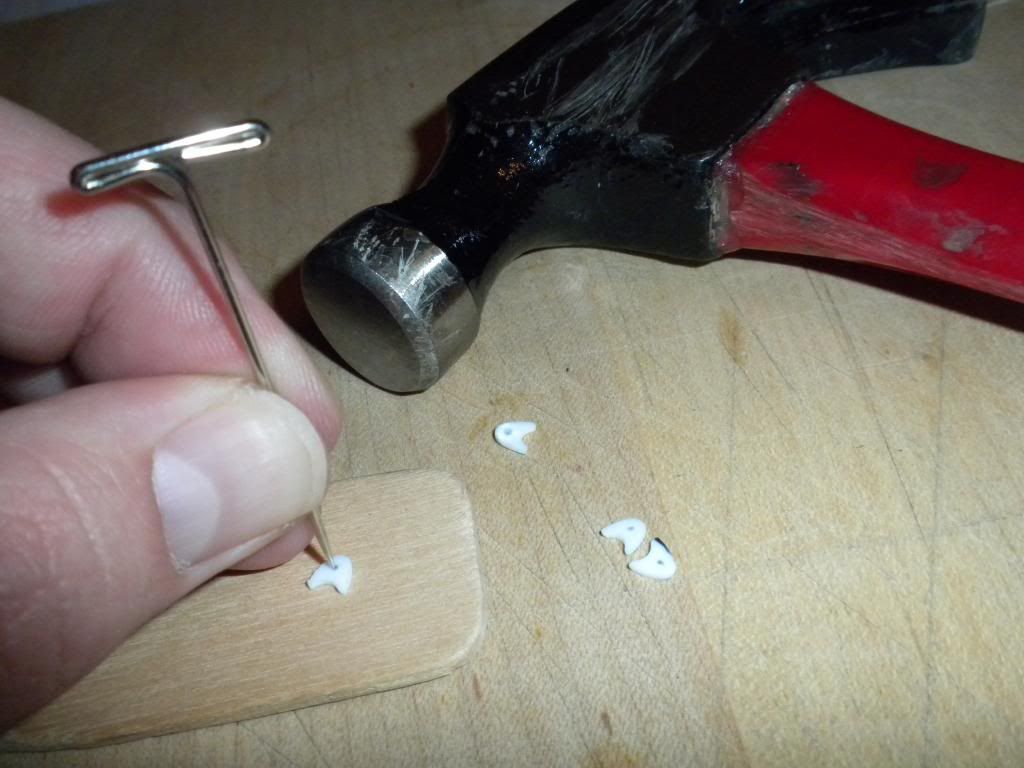

First making rough outlines/cuts then I shaped them and last I punched some holes through.
Wasn't going to make the holes but I figured the extra step was worth it. I didn't have a drill bit small enough so I had to tap the holes out, then slowly push it through the rest of the way so i didn't split the tabs apart.

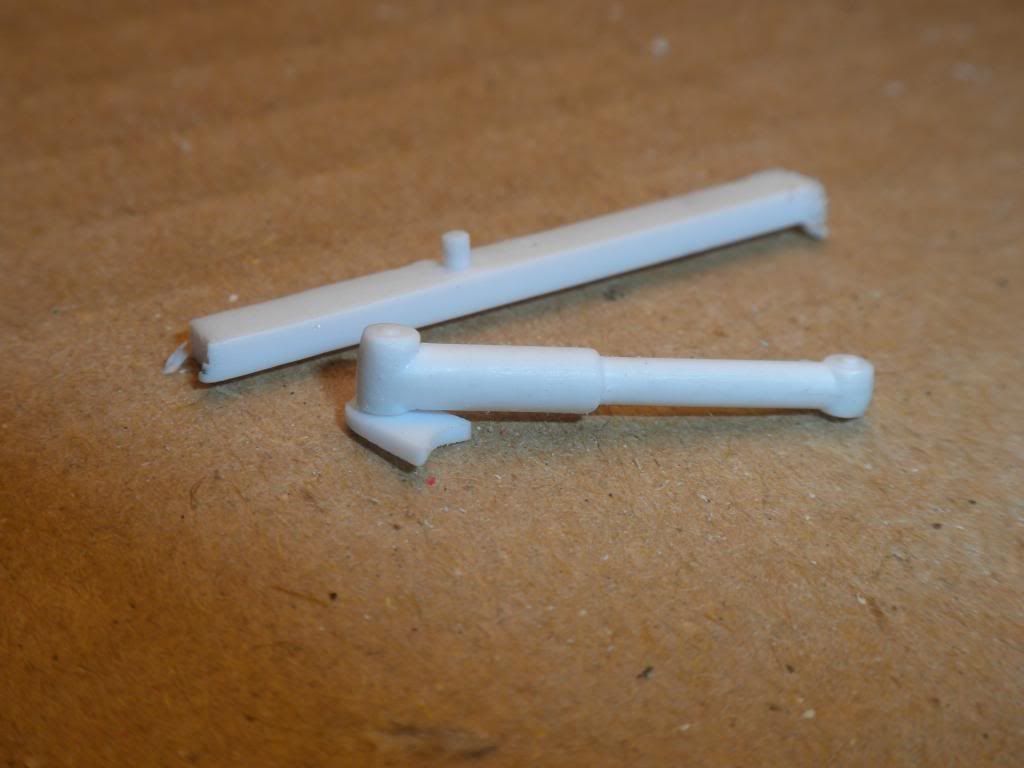

I also made tabs for the shocks out of the old cross member they used to attach to.

#190 JasonFL

JasonFL

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 957 posts
  • Location:South Florida
  • Full Name:Jason Brackney

Posted 16 June 2013 - 06:20 AM

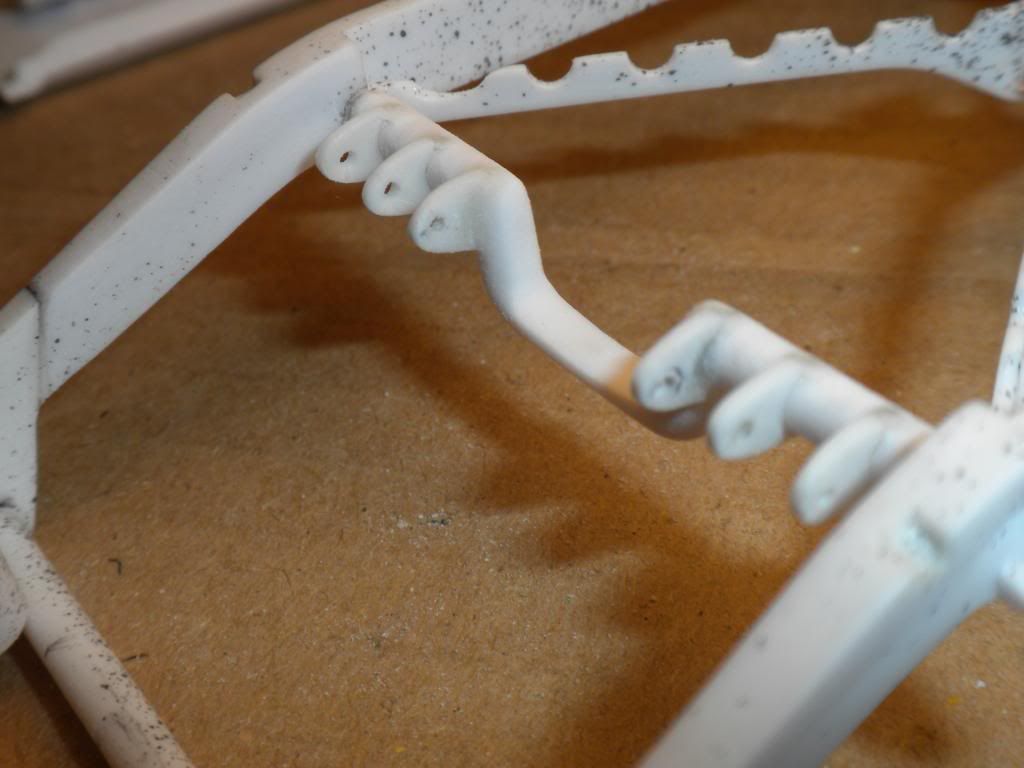

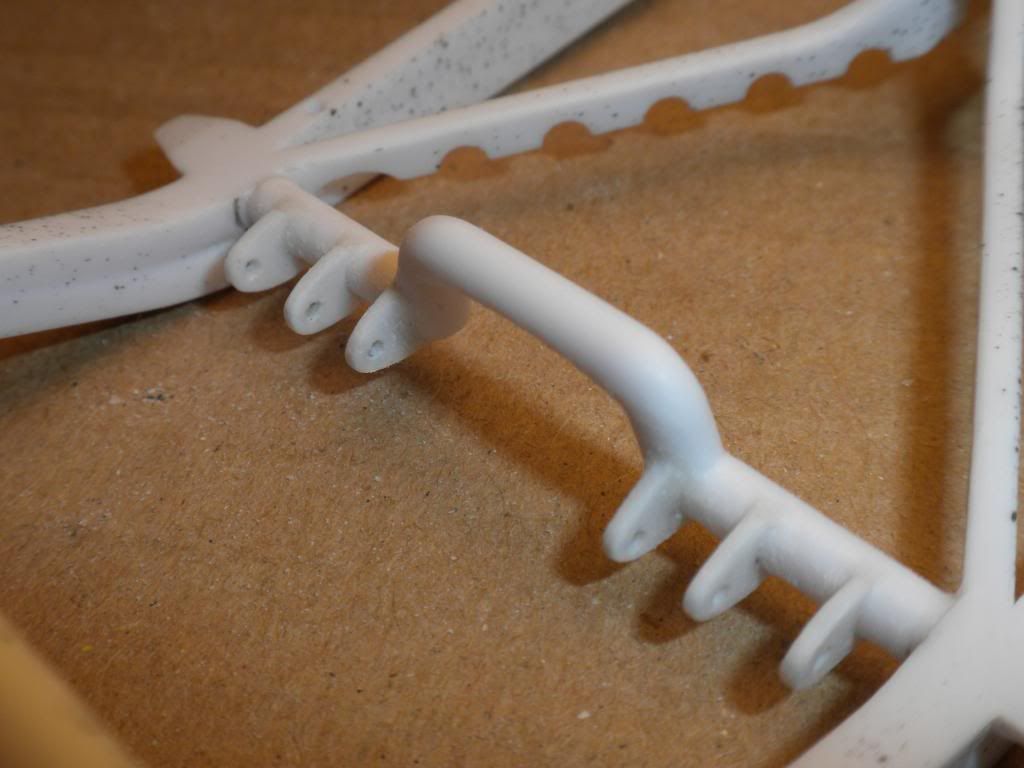

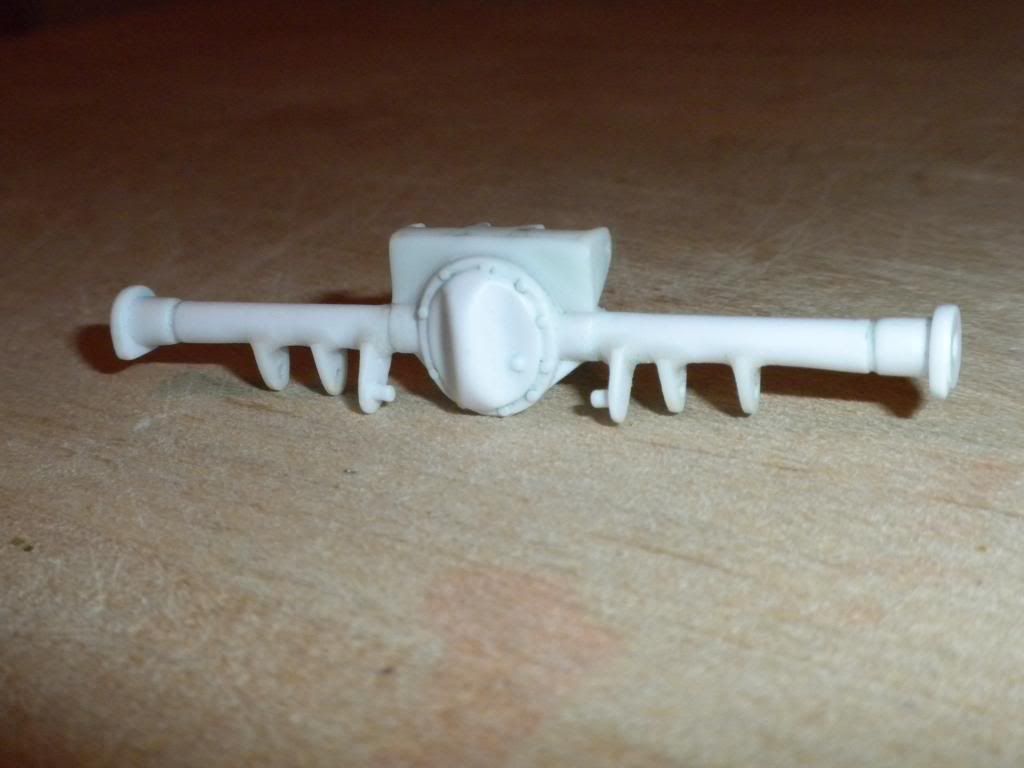

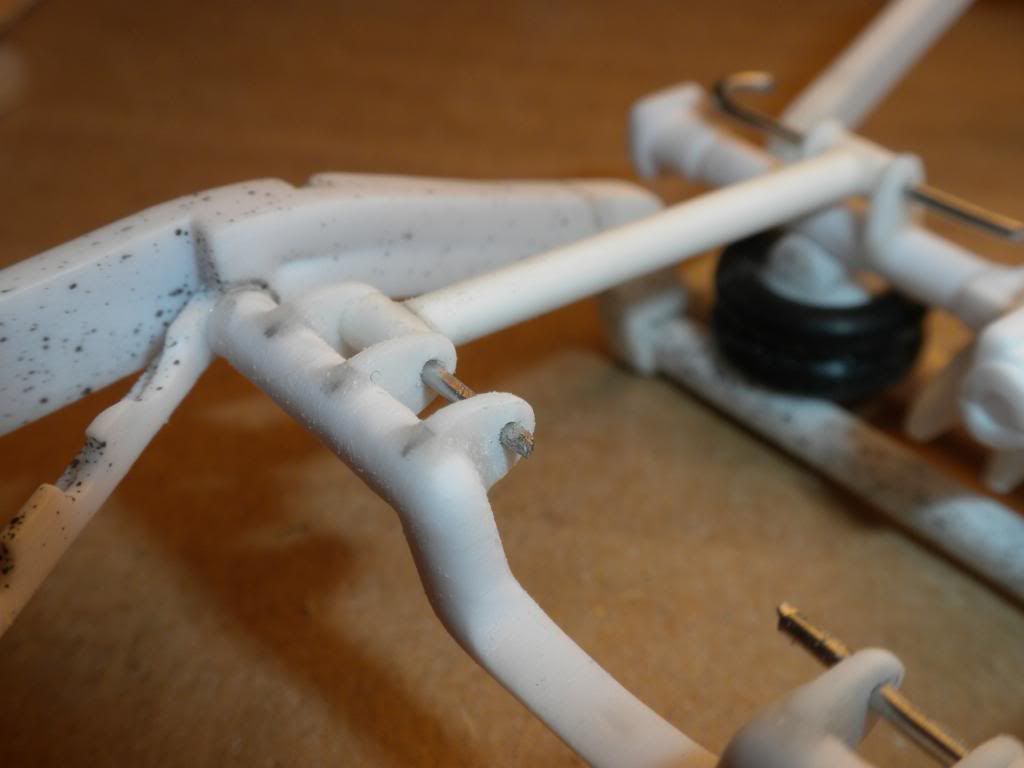

When I finished making the tabs I figured out where everything had to go. Keeping the clean look of my bridge I decided to attach them to the cross member and rear end. After that I did the body work and more shaping. Still have some touch ups to do.

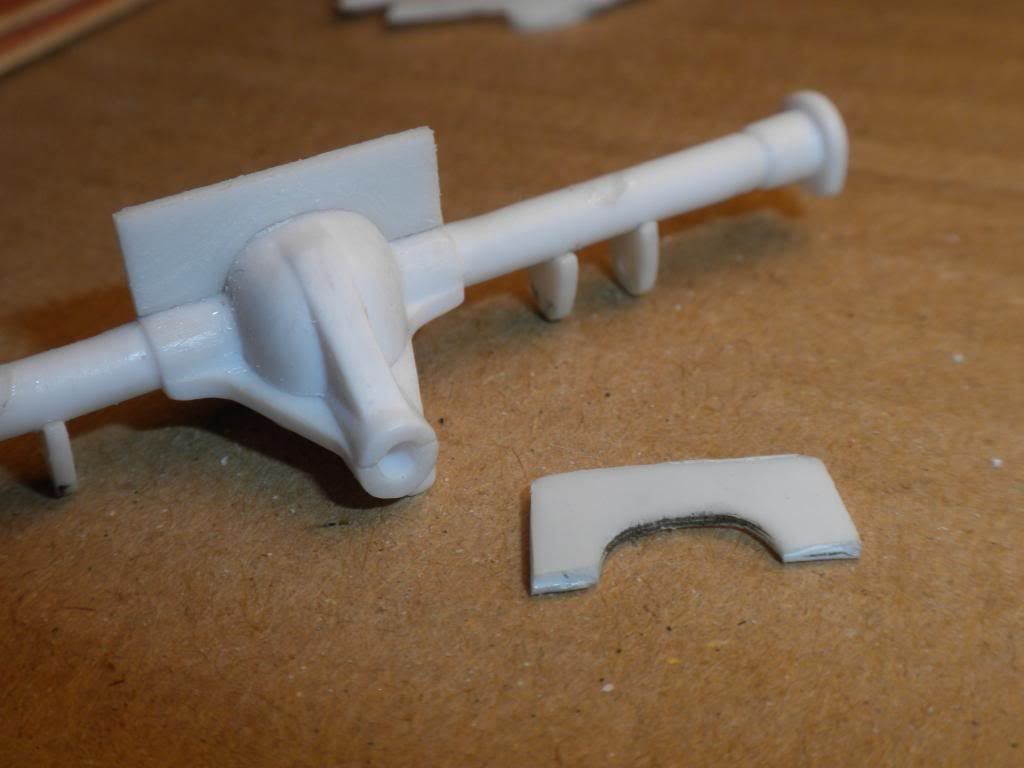

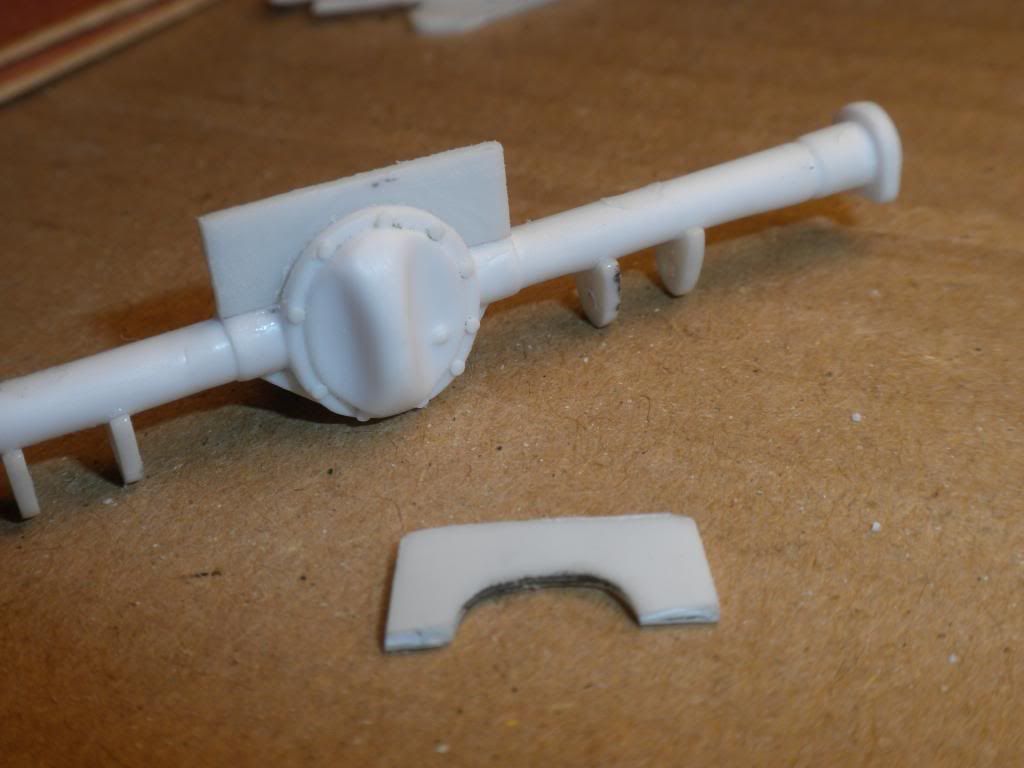

I made a backing plate so I can attach some more tabs. I made it line up with the lines that were already on the rear.

Thought it looked a little empty and weak so I added filler plates and rounded the back edge off to

**If anyone can please tell me why these keep showing up as links instead of photos? I copied the photobucket IMG link but it keeps showing like this.**
http://i1000.photobu...zps42ad72df.jpg
http://i1000.photobu...zps6d81bb49.jpg

Edited by JasonFL, 16 June 2013 - 09:23 PM.


#191 JasonFL

JasonFL

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 957 posts
  • Location:South Florida
  • Full Name:Jason Brackney

Posted 16 June 2013 - 06:21 AM

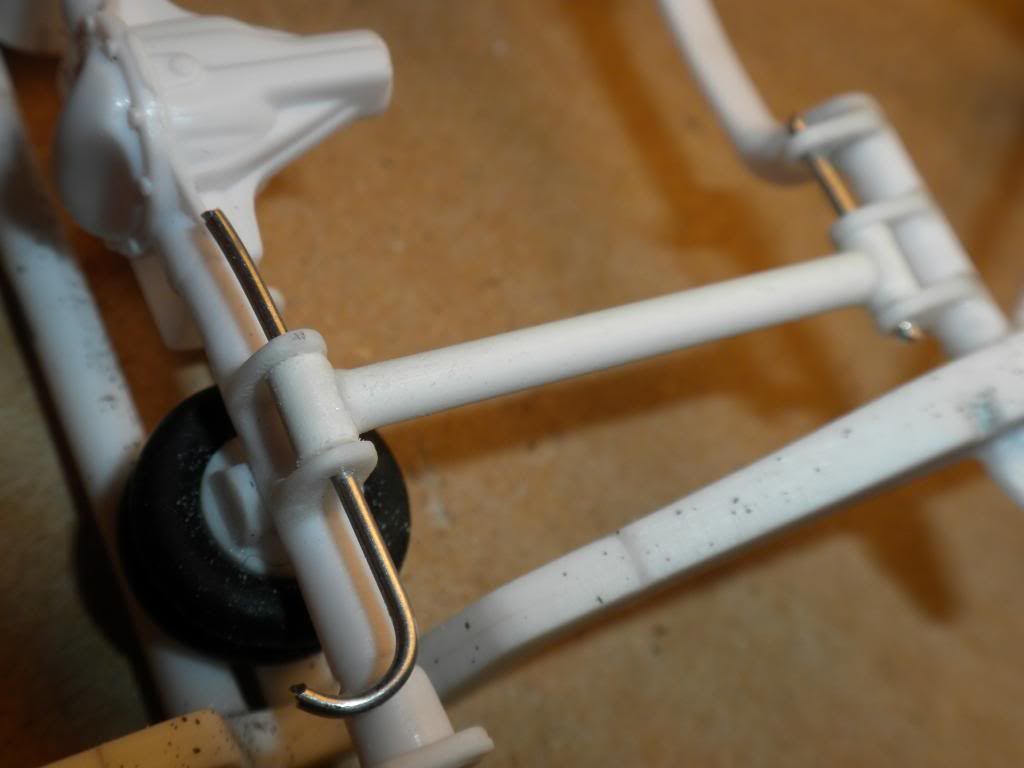

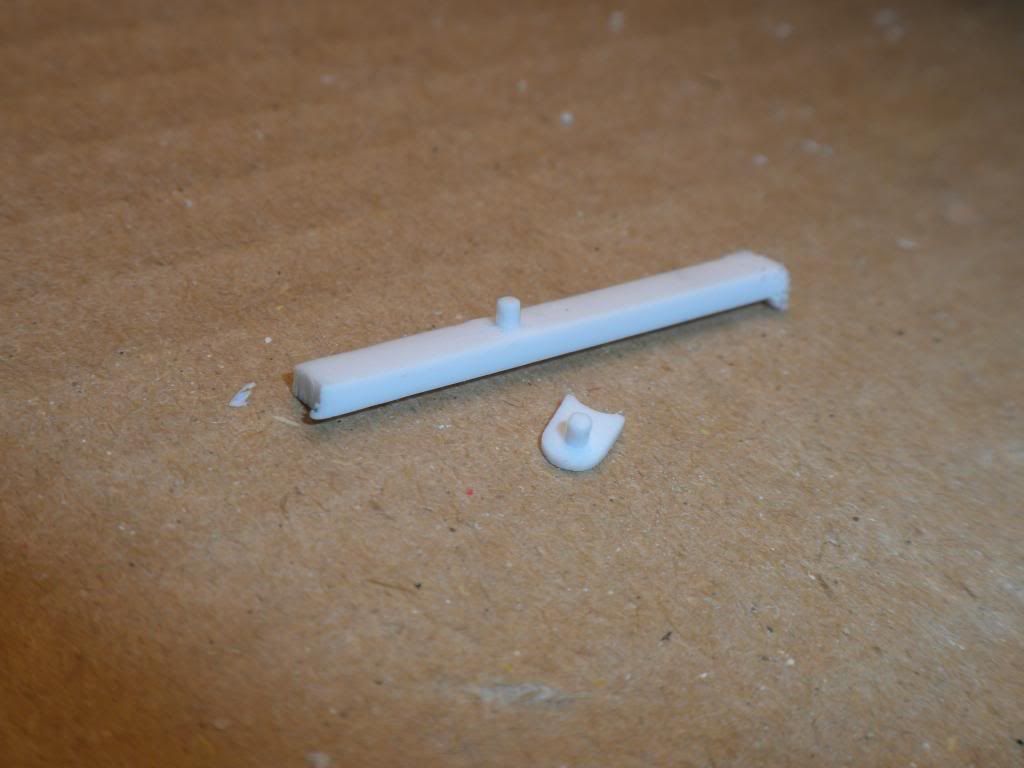

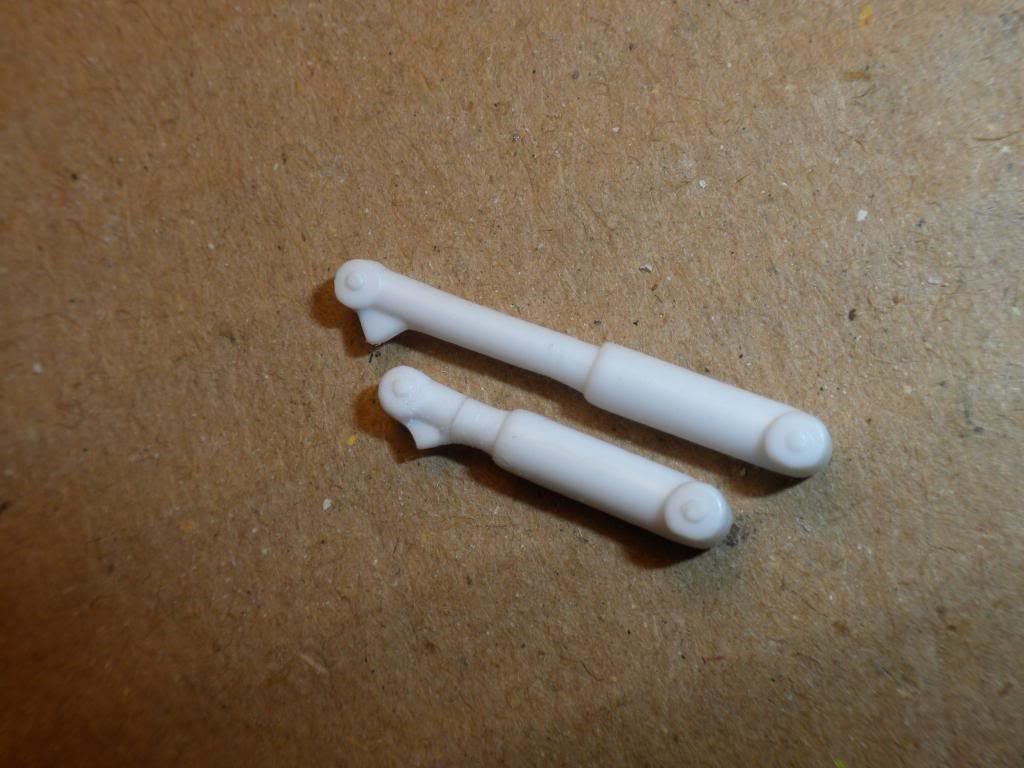

I cut the shocks down and cleaned them up a bit to fit into the scheme of things.

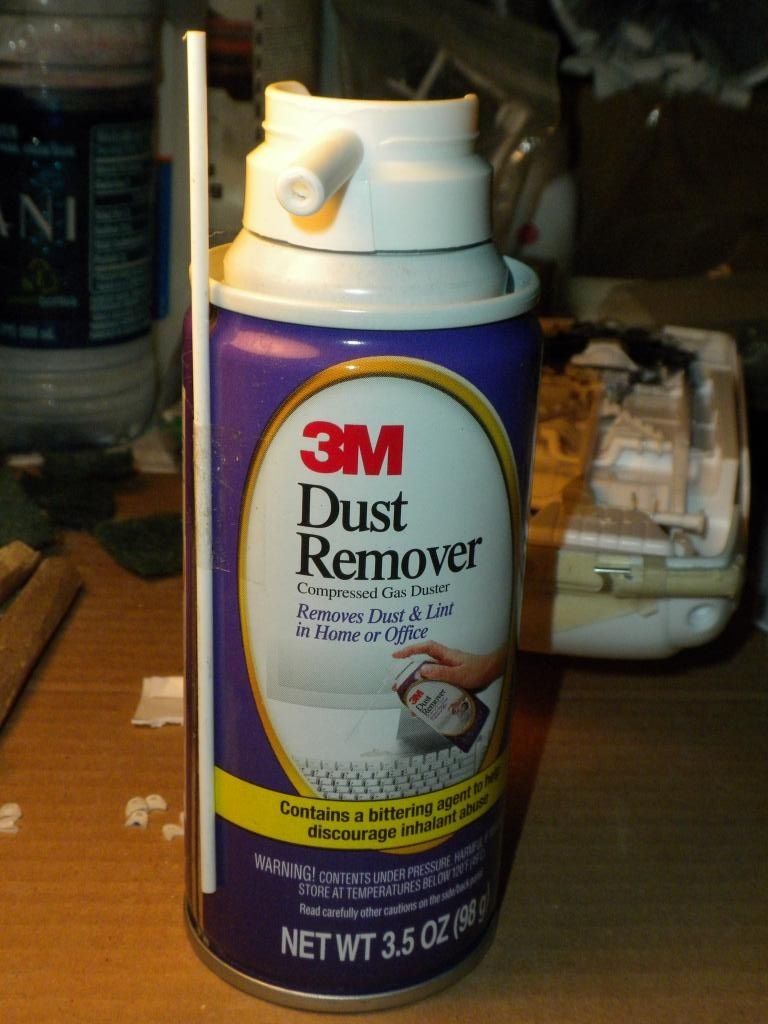

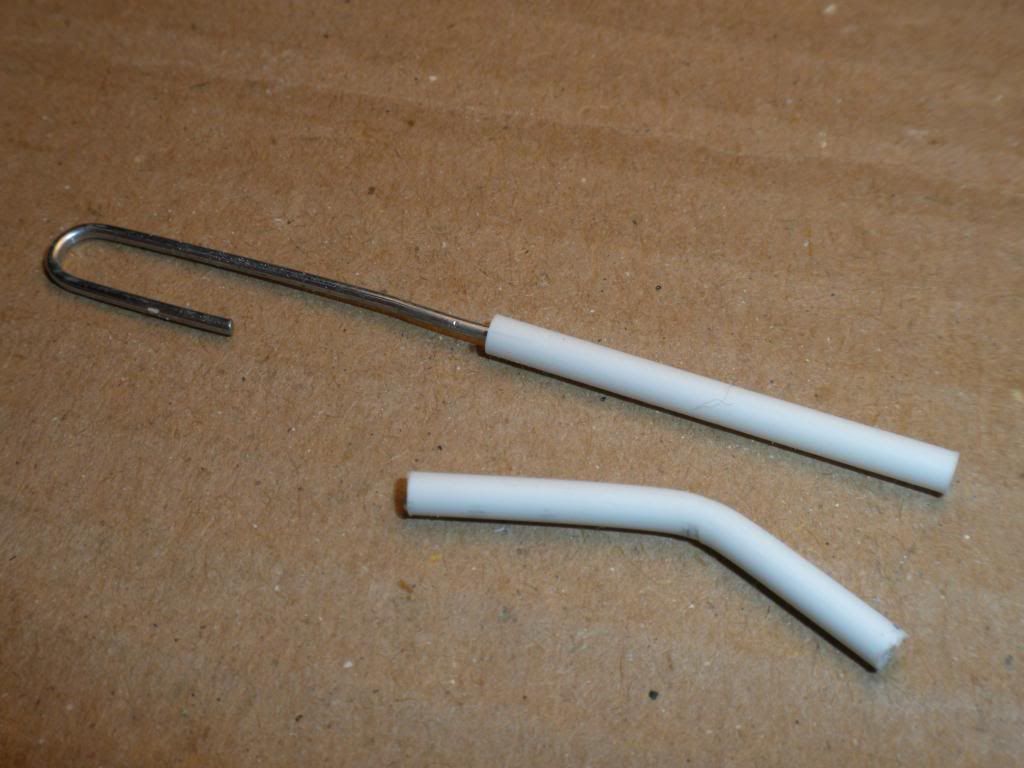

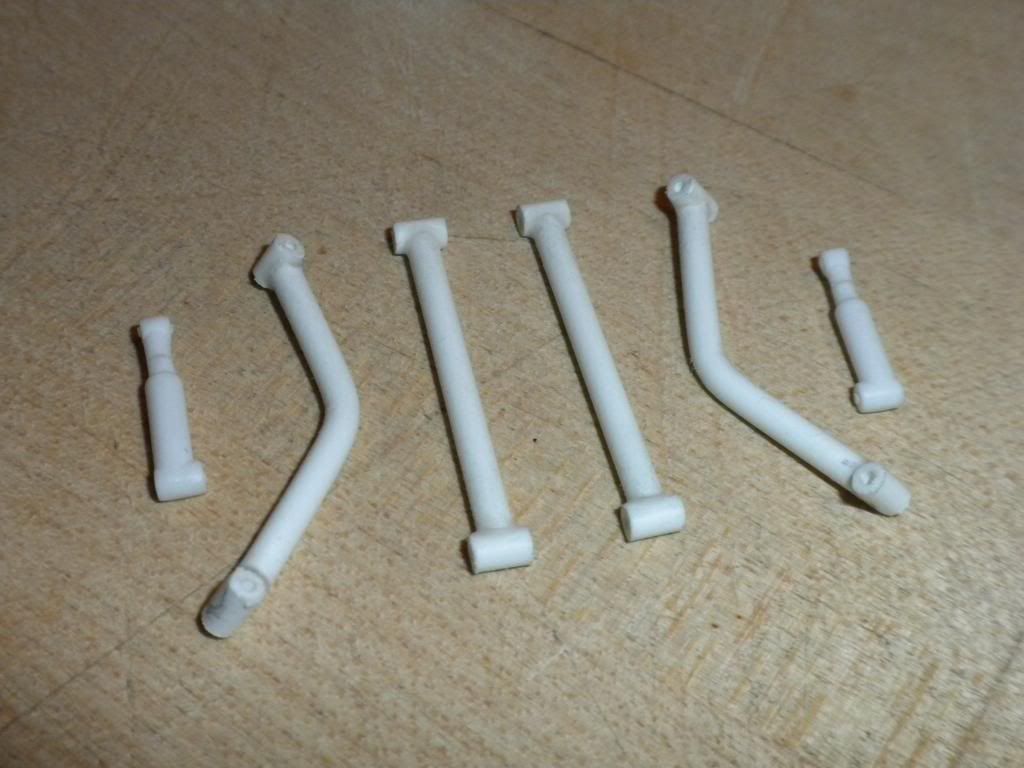

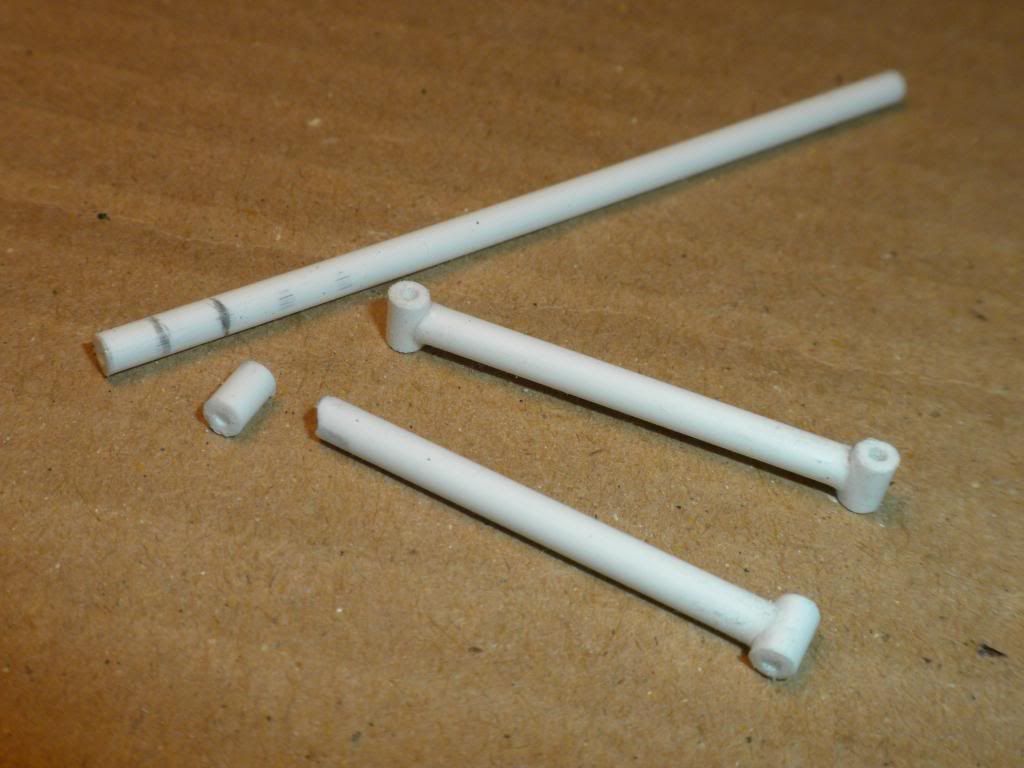

I finally found the only thing in my house that comes even close to the size I needed for the link bars and it happened to be the straw off the 3M Dust Remover can.
86f155d73522e72ec72ecc8fc4f29675_zpsc677

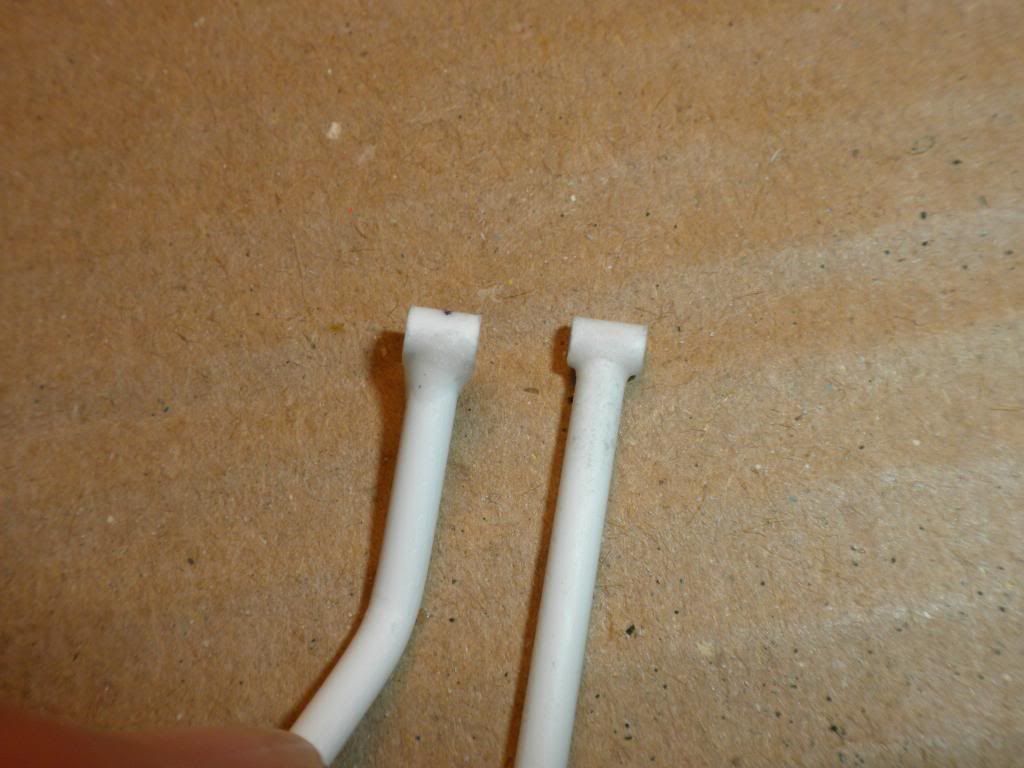

In order to get the bend I wanted and not have it move out of place I used a piece of paper clip to stick inside.
Did a little body work and its good to go.

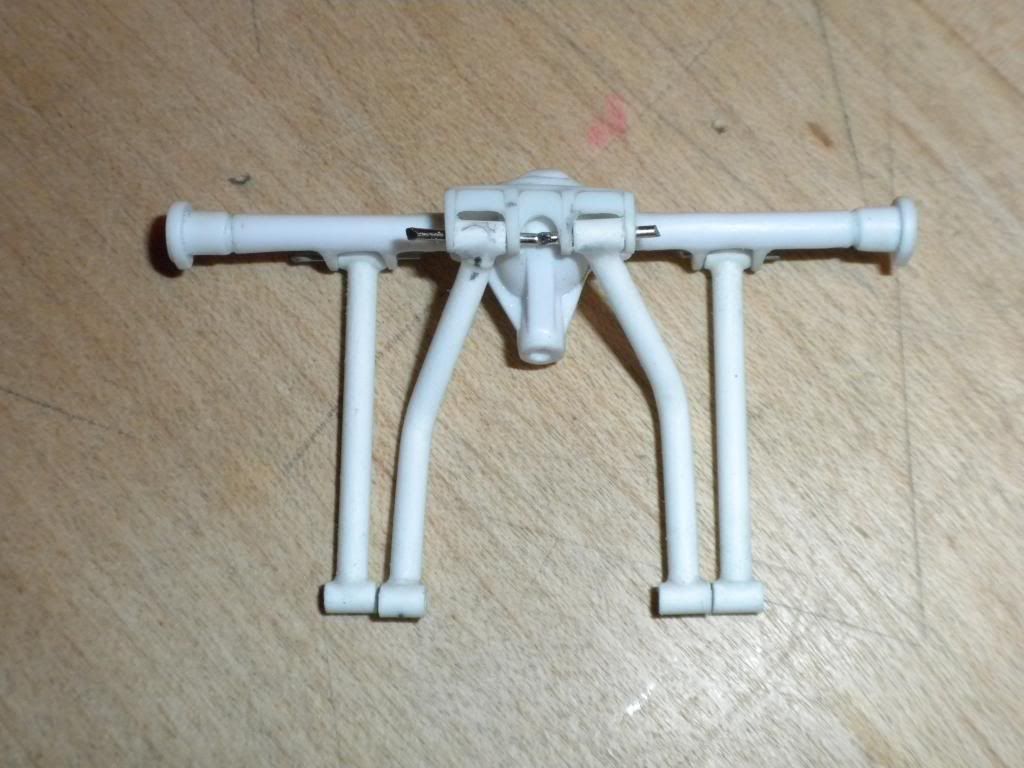

I have to run out but here's a little teaser. I'll post photos of the complete set up later on tonight.

#192 crazyjim

crazyjim

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 12,179 posts
  • Location:Citrus Springs, FL

Posted 16 June 2013 - 06:24 AM

Super nice details going on.  The smooth dash looks great.



#193 Stanced4Life

Stanced4Life

    MCM Member

  • Members
  • PipPip
  • 5 posts
  • Location:Connecticut
  • Full Name:Chris Levesque

Posted 16 June 2013 - 06:54 AM

This is amazing work!!! Cant wait to see more!!!



#194 Project510

Project510

    MCM Friend

  • Members
  • PipPipPipPip
  • 189 posts
  • Location:Fremont, Ca
  • Full Name:James Tarver

Posted 16 June 2013 - 07:17 AM

Wow amazing detail. Thanks for sharing, this is really sweet.



#195 mopar68

mopar68

    MCM Avid Poster

  • Members
  • PipPipPipPipPip
  • 321 posts
  • Location:Tas, the state down under Downunder
  • Full Name:Zac Millington

Posted 16 June 2013 - 09:11 AM

Good to see you back at this one Jason, more great work! That 4-link is shaping up nicely indeed.



#196 Scalper

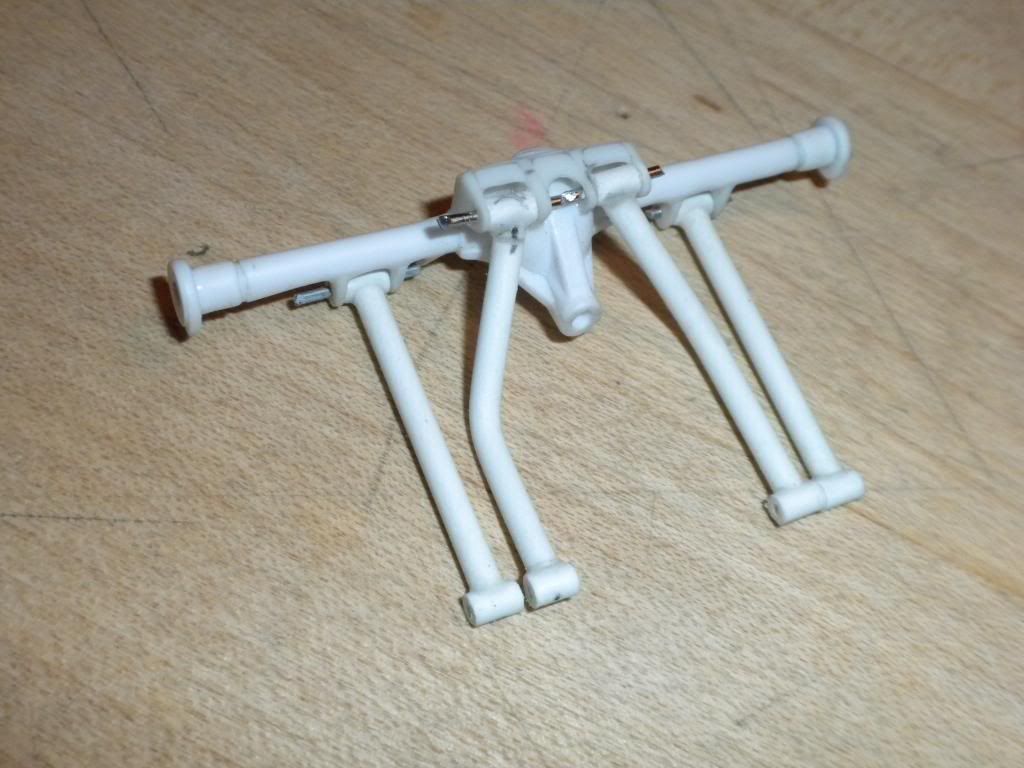

Scalper

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 2,145 posts
  • Location:Toronto
  • Full Name:Andre

Posted 16 June 2013 - 09:12 AM

Great detail,,



#197 Ira

Ira

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 6,776 posts
  • Location:Sonoma County
  • Full Name:Ira Dahm

Posted 16 June 2013 - 09:14 AM

Real Nice Work Jason!

B)



#198 JasonFL

JasonFL

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 957 posts
  • Location:South Florida
  • Full Name:Jason Brackney

Posted 16 June 2013 - 08:30 PM

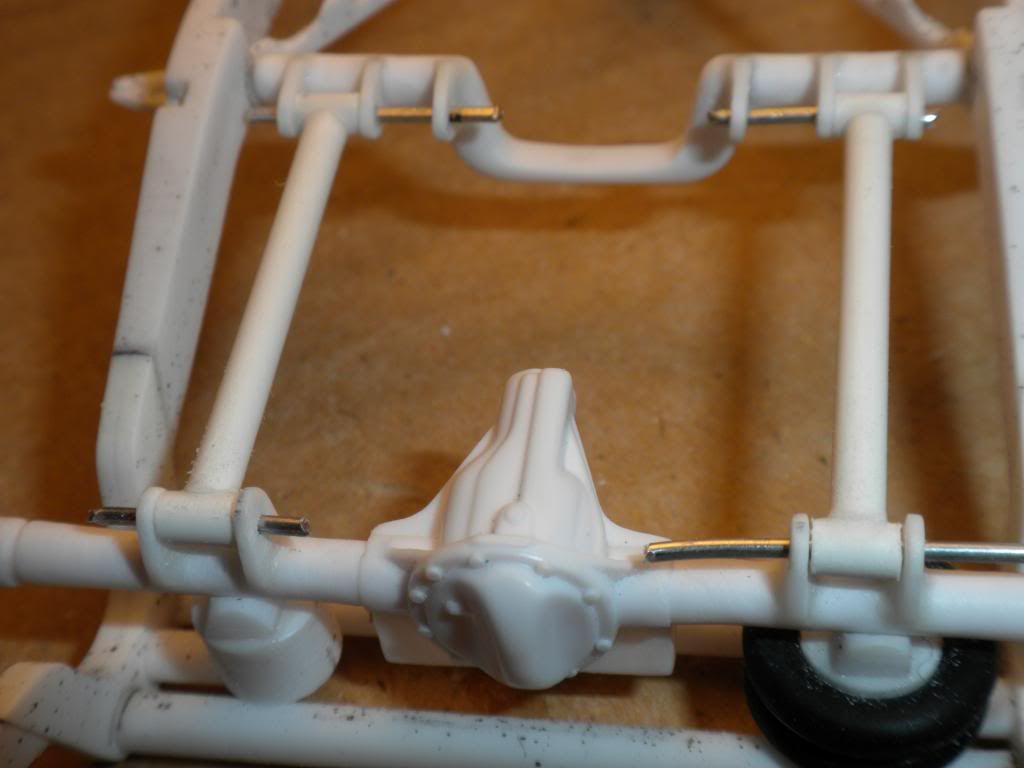

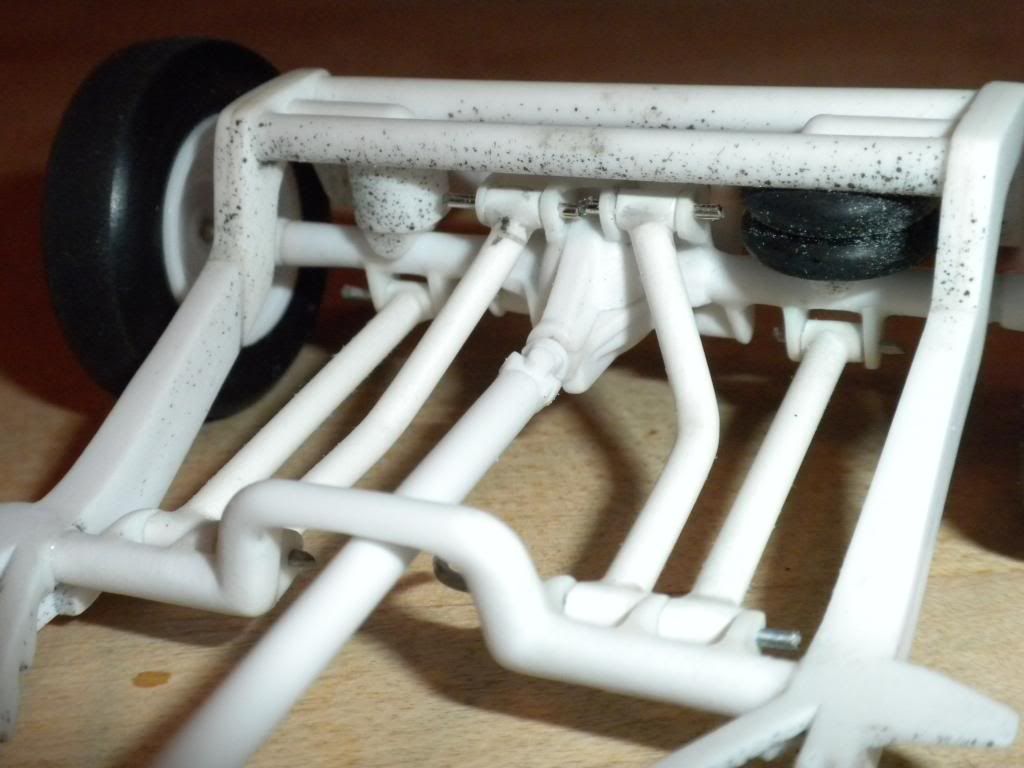

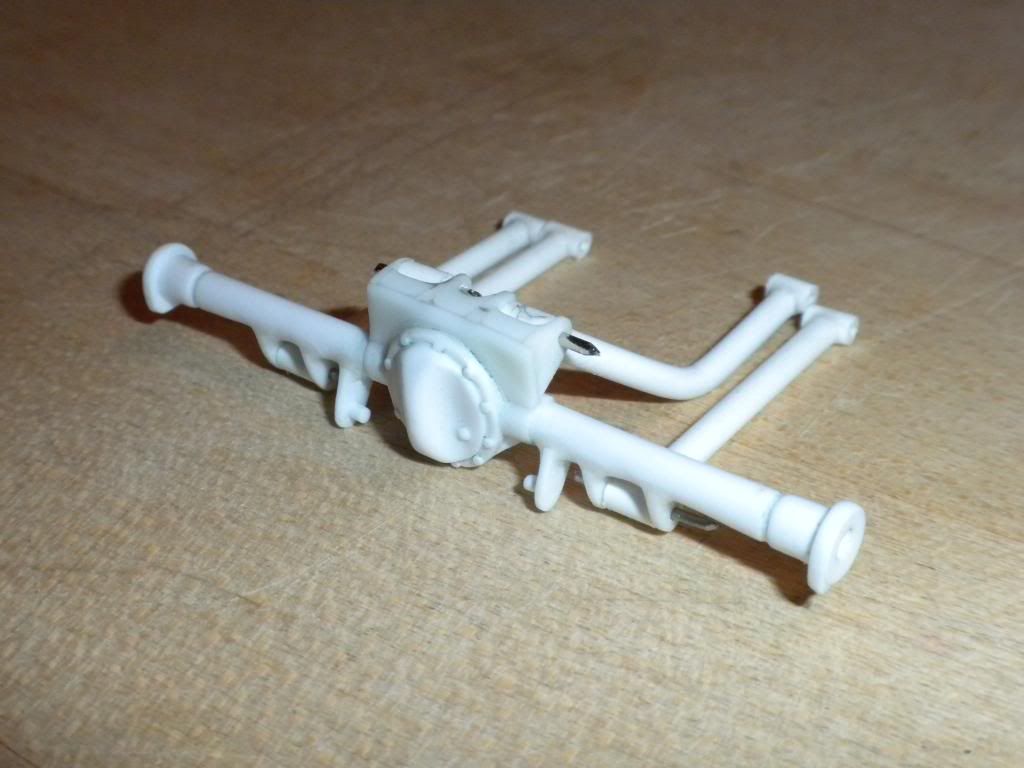

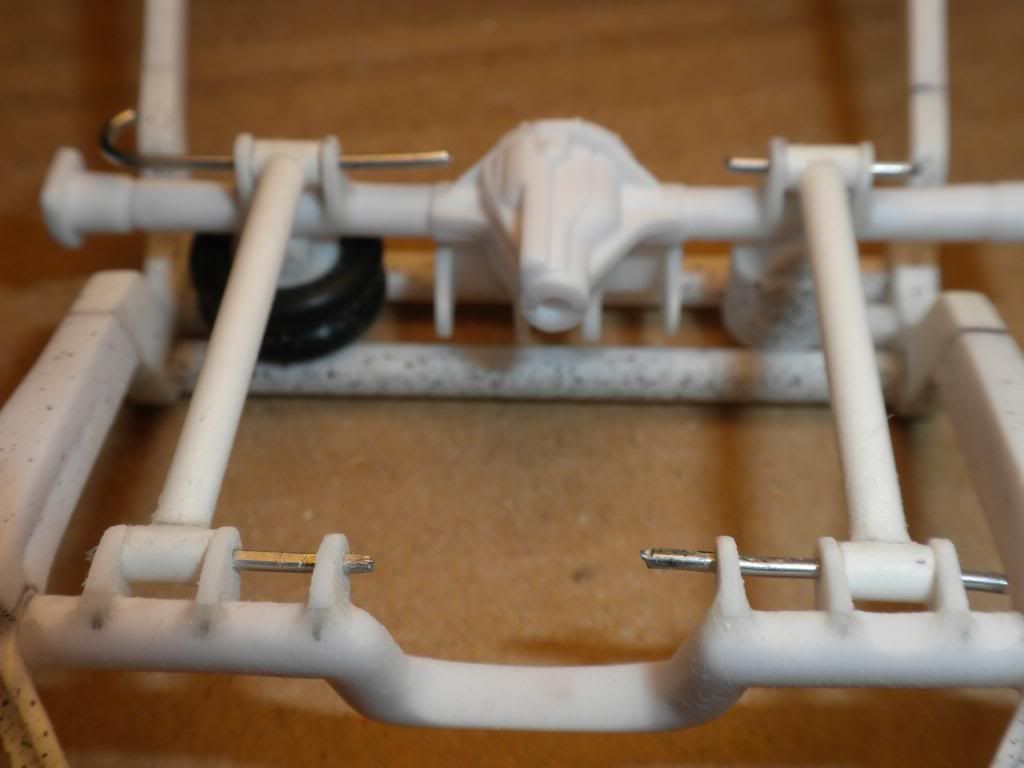

Here's the first 2 link bars installed

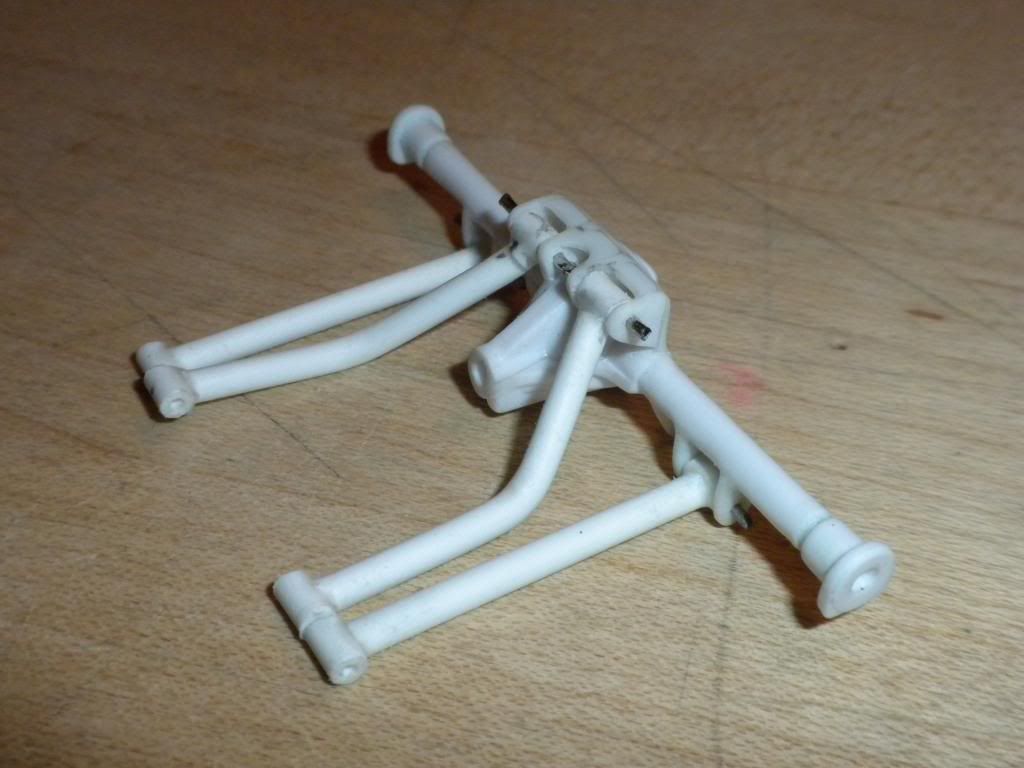

The finished rear with everything installed outside the frame.

Edited by JasonFL, 16 June 2013 - 08:38 PM.


#199 JasonFL

JasonFL

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 957 posts
  • Location:South Florida
  • Full Name:Jason Brackney

Posted 16 June 2013 - 08:38 PM

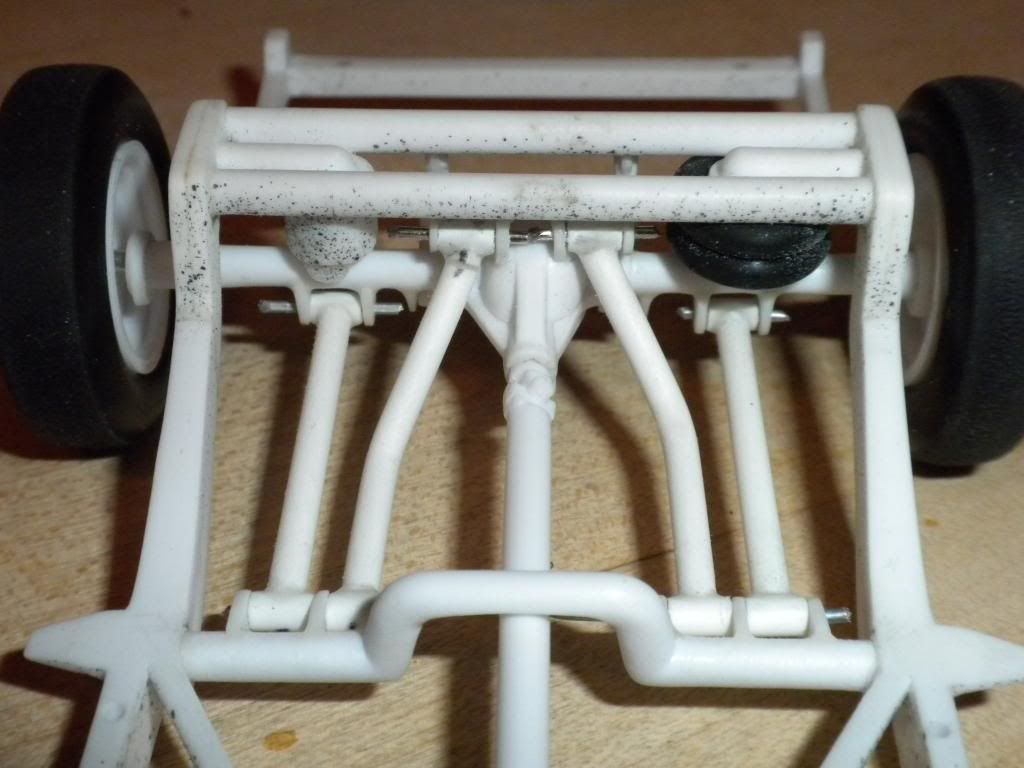

And this is everything installed on the frame. I was going for that smooth flowing look with nice lines.
Still some touch up work to do but you can see the look I was trying to achieve.
e18c1135-8342-4260-8667-ccd4b728e58f_zps

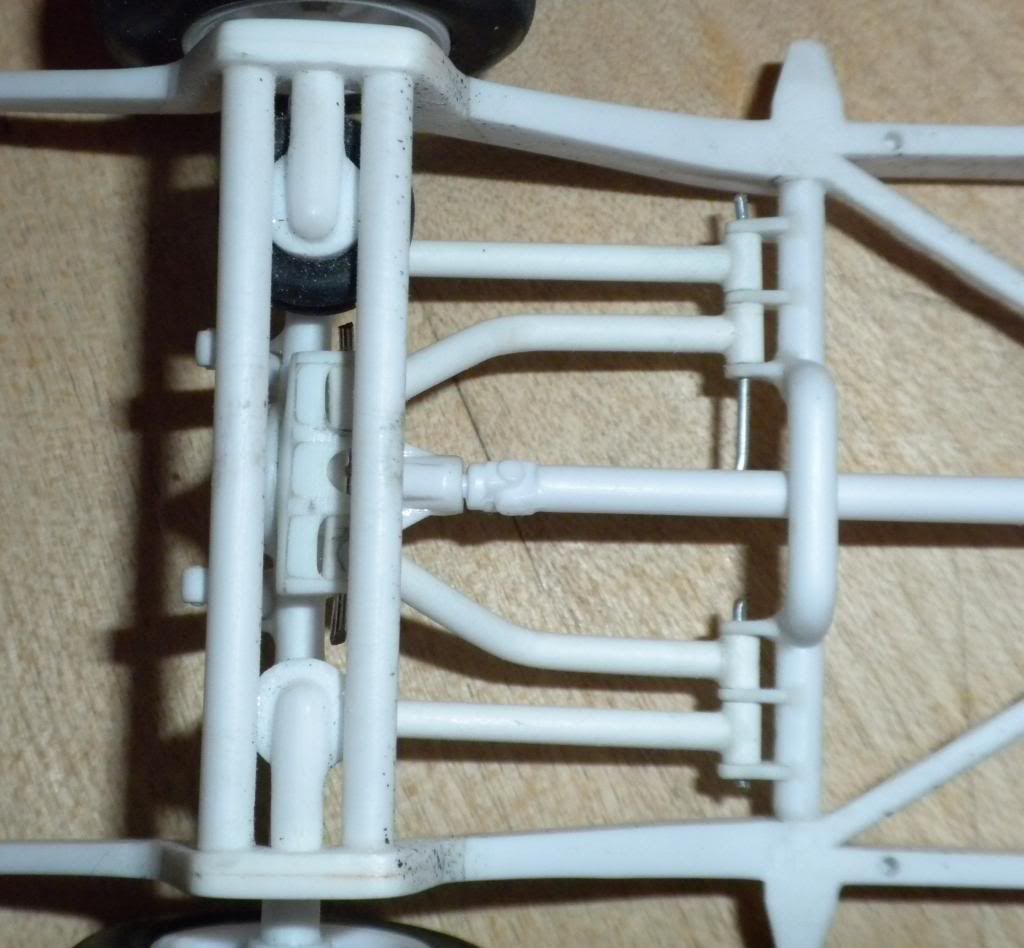

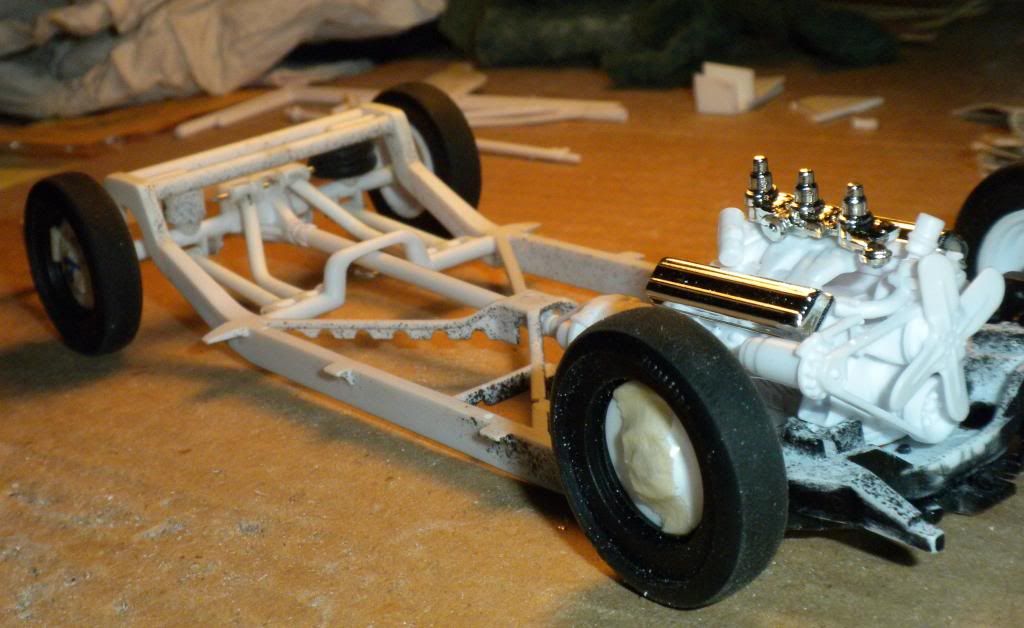

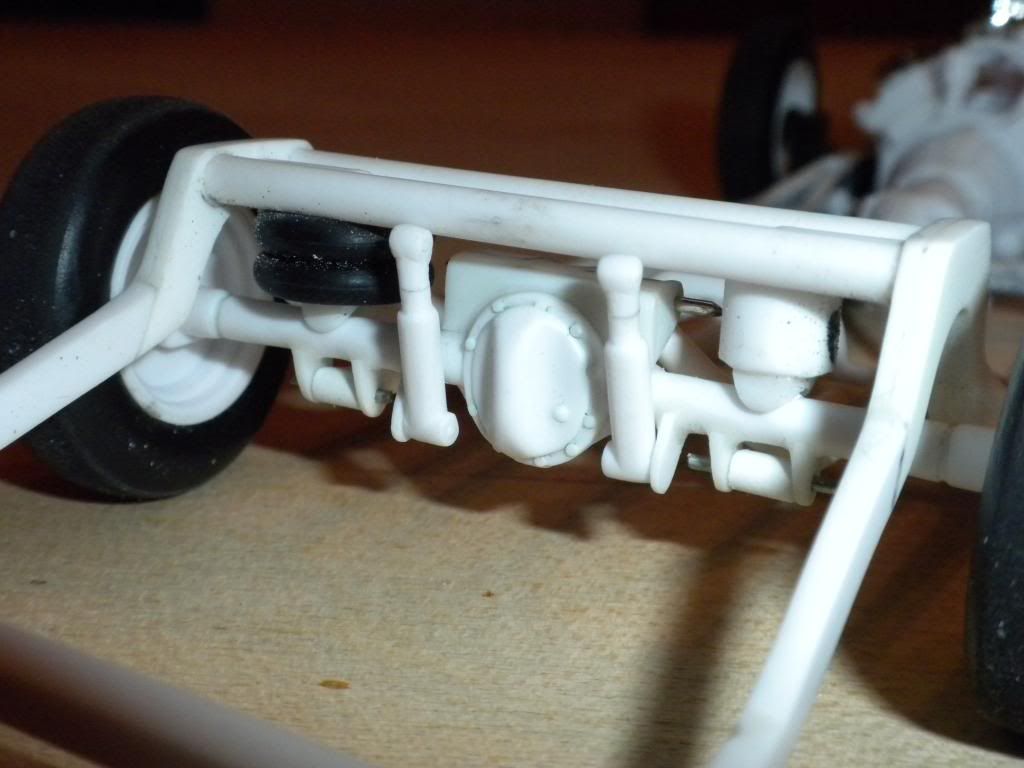

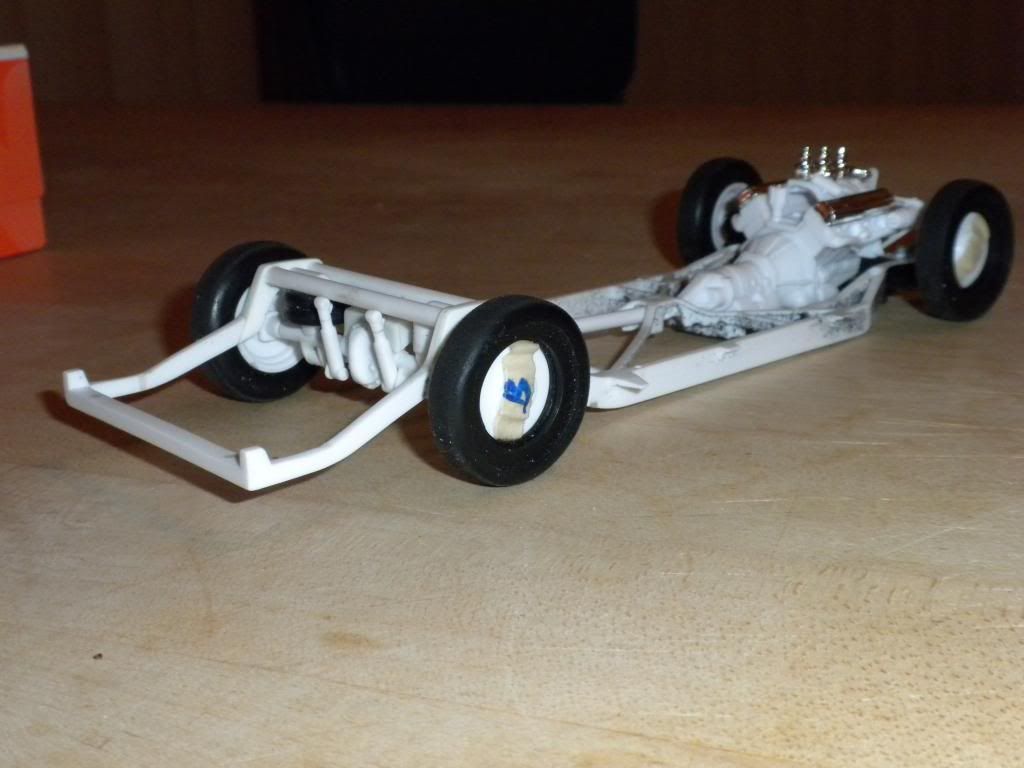

This is everything mocked up on the frame with all 4 wheels, motor, and drive shaft.
