Starting another project, another racer, and another spare parts special. This time it’s a Revell 5-window Deuce done as a full-on Bonneville racer, a highboy with a radical 6 ½ inch chop and full bellypan. Motivation will be from a Revell Parts Pack blown Ford 427. So far I have the top cut and the edges and rolled pan for the belly pan installed. I also smoothed the stock hood to get rid of the center hinge. I think the hood will stay smooth since the highboy configuration is probably tall enough to contain the top mounted blower and injectors. With the mail slot windows and the belly pan hiding most of the chassis I’m tempted to forego the interior and most of the chassis and suspension. We’ll see as the build progresses. I’m planning on Krylon Mango (a bright yellow-orange solid) for the main color with red home-made team decals. I may also make provision to display the car as a part-time drag racer with switchable tires and wheels. Again, we’ll see how elaborate I want to make this one…

Thanx for lookin’,
B.

Posted Image
Posted Image
Posted Image

Edited by Bernard Kron, 16 November 2012 - 03:36 PM.


#2 dimebolt

dimebolt

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,171 posts
  • Location:Hoisington, KS
  • Full Name:Corey M. Jackson

Posted 26 September 2012 - 06:31 PM

That looks killer already Bernard. Will be checking this one out.
Corey

#3 bryan_m

bryan_m

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 2,501 posts
  • Location:Lost in America
  • Full Name:Bryan Mccallum

Posted 26 September 2012 - 06:57 PM

nice start! that krylon mango is an awesome color too, ive got a can of it here......

lookin forward to more of this one.
cheers
bryan

#4 W-409

W-409

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 5,611 posts
  • Location:Vantaa, Finland
  • Full Name:Niko Lindström

Posted 26 September 2012 - 07:48 PM

Looking very good already! I like the Chop Top a lot, it's just low enough, but not too low. Sounds very interesting. Did all, or at least most of the Bonneville Racers have a Belly Pan? I'm just thinking if I have to make one for my '32 3W Coupe, which will be another Bonneville Racer.

And another question, what do you do to your pictures? They look fantastic.

#5 Ace-Garageguy

Ace-Garageguy

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 7,534 posts
  • Location:Down two, then left.
  • Full Name:Bill Engwer

Posted 27 September 2012 - 12:22 AM

Love it. The heavy chop, the bellypan and all those louvers just scream "dry-lakes racer".

Edited by Ace-Garageguy, 27 September 2012 - 01:40 AM.


#6 blubaja

blubaja

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 578 posts
  • Location:NJ
  • Full Name:Francis Xavier Tiewski 3rd

Posted 27 September 2012 - 01:18 AM

Sweet so far!!! Can't wait to see more!

#7 Intmd8r

Intmd8r

    MCM Avid Poster

  • Members
  • PipPipPipPipPip
  • 394 posts
  • Location:Welland, Ontario Canada
  • Full Name:Steve Cosby

Posted 27 September 2012 - 02:10 AM

This is what a Deuce should look like!

#8 surfjunke

surfjunke

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 836 posts
  • Location:southern Maine
  • Full Name:Scott Ridley

Posted 27 September 2012 - 03:16 AM

It looks great already. Nice work, so far.

#9 Bernard Kron

Bernard Kron

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 2,708 posts
  • Location:Seattle, WA
  • Full Name:Bernard Kron

Posted 27 September 2012 - 04:17 AM

Thanks everyone. I still have the bodywork to wrestle with, but otherwise it should be pretty straightforward.

...Did all, or at least most of the Bonneville Racers have a Belly Pan?...

And ...what do you do to your pictures?


Bellypans are not simple or cheap to fabricate so most dry lakes participants who ran modified street machines avoided them. Once you lightened your car by gutting it and removing the fenders and put as much power under the hood as your budget, social connections, and practical use of the car would alow, it came time to attack your two biggest enemies: frontal area and parisitic drag. For frontal area you chopped the top as much as you dared (lakes cars became known for their radical - and often quite impractical - chop jobs). This left parisitic drag, the resistance caused by the turbulence which results when the layer of air flowing over the bodywork becomes disturbed. The worst of all is the layer between the ground and all the garbage which forms the undercarriage of the car. Installing a bellypan cleans all of that up, but you must fabricate a very large area of new bodywork to do it. This represents quite a bit of work both in the 1:1 world and in scale.

Regarding the photos, first off Thanx!!! I'm glad you like them. Here's a quick step by step. This might seem like a lot of work but it's really quite simple and I've done it so often I can knock one out in a minute or two. It's a technique that was used quite often in the old hot rod mags, generally with a white or light colored background.

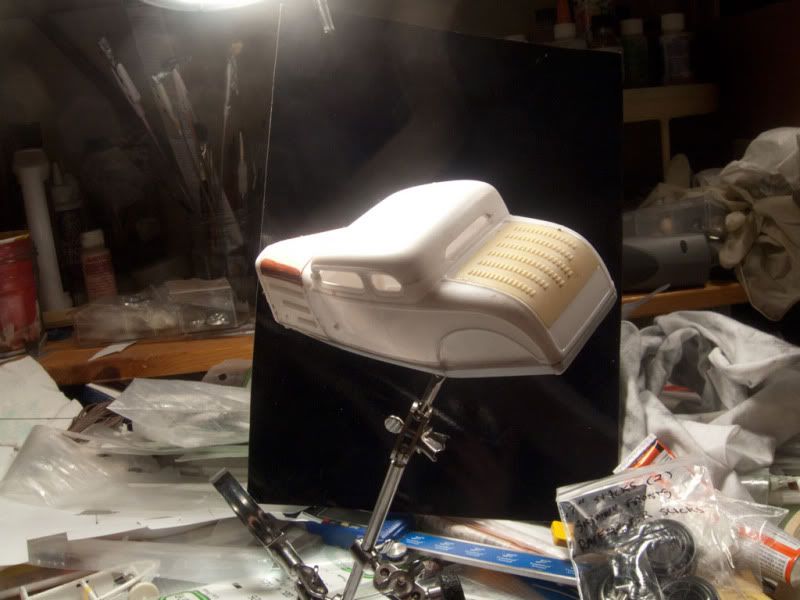

Here's the original picture. I shot it using my worklights on my bench against a black card with the body held in position by a thrid hand. I work under three 60 watt incandescent spot lights. The lights are ordinary household bulbs. As you can see I keep a very messy workbench! It's a miracle I ever get anything done...

Posted Image

Next, using Adobe Photoshop, I select various areas that will require a solid black background. In this case you can see the flare from the spot lamp and the part where the front of the car extends beyond the black card, All this will be filled with solid black color.

Posted Image

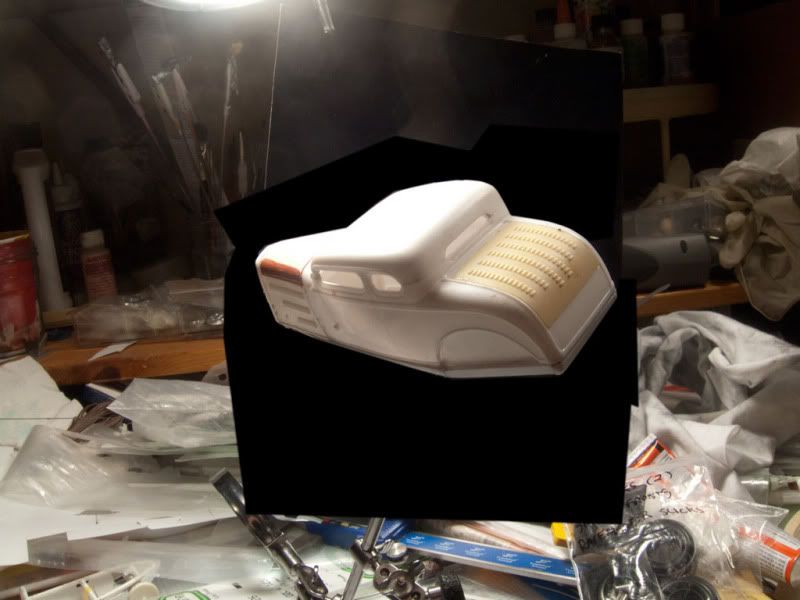

Here are the areas that have been initially filled. The result is the body of the car "floating" against solid black. Among other things I have eliminated the third hand from the image.

Posted Image

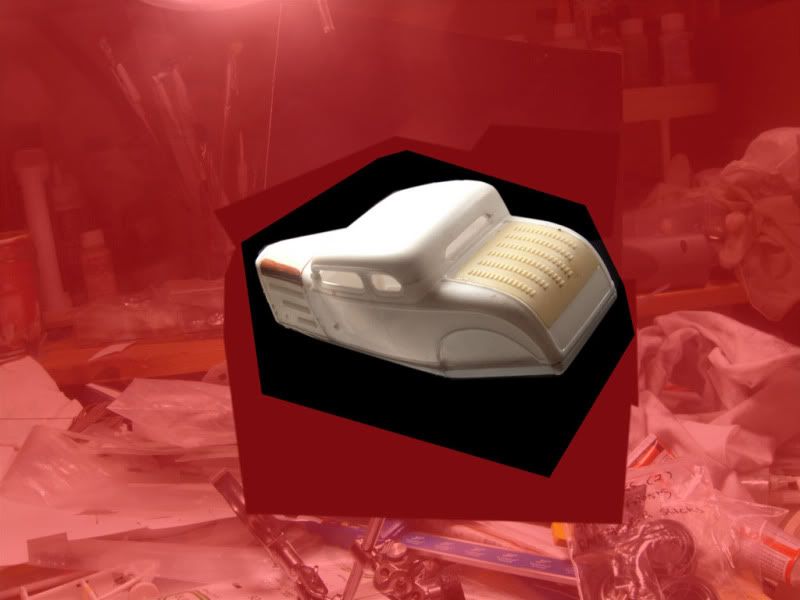

Next I select the entire rest of the image, being sure to overlap into the black area I have already created. The selected area is show here as the red shaded zone. After I select it I fill it with solid black.

Posted Image

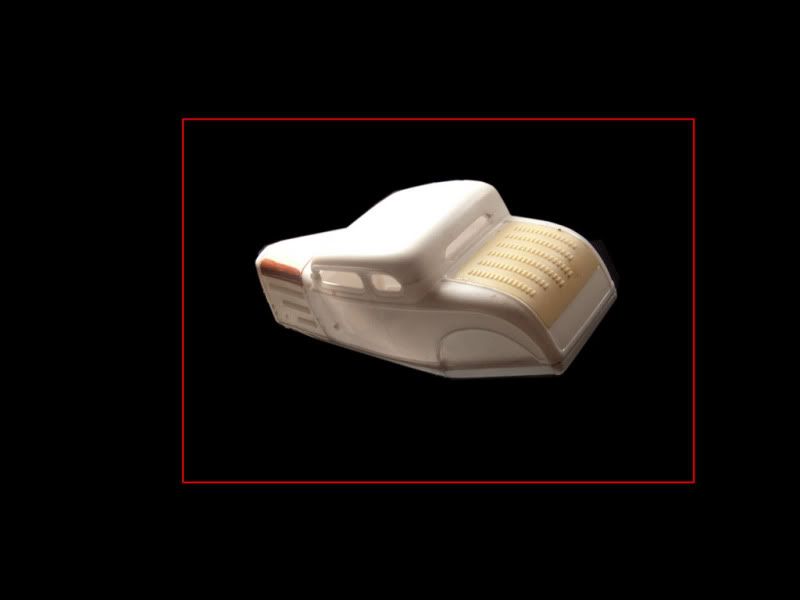

Next I select a pleasing rectangular area which is filled mainly by the image of the car (indicated here by the red outline) and crop the image, eliminating the rest of the picture.

Posted Image

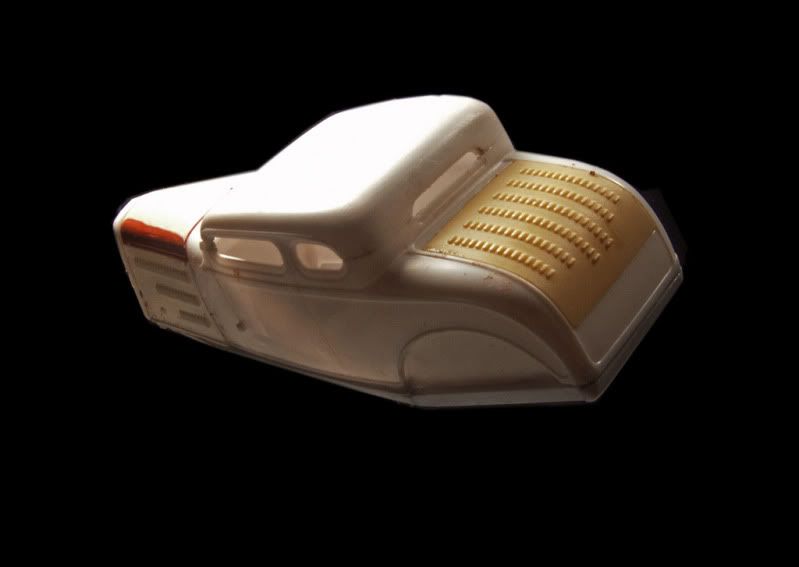

Below is the result. I often will adjust the brightness and contrast slightly at this point but that's about all the processing I do anymore. One thing I do that's very important, is to adjust the white balance of my camera for the photo environment I'm working in (in this case under the tungsten lighting on my workbench). This ensures a relatively true color in the image.
