1965 Chevelle


  • You cannot reply to this topic
49 replies to this topic

#1 sak

sak

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 557 posts
  • Location:Canada
  • Full Name:Jeff Kovak

Posted 06 October 2012 - 06:49 PM

This will be my next project I think. Chevrolet chevelle.

It is a big block model but I want it to be just a regular chevelle SS. So I removed the 396 badge on the back. The whole tail light panel seems to be different so I will have to try to build a new one.
Posted Image
Posted Image

But a question for chevelle experts... these round circles under the frame. Are these supposed to be hollow, and the springs and shocks go through the holes?
Posted Image

If so...it seems that one of the pivots for the upper control arms sits right on top of these holes. And the spring would be half on the control arm and half just resting on nothing. Cannot seem to find any pictures of a bare chevelle frame.

Posted Image

And one more thing...It will be a 283 or 327 when I am done. I have a small block motor but don't have an intake. If anybody has an intake from the amt nova. I think that one will work the best. It has a extra extension on the front for the black tube thing. Not sure what it is really called.

Edited by sak, 06 October 2012 - 06:57 PM.


#2 severin681

severin681

    MCM Regular

  • Members
  • PipPipPip
  • 45 posts
  • Location:USA
  • Full Name:Gilbert Cortez

Posted 06 October 2012 - 06:50 PM

Nice custom fab stuff going on there. Good start. Lookin forward to see what you do. Thanks for sharing!

#3 exnyman

exnyman

    MCM Regular

  • Members
  • PipPipPip
  • 90 posts
  • Location:Tucson Arizona
  • Full Name:Jim

Posted 06 October 2012 - 07:45 PM

Another tip: the Malibu SS script that is on the front fender of a Z16 (as the Revell kit is modeled as) should be on the rear 1/4 panel on a standard SS. Can't wait to see this one finished as my cousin had a Danube Blue 65 Malibu SS with light blue interior when I was a kid.

#4 Bartster

Bartster

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,647 posts
  • Location:Fayetteville,TX
  • Full Name:Bart E Deatherage

Posted 07 October 2012 - 04:25 AM

The tube thing is the oil filler tube. l love these cars, carry on.

#5 Craig Irwin

Craig Irwin

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,873 posts
  • Location:Pendleton Indiana ( near Indianapolis)

Posted 07 October 2012 - 04:25 AM

That "hole" in the frame is the spring pocket for the coil. It should not go all the way through the frame.Think of it this way, the top of the coil sets against the bottom of the upper frame rail, and the bottom sets in the lower control arm {"A" frame). The coil compresses as the control arm moves up and down..

#6 sak

sak

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 557 posts
  • Location:Canada
  • Full Name:Jeff Kovak

Posted 07 October 2012 - 05:10 AM

Thank you Craig Irwin. Yeah now that you explained it, I can't understand how I could have been so stupid. The top of the spring would need something solid, otherwise it would not compress. And also thank you exnyman as well. I did not even notice that until you pointed that out. I suppose I will need to add a photoetched malibu ss badge if I decide to carry on with my plans. Bah its too bad model car garage does not sell individual badges instead of an entire kit.

Edited by sak, 07 October 2012 - 05:13 AM.


#7 sak

sak

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 557 posts
  • Location:Canada
  • Full Name:Jeff Kovak

Posted 13 October 2012 - 11:58 AM

I am beginning to work on that tail light panel. I thought I would try to make pictures as I go in case somebody would like to do this also. I carved out the part of the body around the brake lights and glued a piece of evergreen behind the panel. I will build it up with pieces of flat or round plastic to get it to look right.
Posted Image
These are what I was using for a reference. Not sure what one is correct but I am going with the silver one.
Posted Image
Posted Image

#8 1972coronet

1972coronet

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,461 posts
  • Location:Murrieta (South-West Riverside County) , Ca
  • Full Name:John Shoe

Posted 13 October 2012 - 01:48 PM

I am beginning to work on that tail light panel. I thought I would try to make pictures as I go in case somebody would like to do this also. I carved out the part of the body around the brake lights and glued a piece of evergreen behind the panel. I will build it up with pieces of flat or round plastic to get it to look right.
Posted Image
These are what I was using for a reference. Not sure what one is correct but I am going with the silver one.
Posted Image
Posted Image

Perhaps the difference is :
1.) Mid-Year Change ;
2.) Different Assembly Plant , and ;
3.) Different (local) Supplier , or ;
4.) One of them is Customised

Keep up with the great work ! :)

#9 sak

sak

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 557 posts
  • Location:Canada
  • Full Name:Jeff Kovak

Posted 17 October 2012 - 03:32 PM

A bit more progress. I work slow.
Posted Image
Posted Image
Posted Image
Posted Image

#10 cobraman

cobraman

    Crazy 'bout Cobras!

  • Members
  • PipPipPipPipPipPip
  • 10,518 posts
  • Location:Arizona
  • Full Name:Ray Kurn

Posted 17 October 2012 - 03:33 PM

Coming along nicely.

#11 gpugh1976

gpugh1976

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,766 posts
  • Location:Seaside OR
  • Full Name:Greg Pugh

Posted 18 October 2012 - 03:44 AM

Nice start here! I'll be watching this one!

#12 Duntov

Duntov

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,287 posts
  • Location:Atlanta
  • Full Name:Bill Lucianno

    "Mi sono perso"

Posted 05 November 2012 - 02:15 PM

Nice work here!!!!

#13 sak

sak

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 557 posts
  • Location:Canada
  • Full Name:Jeff Kovak

Posted 22 April 2013 - 11:40 AM






#14 Wonderbread Kustomz

Wonderbread Kustomz

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,916 posts
  • Location:Back in the ATL
  • Full Name:James Evans

Posted 23 April 2013 - 10:50 AM

Looking really good!

#15 freakshow12

freakshow12

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,761 posts
  • Location:melfort saskatchewan canada
  • Full Name:fred mckee

Posted 23 April 2013 - 10:57 AM

Coming along nicely.

#16 jeffbrad

jeffbrad

    MCM Regular

  • Members
  • PipPipPip
  • 66 posts
  • Location:Florida
  • Full Name:jeff

Posted 23 April 2013 - 11:09 AM

The red car is a Z16 with the black trim. Silver trim is regular Malibu SS



#17 rasafyff

rasafyff

    MCM Friend

  • Members
  • PipPipPipPip
  • 139 posts
  • Location:East Liverpool,OH
  • Full Name:Raymond Glen Campbell

Posted 23 April 2013 - 01:14 PM

The red car is a Z16 with the black trim. Silver trim is regular Malibu SS

The red car can't be a z16.It has the SS emblems on the quarter panel



I think the black car doesn't have black on the trim pieces because it's a black car.



#18 Tumbler75

Tumbler75

    MCM Avid Poster

  • Members
  • PipPipPipPipPip
  • 411 posts
  • Location:Memphis, TN
  • Full Name:Jason

Posted 23 April 2013 - 02:54 PM

Ok. I guess I'm gonna have to come in and clear this up. I have a 1:1 1965 Chevelle Malibu 2dr Non SS 396 Hardtop Coupe. My car is body colored around the taillights and between the trunk moldings. Mine specified on the build sheet "Body Color" in a note from the dealer on how the car was ordered.



http://www.chevelles...ad.php?t=317382



I've seen these cars with the "Argent Silver," Silver, Satin or Gloss Black, and Body Color between the trunk molding. It all depended on dealers and customers when new, and restorers/customizers now that these cars are 48 years old. The only 1965 Chevelle to have a totally different Trunk Molding Set was the Z16 Models. As you can see in the link above both the SS and Non SS version look virtually identical except for the badging being on the passenger side noting it as a SS car.



Now back to the build. I really appreciate your work and effort in documenting this build as well as you are! This gives me hope to be able to replicate my 1:1 car. Keep up the outstanding work you are doing. I can't wait to see more. Rock on man! B)


Edited by Tumbler75, 23 April 2013 - 02:57 PM.


#19 rmvw guy

rmvw guy

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 3,680 posts
  • Location:Indiana, USA
  • Full Name:Ron Martz

Posted 23 April 2013 - 04:49 PM

I too, owned a 1:1 '65 Chevelle Malibu SS back in 1966.  Mine was dark navy blue and had the silver in back.  I remember seeing black on red and even body color on non SS cars.  I am also trying to replicate my car in 1/25 scale.  One problem I ran into is changing the Malibu emblems to the rear quarter.  I think the only ones mounted to the front fender must have been on the Z-16.  I think there is a photo etch set available somewhere.  Also I need 327 badges.  Yours is coming along nicely, I love the pin knobs on the dash.



#20 Ron Hamilton

Ron Hamilton

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 1,628 posts
  • Location:Bowie, MD
  • Full Name:Ronald Hamilton

Posted 23 April 2013 - 05:11 PM

I am going to enjoy this thread. My first car was a '65 Malibu with a lot of road rash. When Revell first brought this kit out, I had wished that they did it as a non Z-16, but we have what we have. The contour of the rear quarter windows kind of bugged me, so I built a phantom Z-16 convertible out of mine.




Do yourself a favor, and buy a Model Car Garage '65 Chevelle Photoetch Ser. It will give you the emblems to do the car you wish to do. The detail work you are putting into your build will be enhanced with this kit.



In my stash, I have a R&R Resin '65 Malibu SS 2-Door hardtop, which was not a bad re-pop of the AMT Craftsman Annual Kit, with an opening hood. I may do my Malibu SS 2 Door Hardtop using a Craftsman Built-up that I have. The project is a little ways off, but this is how I plan to do it:



The Craftsman kit body is fantastic, in that the hood has to be opened, and components added. The old cratsman kit also has a correct set of "SS" wheelcovers. The promo style mounting bosses have to be removed from them to work with the wheelbacks.



The absolute best '64-'67 GM "A" chassis in scale is from the AMT '66 Olds 442, and that is the one I am going to use. It has a separate frame and floorboard, as well as all of the underhood components.



The engine will come from the AMT '66 Nova. With the exception of the oil pan with the front sump, if you are going to do a 4-speed car, this is a great powertrain, requiring only a correct rear sump oil pan to work. The air cleaner has to be modified, but a the best unit shapewise is in the JoHan '65 Cadillac. The oval snorkel(s) have to be added. The Revell '64 Impala has a nice 327/300 V8 with a powerglide. The center console has to be modified to adapt the automatic shifter and quadrant. The Revell '64 also has a beautiful set of Goodyear "Power Cushion" tires.



The AMT '65 El Camino had some nice interior parts for the project (Bucket seats and console).



Now I could also go the way you are going, and use the Revell Z-16 kit, and do the mods you are doing to the kit, which is far more cost effective, and satisfying. I may take mine, and do a '65 Malibu 2 Door Hardtop. I'll have to scratchbuild the front bench seat, as well as the side mouldings, which I will pattern from the AMT wagon, and I will use a set of wheelcovers from that kit.

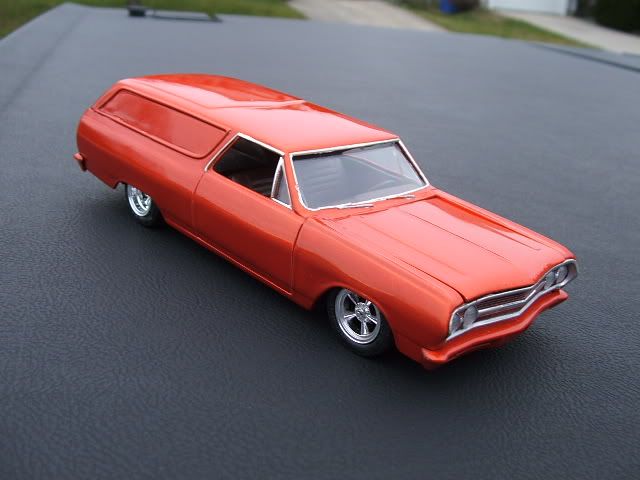

I want to do a set of '65 Chevelles, including an El Camino, Malibu Wagon (AMT Kits), a 300 2 Door Wagon (Jimmy Flintstone Resin), and a 300 2 Door Sedan. I did a phantom '65 Sedan Delivery from an AMT '65 Wagon back in 1997.






What color are you going to paint yours?? I know it is going to be great judging from what I am seeing so far.
