How do I make fender flares


  • You cannot reply to this topic
5 replies to this topic

#1 Ford guy

Ford guy

    MCM Avid Poster

  • Members
  • PipPipPipPipPip
  • 389 posts
  • Location:Shelburn Indiana
  • Full Name:Roy Snyder

Posted 24 October 2012 - 08:10 AM

I am wanting to put some big fender flares on a Lindberg '71 Mustang to cover some nice fat tires, but I can't figure out how. Can anyone help me out? Please?
Roy the Ford Guy

#2 Ace-Garageguy

Ace-Garageguy

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 6,103 posts
  • Location:Down two, then left.
  • Full Name:Bill Engwer

Posted 24 October 2012 - 08:46 AM

Very nice, futurabat. Basically the same as my technique. Cut the wheel opening to the radius you want, liquid-glue in a strip of .010" styrene perpendicular to it....

Posted Image

Then fill the flared areas with bondo and sculpt to shape......

Posted Image

Same idea, just larger, and with additions to define the fender character lines....

Posted Image

Posted Image

The real trick is if you want the flares thin enough to fit down over the tires....with the tires up inside the flares. About your only option then is to make molds of your finished parts and duplicate them in fiberglass.

#3 jeffs396

jeffs396

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 3,053 posts
  • Location:NE Ohio
  • Full Name:Jeff

Posted 24 October 2012 - 10:27 AM

Here's an excellent tutorial on 'widening' fenders & quarter panels, with full tire clearance. From Darin Bastedo:

http://www.modelcars...ng

#4 Guest_G Holding_*

Guest_G Holding_*
  • Guests

Posted 24 October 2012 - 01:27 PM

Here's an excellent tutorial on 'widening' fenders & quarter panels, with full tire clearance. From Darin Bastedo:

http://www.modelcars...ng


This way will widen fenders, without any flare. Unless you need really huge tires, this will work better than mini tubs

#5 Ace-Garageguy

Ace-Garageguy

    MCM Ohana

  • Members
  • PipPipPipPipPipPip
  • 6,103 posts
  • Location:Down two, then left.
  • Full Name:Bill Engwer

Posted 24 October 2012 - 03:59 PM

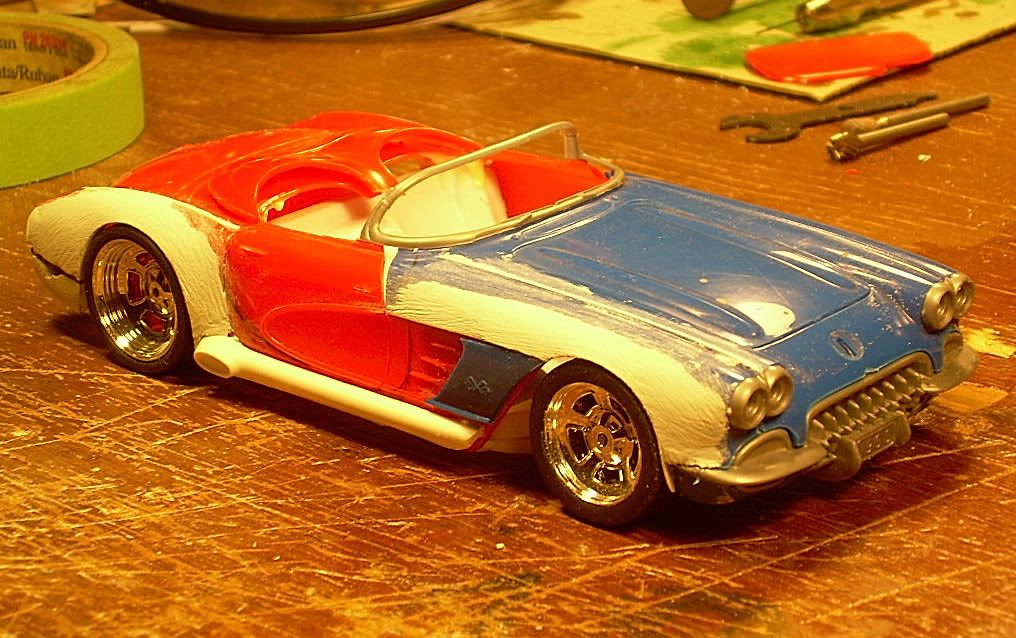

Yes, and if you look closely, you'll see the tops of both front and rear fenders on the Corvette model above have also been split and widened using a similar technique, which I posted on another forum 2 years ago.

Edited by Ace-Garageguy, 24 October 2012 - 04:14 PM.


#6 Ford guy

Ford guy

    MCM Avid Poster

  • Members
  • PipPipPipPipPip
  • 389 posts
  • Location:Shelburn Indiana
  • Full Name:Roy Snyder

Posted 26 October 2012 - 02:53 AM

Thanks guys. I appreciate the pictures and articles.
Futurabat, I like the flares you put on the Pink Panther, really close to what I had in mind. I was just thinking a little bigger. I think I can use your idea though.
Ace-Garageguy, that Corvette looks awesome already!
I think I can tackle the project now that you put some ideas in my head! Roy the Ford Guy
