Just when you though this build was over, I am resurrecting it!  Well, I have been waiting for a part to get here so I could really get into the build.  I went out and bought the part today.  Here is a photo of it in the box.  I need to get it and all the other parts out.





Oh, yea!  Let the building begin!



I have the first part laid out and ready to go.  This is the chassis side rail.  It will be the first parts cut on the new mill.



Edited by Pete J., 15 April 2013 - 02:10 PM.

[Pete J.]

Ok, the mill is set up and the chips are flying!  The first two pieces off the mill are frame rails.  There is some cleanup left to do but for my first try with the mill I am happy.  First thing I did was lay out the rail using the plastic piece as a pattern.  I used two pieces of .030 brass strip and glued them together with super glue.  I blued the top piece of brass and scratched the pattern into the blue with a diamond scriber.



After I did the design work, I glued it to a piece of Plexiglas so I could hold it to the tool plate.  First operation was to bore the holes with a boring tool.  Then I cut the pieces with a 1/8" mill end and ran some acetone underneath to brake them free.  I left them glued togeather to clean up the shape so they would be mirror images.  Now I have to file them flat and sand them to get rid of the file marks.  Follow that with a little polish and I can start making cross members and engine and suspension mounts.







This is going to be fun.  Love the mill!



Edited by Pete J., 21 April 2013 - 07:32 PM.

[jeffs396]

Great work going on here Pete!



Brass is looking sweeeeet!

[Pete J.]

Ok, I have not posted in a while.  It took me this long and a lot of metal scrap to feel confidant enough with the mill to move on the this part.  This is the start of the new head for the new engine in brass.  First of all, I must state for the record, once again, this is not ment to replicate a Mercedes D III which was suppose to be what was in the original Red Barron.  It is no where close to the size of that engine in 1:24th scale.  This is much smaller.  For that reason I have decided to create a somewhat custom version of that engine, taking the inspiration from it and making it in a " of the style of" a 1900's aviation engine.  This is the head.  It is going to be a pushrod style with exposed valve rockers arms.  Having said this here is the basic machining that I have done so far.



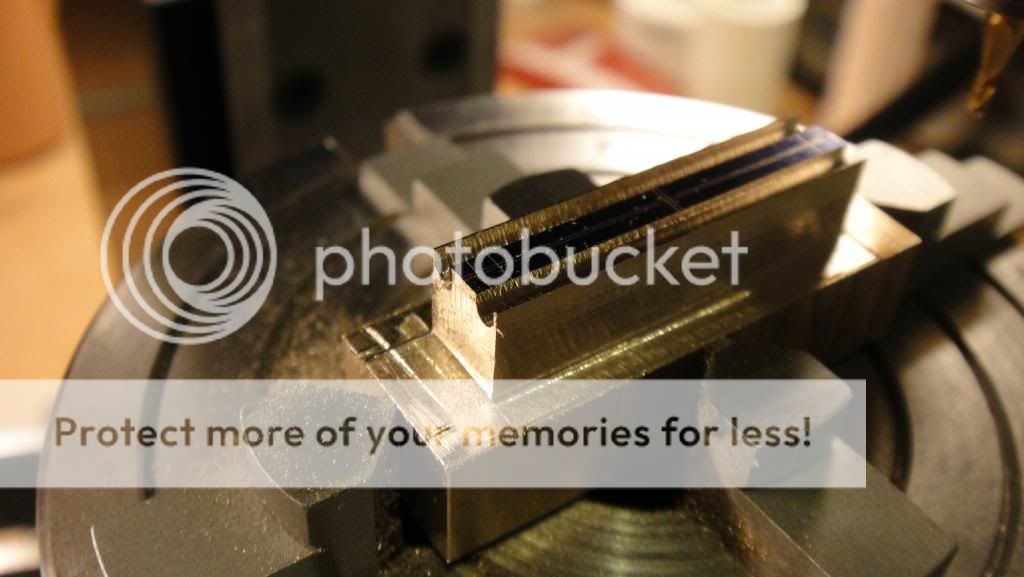

  I started with a .5" X .5" X 2" piece of brass and cut it down to the size I wanted and laid out the basic positions of the exposed pieces.  I then cut everything square but a lot thicker than the final piece will be when it is done.  I then used a 1/16" ball end mill to cut the grooves on either side of what would be the central supports for the rocker arms.



I then cut the ends of the supports.



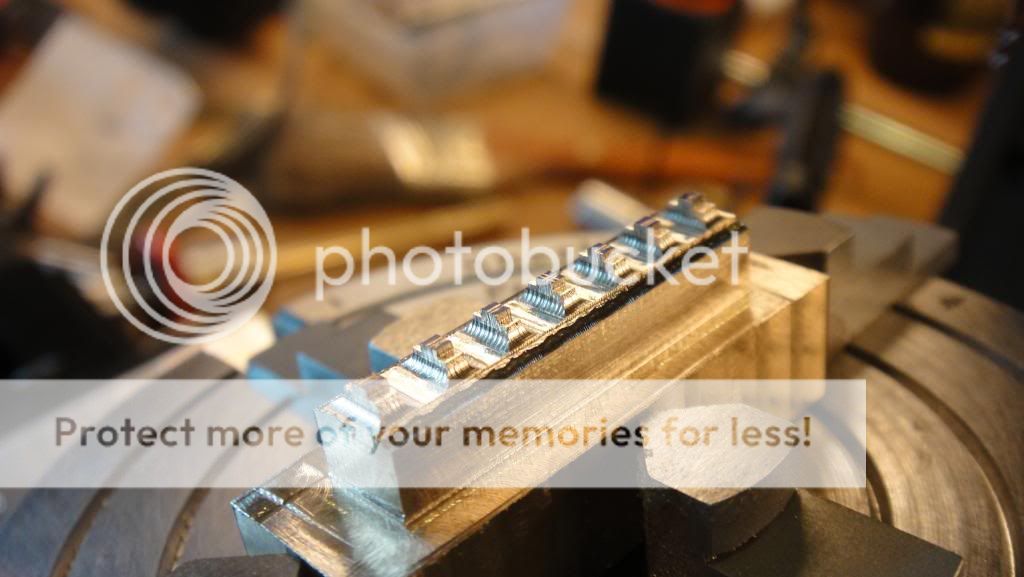

Then I cut the sides of each of the supports.  I used a ball end to create a "cast" look.  I also milled the sides where the hold down bolts will go to hold the top of the supports.



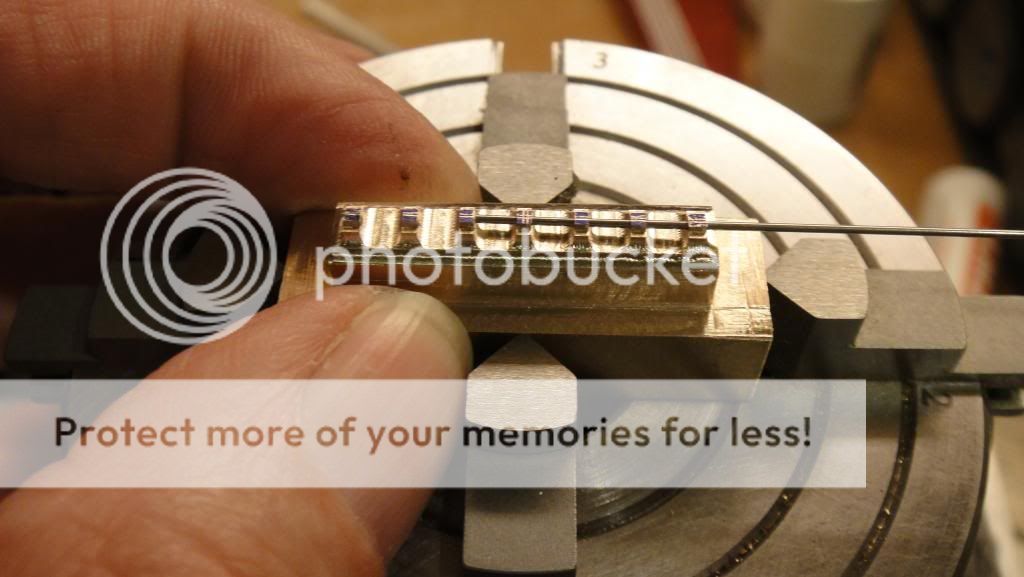

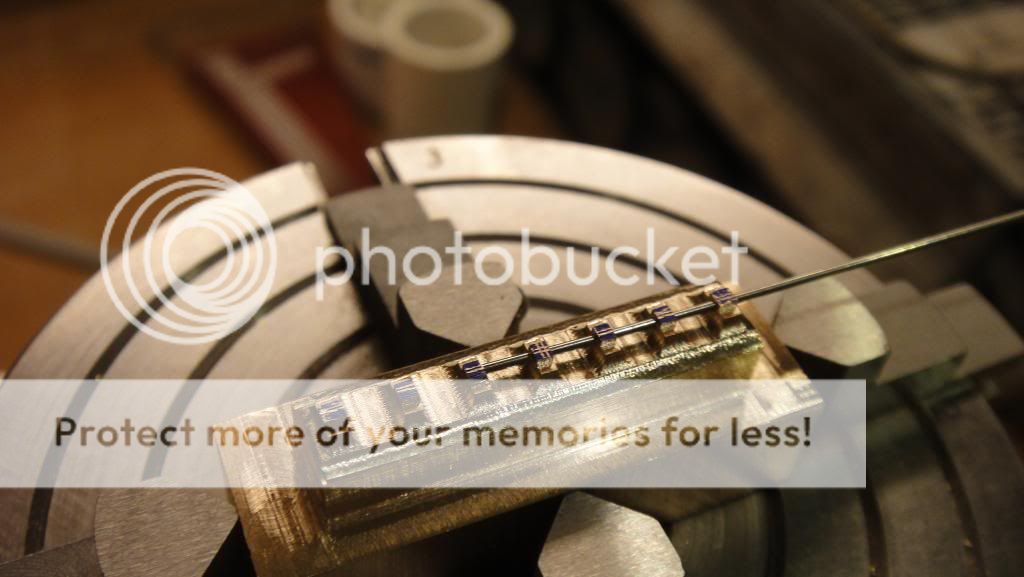

I then drilled the hole for the .025" stainless steel tubing on which I will mount the rocker arms.



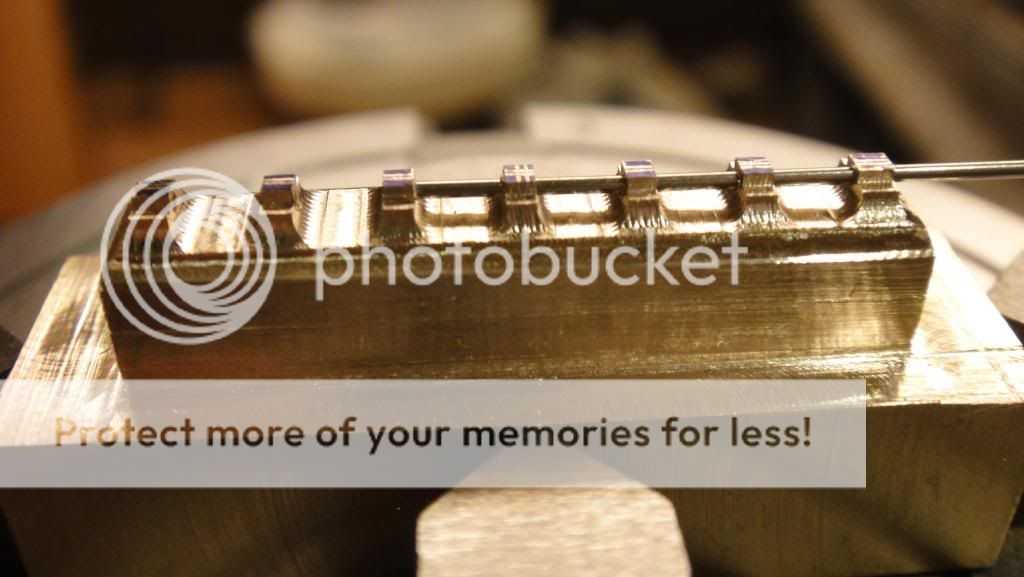

I included this last shot to give it some perspective.



As I mentioned before I am taking classes to get my certification to teach ground school to pilots so this project is going slower that I would like, but I do need to study but Tuesday is my last class for the summer.  Perhaps I can get a bit more done after that.



I hope you enjoy the work. I certainly am.

Edited by Pete J., 18 May 2013 - 08:50 PM.
