Chevelle SS 454 wiring.
Posted 16 April 2013 - 02:44 PM
Posted 16 April 2013 - 04:19 PM
Here is a pic off the web of a big block chevy, showing where the wires go. Hope this helps
The other side would be just reversed of this side wiring. Meaning, Pipe before wire from the front back.
Edited by vypurr59, 16 April 2013 - 04:21 PM.
Posted 17 April 2013 - 02:17 AM
This shot shows the plug holes in relation to the exhaust ports. All the common old big-block Chevy heads, either iron or aluminum, from 396 up will have similar plug locations.
Edited by Ace-Garageguy, 17 April 2013 - 02:28 AM.
Posted 18 April 2013 - 08:21 AM
Posted 18 April 2013 - 09:14 AM
Edited by Kaleb, 18 April 2013 - 09:15 AM.
Posted 18 April 2013 - 09:31 AM

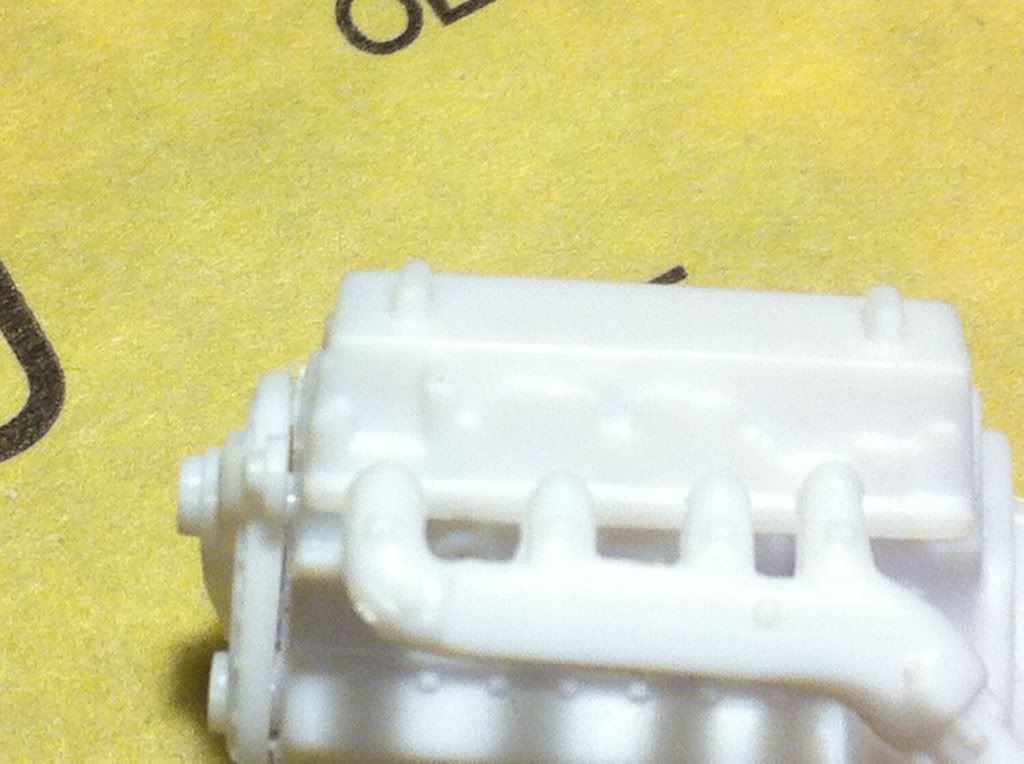

That's another engine where the dimensions got bodged somehow. The exhaust port spacing is even on these engines, but as you see, the last pipe on the right in your shot is too close to the port to its left. It should look like this...with the ports evenly spaced, and the first port near the front of the left head (about where yours is).The right head has the rear ex. port close to the back end of the head.
Edited by Ace-Garageguy, 18 April 2013 - 09:40 AM.
