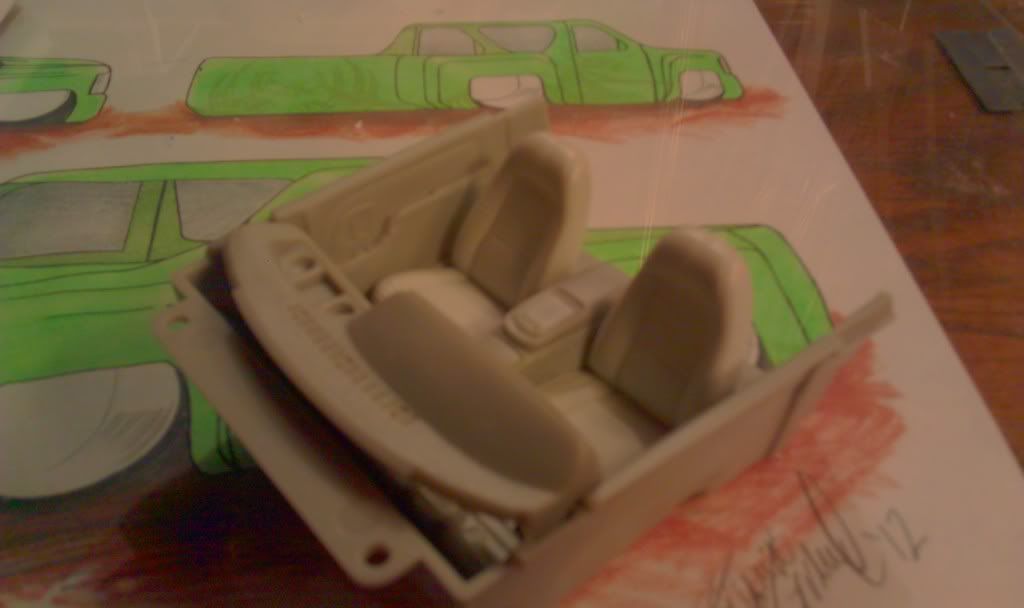

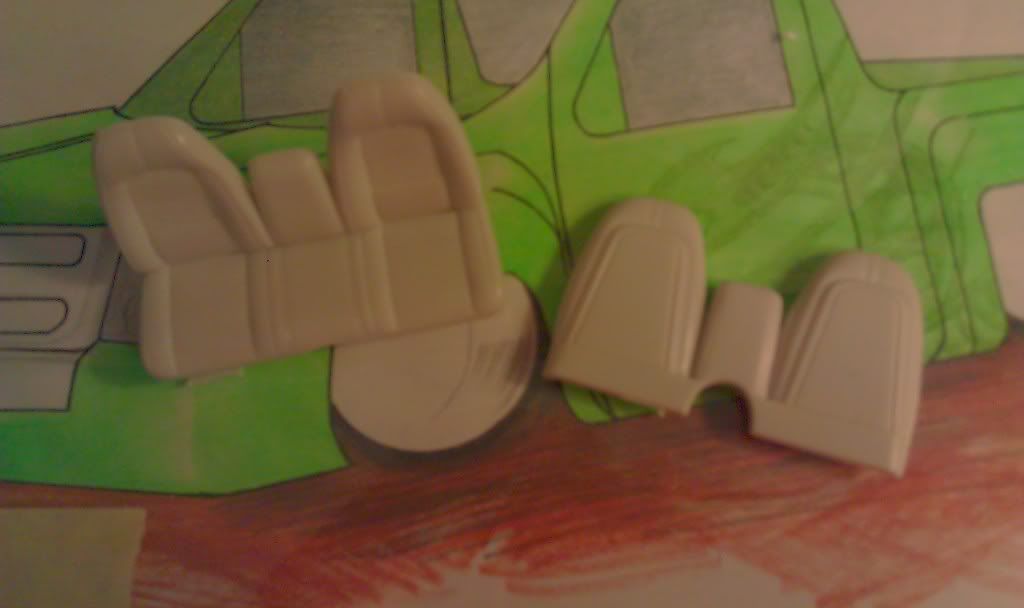

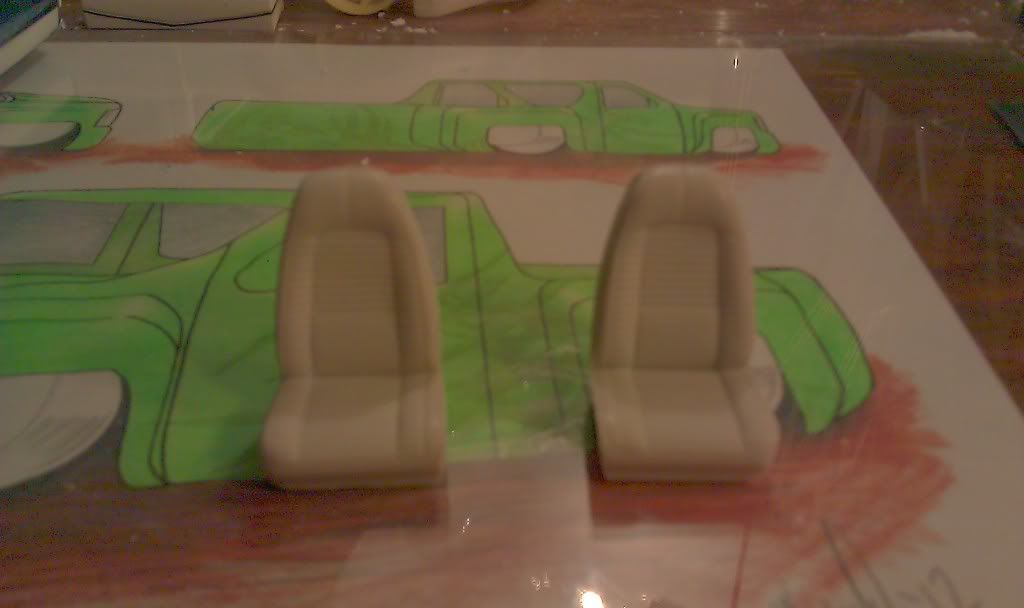

IMAG0553_zpse6ab1557.jpg IMAG0543_zps9f4c35aa.jpg IMAG0544_zpsc4f5fc60.jpg I made some bucket seats out of the front bucket/bench seats of a dodge superbird, and started cutting down the interior bucket for mock up none of the interior is complete just getting it mocked up at this point i have a full custom interior planned for her

#22 Altered Visions Customs

Altered Visions Customs

    MCM Friend

  • Members
  • PipPipPipPip
  • 214 posts
  • Location:Colorado Springs, Colorado
  • Full Name:Benjamin LeGrand

Posted 17 June 2013 - 12:14 PM

IMAG0546_zpsb7f8aa62.jpg IMAG0547_zpsc1db92e1.jpg this is the rearend i widened the pro street rearend out of the same superbird kit the seats came out of,and a shot of everything so far mocked up together
