  1. This is probably one of, if not the best dio I've ever seen. I really think you thought of everything on this on this one. Absolutely amazing job man
  2. Looks really good for your first try. These things are not easy to build. Good job
  3. This is beautiful in every way imaginable. The car, the base, the sign... Flawless work man
  4. There's some really neat stuff going on here. The first time I saw that body, my first thought was that it would be much cooler as a hot rod than a gasser. Cool to see someone's actually doing it
  5. Thank you. They're LED strip lights with pre-attached resistors I got from eBay. They're easy to wire, are adhesive backed, cool running and use almost no power. They're also cheap. The whole setup for this ran me about $13 including the 15v adapter. If you've never used led's, I do suggest doing a little homework on them. They're very sensitive and easy to blow if you use too much power. Don't ask how I figured that out haha
  6. Thanks man. If you haven't tried the Tamiya Weathering kits, I highly suggest them. You can find them at Hobby Lobby for around $6 with their coupon. They're basically pastels that seem to have a binder mixed added for better adhesion. They also last quite a while. I've done 4 cars and the walls, pavement and stuff for the inside of this dio and still have 80% of the pack left.

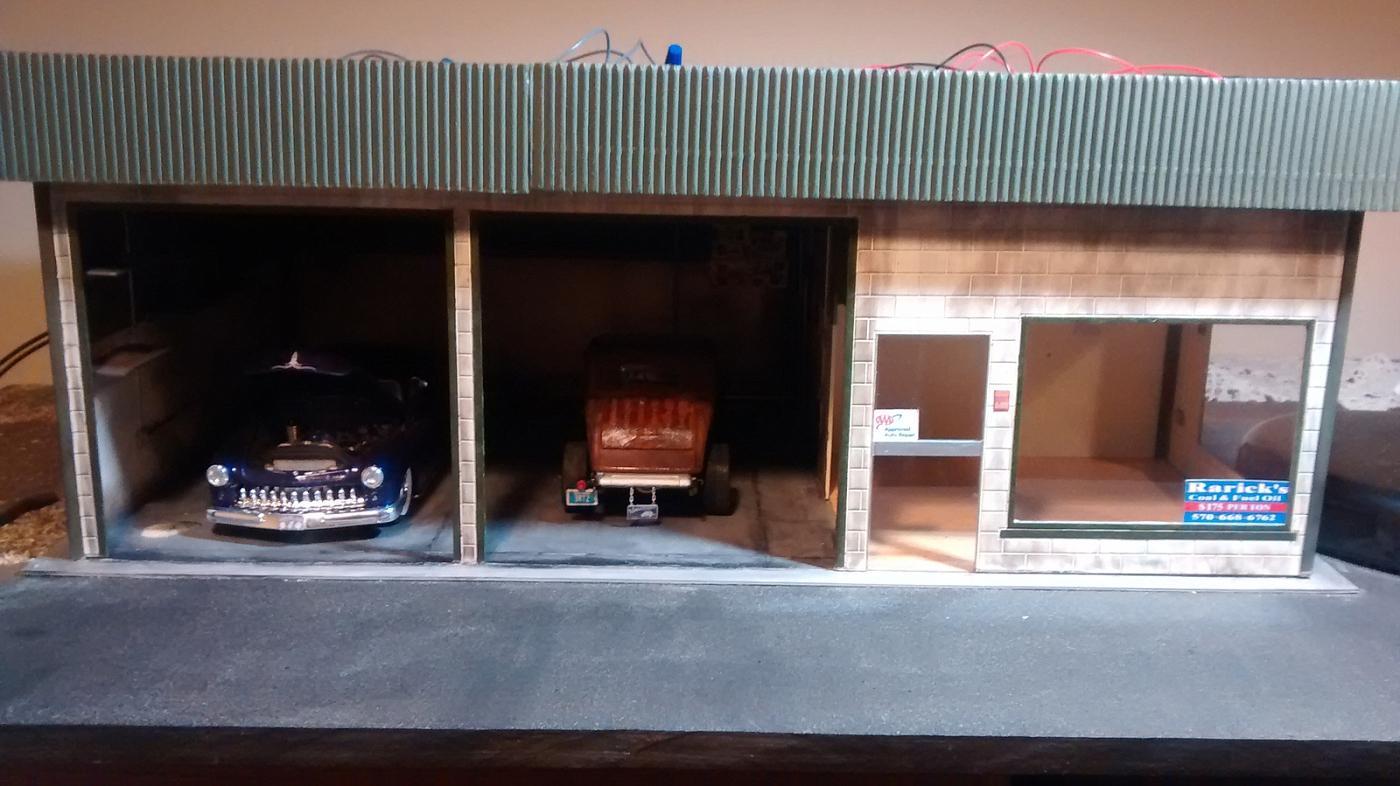

  7. Thanks a lot for all the positive feedback guys. Also, sorry about the untimely reply. I'm usually on top of these things. Unfortunately, I'm having major computer issues at the moment and my phone HATES forums. On the bright side, I figured out how to do things from my phone for now and will post up some progress pics soon. Thanks again guys

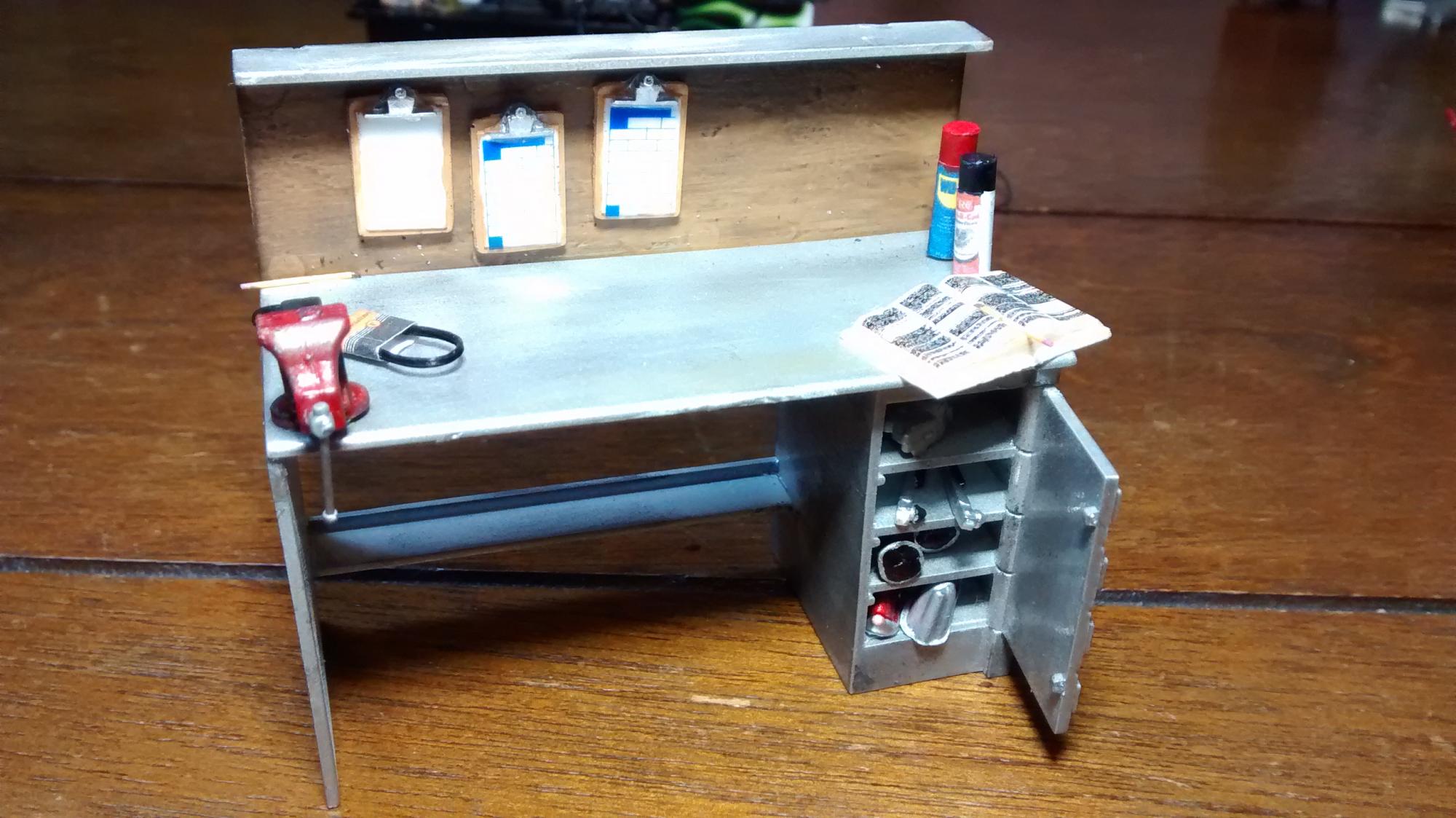

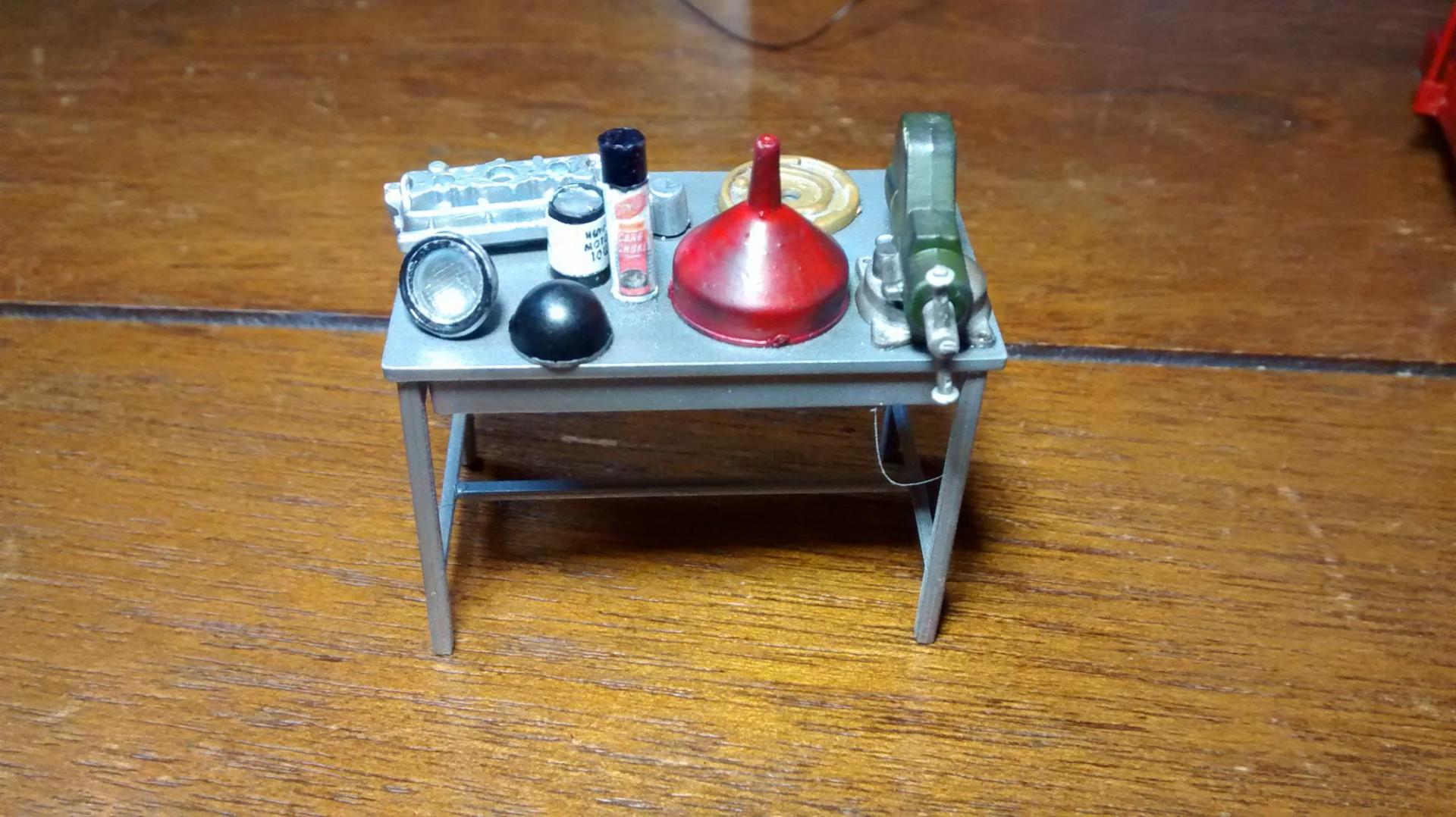

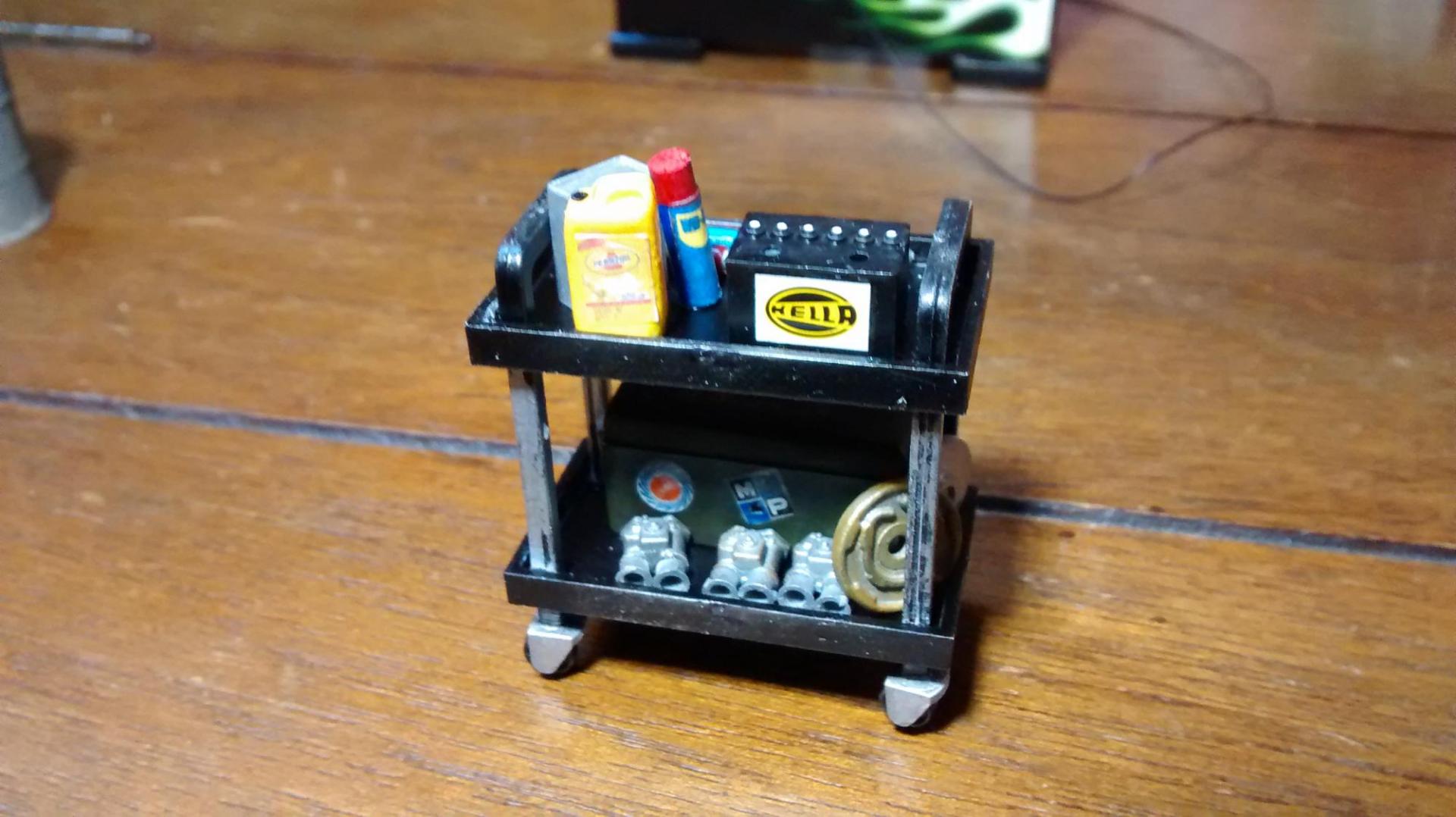

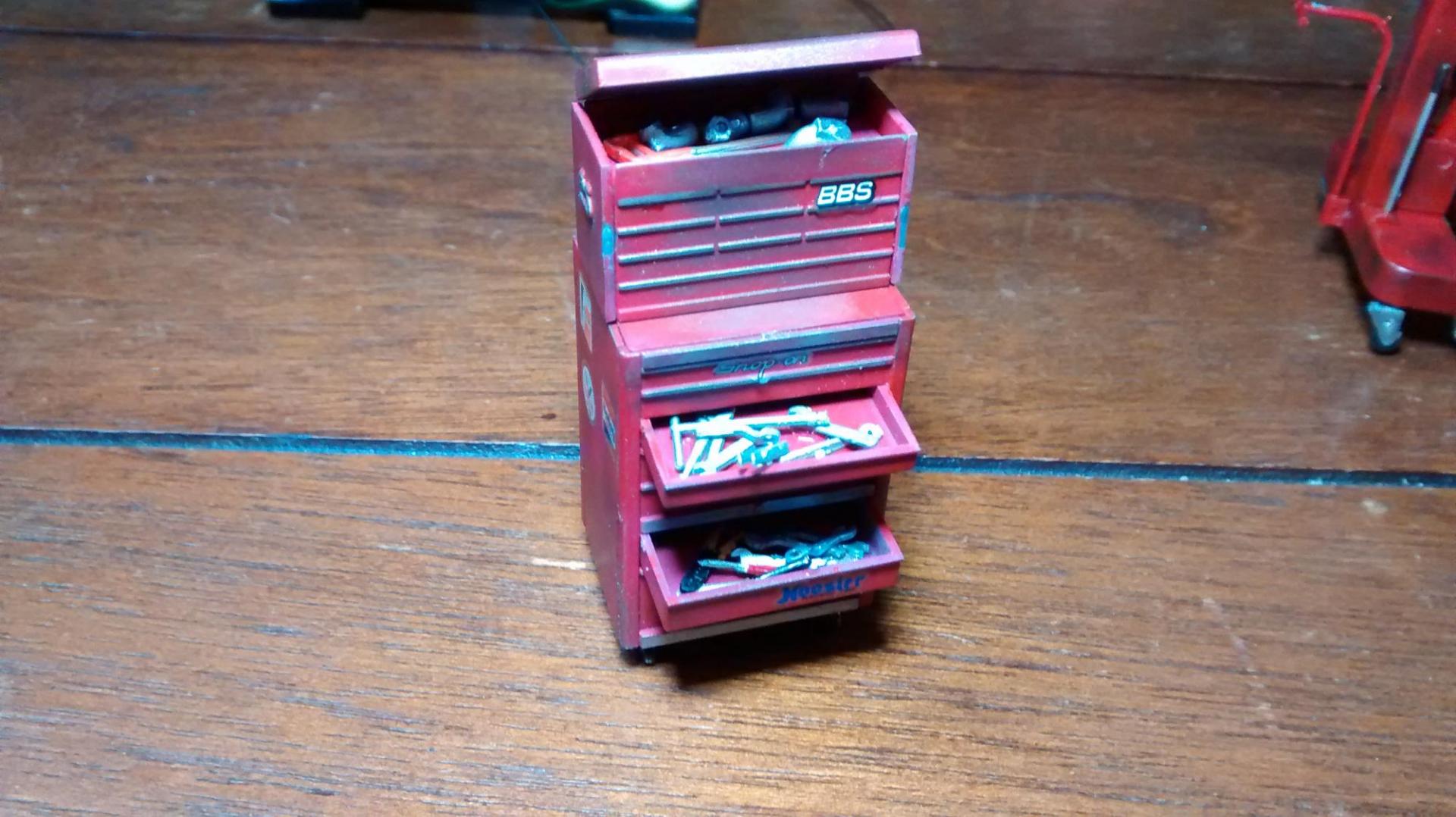

  8. The chest made itself useful by holding some tools

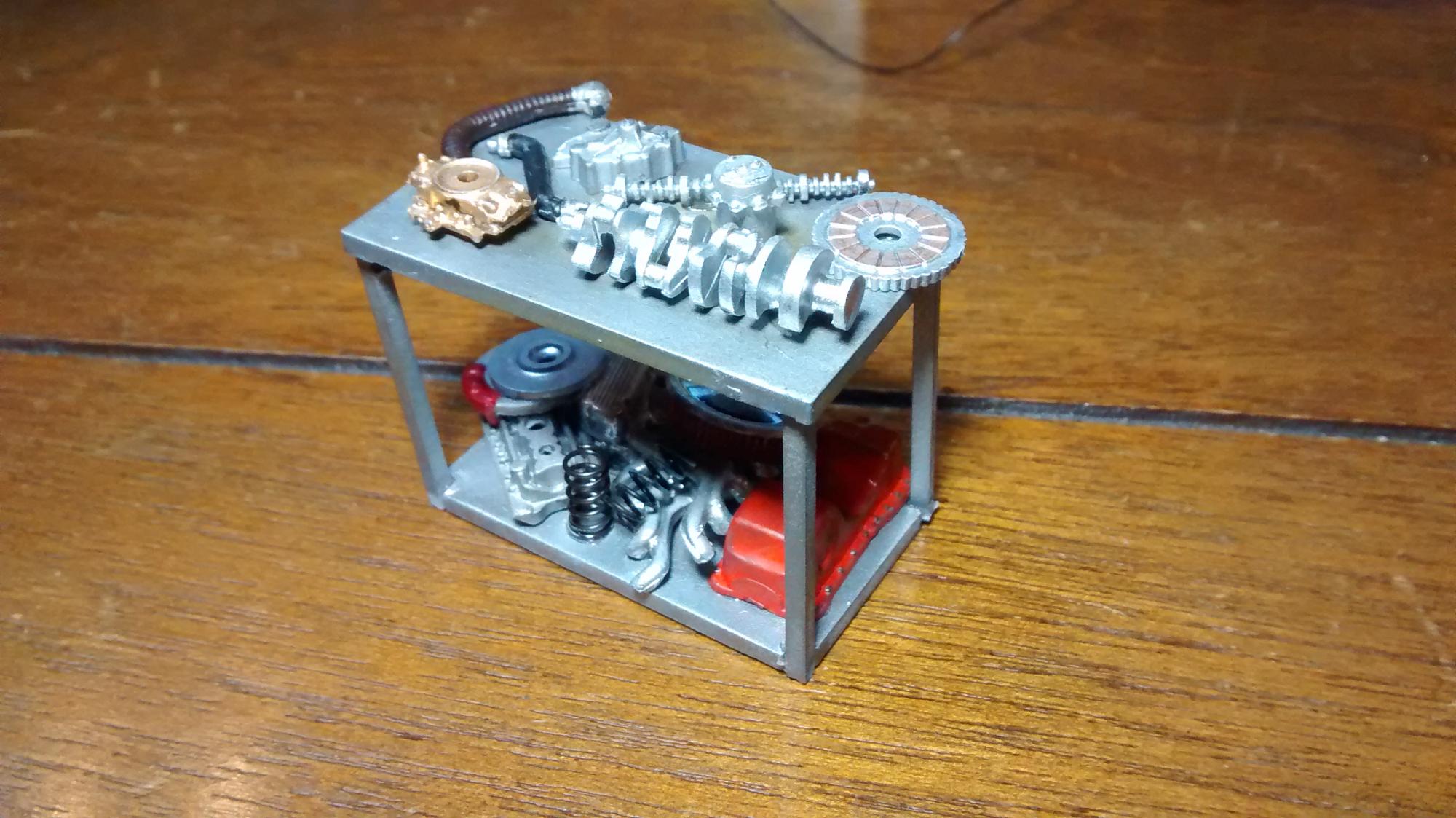

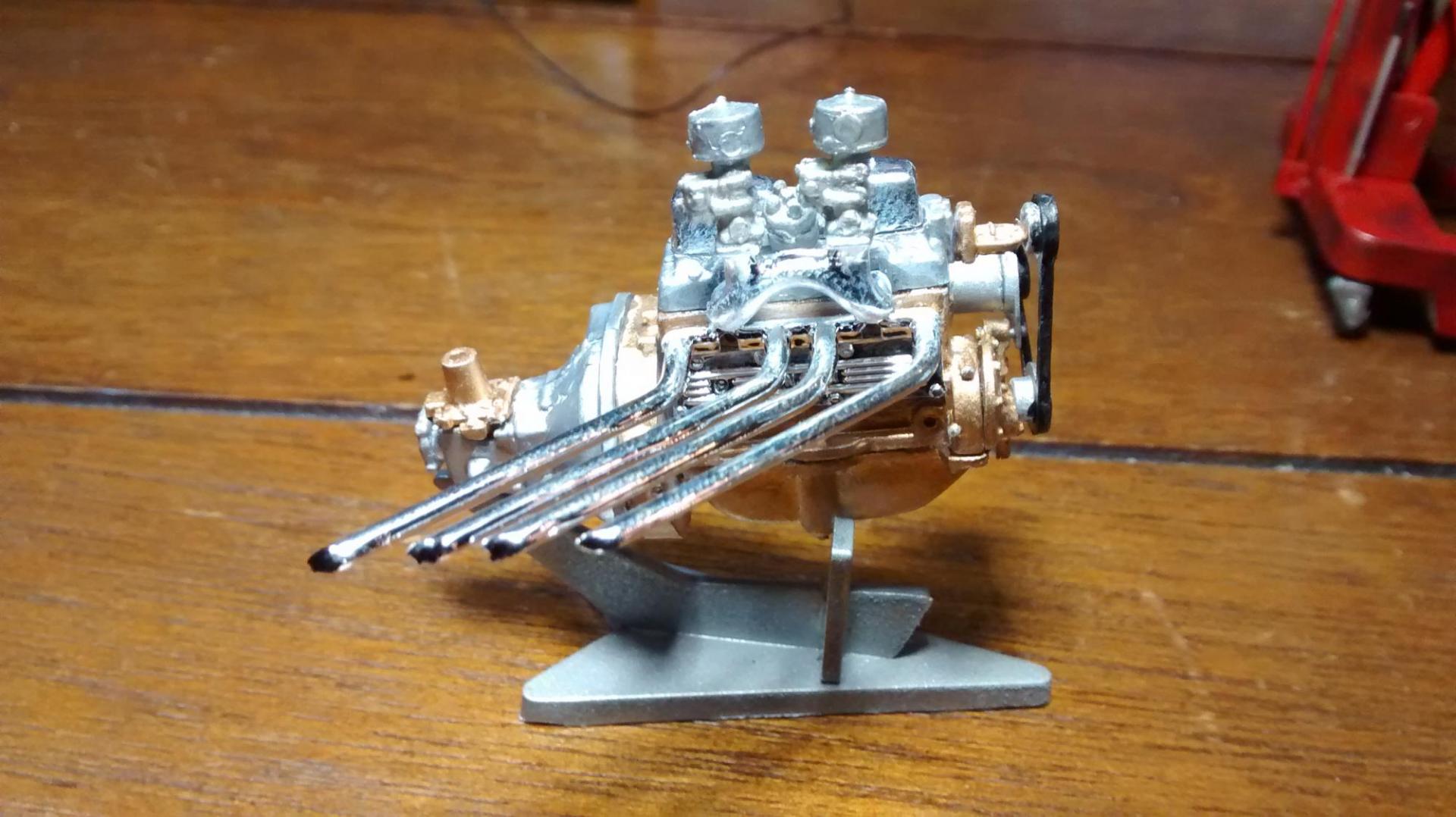

  9. The front office window will be the home for this Ford 4 banger robbed from a Revell Model A. Stand is from a AMT 57 T-Bird (miserable kit, btw)

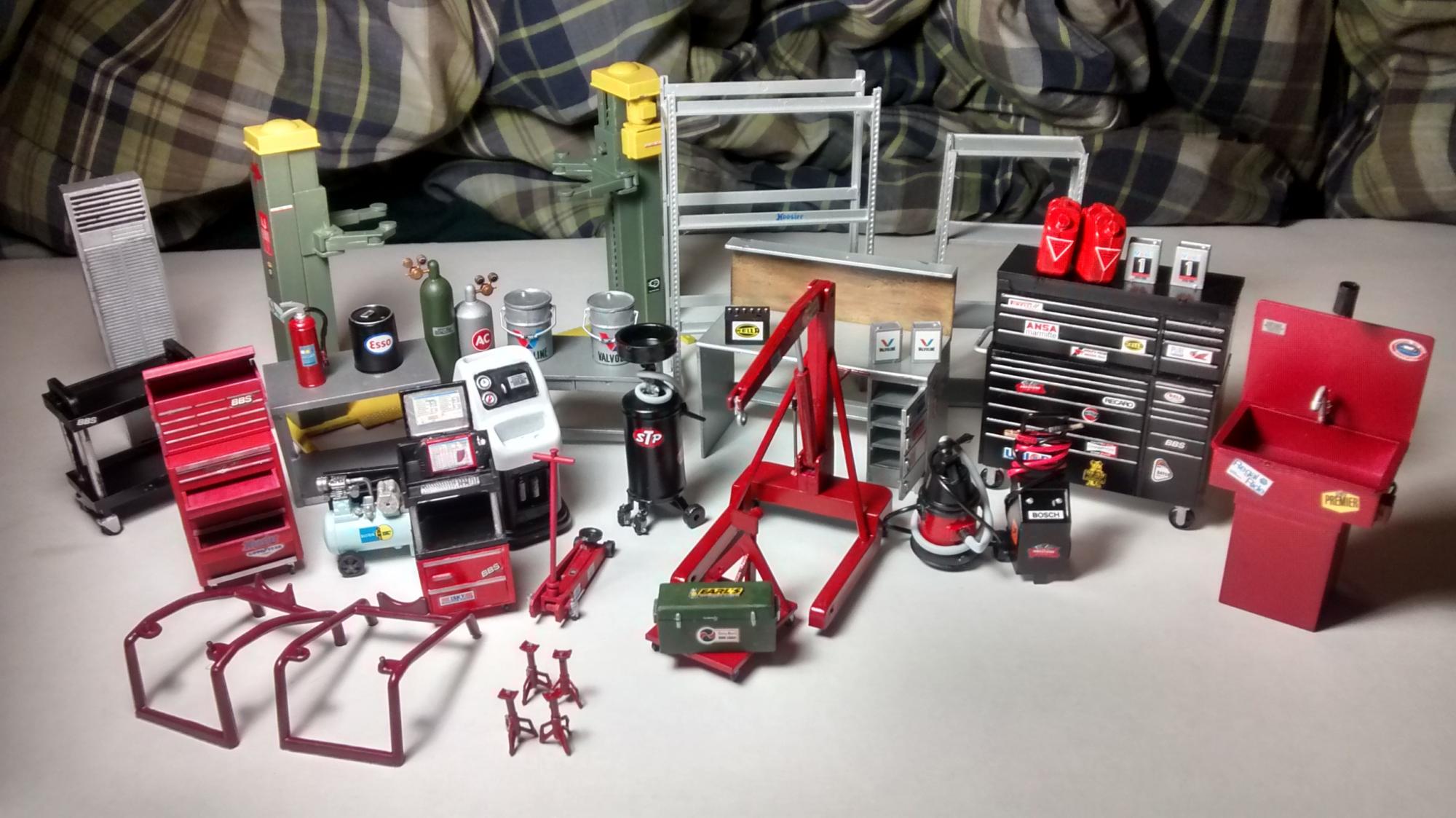

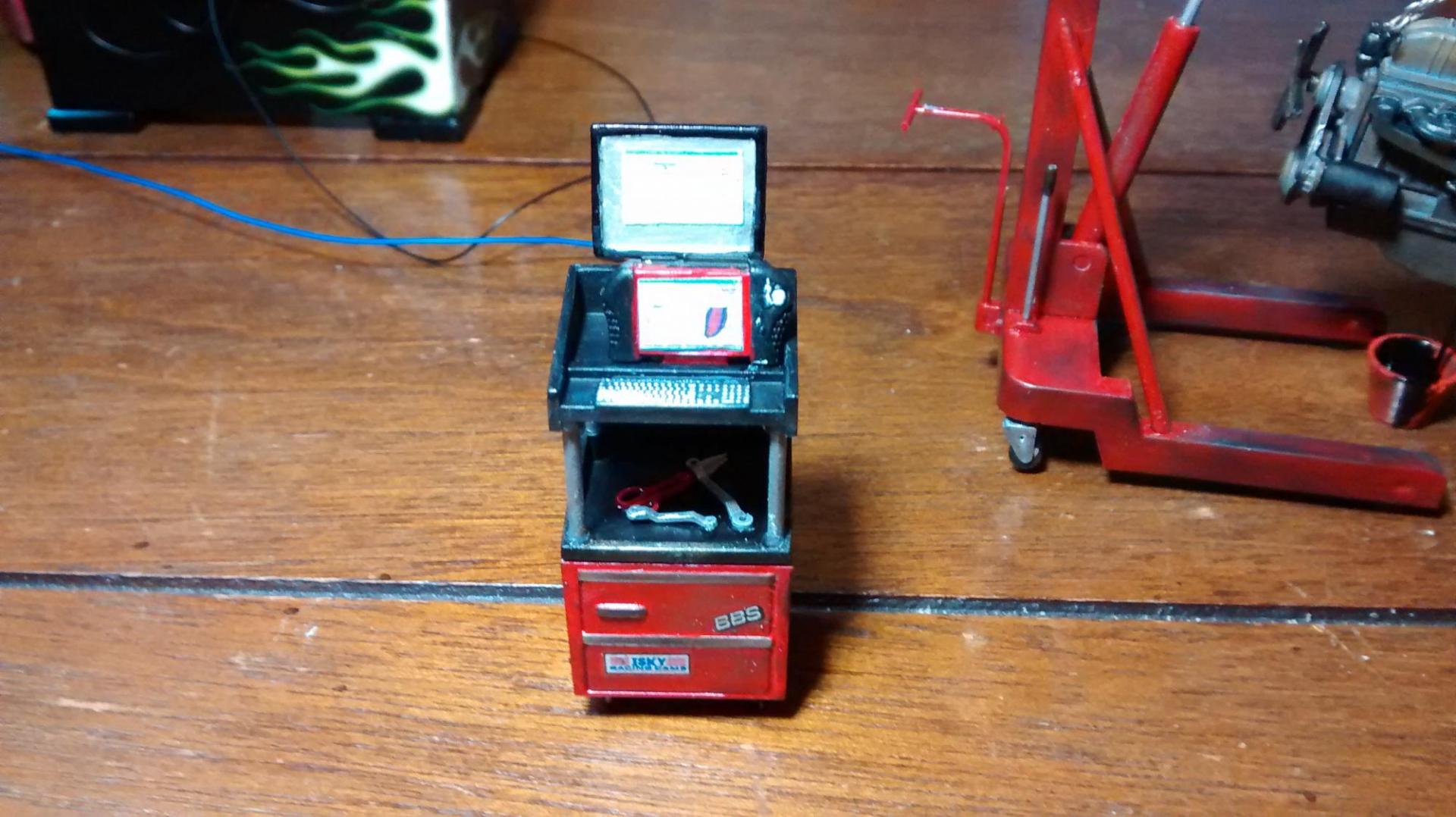

  10. As great as these tools look out-of-box, more detailing and weathering had to done. The diagnostics machine got a few realistic screens slapped on it, once again just pics from google

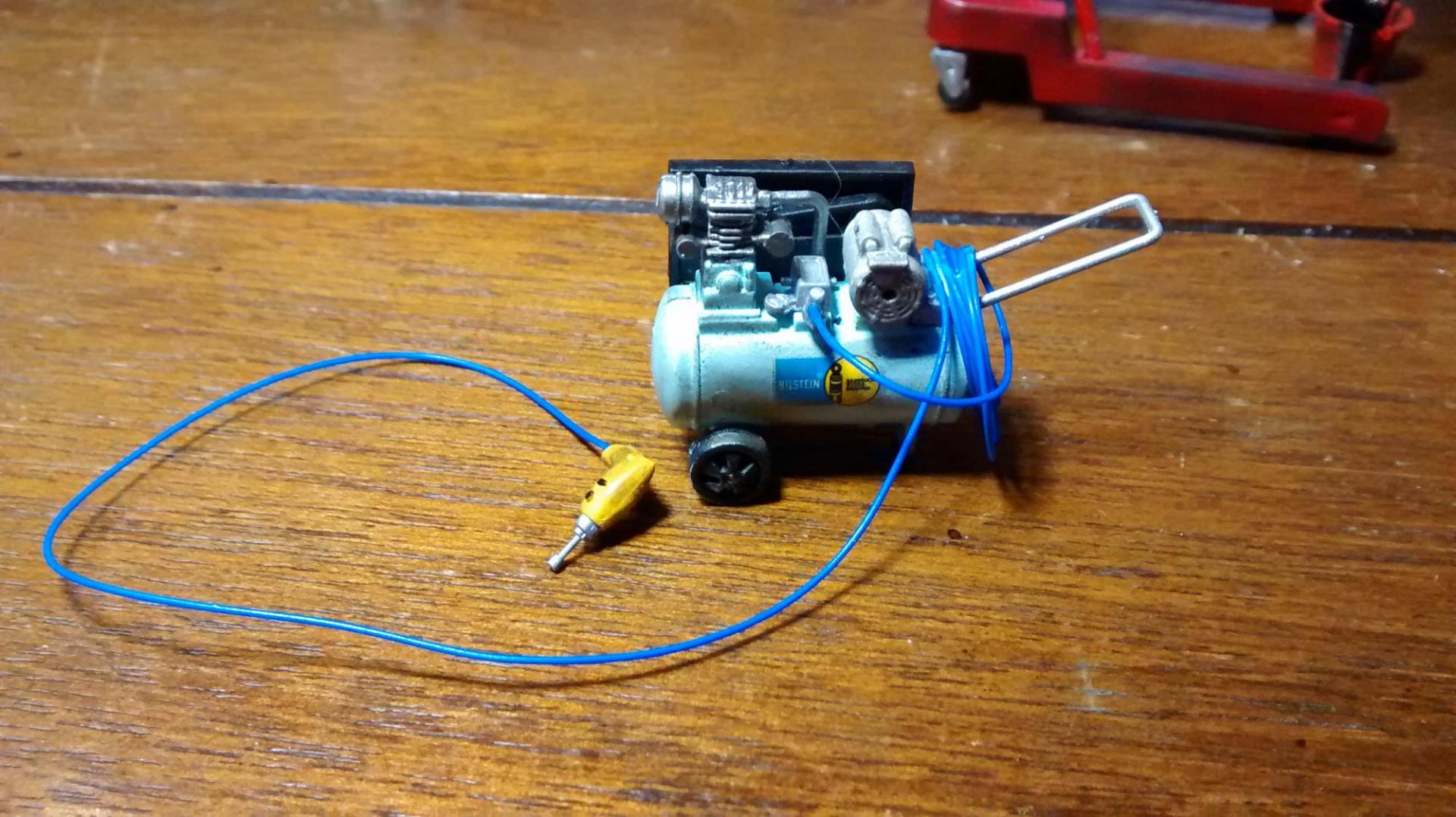

  11. Then came the assembling of some tools made by Fujimi. Great little kits

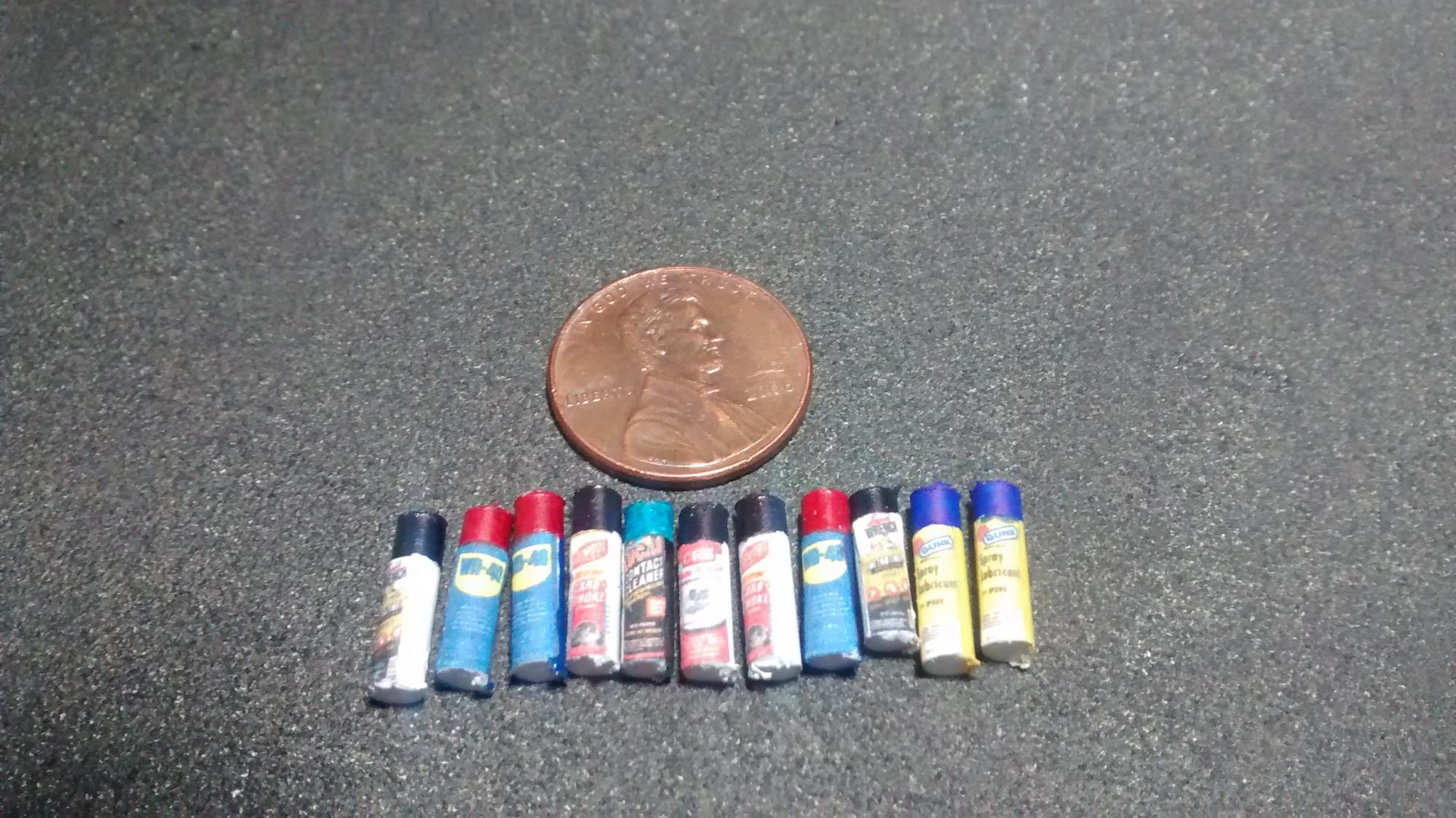

  12. Then I got some more work done, mostly just stuff to start filling up the inside. First was a quick, waiting for paint to dry project. I made some spray cans out of some leftover styrene rod I used for the wall braces. Easy enough, just paint the rod in sections (you can do them individually, I just thought they were easier to hold this way), find images of your favorite automotive products on google, crop, resize and print. Glue them on the rod, cut the cans to size and you're good to go. They could've come out better, but like I said, this was one of those on a whim things

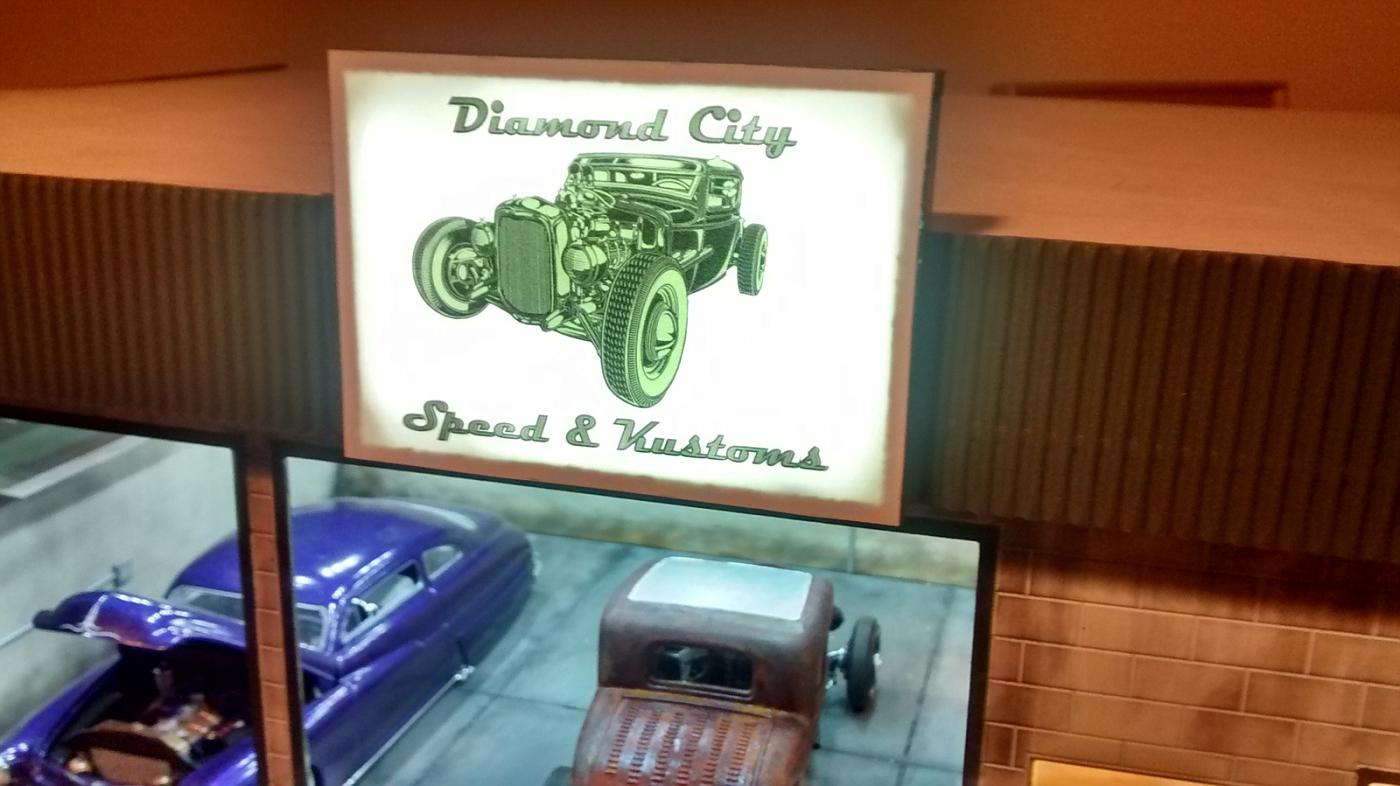

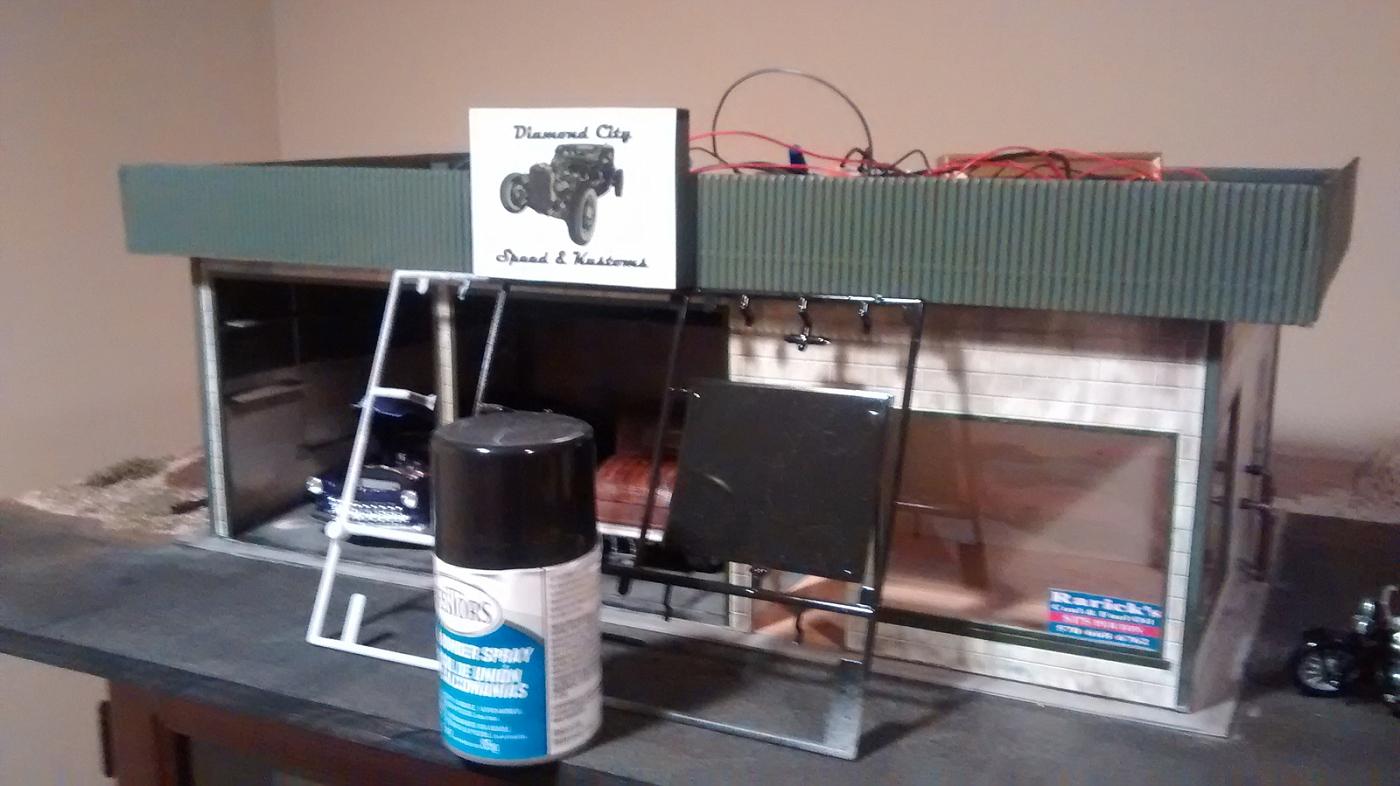

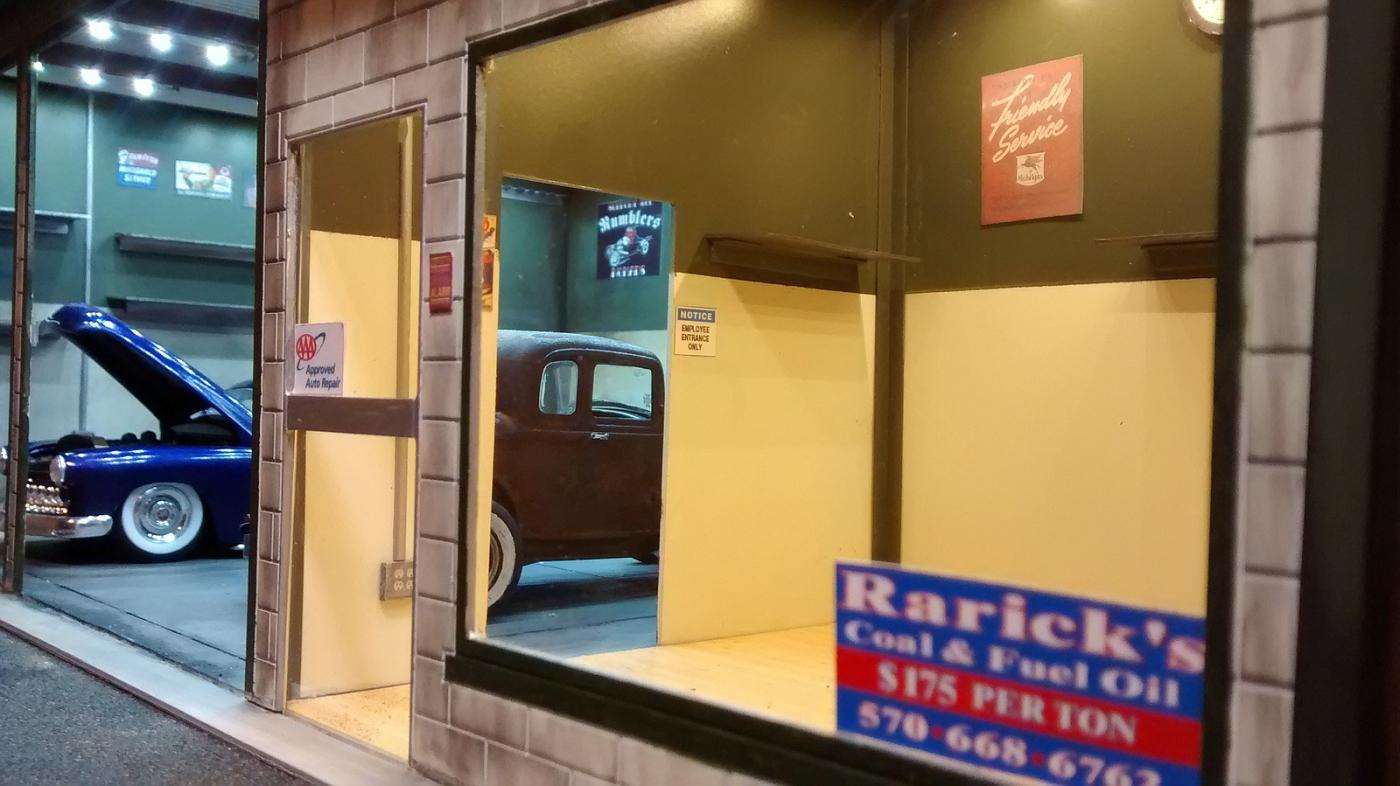

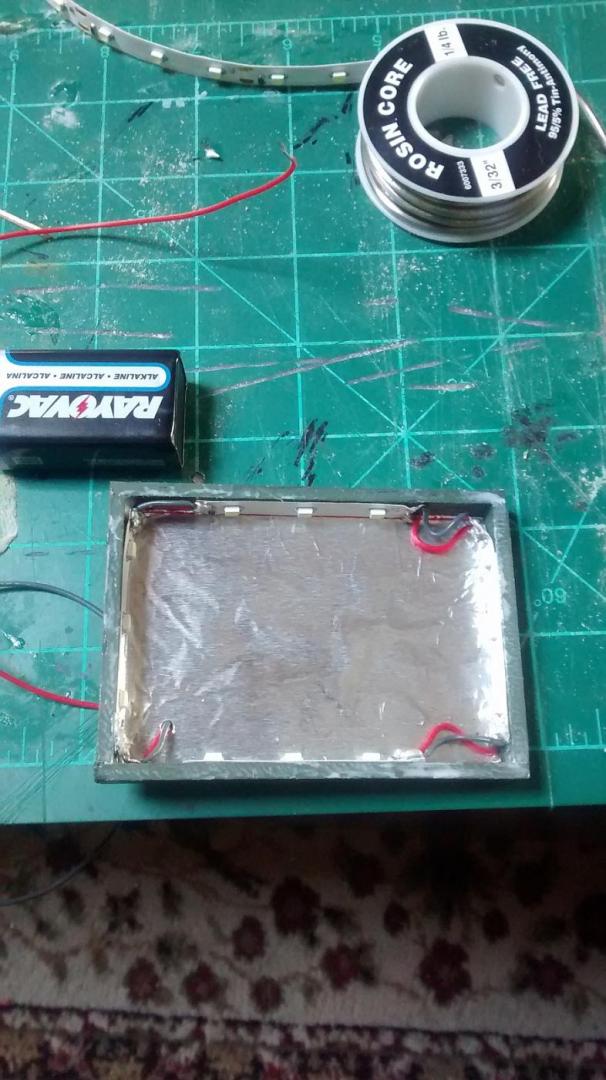

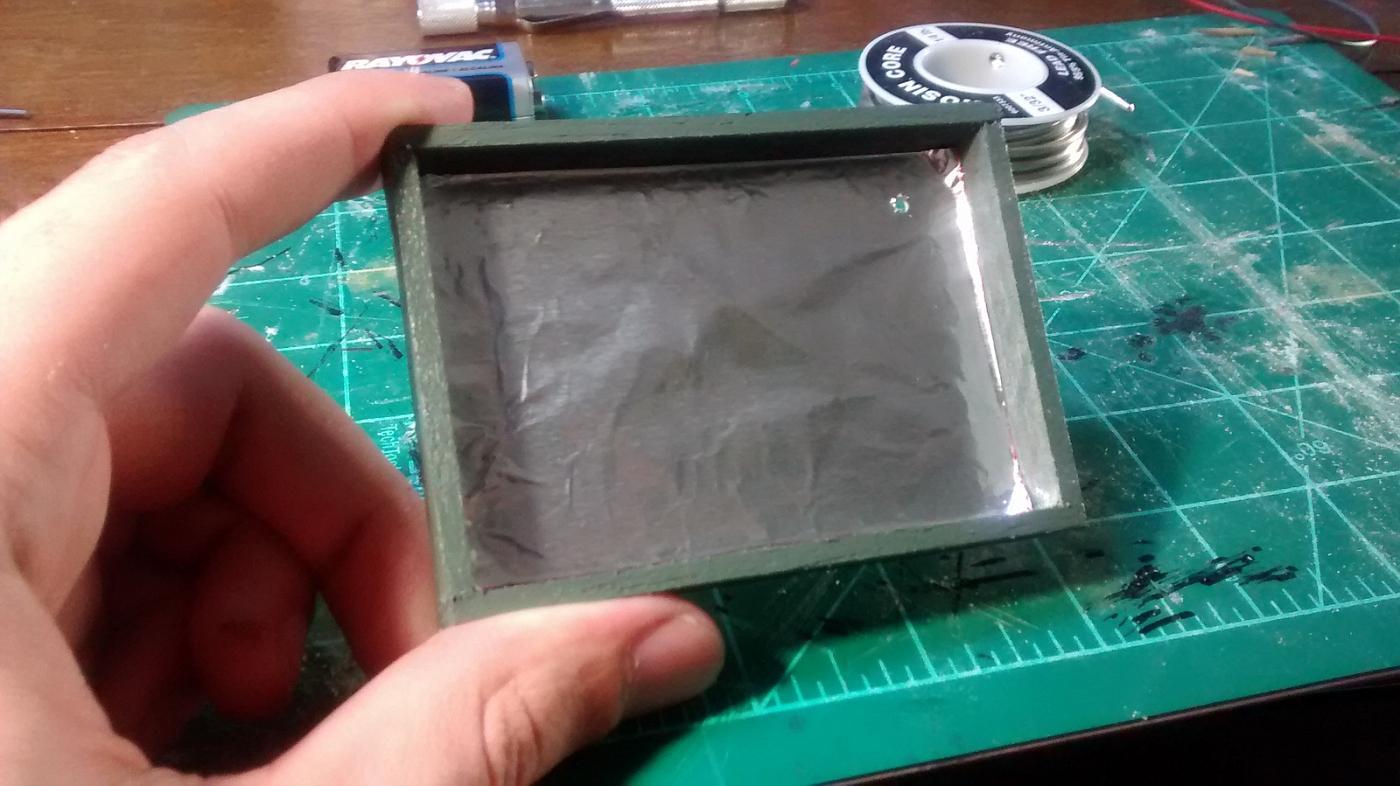

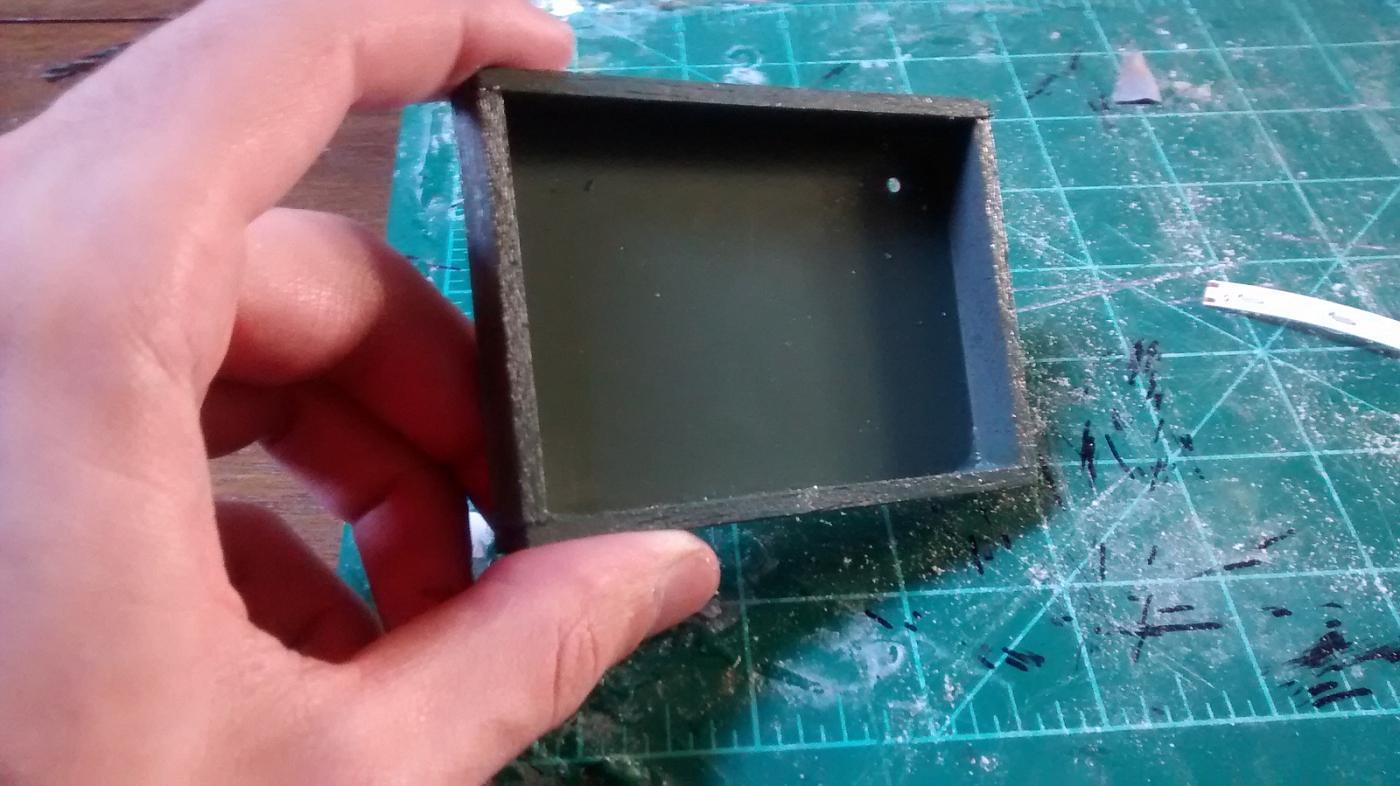

  13. So I was bored waiting for some paint to dry, had some extra lights and couldn't leave well enough alone. I started off by building a box using some scrap wood and styrene sheet, then painted to match the roof. It's a bit big but it's the smallest I could go to accommodate the lights. I then placed a little aluminum foil around the inside, hoping that would reflect and diffuse some of the light. These little LEDs are pretty bright but in small space seemed to be more directional than I wanted. The aluminum did it's job well in a test run so I went on to the next step. The next step was wiring the lights and putting them in place. This was a mostly painless process that was only complicated by the ridiculously thick solder I was using. Despite that, 20 minutes later the lights were snug in their new home and working as they should. After screwing around with MS Word for a while, I came up with a name and design for the shop. I printed it out on photo paper, cut to size and attached it to the light box. Then I smeared some epoxy on the back, propped it up with a parts tree and went to work while it dried. I came home from work, hooked up the last remaining wires and this is the end result.

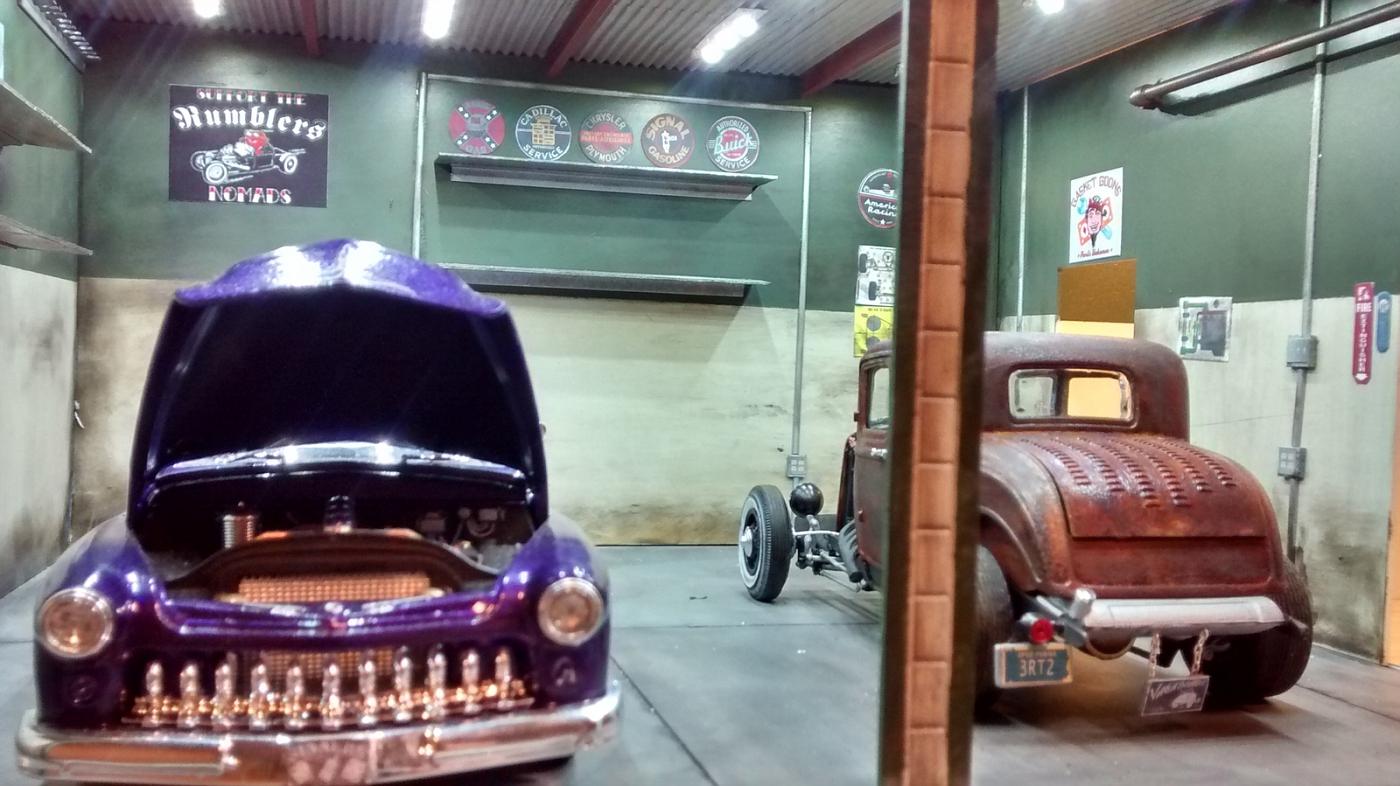

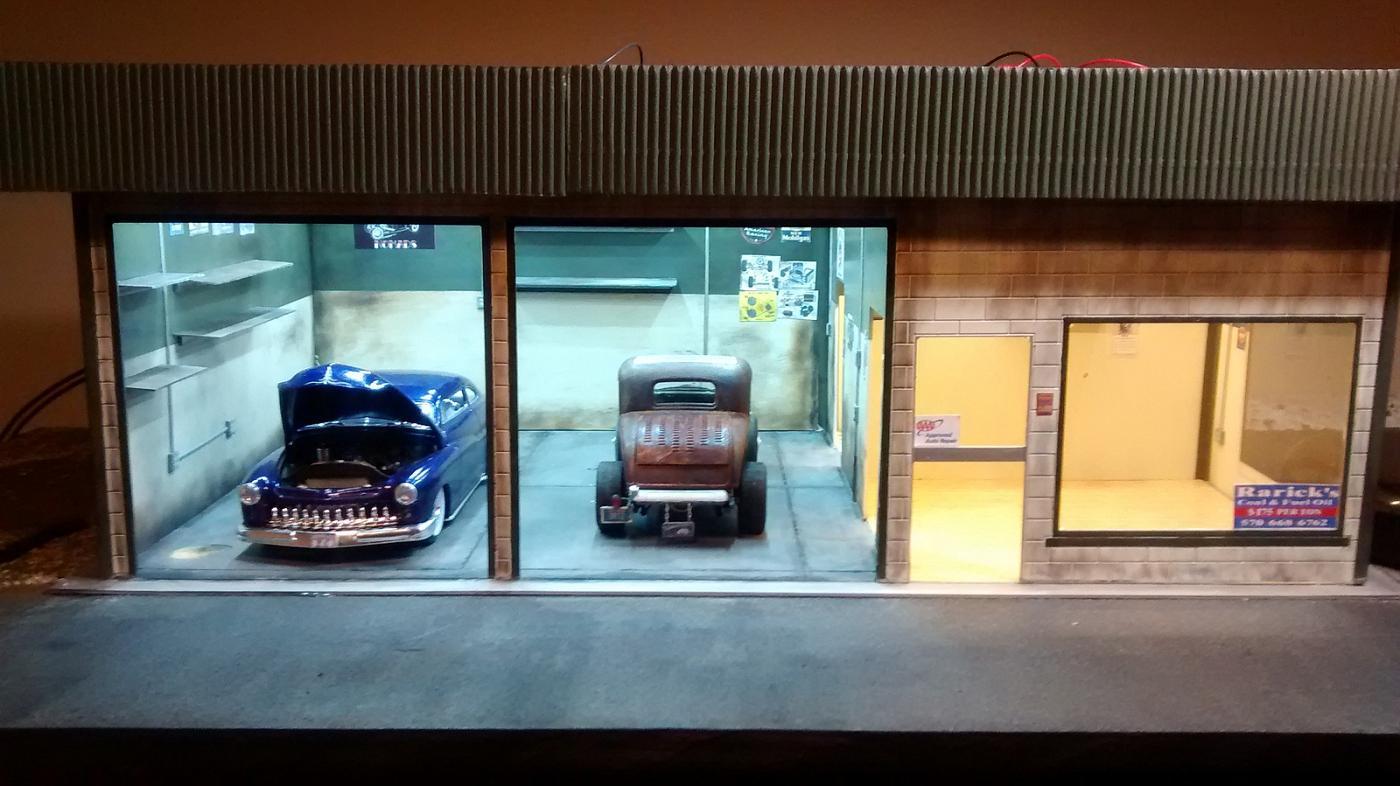

  14. There's light at the end of the tunnel! Got some wiring done and, to my surprise, didn't electrocute myself haha. Now comes the part I've been waiting for... filling her up with tools, parts and junk. This is where all those 3 in 1 kits are going to come in handy.

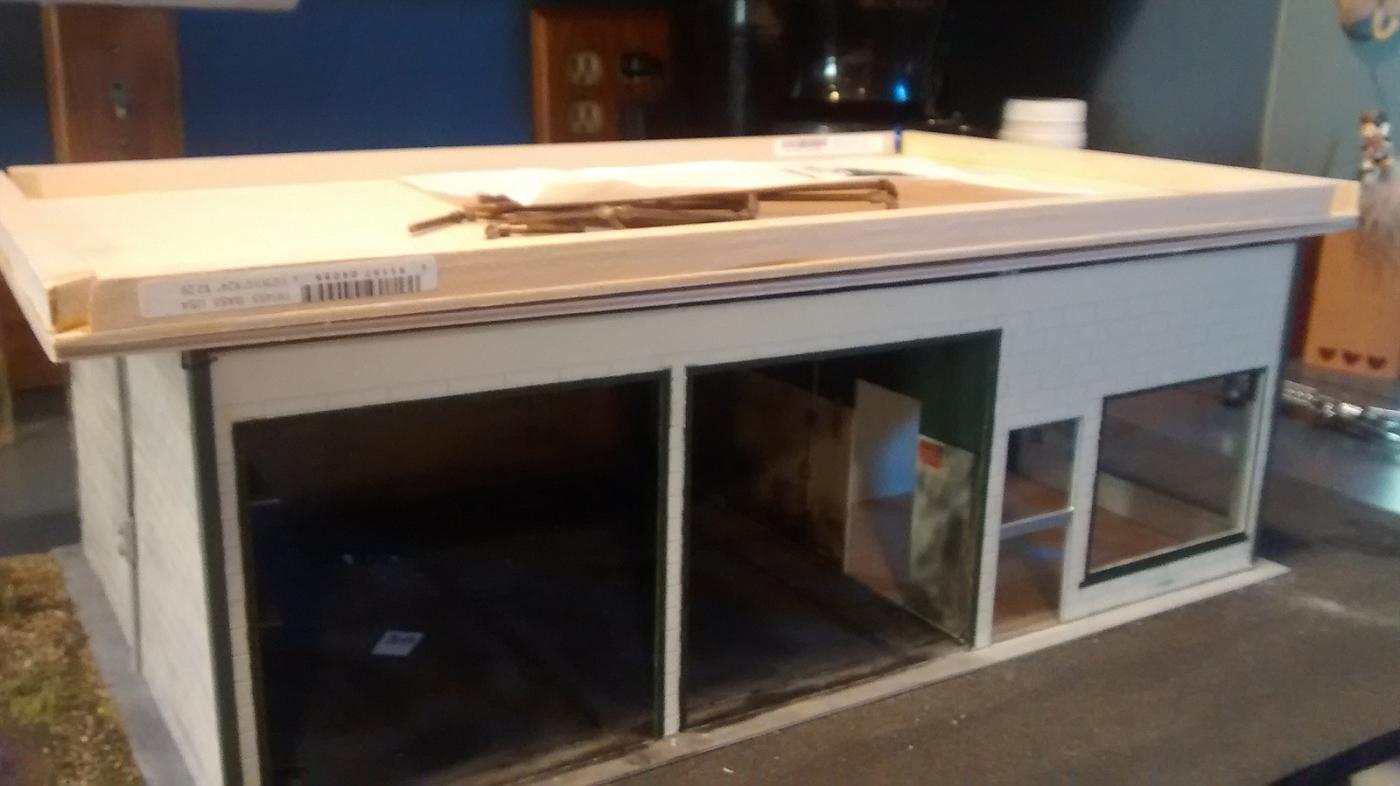

  15. I also started on the roof and detailed my fences a bit

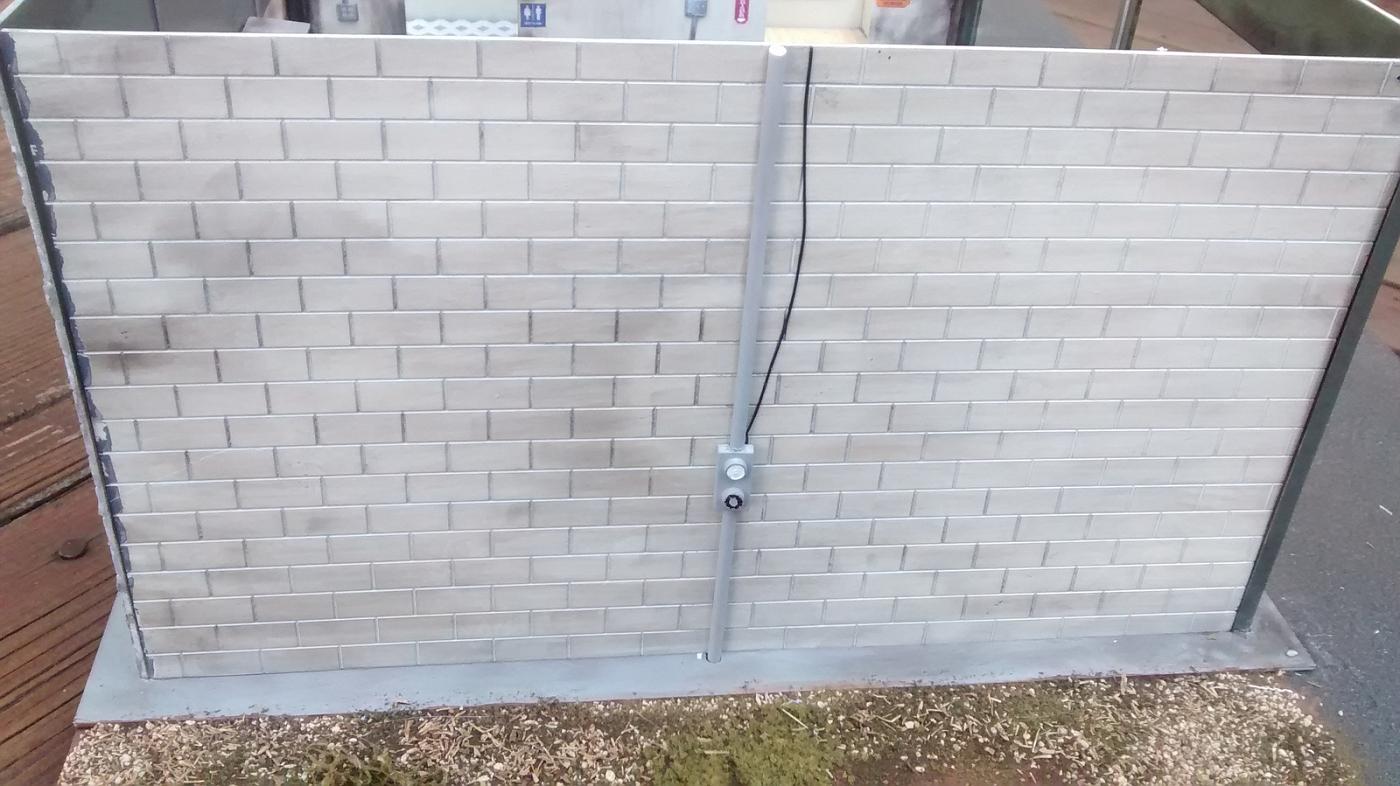

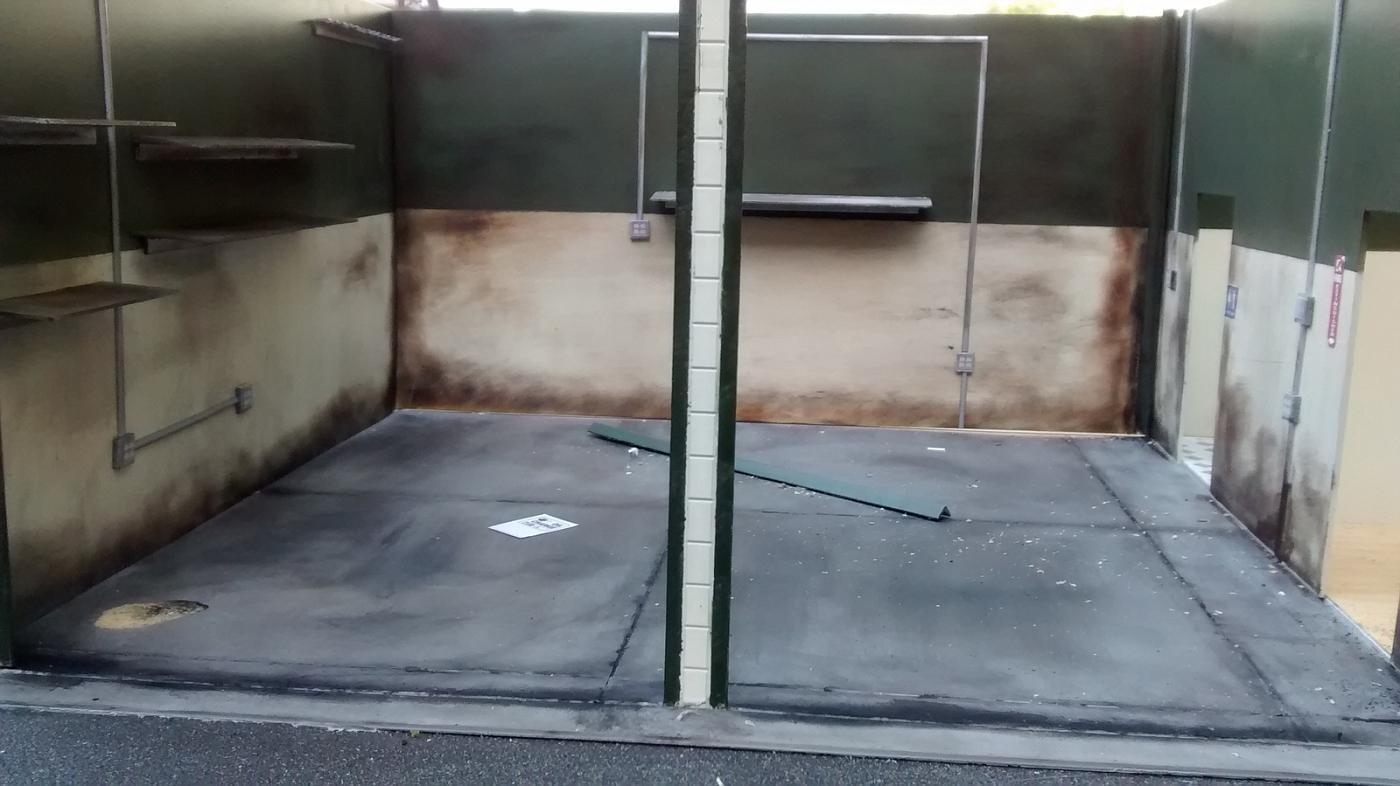

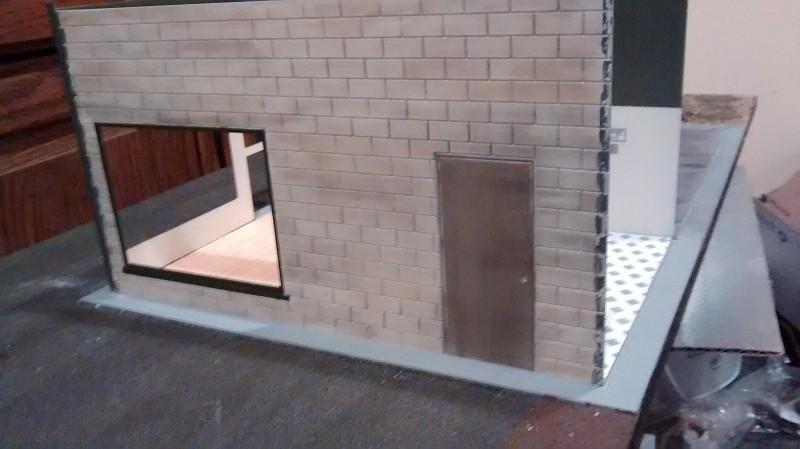

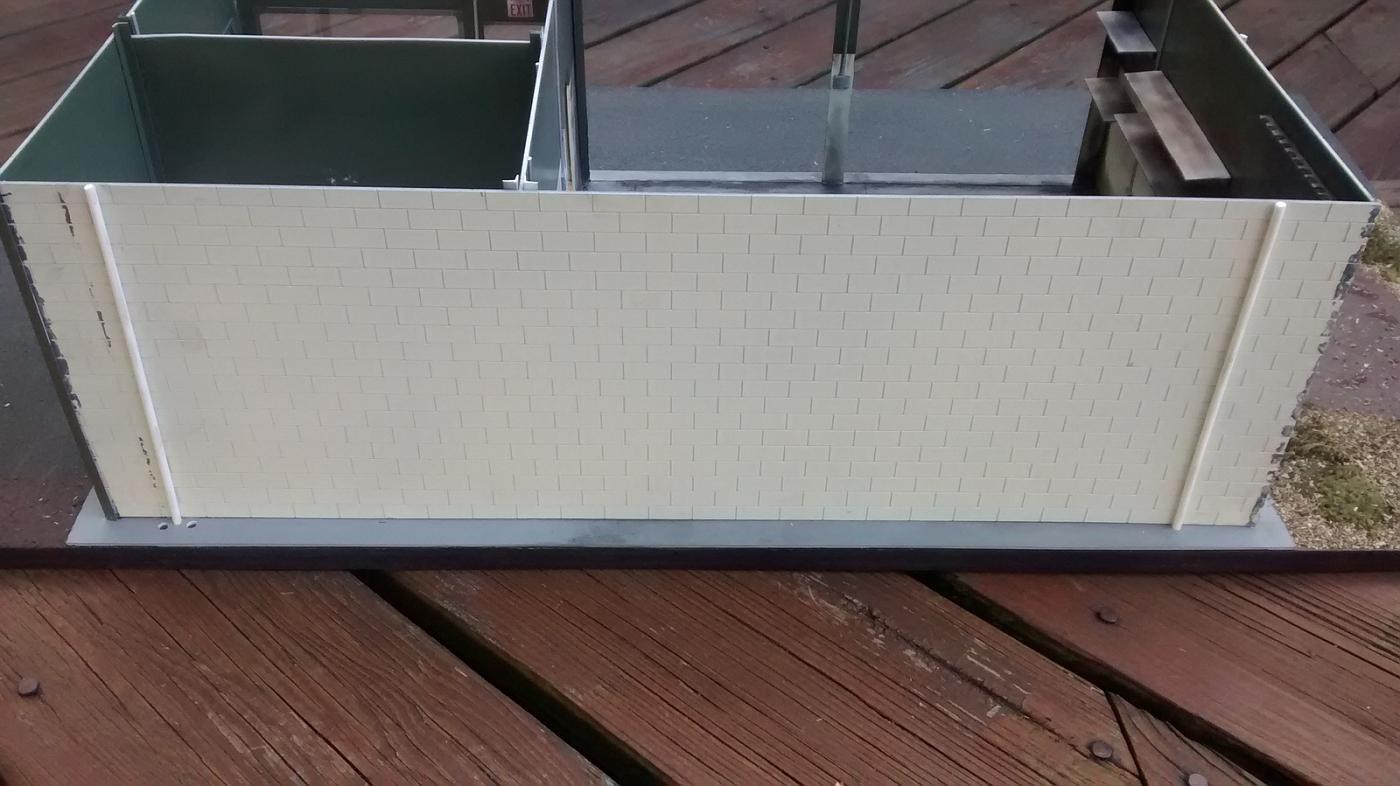

  16. I got all of the walls lined up and finished weathering them, then installed the shelves, exhaust rack, conduit, light switches and outlets. The conduit is half-round styrene, the switches and outlets are balsa wood. The shelves and exhaust rack were made from V shaped styrene and sheet styrene. To make the back and side wall removable, I glued two styrene rods to the wall, then drilled holes in the base to make a slip-in piece. I then drilled two holes at the top and used thin wire to snug up the removable wall to the stationary one. The back won't be visible when displayed, so I'm not sure if I'm going to put any more work into it. I did the same with the side wall, but dressed up the support rod to make it look like an electrical line/meter. The meter, don't laugh, is a Lego brick carved out with a file to fit around the rod. After a little more detailing it should look pretty decent.
  17. I also got some plumbing, conduit, an exhaust rack and some shelves done in my down time. Up next is building a roof for it. I have absolutely no idea how I'm going to do that so this should be interesting

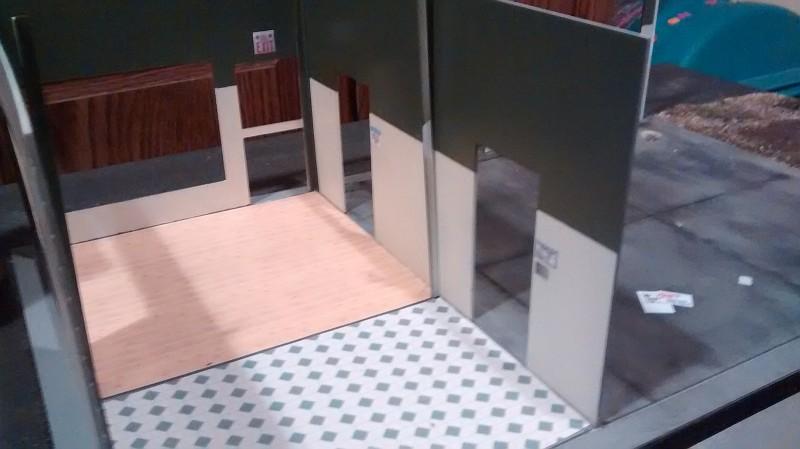

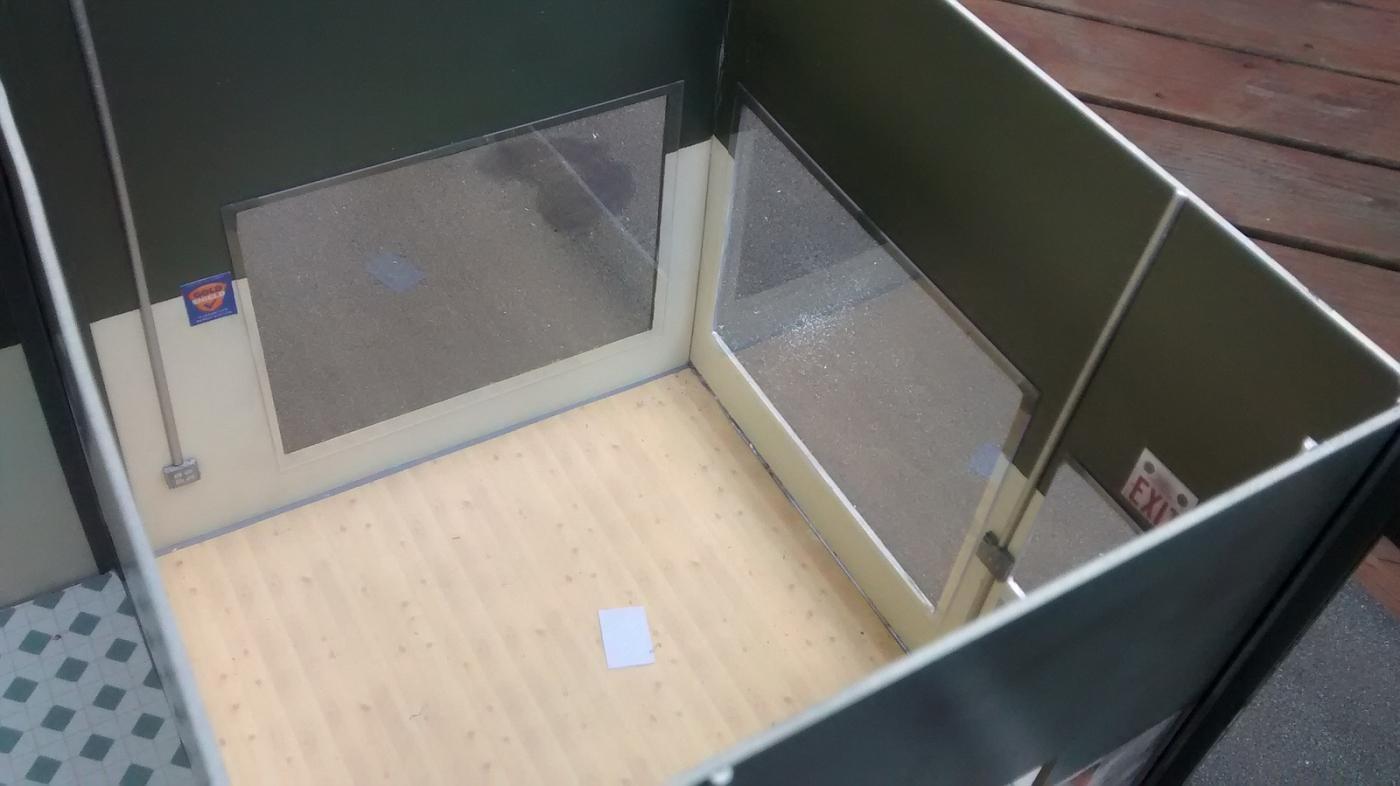

  18. I got all of the walls painted and weathered most of the way, but doing the final mockup is proving to be a challenge. Lots of trimming had to be done to get everything to fit. I'm also trying to make the back and one of the walls on the side removable so that's making things a bit more difficult. To do this, I cut some angled plastic to make slip-in supports along the bottom.

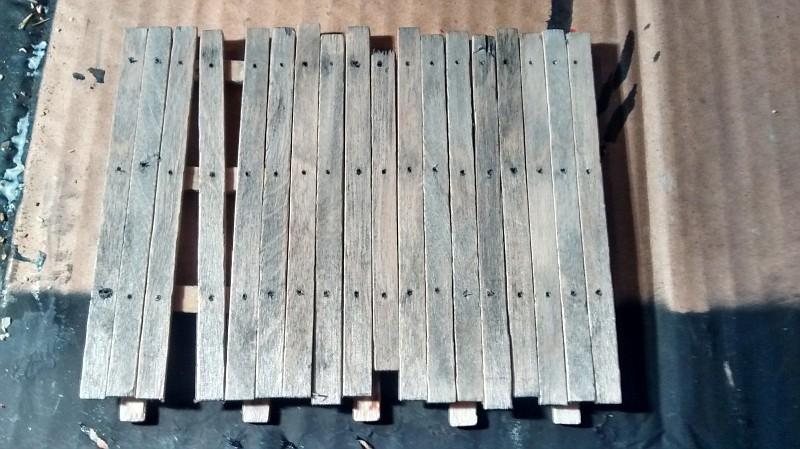

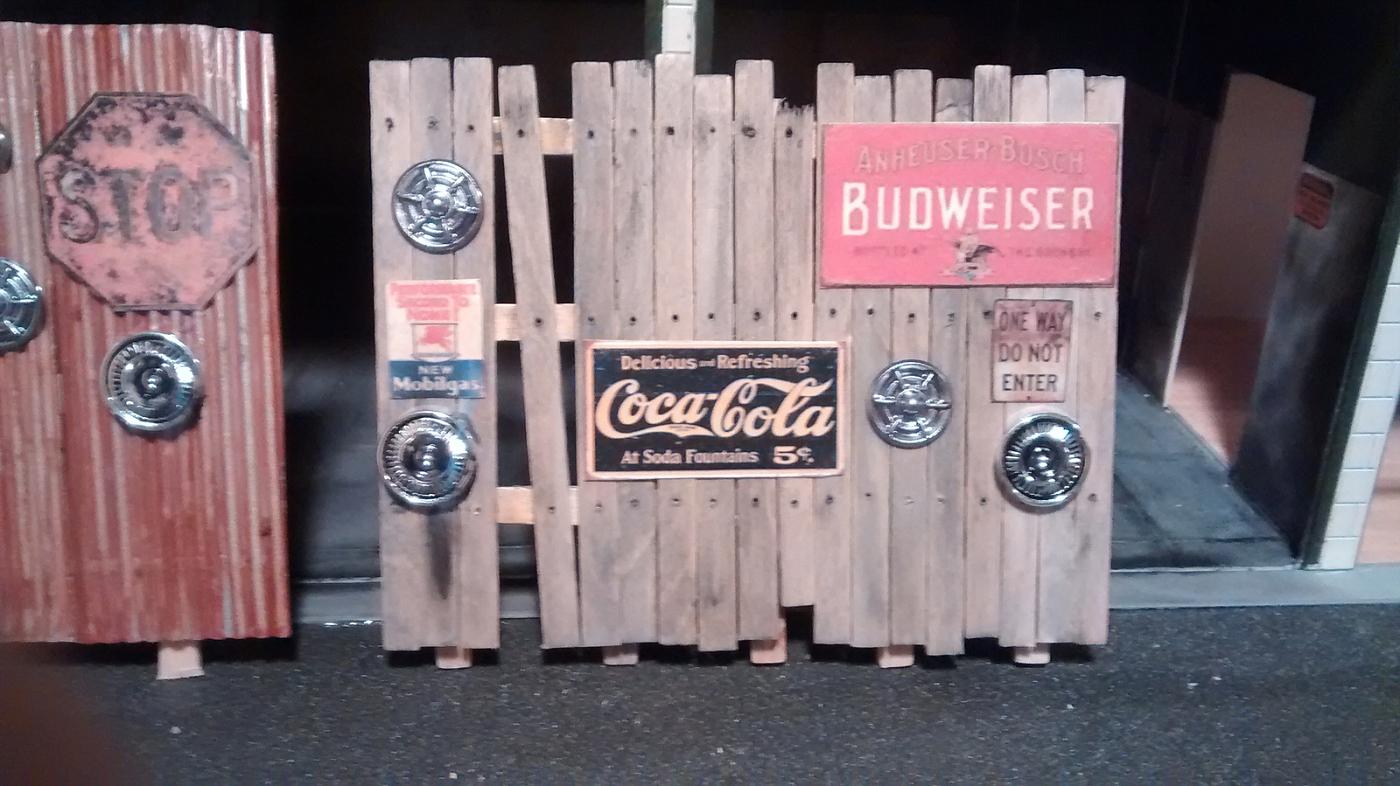

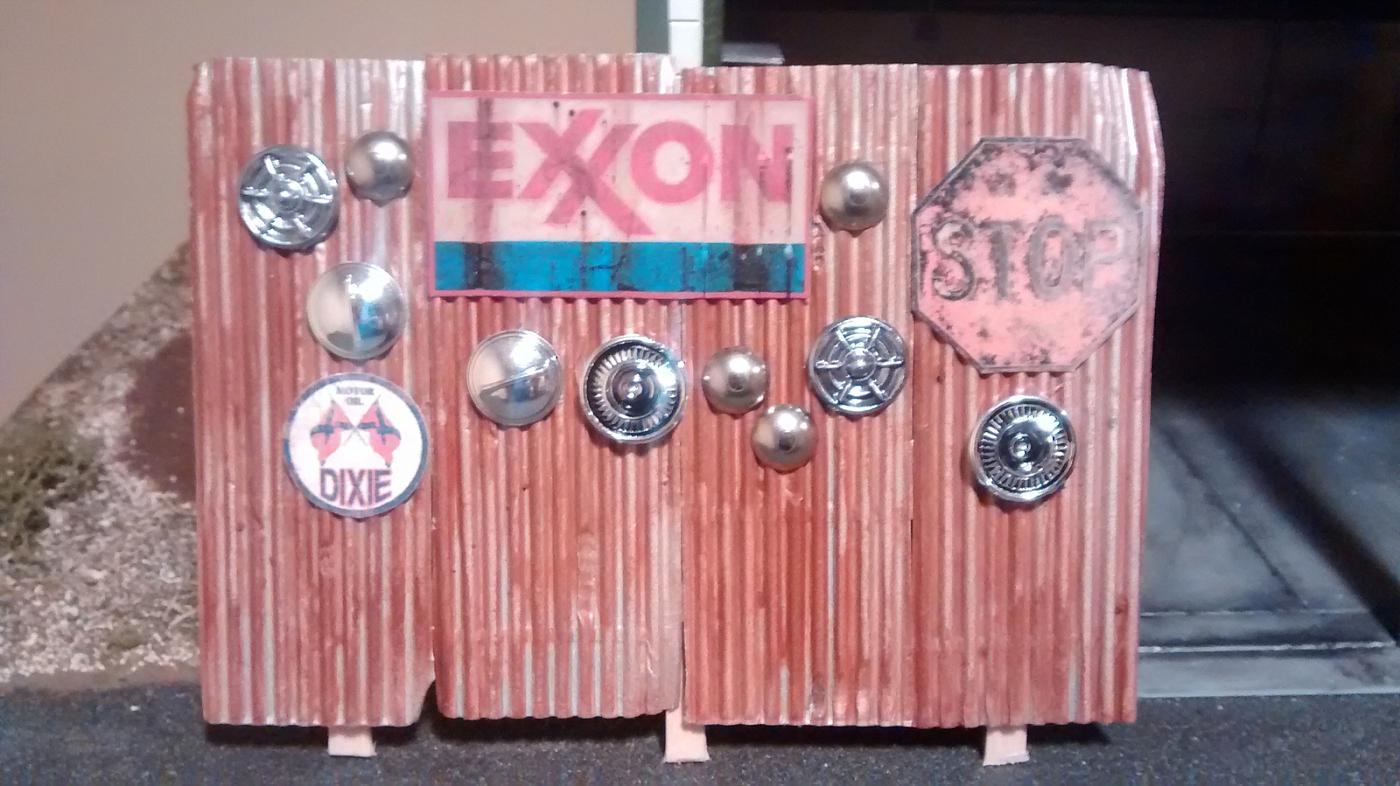

  19. Taking a break from the base, I started work on a fence for the background. The fence is simply craft sticks with some nail holes drilled and a little black/white wash to give it some character

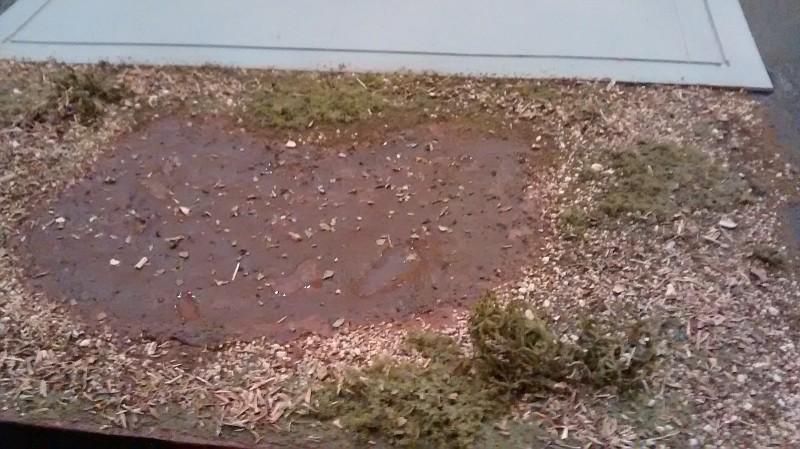

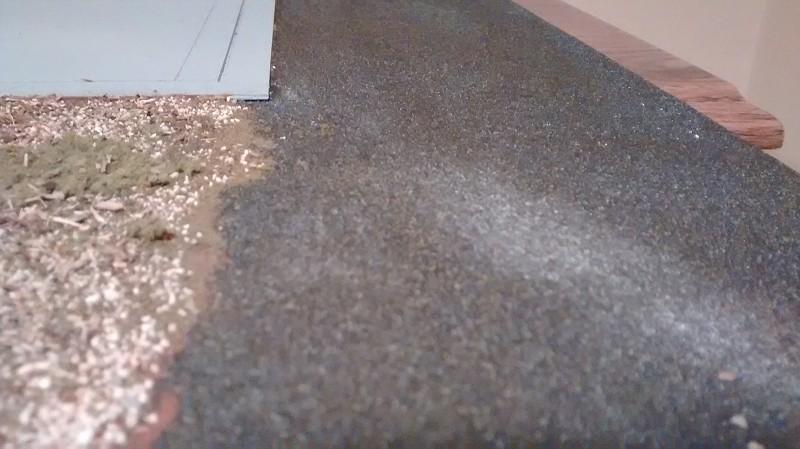

  20. So here's the garage/speed shop dio I've been cranking on for the last 5 months. I just signed up for the forum about a week ago so I'll just post everything I have, from beginning to where I'm at now. I started with a garage kit that was given to me after a friend gave up on it and went from there. To start, I cut some scrap plywood to size to fit the shelf it will be displayed on which was then painted flat black. I masked off where the base of the garage would be and sprayed the surface with Rustoleum Multi-color Textured paint which turns out is pretty much asphalt in a can. When the "asphalt" dried, I went on to make an area for a junked 34 Ford pickup I'm currently finishing. It started with a quick coat of burnt umber acrylic paint, followed by a mix of flour, water, fine sand, brown and black paint, and Realistic Water to simulate mud to the best of my ability. After the mud dried, some gravel, grass, brush, etc. was added. It still looked a bit bare so I raided the girlfriend's spice cabinet and made a mix of basil, oregano and thyme to make some natural ground clutter.
  21. Thank you for the kind words guys! I'll be posting more soon
×
×
