DoctorLarry

1974 Pontiac Grand Am Pro Touring

Recommended Posts

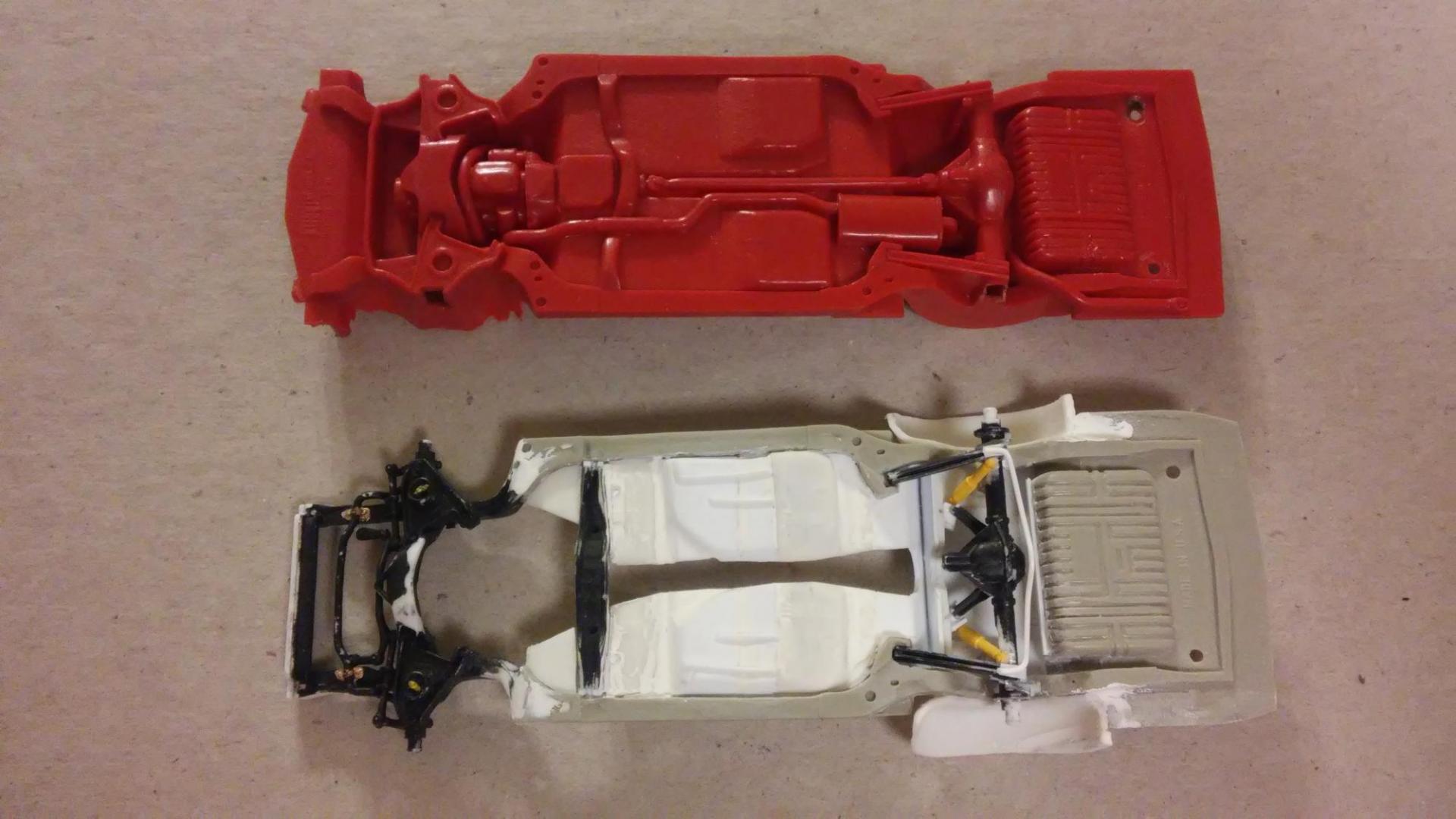

After spending a lot of time developing parts and bodies for 73-77 Pontiacs, I decided that I needed to actually build a car with my own parts.  I always liked Pontiac's All American Grand Am show car (that some say was the inspiration for the Can Am), so I decided to build an updated version of the car.  It will be a Pro Touring 1974 Grand Am.  I will use my own resin body and interior castings along with my soon to be cast resin chassis.  I will use the engine and transmission out of a Foose Firebird, make a copy of Pontiac's Ram Air system, and use other after market components for four wheel disc brakes.  Wheels will be C1 Models Fifteen52 Tarmacs with low profile tires.  As weird as it sounds, color will be Chrysler/Jeep Rescue Green, which is a proxy for 1973 GTO Golden Olive.  Interior will be saddle tan. The red chassis is the original one from a JoHan Cutlass snap kit. The intermediate picture was building in realistic floor pans and the comparison picture is the nearly finished product.  Suspension is Revell 1966 GTO, which is pretty realistic. The engine in the picture is actually a Tri-Power 400 fom the 66 GTO, I will use a single four barrel one from the Foose Firebird. Body, interior tub and seats, console and dash are my own resin castings.  Body mods will be similar to the All American Grand Am show car.  Front and rear spoilers and possibly Trans Am fender flares.

chassis comparison 1.jpg

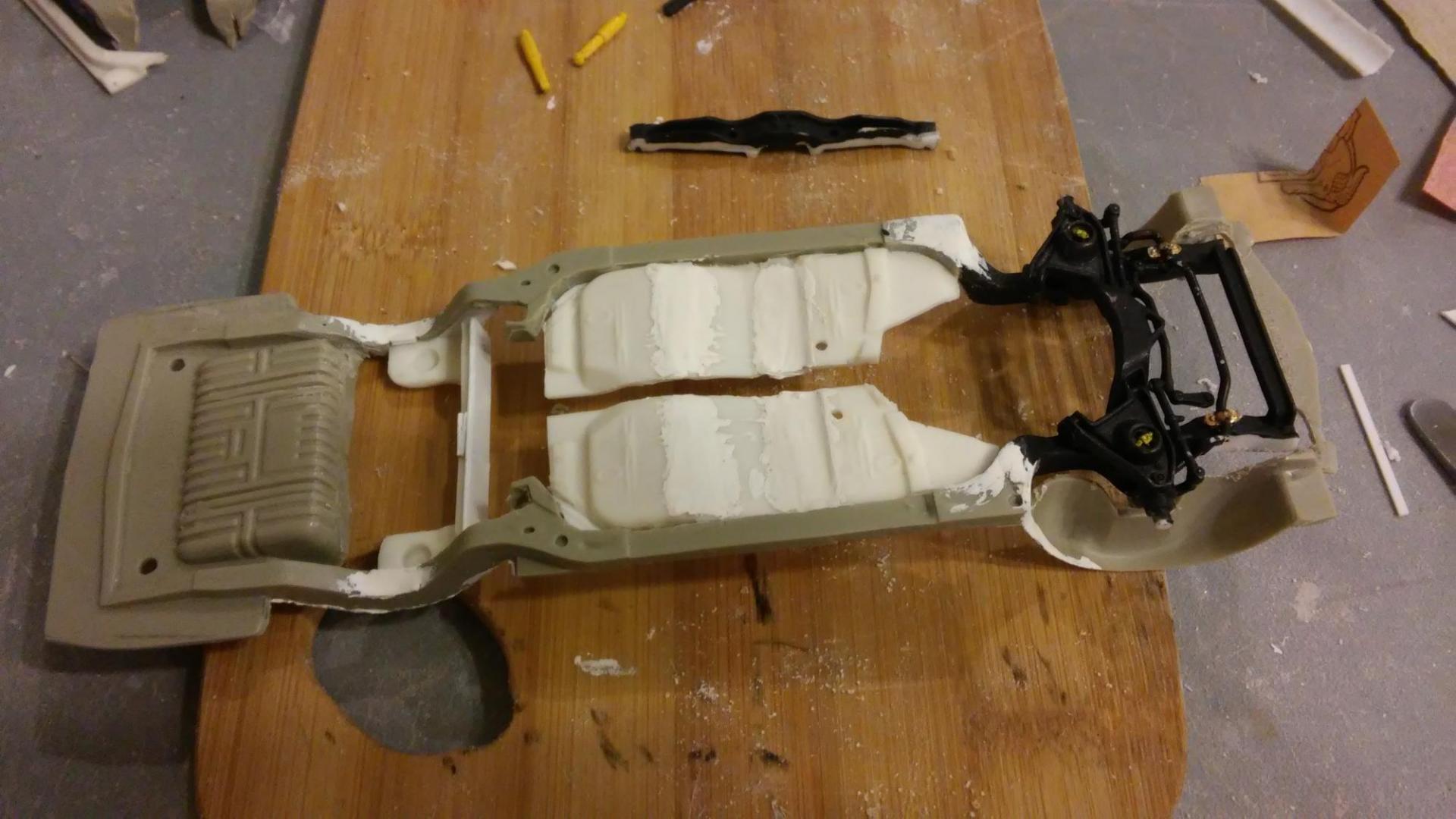

floor pan buildup.jpg

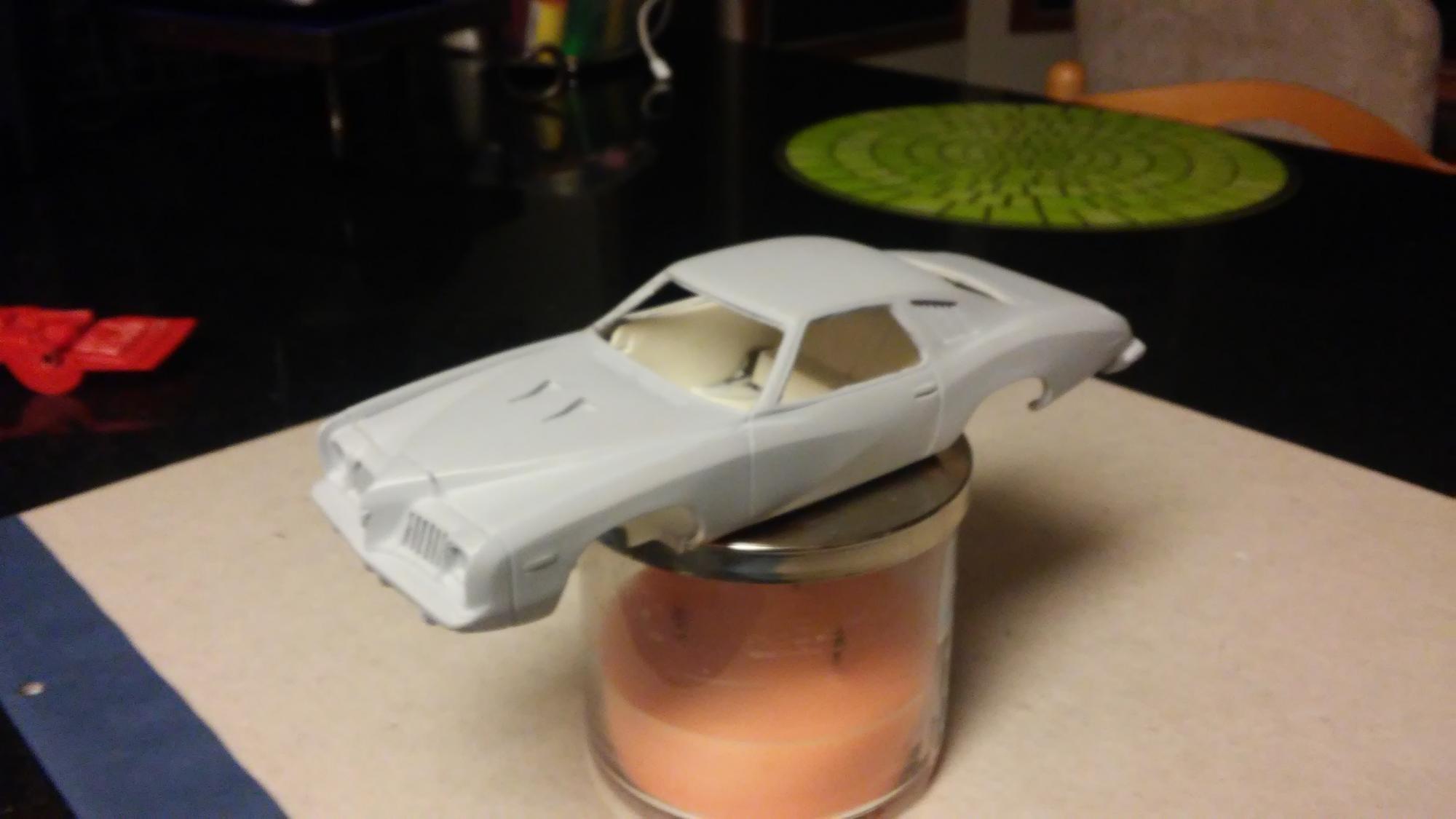

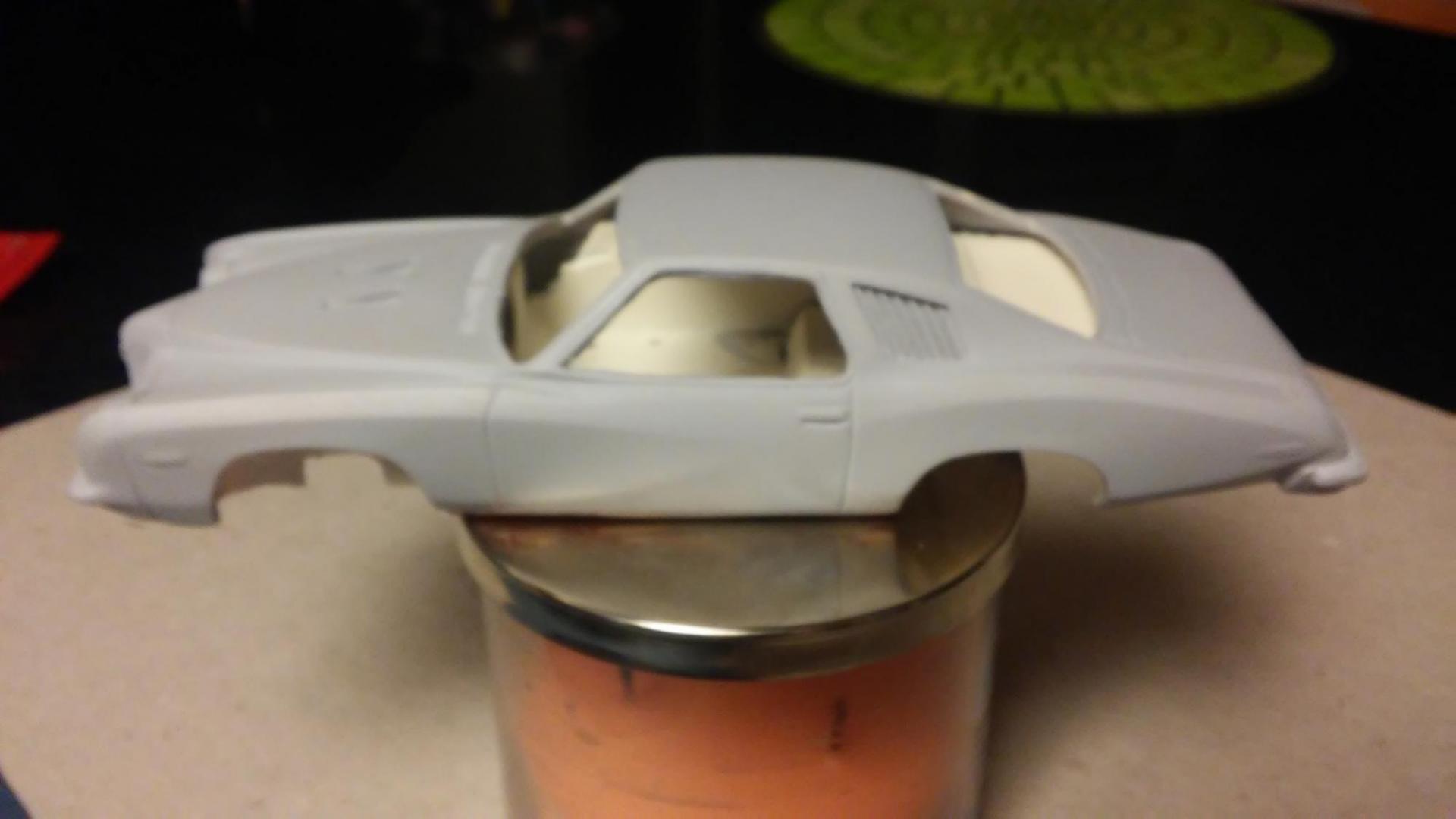

grand am project body 1.jpg

grand am project body 2.jpg

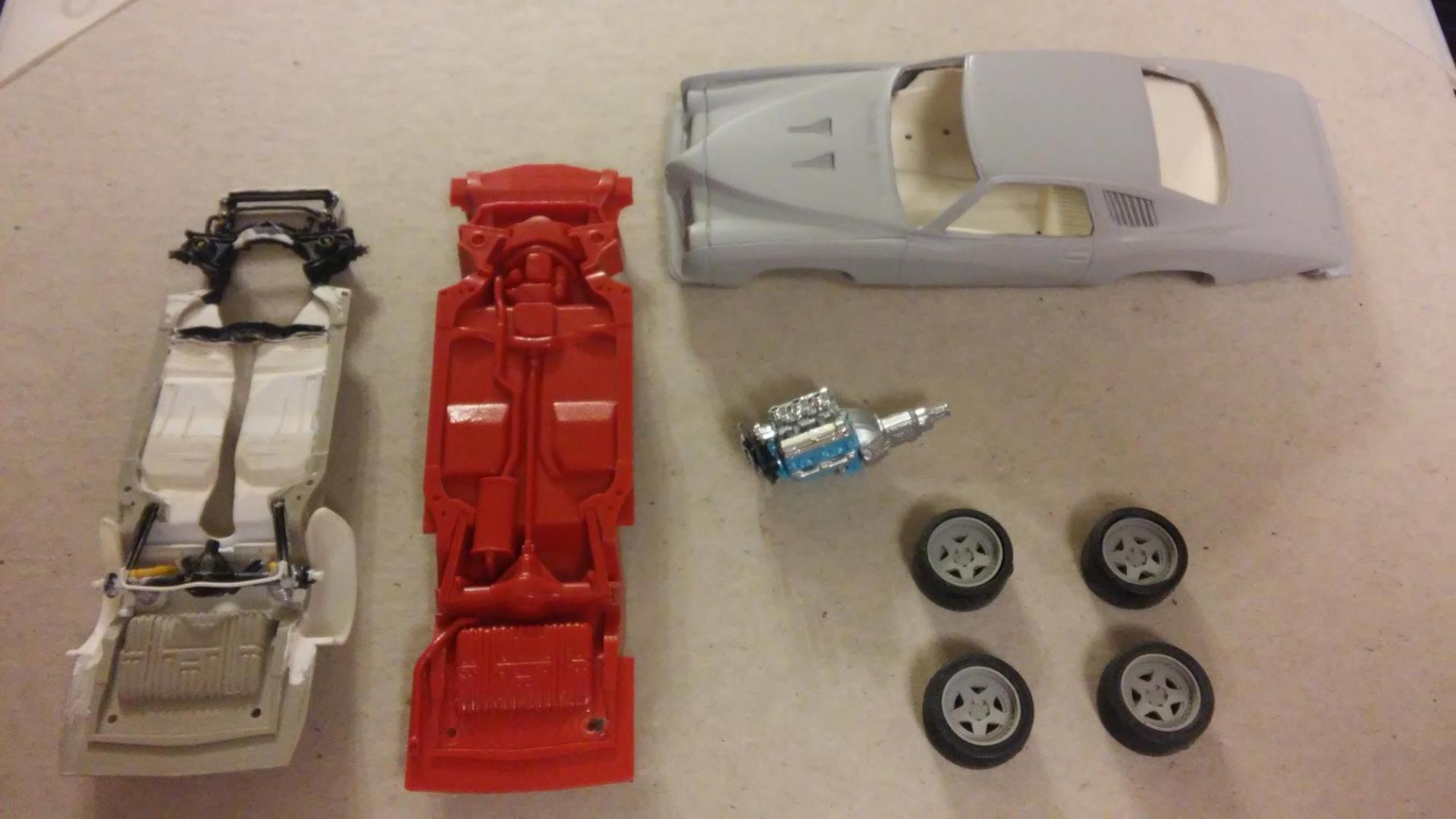

pro street ga project 1.jpg

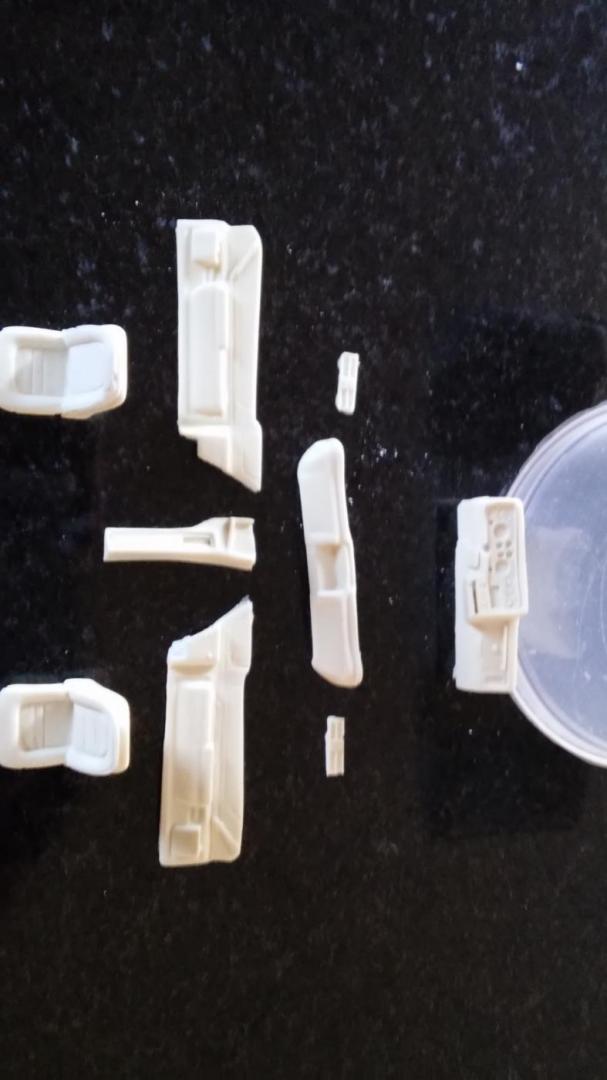

resin ga kit 2.jpg



olive gto.jpg

Share this post


Link to post
Share on other sites

going to be a nice looking project. still a big fan of Pontiac. to bad GM dropped Pontiac instead of Buick

Share this post


Link to post
Share on other sites

Subscribed! Owned a '73 back in the day, bought it used in '76. My brothers still talk about that car. Bright red with a 400 and a 4-speed. Only one I ever saw, Fond memories.

Share this post


Link to post
Share on other sites

This is a great subject to start with. Should make a great project when done.



Share this post


Link to post
Share on other sites

Yes-I have a posting on the Resin Forum. Do you have pictures of your car?  I have an 83,00 mile 73 Grand Am myself. I put a LeMans nose on it while I fit my aftermarket fiberglass one.  I have resin castings of 1773 Grand Am, 73 GTO, 74/75 Grand Am, and 77 Can Am.

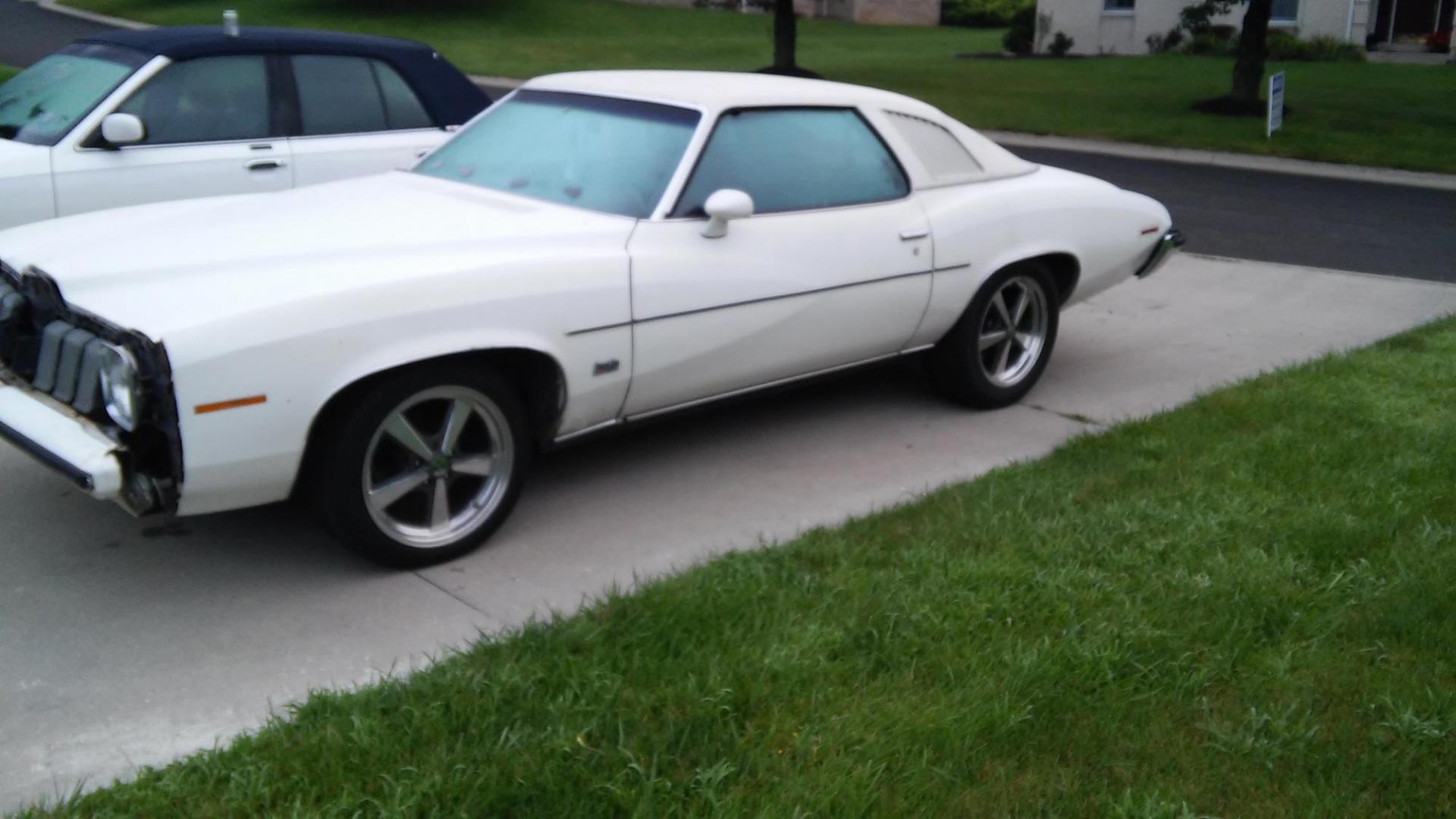

ga side.jpg

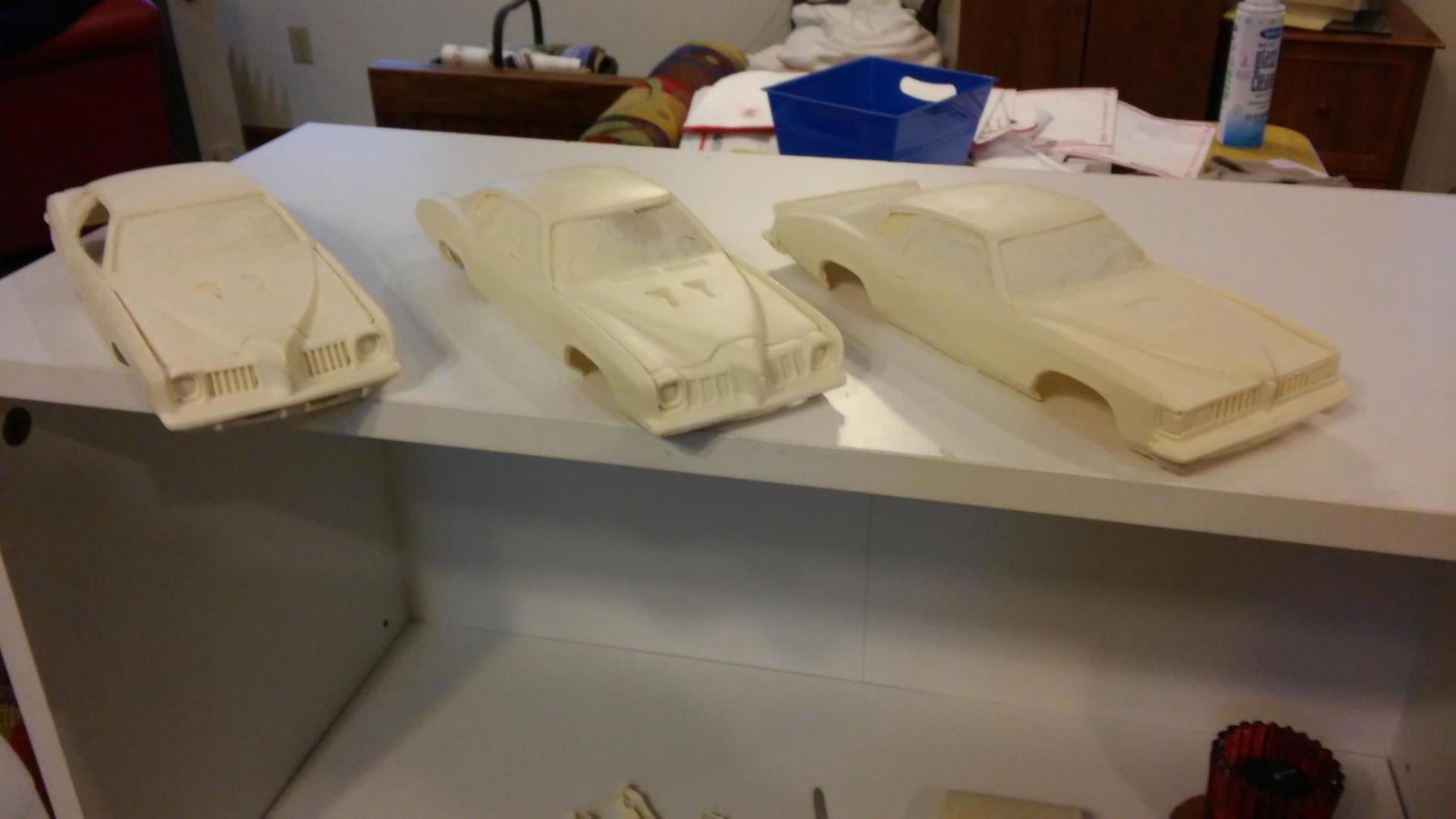

3 bodies 2.jpg

Share this post


Link to post
Share on other sites

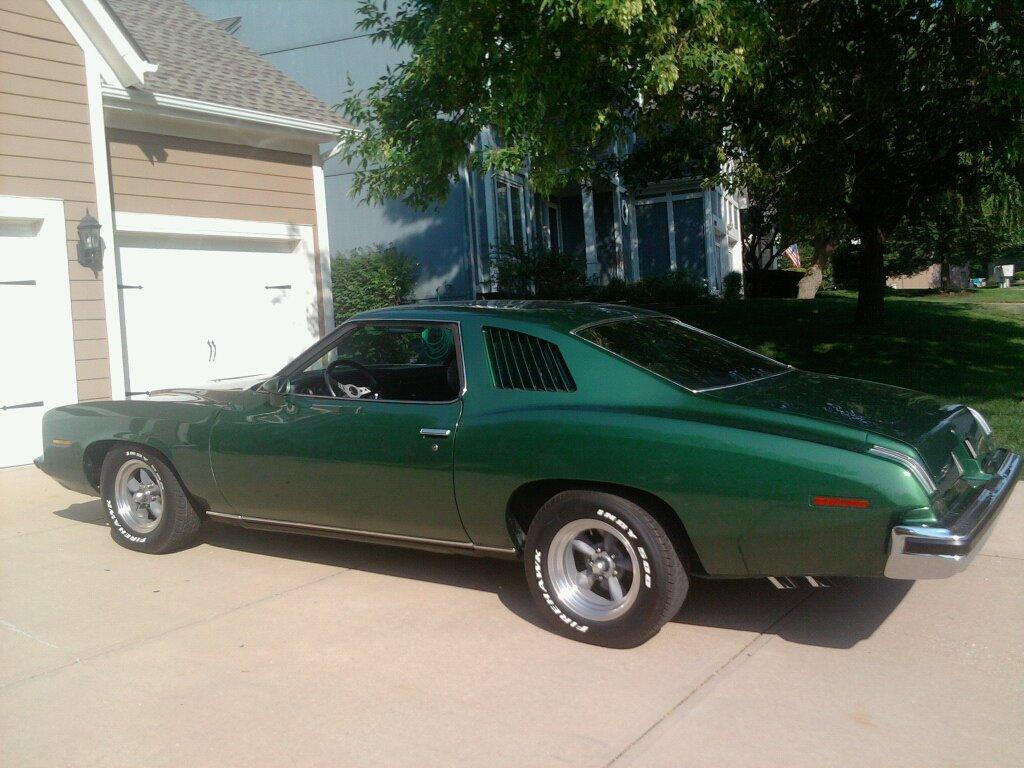

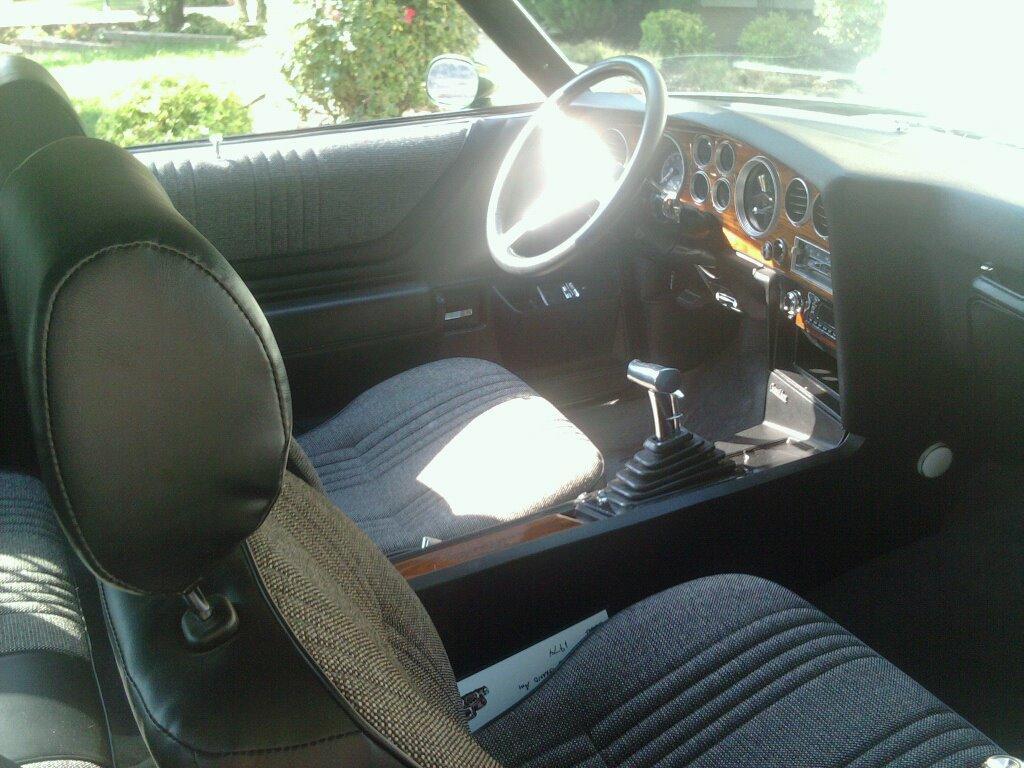

Sure do!  I bought this car back in 2003 and have spent quite a bit of time and money bringing it back to life.  I normally am a purist when it comes to engines, but I am really tempted to sell the factory 400 (rebuilt) and put in a nice fuel injected LS motor out of a late model GM truck.




Share this post


Link to post
Share on other sites

Awesome work Dr. Larry.  Very good work on the chassis.

You've tapped into a up and coming automotive market place. These cars are becoming very popular in the 1:1 world. I had a '74 LeMans back in the '80's. Cool car.

I'm gonna check out your resin stuff. Gotta get some.

Share this post


Link to post
Share on other sites

Molds are curing on the chassis components. Frame/floor pans, front inner fenders, rear differential and control arms, front crossmember and control arms, front steering linkage and sway bar.  If all turns out right the finished chassis and suspension above should be done in resin.  Fingers are crossed that it all turns out right!

Share this post


Link to post
Share on other sites

First pass at the chassis casting.  Still working out the bugs but progress is being made.

front inner fendrs.jpg

chassis and inner fenders.jpg

resin chassis 1.jpg

Share this post


Link to post
Share on other sites

Wow Larry, how did I miss this. I usually browse the forum every other day and I cannot believe that I missed this post. Larry I am up in the air with my kits. I won't rush, especially with these babies. Just too let everyone know, I have a few of Larry's resin kits and they ARE BEAUTIFUL. Larry your build is is going to be a home run and I can't wait to watch the progress of it. I am going to be in touch with you Larry about the chassis and a kit for my friend. Thanks again.      Jeff

Share this post


Link to post
Share on other sites

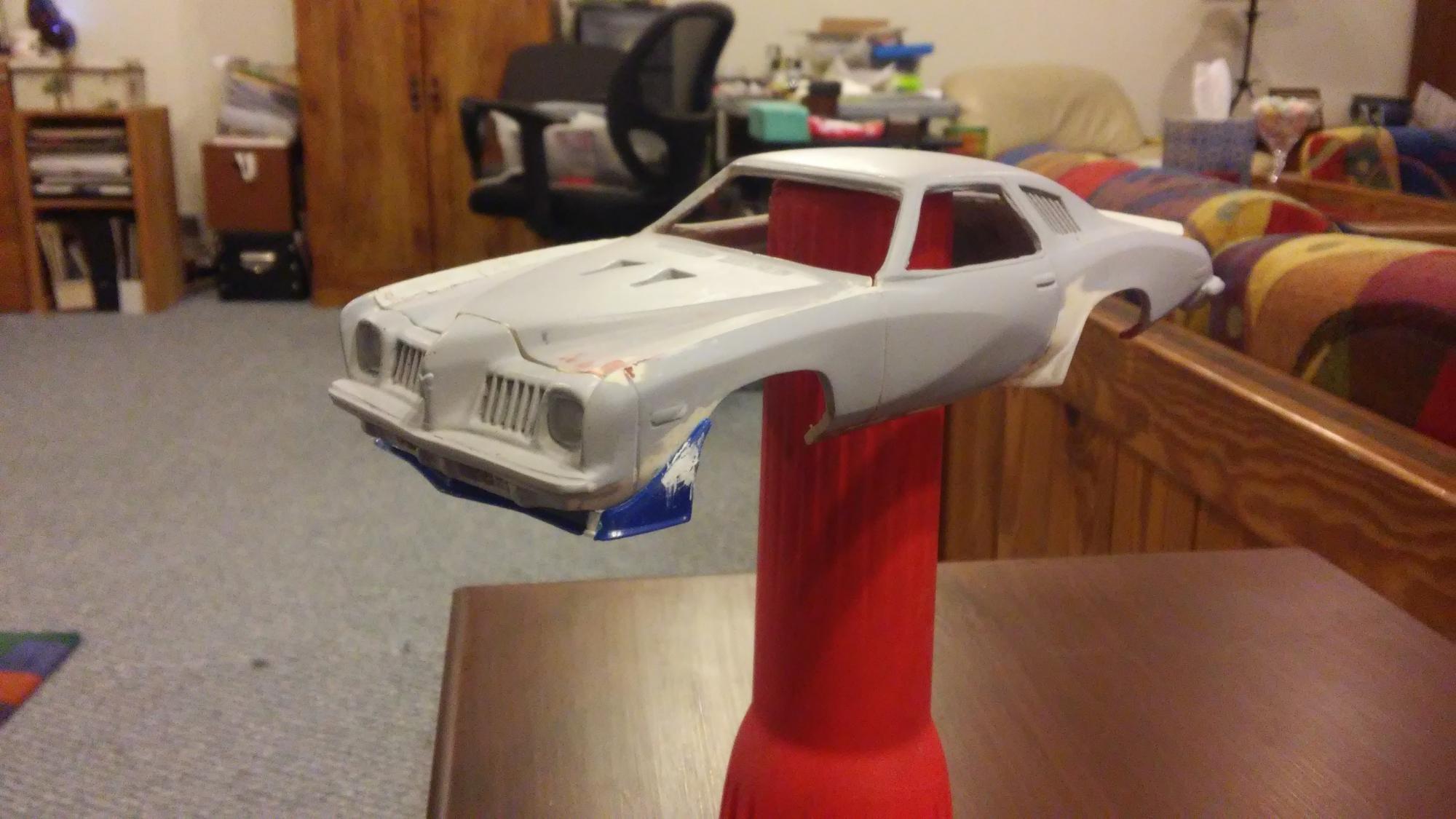

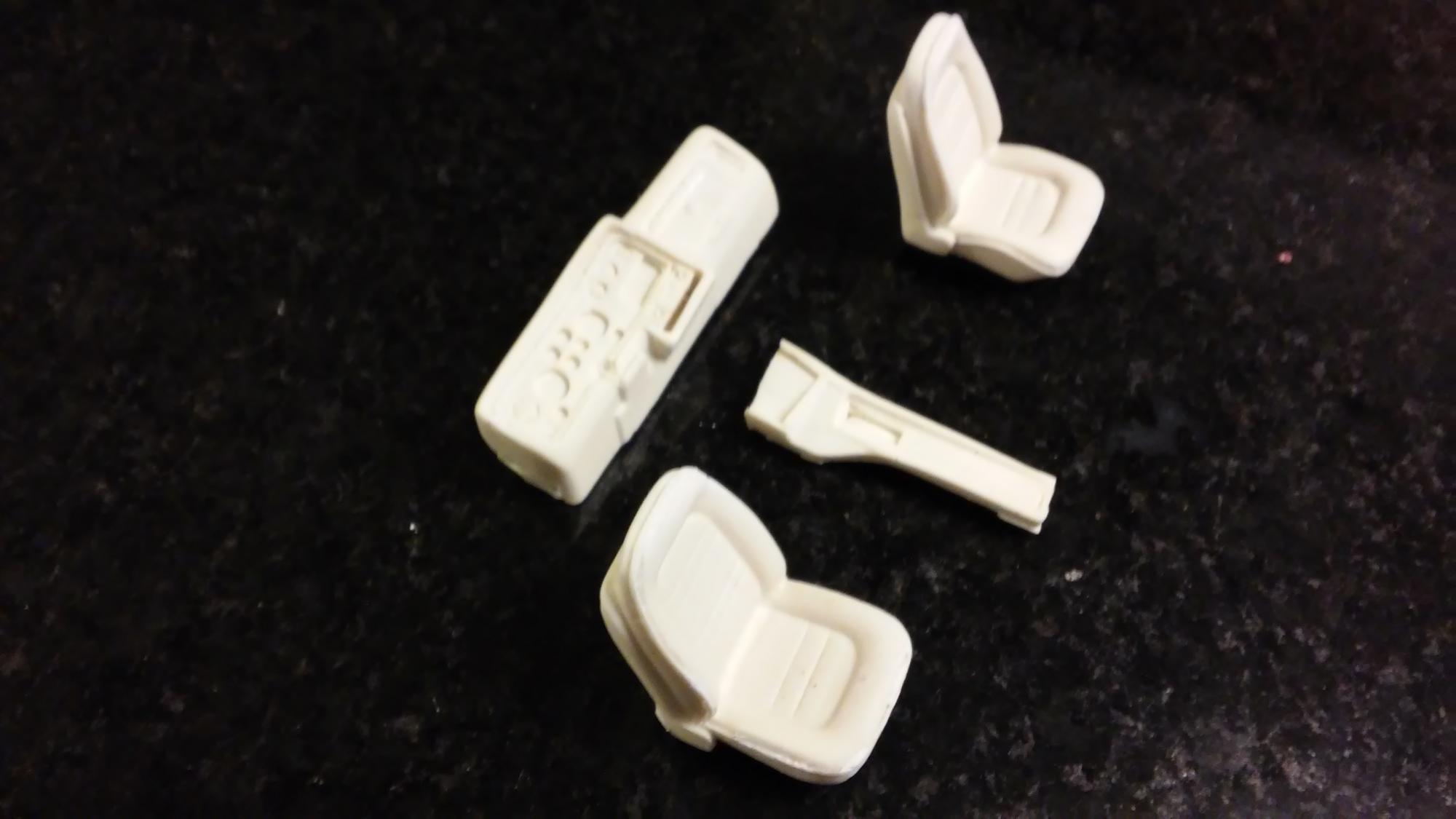

After a few months doing other things like finishing a 77 LeMans sedan and beginning a 76 Grand Prix to cast, I spent a few hours this week on my Grand Am.  I started the body mods with parts from a 1980 z28 and some sheet styrene.  I also started doing correct seats for the 74/75 Grand Am resins.  I did the "horsecollar" seats for the 73 and a rear seat tub for the 73 but had never done the correct seats for the 74 and 75.  I'm also doing a bench seat interior for the sedan.



74 ga pro touring 1.jpg

74 grand am pro touring 2.jpg

74 75 grand am interior project.jpg

76 grand prix 1.jpg

smokey lemans 1.jpg

smokey lemans 3.jpg

Share this post


Link to post
Share on other sites

Got the body in primer.  Now need to sand and shoot the paint.  Doing the 74/5 seat and interior molds today and will use them in the build.  Now I need to get the chassis put together and plumbed and the engine wired.  More progress.



75 pro street 2.jpg

75 pro street 1.jpg

Share this post


Link to post
Share on other sites

Very interesting build..  I like the lines of this car..  Very cool.

Share this post


Link to post
Share on other sites

Making very slow progress after working in China for a month. Painted interior parts (my resin castings)


Share this post


Link to post
Share on other sites

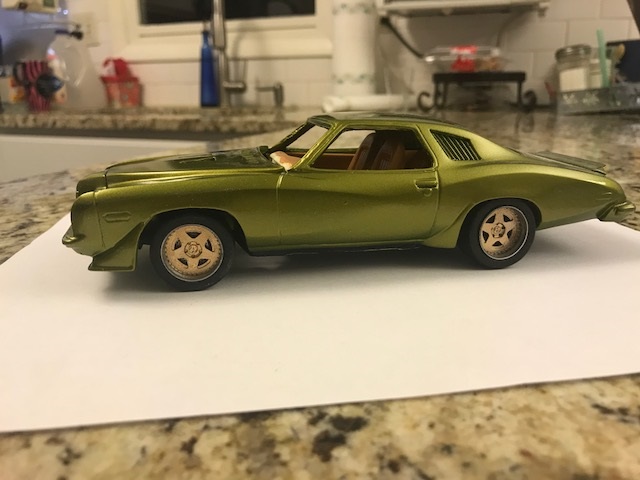

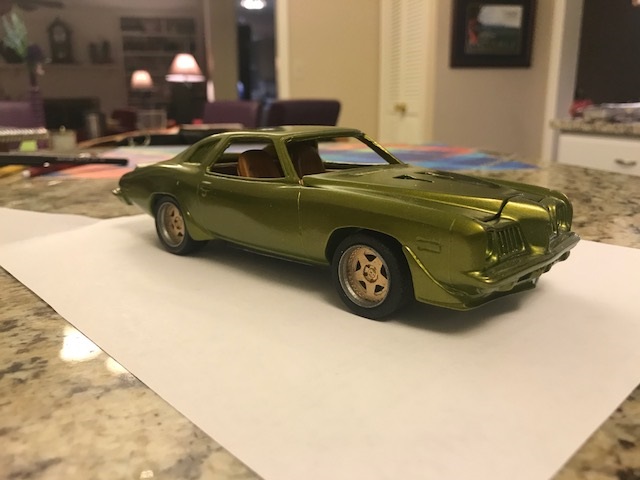

After sitting for a long time, I finally started work on this project after doing resin masters for awhile.  The body, interior parts, chassis and inner fenders are all my own resin castings.  Got some paint on but no foil or trim paint yet.  Hopefully I can actually finish a build now! Paint is Chrysler (Jeep) Rescue Green lacquer with Dupli-Color automotive clear. Interior is a custom mix to replicate 74 Grand Am Dark Saddle.  Engine is from a 66 GTO with single carb with Fireball BOP Quadrajet.  Still have to create the 73 GTO ram Air setup.  Progress, albeit slow.

pro touring GA 1.jpg

pro touring GA 2.jpg

pro touring GA 3.jpg

pro touring GA 4.jpg

Share this post


Link to post
Share on other sites
