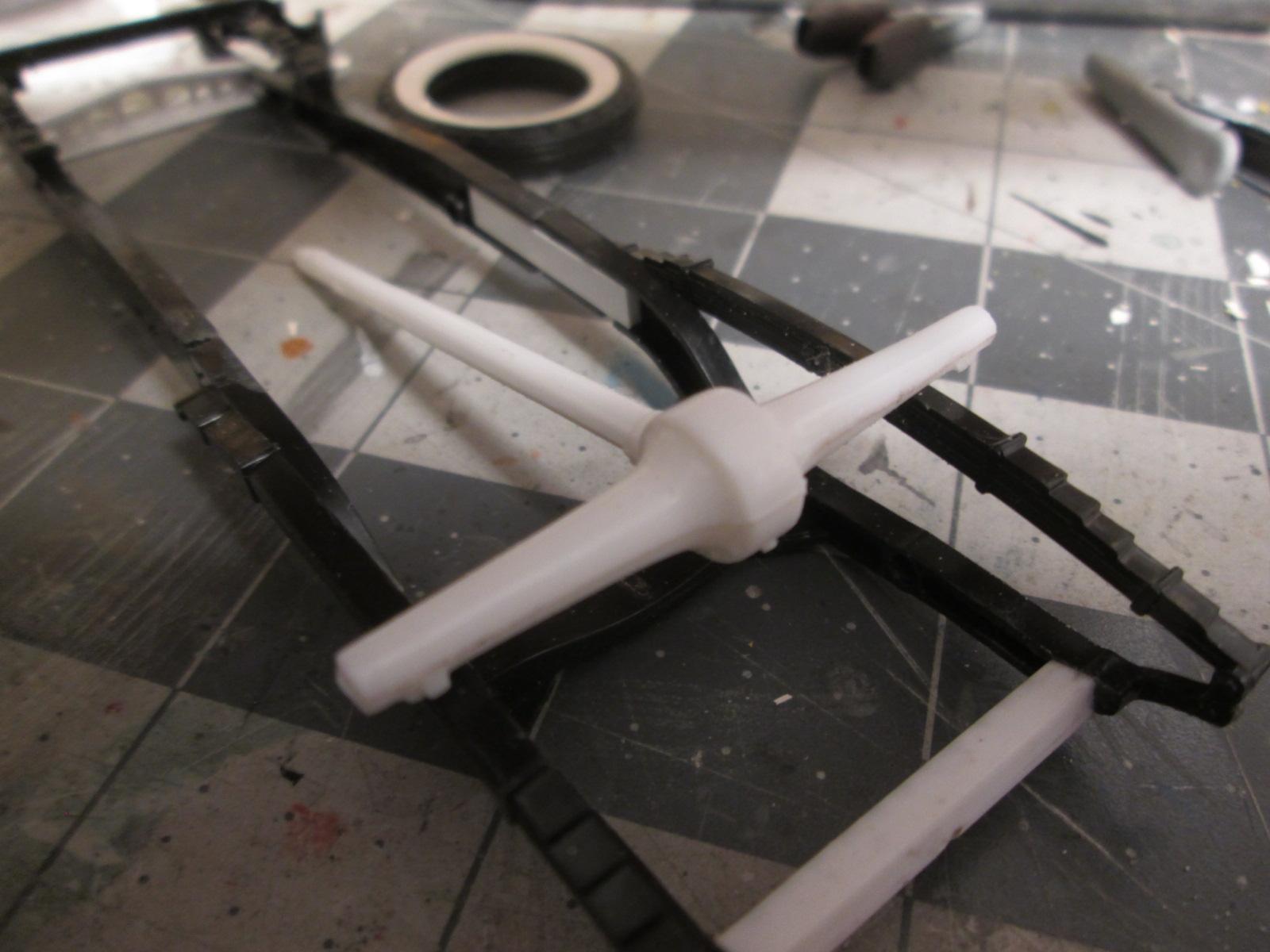

landman Posted October 30, 2017 Author Share Posted October 30, 2017 (edited) The Tall T tires are way too skinny for this application. I have a '27 T whose tires are more appropriate however the inner diameter is smaller. I turned the wooden wheels down so they will fit. Selected a front axle....made by Rolls Royce. The rear axle from the T will be used without the radius rods.  Edited December 1, 2020 by landman Quote Link to comment Share on other sites More sharing options...
Eric Macleod Posted October 30, 2017 Share Posted October 30, 2017 I am really enjoyingthis one. I especially like that you are NOtT using whitewall tires. Great choice. You are definitely holding my interest. Quote Link to comment Share on other sites More sharing options...
landman Posted October 30, 2017 Author Share Posted October 30, 2017 I am really enjoyingthis one. I especially like that you are NOtT using whitewall tires. Great choice. You are definitely holding my interest.Oh boy Eric, you're gonna hate this. Go to one of the Sept 2nd posts on the first page, you'll see the chassis of the car I'm trying to replicate. Quote Link to comment Share on other sites More sharing options...
landman Posted October 31, 2017 Author Share Posted October 31, 2017 (edited) Made a scale image of the excellent side view I found on the internet. Appliied the Tall T body against it. Close. Acording to the measurements I had taken of the subject car, the height is correct , the quarter window is correct but the door has to be widened. My frame is right on. The perspective is a bit deceiving but with the naked eye it is dead on. The Tall T fenders are not correct, neither are the splash aprons. However the fenders of the '27 T which donated its tires will work. Even the splash aprons are usable.The radius at the top is not as tight as the Dodge's but it is close enough. I could tighten it up by slicing in a tubing or rod of the correct radius. The 27 T's cowl is also a lot closer to the Dodge than the Tall T. In fact it almost matches the measurements I had taken. The deck will require quite a bit of work. It'll have to be extended, widened and the top made to match the piece of paper more or less. I guess I'll need to send Dom to the shop more more measurements. Â Edited December 2, 2020 by landman Quote Link to comment Share on other sites More sharing options...
landman Posted November 1, 2017 Author Share Posted November 1, 2017 (edited) Using the photo below for the shape, started working on the front cover. Edited December 2, 2020 by landman Quote Link to comment Share on other sites More sharing options...
misterNNL Posted November 1, 2017 Share Posted November 1, 2017 Righteous work. Don't you love it when a plan comes togeather! Quote Link to comment Share on other sites More sharing options...
Eric Macleod Posted November 1, 2017 Share Posted November 1, 2017 Oh boy Eric, you're gonna hate this. Go to one of the Sept 2nd posts on the first page, you'll see the chassis of the car I'm trying to replicate.I'll forgive you. The model is looking excellent. I wish I had 10% of your skill! Quote Link to comment Share on other sites More sharing options...

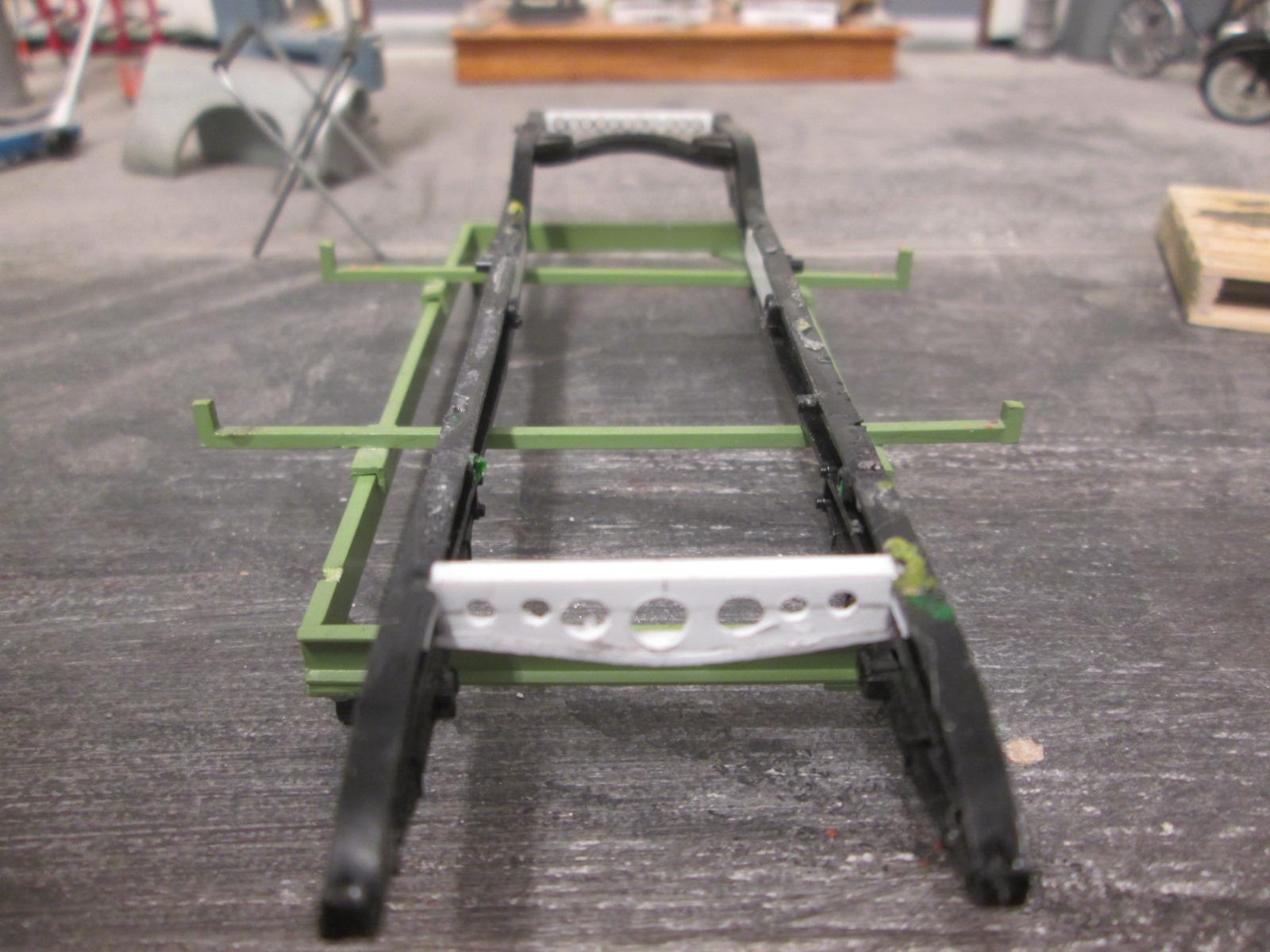

landman Posted November 3, 2017 Author Share Posted November 3, 2017 (edited) The front fenders will work. Setting the wheelbase. Adding stuff to the engine  Edited December 2, 2020 by landman Quote Link to comment Share on other sites More sharing options...
landman Posted November 5, 2017 Author Share Posted November 5, 2017 (edited) Completed the engine. Added spacers to the rear fenders as well as the "curve" where it meets the running board. Removed the ford pressed steel boards as it appears the subject cars has wooden ones. Edited December 2, 2020 by landman Quote Link to comment Share on other sites More sharing options...
Eric Macleod Posted November 5, 2017 Share Posted November 5, 2017 This is very impressive work. I'm looking forward to seeing each installment. Quote Link to comment Share on other sites More sharing options...
redneckrigger Posted November 5, 2017 Share Posted November 5, 2017 Tremendous work on that engine.........................as usual with your builds!!!!! Quote Link to comment Share on other sites More sharing options...
Eric Macleod Posted November 6, 2017 Share Posted November 6, 2017 Regarding the running boards, you are right on. Many cars of that era had running boards made of wooden planks covered in rubber, battleship linoleum or occasionally natural wood. Ford was actually pretty progressive for using all steel on the Model T. Quote Link to comment Share on other sites More sharing options...
PARTSMARTY Posted November 6, 2017 Share Posted November 6, 2017 This is just so cool !!! Quote Link to comment Share on other sites More sharing options...

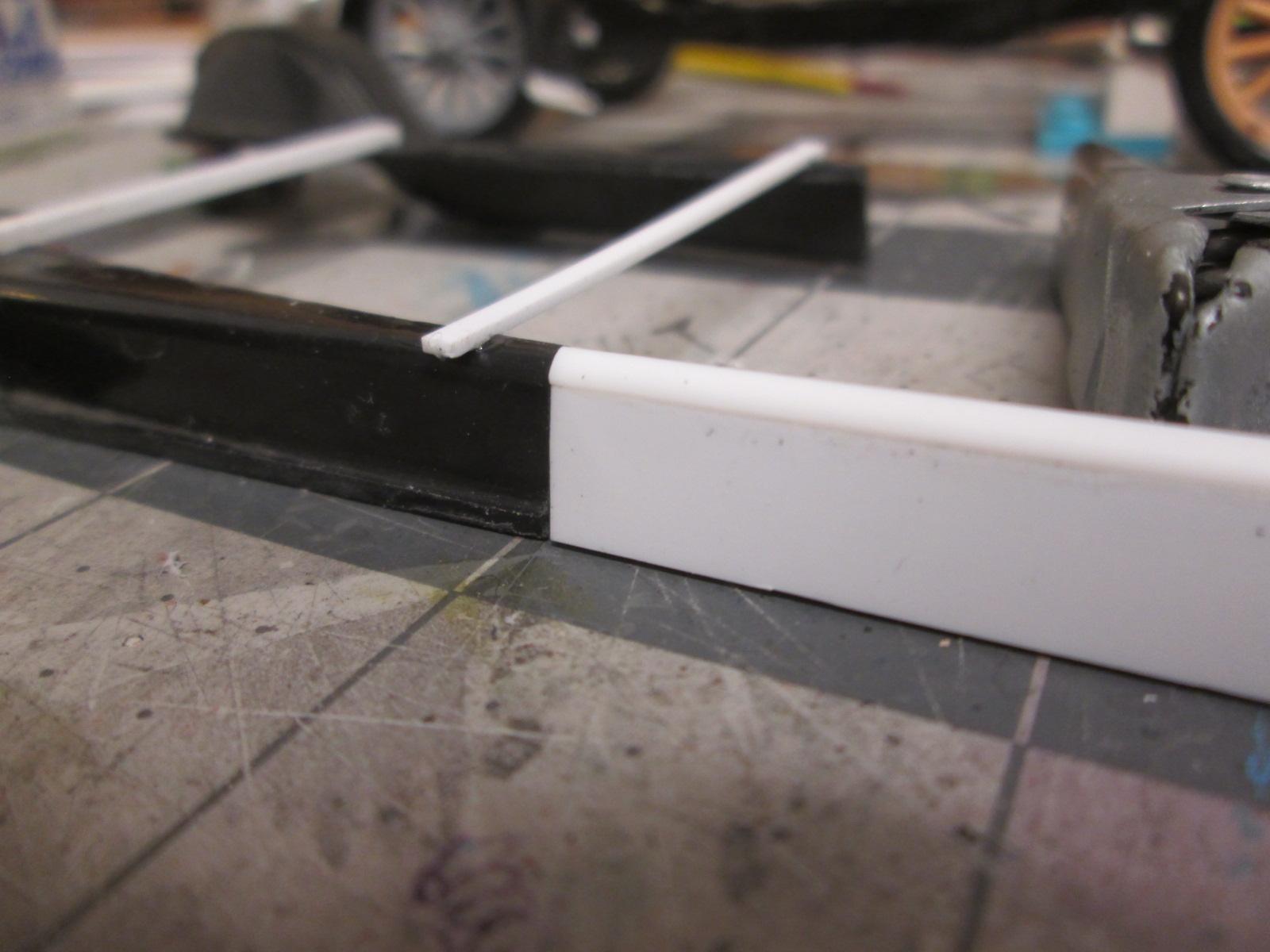

landman Posted November 7, 2017 Author Share Posted November 7, 2017 (edited) Spent some time trying to configure the spacing of the fenders and the amount by which to lengthen the splash aprons. Some channel with a quarter round on top will work.     Edited December 2, 2020 by landman Quote Link to comment Share on other sites More sharing options...
landman Posted November 8, 2017 Author Share Posted November 8, 2017 (edited) The splash aprons have been sorted out. The width is next so they sit correctly over the tires. Â Edited December 2, 2020 by landman Quote Link to comment Share on other sites More sharing options...

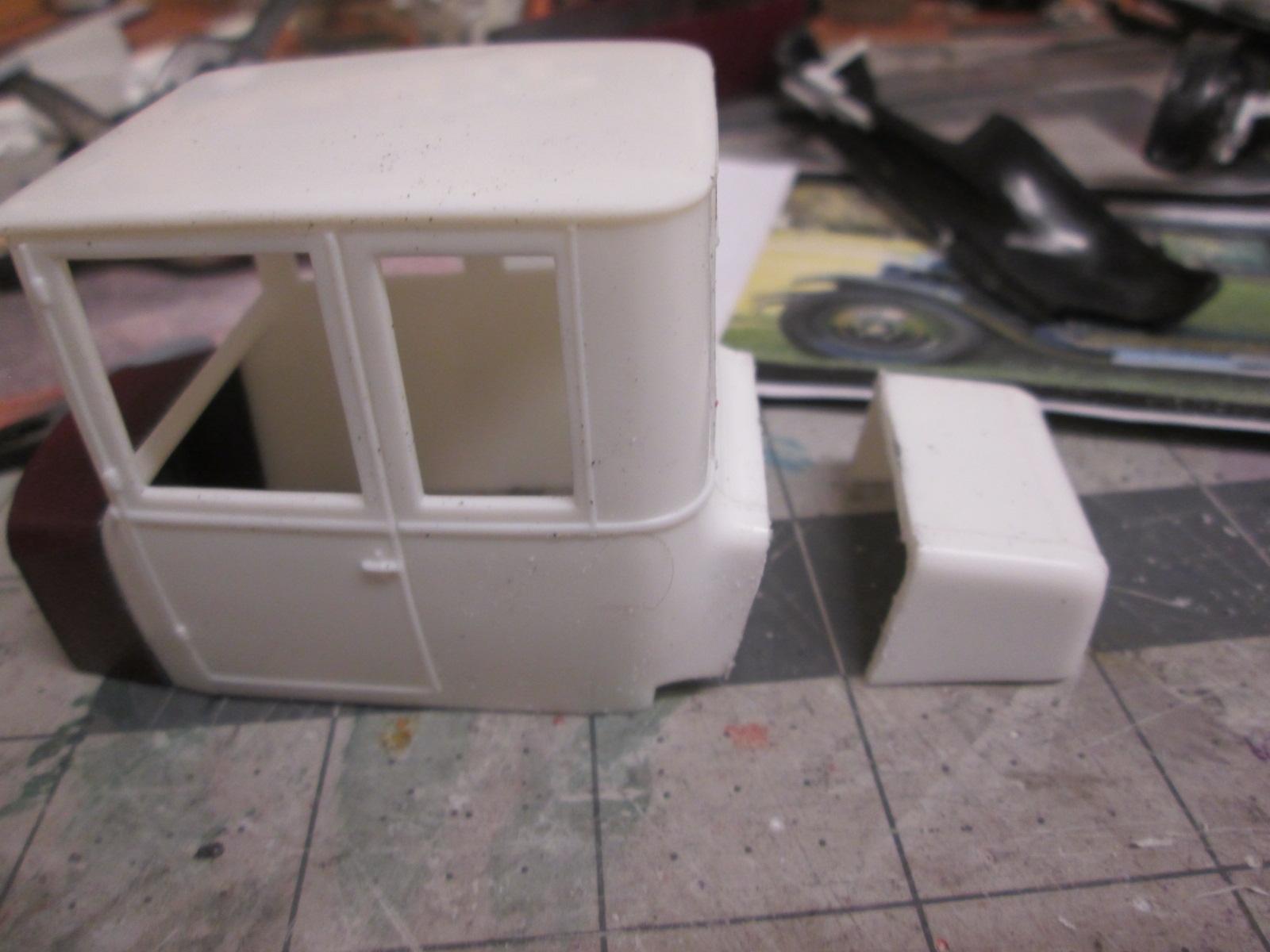

landman Posted November 10, 2017 Author Share Posted November 10, 2017 (edited) Performed a cowlectomy on the Tall T and the 27 touring. Installed the 27 cowl on the Dodge to be. Turns out the Tall T kit has a turtle deck that is closer to the length of the d=Dodge's. Started on that. It need to be widened by 2 mm. Edited December 2, 2020 by landman Quote Link to comment Share on other sites More sharing options...
bobthehobbyguy Posted November 10, 2017 Share Posted November 10, 2017 Nice work on engine. Great start on body and fenders. Quote Link to comment Share on other sites More sharing options...
landman Posted November 10, 2017 Author Share Posted November 10, 2017 Nice work on engine. Great start on body and fenders.Thank you. Gotta get this right. I only have one of them. Quote Link to comment Share on other sites More sharing options...
misterNNL Posted November 10, 2017 Share Posted November 10, 2017 This is one of those projects I enjoy checking on every day. Carefully planned work is certainly paying off here. Quote Link to comment Share on other sites More sharing options...
Eric Macleod Posted November 10, 2017 Share Posted November 10, 2017 I agree. It is great fun tol watch your progress. Quote Link to comment Share on other sites More sharing options...
landman Posted November 11, 2017 Author Share Posted November 11, 2017 (edited) The 25 Dodge has a distinctive A pillar bottom. There is a coachbuilding term for it which escapes me. Coach post or carriage post come to mind. The 3 mm widening of the deck is done and the deck has been reattached and no, I wasn't drunk.  Edited December 2, 2020 by landman Quote Link to comment Share on other sites More sharing options...
landman Posted November 11, 2017 Author Share Posted November 11, 2017 (edited) Adding to the deck bit by bit. Edited December 2, 2020 by landman Quote Link to comment Share on other sites More sharing options...

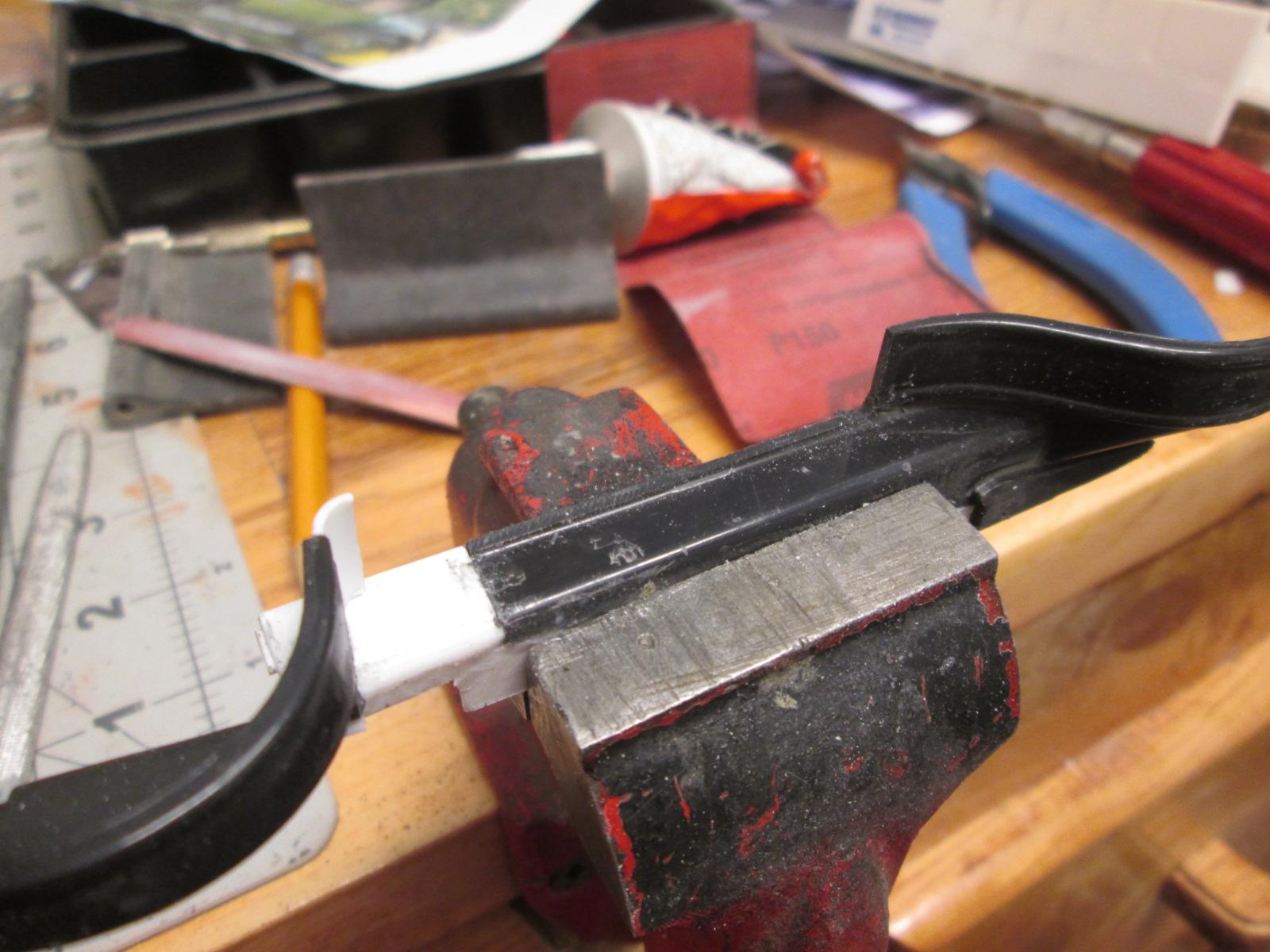

landman Posted November 13, 2017 Author Share Posted November 13, 2017 (edited) Added too much. So I cut it off, shortened, lowered it and gave it a more pronounced slope. Filing off the running board remnants at the bottom of the splash apron. The owner tells me his running boards are wood. Edited December 2, 2020 by landman Quote Link to comment Share on other sites More sharing options...
Eric Macleod Posted November 14, 2017 Share Posted November 14, 2017 Your attention to detail on this and willingness to re-do your own work is impressive. I continue to enjoy each installment. You are inspiring me to keep going with my own '20s era projects. Quote Link to comment Share on other sites More sharing options...
landman Posted November 14, 2017 Author Share Posted November 14, 2017 (edited) Thank you Eric. Found out that on the real car the trunk reaches out to the fenders. So I bulked the sides out using Renshape. Edited December 2, 2020 by landman Quote Link to comment Share on other sites More sharing options...
