Mack Superliner Rebuild

25 posts in this topic

Posted

I bought this one a little while ago and started redoing it last month. The original build wasn't the greatest, so this is what I've gotten done so far. I still plan on going back through with some thinned out black to weather a little more on top of the chalk dust I already applied. I still need to finish building the windshield screen and patch the missing pieces from the sleeper. Wish I could have saved the rivets, but with the paint scheme I am planning on doing. I think it will be good. I plan to mimic the original decals for the sleeper but have the paint wrap over the top and the back of the sleeper. Luckily I was able to find replacement decals online. I am also looking to use some black felt covered with aluminum foil to simulate an insulation/sound dampener for the front of the firewall, and under the cab and sleeper. One other thing I would like to try is to use some vinyl I have and make some tank covers for the fuel tanks, I'll have to see how that goes.

Black Thunder.jpg

Mack Engine Back Right.jpg

Mack Engine Left.jpg

Mack Frame Left.jpg

Share this post


Link to post
Share on other sites

Posted

Nice start.

Share this post


Link to post
Share on other sites

Posted

If you want to replicate the rivets check out Micro-Mark.  They make a sheet of decal rivets for HO and O scale trains.  I've used them to represent riveted cabs and bodies.  They slide on just like regular decals.  I put them on after priming so that they don't get completely lost in the color coat.



Share this post


Link to post
Share on other sites

Posted

Looking good so far!

Share this post


Link to post
Share on other sites

Posted

Looks good with that red chassis.....Can't wait to see what you come up with for the rest of the truck....

Share this post


Link to post
Share on other sites

Posted



That Chassis is looking good. Looking forward to the rest of the build.







Be Well

  Gator

Share this post


Link to post
Share on other sites

Posted

Thanks all, I have been trying to load up a couple more pictures with the hood, cab and sleeper mocked up, but I am having some trouble getting them uploaded. Might be too big.



Share this post


Link to post
Share on other sites

Posted

Definitely a nice start!

Share this post


Link to post
Share on other sites

Posted (edited)

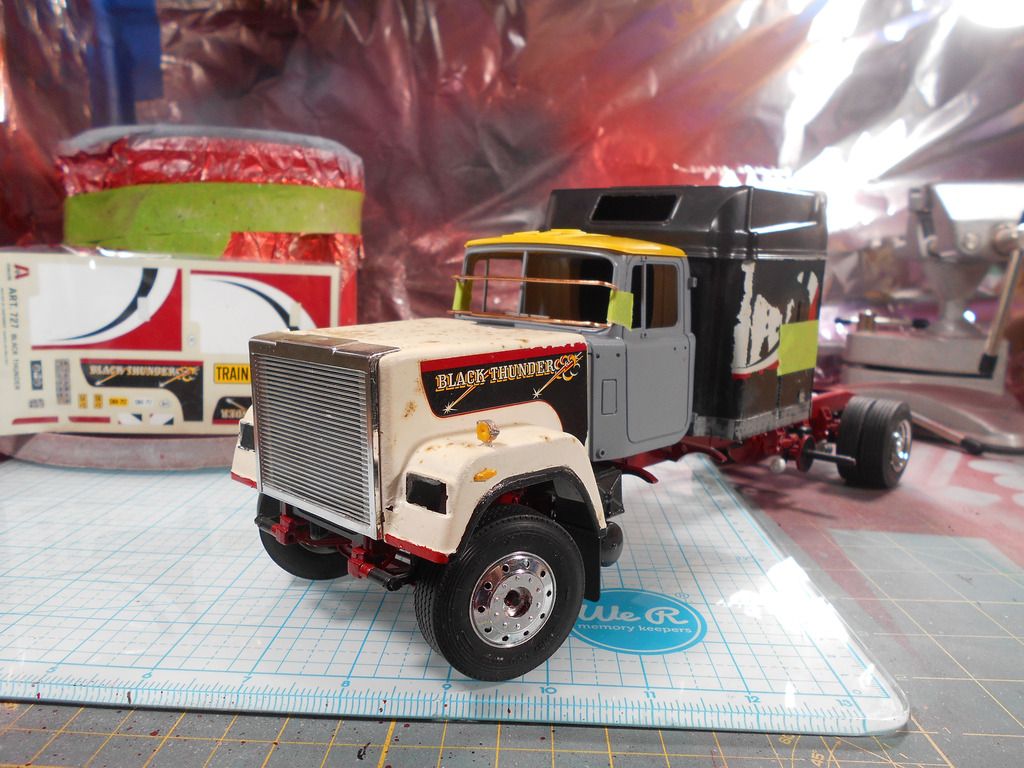

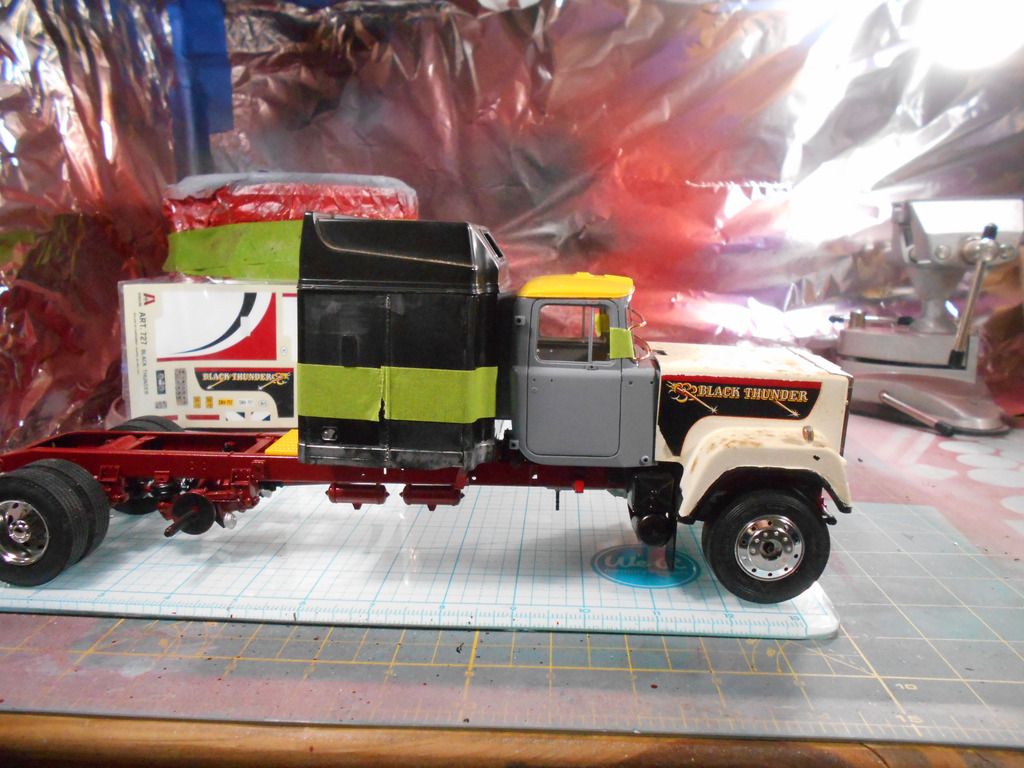

Here is a couple of pics with the hood, cab, and the sleeper mocked up still waiting to be worked on. You can also see my attempt to making a frame for a new windshield screen, I still need to cut the lower portion and solder in the center post. I am still looking into fabricating air cleaner mounts for the sides of the cab since I am having issues registering with Auslowe to order their brackets. Maybe some brackets from the snap Kenworth kit might work, now to see if I have a couple.

Edited by Conway1979
Wrong link

Share this post


Link to post
Share on other sites

Posted

I've got one of these sitting on the shelf waiting to be built.

I'll be following along. You're doing a great job on restoring yours.

Share this post


Link to post
Share on other sites

Posted

Nice work so far!

Share this post


Link to post
Share on other sites

Posted

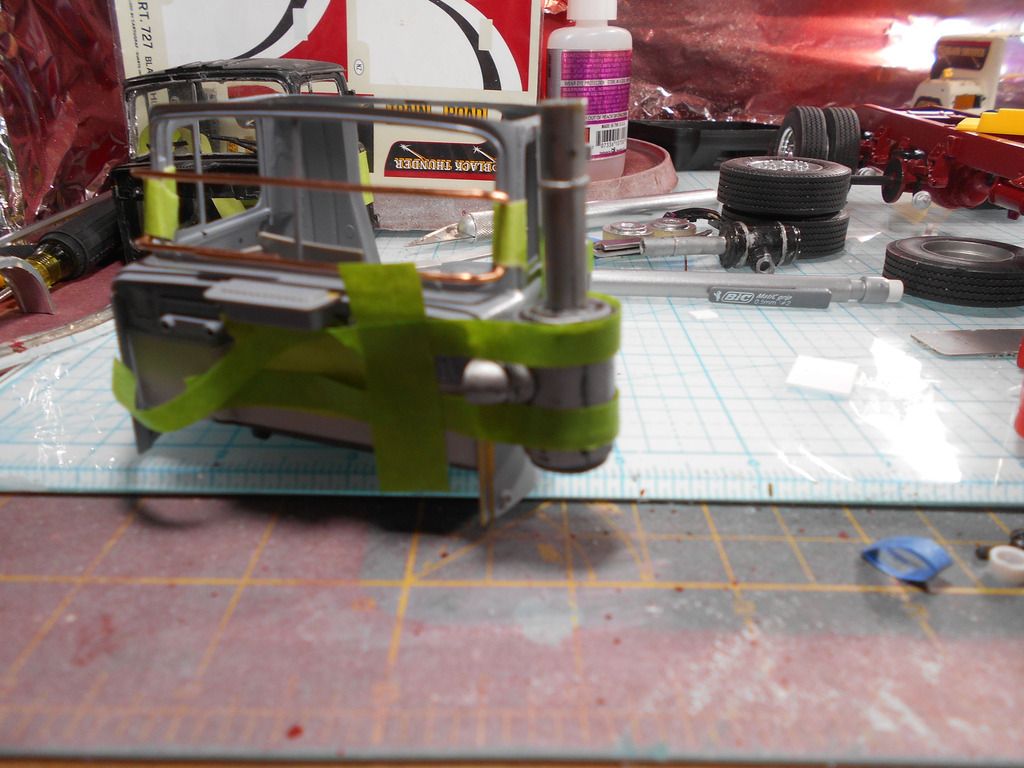

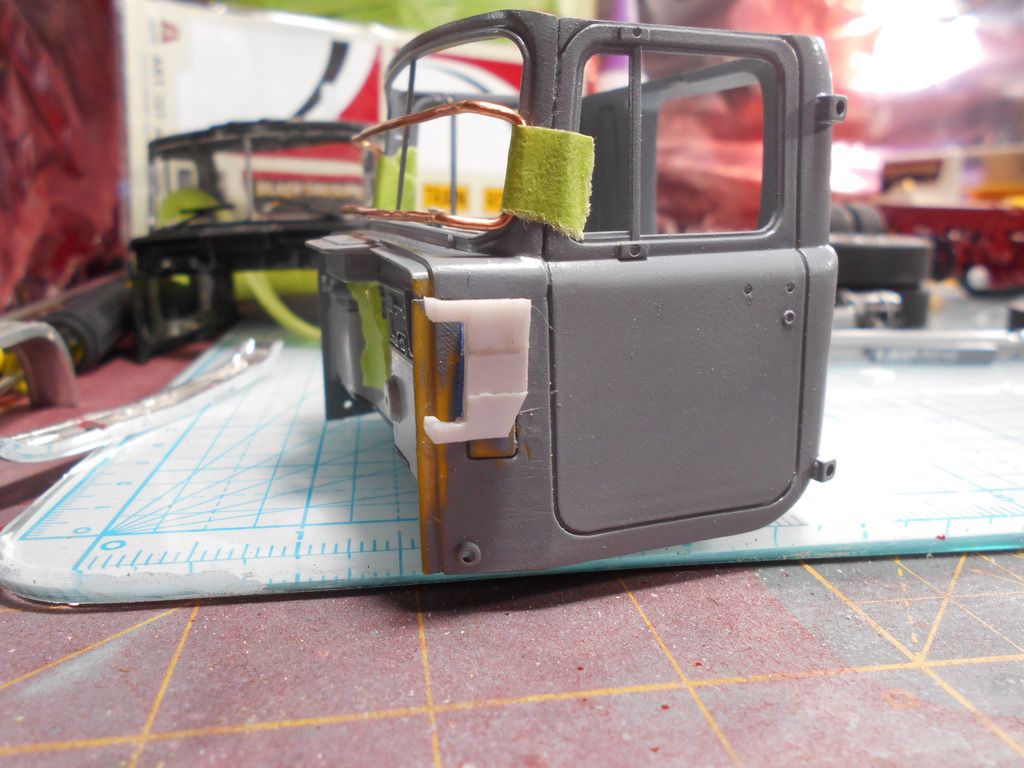

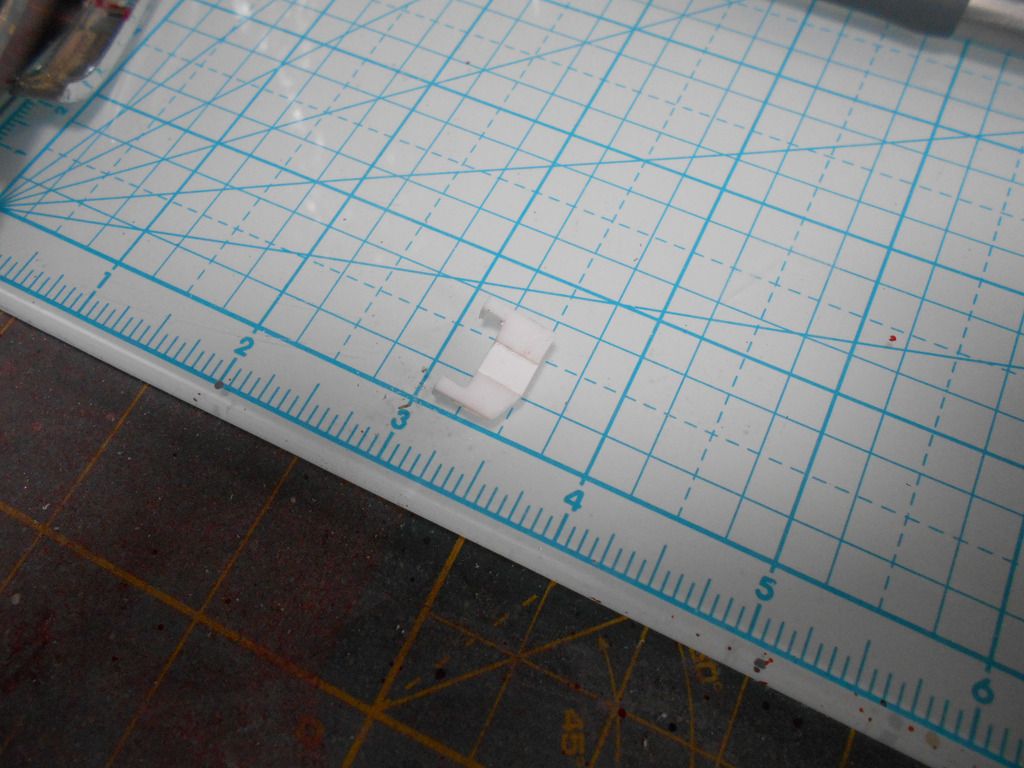

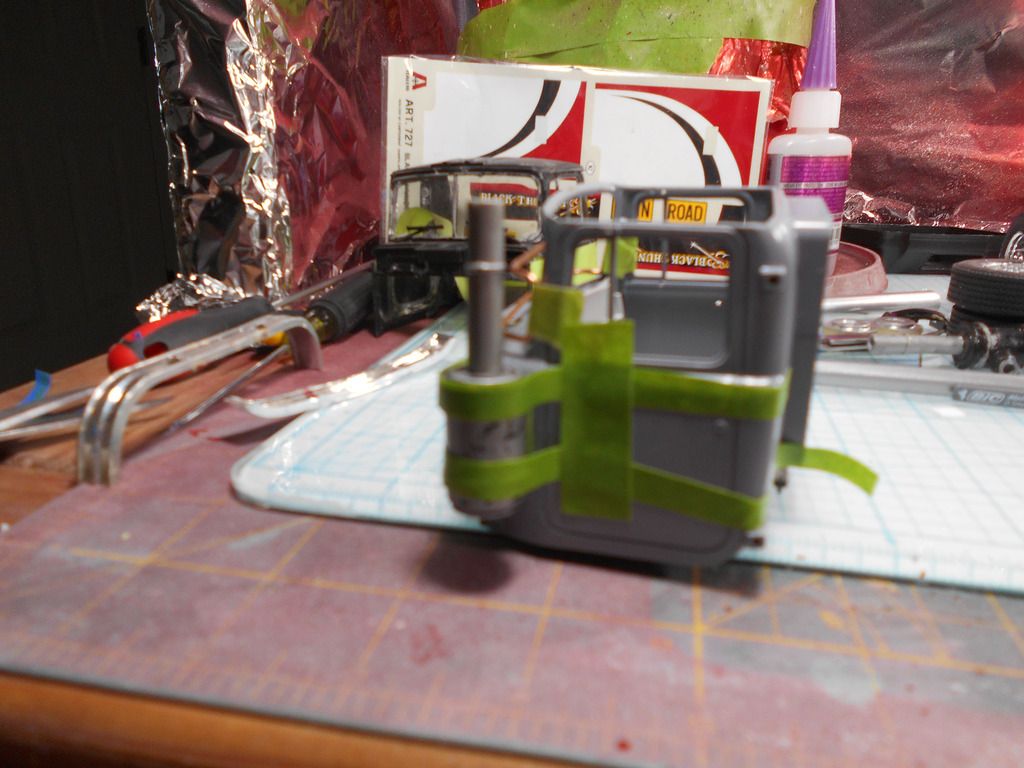

Here is some work I have done for the air cleaner brackets, the snap Kenworth brackets worked out pretty good I think after a couple alterations. A few more adjustments and they should sit pretty straight once finally mounted. I know the tape kinda takes away from it a little.

Share this post


Link to post
Share on other sites

Posted

Very nice thus far. I always like to watch a rebuild.







Be Well

 Gator

Share this post


Link to post
Share on other sites

Posted

Very nice thus far. I always like to watch a rebuild.







Be Well

 Gator

Share this post


Link to post
Share on other sites

Posted (edited)

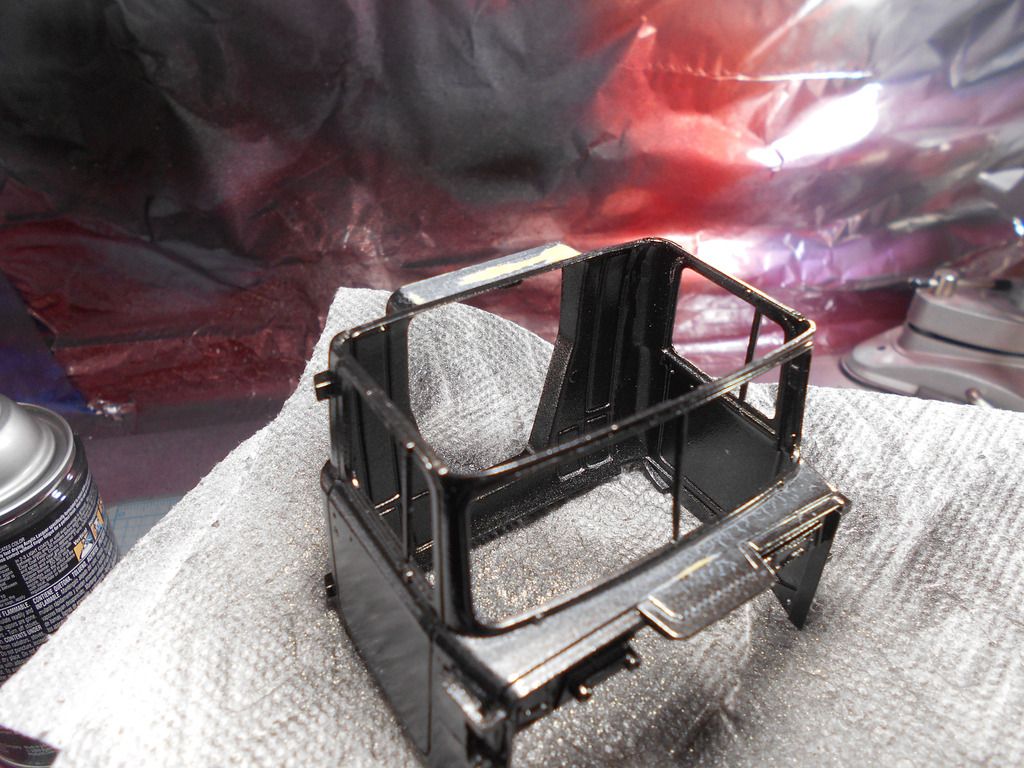

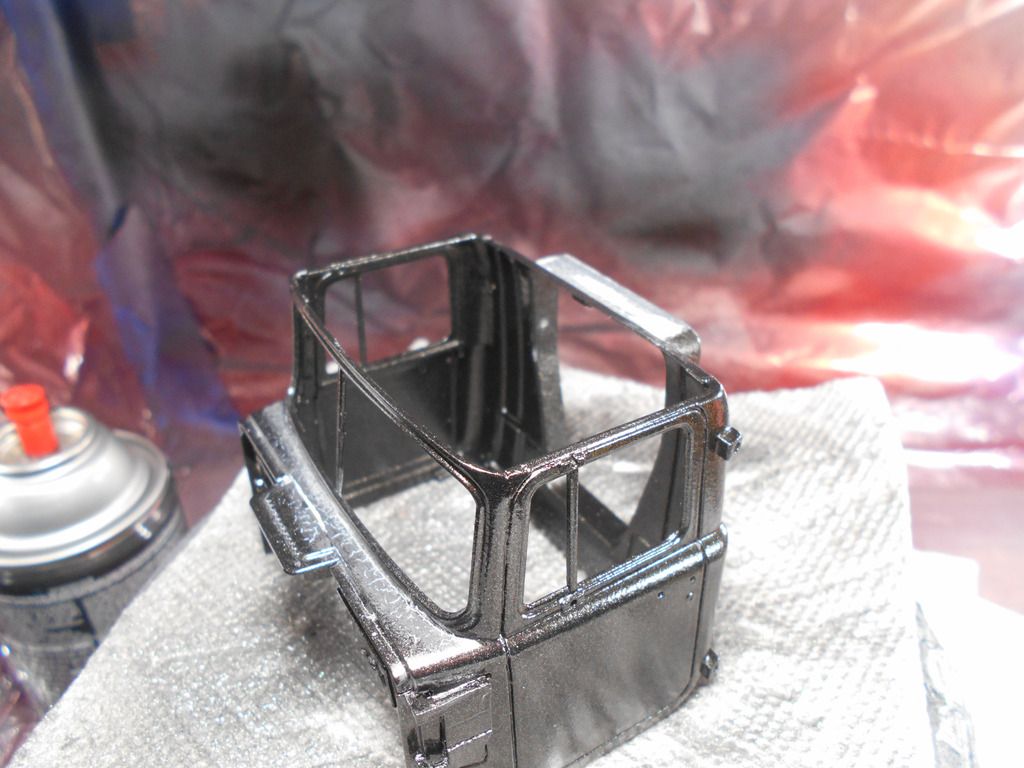

Thanks for the compliments guys. So I did some painting on the cab today, it was going well until I started on the upper portion of the cab. After I laid down the first coat from the top, I noticed on the cowl and the top part of the tunnel to head to the sleeper, the paint started to wrinkle. Of course I got impatient. Good thing is, it was just those two spots. So a question for you all, I'm not a truck driver, so I don't really know the answer. I just always liked trucks and wanted to get pretty close to a real one. The section between the cab and the sleeper, is that a solid piece, or is it a rubber donut gasket? I have some heat shrink I was going to cut and wrap the outside of the tunnel to the sleeper so it can mimic a rubber look, if it is supposed to be rubber. Another question is, for the cowl. I was thinking of making a non skid type of paste out of talcum powder and black paint, to place on the cowl. My thinking was if for some reason the marker lights on the top of the cab or something up there needed to be attended to, the driver wont slip and fall on his/her butt. Another thought is to paint the cowl and the top of the hood a satin black. Opinions would be appreciated, I'm going to give the paint a few days to cure so I don't mess up the good portions of it. I already did a mall amount of wet sanding to it, and kind of started to get the mentioned ideas.



Edited by Conway1979
typo

Share this post


Link to post
Share on other sites

Posted

 I like what you've done thus far. As for the space between the cab and sleeper. I guess it would depend on the year of the truck and the manufacturer of the sleeper.

But I don't have the answer for you.





  Be Well

    Gator

Share this post


Link to post
Share on other sites

Posted

All of the non integrated sleepers I've seen have had a rubber seal to allow the cab and sleeper to move independently. Nice job you're doing by the way.

Share this post


Link to post
Share on other sites

Posted

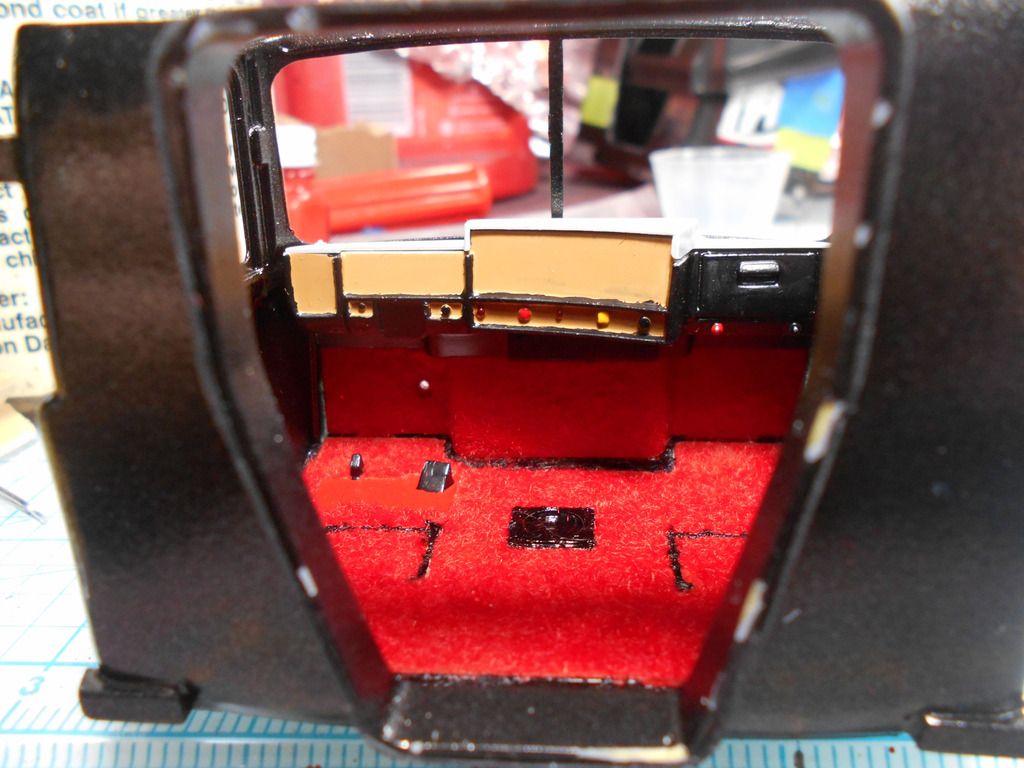

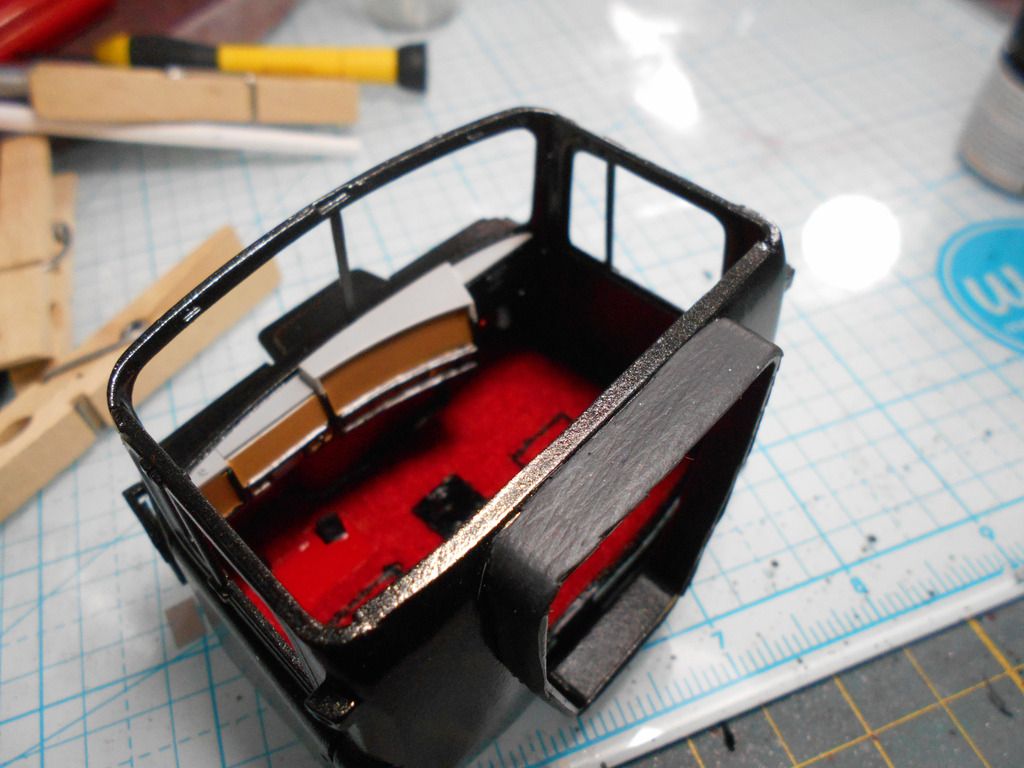

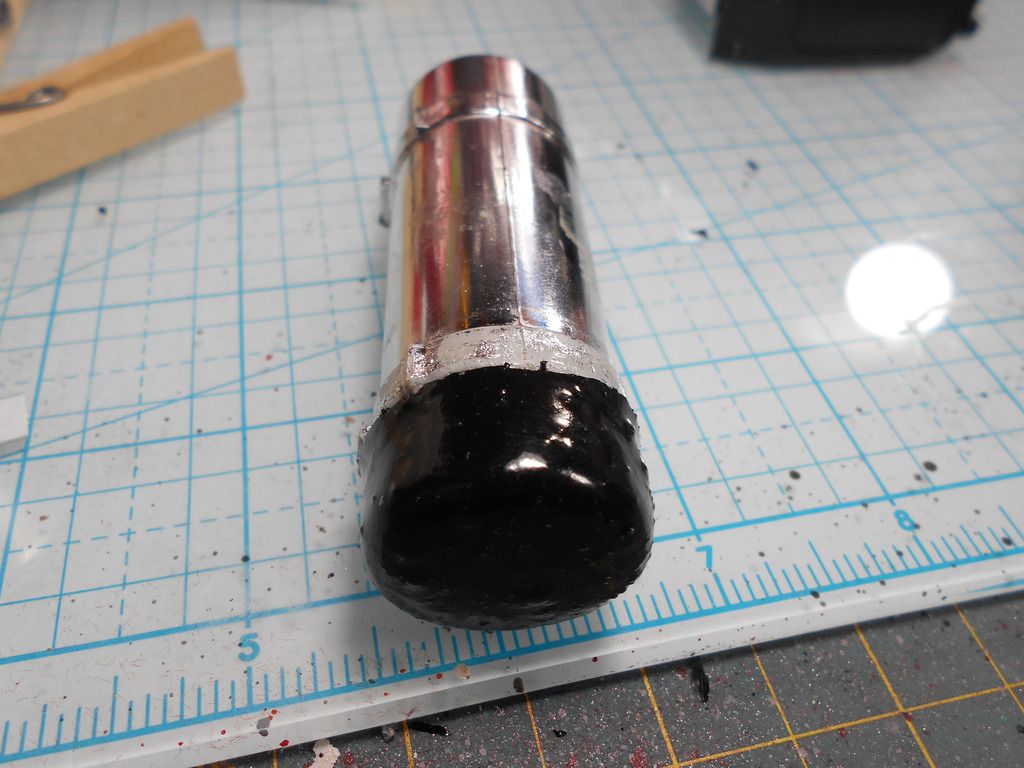

Thanks for the info Rich, showing a few more things I've done on the truck. I think the soundproofing came out pretty decent on this, I'm still going to use some aluminum tape to cover the seam line up between the bottom of the cab and the firewall. I did realize when I did my flocking, I should have done the detail work first, then flocked. Make sure to do that next time. The dash cap is going to be painted red, and I still need to add the gauges to the dash. I used some rubber tape to simulate the rubber gasket between the cab and the sleeper, needs a little trim so the cab and sleeper line up better. I think this will work fine for that portion. Just some testing on the fuel tank to try and make tank covers, I dipped it in some liquid rubber electrical tape. I'm going to try some flex seal next time to see if I can avoid the air bubbles that this one got, at least it can be peeled off and redo it.

Share this post


Link to post
Share on other sites

Posted

Looks like the sleeper boot turned out good, if you google truck sleeper boot it will pull up a bunch of different styles for future use. Looks like your flocking turned out really nice to bad you have the repair to do now. The liquid electrical tape is something I would have never thought of great idea, was actually trying to figure out how to con my wife into making me some for my 1/16 Pete, this appears to be much easier.

Share this post


Link to post
Share on other sites

Posted (edited)

Thanks Rich, after I put the picture up here. I started messing with the fuel tank, the liquid tape will make the plastic soft, as it eats into it a little from the solvents. Just something to be aware of. But this could also be the type of tape I was using, hopefully the flex seal is not as harsh.



Edited by Conway1979
Typo

Share this post


Link to post
Share on other sites

Posted

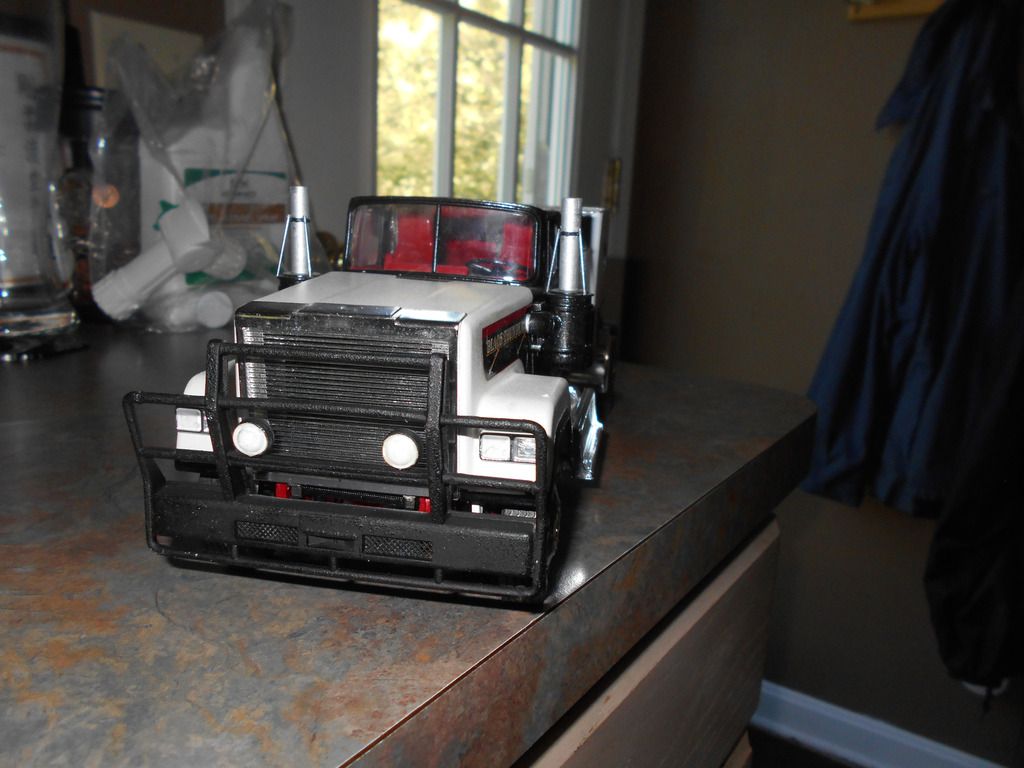

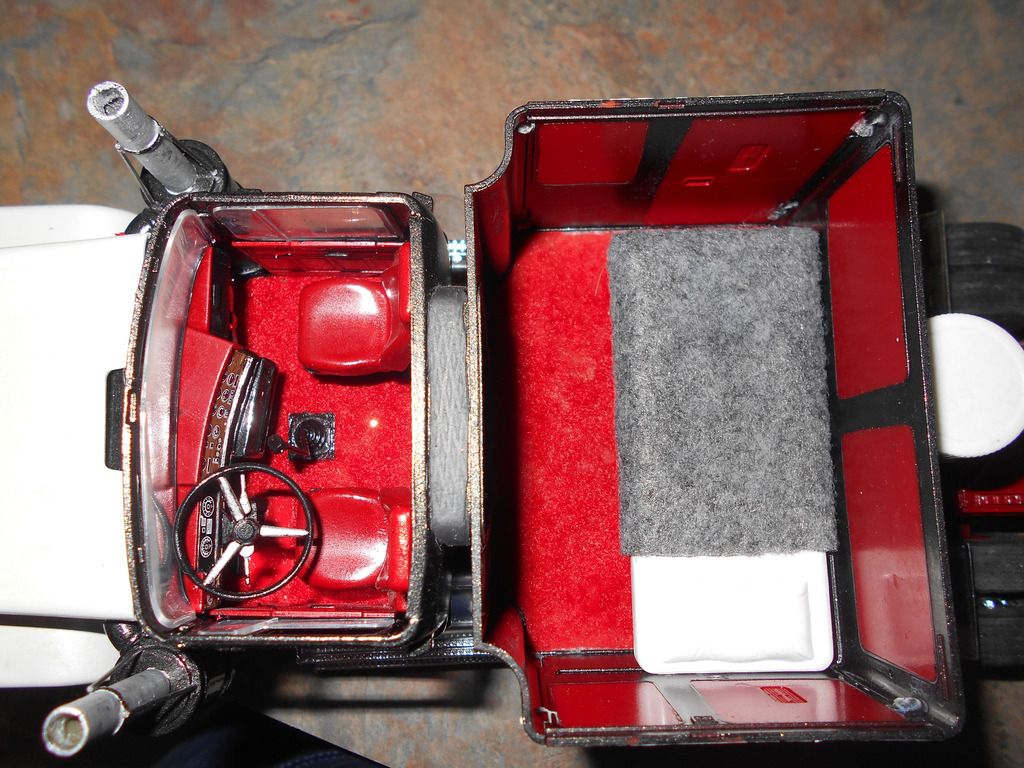

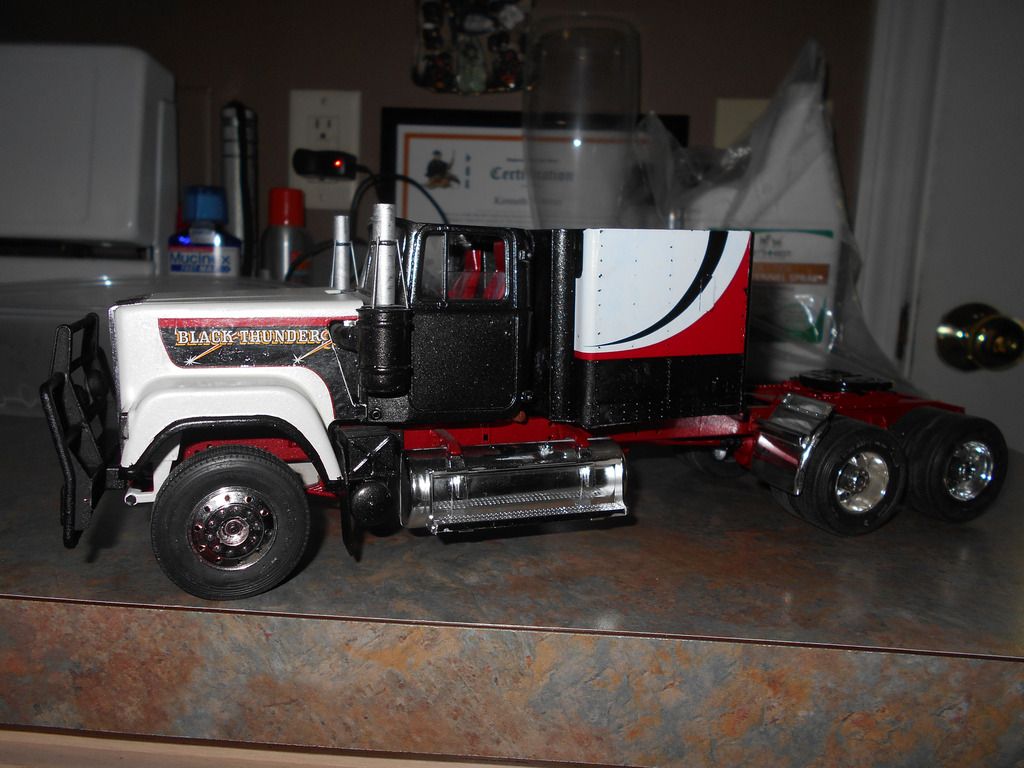

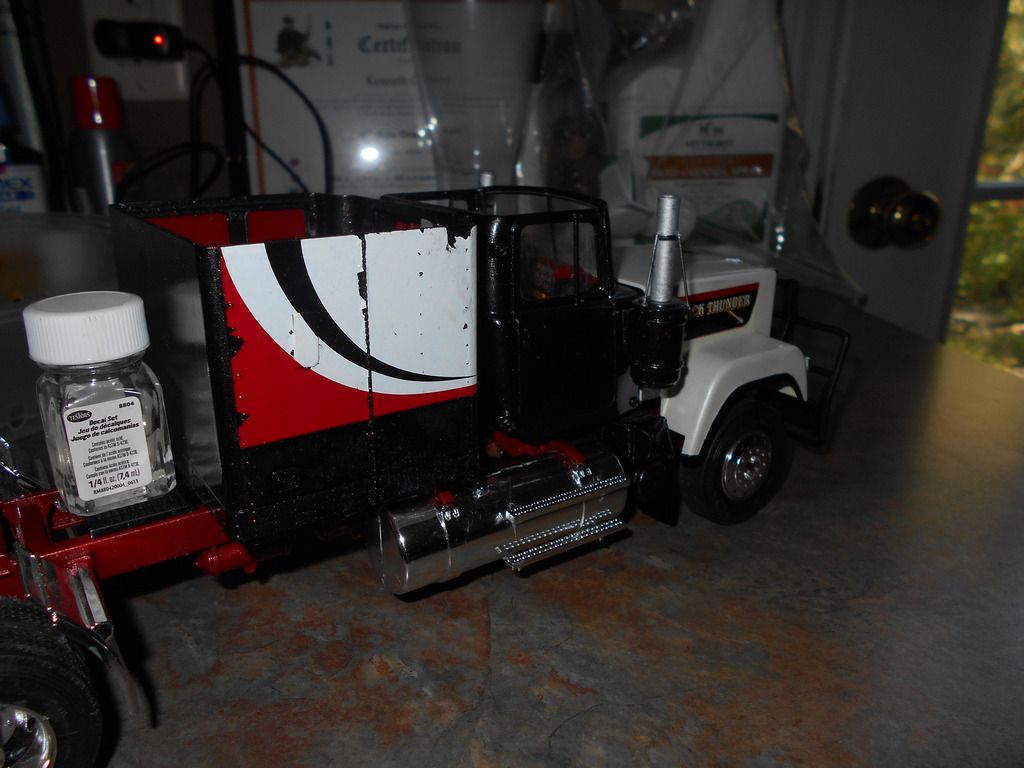

It has been a little bit, but I have a little more completed on the truck. Decals were a pain, but that just might be from them being so old. I think they will blend in a little better after I brush some thinned out paint or chalk and water on it to dirty it up a little. I'm also going to brush on some dry chalk to dirty inside the cab too.






Share this post


Link to post
Share on other sites

Posted

Lookin good so far!!!!!!!

Share this post


Link to post
Share on other sites

Posted

Looks good.

Share this post


Link to post
Share on other sites

Posted

Thanks guys, didn't do everything I wanted to try, but so far I like it.



Share this post


Link to post
Share on other sites

Posted

 Looks real good from here. Nice work on the interior!





  Be Well

    Gator

Share this post


Link to post
