STOCK 1932 FORD STANDARD 5 WINDOW COUPE 1/8 SCALE

Recommended Posts

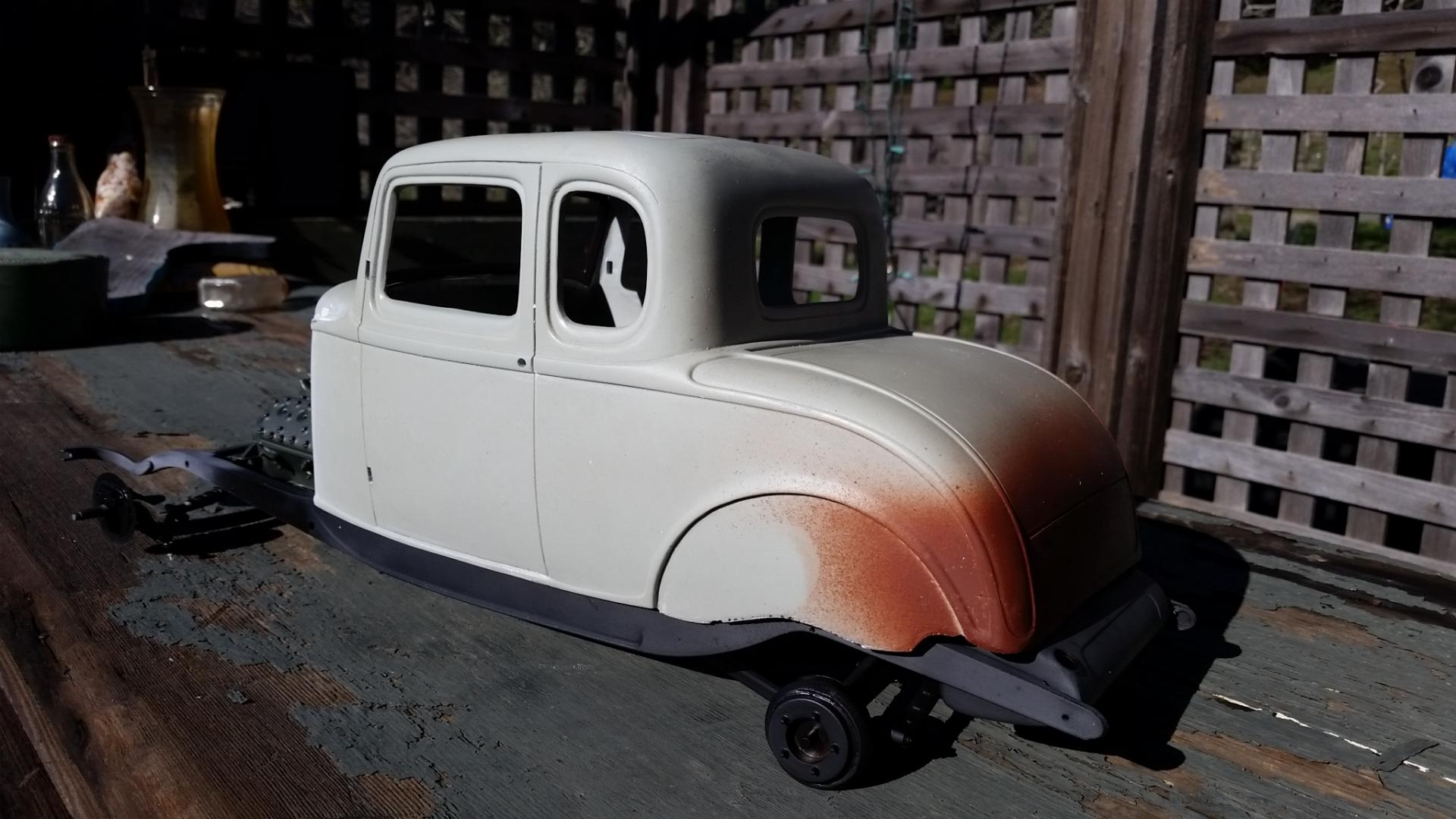

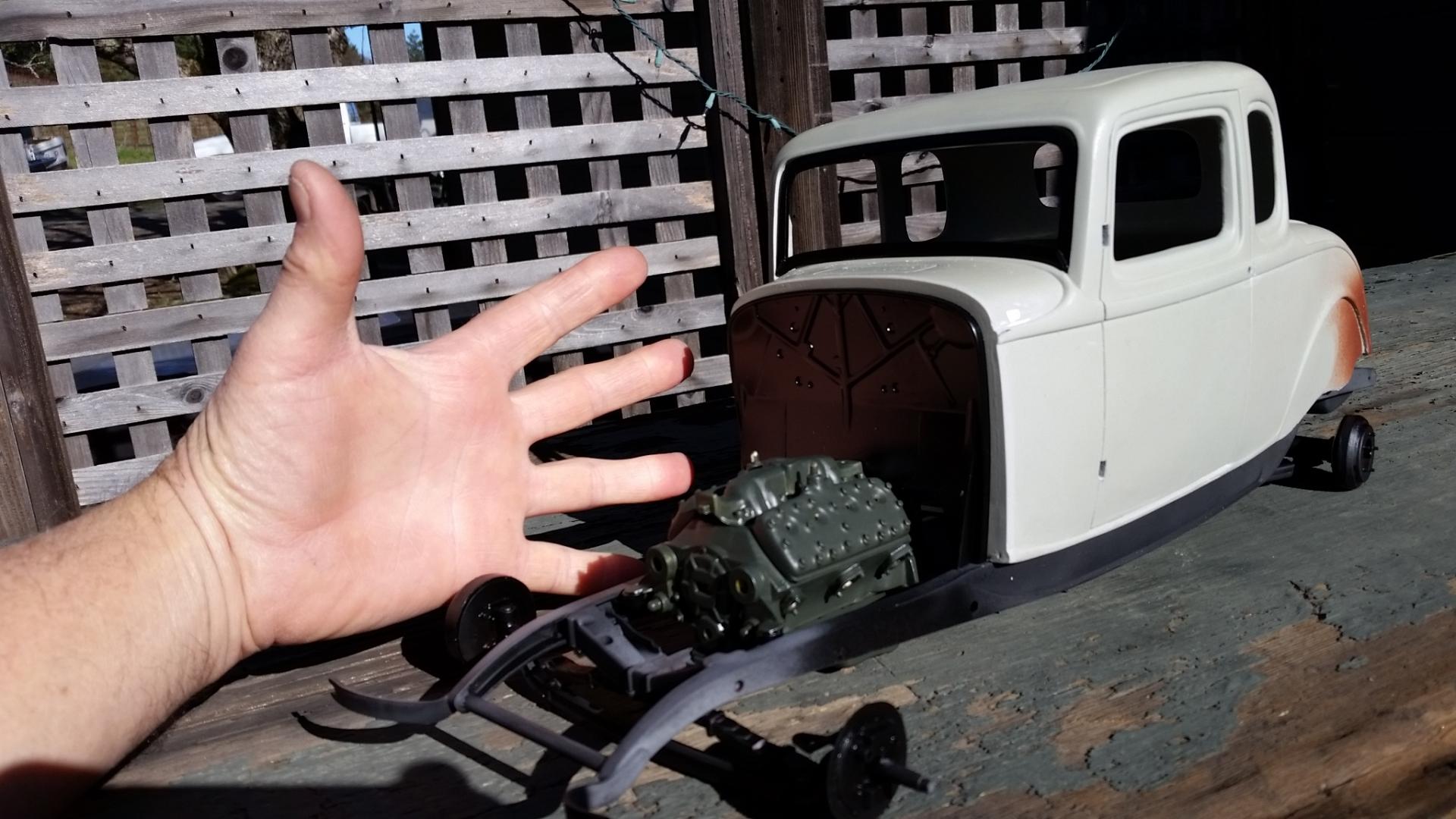

HELLO everyone, I have missed you all ,been away for a spell working on 1/1 scale cars-now I am back with another kit bash for us all to enjoy. after my last scratch build- 1906 Locomobile ''OLD 16''- I am now into even bigger scale -namely 1/8- what ever I can'' scratch up''

I located a 5 window body [second] from the late Mike Gradis.  by the way- he was always very helpful to me with his large inventory of big scale parts-sometimes sending me stuff for free or shipping.he was a great guy

a fellow named John Hockney I met a few years back at NNL west supplied the stock Flathead parts -he does them in resin. the wheels will be the original Kelsey -Hayes wire spokes taken from Lindbergs Hot Canary T. [had to locate 3 kits to get 5 skinny wheels and tires]

so- now I will start to bring a Hot Rod 1/8 scale Big Deuce  BACK  to the way HENRY built it. any suggestions and critique are welcome.............



Edited by f1ford48
incorrect title

Share this post


Link to post
Share on other sites

cool build I wondered if anyone did this body or even the 3 window. will watch for sure. Gary

Share this post


Link to post
Share on other sites

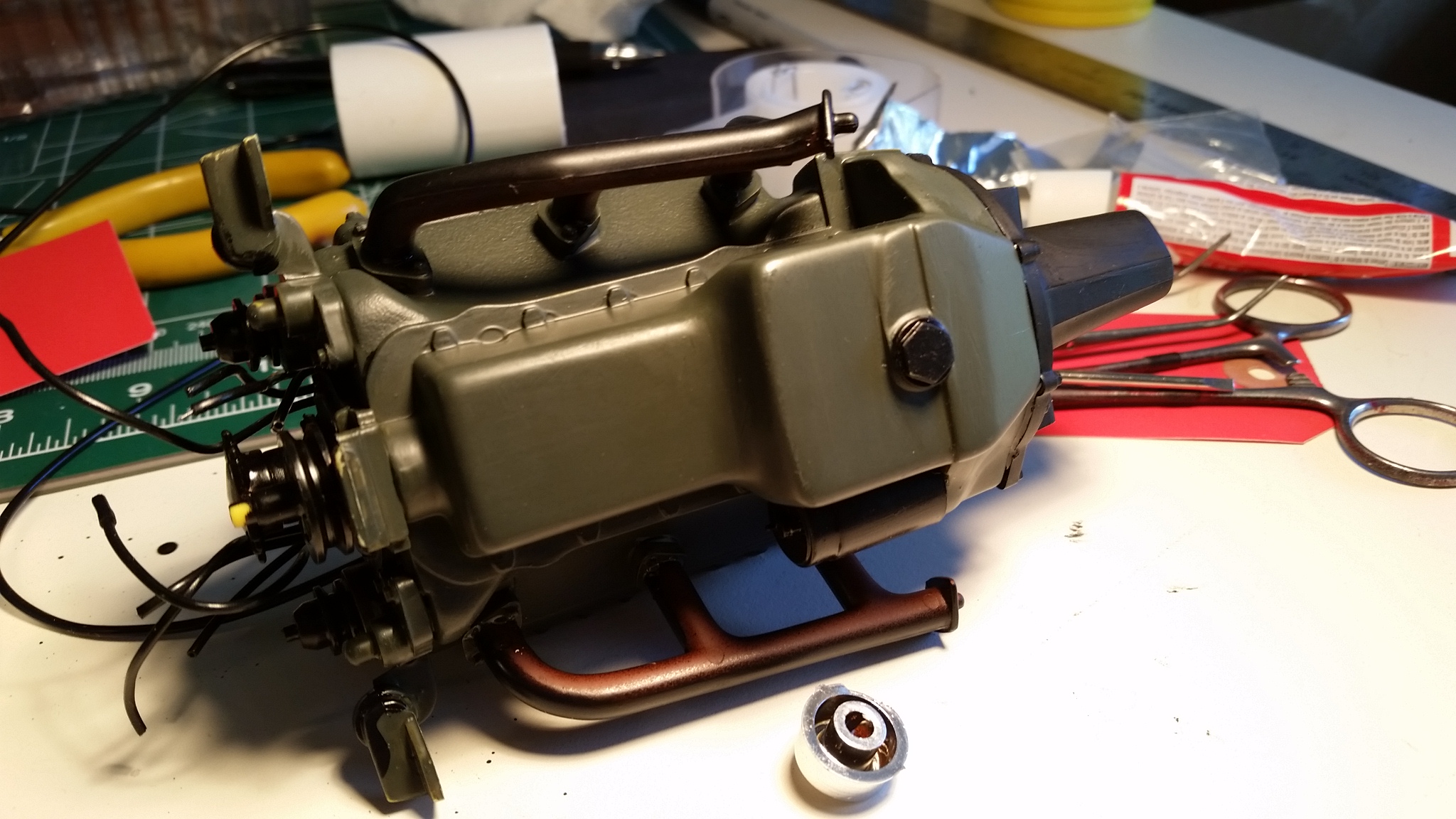

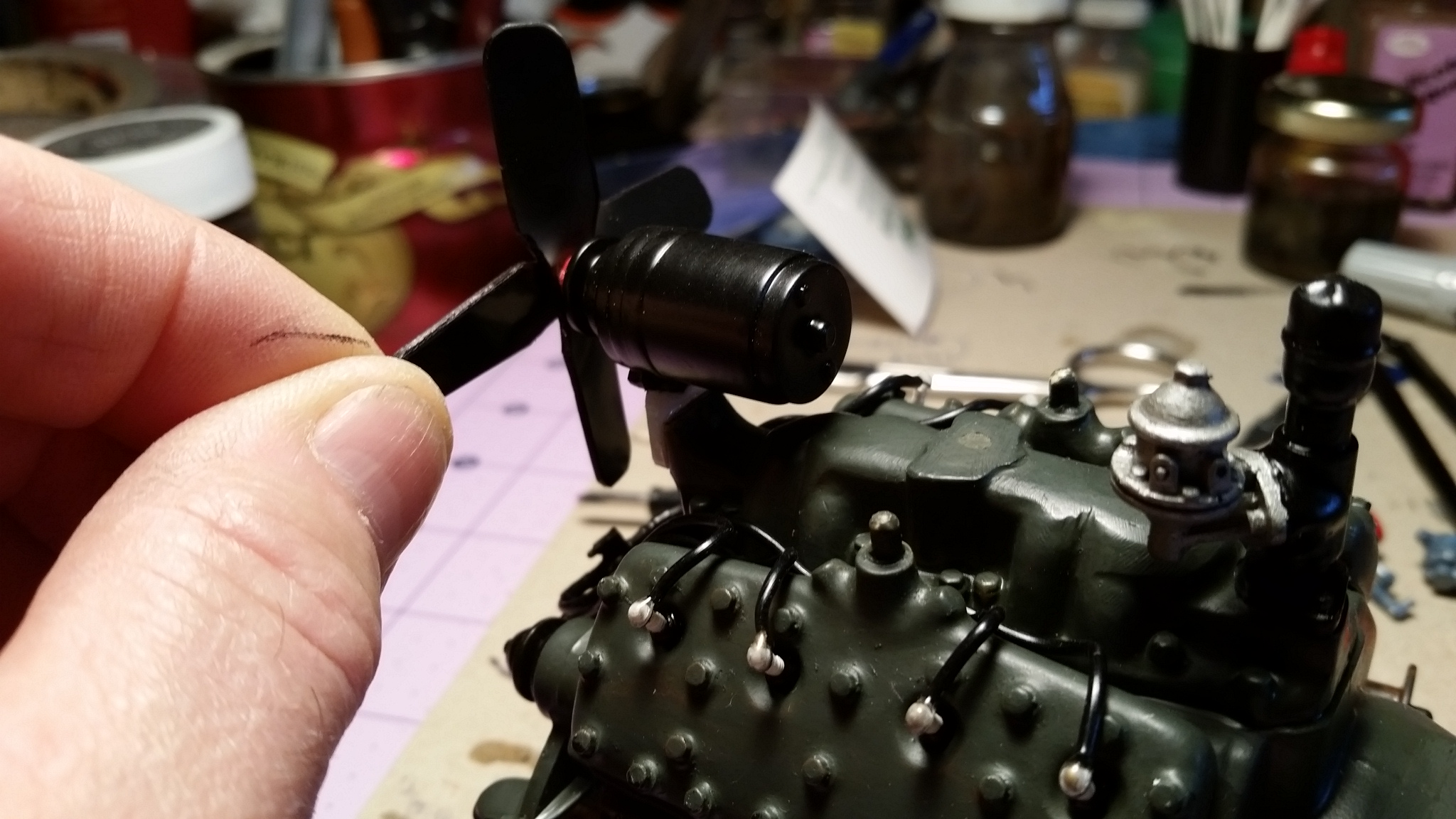

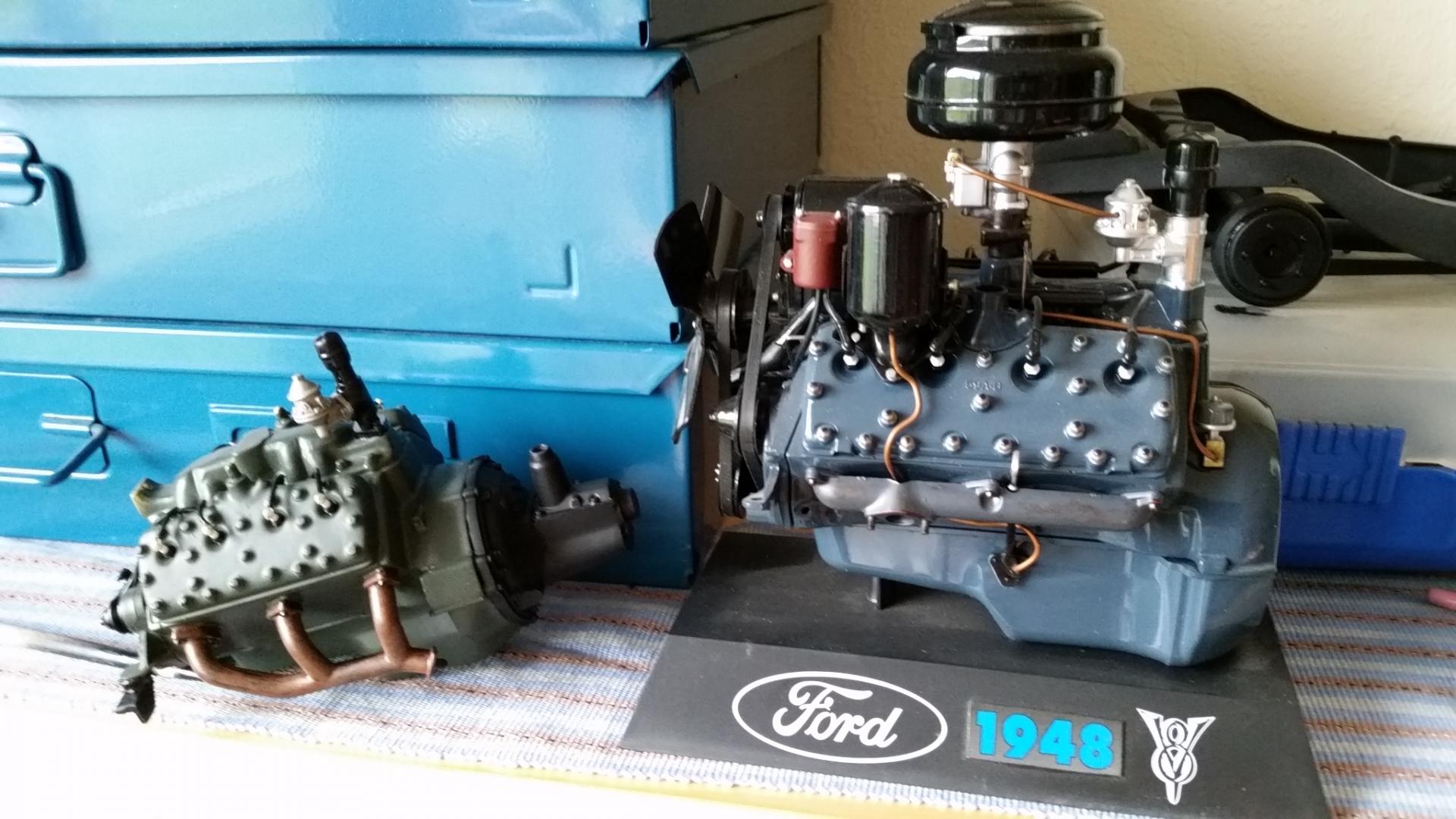

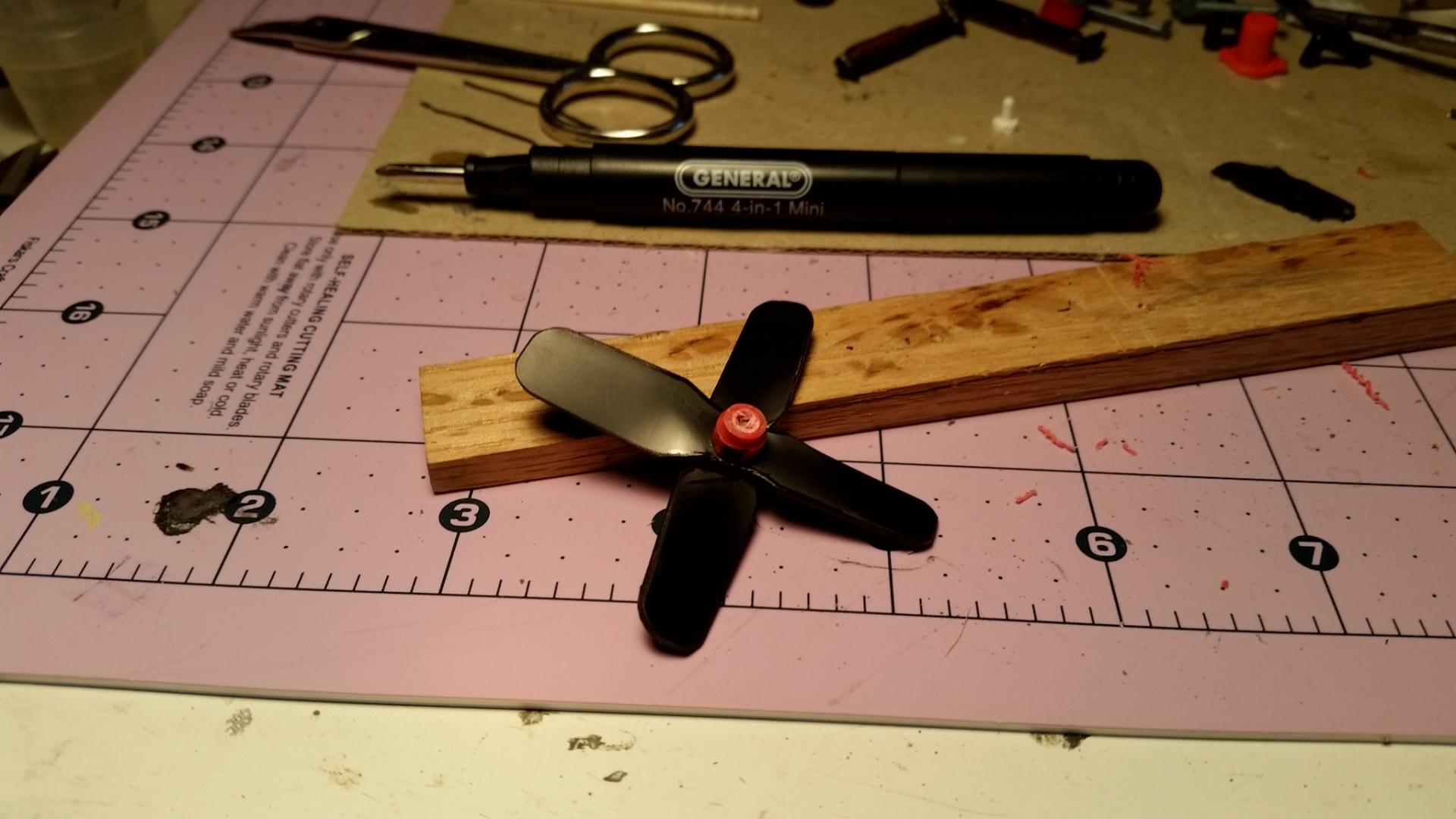

working on the engine now- trying to get it as stock as possible including the color.  could not find a fan in the parts box so I scratch built one-easier than I thought.   the intake was set  up for triple carbs so the 2 ports were sawed off and filled and re contoured.the fuel pump and oil fill are also resin from John H. on the bottom the oil pan was filled and detailed around the drain plug because it was 2 piece and had a glue seam running down the length. last shot is next to the HAWK 1/6 scale 1948 V8-a very nice model.






Share this post


Link to post
Share on other sites

thanks Gary.and welcome.. I have heard of a 3 window,5 window, 5 window chopped and a phaeton body.  the 2 5 windows are currently available on ebay

Share this post


Link to post
Share on other sites

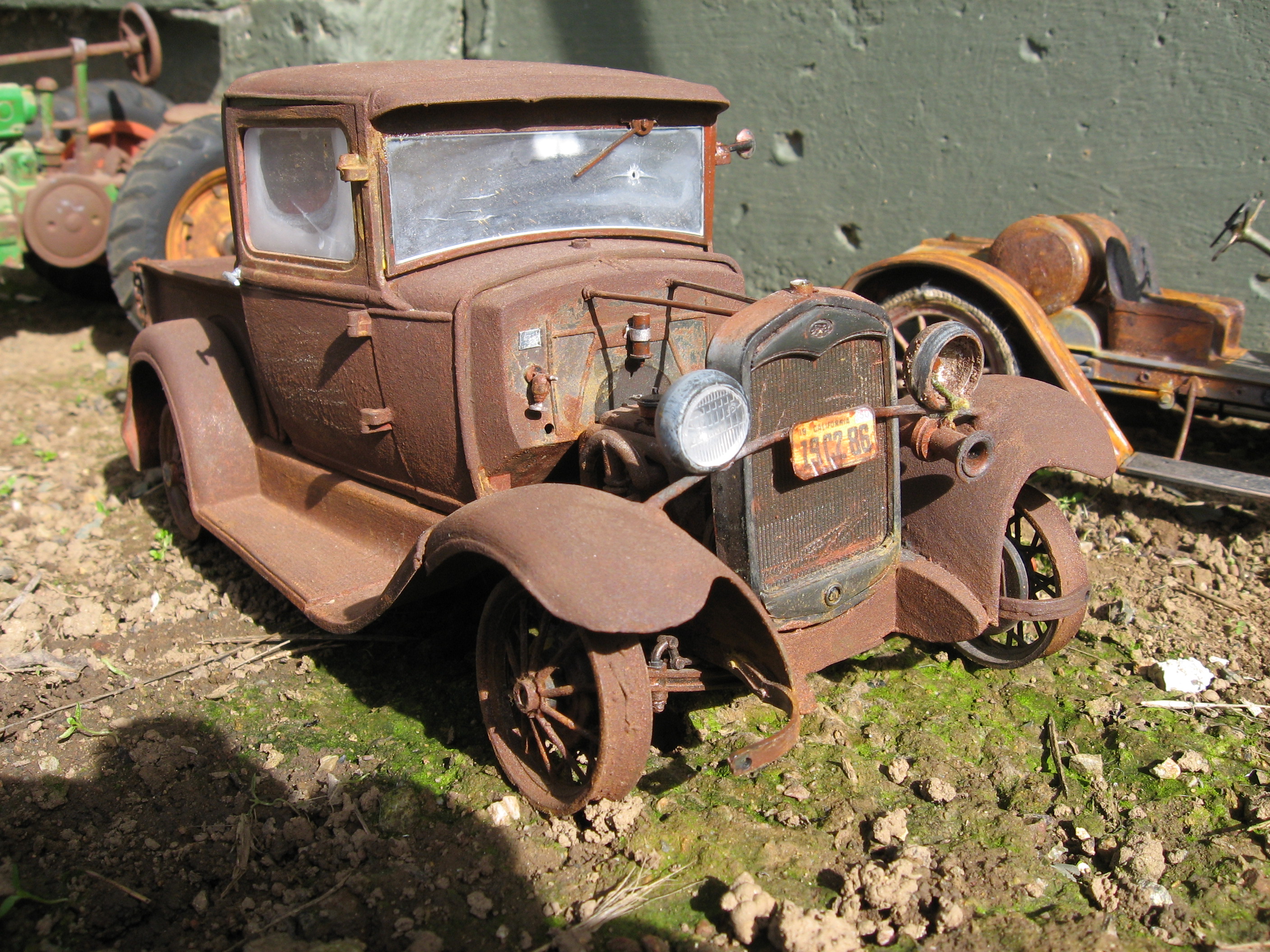

thanks guys and welcome..this IS going to be stock-or as close as I can get it. I like period and nostalgia Hot Rods- but that's about it. - if you've seen my other builds I tend to steer towards ''drivers'' -they look more  real -I like a little  rust with my dust.  my goal is to take a photo of the finished model and have the viewer think  its the real thing...like this A pickup I did long ago.


Share this post


Link to post
Share on other sites

The color of the material on the body you're using looks very much like the 5 window that I started my 3 window project with.

Nice work!

Edited by Ognib

Share this post


Link to post
Share on other sites

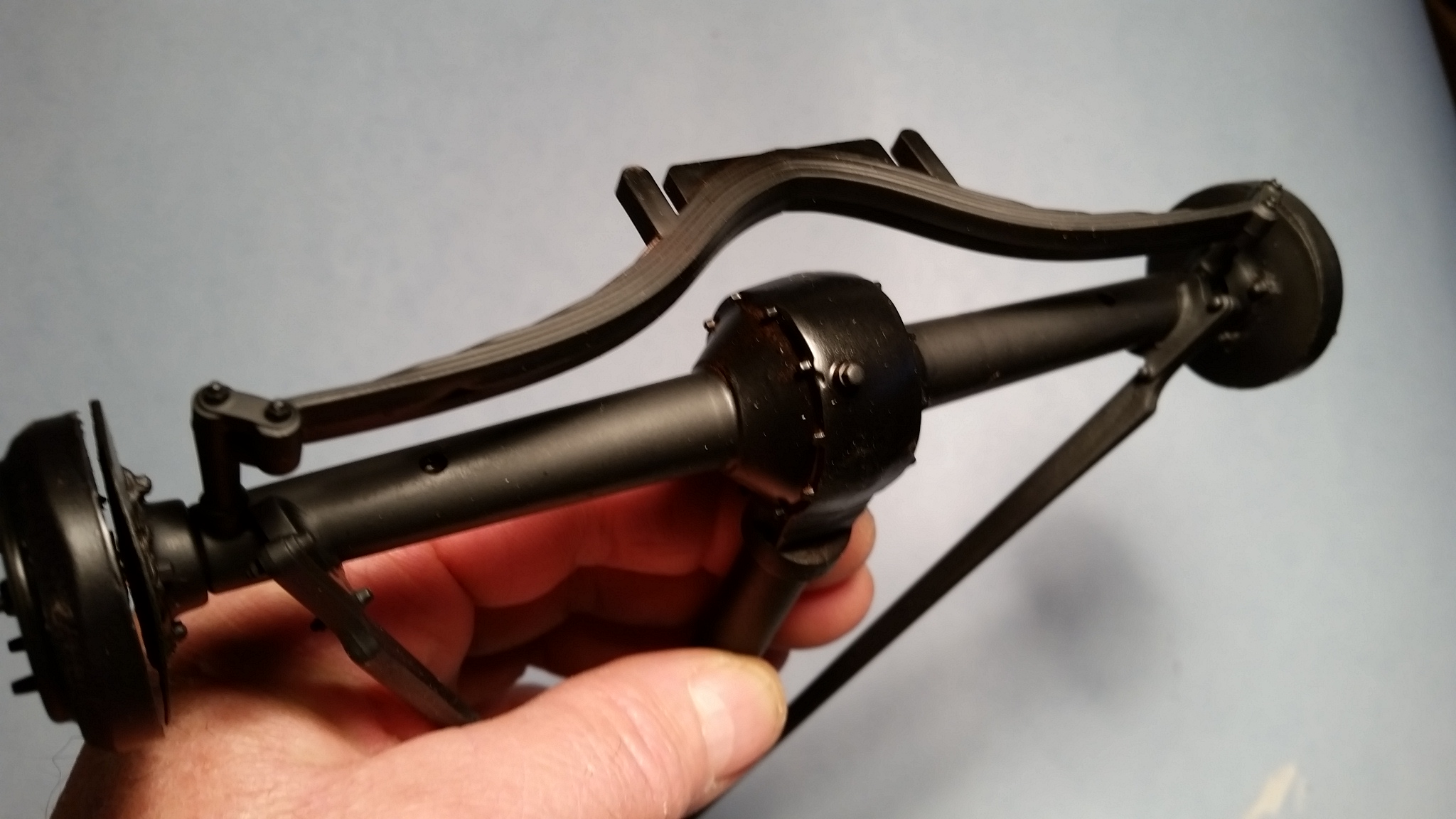

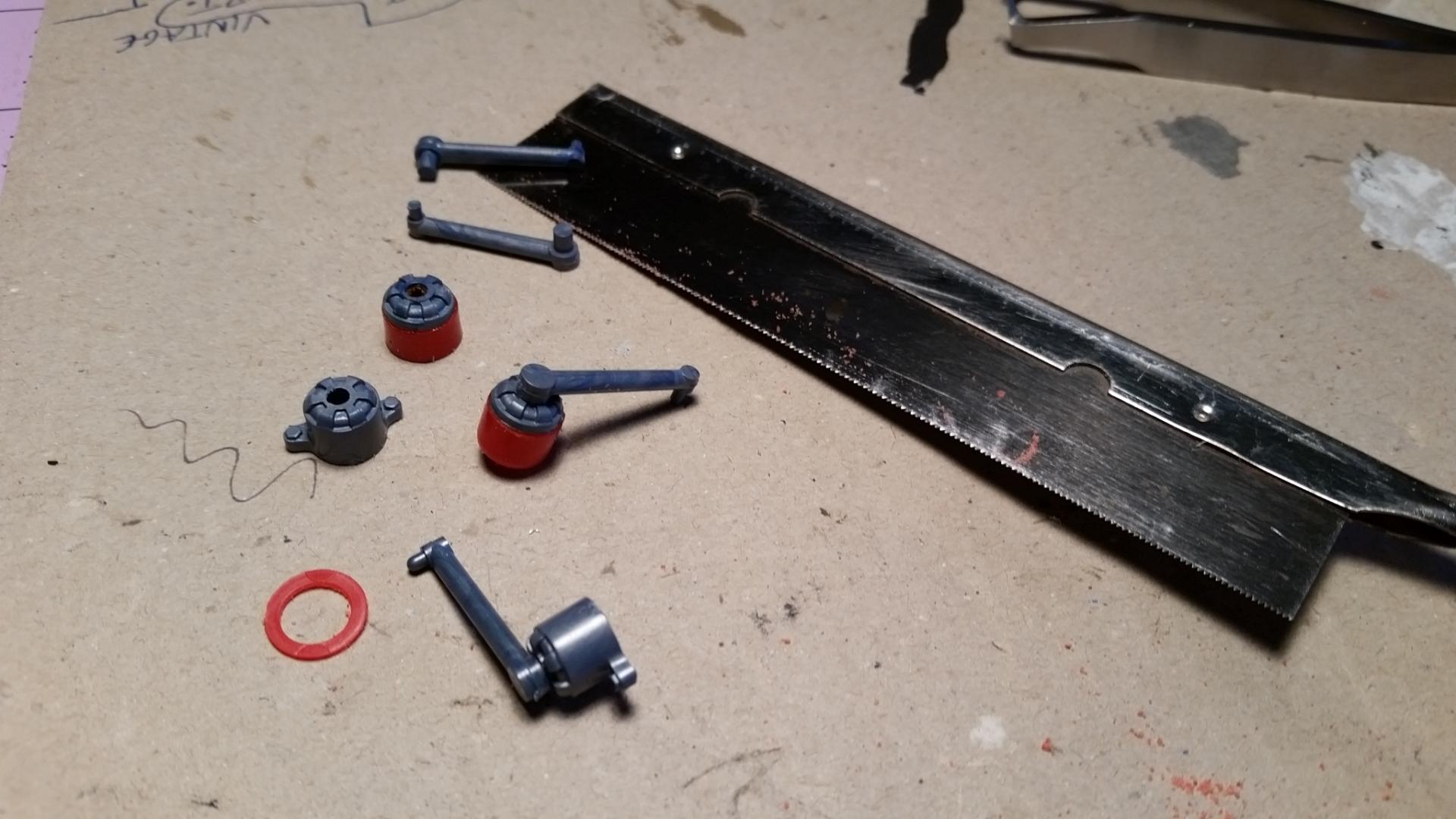

 the big deuce frame is easy to bring back to stock. I will raise the front spring and replace the airplane type shocks with the original Ford Houdaille lever action shocks-taken from the Lindberg ''HOT CANARY T''

the rear end was a salt flat style ''quick change'' first I decromed it then cut out the quick change casting -filled it -sanded and added a gear oil fill plug WHALA!  back to stock.

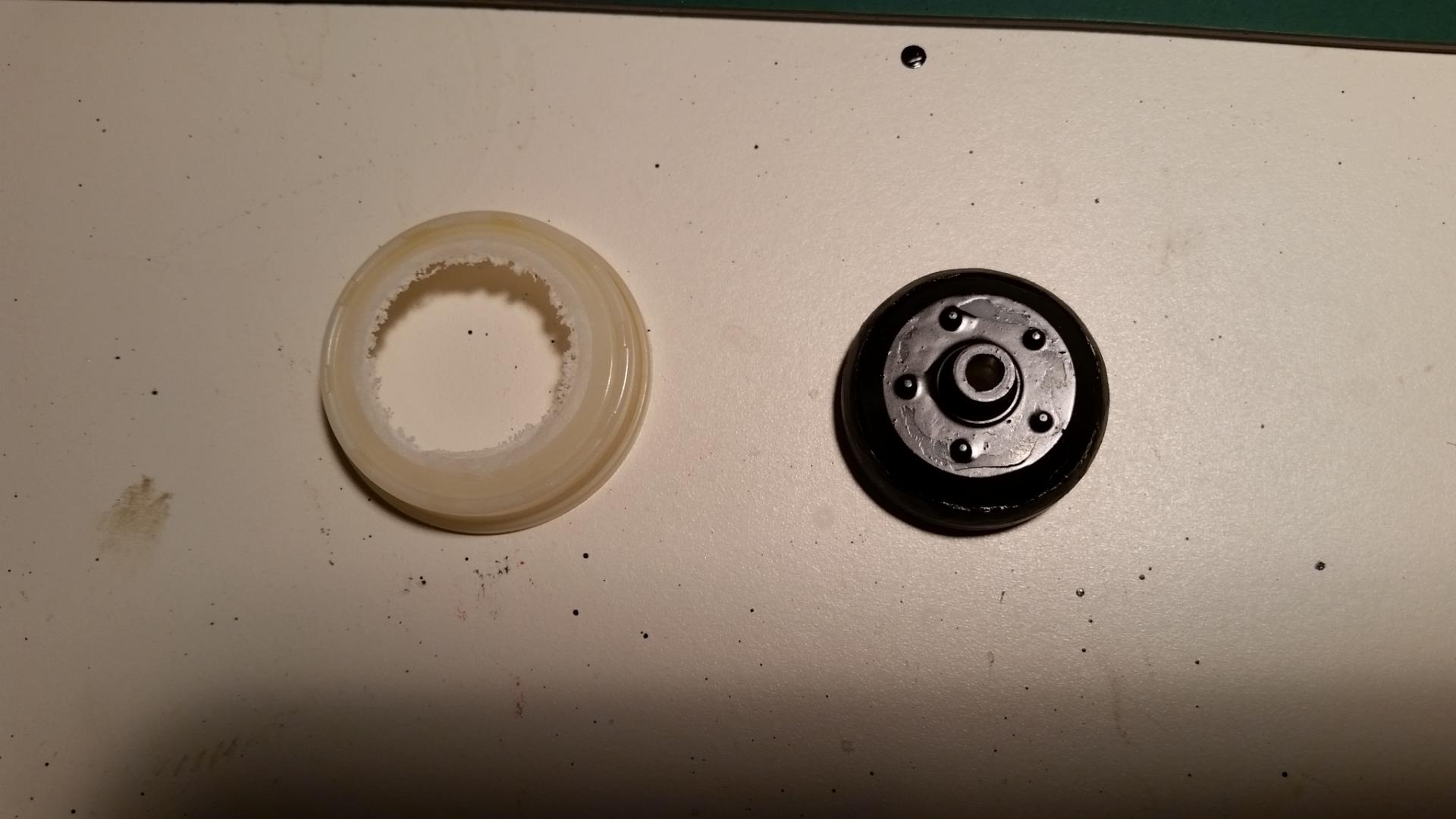

the brake drums are too big-I want to see daylight through the wire wheels so I cut them down to original size and used PVC pipe for the drum part.also had to modify the backing plates...




Share this post


Link to post
Share on other sites

yea Ray- what is this stuff? it seems like styrene but does not glue like it...  yet it seems tougher than resin.  Maybe  it was Mikes own concoction.

Share this post


Link to post
Share on other sites

Not sure what material it is.

Super glue seems to work pretty well with it.

Properly roughed up with 80 grit to cut through the mold release residue, body filler & fiberglass resin both get a fierce bite to it.

I've also used a 2 part epoxy putty that I get at the Ace hardware store with good success. I like it because it can be rough shaped & will hold shape until it kicks.  It was particularly handy when doing the 5 to 3 window mod on my body.



My body had some pin holes & thin spots...how about yours?

Edited by Ognib

Share this post


Link to post
Share on other sites

mine is rough around the bottom   molding and windows.luckily not many pin holes.  it looks like they are both made by the same guy. checked out your build-that is amazing!  on the body I like the curve carried over from the quarter windows into the rear of the door window..

Share this post


Link to post
Share on other sites

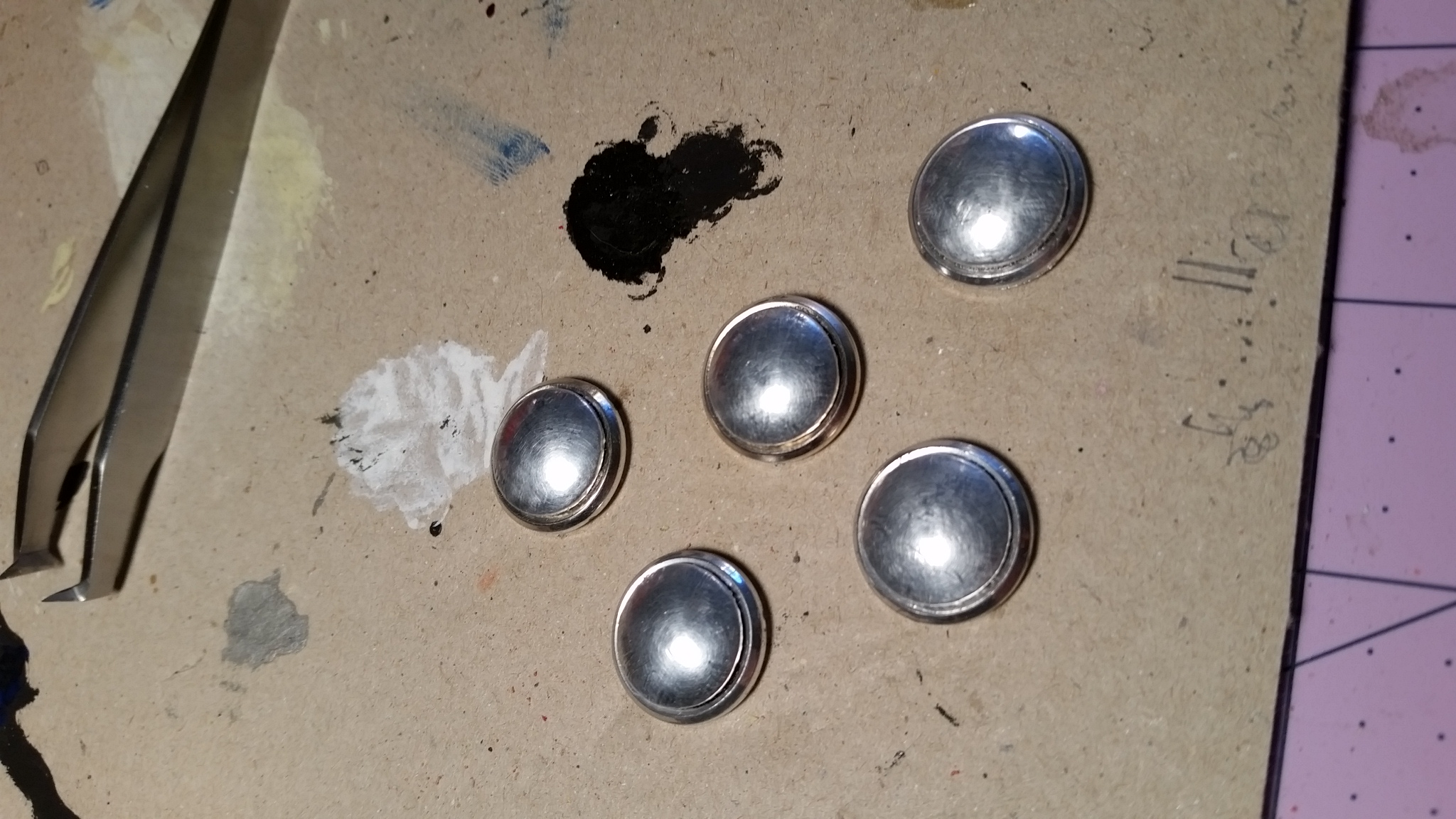

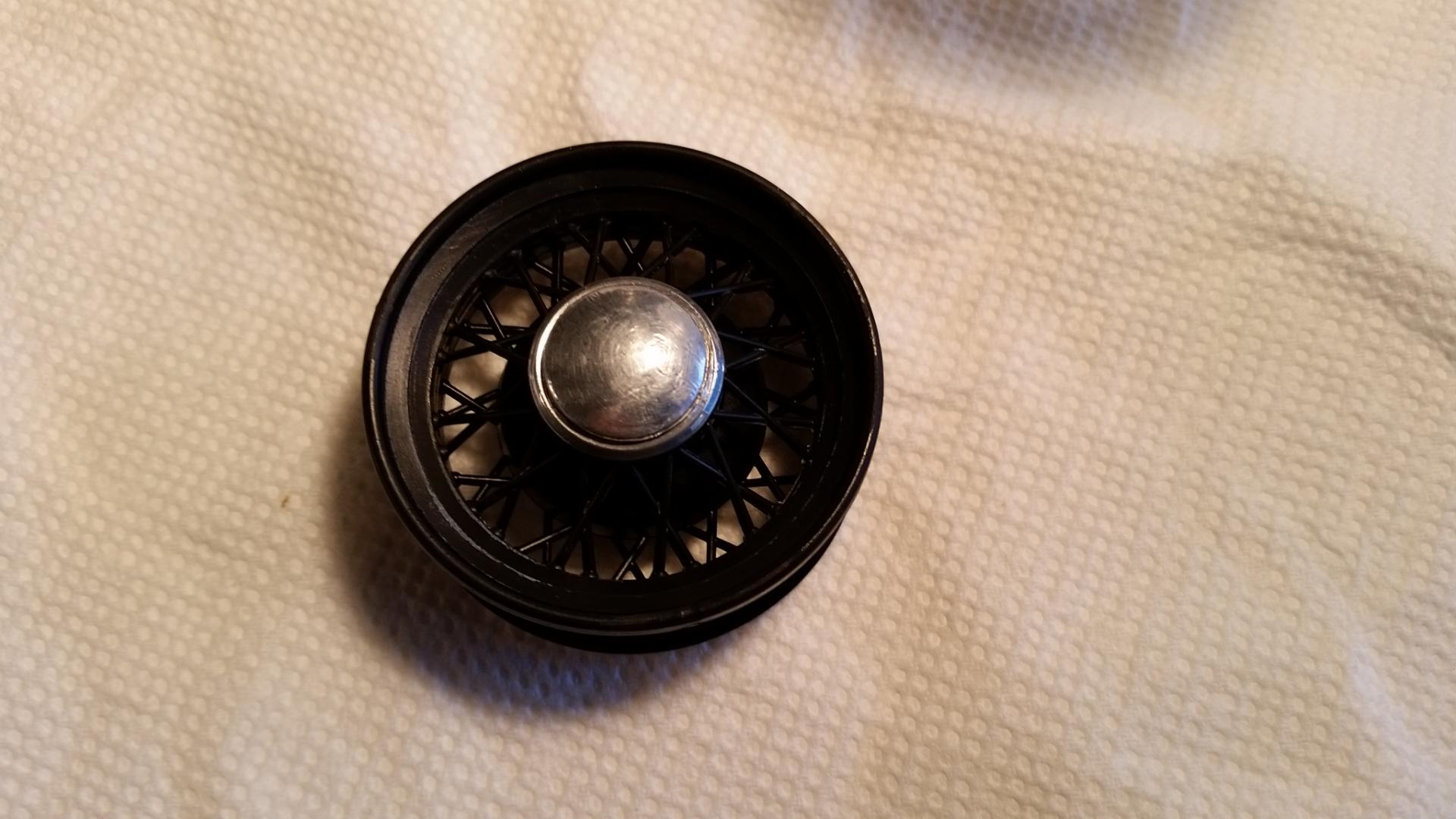

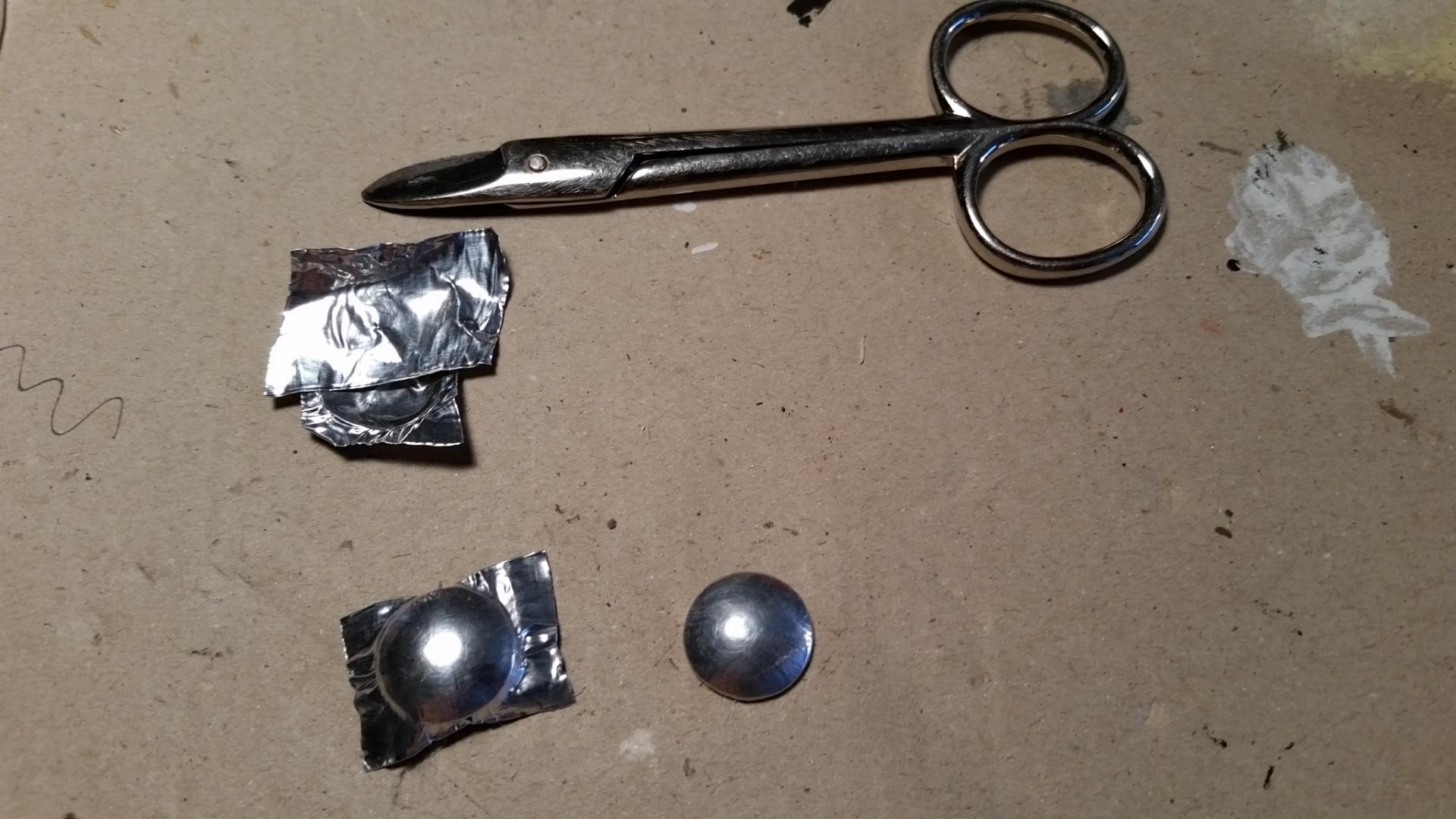

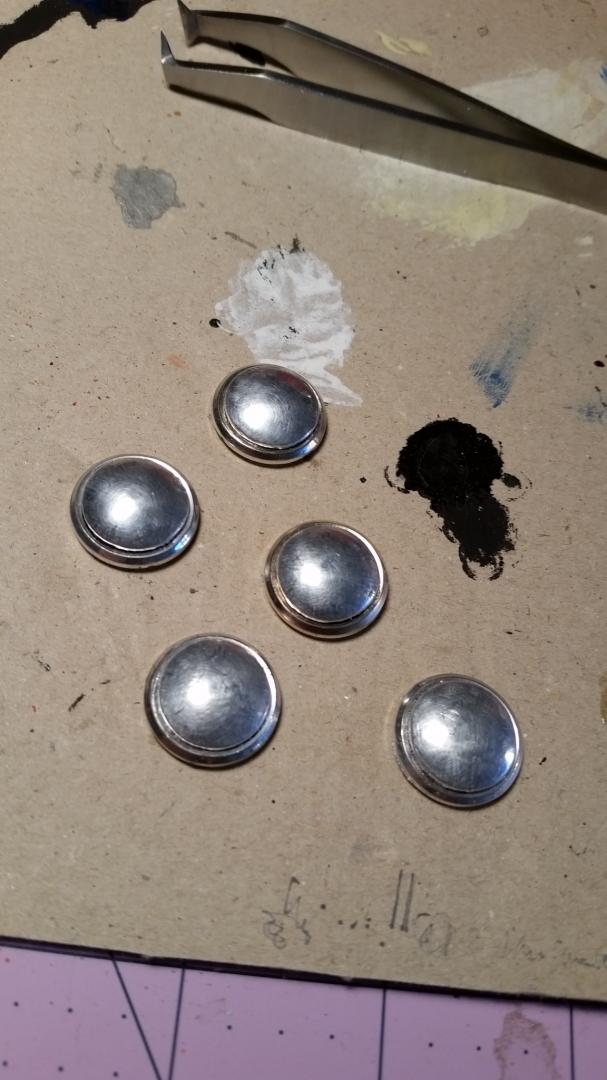

some wheel work today-for the stock hubcaps I cut the heads off of 1/4 inch carriage bolts-this gave me the dish I wanted, then I covered them with metal tape and glued them to the spinner hubcaps from the Lindberg T  kit. the V8 logo I have not decided on yet- the debossed one is not quite'' crisp'' enough to be convincing. might need to figure out some transfers for these......





Share this post


Link to post
Share on other sites

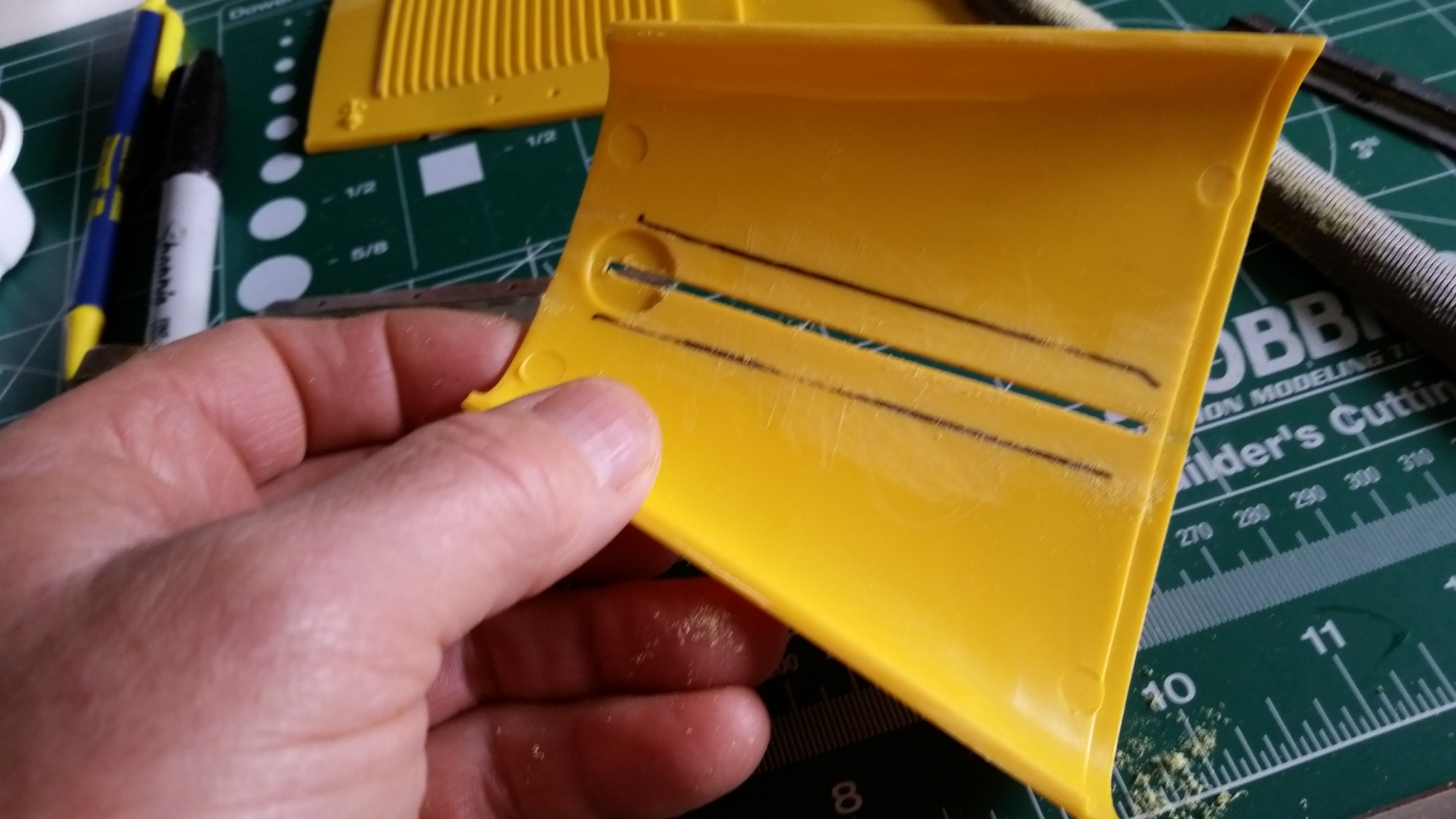

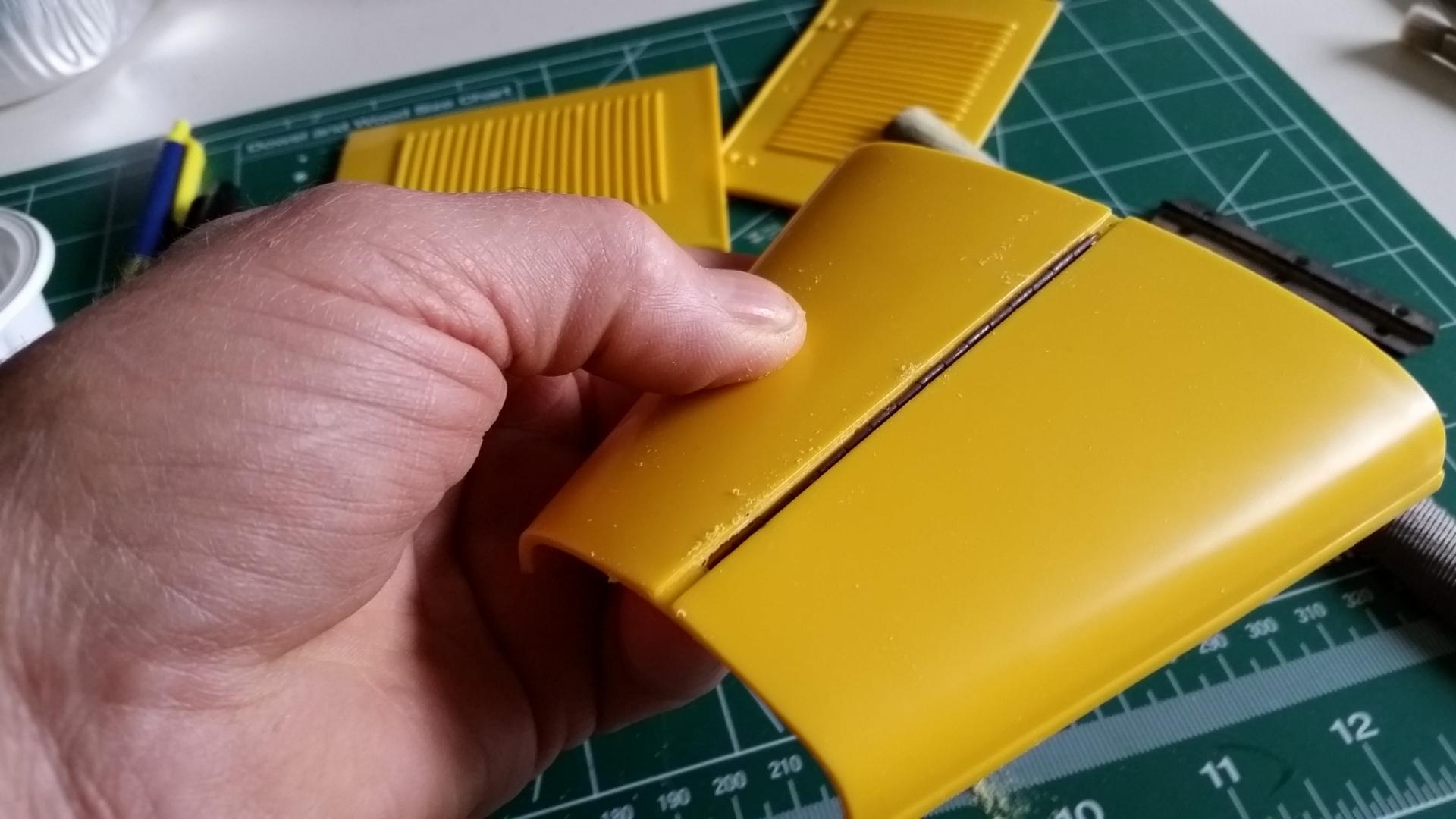

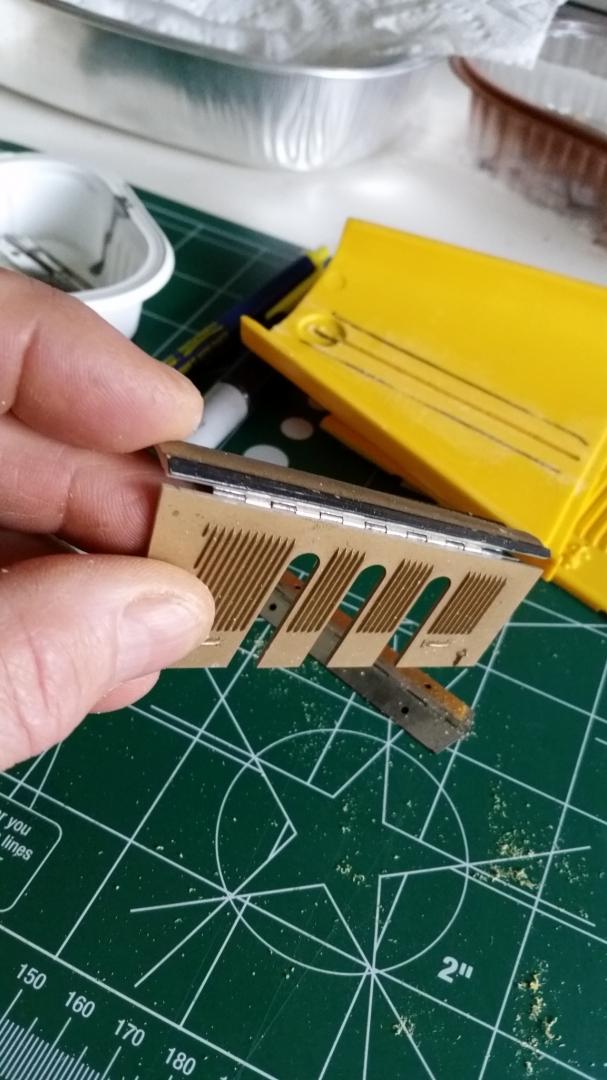

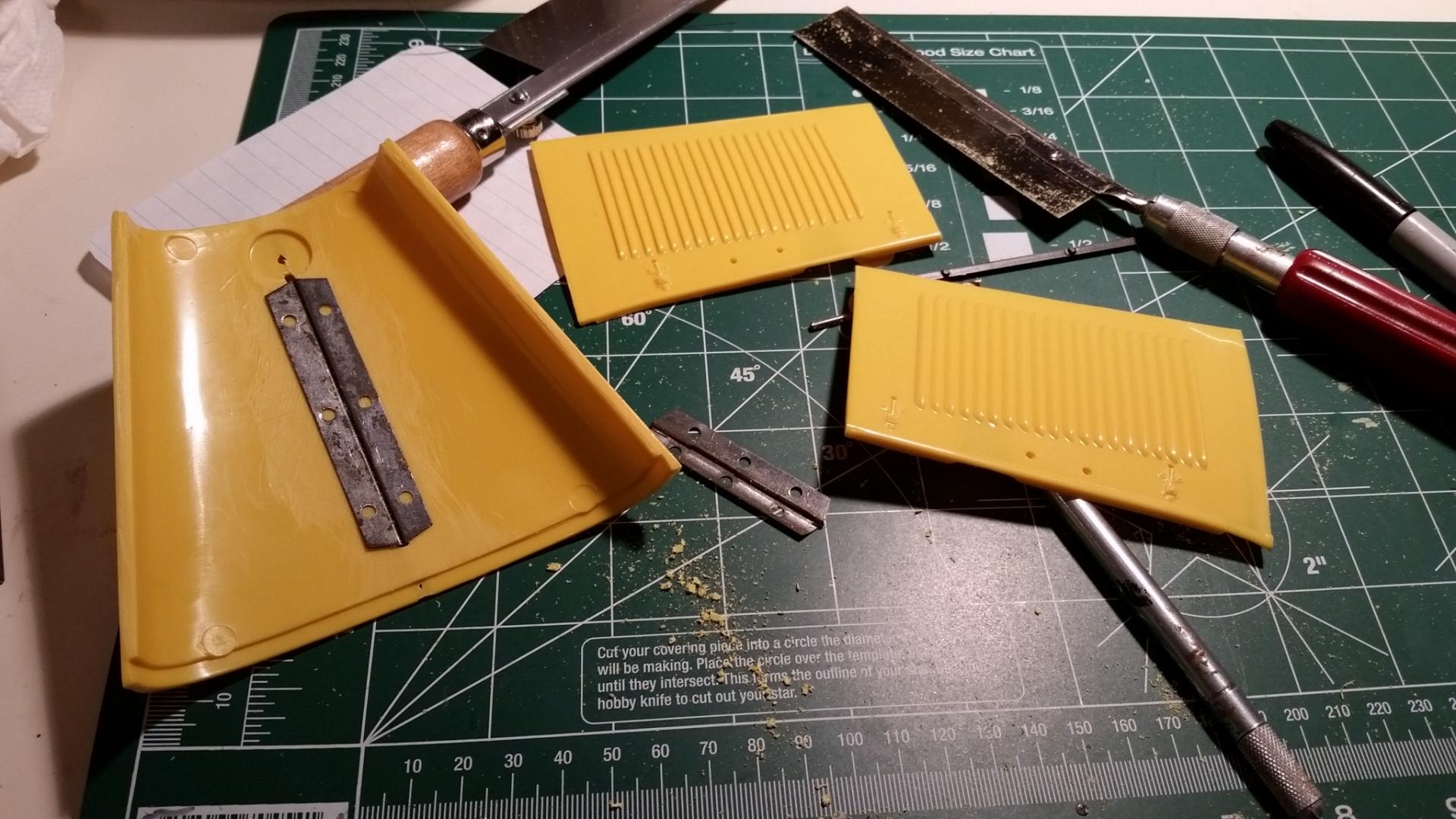

I decided it would be nice for the hood to fold open like the original. so I found some miniature piano  hinges from the ''junkyard''  start by cutting the hood sides off-right below the molding. I left the hood top as one piece and carefully cut the center out for the hinge.this leaves the width of the hood top undisturbed. this way I can glue my hinge in and cut the ends later and everything should be in line-the sides don't matter as much because they fold inward





Share this post


Link to post
Share on other sites

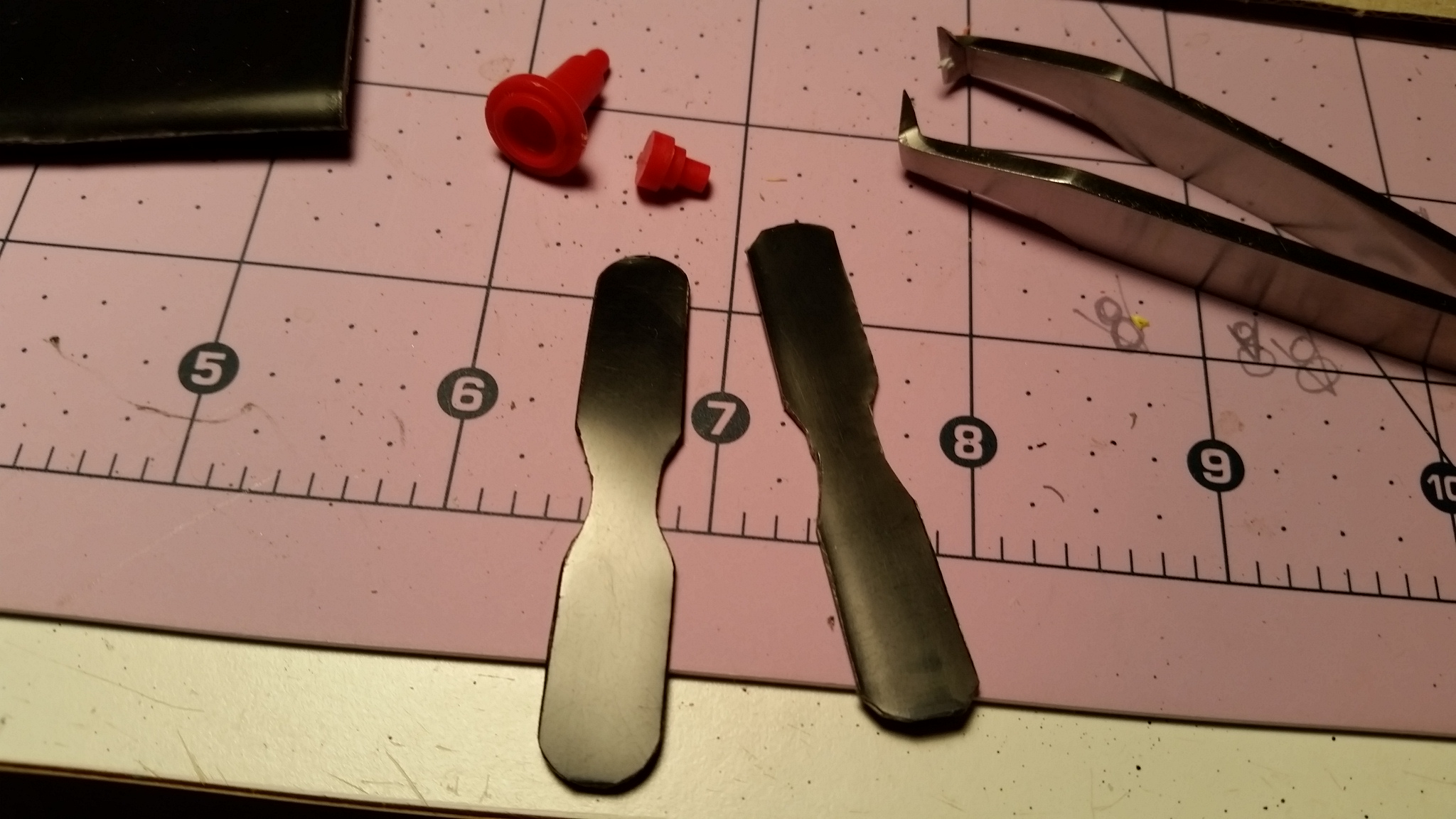

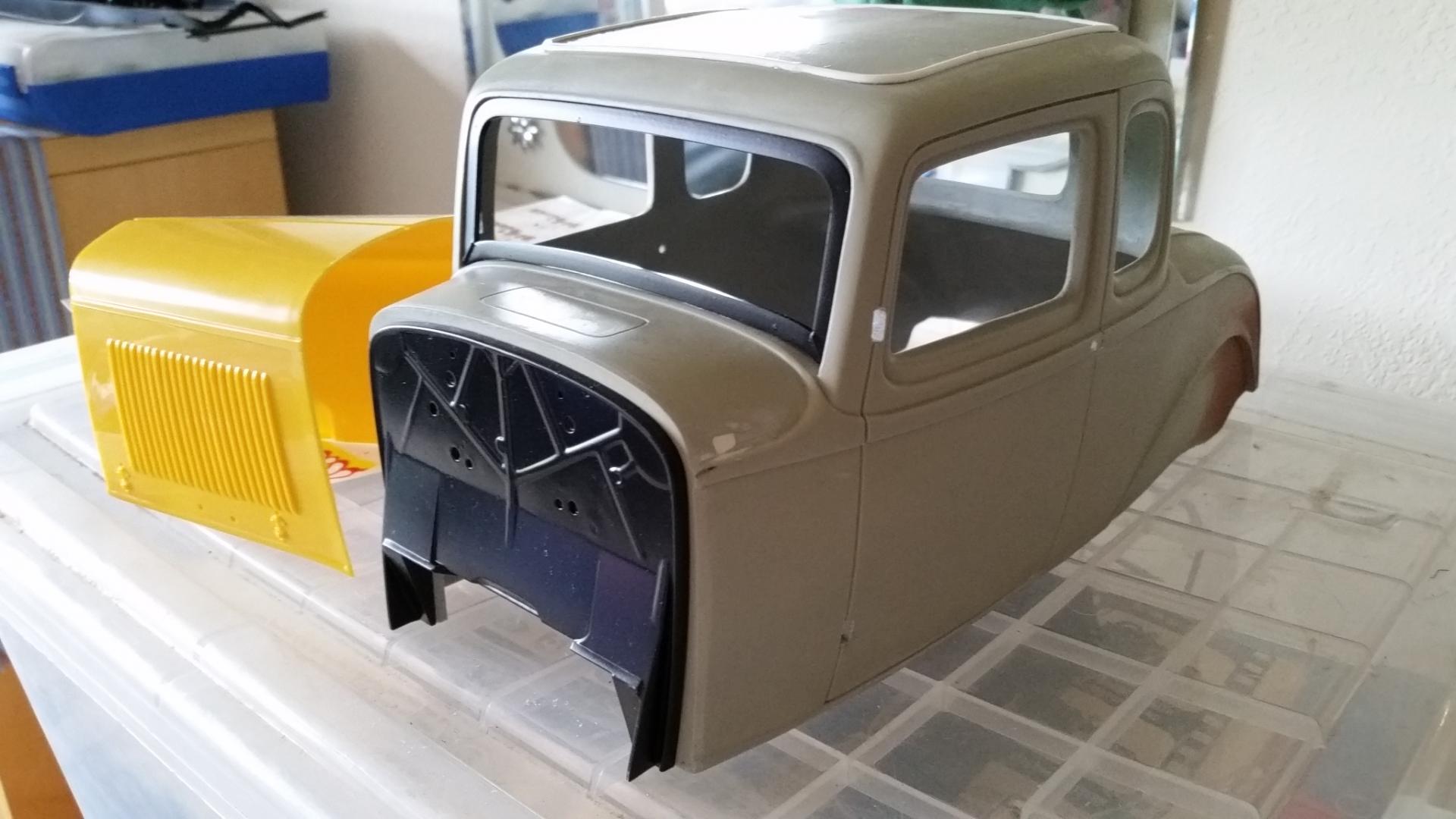

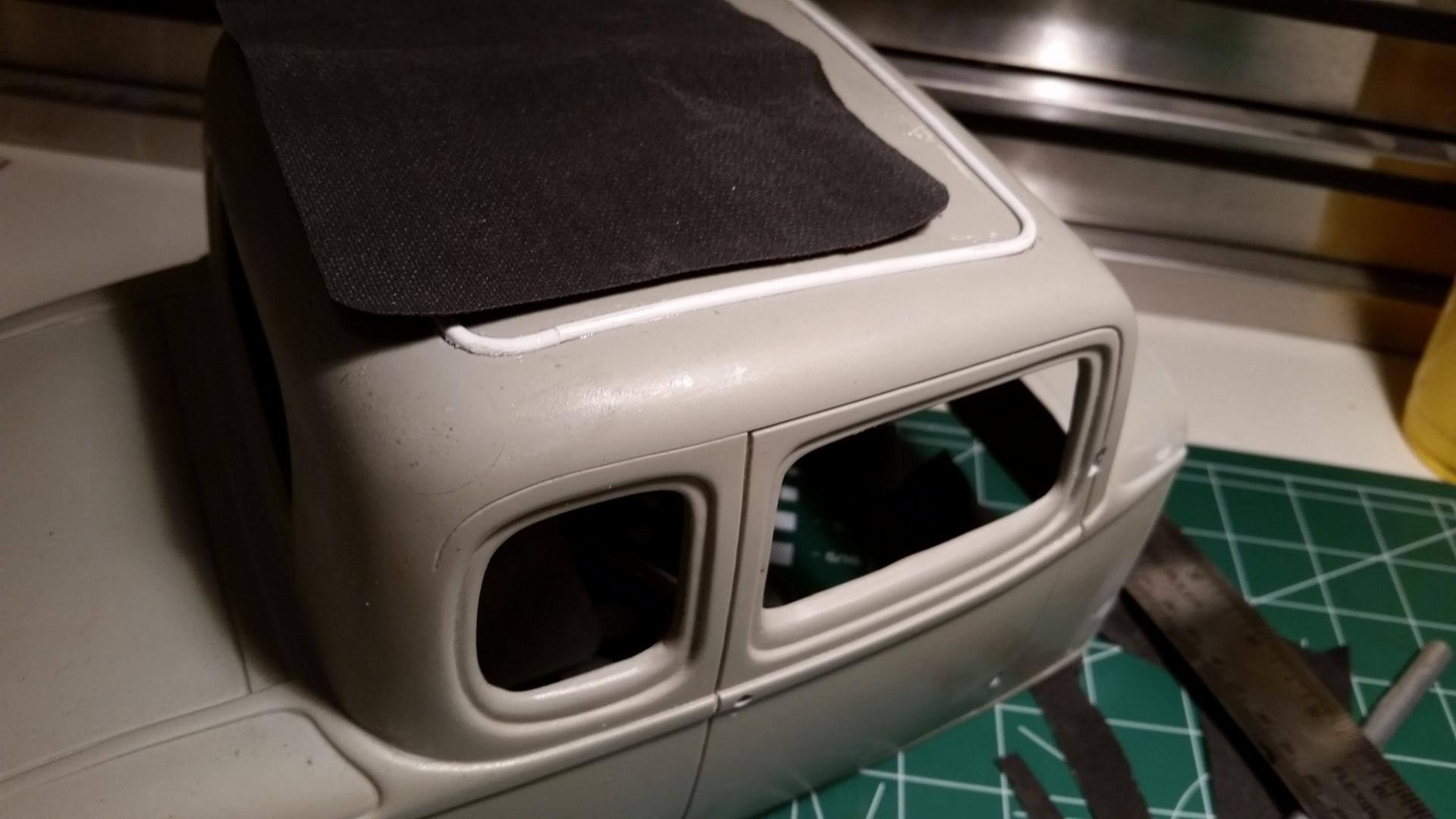

to bring this 5 window back to stock is just a bunch  of small added details- looking at period factory photos helps a bunch in creating the details. here the firewall has been filled where the Hot Rod ''beehive'' oil filter was. then  I built the windshield frame with styrene-note the small finish  moldings at the lower corners. holes are cut to add the door hinges and door handles [which I will also make up] the closed cars had a wavy door handle-much different than the open cars. then the 1/2 round molding on the roof for the top insert-and some grained material for the insert.



Share this post


Link to post
Share on other sites

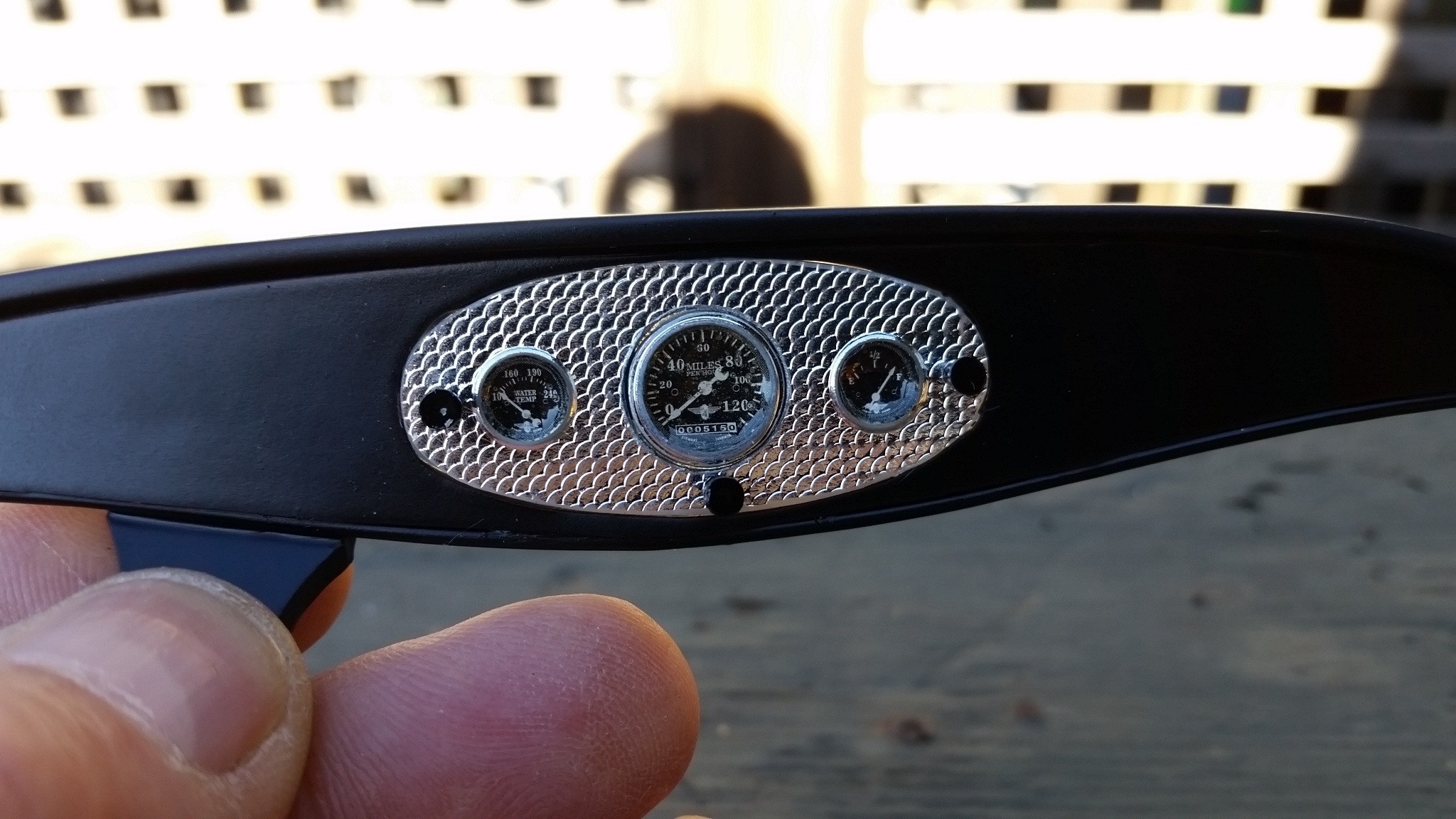

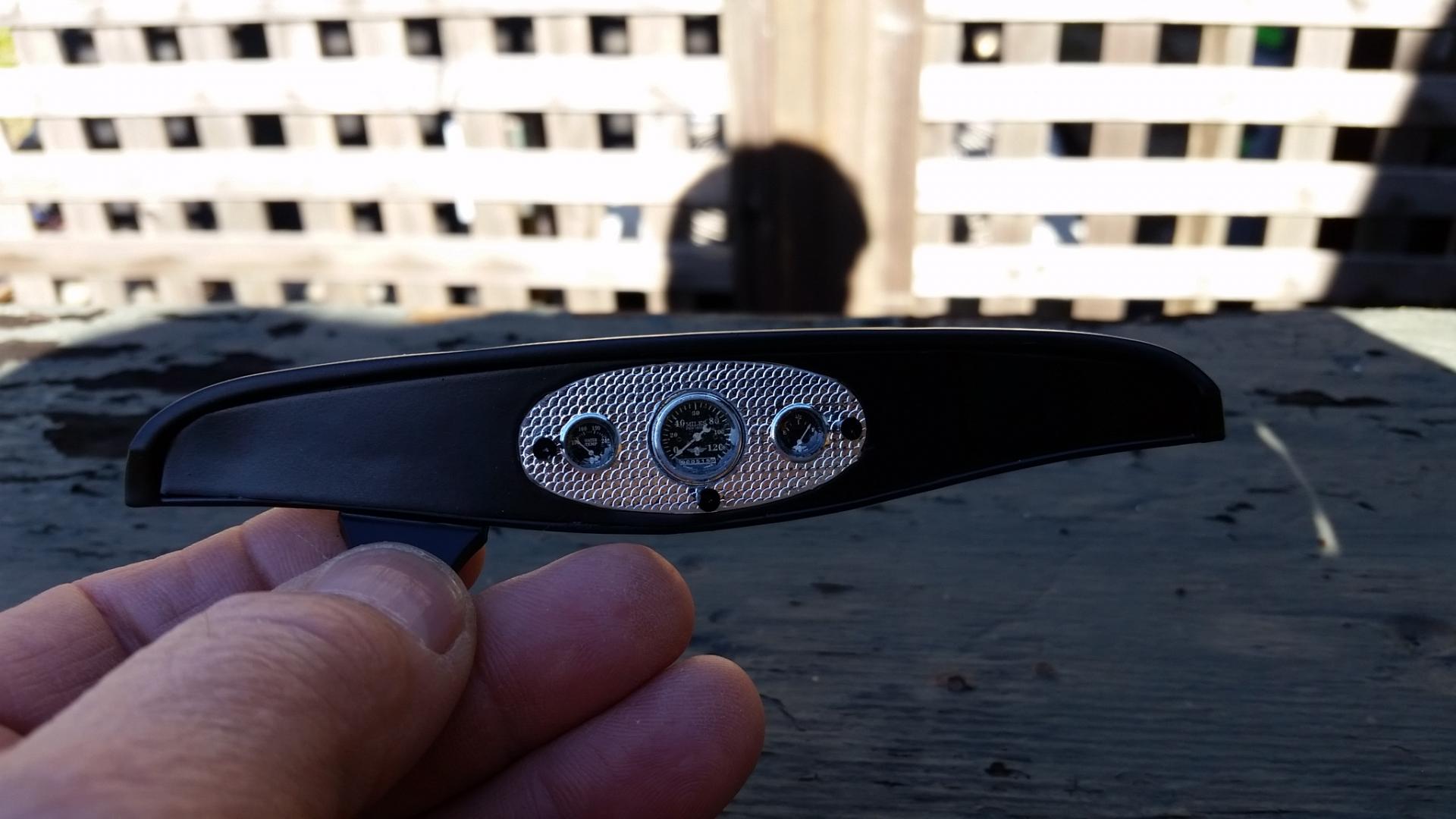

on the dash board I wanted to keep the MACHINE TURNED background.[it is stock] so I took the chrome Hot Rod firewall and cut out an oval around the 3 gauges. then drilled out the center gauge hole . then I cut the bezel out of the speedo on the 5 gauge panel. that was glued to the center-larger hole in the new panel. then I glued in the instrument faces and epoxied over the faces to simulate lenses.  the dash board was covered with sheet styrene-to fill the void of the larger Hot Rod panel- then outlined with my new panel and the hole cut for the new oval panel. then I  added the choke,throttle and panel light switches......



Share this post


Link to post
Share on other sites

This is looking great! The dash is exceptional.

Share this post


Link to post
Share on other sites

Great work on the dash. I thought the original 32s had a little red filled thermometer for a temp gauge though?

Share this post


Link to post
Share on other sites

Very cool idea Frank! Always love seeing stock '32s. Your choice of sheen of black on the engine accessories and chassis parts, and especially the green on the engine, looks pretty close to dead-on correct.

Share this post


Link to post
Share on other sites

Thanks Guys- I am building it close as I can ....real Flathead Aficionados will notice its a later engine as well. the model will represent a car that has been on the road for 15-20 years.

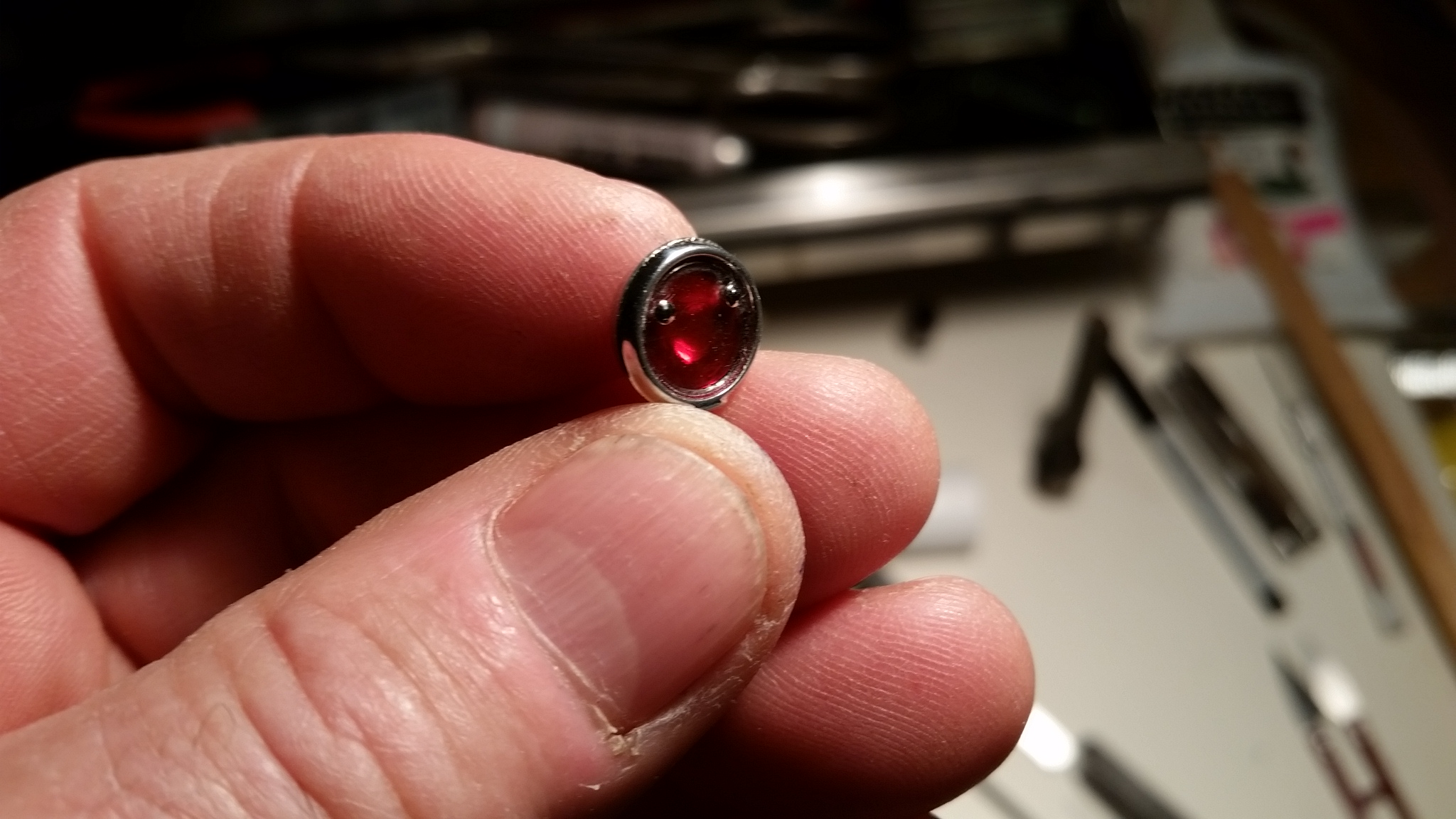

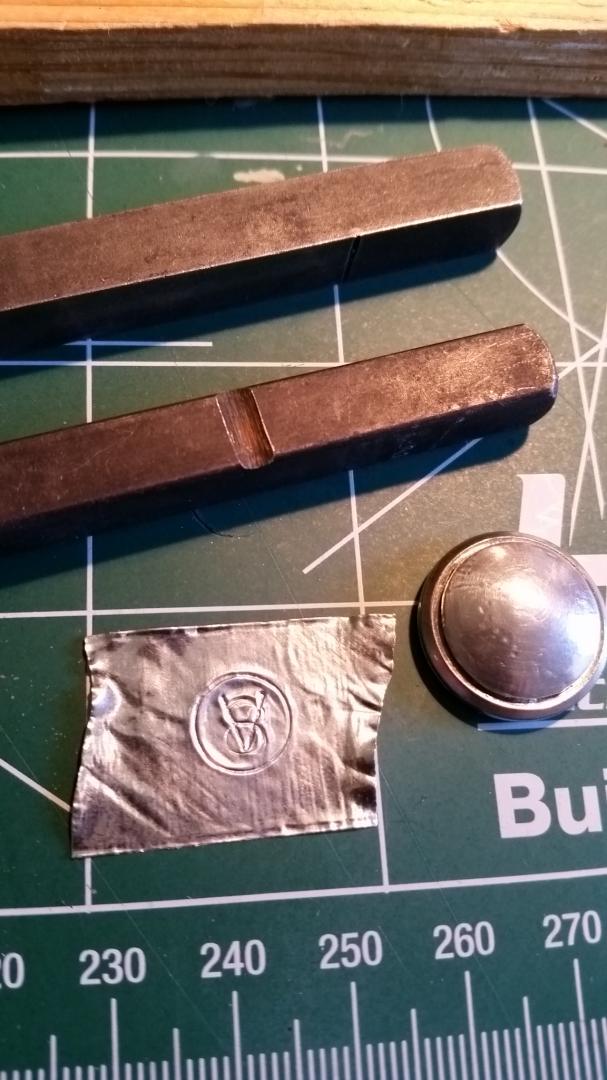

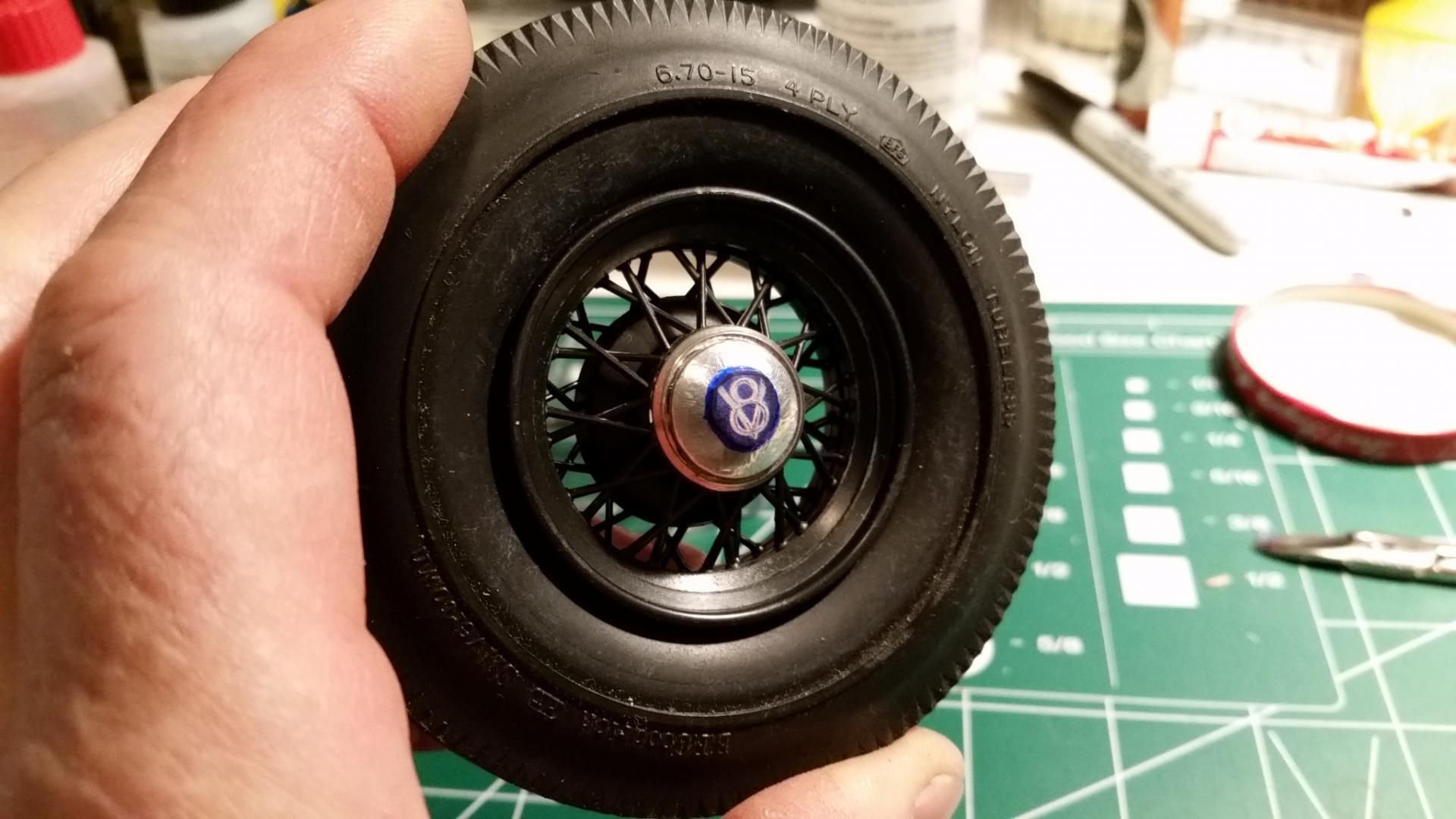

I worked on the hubcaps tonight-still not 100 percent satisfied with the ''V8''  I had insignias scaled down from hubcaps in  a parts catalog and printed on glossy paper-but they are tough to get perfectly round cutting them out.. I sure wish there were some decals out there-would be sharper than this-  but searches turned up nothing so far. also made up the taillight using the cowl lamp..........



Share this post


Link to post
Share on other sites

Yea Mitch-that is correct on the temp gauge.   the speedo on a stock 32 only goes to 90 mph  as well.  with the doors not opening on this model you will only get a glance at the dash anyway.

Share this post


Link to post
Share on other sites
