1/16 Ed Pink "OLD MASTER" Dragster

33 posts in this topic

Posted (edited)

Hey guys, long time since I've posted here. Started this project a few weeks ago, and I hope to have it done by November. I've started a few of these full scratch built 1/16 dragsters and keep getting hung up on one thing or another. But so far this one is going pretty smooth.



I drew up the chassis in Illustrator and made a scale set of plans to work from like I normally do with projects like this. The majority of the frame is 3/32 tube, with smaller rod for the braces. I know some like to only use solid brass rod for chassis, but I find by using tube I get cleaner joints because the excess solder will get pulled into the tube. Making for a lot less clean up.

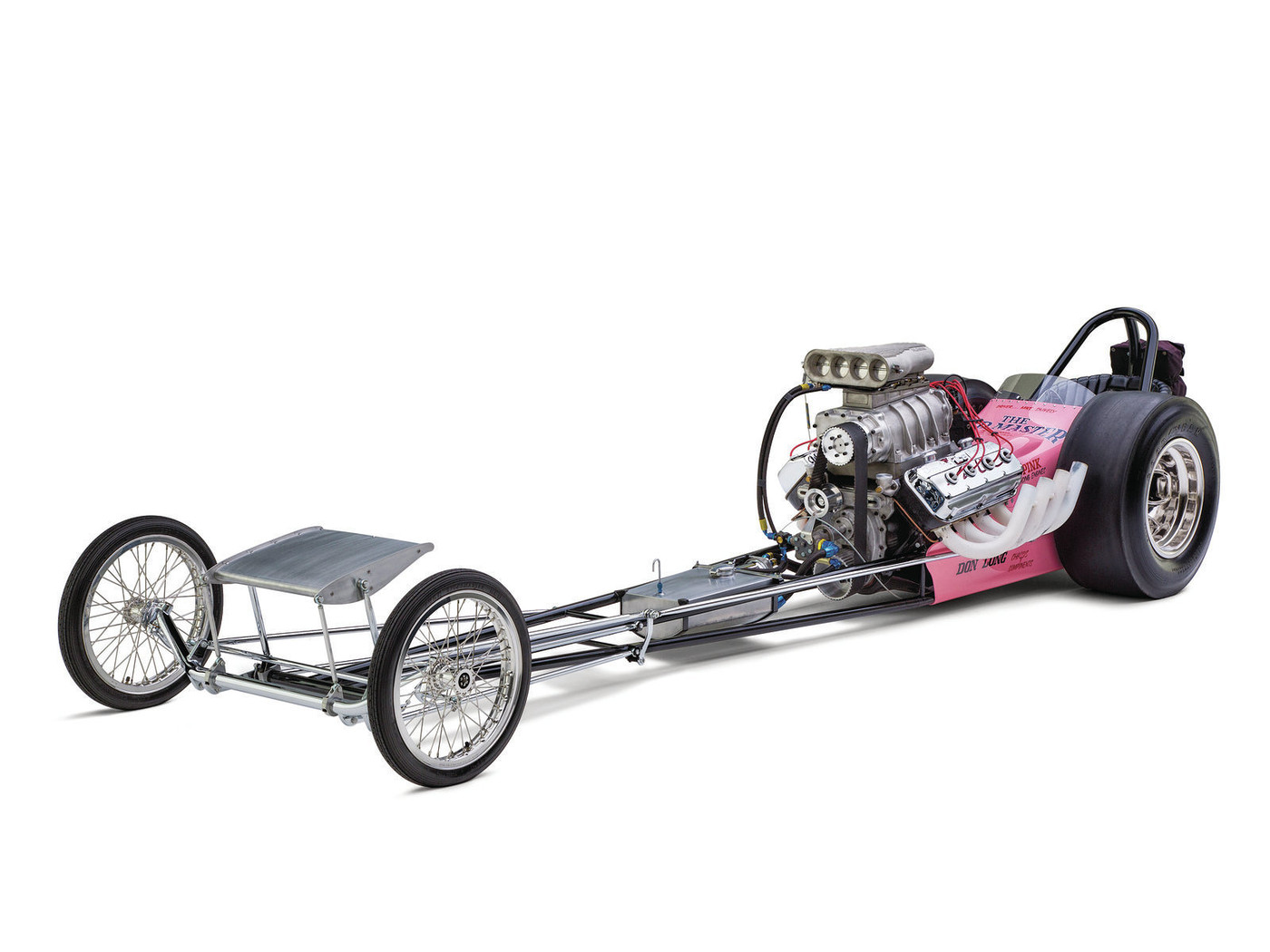

Here's the real restored car. I hope mine looks some where close to as cool as this one does.

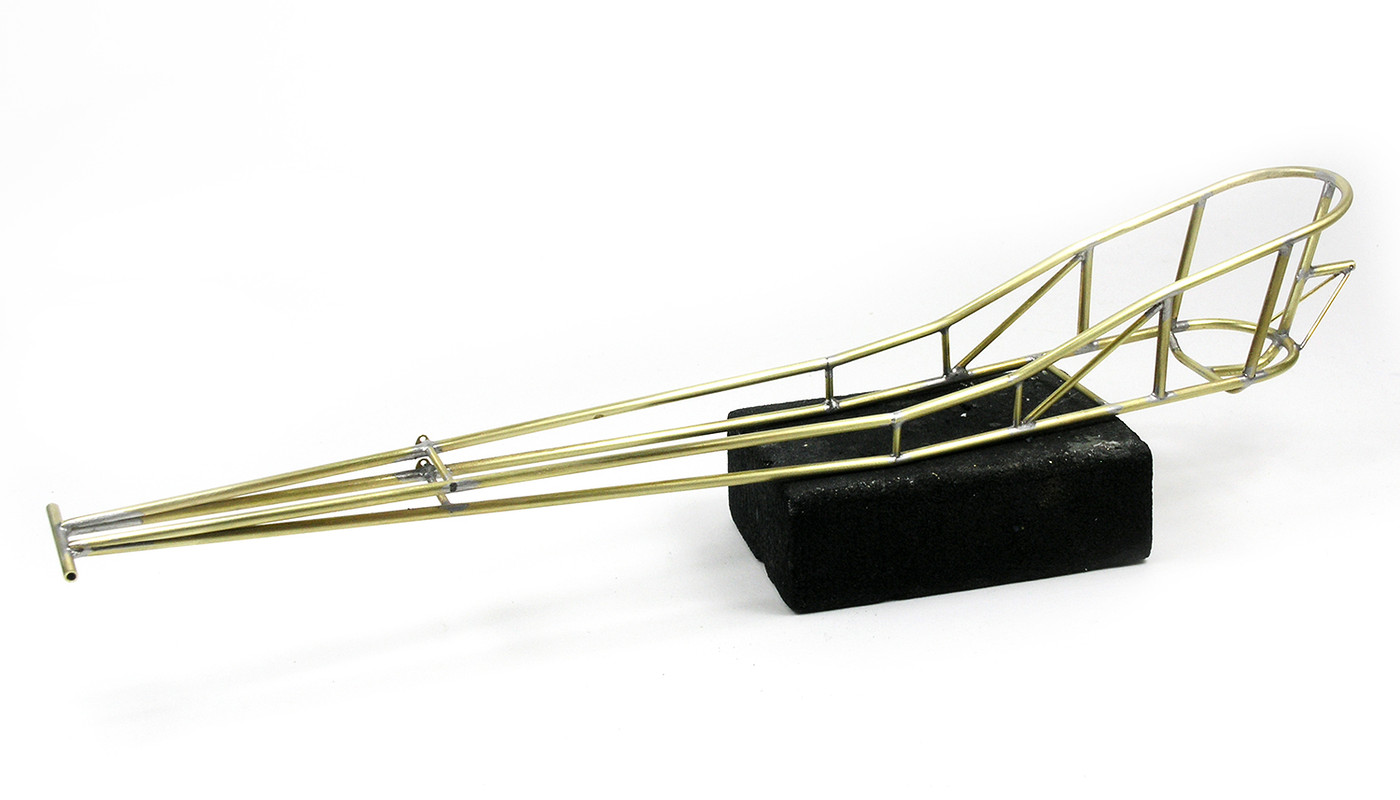

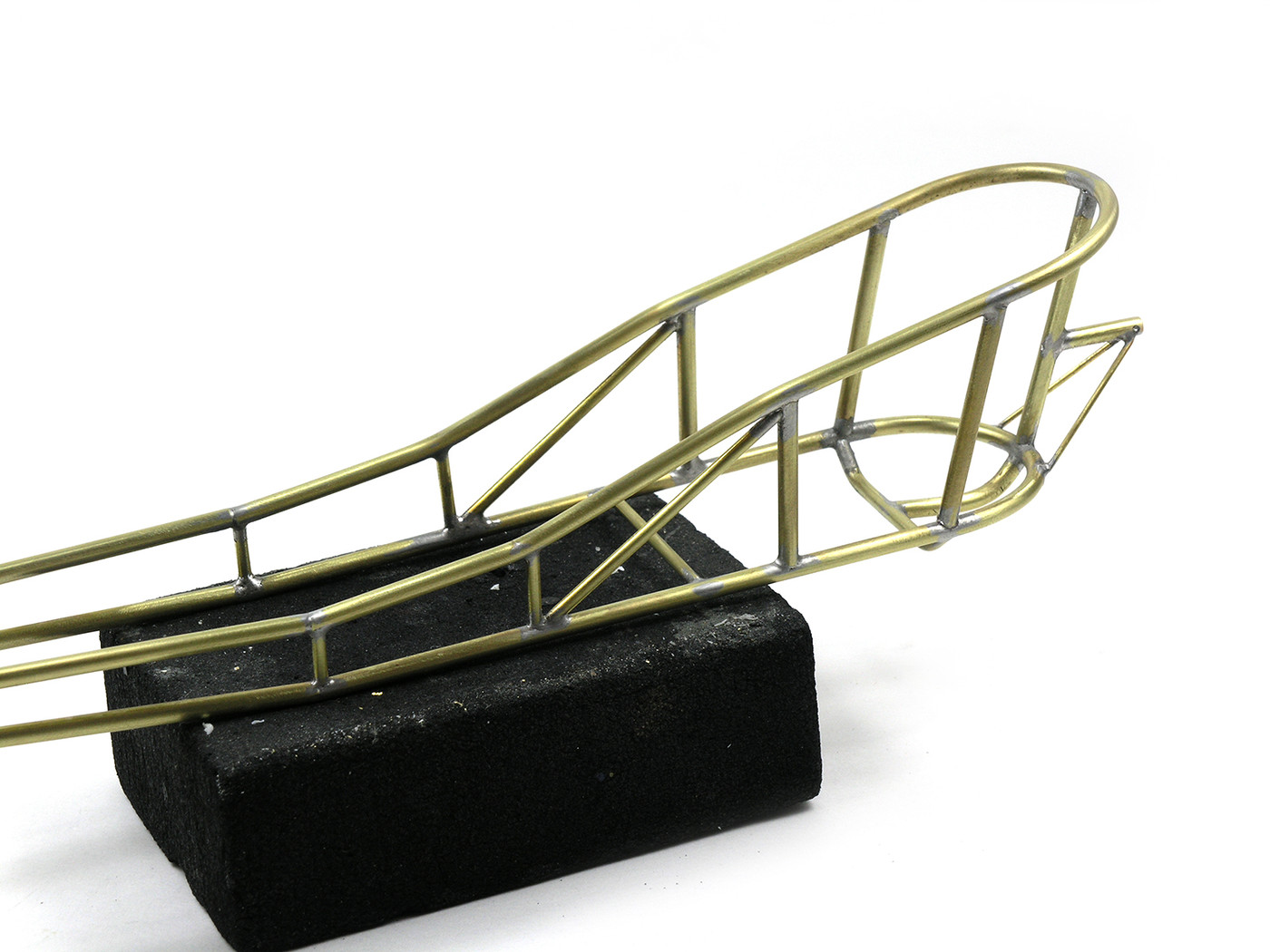

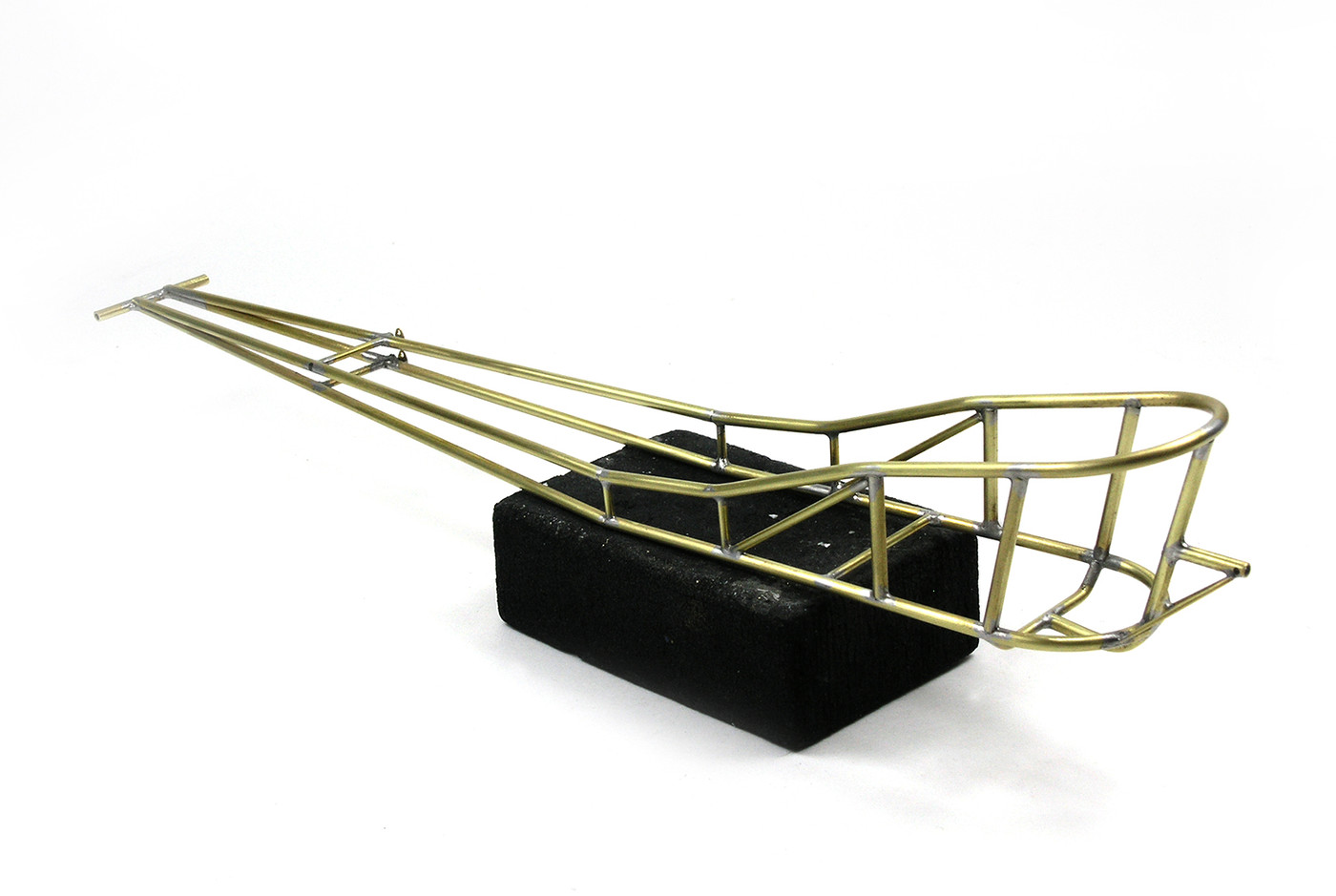

Here's the chassis so far. Big thanks to Chris S. and Tim H. for their help and guidance as I get going on this thing. Tim has been a big help with getting my brass work and soldering better.

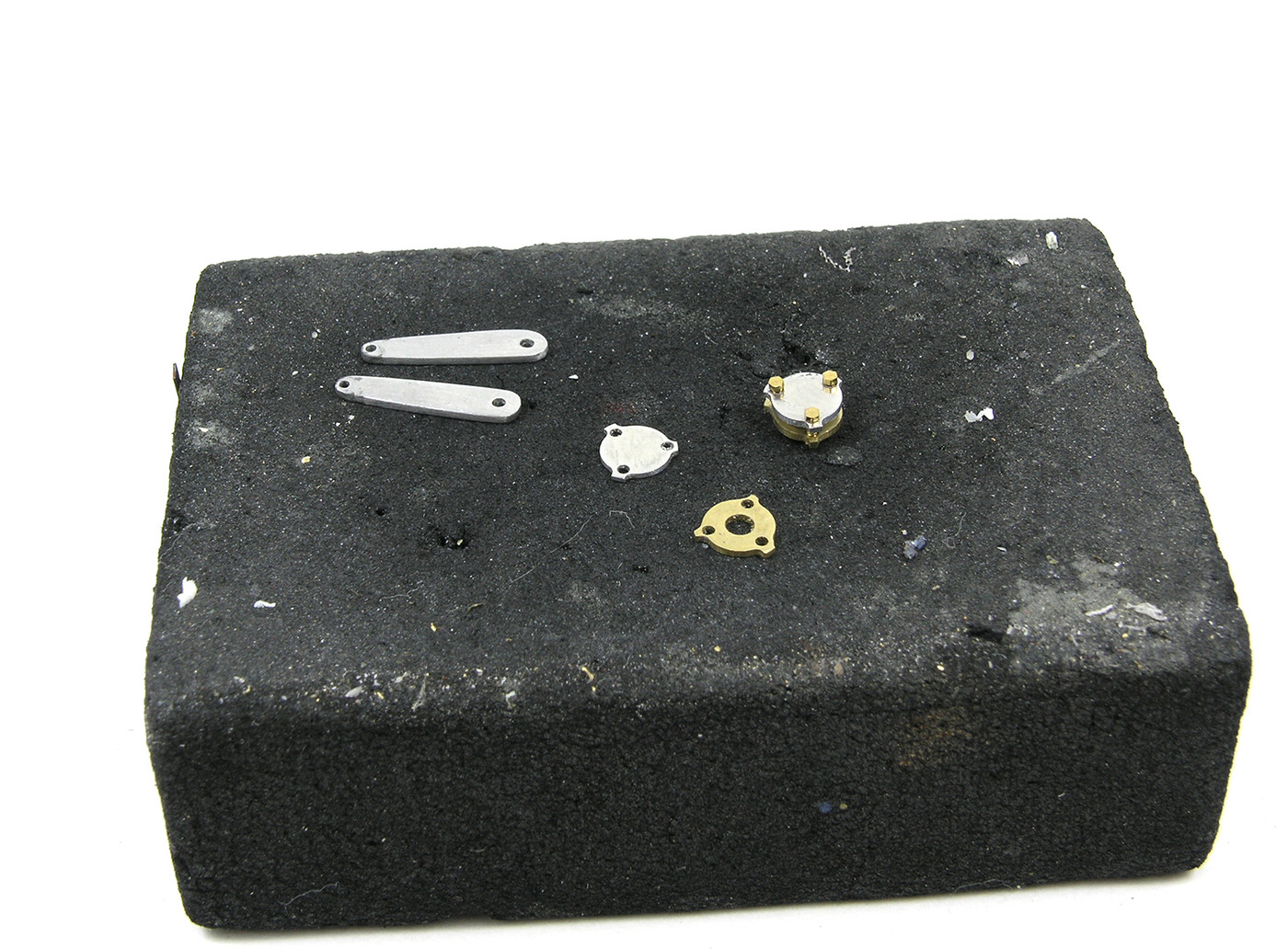

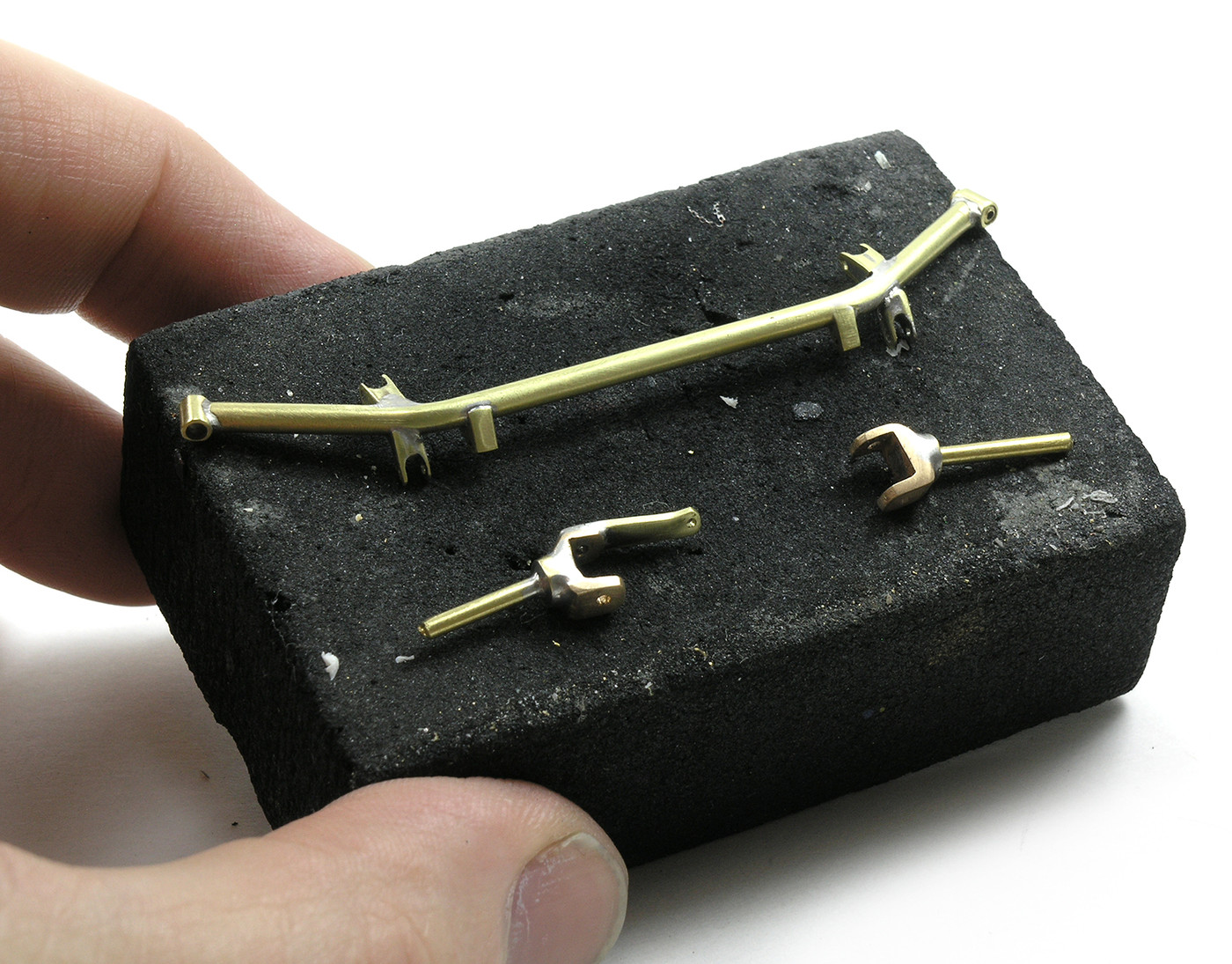

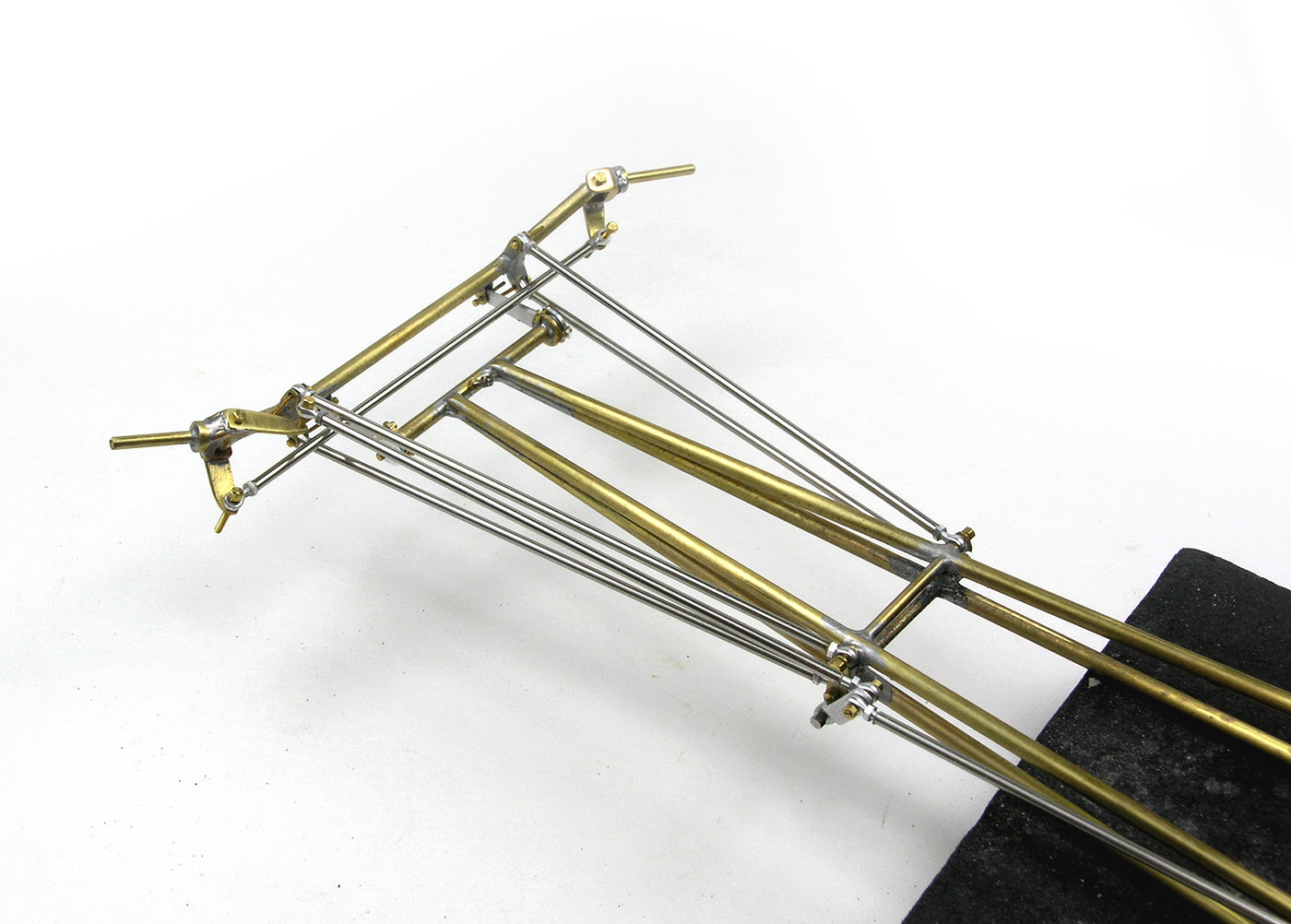

I've also been working on the front suspension. I bent the front axle from brass rod and tube. Small brackets are brass etch from Dirt Modeler. Front radius rod brackets are brass square tubing filed to the right shape and soldered in place. I also machined the steering knuckles and soldered the axles in place. The brass torsion bar mounts and aluminum plates were also machined. These will all bolt up with .8 MM nuts and bolts.

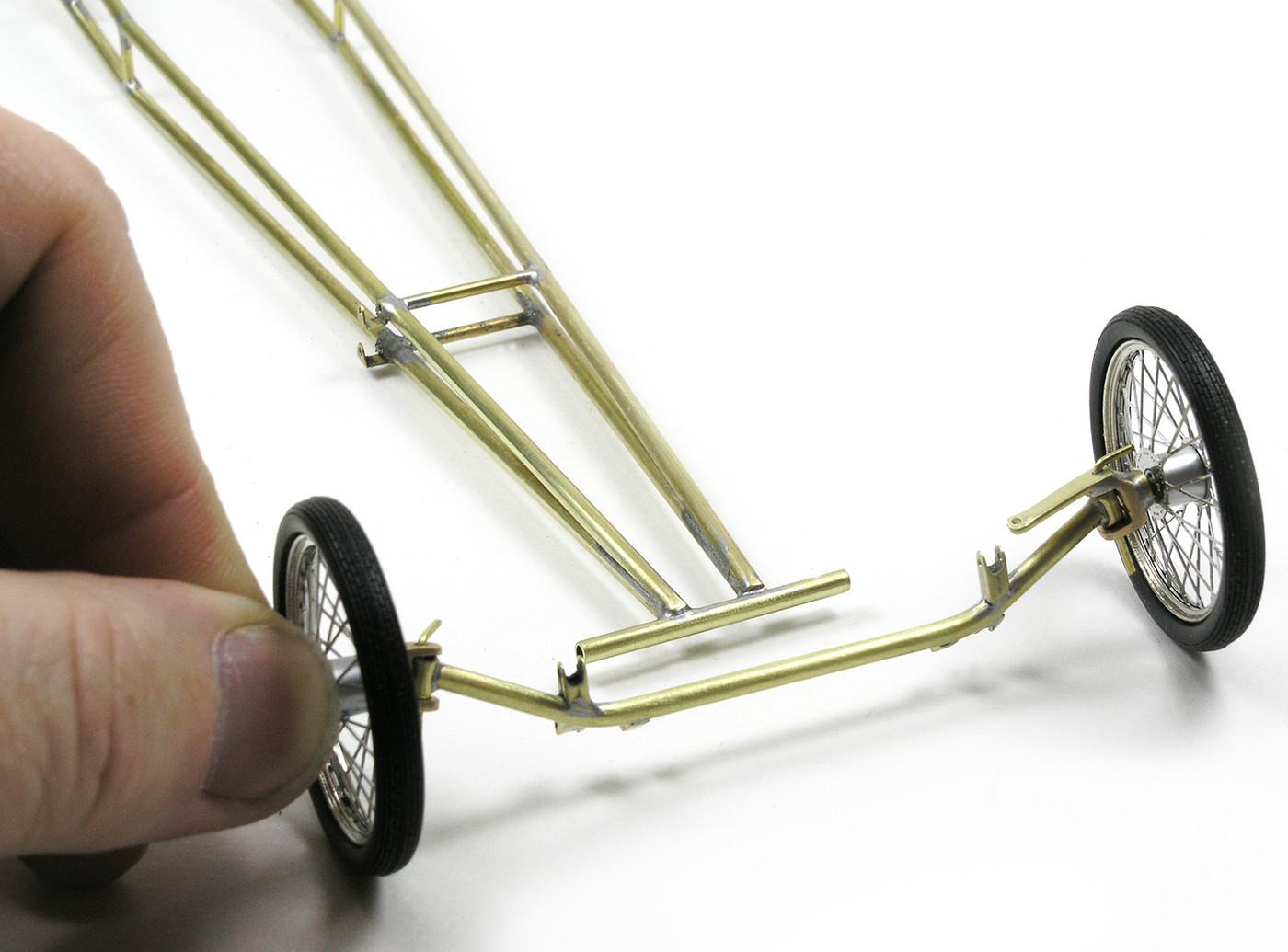

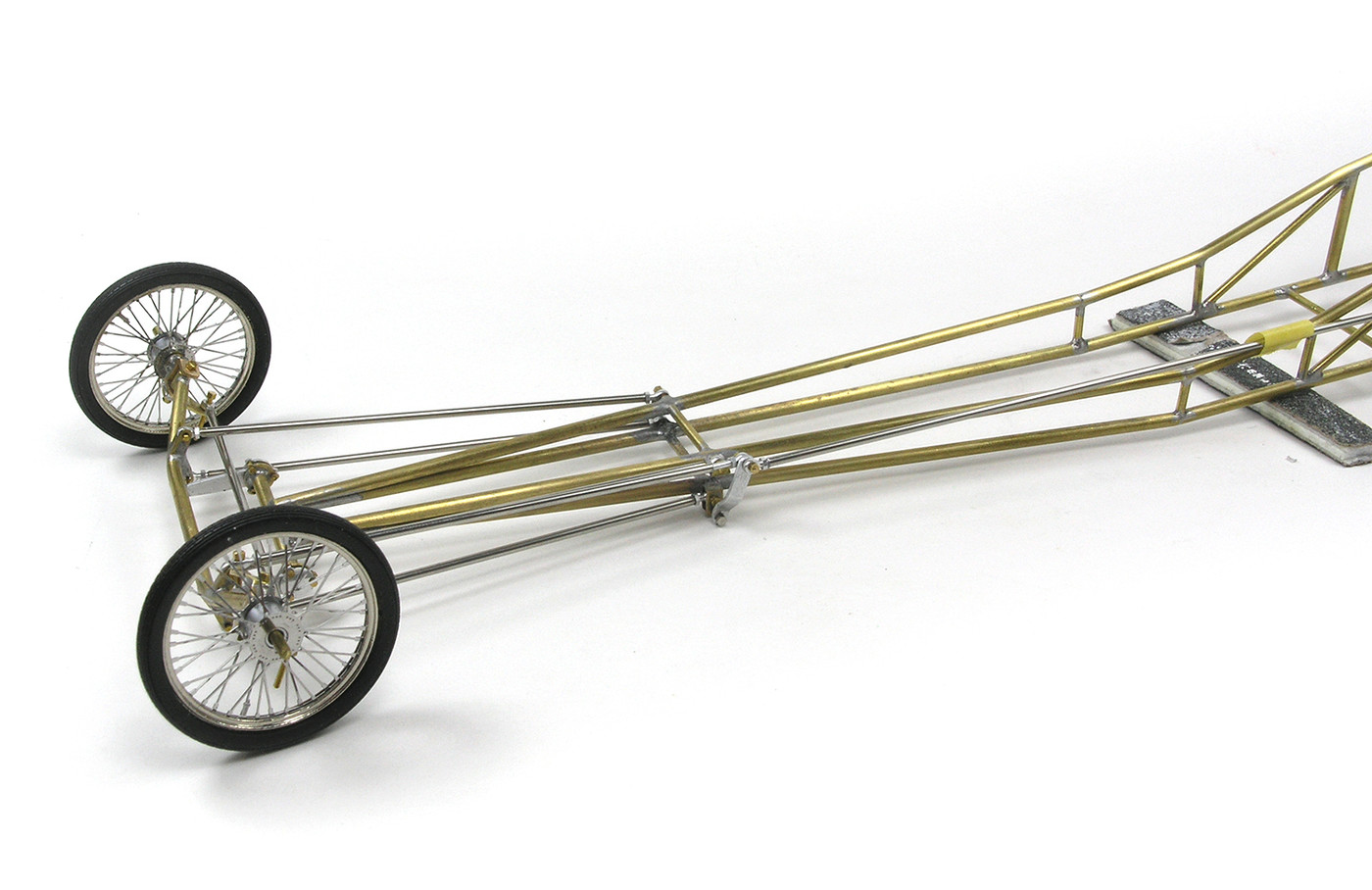

And a quick mock up. Thanks to Chris for the front tires and wheels!




Hopefully I can get the front end all finished up here soon.



Thanks for looking...

CK

Edited by ClayK

Share this post


Link to post
Share on other sites

Posted

Clay, I'm happy to be the first to post on this thread...........we're ALL in for a real treat on this one and I'm glad to see you decided to come back and share it with us.  Your builds have always inspired me and I look forward to more.   Cheers, Tim

Share this post


Link to post
Share on other sites

Posted

Oh yeah!

Share this post


Link to post
Share on other sites

Posted (edited)

Clay... I am so stoked and excited to see you posting this build here. This is going to be one heck of a build that you are going to knock out of the park. You know I will be following along for sure and IF you need anything you know I am willing to help out. I am still trying to find info pit on tat injector hat. Everything is looking killer. The chassis, front Axle are works of art. And those front wheels are looking Great on there ;) Seeing this build it has given me some motivation to get my F/C done so I can start my FED i have been wanting to do. As Tim has mentioned your builds alway inspire me.  Keep up the killer work!

Edited by Mooneyzs

Share this post


Link to post
Share on other sites

Posted

great to see you buddy!!!  you just had to pick a pink car didn't you? hehe.

Share this post


Link to post
Share on other sites

Posted

Great looking work so far!

Share this post


Link to post
Share on other sites

Posted (edited)

Awesome work as usual Clay!  Nice to see you posting here!

Tim, Chris and your brass-work make me almost want to give it a whirl myself.... almost... haha

Edited by Impalow

Share this post


Link to post
Share on other sites

Posted

Magnificent work so far.

Share this post


Link to post
Share on other sites

Posted

Great start. Cool another brass project to follow.

Share this post


Link to post
Share on other sites

Posted

Clay.......glad to see you back at the bench......hope you and your family are doing good



Share this post


Link to post
Share on other sites

Posted

Thank you guys....I've made a lot of progress on the front suspension. Should have an update soon.

Share this post


Link to post
Share on other sites

Posted

So glad to have you back. And doing this type of build, and the Old Master in particular, is a special treat. Will this project be primarily scratch built?

Share this post


Link to post
Share on other sites

Posted

O man, how have I missed this?? Glad I got dialed in. Clay - this is looking spectacular. That front end is a thing of beauty. Your brass work is spot on. I'll be following along and be right in the front row. So glad to see you share this with all of us. Such inspiring work.

Share this post


Link to post
Share on other sites

Posted

Very Kool Clay. Love those front engine dragsters.

Share this post


Link to post
Share on other sites

Posted

Clay... I am super stoked that You are going to have an update for us. I know its going to be a good one!! ;) Looking forward to it.

Share this post


Link to post
Share on other sites

Posted

Okay Clay, it's been a week now since your last post......................pics please.......I did say "please".    ;)   cheers, tim

Share this post


Link to post
Share on other sites

Posted

Fantastic start, Clay.  I'm looking forward to seeing what you have in store for us...

Share this post


Link to post
Share on other sites

Posted

Nice work, going to be following your build. Where did you get those front wheels and tires? After seeing yours and others brass builds, I've thought about trying it myself. Where did you get those front wheels and tires?



Share this post


Link to post
Share on other sites

Posted

and i thought i was busy........hey buddy! hehe.

Share this post


Link to post
Share on other sites

Posted

Very C😎😎L looking build.

Share this post


Link to post
Share on other sites

Posted

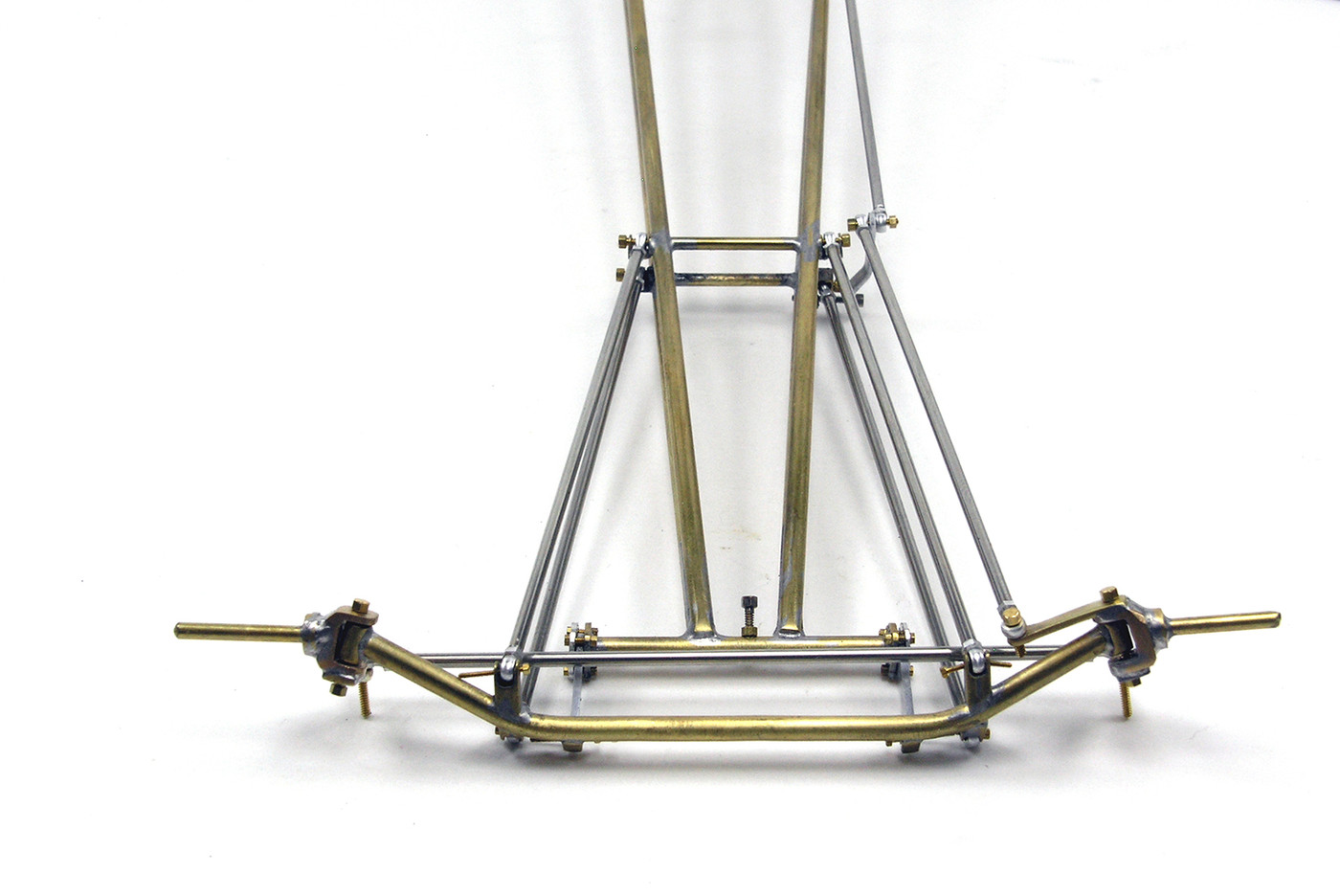

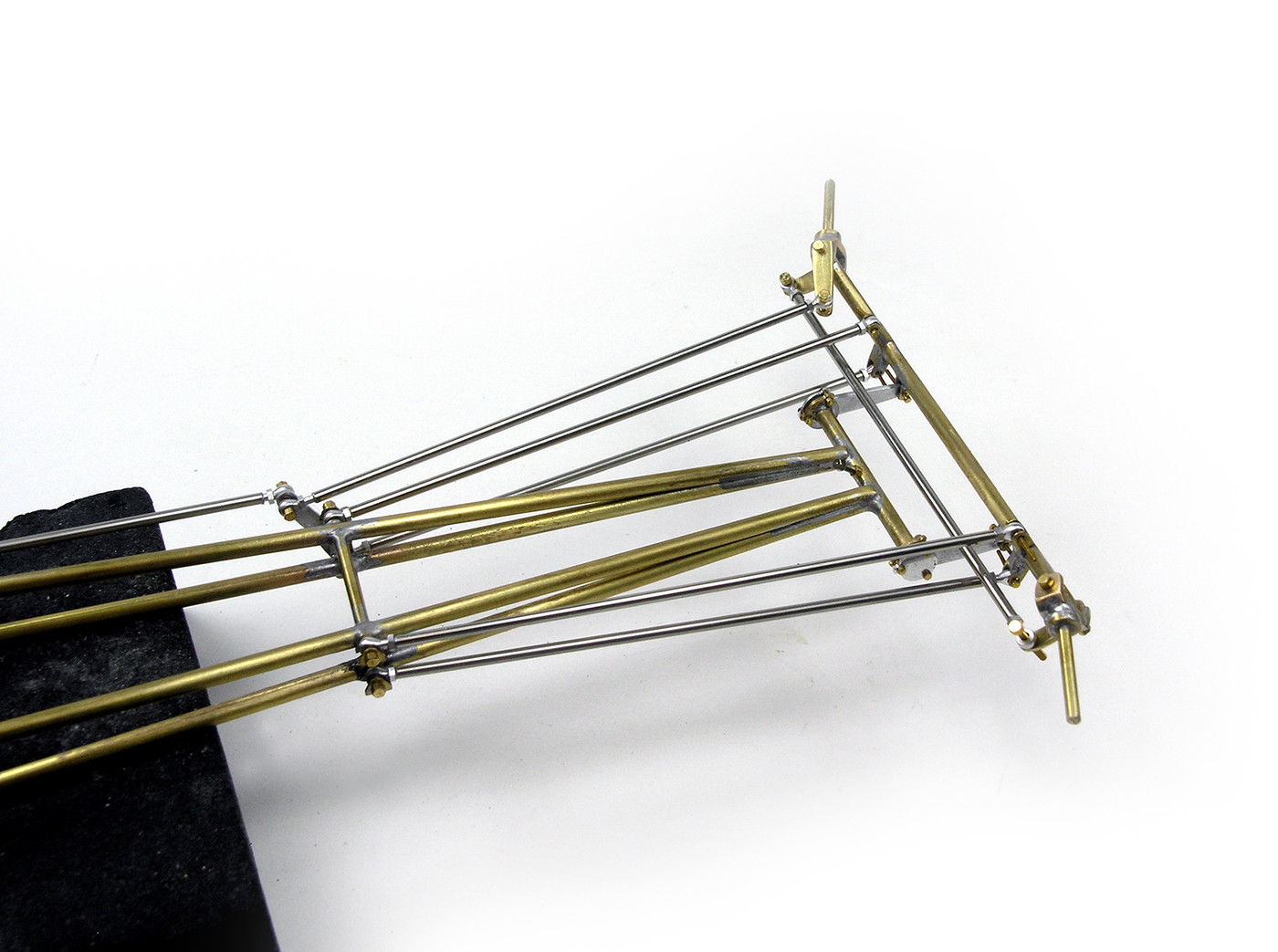

Finally got some time to take some pics of my front end progress. I ordered some stainless steel hypodermic tubing from Amazon for all the linkages. They slid right over the #1507 RB Motion rod ends. Right now everything is temporally held together with brass bolts. When I put everything back together I will make sure I get the right nuts and bolts on to hold it together properly. things are a floppy mess right now.













Thanks for looking.

Clay



Share this post


Link to post
Share on other sites

Posted

The design of the fitments, not to speak of the precision of execution, is stunning. I can't recall you working in quite this manner before, but perhaps I'm mistaken.

Share this post


Link to post
Share on other sites

Posted

Absolutely mind blowing detail and craftsmanship. Wouldn't expect anything less with your work.

Share this post


Link to post
Share on other sites

Posted

Clay........just a Awesome up-date.......your fabrication on this build is incredible .......love it:wub:!!!!!!



Share this post


Link to post
Share on other sites

Posted

YUM, that is quite tasty Clay and was certainly worth the wait.  Great pics too btw.   cheers, tim
