'55 Ford

17 posts in this topic

Posted (edited)

20170707_214250.thumb.jpg.851f3c02668d5b

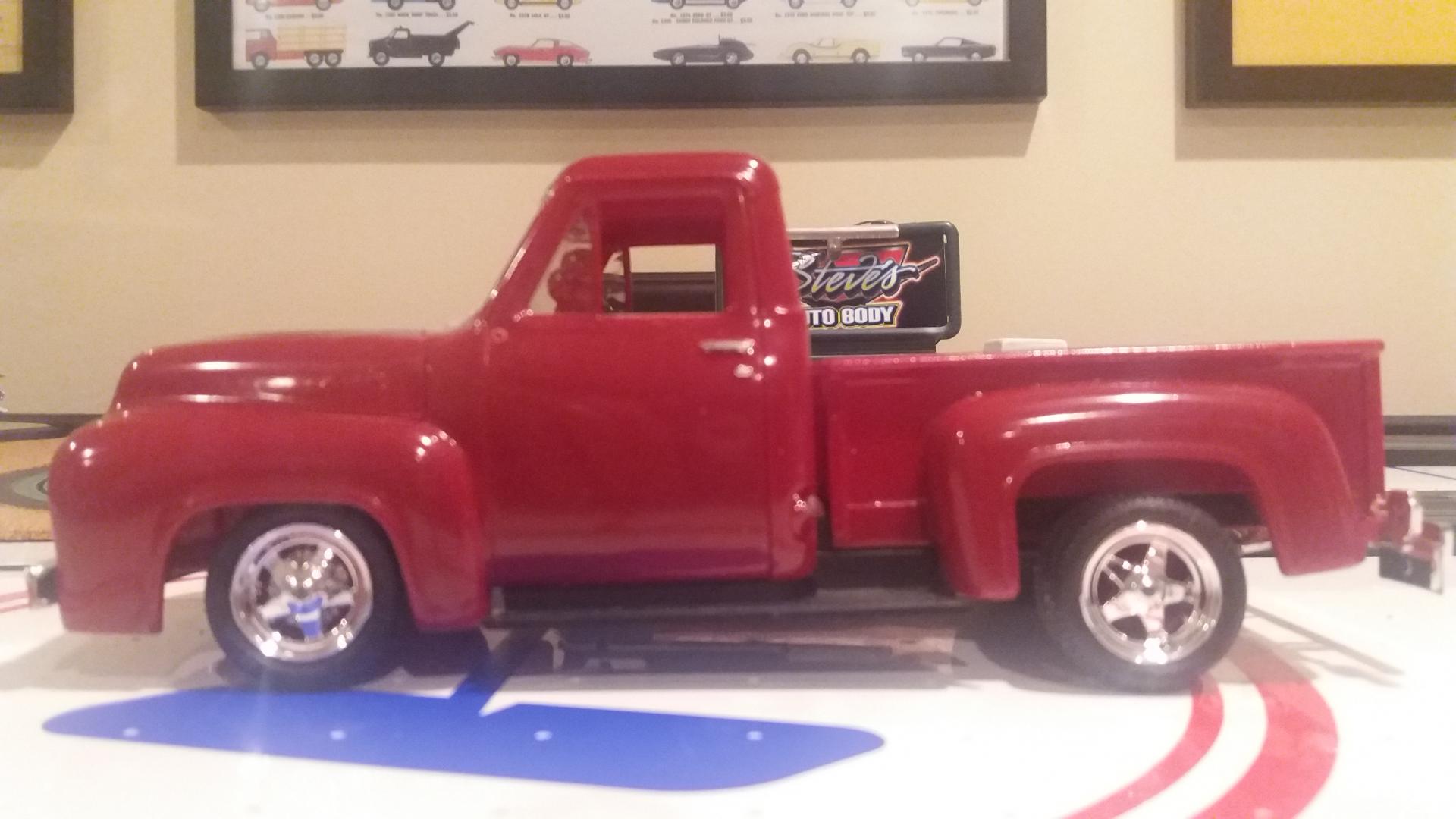

I was going thru some of my built ups and came across this interesting piece. She was built about 20 years ago. I thought this one needed to be brought up to date, So...

20170707_214904.thumb.jpg.6c4baf85c8cc5e

20170707_215150.thumb.jpg.c14ed31e382785

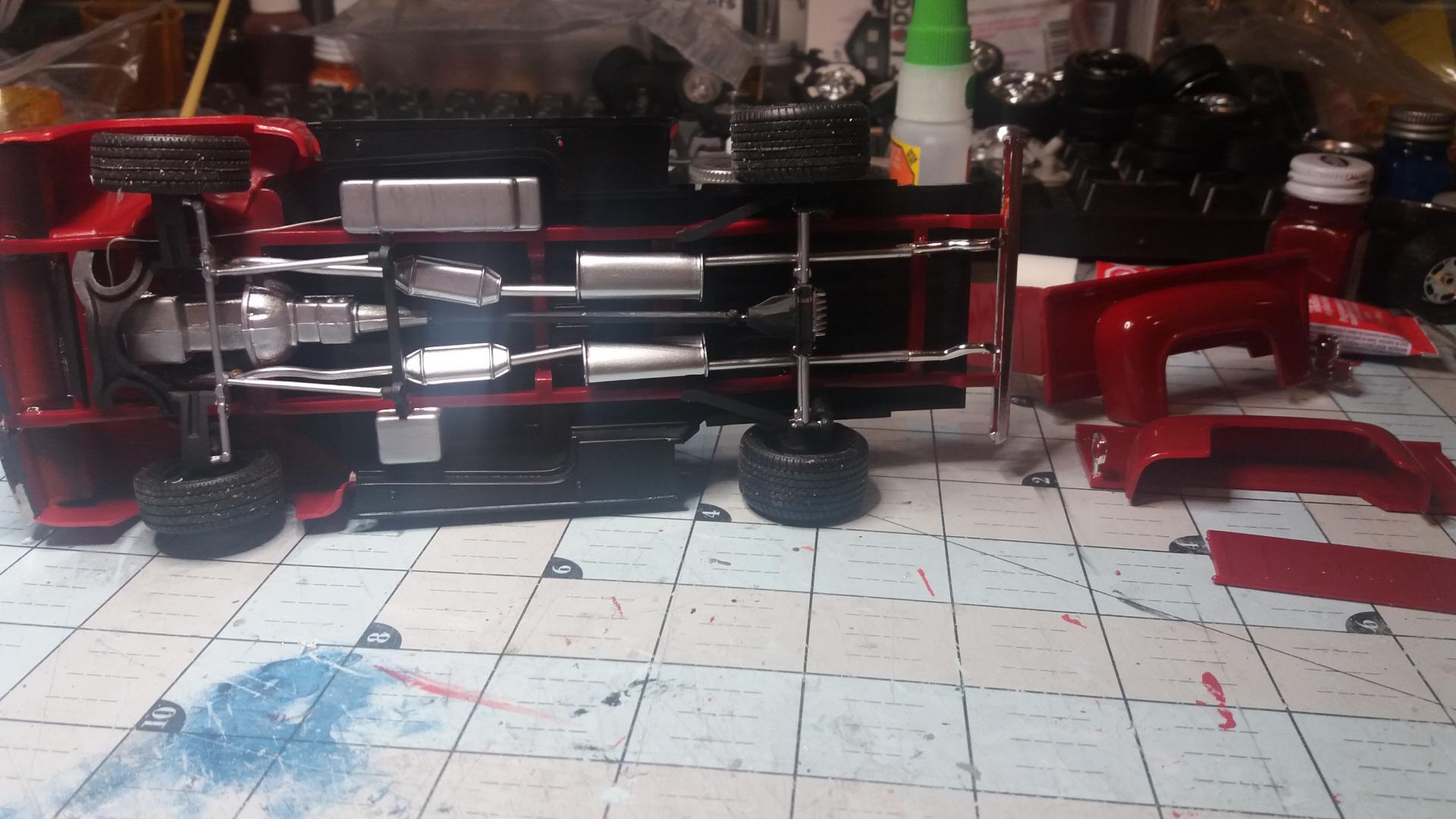

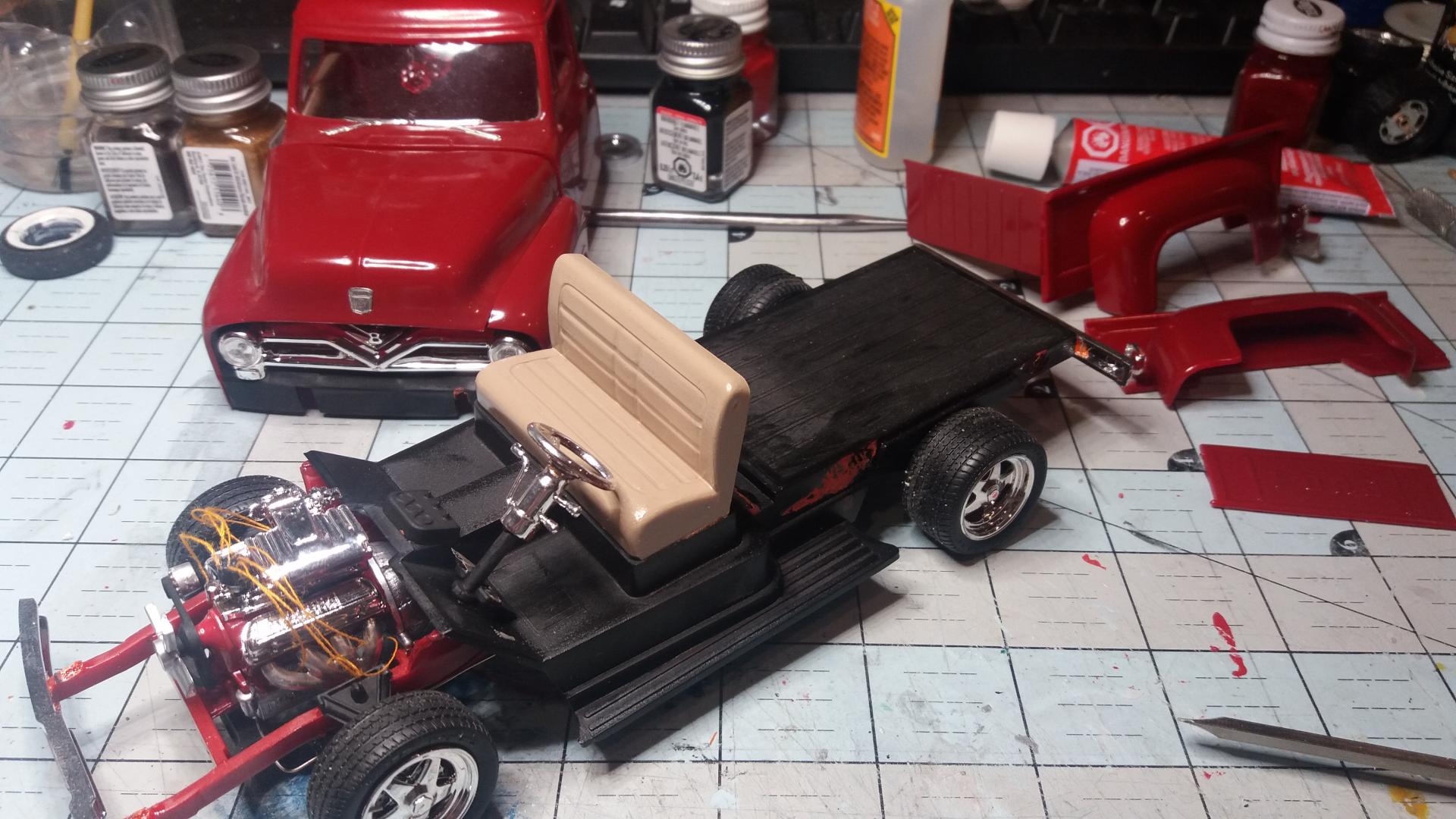

You gotta take it apart if you want to redo it...

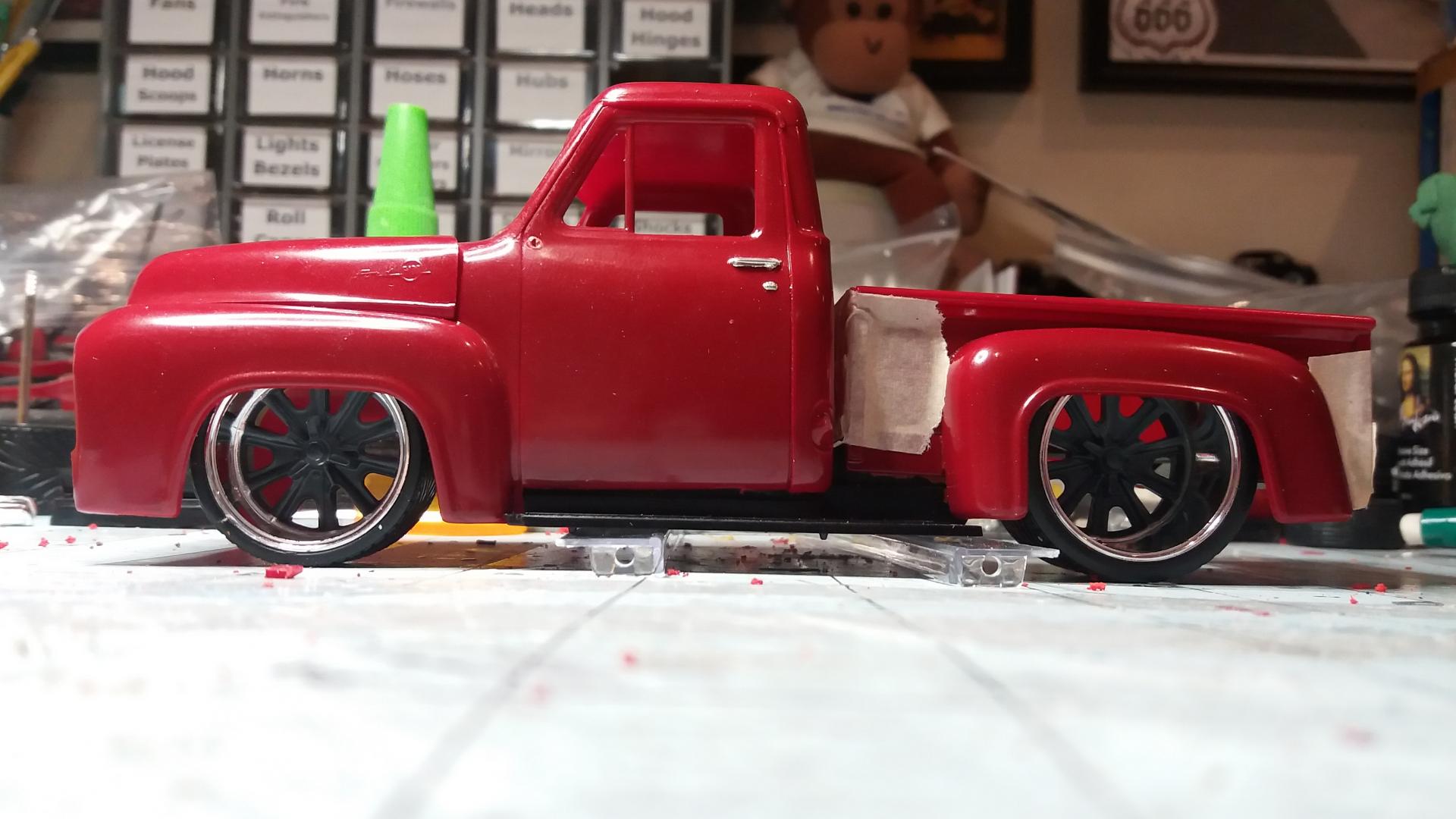

20170708_090057.thumb.jpg.213c5a0be0db6a

Inspired by something I saw on Bitchin' Rides. The wheels are from one of those Big Time toys. The colors will be a tribute to one of my favorite beers. Guinness.

Stay Tuned...

Edited by Slotto

Share this post


Link to post
Share on other sites

Posted

looks like a 55 cab to me..

Share this post


Link to post
Share on other sites

Posted



You are correct sir


Share this post


Link to post
Share on other sites

Posted

It looks like you already had a very nice looking build going in. I'm glad to see you got the front tires centered in the opening. This is a problem for the 1:1 truck also.

Share this post


Link to post
Share on other sites

Posted

20170709_214121.thumb.jpg.09581e1e883c56

20170709_214130.thumb.jpg.d39962b8959f7e

20170709_214202.thumb.jpg.69f25dd9361d17

20170709_214222.thumb.jpg.ae416ffb955b12

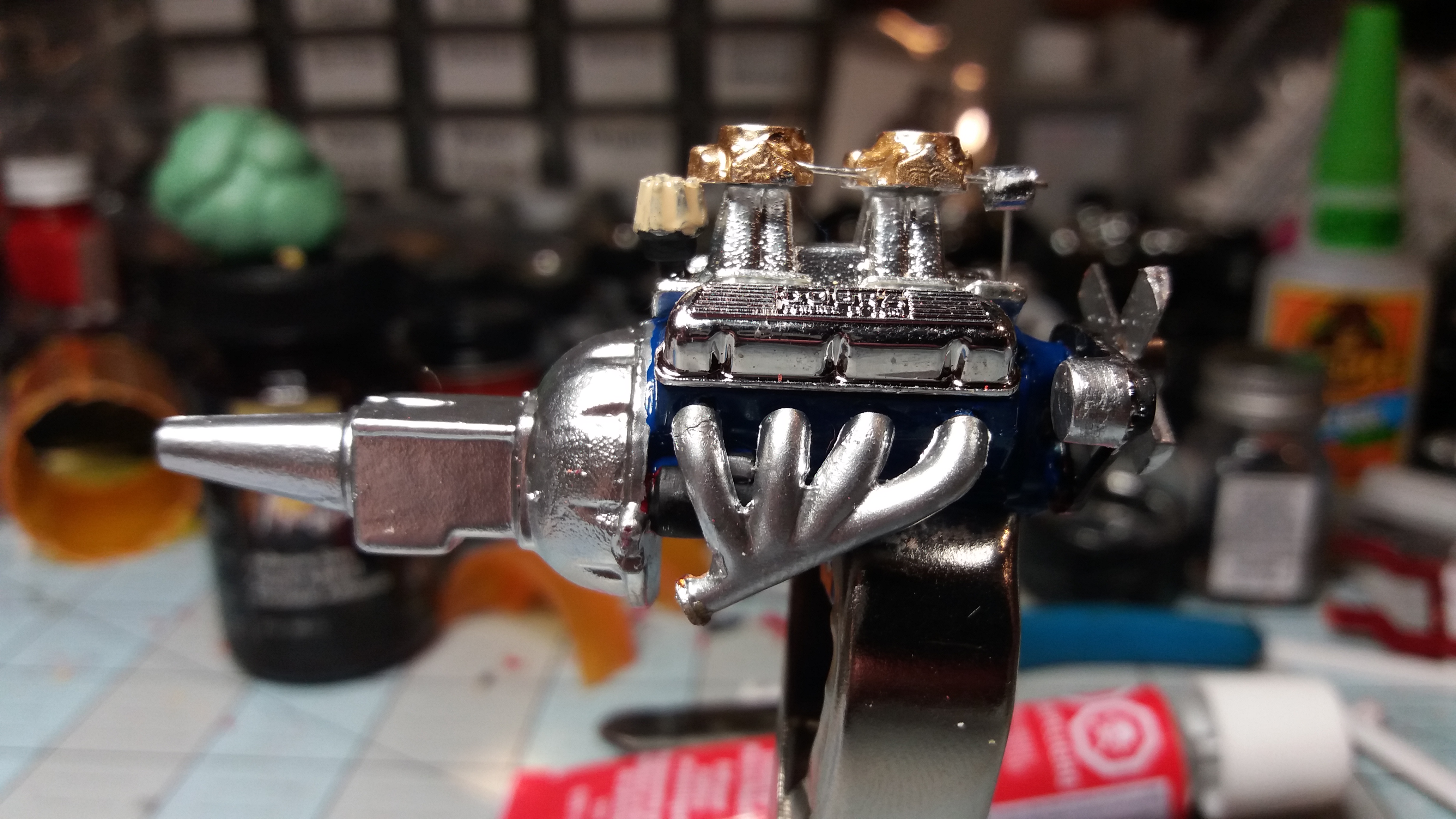

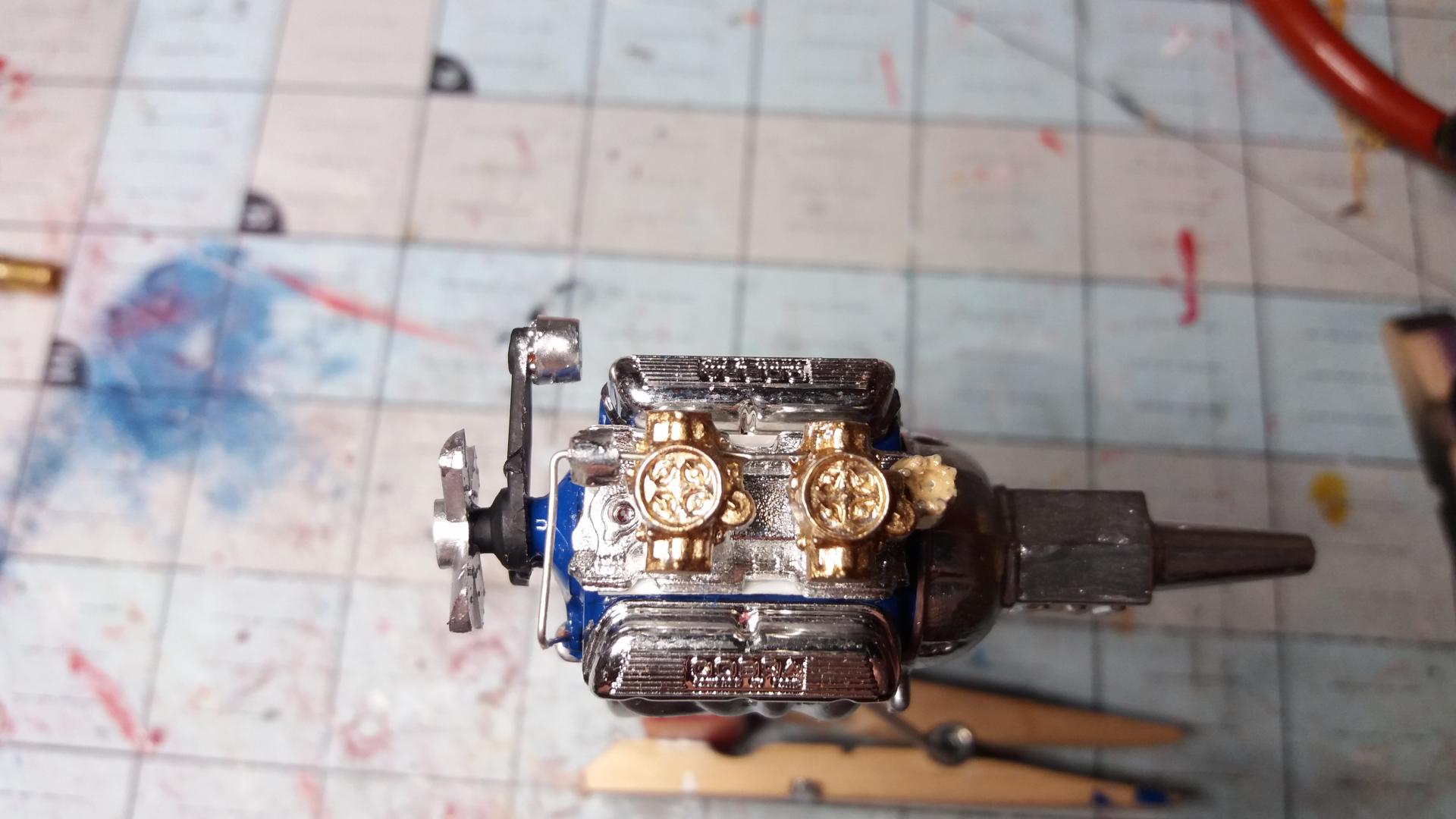

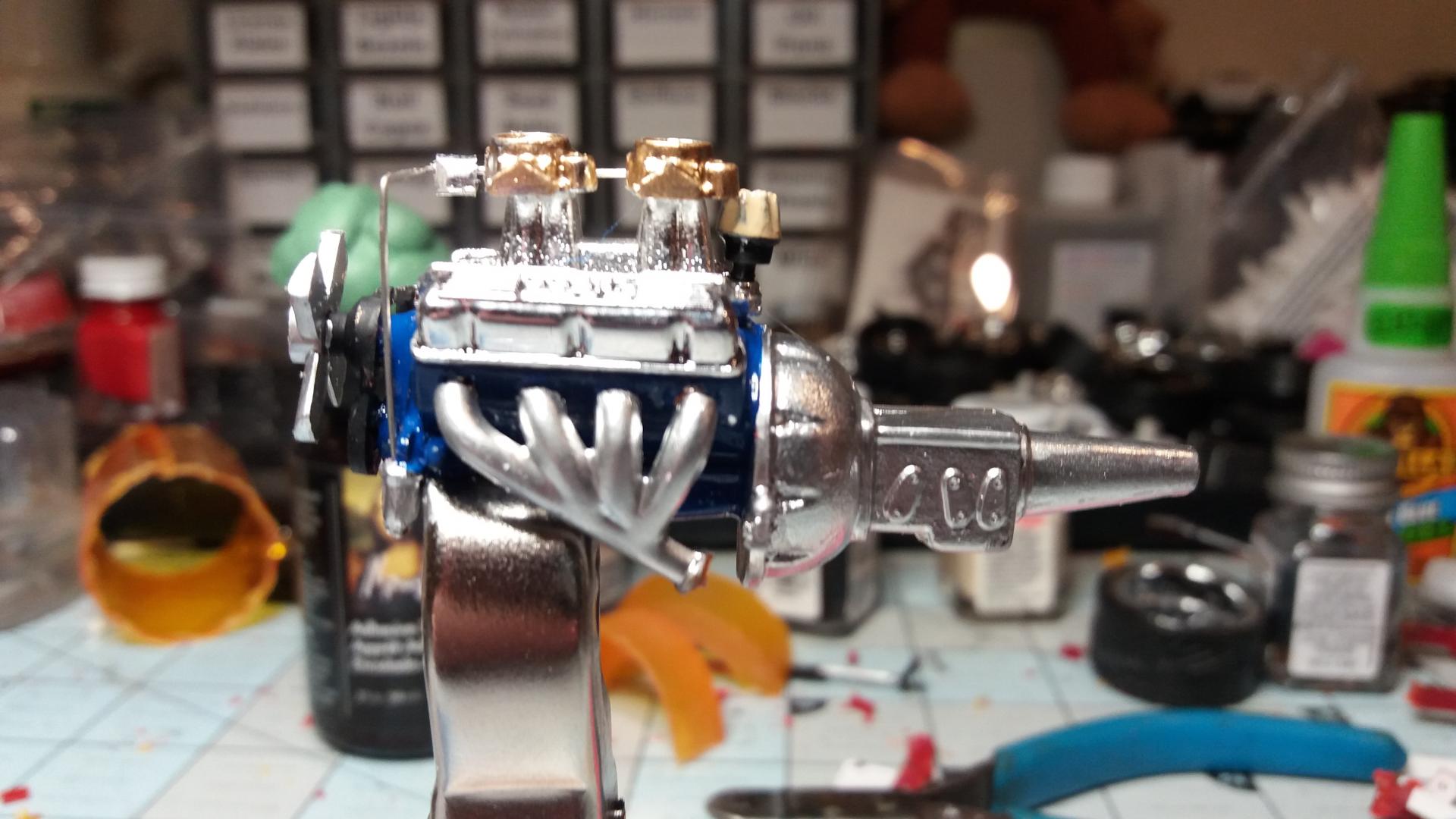

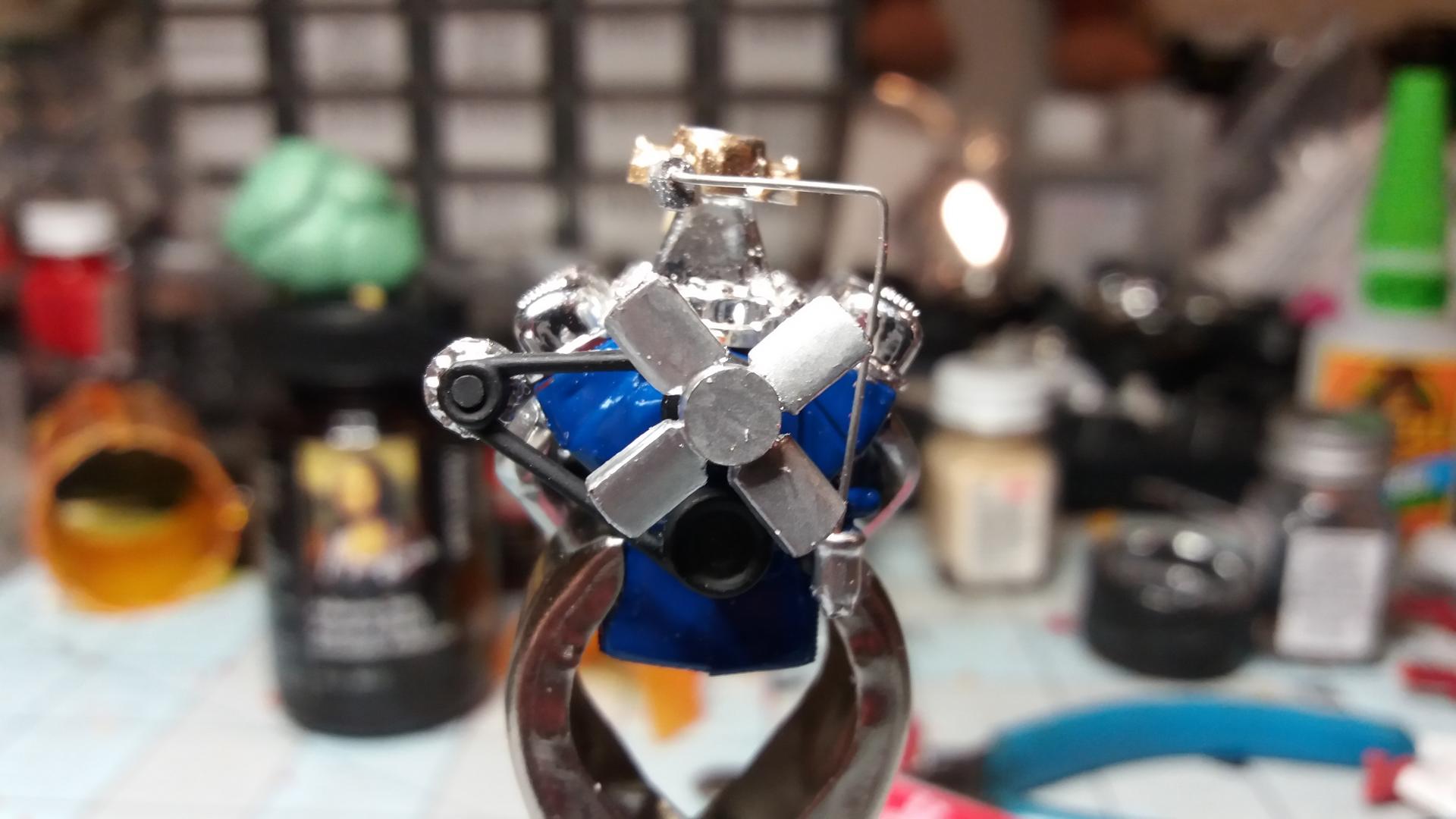

So far I've shaved off the badging, hood trim and the door handles from the body. The body is in the stripper now. Still working on the tubs. Freshened up the engine by adding input and output for the heater hoses and added a different intake and carbs. Added fuel line and a filter.

Stay Tuned...

Share this post


Link to post
Share on other sites

Posted

I've been beating my head against the wall trying to come up with a way to make the front wheels poseable. Not for this build but for all builds. Today, I came up with this...

20170710_085656.thumb.jpg.d079ea4f7c4c59

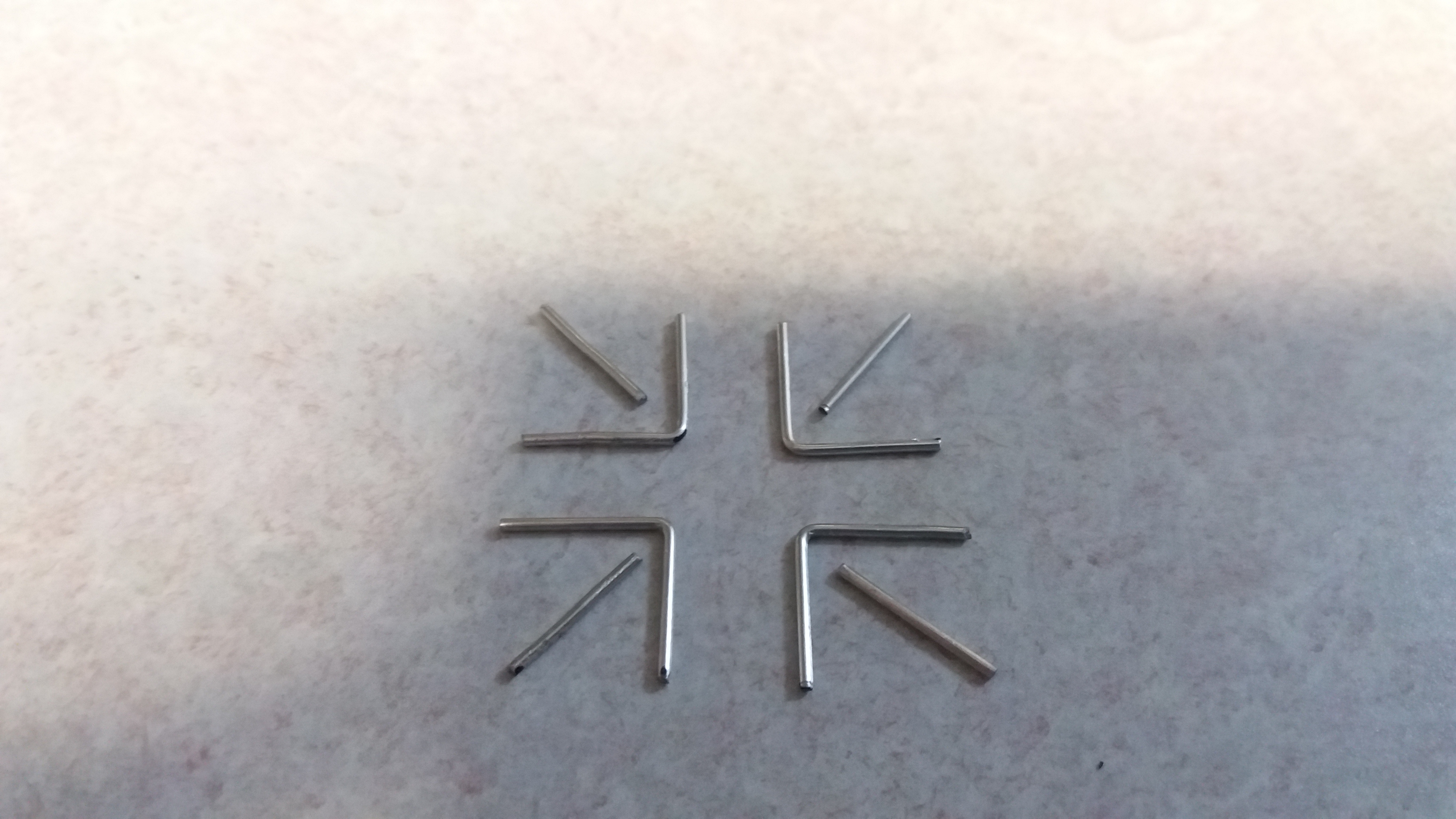

First I cut one paper clips in 8 pieces. 4 - .5" long and 4 - 1" long and bent these 90 degrees.

20170710_194006.thumb.jpg.71fc203a874d03

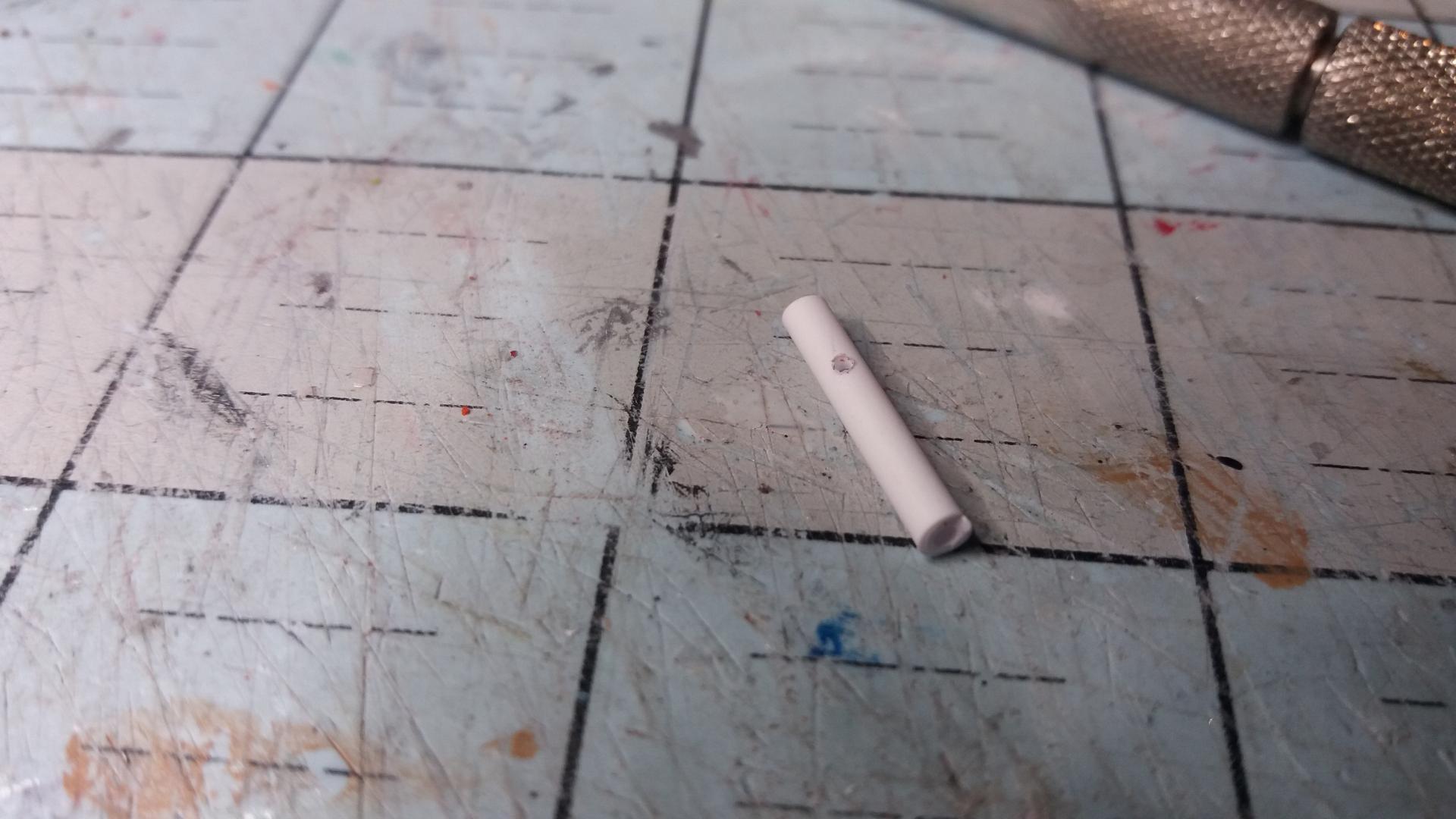

Then I cut some plastic tubing and drilled a hole in the side.

20170710_193946.thumb.jpg.40ee5bfc8faa3f

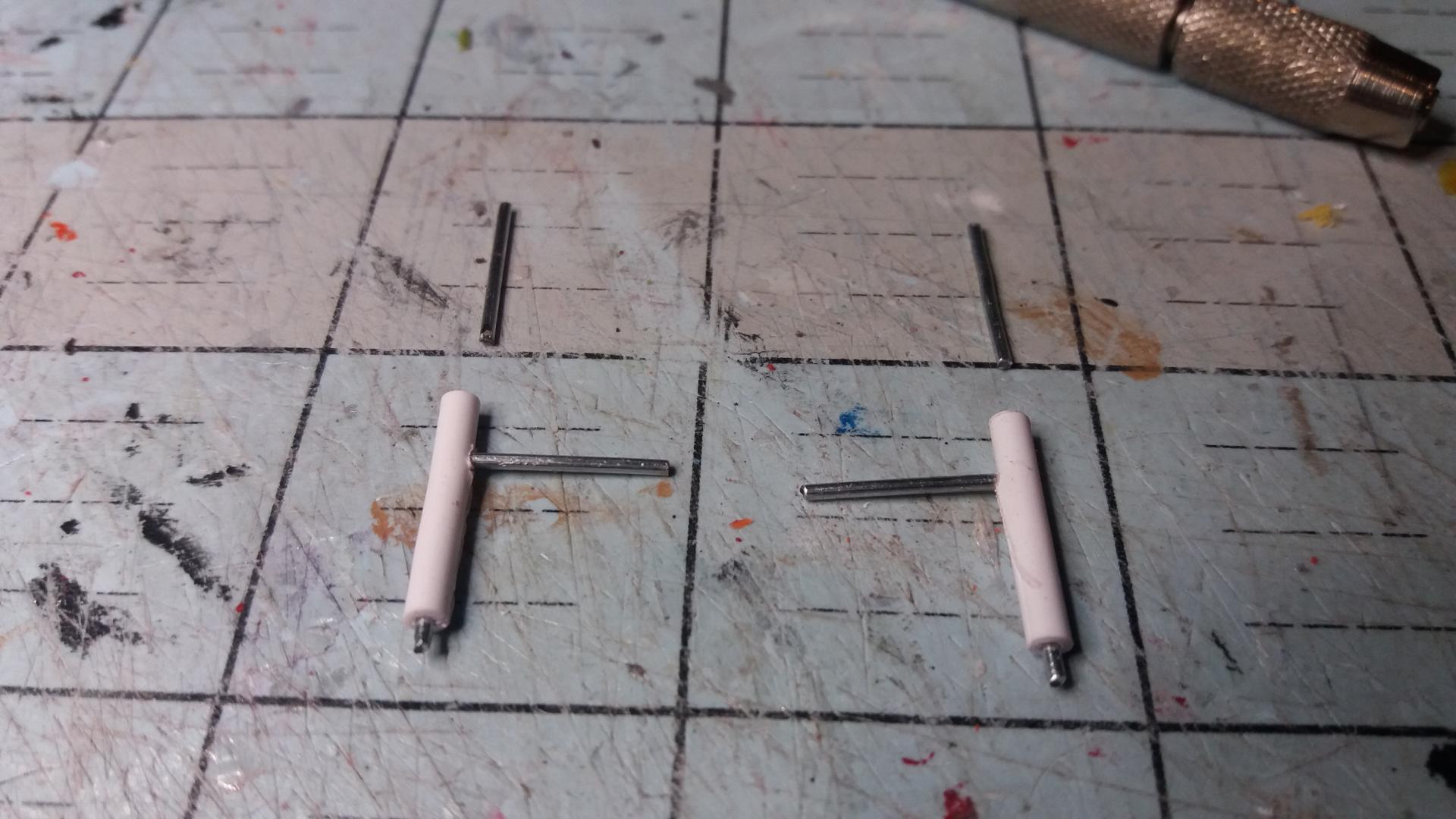

Then I inserted the 90 degree paper clip pieces inside the tubing. And saved the smaller .5" pieces for the top.

20170710_194232.thumb.jpg.e30ae76fe47cc8

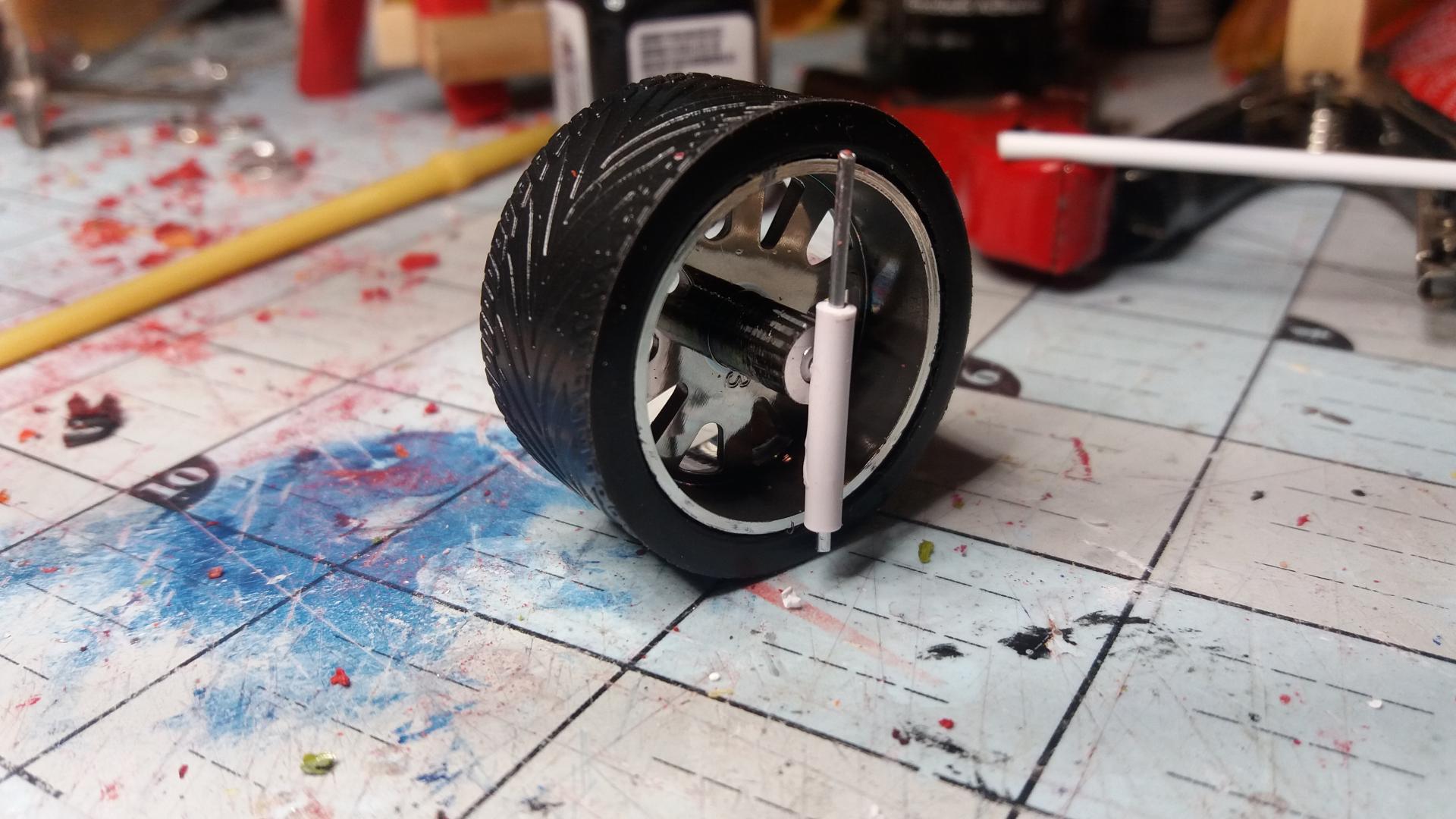

This will allow the wheels to roll as well as pose. Next I'll work on the upper and lower control arms.

Stay Tuned...

Share this post


Link to post
Share on other sites

Posted

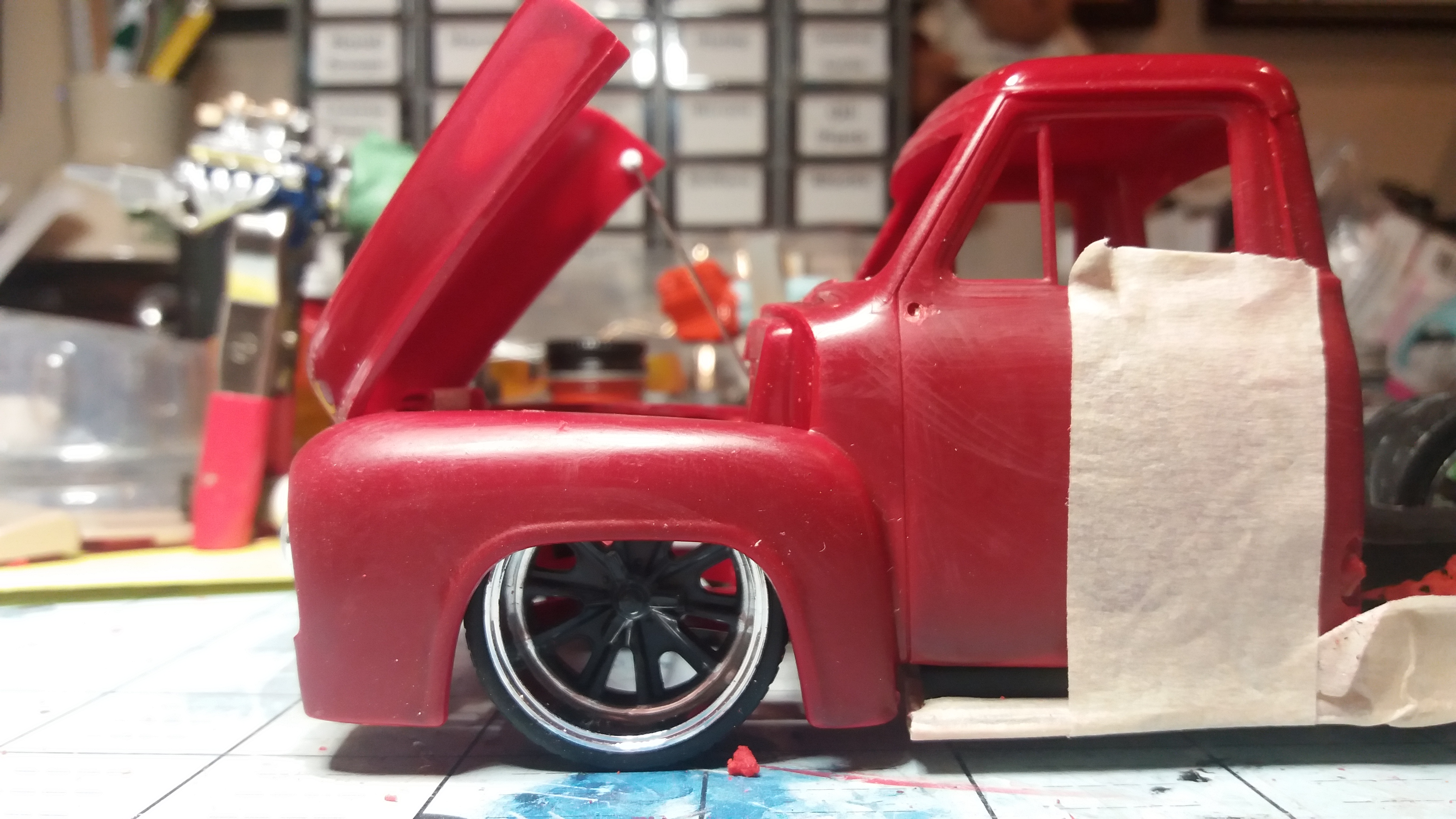

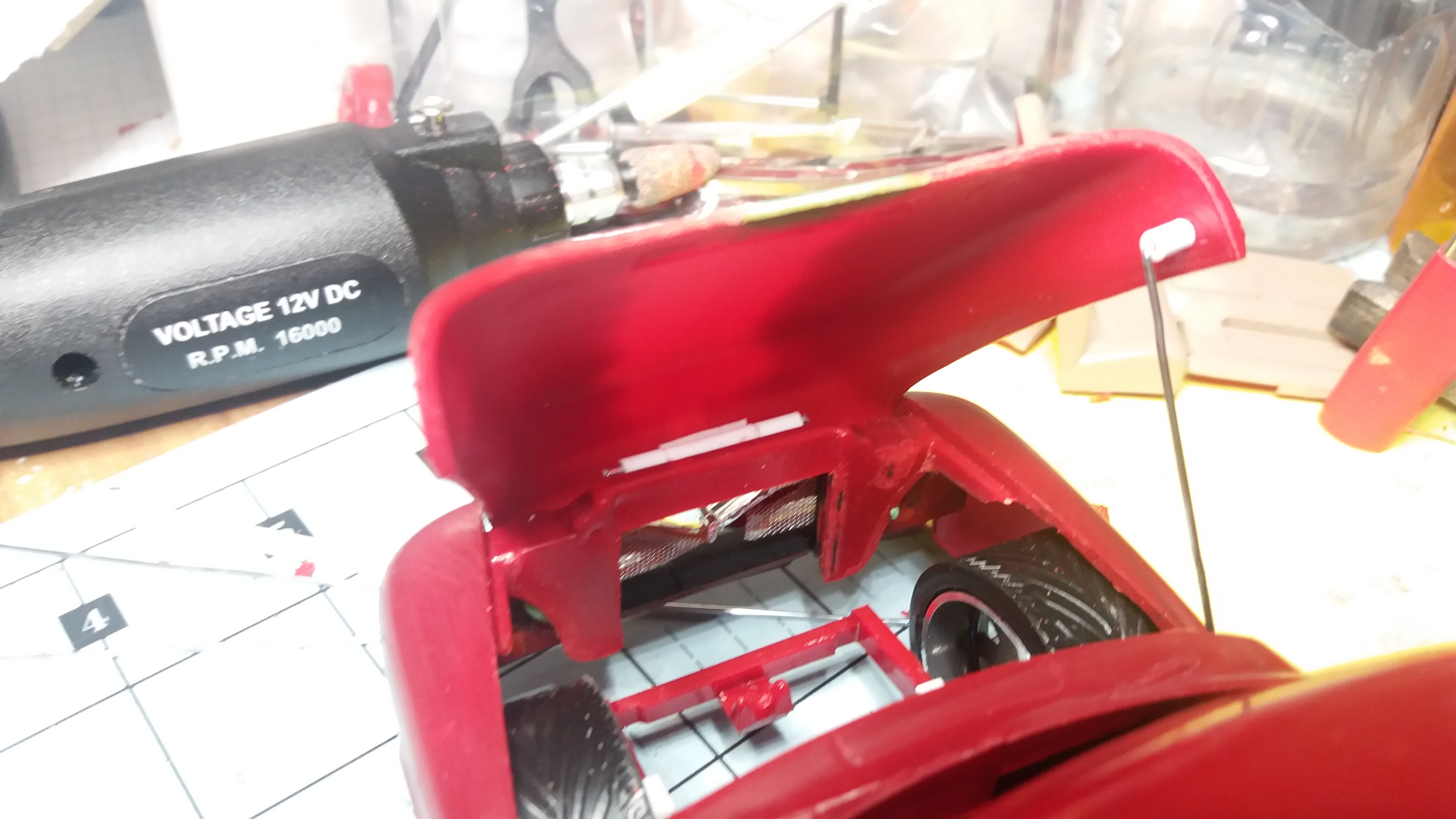

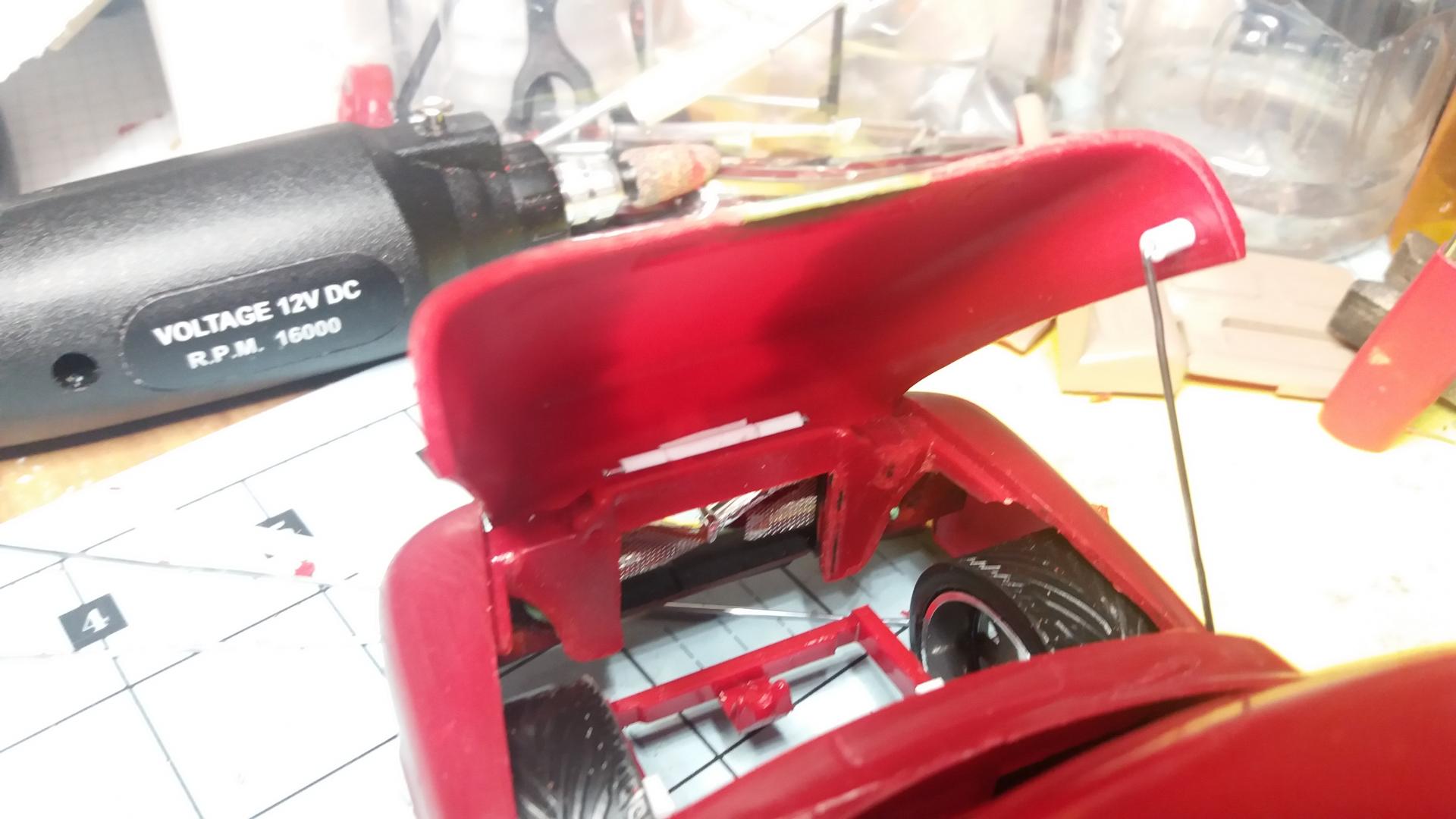

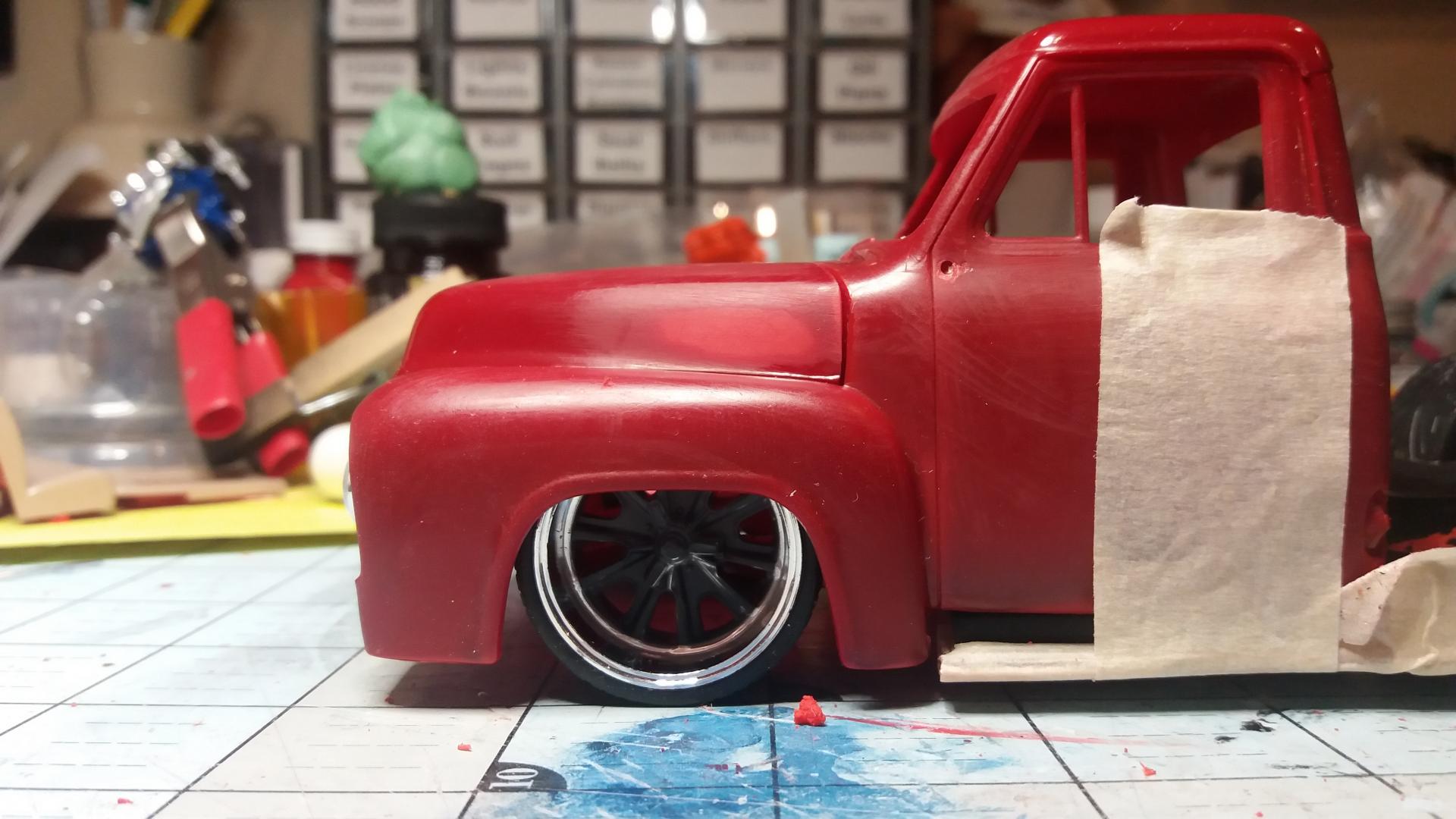

Still mocking things up and getting the front wheels situated. I started to think about the hood when I saw it wasn't sitting right on the body. It was warped. So I added  little flame to bend it back in shape. Sitting much better now. Then I wanted to get the hood to open backwards. So today I came up with a 4 piece hinge and in under 30 minutes it was installed along with a prop rod.

20170712_165951.thumb.jpg.fd52b66ab39d25

20170712_165937.thumb.jpg.0e7a7f12b5a2c8

20170712_170202.thumb.jpg.98c6e8509cd32a

20170712_170218.thumb.jpg.592509e2bbedfa

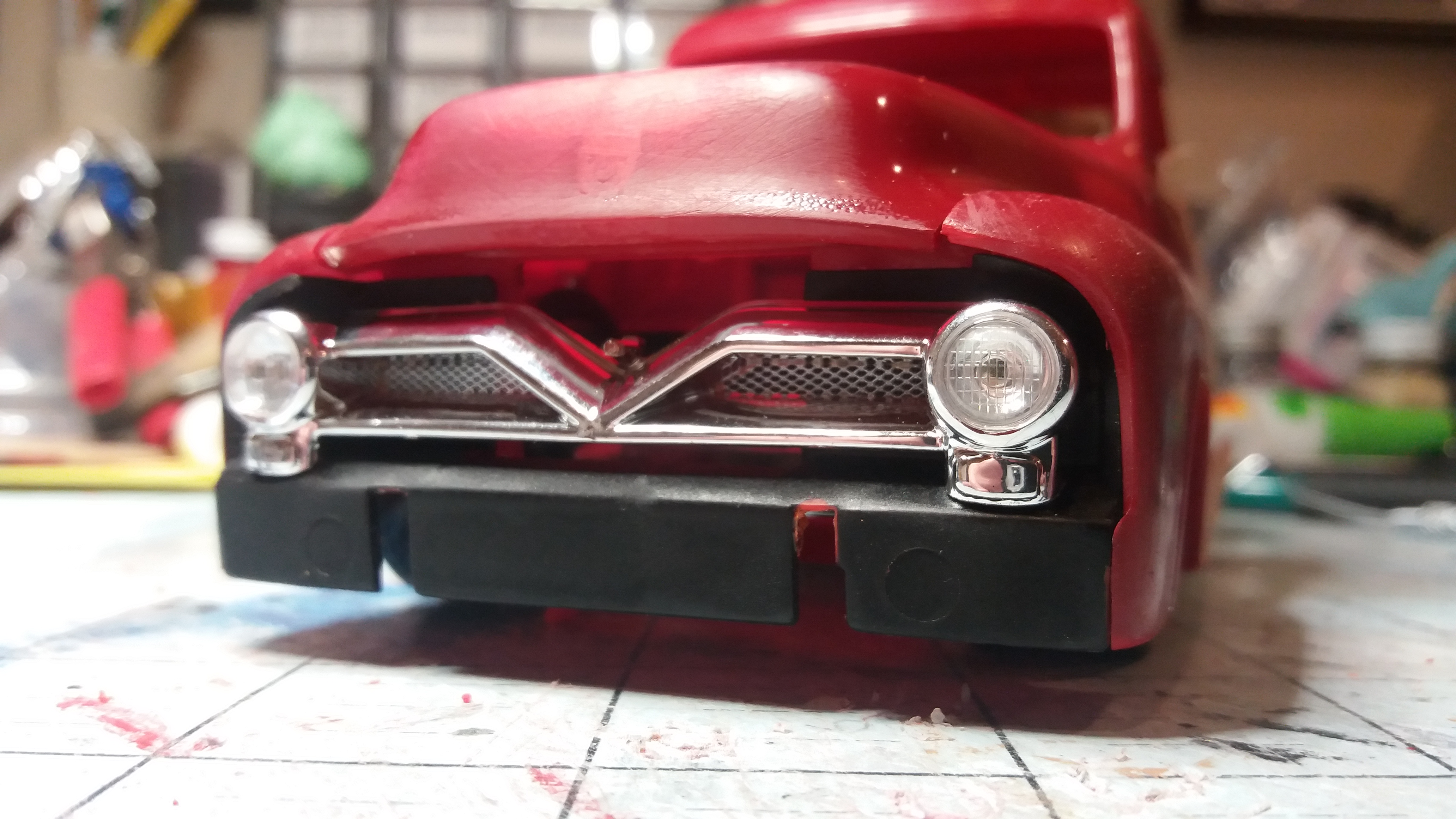

Next I'll be filling in the bumper slots. I want that smooth look. No bumpers on this piece.

Stay Tuned...

Share this post


Link to post
Share on other sites

Posted

Man those front tires are WIDE...are you sure they will be able to turn tucked up in there? BUT I LIKE it..

Share this post


Link to post
Share on other sites

Posted

With those tires that close to both the inner fender wells and fenders there is not going to be much room for posing those huge wheels.

Share this post


Link to post
Share on other sites

Posted

Yeah, no posing but they do turn. I'm ok with that.

Share this post


Link to post
Share on other sites

Posted

I like the mesh you added to the grill. Are you planning on front bumper or a roll pan ? The leading edge of the hood on this model always stood a little "proud". If you are thinking of changing it you might do something like the Foose truck but not quite as radical.

Share this post


Link to post
Share on other sites

Posted

20170715_203130.thumb.jpg.53b643c76f2749

20170715_203140.thumb.jpg.c93e7c2468ff79

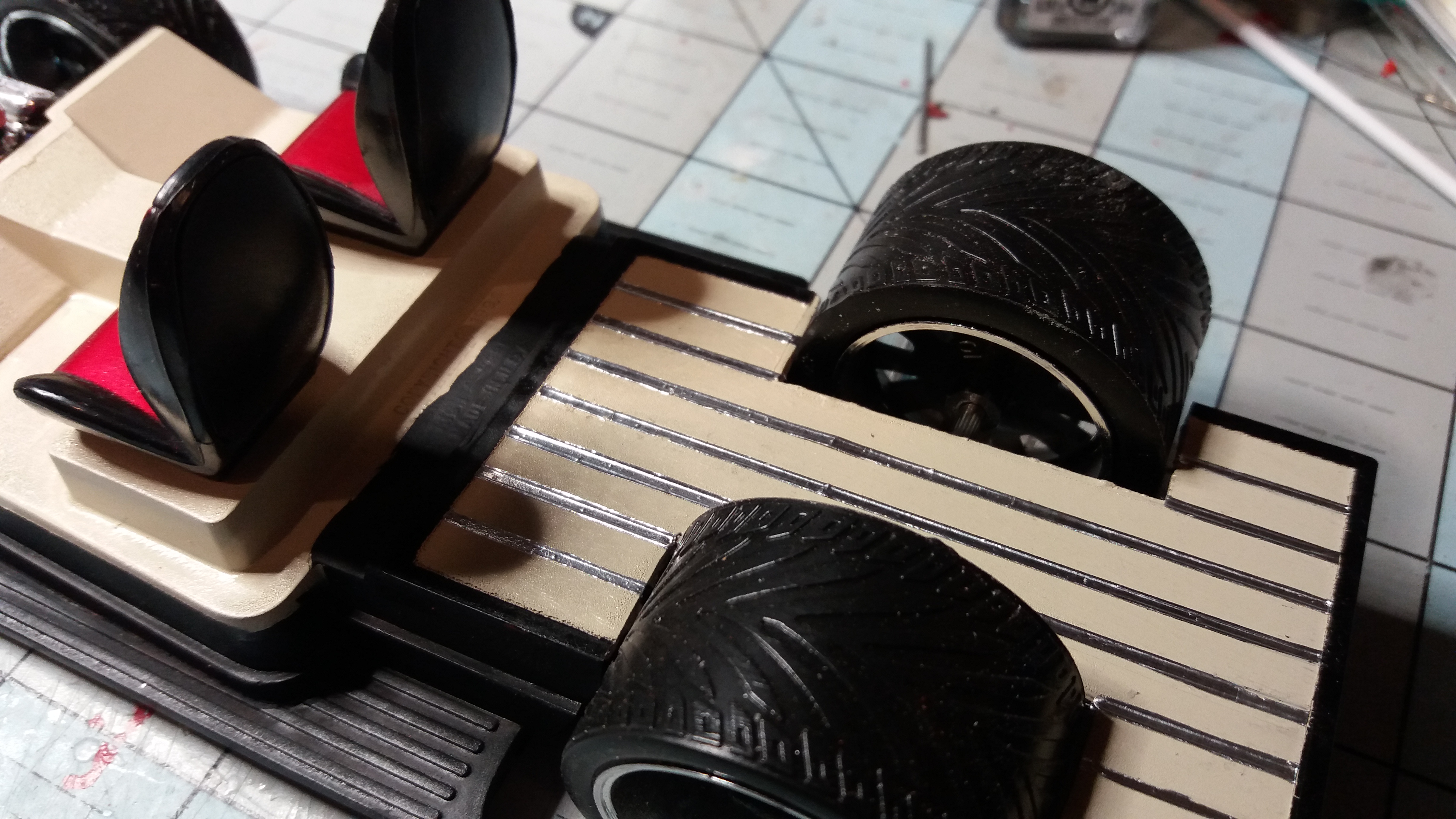

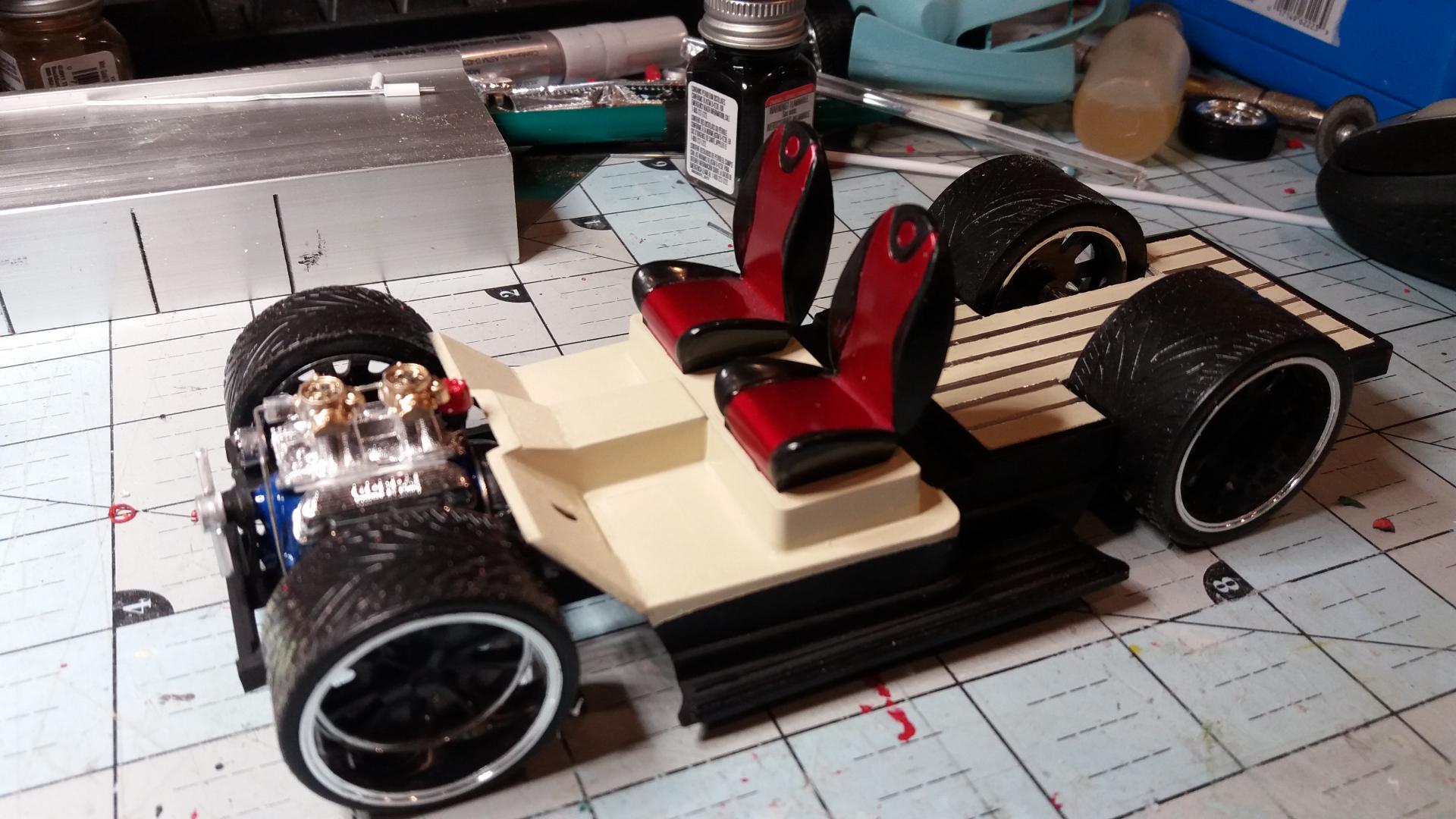

Taking care of some things on the body and the bed walls and tailgate are in the stripper.Should have them primered by tomorrow evening. Last few things on the chassis. I sprayed the bed the same color as the interior and used my home made BMF on the metal rails separating the simulated wood. These seats came from a die cast piece that kindly sacrificed it's life. The centers will be painted same as the interior.

20170715_203253.thumb.jpg.203c54a9dc9c95

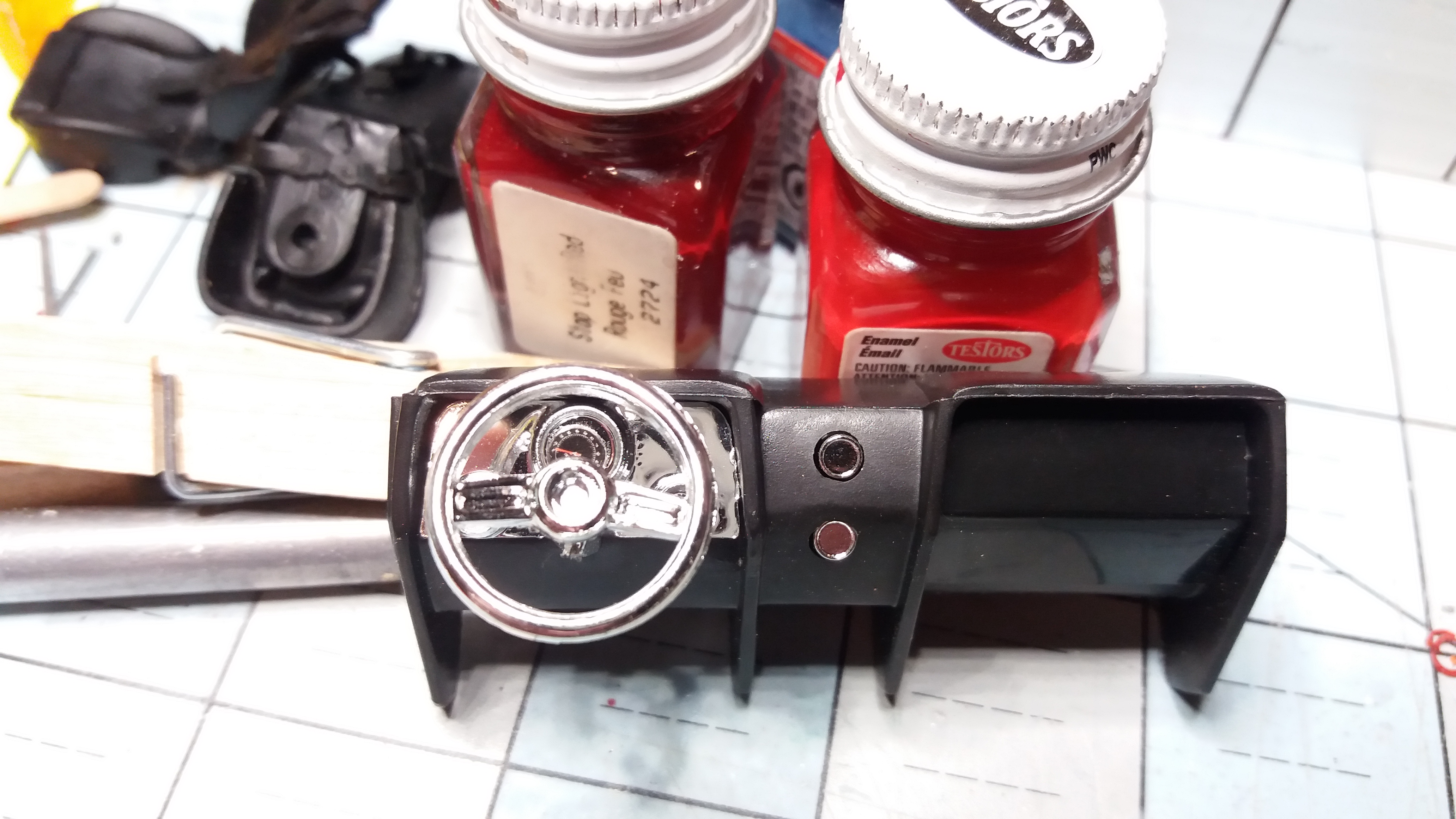

This is the dash I will be using. I plan on giving the steering wheel some attention. All of this came from another die cast doner.

Stay Tuned...

Share this post


Link to post
Share on other sites

Posted

Wow now that's and update, nice work

Share this post


Link to post
Share on other sites

Posted

Could you post up some detail pics of how you made that hood hinge? i want to do that to one of mine but i cant figure it out. thanks!!

Share this post


Link to post
Share on other sites

Posted (edited)

Hey Jeff, thanks for looking. I knew I wanted the hood to flip forward so the hinge point had to be in the front. I held the hood in place and looked at the car from the bottom side. The most logical place for me was at the top front side of the core support. I worked it back and forth as if it were opening and found my anchor points. First thing you'll want to do is make sure that your hood closes nice and flat. Mine didn't so I had to heat it up a little and encourage it back into place. Once your hood is fitting nicely, tape it down so it doesn't move. If if moves before you're done, you're hosed. Next I took a piece of plastic tubing and a straightened paper clip (they should go together kind of snug or the whole think will open quite sloppy). I took the plastic tubing and cut it into 3 pieces. The 2 smaller pieces I anchored to the core support and the bigger piece I anchored to the hood. When I mounted them I did it as one assembly so you'll have to put the pieces together then bond them to the model.

20170717_180525.thumb.jpg.a8f0b3500160f3

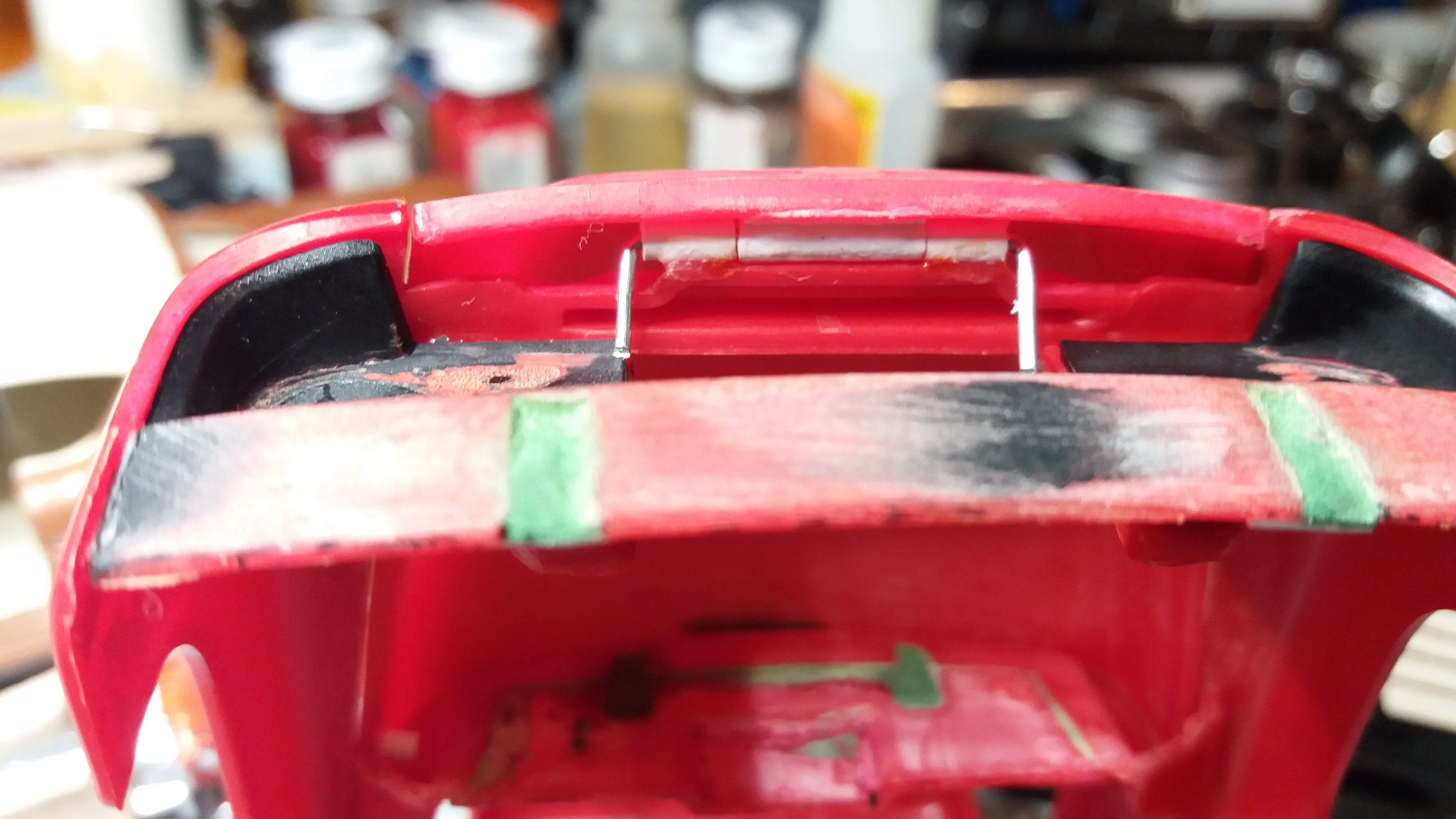

Shown above is 2 bent paper clips to hold it all together. This is because I plan to take off the hood many times before I'm done with the build. And I will be painting the hood and body separately.

20170717_180542.thumb.jpg.fb0177d77bc335

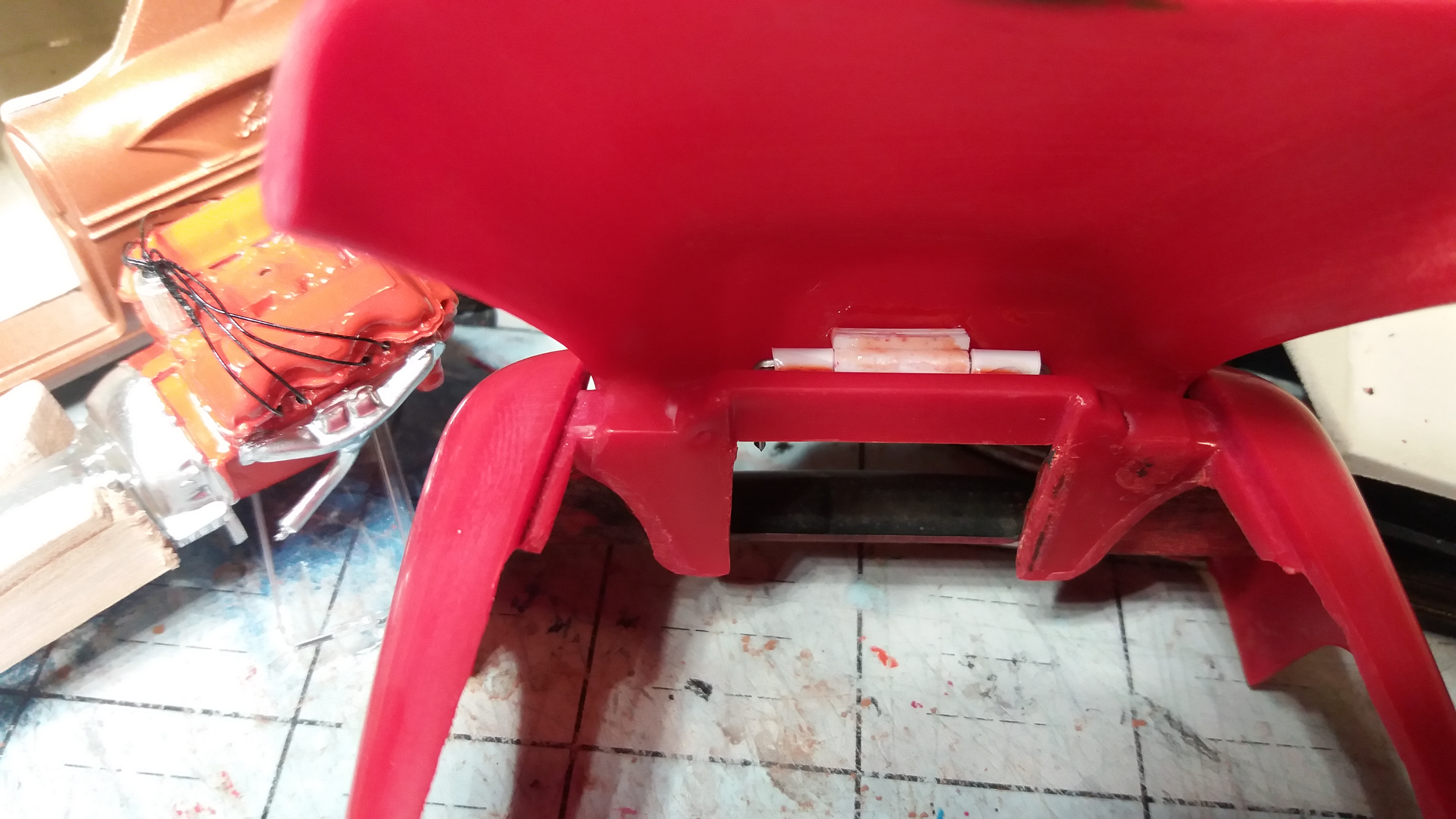

This is a shot of the hood open and you can see how I mounted things.

20170717_180725.thumb.jpg.79a3461991e950

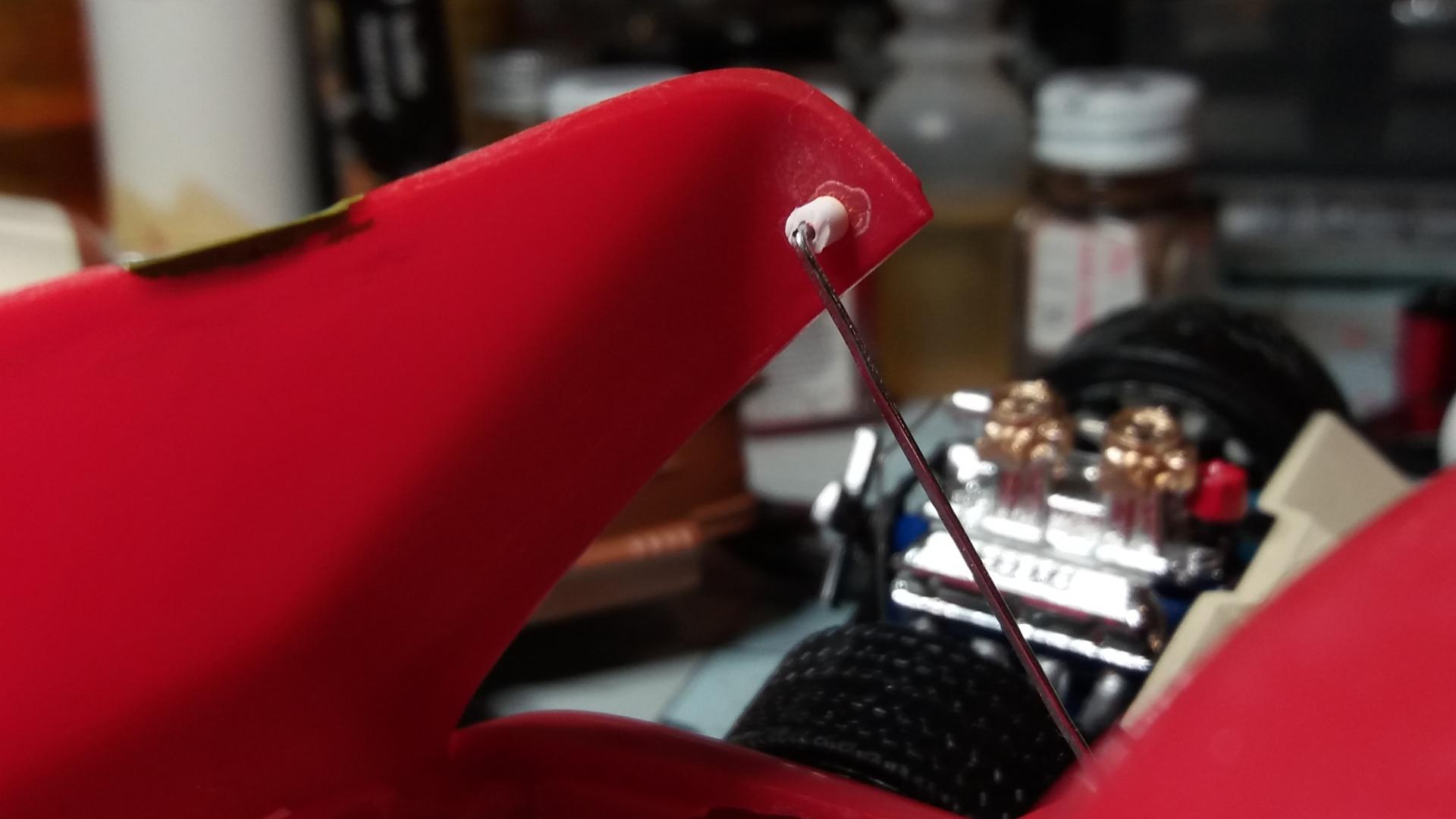

The prop rod was a last minute thing I came up with. Pretty self explanatory.

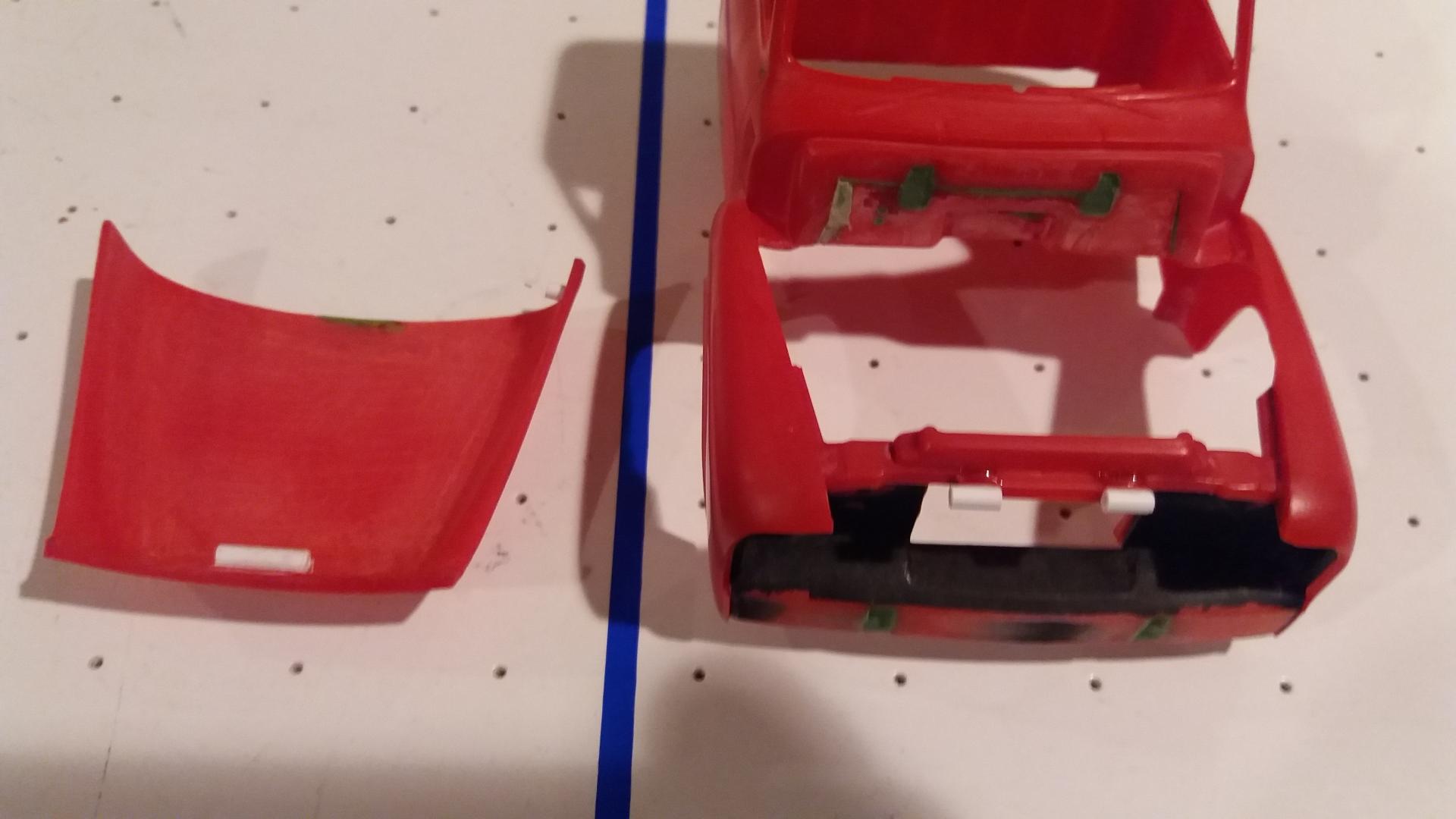

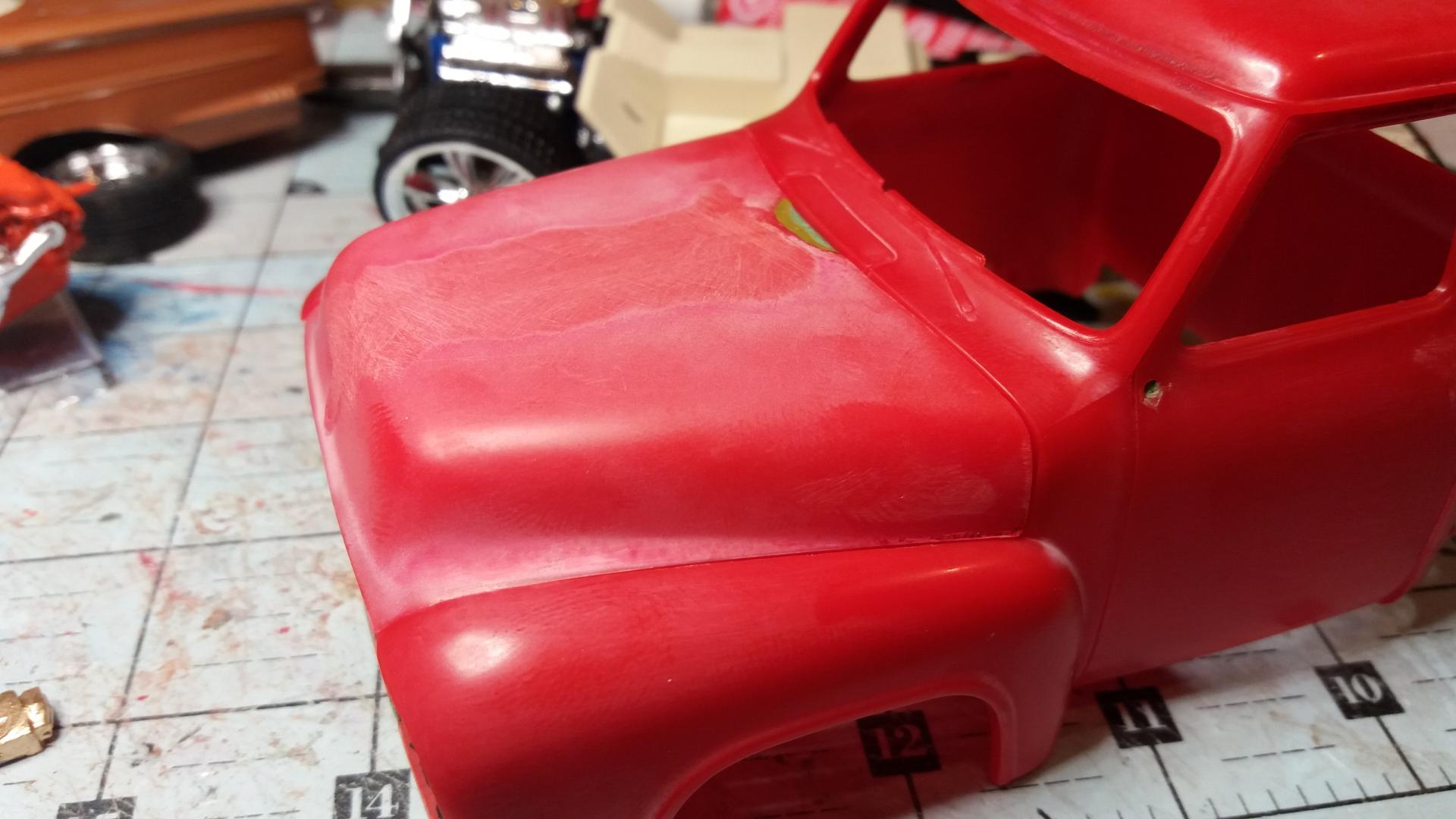

When you're done, it should look like this...

20170717_191420.thumb.jpg.39d21a18e1f278

20170717_180825.thumb.jpg.7c562ad11e4a73

Hope this helps...

Edited by Slotto

Share this post


Link to post
Share on other sites

Posted

20170717_191301.thumb.jpg.cebb2bafa0e44e

20170717_191103.thumb.jpg.5ccb0372ac5765

20170717_191120.thumb.jpg.1328f9499054c6

20170717_191143.thumb.jpg.9c13fc8171f0f5

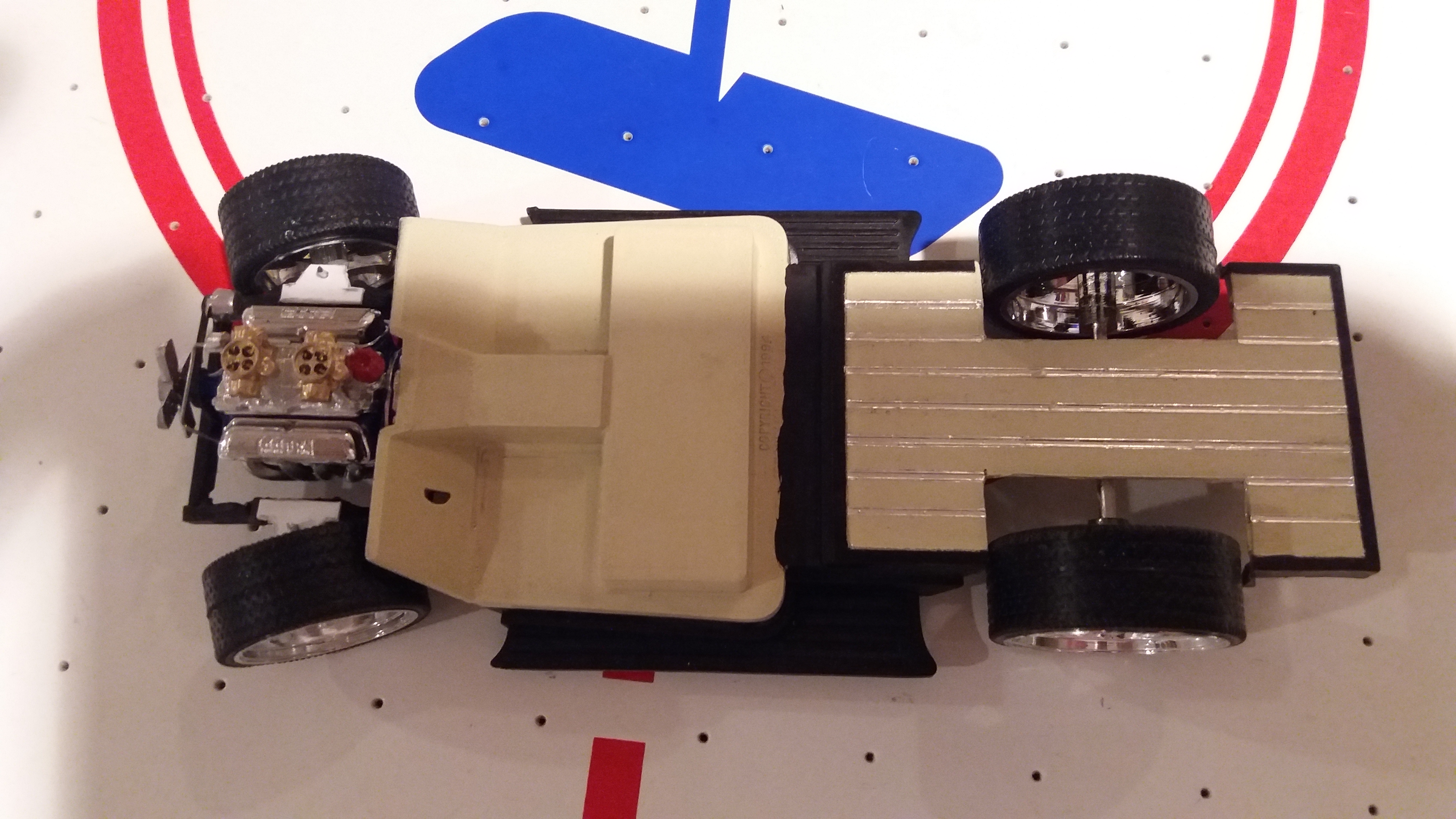

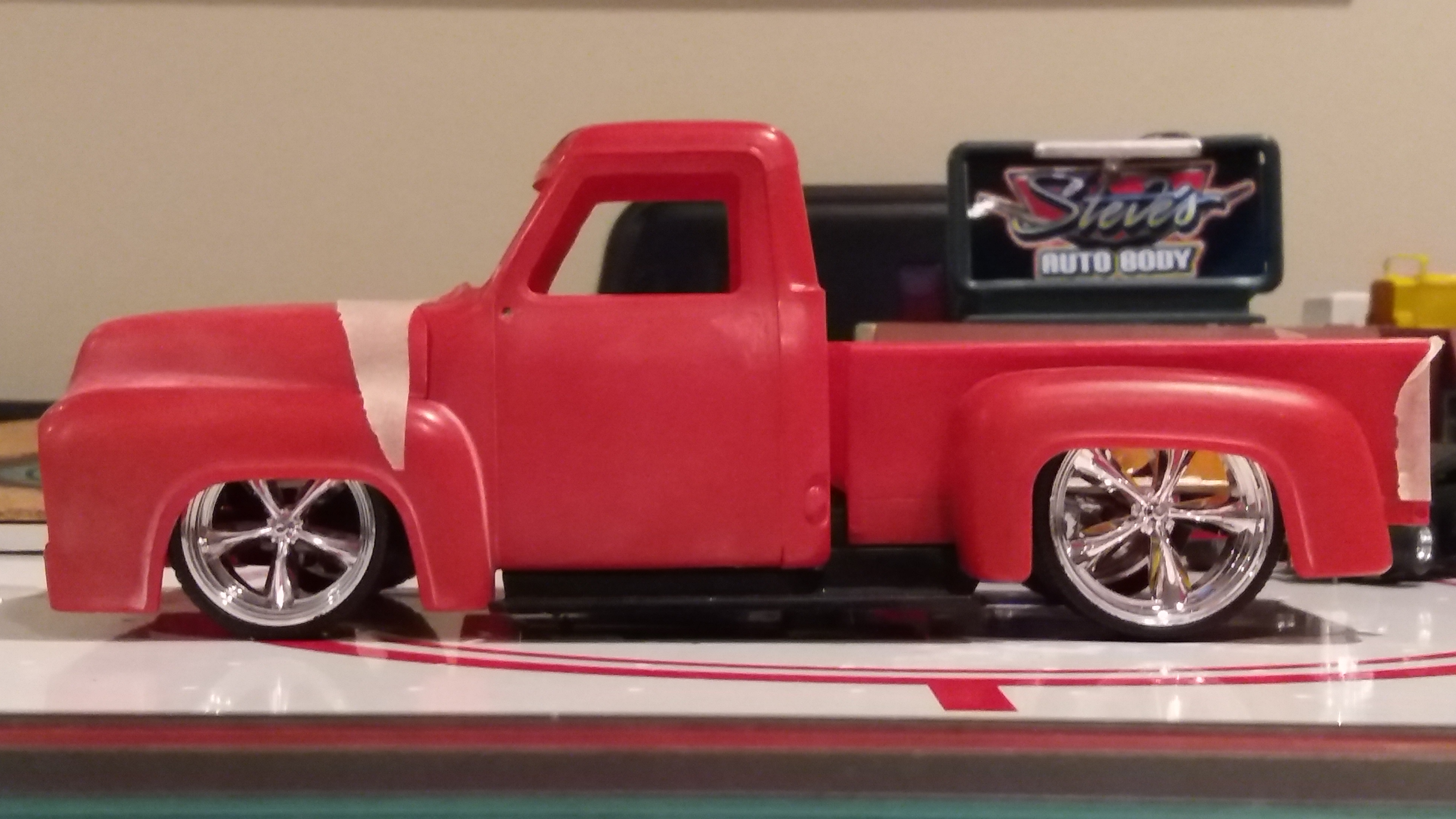

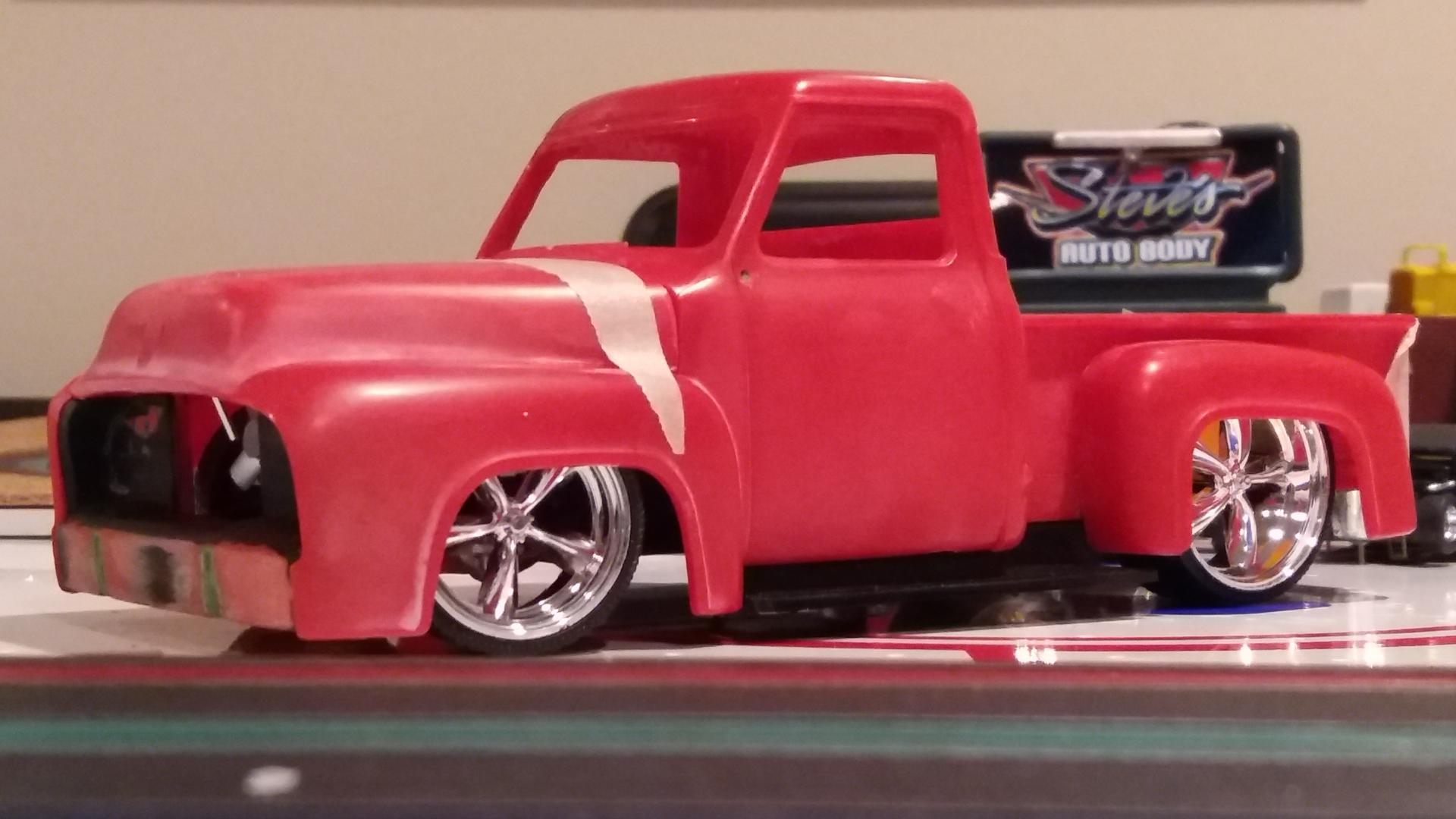

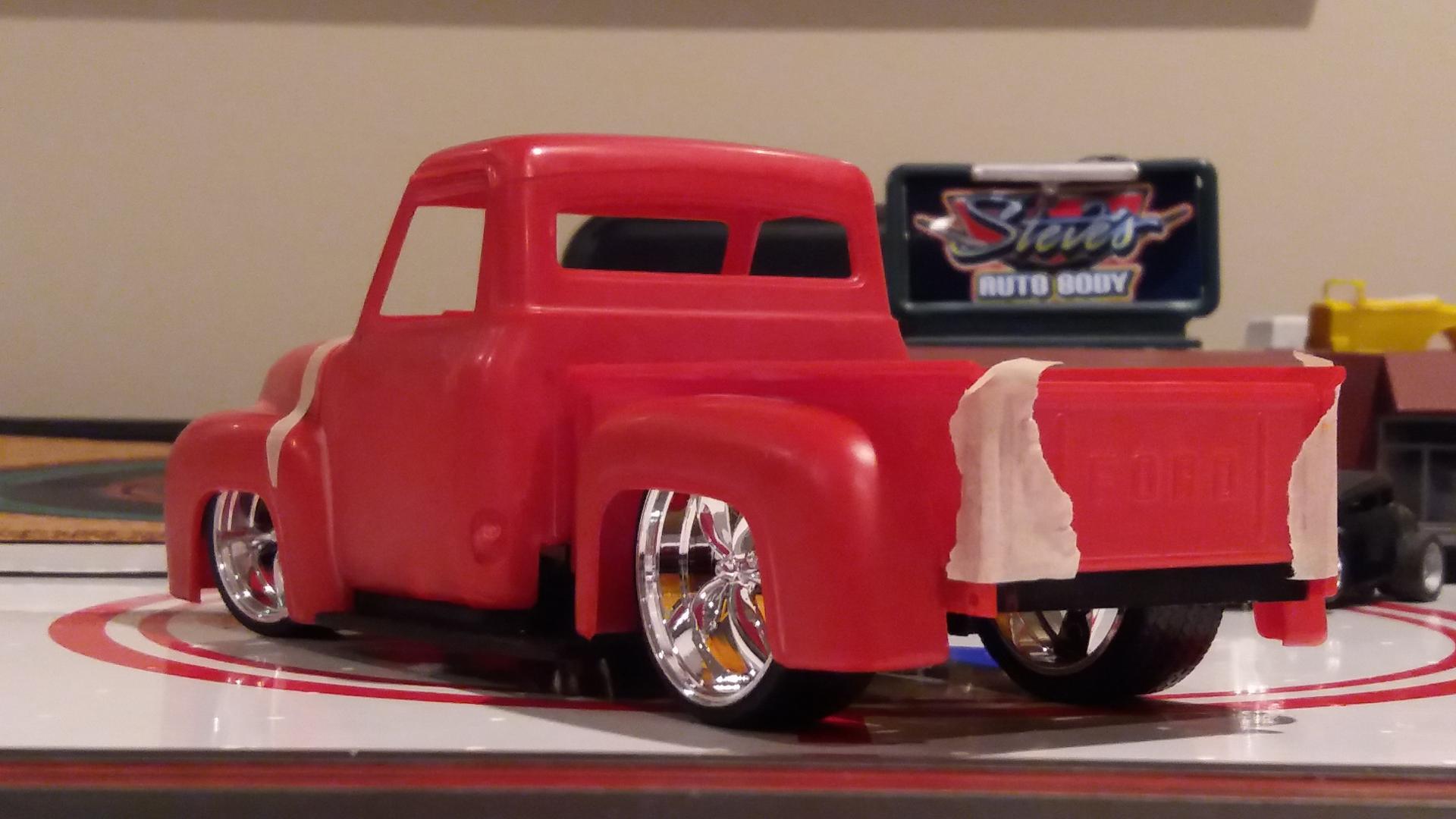

Major breakthru! I did a wheel swap to something just a little bit smaller. These wheels came from 2 different Jada toys. The cool thing is they match. Now I can get the fronts to pose.

Stay Tuned...

Share this post


Link to post
Share on other sites

Posted

20170720_163131.thumb.jpg.ae2359d2d84888

20170720_163251.thumb.jpg.ca49bc2295c89a

20170720_163339.thumb.jpg.a56b1328973820

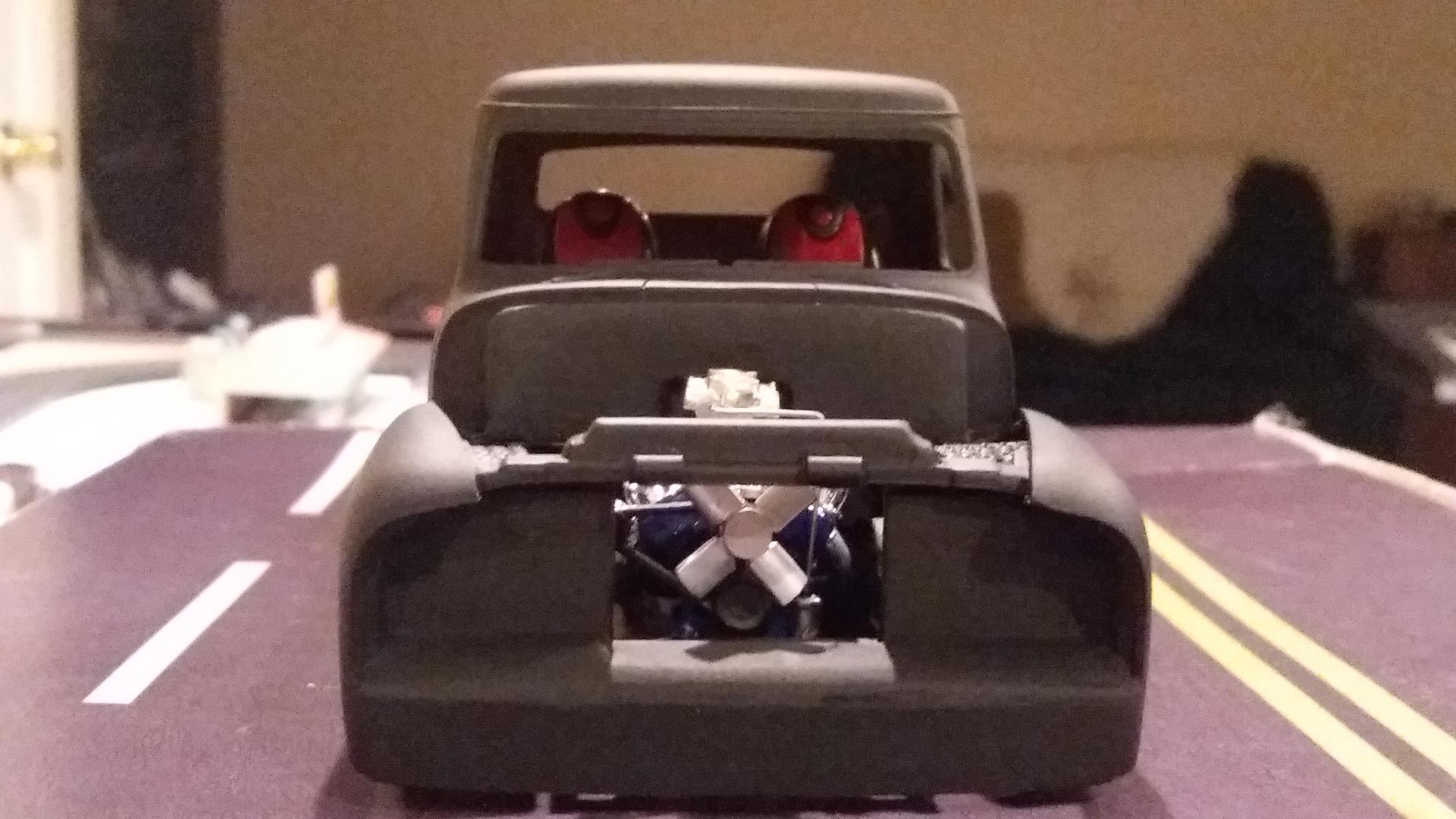

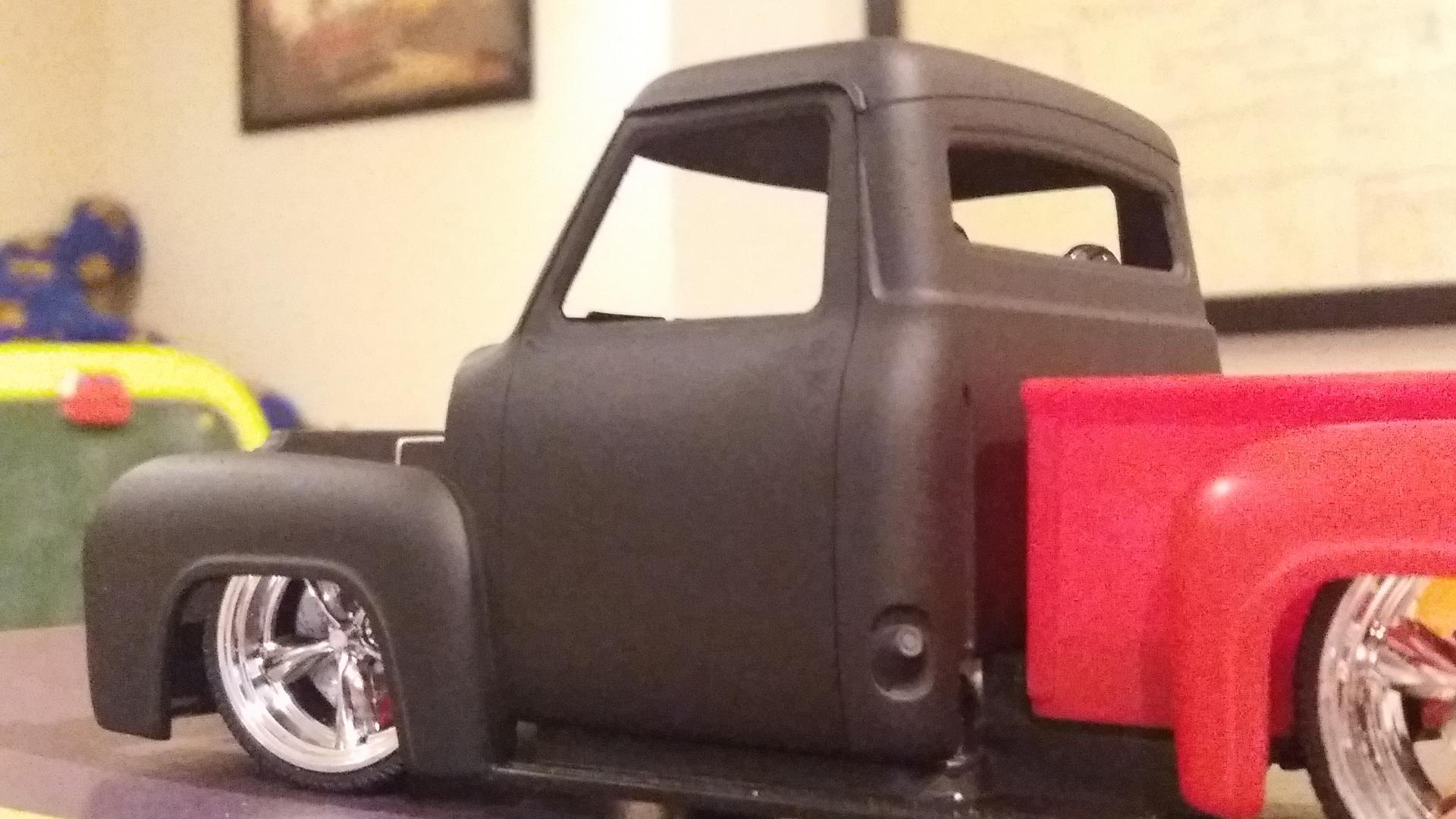

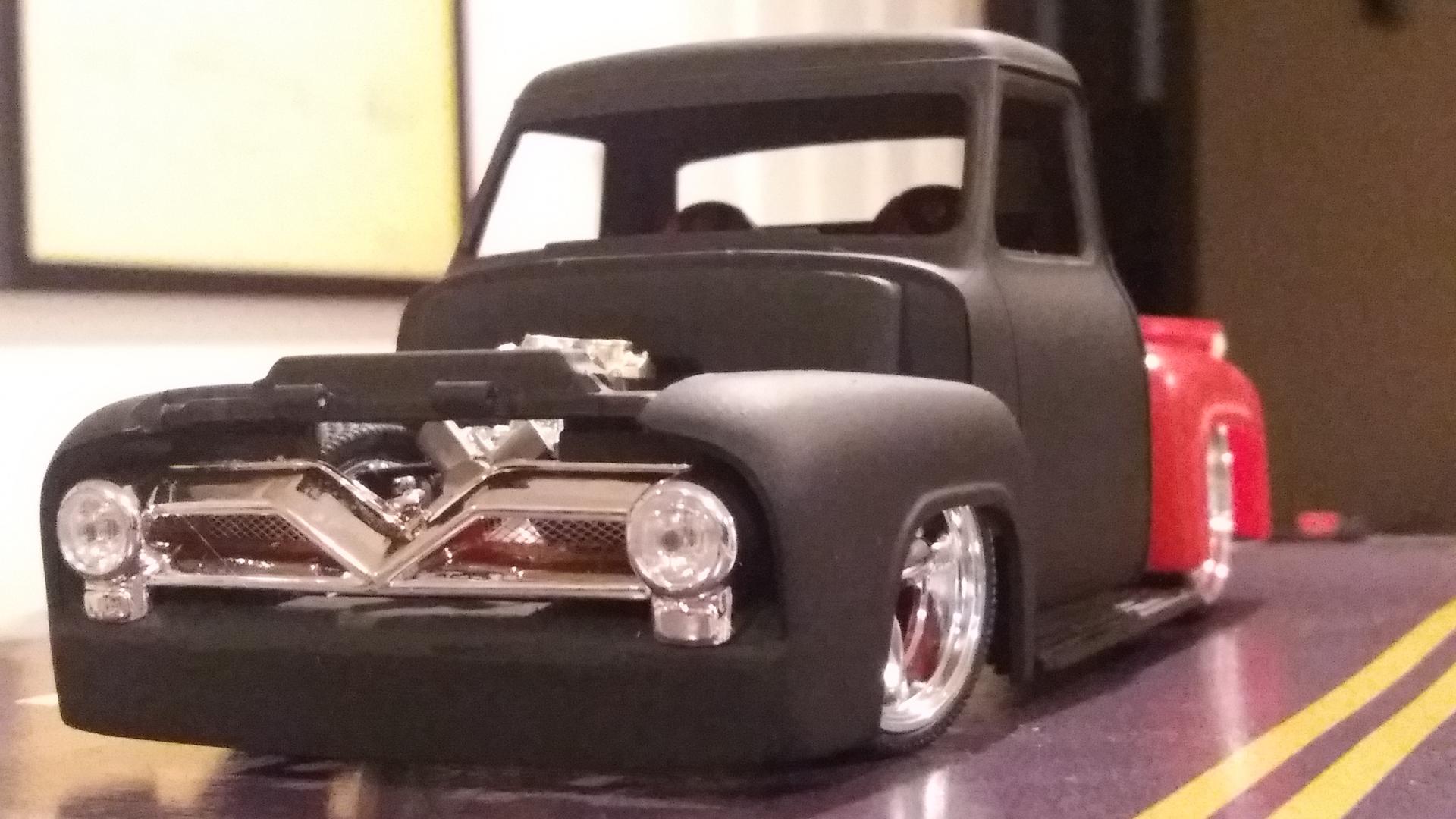

Mini update. I removed the wing windows, smoothed out the firewall, filled in the front bumper slots and shot a coat of black primer. I'm glad I switched out the wheels. I love chrome!

Stay Tuned...
