Tamiya Nissan Skyline 2000 GT-R "Hakosuka"

Recommended Posts

Its been a while since I posted any new projects. I took some time off from building as I didn't think I had the room for it since we moved into a smallish apartment. After getting the bug to build something again I realized the wait was long enough and I was determined to find a way. I was able to squeeze some modeling supplies in and around my tiny computer table, under the bed, in the closet, and wherever I was able. Happy my wife doesn't mind lol. Anyways, I have a few projects in the works and I will be adding them to the forum in do time.

I've always wanted to build the Tamiya Nissan Skyline 2000 GT-R "Hakosuka" for many years, so what better time then now! On a recent trip to Pegasus Hobbies in California I picked this kit up in person.

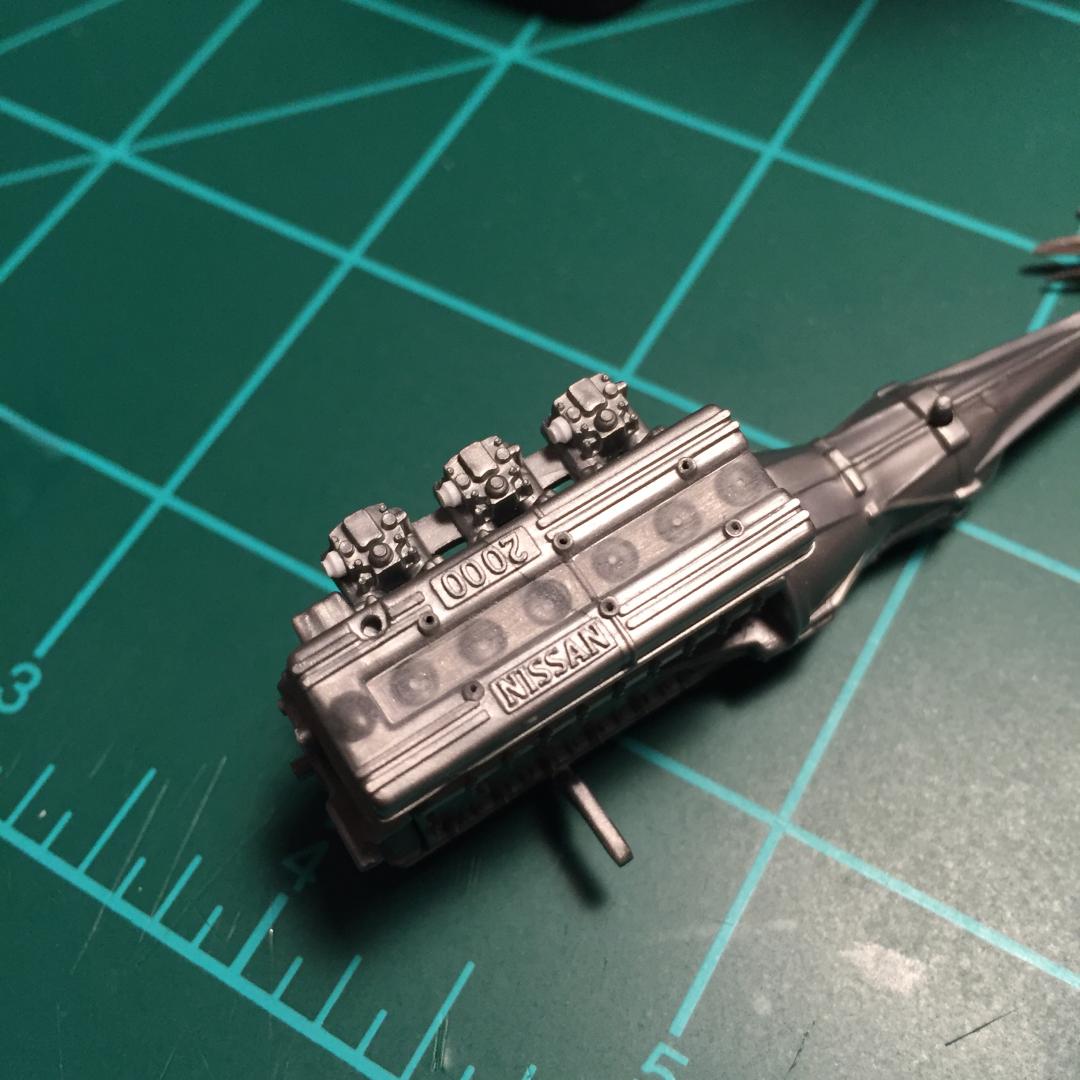

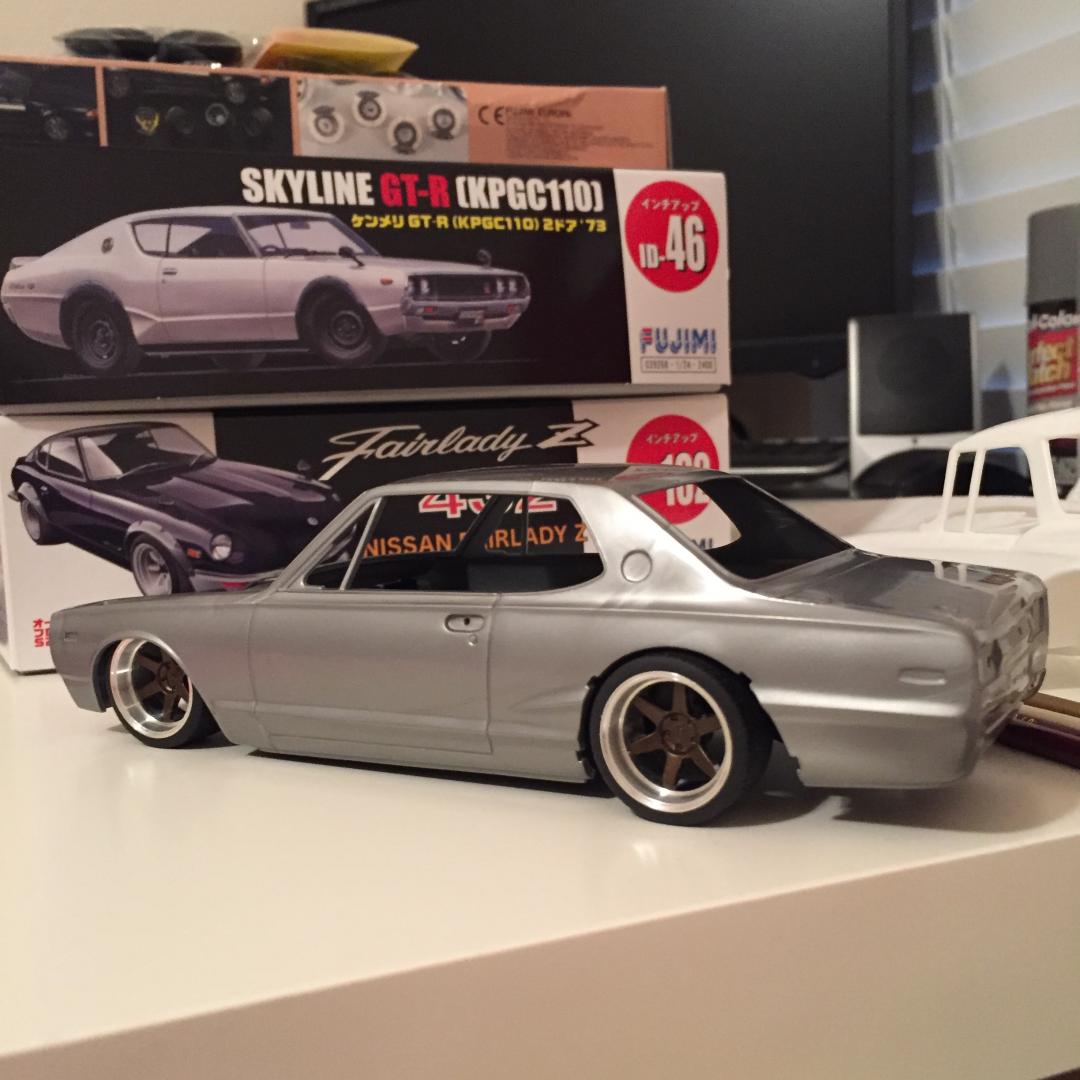

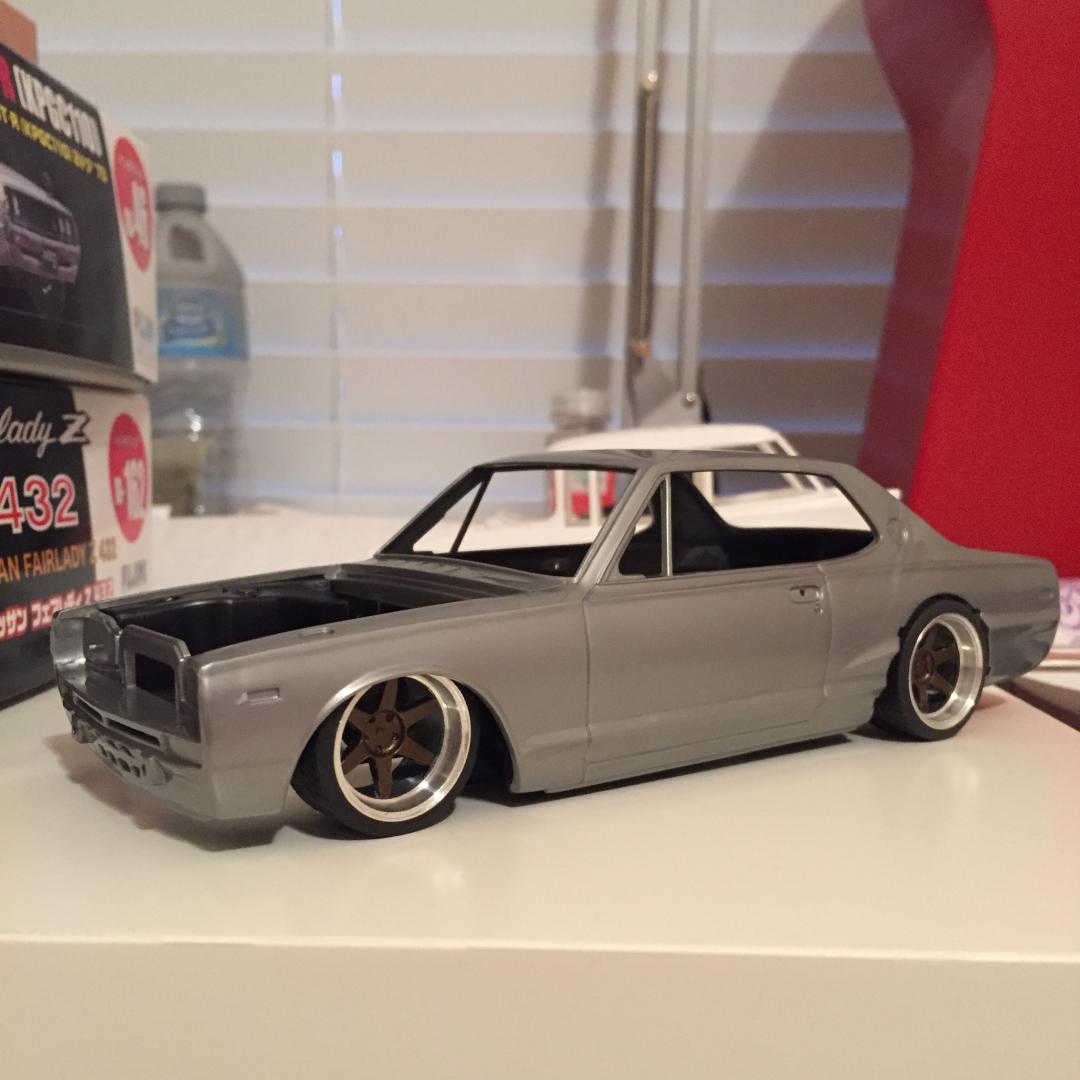

 Early mock up's with some Volk TE37's shaved to fit aluminum sleeves along with mock ups of the engine. Valve cover has had its molded details removed (spark plug boots and oil filler) as those will be made & added later. Also playing around with linkage for the triple carbs.





Share this post


Link to post
Share on other sites

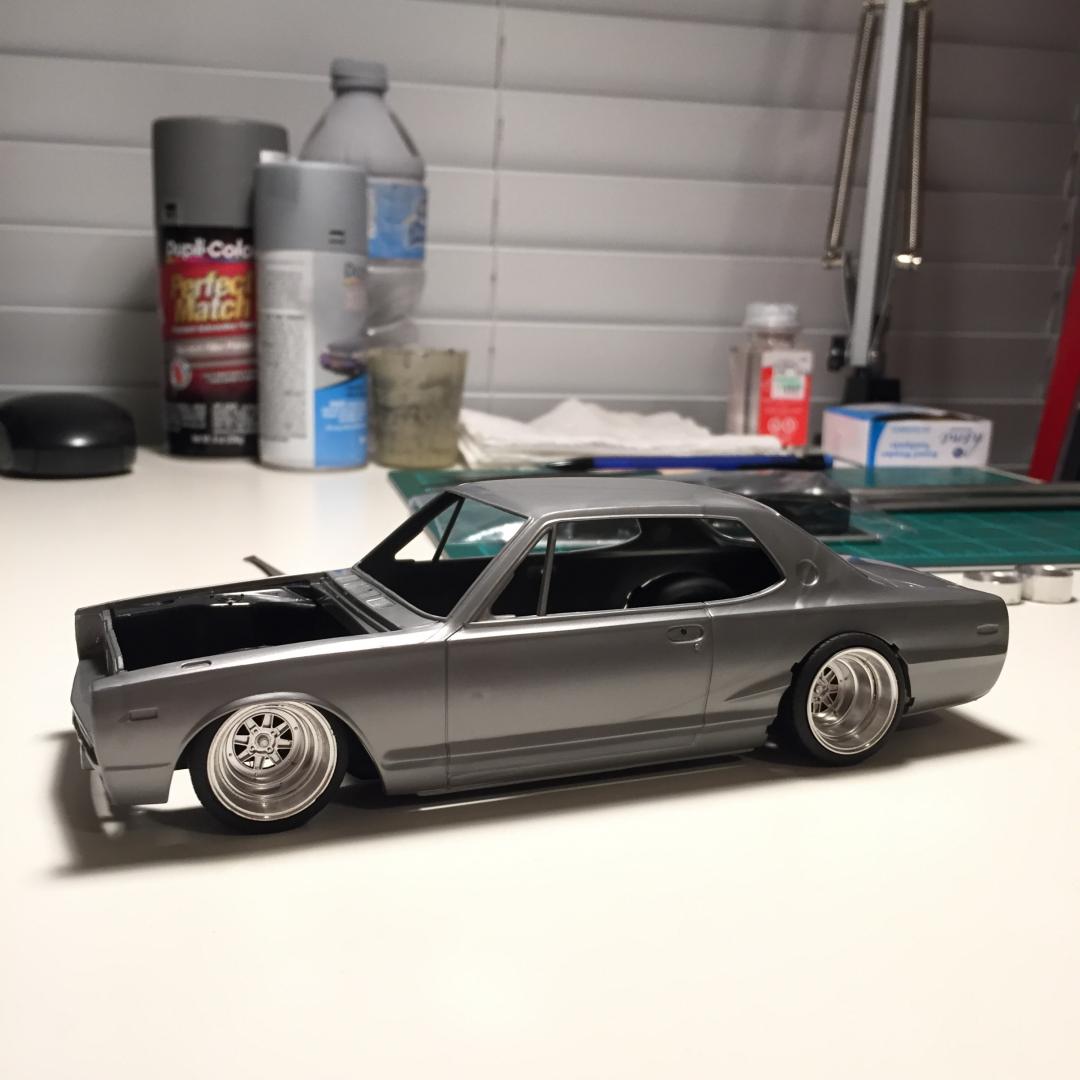

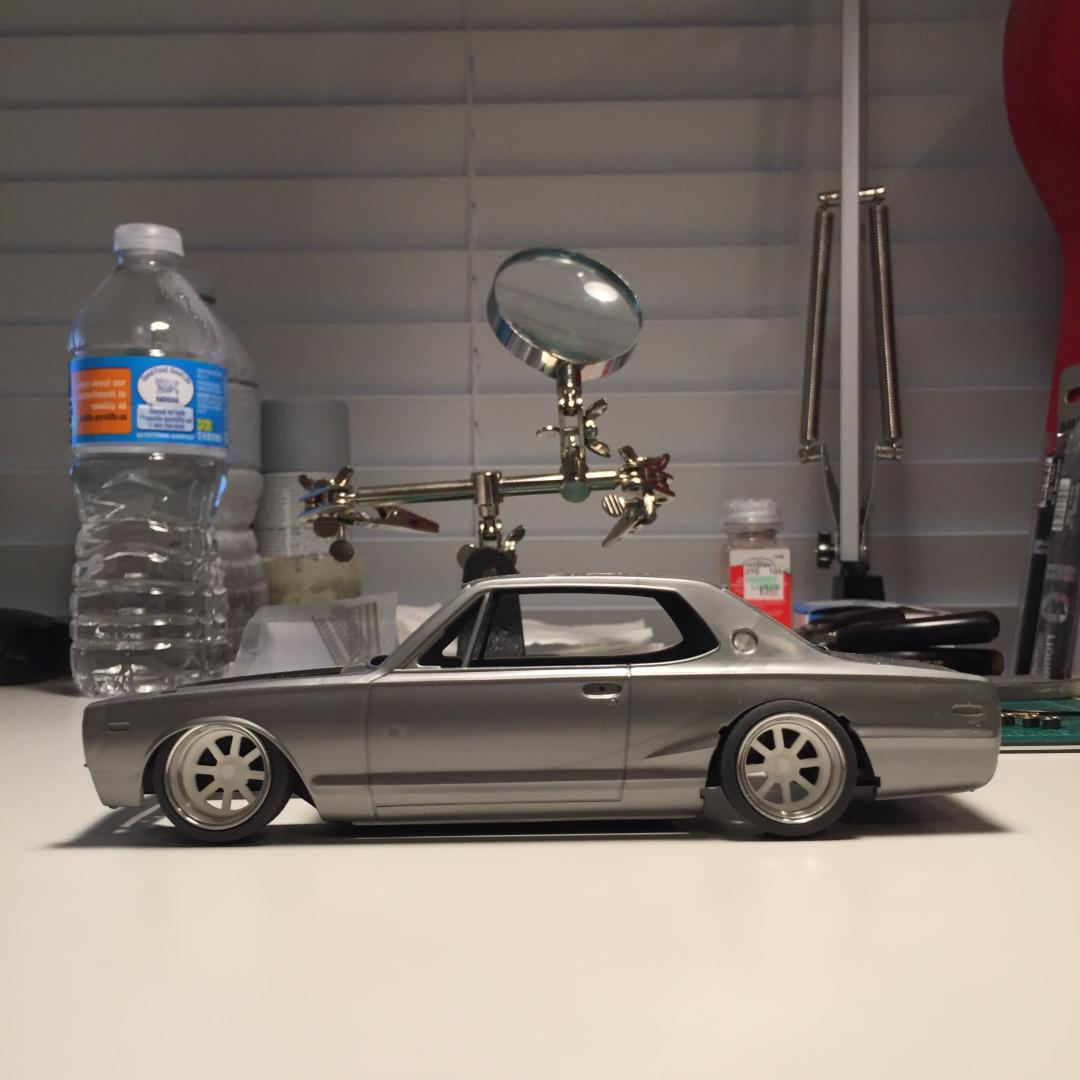

I wasn't feeling the TE37's because they were 5 lug and I didn't feel like converting them to 4 lug so I started playing around with various wheel inserts. First were vintage SSR MKIII's which were shaved to fit the sleeves and also some RS Watanabe's also shaved to fit. Since it took a great deal of work to get these to fit into the sleeves, I figured I had to make resin copies of them for future builds. So a trip to my storage unit resulted in me also being able to do some small scale resin casting also. More on that later ....IMG_2577.thumb.JPG.d97553d72a6542b8a80fcIMG_2668.thumb.JPG.209189a7eb58e94ebefed

Share this post


Link to post
Share on other sites

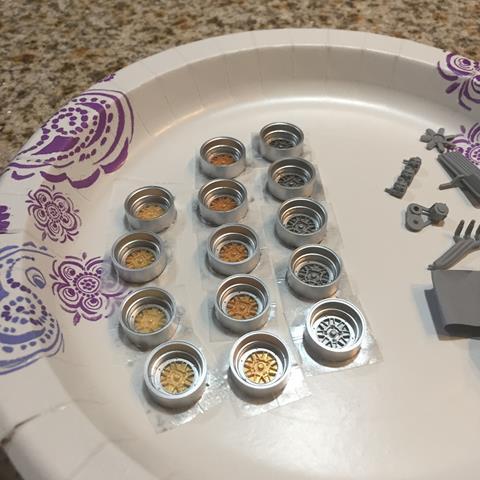

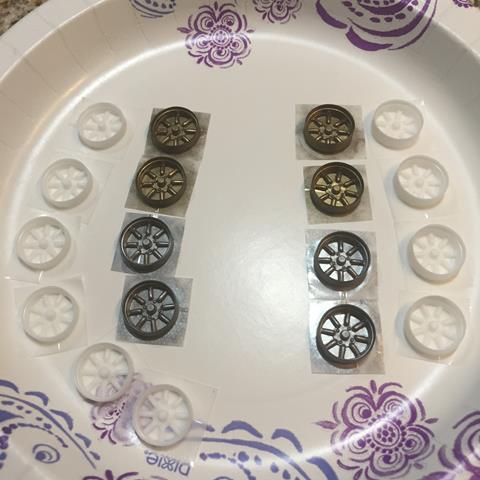

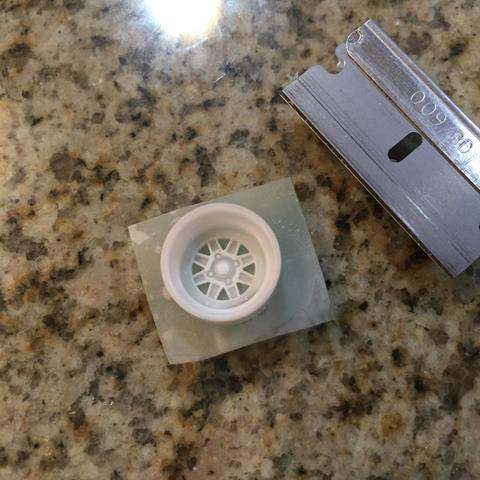

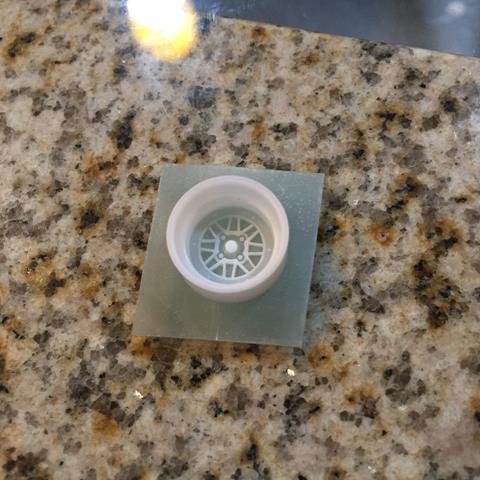

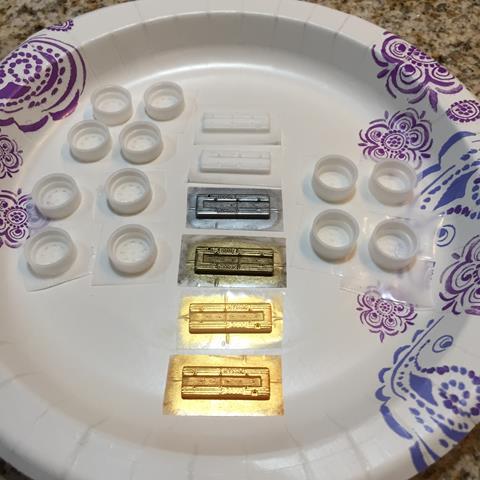

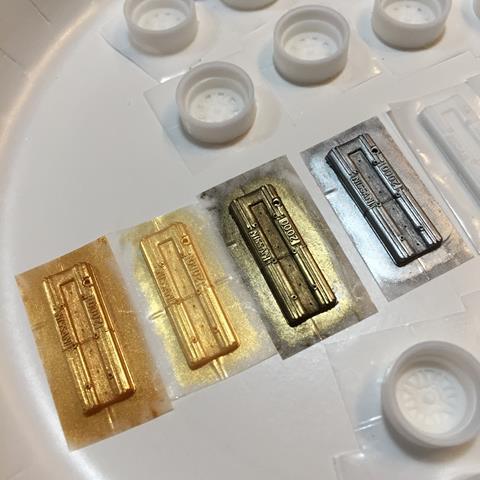

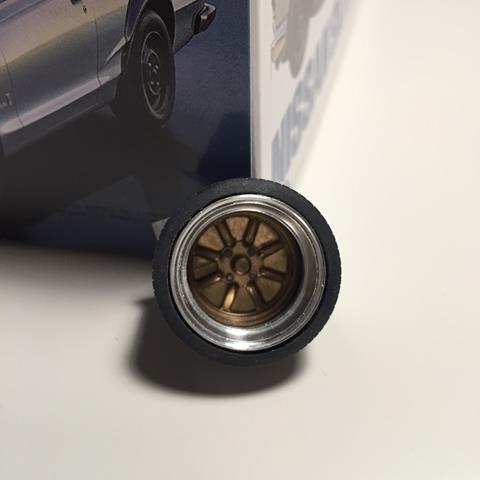

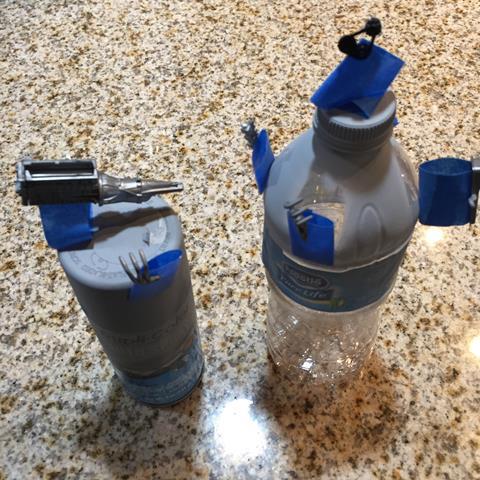

After a few sessions of resin casting, I was able to make some copies of the wheels and valve cover as I was uncertain on design and color scheme still at this point. I also got the engine and related components in primer. A quick write up on the resin casting process will be posted in the "tips and tricks" forum for those interested.

IMG_2644_(Copy).thumb.JPG.d6d3615a6547af

IMG_2645 (Copy).JPG

IMG_2649 (Copy).JPG

IMG_2639 (Copy).JPG

IMG_2646 (Copy).JPG

IMG_2678 (Copy).JPG

IMG_2656 (Copy).JPG

IMG_2679 (Copy).JPG

Edited by shucky

Share this post


Link to post
Share on other sites

Right up my alley, as I have become quite enamored with Japanese compacts of the '70's.

The wheels look great, I especially like the Wantanabe version.

Share this post


Link to post
Share on other sites

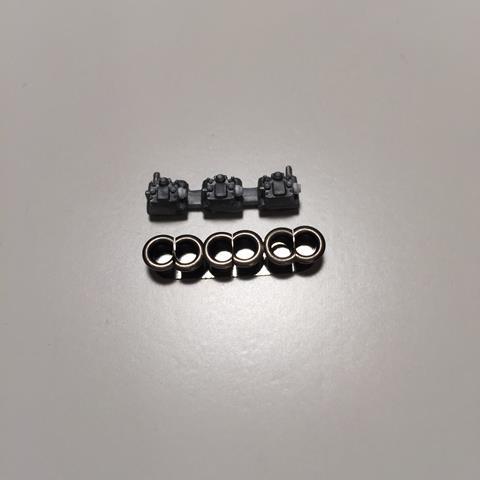

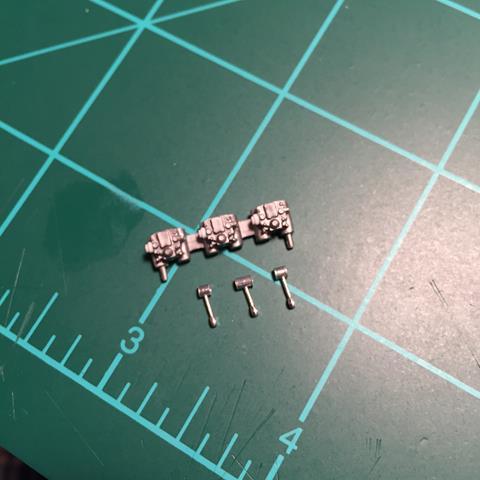

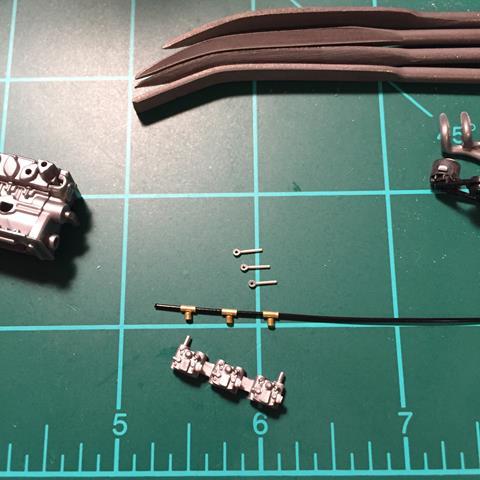

I also started fooling around with the carbs, fuel system, carb trumpets, and added some detail and mounting tab to the alternator. The fuel system is uncertain yet as I work on fitment. I made a mounting plate for the carb trumpets out of craft store tin and added intake trumpets from the craft store as well. These were shaved in the middle for fitment and will also be used. Early mock up's here.

IMG_2597 (Copy).JPG

IMG_2609 (Copy).JPG

IMG_2612 (Copy).JPG

Share this post


Link to post
Share on other sites

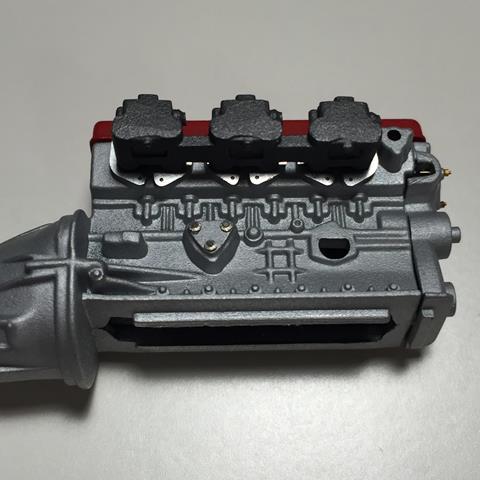

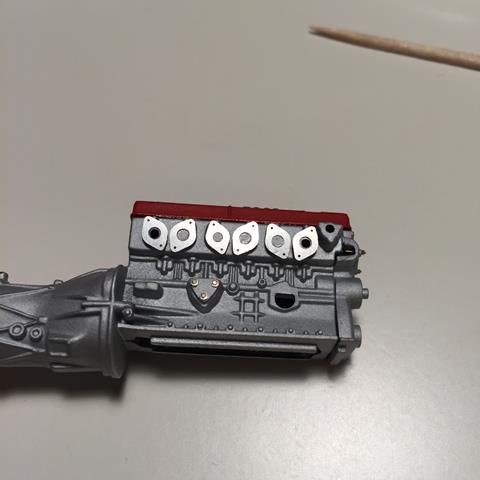

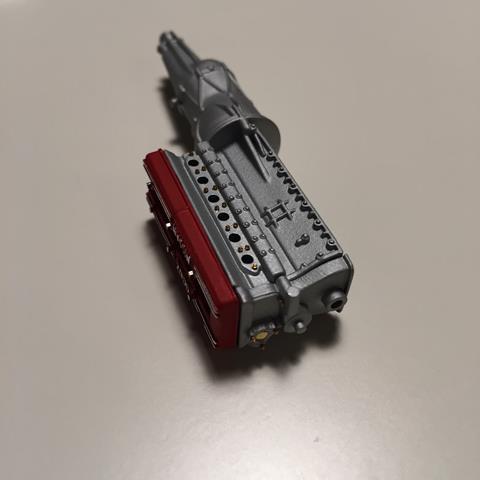

More work on the Nissan S20. I found the Detail Master small exhaust flanges fit the carb mounting points perfectly, like they were made for this. I added them to either simulate gaskets or raw polished surface. Made a block off plate for the crankcase vent also which will be more detailed later. Also started adding bolts and misc. details bits. Excuse some of the flaws as I need to still touch up a few area's.

IMG_2685 (Copy).JPG

IMG_2686 (Copy).JPG

IMG_2687 (Copy).JPG

Share this post


Link to post
Share on other sites

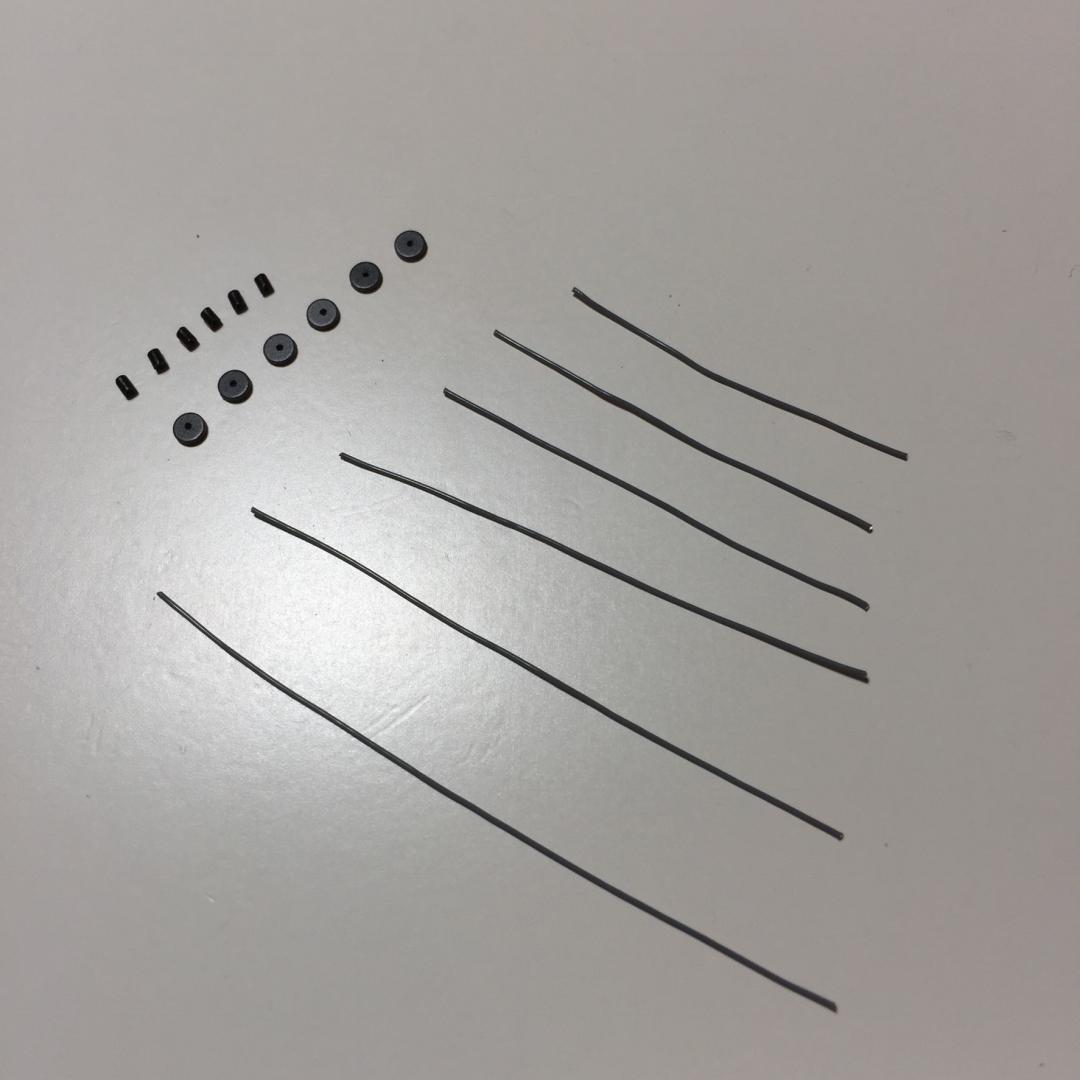

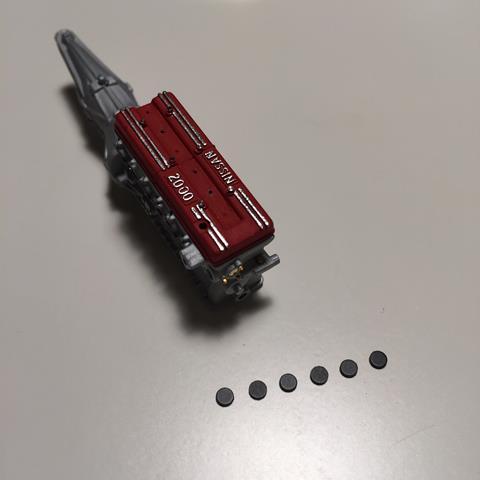

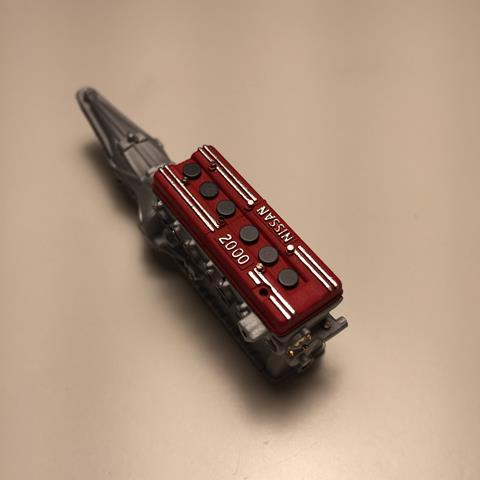

I punched out some circles from black styrene to simulate the bottom of the plug boots which were removed from the molded detail on the valve cover. Just doing a test fit. The "bare metal" surfaces on the valve cover are Molotow liquid chrome.

IMG_2688 (Copy).JPG

IMG_2689 (Copy).JPG

Edited by shucky

Share this post


Link to post
Share on other sites

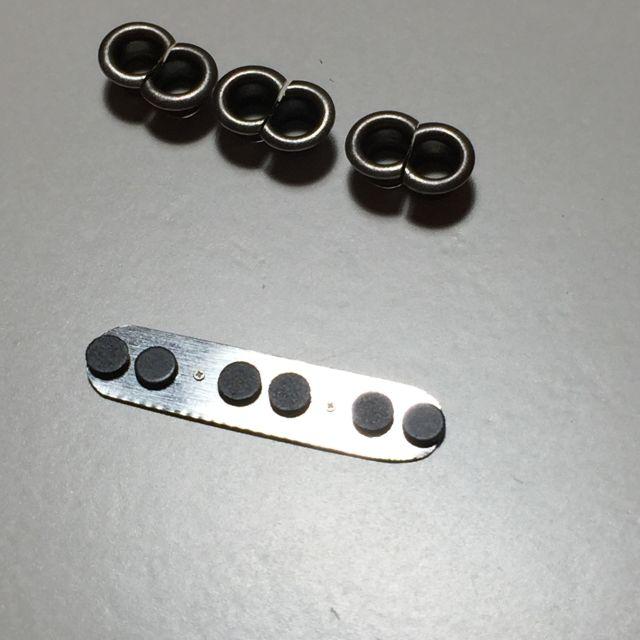

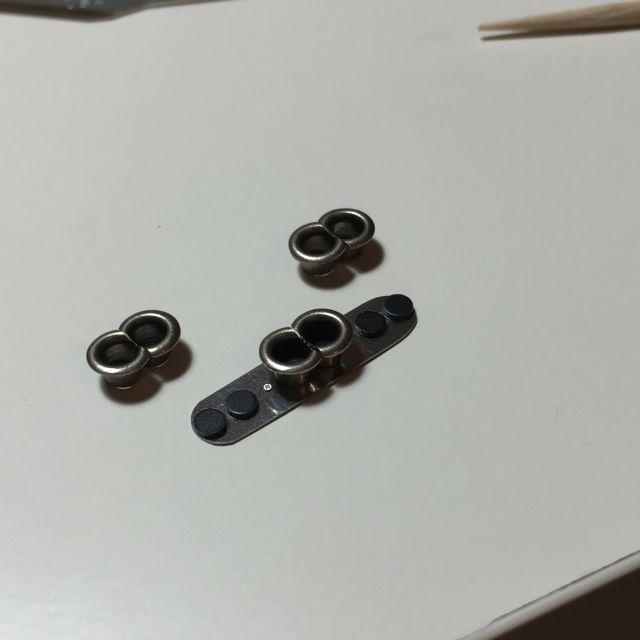

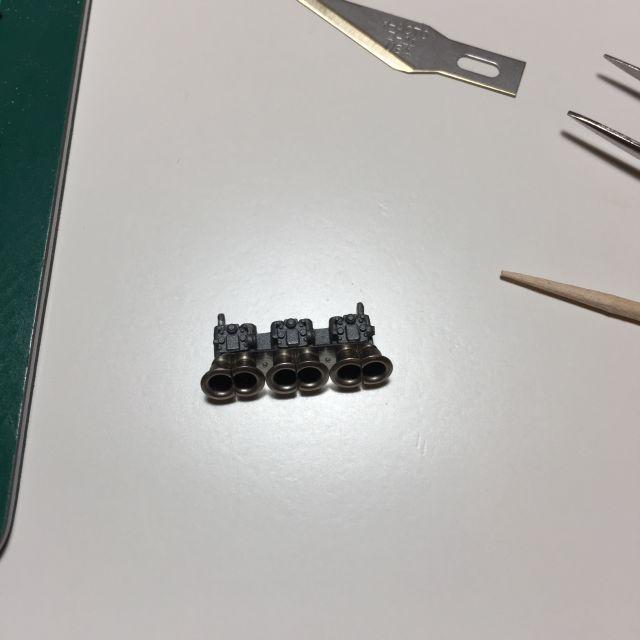

Got a little time in this weekend. Started detailing the carbs and did a mock up. Next up is the linkage and fuel system. Also mounted the intake trumpets to the mounting place. I was worried about getting epoxy on the mounting plate, so I fastened the punched discs first, then the trumpets to the discs. Also added some PE bits. Lots more to add.







Share this post


Link to post
Share on other sites

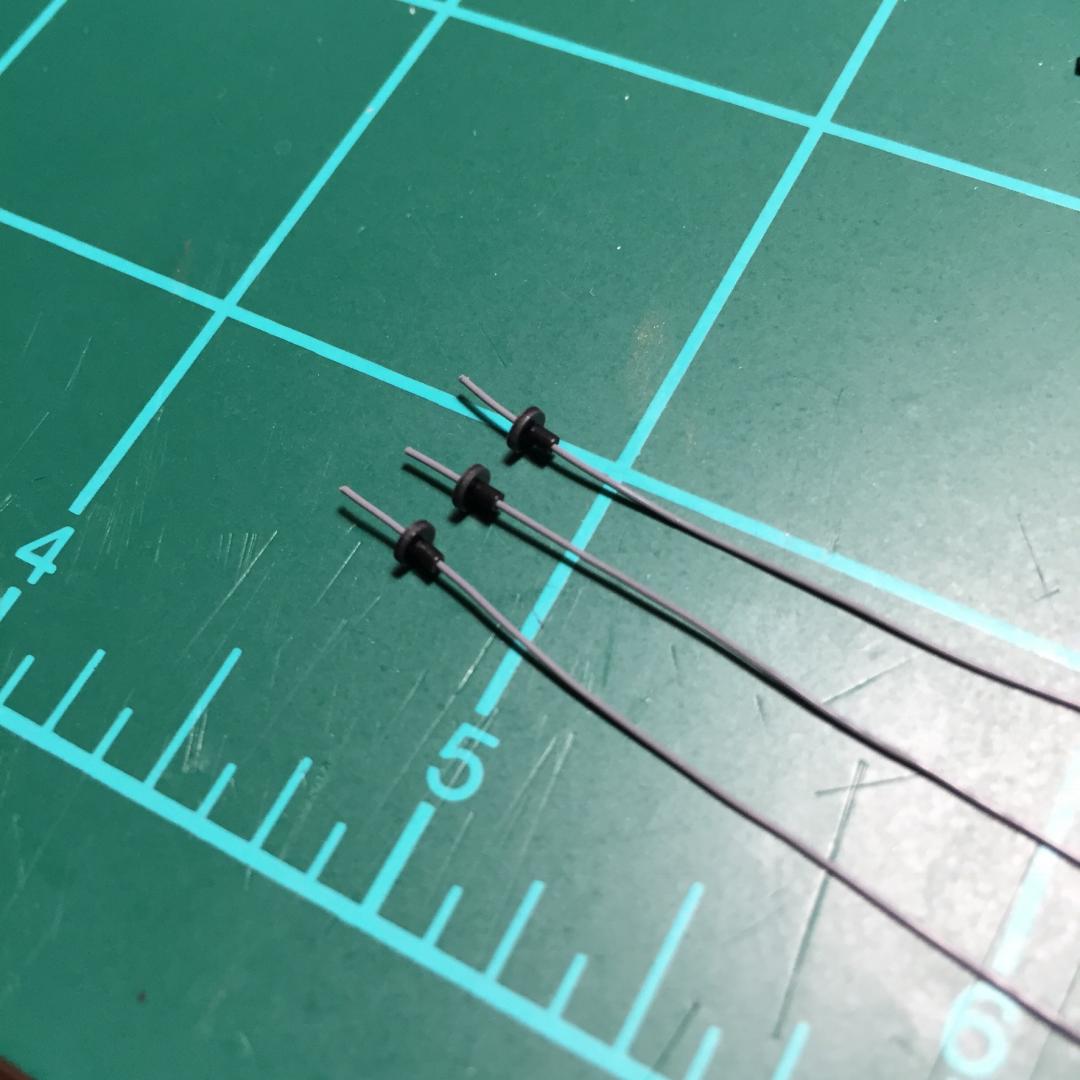

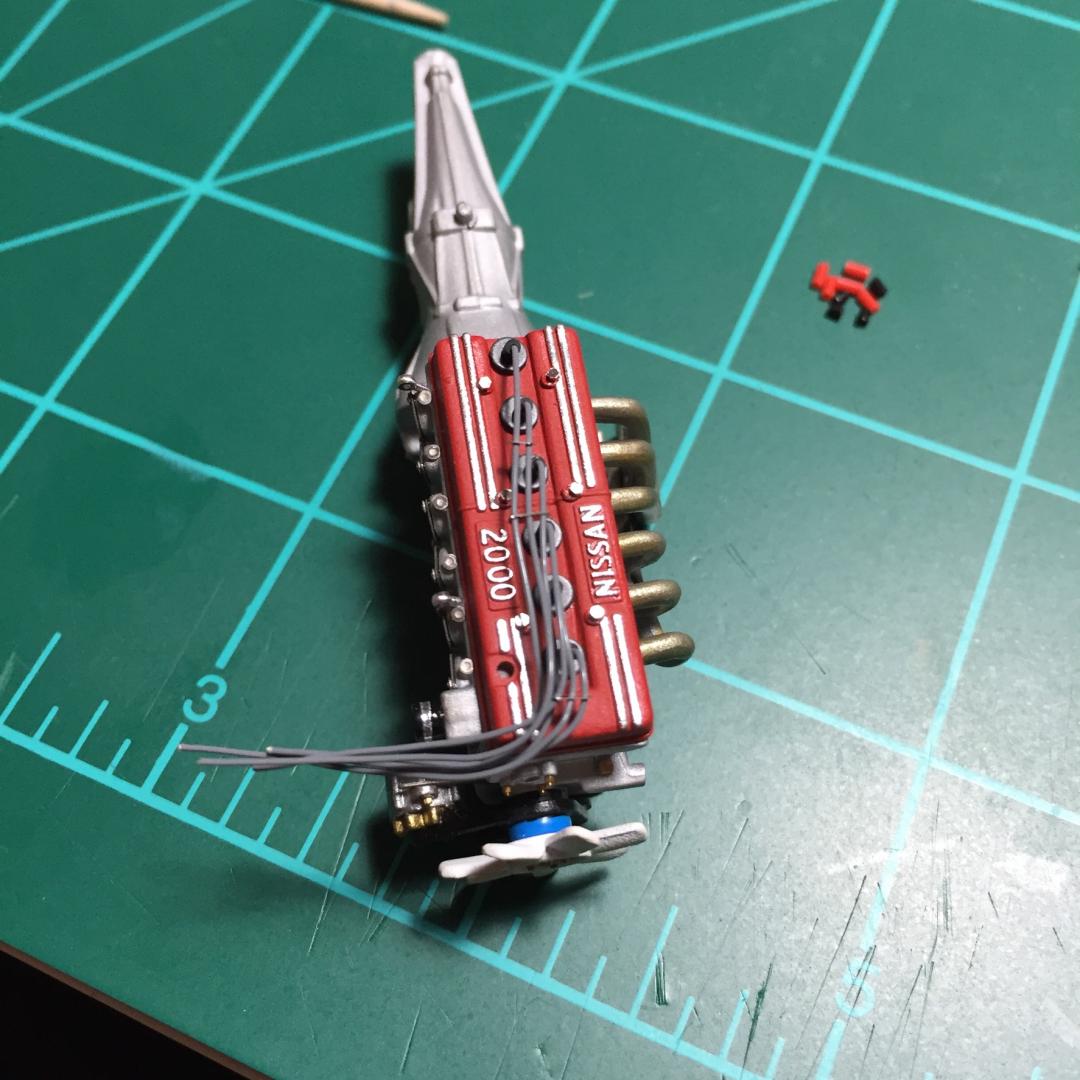

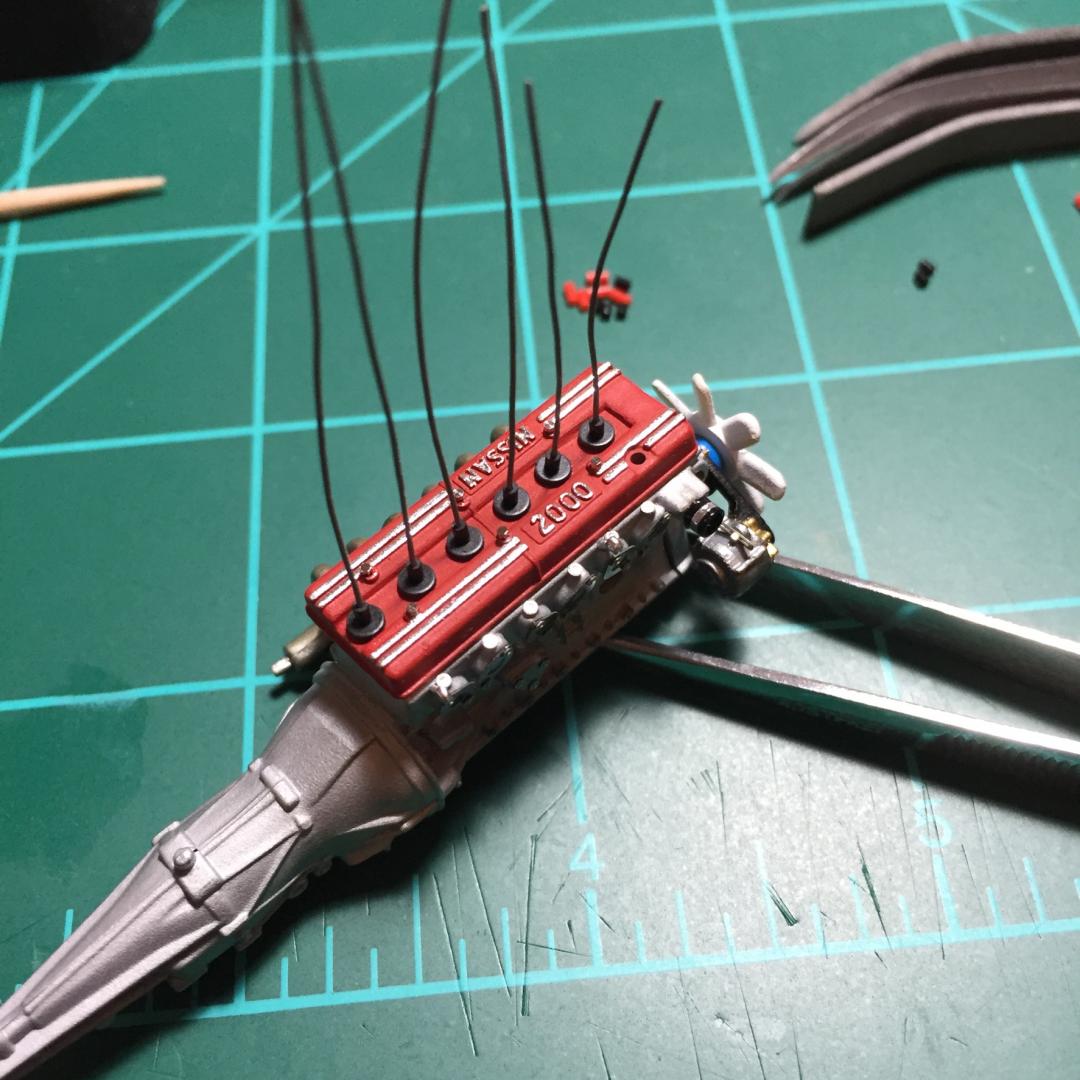

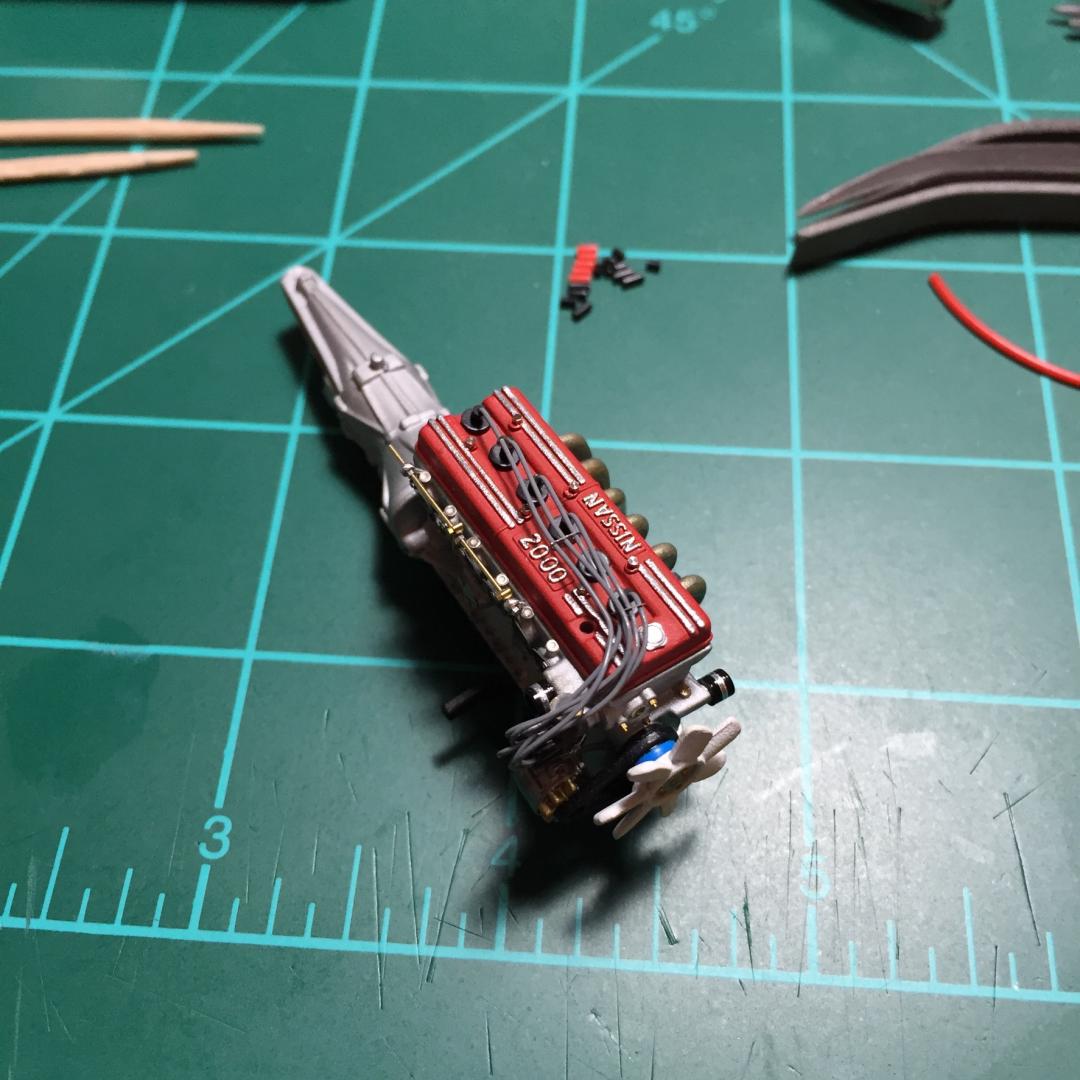

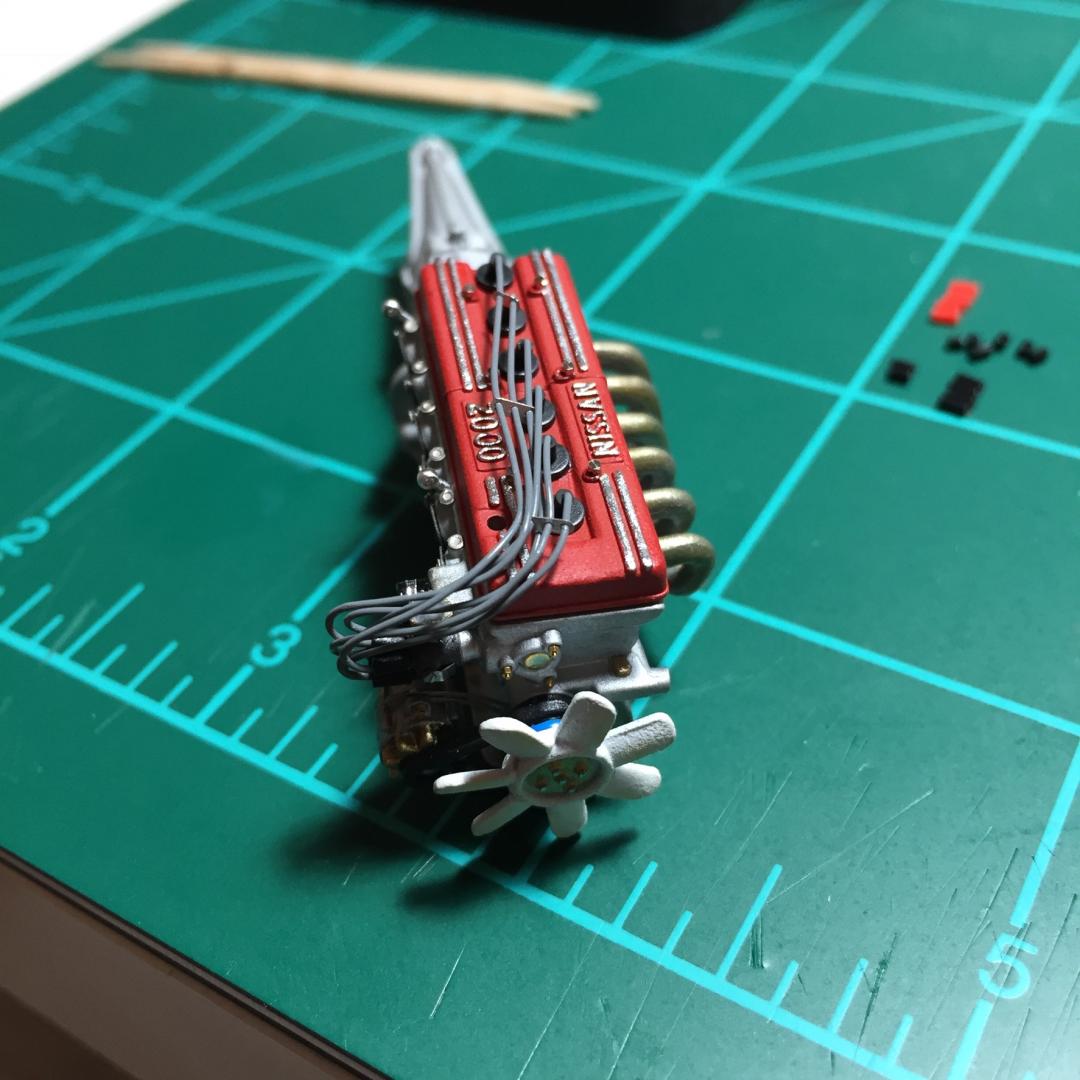

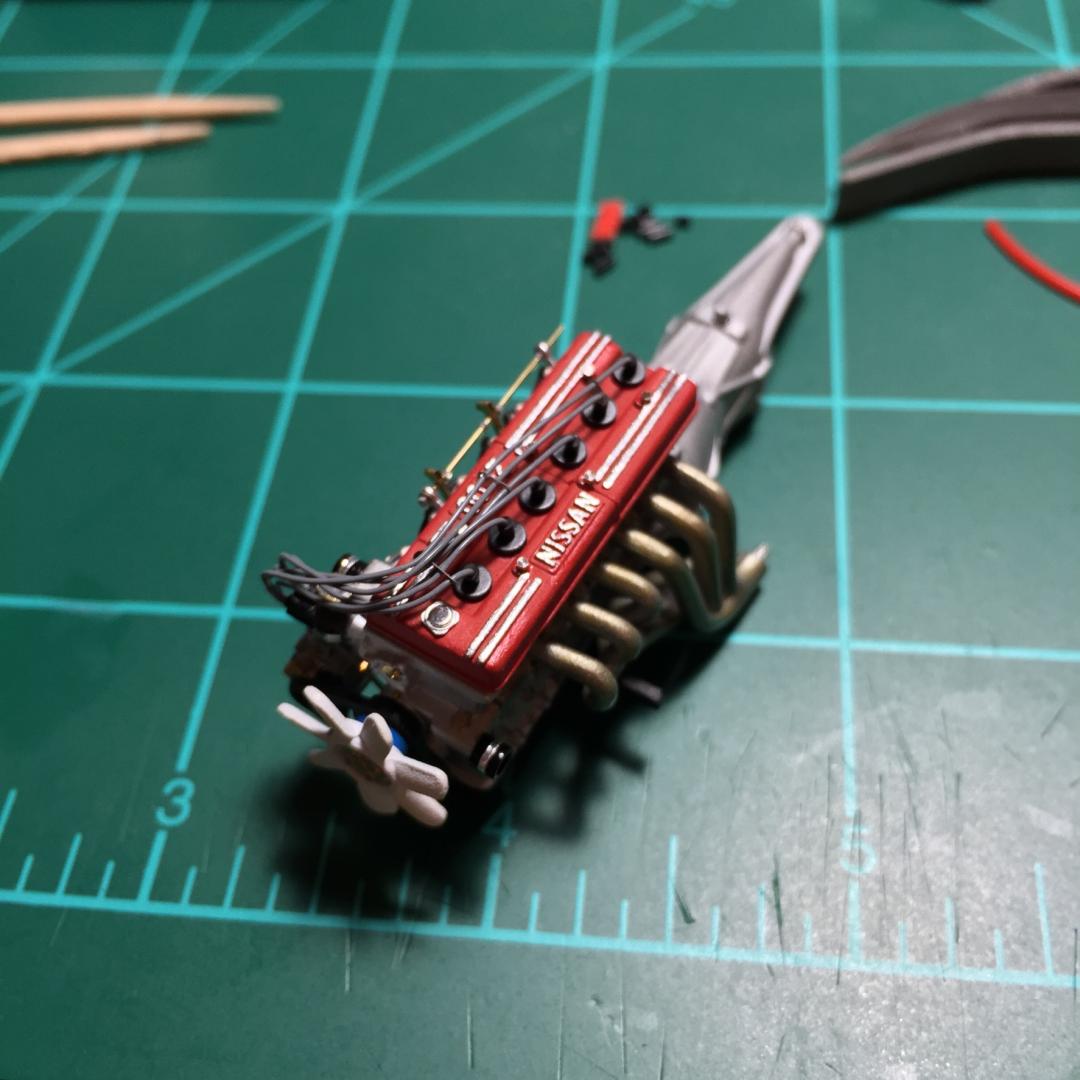

Been making some progress on the Nissan S20. Carbs getting final touches and sorting the plug boots and ignition wiring.







Share this post


Link to post
Share on other sites

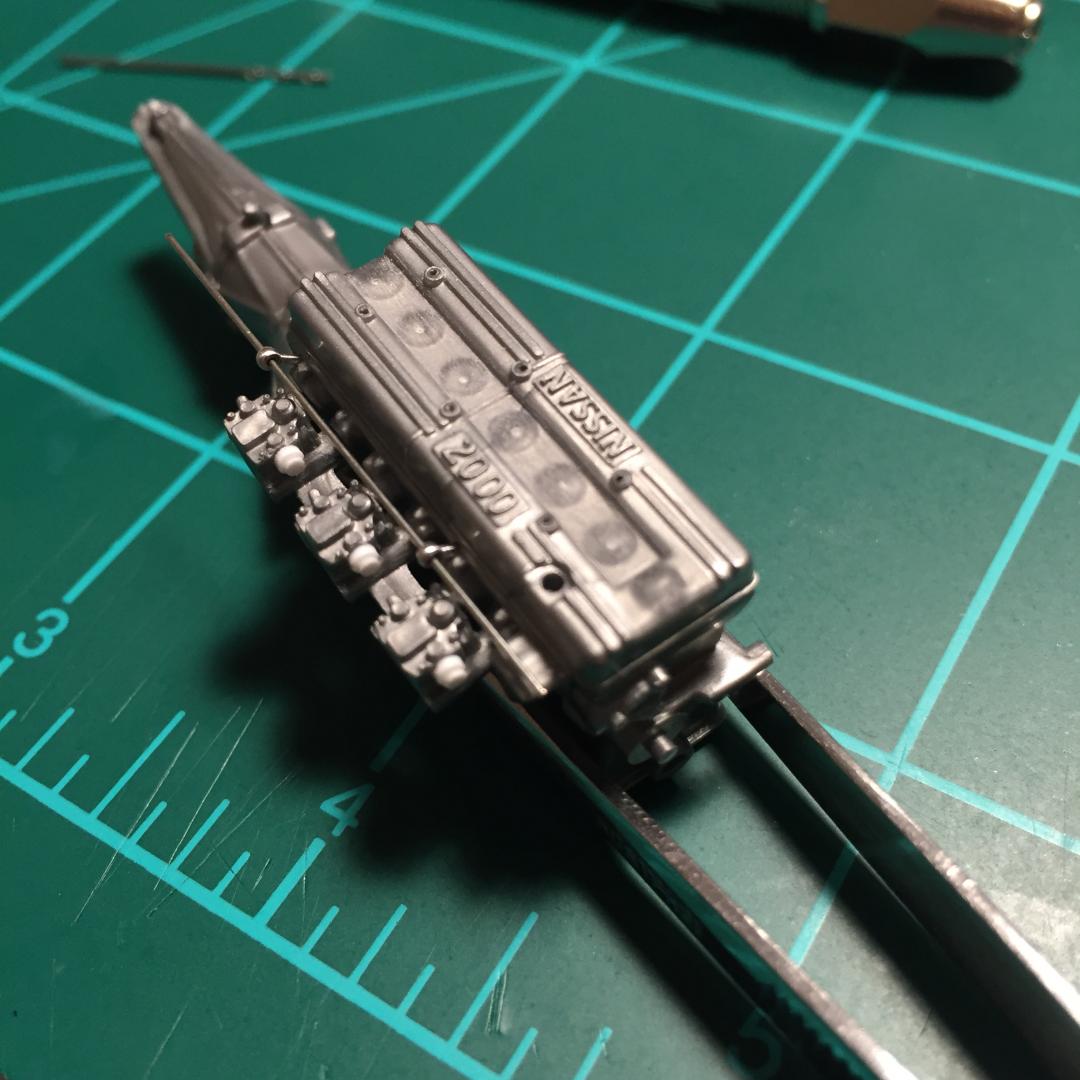

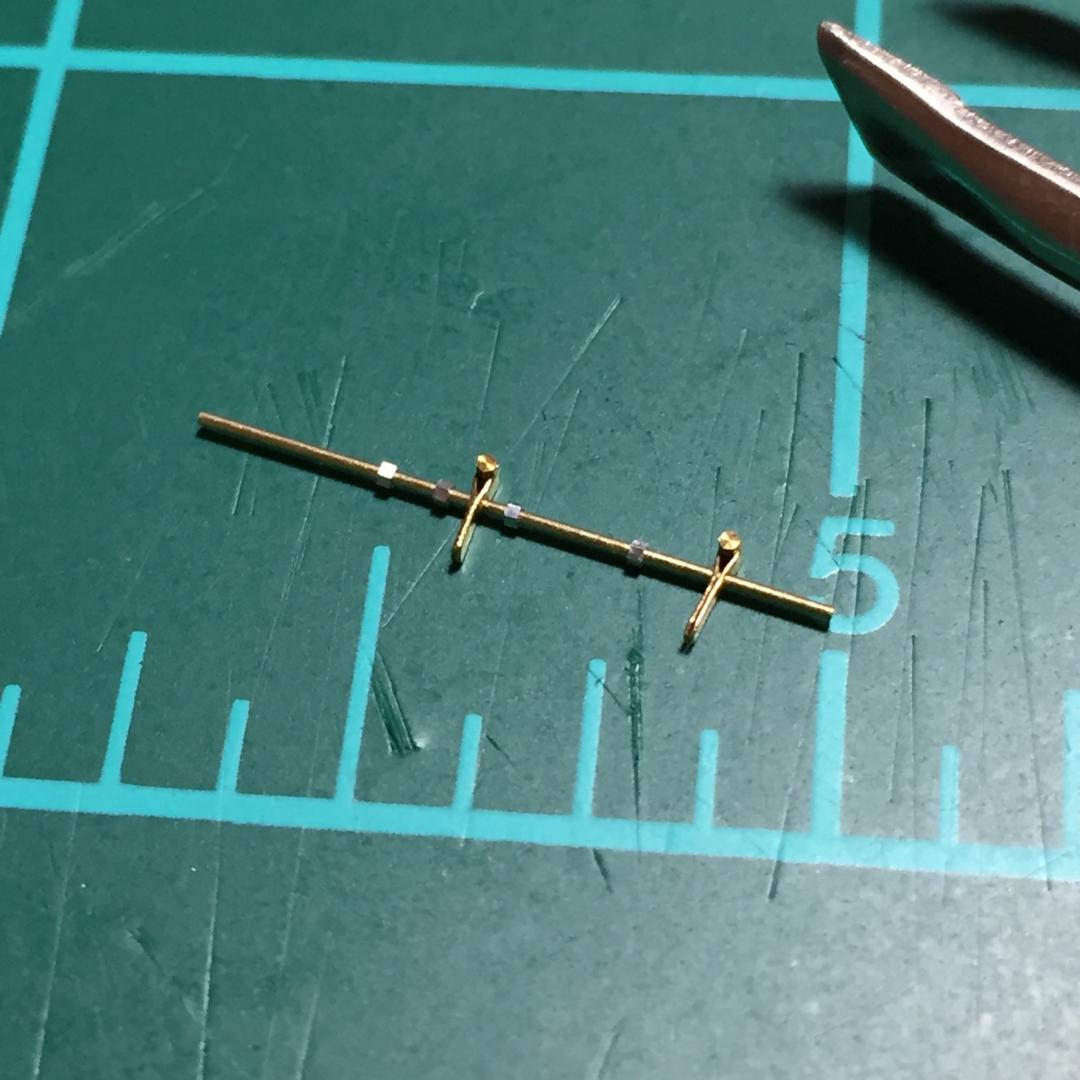

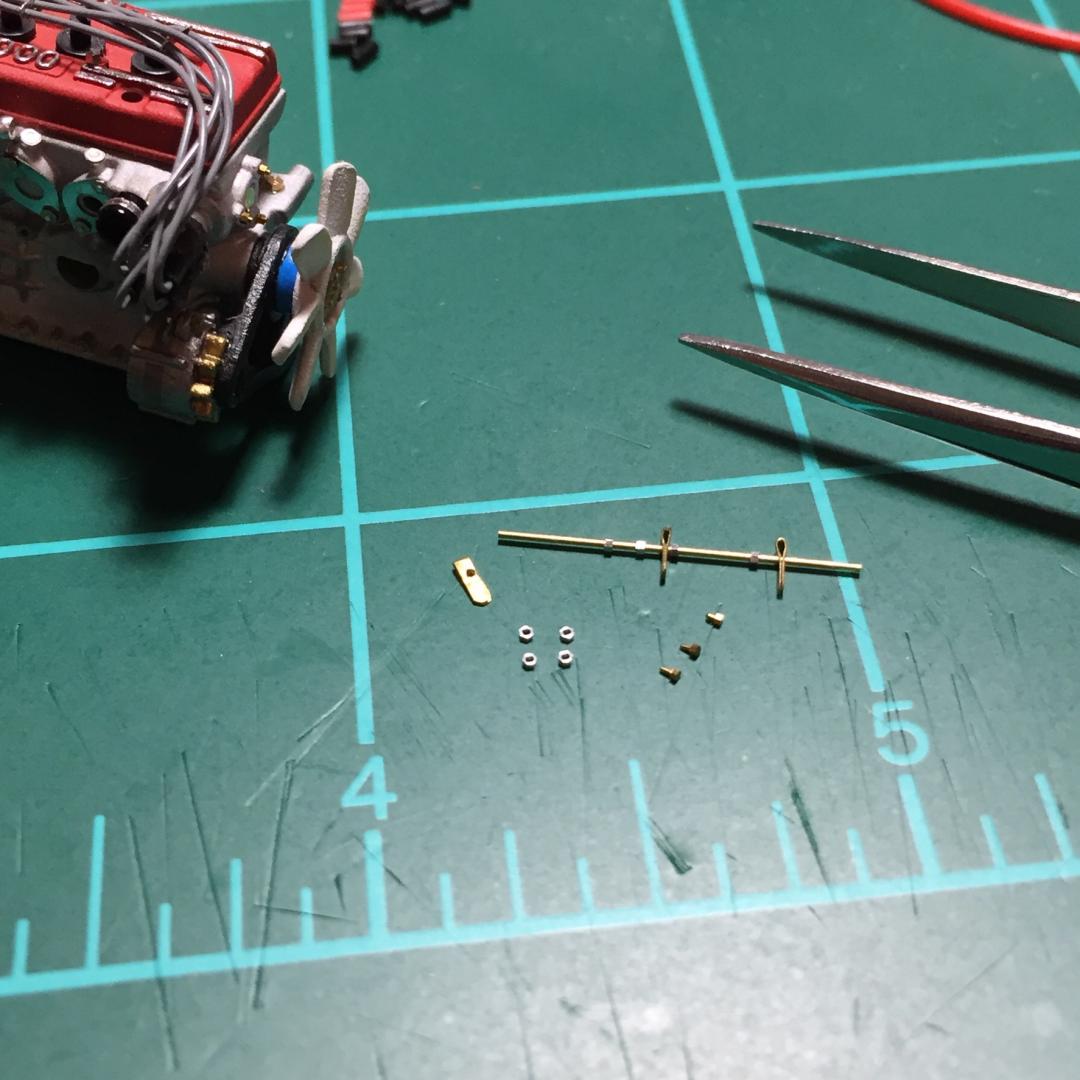

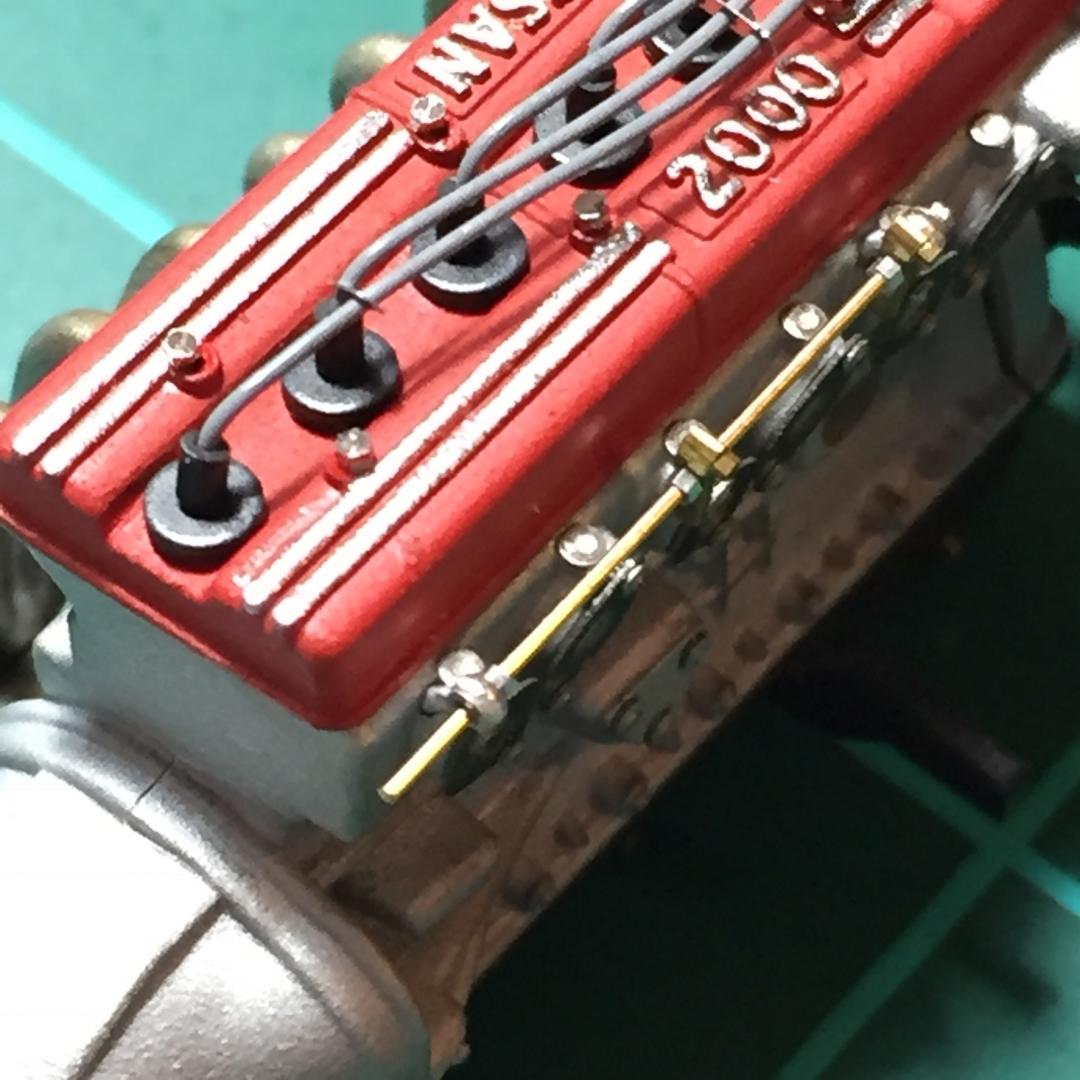

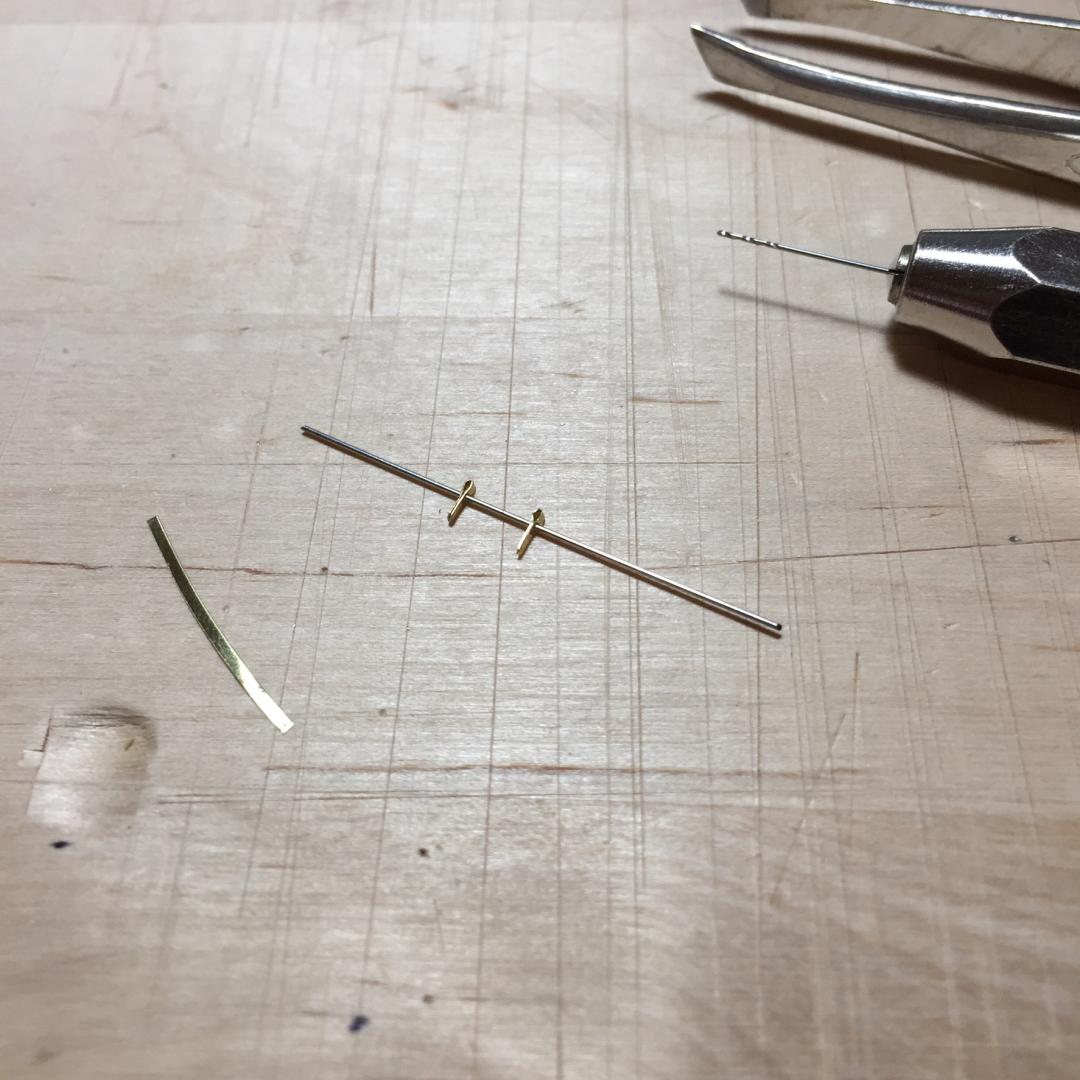

This weekend I started scratch building the linkage. I tried to keep the appearance as close to actual photos of a 1:1 as possible in this scale. Mainly using brass rod and very thin strips of sheet brass with bits from RB Motion and Scale Hardware






Share this post


Link to post
Share on other sites

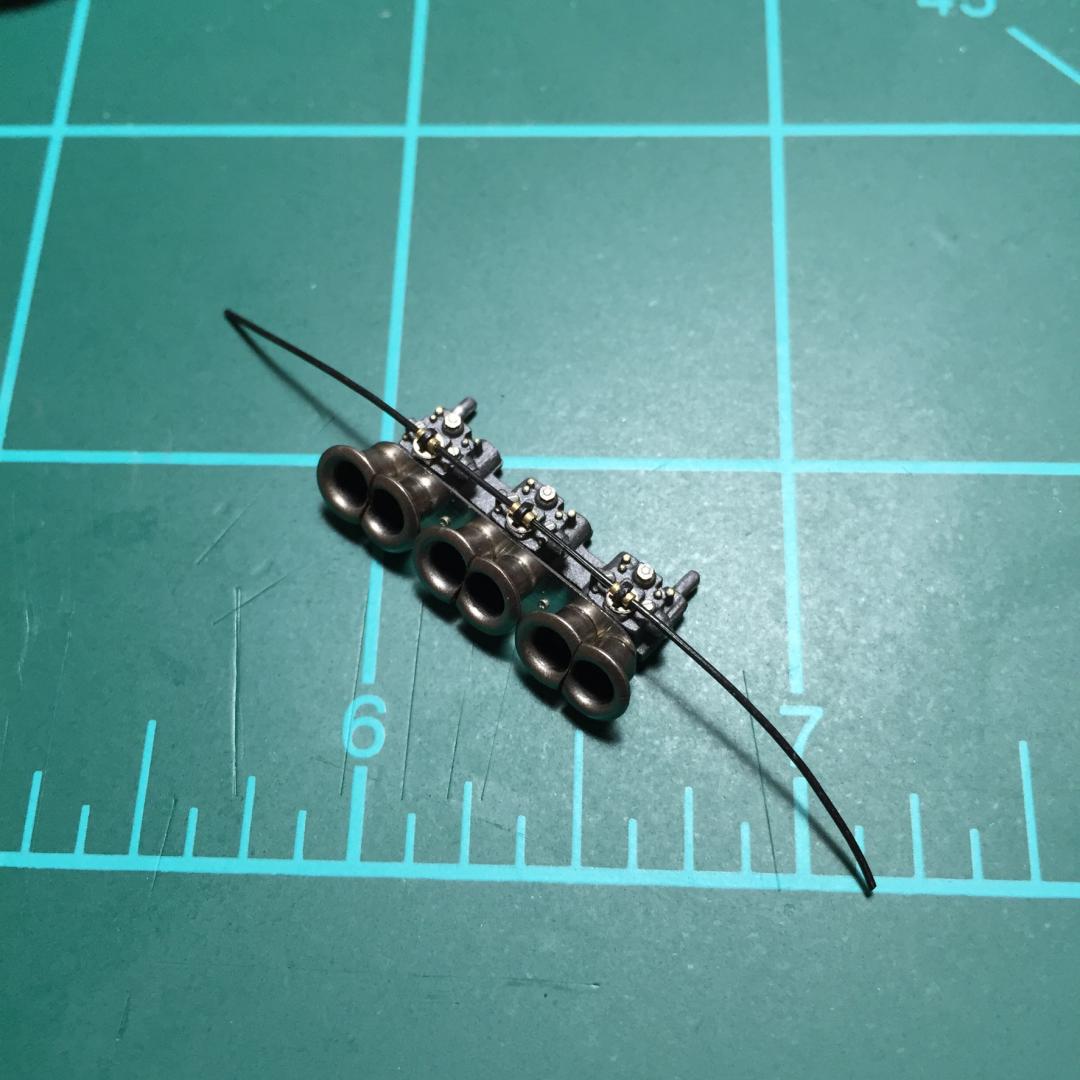

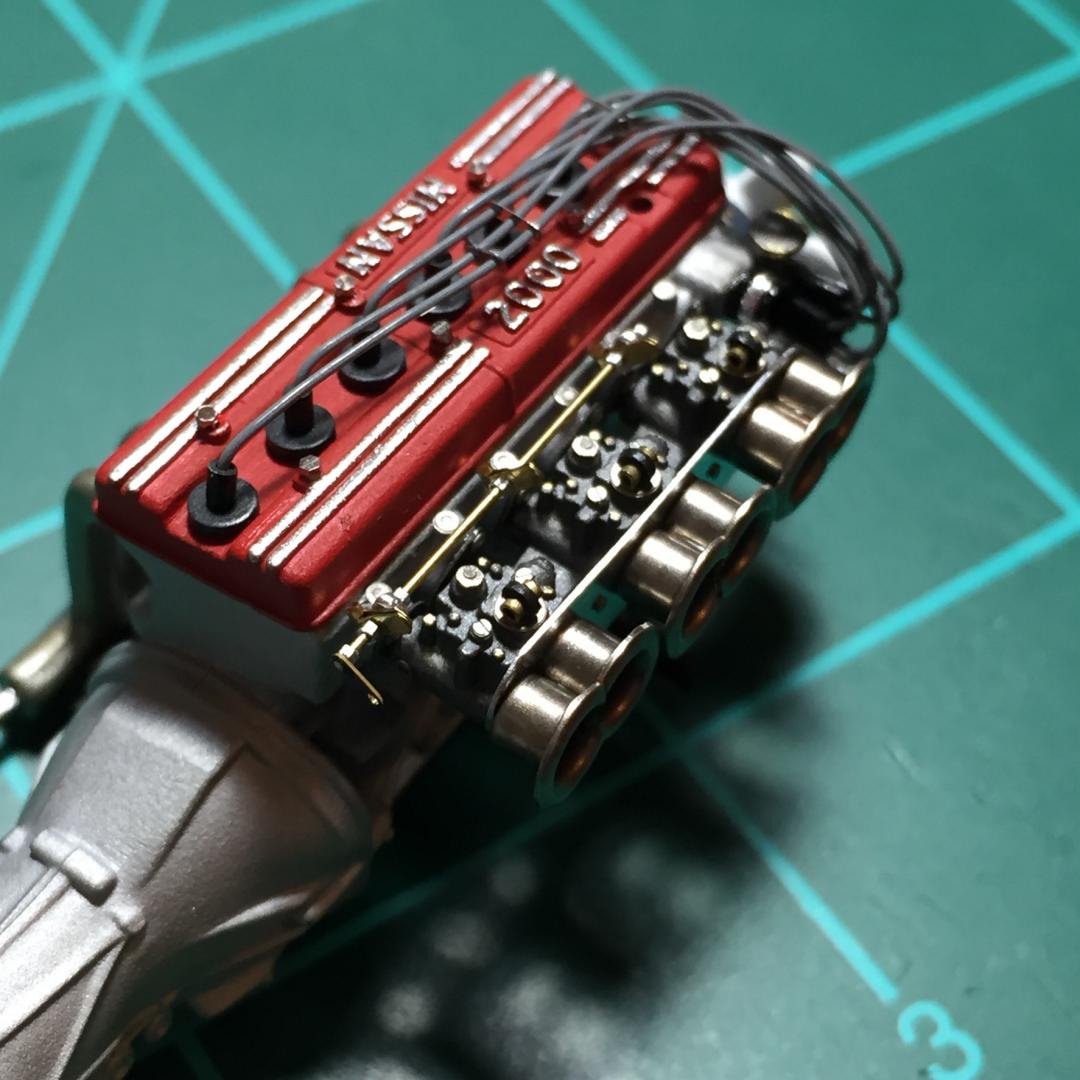

Getting linkage test fit and mocked up. Linkage arms are not fixed yet and in their "down" position.







Edited by shucky

Share this post


Link to post
Share on other sites

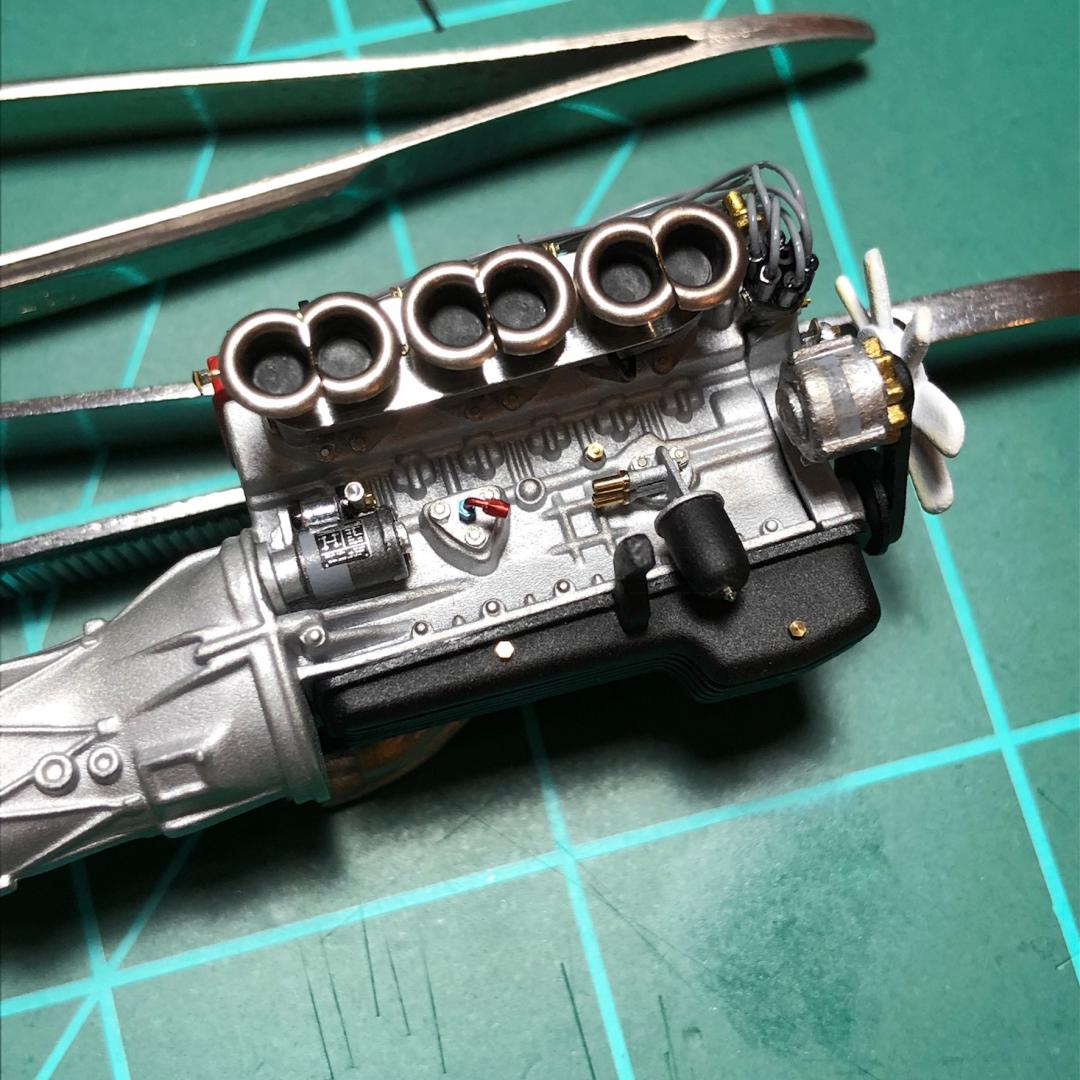

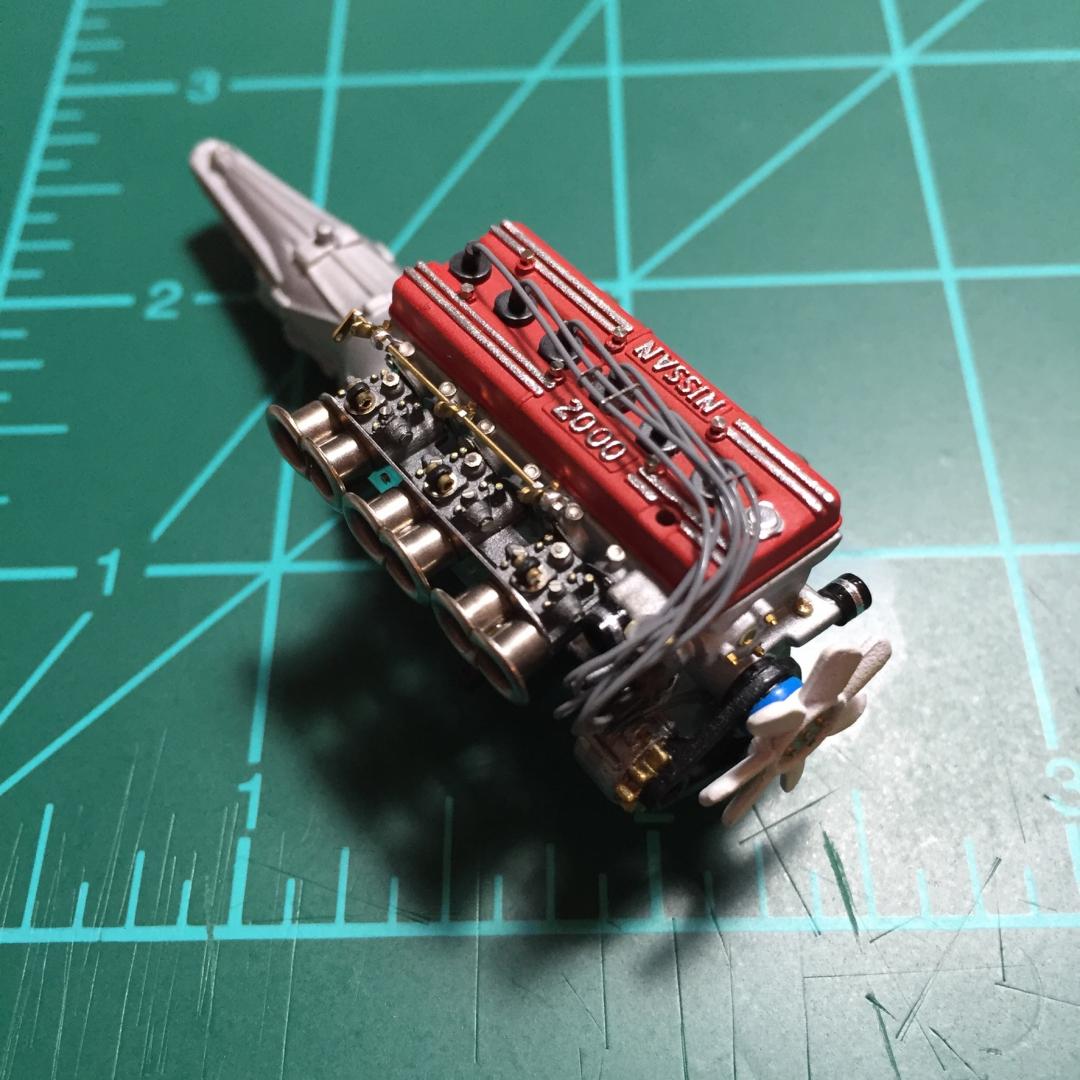

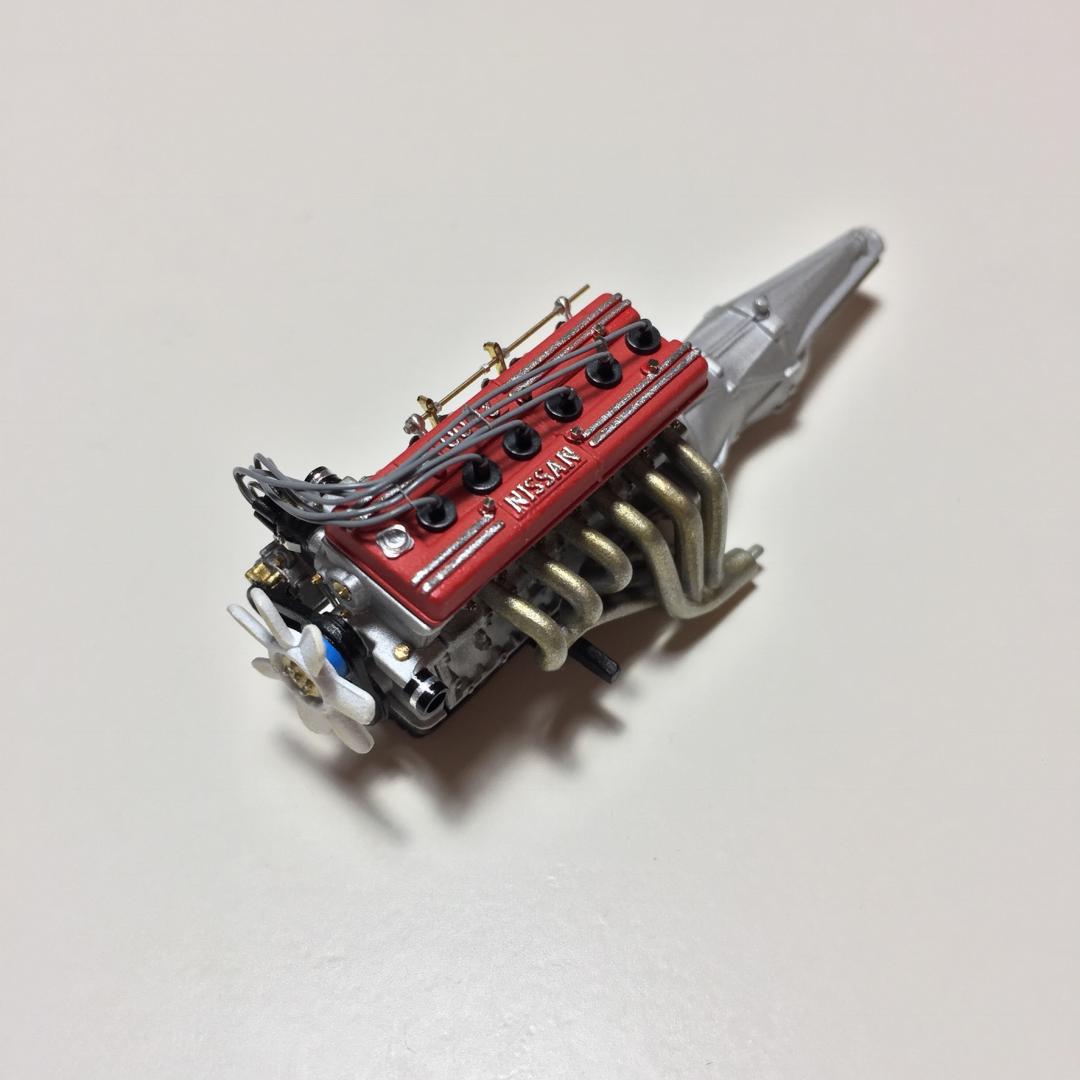

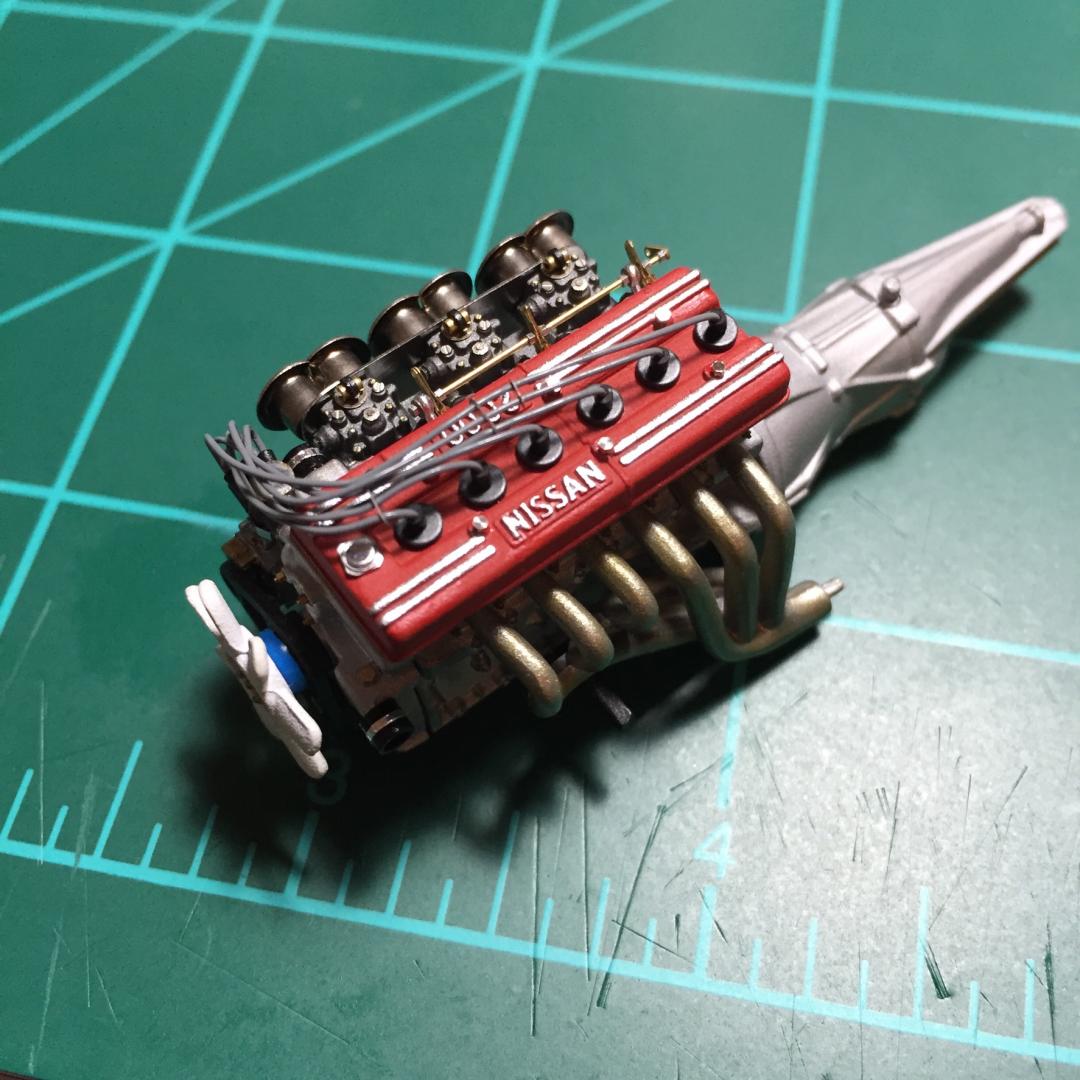

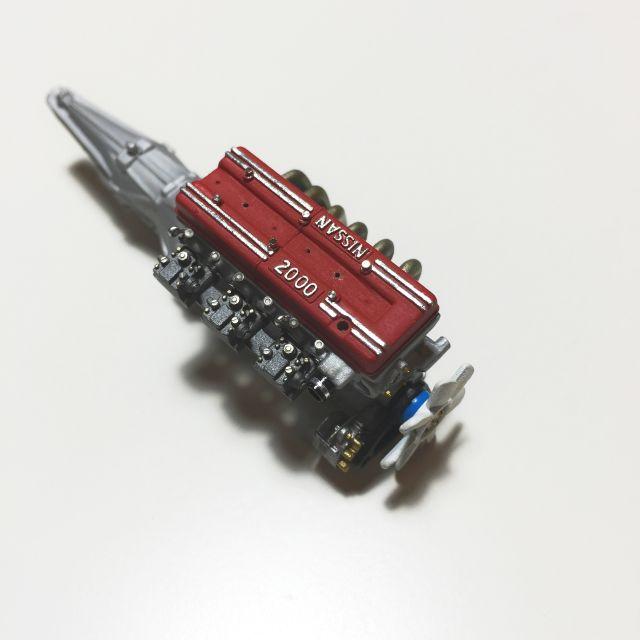

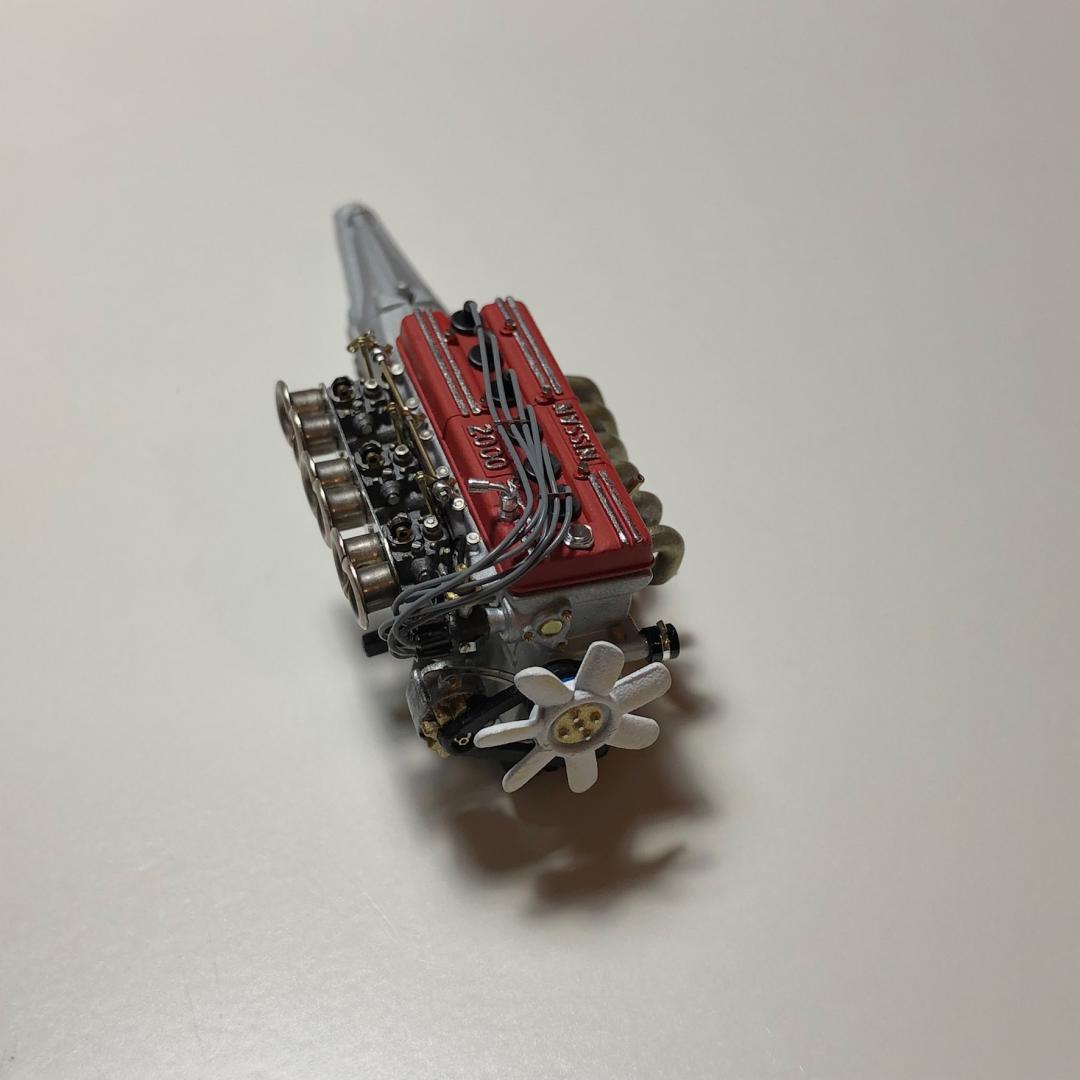

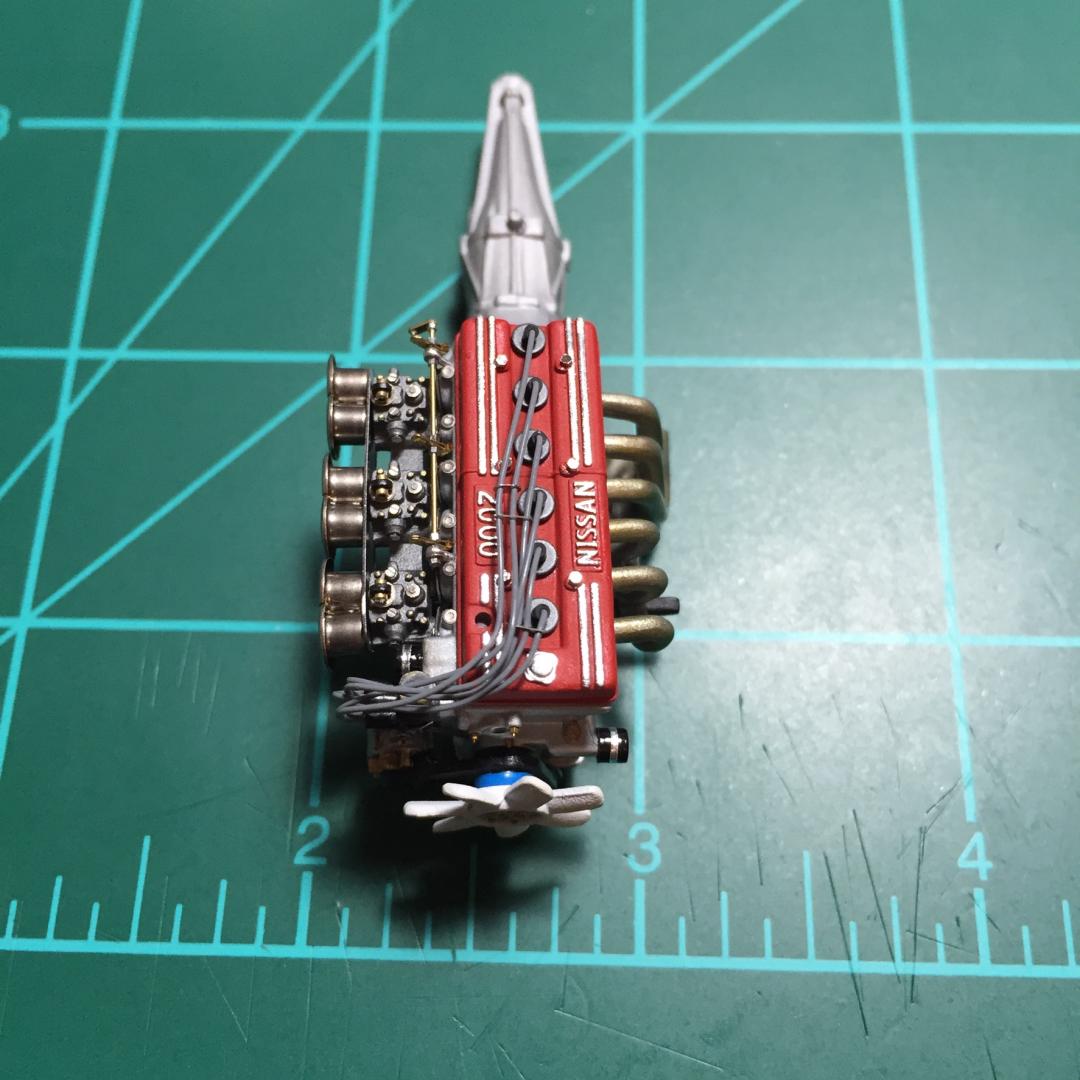

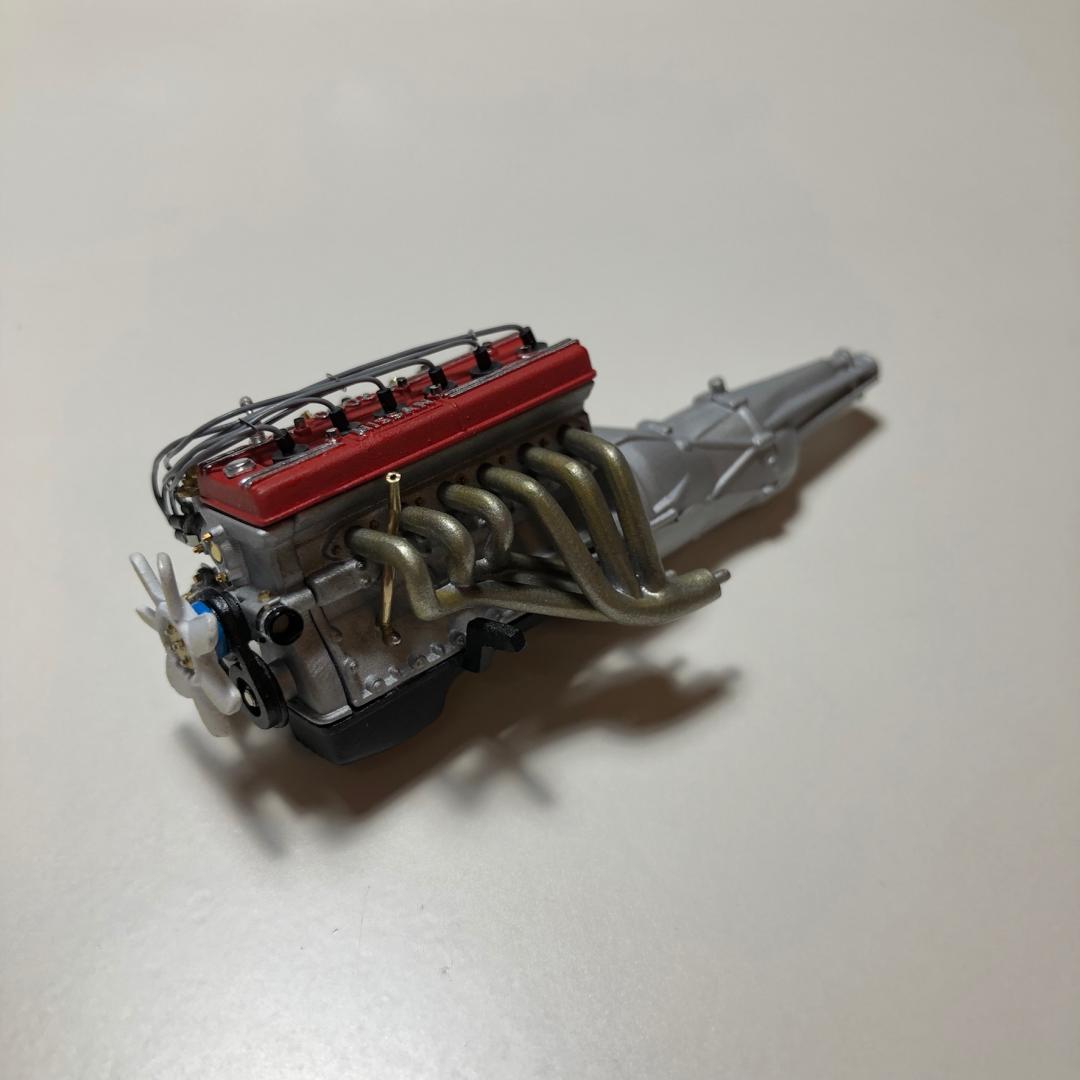

Thanks gents! I am really into vintage Japanese vehicles right now, so many projects yet so little time lol! Anyways, here is the legendary S20 as it sits today. Linkage mostly sorted, need to add each link to each carb next. Carbs and intake trumpets permenantly mounted now. Up next is perhaps scratch build a starter, mount the oil filter, fab a dip stick, fuel line, and other misc detailing bits. Should be deciding on wheels/tires and getting the stance/suspension sorted soon. More updates coming.







Share this post


Link to post
Share on other sites

My apologies for not updating regularly. Progress is slow but steady. Working on finishing touches to the motor before moving on.

Not satisfied with kit starter and oil filter assembly, I set out to build better ones.




Share this post


Link to post
Share on other sites

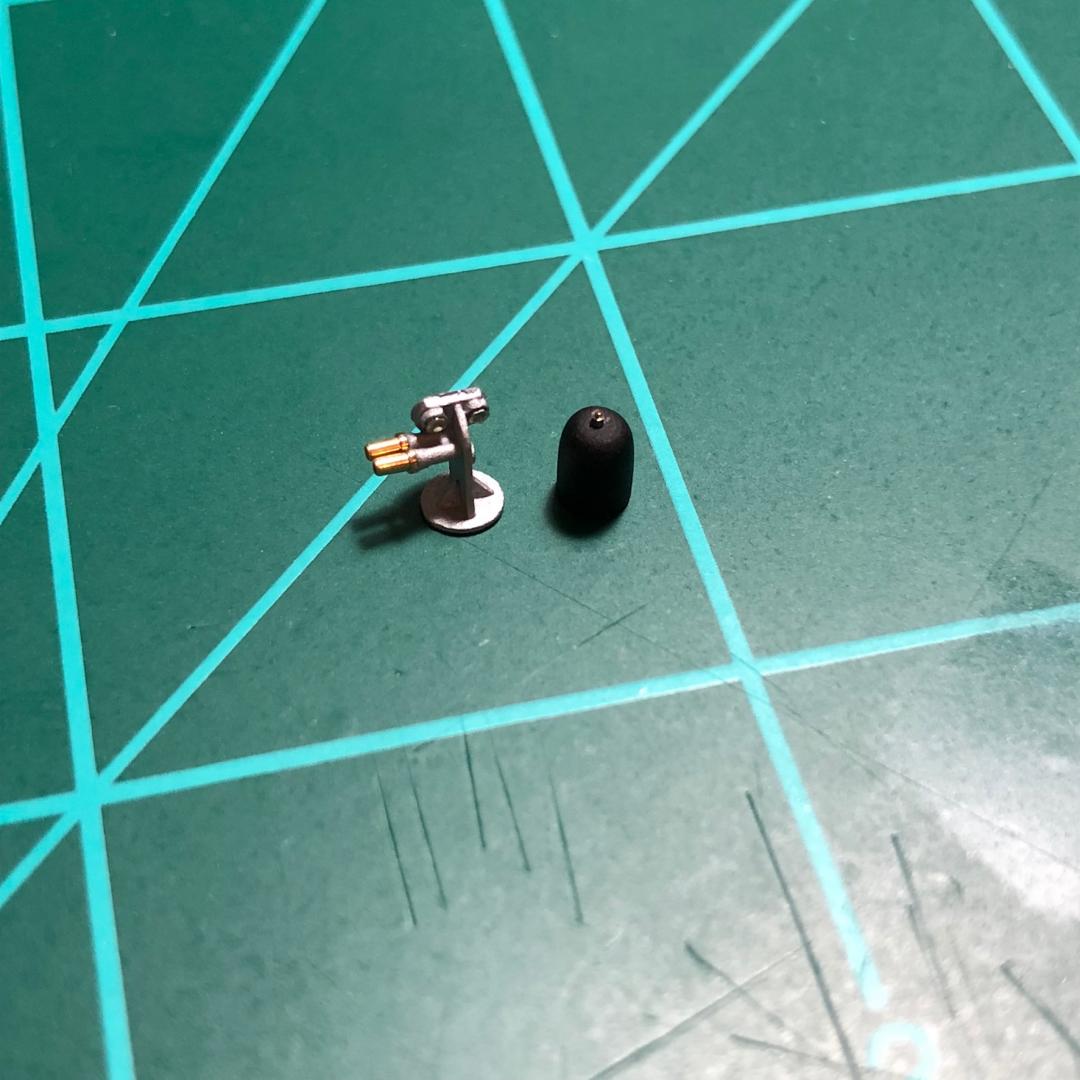

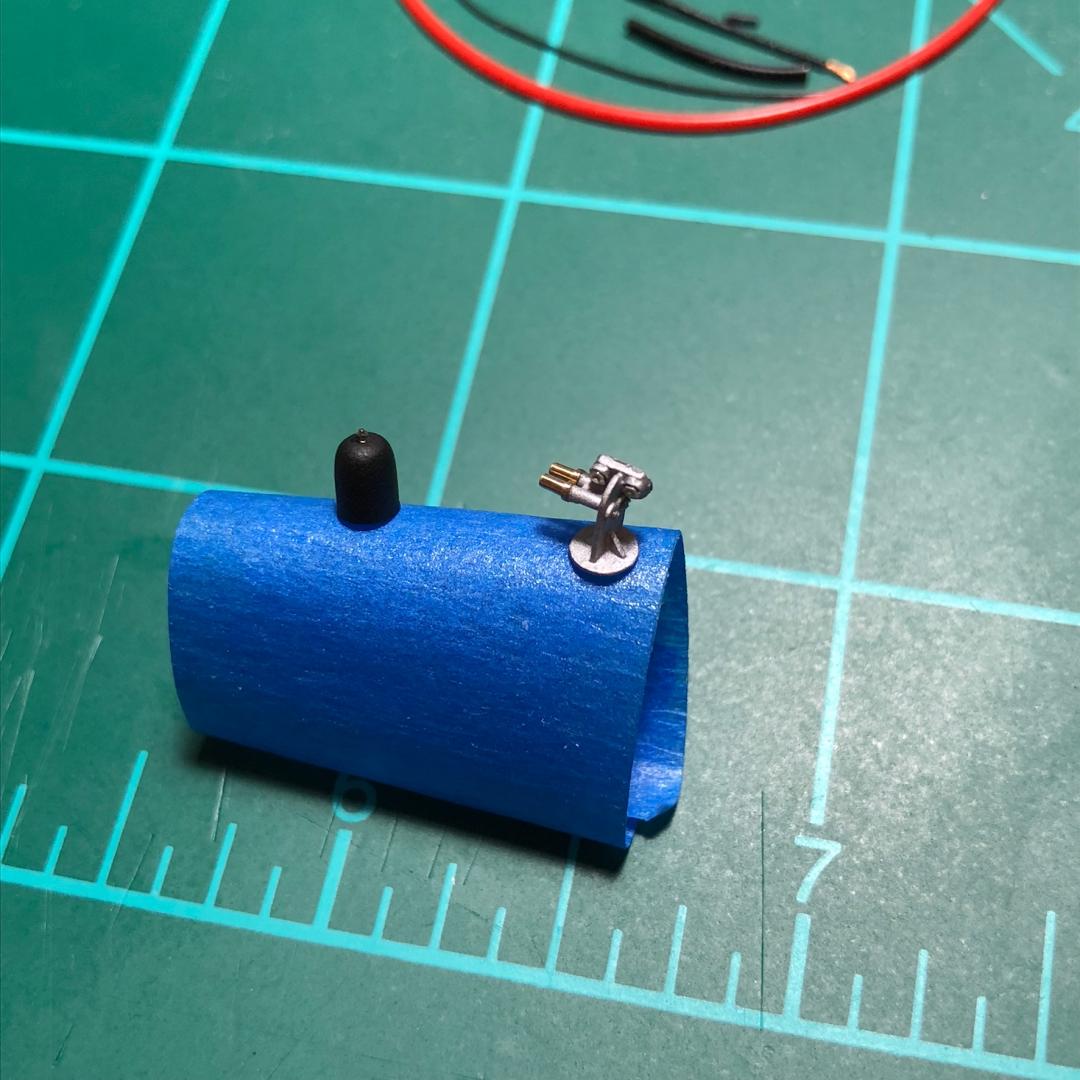

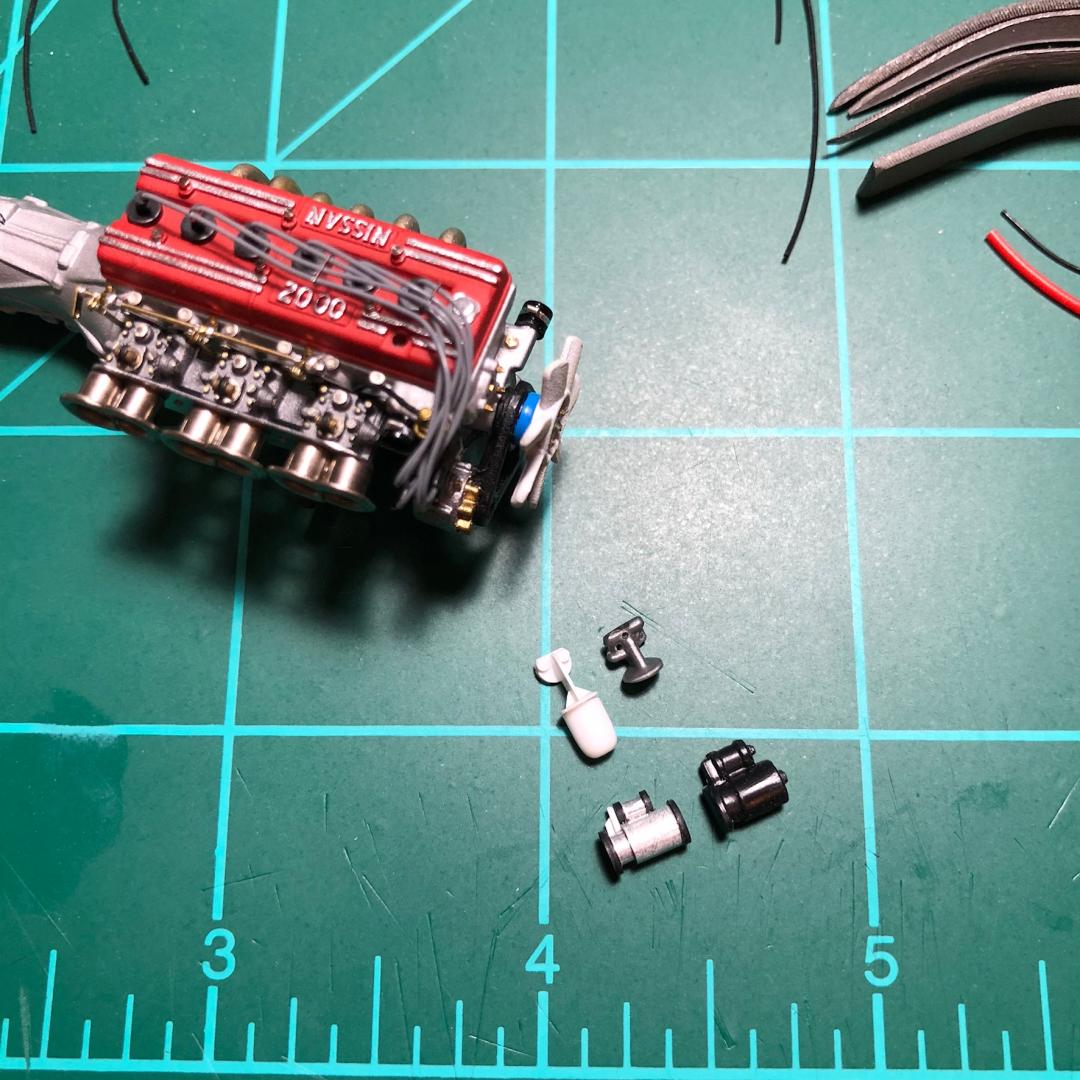

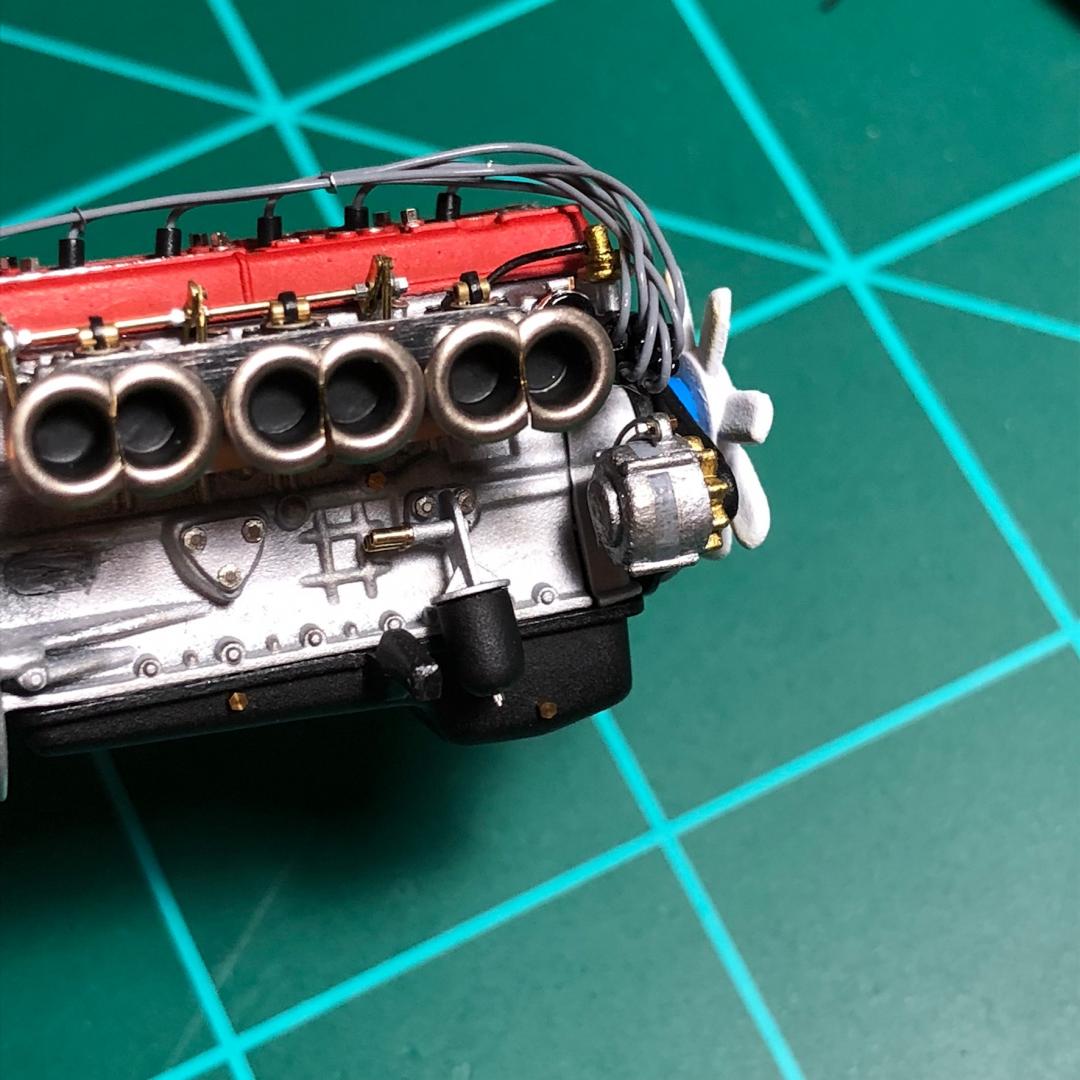

Getting starter and oil filter/housing detailed. Added connections for remote oil cooler also.







Share this post


Link to post
Share on other sites

Oil dip stick tube added. More to come. Hopefully motor will be done tomorrow. Need to add fuel line and some misc bits. Will start sorting wheels/tires tomorrow. Cant wait to put this in primer.





Share this post


Link to post
Share on other sites

It's a model in itself. It will be a shame to put it in a car. Outstanding work.
