Custom 66 Chevy quad cab dually

Recommended Posts

This is the first model I have built in about 15 years and I decided to hit the ground running. I am a huge lover of custom trucks, especially lowered and I had always wanted to build a scale model dually, so while walking through Hobby Lobby while my wife did her thing I came across the Revell 65 Chevy stepside and the Revell 66 Suburban and the itch to build came back in full force. I have never built anything to this level, I normally did lowered and shaved box stock models and about 75% of those were curbside with little detail. I didn't want to go that route this time, since working on and following custom vehicles is a huge hobby of mine I wanted to apply the knowledge I have from that to this. Due to my cell phone dying I lost a lot of the early build pictures and being the phone sucked they are not the best quality.. Hopefully you enjoy this and thank you for checking it out.



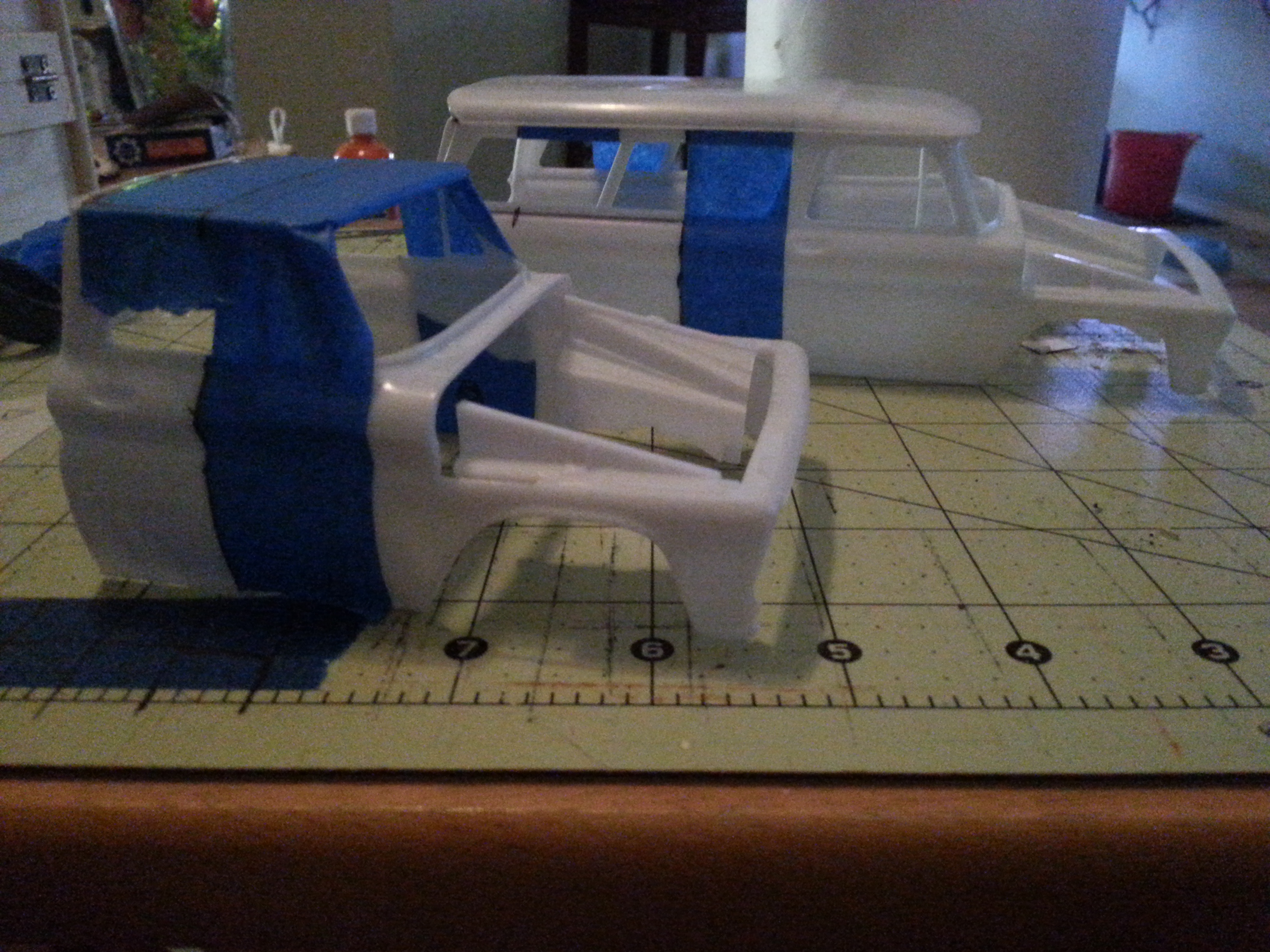

I really liked the tail lights on the suburban so most of it got turned into the bed.


Since the stepside bed had the fenders/tubs whatever they are already mounted I used an exacto knife to scribe them out, then I had to heavily modify them and a lot of work went into them. I think they had to come apart about 5 times to get them how I wanted them.


One of the many mockups trying to get the rear fenders right. The wheels in this pic are one of the few things I saved from my past model building days, I saved them for just such an occasion. I don't remember what kit they came from but I am pretty sure it was a Revell Semi kit, the tires I am pretty sure came from some Pegasus wheels.


Another mockup, this time trying out some resin dually wheels from Moluminum. As much as I love these wheels and the way they looked I felt they just didn't fit the look I was going for, the tires are from the Pegasus 23" aluminum sleeves. This was also round 1 of what I thought were the finished fenders, after looking at dozens of references I realized they were just too wide so I had to cut them apart and shrink them.

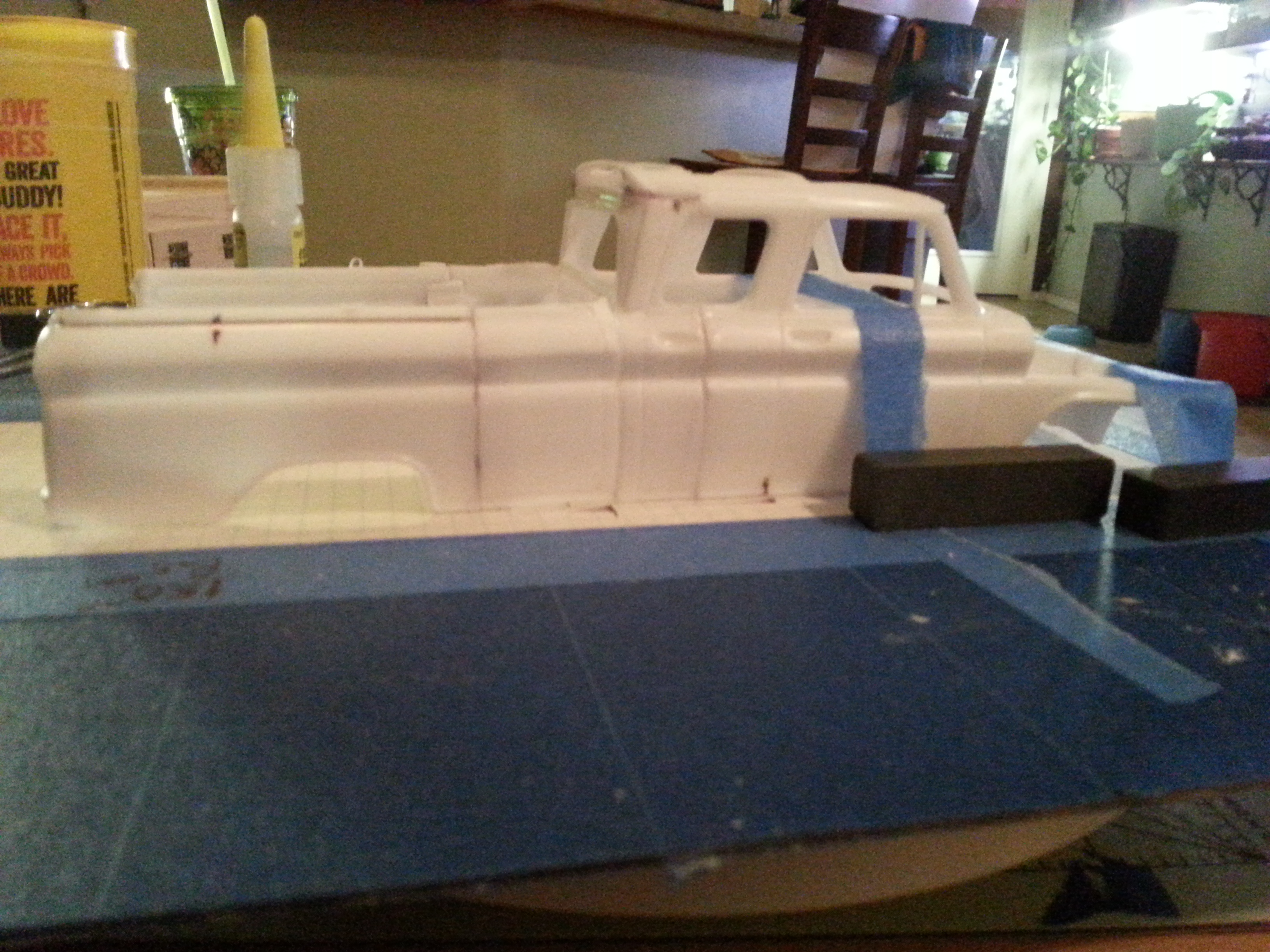

another shot of the mega fenders, I am pretty sure this was right after I squared up the bed. This also gives a better view of the suburban tail lights, I am modifying the suburban rear doors to work for the tailgate.

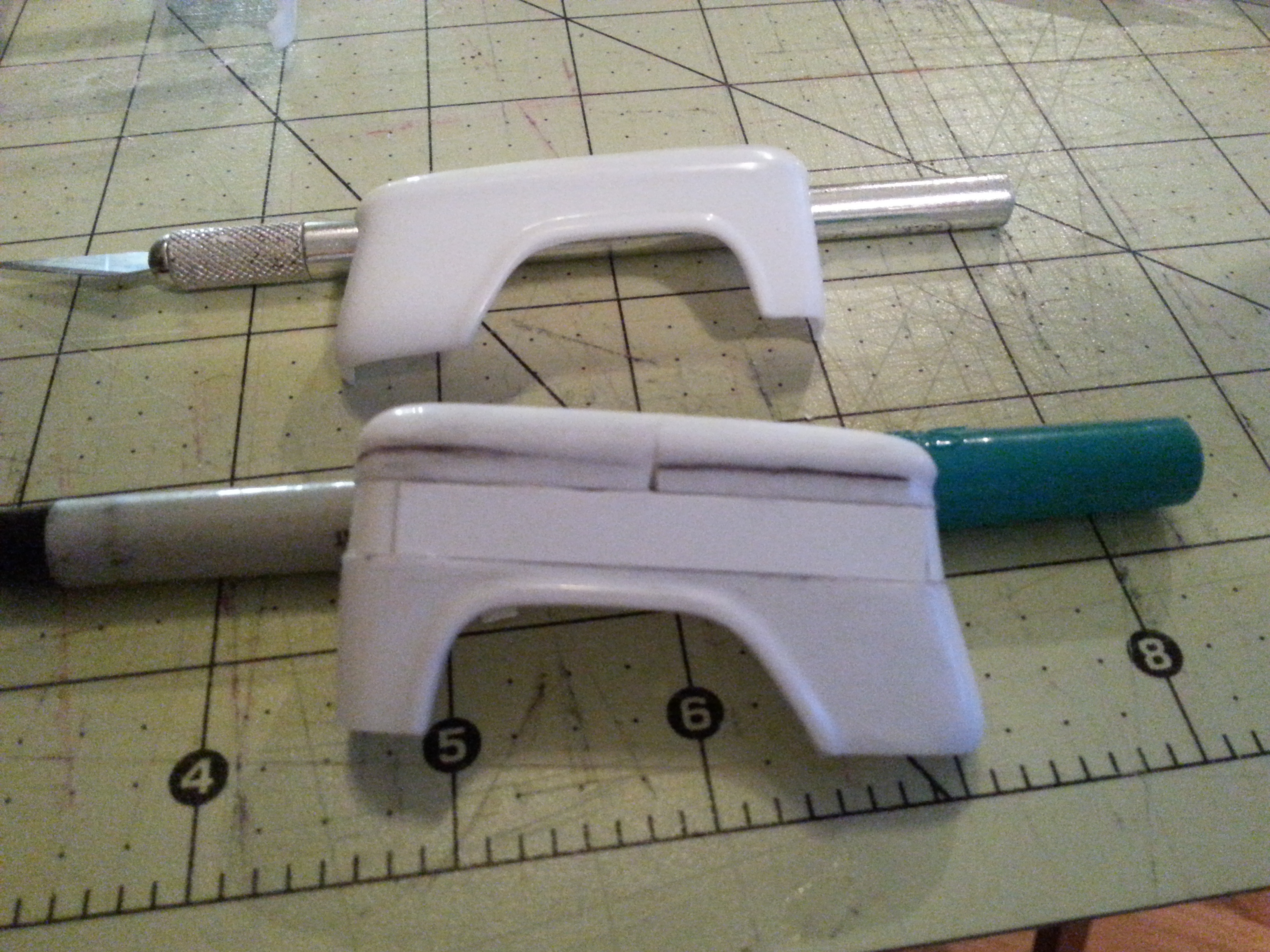

Chassis mockup and the cut down rear fenders. This is their final form, I just have to finish the body work and they are ready.

I used a homemade "jig"/fixture. It is a piece of 12x12" steel plate that I had in the garage along with a  bunch of magnets I bought at Home Depot. I cleaned the surface rust and whatnot off the sheet metal and covered it in blue painters tape, from there I used some paper transfer tape(used for vinyl stickers) and placed it over grid paper, cut it out and taped it to the metal plate.

This is about the time my phone died, I lost all the pictures of the chassis build. During this time tragedy hit this model and a partial rebuild had to happen, no pics of any of that but more on that story and some more pictures in a little bit.





Edited by Imaeechew

Share this post


Link to post
Share on other sites

Very interesting build. I'll have to keep an eye on this.

Share this post


Link to post
Share on other sites

As I said in the last post, I had some tragedy hit the model. Long story short, our newest rescue dog is still very much a puppy and she got a hold of the cab somehow and thought it was a toy. This however was a blessing in disguise, I wasn't happy how the stepside cab and suburban cab mated together. I was fighting with the roof which is a separate piece and no matter what I did I could not get it to sit correct, I was also not happy with the huge gap between the roof and top of the top of the rear window. So I went to Hobby Lobby during one of their sales and picked up a Revell 66 Chevy fleetside kit. I was able to save the front part of the old cab, most of the damage happened to the cab wall and roof which were what I hated anyway. So I cut apart the fleetside cab and joined it with what I had left of the stepside front. I am much happier with this cab, the separate roof piece sits perfect, the rear window area looks right and the body lines match up a lot better. I am not happy that I had to buy another kit but I only paid $20 for the fleetside kit with the sale they were having so it wasn't too bad.

Here is where the pics start again. New phone and much better quality.

20171228_073244.thumb.jpg.2725589c1990d93460c544d93a25a060.jpg20171228_073228.thumb.jpg.450314ff63e9ef1dfd16d3a3830a8291.jpg

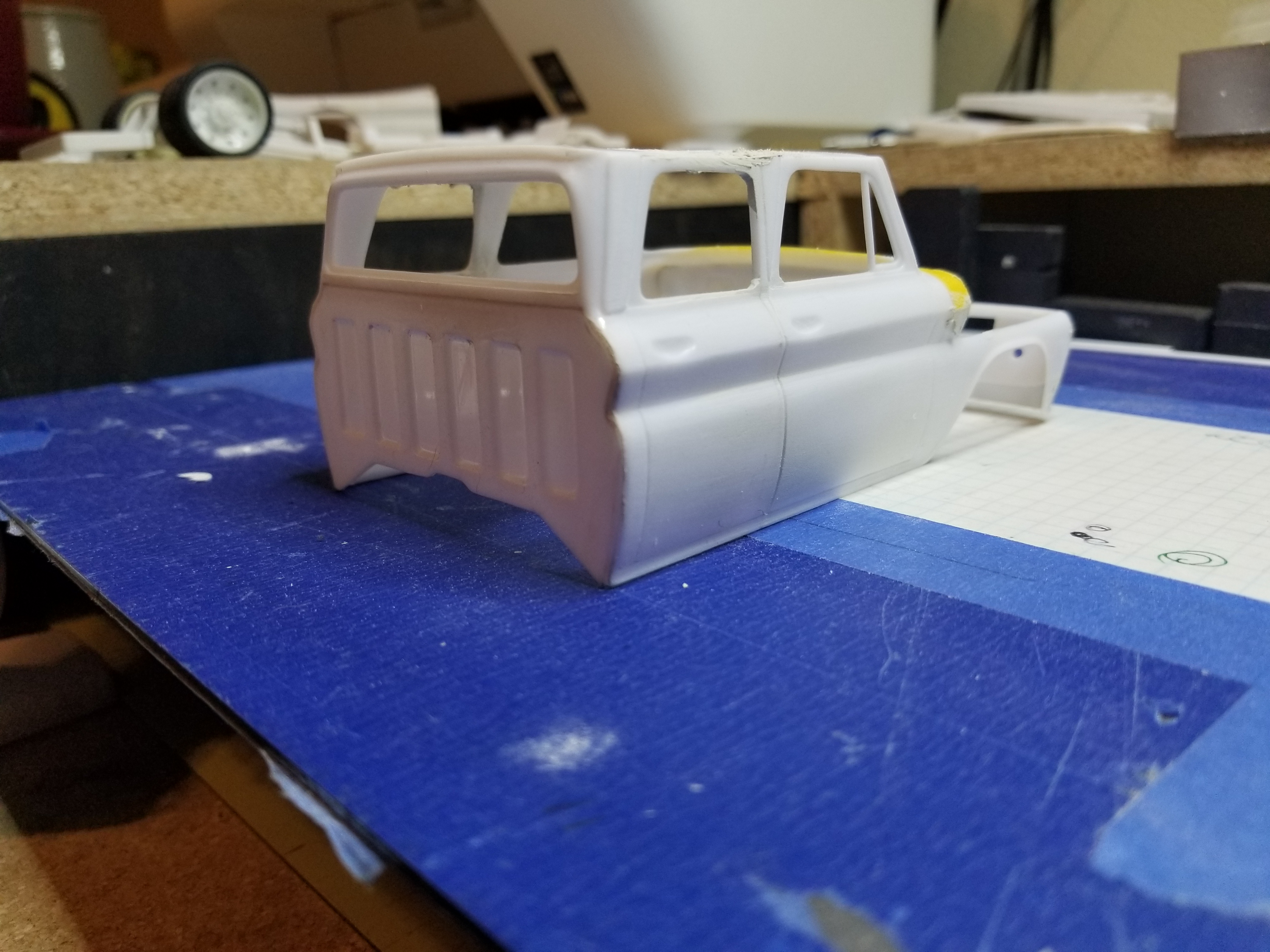

Cab #2. The firewall and cab wall were both shortened to accommodate the "bodydrop"


Here is the scratch built "back half". Since I added more to the cab and stretched the bed I needed to stretch the chassis so I went to the local Hobby Town and bought a bunch of Evergreen stuff and went to work. I have to say I didn't enjoy this process, no matter what I did I could not get the styrene to stay square. It fought me every step of the way and I had to cut it all apart a few times, it just kept twisting and bending.. In the future I am just going to go draw one on the computer and use my Silhouette. I also used the cutter for the fuel cell as well, the areas on both sides of it will house the air tanks and the compressors will be mounted in front of the lower link points on the frame.

I also didn't like the way the inside wheels looked, they were just spacers with tires and didn't look anything like the 1:1 setup. So I decided to try my hand at resin casting, I already had some Alumilite mold making stuff from a project I did earlier in the year so I picked up some of their resin and dove in. The process wasn't to bad, I made a mold of the front wheel and made a few copies, They aren't perfect but they look a lot better and being they are the inner wheels they won't really be seen. The mismatched tires are on these as well for the same reason, the outside rear and fronts all match so that is all I am worried about. I also stripped all the chrome off of them, bumpers and grille, I plan on painting them all white.


I used Inkscape to draw all my tabs for the 4-link, I used .010 styrene sheet. I noticed most people use bigger but .010 is about 1/4 and in 1:1 that is still pretty big for 4 link tabs. After seeing Impalow's Bronco build and his use of Illustrator and a Silhouette cutter I knew this was the way to go. In the future I will probably use Corel Draw, I can scan directly into it, cut directly from it and I like it better, I just didn't feel like spending the money for the driver from Silhouette at the time.

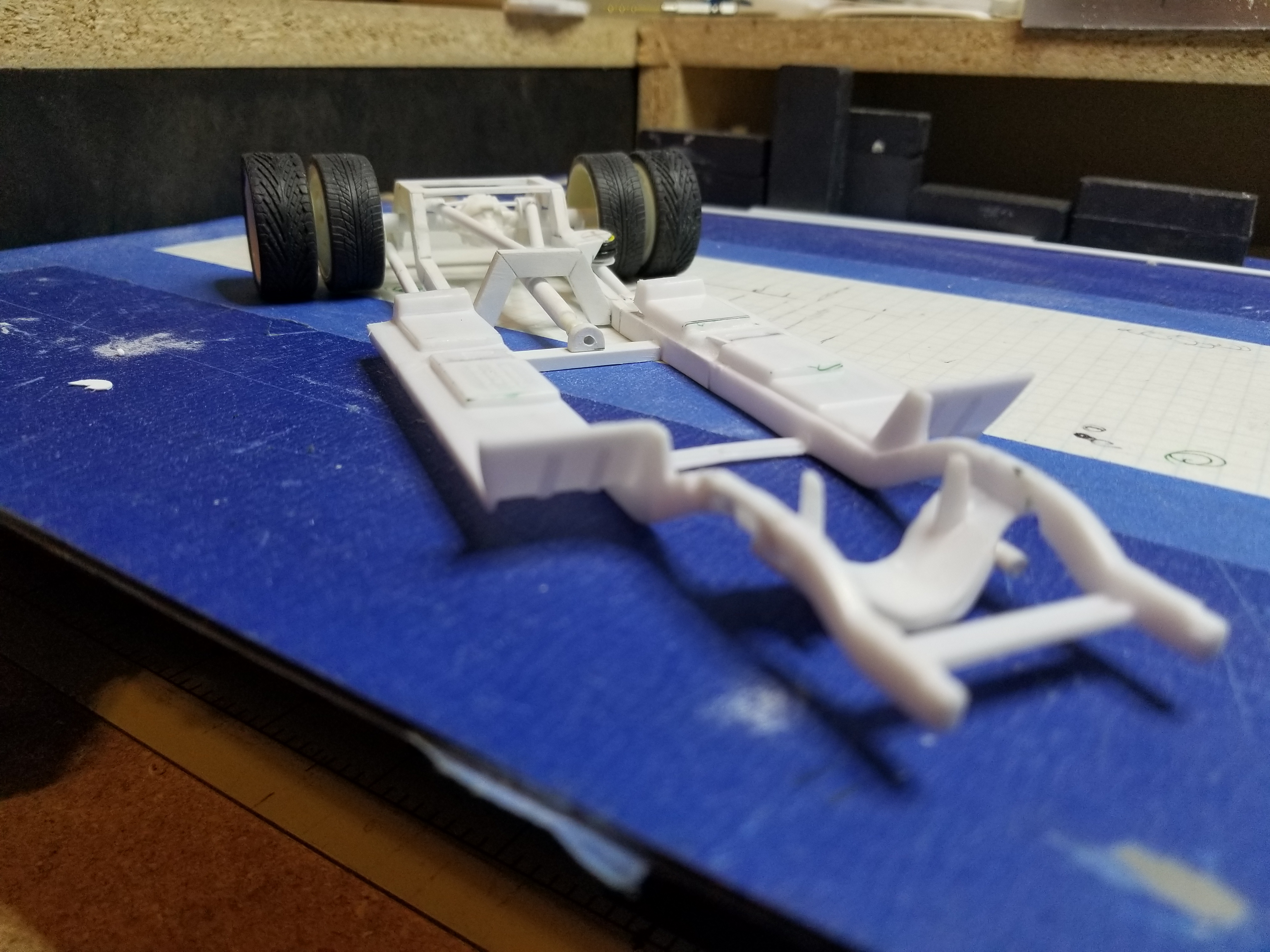

Full chassis shot. Floors extended and currently finishing up the front suspension. The rear axle is from a 99 Silverado kit along with the lower front control arms, spindles and drive line. They were some of what I had left from my old models, the detail in them was by far better the the lower control arms were more fitting for a large truck like this, Upper arms are custom made from round styrene. converted the drive line from a 1 piece to a 2 piece. No pics of them just yet. You can also see one of the 4 airbags, I made these using orings (i can't remember the size) a wooden dowel and some styrene for the top and bottom plates.

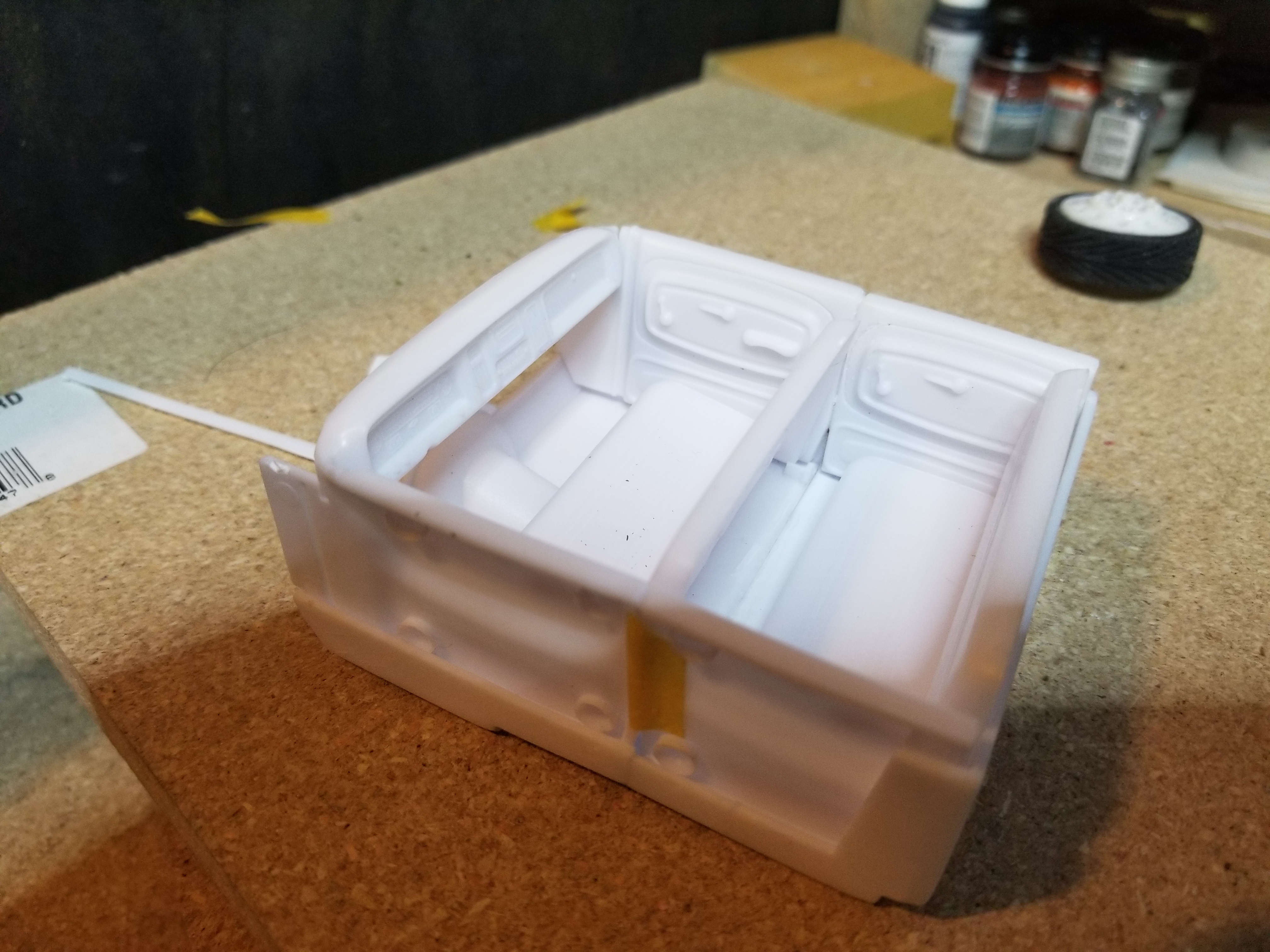

Interior tub stretched and sectioned a little to fit with the body drop, I still have some work to do on this. I am trying to keep a stock like appearance with the entire build, using all parts from the kit. I am happy how it looks.

This is pretty much where I am at right now. The engine is going to be a 454 from an AMT 70 Monte Carlo, I picked up the kit off ebay. All it came with was the body(no hood or glass) the suspension and the engine and all of it's parts. I was only wanting the engine but they wouldn't do that, so I think I am going to make the Monte Carlo body my test subject for paint. I want this truck to have a weathered, farm truck kind of look, I have never attempted this so I need to practice on something.





Edited by Imaeechew

Share this post


Link to post
Share on other sites

This is looking good so far, interested to see it finished. Not a huge fan of the outrageous slammed trucks, but this is a subject that caught my eye and I will follow. As long as it looks streetable , I can be interested!



Share this post


Link to post
Share on other sites

Great looking conversion work. I'd say that you have jumped right in. I agree that the cab looks much better the second time around.

I'd be interested in seeing some better close up shots of the rear suspension drop.

Later-

Edited by Modlbldr

Share this post


Link to post
Share on other sites
51 minutes ago, Day 2 Muscle said:

Not this exactly but I follow Dino on Instagram which is where the idea came from. Thanks for sharing

22 hours ago, Modlbldr said:

Great looking conversion work. I'd say that you have jumped right in. I agree that the cab looks much better the second time around.

I'd be interested in seeing some better close up shots of the rear suspension drop.

Later-

20171231_085541.thumb.jpg.29c3150a11162c458baa37094240a3cf.jpg20171231_085618.thumb.jpg.097ea5373ee5e8765e589614f1475c2d.jpg


Here you go. Like I said the rear end came from a 99 Silverado kit but I cut off the axle tubes and used some styrene to make it look more heavy duty. All the bars are temporarily pinned in place so I can remove it all for paint. I also just finished up the rear upper bag mounts





Edited by Imaeechew
I didn't want to double post for a response.

Share this post


Link to post
Share on other sites

This is going to be an outstanding model. Your modifications to this point are very impressive and well done. The cuts look well planned so that may bode well for your final bodywork. I look forward to watching this one progress. "Praise the lowered"

Share this post


Link to post
Share on other sites

FWIW, it appears the Suburban roof is taller than a pickup's, so then it can cause trouble when making a crew cab with it.

Share this post


Link to post
Share on other sites

Well this is dramatic! Very impressive so far, cool idea and looks like you're well on your way to making it happen :D

Share this post


Link to post
Share on other sites

Very interesting and cool idea. I'm liking where your headed with this.

Share this post


Link to post
Share on other sites
