Jantrix

41 Willys - final update 5/24

Recommended Posts

This is my entry for this years Cannonball. After so many in-completes, my goal this year, is keep the amount of custom work to a minimum so I actually finish the model in the 11 months allotted.

So the plan,

1. Engine swapped to a single turbo 225 slant six, with a modern automatic tranny from an AMT 5.7L hemi.

2. Wheel / tires from the AMT Phantom Vickie

3. Bumpers from the Monogram '37 Ford coupe

4. Paint and assemble

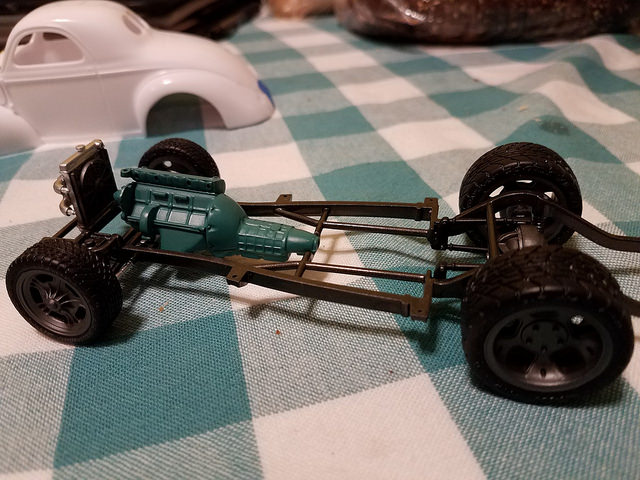

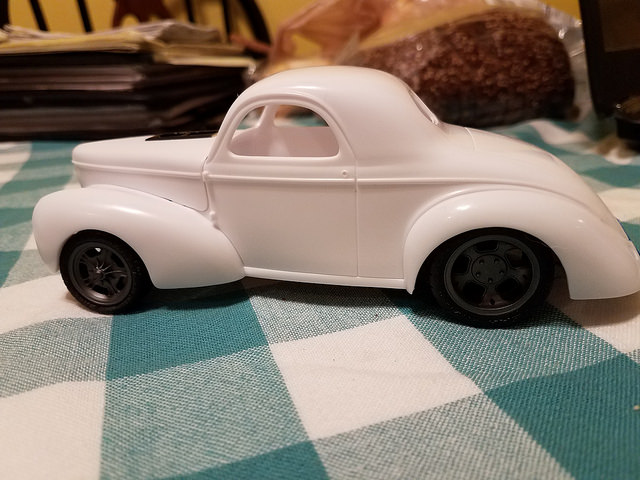

That's it. Here's where I'm at. Hope you like it. I'm kicking around a hydro dipped paint job, because I've always wanted to, and with wraps in the 1:1 world, literally anything is possible on a car.








Edited by Jantrix

Share this post


Link to post
Share on other sites

I like the idea of using the Slant Six.

Share this post


Link to post
Share on other sites

    "The Leaning Tower of Power"!!   How can you

go wrong on this one!?!

   That is a great start also, should be a very kool

ride for sure!!

            David S.

Share this post


Link to post
Share on other sites

Glad you guys like it. Starting on the rest of the engine.

Share this post


Link to post
Share on other sites
13 hours ago, Phildaupho said:

Intriguing engine choice. Goin to be very cool.

The theme for this years Cannonball CBP is "inliners".

Share this post


Link to post
Share on other sites

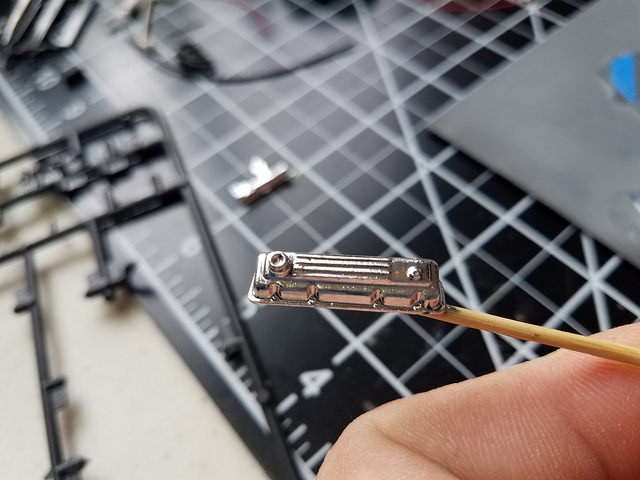

My first outing with Molotow pens. I'm impressed. Working on the little engine bits.




Share this post


Link to post
Share on other sites

I tried last night to drill the runners on the stock intake for the EFI system, but that didn't go so well. So I have a new plan. I'm going to scratch build something like you might find on a 2JZ or other modern car with a throttle body.

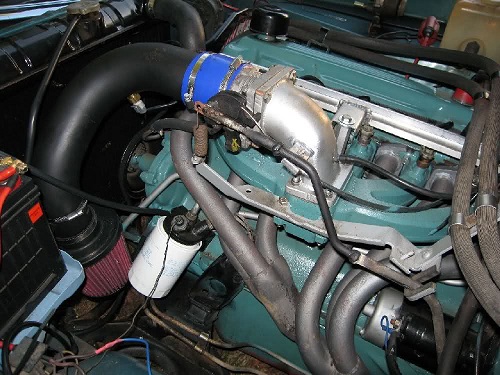

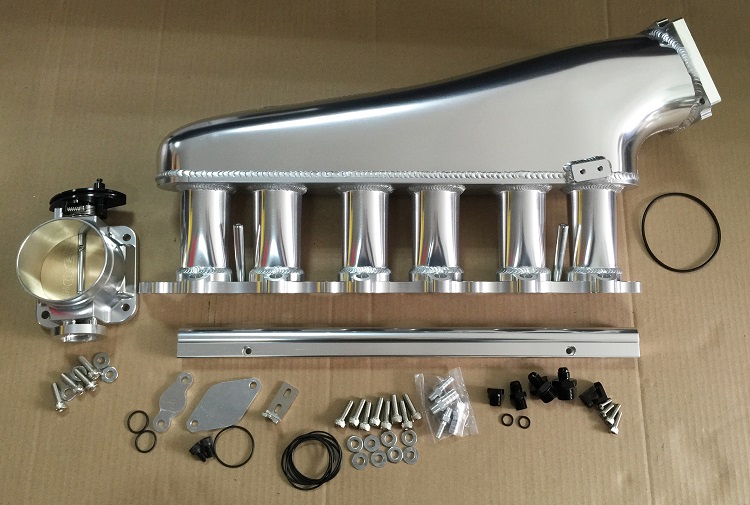

OLD PLAN                                                                                                                                           NEW PLAN



1.jpg.91b0f492641a8f6792328f658d30c897.jpg2JZ-set1.jpg.c3a6811e4726e561da27ecd2ddcc351a.jpg

Edited by Jantrix

Share this post


Link to post
Share on other sites

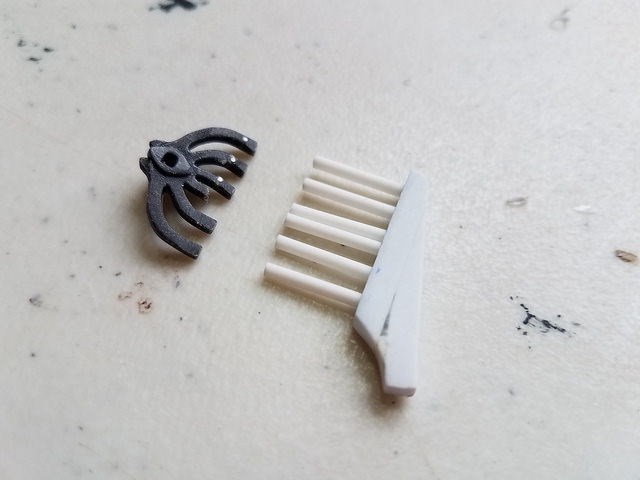

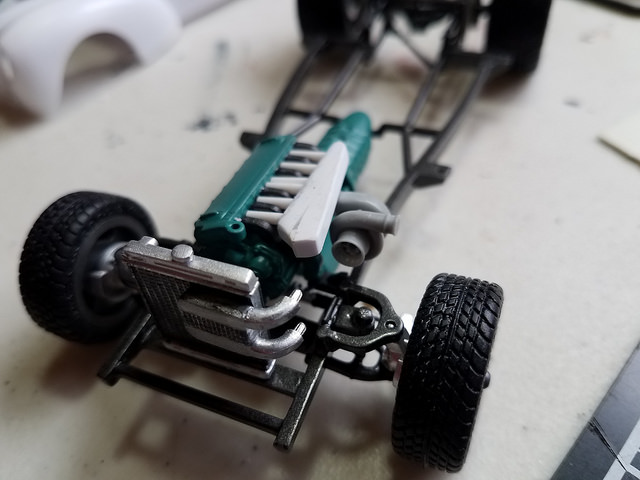

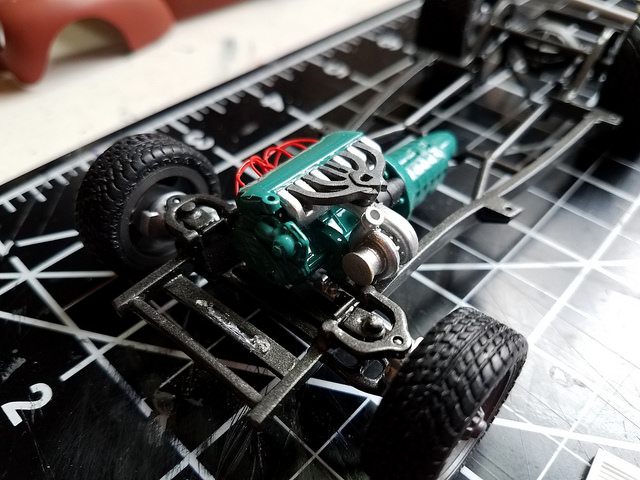

Here's where I am on the turbo intake. EFI and the throttle body in the works.





Share this post


Link to post
Share on other sites
15 hours ago, retroguy said:

I like the frame,is it stock or did you add to it...

This is the stock chassis. If you are gonna look for the kit, make sure it says Street Rod on the box.



Thanks Jim!

Share this post


Link to post
Share on other sites

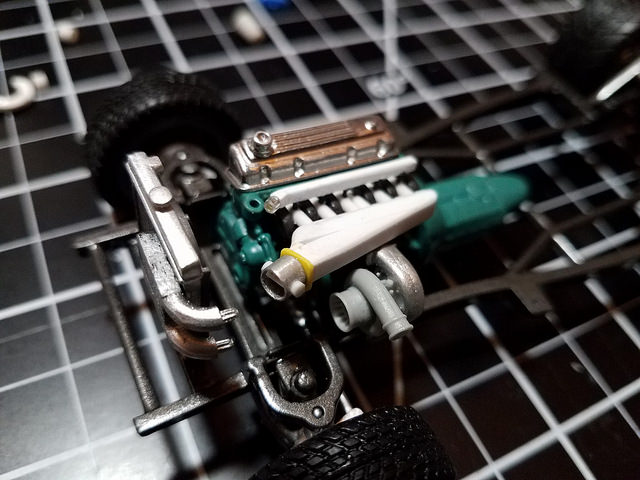

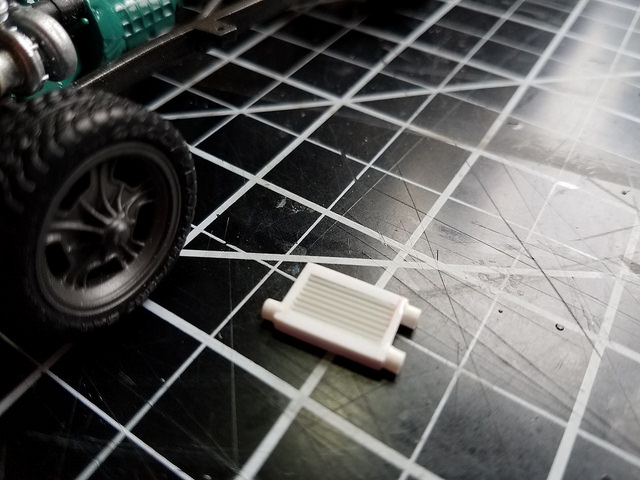

More work on the intake. If I was going to do this again, I'd do this very differently. A top mounted intercooler would have been much more appropriate here. So the intake shape would have been very different. I'm going to do a pale green color with some patina and hot rod door art.






Share this post


Link to post
Share on other sites

This is awesome I'm a big fan of in-line 6's I rebuilt a 67 Mustang GT after I retired 5 years ago and went with a built up 200 in-line 6 the factory hp was 125 it now puts out 265 more than the stock 302. I will watch this one keep those pictures coming and as for the new chrome pen's they are the best thing in modeling in years in fact the very first thing I used it on was a valve cover for a slant 6 like you did.

Share this post


Link to post
Share on other sites

Please swap the two front tires side to side so the tread is going the other direction. :D

Great idea to use the Slant Six here. I've always like the Lindberg engine and it's fairly well detailed right out of the box, but as you've shown, really comes alive with updates and modifications.

Share this post


Link to post
Share on other sites
1 hour ago, Casey said:

Please swap the two front tires side to side so the tread is going the other direction. :D

Great idea to use the Slant Six here. I've always like the Lindberg engine and it's fairly well detailed right out of the box, but as you've shown, really comes alive with updates and modifications.

Ugh. they were already glued up when I noticed. I don't really care enough to risk breaking suspension parts to fix it.

3 hours ago, rickcaps55 said:

This is awesome I'm a big fan of in-line 6's I rebuilt a 67 Mustang GT after I retired 5 years ago and went with a built up 200 in-line 6 the factory hp was 125 it now puts out 265 more than the stock 302. I will watch this one keep those pictures coming and as for the new chrome pen's they are the best thing in modeling in years in fact the very first thing I used it on was a valve cover for a slant 6 like you did.

Thanks Rick. I'm a big fan of the I-6's too. They are just such a break from the norm. I've put three chevys into various hot rods, but this is my first slant 6. I've owned one in 1:1 years ago and I'm a fan.

Share this post


Link to post
Share on other sites
20 hours ago, Jantrix said:

Ugh. they were already glued up when I noticed. I don't really care enough to risk breaking suspension parts to fix it.

Thanks Rick. I'm a big fan of the I-6's too. They are just such a break from the norm. I've put three chevys into various hot rods, but this is my first slant 6. I've owned one in 1:1 years ago and I'm a fan.

Thanks I know what you mean my 1:1 Mustang gets big looks at the local shows in 2013 Mr. Gene Windfield was at one of the shows I was at he liked it and he sigend the under part of my hood I have 6 coats of clear over it. 20 years ago you could not give a six away but try to find one now you will pay big LOL. Can't wait to see your project done.

Share this post


Link to post
Share on other sites

I had a slant 6 in my '64 Dodge Dart.  Put on a hyper pack with headers in the wheel well.  Torsion bars were cranked up so the front sat high.  Helper springs out back got the rear end up.  had "Lambcharger" painted on the truck lid.  Also replaced the taillights with flat red plexiglass and used crinkled tin foil as a reflector.  Made the lights look really cool.  Good strong engine.

Share this post


Link to post
Share on other sites

I had a '73 Scamp with a 198ci slant. She was super easy to work on and always did right by me. I'd planned to swap in a 318 or 340 police engine when the Diplomats were replaced by newer police cars, but they were never made available to the public where I was living. I sold her when the family seriously needed a four door. I miss that car.

Share this post


Link to post
Share on other sites

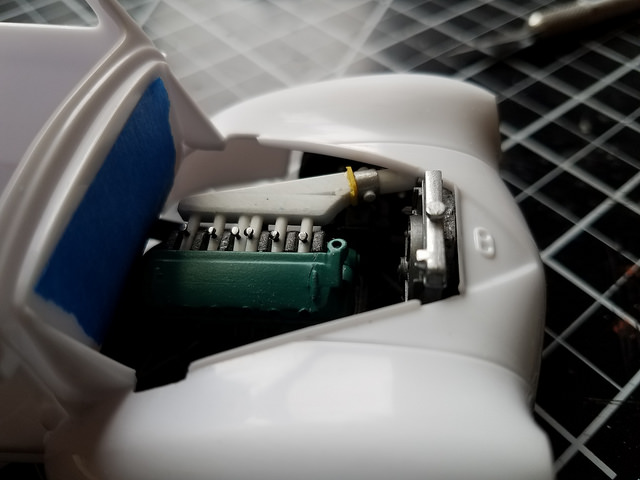

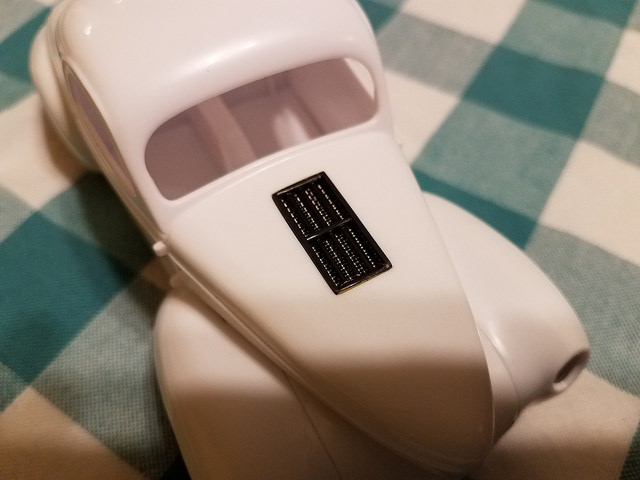

Updated photos on the Willys. A relocation of the intercooler to the firewall, to take advantgae of the vent in the hood, prompted a redesign of the intake. Rather than another scratch intake, I'm using the stock intake. I'll fabricate a throttle body to go in place of the carb and a fuel rail on the intake runners.
