Steve Osbourne

Monogram Big Scale Corvettes

Recommended Posts

I've been building this Corvette on the side while I'm finishing up the Lindberg T pickup. I actually have all 4 Monogram Vettes and my goal is to build them each with mild modifications or custom add-ons.

These kits are short on working features if that's what you are looking for but have oodles of potential. If you want to show off a really cool paint job, these large models are great. I'm sticking to simple body mods, engine upgrades, wheels and interior.

I'll start posting my progress here.


Share this post


Link to post
Share on other sites

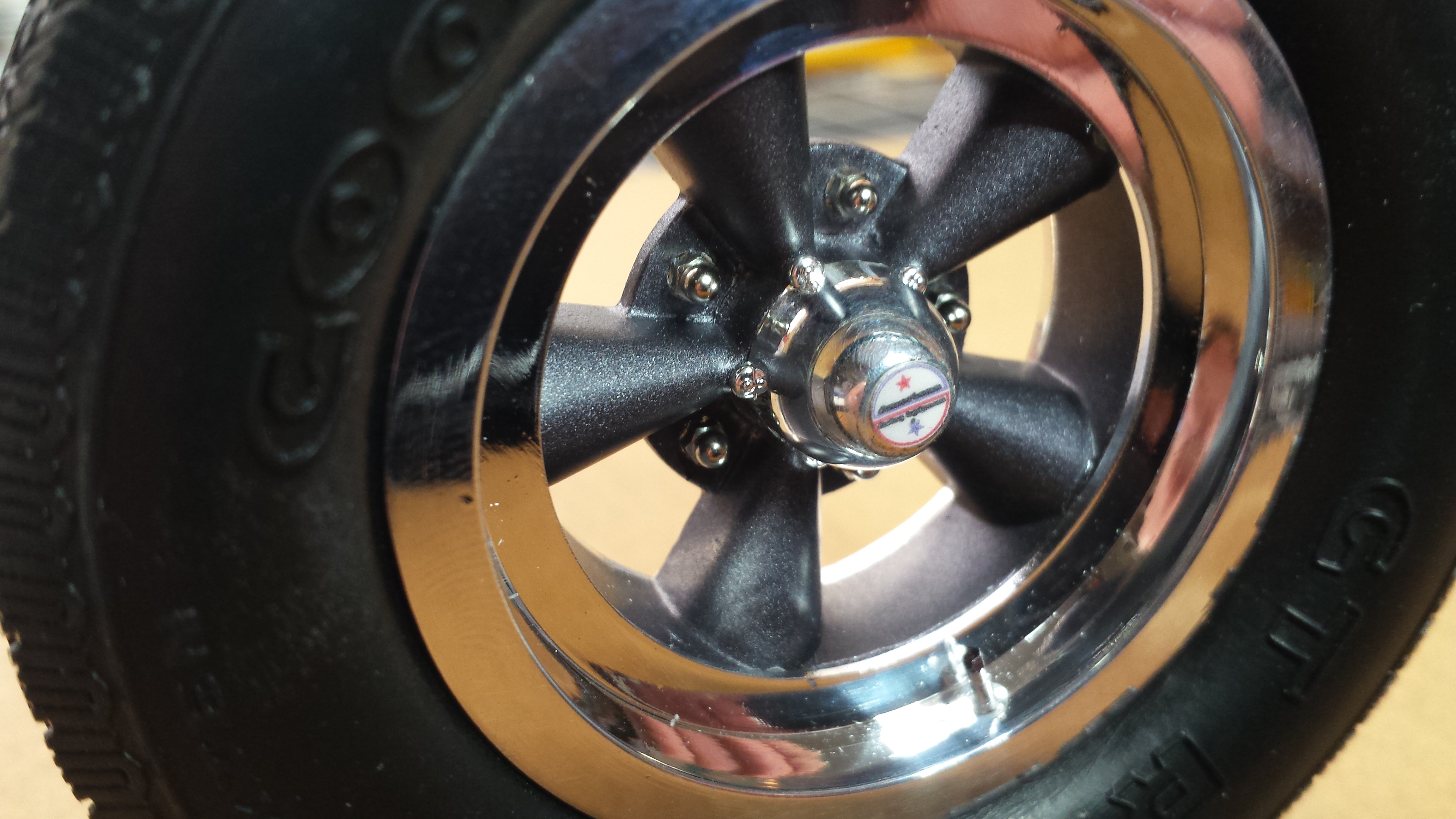

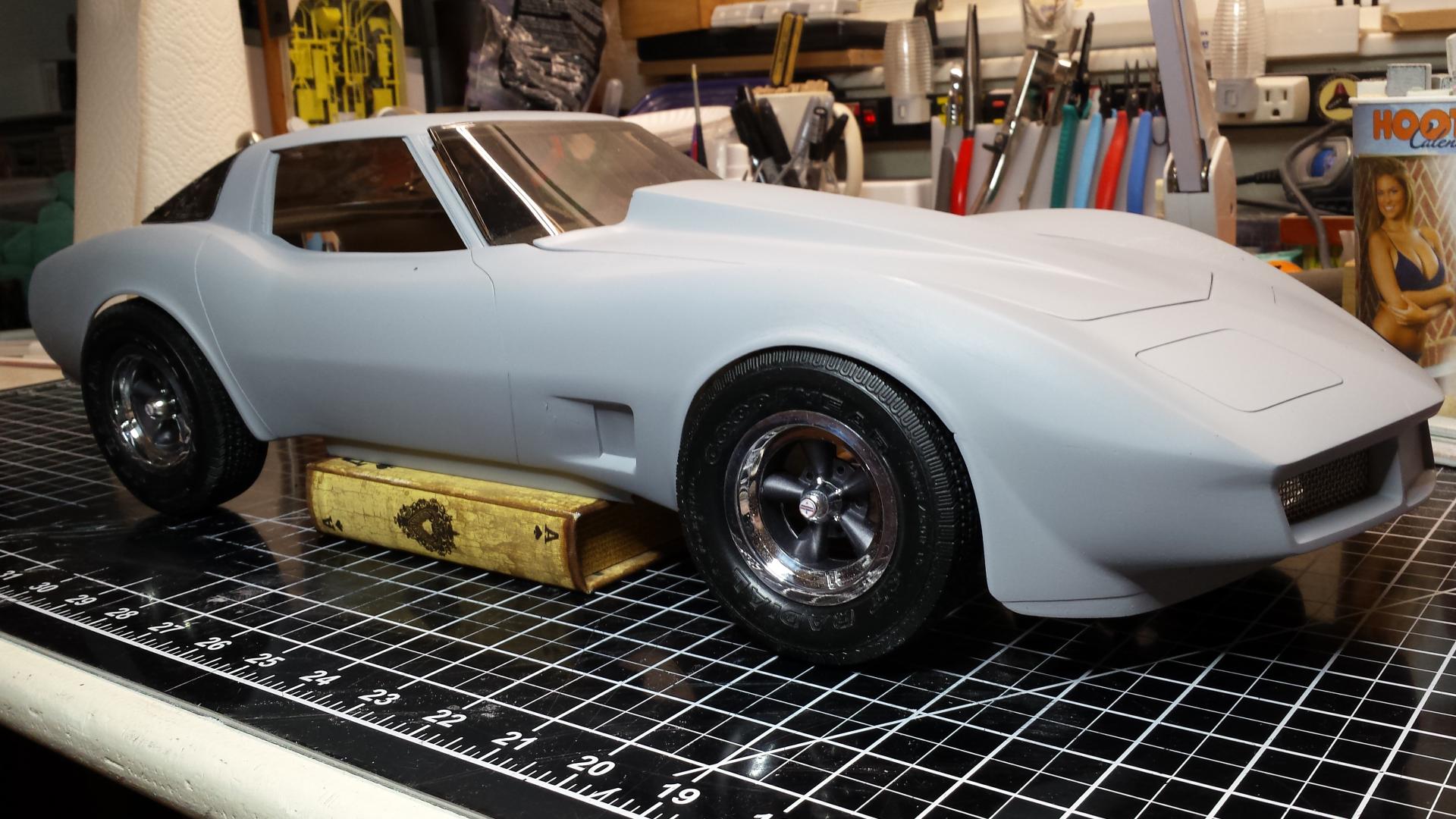

The wheels are American Racing Torq Thrust. They are very easy to make using the wheels from the Big Tub or Big T. I added valve stems and custome printed wheel cap logos.


Edited by Steve Osbourne
added "Racing"

Share this post


Link to post
Share on other sites

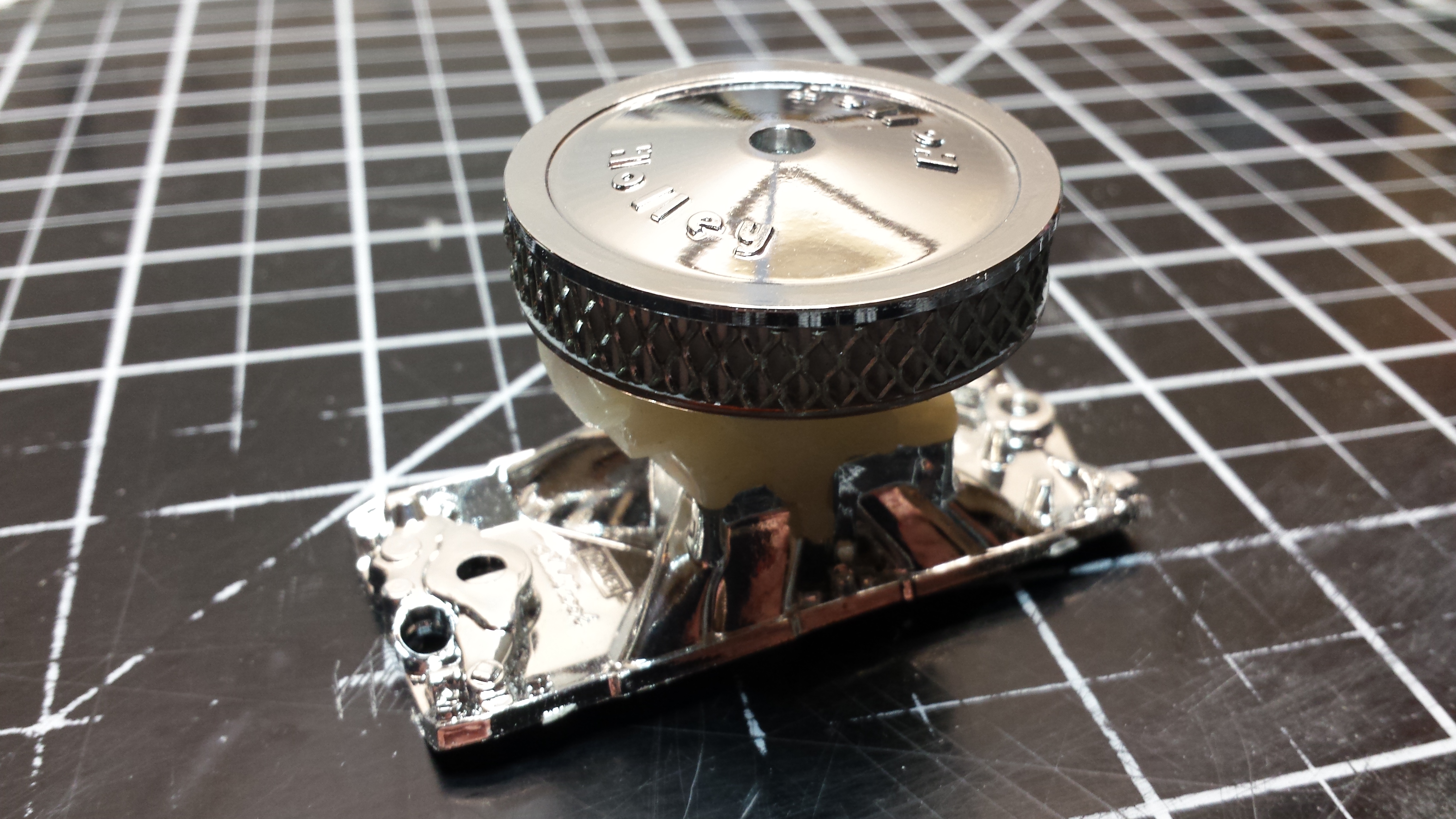

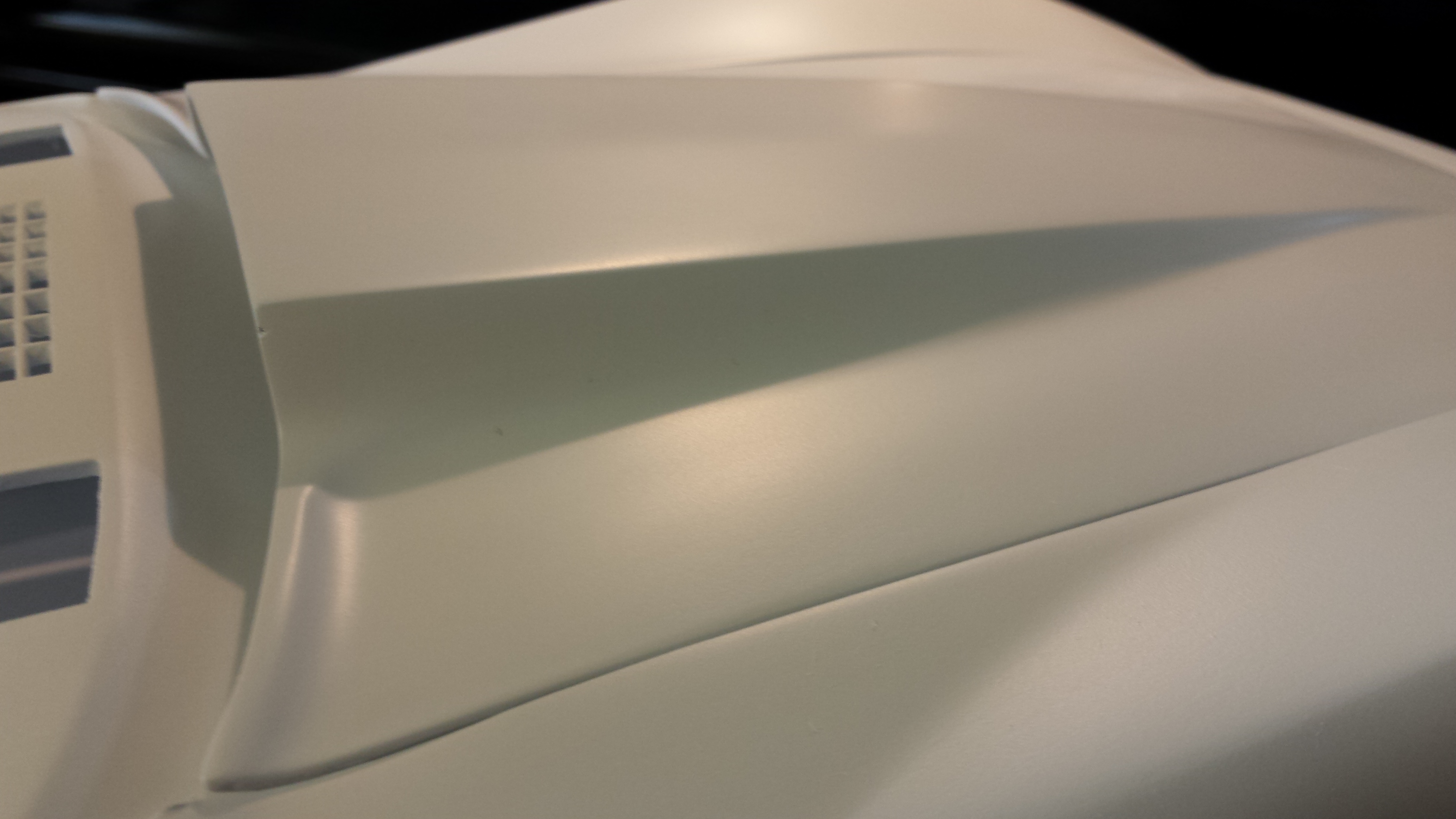

And this is why I had to modify the hood - to fit the high-rise manifold and Holley carb from one of the Monogram T Buckets (which use SBC's). The Holley air cleaner is from RC4WD.



Share this post


Link to post
Share on other sites

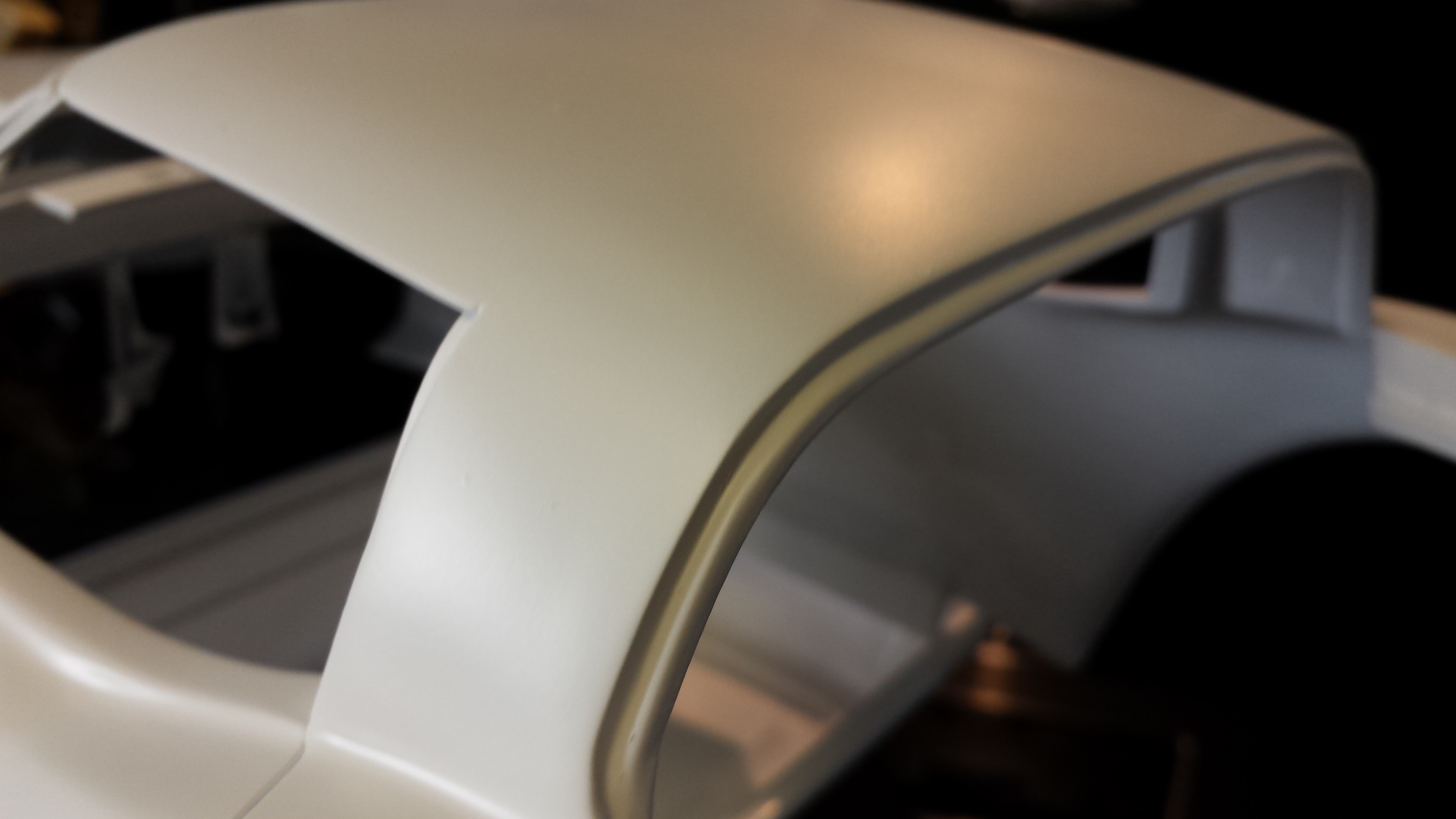

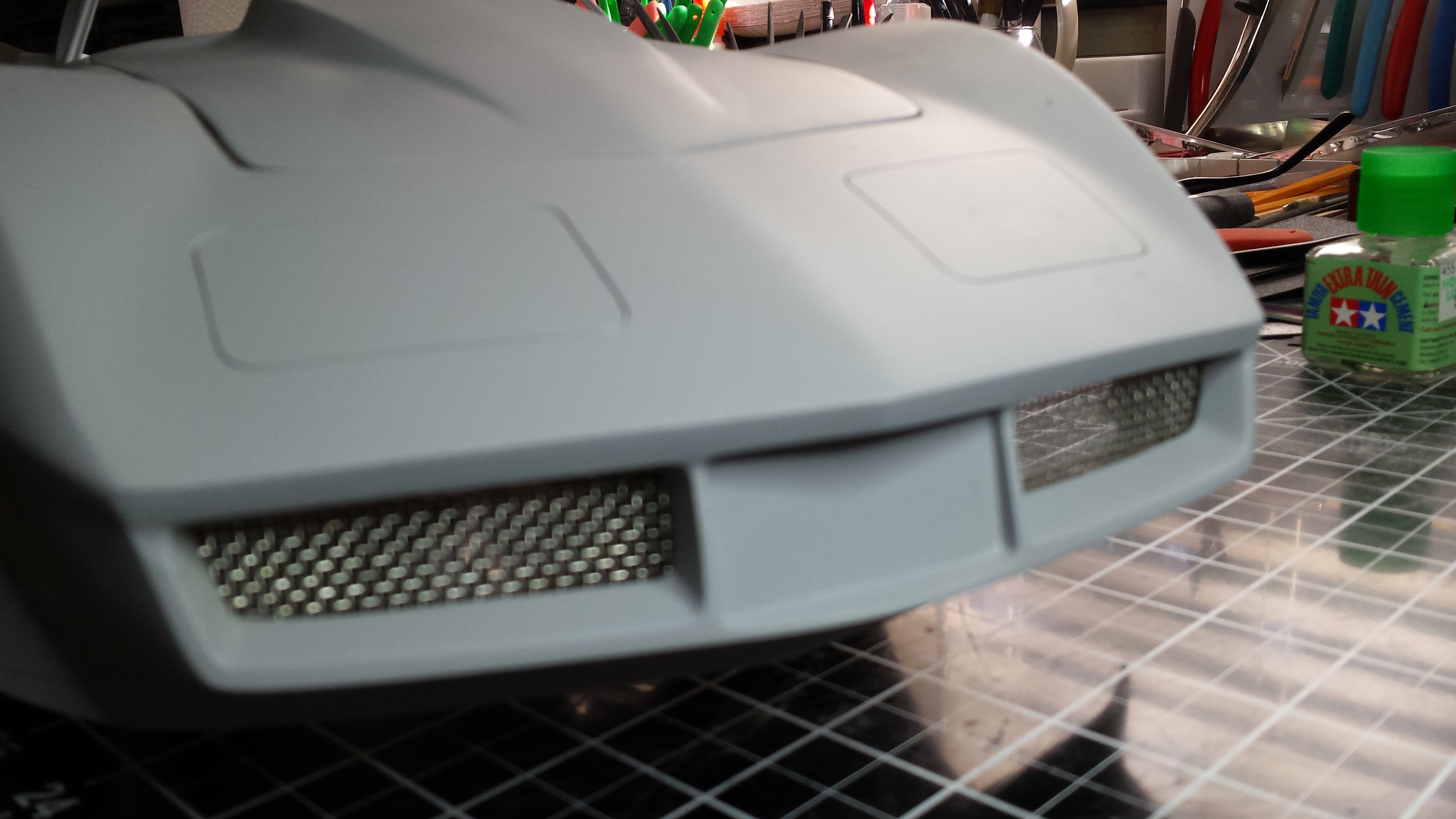

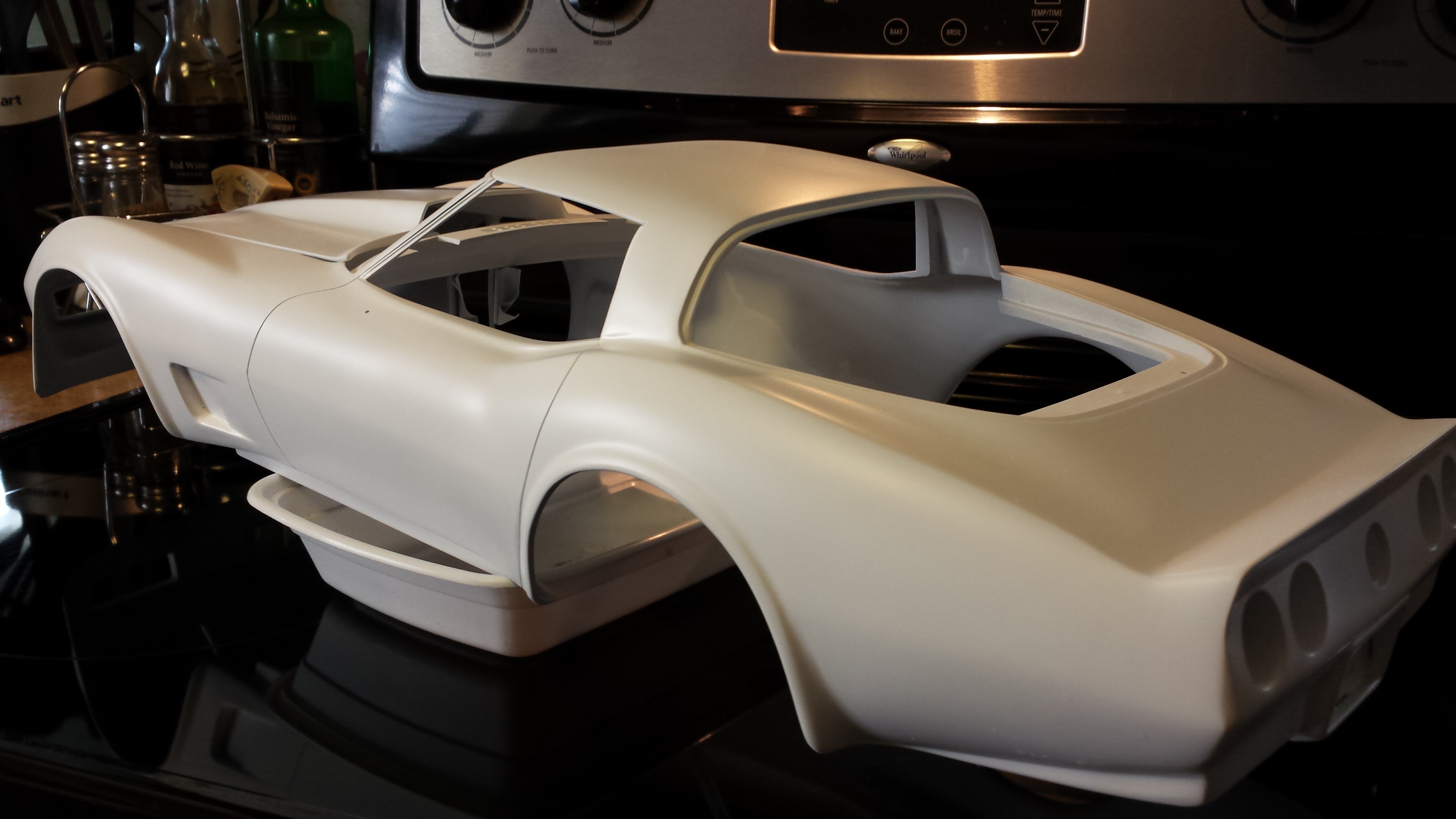

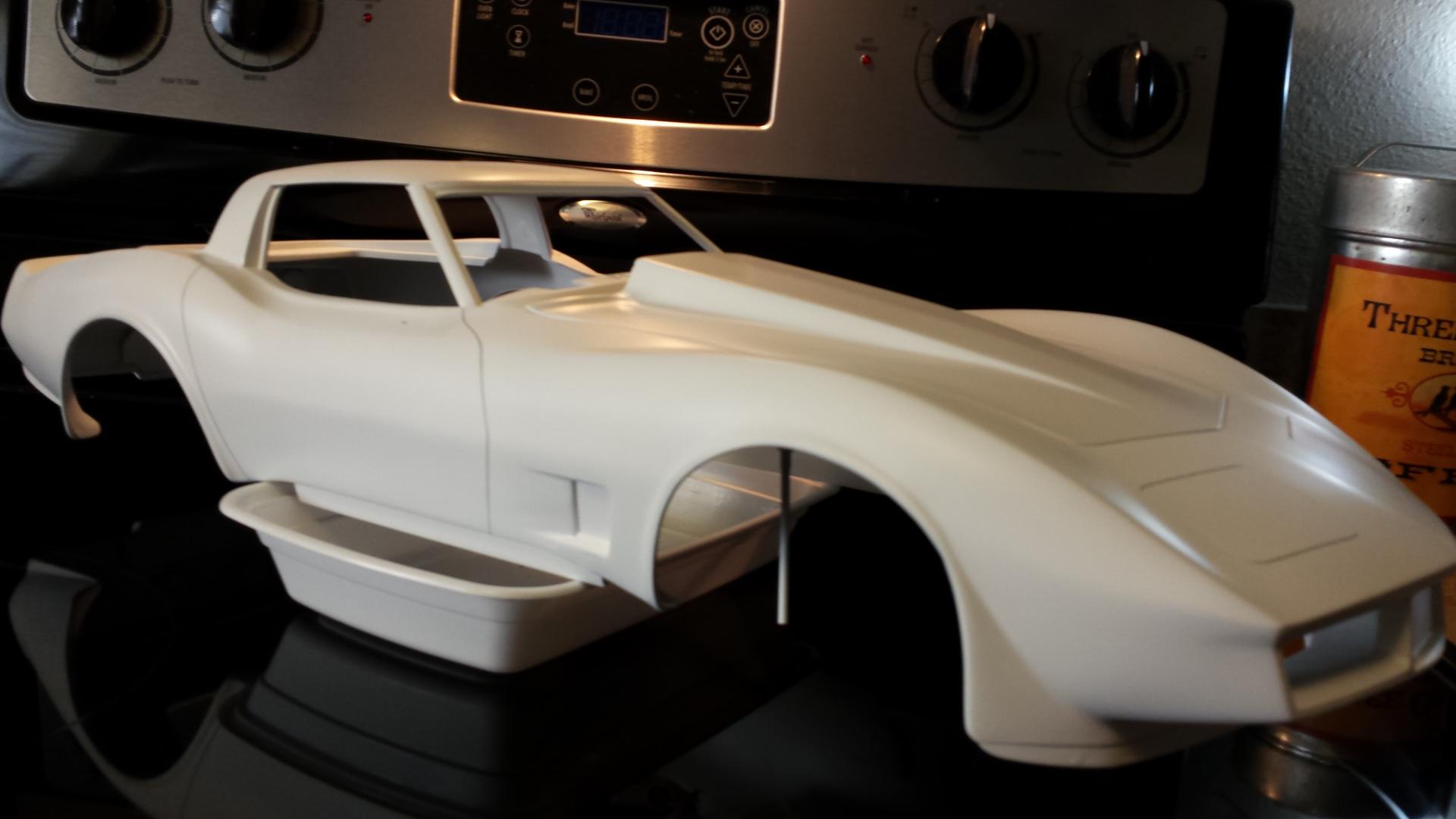

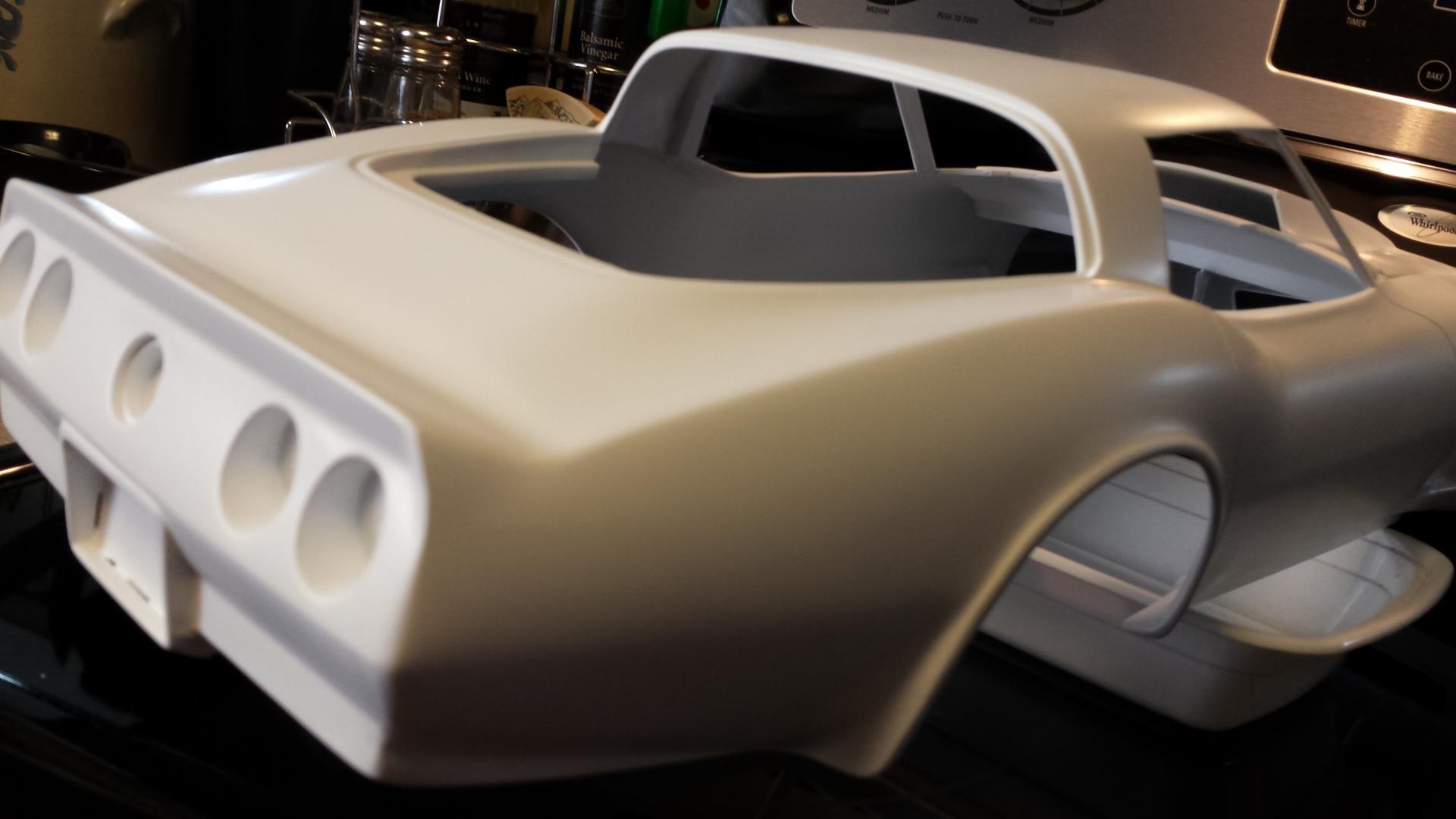

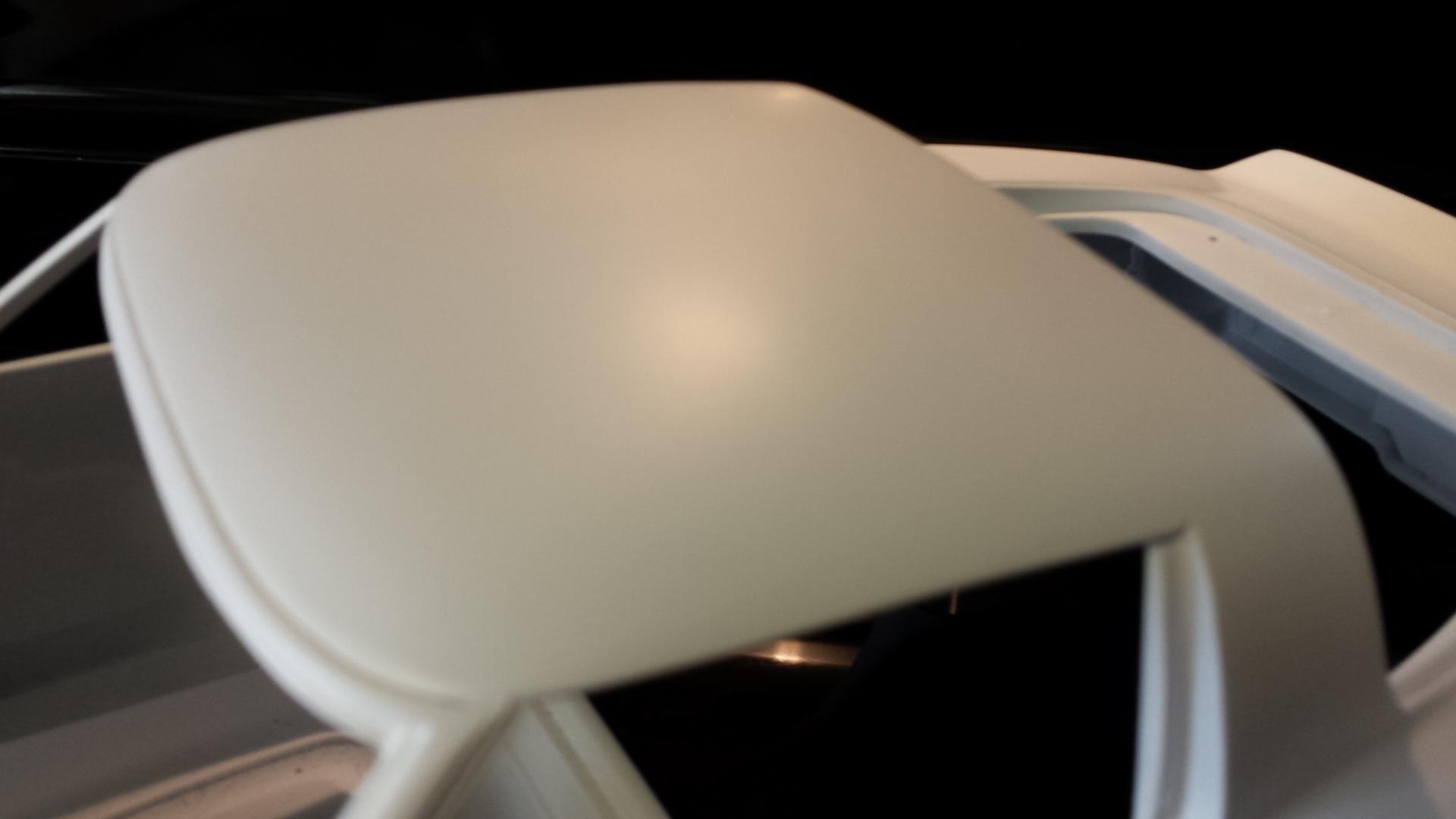

And here are the latest photos having just shot the primer this morning. Note the t-tops are filled and it is now a hardtop. Side signal lights also filled. Gas cap relocated to rear panel. I also added screen material for the front air inlets (older photo, grey primer)







Share this post


Link to post
Share on other sites

They take up a lot of room don't they? I used to have one of those,and I still have 2 65's. Great work. Can't wait to see it finished.

Share this post


Link to post
Share on other sites
1 hour ago, pharoah said:

They take up a lot of room don't they? I used to have one of those,and I still have 2 65's. Great work. Can't wait to see it finished.

Thanks John. Yes, they are big. I'm pretty much ready to start spraying on the maroon body color.

Share this post


Link to post
Share on other sites
40 minutes ago, Steve Osbourne said:

Thanks John. Yes, they are big. I'm pretty much ready to start spraying on the maroon body color.

Maroon will look nice on that. How about a dark silver/metallic gray stripe on the hood/ Kind of like the 67 Vette had/ JMHO.

Share this post


Link to post
Share on other sites
1 hour ago, pharoah said:

Maroon will look nice on that. How about a dark silver/metallic gray stripe on the hood/ Kind of like the 67 Vette had/ JMHO.

That sounds interesting. I'm doing the rocker panels in matt black. With the tinted windows, black interior and dark Torq Thrust rims I thought it would look cool. Once I get some color on the body I'll look into the stripe idea.

Share this post


Link to post
Share on other sites

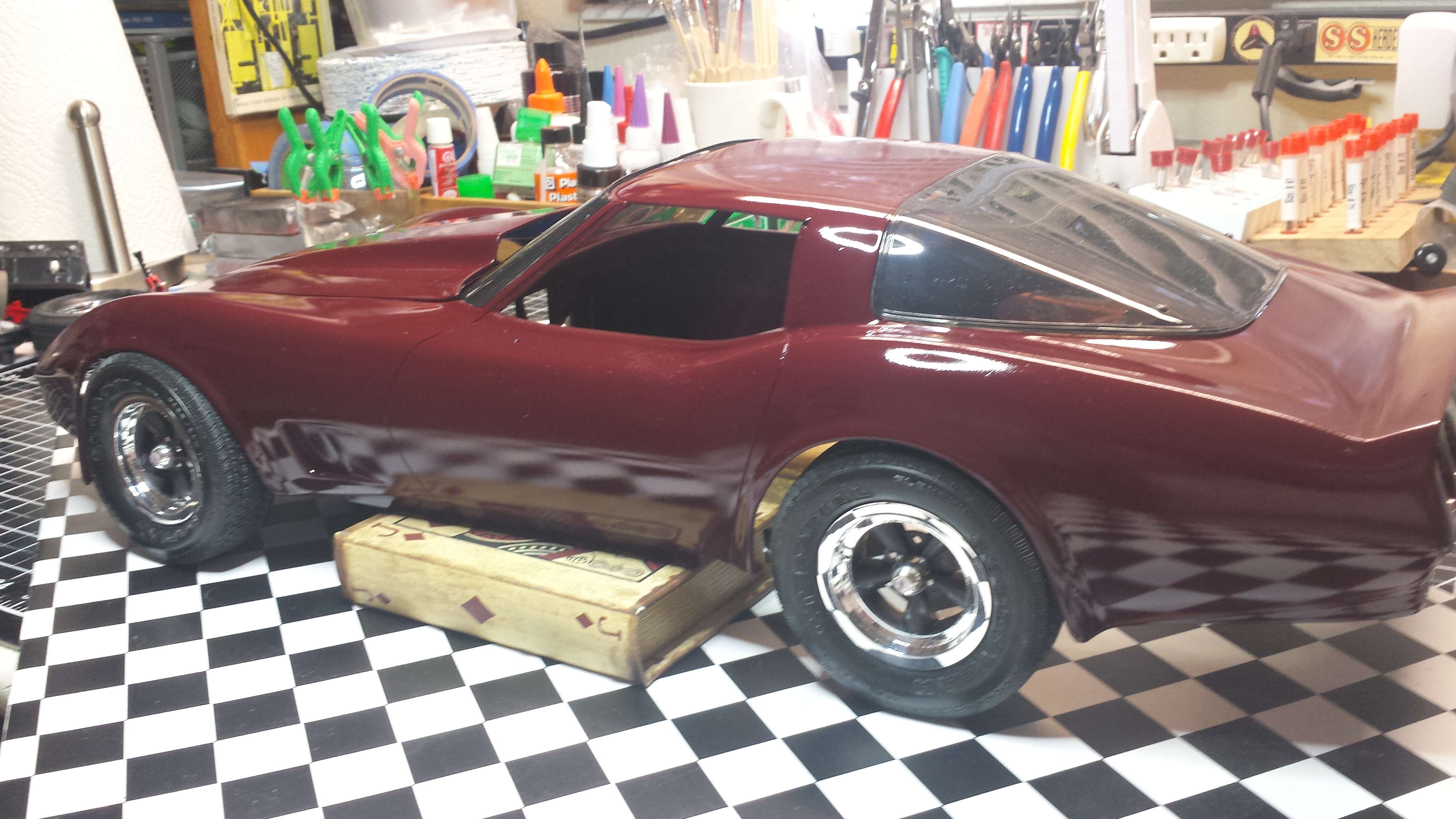

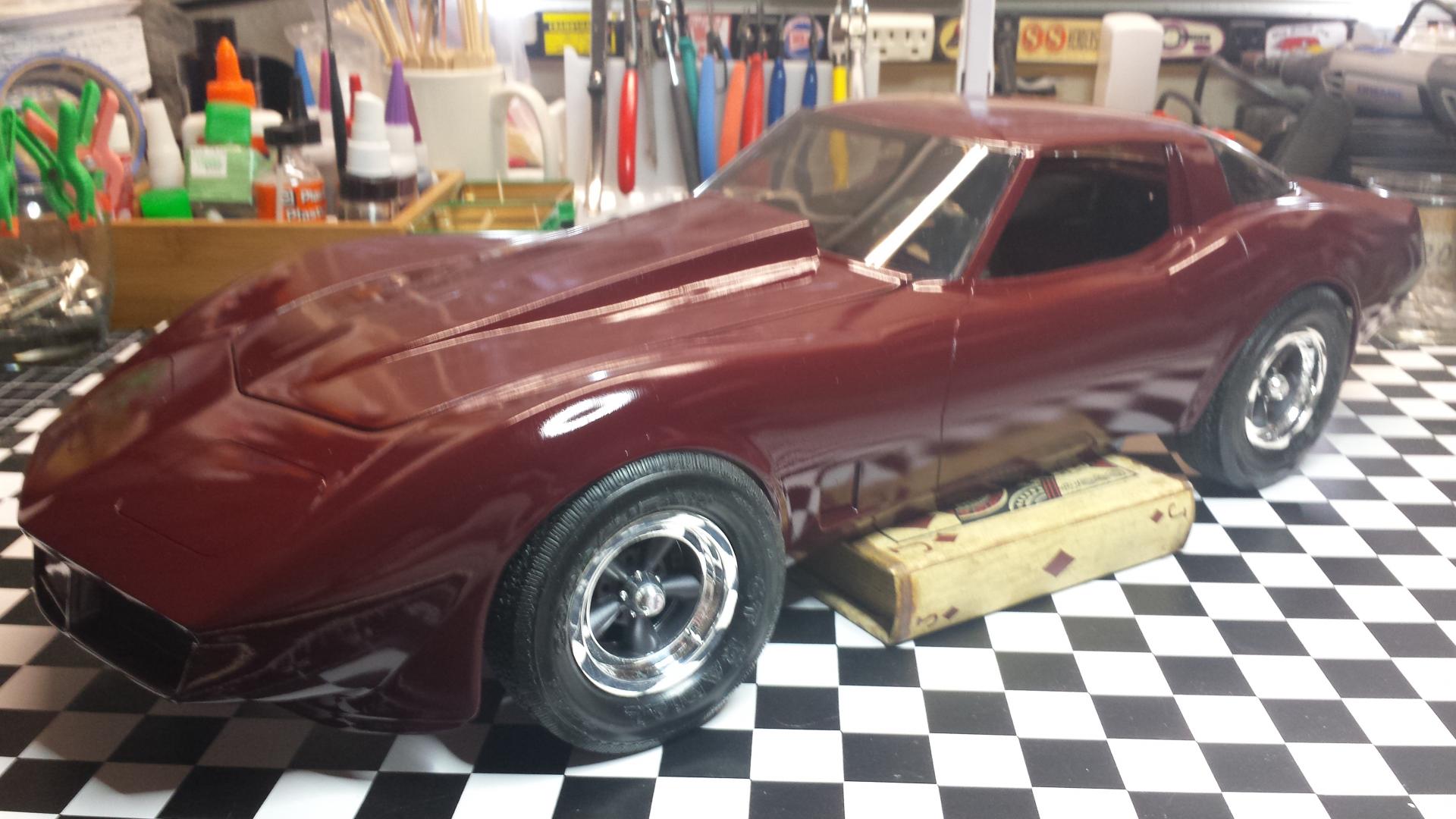

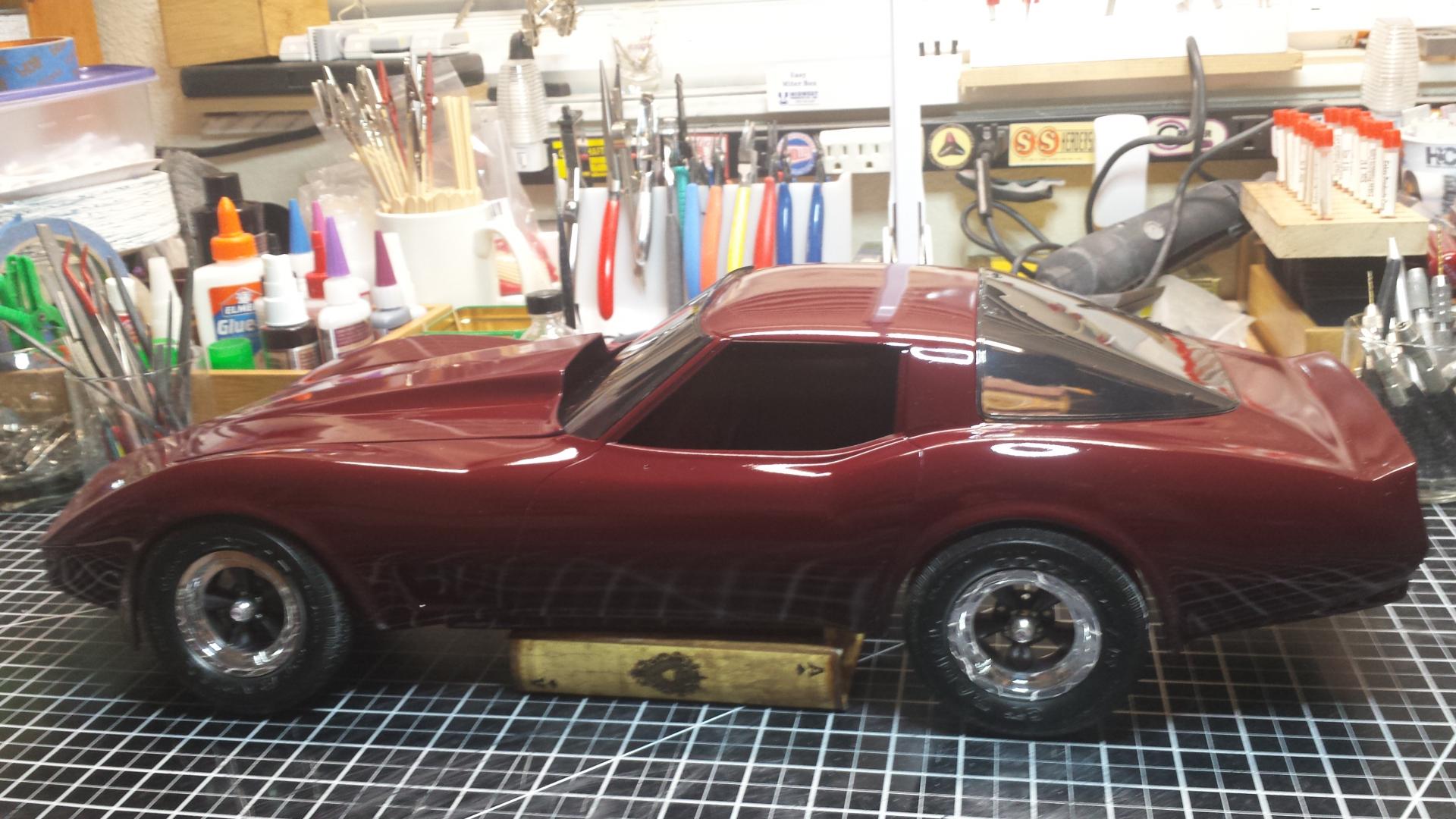

It has been too cold to paint but this weekend it warmed up so I was able to shoot the first few light coats of Tamiya TS-11 Maroon. I also heat the paint up by placing the can in hot water before using and shaking the can after every pass. Makes a huge difference. Afterwards, I couldn't resist posing with window glass and two Torq Thrusts. I'll let this sit for a week and then wet sand with 600 grit and repeat the light coats of maroon.



Share this post


Link to post
Share on other sites

love the vette, its turning out perfect

Share this post


Link to post
Share on other sites

Thanks. I didn't have to wait as long as I thought I would for the next paint session. I sanded the entire body with 600 grit wet dry. I didn't re-score the panel lines. I'll do that before the next paint session. The paint is starting to look deeper.






Share this post


Link to post
Share on other sites

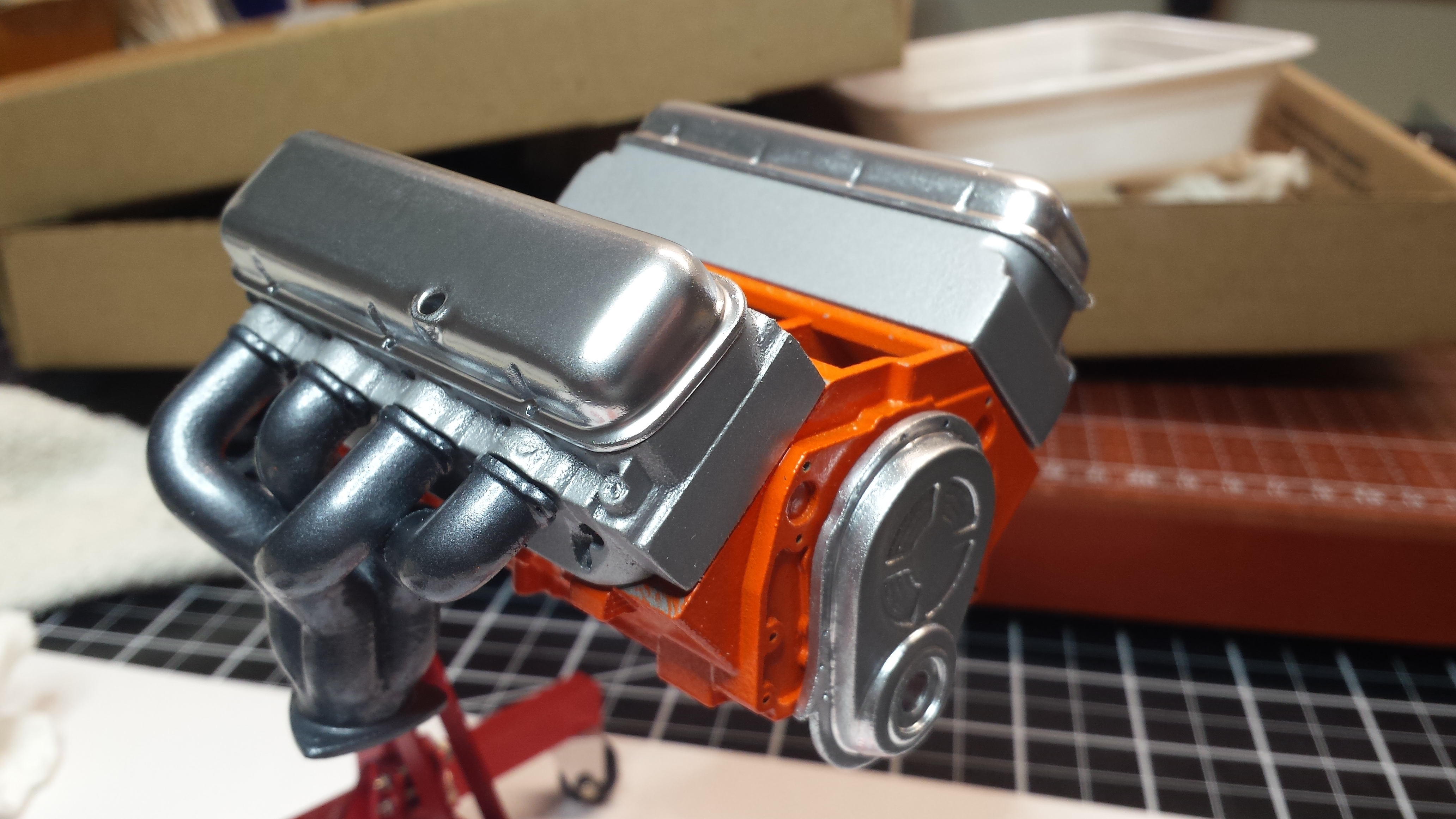

Having received the Chevy big block from Shapeways and after doing a few test fits I'm thinking seriously about using it here. I have both the cross ram fuel injection and the single quad Holley for induction choices. Both appear to fit under the modified hood. The TDR stuff is first quality all the way.





Share this post


Link to post
Share on other sites

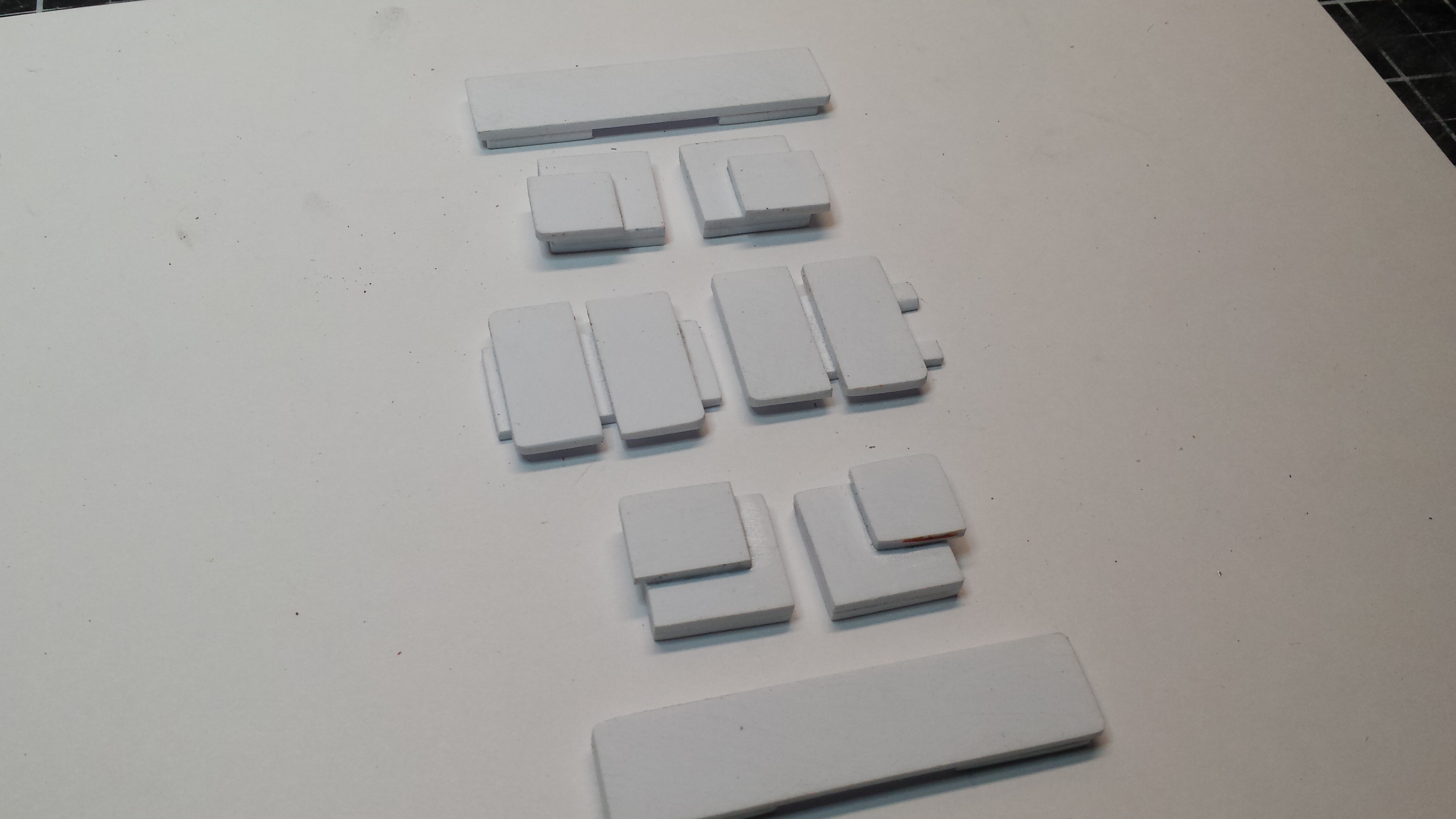

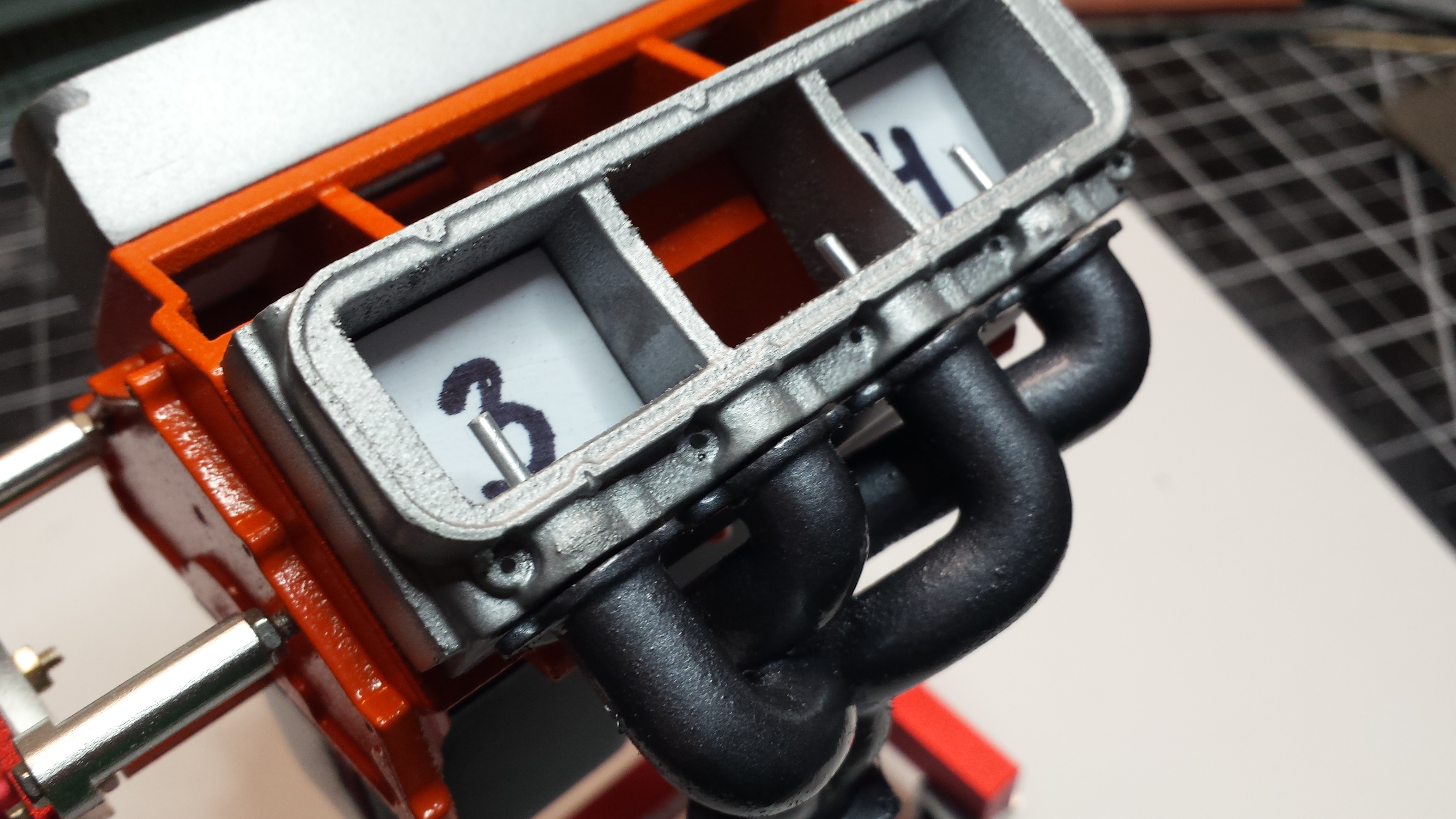

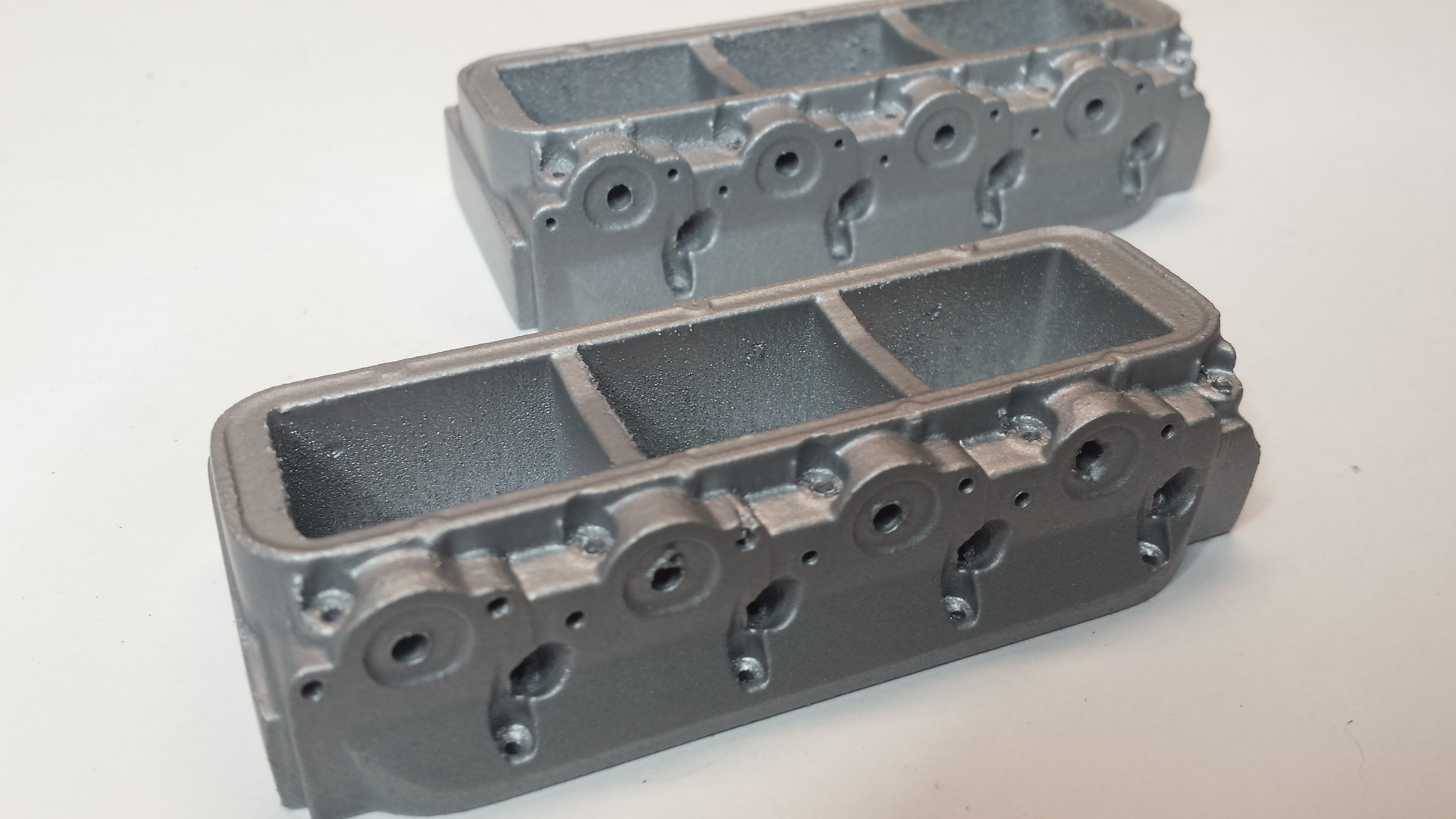

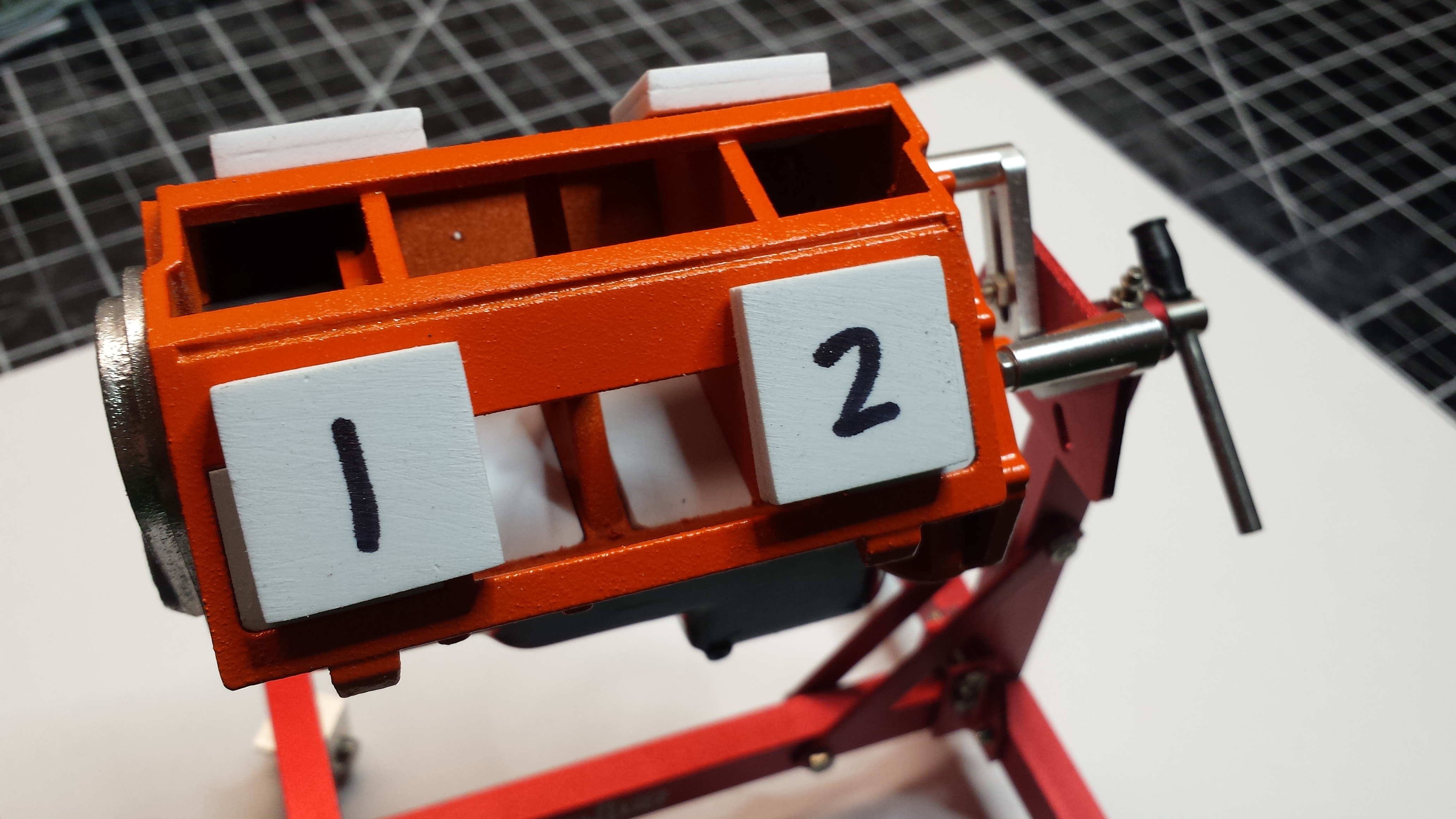

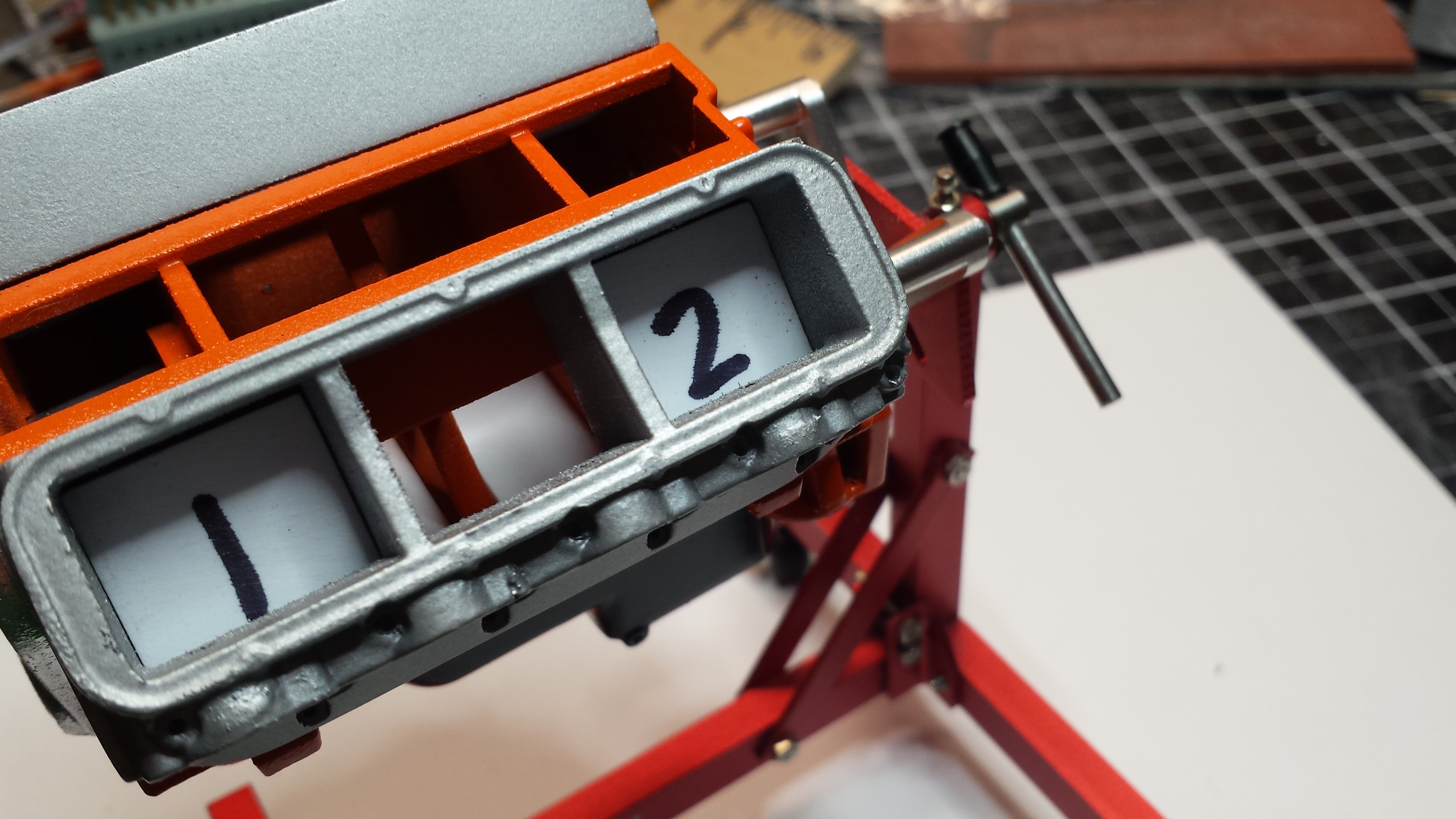

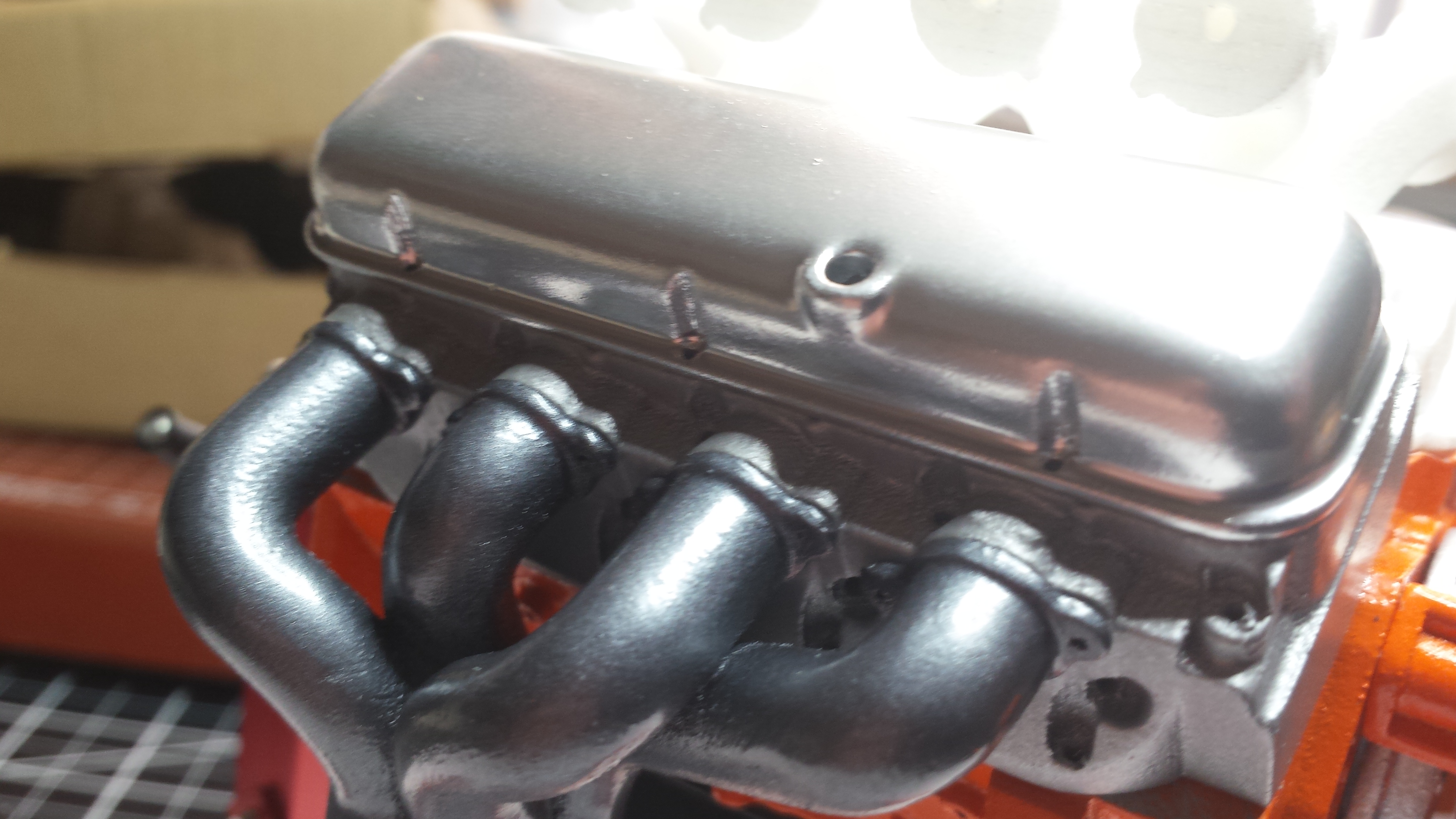

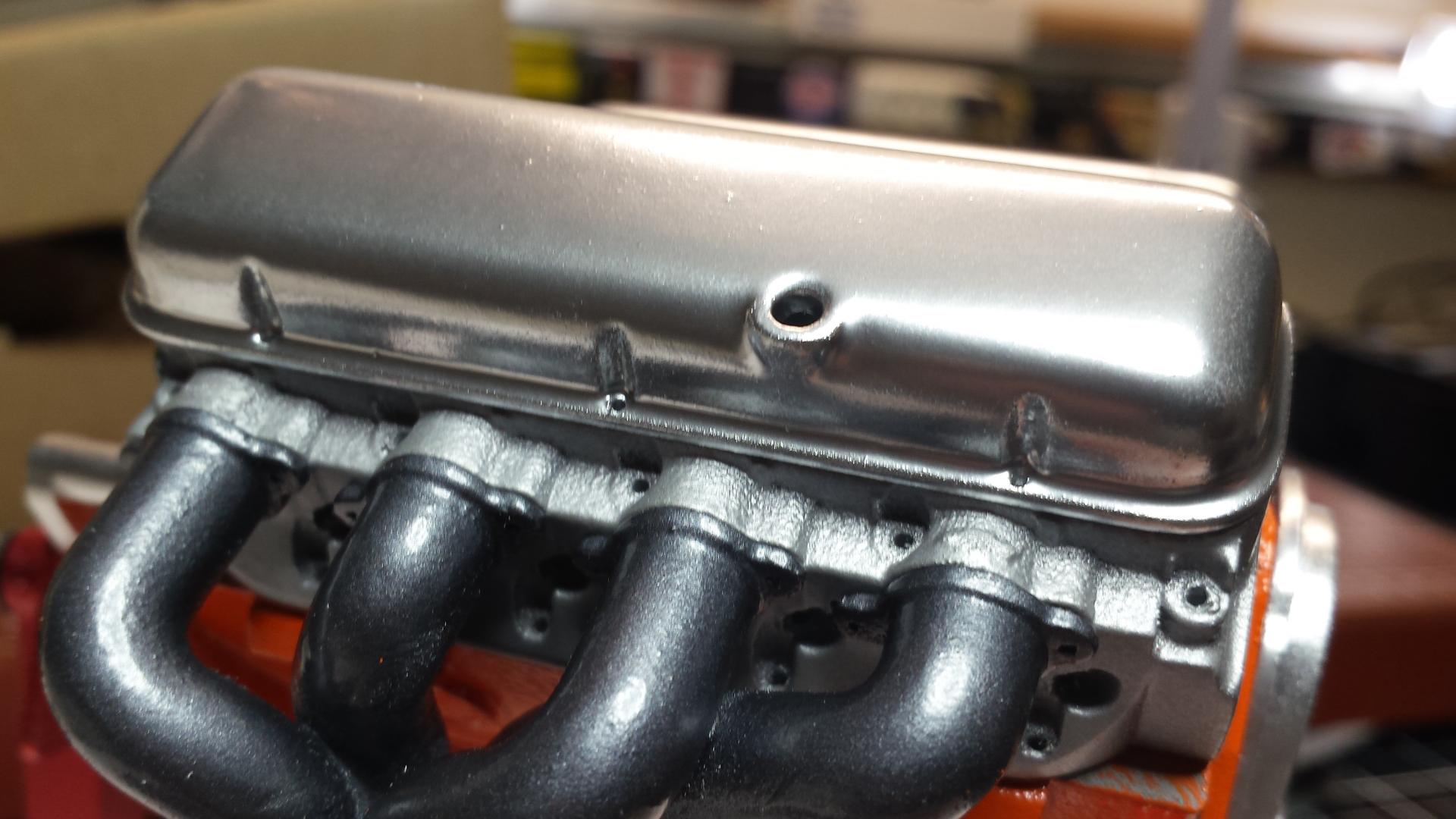

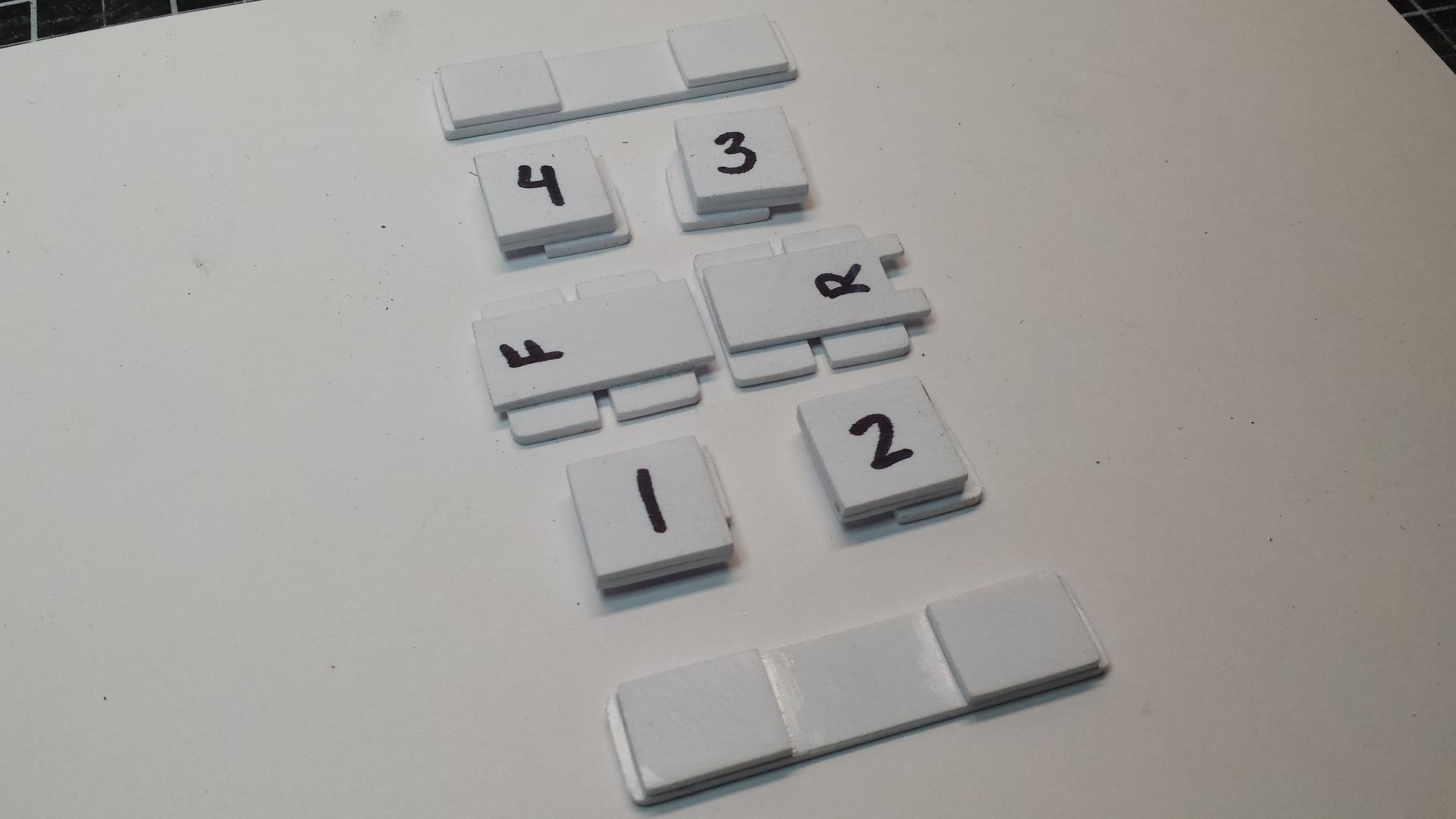

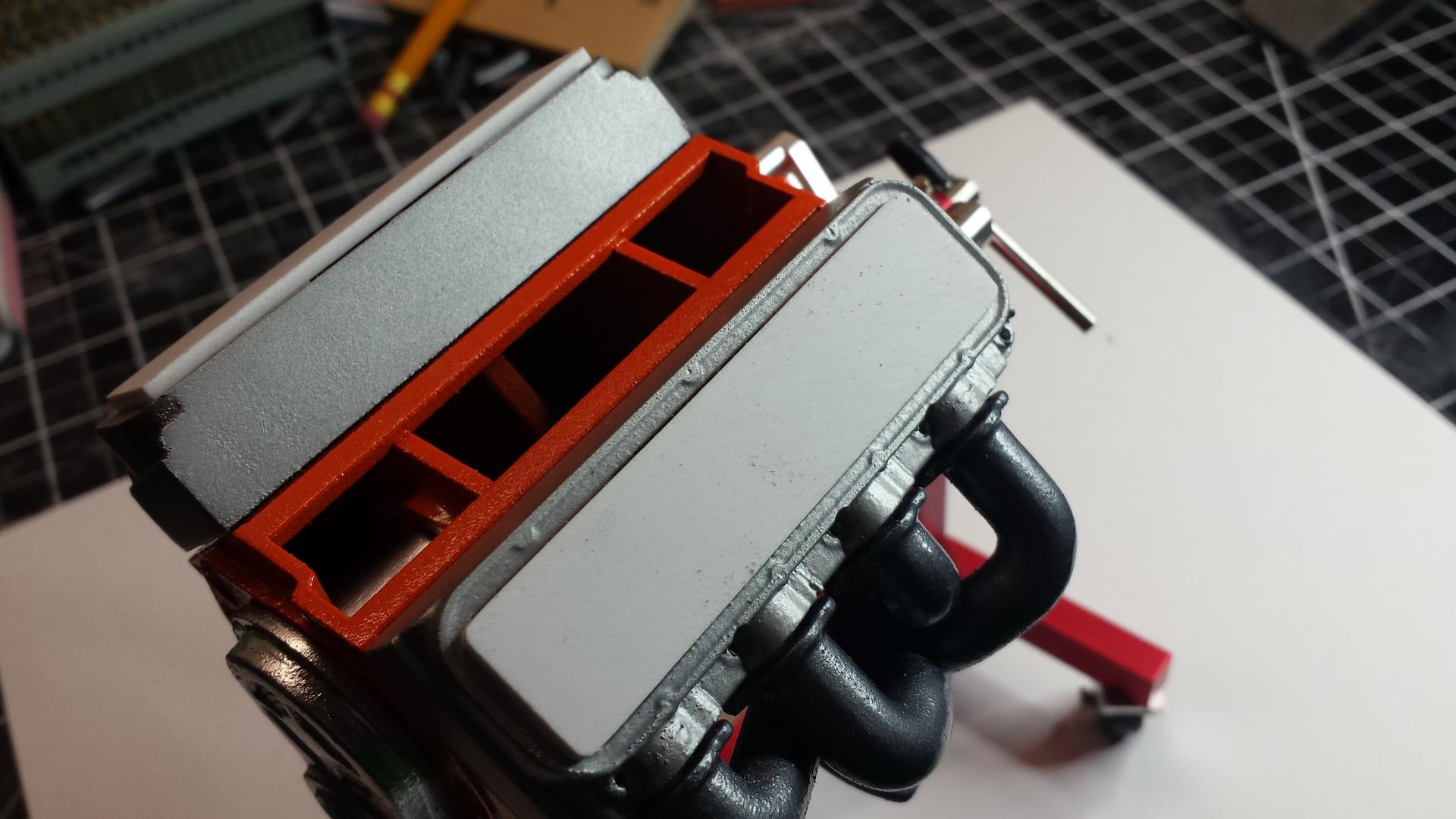

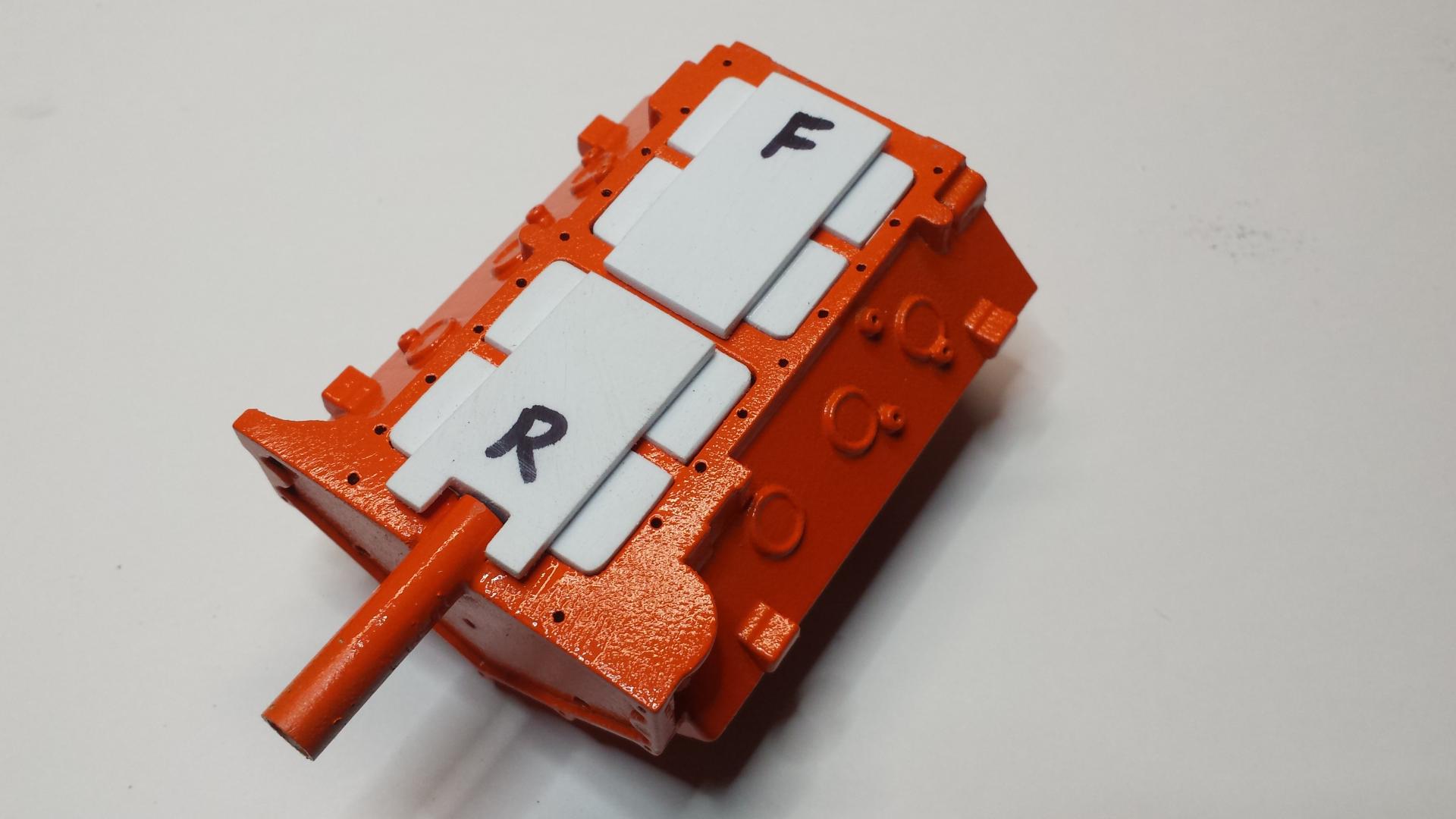

I thought I'd share my methods for assembling t he 3-D parts. I make little plastic locating pieces together - like the heads & valve covers, heads & engine block, oil pan & engine block, etc. Nothing shown here is permanently installed but rather held in by compression.

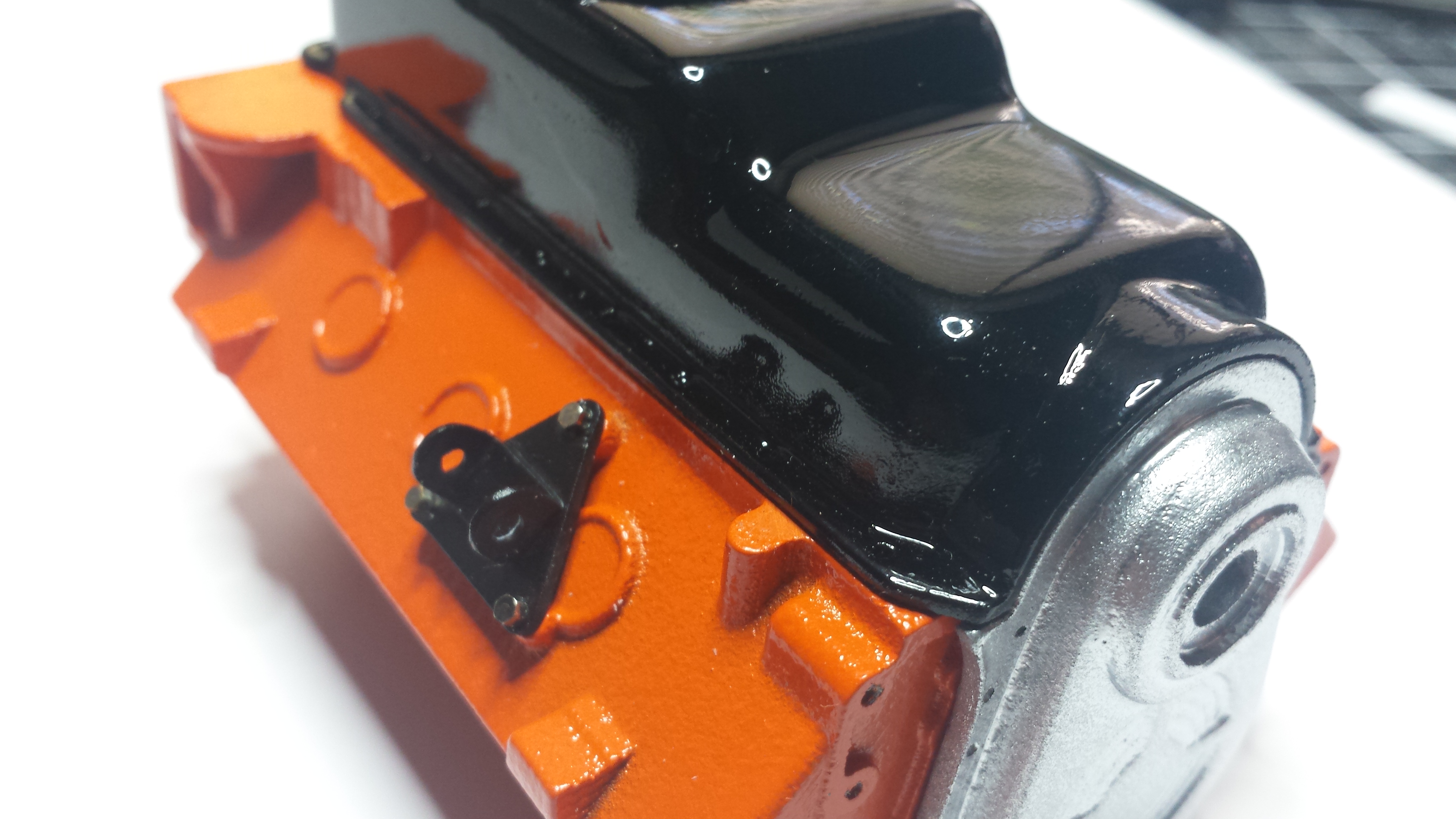

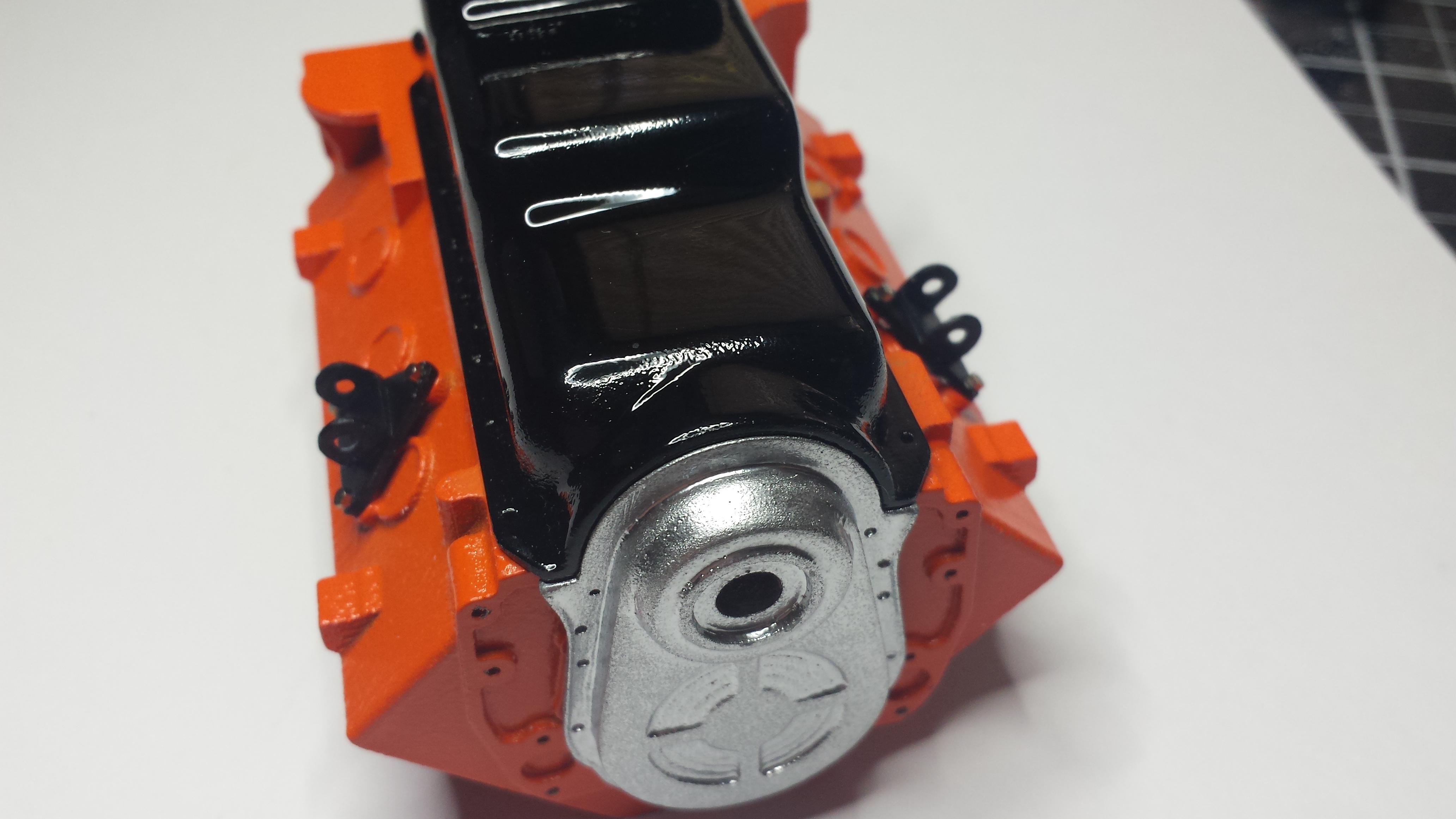

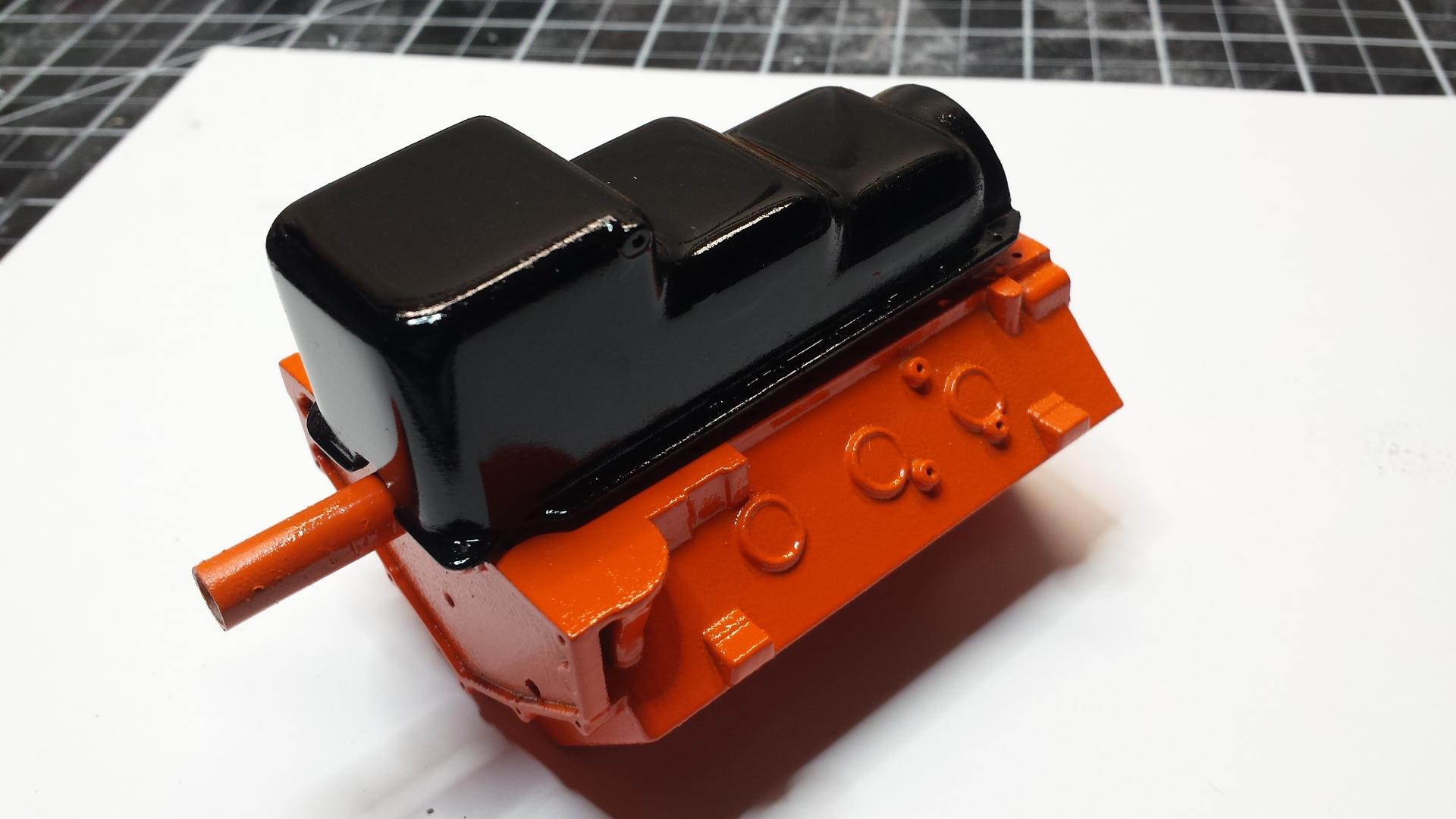

First, the oil pan...



Share this post


Link to post
Share on other sites

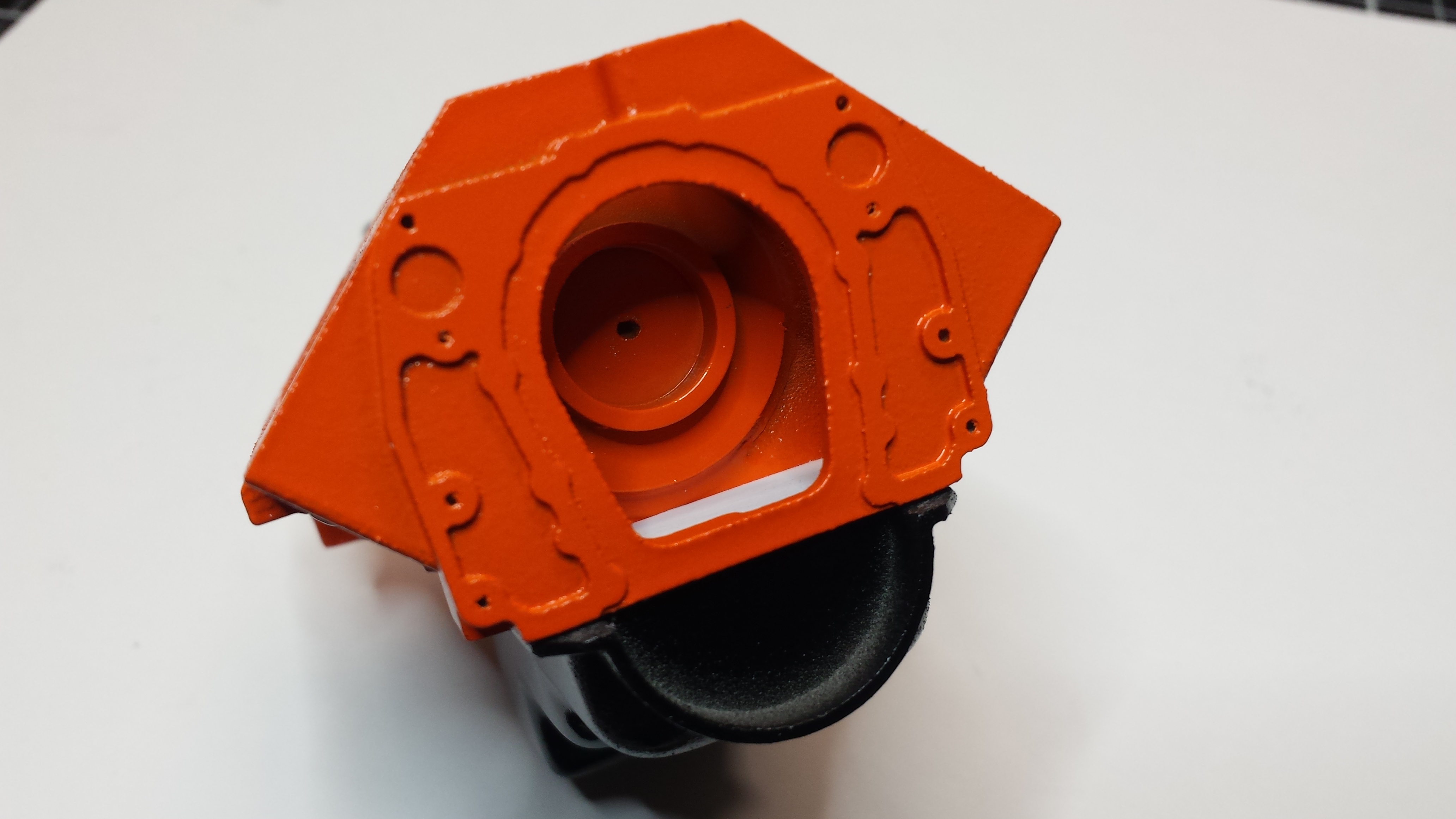

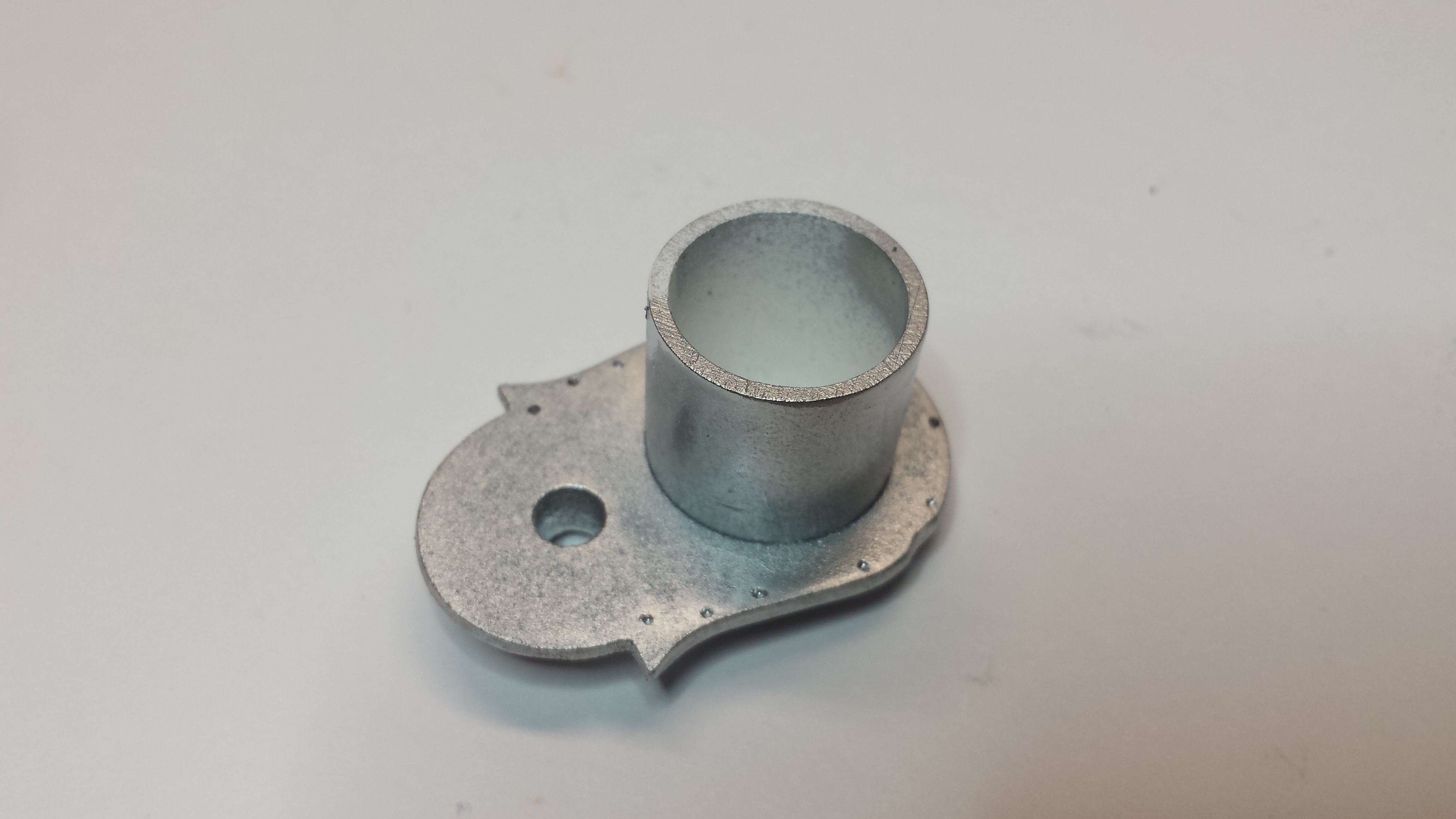

Timing cover, I attached a small piece of 5/8" PVC tubing to the back which attaches to a larger (3/4" I think) piece attached to the forward internal bulkhead inside the engine block.



Share this post


Link to post
Share on other sites

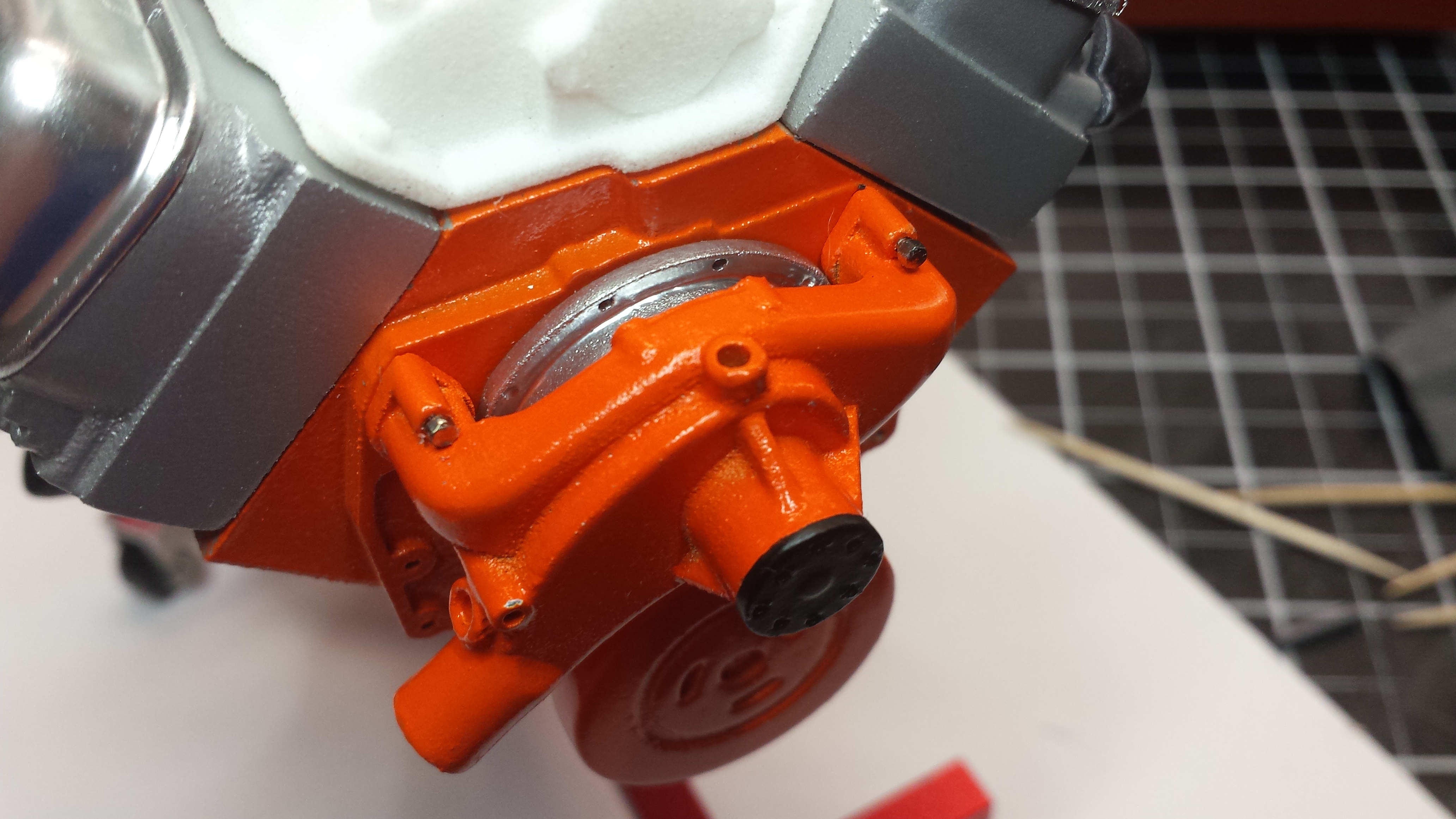

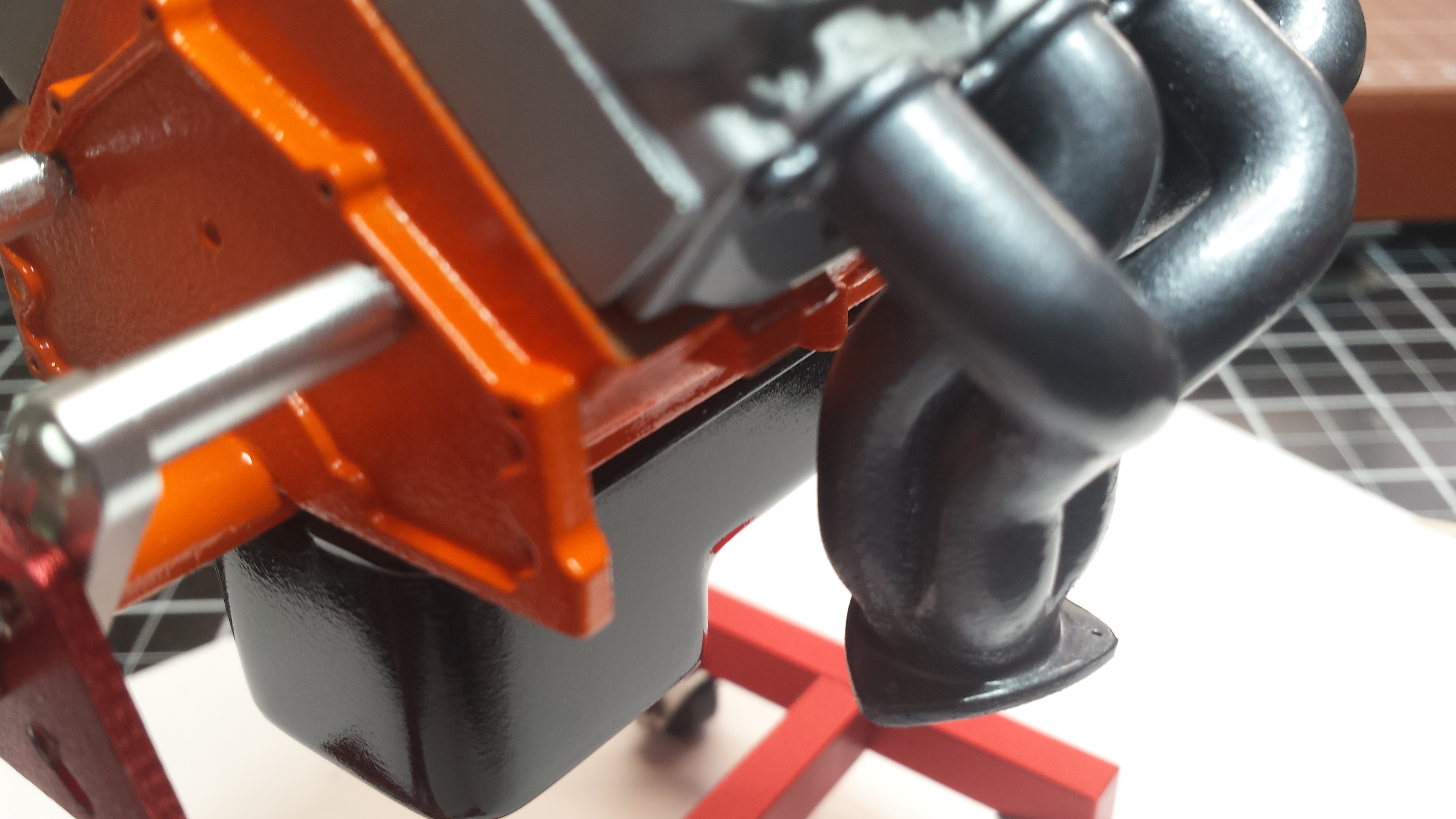

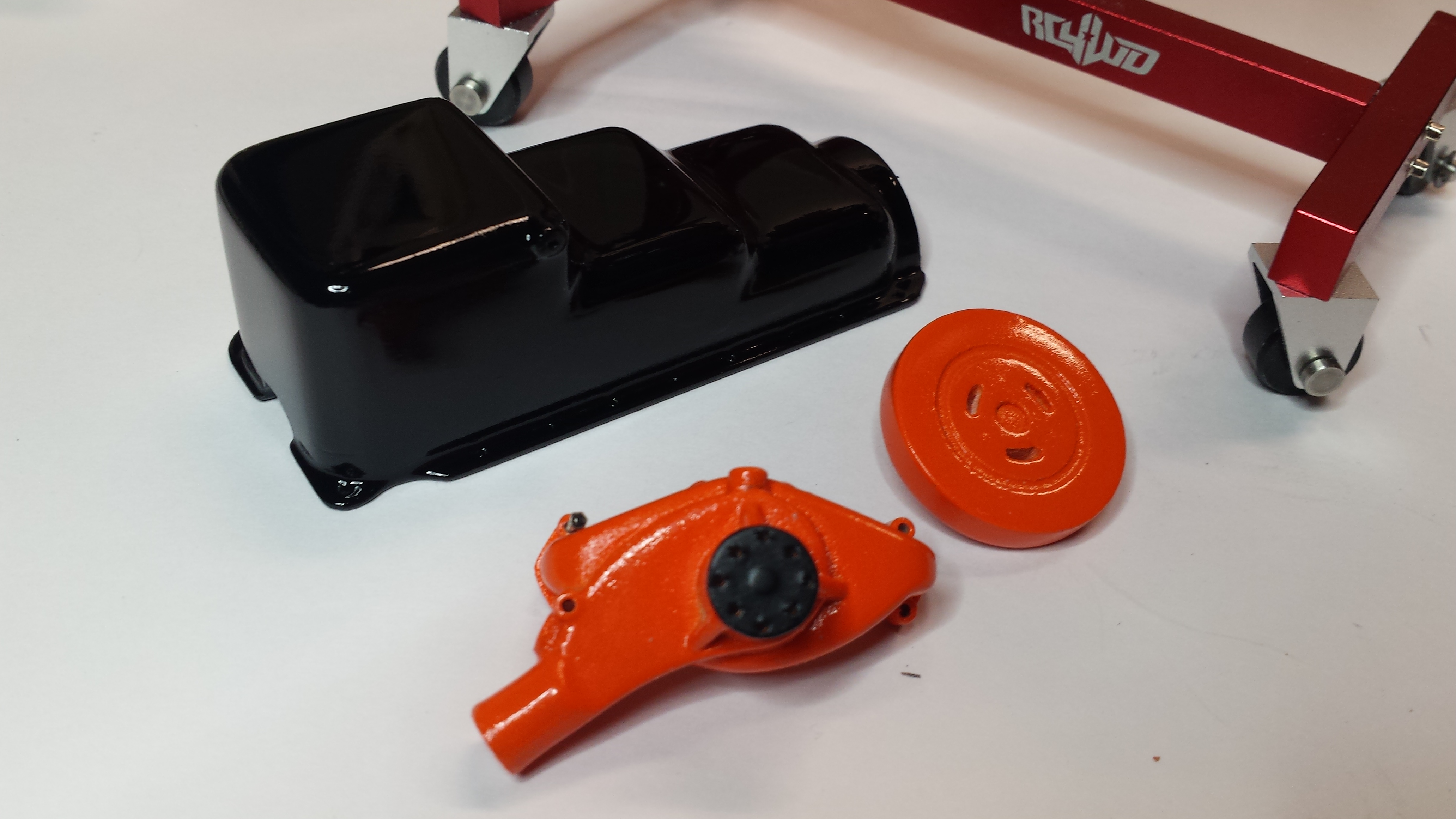

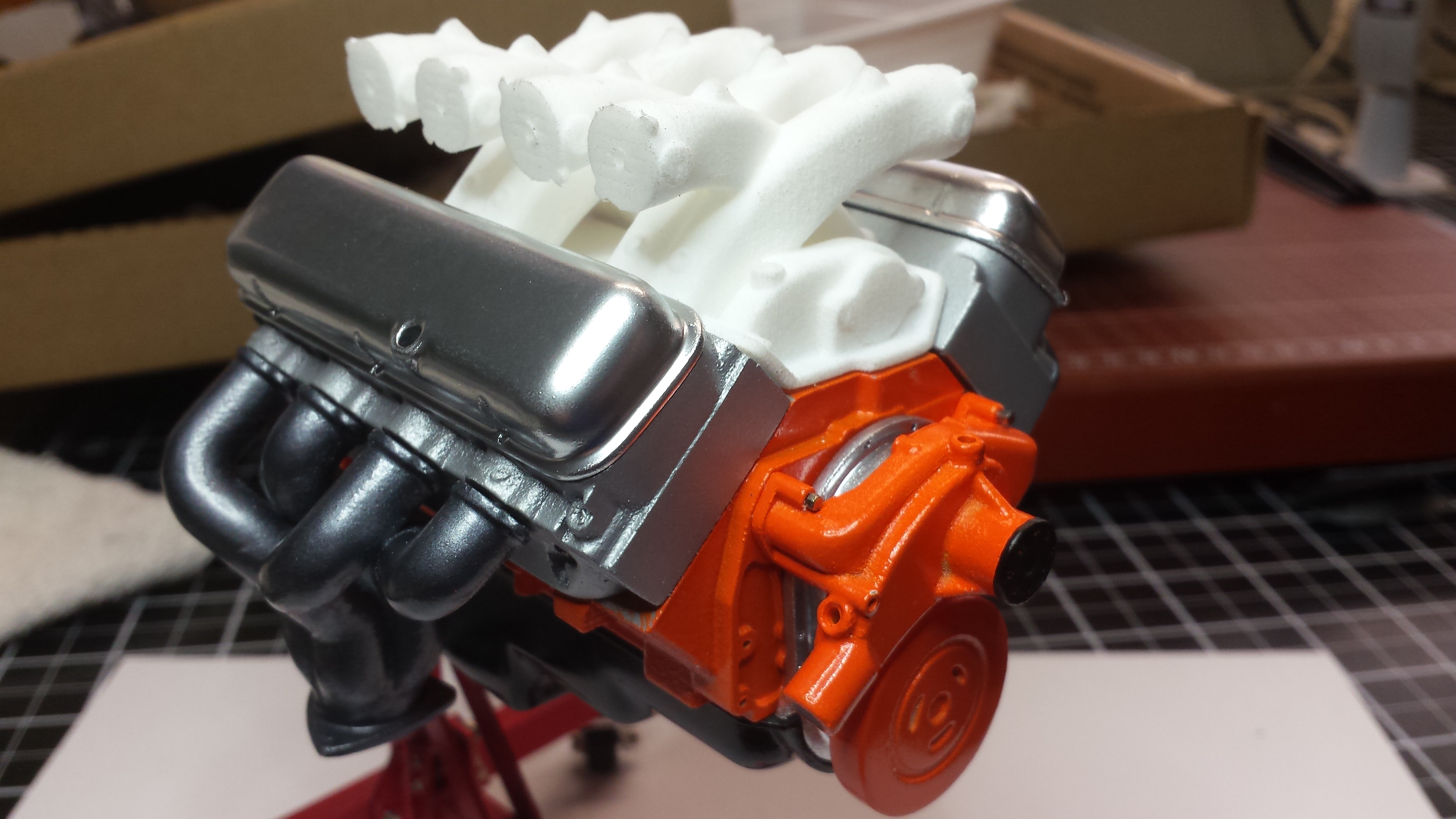

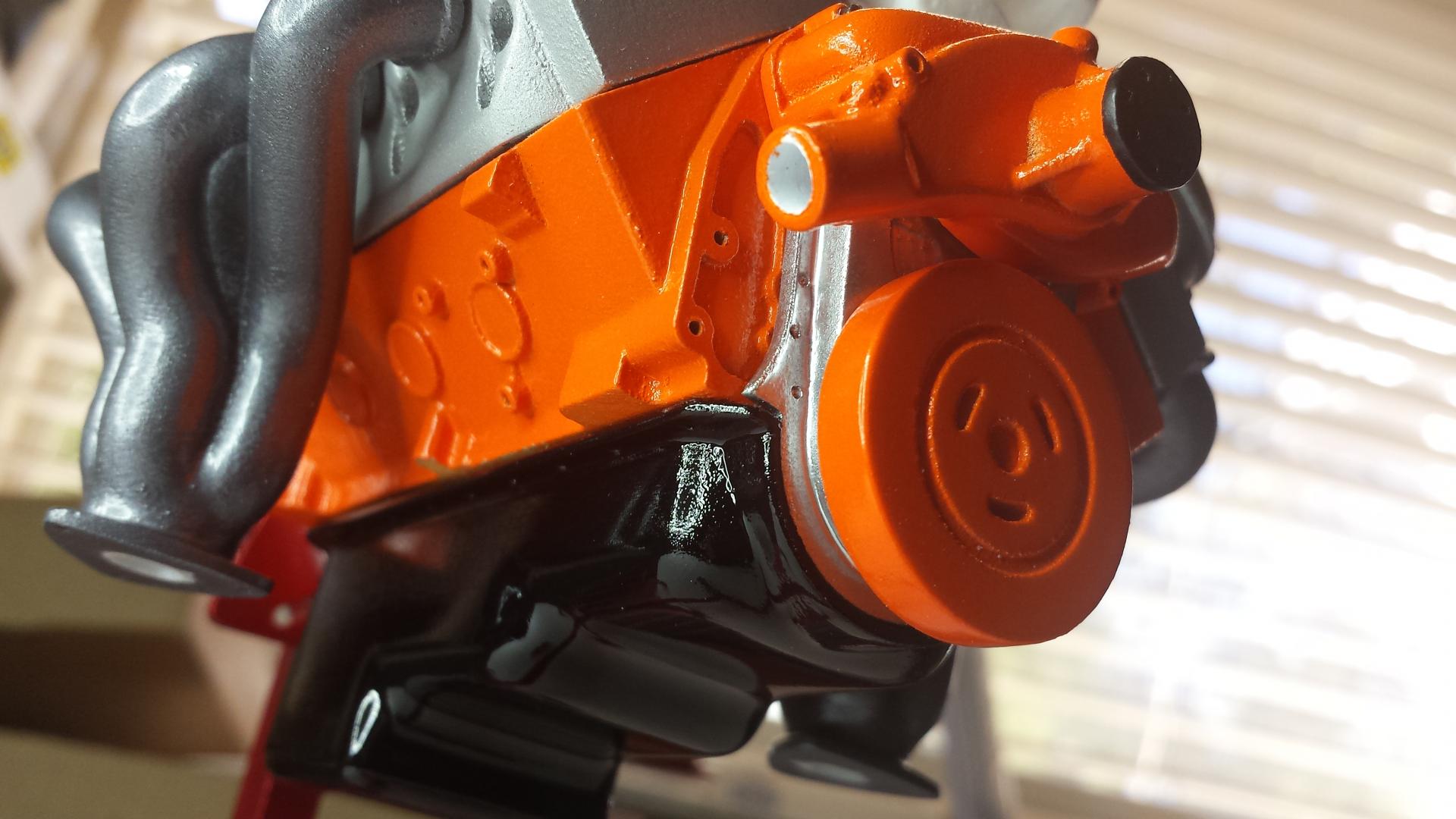

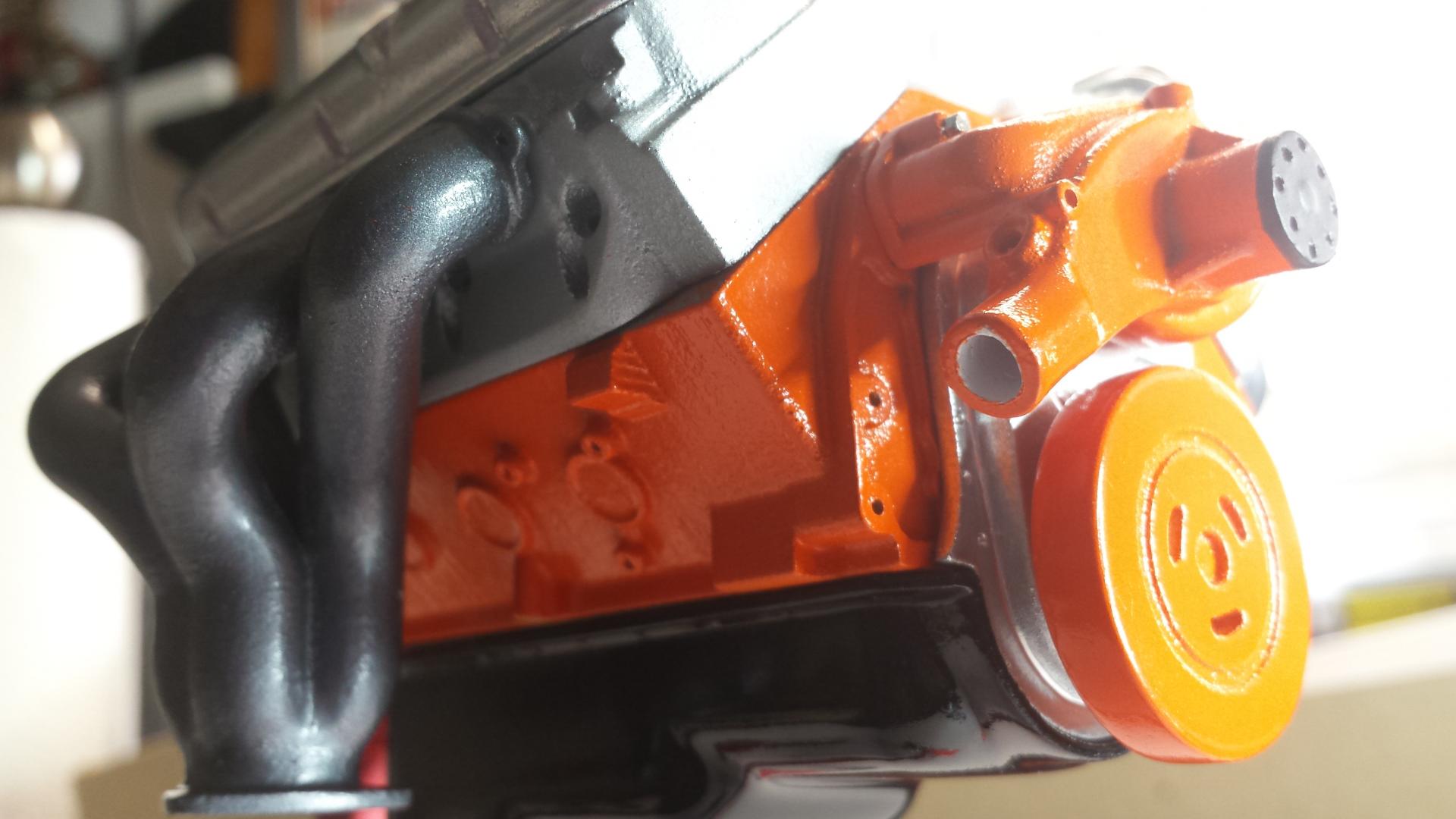

And here I've got the oil pan & water pump test fit as well as the cross ram fuel injection which has a piece of plastic glued to the bottom that fits into the opening on top of the block.82-55.thumb.jpg.4b86cdbd173d8cc0568b4da901222f0b.jpg


Share this post


Link to post
Share on other sites

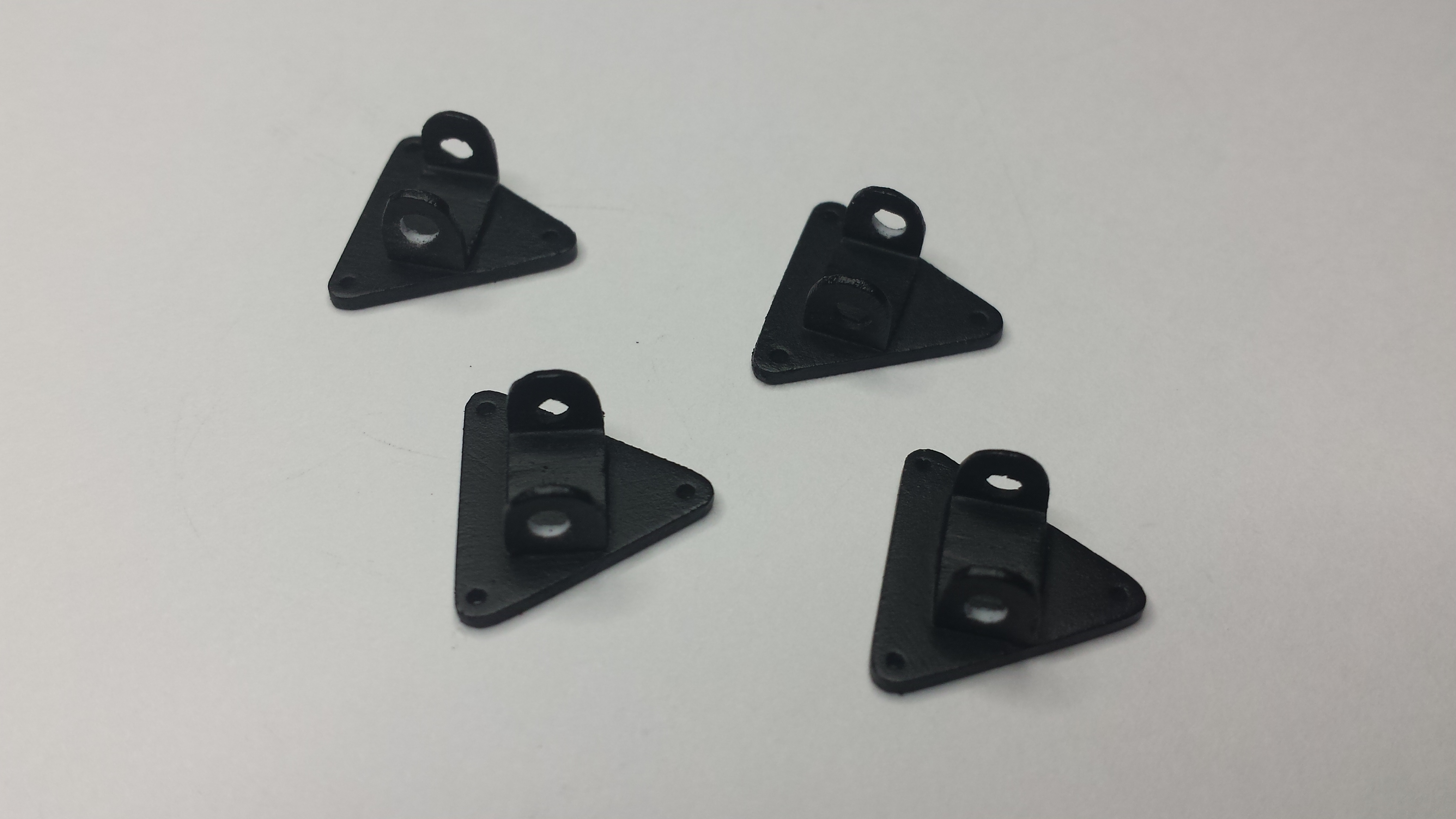

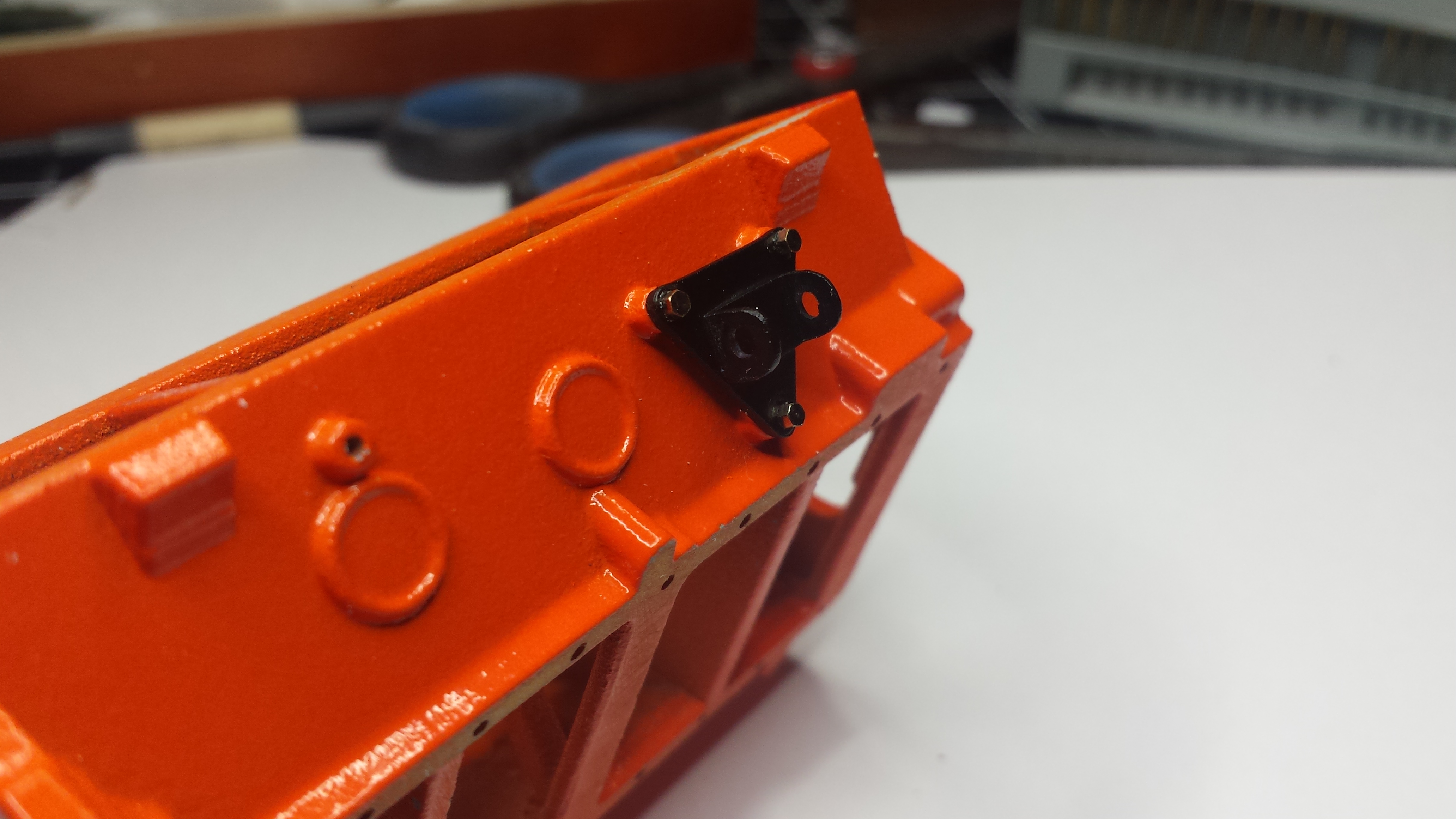

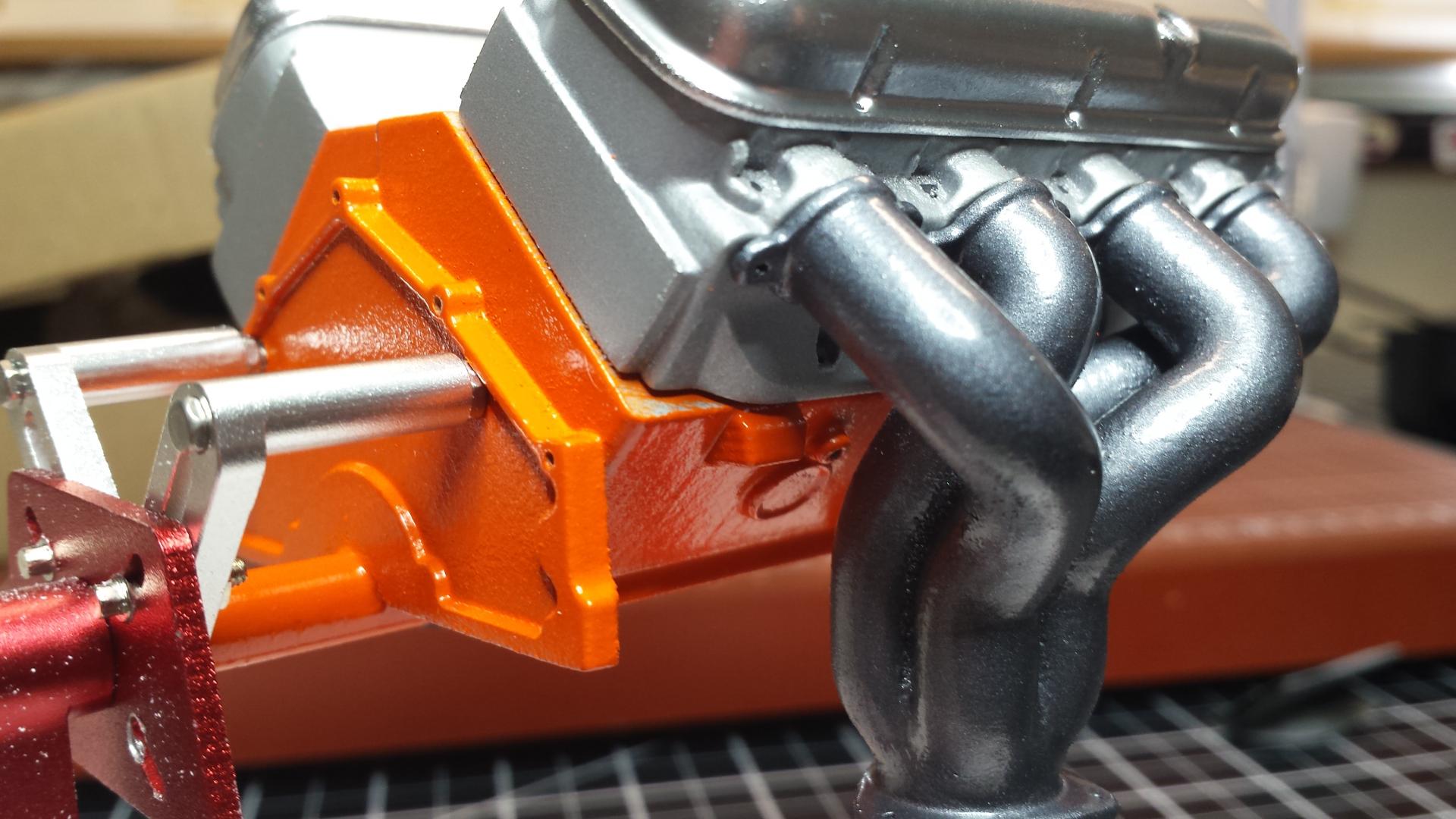

Thanks Todd. I made these motor mounts from Evergreen sheet and rectangular tube. They mount to the block with 1mm screws.



Share this post


Link to post
Share on other sites

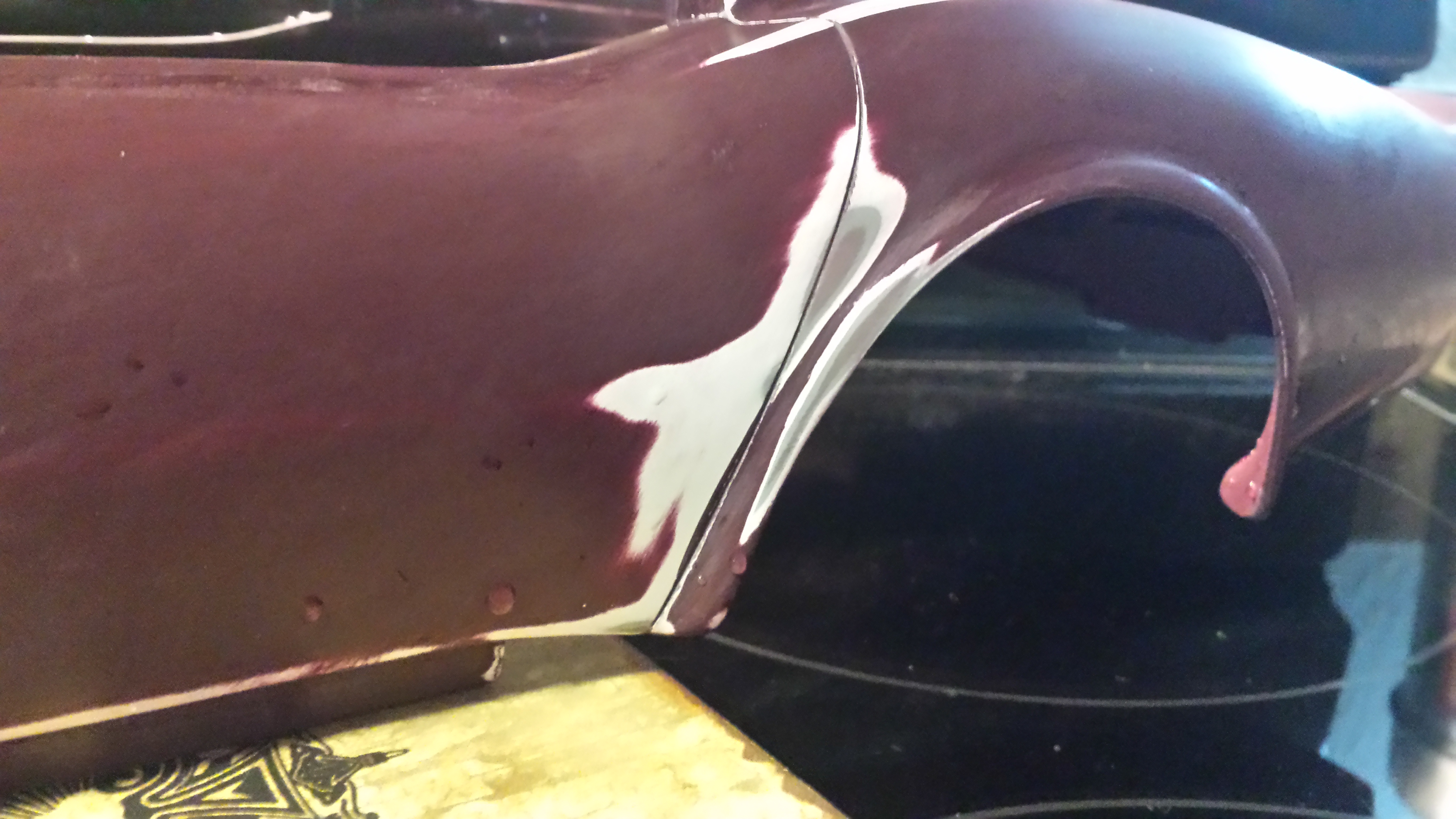

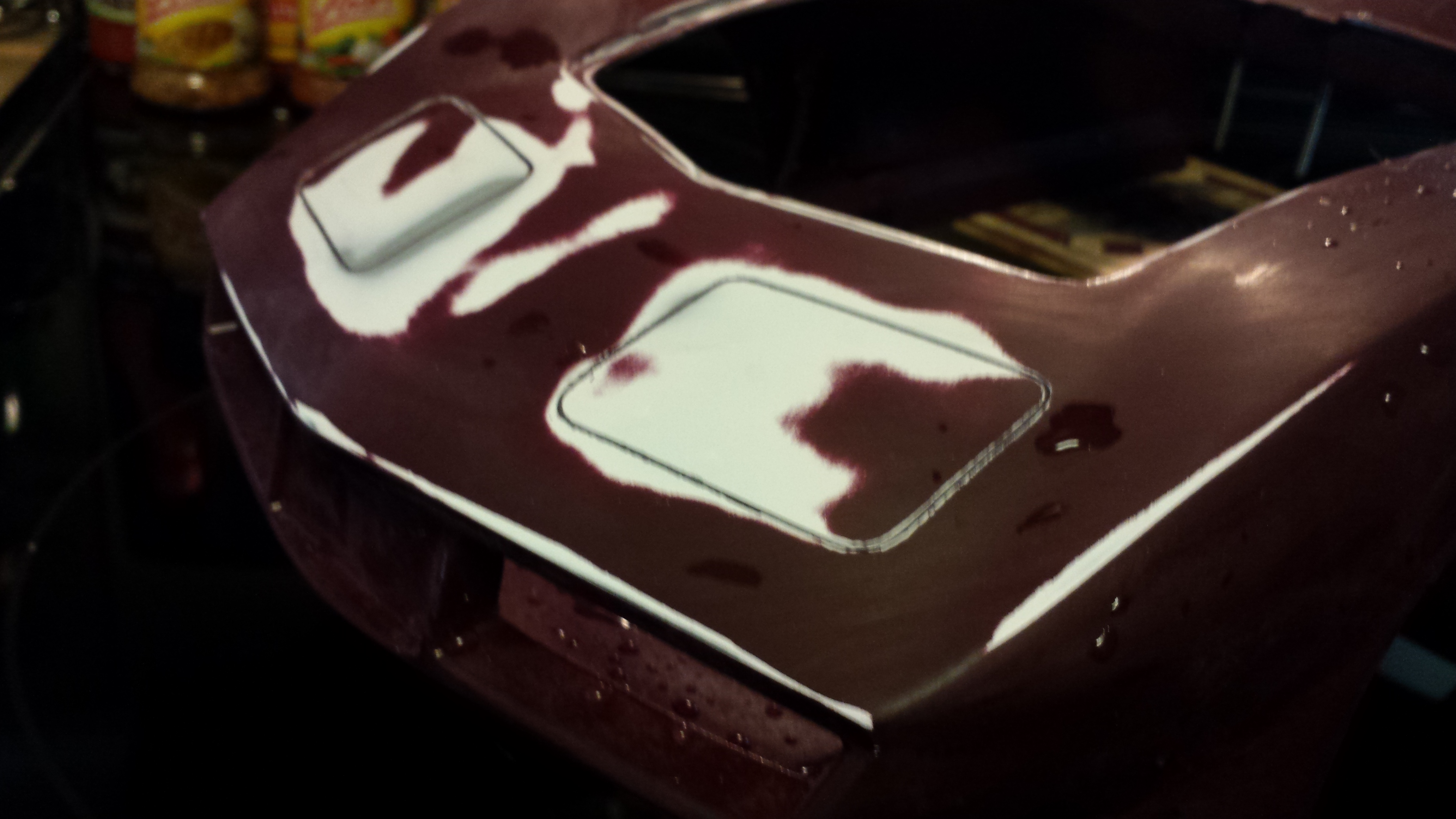

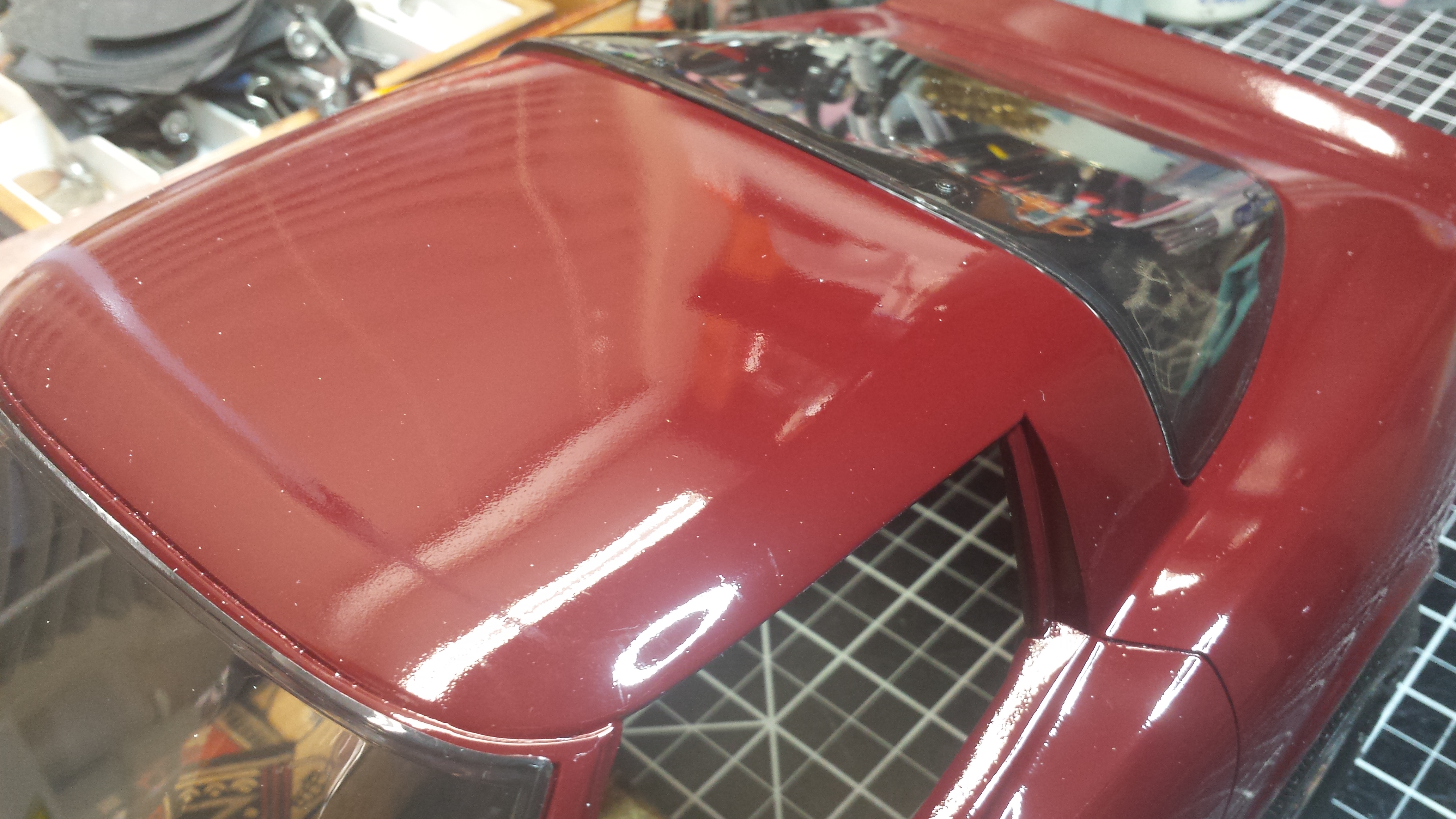

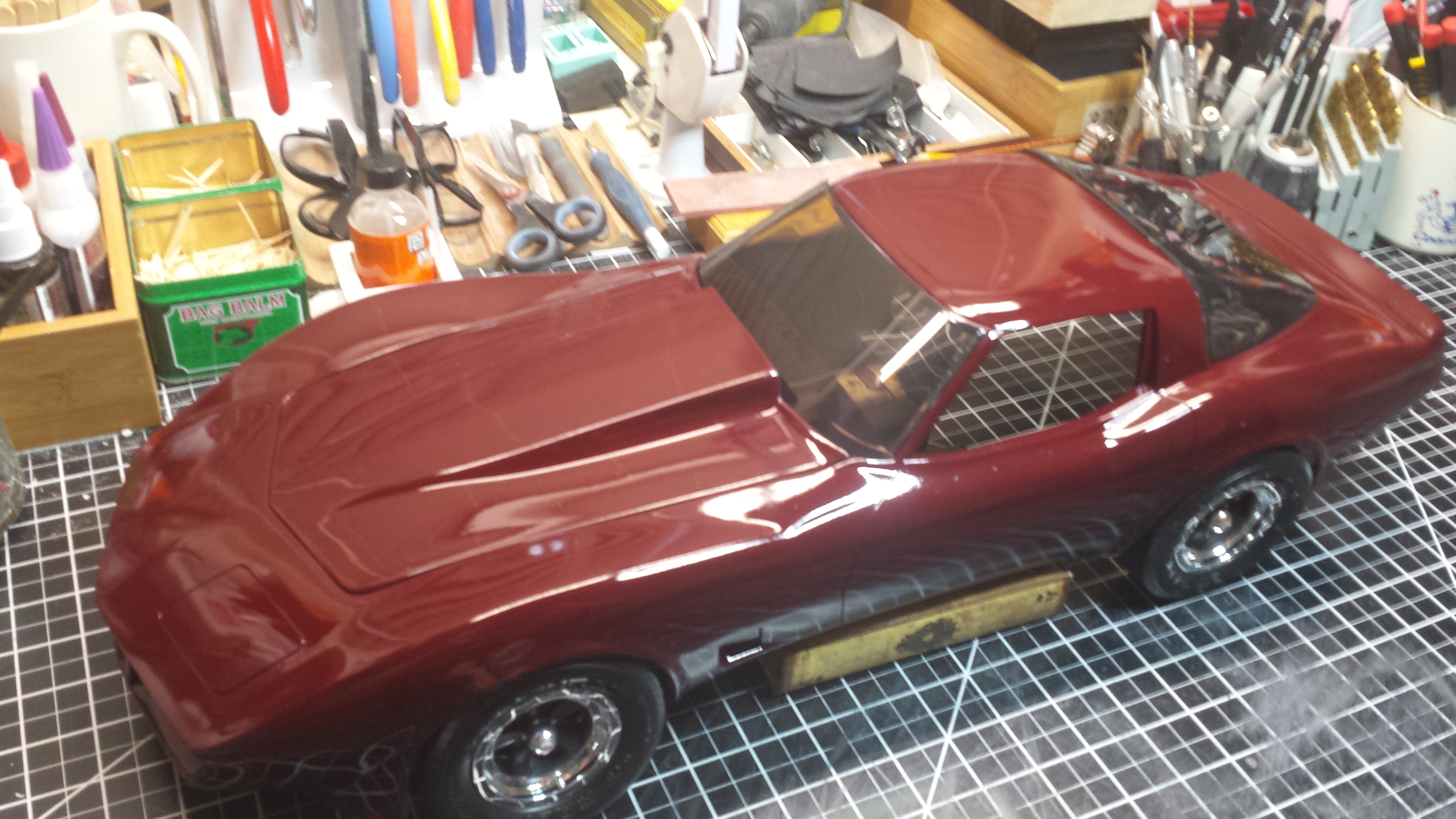

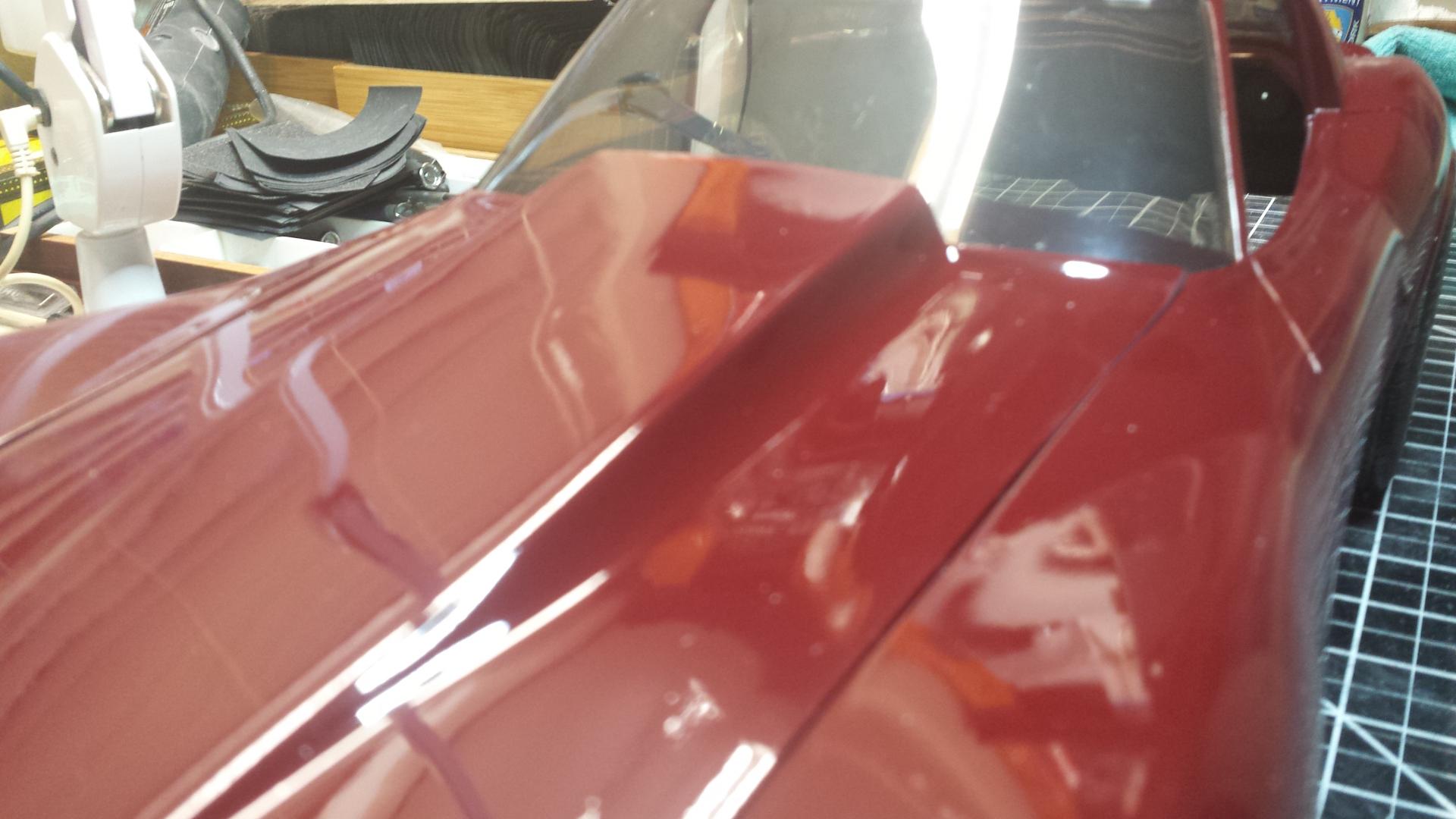

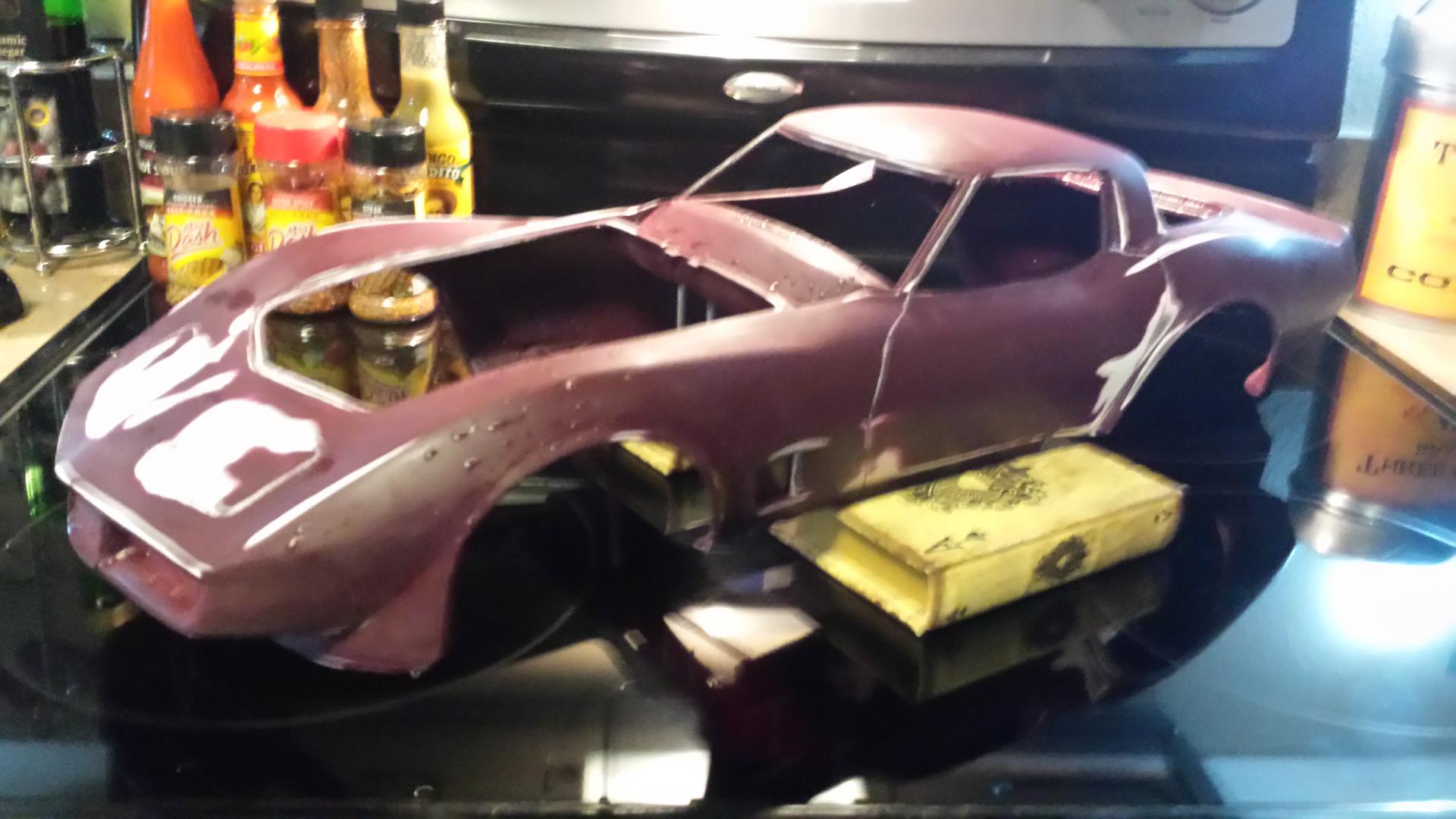

Paint update...I shouldn't have rushed things and done a better job wet sanding last time as there were numerous trouble spots that had to be addressed.  On a model this large, imperfections in the paint become increasingly more apparent. I've tried to take this project a step further by removing all the body chrome so I could focus on highlighting the smooth and flowing lines of  the C3 Corvette. Noticeable flaws would be bad. But the next paint session went real good as the weather was very good for painting able to lay down multiple light coats followed by several heavier wet coats. I'll post a couple of outdoor shots in my next post.




Share this post


Link to post
Share on other sites
