cobraman

Wooden Russian submarine 1721 kit. Done !

Recommended Posts

Posted (edited)

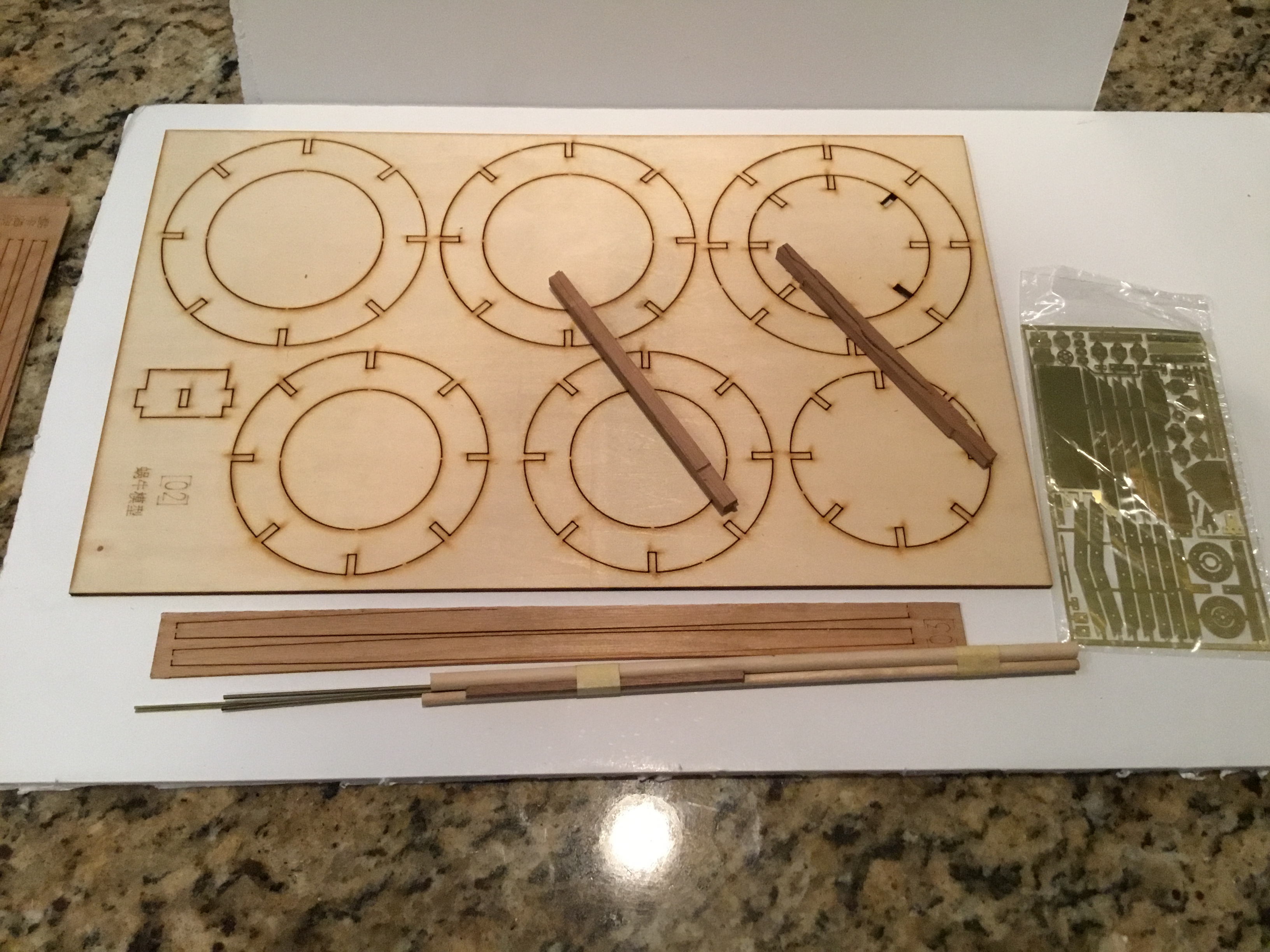

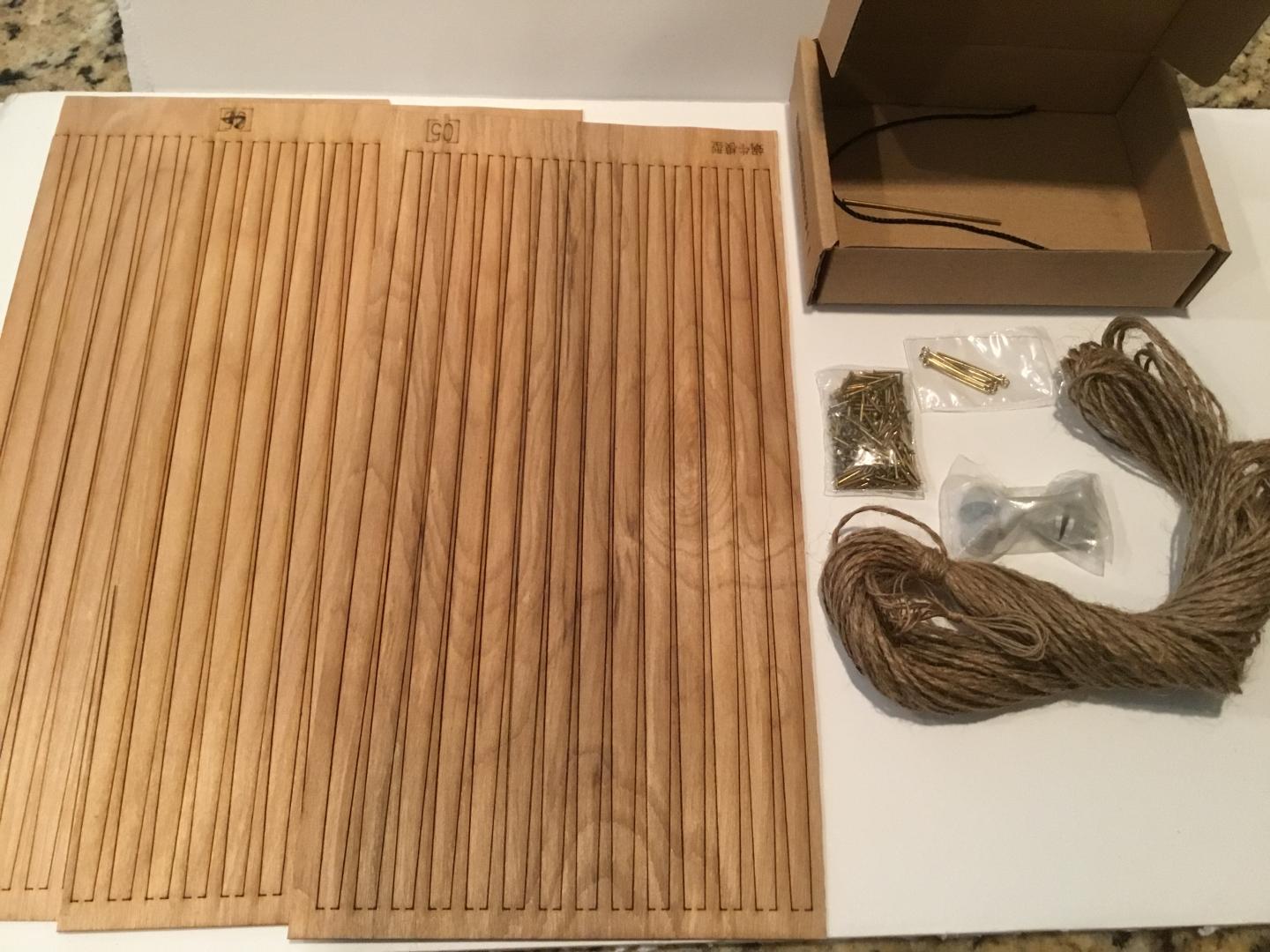

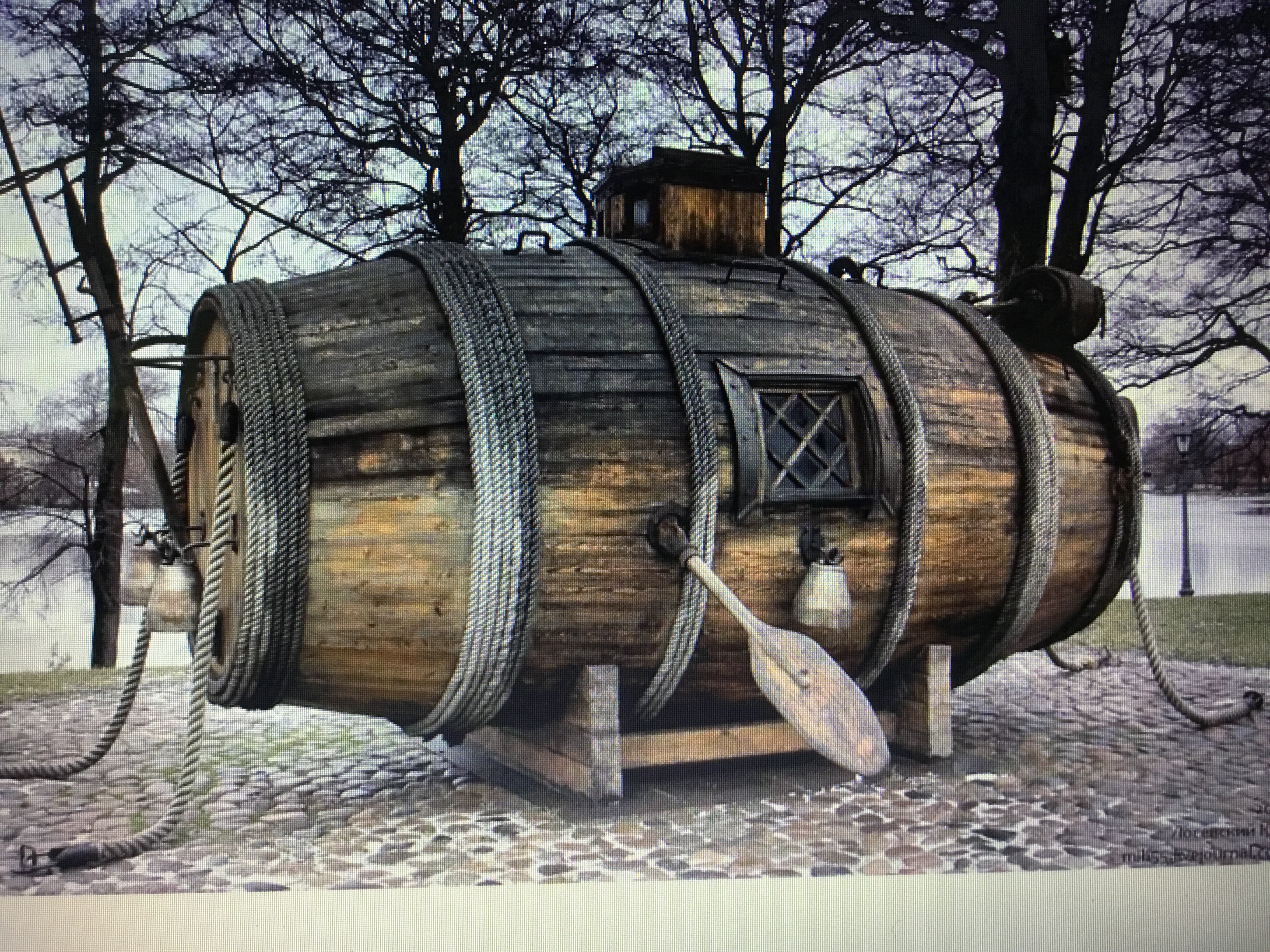

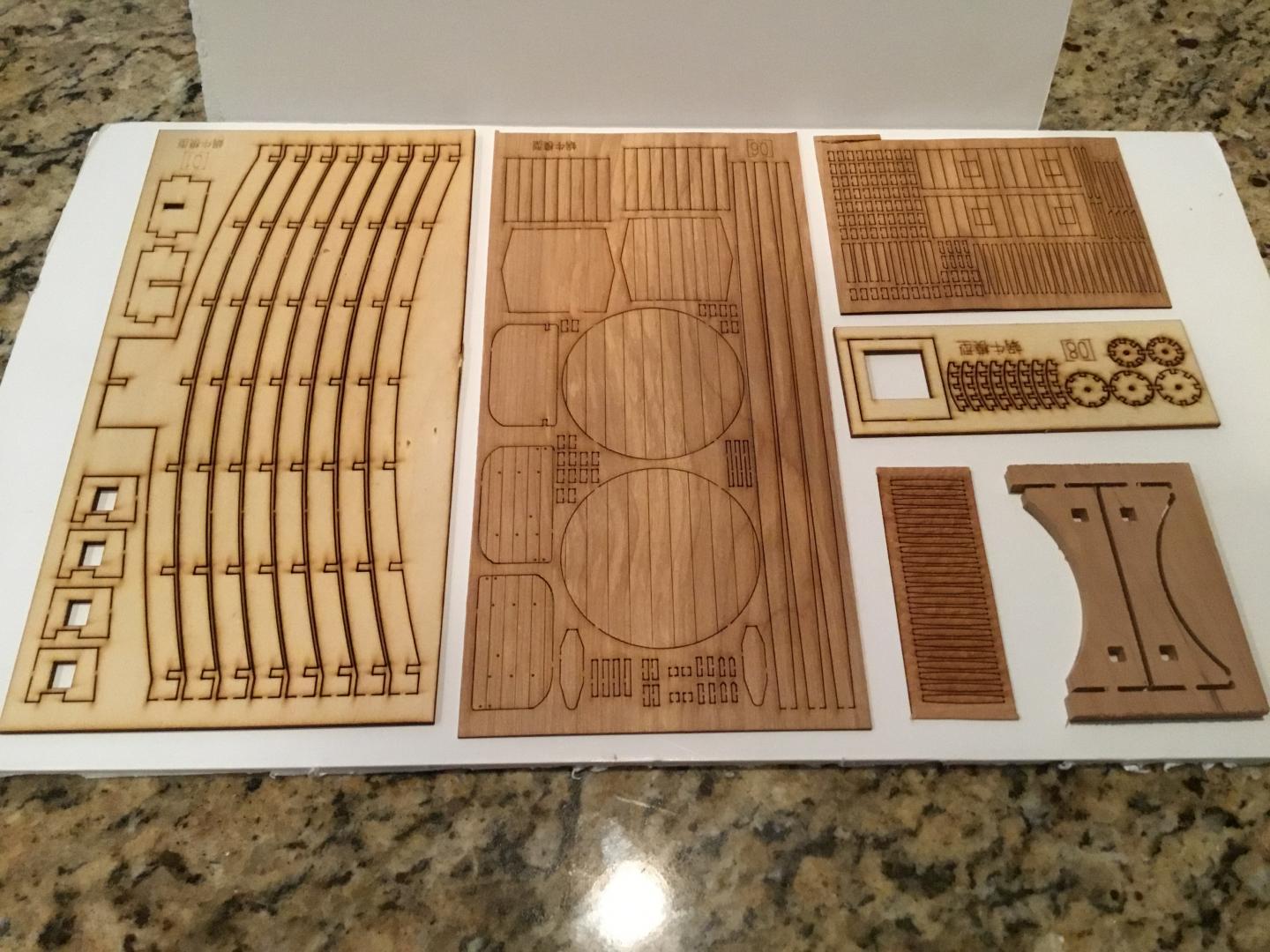

Having finished two wooden boat/ship kits I feel maybe I can begin this kit that really began my interest in wooden kits . A little info on this submarine . It is named the Yefim Nikonov’s Submarine . Believed to be the first military sub built . Building began around 1718 and was finished in 1721. The first trial was in 1724. It was a disasaster as it sank and hit the bottom and broke the bilge. The builder and 4 oarsmen were able to escape . In 1725 a second was tested and also failed . A third was tested in 1727 and it too was a failure . Not sure I am ready to tackle this kit but I will give it a go . If I run into trouble I will put it aside and build another less complicated kit and get more practice .





Edited by cobraman
Title change

Share this post


Link to post
Share on other sites

Definitely never seen anything like it, nor that they were even being built and tested in that time period. Will be checking in on this.

After your first two builds I think you can master this one also.

Share this post


Link to post
Share on other sites

Thanks. I hope you are right.

Share this post


Link to post
Share on other sites

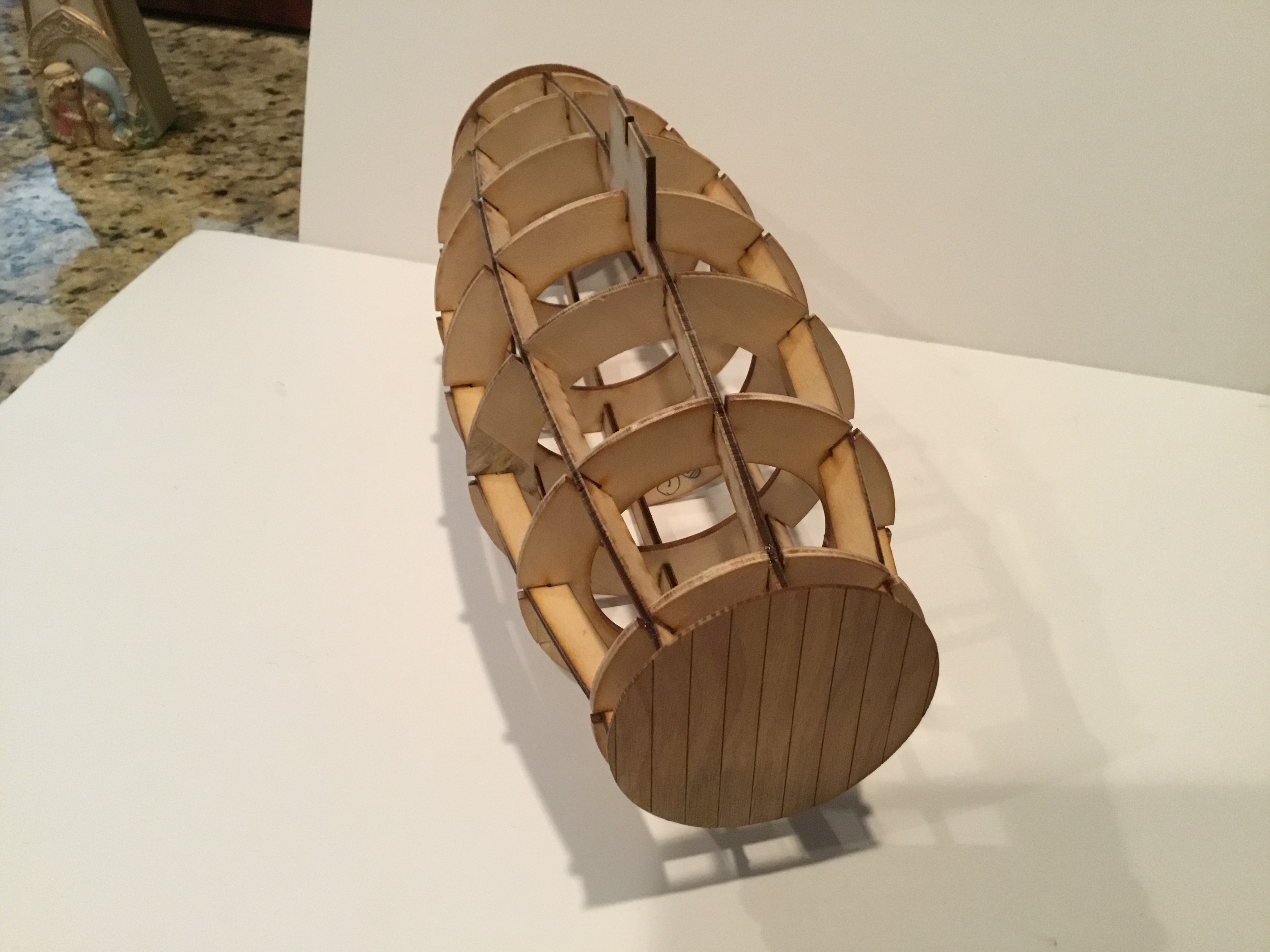

I managed to get the framework built today .



Share this post


Link to post
Share on other sites

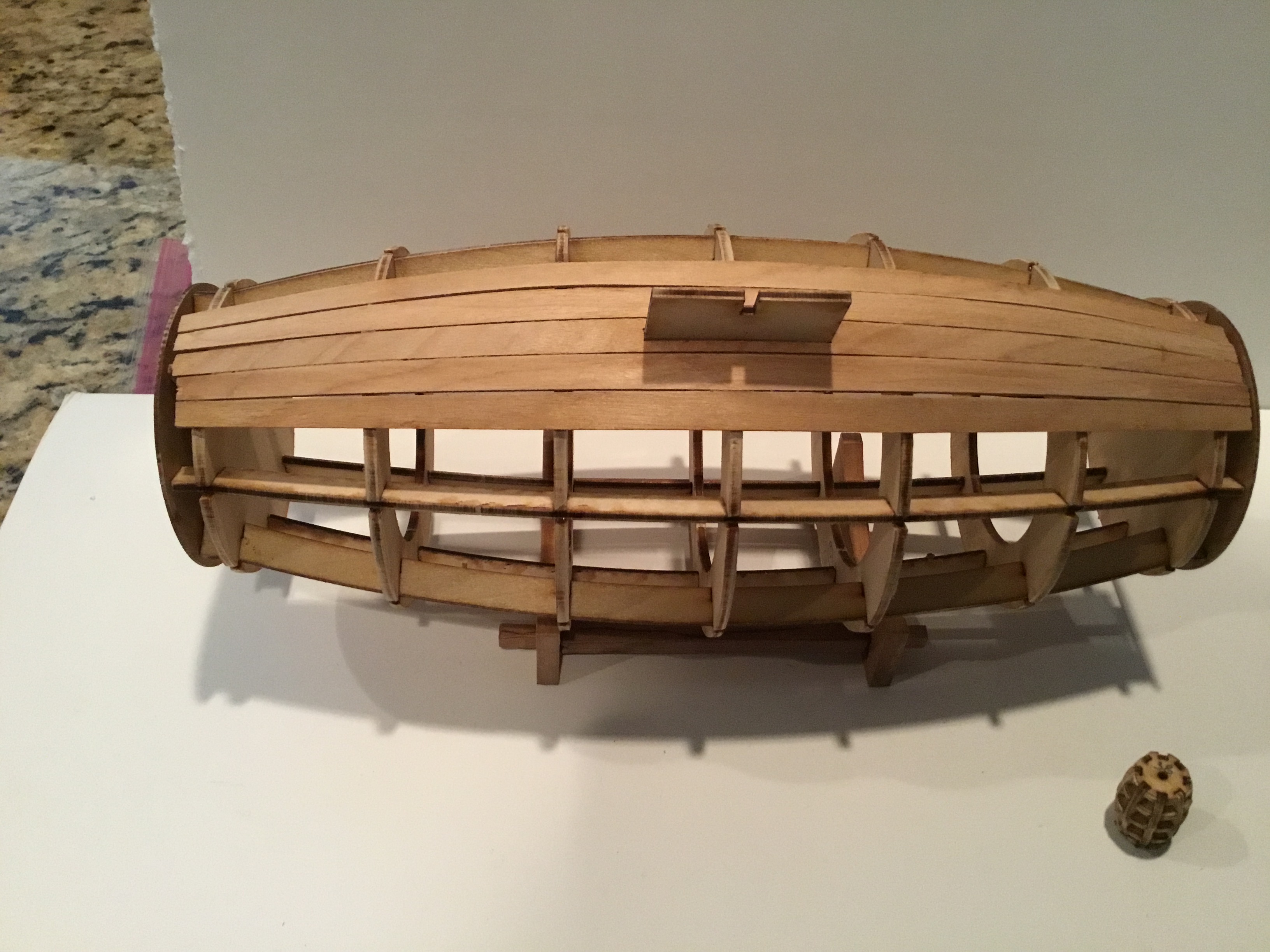

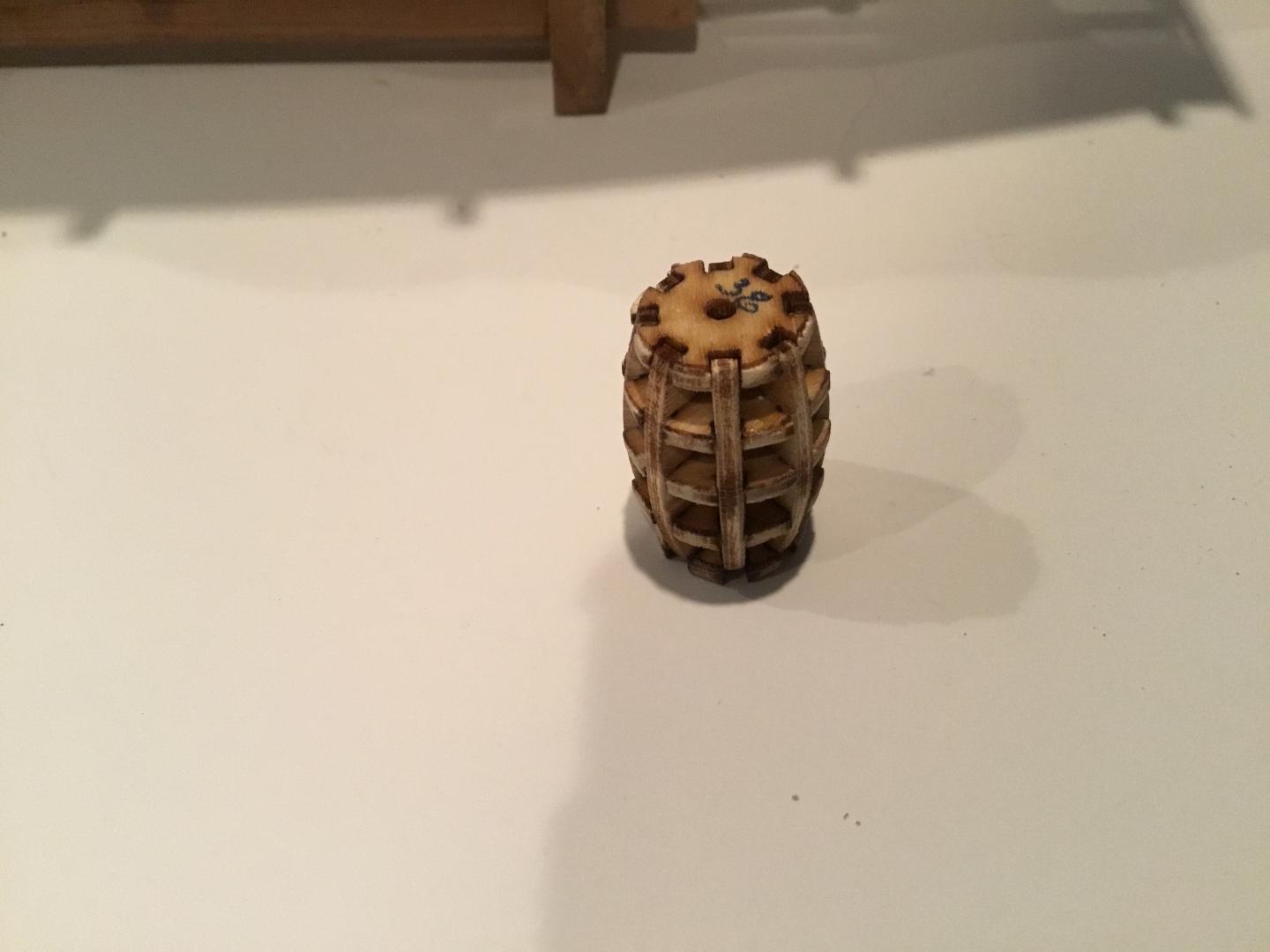

Started the planking and started to build the little barrel .



Share this post


Link to post
Share on other sites
On 5/10/2018 at 6:09 PM, cobraman said:

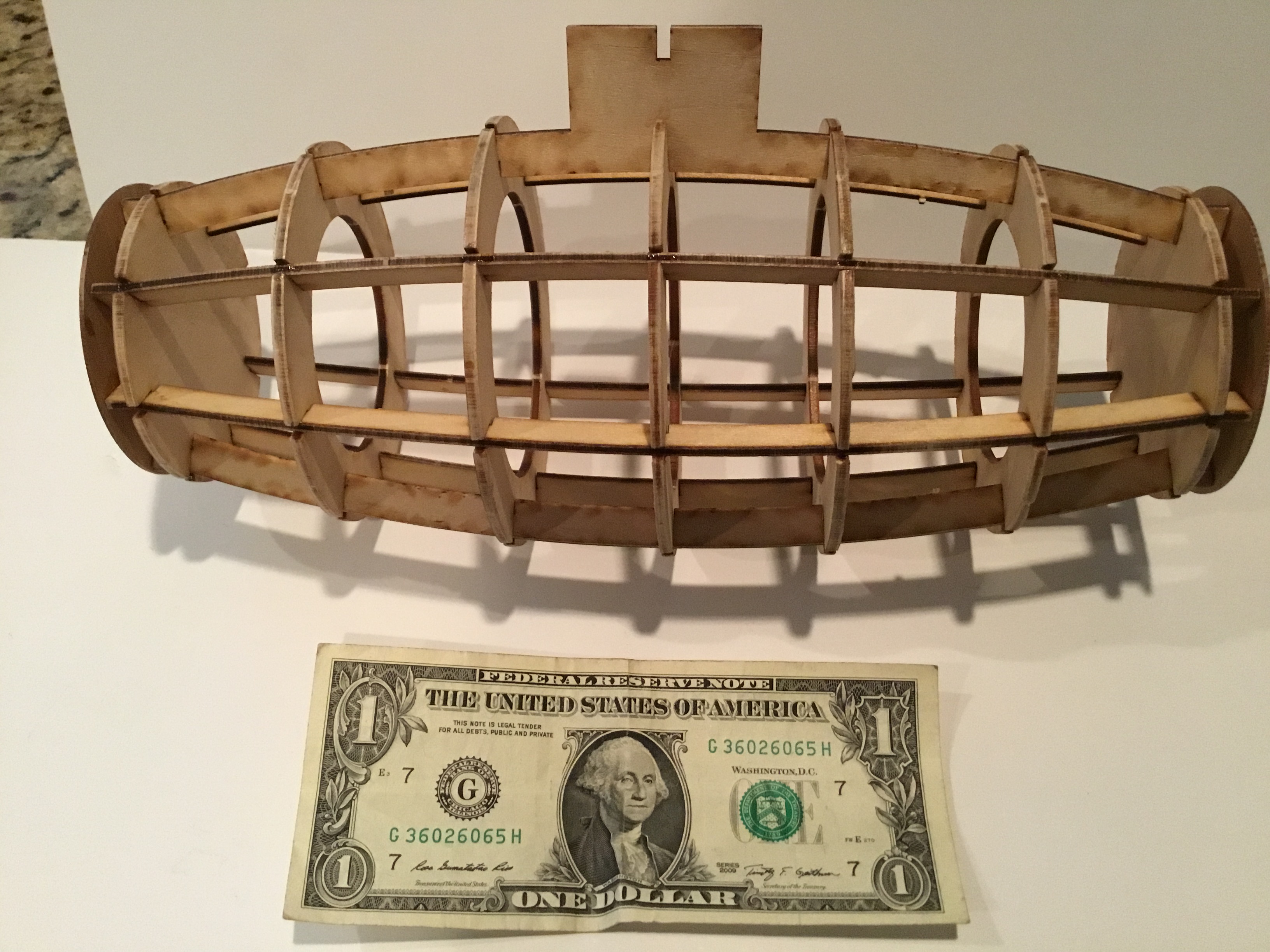

I managed to get the framework built today .



For those that don't know All current issue American paper bills are 6"long so that is a good thing to insert for scale comparison.

Share this post


Link to post
Share on other sites

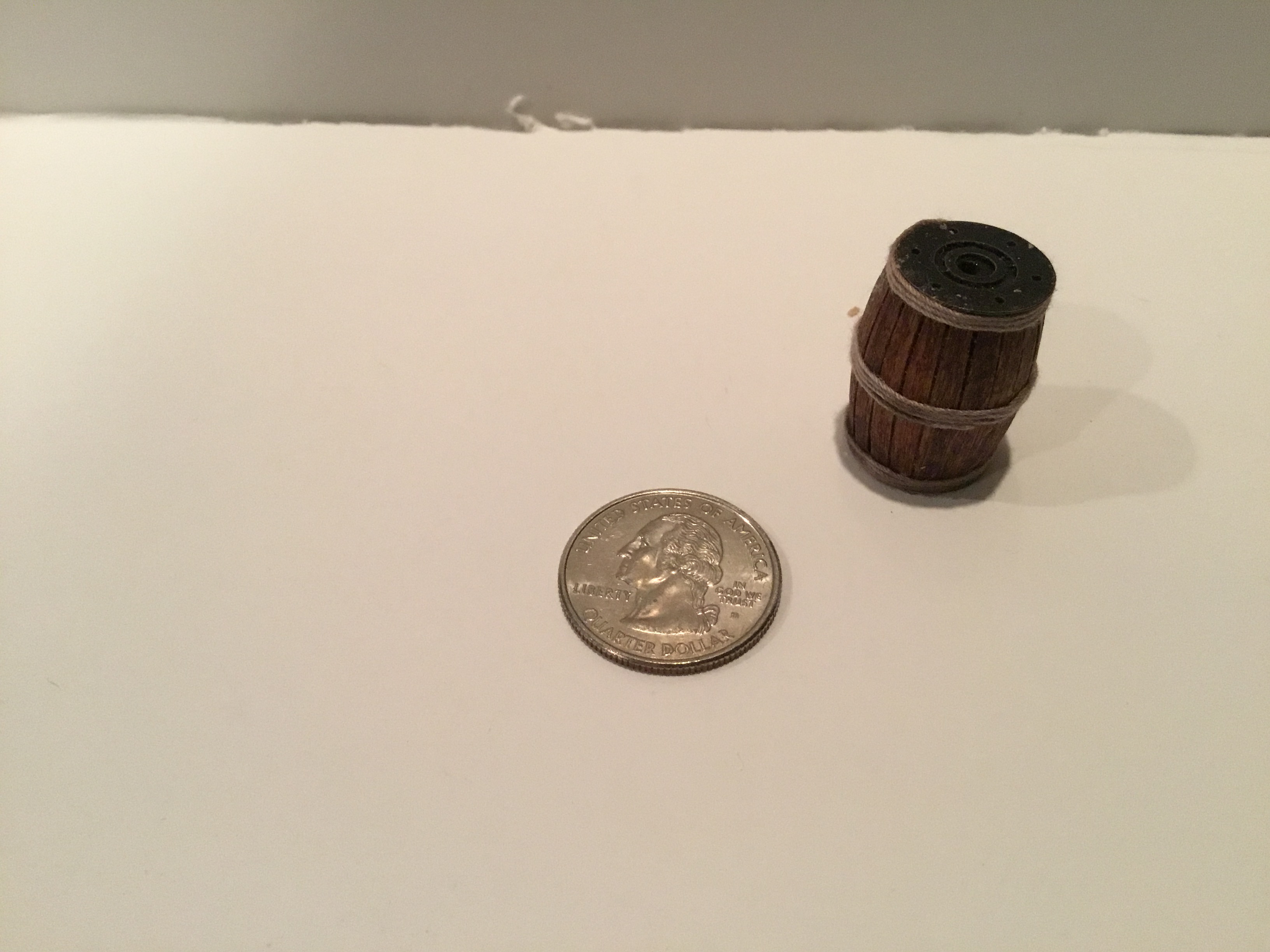

Finished this little barrel that comes with the kit . Doesn’t look like it but it is made up of 32 pieces. This barrel was attached to a hose and floated on top of the water to supply air to the men in the sub .


Share this post


Link to post
Share on other sites

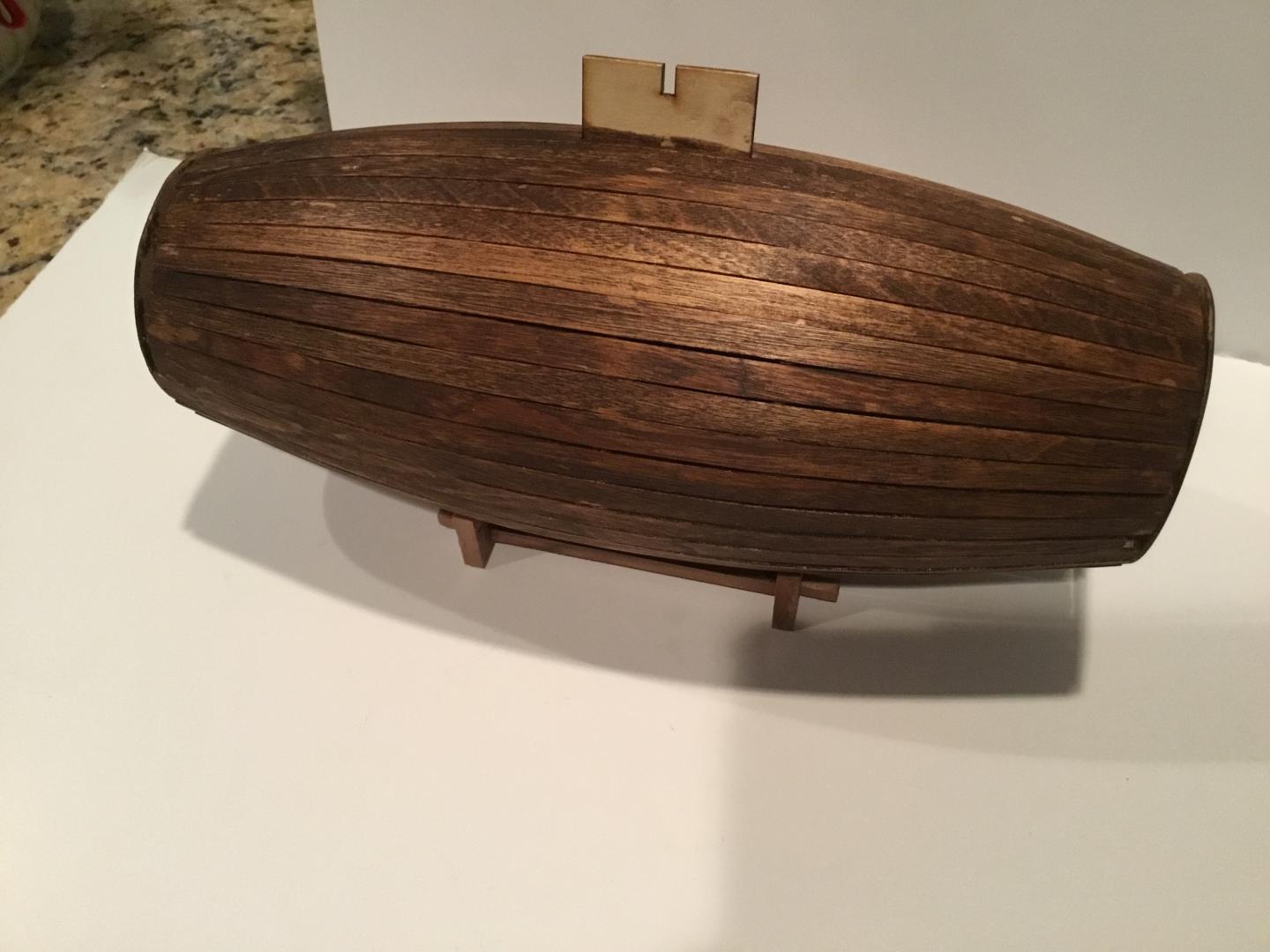

Planking done but still much to do . Looks more like a wooden football than a submarine . Still needs to be varnished as well as other things .


Share this post


Link to post
Share on other sites

It is looking good.

Share this post


Link to post
Share on other sites

Thats wild,,  a really different medium  to work with,,the wood.   Looks fun.    Thinkin about being inside one of those things,,wow,,scary stuff.  Cant believe  they used to go out in those.

Share this post


Link to post
Share on other sites

Info I found says 3 were built and none were ever used. First one sank like a rock but the guys inside all survived.

Share this post


Link to post
Share on other sites

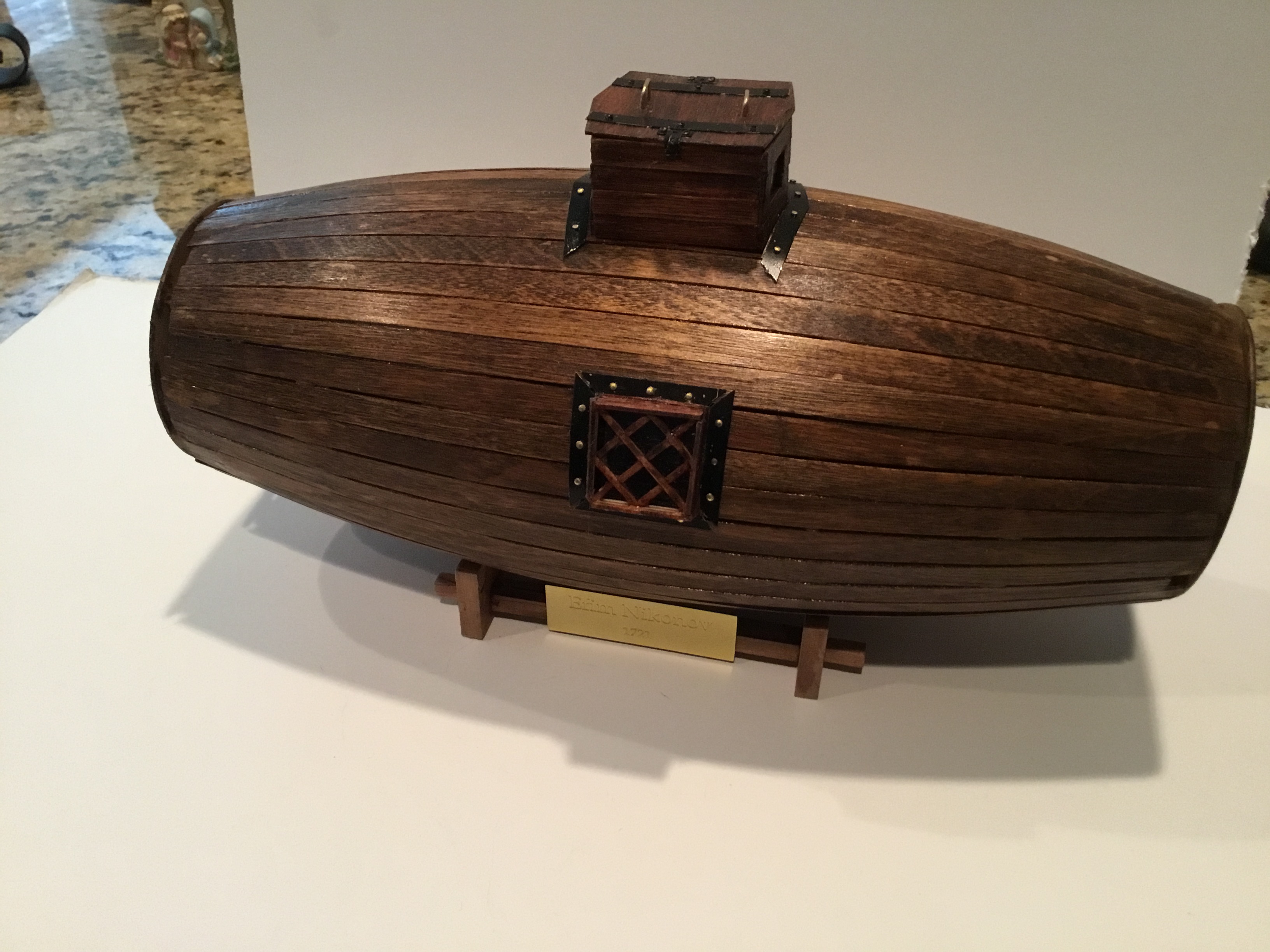

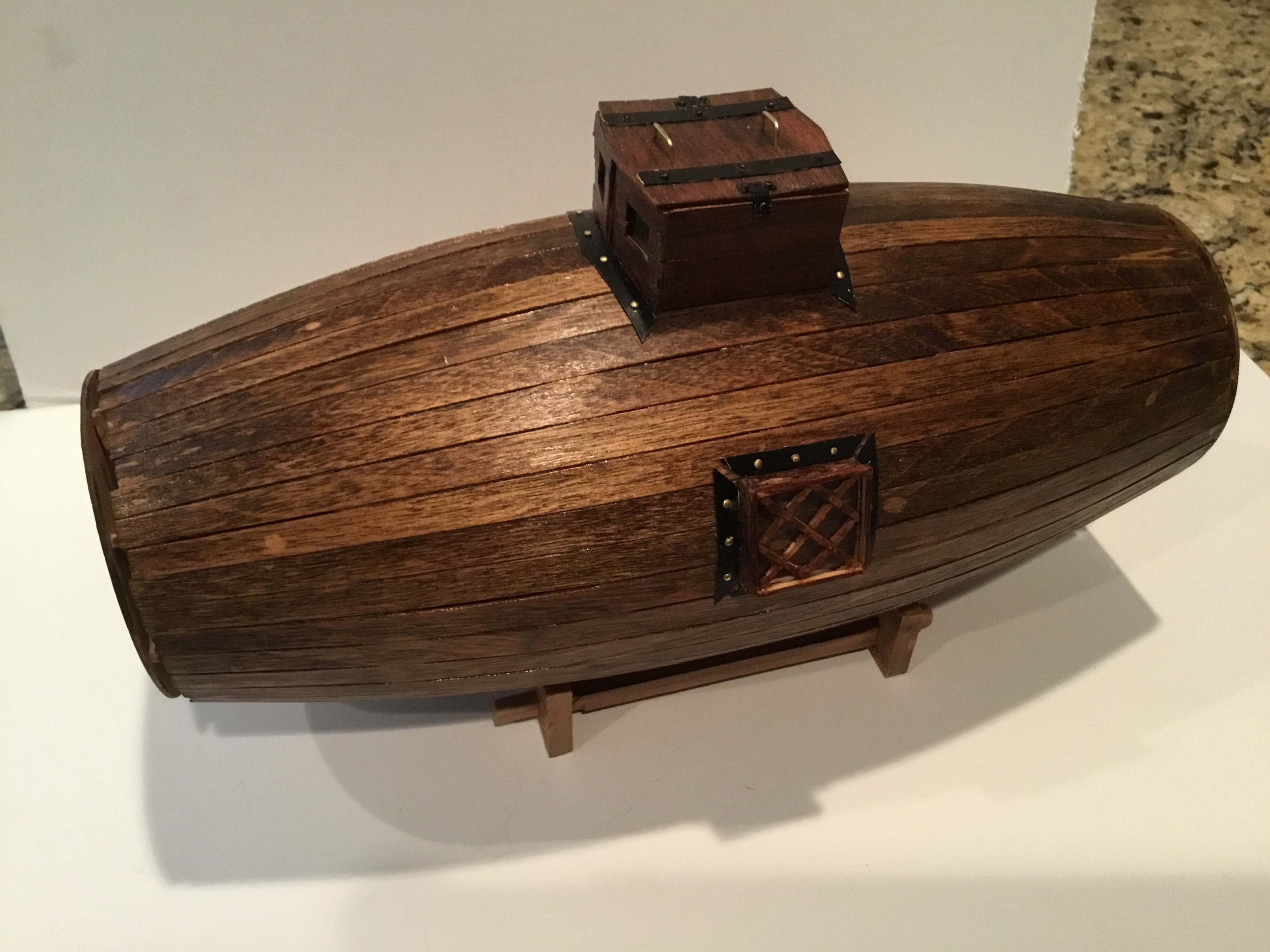

Still plugging away on this thing . This may very well be the toughest model kit I have ever built in my 50. + Year’s of building . Made some errors but doing my best to do a decent job .



Share this post


Link to post
Share on other sites

That thing is just plain cool and buddy your doing awsome on it!!!

vince

Share this post


Link to post
Share on other sites

Nice work. Coming along nicely.  Betbthey had problems getting volunteers to man it.

Share this post


Link to post
Share on other sites

Thanks Vince and Bob. This thing is really a struggle for me.

Share this post


Link to post
Share on other sites

I can see why it would be a struggle. Just those little tiny nails would be a challenge for me. Regardless, you're doing a great job and it looks cool. Once you get 75 feet of rope wrapped around it, it will really look like something!

Share this post


Link to post
Share on other sites

Oh ya the rope. Thats coming up pretty quick. Yikes !

Share this post


Link to post
Share on other sites

That's very cool Ray.   I bet you could make some wild steam punk build out of that.

Share this post


Link to post
Share on other sites

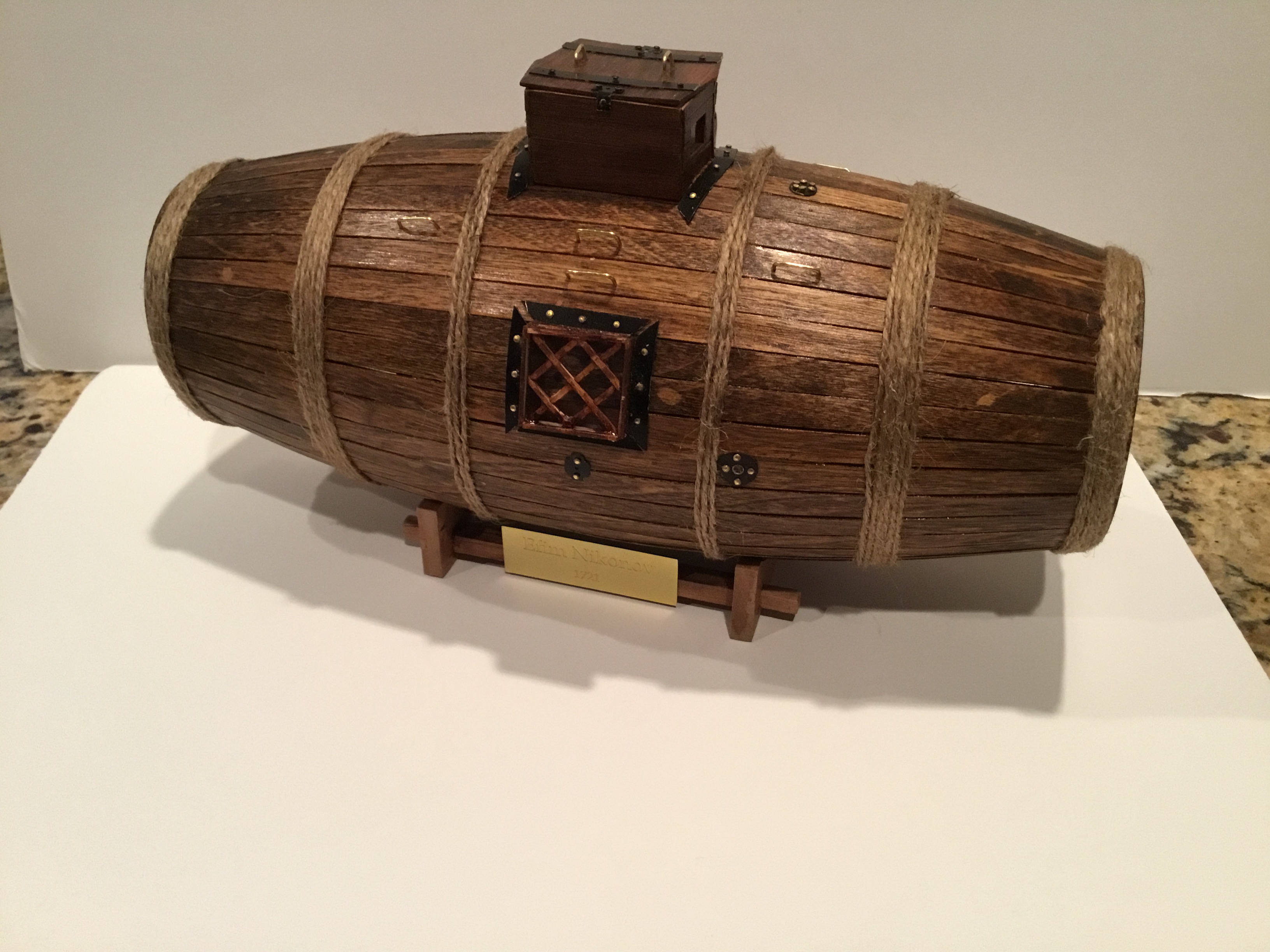

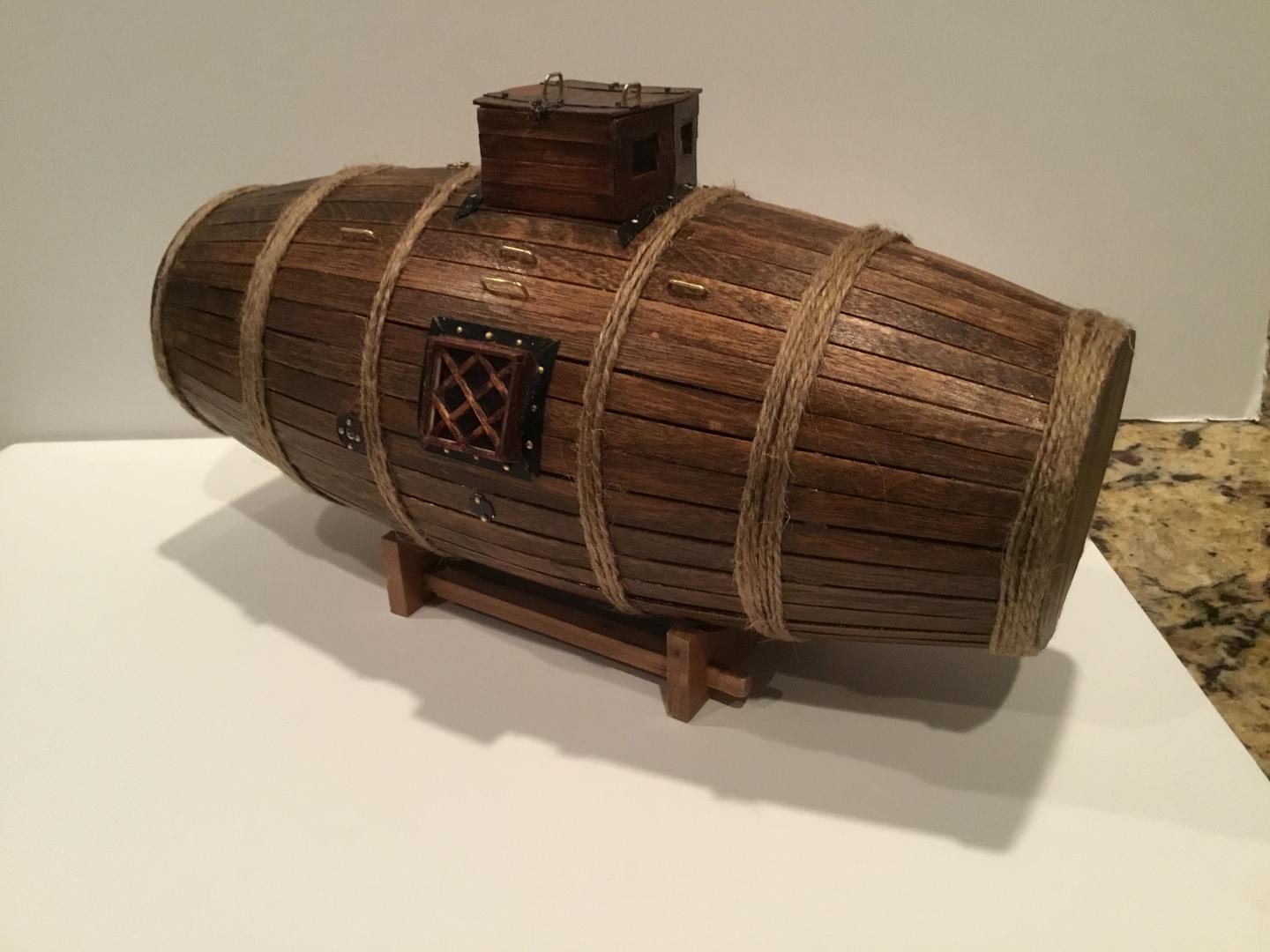

Thanks David . Steampunk , hmmmm.  Got a bit more done but some of the tougher stuff is coming up .



Share this post


Link to post
Share on other sites

Looking good Ray !

Share this post


Link to post
Share on other sites

Fantastic work!!!!

Share this post


Link to post
Share on other sites

Thanks guys. This is a rough one.

Share this post


Link to post
Share on other sites

Pretty cool, Ray. Looks like overall you're doing a very respectable job. Fascinating model.   :D

Share this post


Link to post
Share on other sites

Thanks Bill. I am starting to believe I may actually be able to finish it. :D
