The Original Junior

11 posts in this topic

Posted · Report post

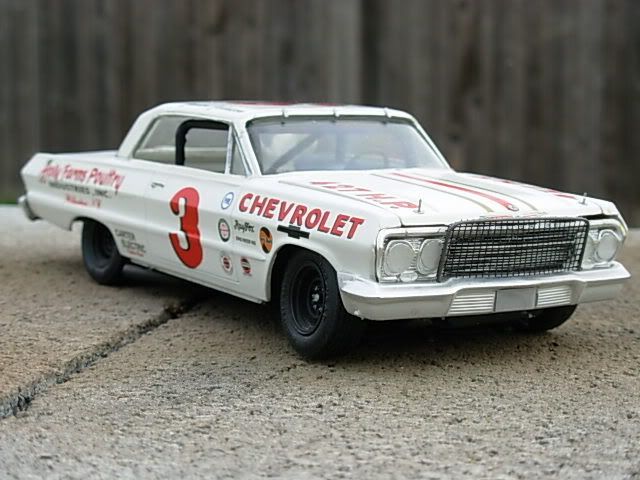

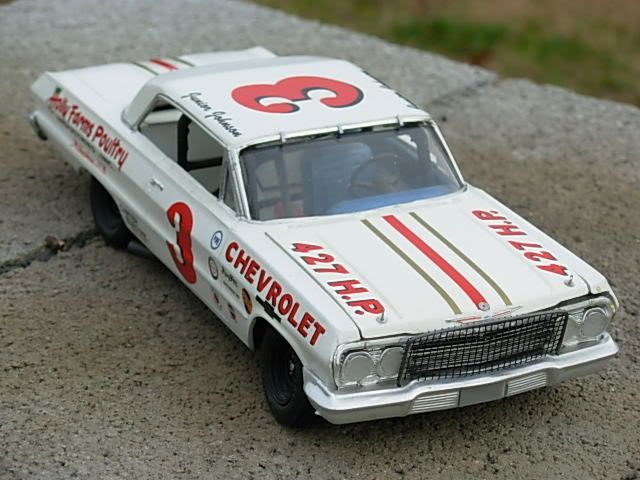

Junior Johnson and Ray Fox's 63 Mystery Motored 63 Impale, looks like there heading to North Carolina to run in the dirt! Hope you like it!







Share this post


Link to post
Share on other sites

Posted · Report post

Lookin' Good, Slim. 10-4 on the "Destination Dirt" . It looks to be setting just a little bit "tall" for Ray's Superspeedway set up. That bodywork will look like a sack full of walnuts when Junior and the good ol' boys leave Richmond! LOL


Share this post


Link to post
Share on other sites

Posted · Report post

Pretty neat build Slim. AMT or Revell Impala? Looks good man.

Share this post


Link to post
Share on other sites

Posted · Report post

Not sure about his, mine is the old AMT kit.

Share this post


Link to post
Share on other sites

Posted · Report post

Tha "Porkypine 409" thet sum said was a 427..... :huh:

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

Slim,

It makes me a nervous wreck seeing that car on it's side on a sand or cement block for the chassis shot. :huh:

Edited by promodmerc

Share this post


Link to post
Share on other sites

Posted · Report post

Relax, Promodmerc, it's a race car! Mines an AMT body forced to fit on a Revell 64 chassis. The AMT chassis is to toy like, and the Revell 63 kit had not not been re-released yet. So the fit was a little balky, so I hung a screen on it an called it a "dirt car". Curbsides are OK, but I want to be able to turn it over and see the racing chassis, such as it was in 63.

Hey Zeb, I think we've had the "Porkupine" conversation before, haven't we?

Share this post


Link to post
Share on other sites

Posted · Report post

I will say at least you're not afraid to show your chassis :(

Share this post


Link to post
Share on other sites

Posted · Report post

Thanks for the kit info Slim, you too Luke. May try something like that. -Will

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

Wow I like that...can I have it? :angry:

Edited by locoengr

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

Yup Slim we have....Special heads on tha ol' "W" block.....most didn't realize that the block beneath the heads looked just like a Bigger small block (Except that the decks were at a different angle to the crankshaft),....which is why they could run those 'Porkypine heads."

Here's a brief example from a "How Stuff Works" website I have.

Early in 1963, a mysterious new Chevrolet 427 V-8 appeared at Daytona International Speedway. After being shocked by its acceleration and speed, rivals who were able to look at it with the rocker covers off noticed its odd valve angles, and nicknamed it the "Porcupine" engine. In the 500-mile race, the Chevy simply sped away, leaving all other cars behind, and lapped at average speeds up to 166 mph before dropping out-due to unspecified engine failure. Shortly after that, GM's top management put a ban on racing activities by its car divisions, and no more was heard of the "Porcupine." However, development work on it continued unabated at the GM Technical Center in Warren, Michigan. It resurfaced in the spring of 1965 as a high-performance option for the Chevelle, the full-size Chevrolet, and the Corvette, with capacity to cut 396 cid.

Intake valves were set at an angle of 26 degrees to the cylinder axis, and exhaust valves were tilted 17 degrees from the same axis. That wasn't all, for both intake and exhaust valve stems were also tilted in side view, one forwards and the other backwards, by 9 degrees. This lined them up with the pushrods to avoid setting up any rotation in the rocker arms. This basic cylinder-head configuration was then tested, fiddled with, honed, and polished until it provided optimal breathing. That part of the design was then frozen, and all other components were designed around it.

The 396 V-8 was just one member of a whole "Porcupine" family, officially titled Mark IV and marketed as the "Turbo-Jet." There were four in all: two high-performance car engines of 396 and 427-cid, a 366-cid heavy-duty truck unit, and a 427 heavy-duty marine version. The 396 was scheduled to replace the 409 in all its applications, even though that engine was hardly old. Why was it scrapped after barely five years' production? Aside from its basic design limitations, the type W had been tooled for relatively low production volume. To meet future demands, Chevy's Tonawanda, New York, plant (near Niagara) would have to be retooled anyway. Semon E. "Bunkie" Knudsen, then division general manager, decided that only the most modern engine could justify such a major tooling reinvestment, so the "Porcupine" got the nod.

There was no thought of any carryover from the type W or 409 to the Mark IV. An all-new block with 4.84-inch spacing between bore centers was chosen, giving a bore of 4.094 inches. Stroke as 3.76 inches.

The 409 had a deck angled at 33 degrees from horizontal to allow a wedge-shaped combustion chamber to be created with flat-faced heads. By contrast the Mark IV block had the usual deck angle of 45 degrees to the cylinder axis. Main bearings were 2.75 inches in diameter, a quarter-inch larger than the type W. Main-bearing width was also increased, adding two full inches to the cap-clamping surface. The forged-steel crankshaft was cross-drilled to deliver oil to the rod bearings through a full 360 degrees of rotation (a feature the W lacked), and crankpin journals were kept at 2.20-inch diameter.

So basically Slim, this whole engine series are called Porkypines.....but it usually is reserved for the 1st engine that showed up at Daytona Speedway in 1963.
