yellowsportwagon

Here we go JDs 67

Recommended Posts

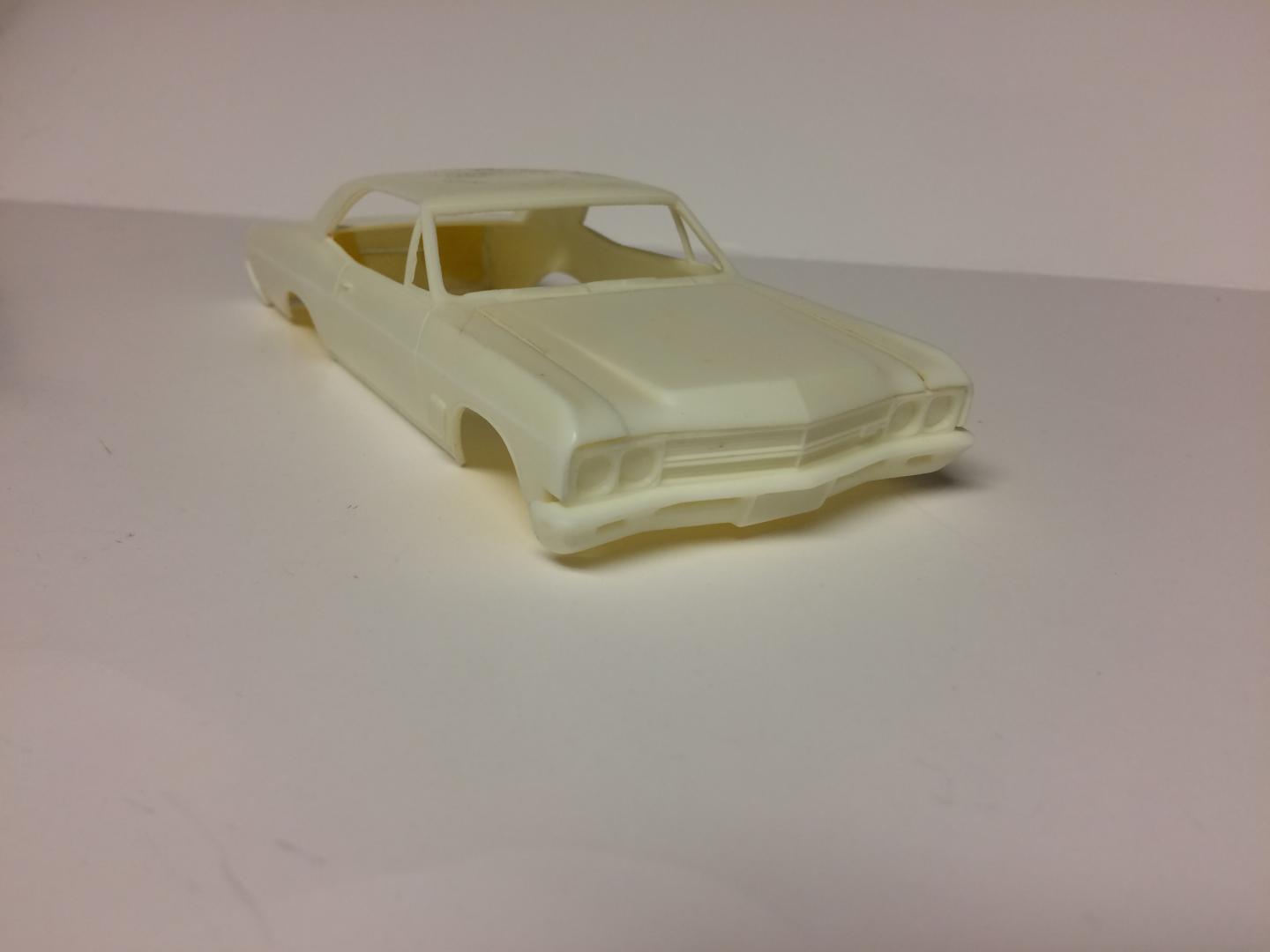

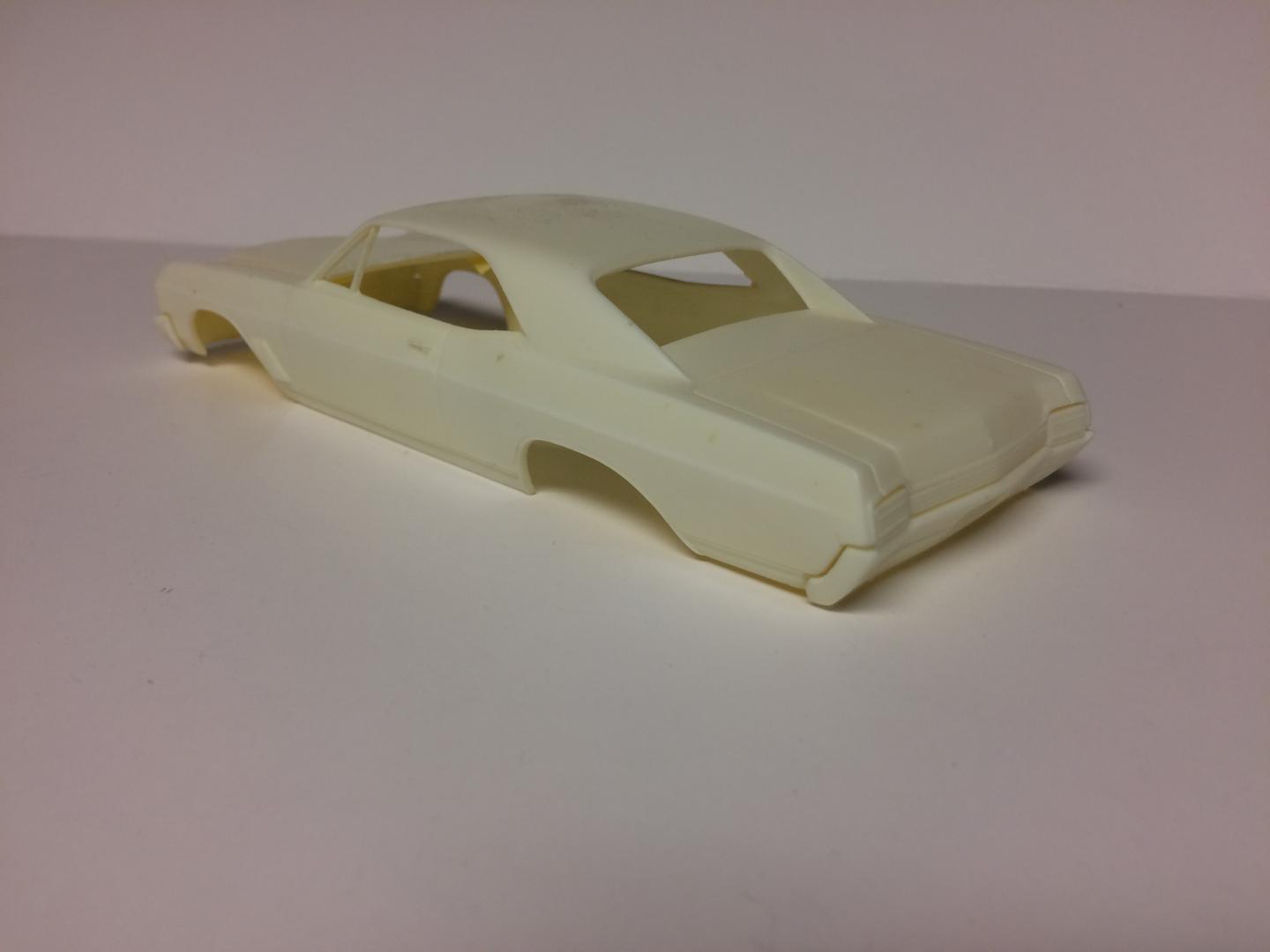

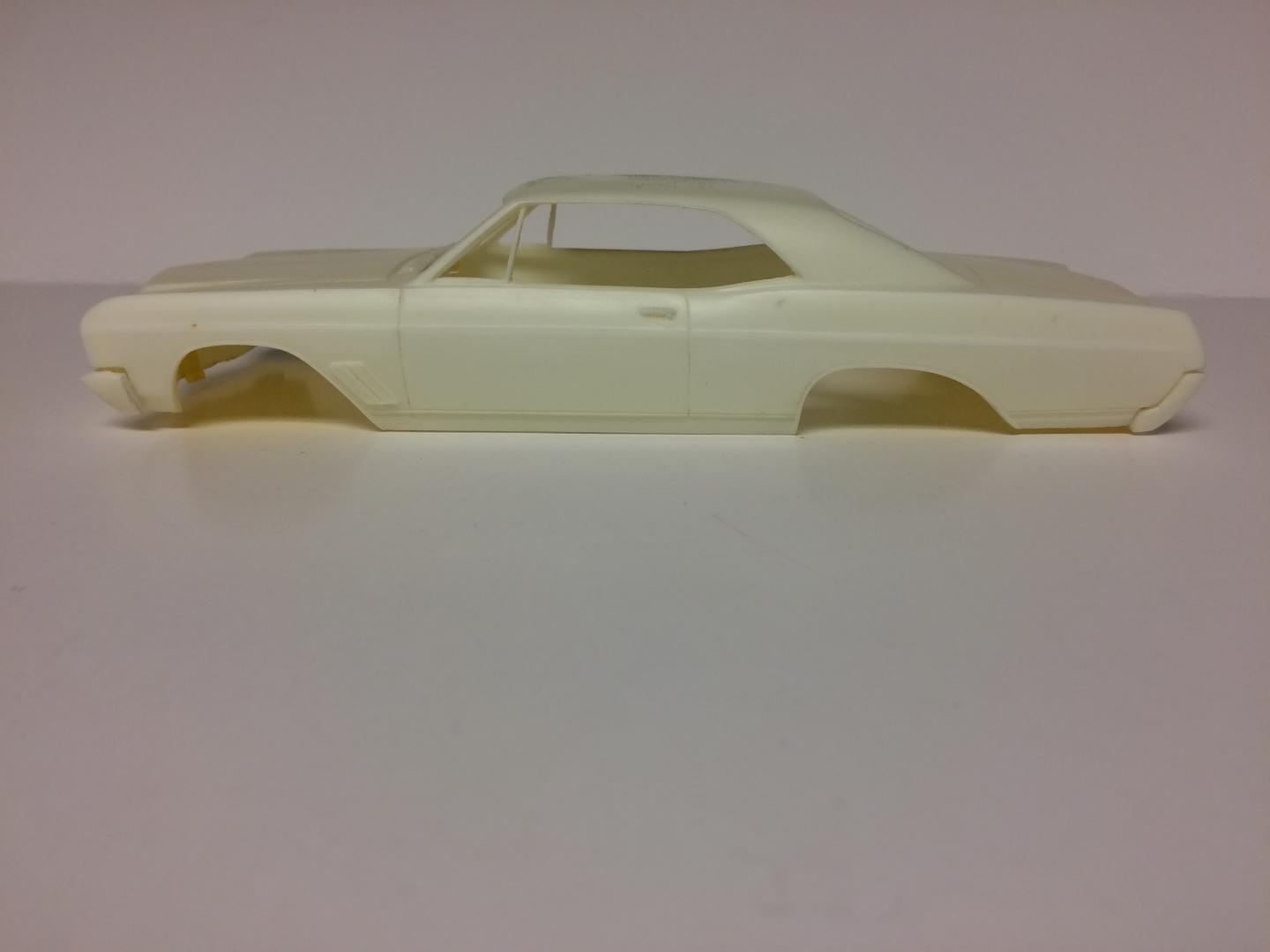

First off many many thanks to JustJake for the body!! I will be doing some corrections along with some mods to this body. It will hopefully go on an AMT 66 442 chassis. A 69 Riv gave up its engine for this build.




Share this post


Link to post
Share on other sites

Man, This is going to be Awesome. Looking forward to following the WIP.

Share this post


Link to post
Share on other sites

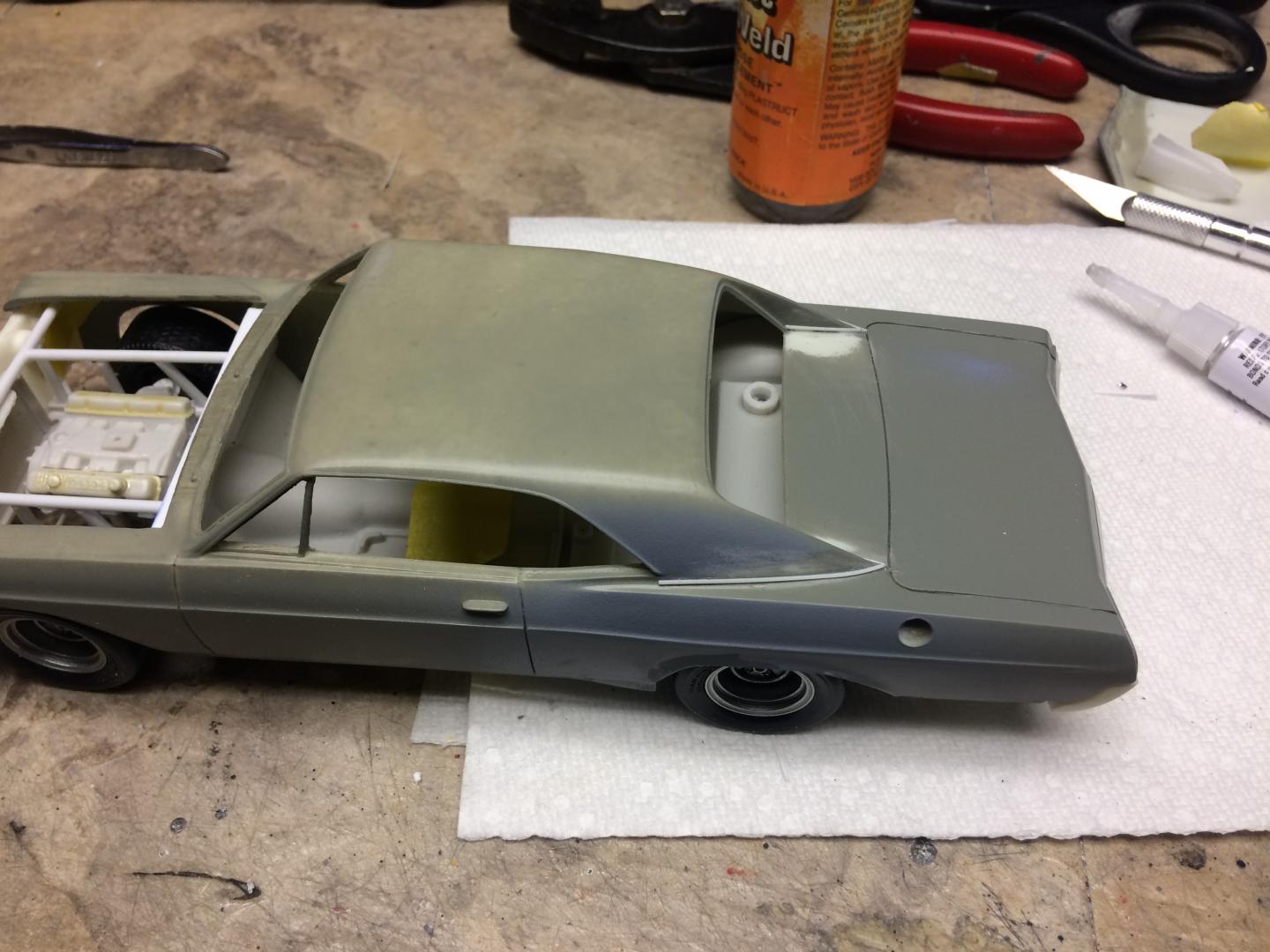

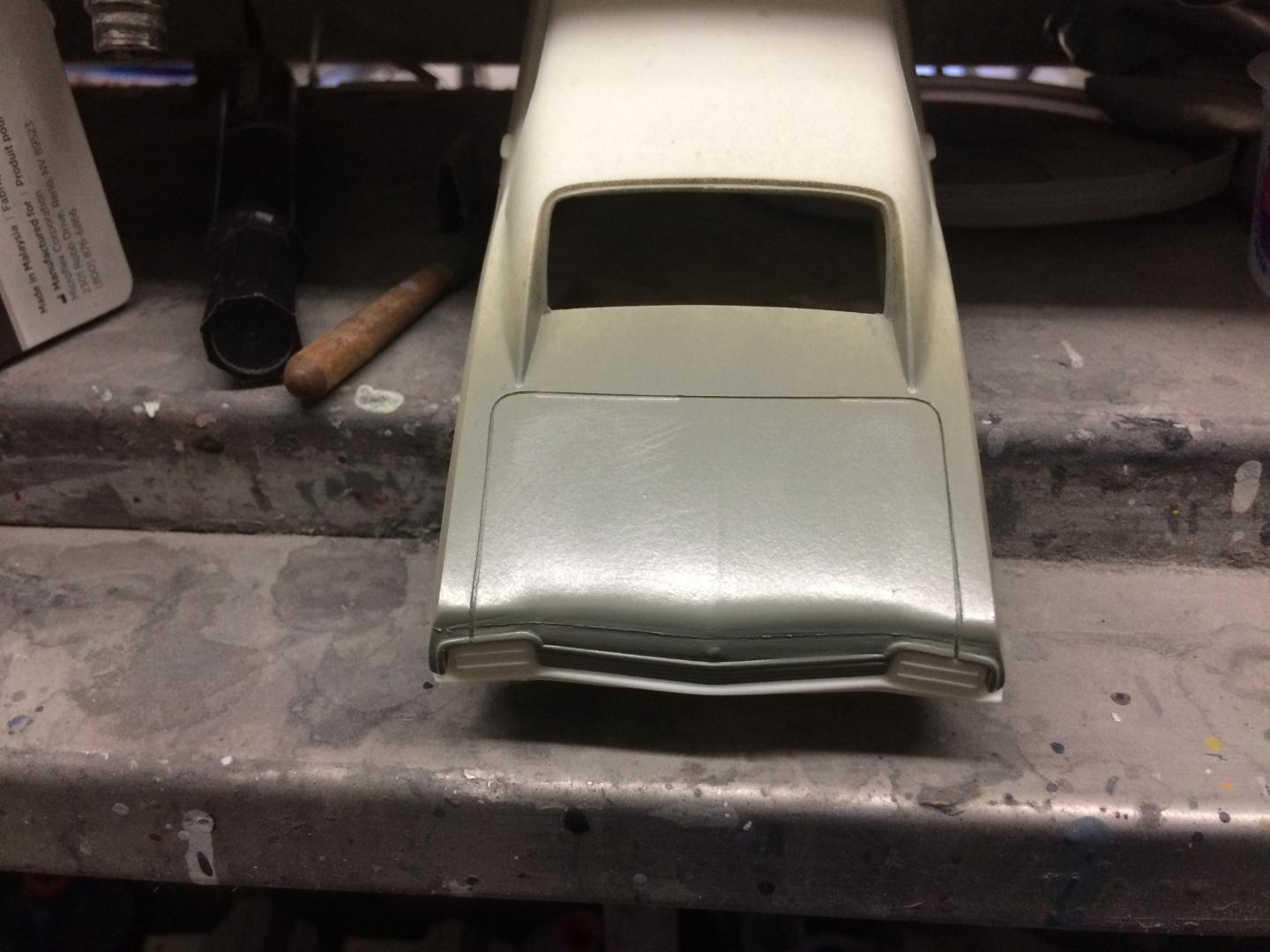

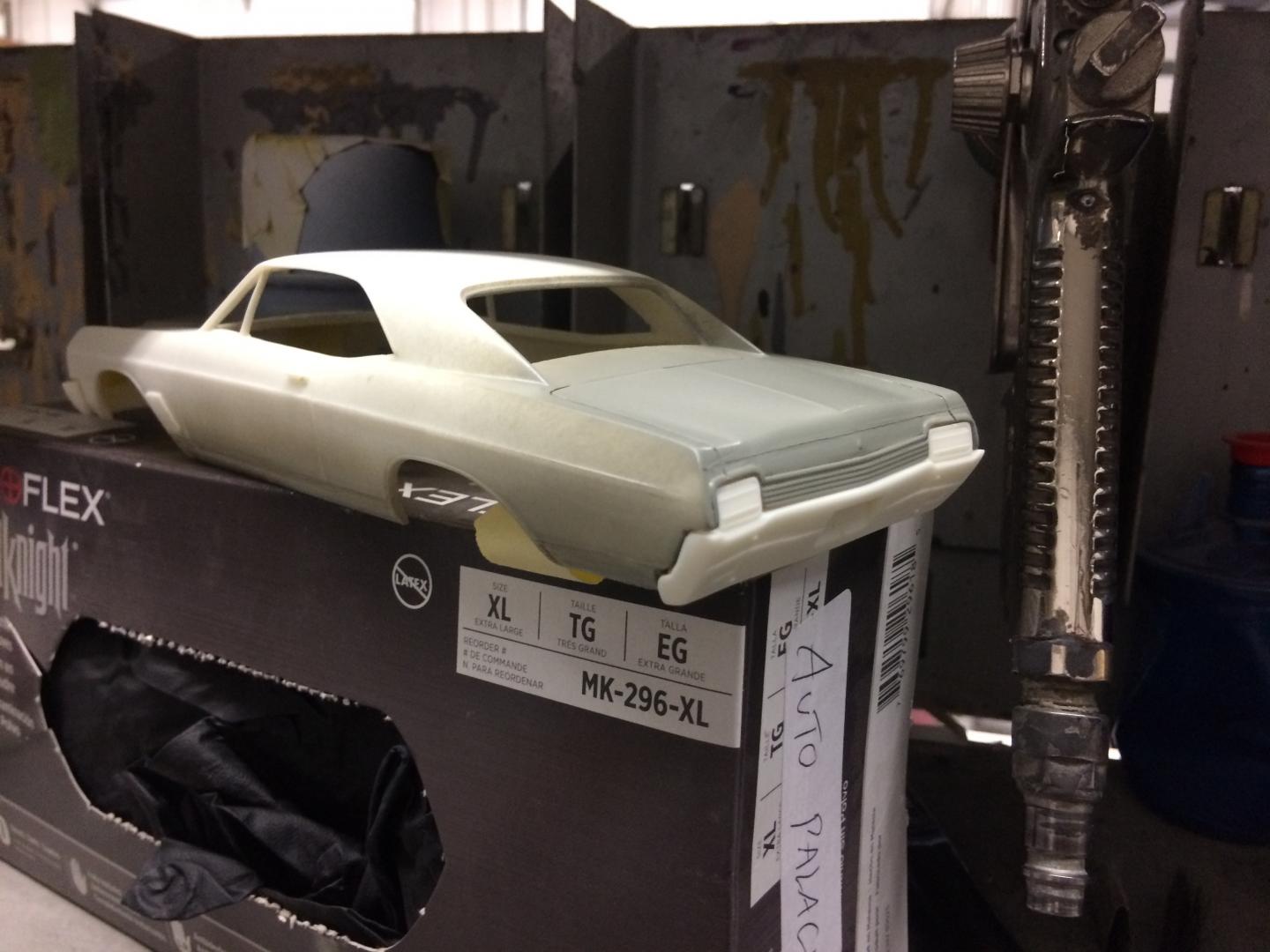

Reshaped the rear end some today. The two body lines on the top of the trunk lid don’t belong. And it needs one  on the back of trunk.



Share this post


Link to post
Share on other sites

That's a good looking body.  Watching with interest.

Share this post


Link to post
Share on other sites

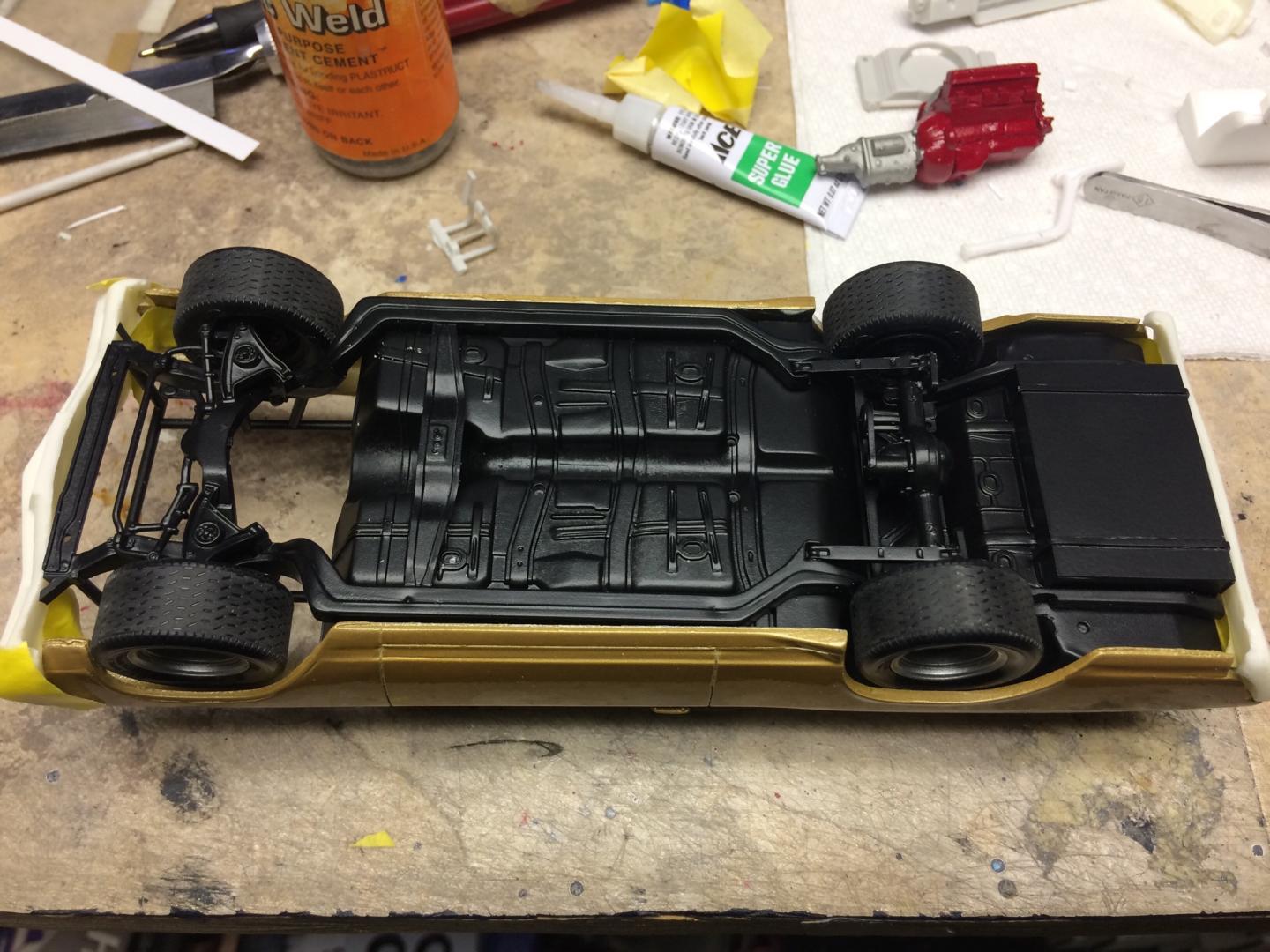

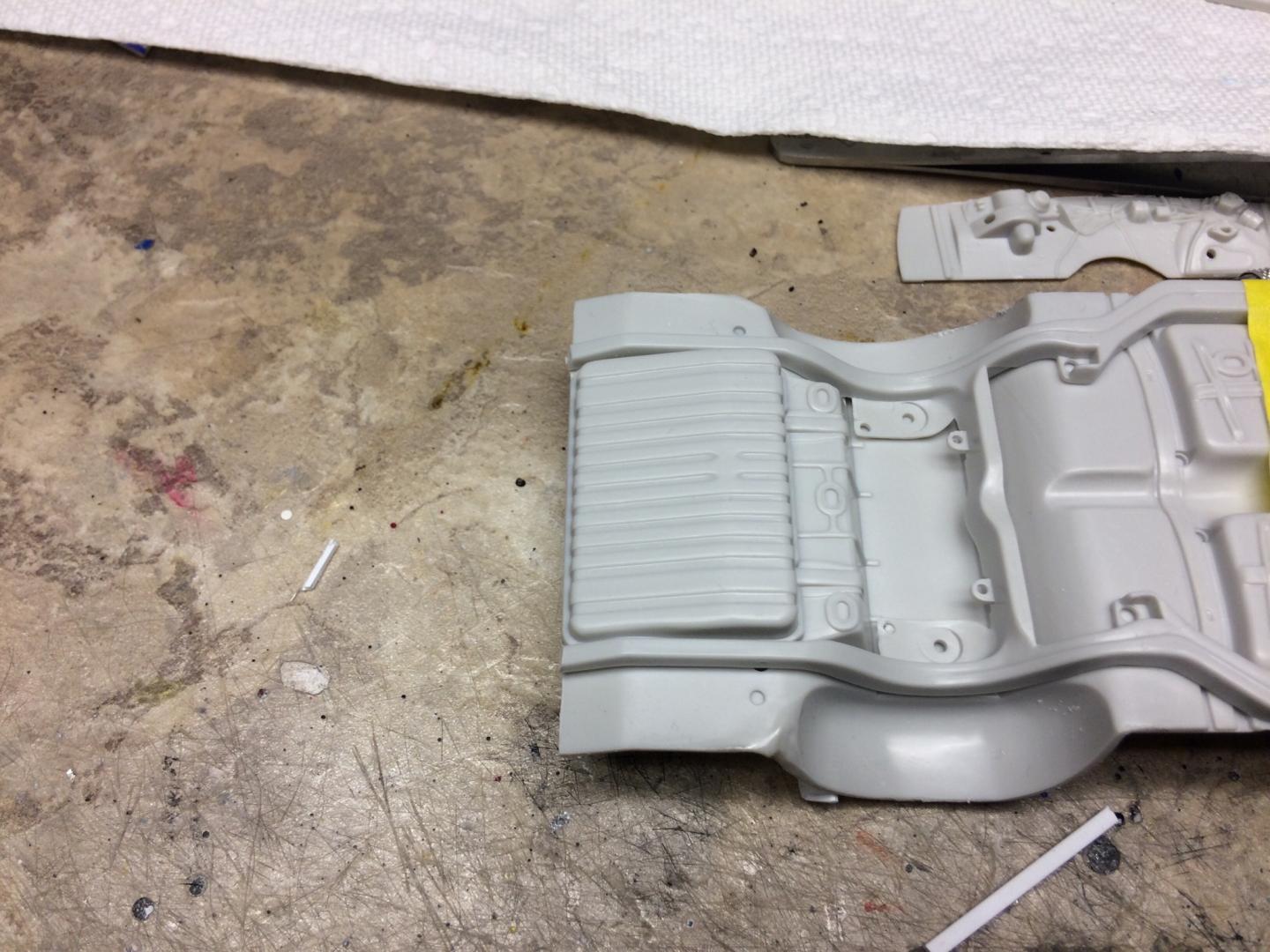

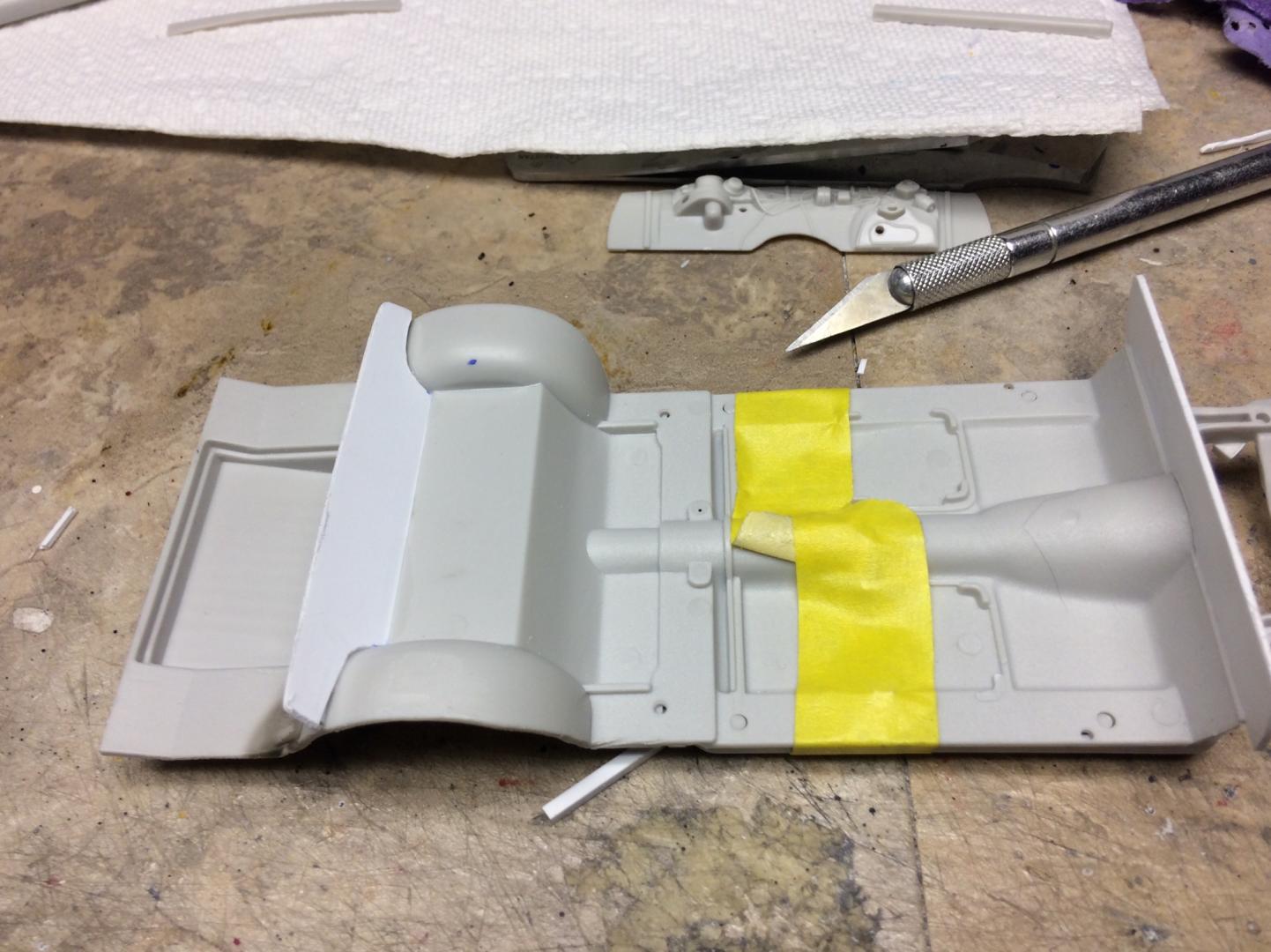

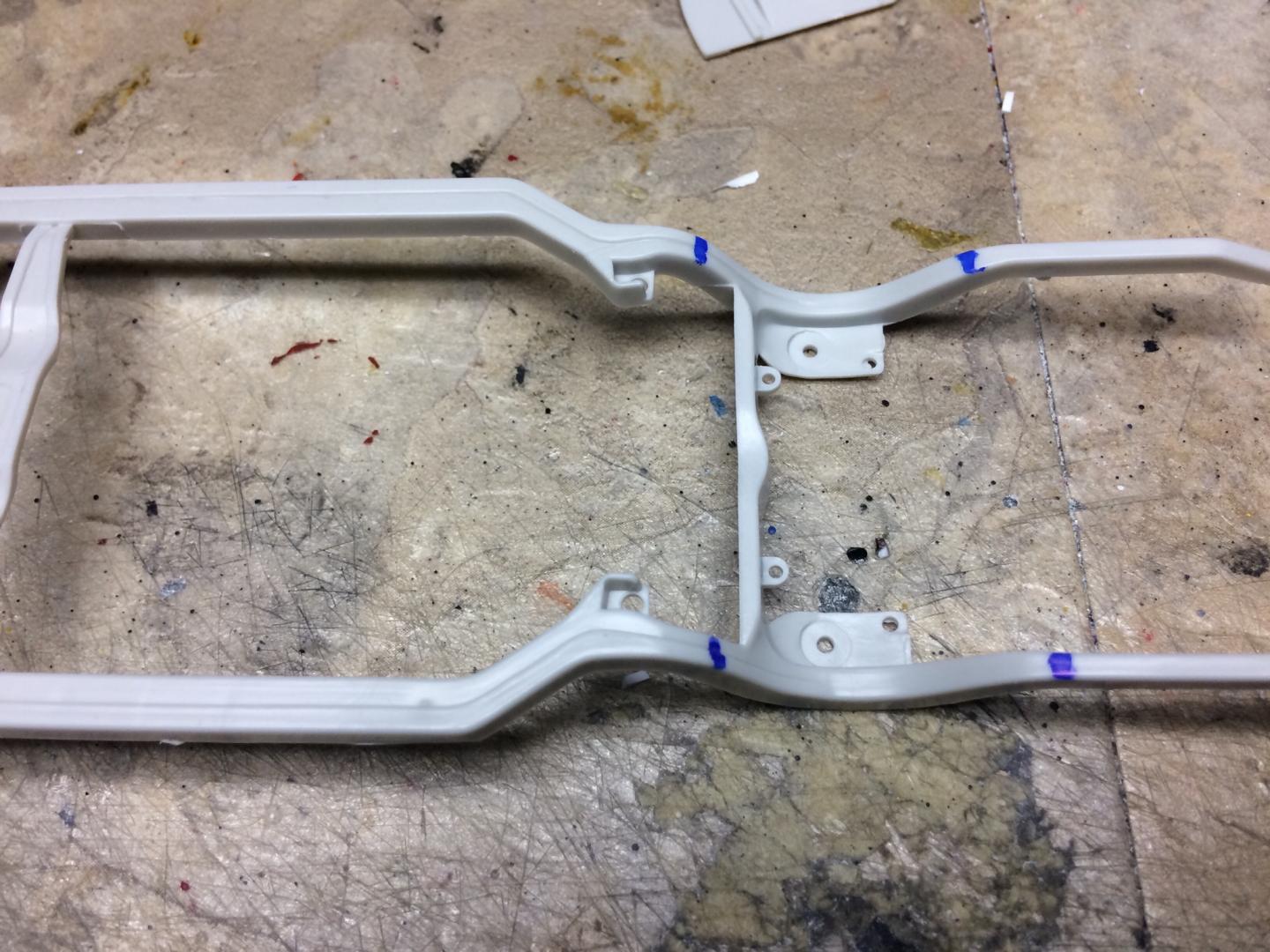

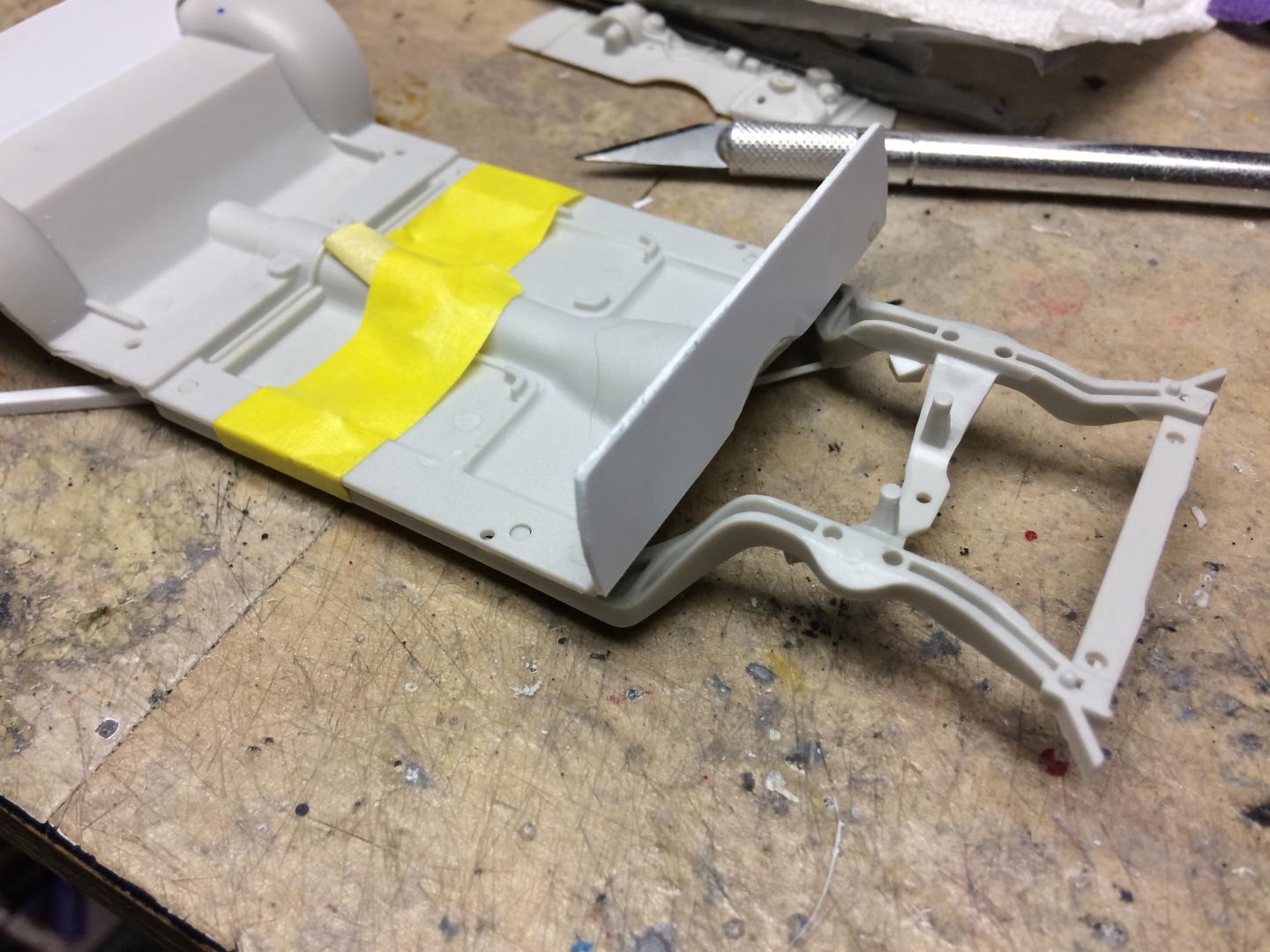

Progress pictures. Had to shorten the frame and floor at the rear. Narrow the frame rails by the tires. Hog out the wheelhouses too. Added a 9”Ford rear. Made a frt and rear firewalll. The 442 firewall was too tall and had too much stuff molded in.






Share this post


Link to post
Share on other sites

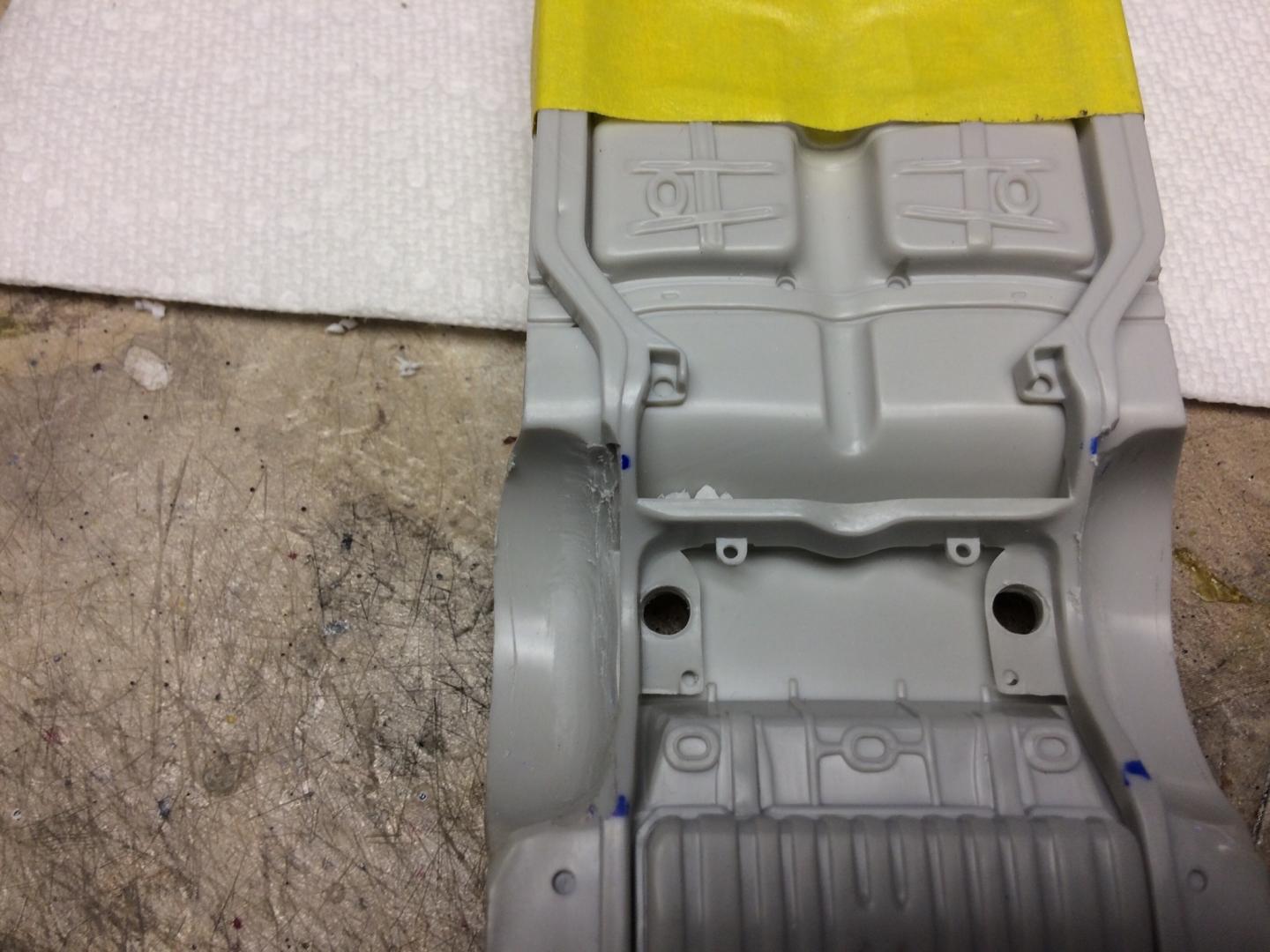

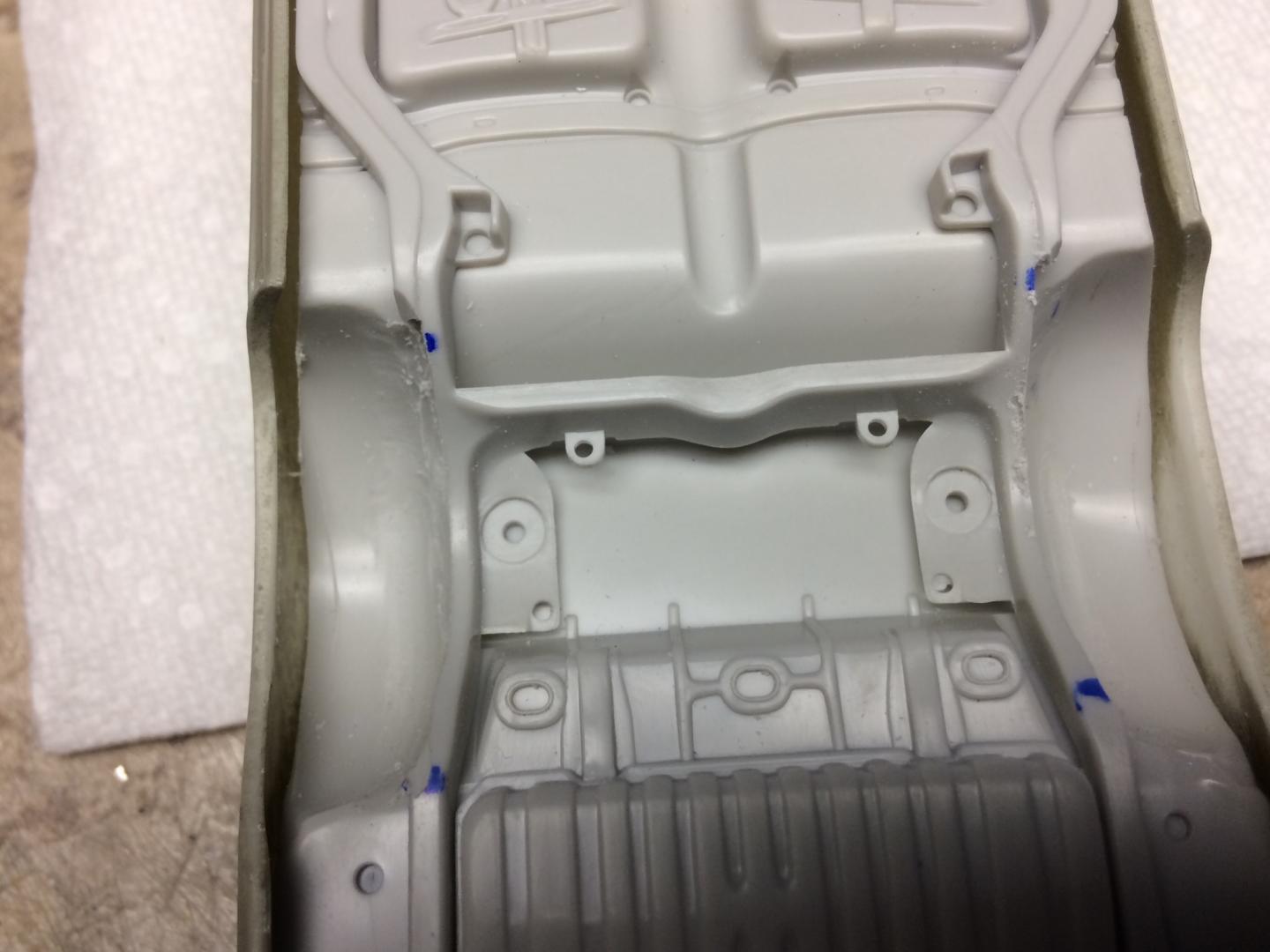

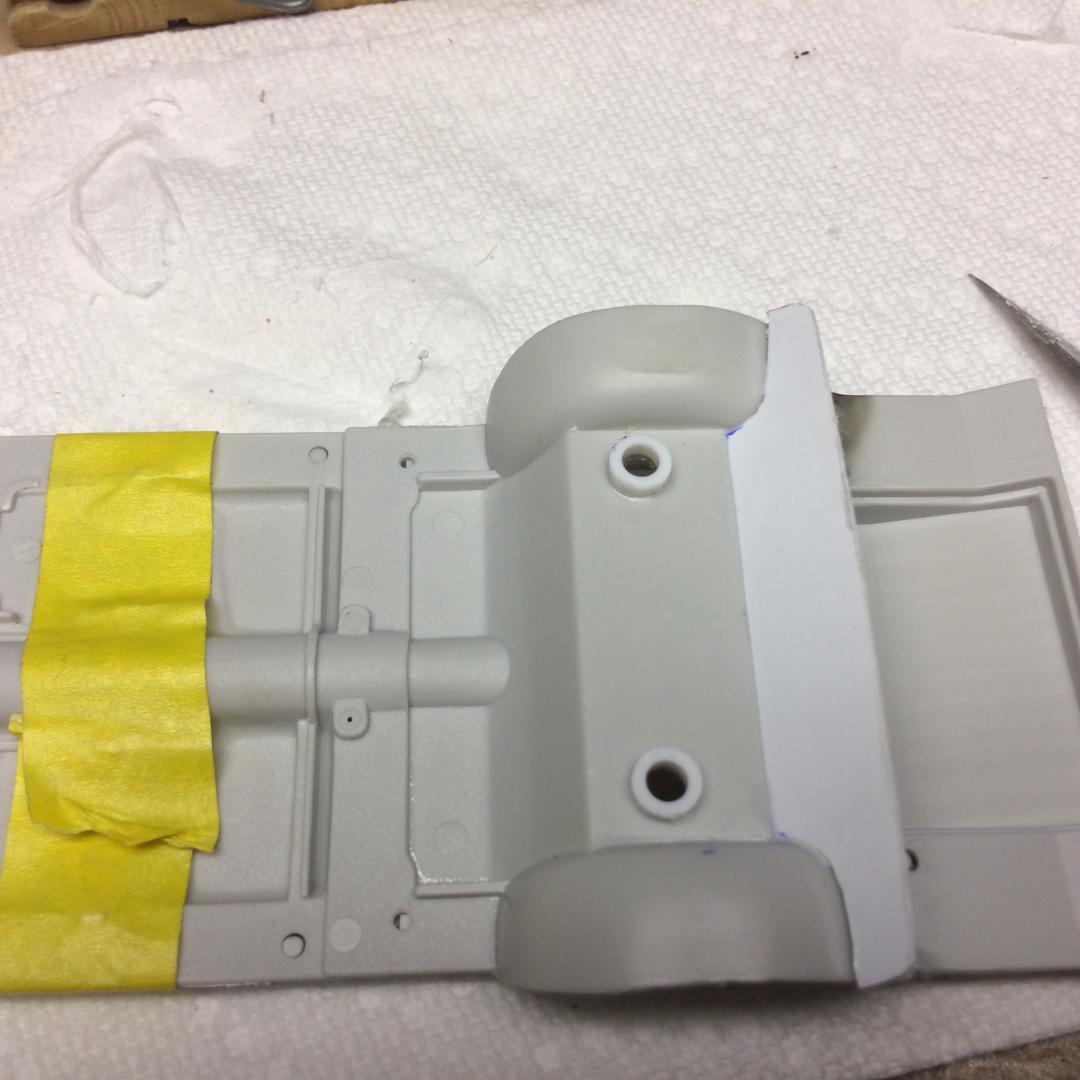

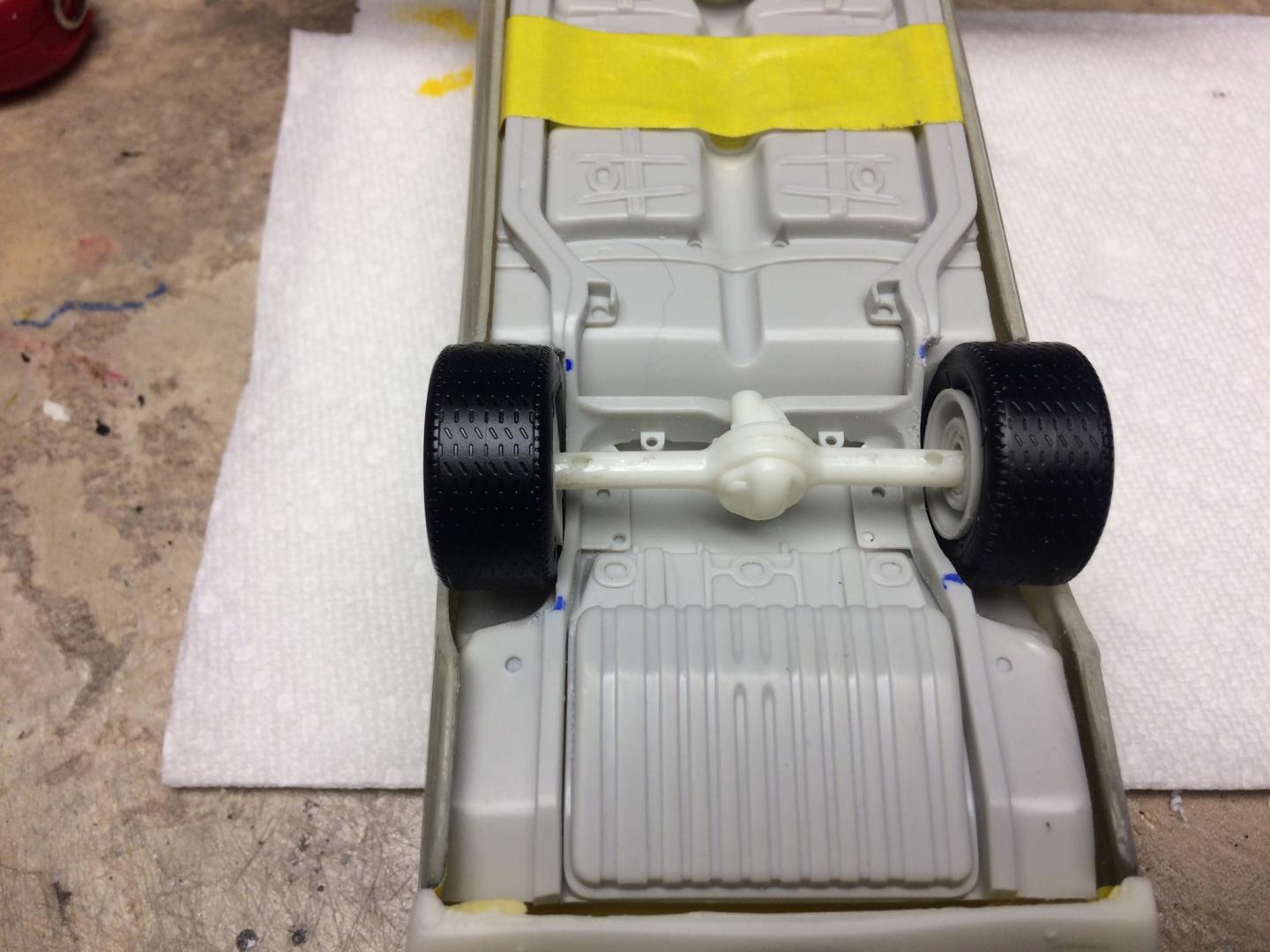

Drilled the spring pockets through the frame and floor. This will lower the rear even without cutting springs. Added these spacers. They have a smaller I’d than the holes I drilled so they limit the springs from falling through. They also look like spring pockets for screwjacks.




Share this post


Link to post
Share on other sites

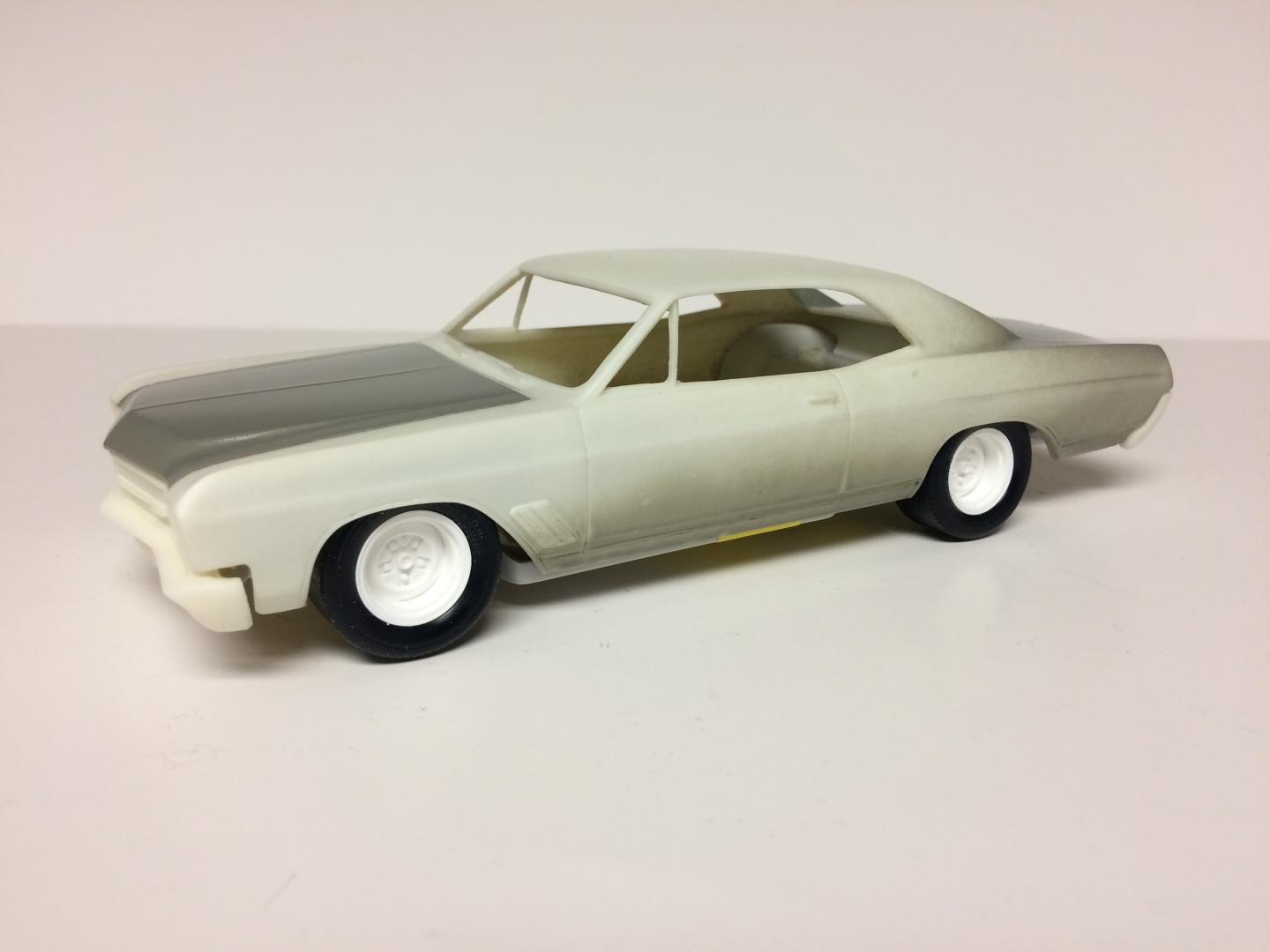

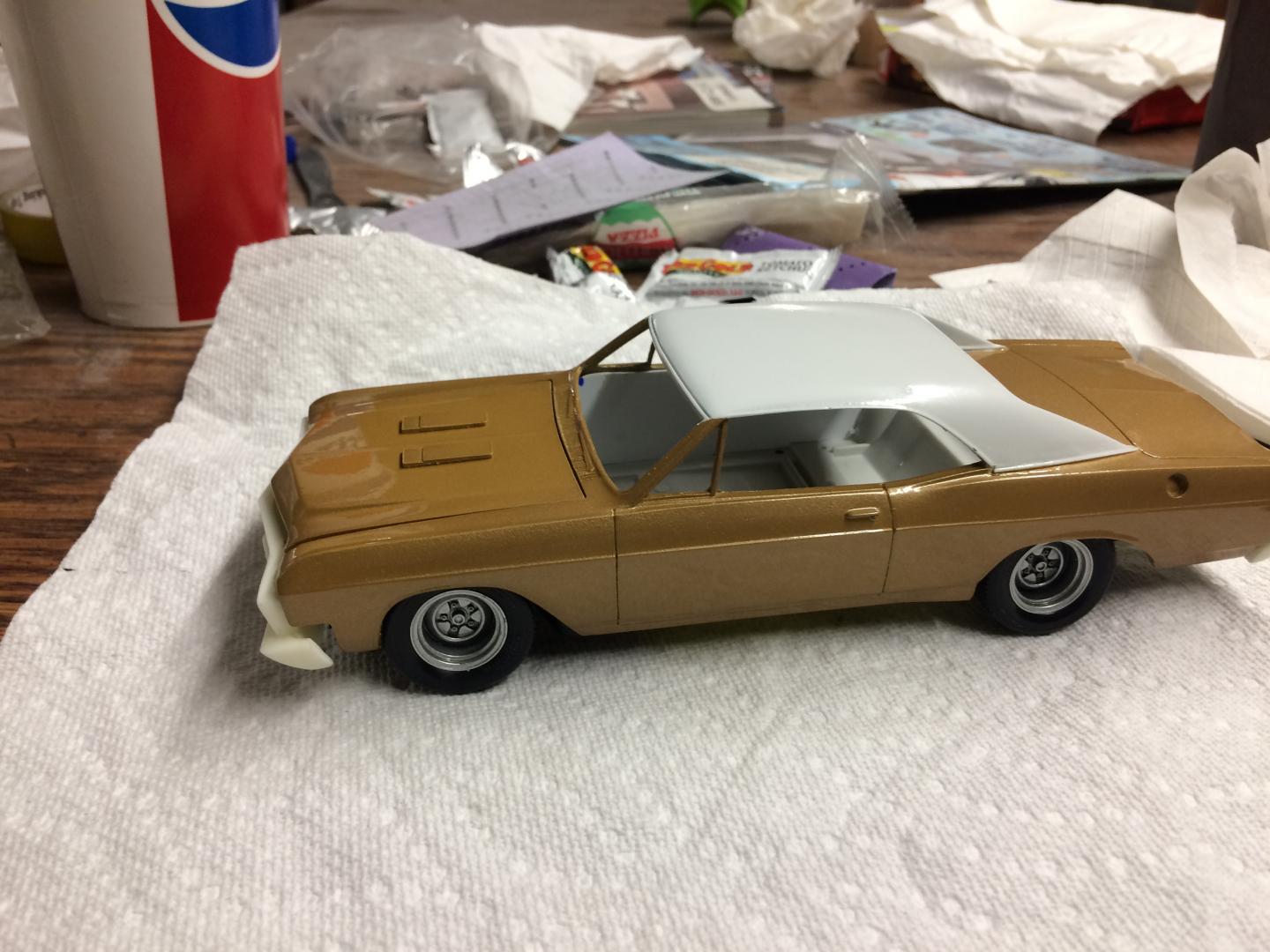

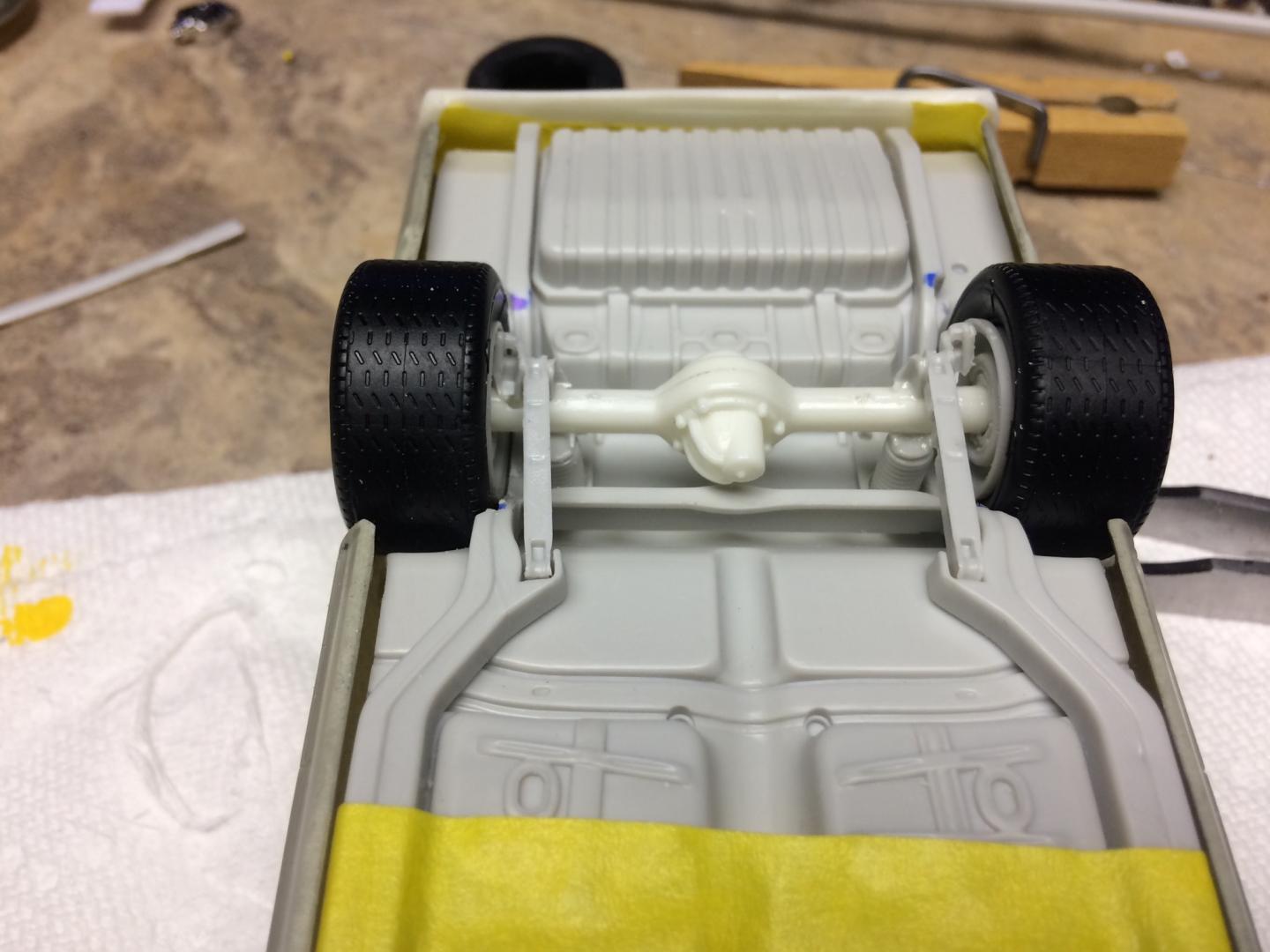

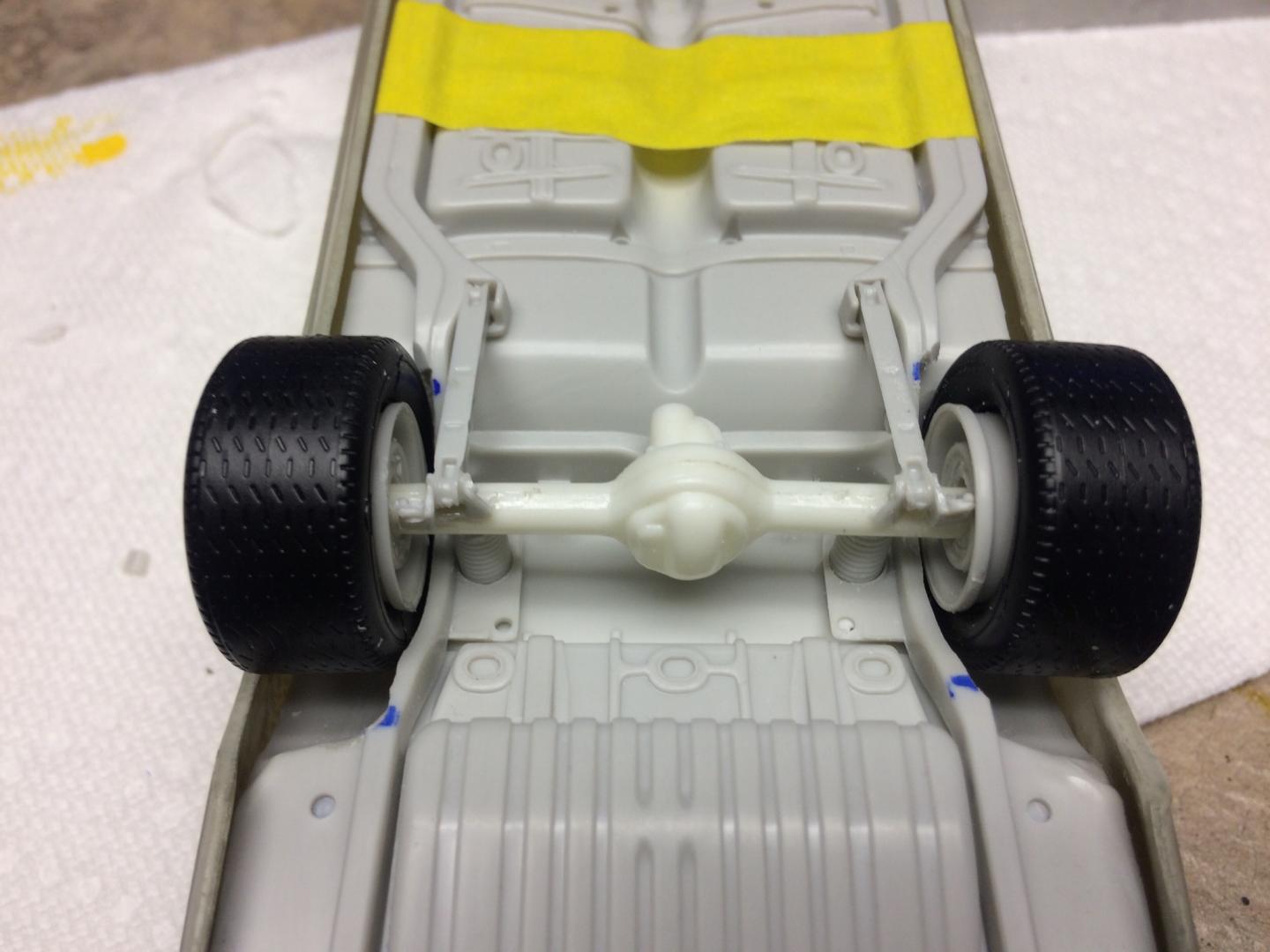

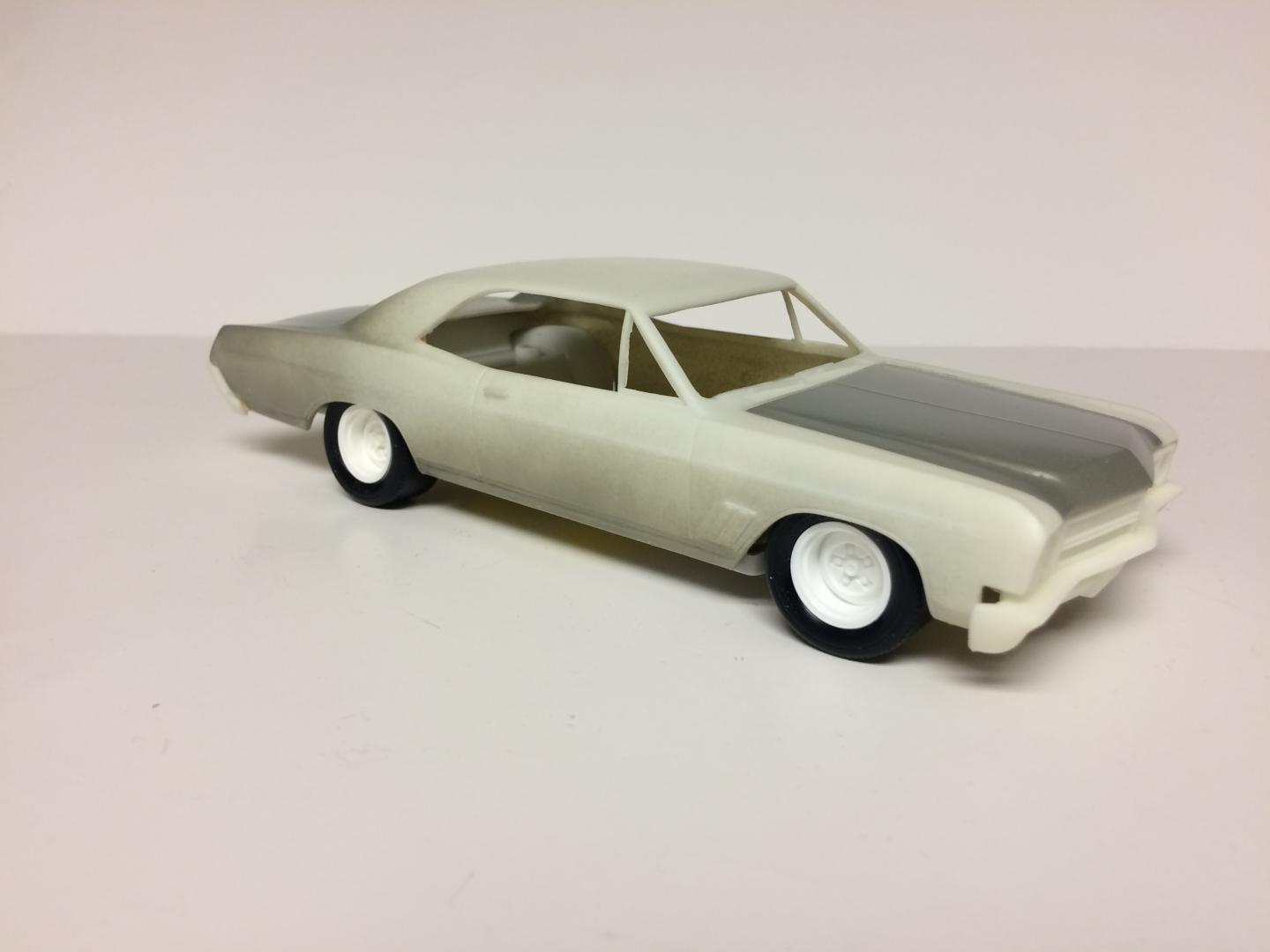

Cut the control arm and spring perches from the old axle and put them on the new one.Quick mock-up for stance.CAA45ED7-85D4-4AFB-99A1-D1A8520CFD0A.thumb.jpeg.1a68fb884b573e4f9b501e5cfbc95a64.jpeg




Share this post


Link to post
Share on other sites
Posted (edited)

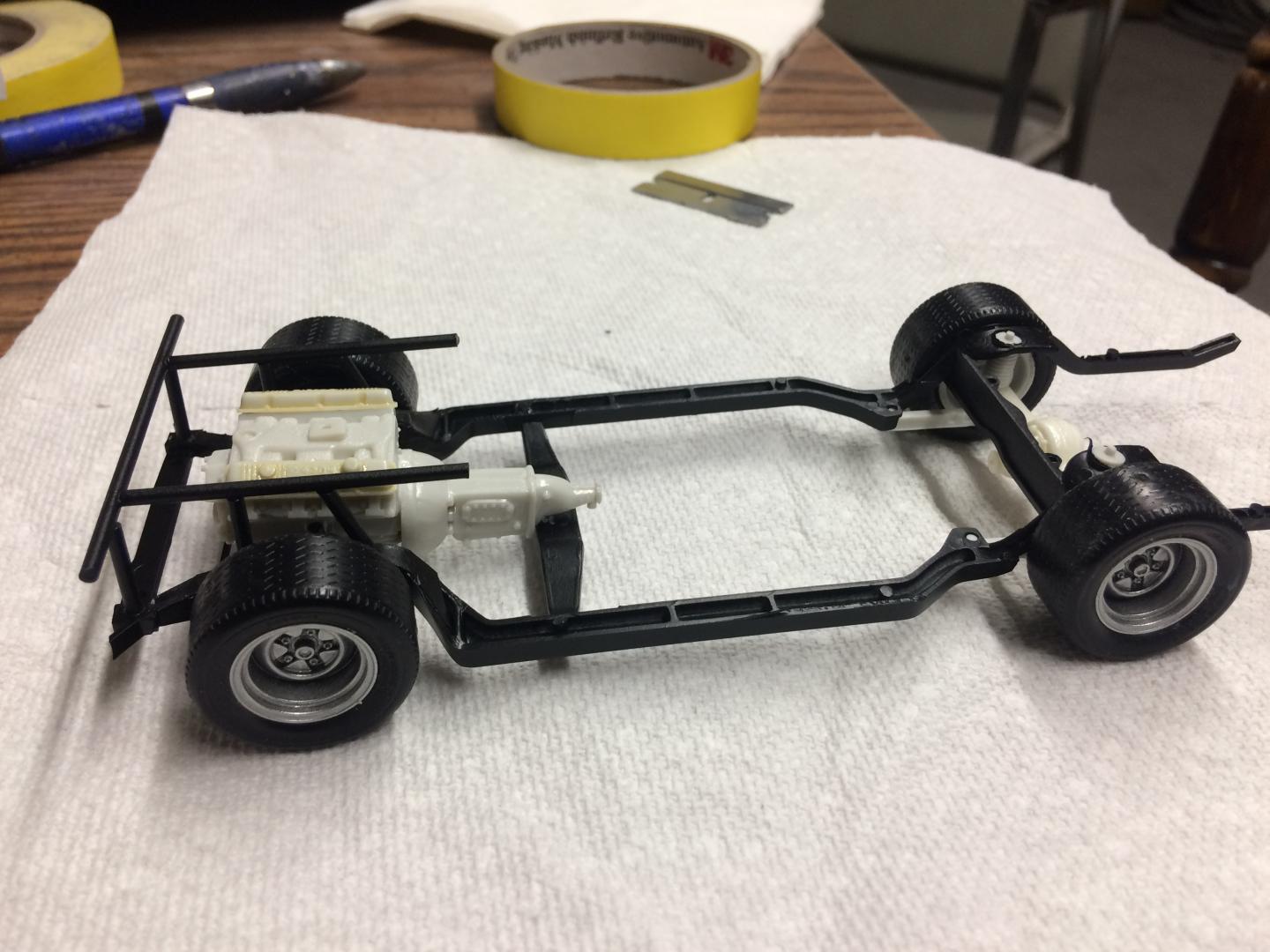

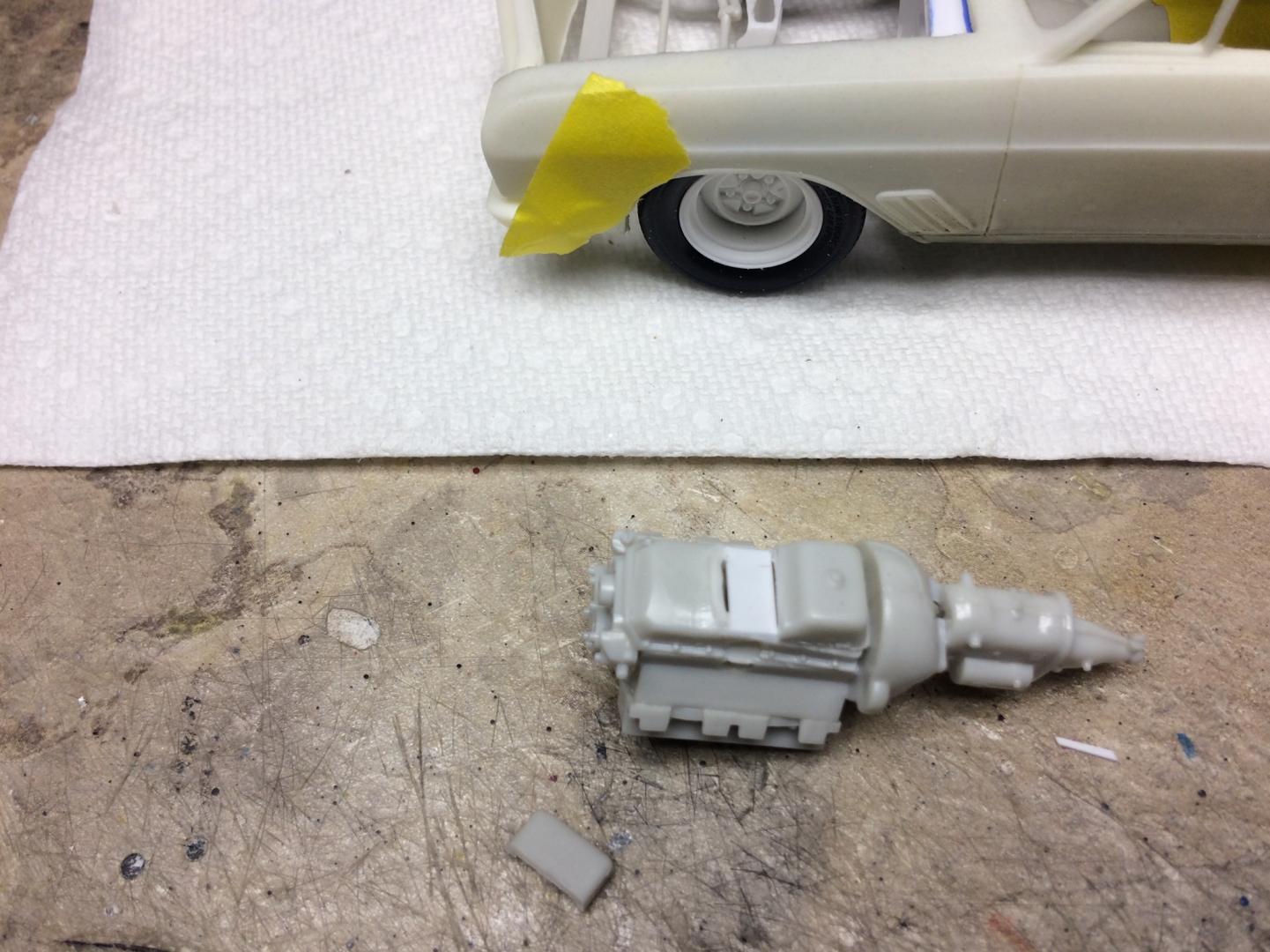

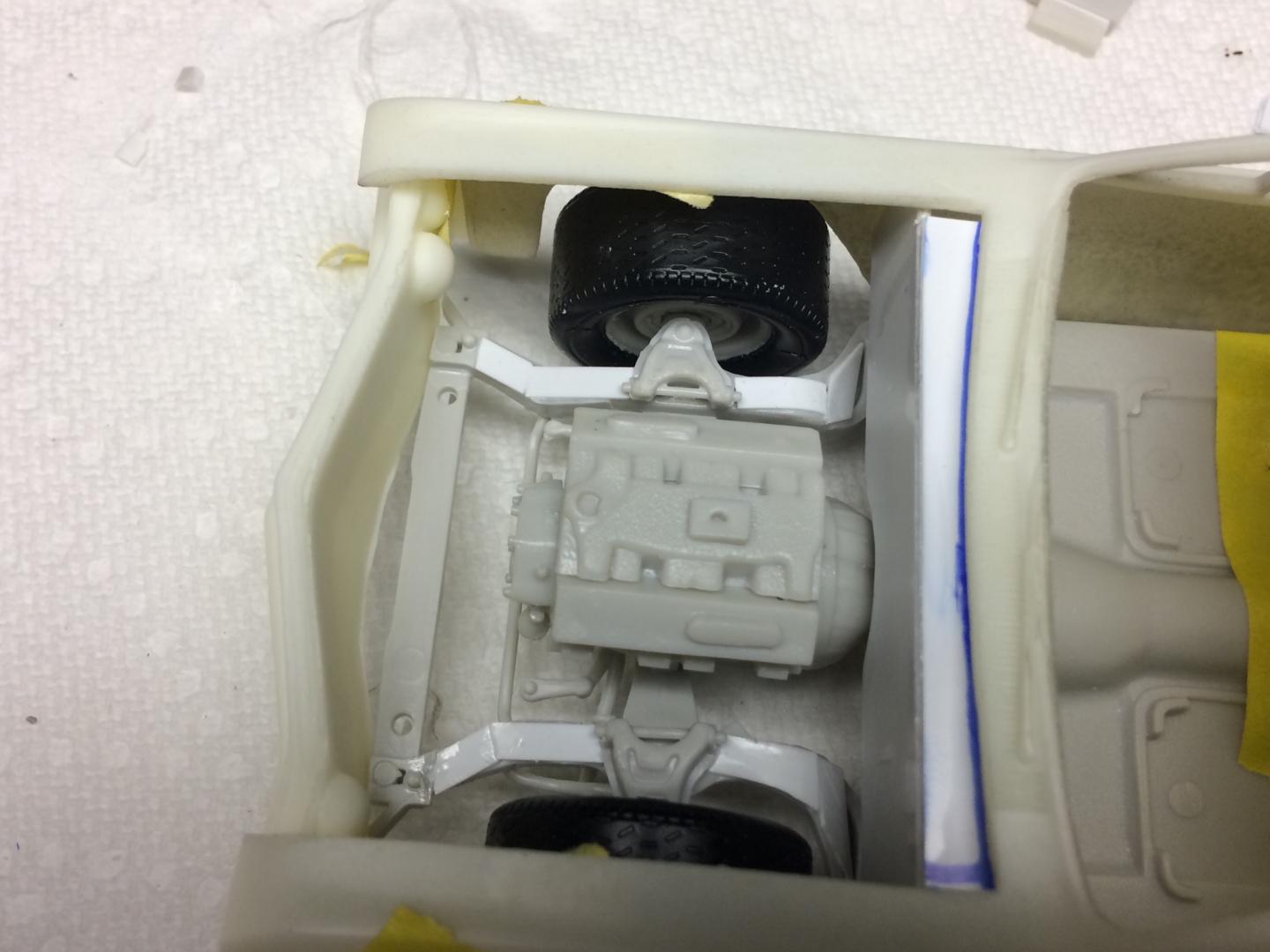

Capped off the top of the frame rails. Engine test fit. Had to move the oil pan sump to the rear. Rivs had an odd center sump.



Edited by yellowsportwagon

Share this post


Link to post
Share on other sites

This is already looking awesome. I have a feeling the finished build will look better then the real car. Thanks for keeping the pictures coming.

Share this post


Link to post
Share on other sites

Thanks Mark

As long as I stay focused it will be cool.



Share this post


Link to post
Share on other sites

Off to a great start Tim.

Share this post


Link to post
Share on other sites

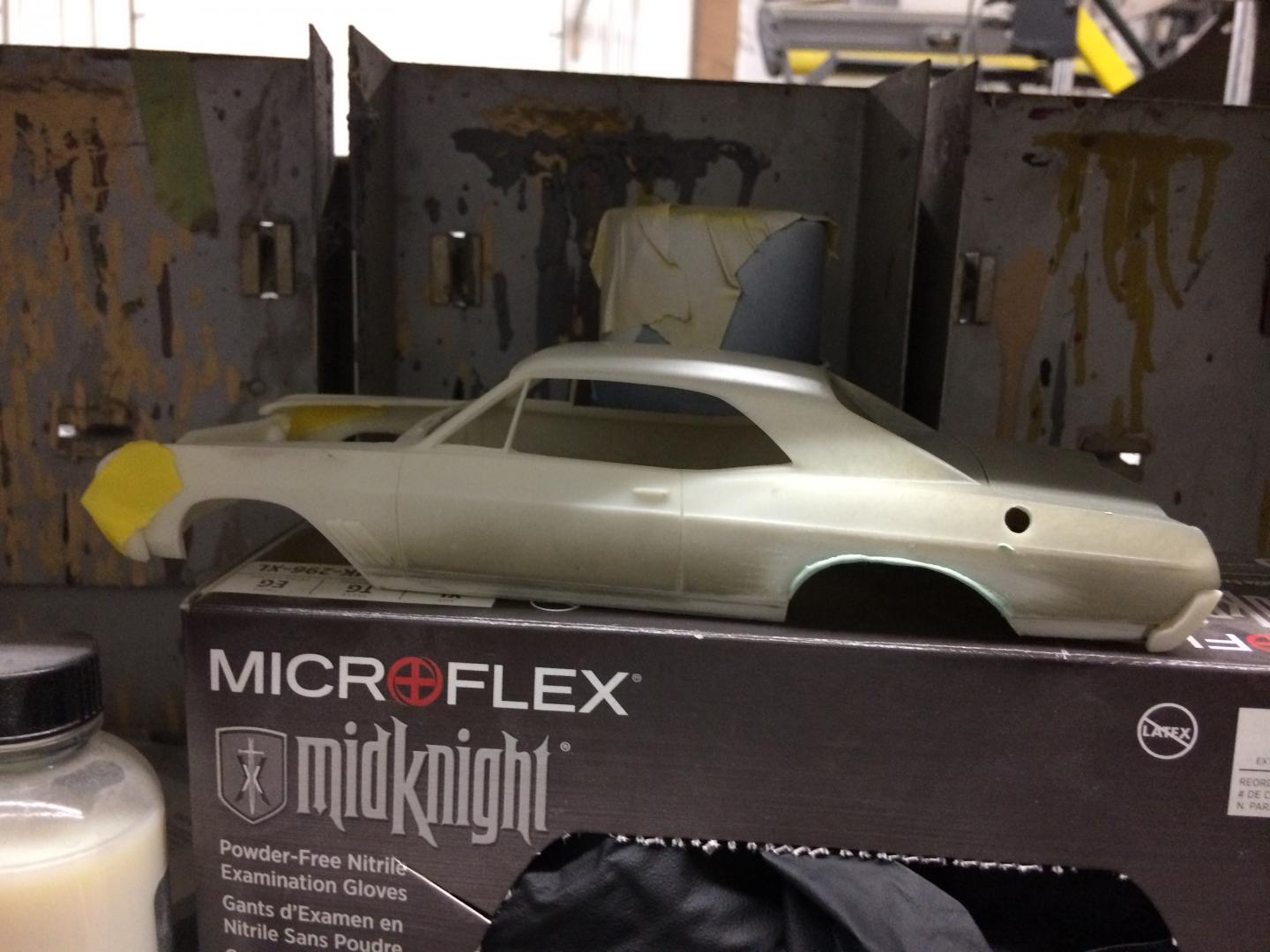

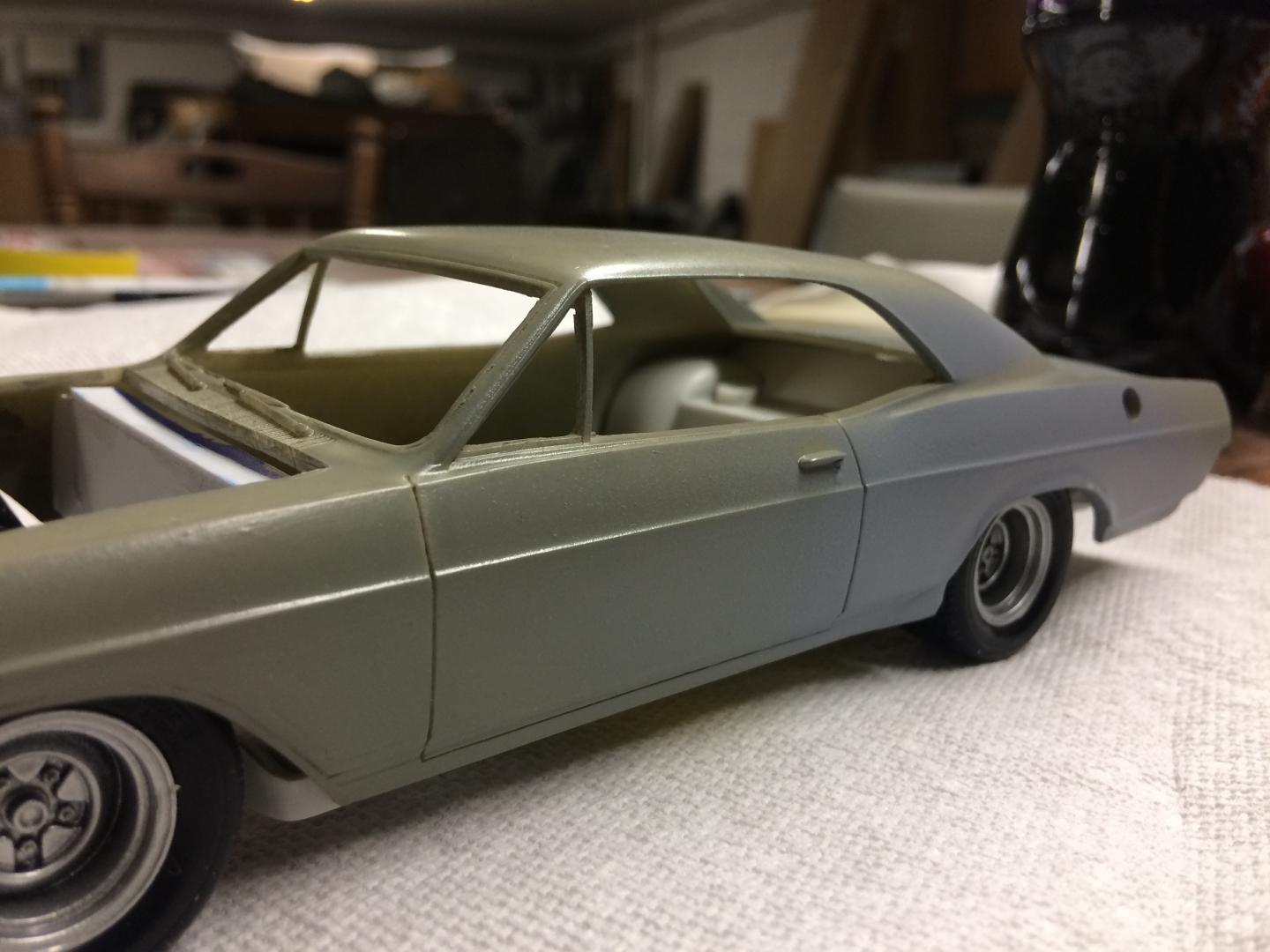

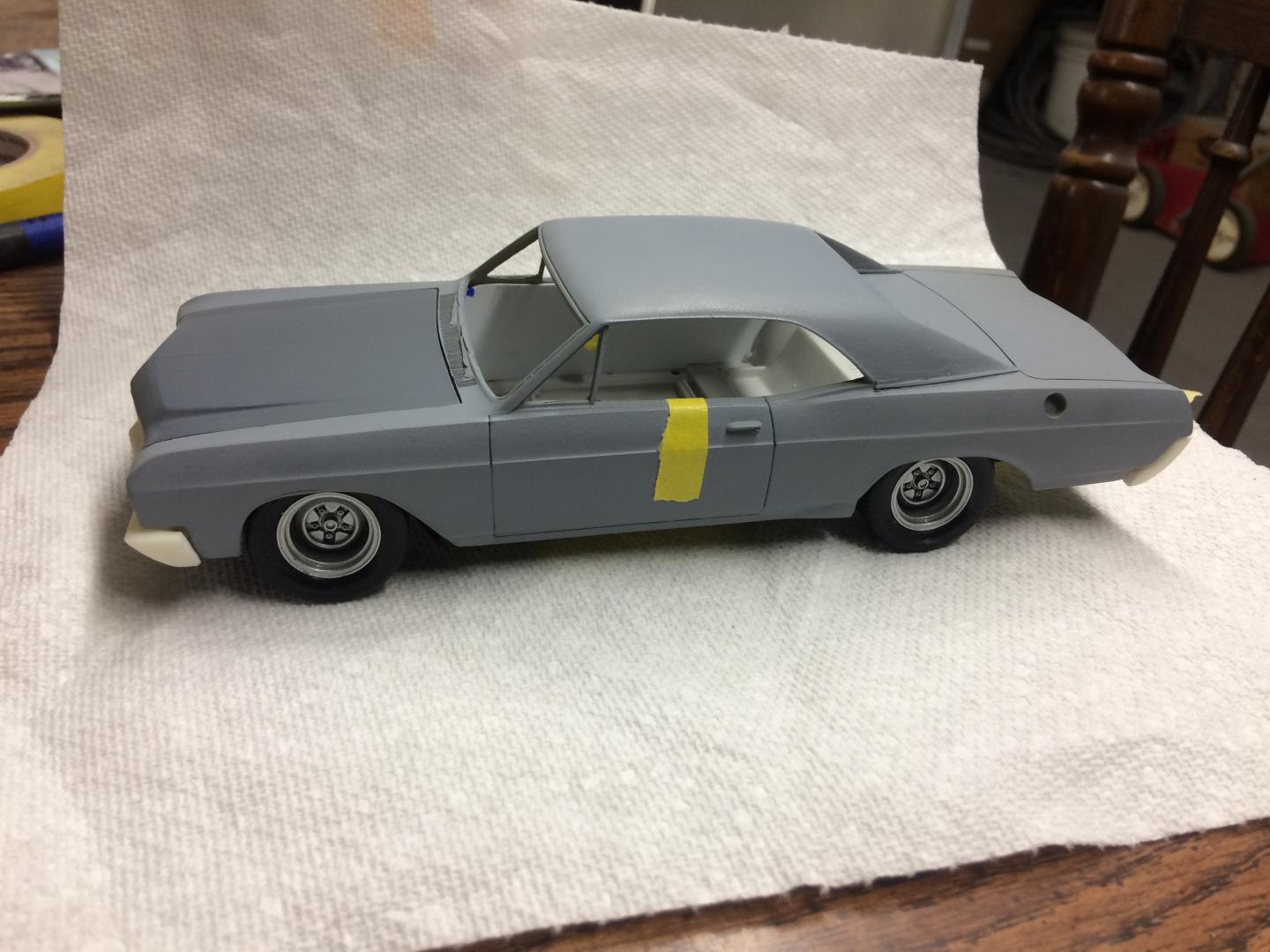

Got this thing de trimmed. Opened the rear wells a bit and flared them out slightly. Also pulled the bottom rear of the rockers out in frt of the rear tires.





Share this post


Link to post
Share on other sites

Great idea on the fenders and quarters to help it look even more authentic.

Share this post


Link to post
Share on other sites

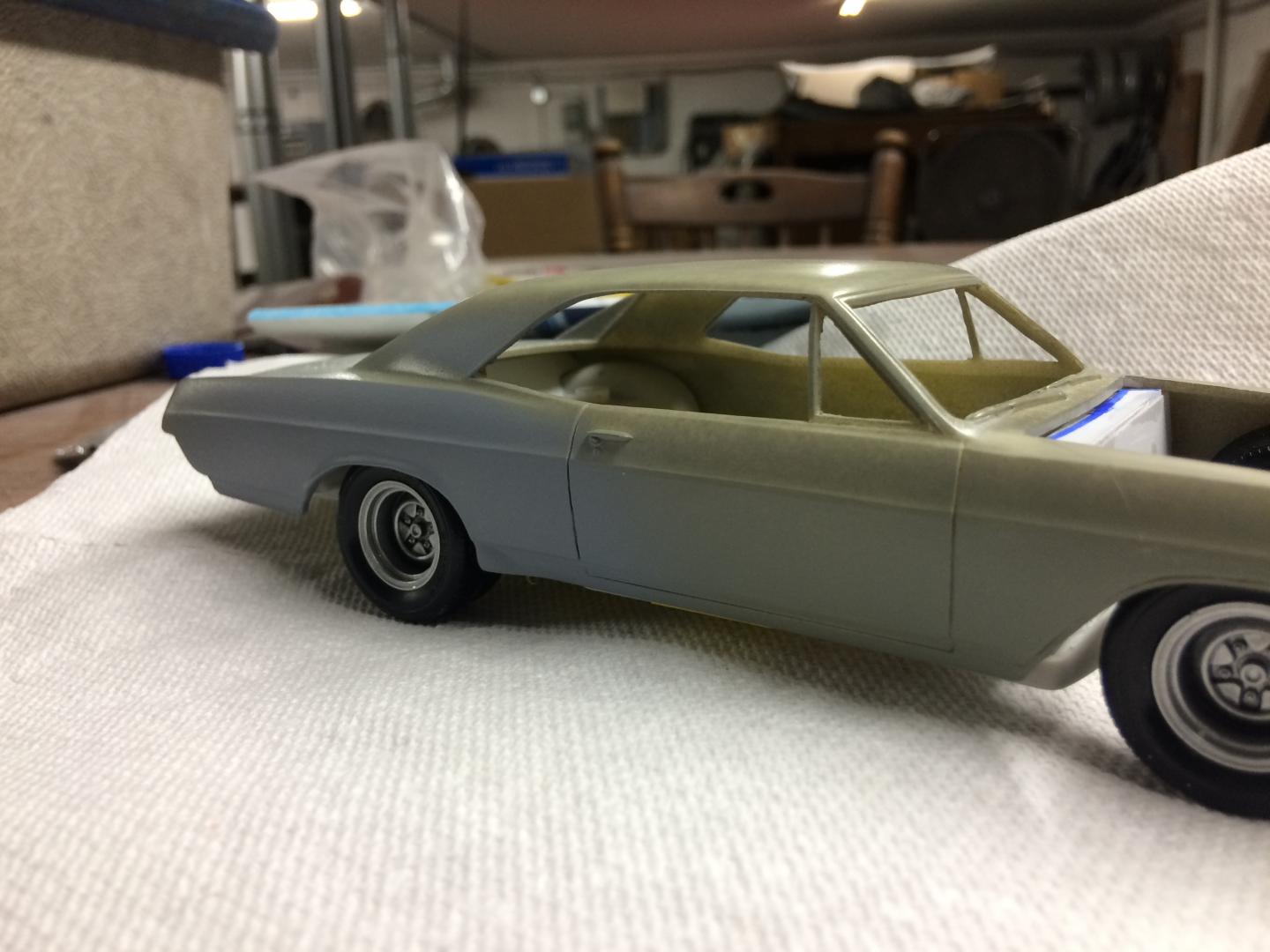

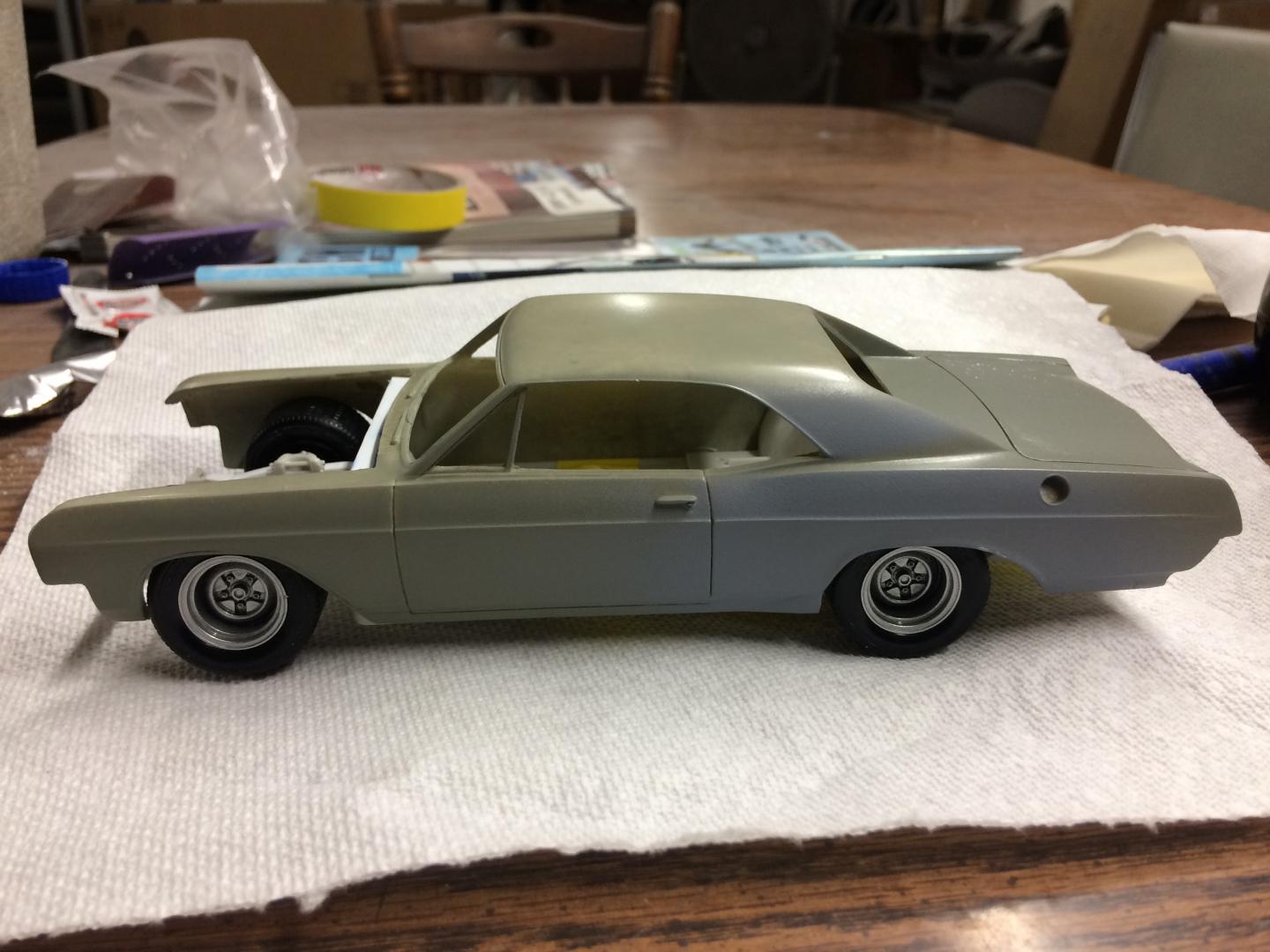

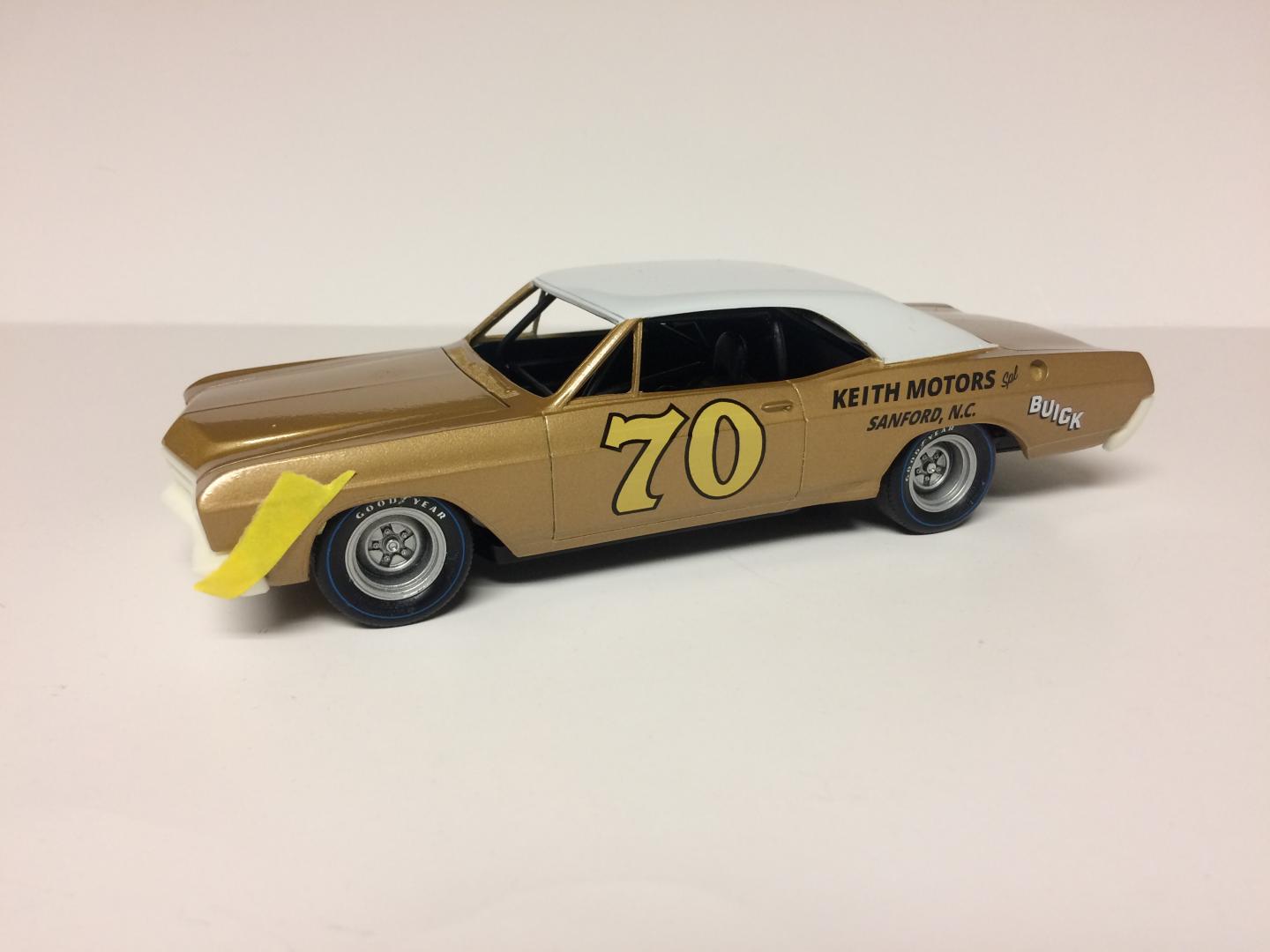

Added vinyl top moldings. Car had a painted hardtop which used the moldings.



Share this post


Link to post
Share on other sites

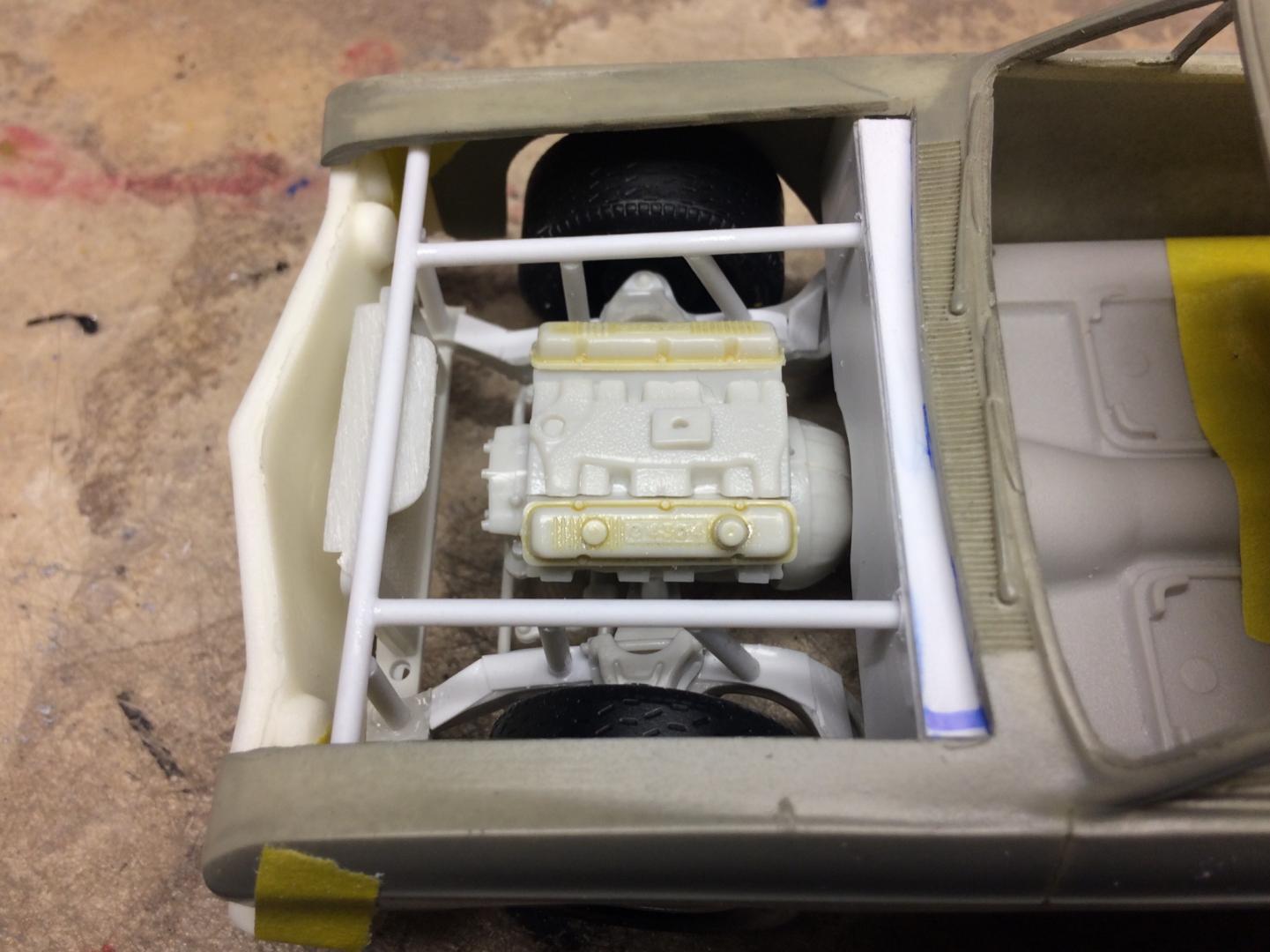

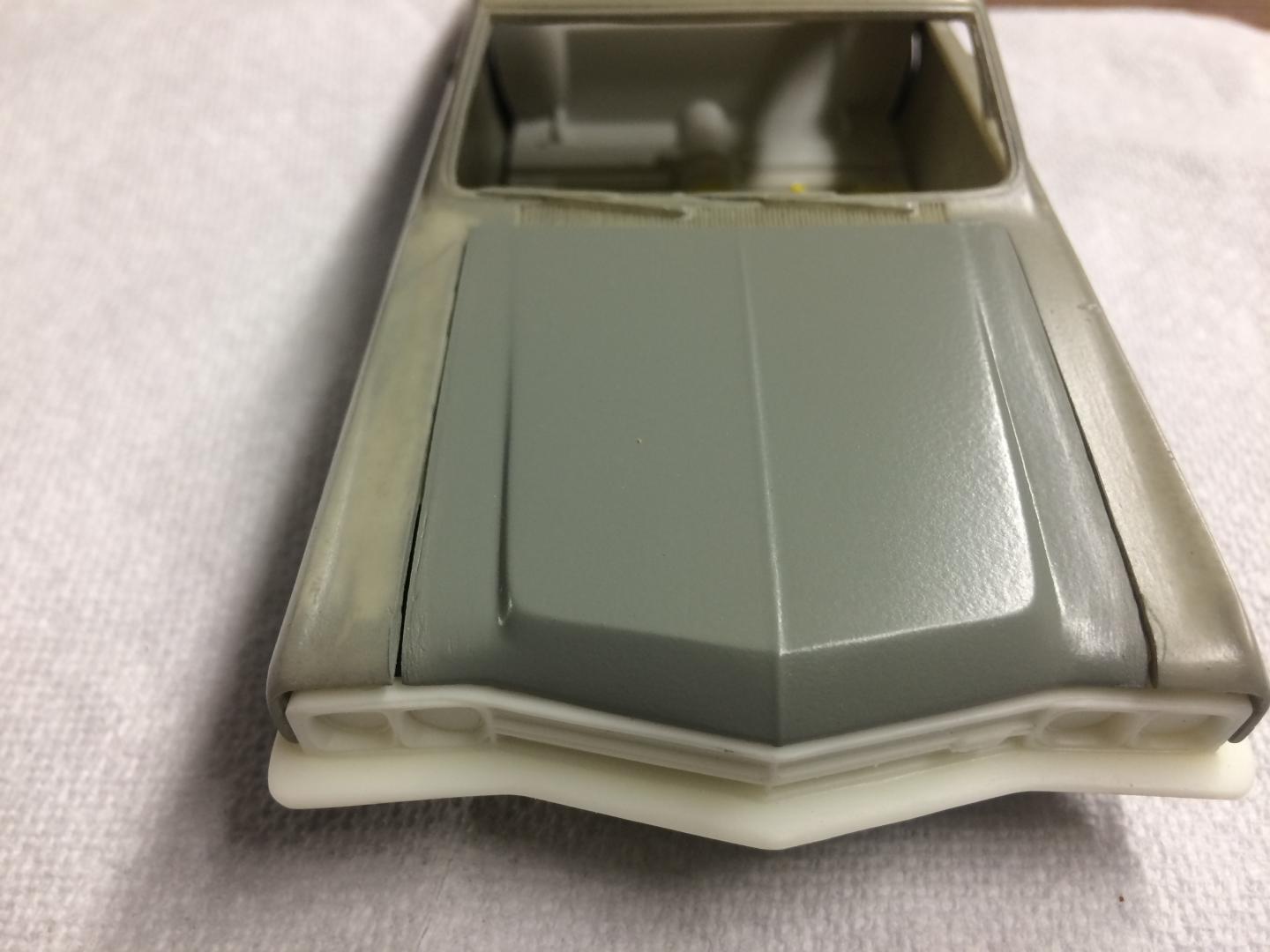

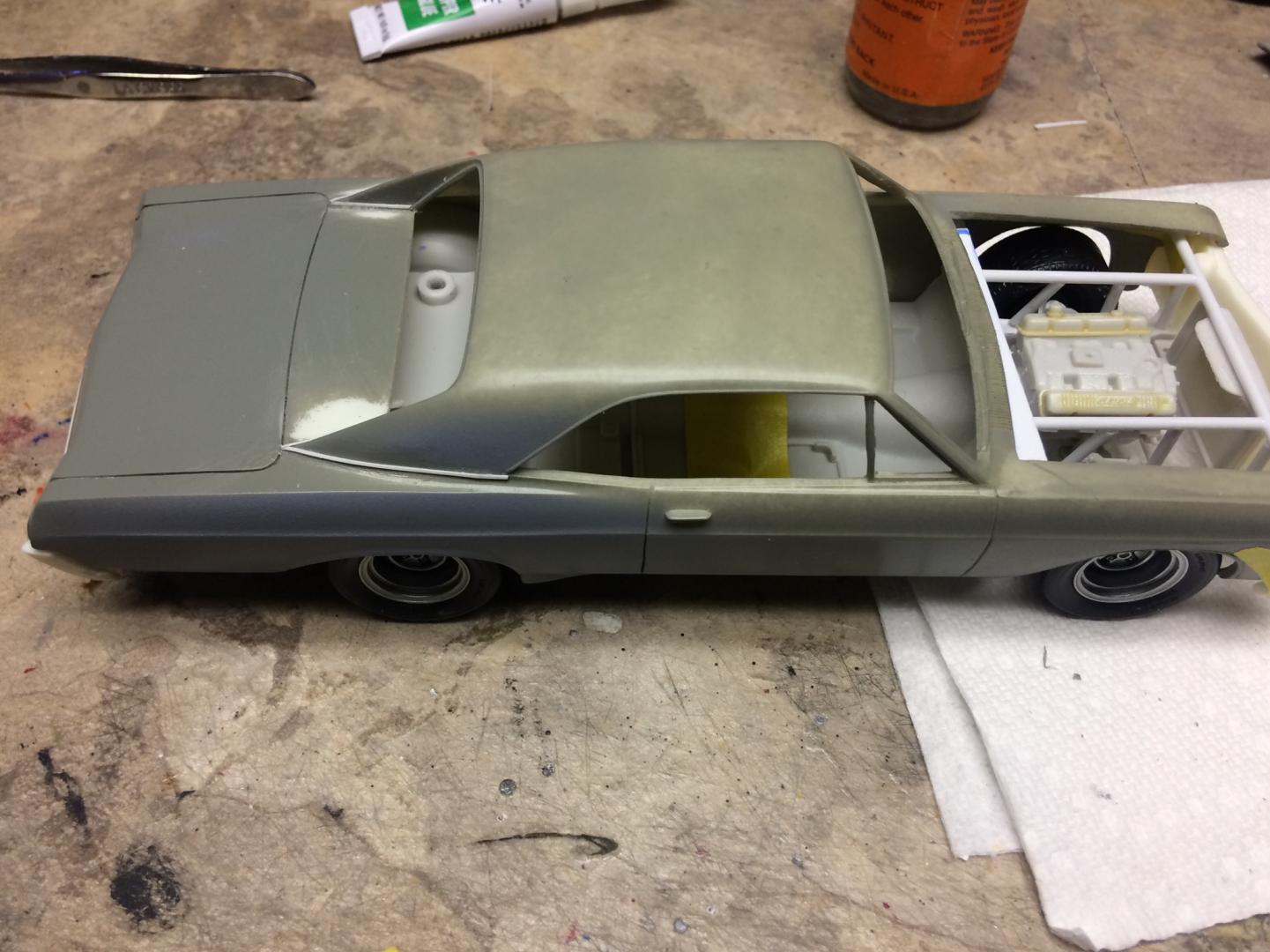

Also built up the hood edges. Hood was way narrow. And built the engine cage. Engine and radiator test fit again



Share this post


Link to post
Share on other sites

Glad your addressing the hood fit issues. Nothing is more disappointing then to see a finished build with a hood that's not flush or huge gaps.

Share this post


Link to post
Share on other sites

Painted the frame and put the body in filler primer.”



Share this post


Link to post
Share on other sites

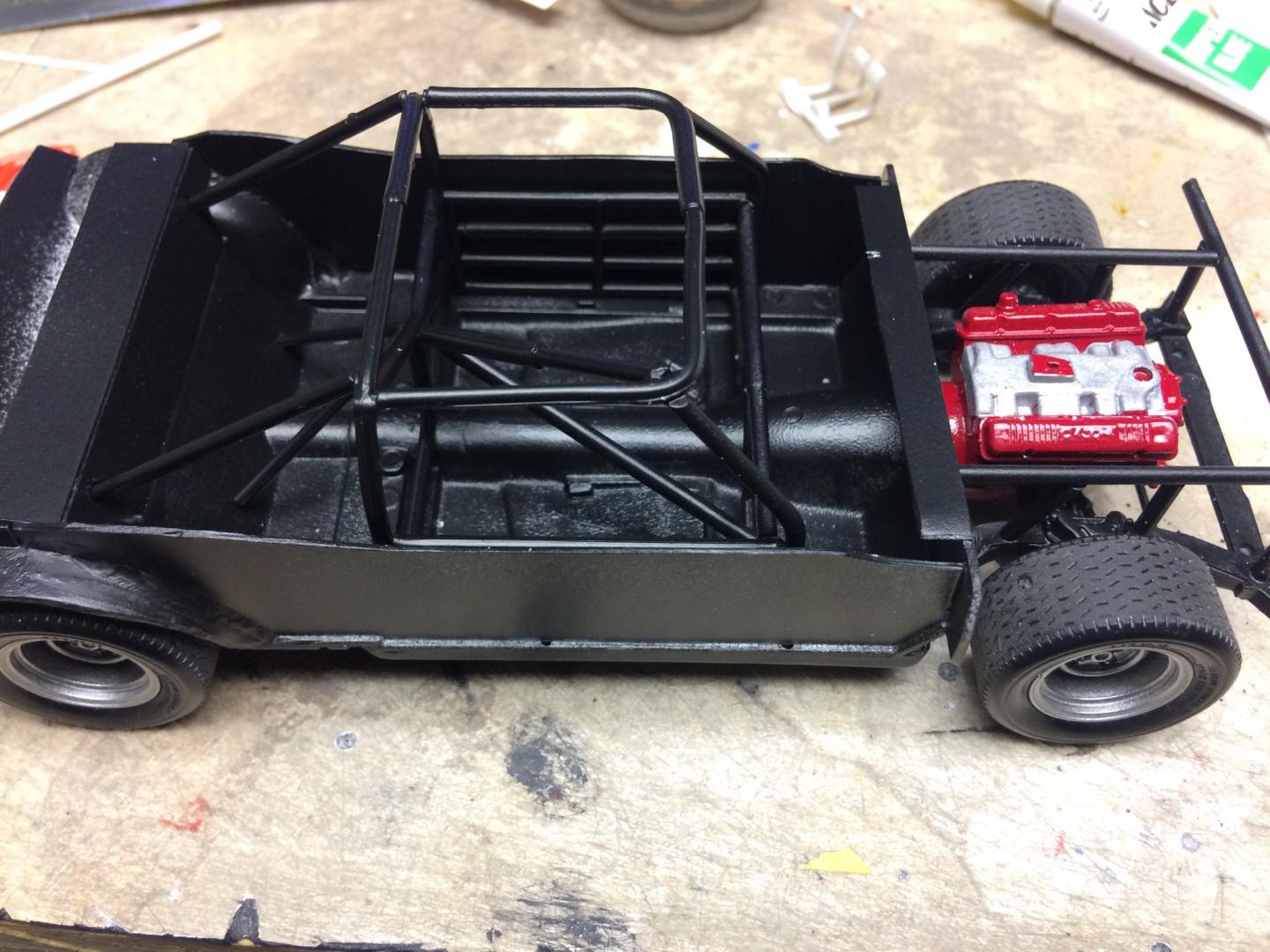

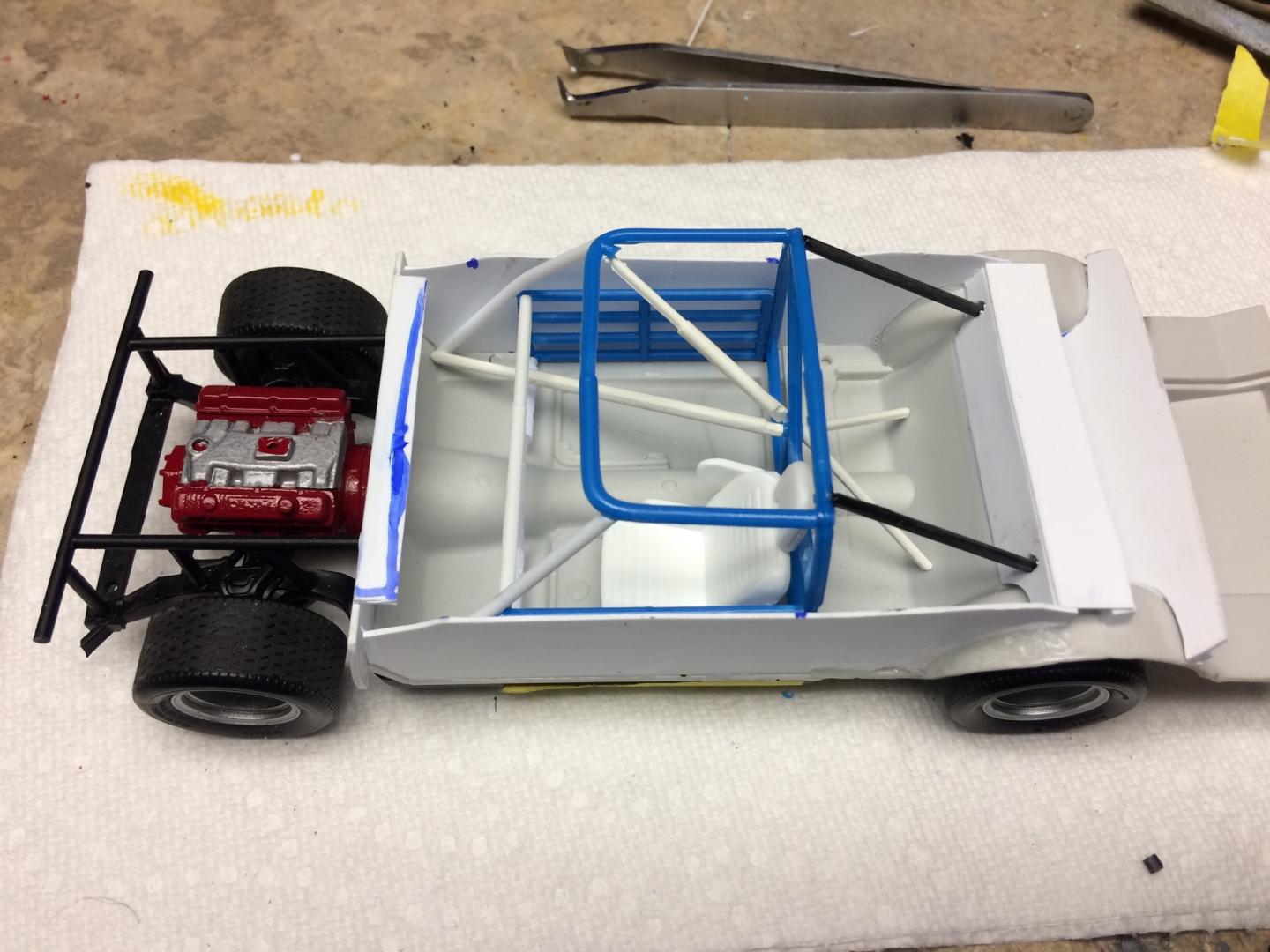

I’m pretty proud of my cobbled rollbar. Made from MPC Johan and Polar Lights parts. The frt down bars are the only pieces I had to make.


Share this post


Link to post
Share on other sites

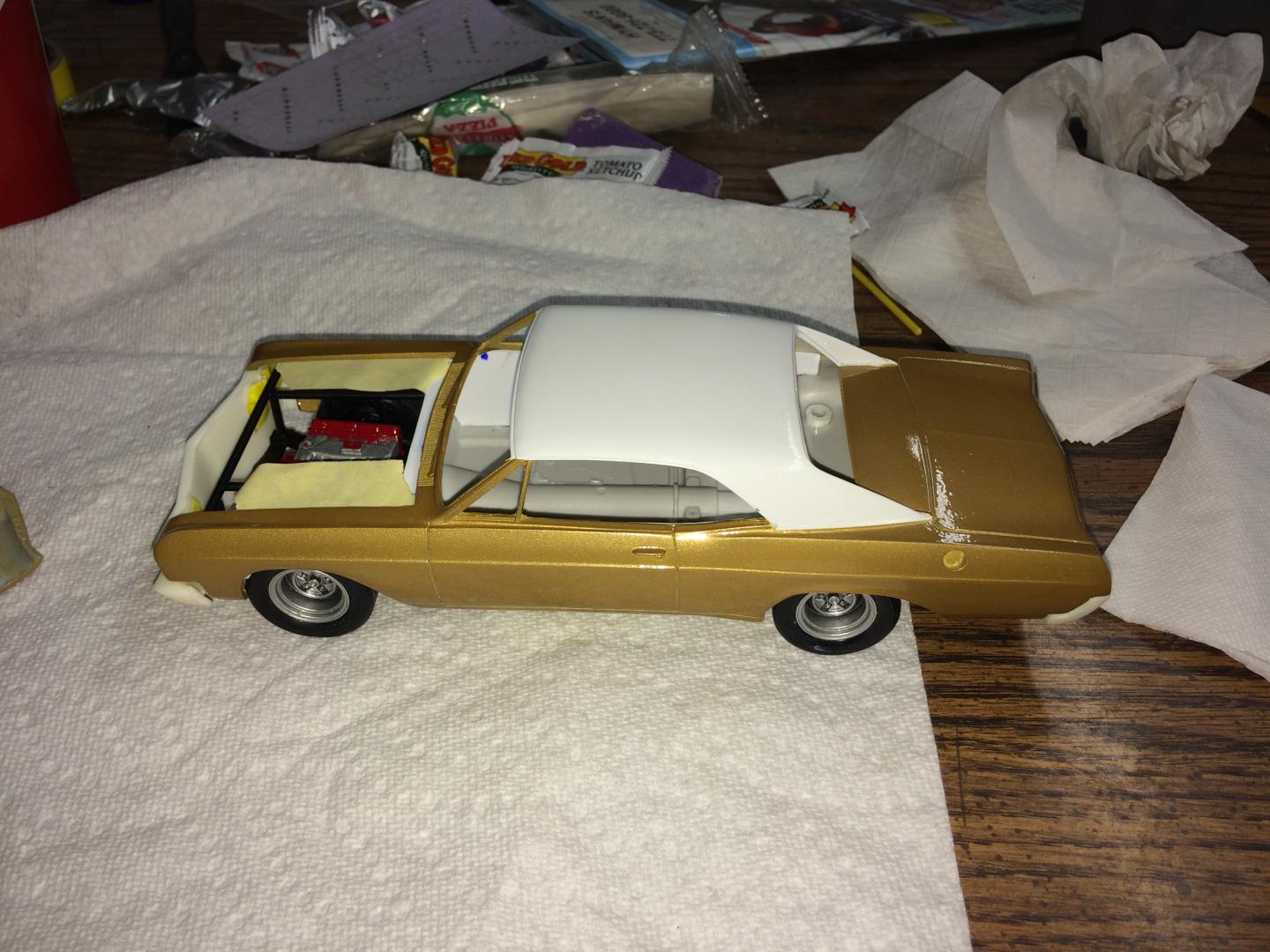

Forgot to add above that I had to build a package shelf for this car. Looking closer at pictures all that metal remained intact on this car. Got a fuel cell made roll bar door and interior painted
