Galion 12 1/2 Ton Hydraulic Rough Terrain Crane

Recommended Posts

Will we see the roller on the end of that boom eventually? Lol. another fantastic creation from your bench, looking good Tom!

Share this post


Link to post
Share on other sites
8 hours ago, redneckrigger said:

I make the tubes by cutting strips to the size I want.  I use a paper guillotine to cut them straight and parallel. I then glue them together using steel parallel blocks to hold them at right angles. If you look back into previous posts on this thread you will see how I do it.  There are some tube sizes available from Evergreen and Plastruct, but just not what I needed.

Thanks for the info!! Great work!!

Share this post


Link to post
Share on other sites
Posted (edited)
15 hours ago, tbill said:

Will we see the roller on the end of that boom eventually? Lol. another fantastic creation from your bench, looking good Tom!

Ha! You'll see it right after I do! Haven't gotten to that yet, but is soon to come. Going to make the sheave soon, as well as all of the boom guides and rollers, cable guides, winch, hydraulic piping, counterweight etc. Seems like there is never an end in sight! After that, install the powerplant, drive shafts, make the steering work, the outriggers, the operator controls, the cab, the engine compartment, all of the hydraulic lines and valves, and ...., and ...., and ....!!!!!

Edited by redneckrigger

Share this post


Link to post
Share on other sites

Love the engineering that goes into making this model!  That is a lot of the process of scratch building; working through the "how to's" before setting glue to plastic.  It is also a lot of the fun, figuring out just how it will be done so it looks right in the end.  Great work, Tom!

Share this post


Link to post
Share on other sites
Posted (edited)

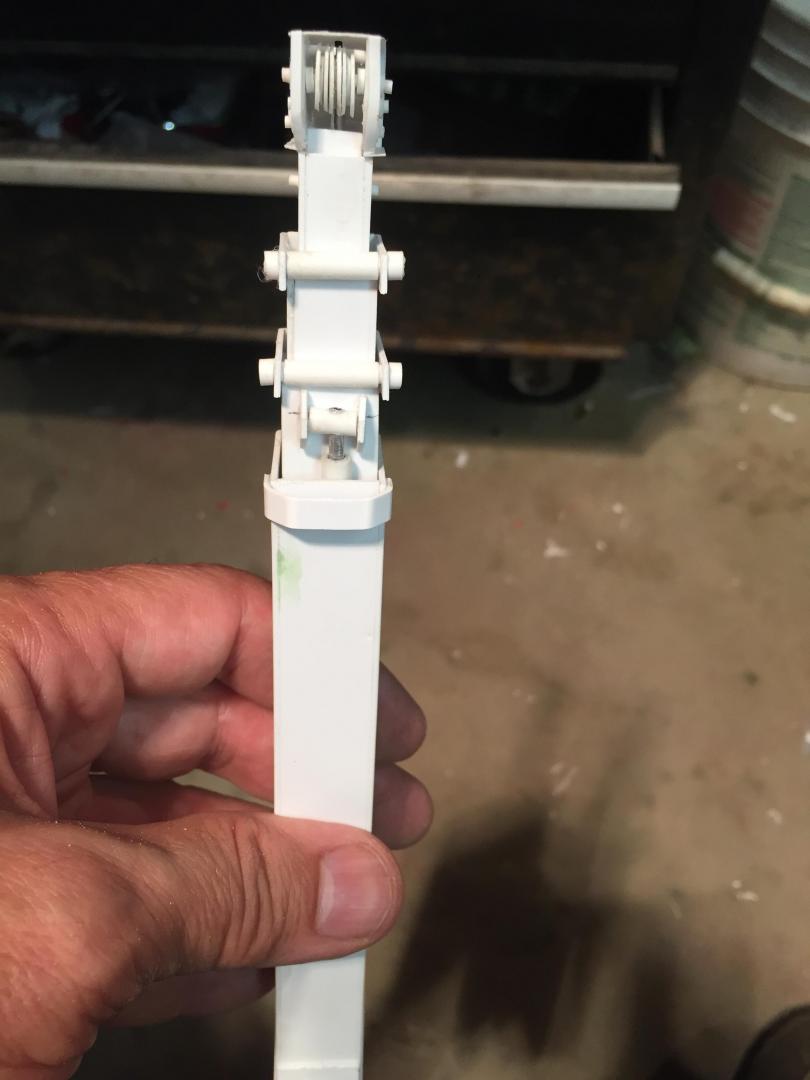

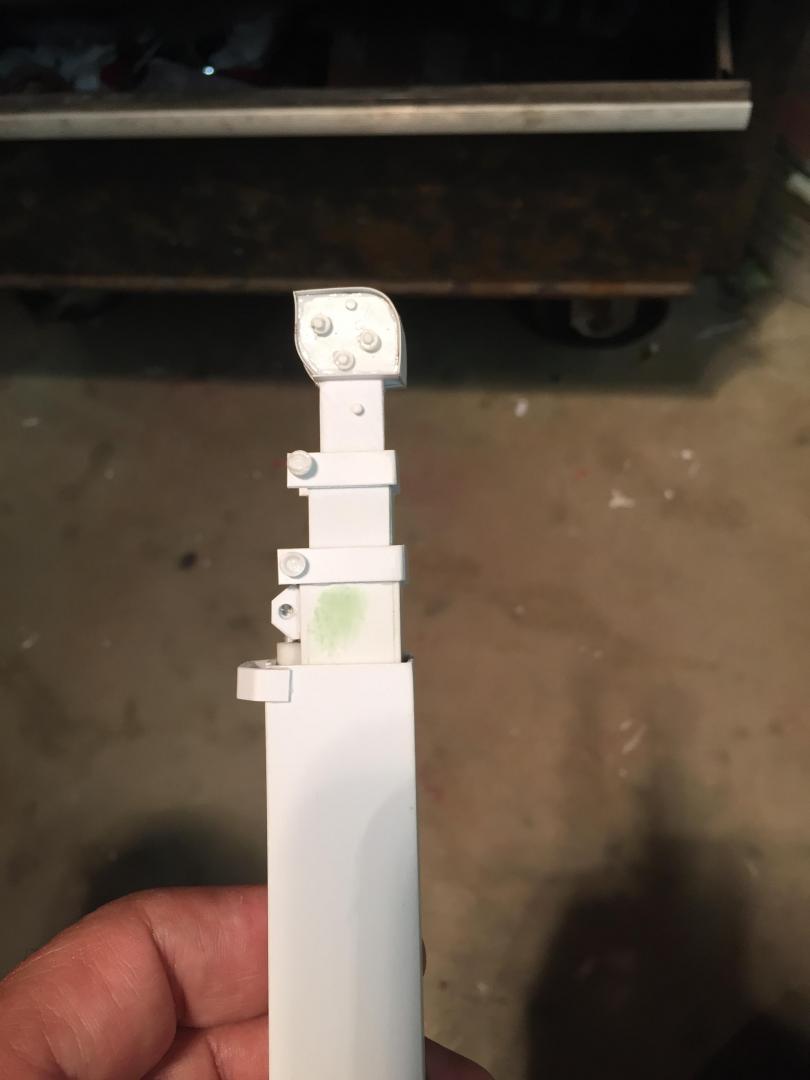

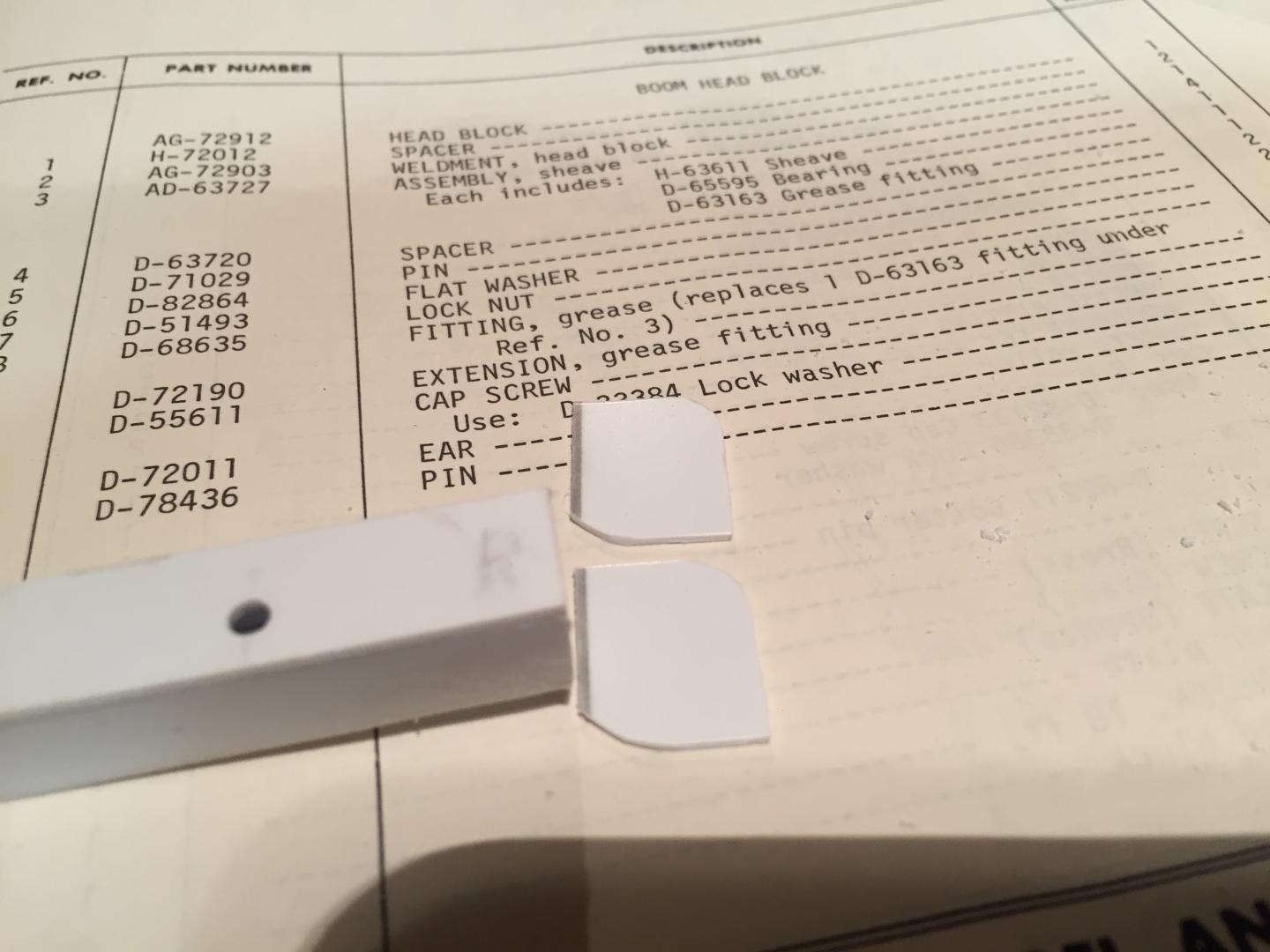

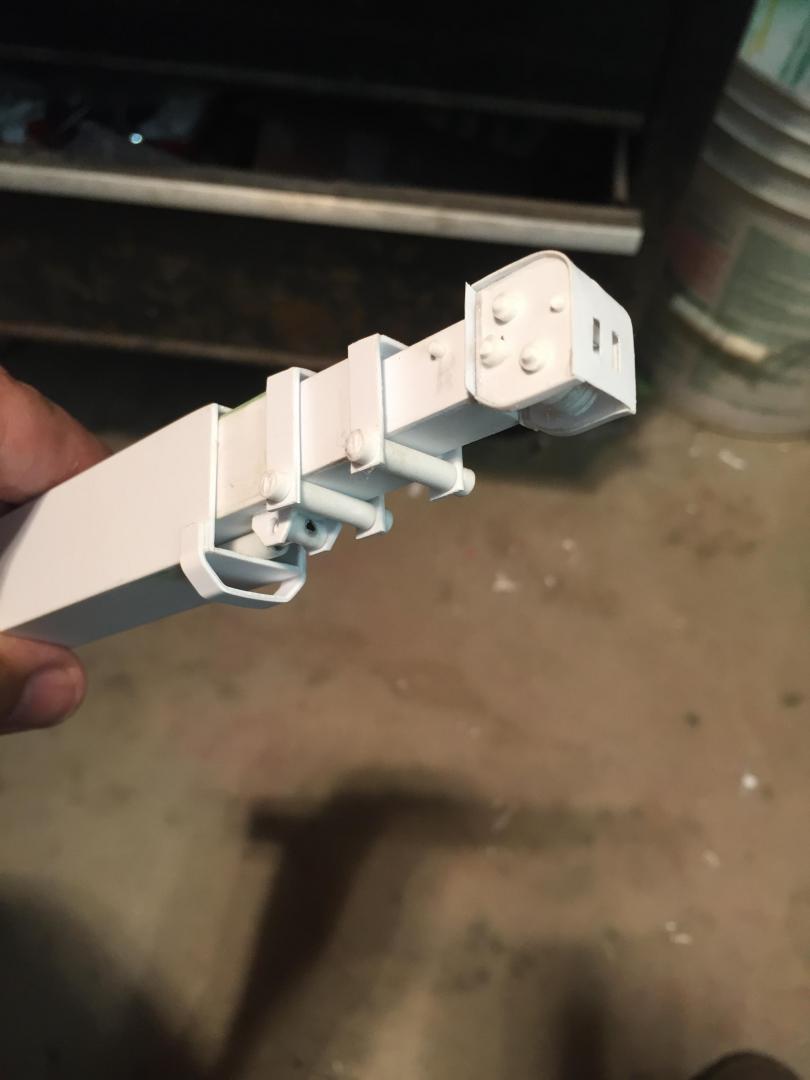

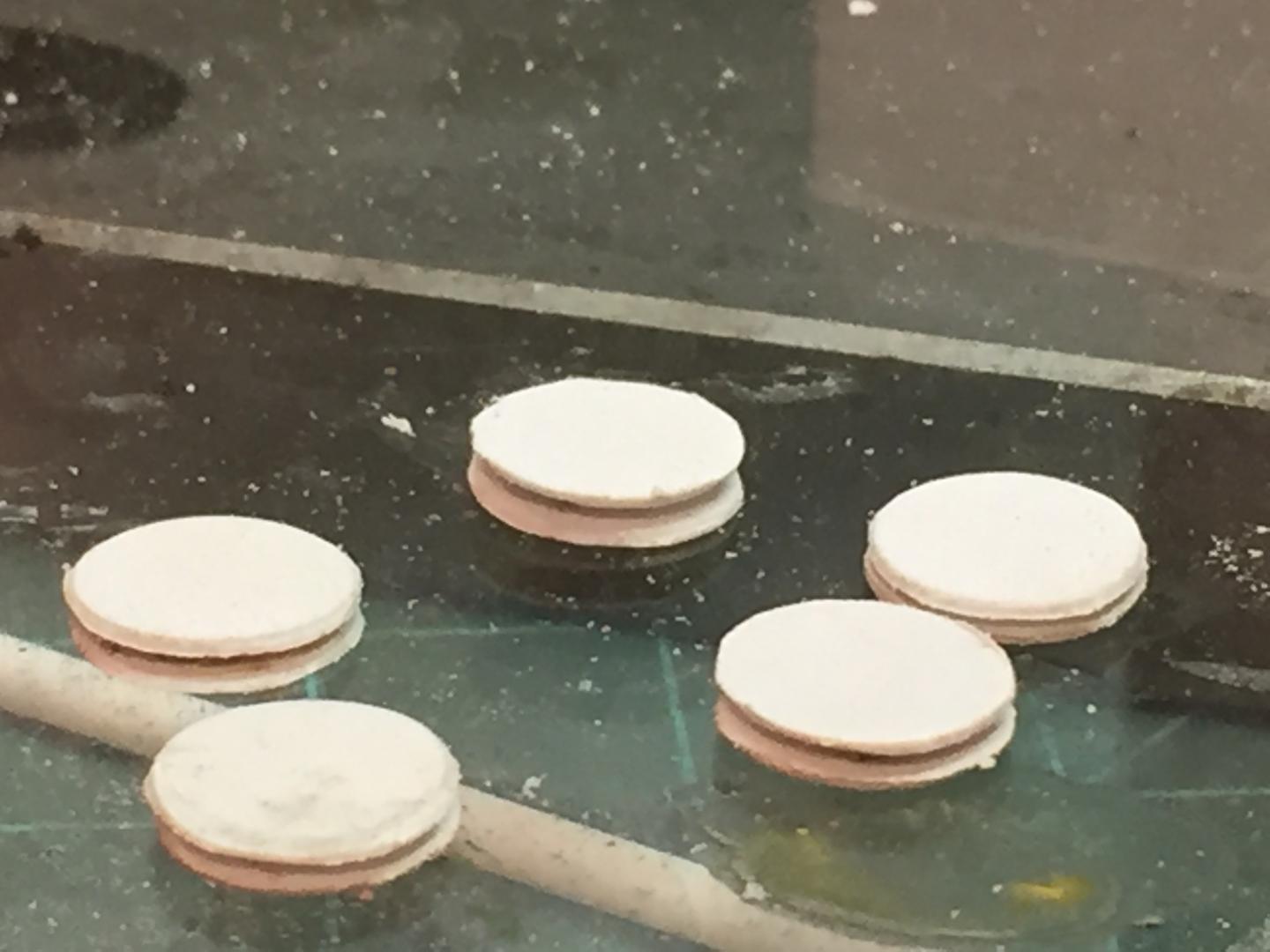

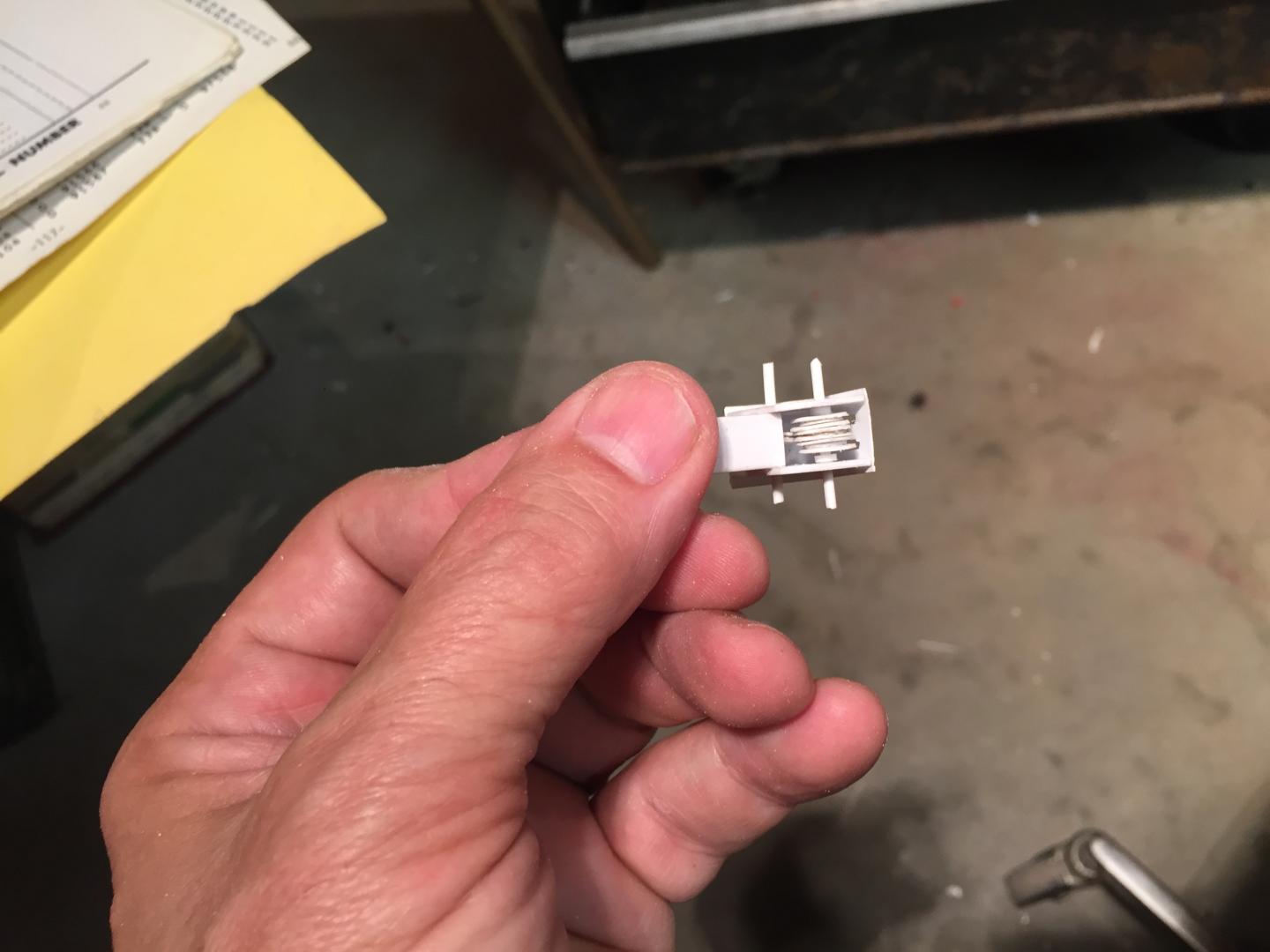

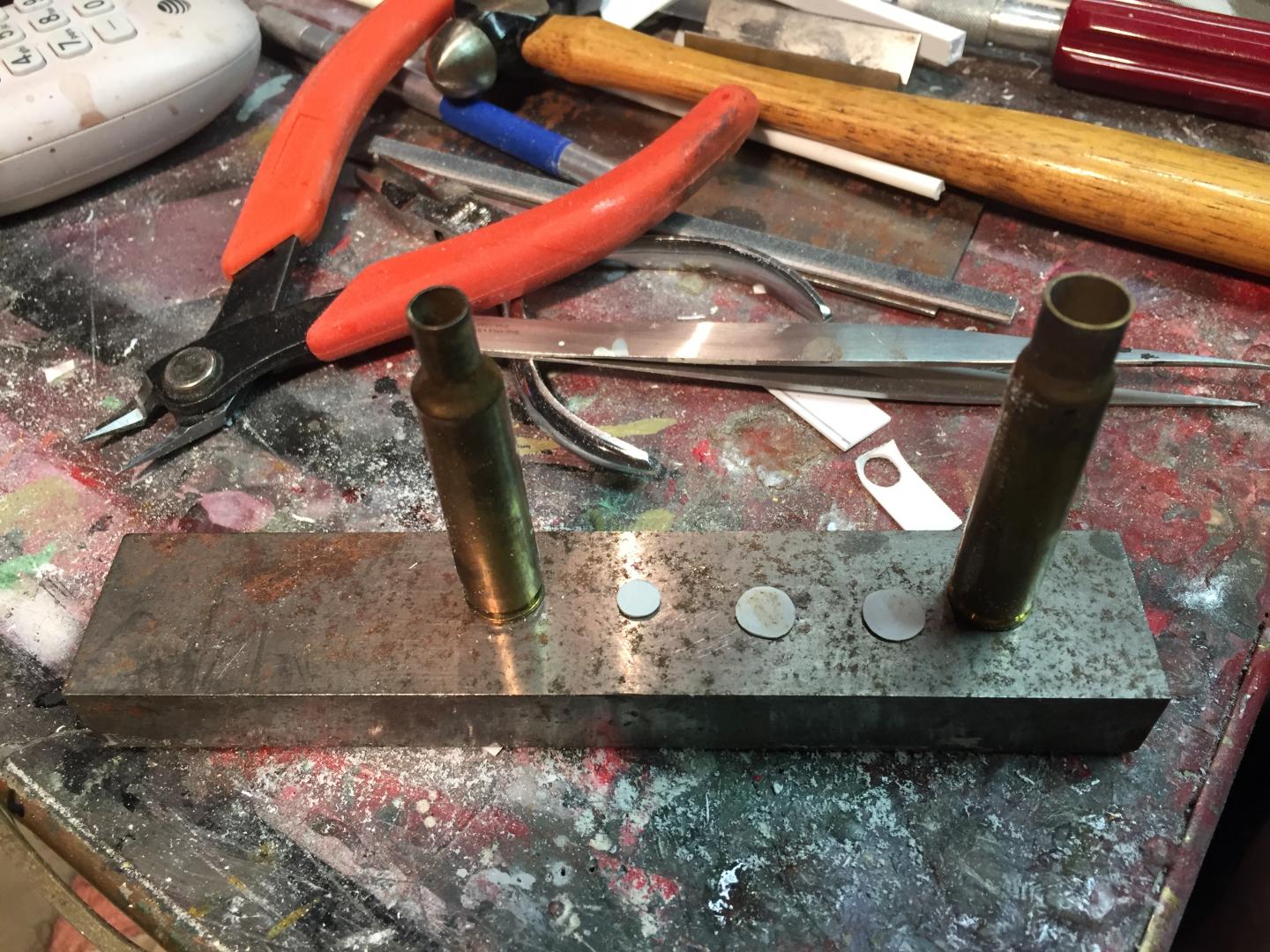

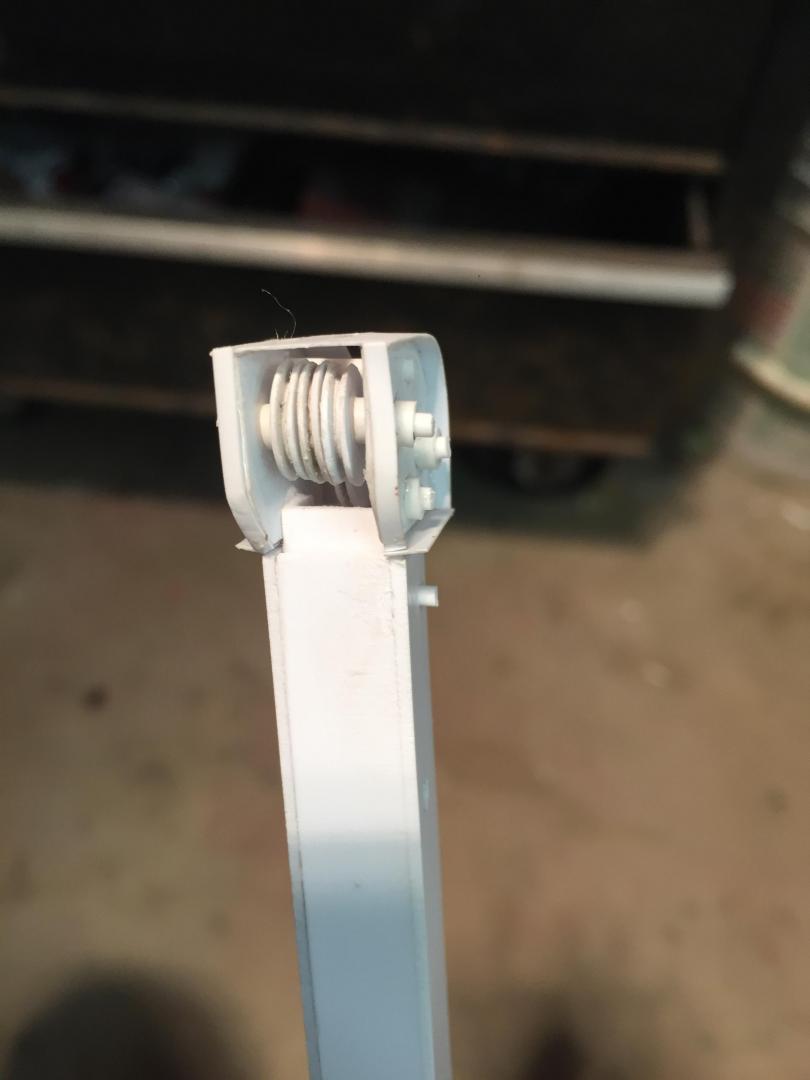

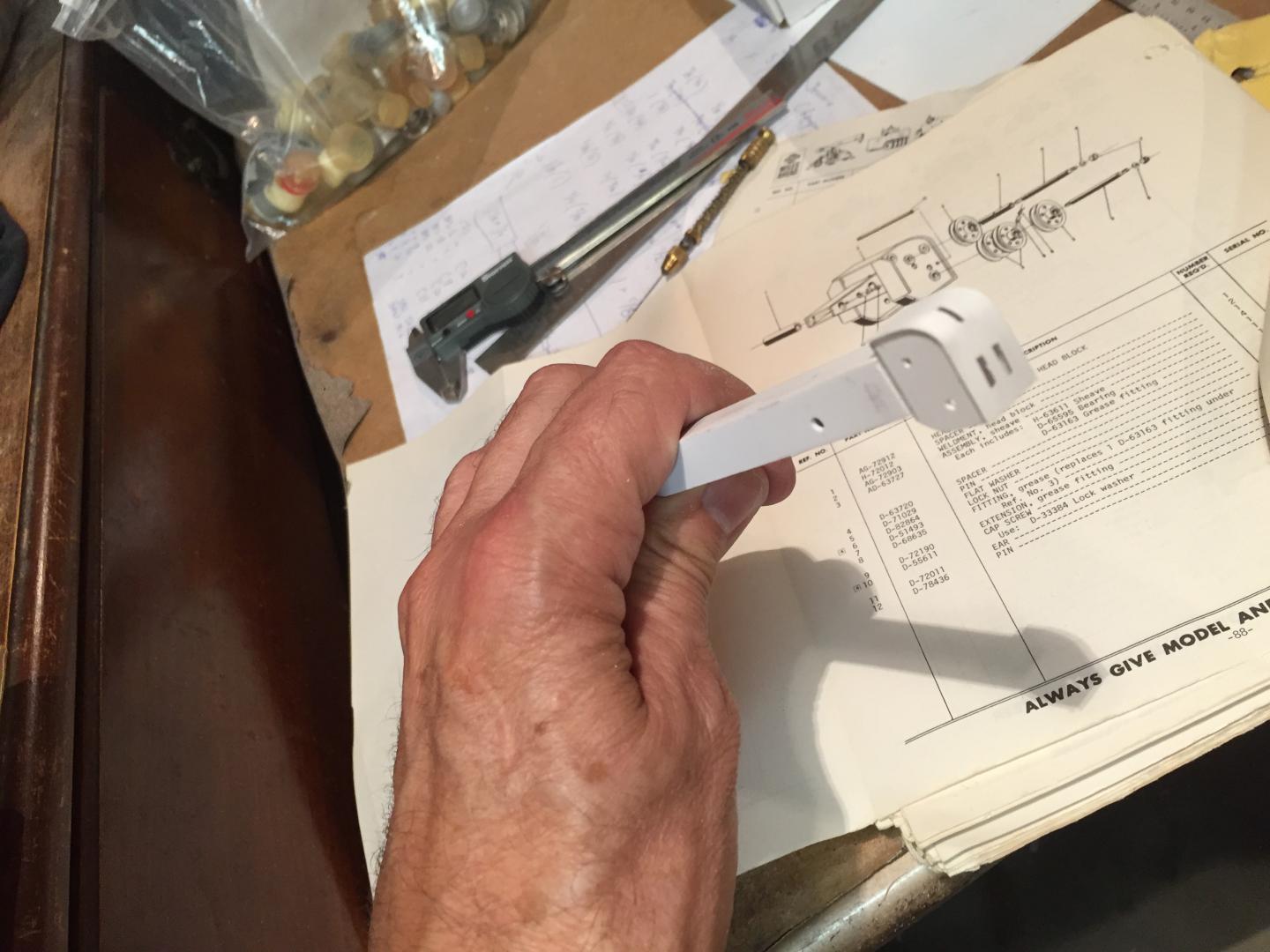

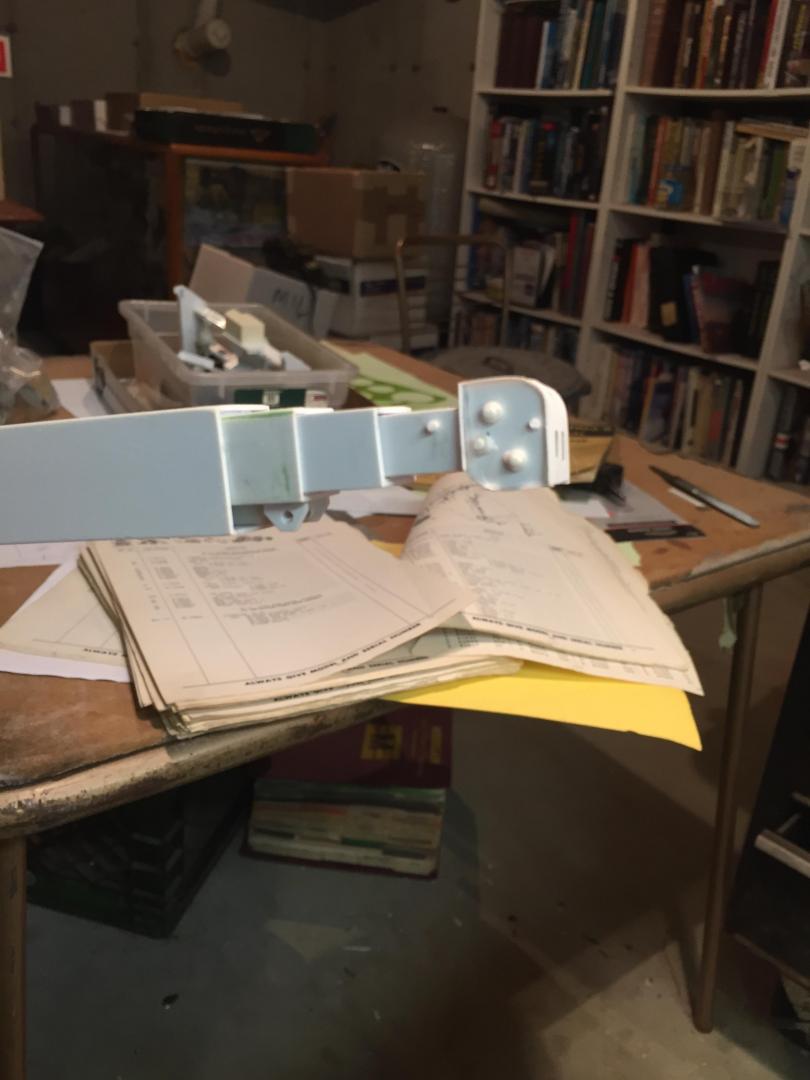

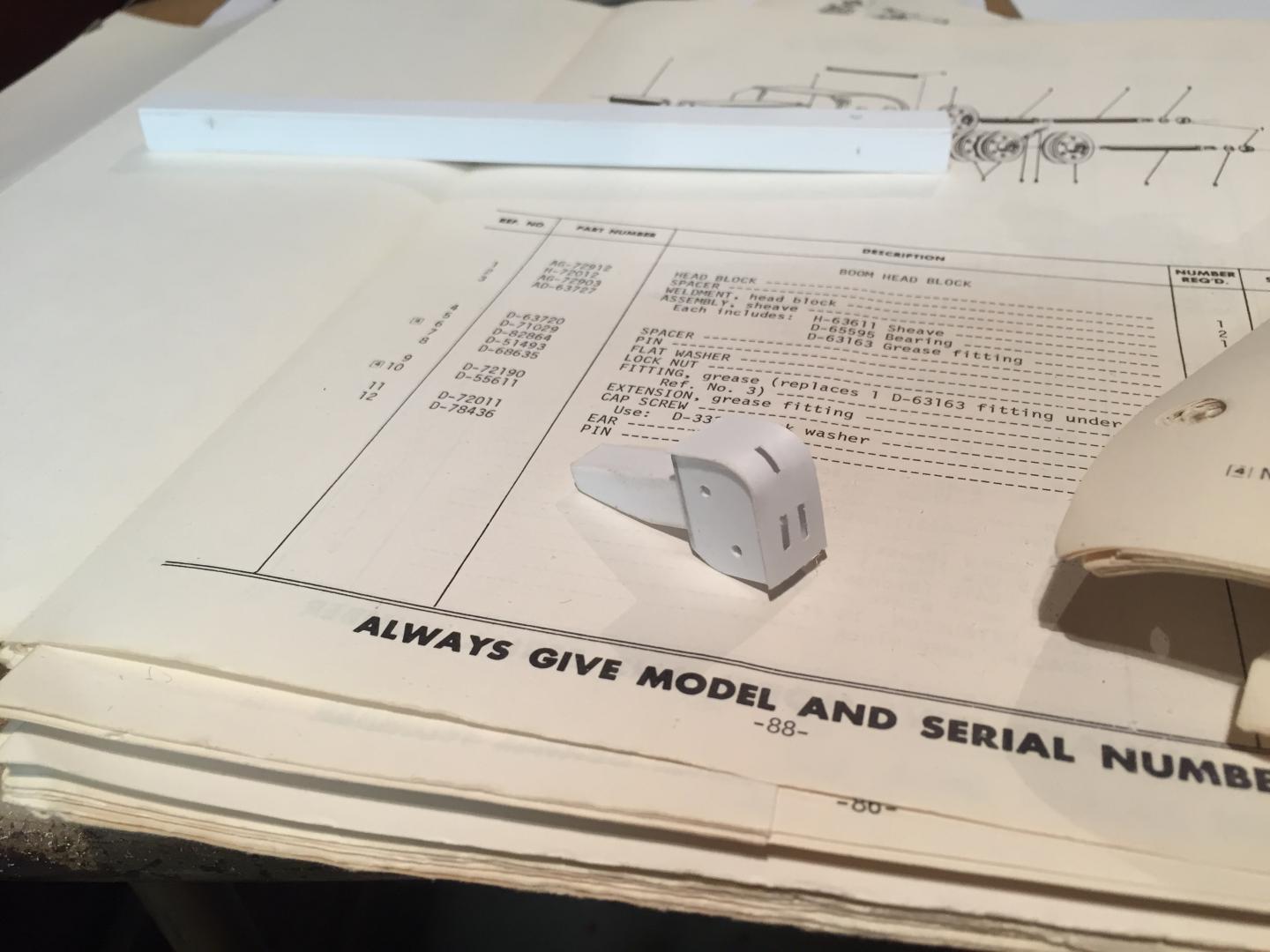

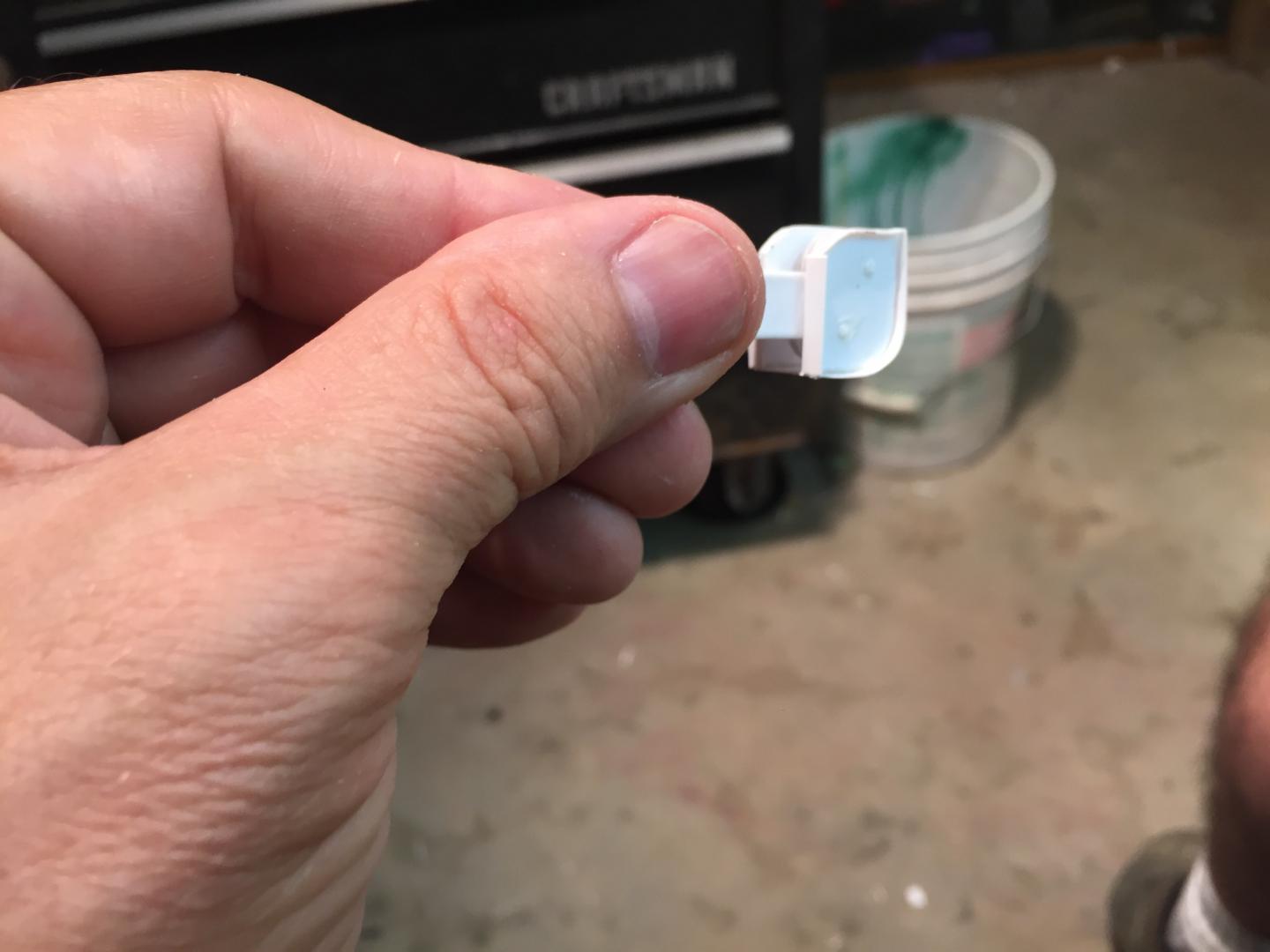

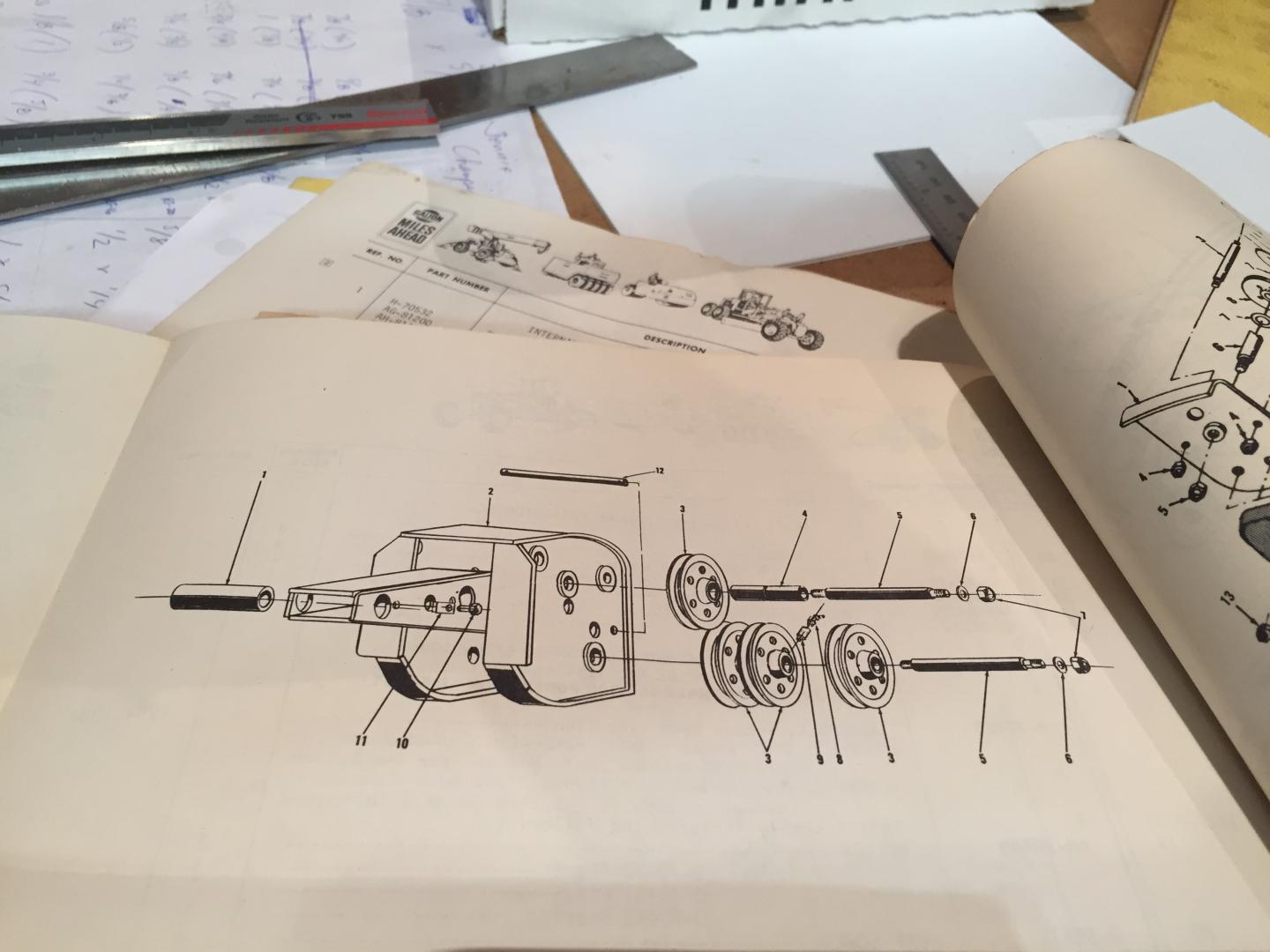

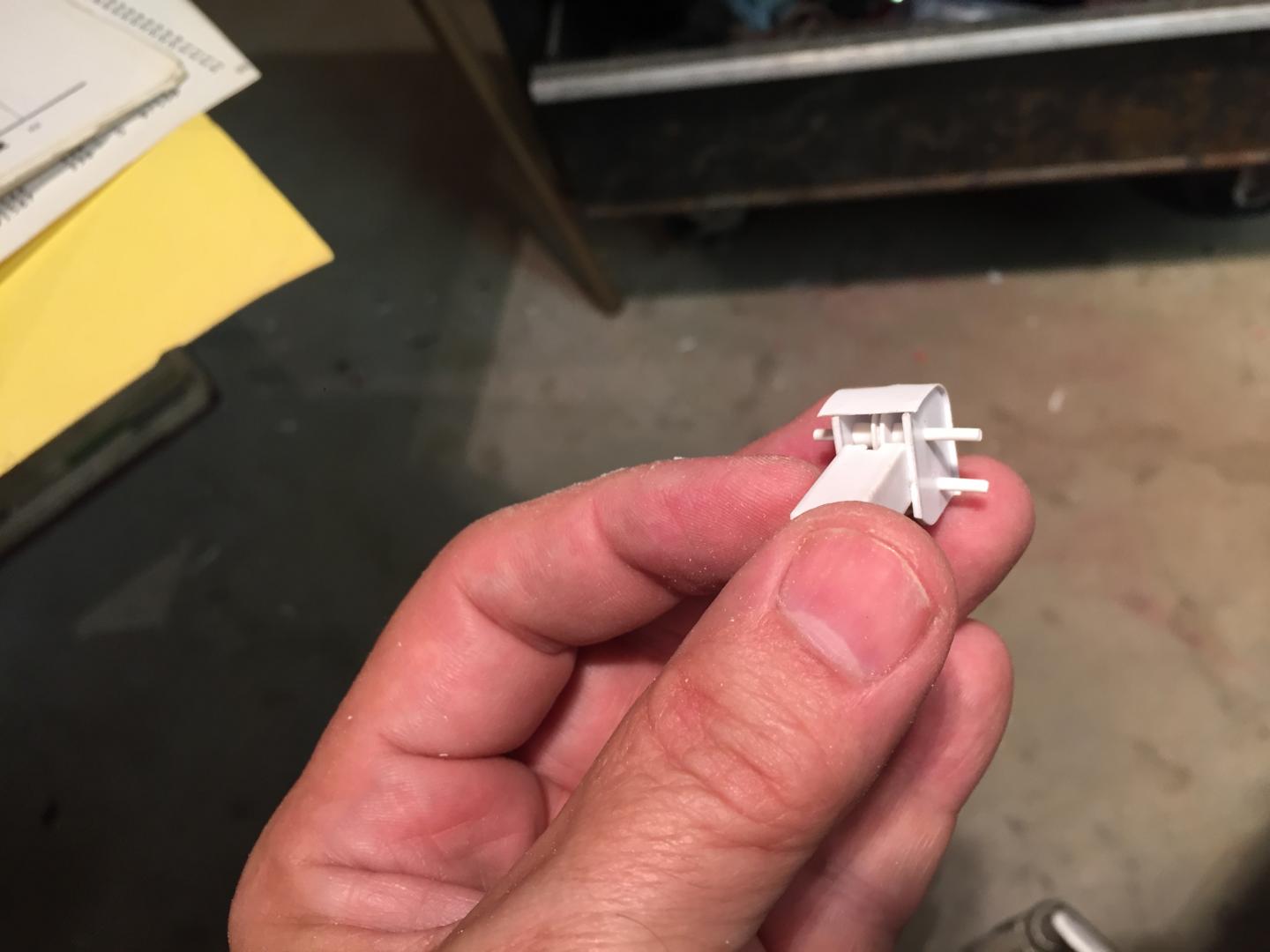

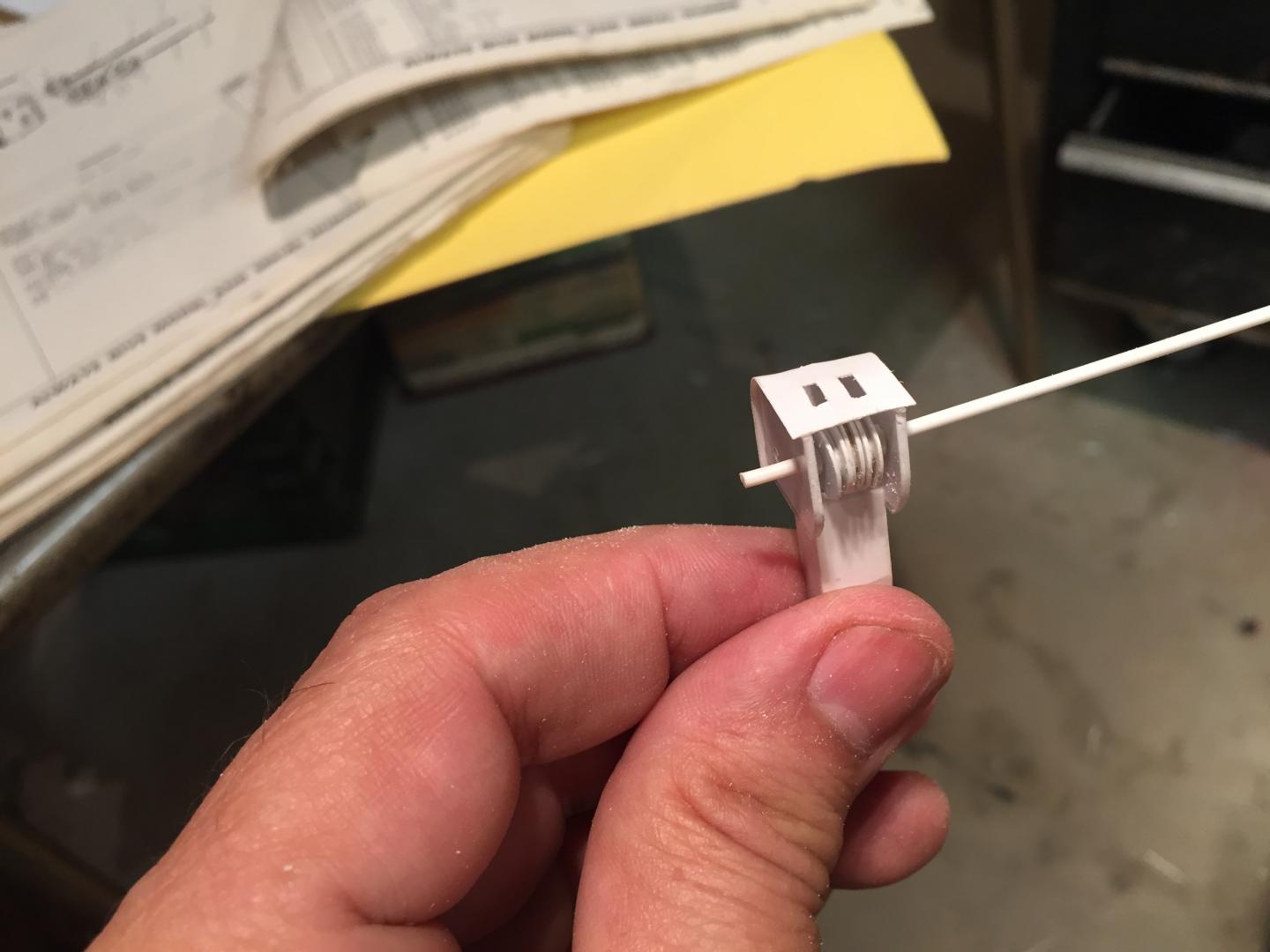

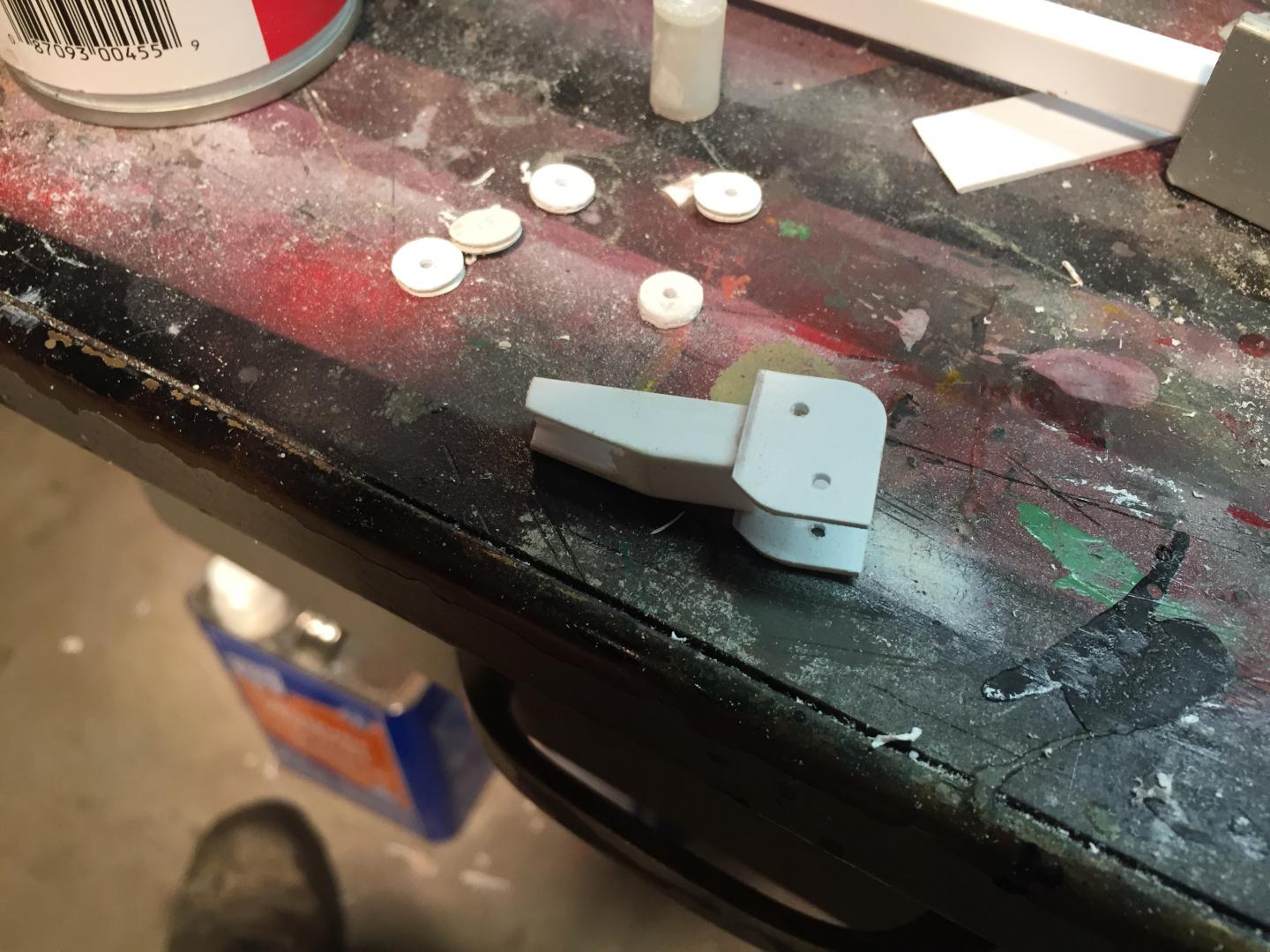

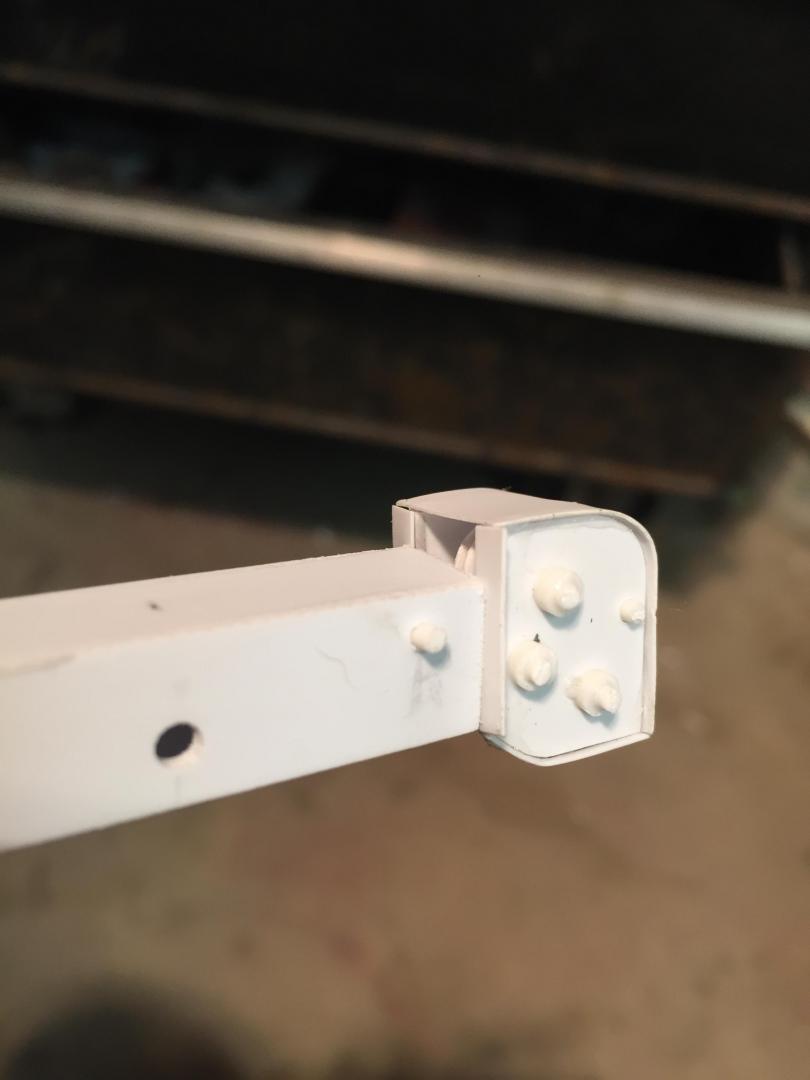

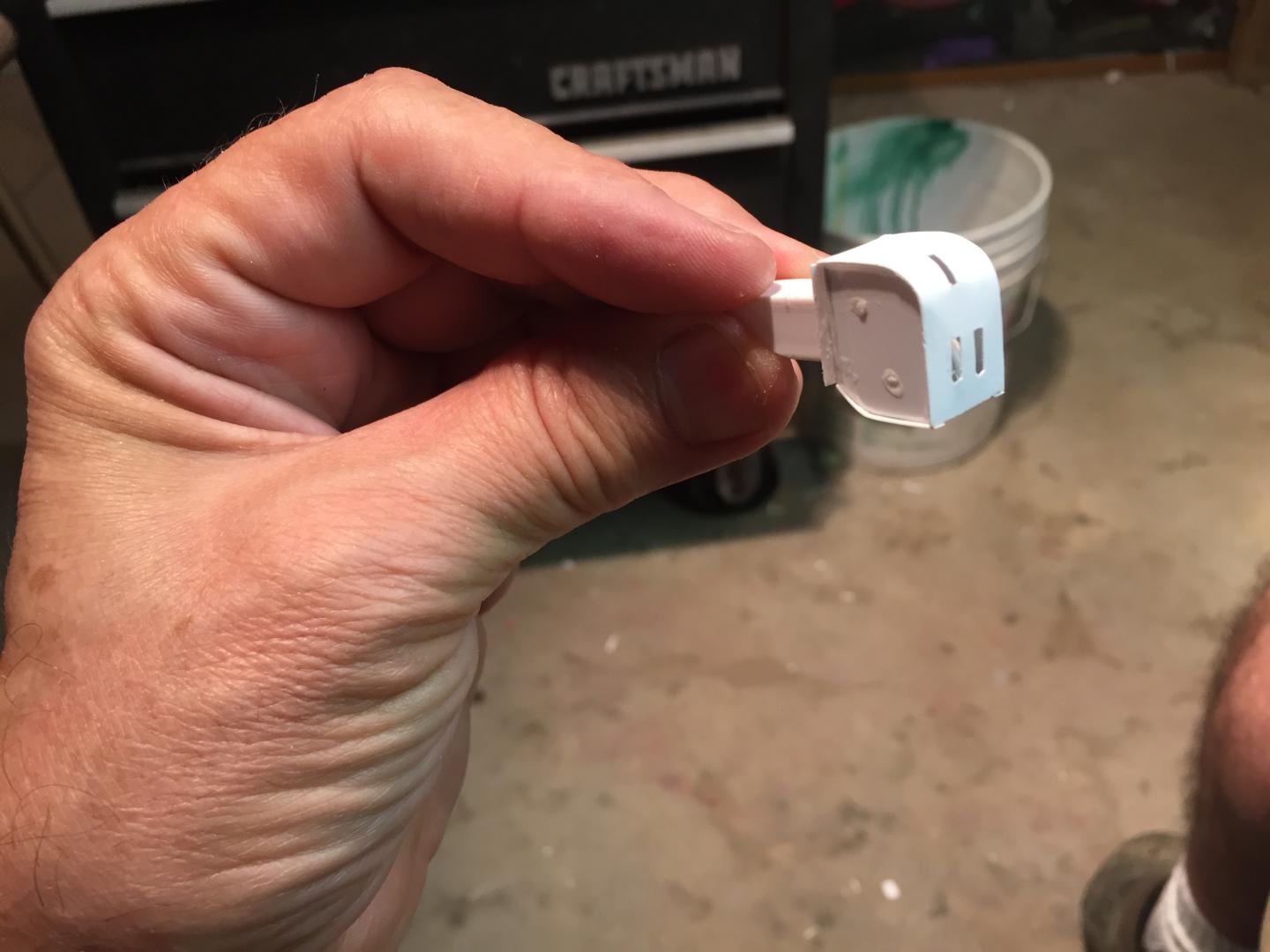

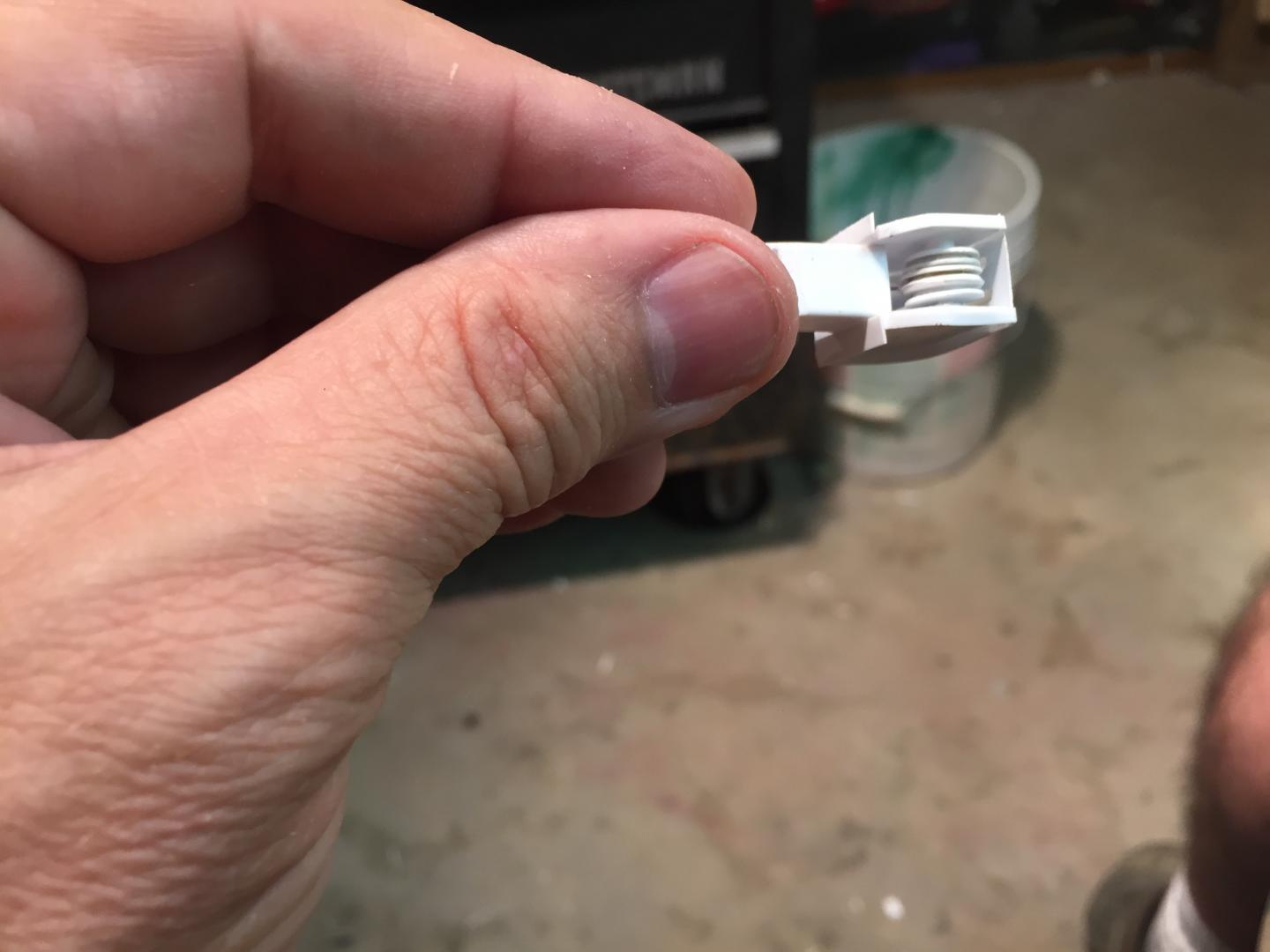

Here is the boom end block, with details from the Galion parts book.  Made my own pulleys by punching out discs, using empty cartridge cases as a punch, and gluing the discs together.  The whole thing, tiny as it is, is made up of over fifty pieces. Will add some more details to it later.

















Edited by redneckrigger

Share this post


Link to post
Share on other sites
Posted (edited)
6 hours ago, Chariots of Fire said:

Love the engineering that goes into making this model!  That is a lot of the process of scratch building; working through the "how to's" before setting glue to plastic.  It is also a lot of the fun, figuring out just how it will be done so it looks right in the end.  Great work, Tom!

Thanks for the good words Charlie! Means a lot to me! I stay awake at night thinking of the steps needed to make a tiny piece.  It's amazing how it gets into your head. I have probably 300 kits waiting to be built, but they may not........it will be a letdown after the scratch builds I've done in the past two years.....all inspired by your great work!!! Already thinking what the next build will be.....!

Edited by redneckrigger

Share this post


Link to post
Share on other sites

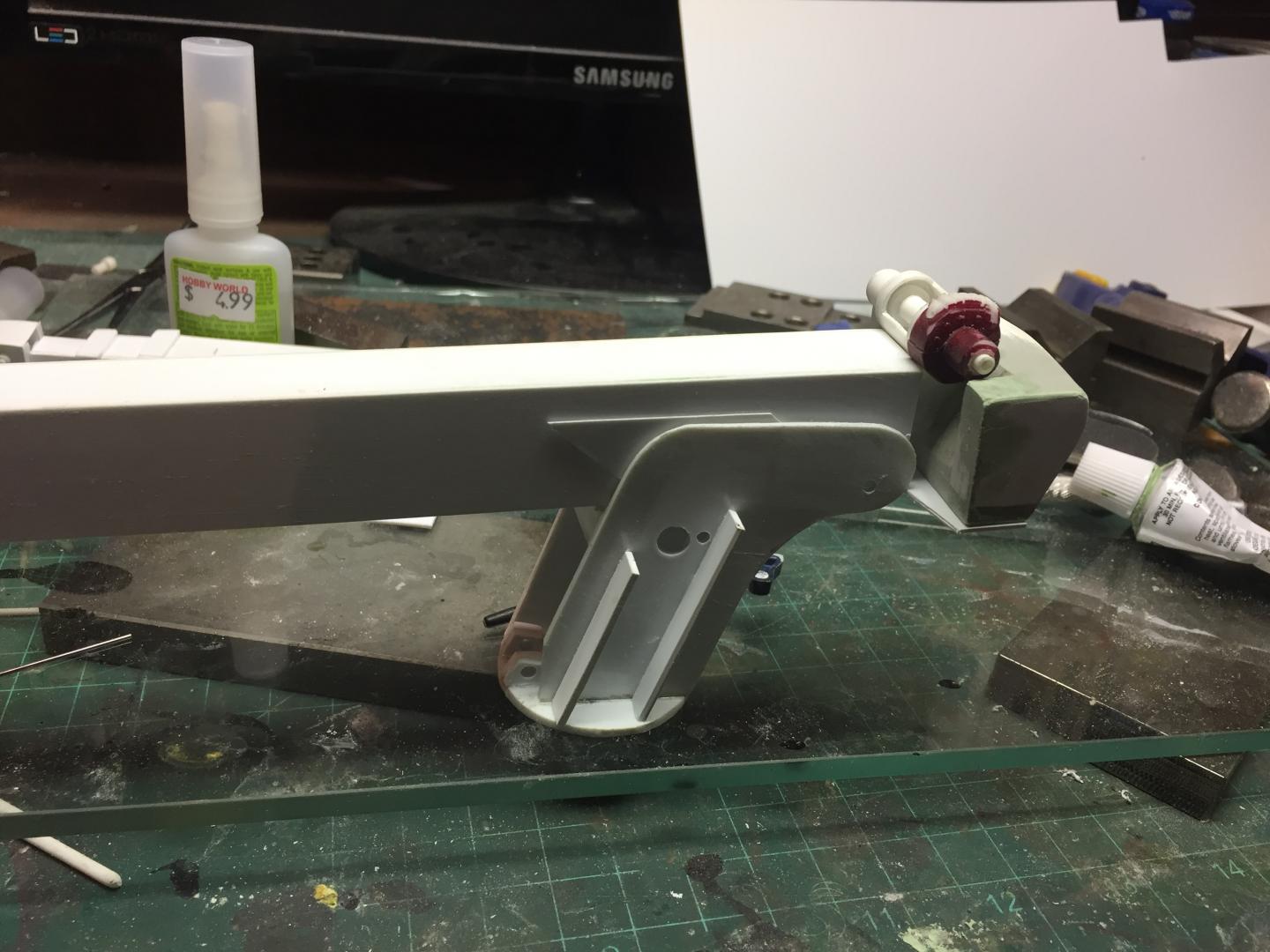

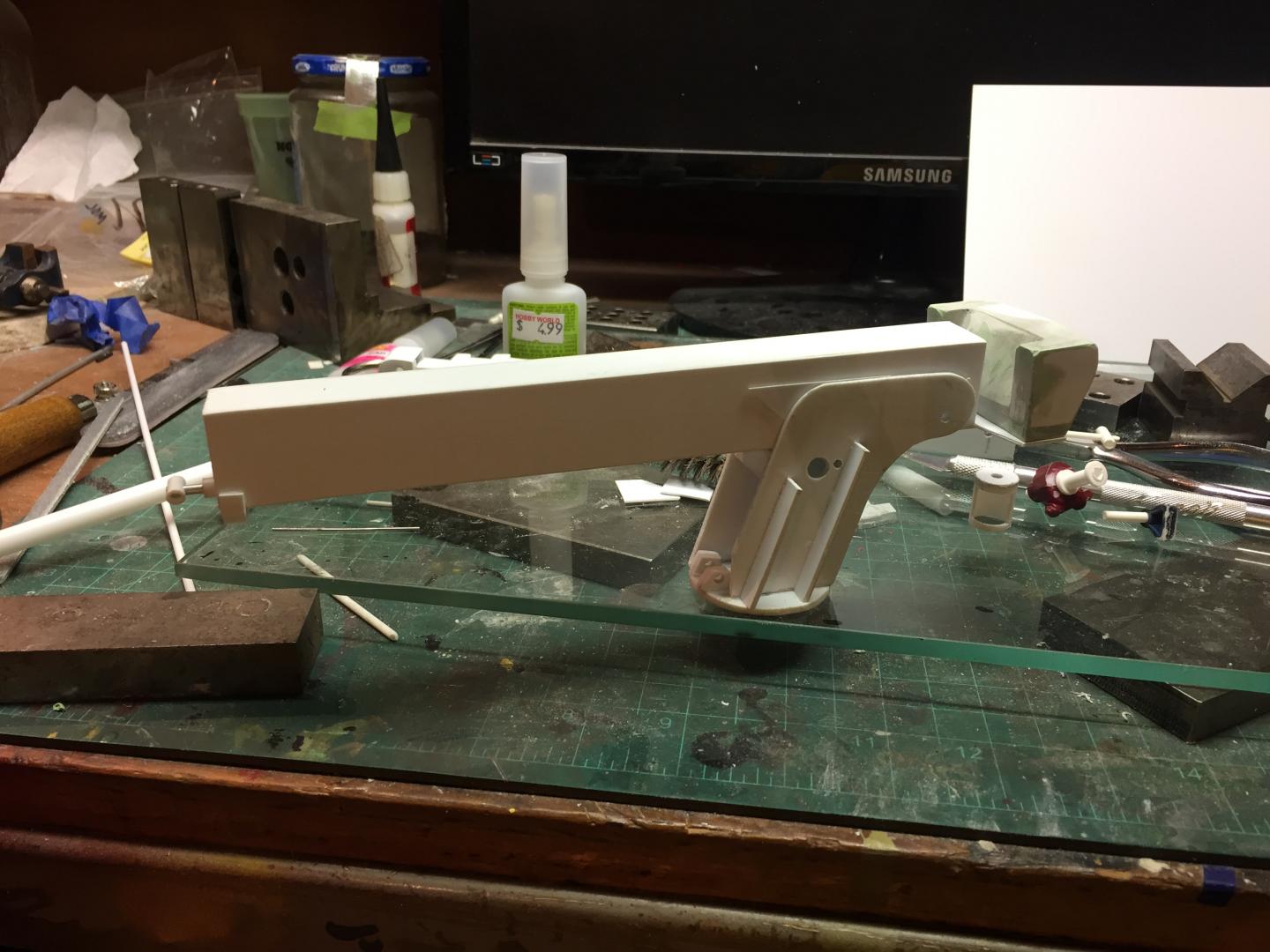

Here's the assembled boom with all hydraulic cylinders, boom end block and boom extension rollers installed.  Charlie, you're right......this IS fun!!!




Share this post


Link to post
Share on other sites

Fantastic! Coming along great!

Share this post


Link to post
Share on other sites

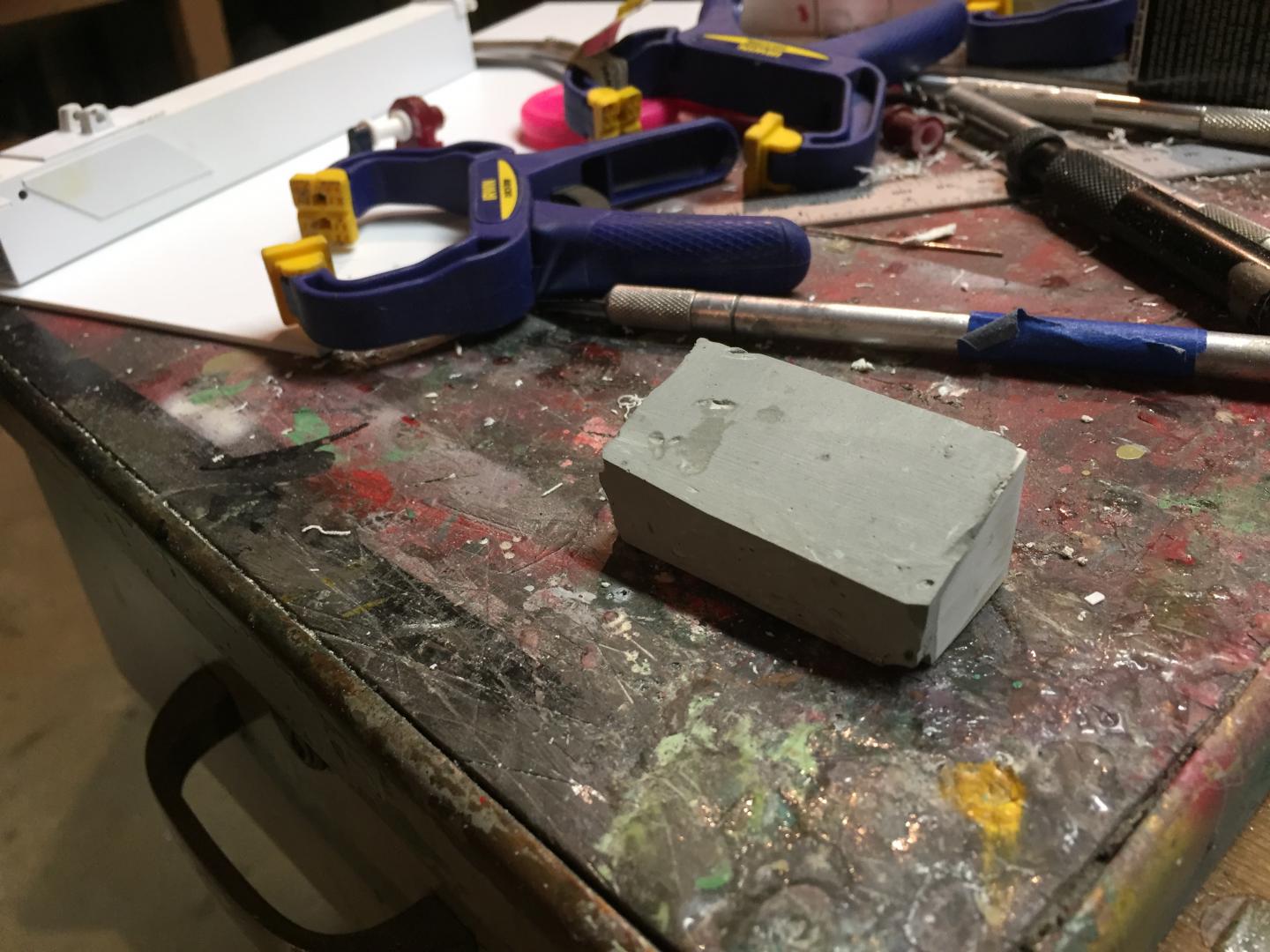

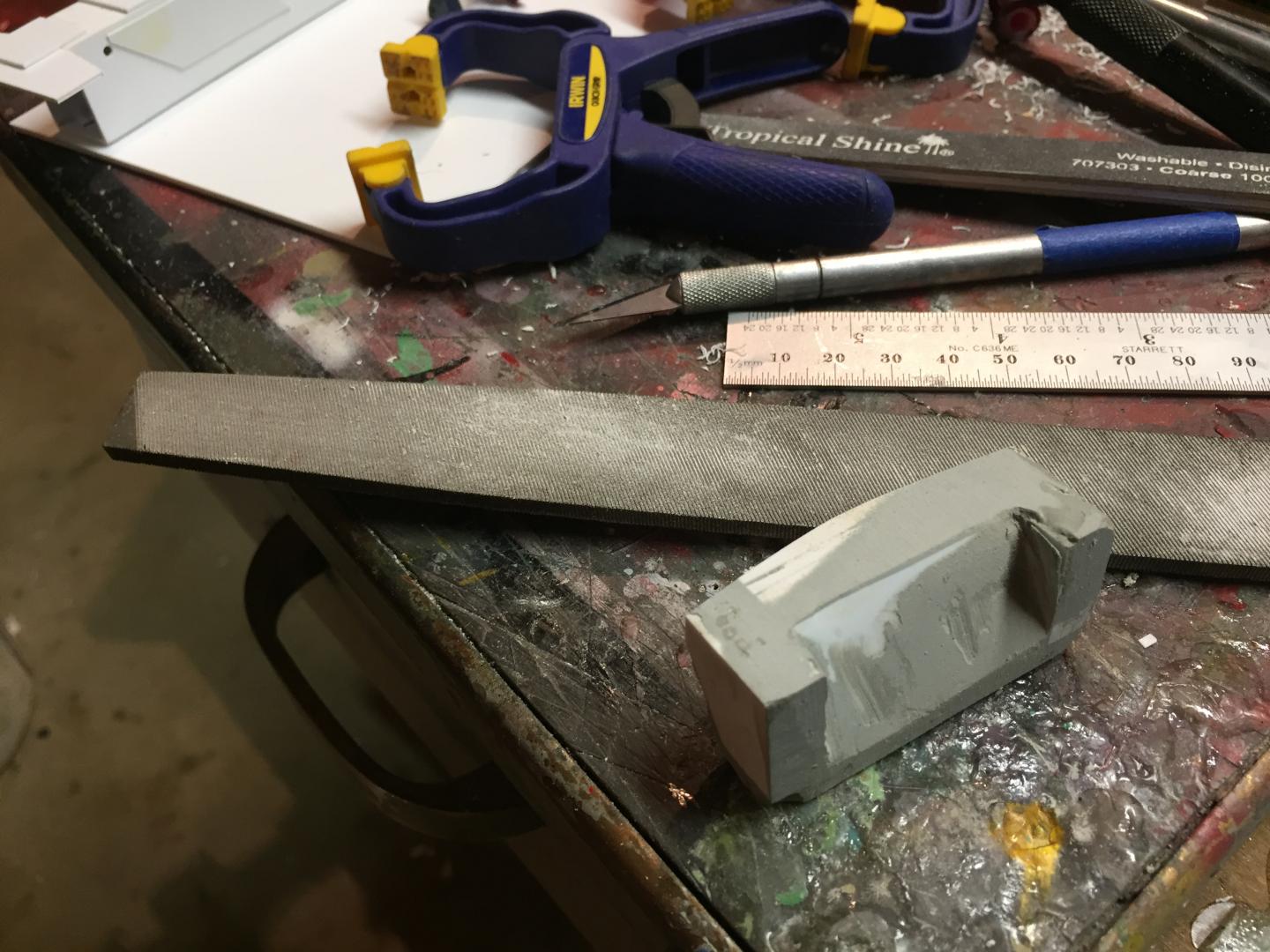

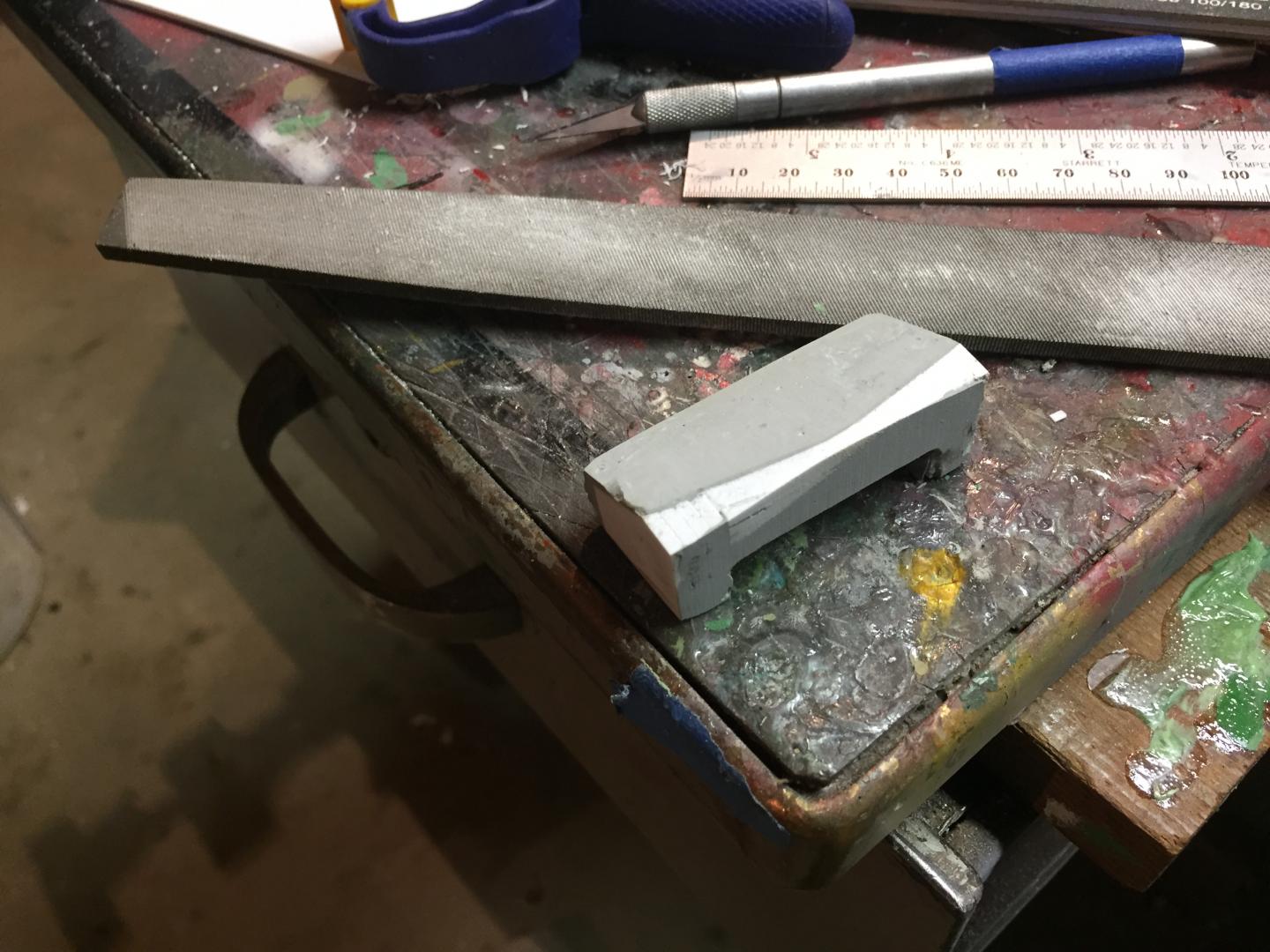

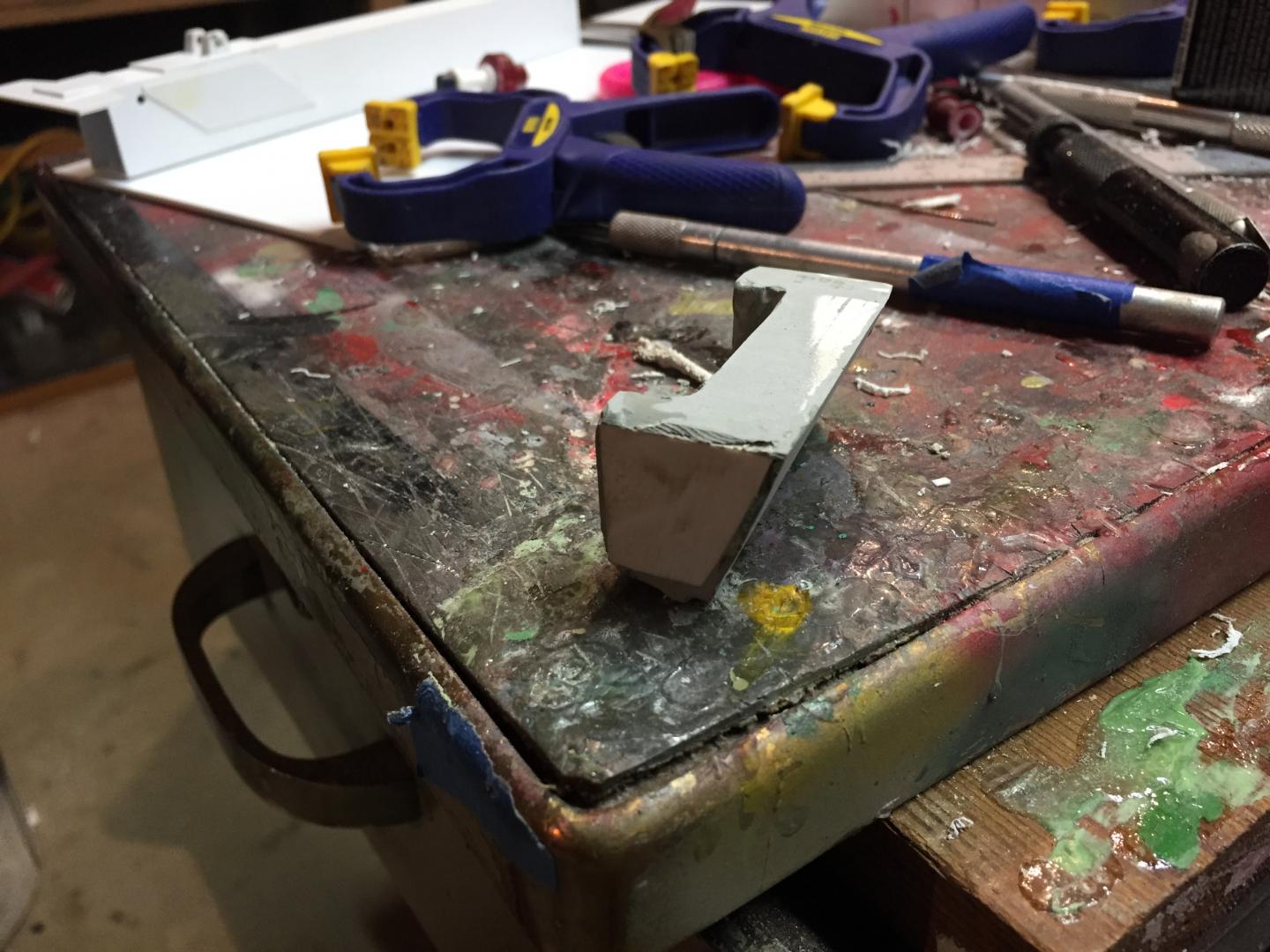

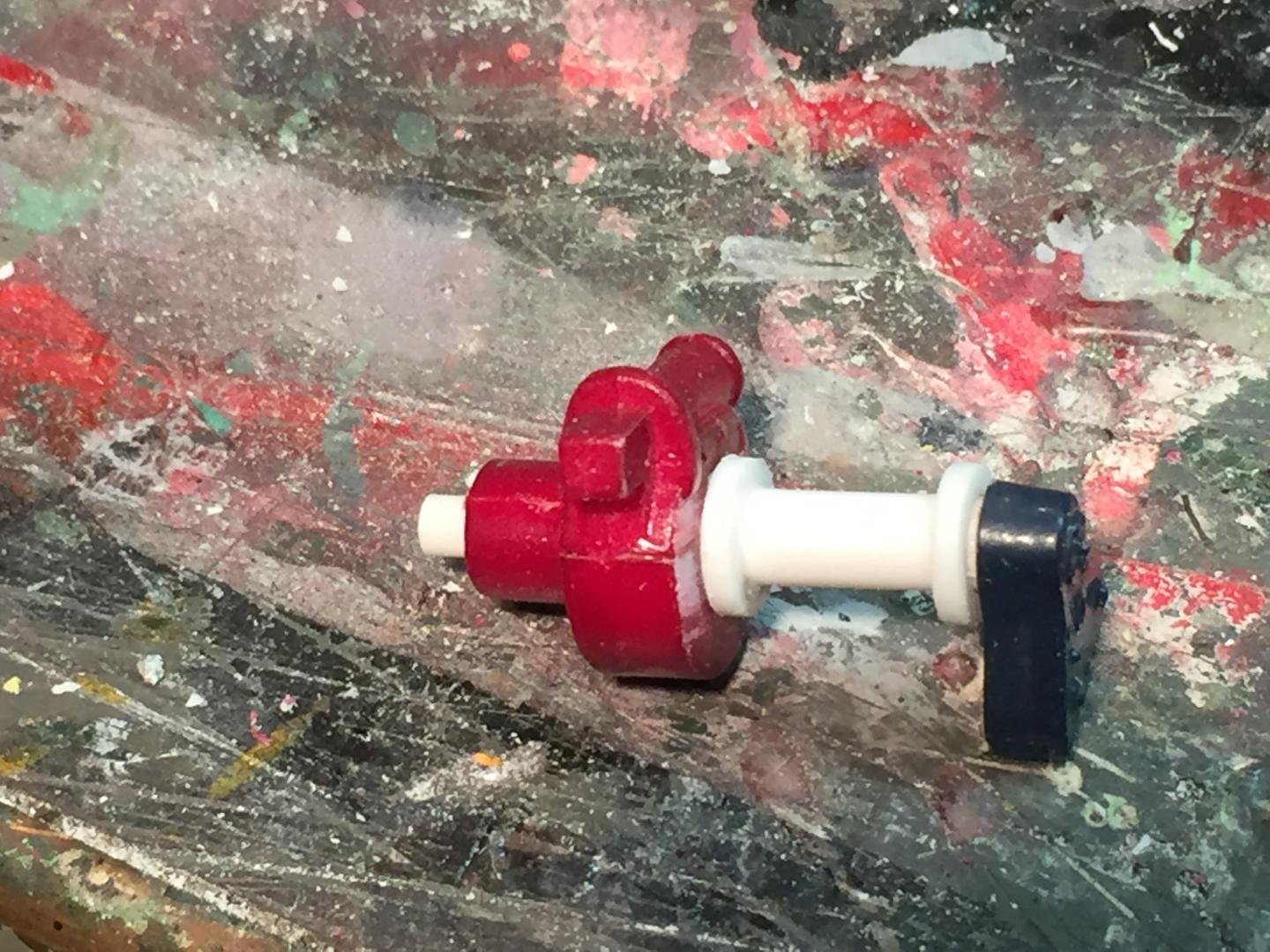

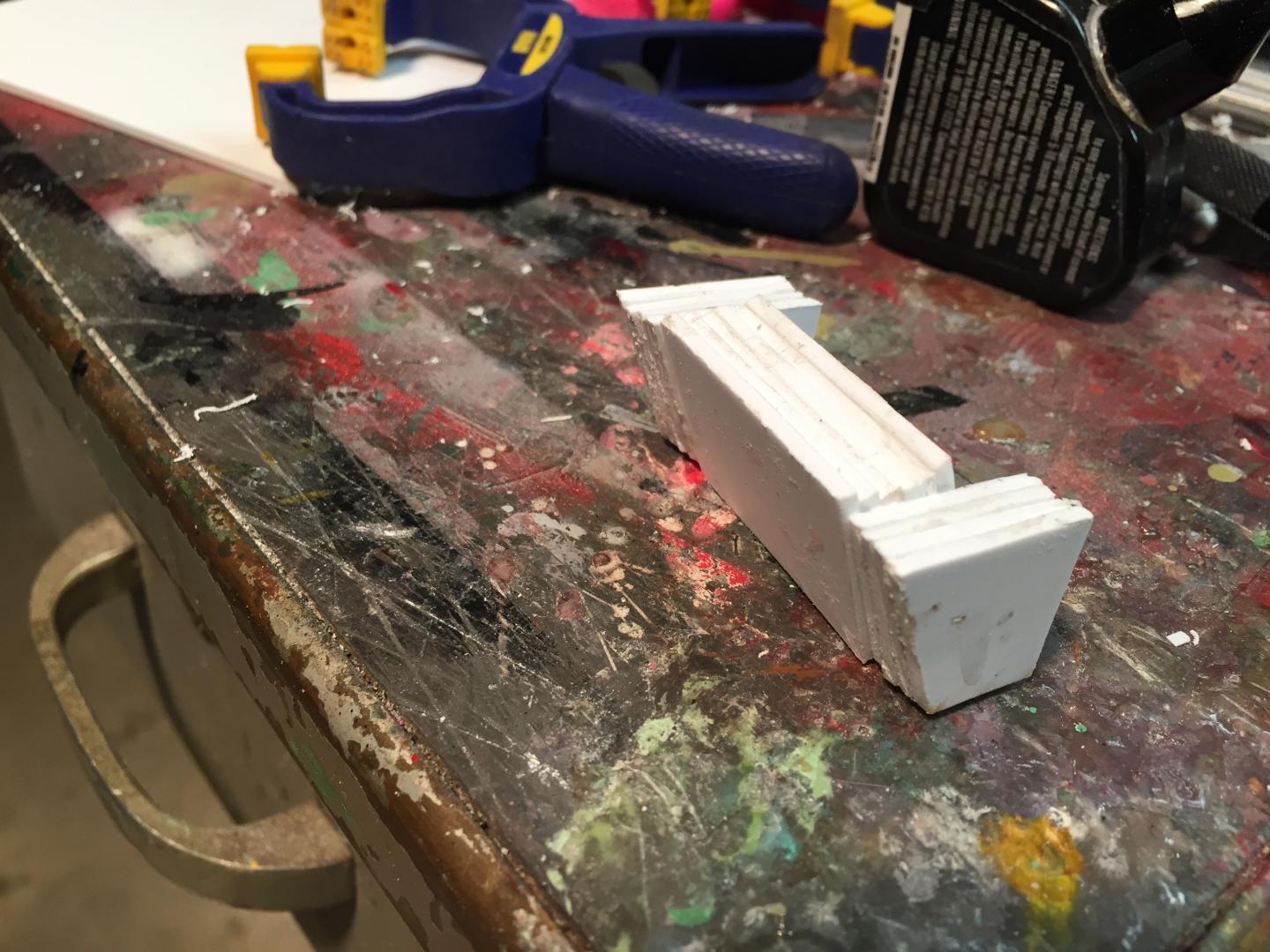

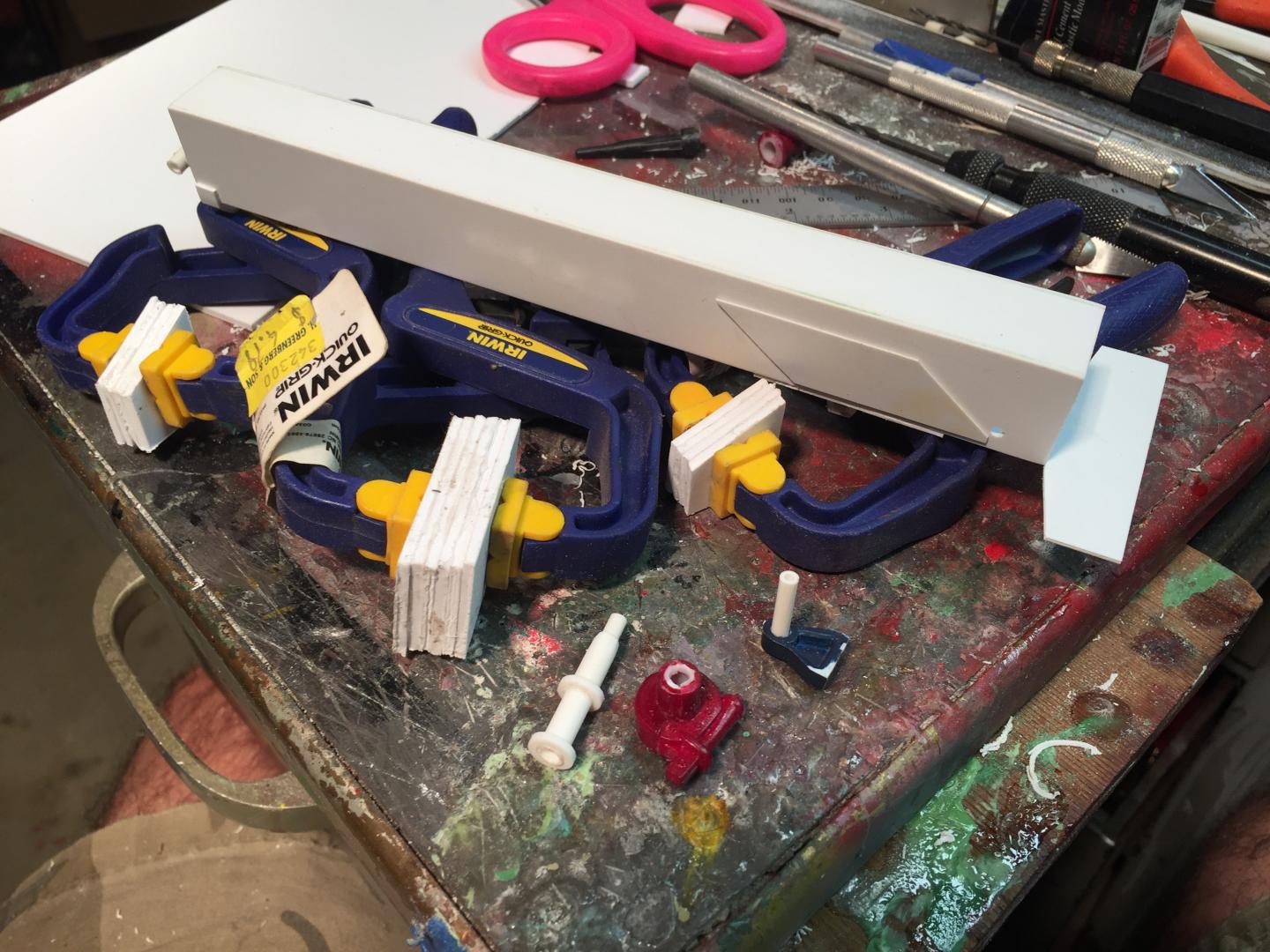

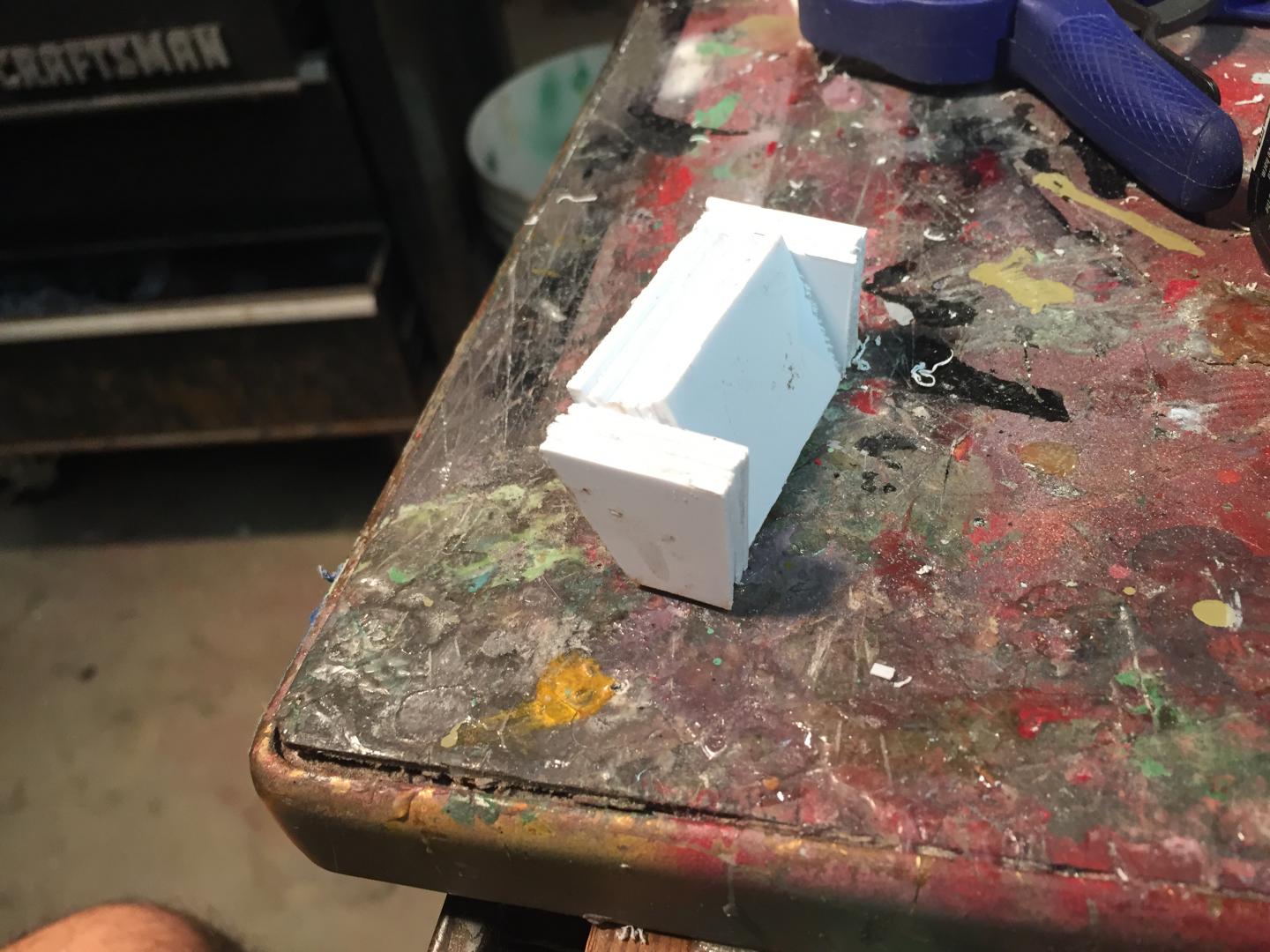

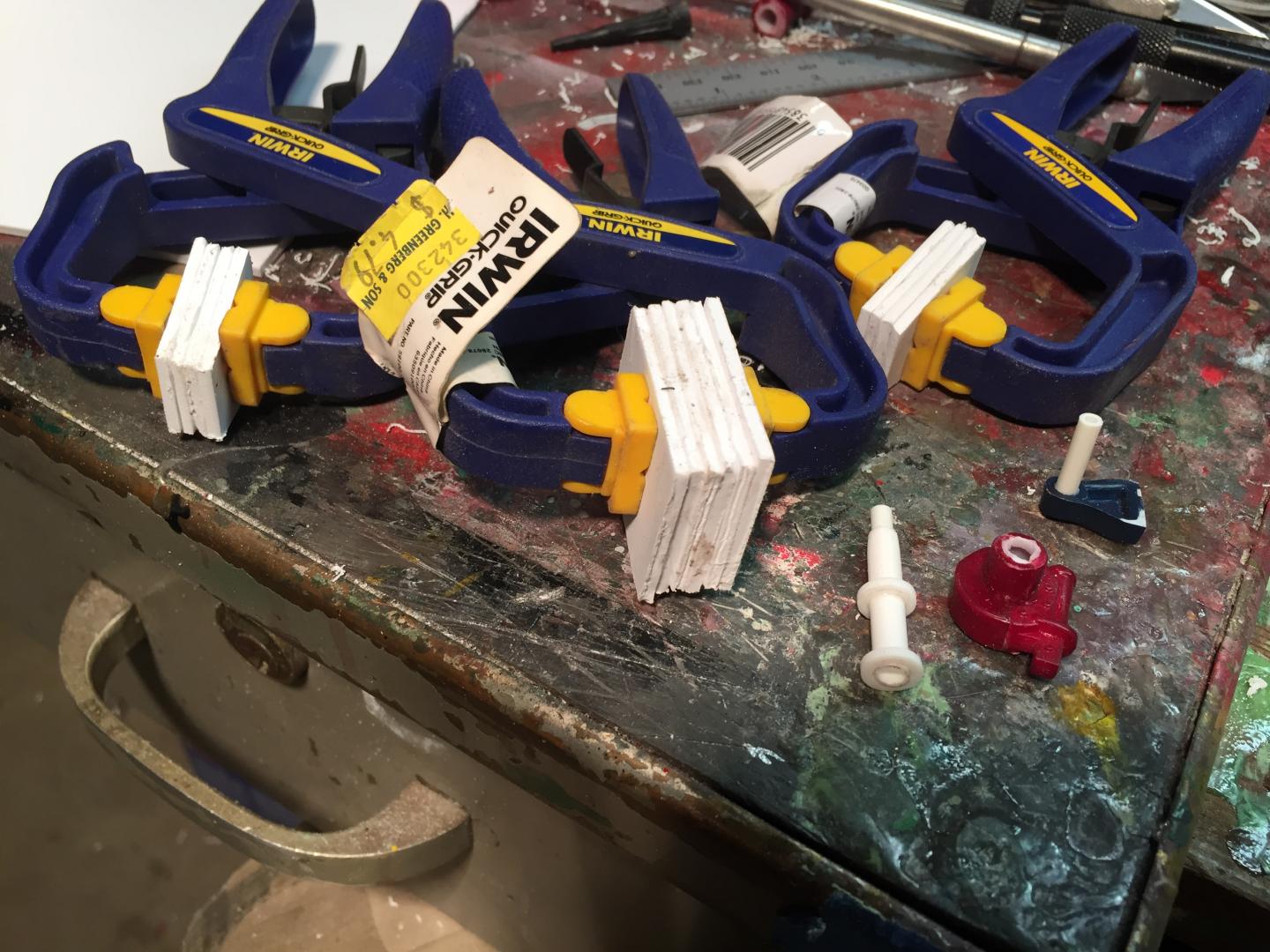

Just started the counterweight.  Since it is a very heavy casting, I started by laminating several pieces of .080 styrene together which will then all be glued together and then shaped as needed.  Also put the winch together which will have a mount made for it to mount inside the counterweight against the back of the main boom.  Seems like it's never going to end, but, for as much fun this kind of build is, that would not be a bad thing!




Share this post


Link to post
Share on other sites

Good progress,  Nice to see ALF fire truck parts being used.

greg

Share this post


Link to post
Share on other sites
10 hours ago, GLMFAA1 said:

Good progress,  Nice to see ALF fire truck parts being used.

greg

Yup, so far those parts are the only kit parts used.............and even then, only PART of the part! LOL!

Share this post


Link to post
Share on other sites

Looks like that workbench has seen a lot of building over the years!  A real testimony to long time love of the hobby!

Share this post


Link to post
Share on other sites

This has been one incredible scratch build to watch. I am in awe of the skill and effort taken to build this piece of machinery! Much like watching Charlie build one of his outstanding fire trucks, this is one that is full of learning and admiration of the passion to assemble something likely never to be kitted or duplicated!

Share this post


Link to post
Share on other sites

Excellent scratch building! Your attention to details has certainly paid off!

Share this post


Link to post
Share on other sites

True craftsmanship!

Good tip making your pulley sheeves too !

Share this post


Link to post
Share on other sites

Awesome work ! Loving this build .



Be Well

 Gator



Share this post


Link to post
Share on other sites
Posted (edited)

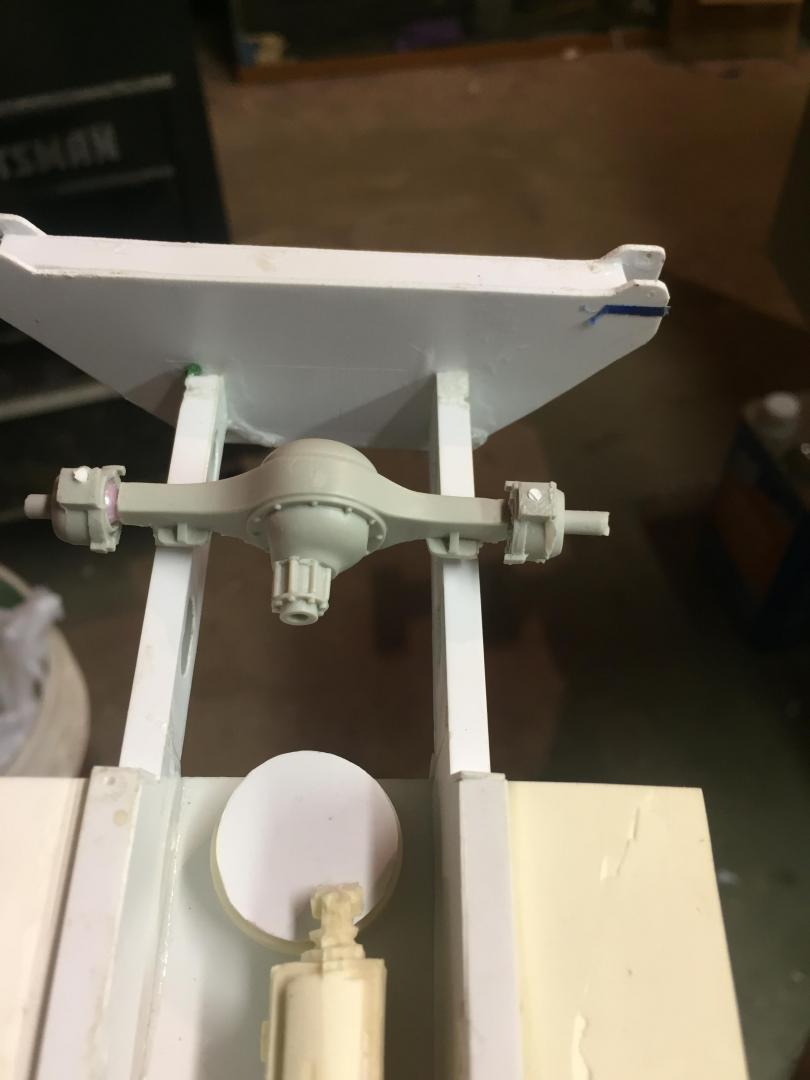

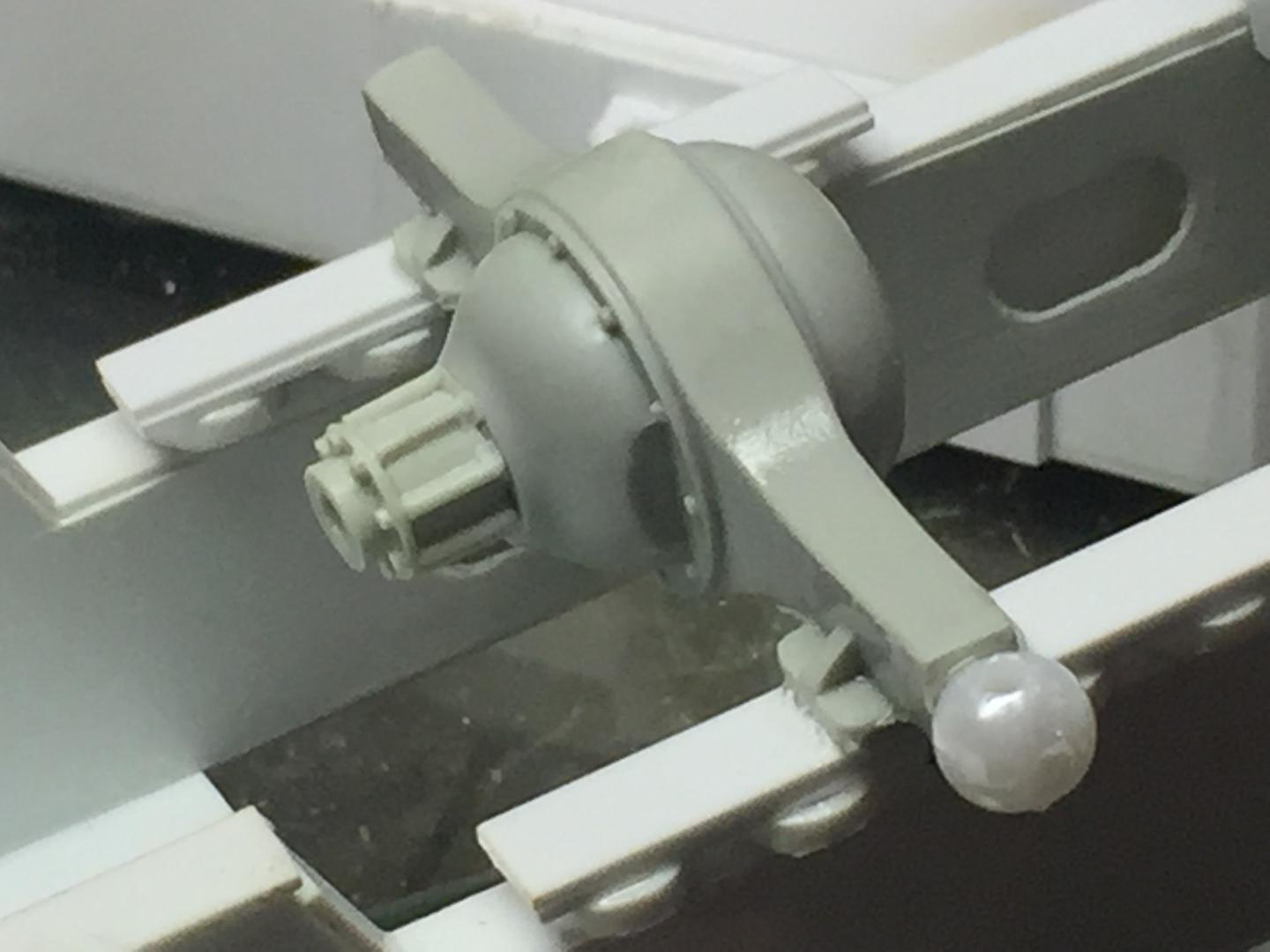

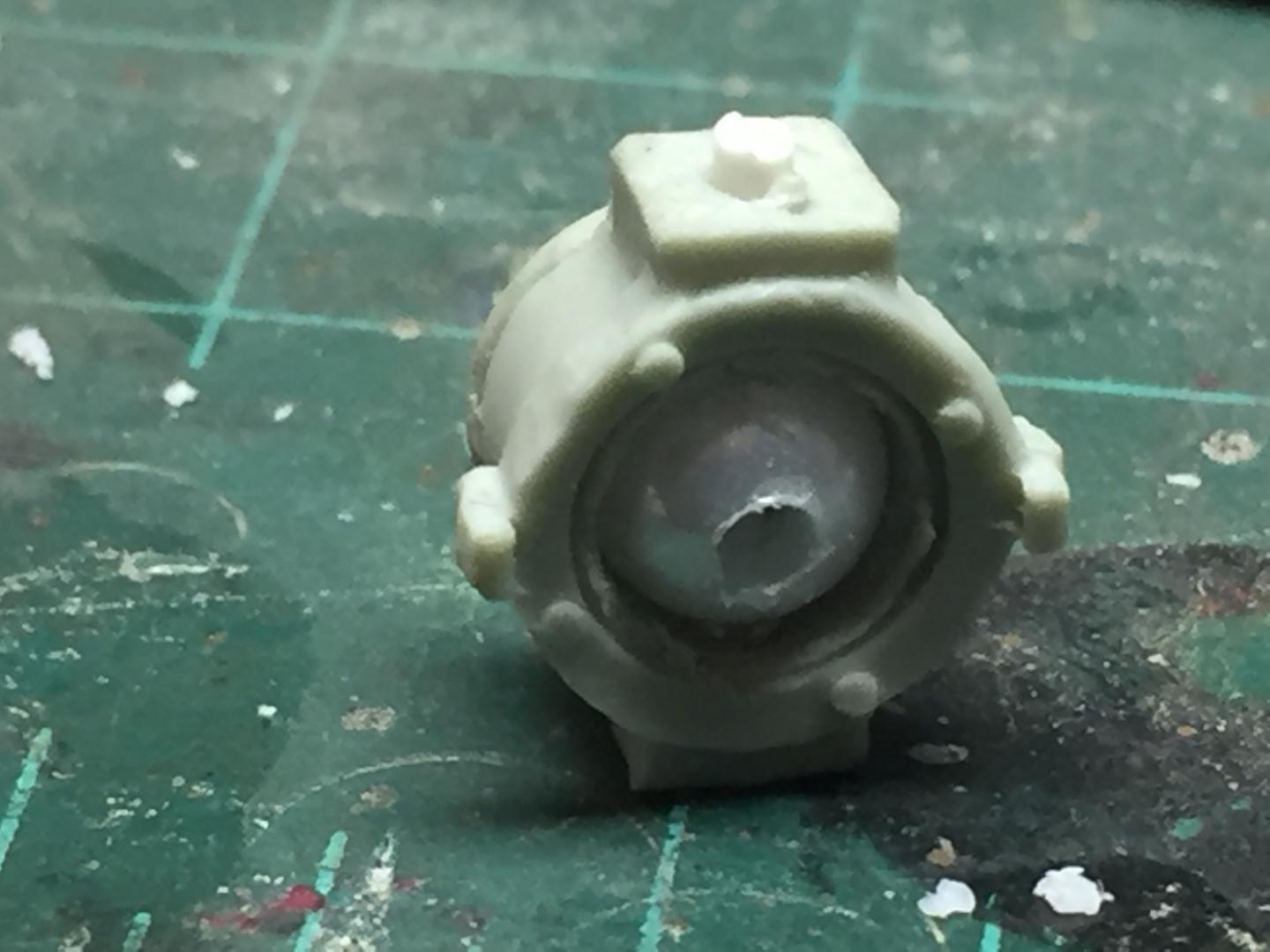

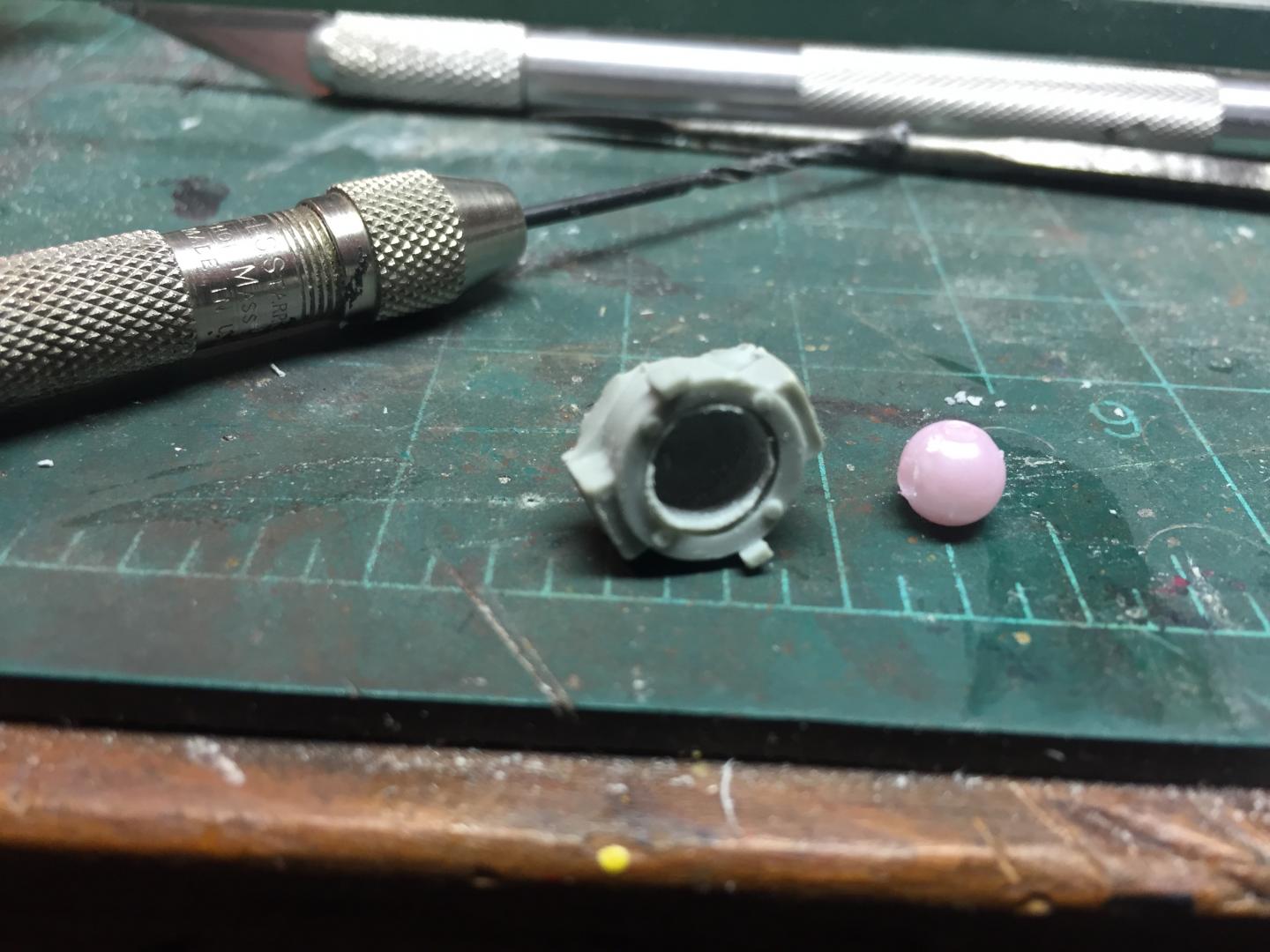

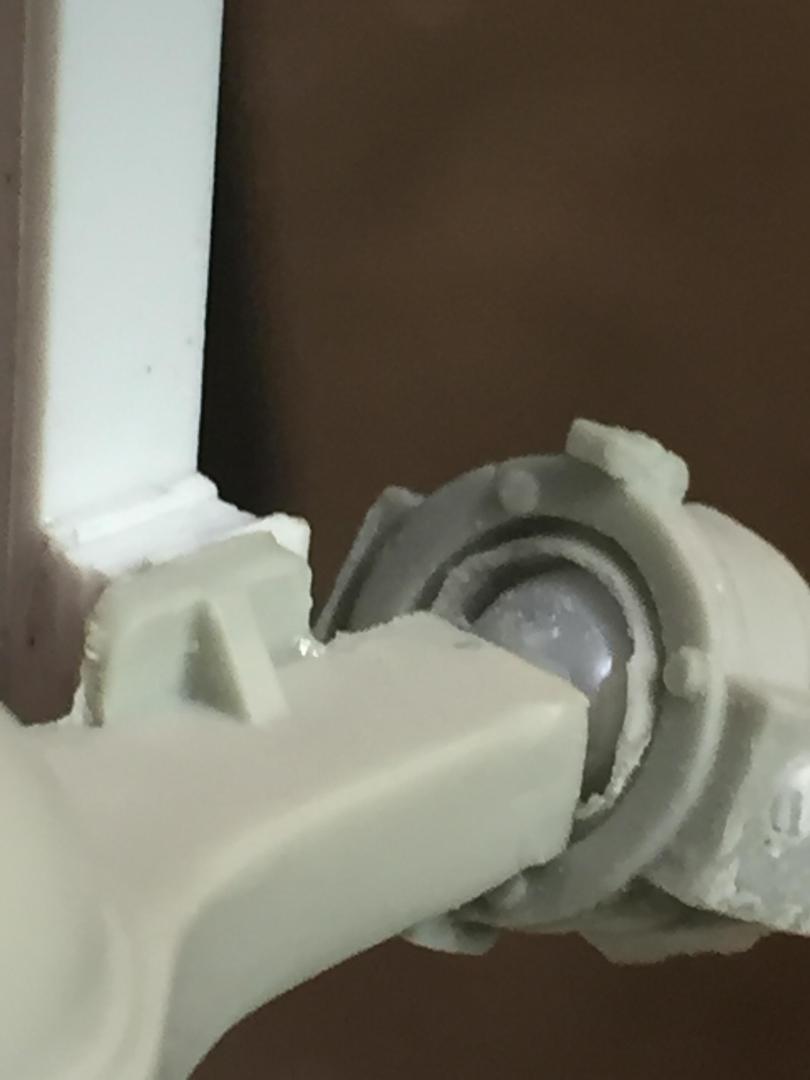

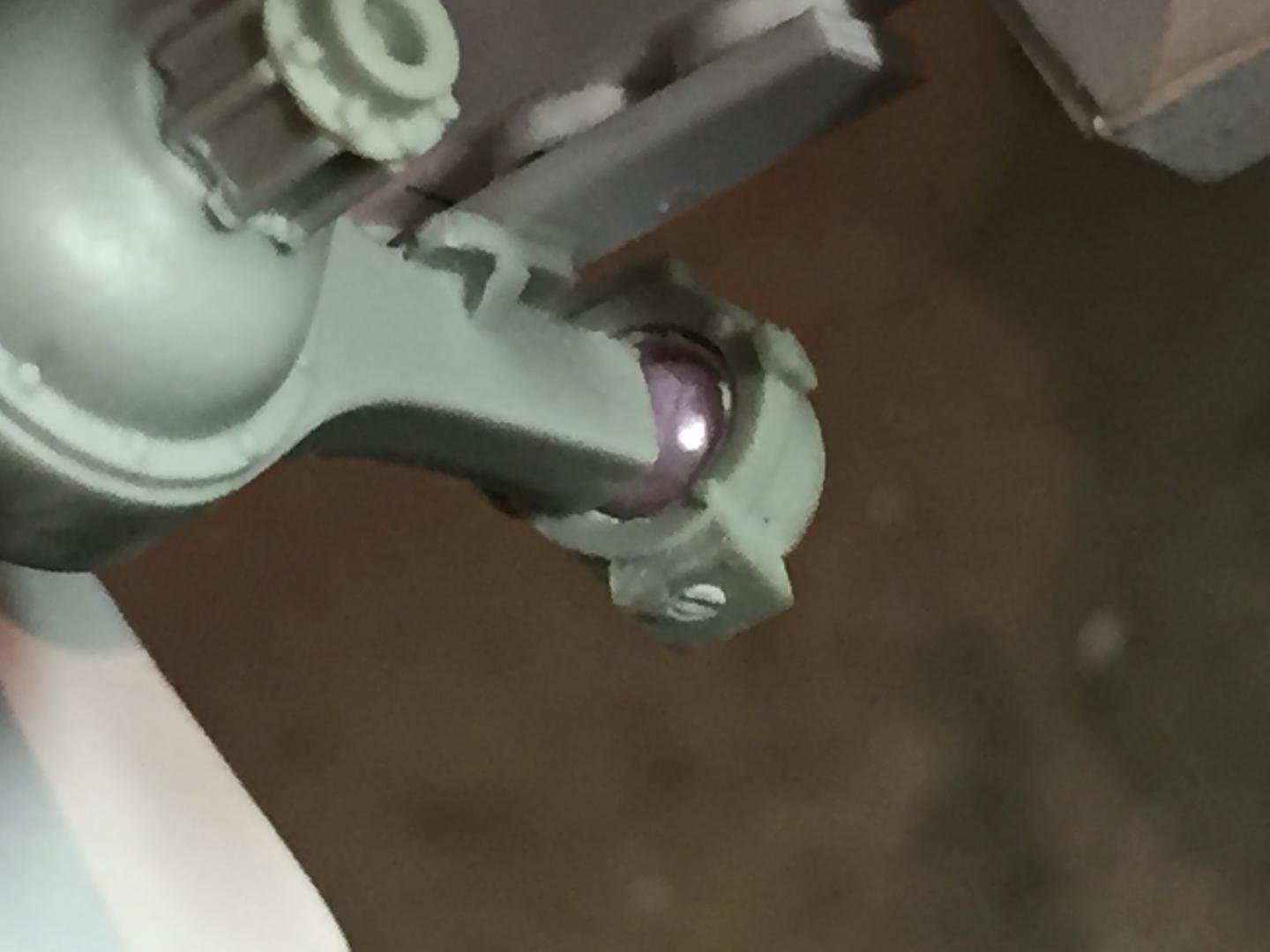

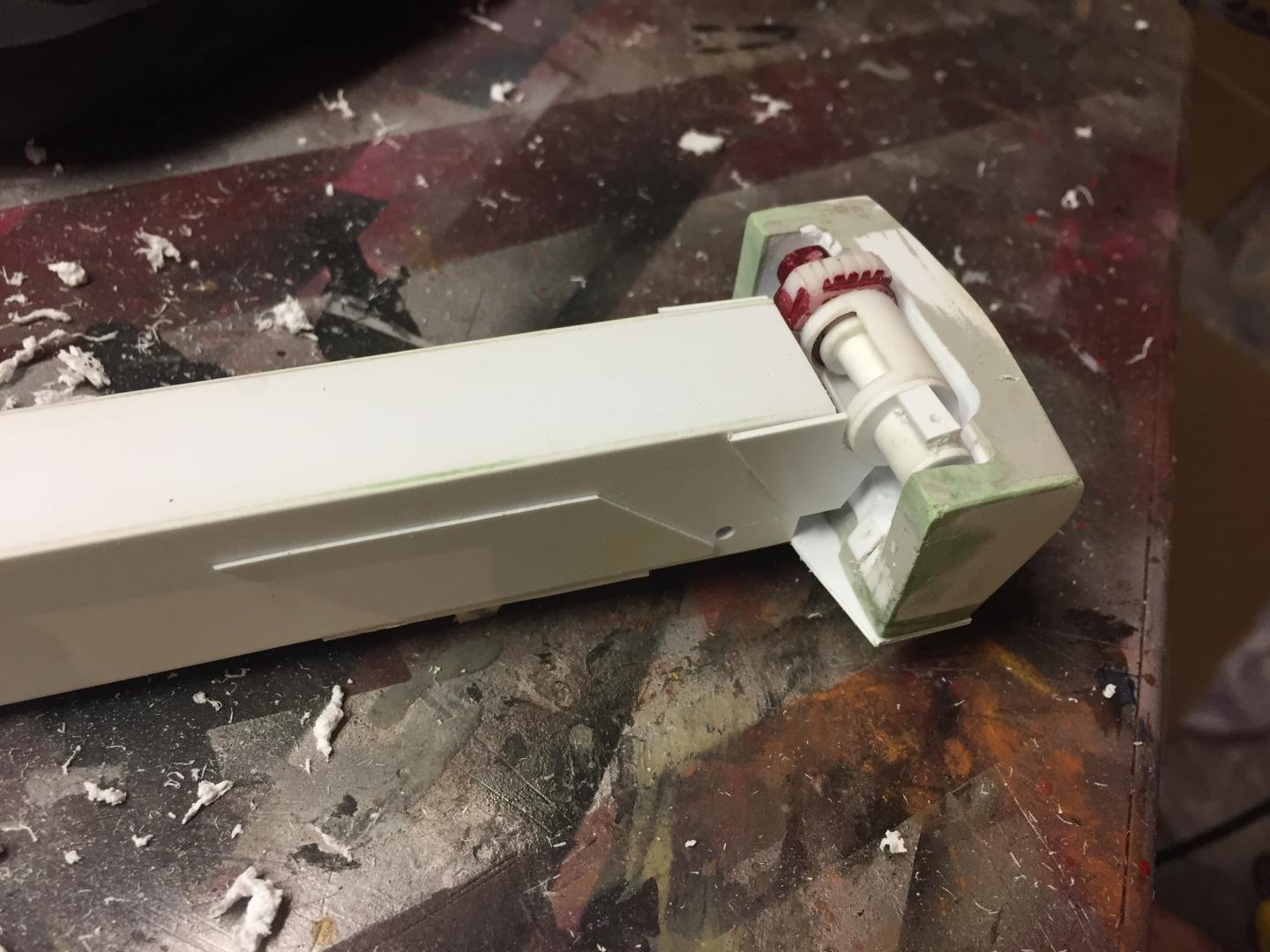

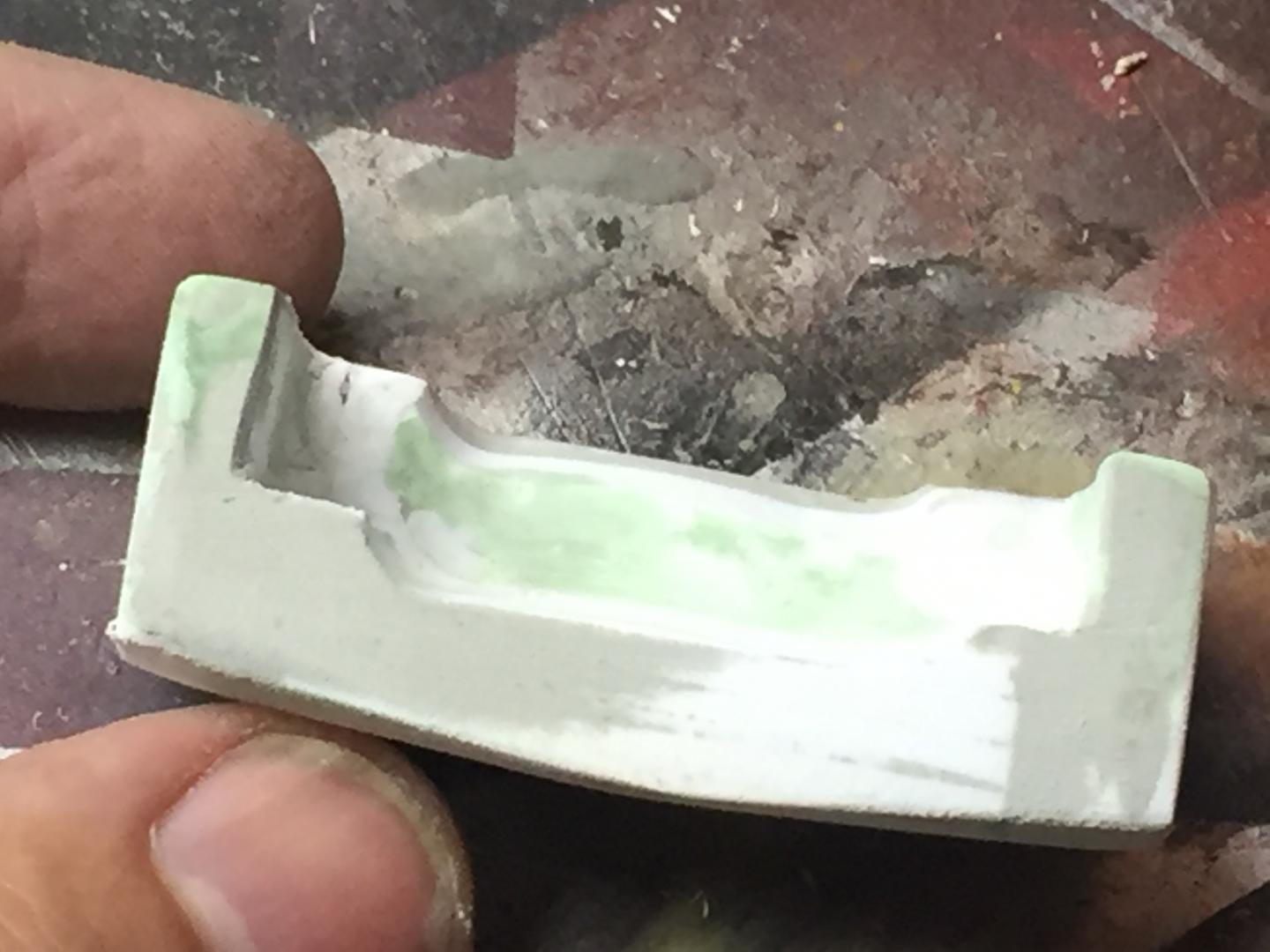

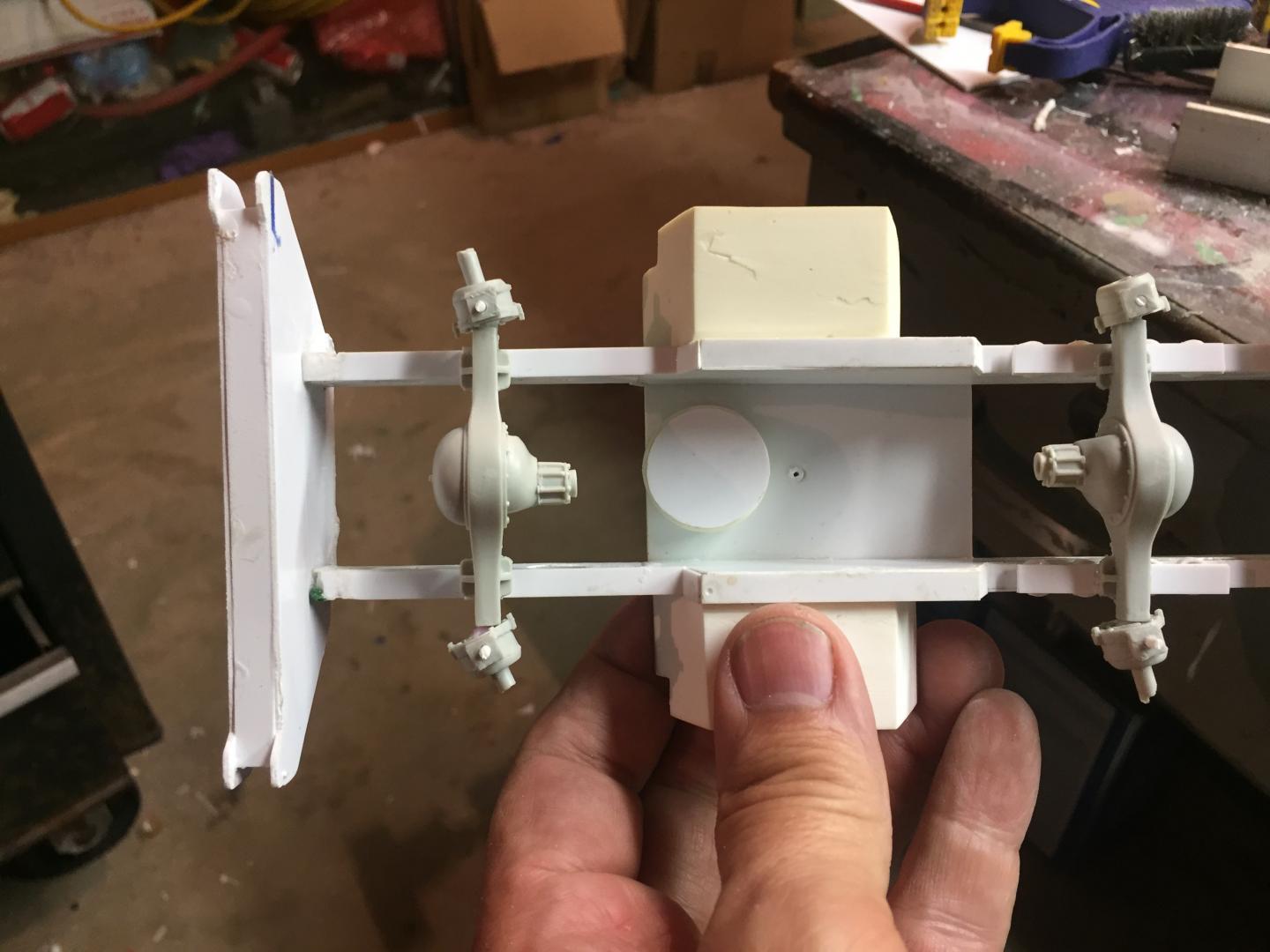

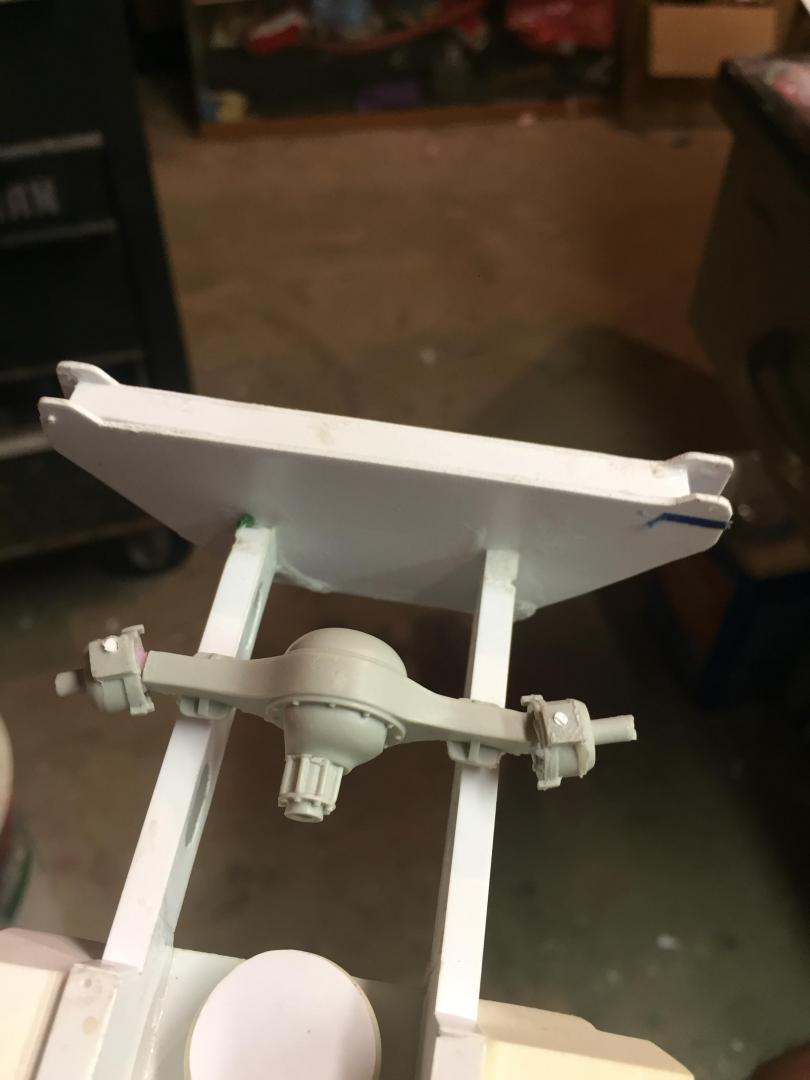

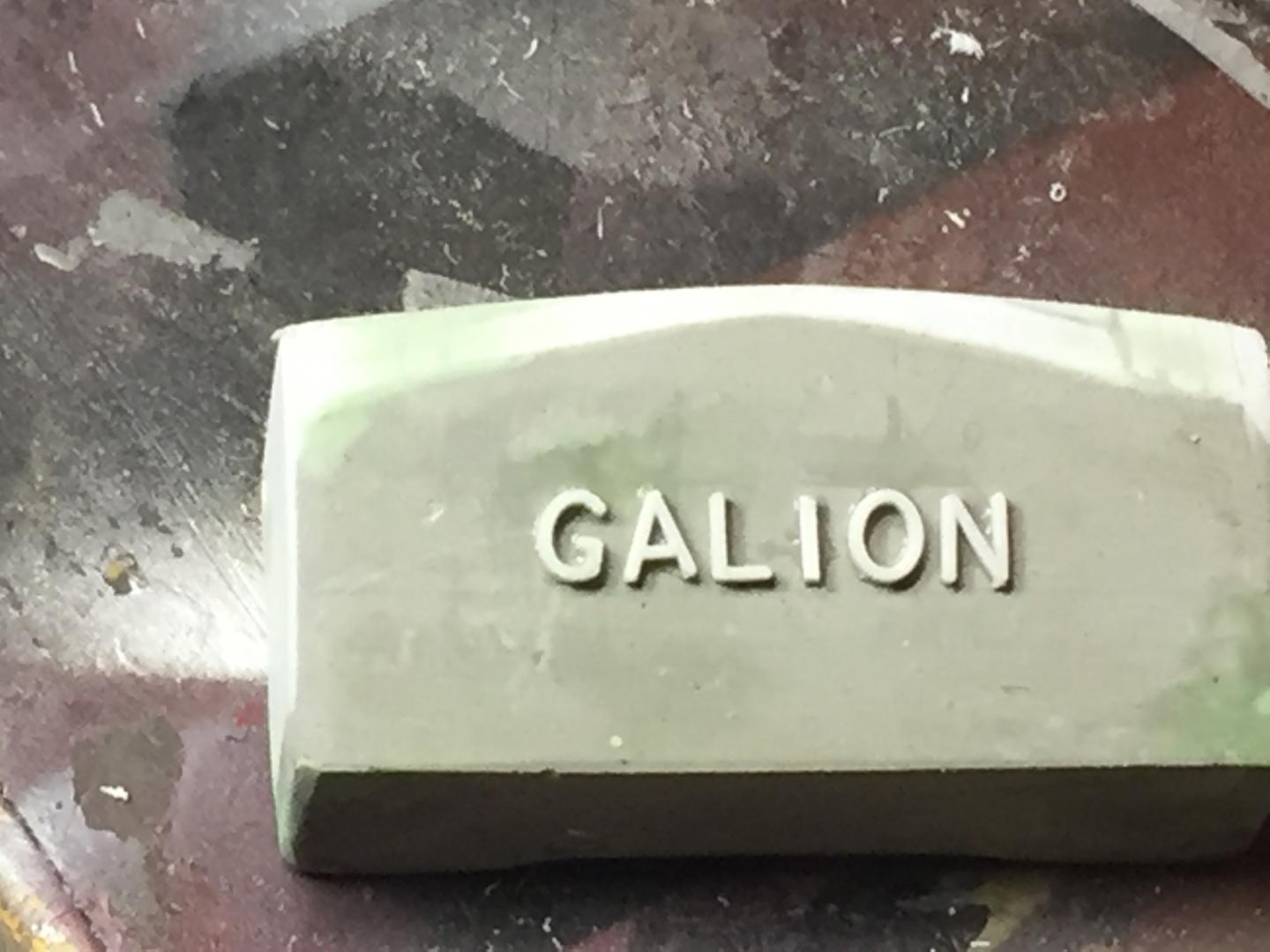

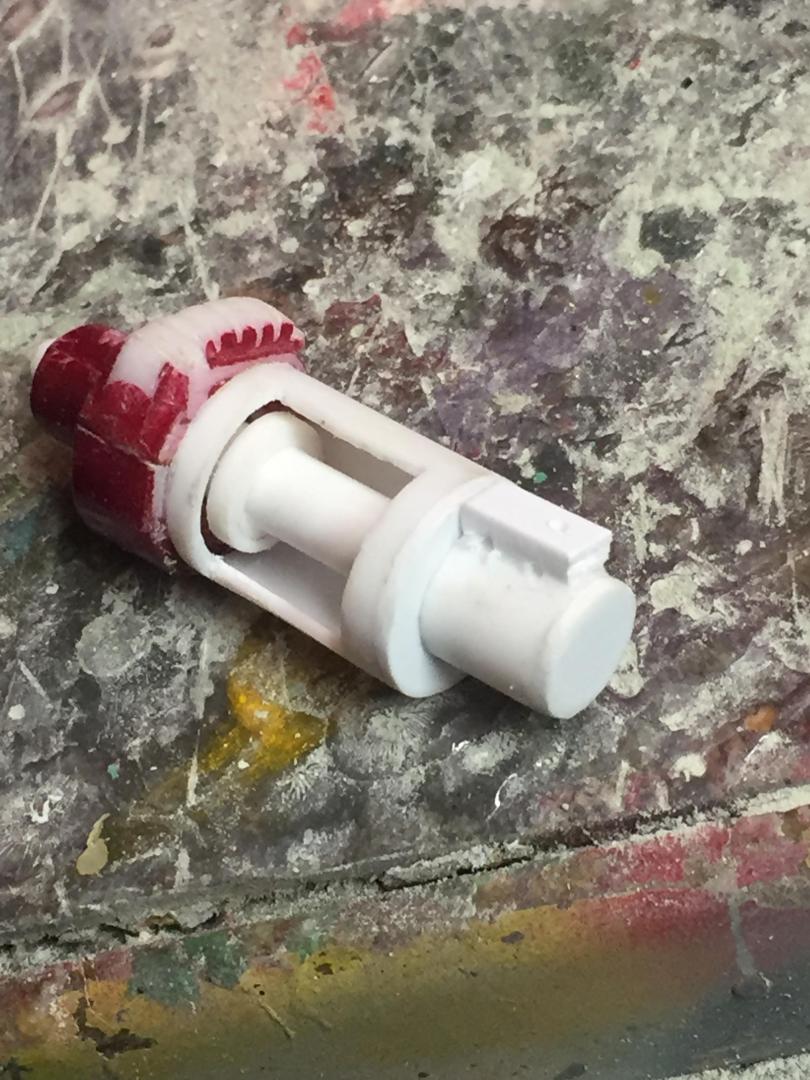

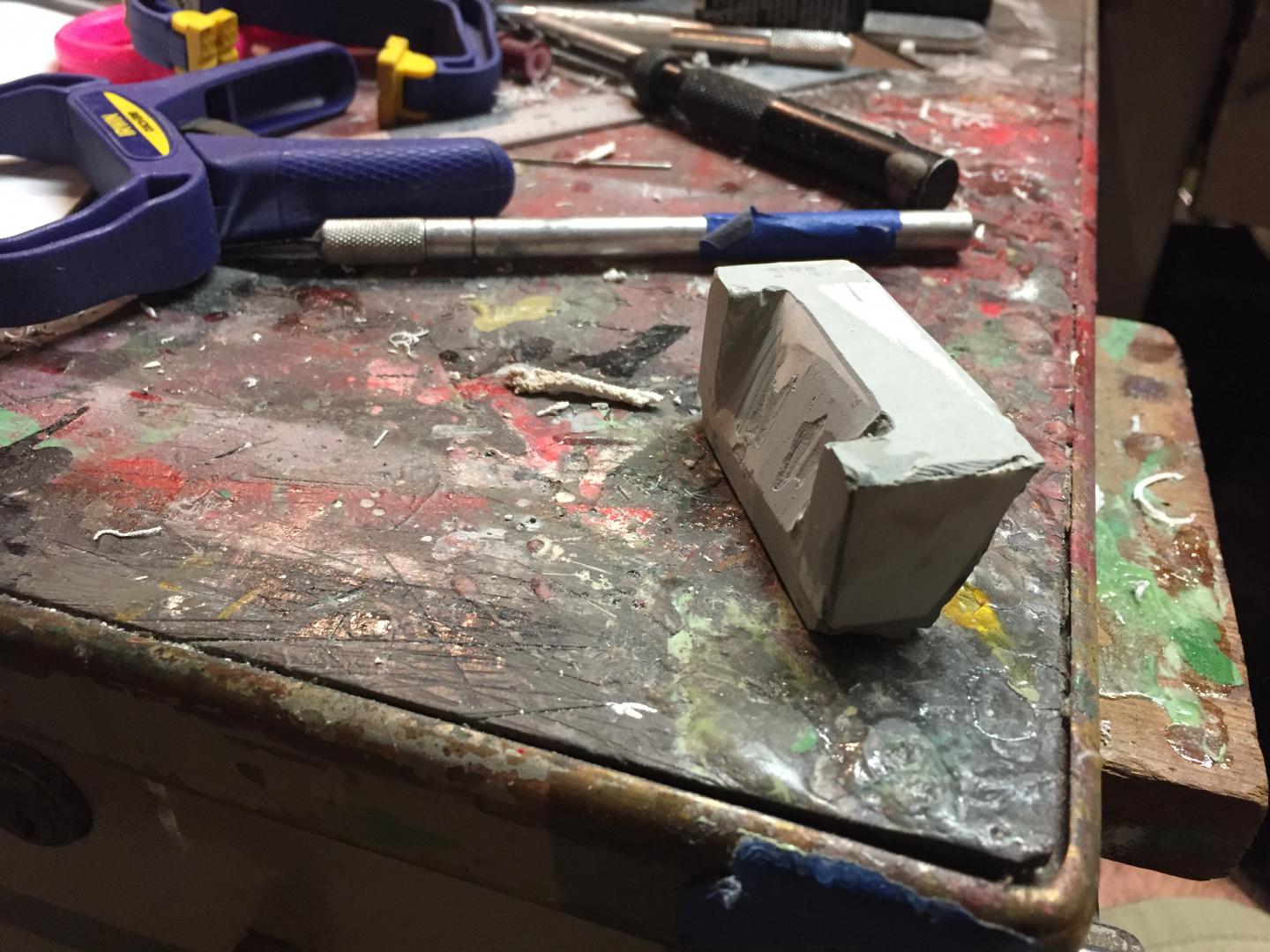

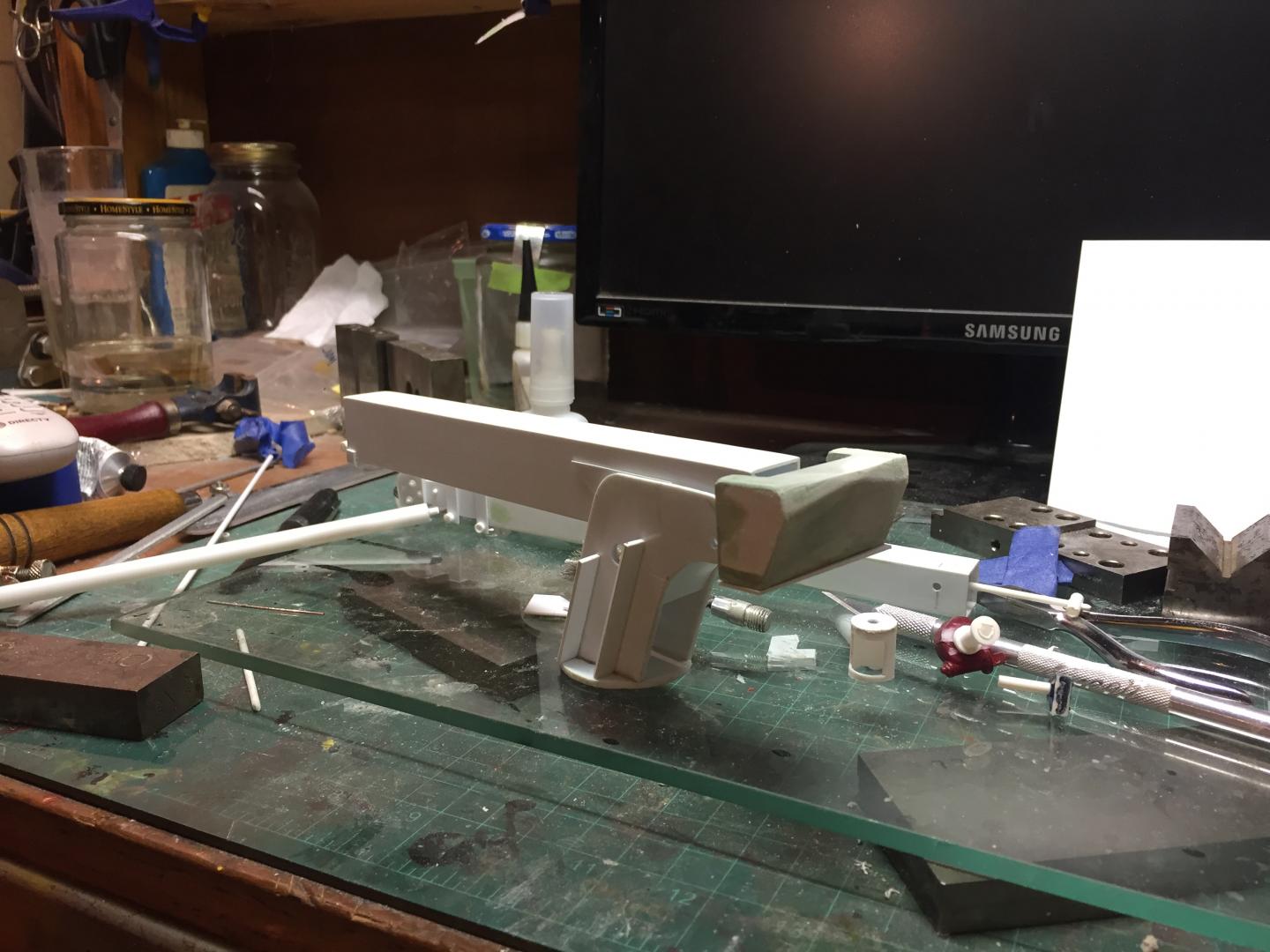

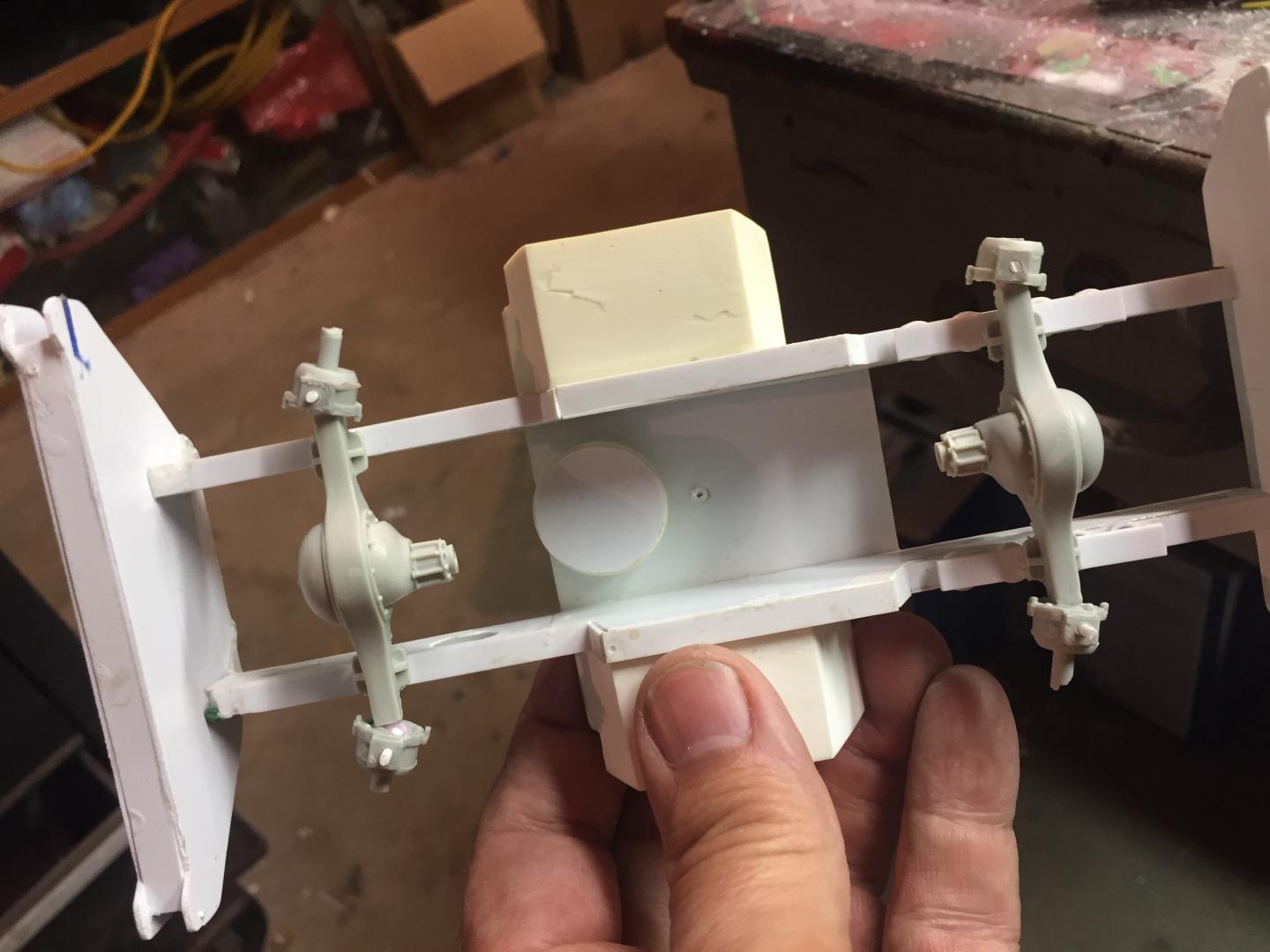

Finished up the counterweight by gluing the laminated sections together, shaping and then filling with auto body spot putty.  I also reworked the winch to resemble the actual one by cutting cooling fins into the gear housing. Then I attached the letters onto the counterweight as this is a huge cast piece.  I converted the Moluminum powered steering axles to working steering.  I drilled out the knuckle ball and then used small plastic spherical craft beads and drilled them and attached to the axle ends.  After drilling the knuckles and pinning in place, they made a great looking steering axle. It's definitely getting there one piece at a time!
























Edited by redneckrigger

Share this post


Link to post
Share on other sites

Wow, but, Lots of work. Interested is the Steering opposing or unisyn   like this / / or \ / ?

greg

Share this post


Link to post
Share on other sites

The details are outstanding!! Tip of the hat to you sir!

Share this post


Link to post
Share on other sites

Everything is looking amazing .. especially the Ball joint steering!

Share this post


Link to post
Share on other sites
On 7/31/2019 at 11:46 PM, GLMFAA1 said:

Wow, but, Lots of work. Interested is the Steering opposing or unisyn   like this / / or \ / ?

greg

The front axle is controlled from the steering wheel. The rear axle is steered by a hydraulic valve with a control lever independently from the front axle. The rear can be left straight, steered conventionally like four wheel steering or steered crab style.  There is a red warning light in the cab that indicates when the rear axle is not in the straight ahead position.

Share this post


Link to post
Share on other sites

This is scratchbuilding at its finest.  Your vision and execution of this build is beyond comment.  Keep those updates coming.

Share this post


Link to post
