Galion 12 1/2 Ton Hydraulic Rough Terrain Crane

Recommended Posts

The window gasket did good, but oversized. Having to have a lip for the glass made that method impractical for looks. Charlie's suggestion looks great .. and so well explained.

This keeps looking better and better.

Share this post


Link to post
Share on other sites
1 hour ago, Foxer said:

The window gasket did good, but oversized. Having to have a lip for the glass made that method impractical for looks. Charlie's suggestion looks great .. and so well explained.

This keeps looking better and better.

You are so right, Mike. Charlie should write a book.................it would be a best seller for sure!

Share this post


Link to post
Share on other sites
5 hours ago, redneckrigger said:

You are so right, Mike. Charlie should write a book.................it would be a best seller for sure!

Charlie is such a wealth of information for our hobby!! If only he could find the time to write a book and share his knowledge

Share this post


Link to post
Share on other sites

ūüėܬ† Surely you guys jest!!¬† Trying to share it as I go!ūüėĀ¬† Truly there are many good ideas out there that lots of people have posted.¬† And it does not depend on the nature of the build.¬† I have been "encouraged" by my wife to build her a model of the Canadian schooner "Bluenose".¬† Some of the things that are basics to truck and equipment building actually work there as well.¬† Your own experiences are the best teachers because you know from first hand knowledge what works and what does not.¬† Maybe we should all collaborate on that book!¬†ūü•ī

Share this post


Link to post
Share on other sites

I will definitely try this way of doing the window gasket on my next scratch build, I used this system to make the head light surrounds on my scratch built MARMON cab leaving the surround square but never thought to work it like you suggest for the windows, I found that trying to bend the half round around the corners of the windows with liquid glue sometimes made the plastic more brittle and then they broke ( I probably used too much) aventually I managed to do it by partly warming the plastic and the liquid glue as well but it seemed very hit and miss, its great to watch builds like this as you can learn so much, it really is a great forum, a great big thank you to everybody who share's there builds and idea's here.

I would think that this build is definitely going to be a show winner!!!

Share this post


Link to post
Share on other sites

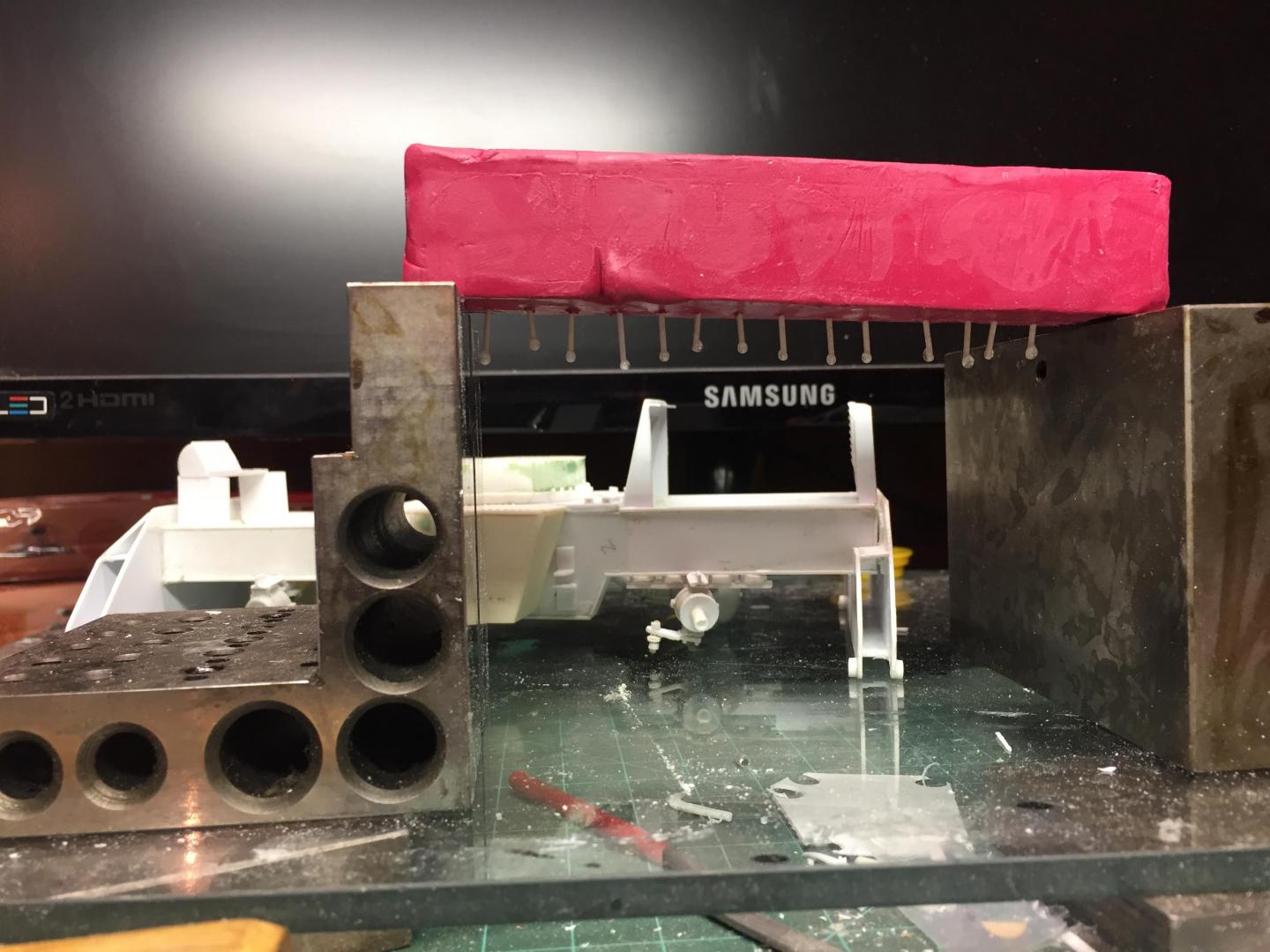

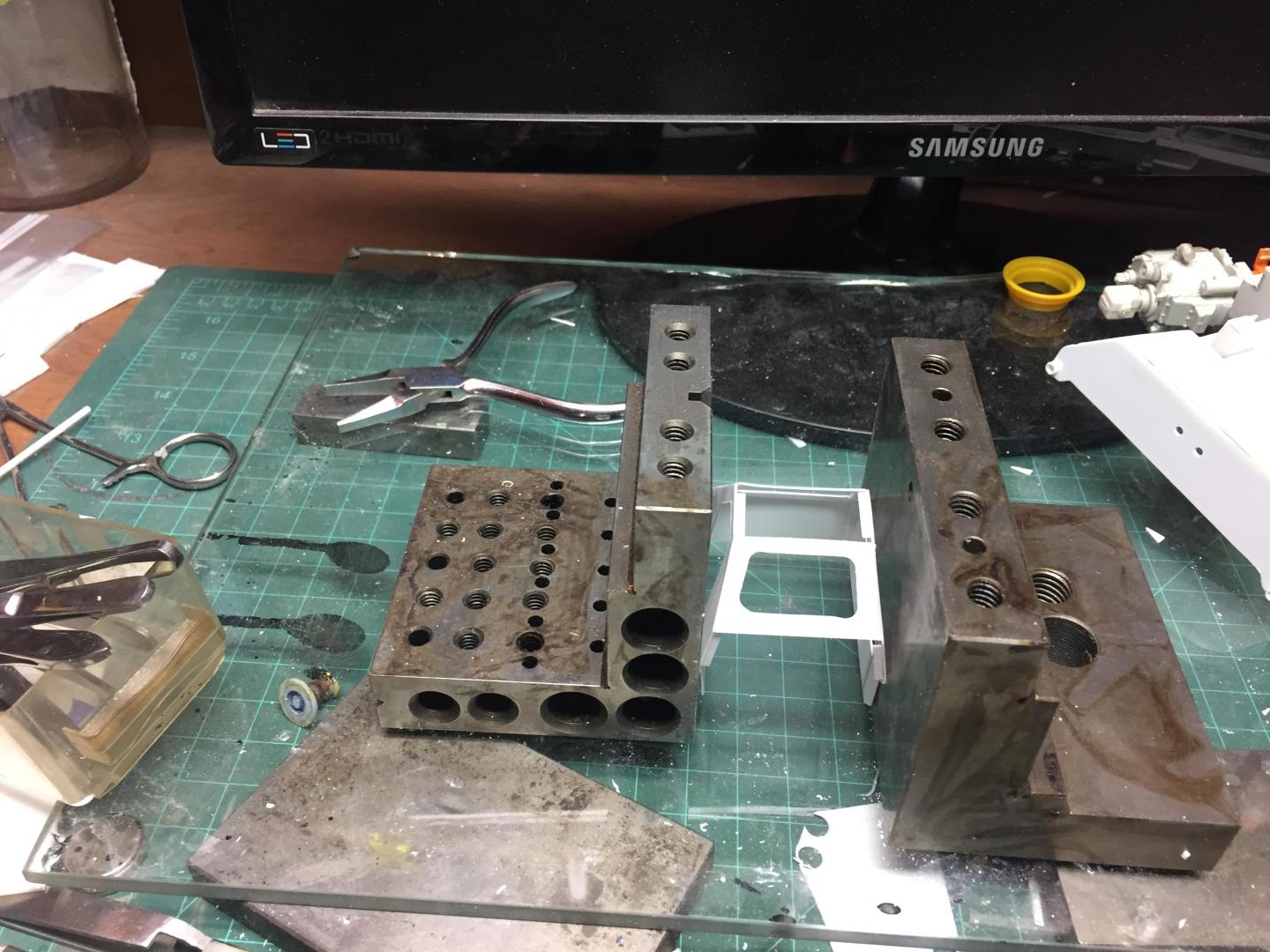

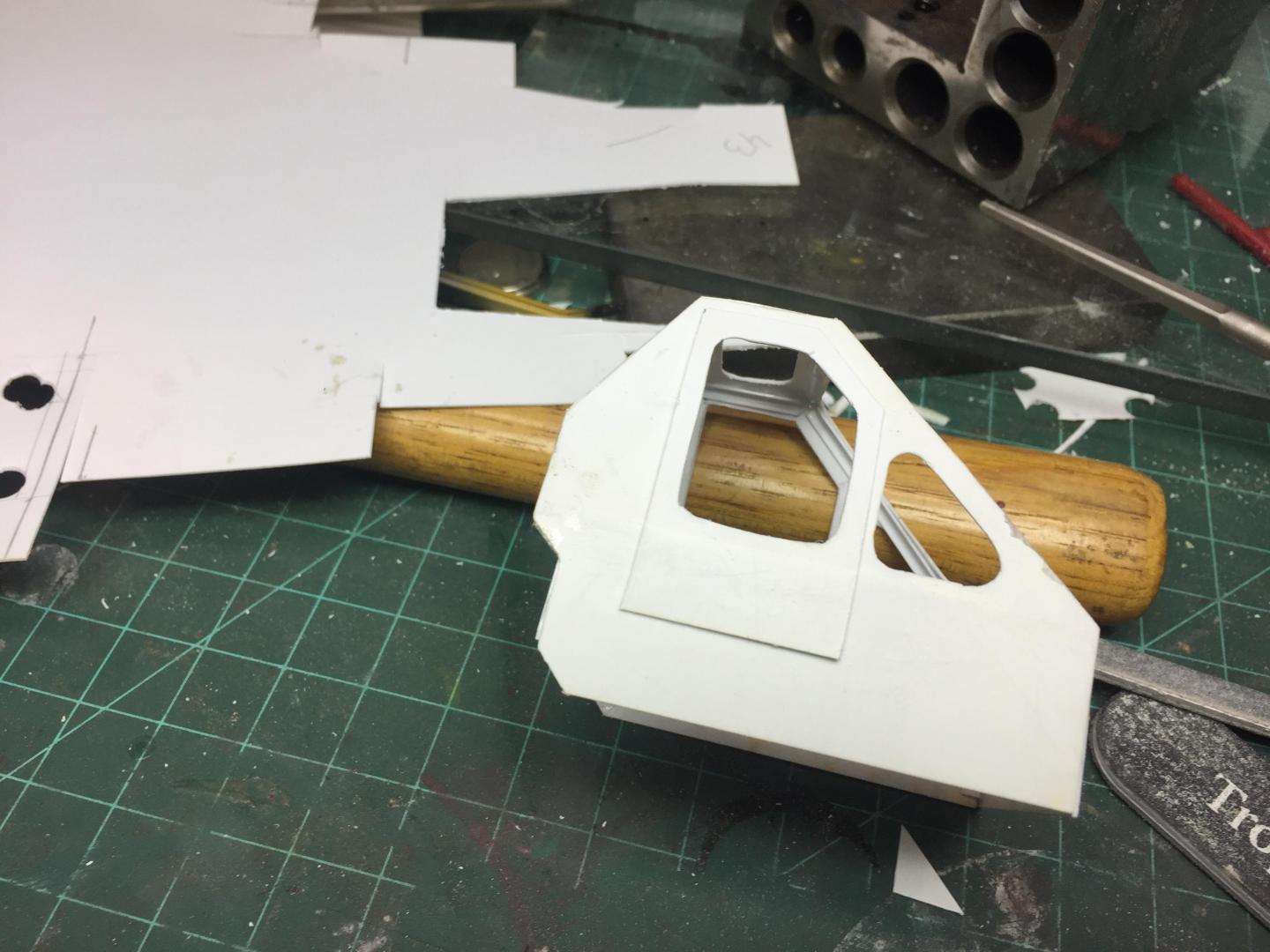

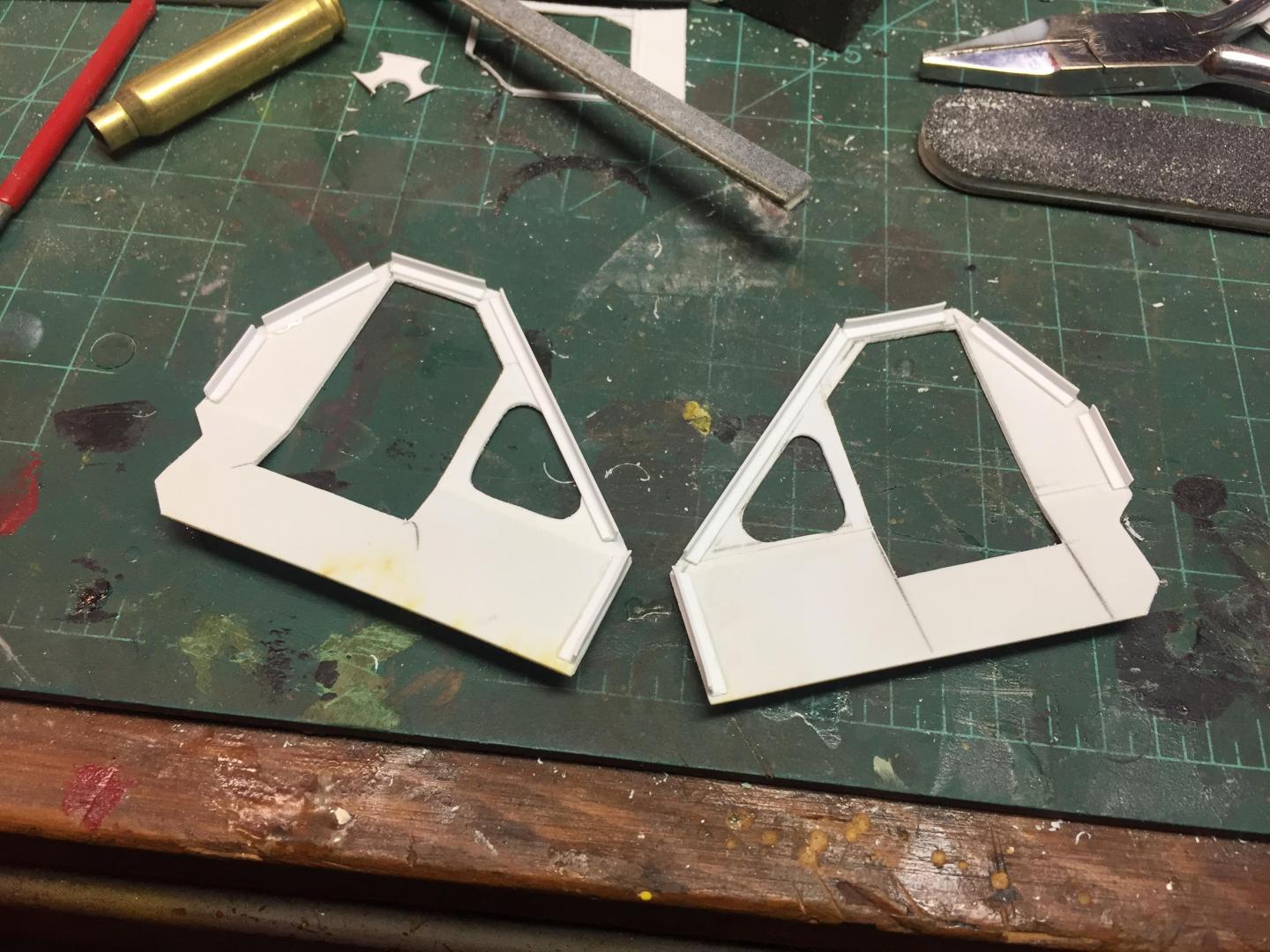

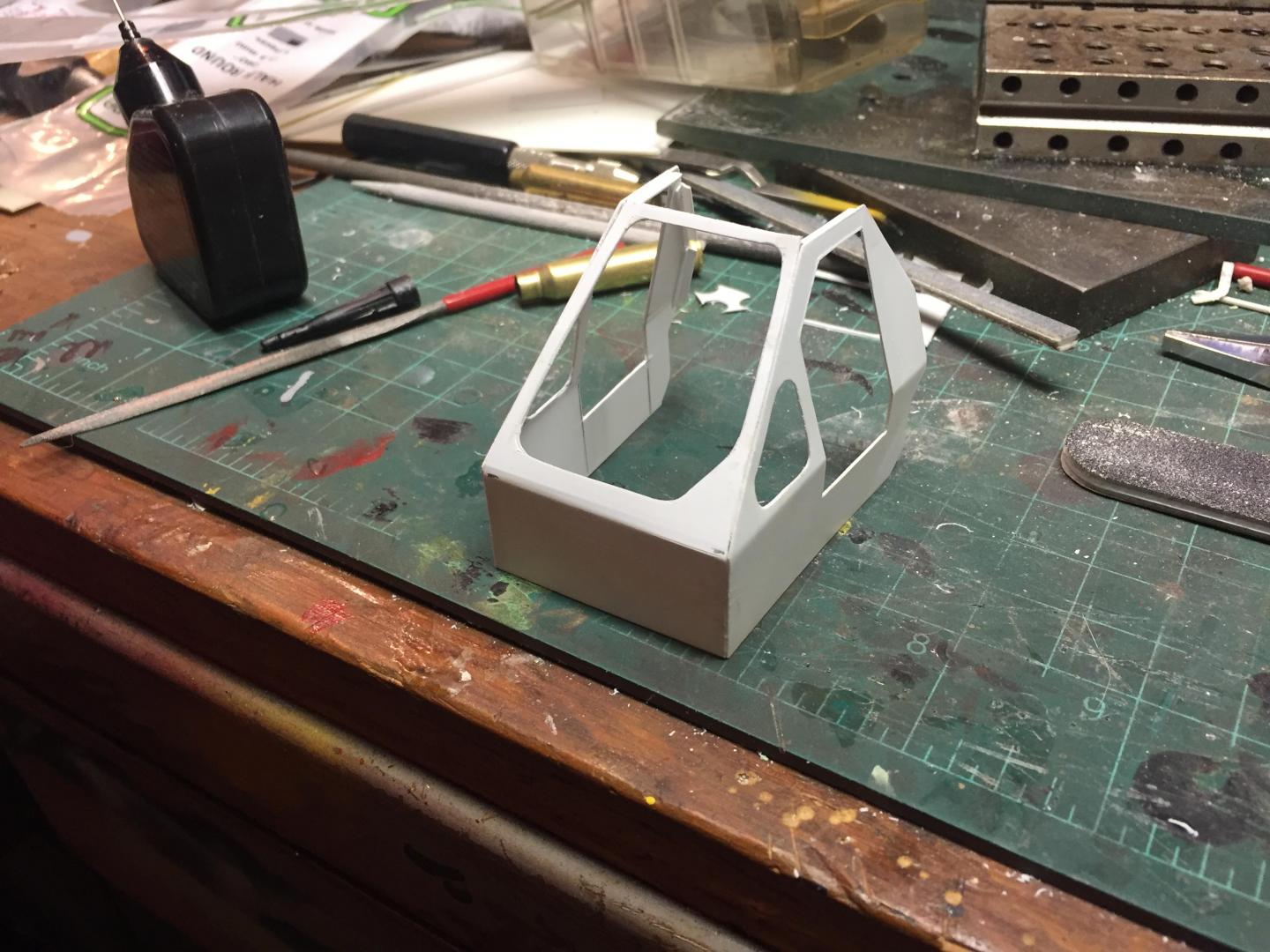

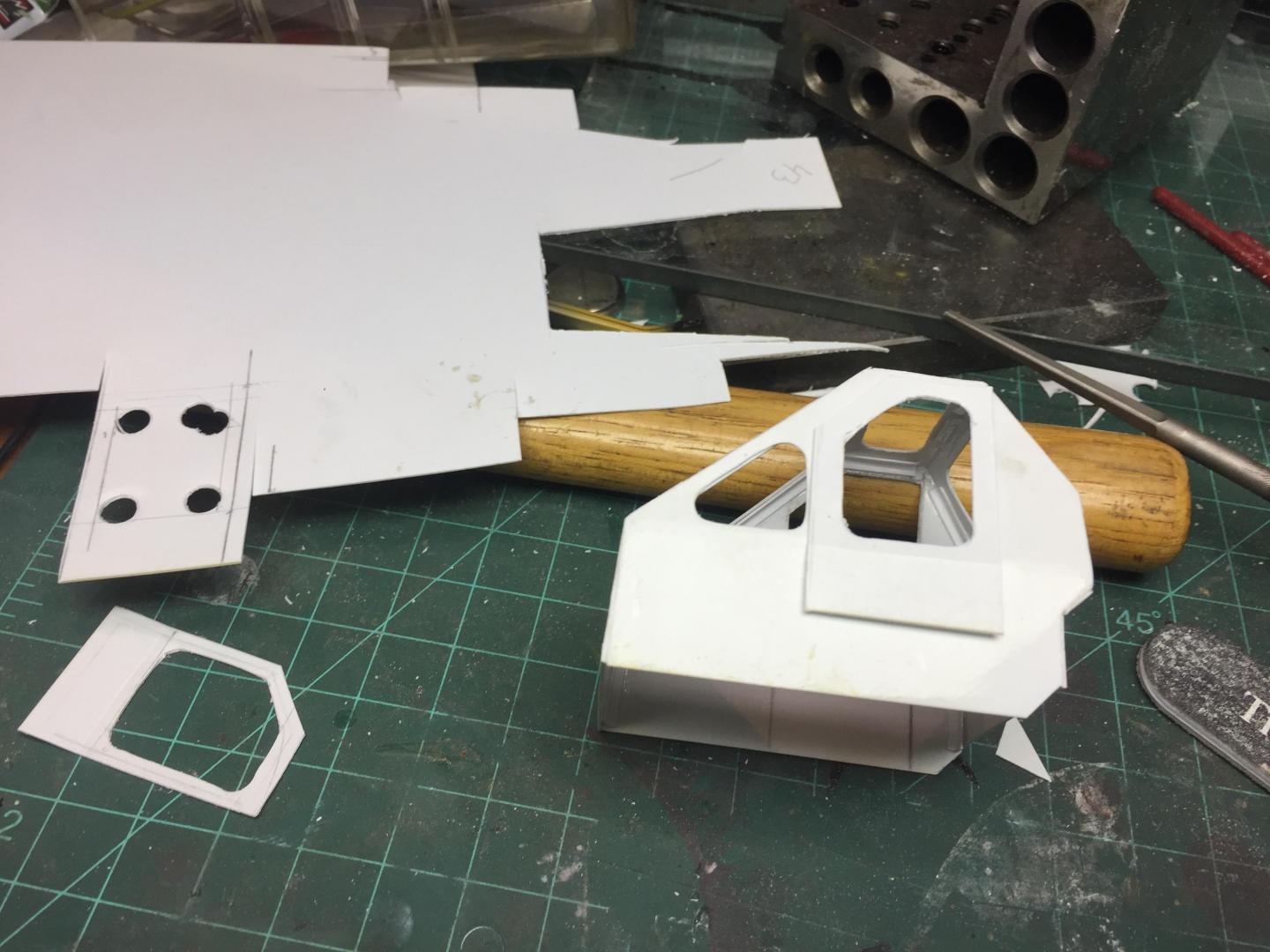

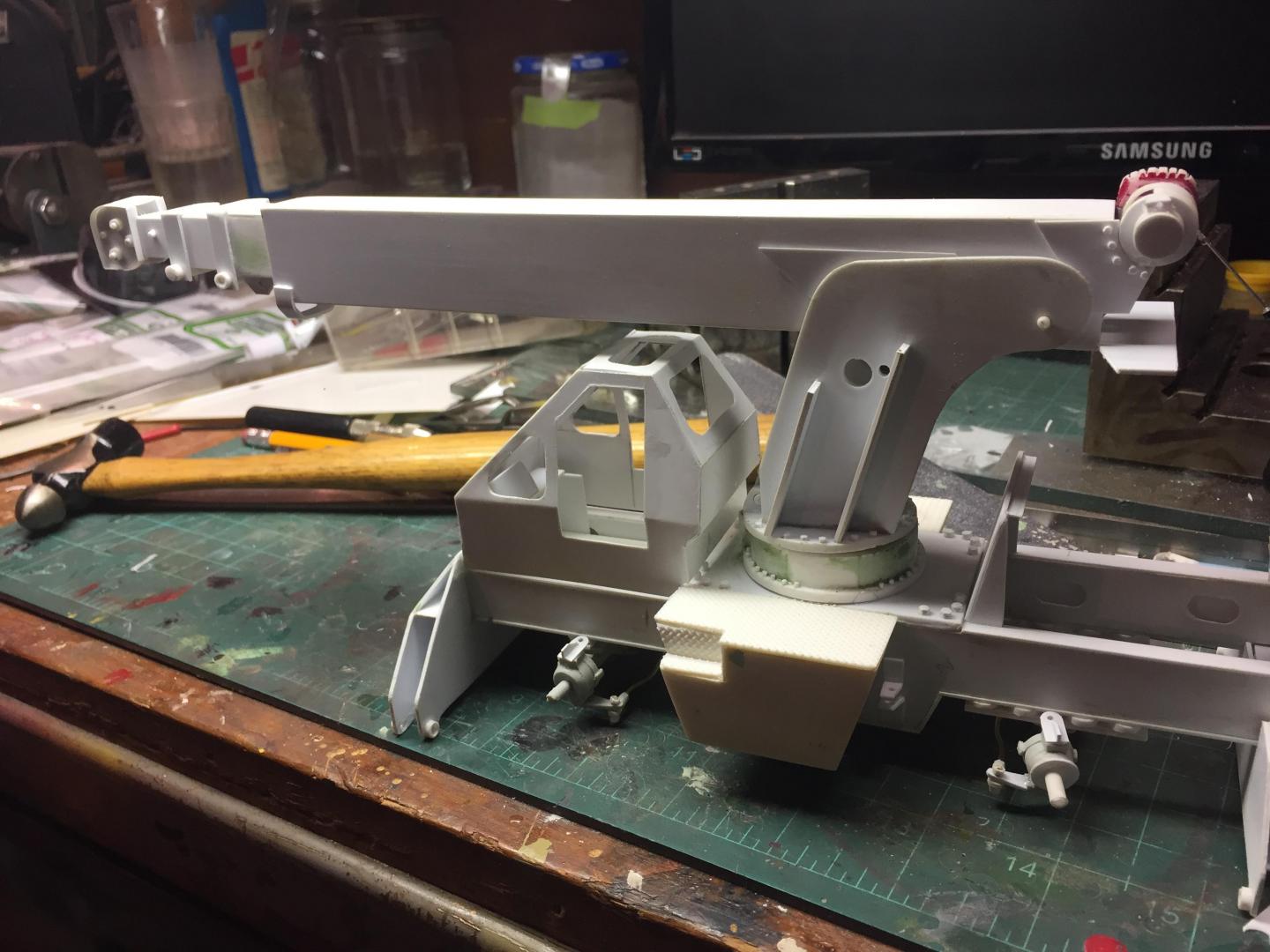

Finally got back to the bench.  Life interfered last month in a big way with a vacation and then the passing of an old friend and then my Father-in-law and I just didn't even get within 20 feet of my bench. But, got back at it tonight. The operator's cab just had too many issues to please me, so into the scrap bin it went, and this is Act 2 of the cab.  It looks so much better, at least to my eyes.







Share this post


Link to post
Share on other sites

Glad to hear your back at the bench , sorry for the loss of friends and family too

Awesome work on the cab 2.0 , you'd never be satisfied with the other one if ya left it

Share this post


Link to post
Share on other sites
14 hours ago, NothingAsFineAsaW9 said:

Oooooooooooh the space module looks killer.

Ha!!!!!!!!!!!!!  Just noticed that.........it sure does look like a Lunar Module!

Share this post


Link to post
Share on other sites

Good to be back, the modeule looks awesome.

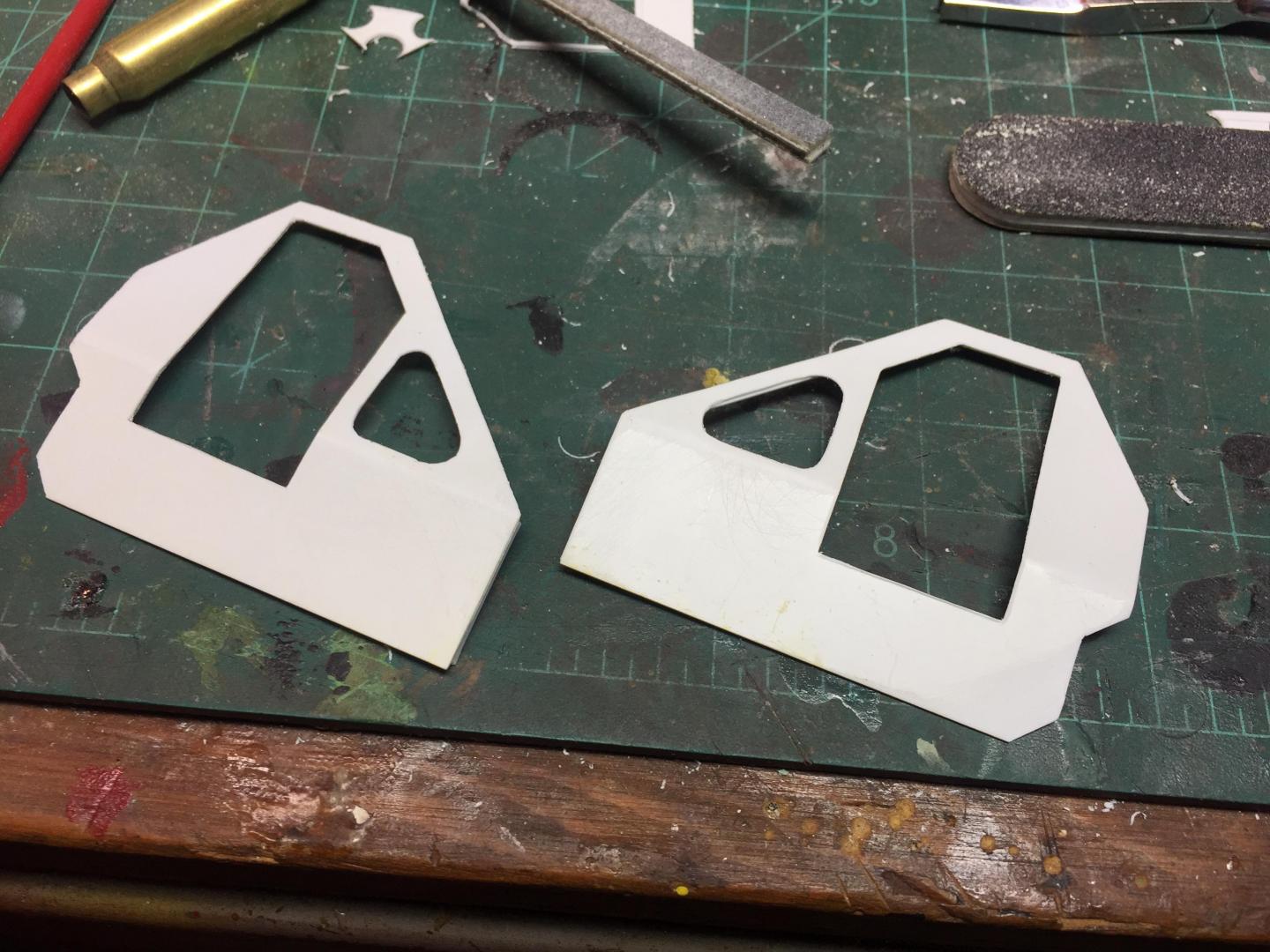

you have cut out the windows very precisely, great job.



Hermann.

Share this post


Link to post
Share on other sites

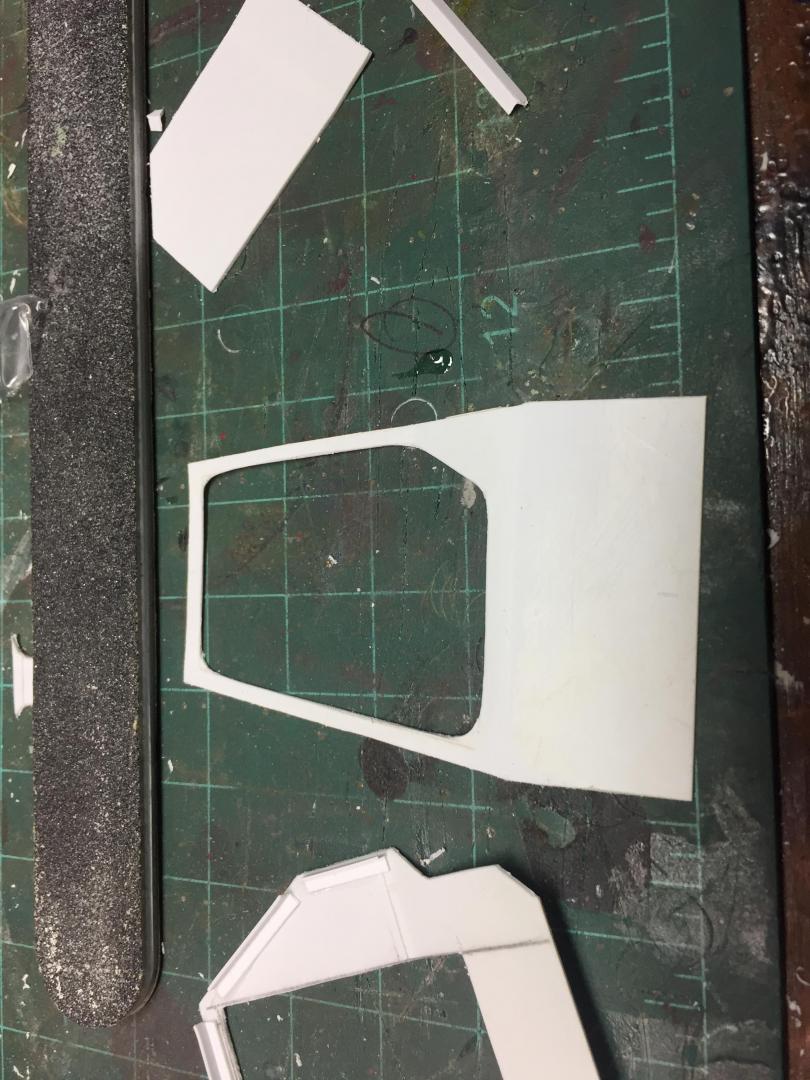

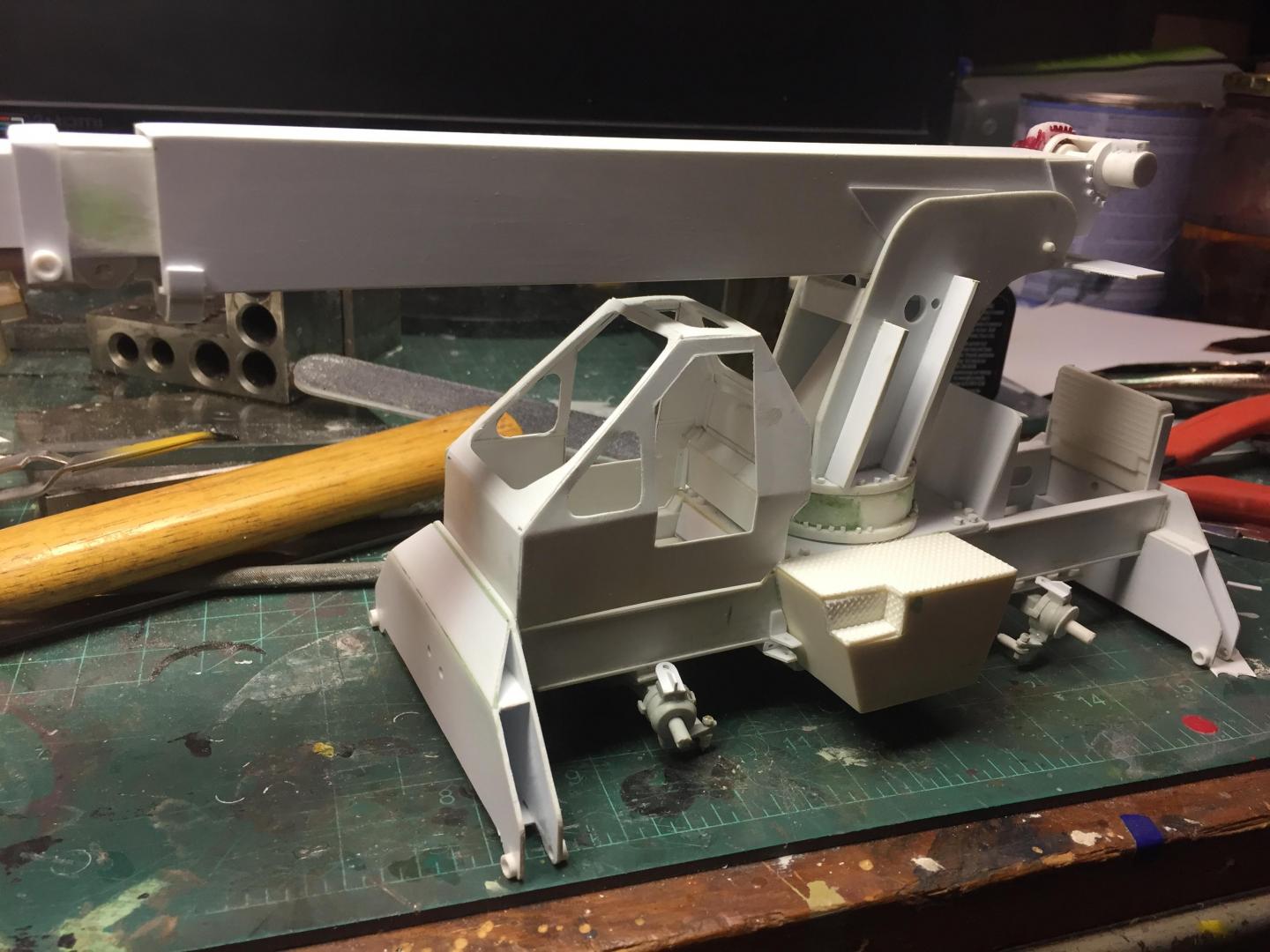

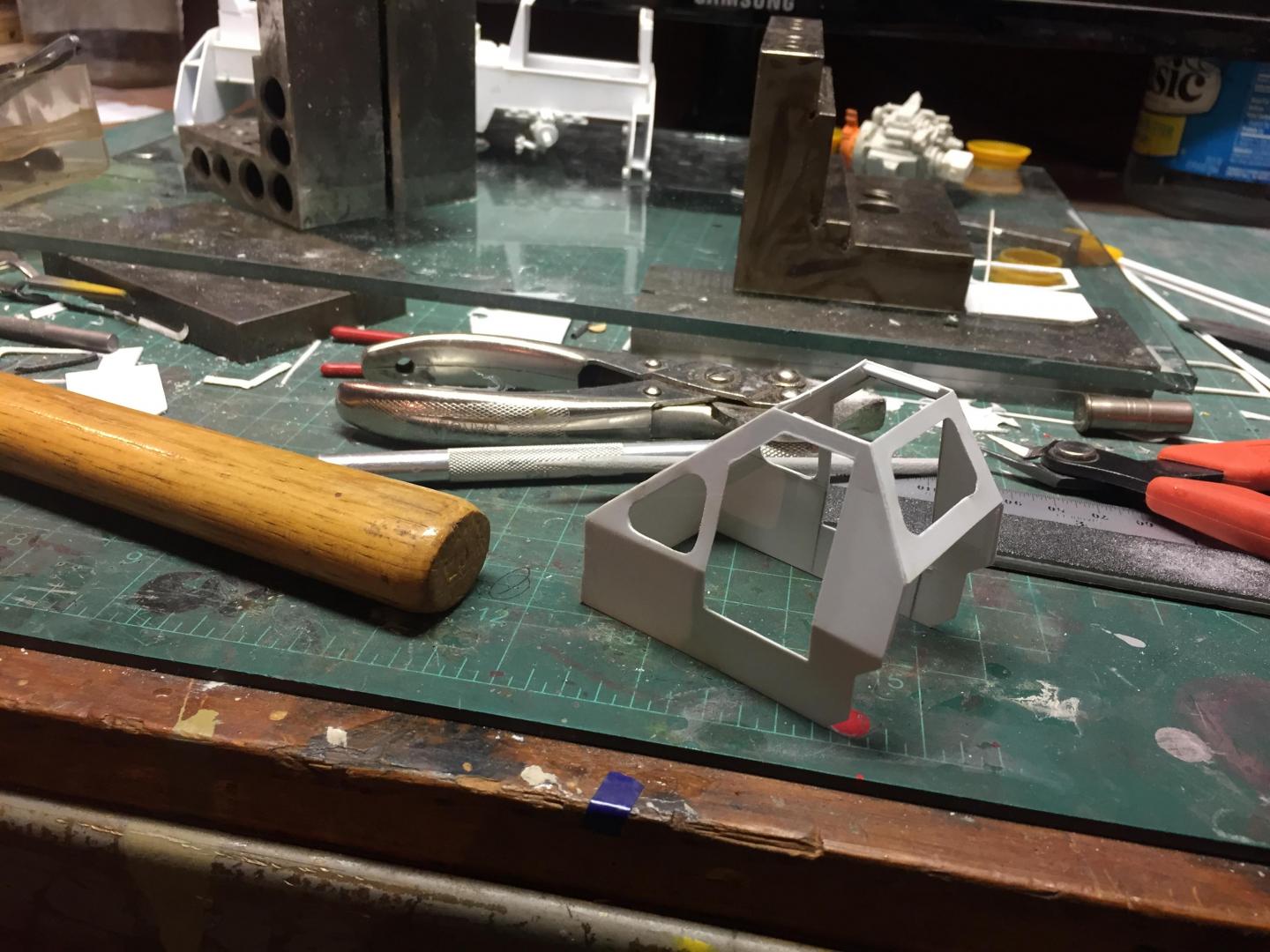

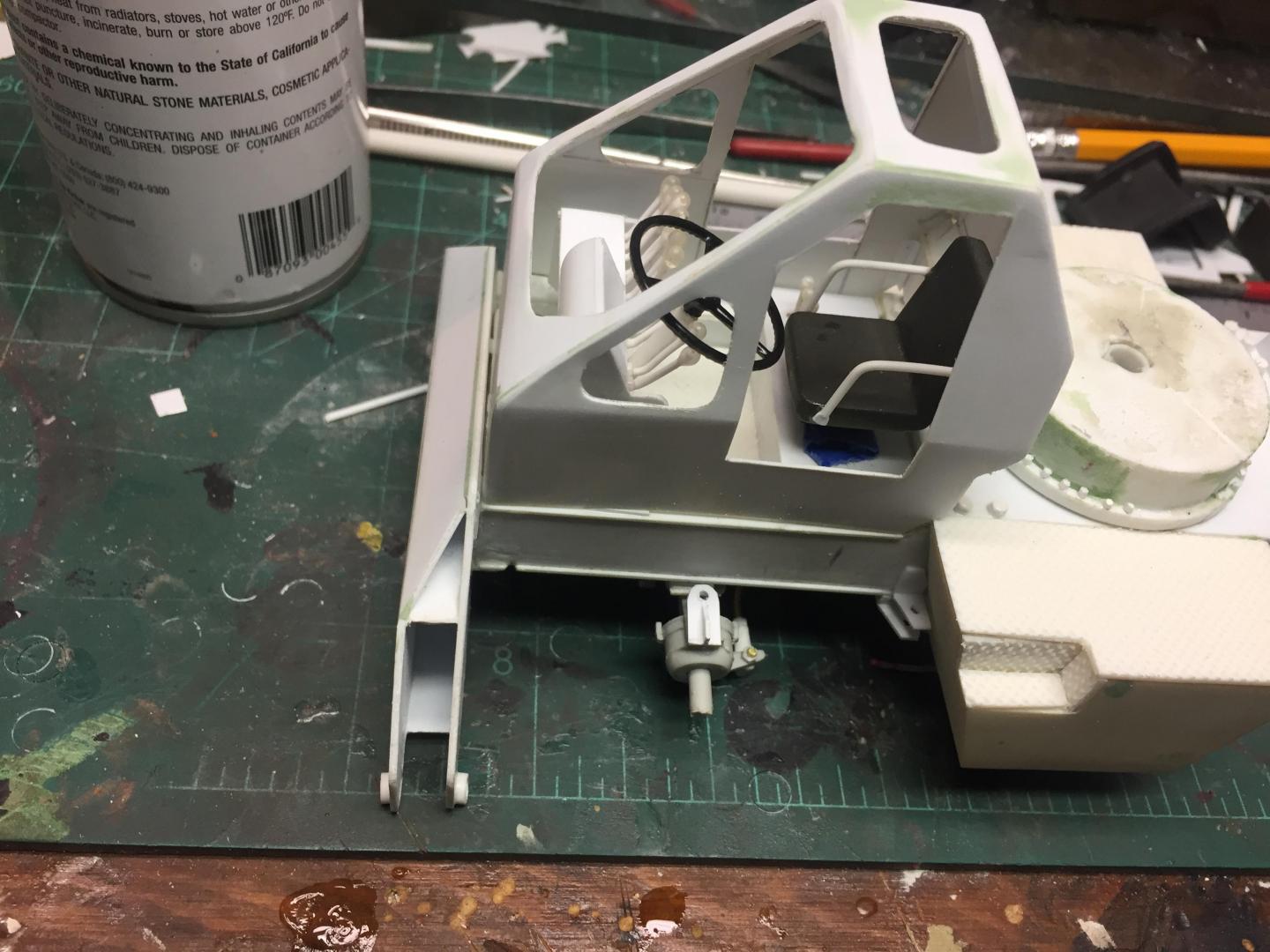

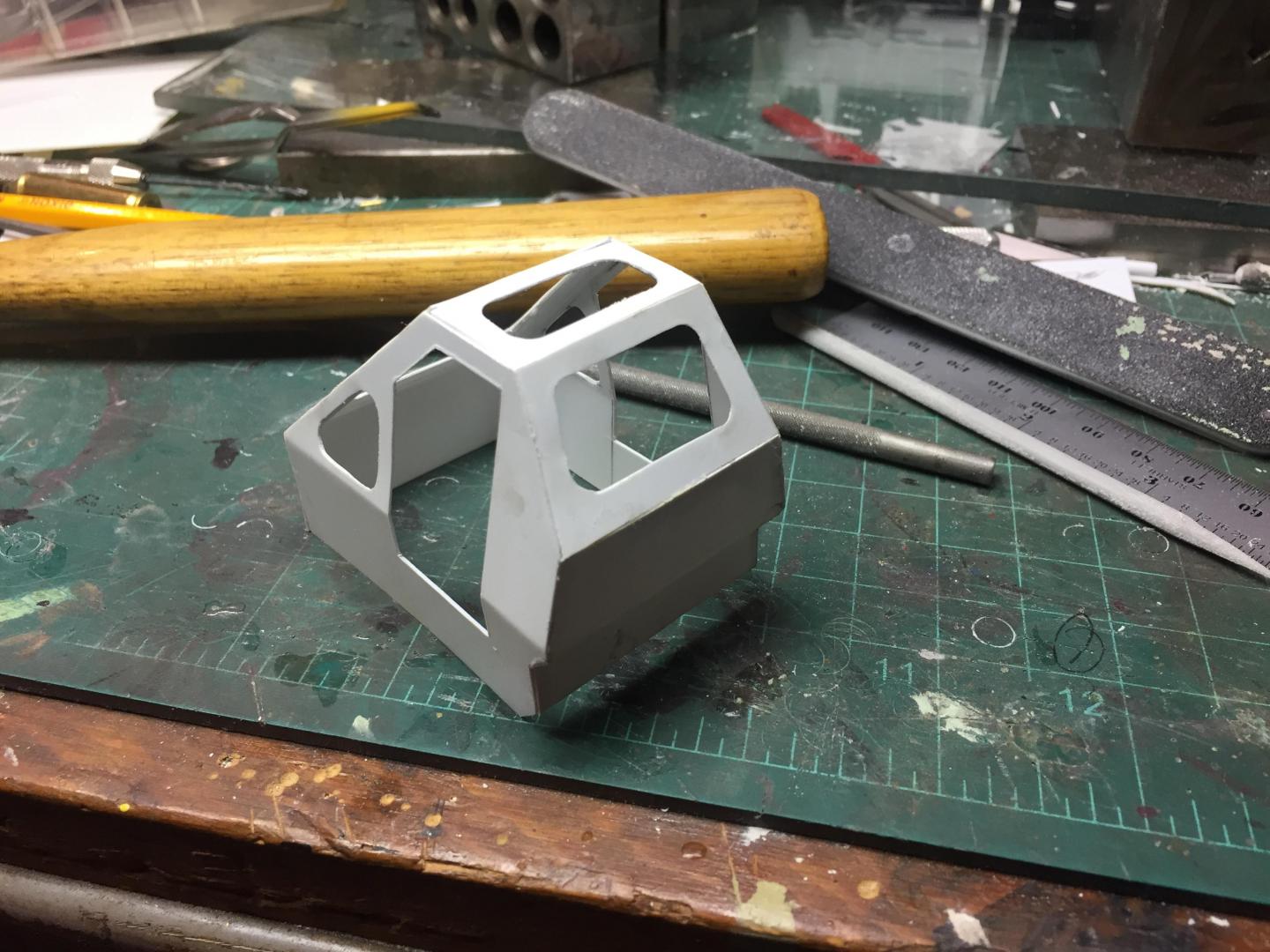

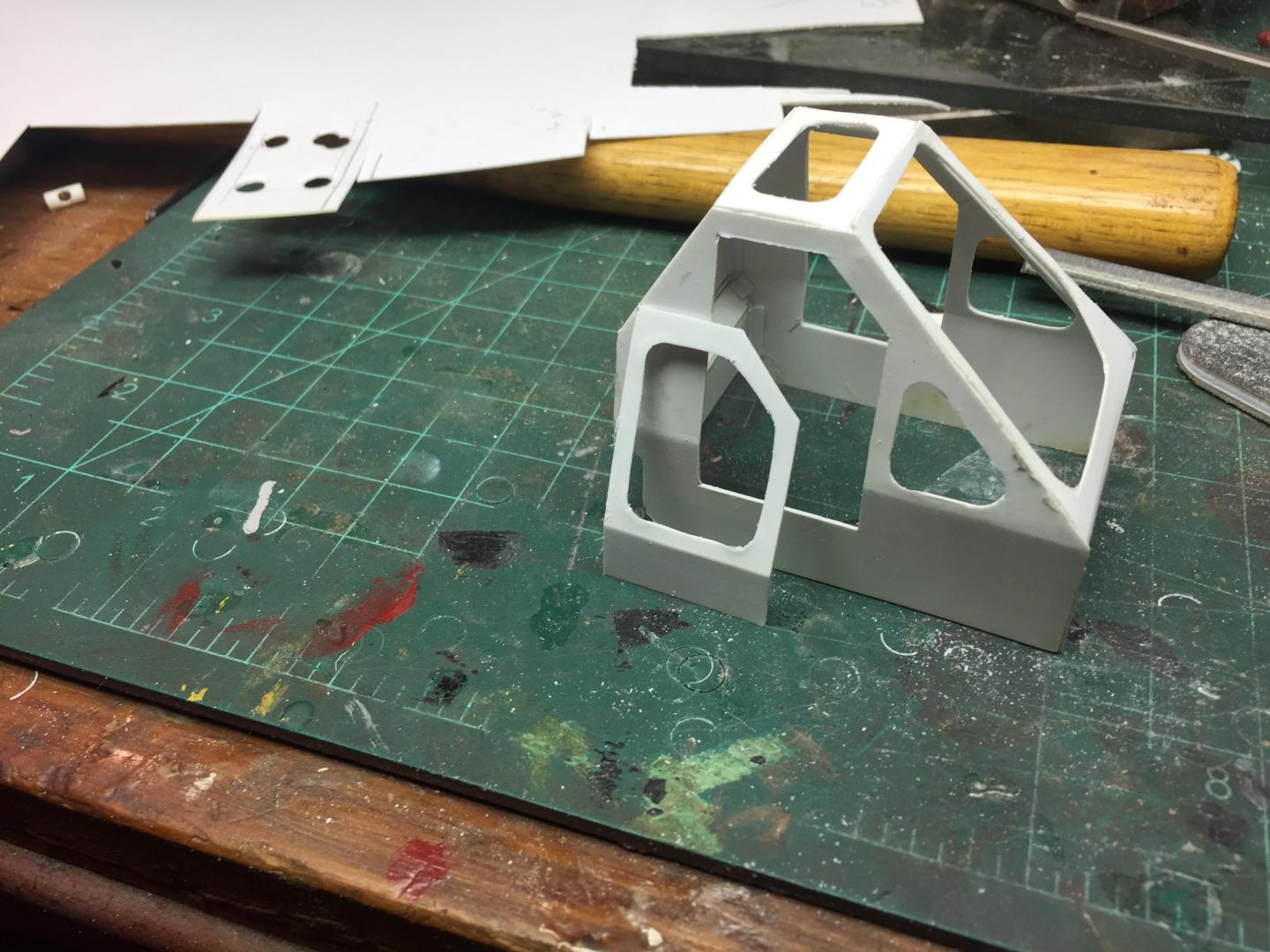

Got the cab done, and to my satisfaction. Need to hinge the doors and make the window gaskets.  Looks far better now.







Share this post


Link to post
Share on other sites

Fantastic work !!!

Theres another brand excavator parked near home they've been using to clear brush along the road I'd love to build. Definitely would make a great conversation piece

Share this post


Link to post
Share on other sites
4 hours ago, gotnitro? said:

Fantastic work !!!

Theres another brand excavator parked near home they've been using to clear brush along the road I'd love to build. Definitely would make a great conversation piece

Grab yer camera and snap a hundred or so photos! I try to do that every time I see an interesting piece. Doesn't mean I'm gonna get to build it, but, hey, you never know~!

Share this post


Link to post
Share on other sites

Outstanding work on the replacement cab!

Share this post


Link to post
Share on other sites

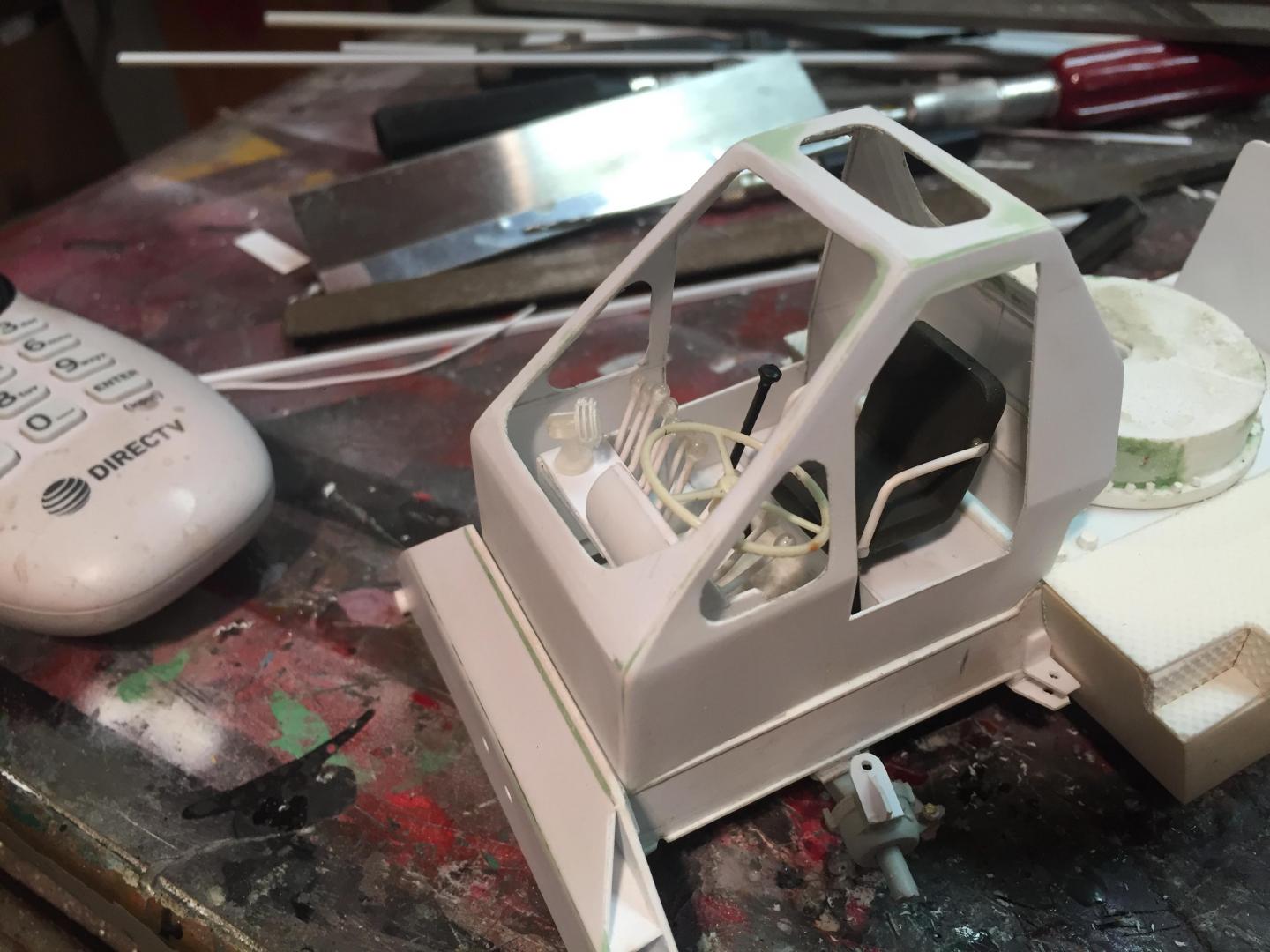

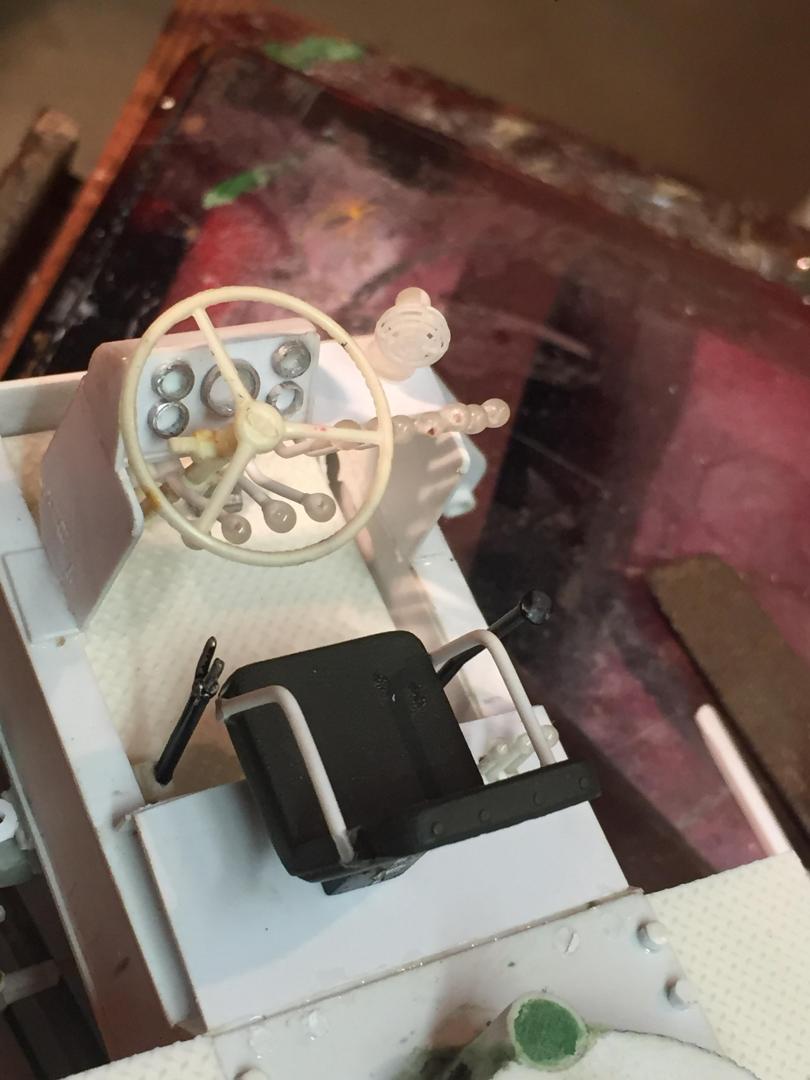

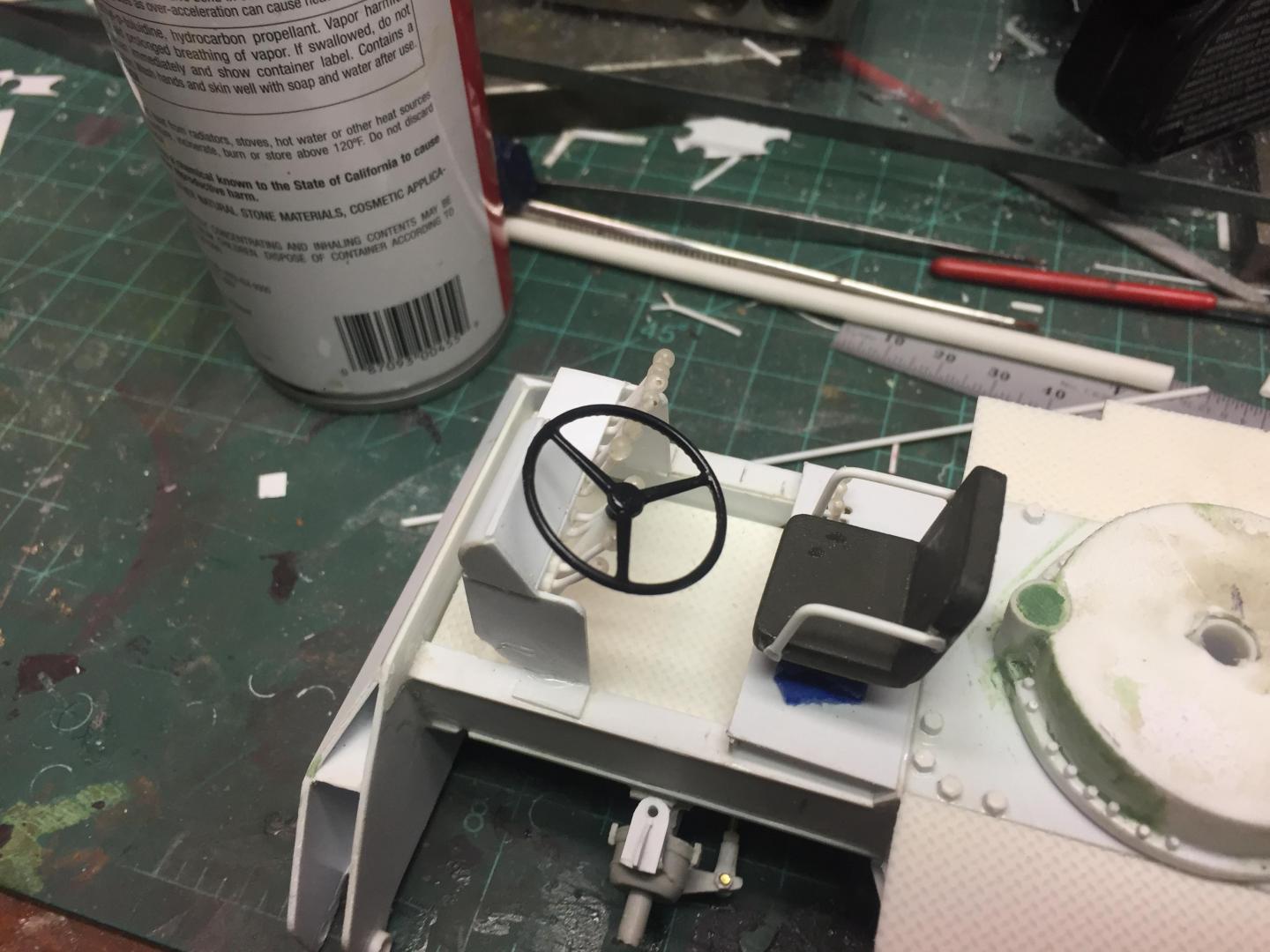

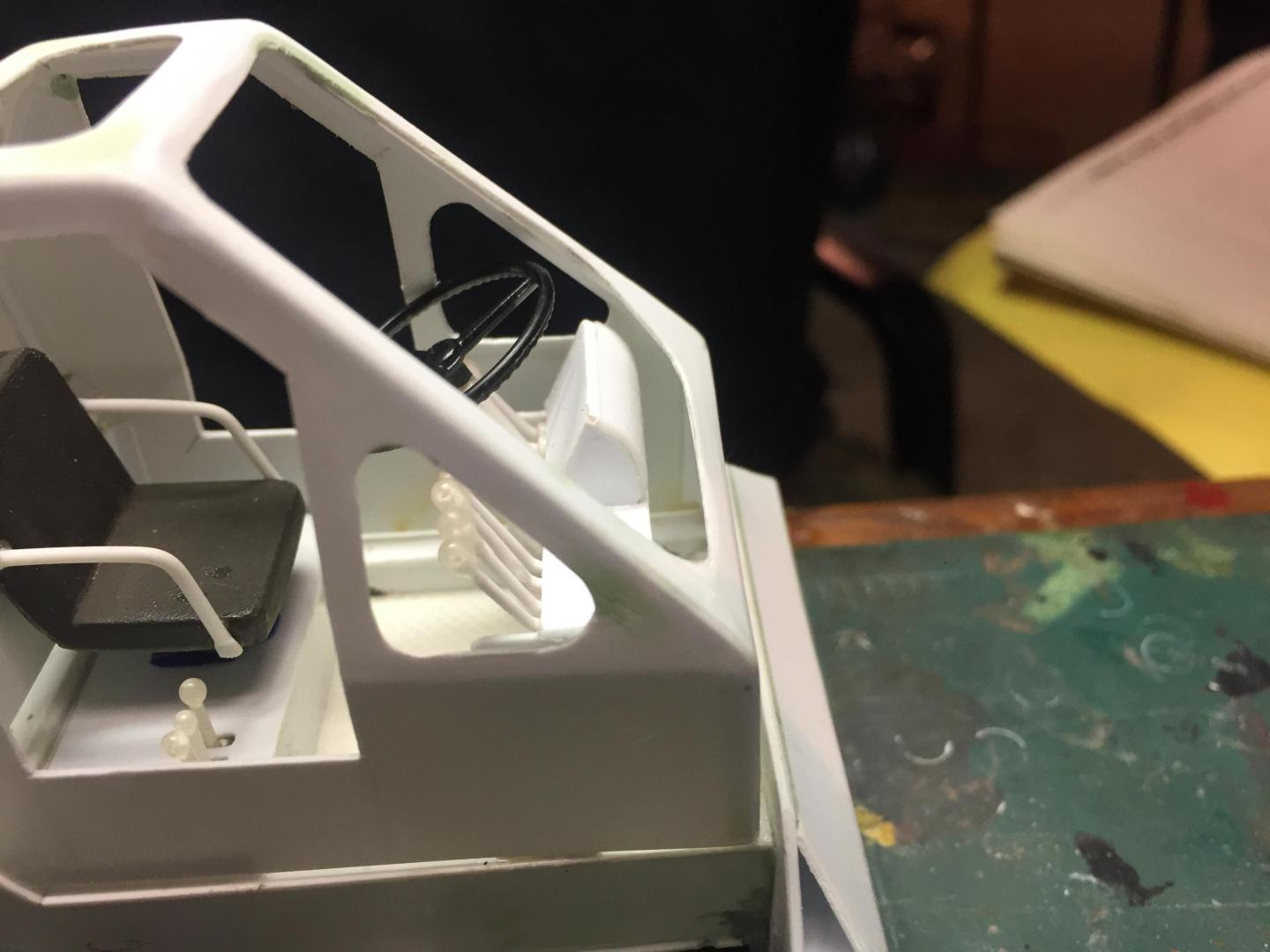

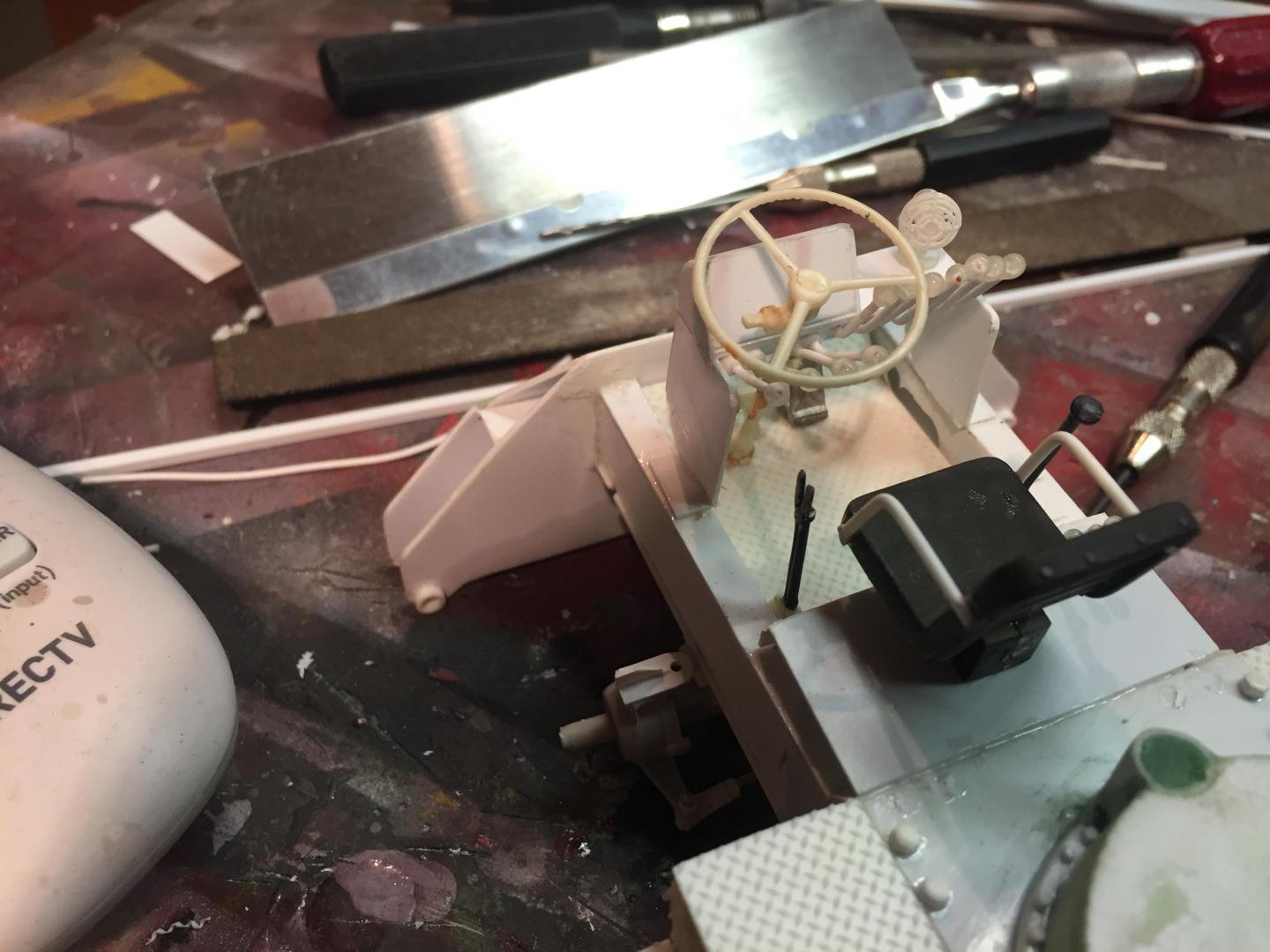

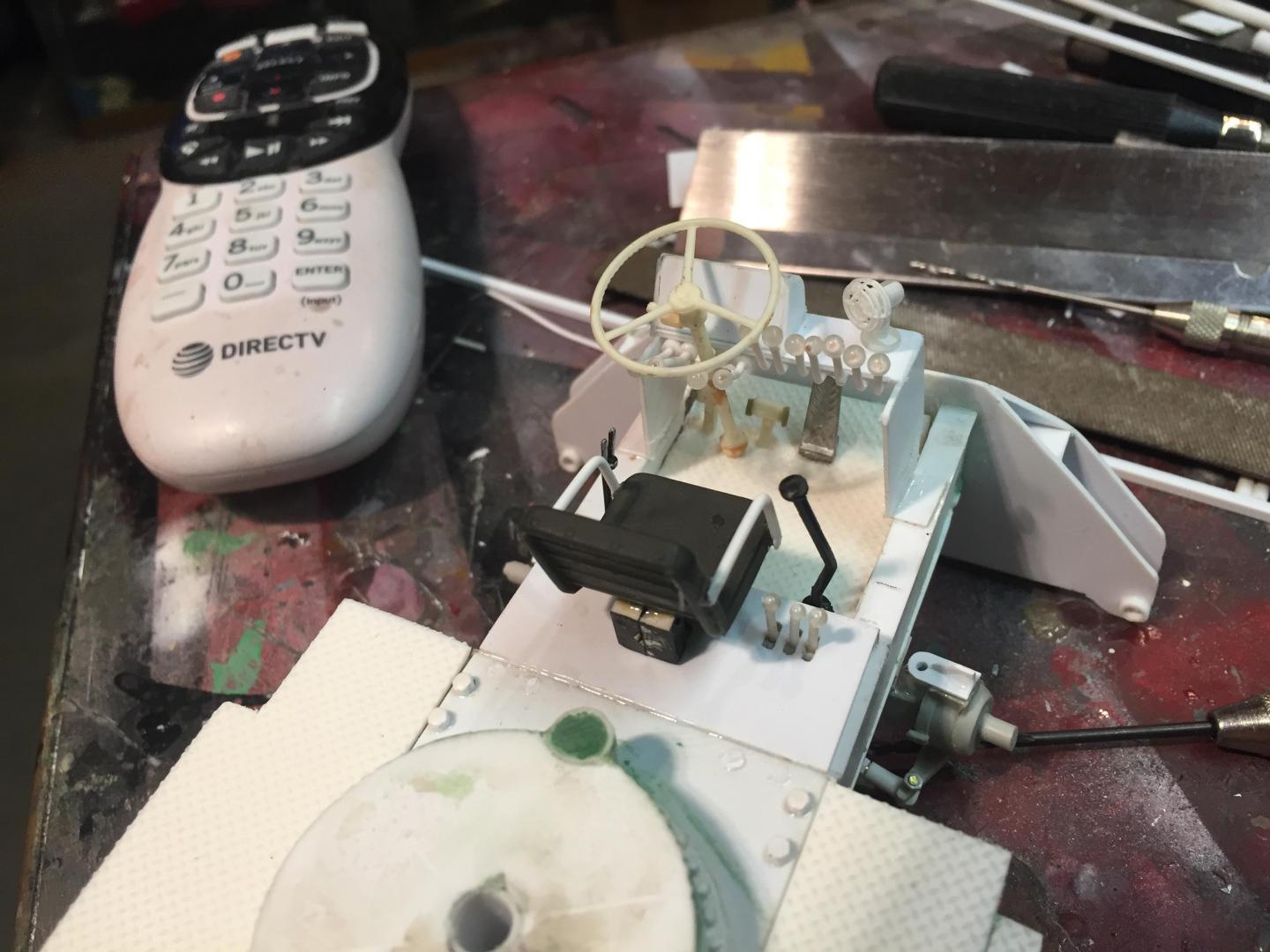

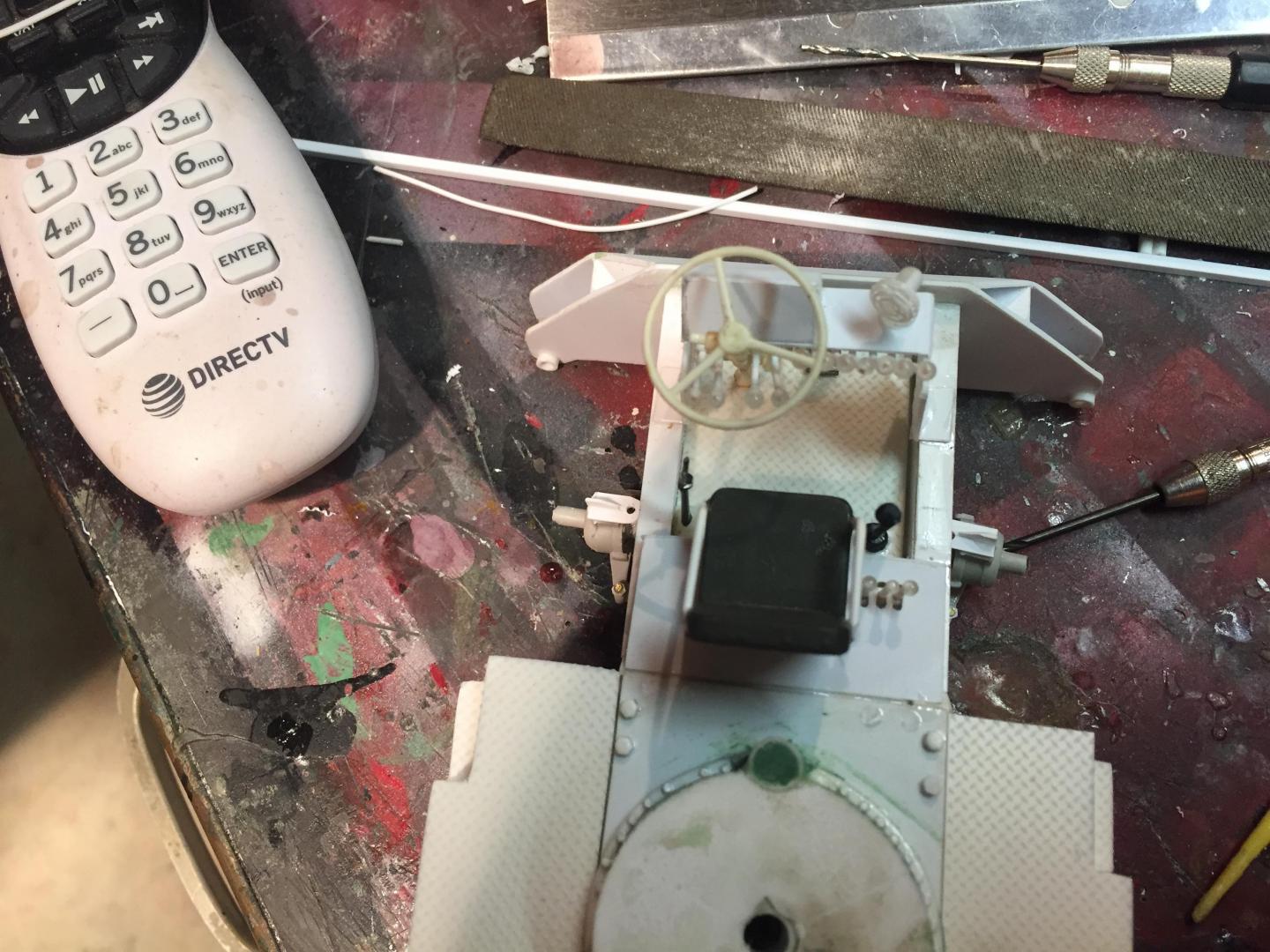

Well, I seem to have gotten by the last month of builders block due to life events, and am now finally getting somewhere with the operator's station. Got the hydraulic controls, levers, dash and seat all finalized.  Lots of tiny details to add but it's finally getting there.  The new cab was definitely worth doing and looks like it is supposed to.  Made the control levers from telephone wire with epoxy dipped knobs.








Share this post


Link to post
Share on other sites

Looks great Tom ! Boy the operators sure would be busy remembering all the controls,  but likely after a few jobs its second nature.



Share this post


Link to post
Share on other sites

That's one slew of levers!  They all metal or have plastic handles?

I also really like the seat with the squashed tube ends for bolting!



I looked back at the start to see if you posted any interior photos, but what got me is you mentioned Crane Operator Al Scalise. I have ridden on his bucket a few times to inspect a structure, long ago when we could do that! I just saw him a few weeks ago ... was before me getting a haircut from his daughter Brandi. He's a great person.

Edited by Foxer

Share this post


Link to post
Share on other sites

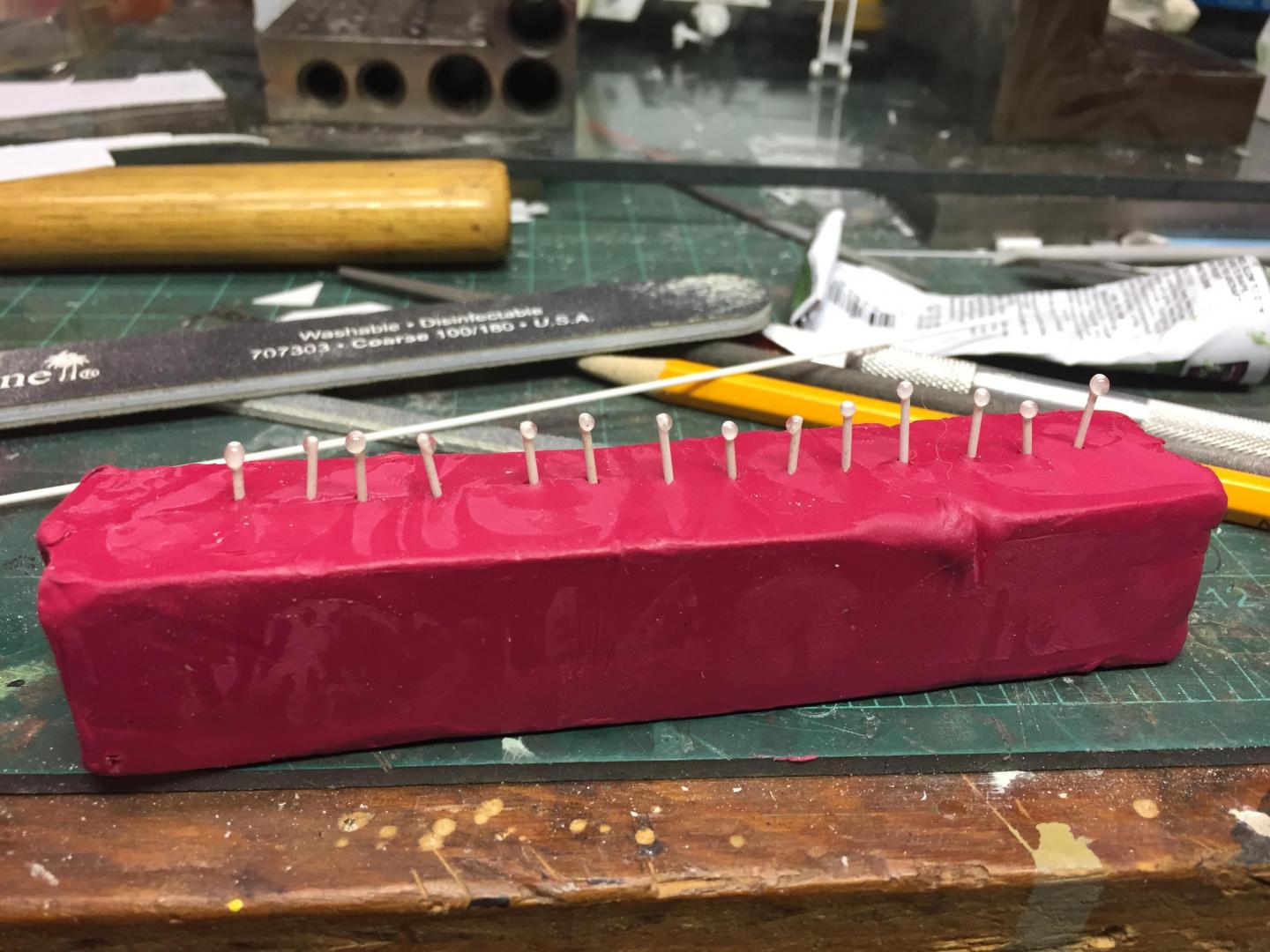

The levers are telephone wire with epoxy knobs. Lots of them for sure.  Four outriggers, rear steer, swing, low line speed, intermediate line speed, main boom extend, aux boom extend, boom raise/lower, on the floor is rear drive selector, forward/reverse, throttle and gear selector, e-brake,  foot controls are brake, inching control and accelerator.  It can get REAL busy in there!





Edited by redneckrigger

Share this post


Link to post
Share on other sites

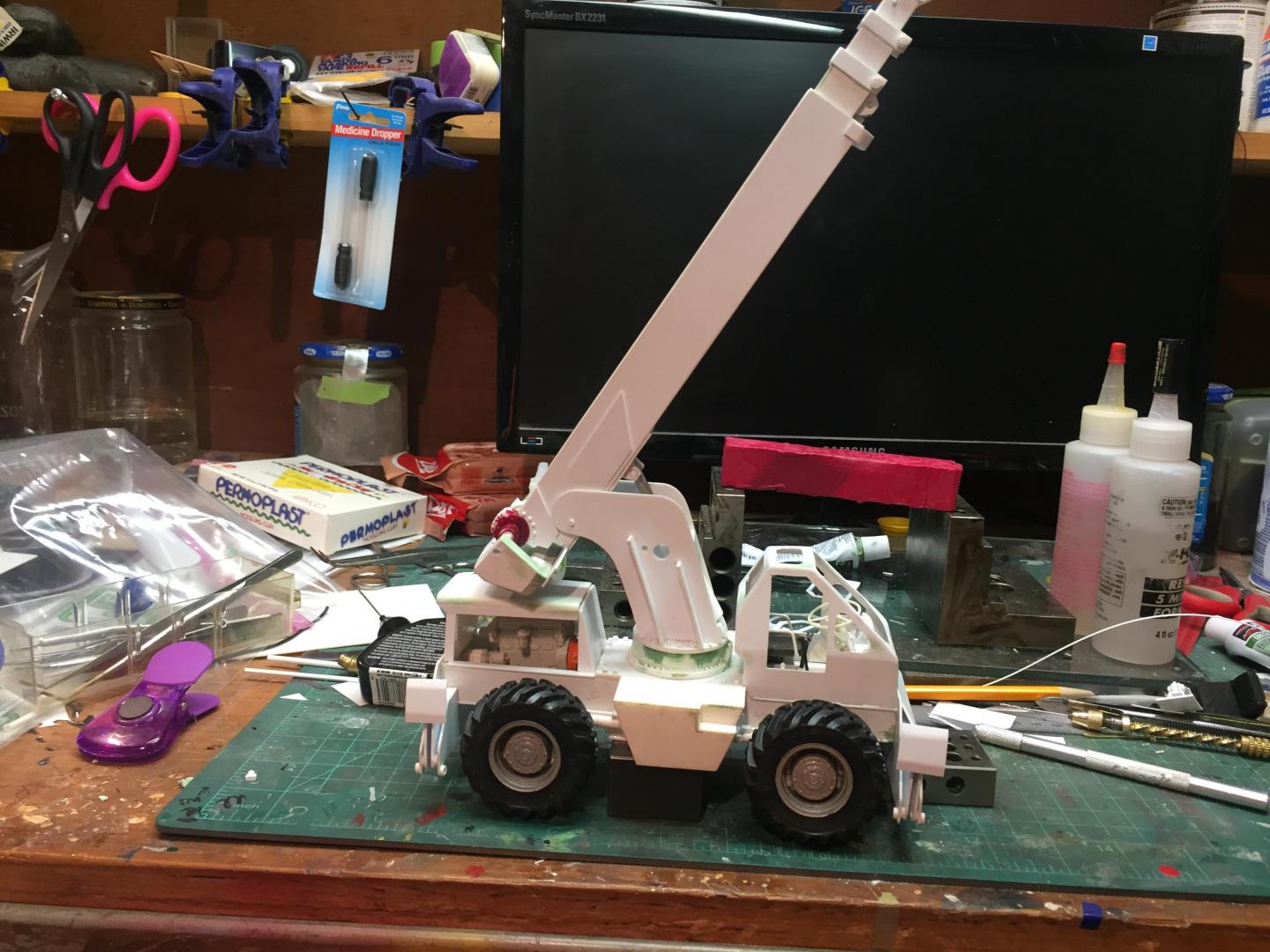

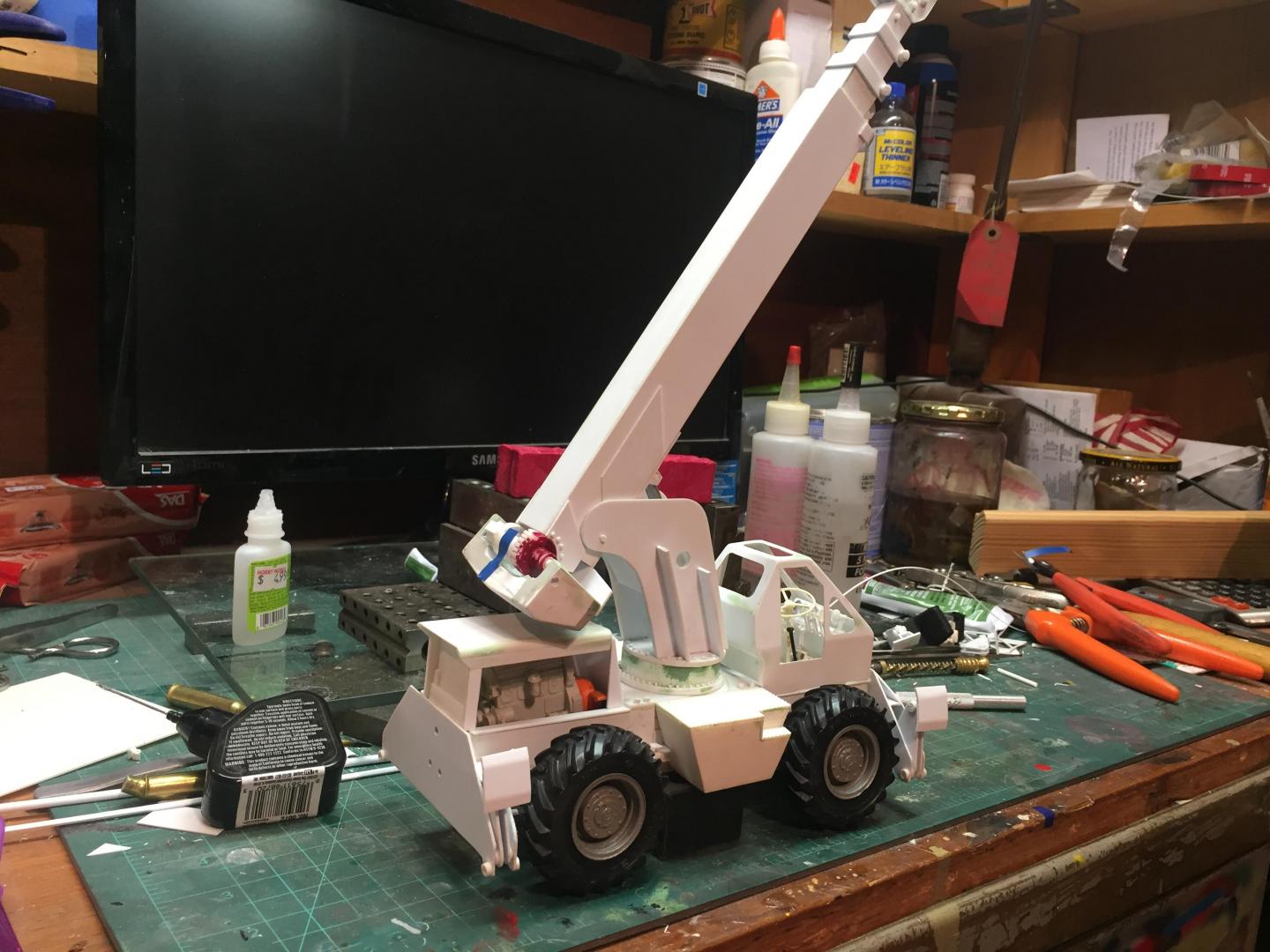

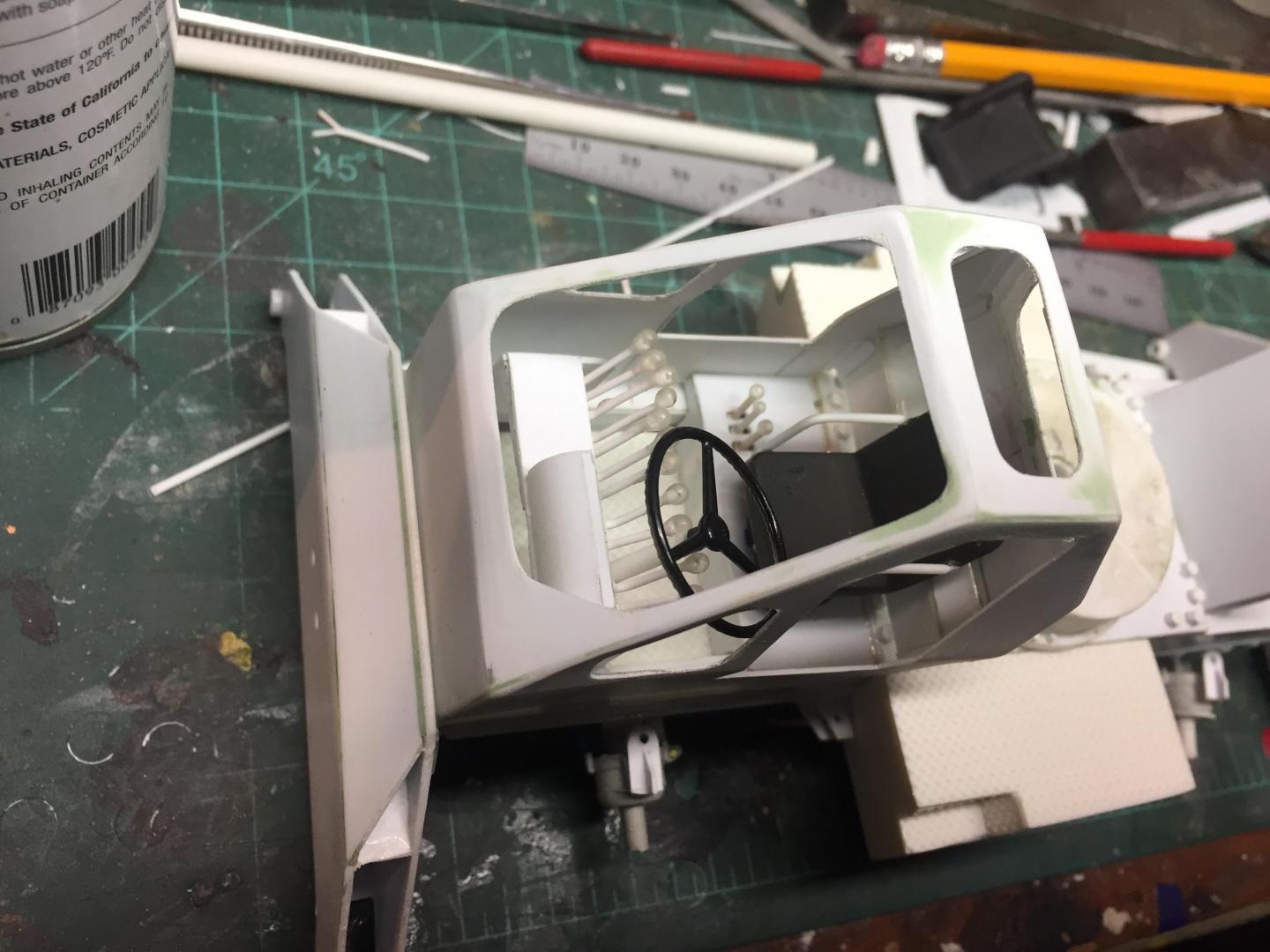

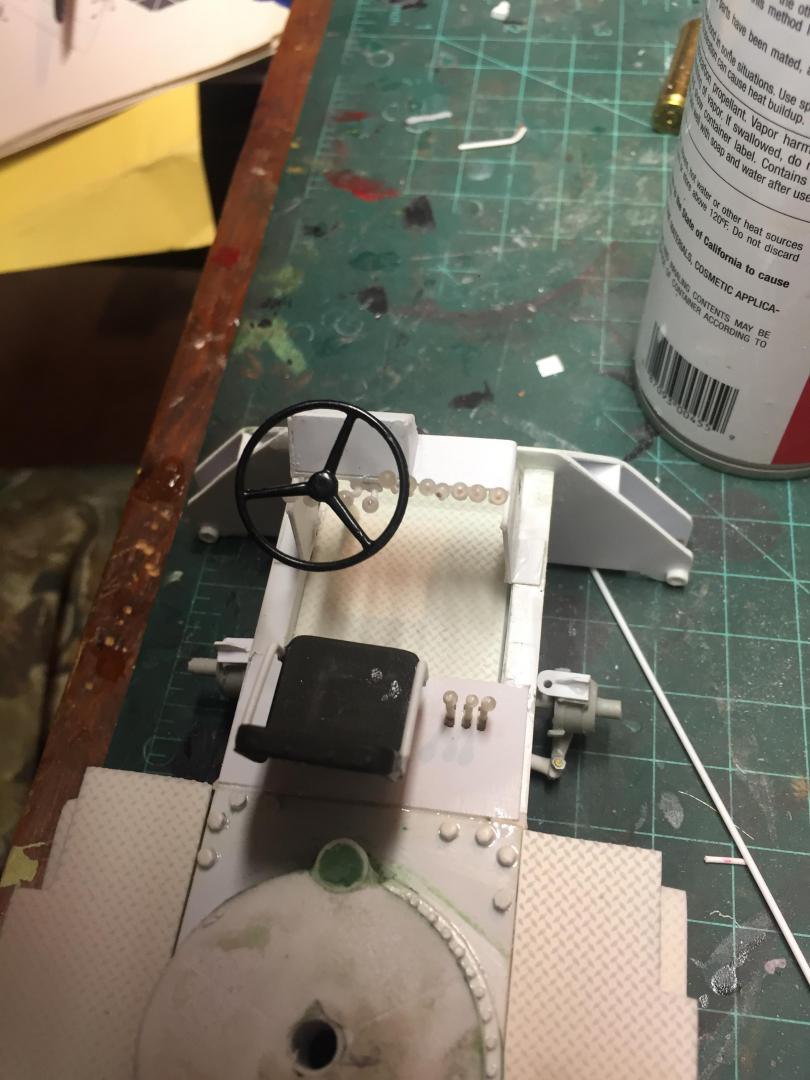

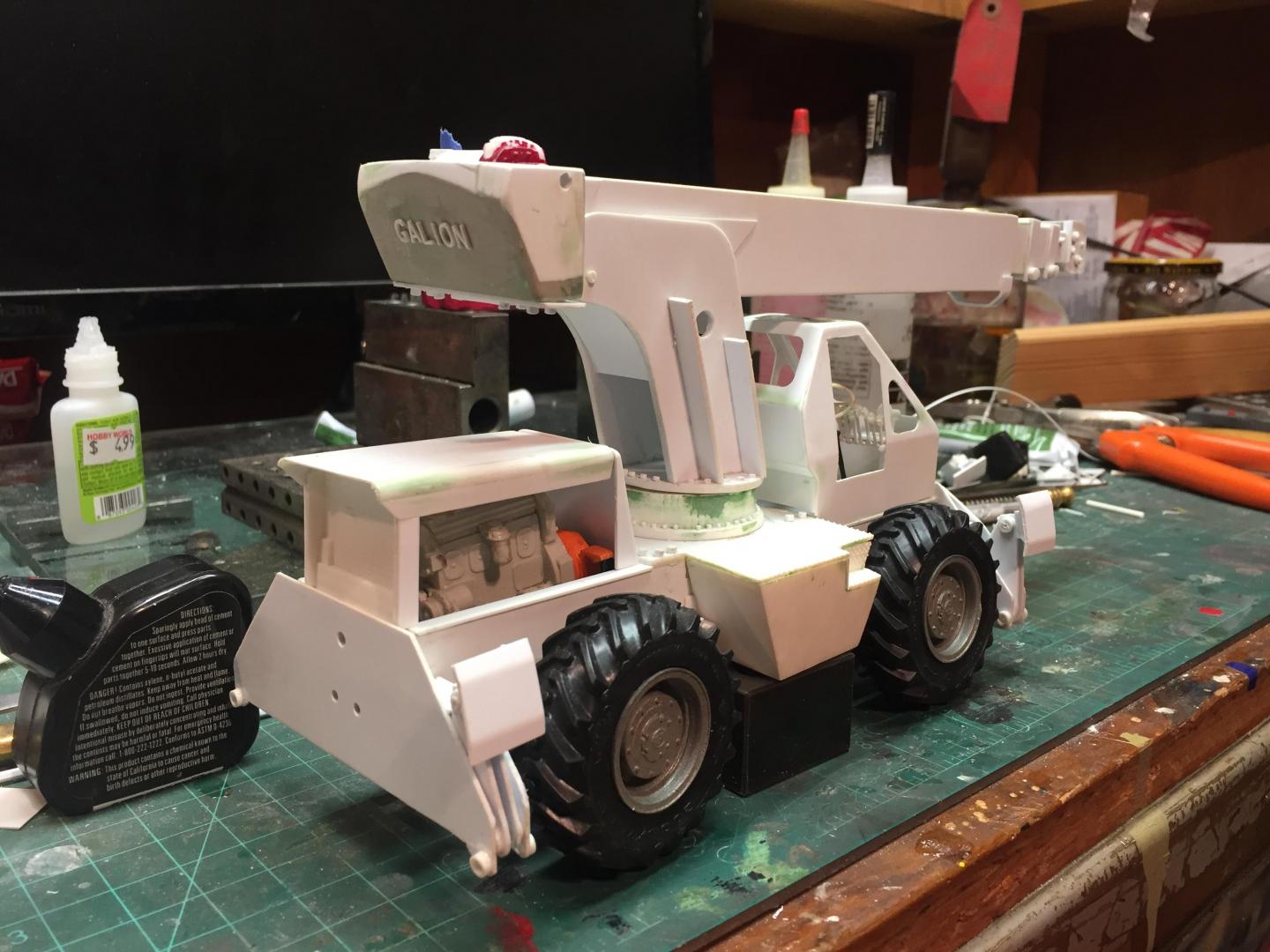

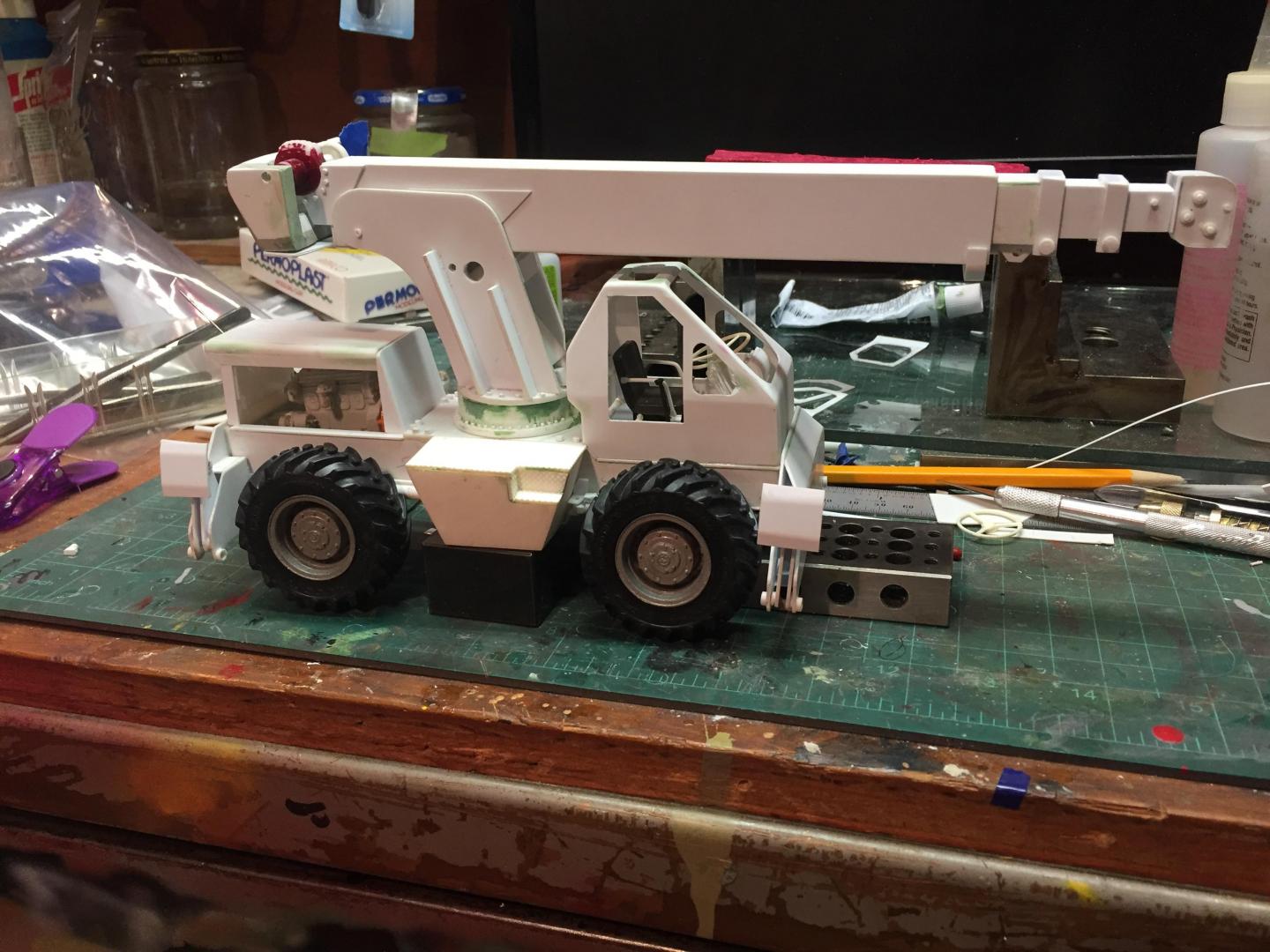

Since this not only has full four wheel hydraulic steering, it also has conventional mechanical steering on the front axle, so just added that too.  Added the gauge bezels to the dashboard, will apply decals and epoxy lenses after paint. Guess it's just about time to start installing all of the hydraulic lines.......probably going to be a mile of 'em! Here's a mockup of progress so far.







Edited by redneckrigger

Share this post


Link to post
Share on other sites
