48 Chevy Fleetline - old school bomb

Recommended Posts

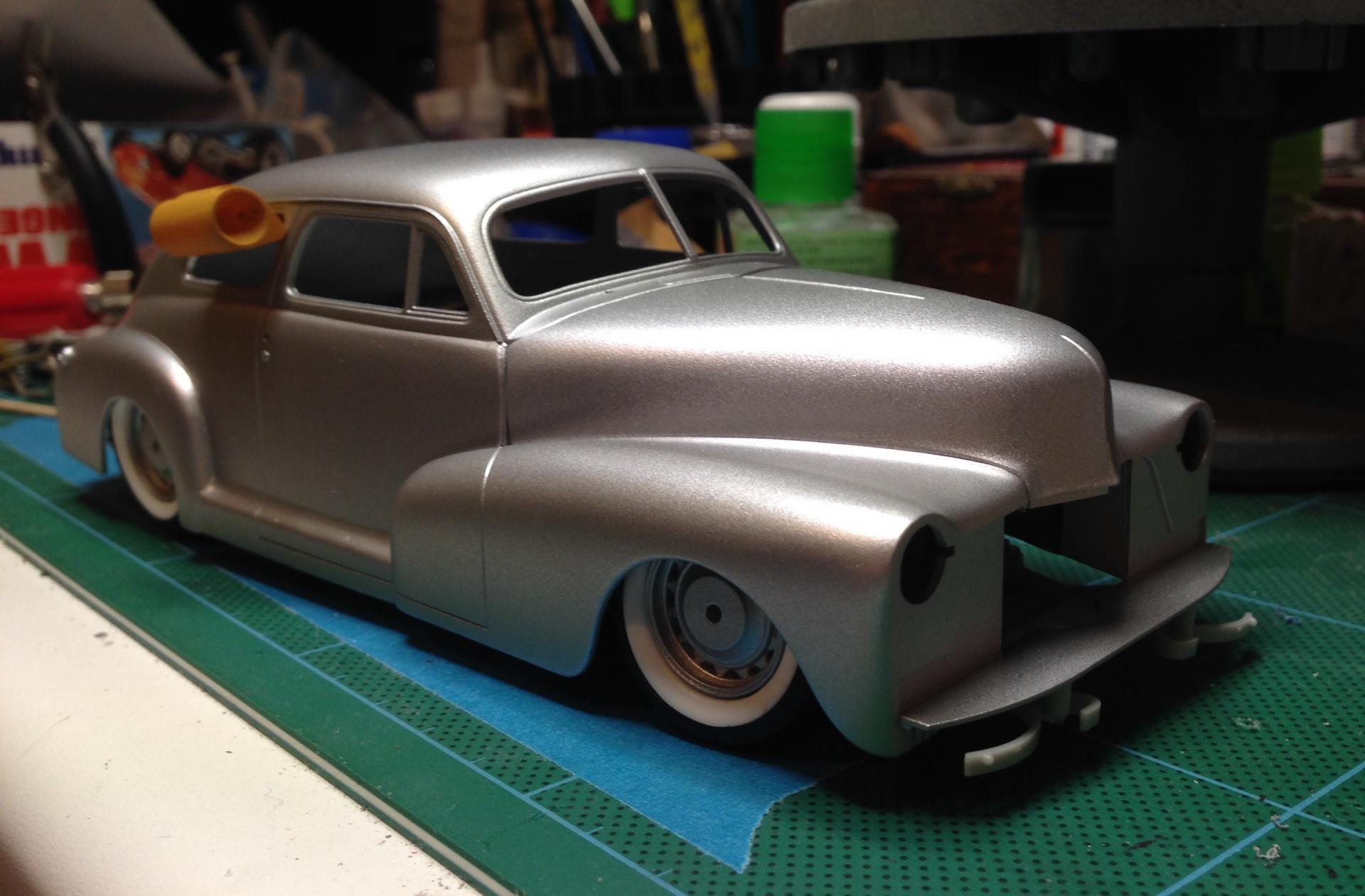

I love the shape of these cars and this Galaxie Ltd. kit is lovely to work with.

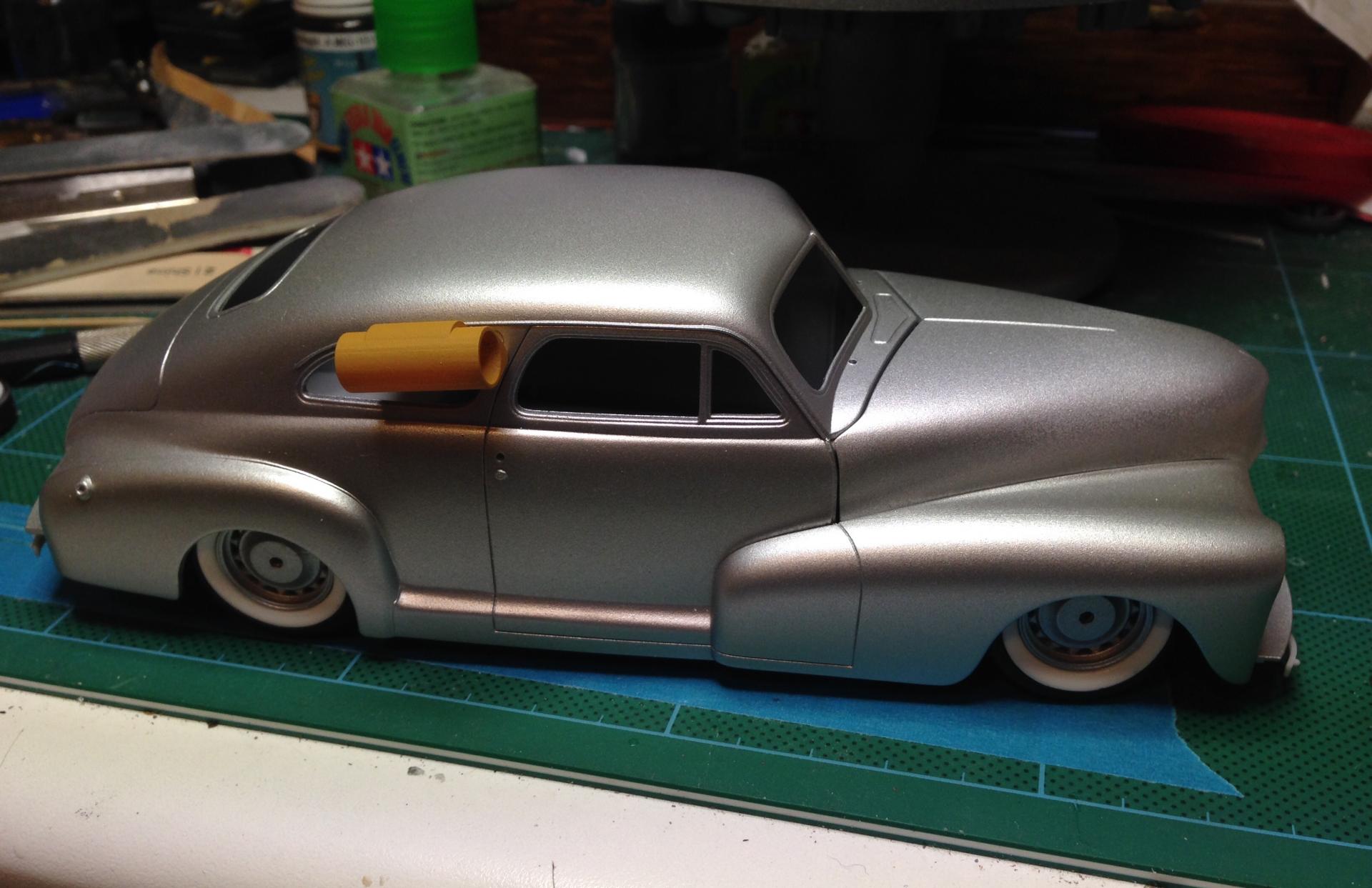

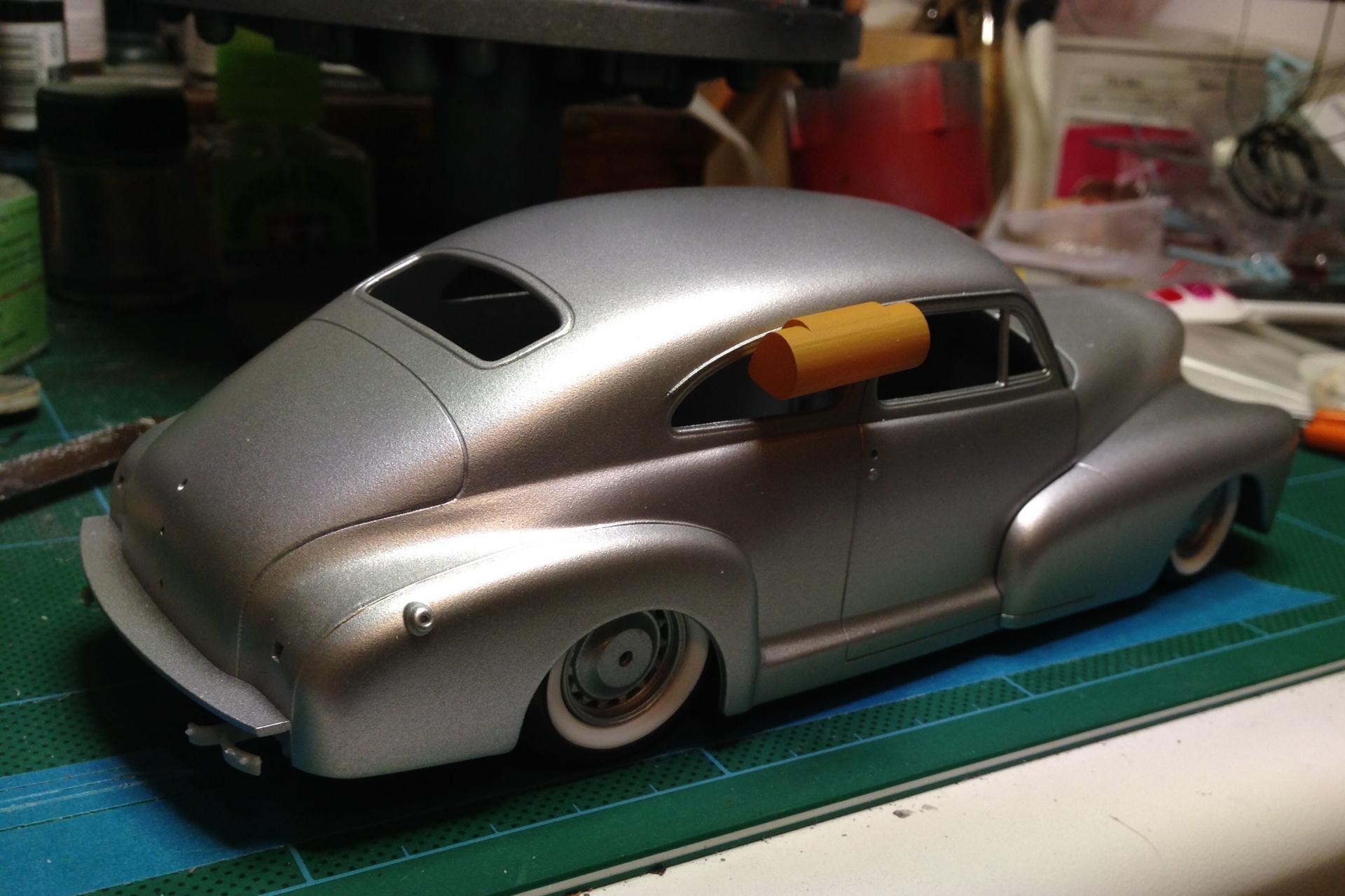

got a swamp cooler 3D printed by Shapeways in the Netherlands, artillery wheels from The Parts Box, in Australia.

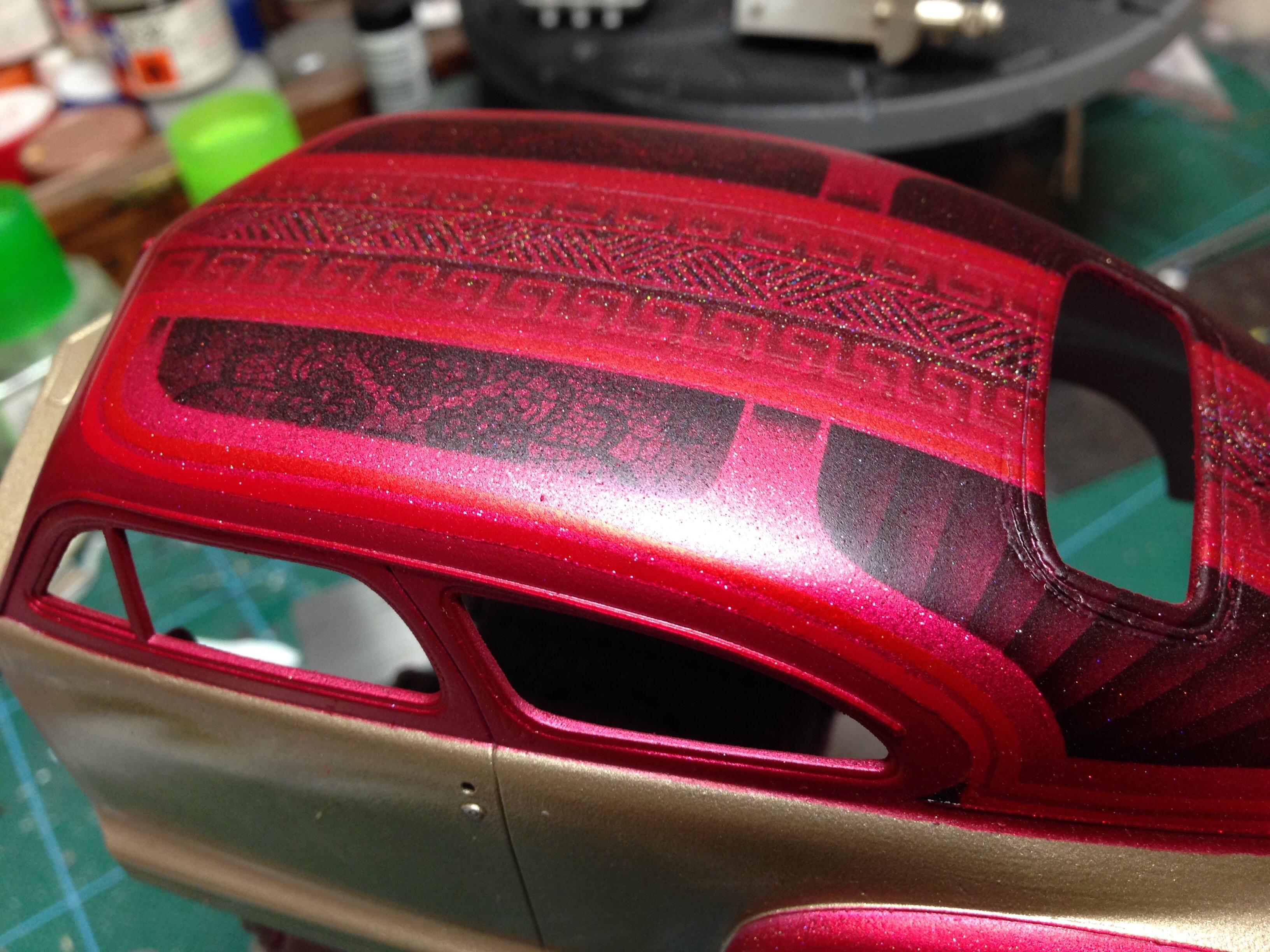

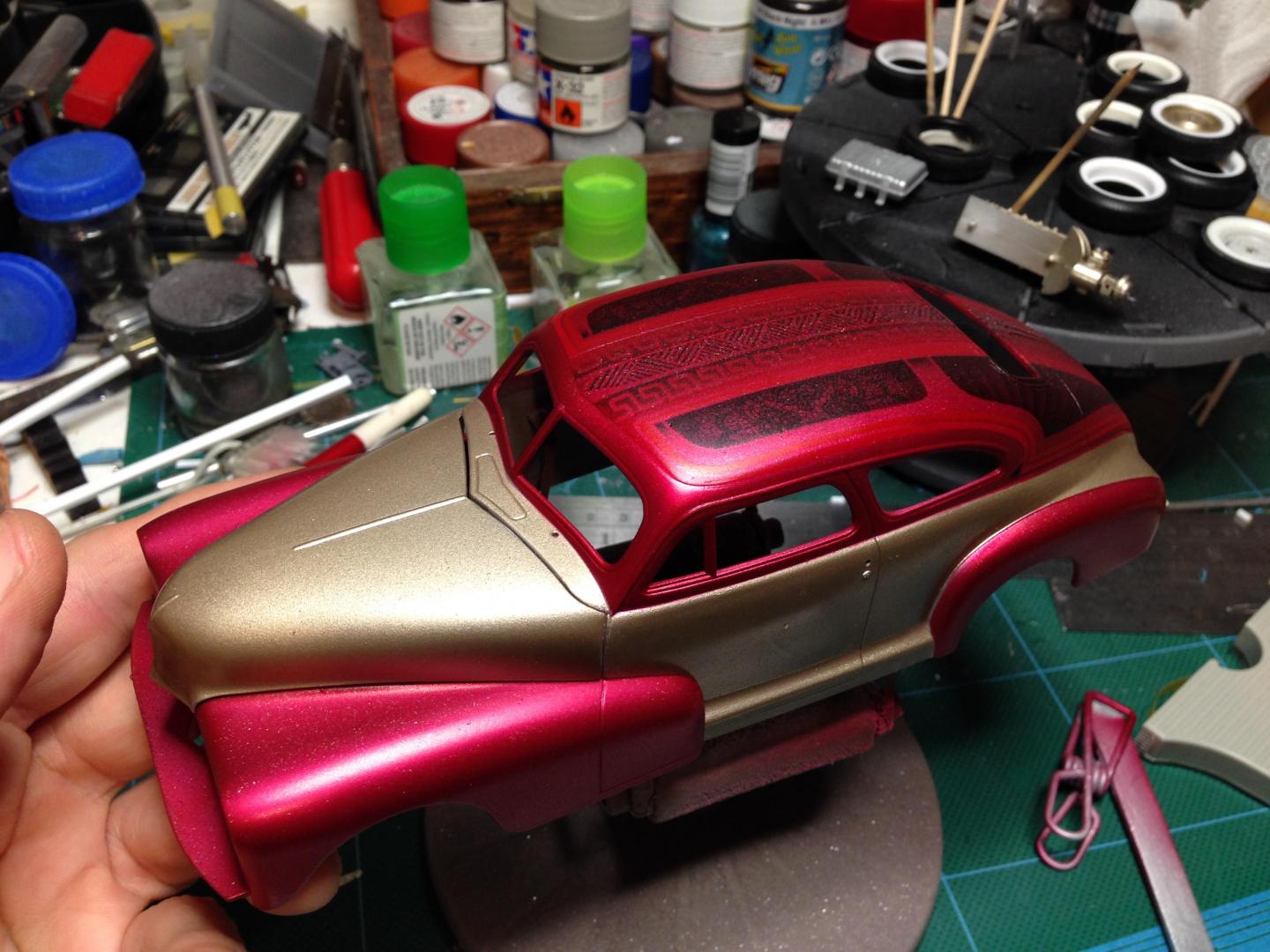

Roof n fenders will be candy red and the hood and sides will be white gold.




Share this post


Link to post
Share on other sites

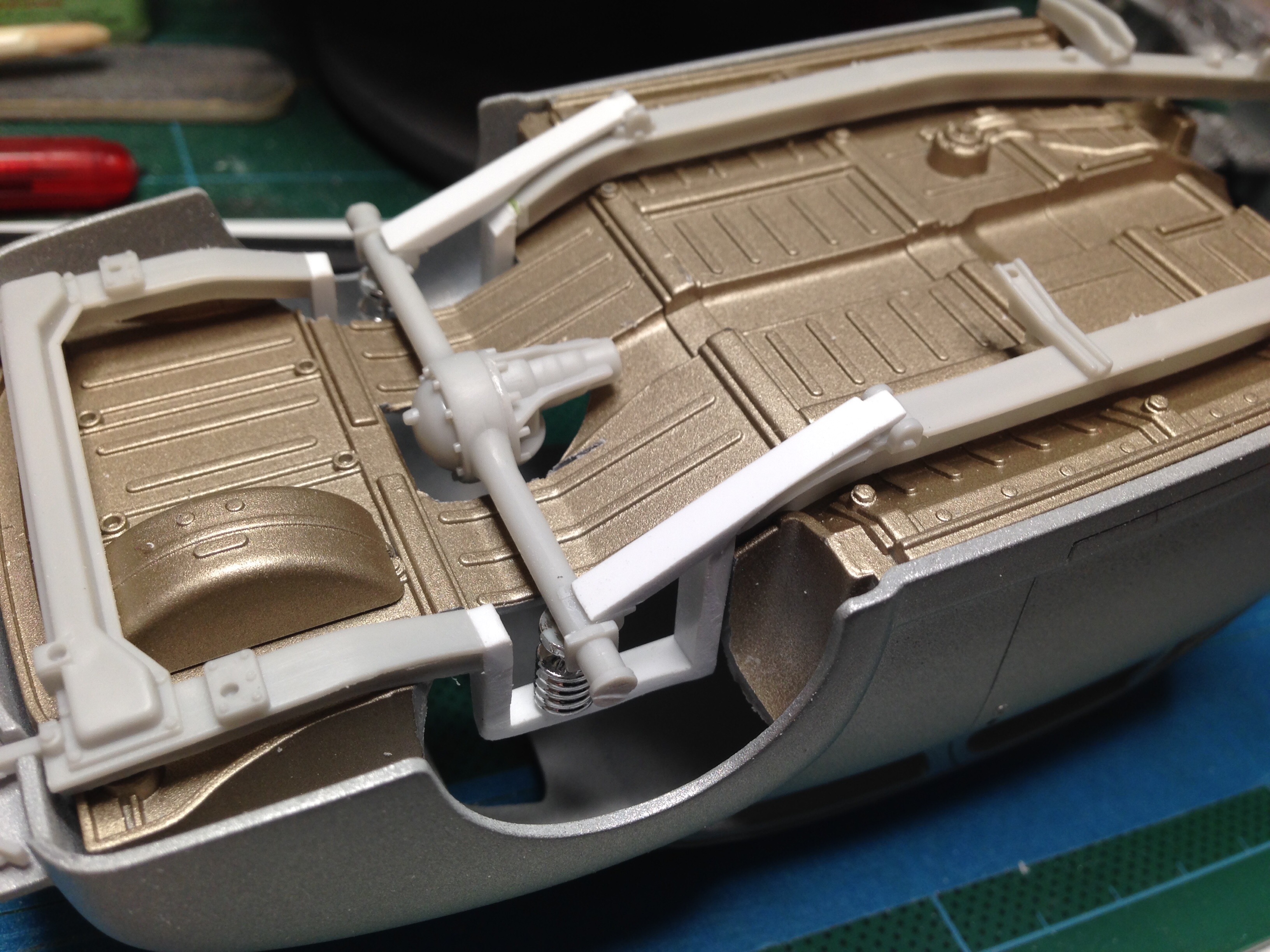

The rear of the chassis needed some work to get the tail properly low. Some of the inner arches needed cutting away and clearance was required for the rear axle differential.

more tweaking needed but this is it so far:


Share this post


Link to post
Share on other sites

Nice start.  I have a diecast "road rat" of this one.  I have thee Galaxie sedan delvery version.   Can't wait to see how this one ends up.

Share this post


Link to post
Share on other sites

I agree on the shape of these early Chevrolets. A couple of thoughts on the chassis. I foresee that the drive shaft tunnel may have to be raised to clear the drive shaft with the rear suspension set so low. Not sure if this is the final rid height for the rear suspension but the lower control arms are resting on the frame and leave no suspension travel. Looking at the finished model up on all four tires this wouldn't show but if you are displaying the chassis at all it would be visible. I like the old water cooler on the side window, these worked better than you might think especially with some ice in the water.

Share this post


Link to post
Share on other sites

Here's the part to be removed, some styrene added then re-installed to clear the driveshaft and the diff. I also "mini-tubbed" it, sliced the inner fenders, added styrene then re-installed them:








Share this post


Link to post
Share on other sites
2 hours ago, espo said:

I agree on the shape of these early Chevrolets. A couple of thoughts on the chassis. I foresee that the drive shaft tunnel may have to be raised to clear the drive shaft with the rear suspension set so low. Not sure if this is the final rid height for the rear suspension but the lower control arms are resting on the frame and leave no suspension travel. Looking at the finished model up on all four tires this wouldn't show but if you are displaying the chassis at all it would be visible. I like the old water cooler on the side window, these worked better than you might think especially with some ice in the water.

Cheers Espo

I've got a parts box driveshaft with extra universal joints that can get around the driveshaft issue.

 The ride height is going to be 'parked in the weeds', so suspension travel isn't an issue here.

Share this post


Link to post
Share on other sites
Posted (edited)
2 hours ago, dino246gt said:

Here's the part to be removed, some styrene added then re-installed to clear the driveshaft and the diff. I also "mini-tubbed" it, sliced the inner fenders, added styrene then re-installed them:








Thanks for taking the time to show me how you did yours. I found that I needed to completely remove the tops of the arches or the tyres hit them.

The wheels came with big n little tyres, but it would probably have been better to get all four in the smaller size. It would've made life easier, but fat rears look so much better, I reckon.

 The 3D printed cooler had more surface lines than I had hoped for, but the plastic is quite hard (much harder than styrene) and responds well to files and 1200 grit wet n dry.

ps I like the tiny nuts n bolts on your front suspension. It looks like it operates 😉

Edited by geetee66

Share this post


Link to post
Share on other sites

Most of the GM '46/'47/'48 Fleetlines where beautifully designed cars. Good looking model. Thanks for sharing.

Share this post


Link to post
Share on other sites
On 8/12/2019 at 12:04 PM, geetee66 said:

Cheers Espo

I've got a parts box driveshaft with extra universal joints that can get around the driveshaft issue.

 The ride height is going to be 'parked in the weeds', so suspension travel isn't an issue here.

I kind of thought you already had this figured out but was not sure. Your chassis looks great, very nice work here.

Share this post


Link to post
Share on other sites
On 8/16/2019 at 1:53 AM, espo said:

I kind of thought you already had this figured out but was not sure. Your chassis looks great, very nice work here.

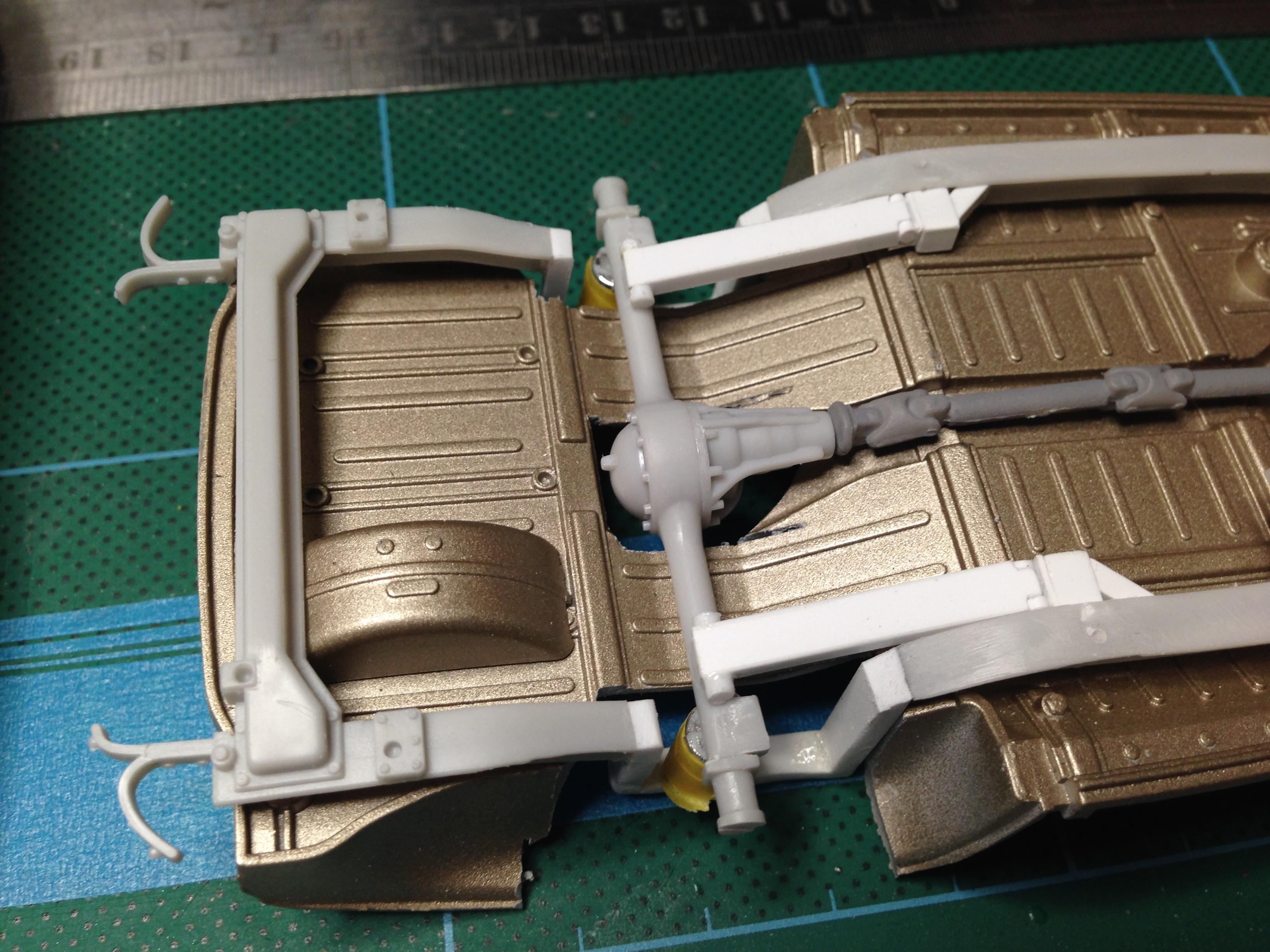

Ok, so after a bit of thought, I decided the control arms I made were pony. So I relocated them  and made them a bit better.

Now it looks more workable:


Share this post


Link to post
Share on other sites

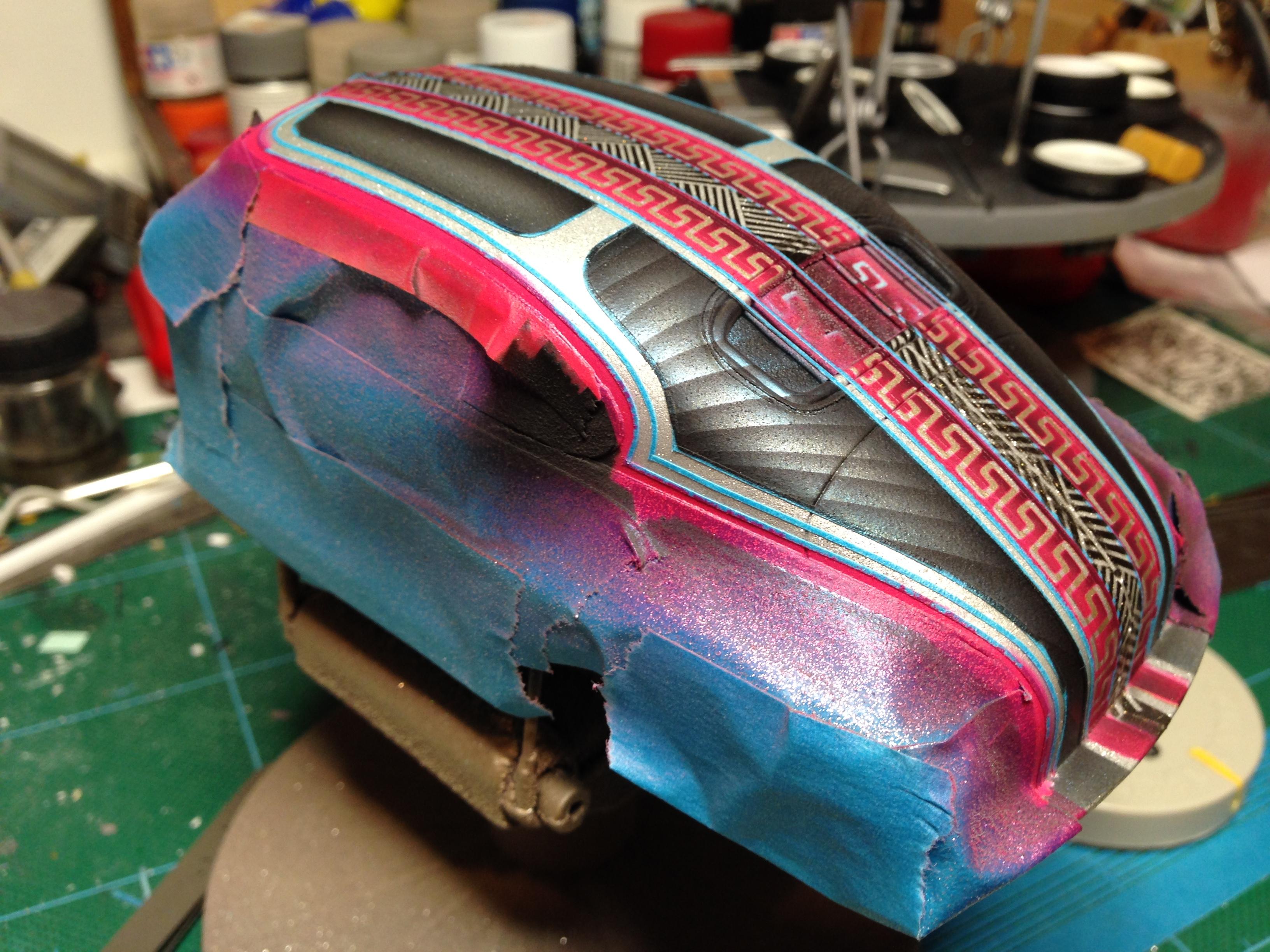

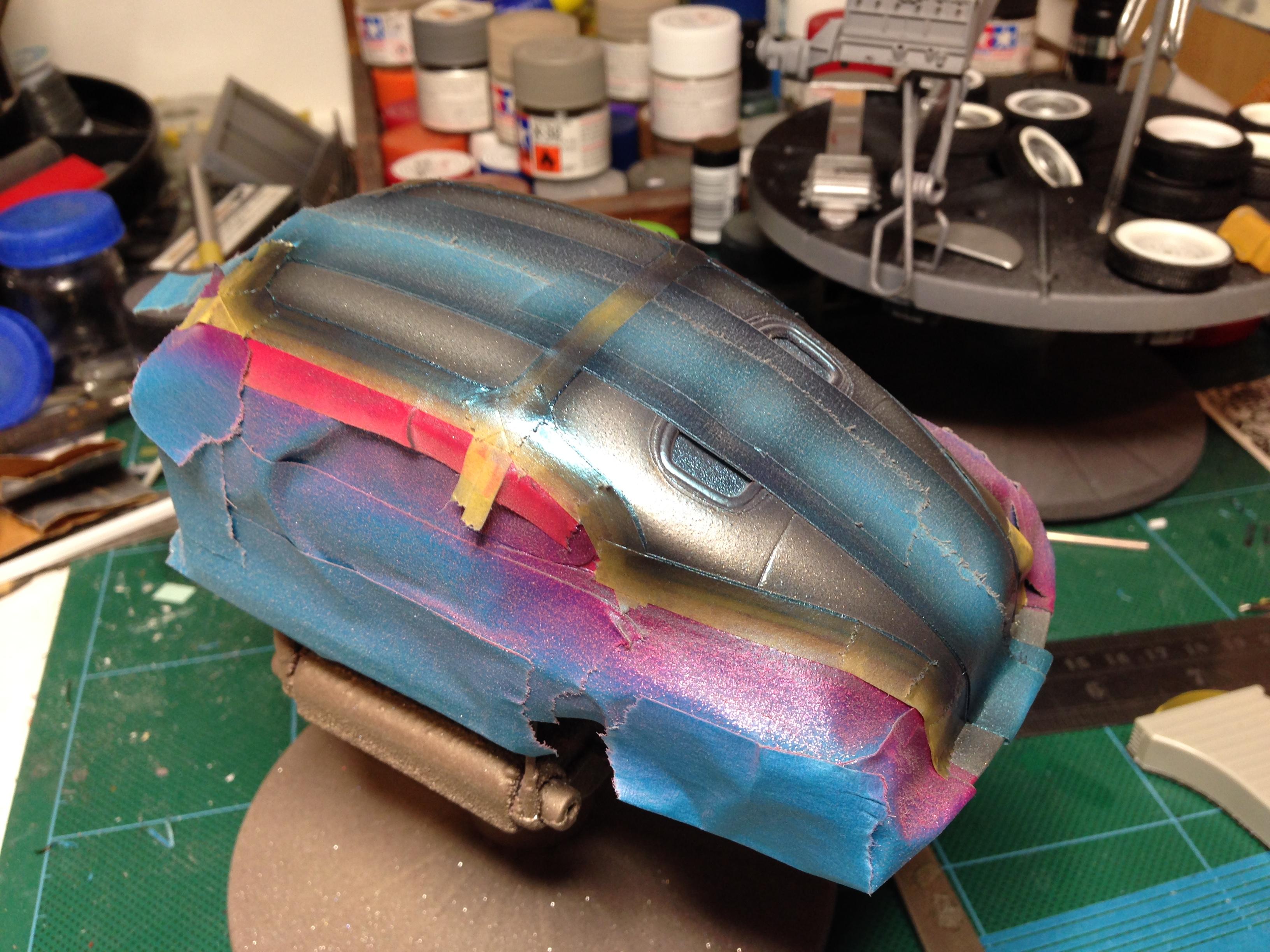

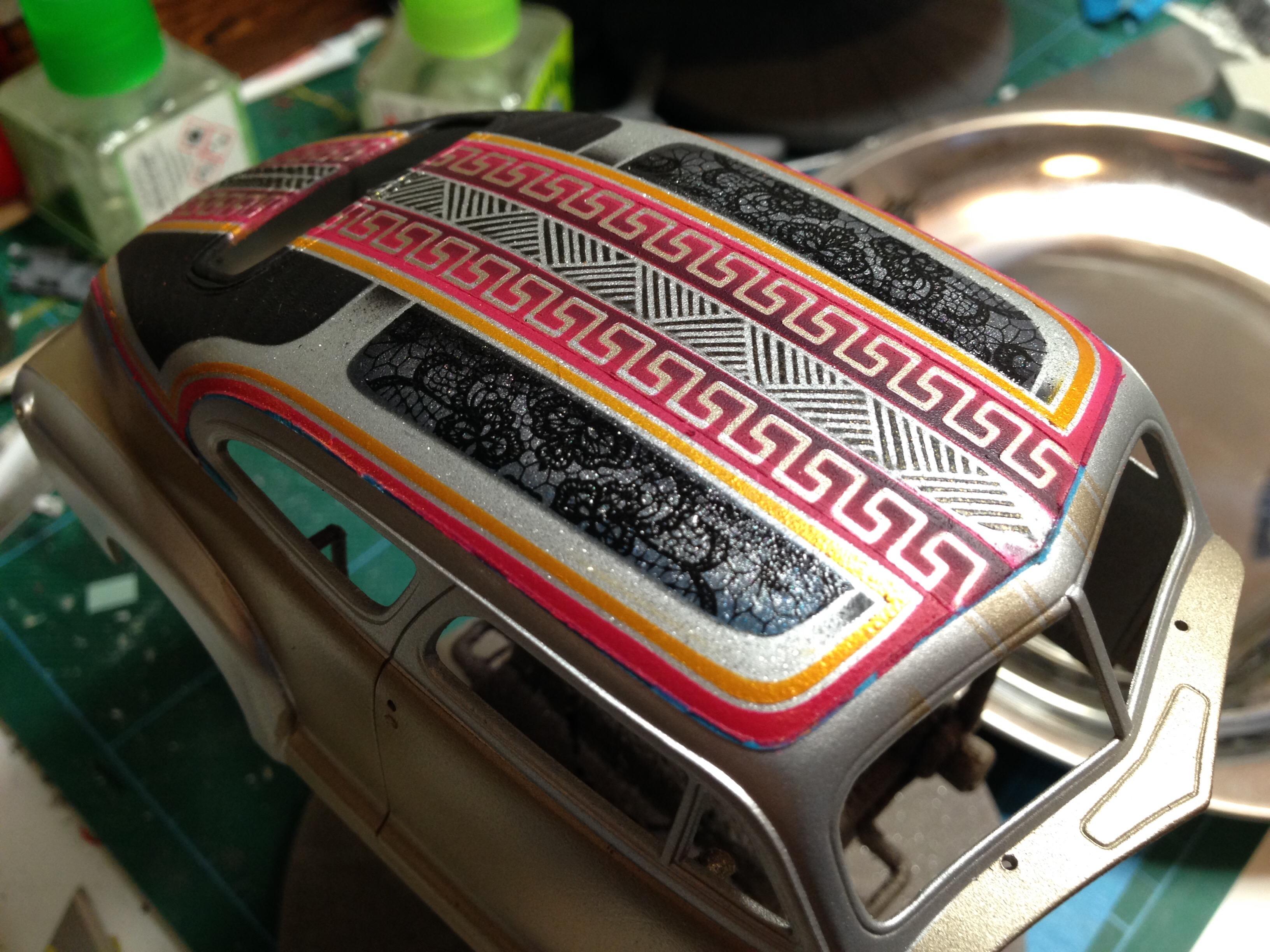

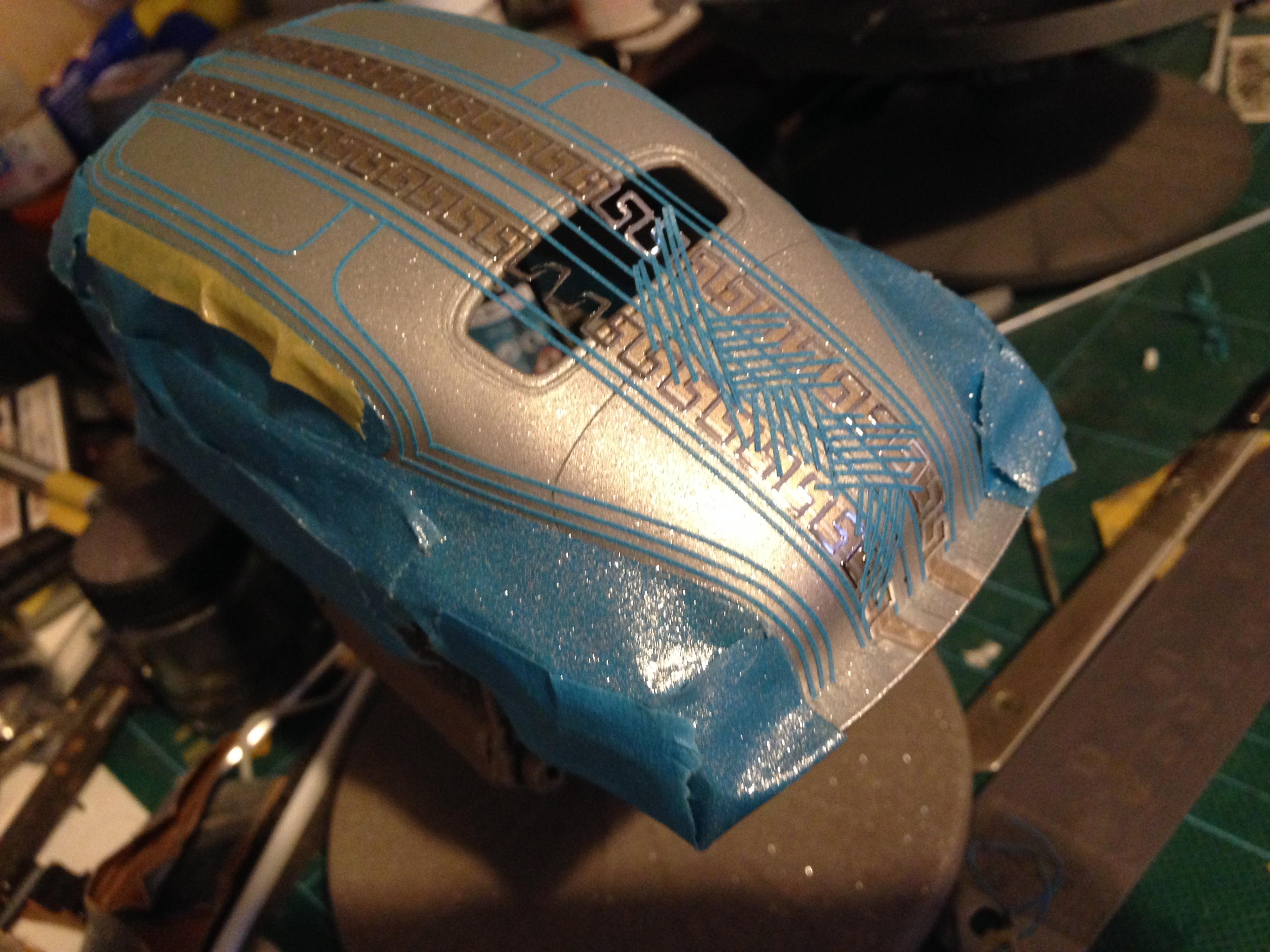

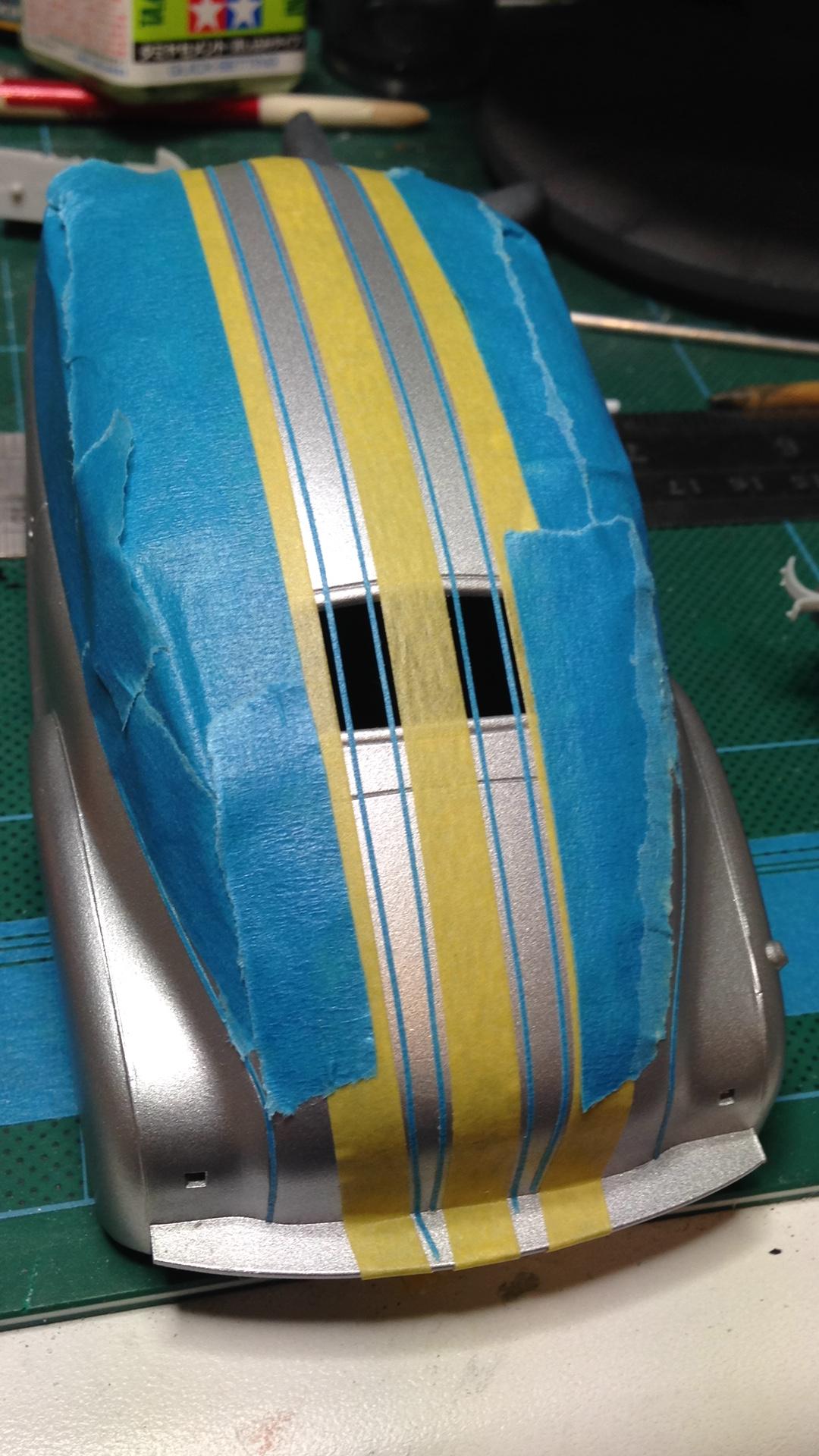

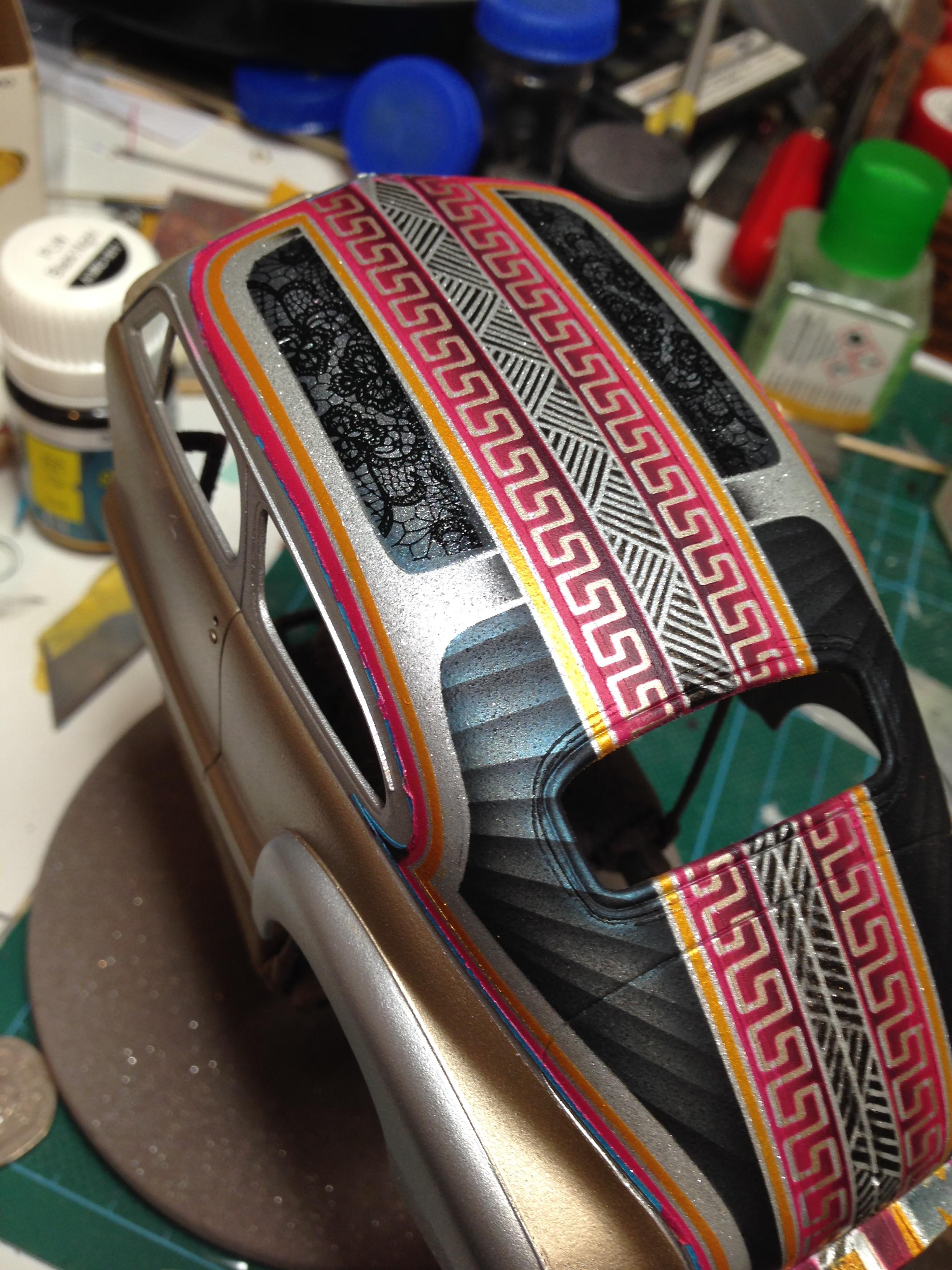

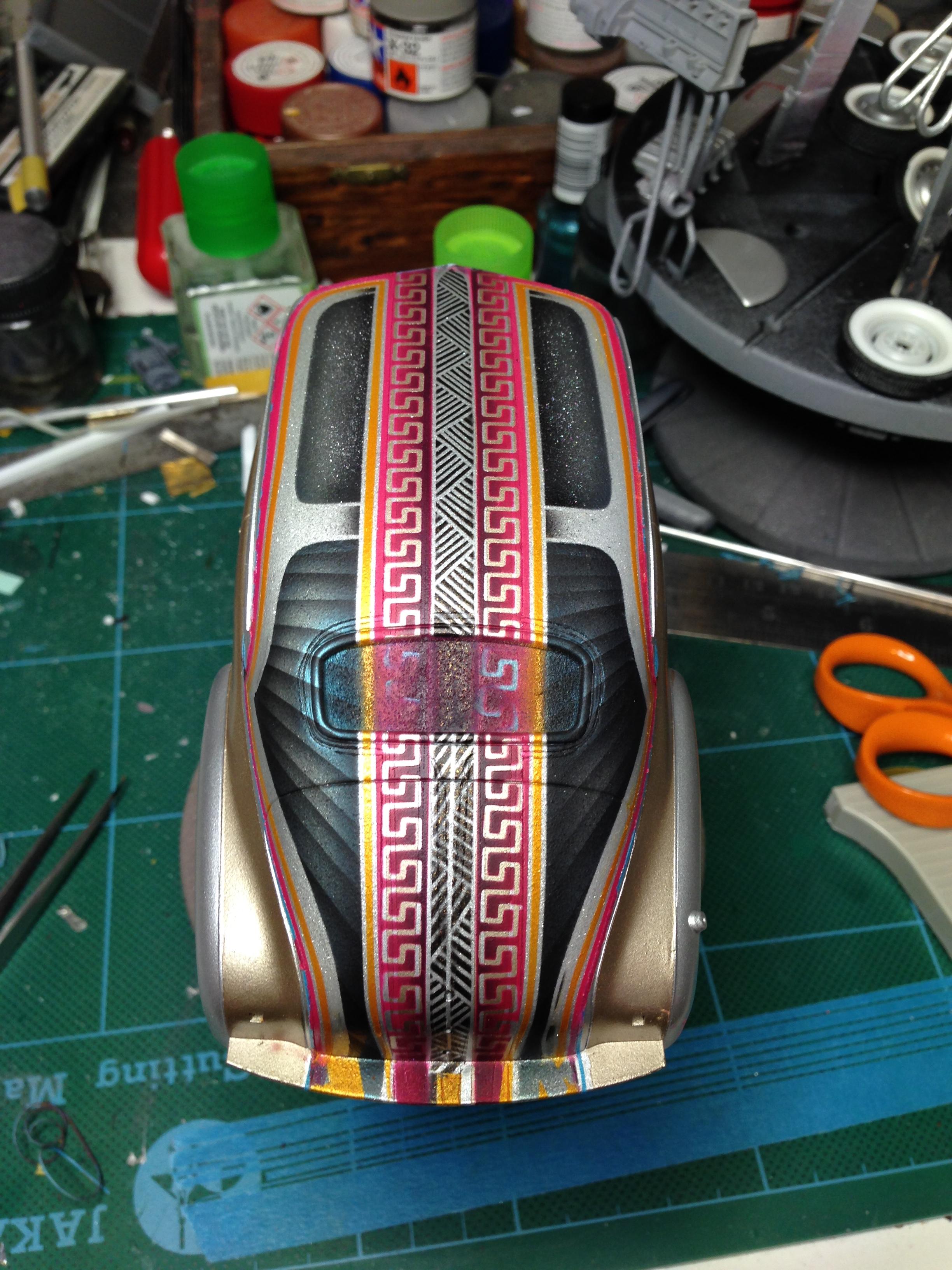

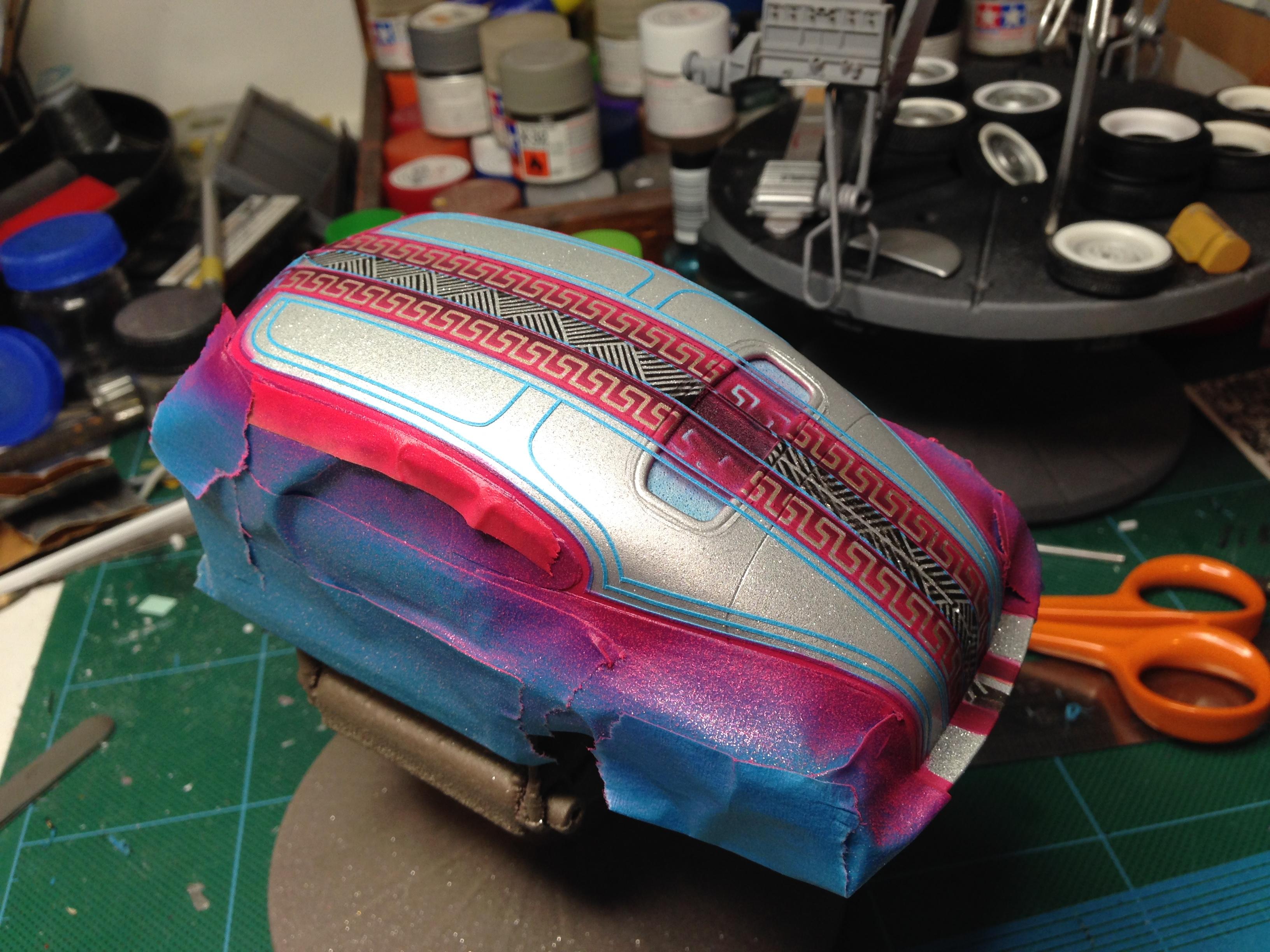

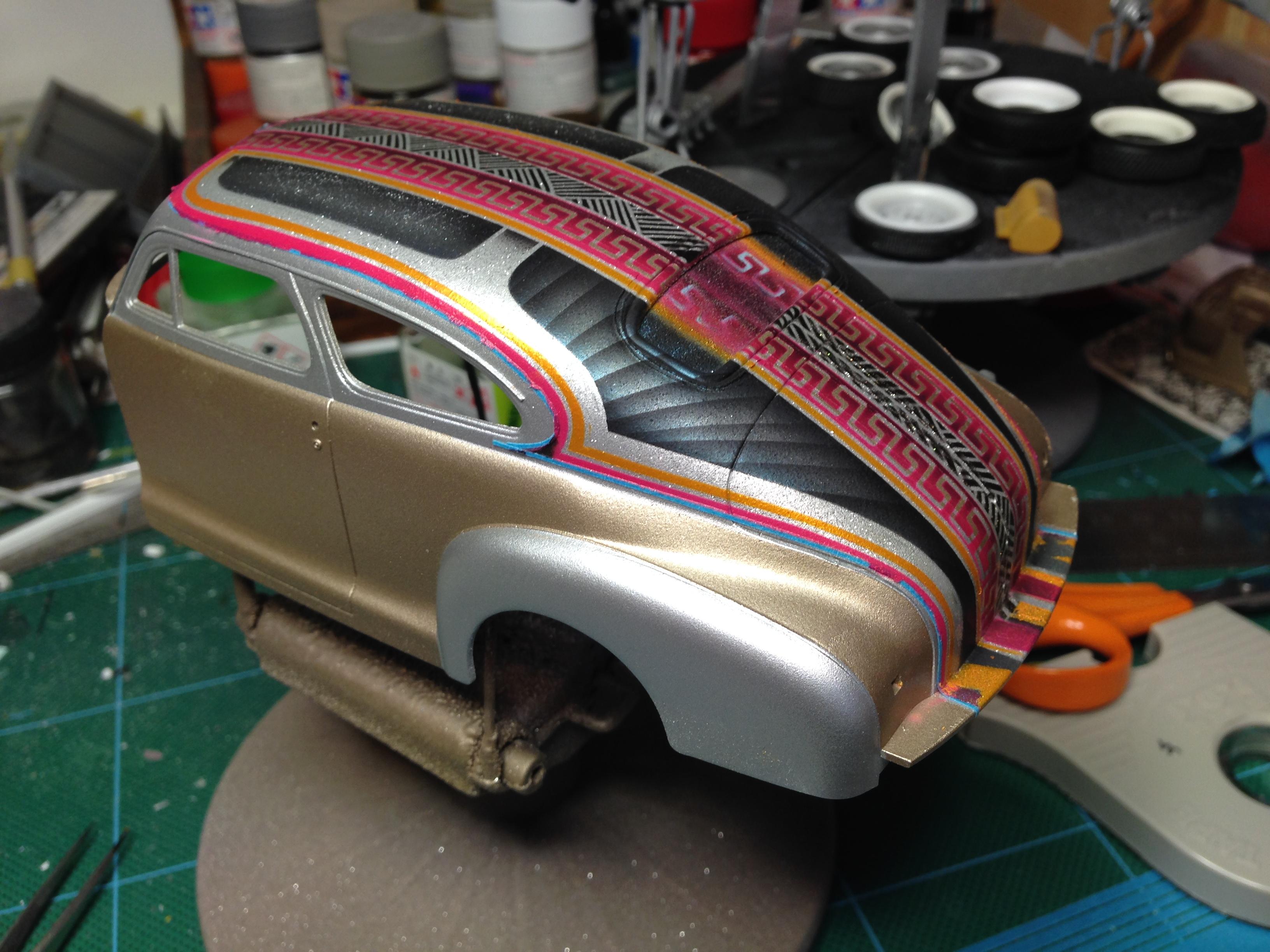

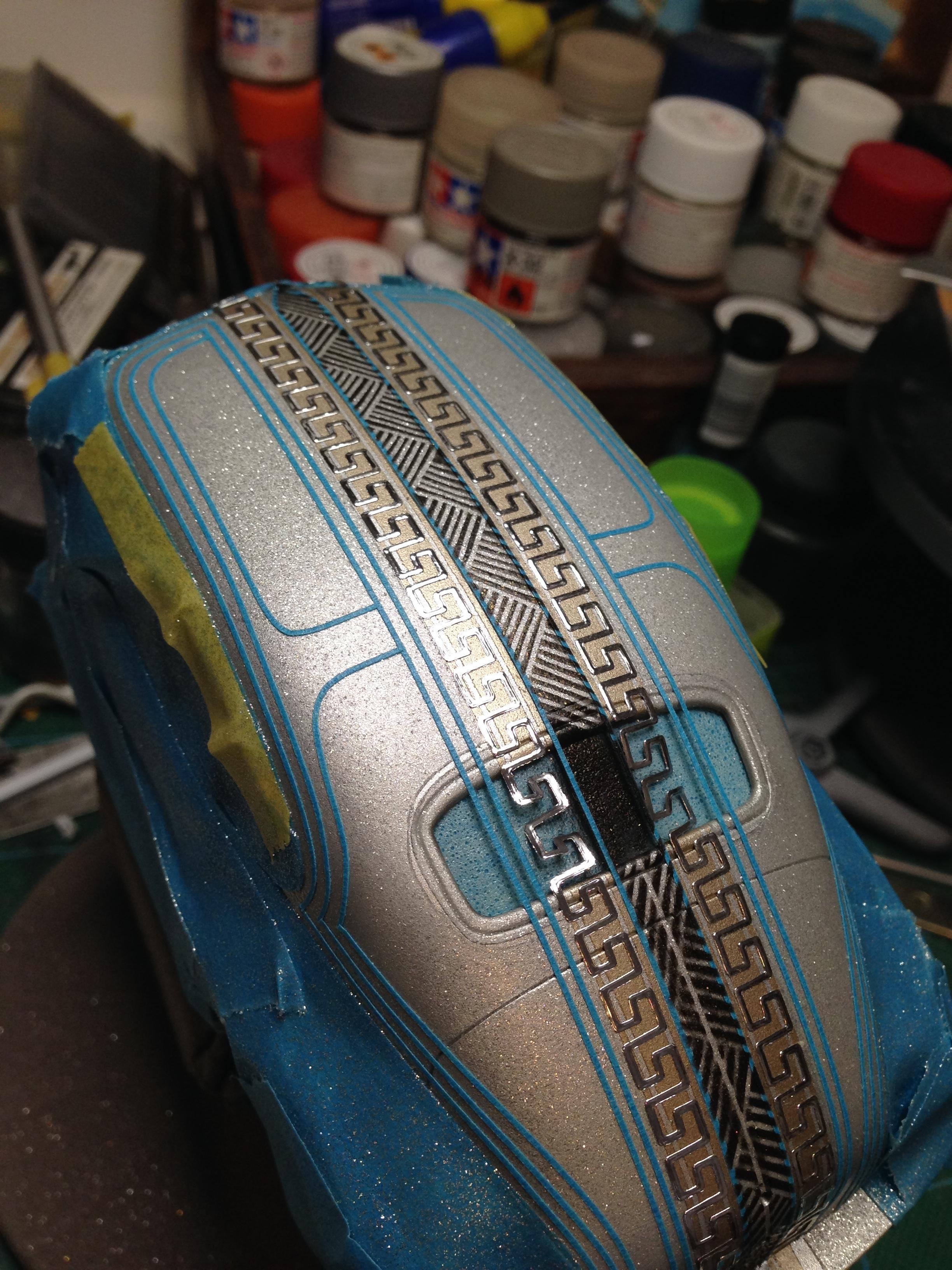

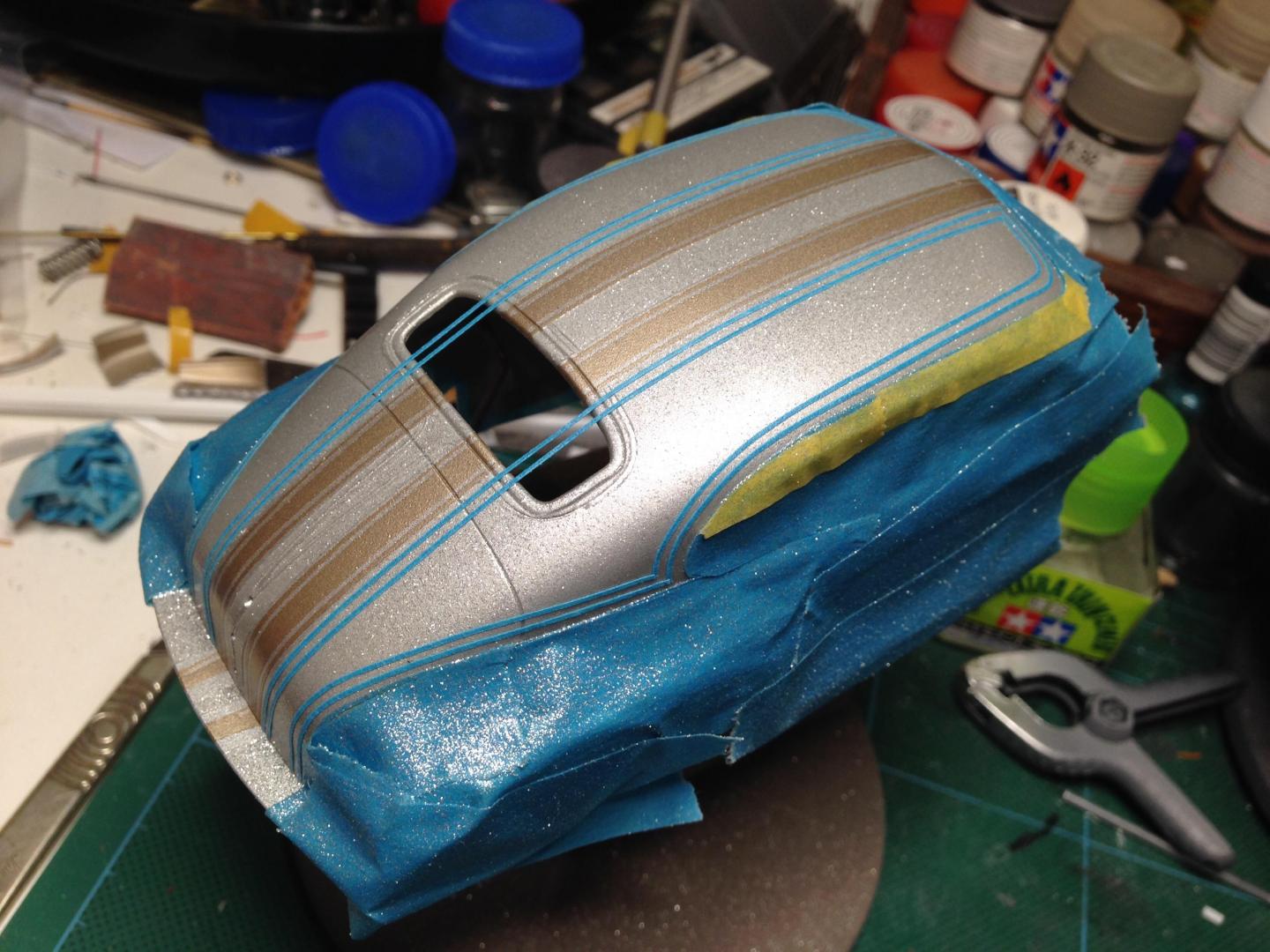

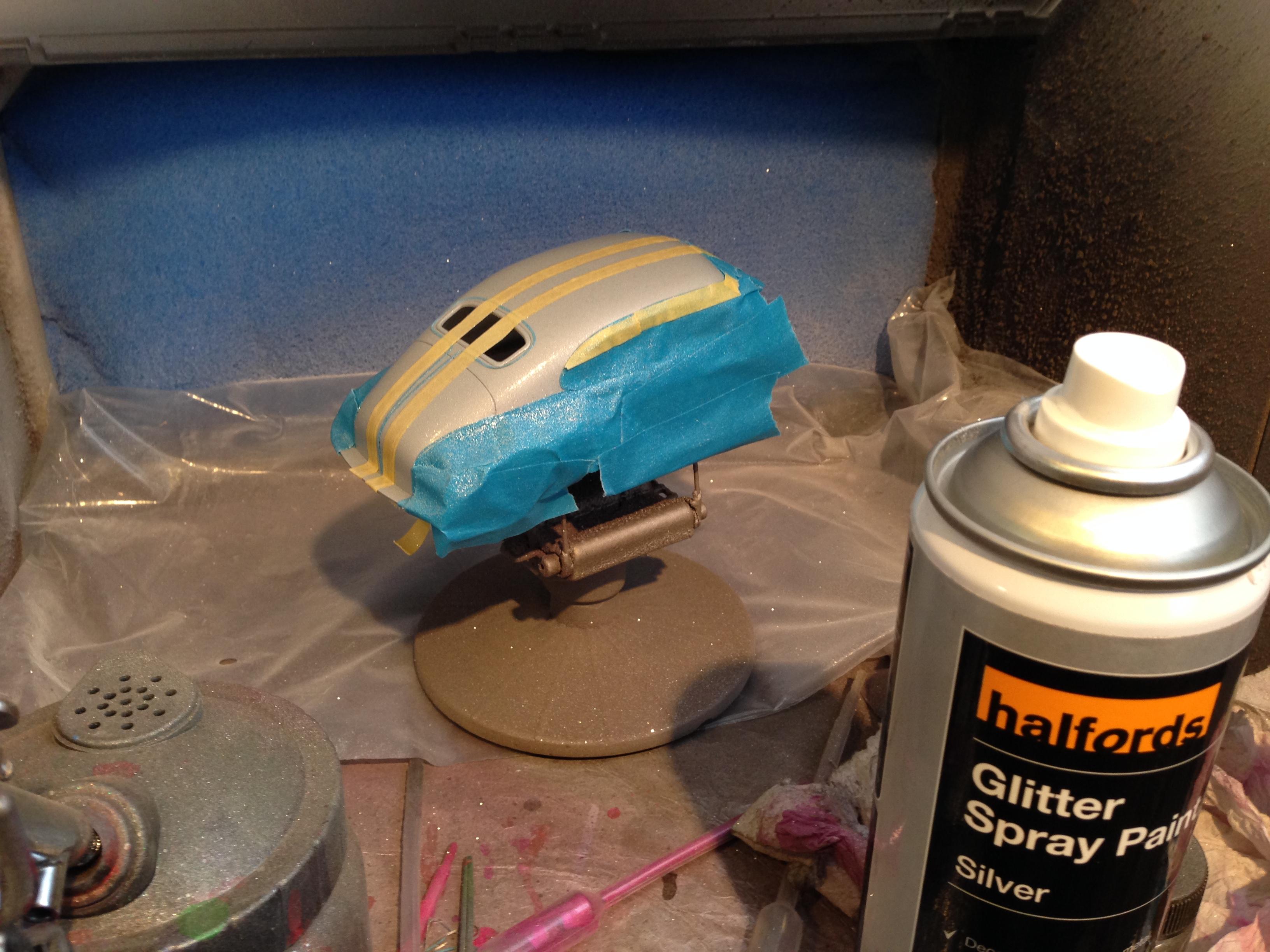

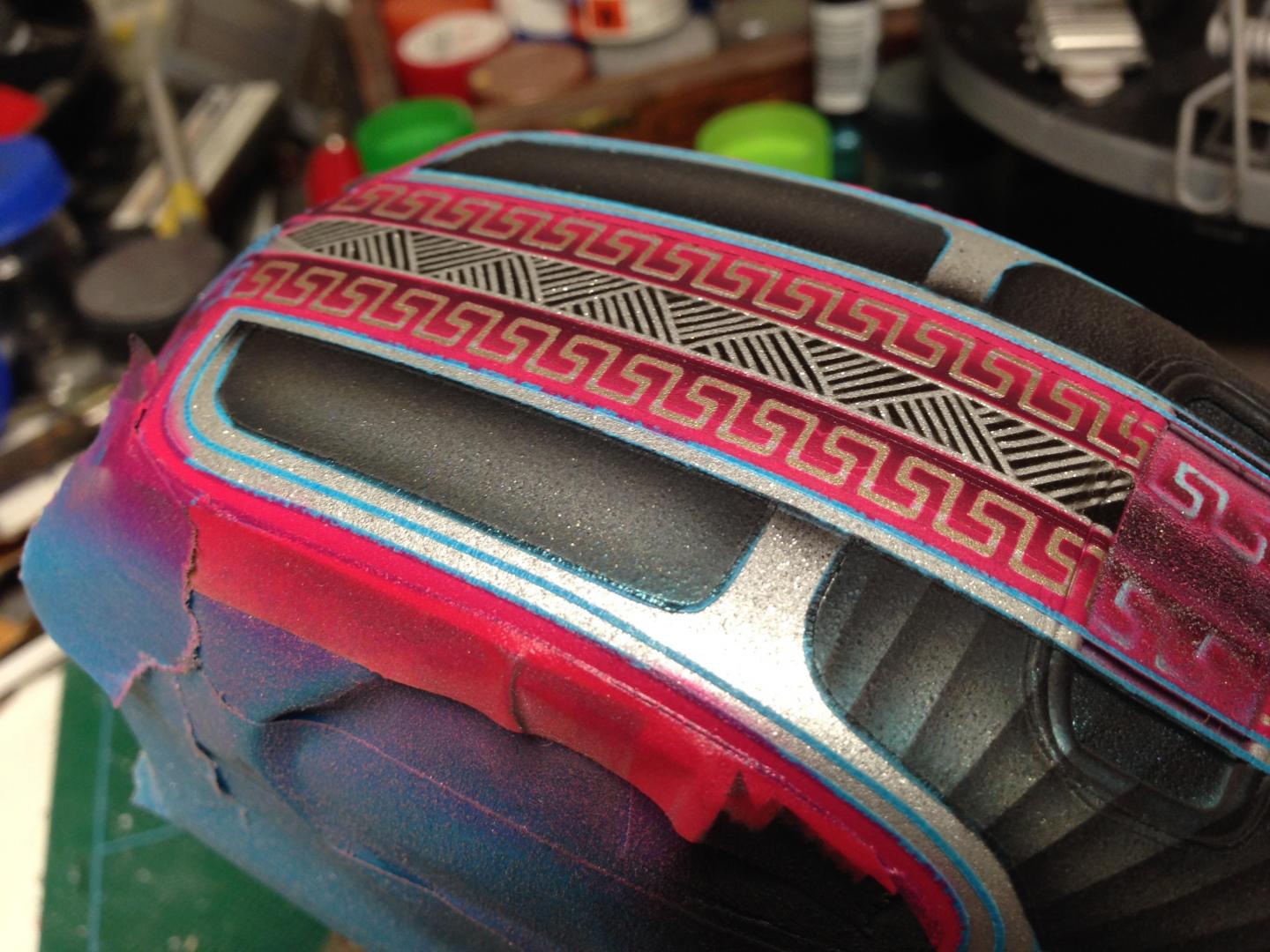

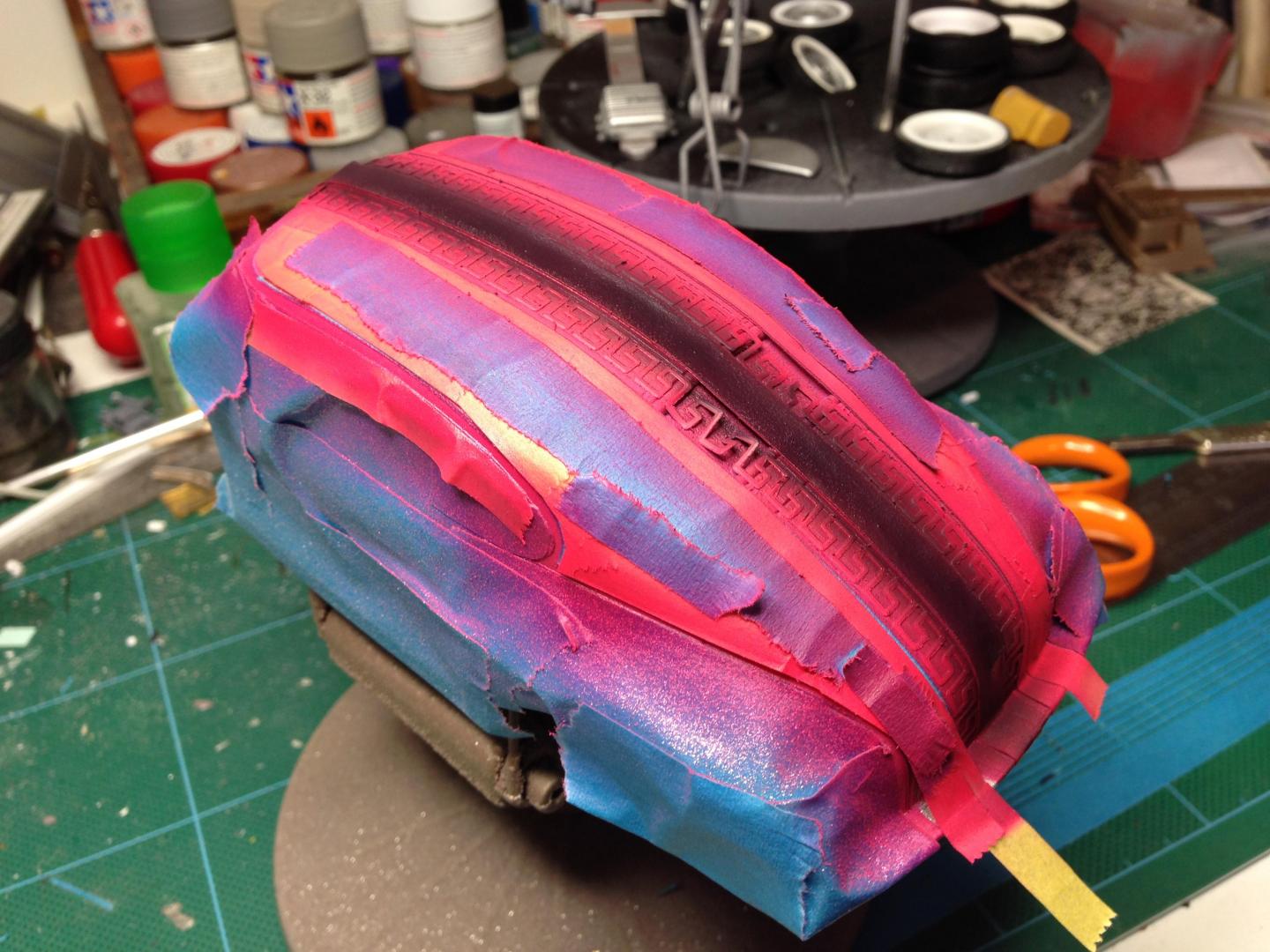

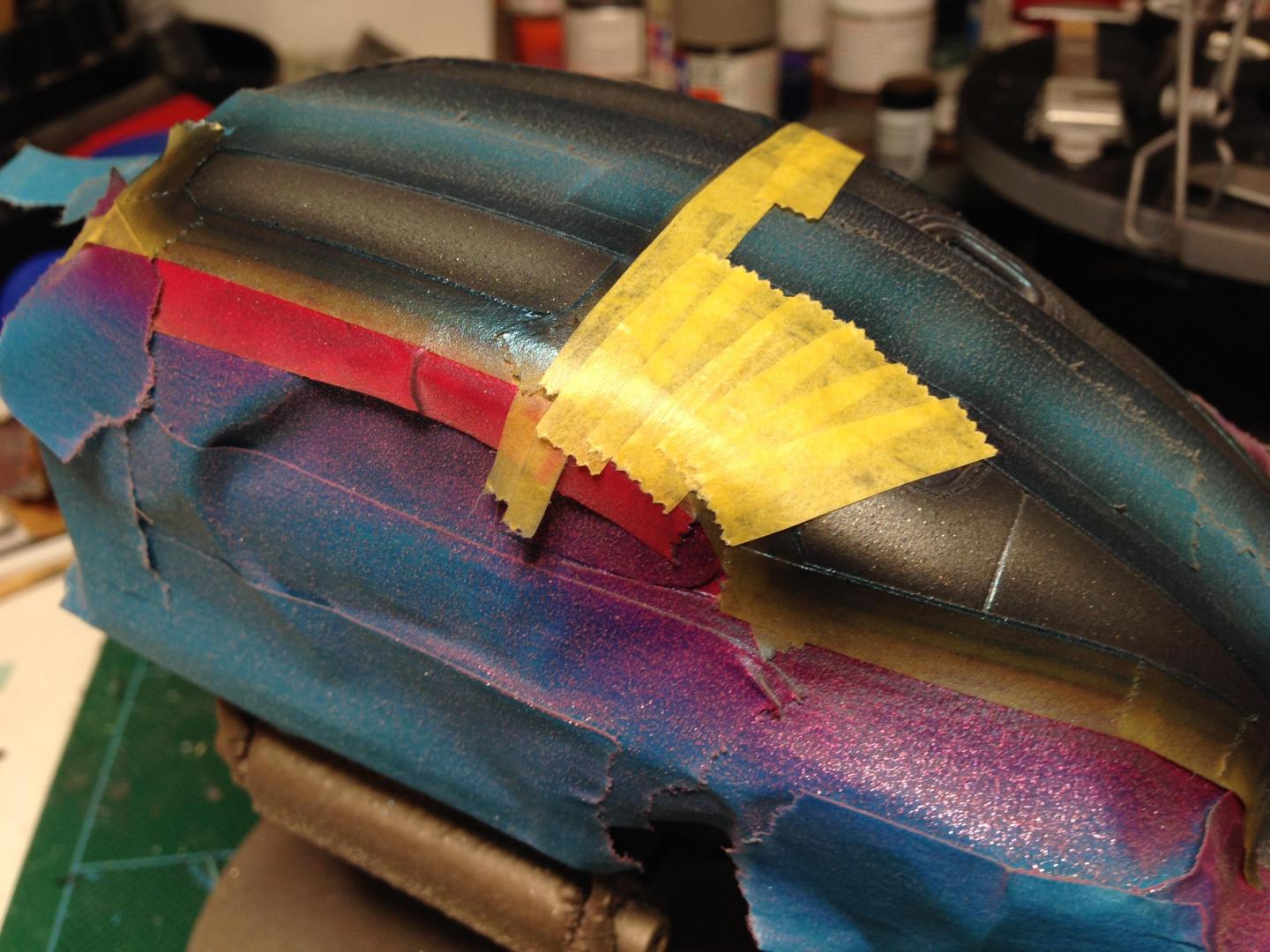

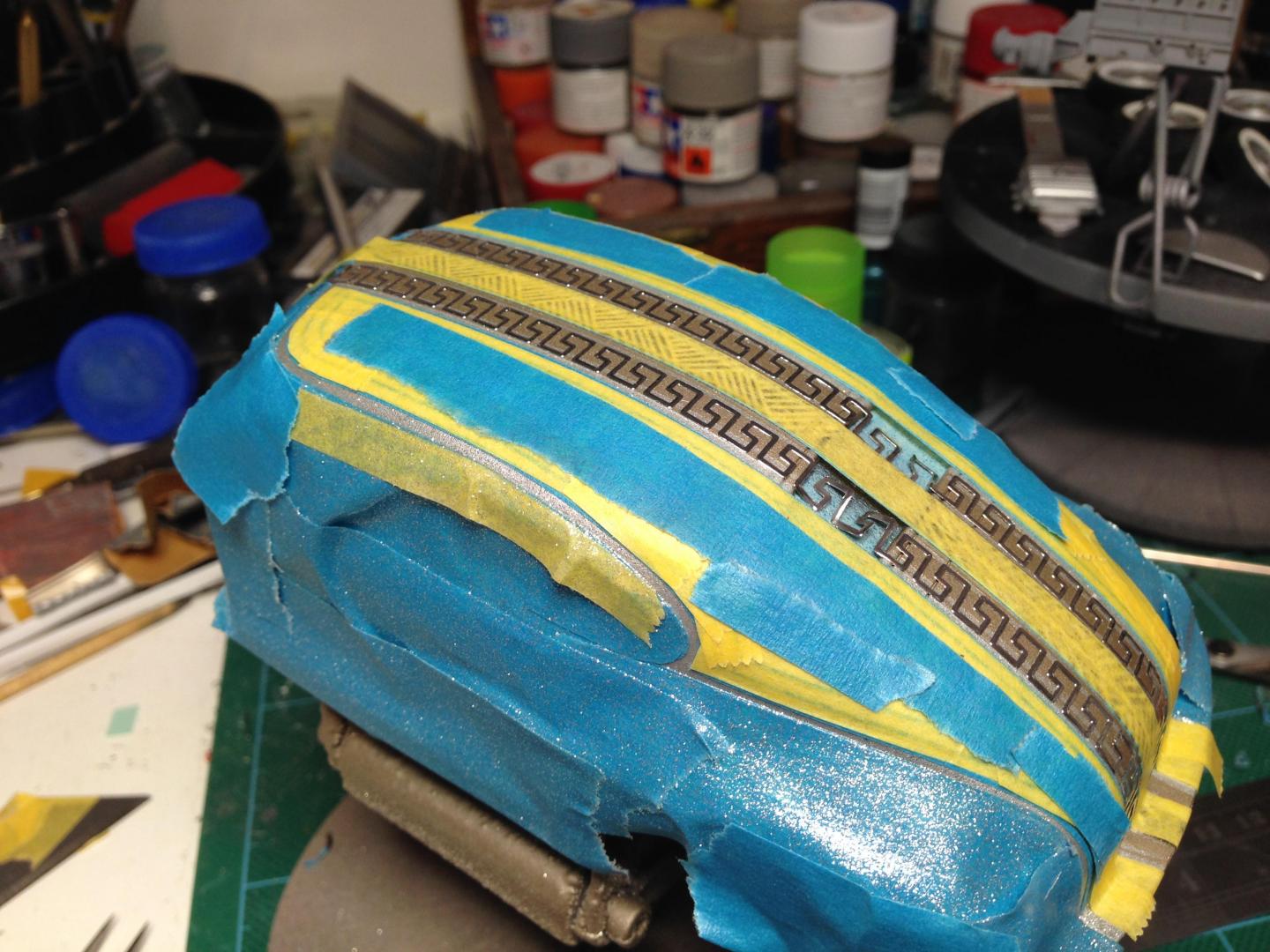

I also masked and painted the sides with white gold and did a couple of stripes on the roof. These look a bit obvious now, but there's going to be lace panels and fingerprint sections covering some of it and under red candy, it should give a nice effect.




Share this post


Link to post
Share on other sites

Interesting looking drive shaft with multiple universal joints. I like the start of your paint design. Always interesting how these paint treatments evolve.

Share this post
