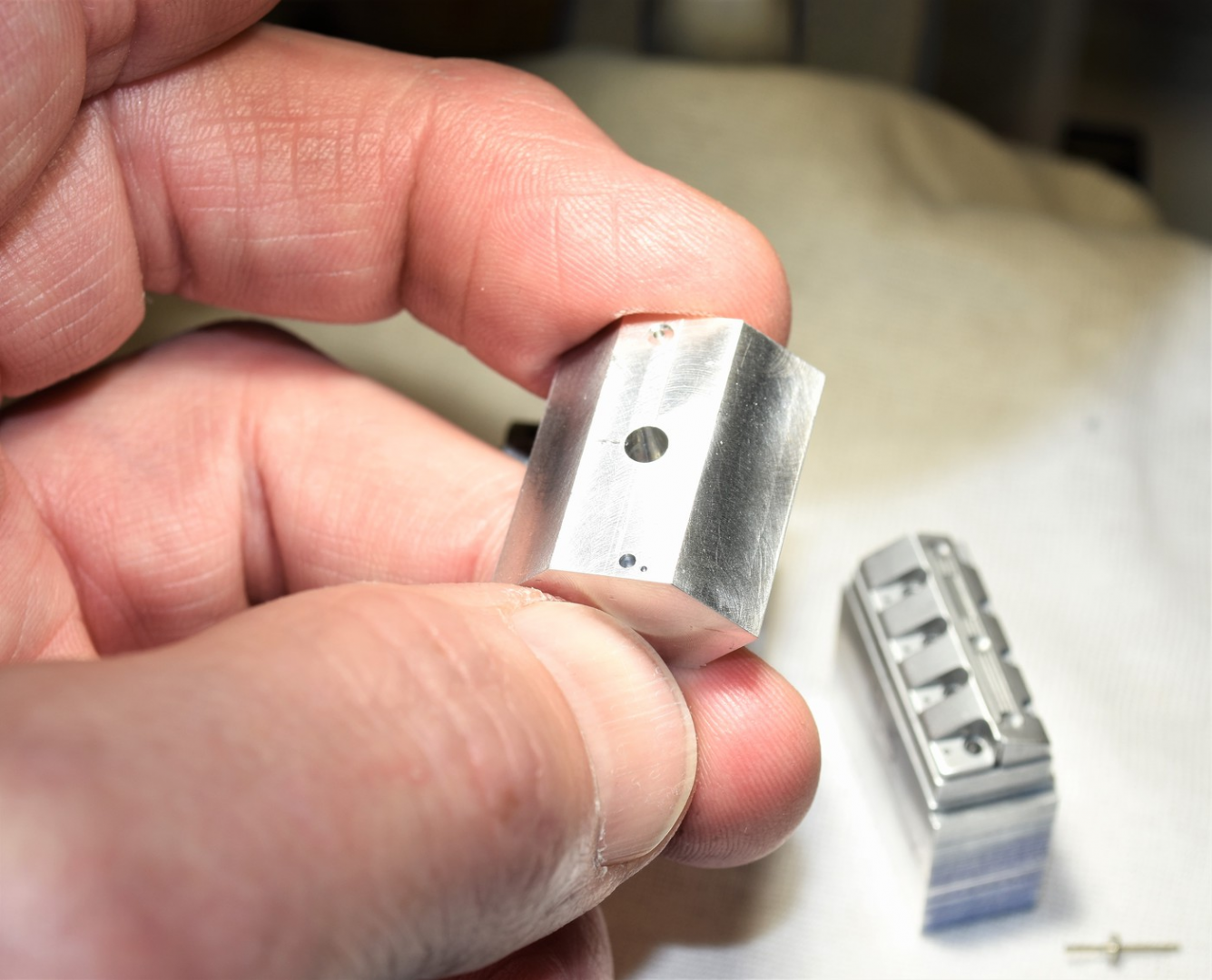

Hello everyone,  I got the block and water pump/cam cover drawn up and started machining the block.  I know that back in the day the blocks were cast aluminum but I wanted the look of alum so I'm machining it and will buff/polish and or media blast it for a proper look when done.  The block is about 2/3 done.  I have to add motor mount, freeze plug and oil housing detail among other odds and ends.  The lower portion of the block on the passenger side needs done next but the two sides are a bit different so getting this look right has been more challenging than the Donovan engine in the Bantam.   Took me the better part of a day just to machine the lower portion of the block you see below.  Hope everyone had a Happy Thanksgiving.  Cheers, Tim






Share this post


Link to post
Share on other sites

Another spectacular update Tim. You have as much patience as you do skills and I highly admire both.

Share this post


Link to post
Share on other sites

SWEET!!! hey, i'm doing this 730 inch motor  at home.....think you could make some stuff for me? LOL looks great Tim!!!!!

Share this post


Link to post
Share on other sites

Appreciate the sentiments you've shared Brad.  Still slow at what I do but still plugging away at this one.

Dave, I couldn't machine a simple bracket plate for that motor.¬† I'll let you do the big boy stuff while I sit in the corner and play with my toys.¬†¬† ūüôā

Cheers !



Share this post


Link to post
Share on other sites

Tim, love the "soft" look on the aluminum heads.  Is that sandblasted or steel wooled?  Looking great!



Share this post


Link to post
Share on other sites

Tim... So impressive my friend, you are a master at this. Your machining skills are out of this world. Amazing update. You should make the freeze plug out of brass, the contrast would.be awesome. Love your work¬†ūüėć

Share this post


Link to post
Share on other sites

More stunning jewelry.  Definitely raises the bar for metal work in modeling for any scale.  Truly mind boggling in 25th scale.

Share this post


Link to post
Share on other sites

Nothing I would do but you do great metal work. B)

Share this post


Link to post
Share on other sites

Hey Pete, the finish was just dremel soft polishing wheel for metal & 0000 steel wool.  I agree, it does look pretty cool in person .   Thanks for checkin' in.

Hi Chris,  I have pics of the alum. block when they it nascar and they show it with a couple different options.  None were brass however.  I'll share more as I detail it for sure.  cheers

Bob, always appreciate the acknowledgements.  My plan is to display the engine on a stand (think a shop stand) with the engine being prepped for install.  Only oil lines run.........

Hakan,  I get that.........it's not for everyone, but it's something that I do enjoy even though it's a slow process for me.  I still believe I can have this build completed by September NEXT year.     Time will tell.     Cheers

Share this post


Link to post
Share on other sites

I think there can never be too many Mavericks built in scale, so I'm really happy to see you building one as I know it's going to be fantastic. Your start looks very good already, those engine parts are work of art.B)

Share this post


Link to post
Share on other sites
On 12/16/2019 at 12:47 PM, Codi said:

Hey Pete, the finish was just dremel soft polishing wheel for metal & 0000 steel wool.  I agree, it does look pretty cool in person .   Thanks for checkin' in.

Hi Chris,  I have pics of the alum. block when they it nascar and they show it with a couple different options.  None were brass however.  I'll share more as I detail it for sure.  cheers

Bob, always appreciate the acknowledgements.  My plan is to display the engine on a stand (think a shop stand) with the engine being prepped for install.  Only oil lines run.........

Hakan,  I get that.........it's not for everyone, but it's something that I do enjoy even though it's a slow process for me.  I still believe I can have this build completed by September NEXT year.     Time will tell.     Cheers

The Boss 429 is a High Performance engine and Ford used screw in plugs that looks pretty much like large pipe plugs on most of their Hi-Perf engine blocks and not the regular press in style...they the use screw in type plug mostly for strength and other engines that uses this type of plugs are the FE 427, the Boss 302 and the 429CJ/SCJ and they also have four bolt or cross bolt main caps.
Most of the other Ford engines has regular freeze plugs or core plugs as the also are known as and they are there to seal the holes needed to get the sand from the casting process out of the inside of the block and not so much for help to prevent cracks if the coolant freezes...so core plug is a more accurate name for them.

Tim, I might have done if I had the skills and machines...but I don't.;)

Edited by Force

Share this post


Link to post
Share on other sites

Thank you Niko & Hakan for posting both your comments and insights.  Sorry for the mixed order of pics I'm sharing.  The 1st pic is of the rear motor plate and block "flanges" as I call them along with the machined oil filter housing.  I'll mill a bit off the front of the drivers side to mimic the actual block and you'll  see some further detail later.  More pics below.


The next 2 pics show an actual alum. 494 block with the screw in freeze plugs.  I'll be doing all 6 in the style of the one circled.


This pic is the crank/flywheel flange.



This pic shows the drawing for the crank damper that I machined in 2 pieces.  I couldn't post the pic (file is still to big) of the completed unit but the smaller piece fits inside the larger one as an fyi.  The diameter of the finished damper is 6.6mm.
