Tamiya Evo 6.5 Tommi Makinen Edition Conversion

Recommended Posts

Super excited to get this one on the bench. I saw a pic of one completed online with the detail-up kit from Hobby Design and knew I had to build one.

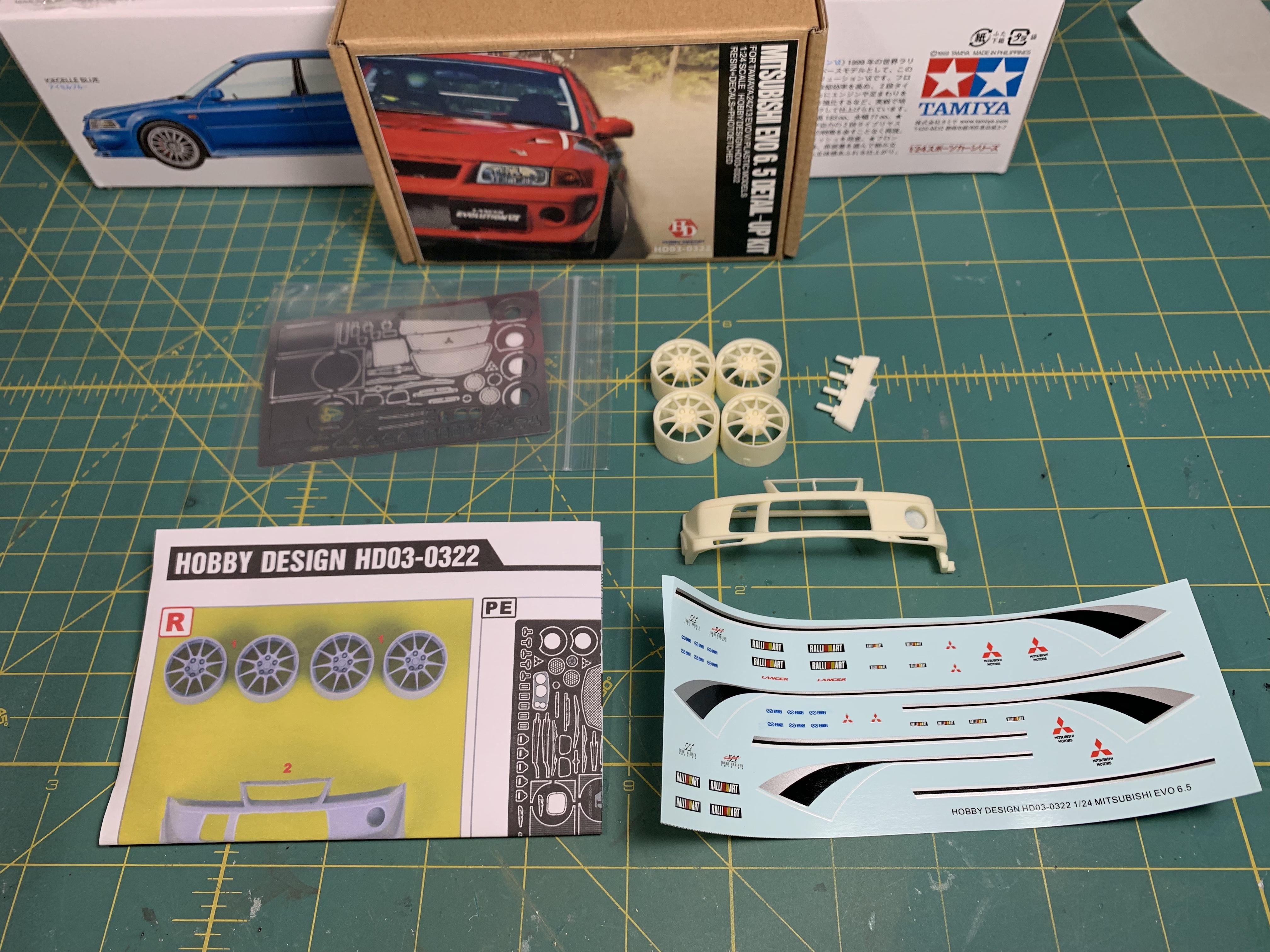

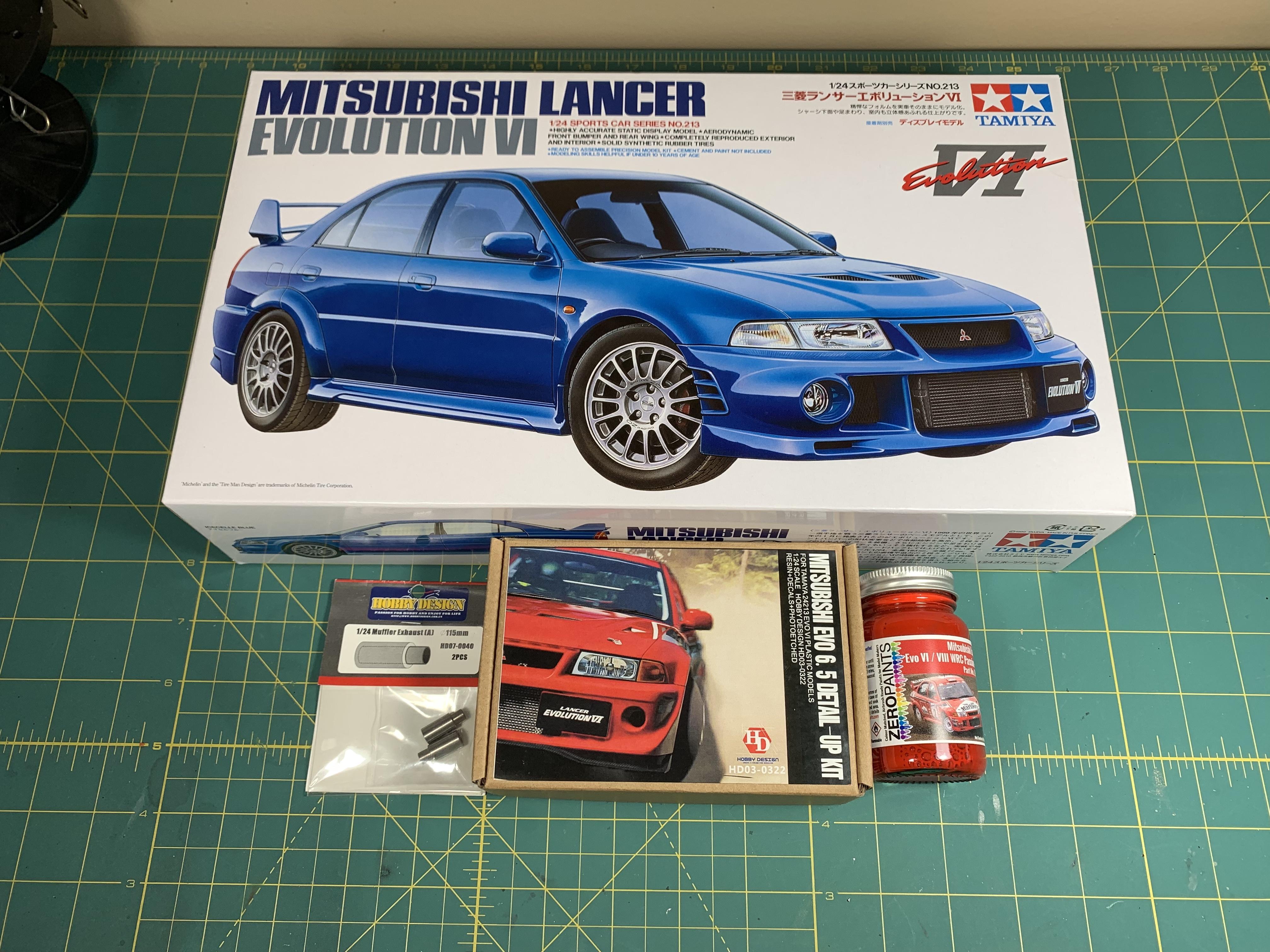

The kit is a Tamiya Evo 6, And the detail-up set is from Hobby Design. I will also be adding a Hobby Design Muffler. The color is going to be Mitsubishi WRC Passion Red from Zero Paints topped with Zero Paints 2k Clear.

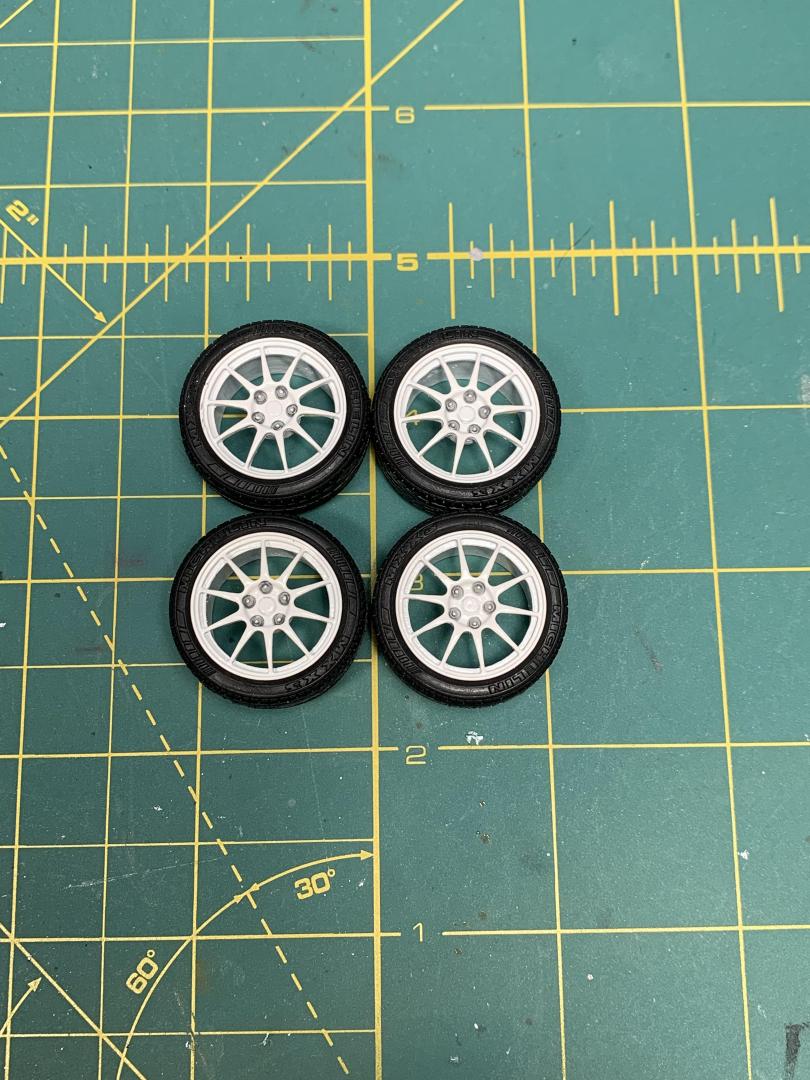

The detail-up set includes the TME front bumper, TME wheels, TME decals, and photo etch parts as well.

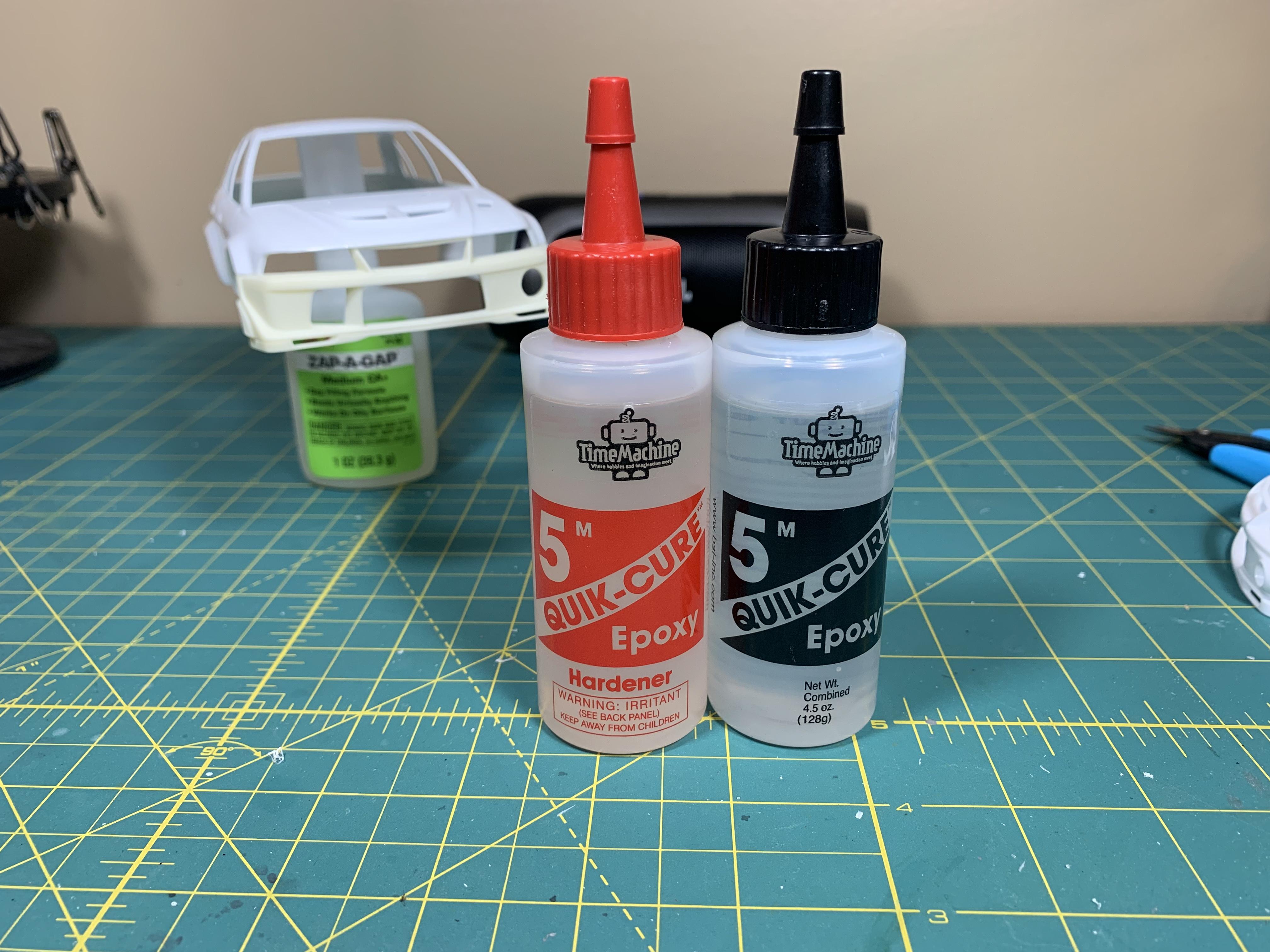

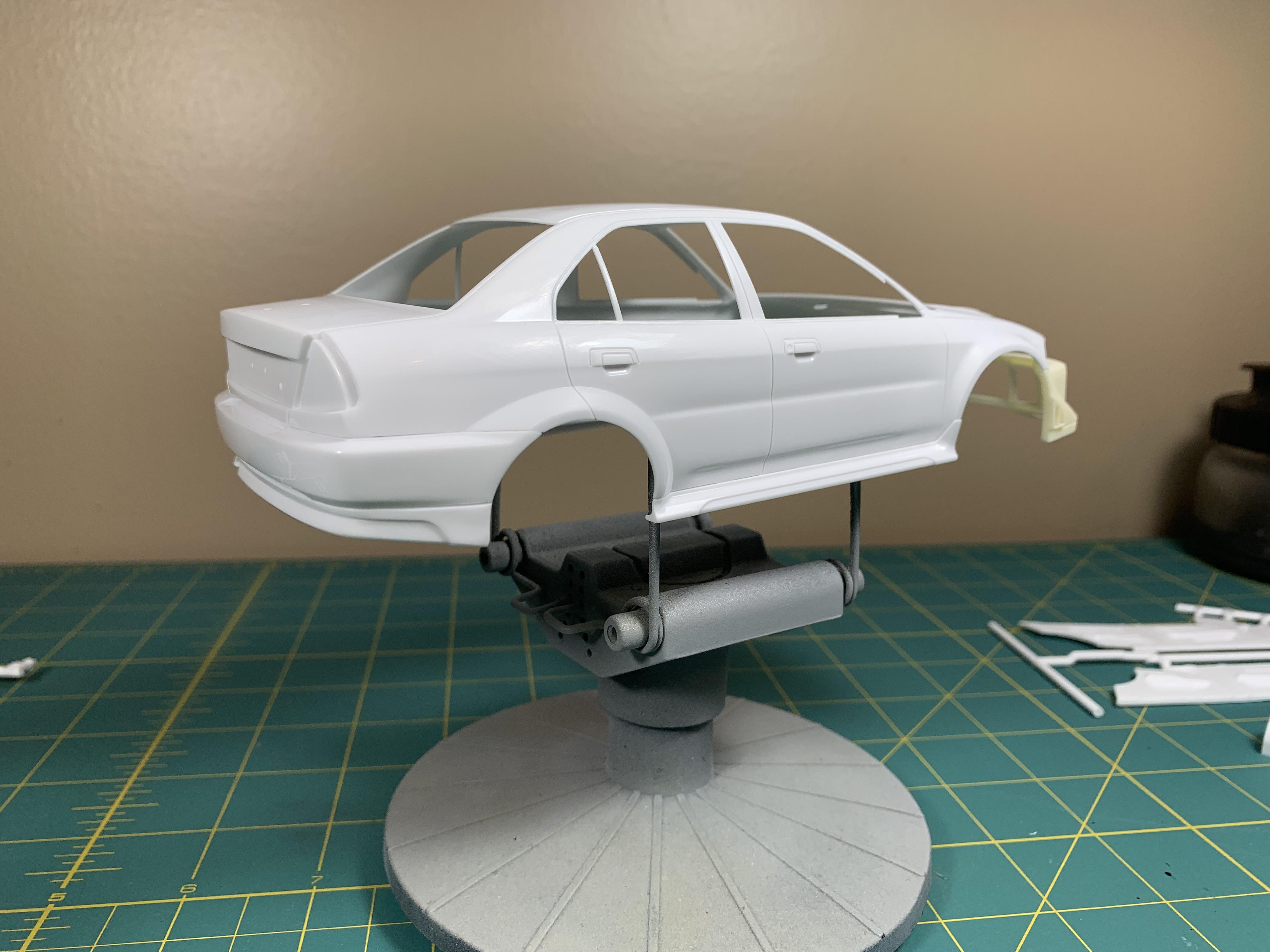

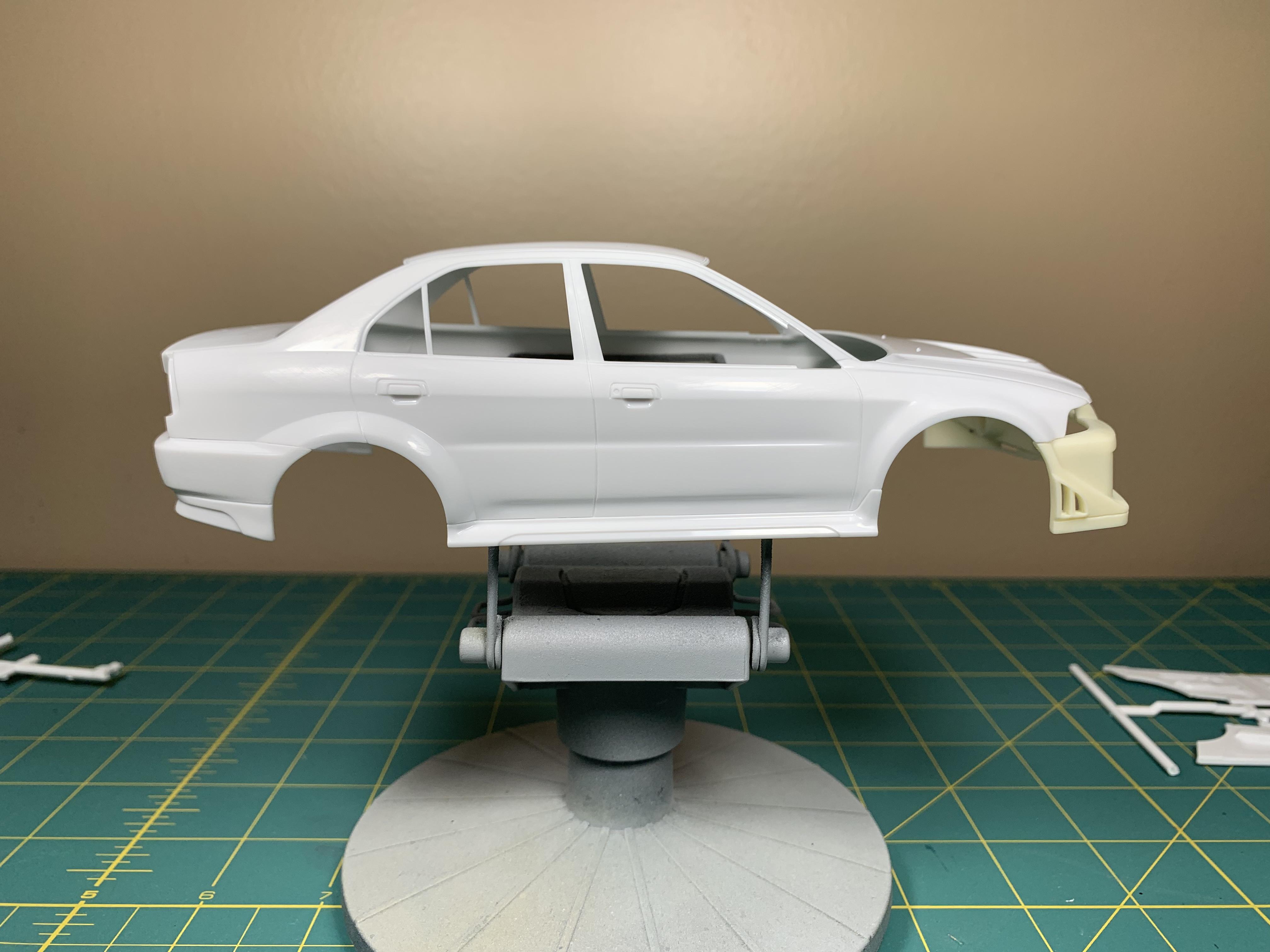

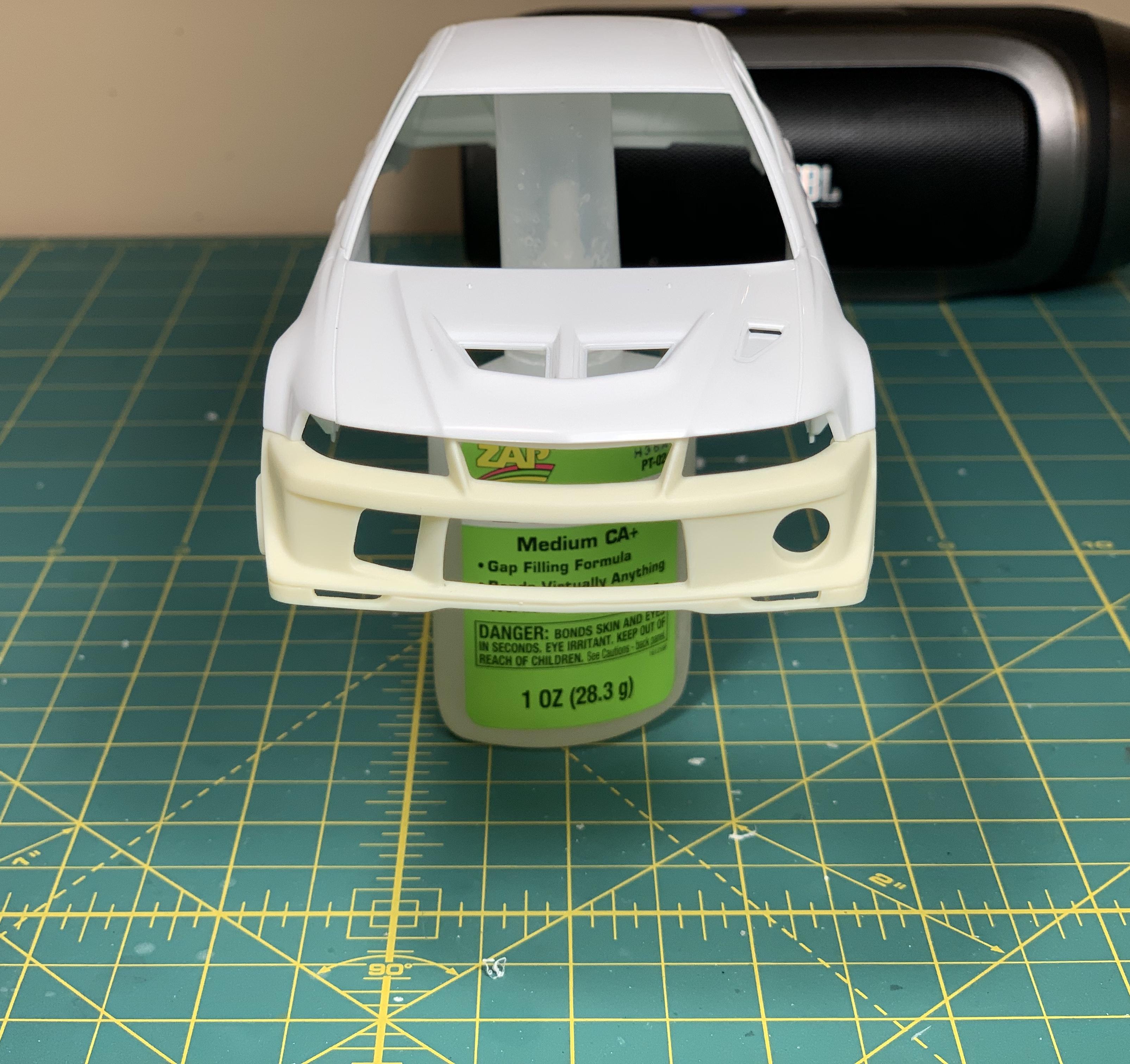

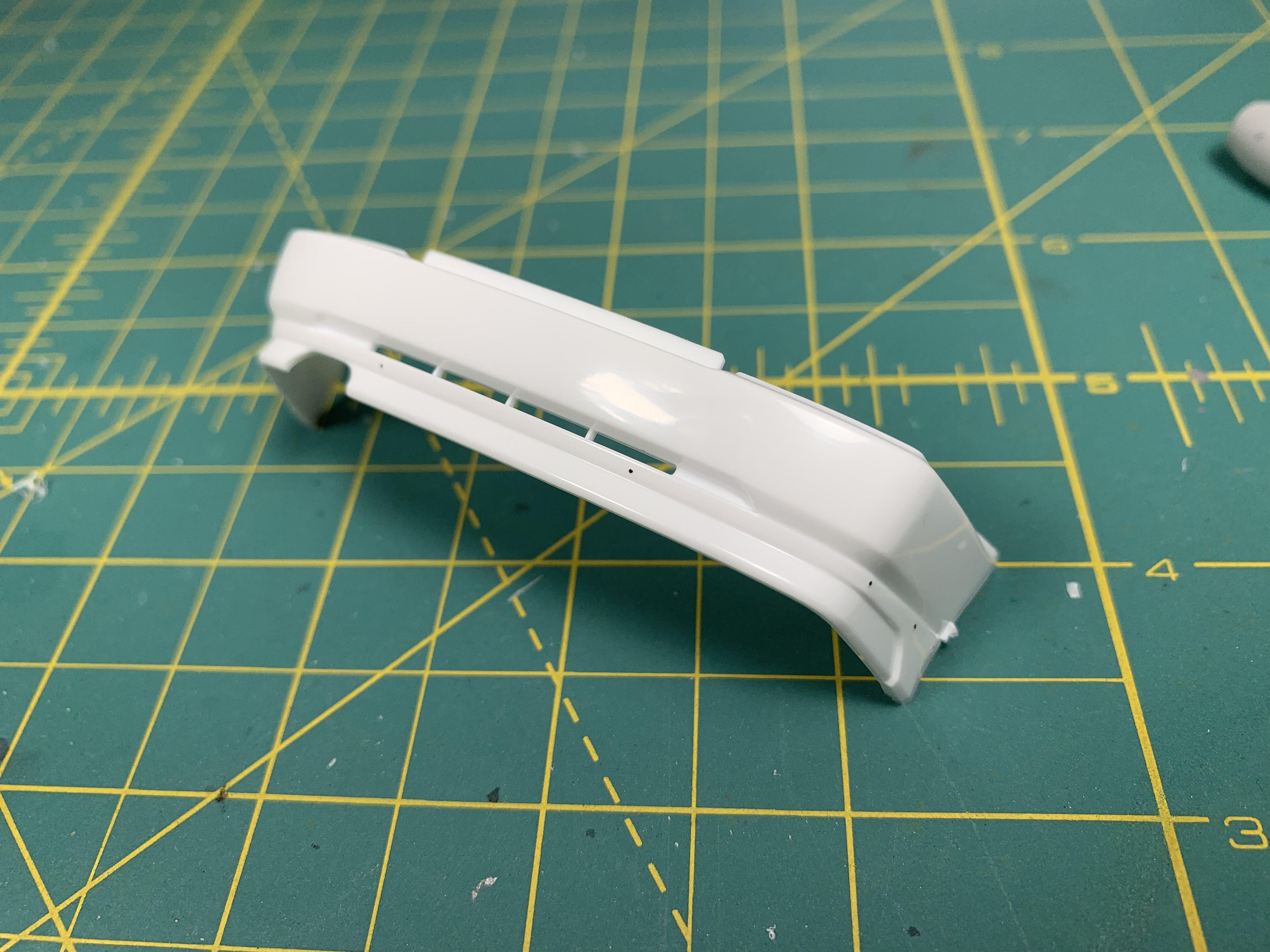

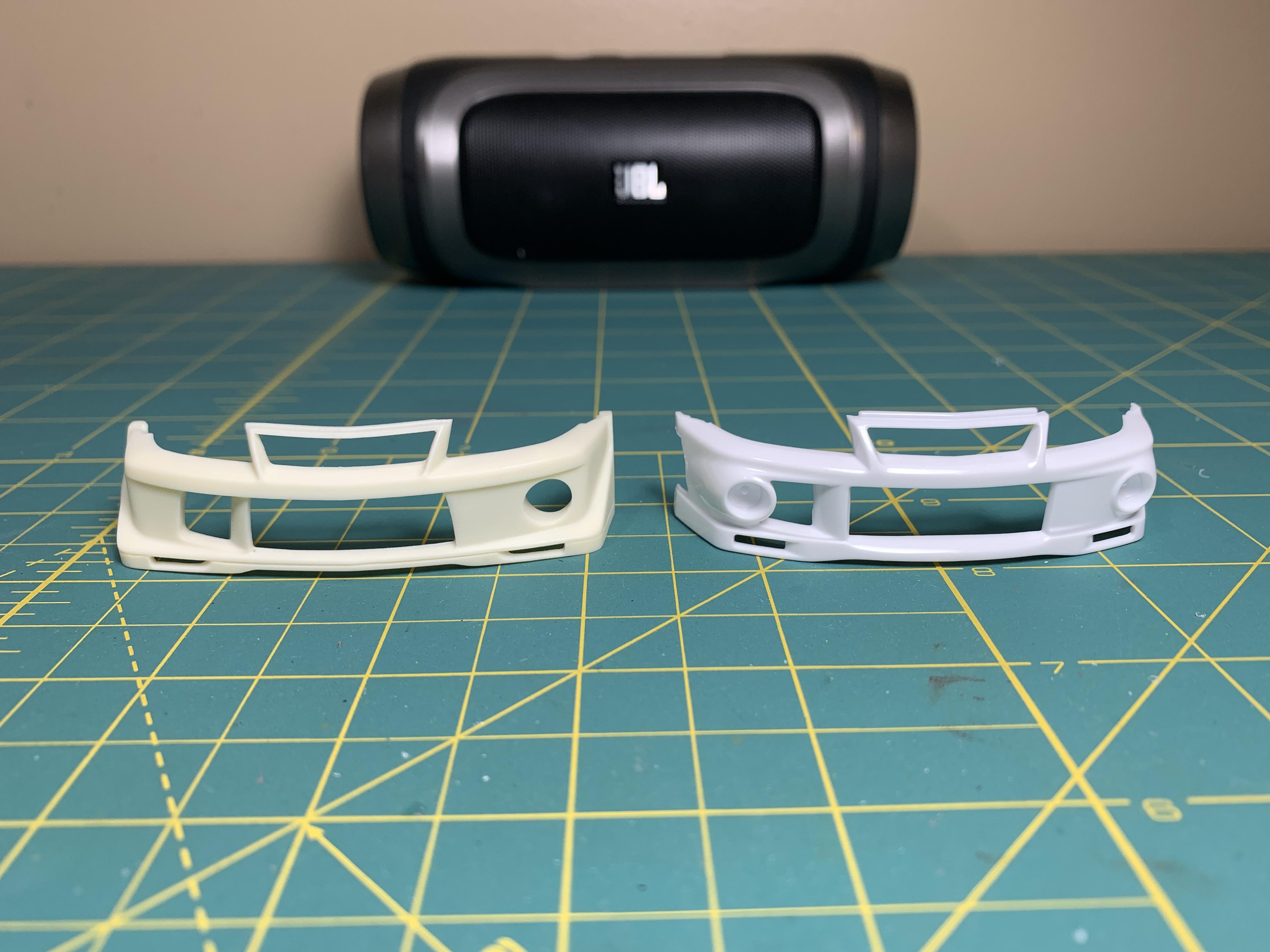

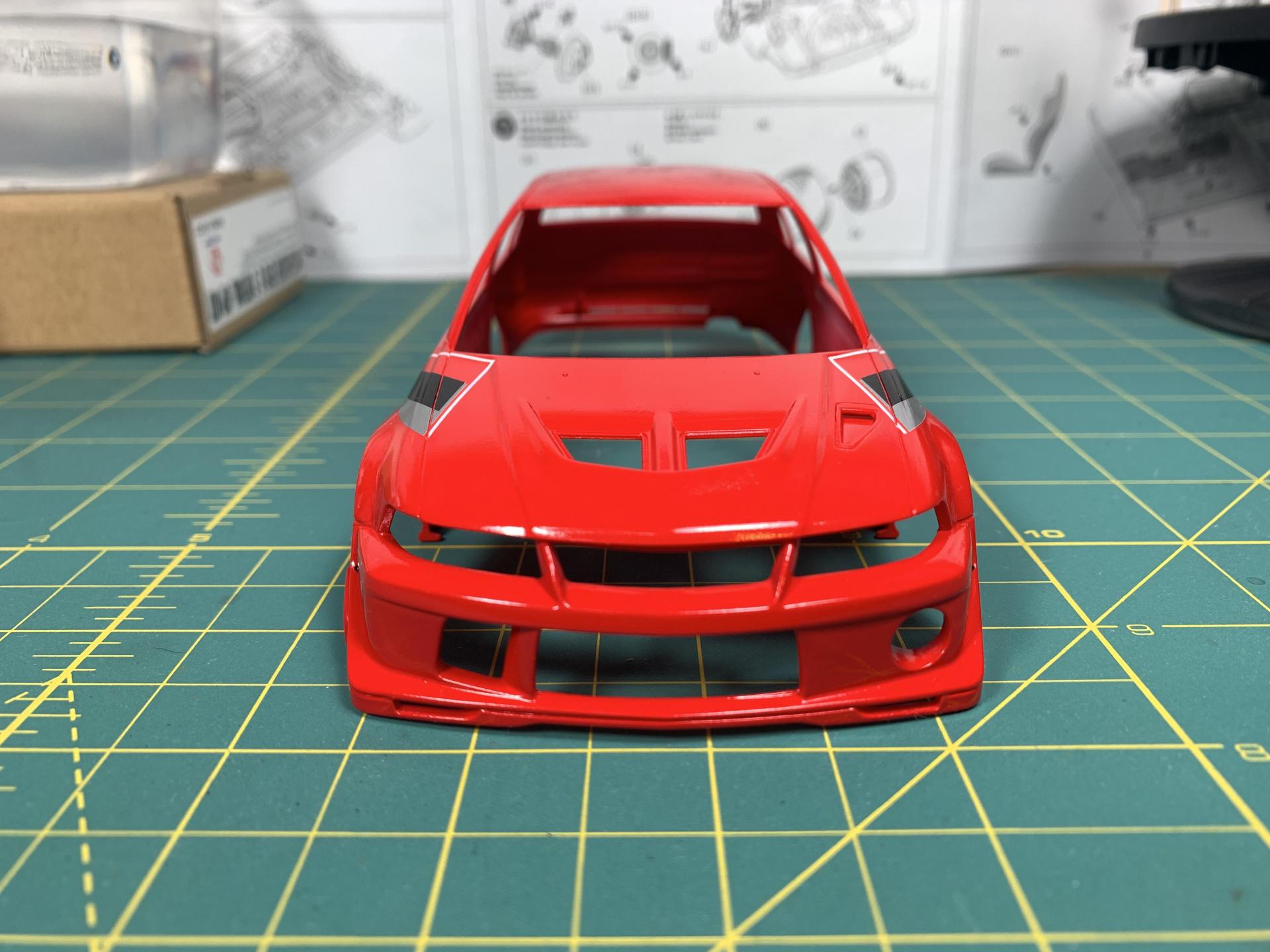

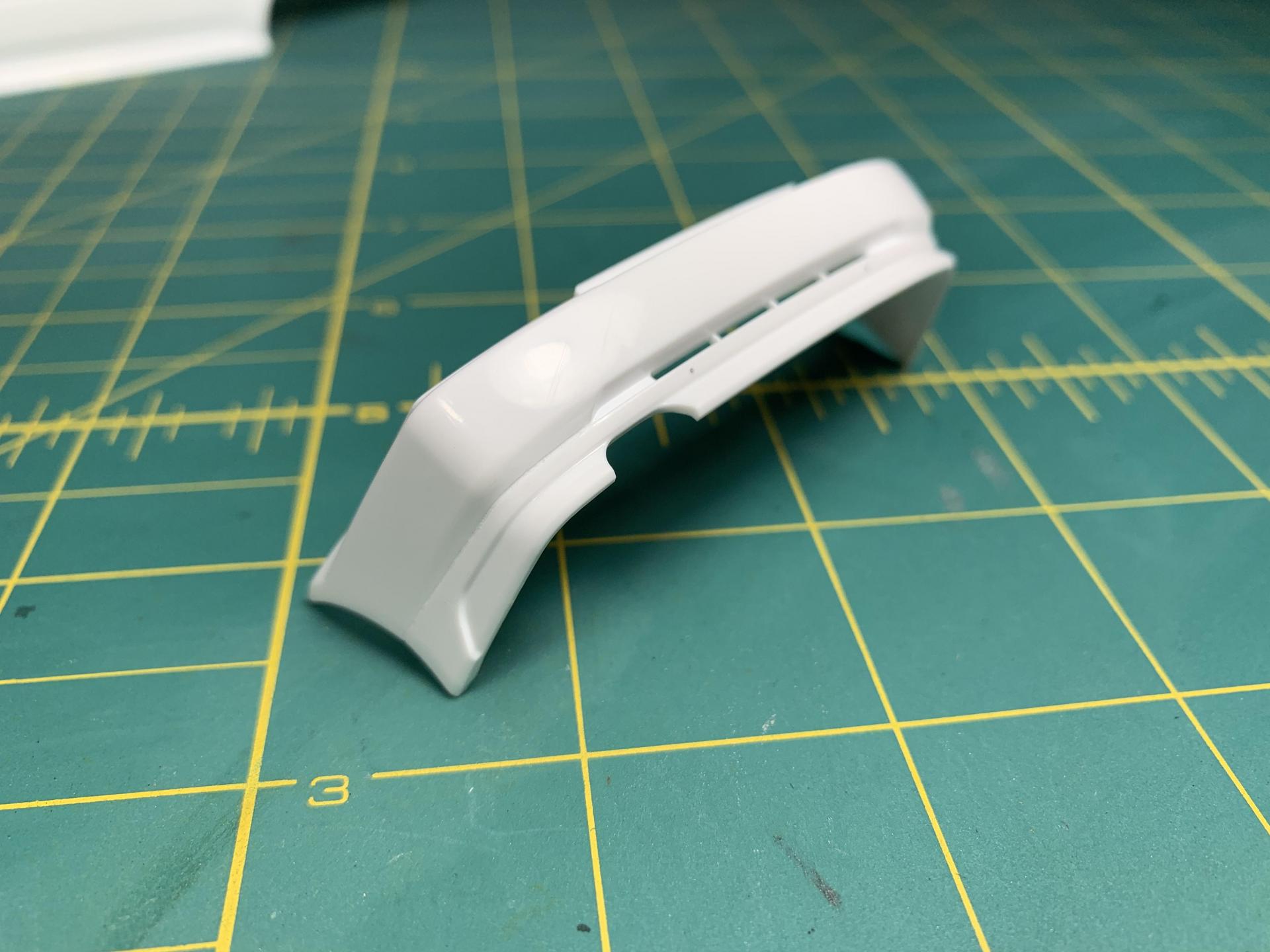

I am very impressed with the quality of the resin front bumper and wheels. Not very much work had to go into the front bumper to get it ready to be mounted on the car. I did so using some 5 min epoxy after completing all necessary body work.

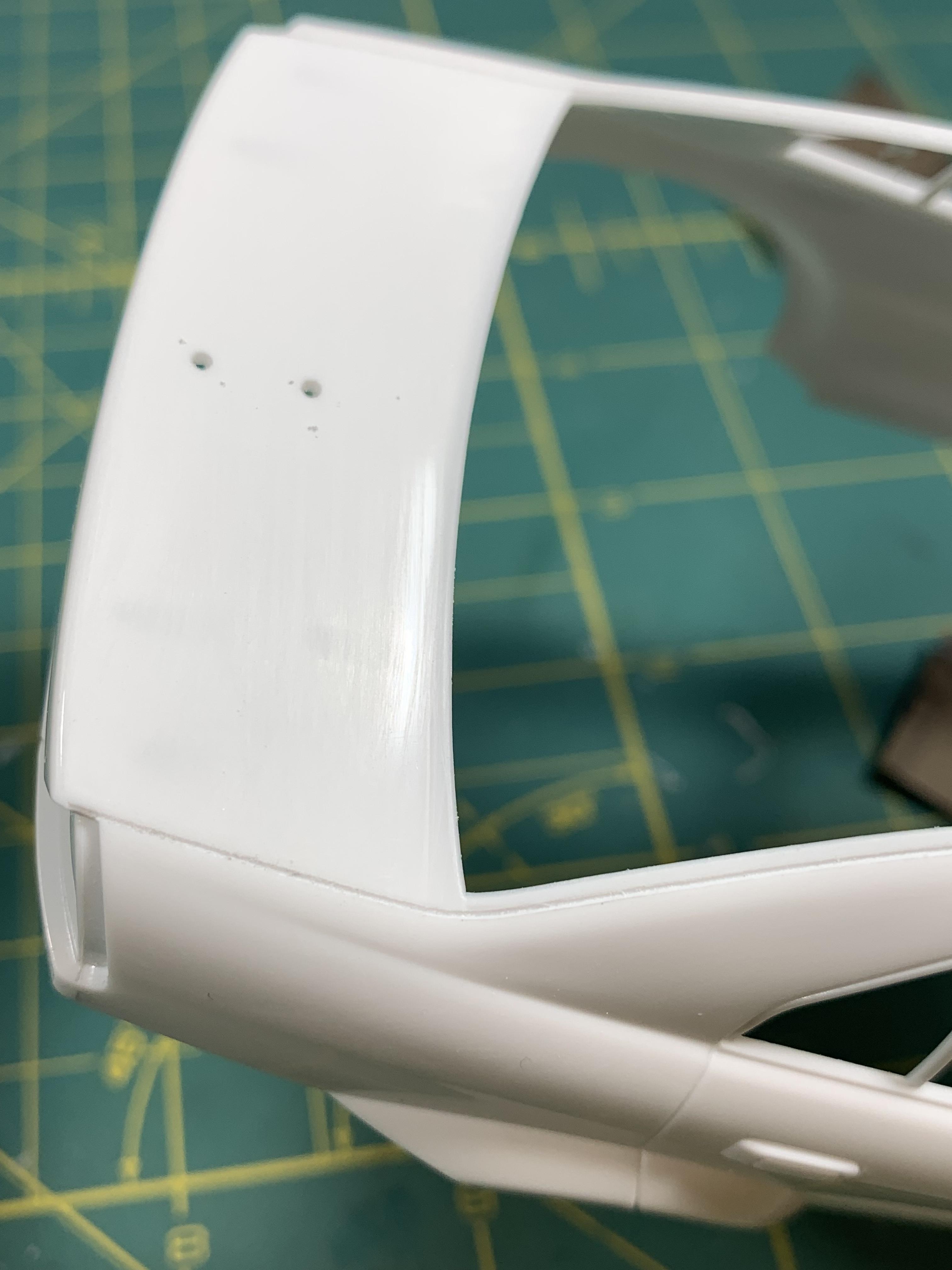

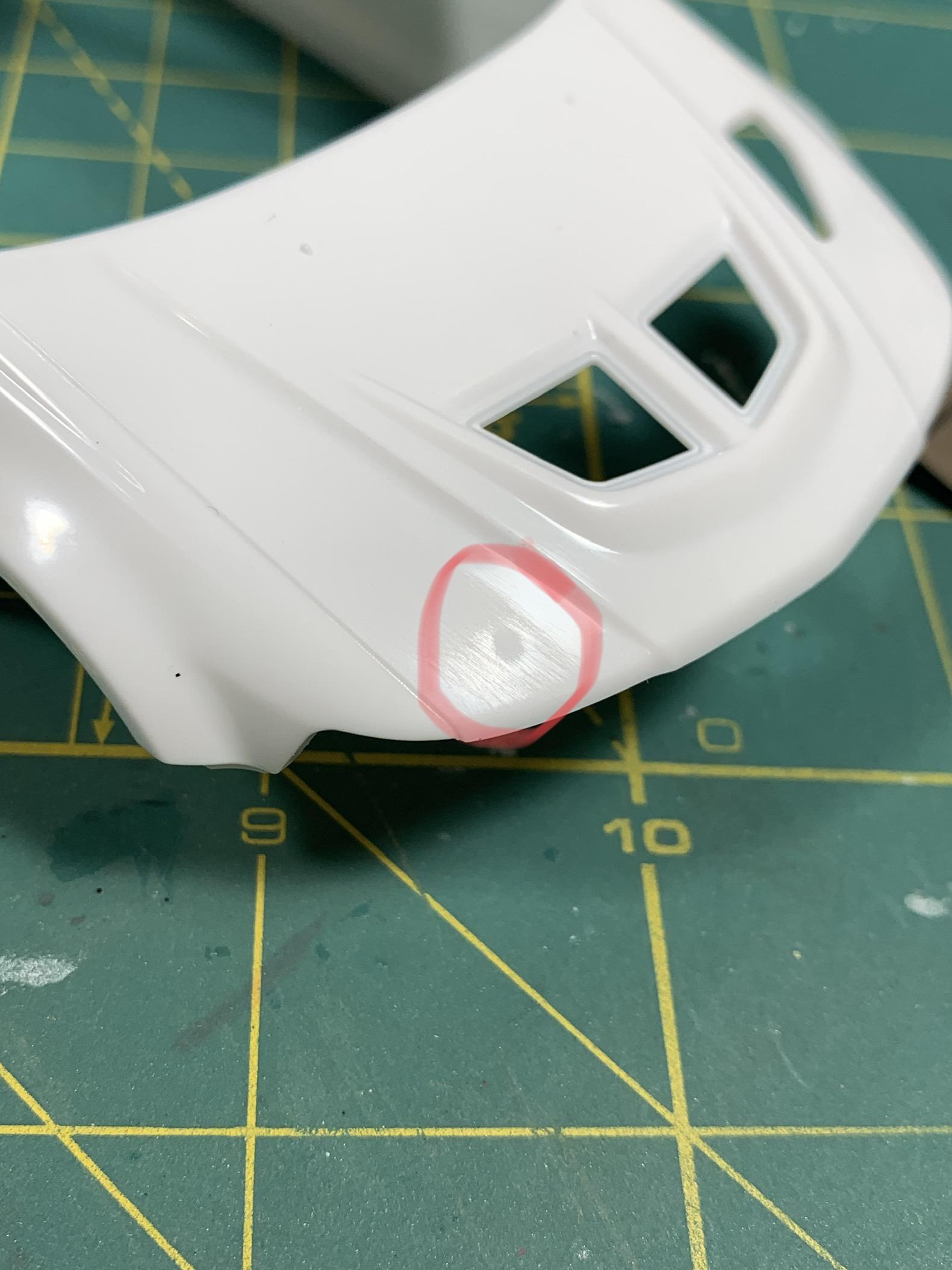

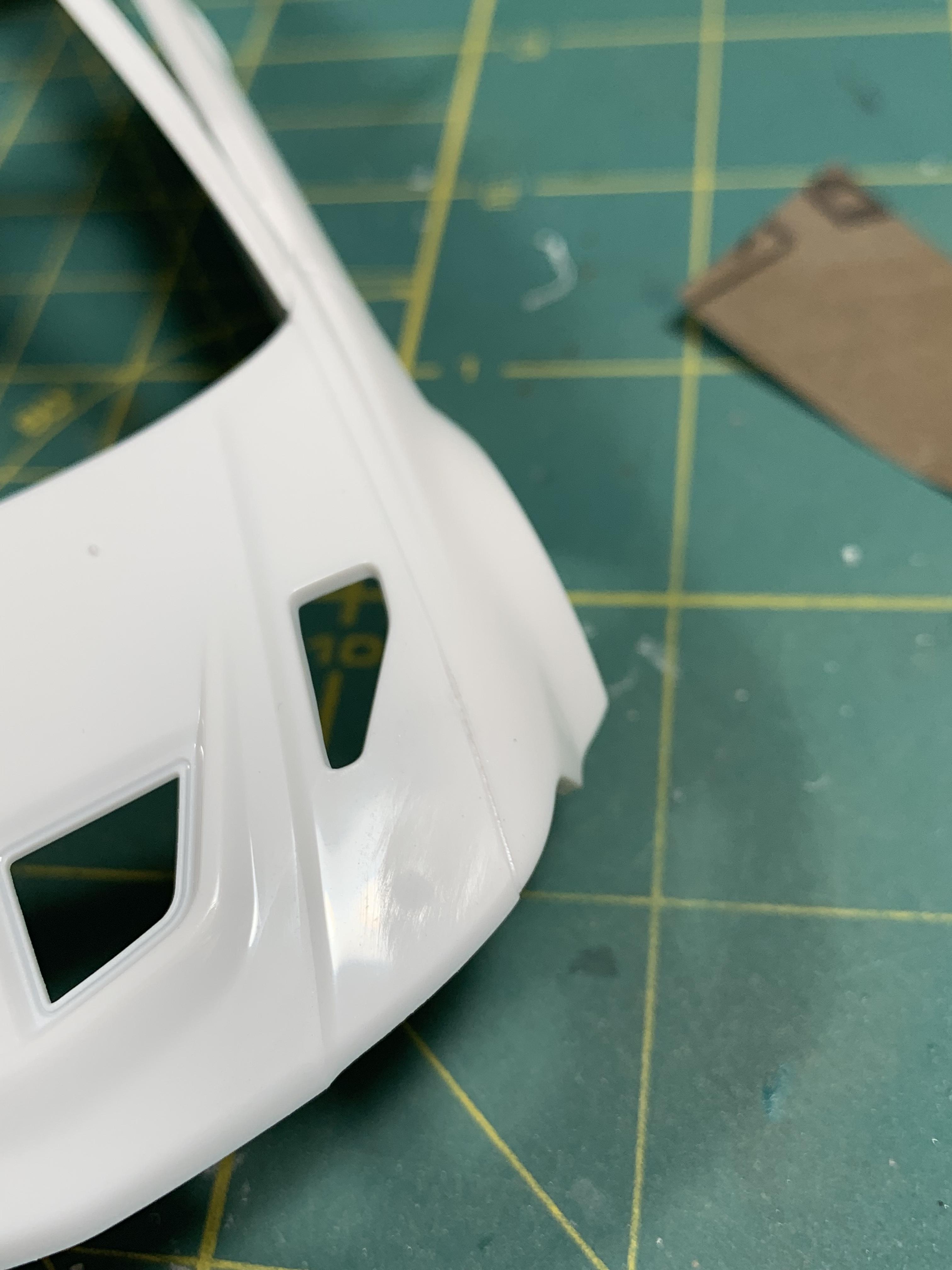

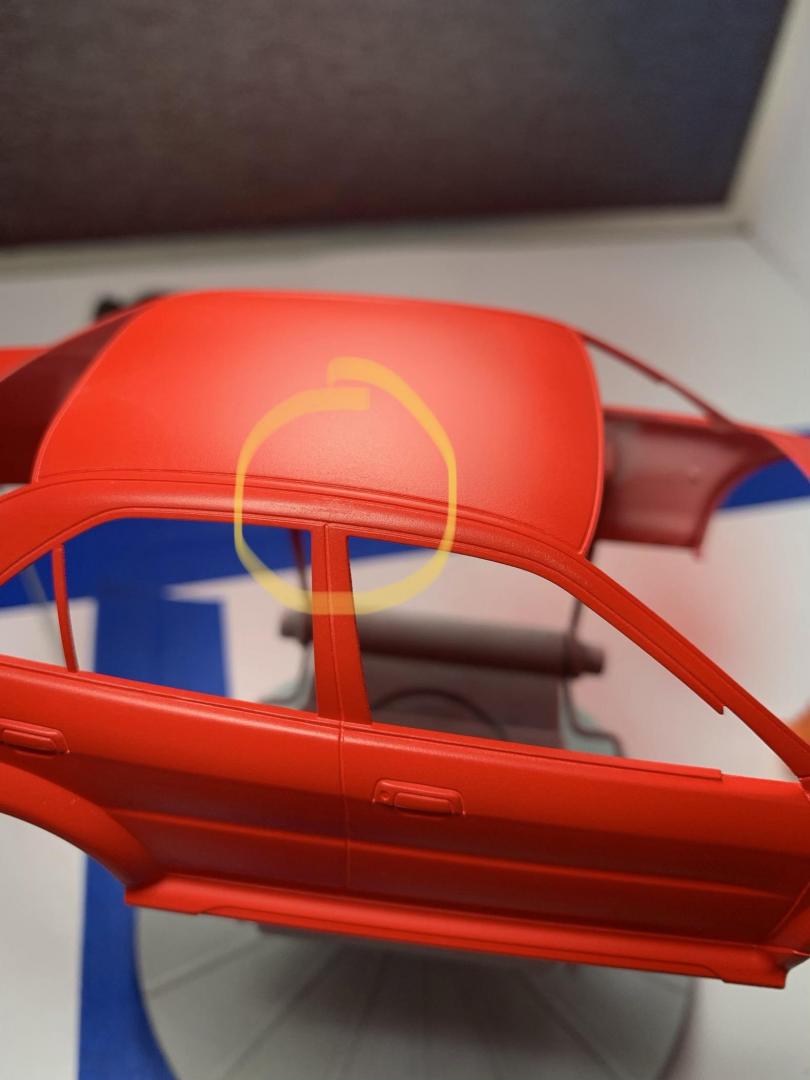

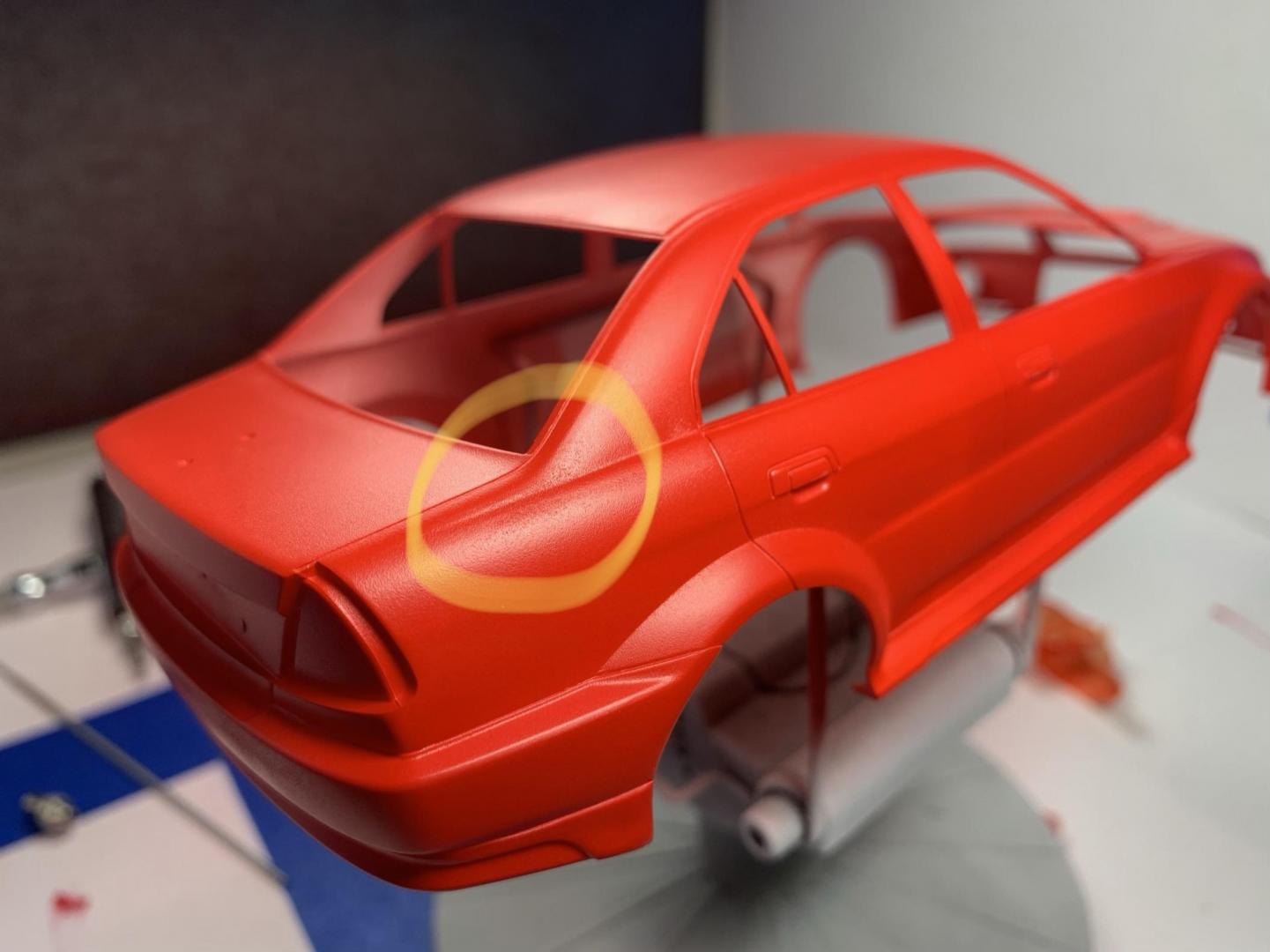

I also sanded out all of the high spots cause from molded dimples on the inside of the kit on the trunk, roof, and hood (as seen circled in red) and went over all of the panel lines with my scribing tool.

I Hope for this to be a nice easy build as with all Tamiya kits.












Edited by lghtngyello03

Share this post


Link to post
Share on other sites

I managed to get a good bit more completed this afternoon/evening.

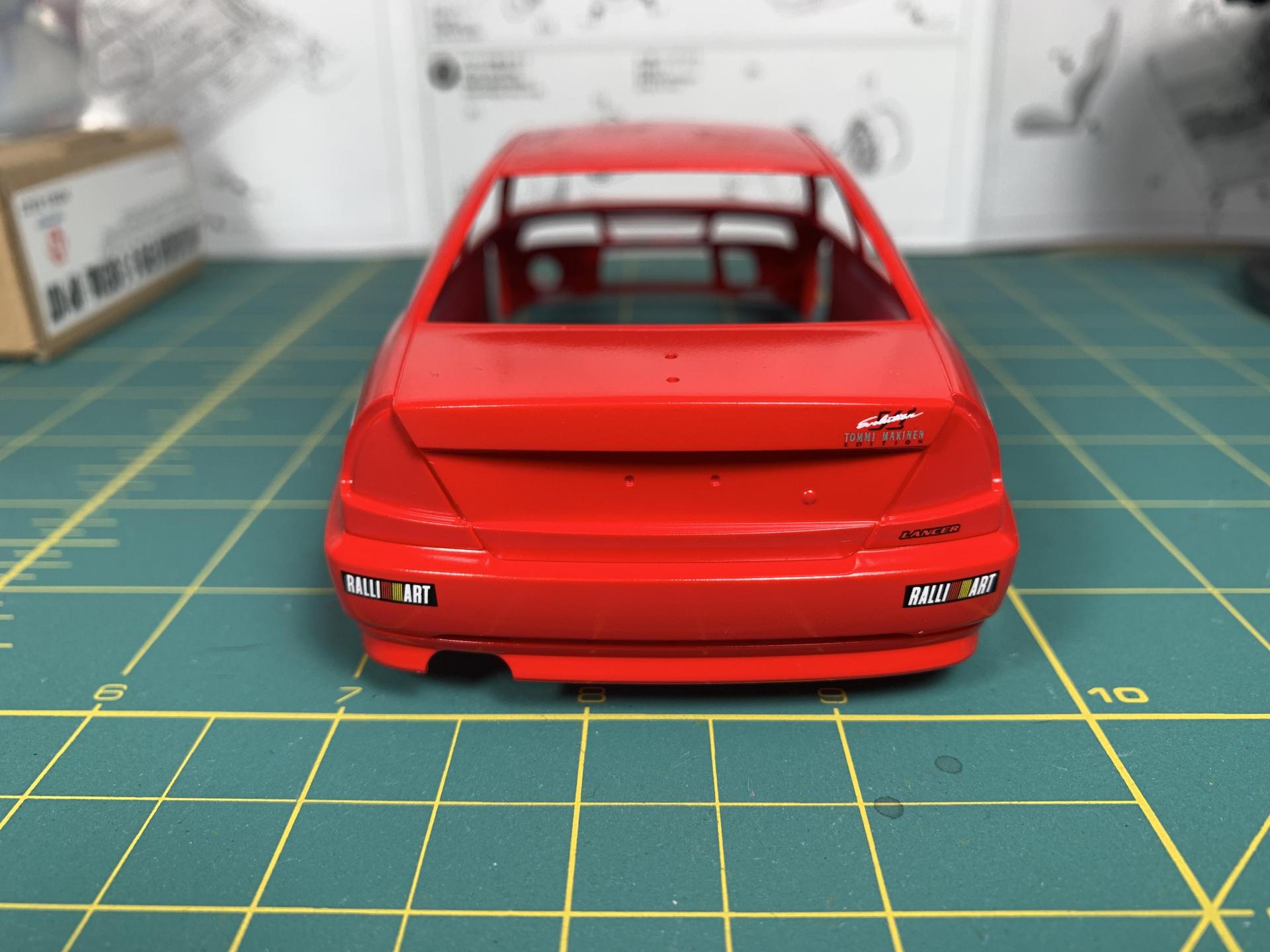

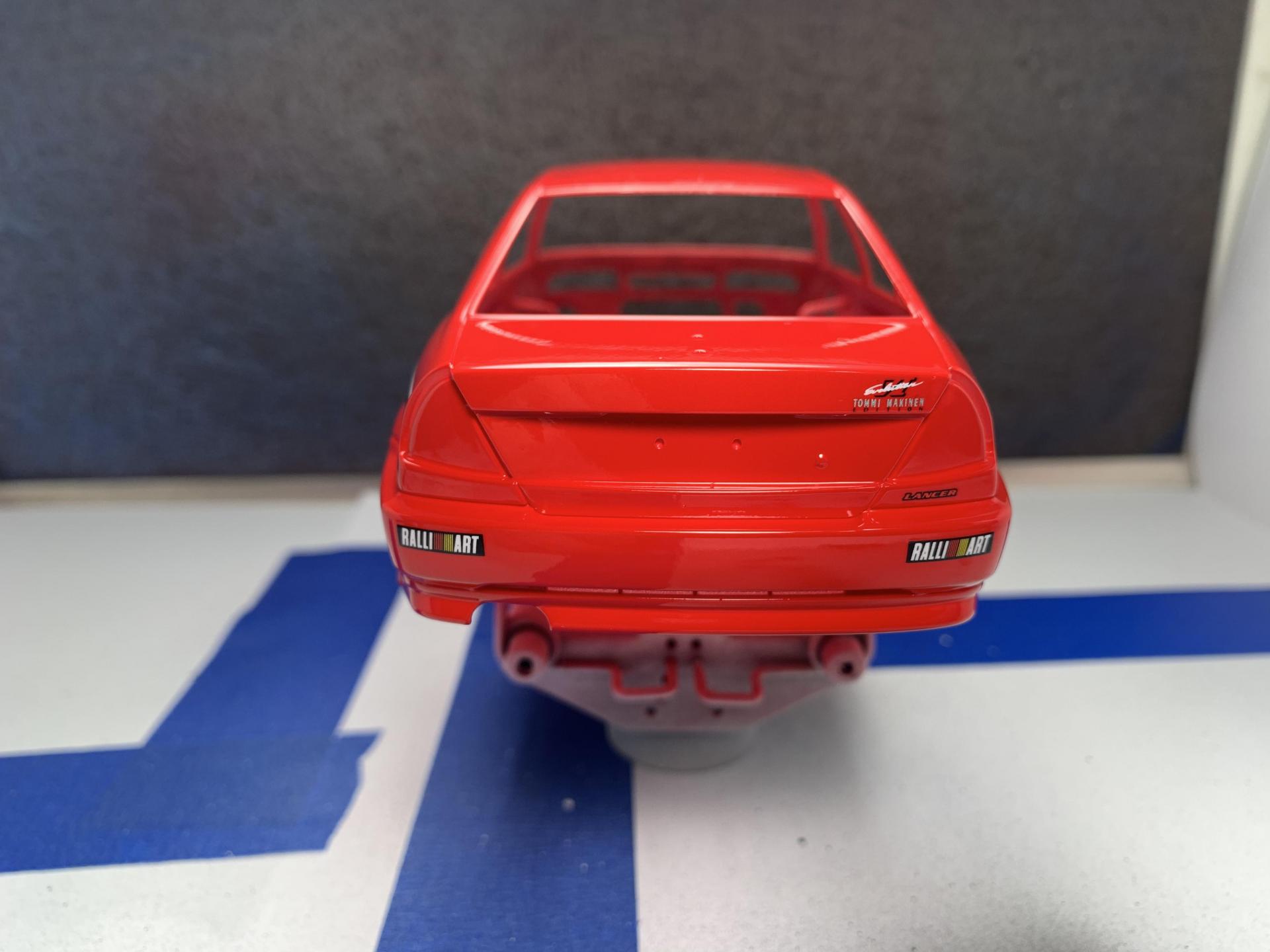

The rear bumper has molded bolts that I have marked with a Sharpie. These must be sanded off as the TME car doesn’t have these.

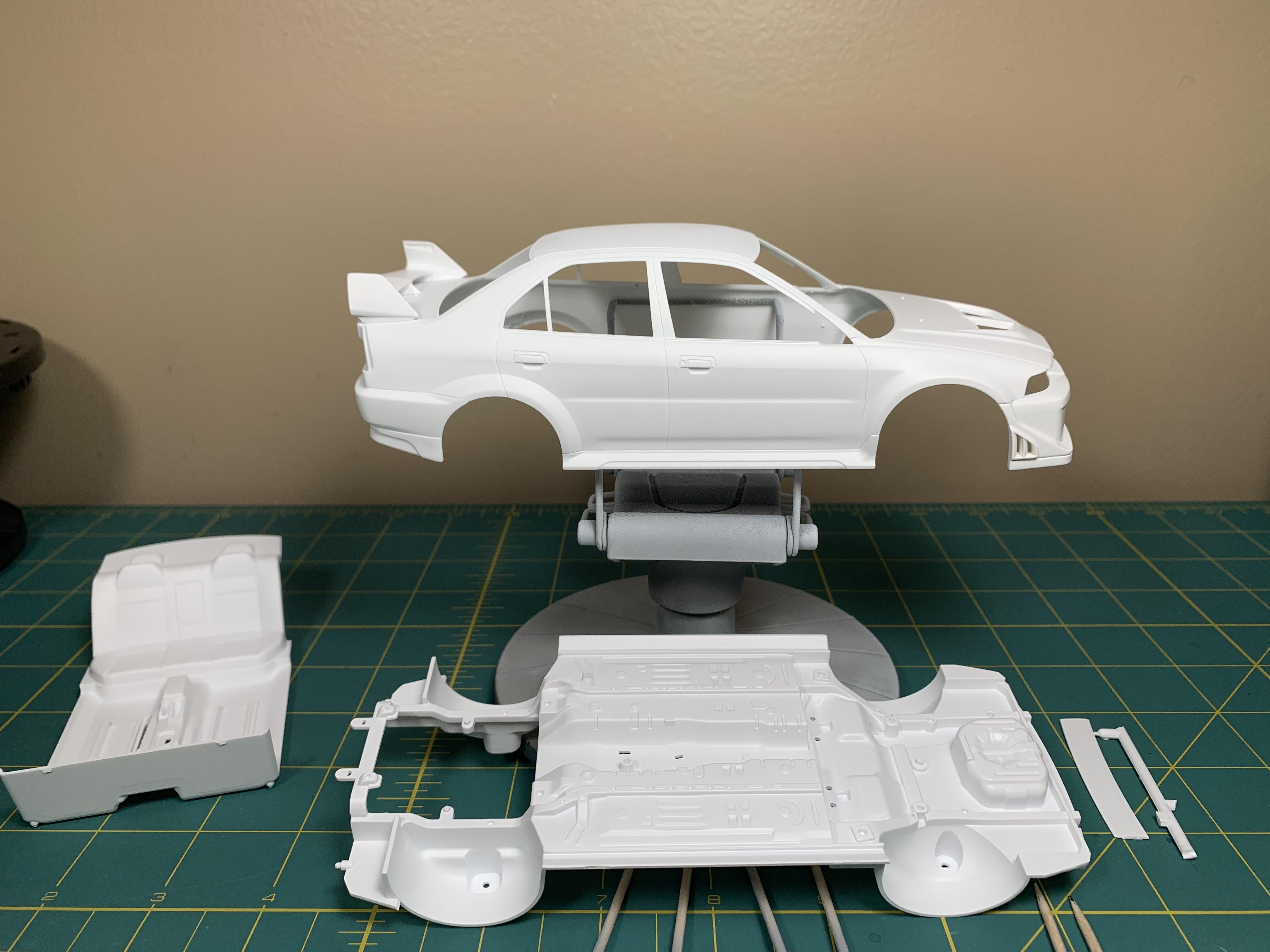

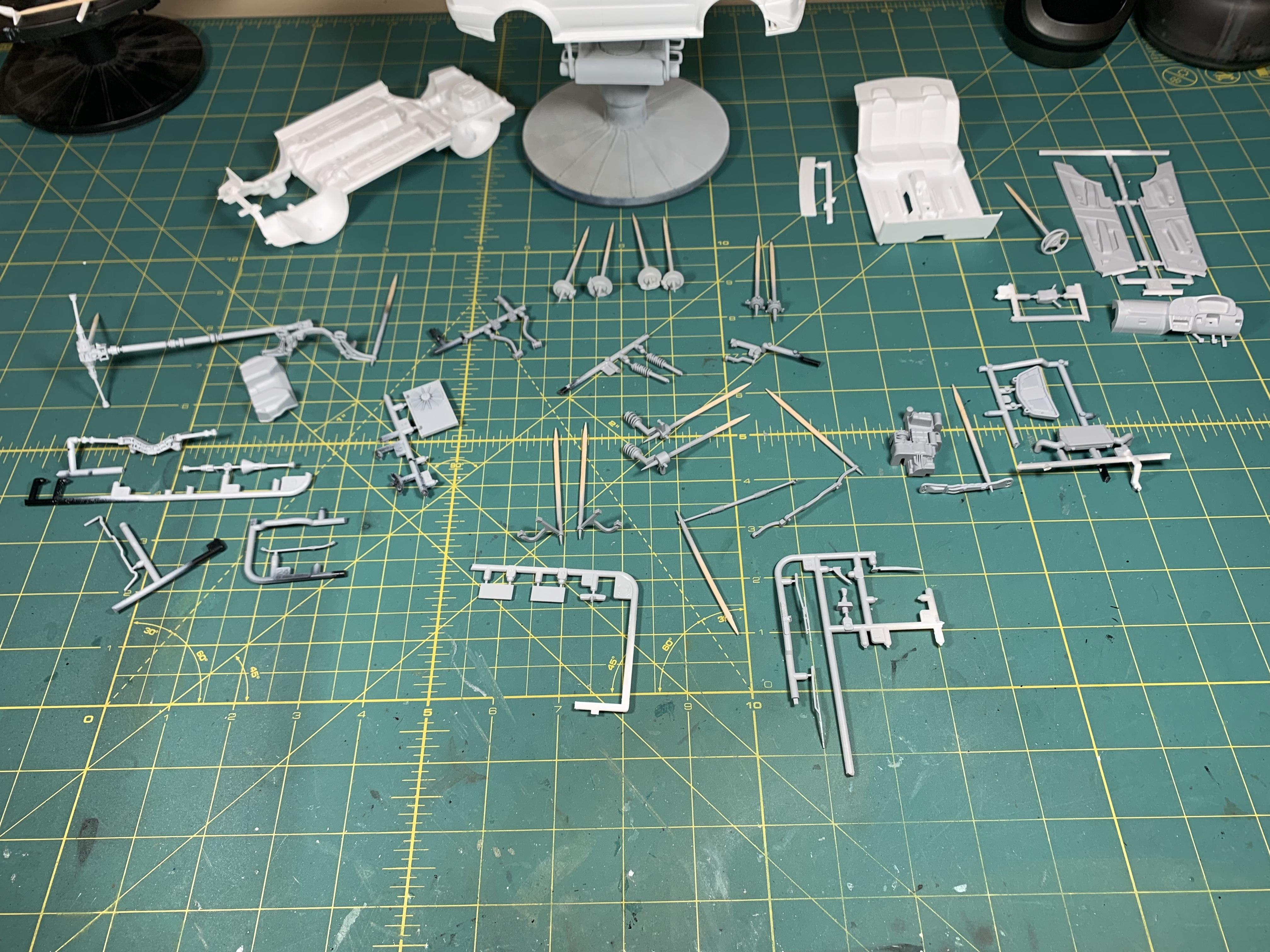

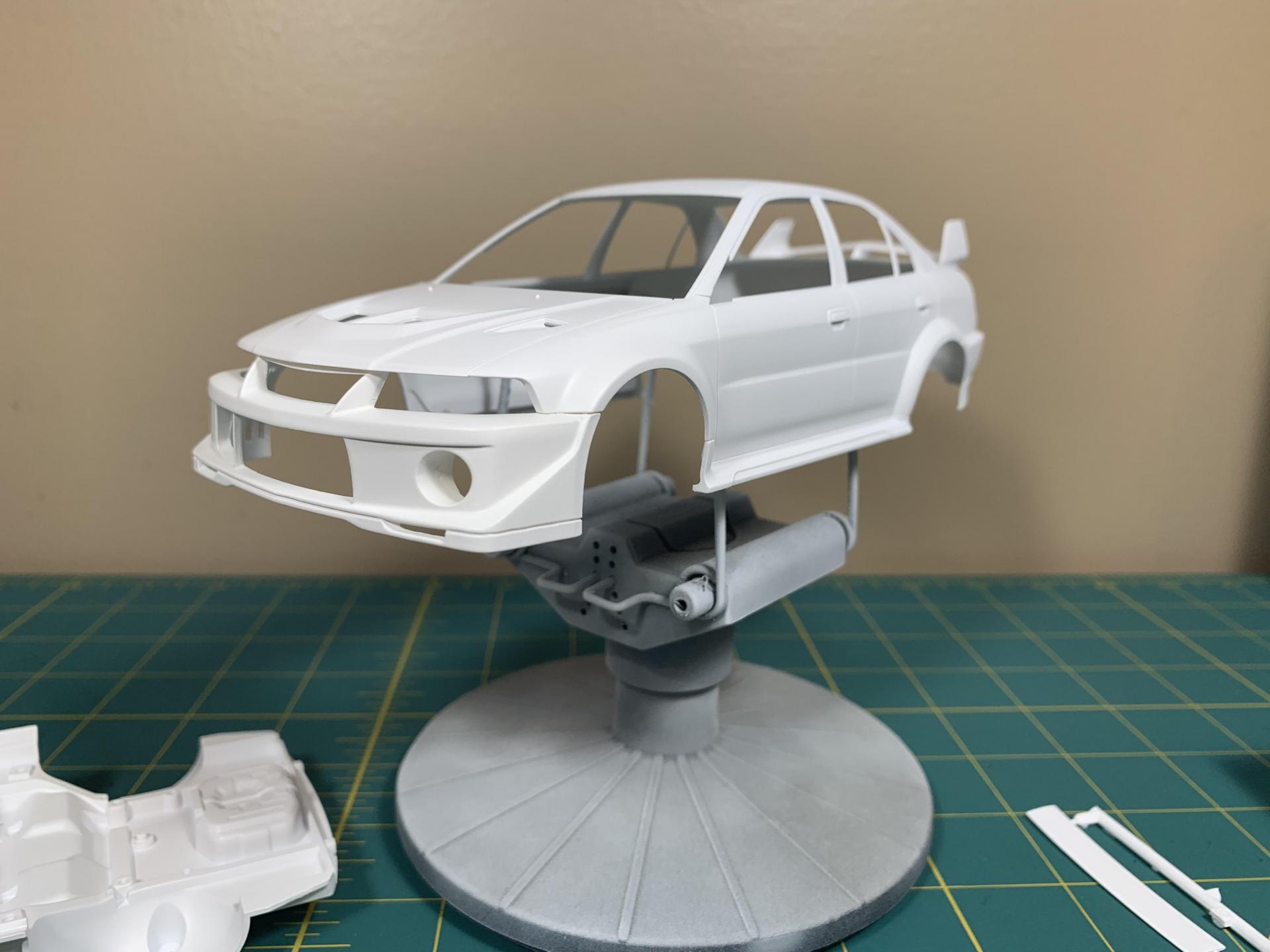

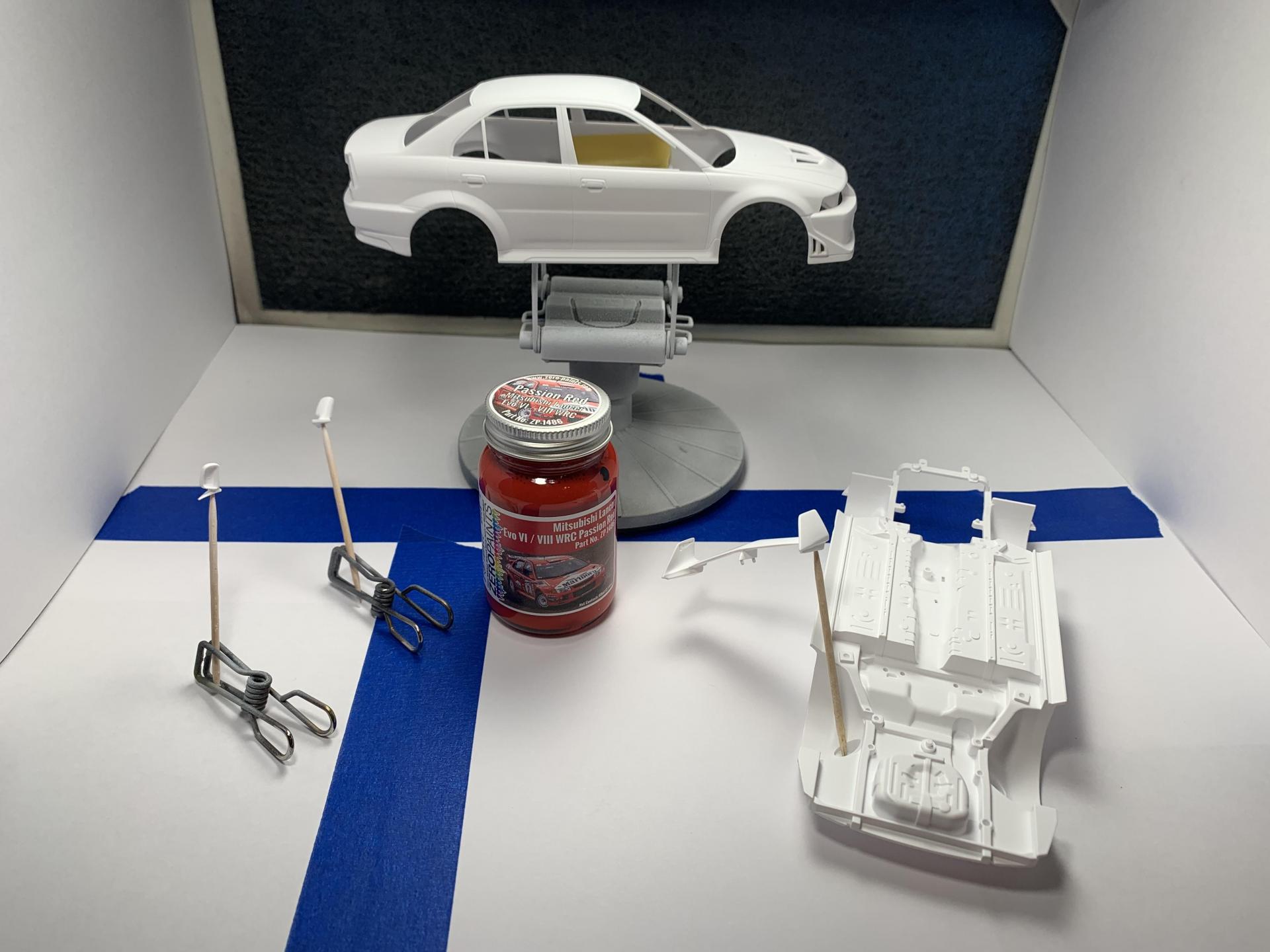

I also got the body/chassis/wing primed in white since the color will need a light base coat.   I primed everything else as well in grey primer.

I have a little work/sanding to do on the resin bumper that didn’t show up without primer. So, I’ll have to do that and prime it once more before I can lay down some color.








Share this post


Link to post
Share on other sites

Just because I built this very kit last century, look forward to seeing how this turns out.  Typical Tamiya quality is excellent, other than lacking the engine.  What tool are you using to scribe with?

Share this post


Link to post
Share on other sites

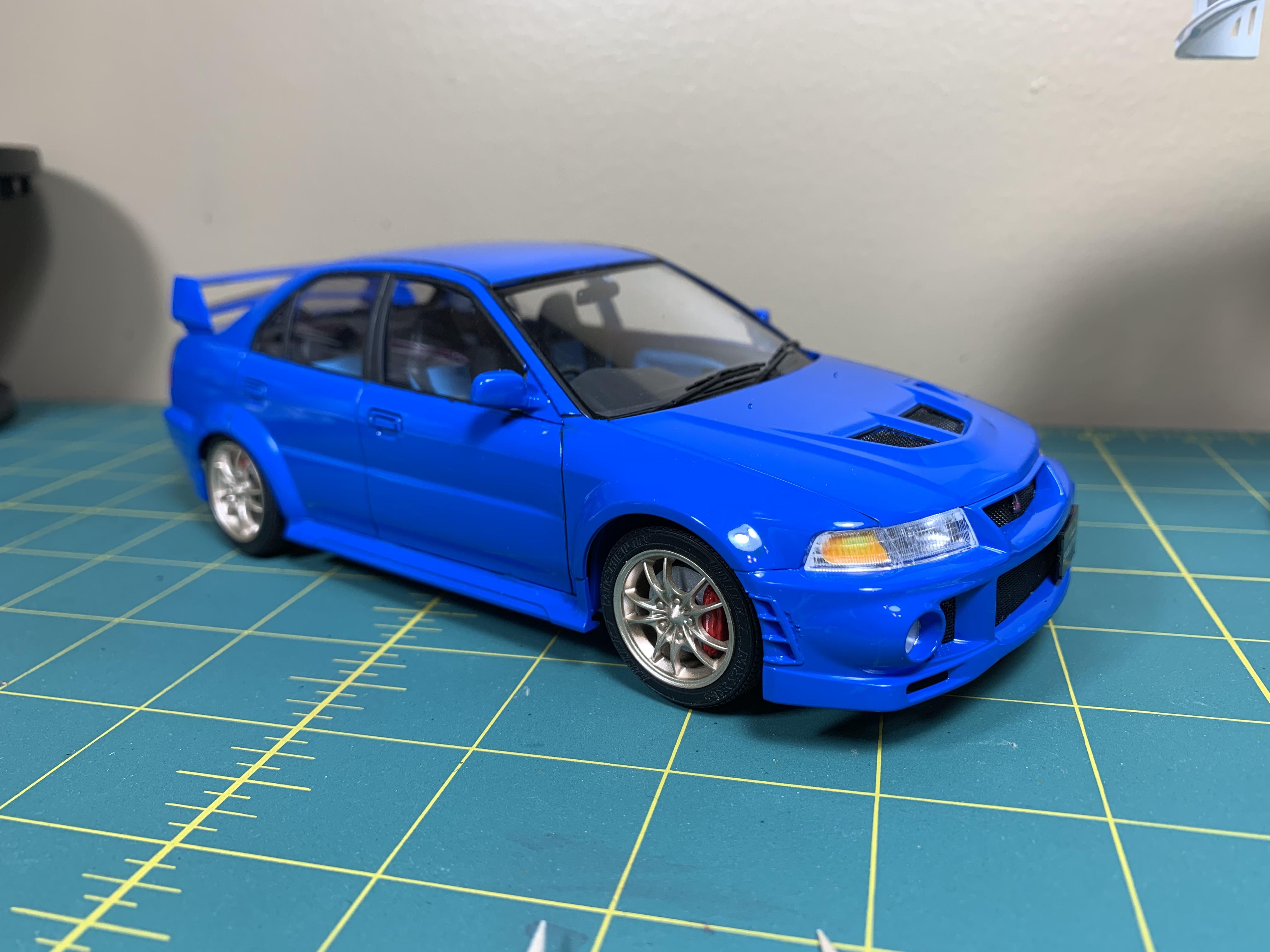

I too built this kit probably 10+ years ago,lol. It was before my skills were that great and all rattle canned, no tape on the window trim, but still holds up well.

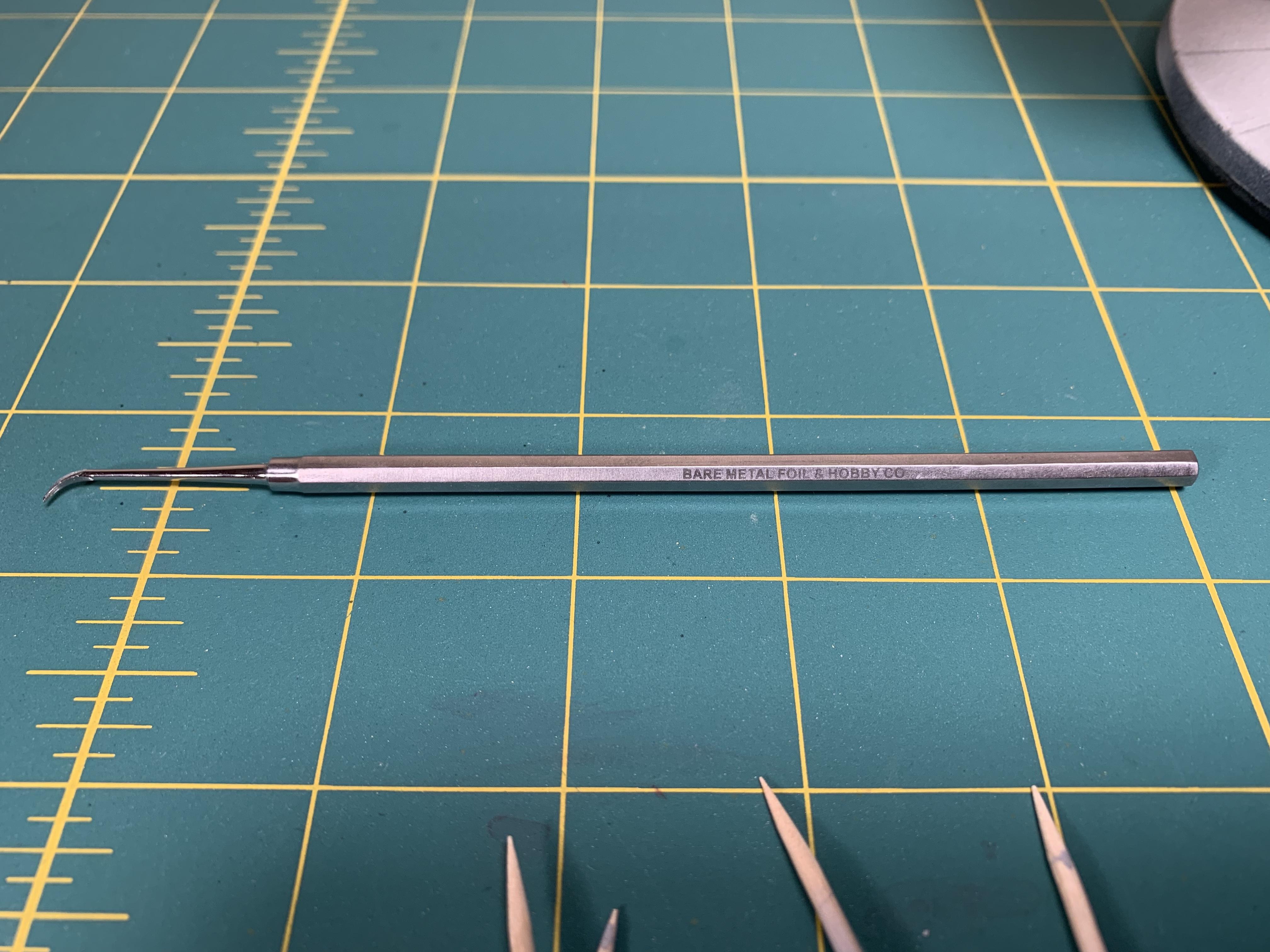

I use a bare metal foil tool as pictured below.



Share this post


Link to post
Share on other sites
6 hours ago, 89AKurt said:

Thanks for answering.

No problem, thanks for sharing your build!

1 hour ago, afx said:

Always liked the Lancer, I'll be following.

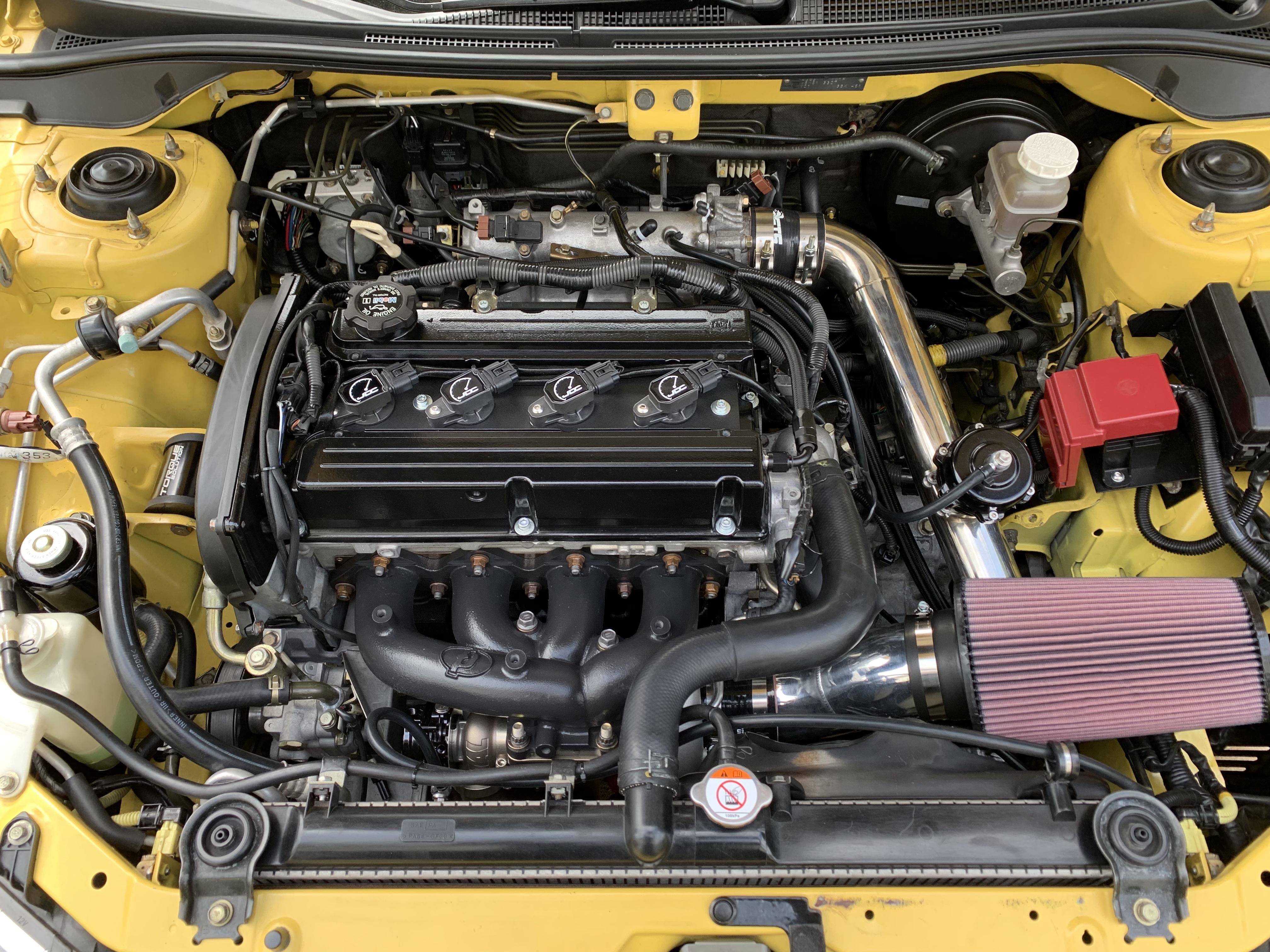

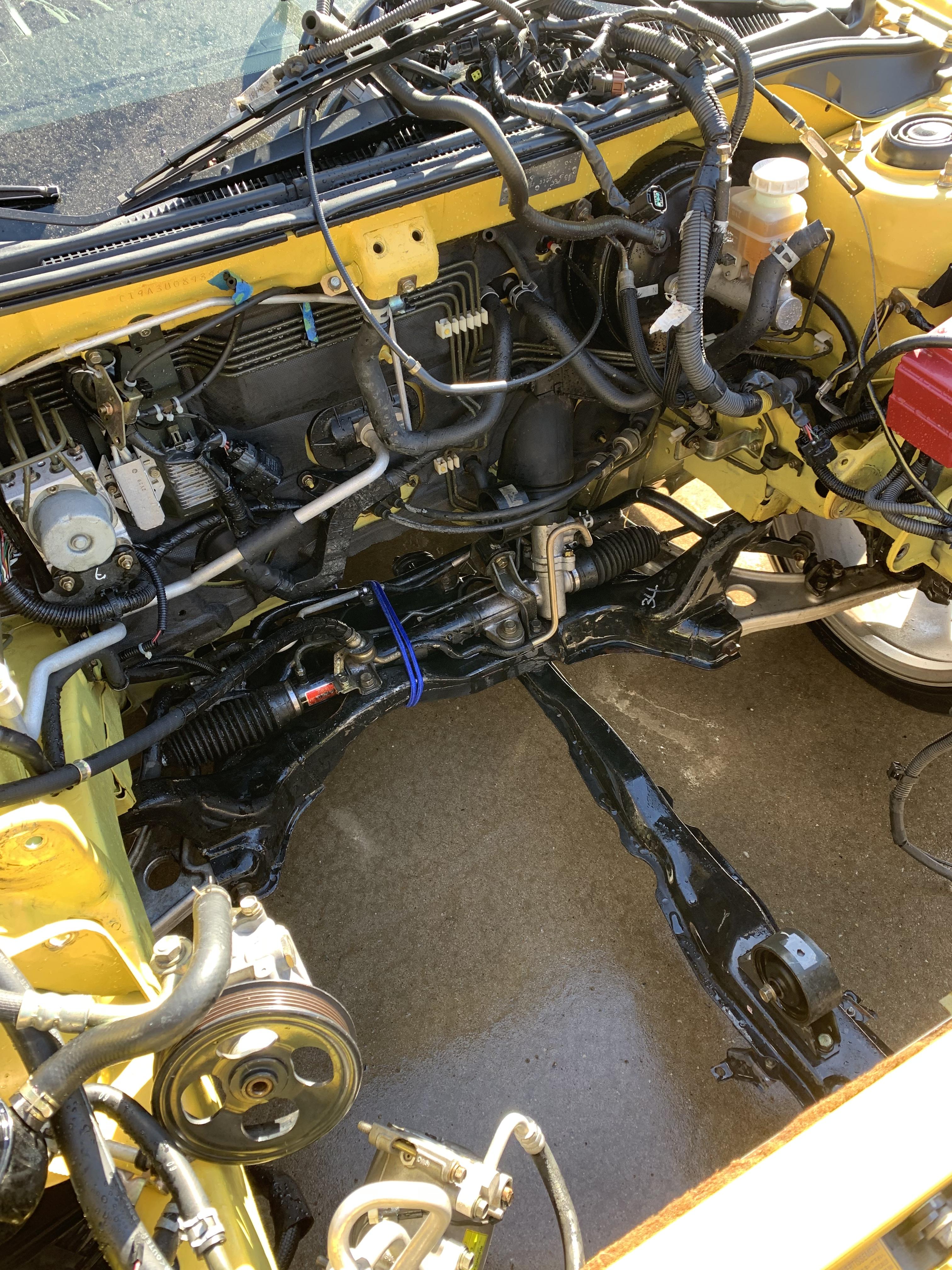

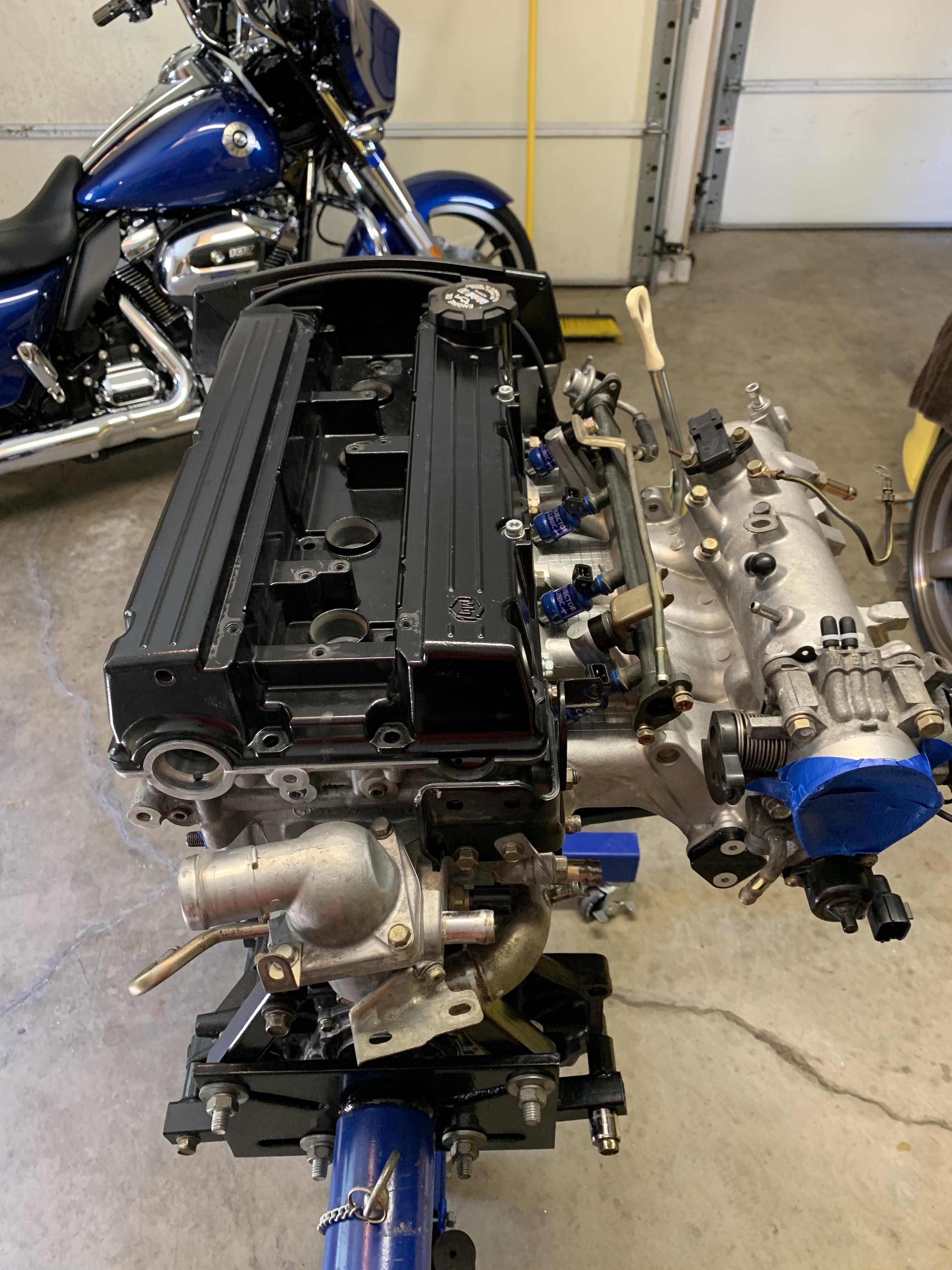

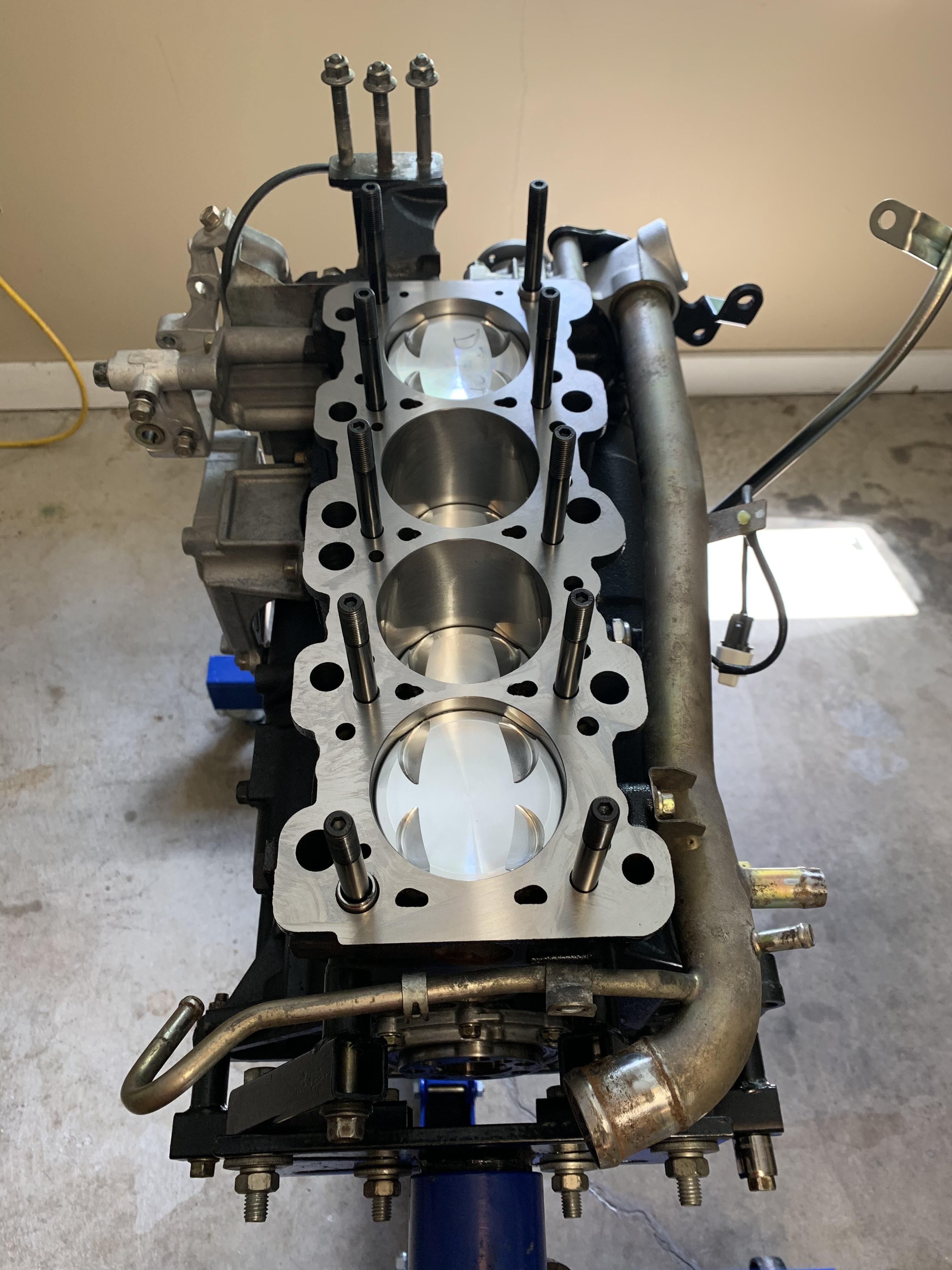

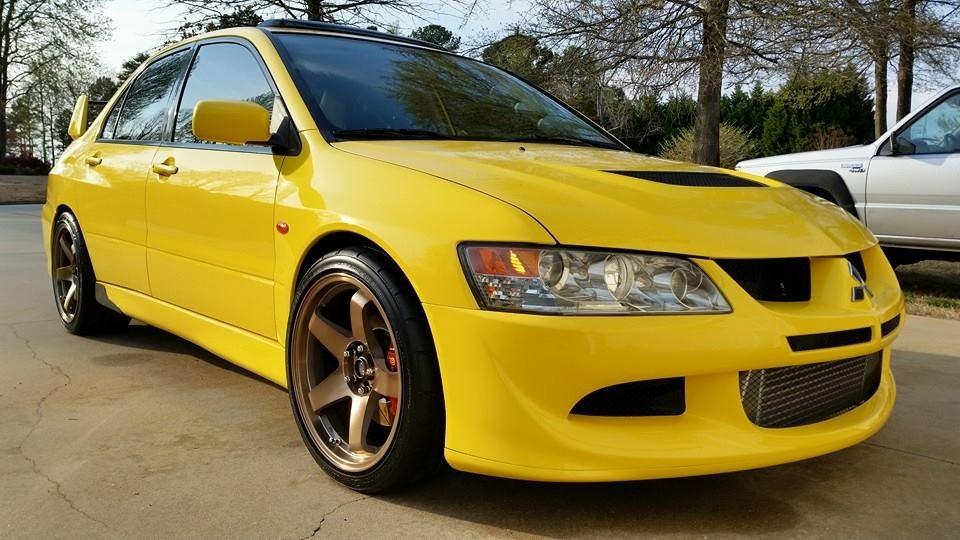

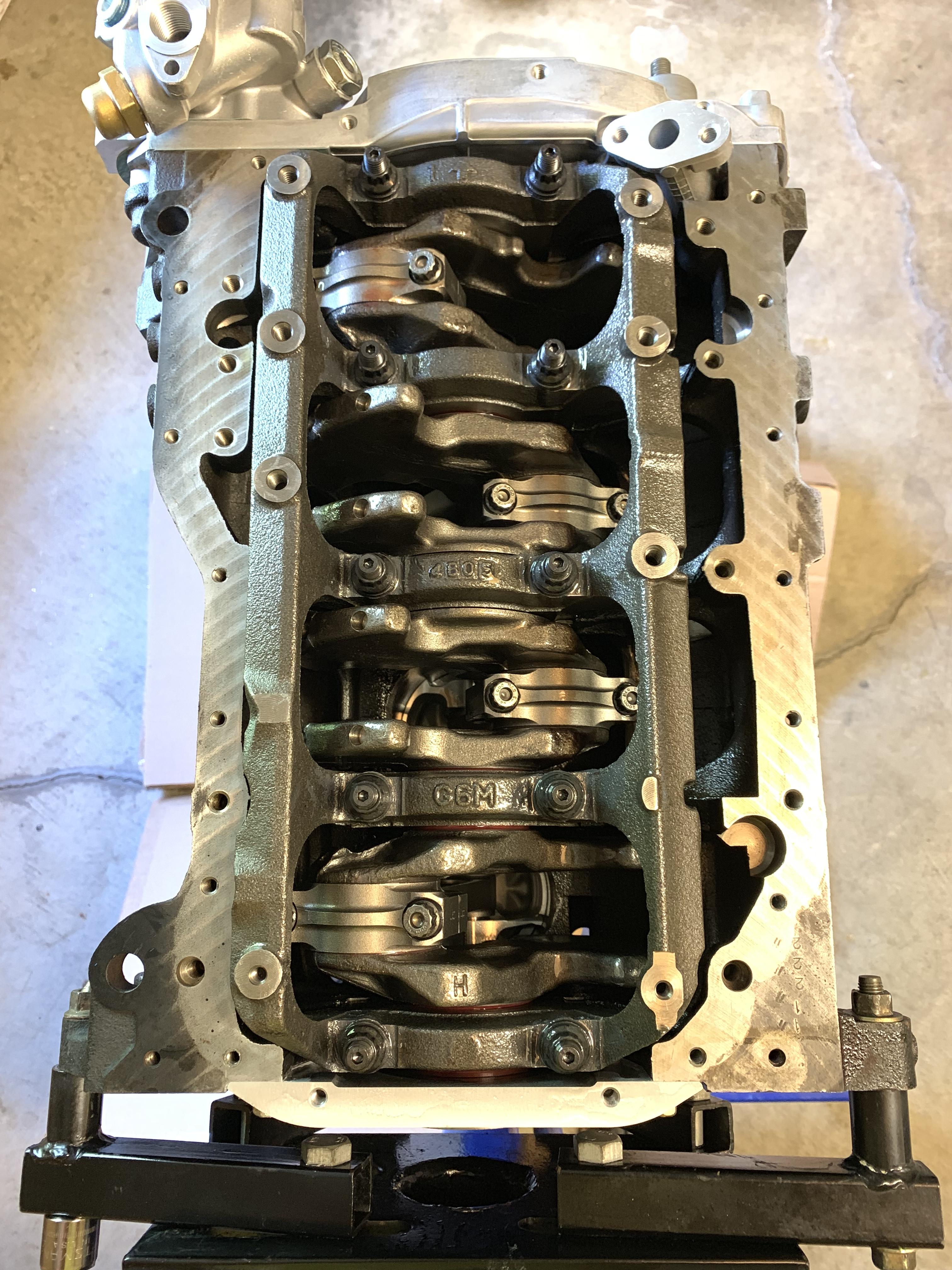

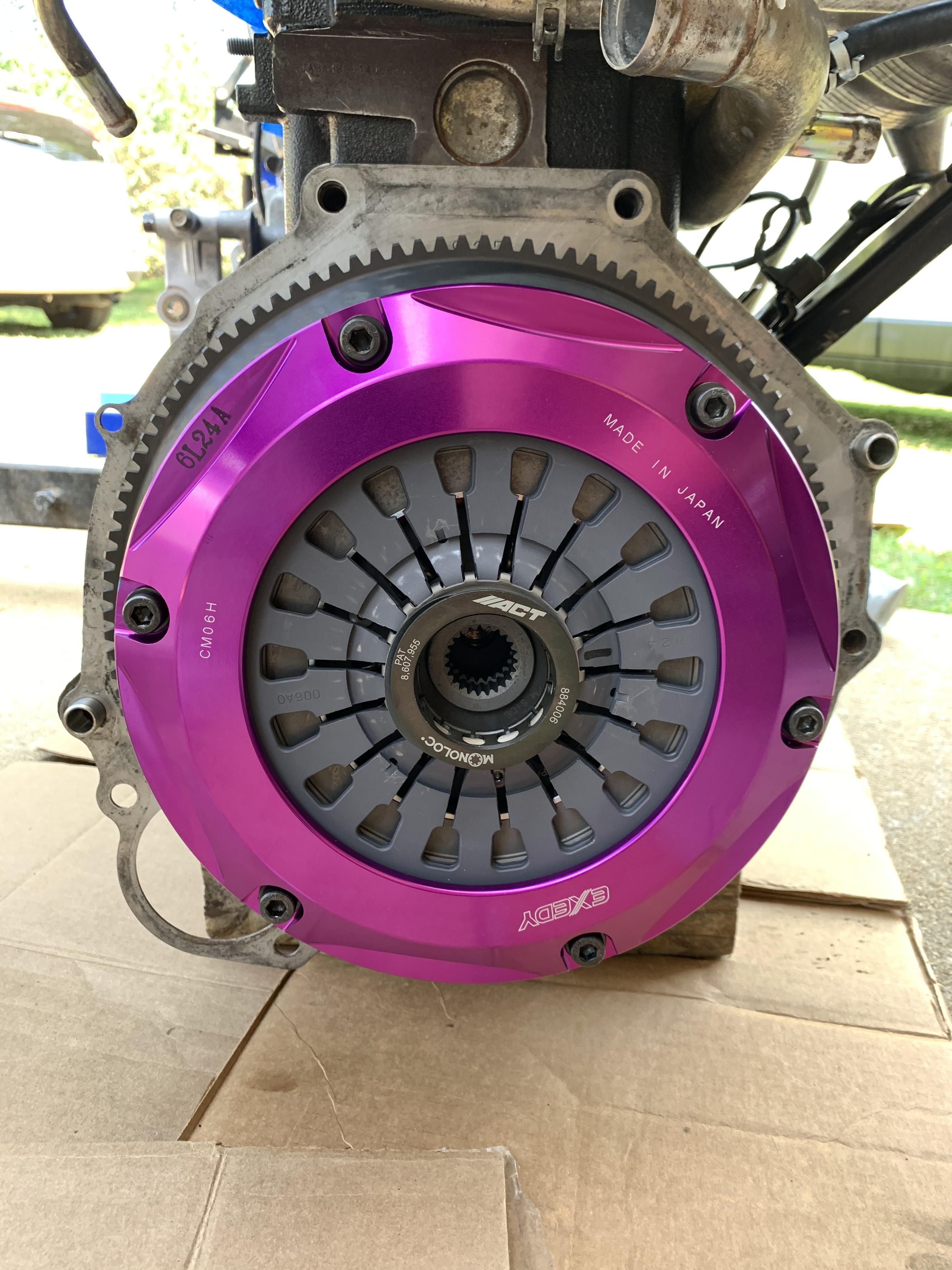

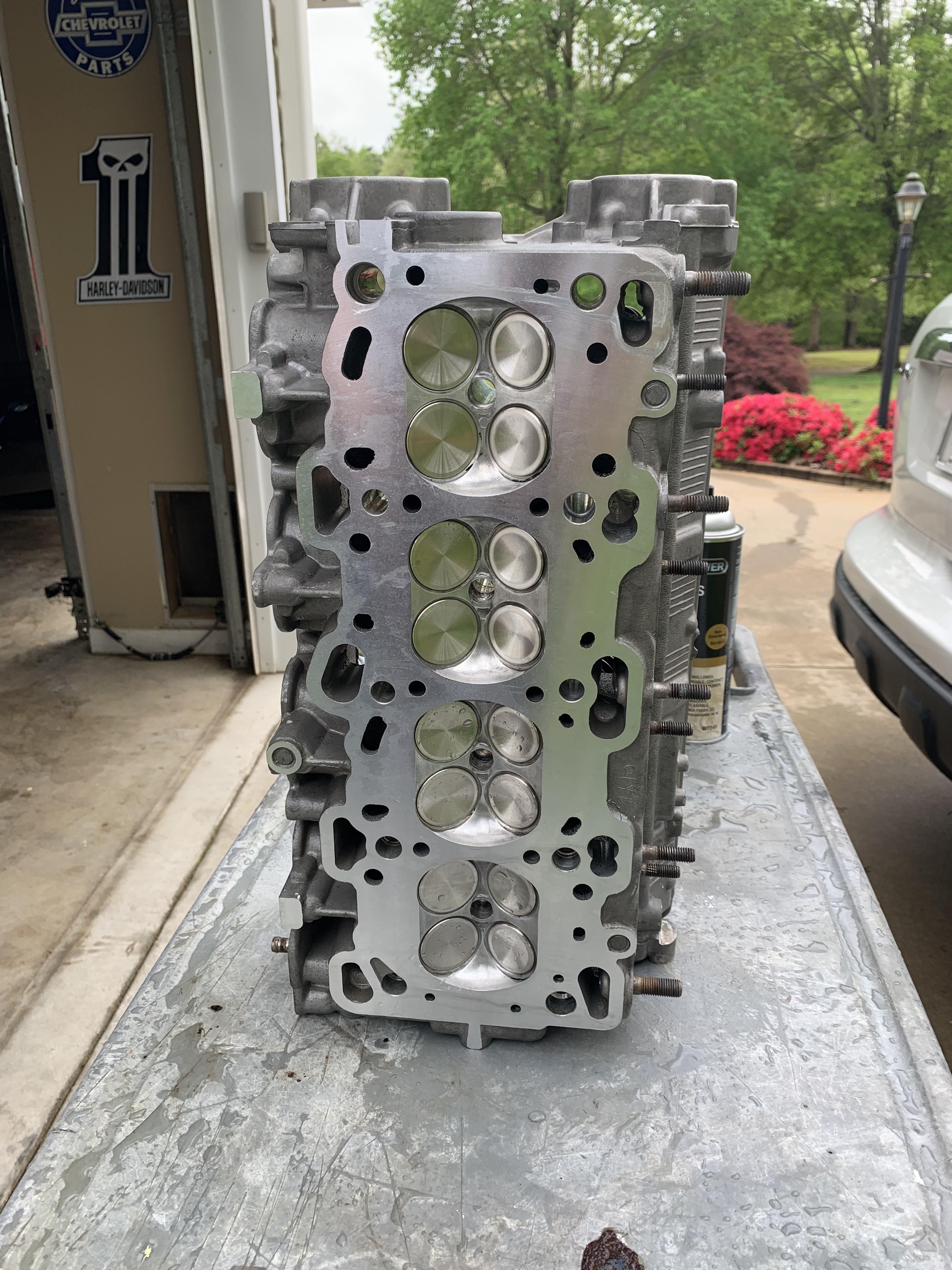

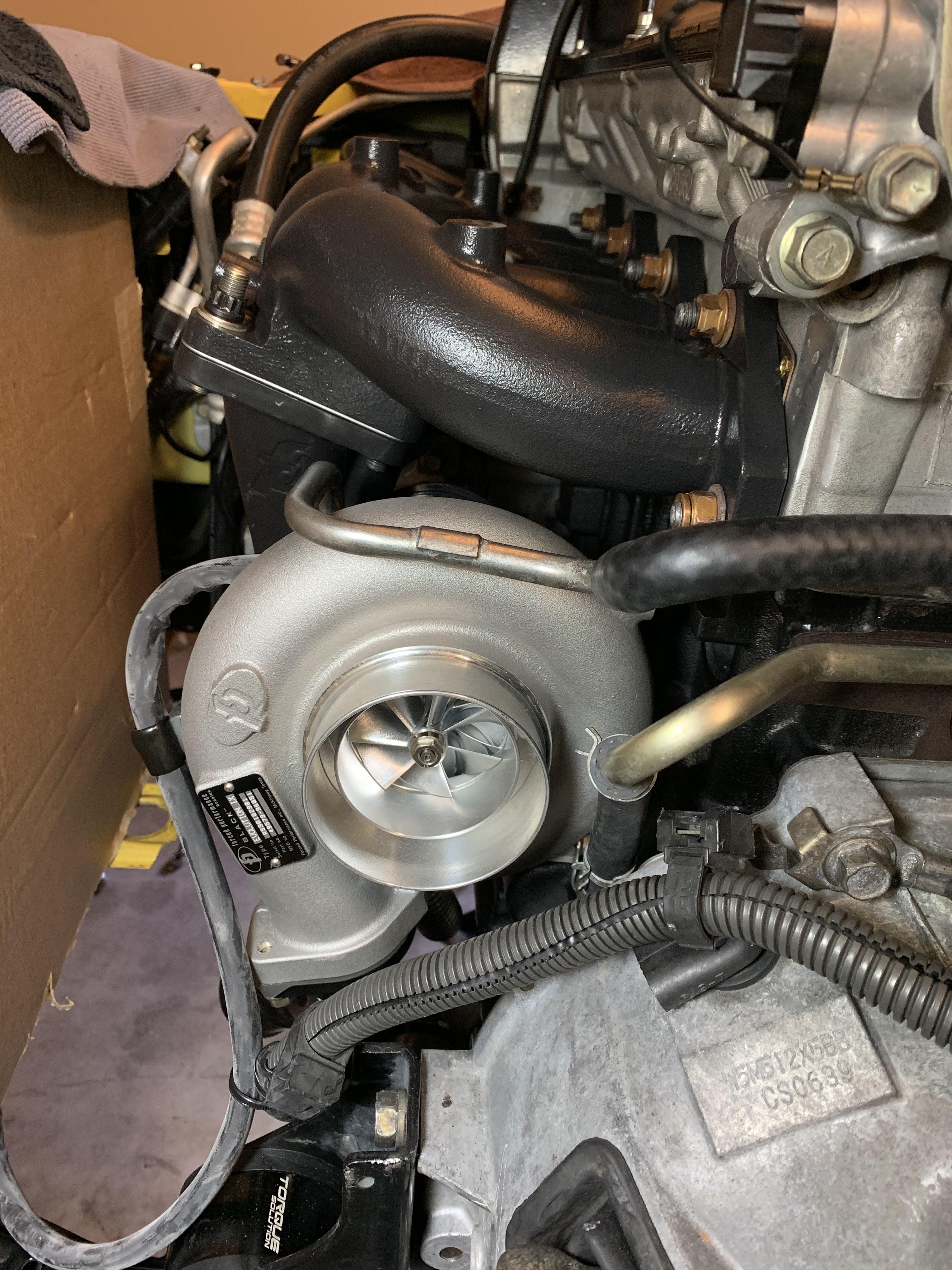

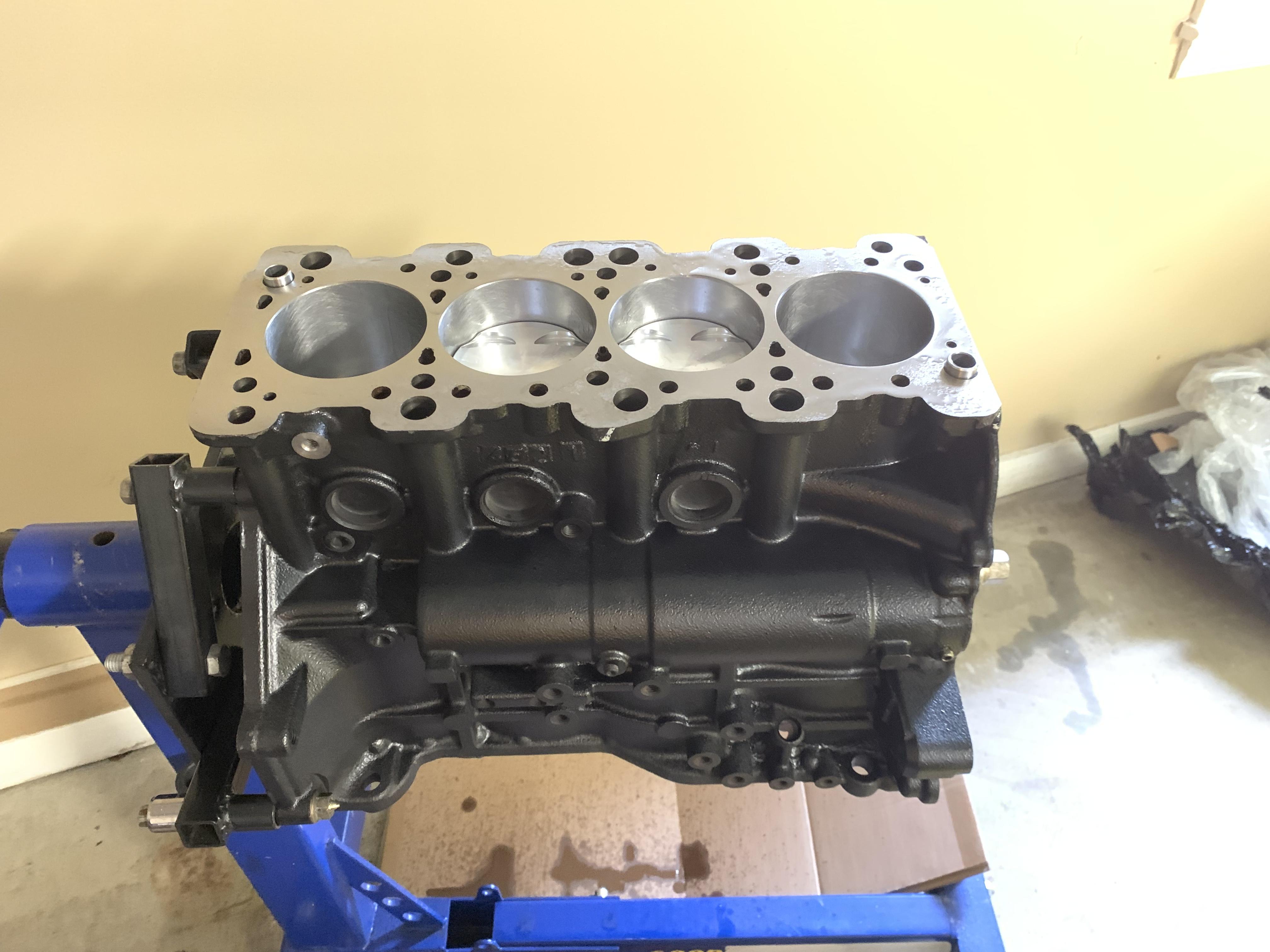

Thanks, I have a soft spot for them as I have an Evo 8 that has been fully built.  That is why I disappeared for a year, lol.  I spent the last year building the engine and getting it sorted out after a rod decided to vent the block. I can't say much, after 10 years of 500hp and 31psi of boost it was time the stock rod gave up, lol.

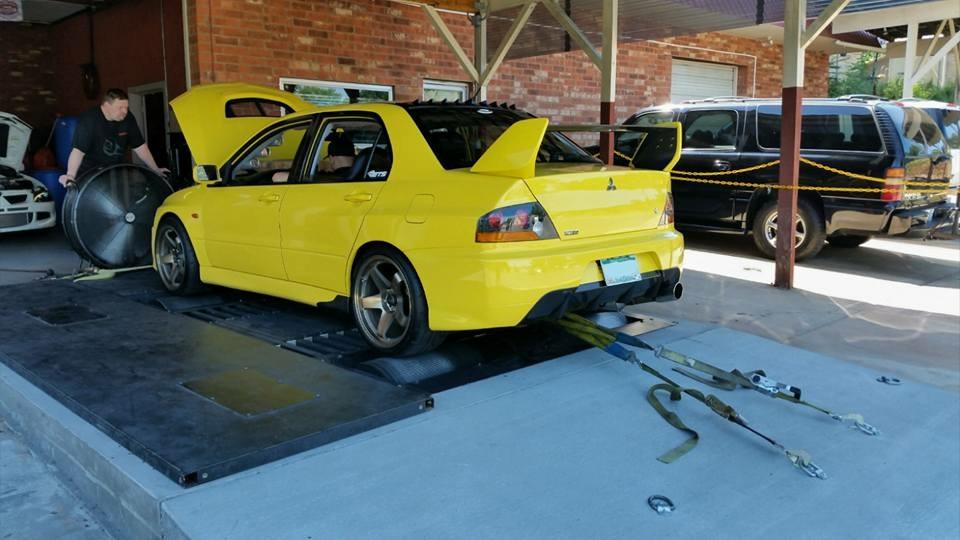

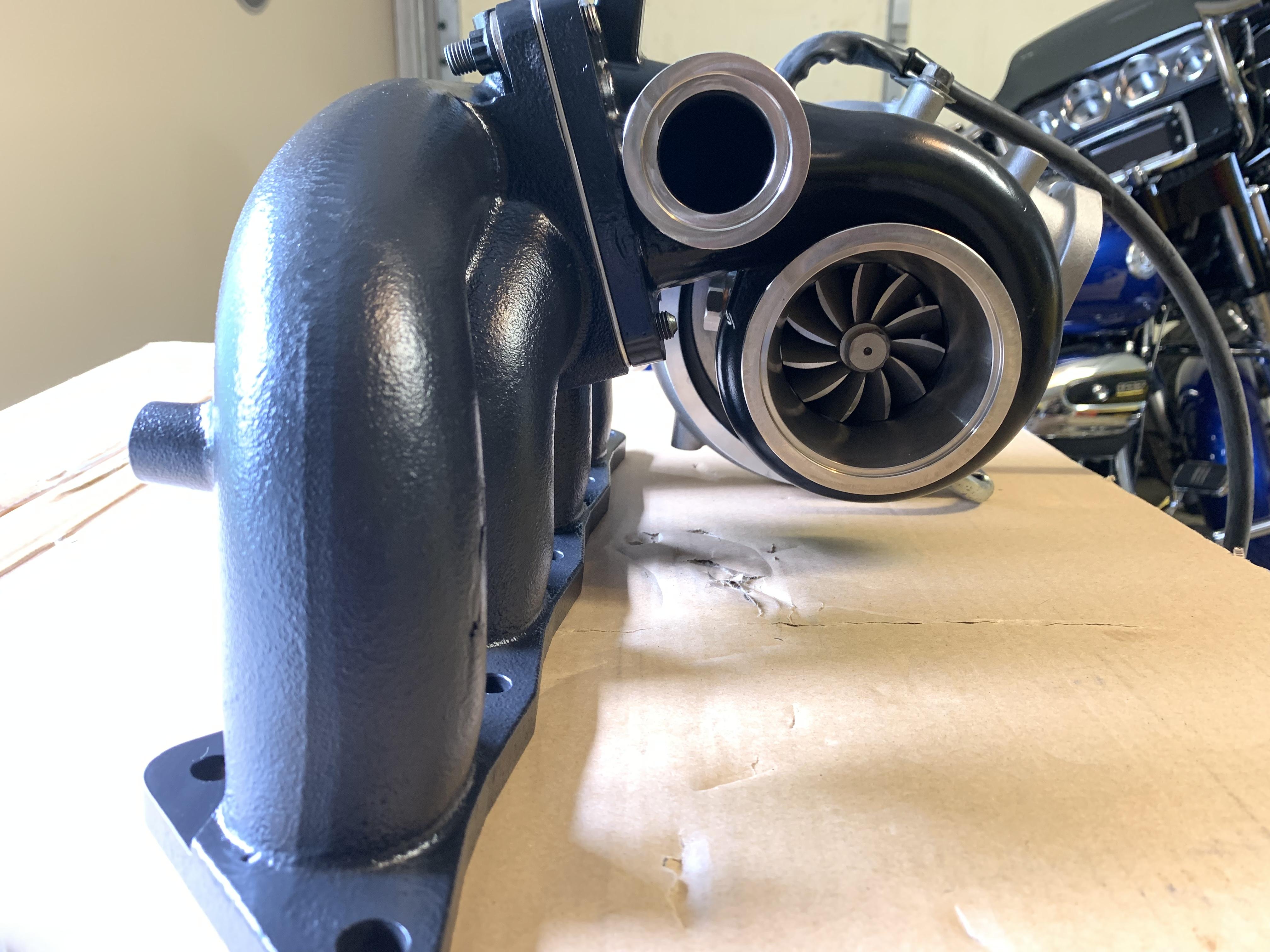

Now I'm ready to hit the chassis dyno whenever I can get the chance, and get tuned after my new setup. I'm hoping to crack 700hp on some E85.















Edited by lghtngyello03

Share this post


Link to post
Share on other sites

I have always enjoyed watching this type of machine in racing so this build looks like a lot of fun. As for your 1:1 all I can say is wow. Now you have to build a copy of that unless you already have.

Share this post


Link to post
Share on other sites
18 minutes ago, espo said:

I have always enjoyed watching this type of machine in racing so this build looks like a lot of fun. As for your 1:1 all I can say is wow. Now you have to build a copy of that unless you already have.

I love any Evo, lol.  I would love to have anywhere from a Evo 4-6, but they are super hard to come by.

The 1:1, I started one a looooong time ago. Again, my skills were nowhere near what they are now.  So, that is planned in the future, to maybe strip that one down or buy a whole new kit and give it a go again.  Zero paints sells the color matched factory Mitsu paint that will match mine, and I know where to get a set of rims that match as well.

Share this post


Link to post
Share on other sites

Wow, so you have the real deal! 😳  I've seen a few in their natural element, on rally stages. 😜  Won't show you the one that crashed near the end of the last stage, when they led by a wide margin.

Cheering you on, I'll get off your lawn!


Share this post


Link to post
Share on other sites
37 minutes ago, 89AKurt said:

Wow, so you have the real deal! 😳  I've seen a few in their natural element, on rally stages. 😜  Won't show you the one that crashed near the end of the last stage, when they led by a wide margin.

Cheering you on, I'll get off your lawn!


Yes sir I have an 03 Evo 8. I’ve never seen one it’s its natural element in person. Plenty on tv lol. Awesome pic by the way ^ Judging by what little of the front bumper I can see, it looks like an Evo 7.

Edited by lghtngyello03

Share this post


Link to post
Share on other sites

Maybe this picture will help.  😁  It was a blast to hear and watch them in action.  And will throw another one in from the same 2015 Prescott rally.  I got to ride in a 5 (I think) at the Ramada Express Rally, for demonstration runs, the sound of the dirt hitting the bottom was really something.  This was after he fixed his car after ditch-rolling on the first stage, which I got video of.  Ok, sorry for hijacking your thread, back to the regularly scheduled program.


Share this post


Link to post
Share on other sites

Sick pictures. I bet the ride in that was awesome! Definitely something to experience. The neon one is an evo 9 and the red and white one is an evo 8.

Share this post


Link to post
Share on other sites

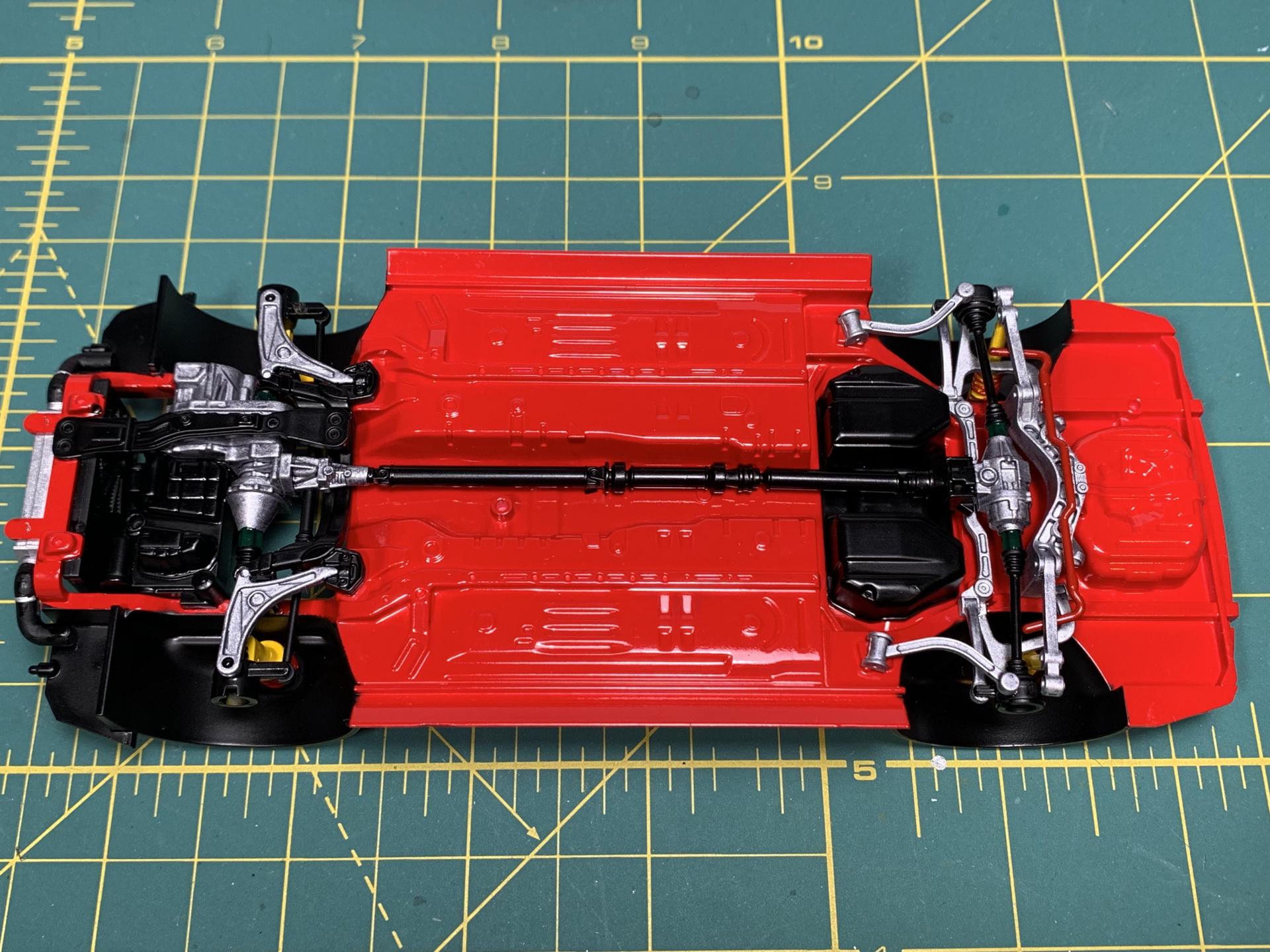

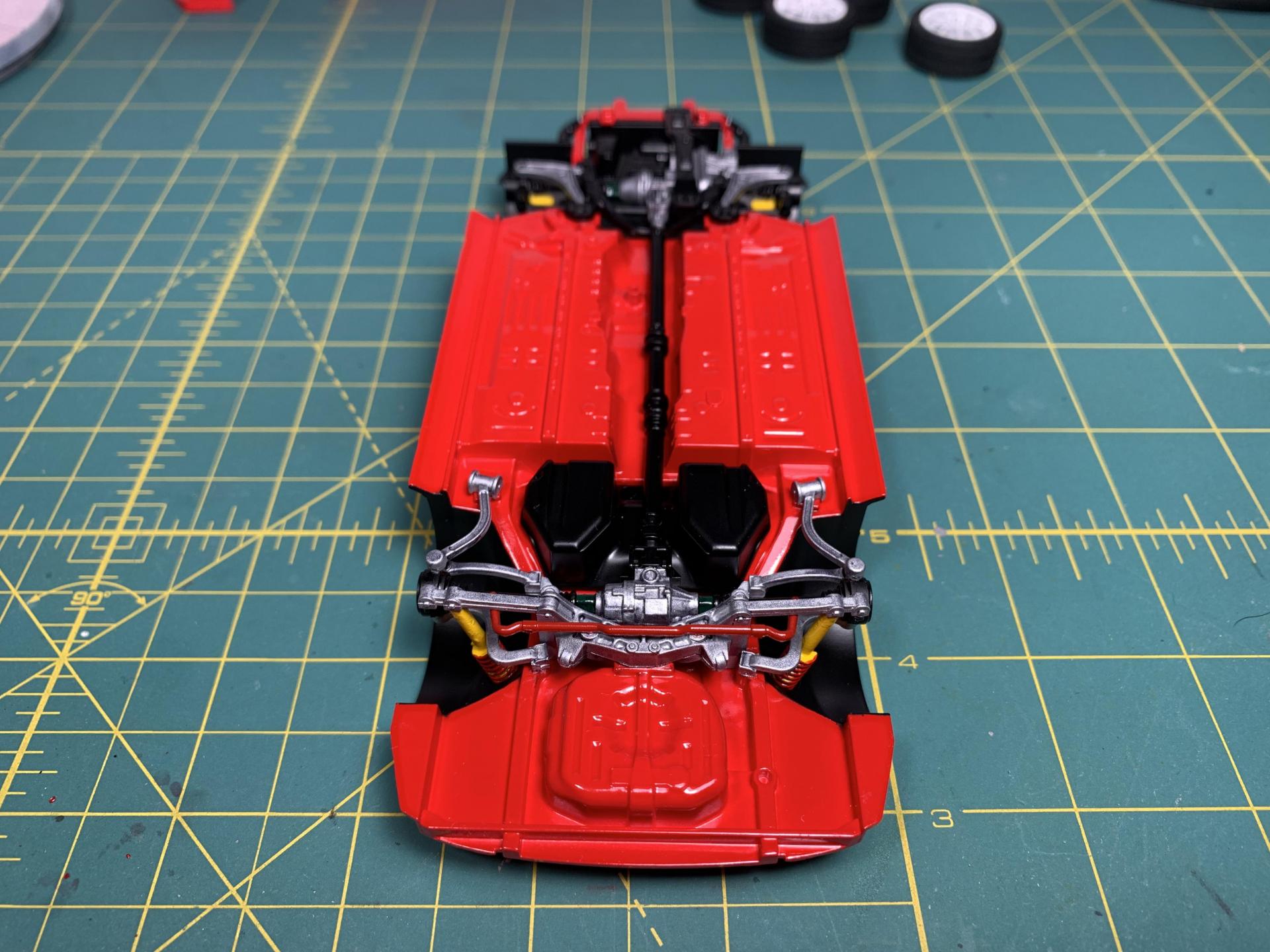

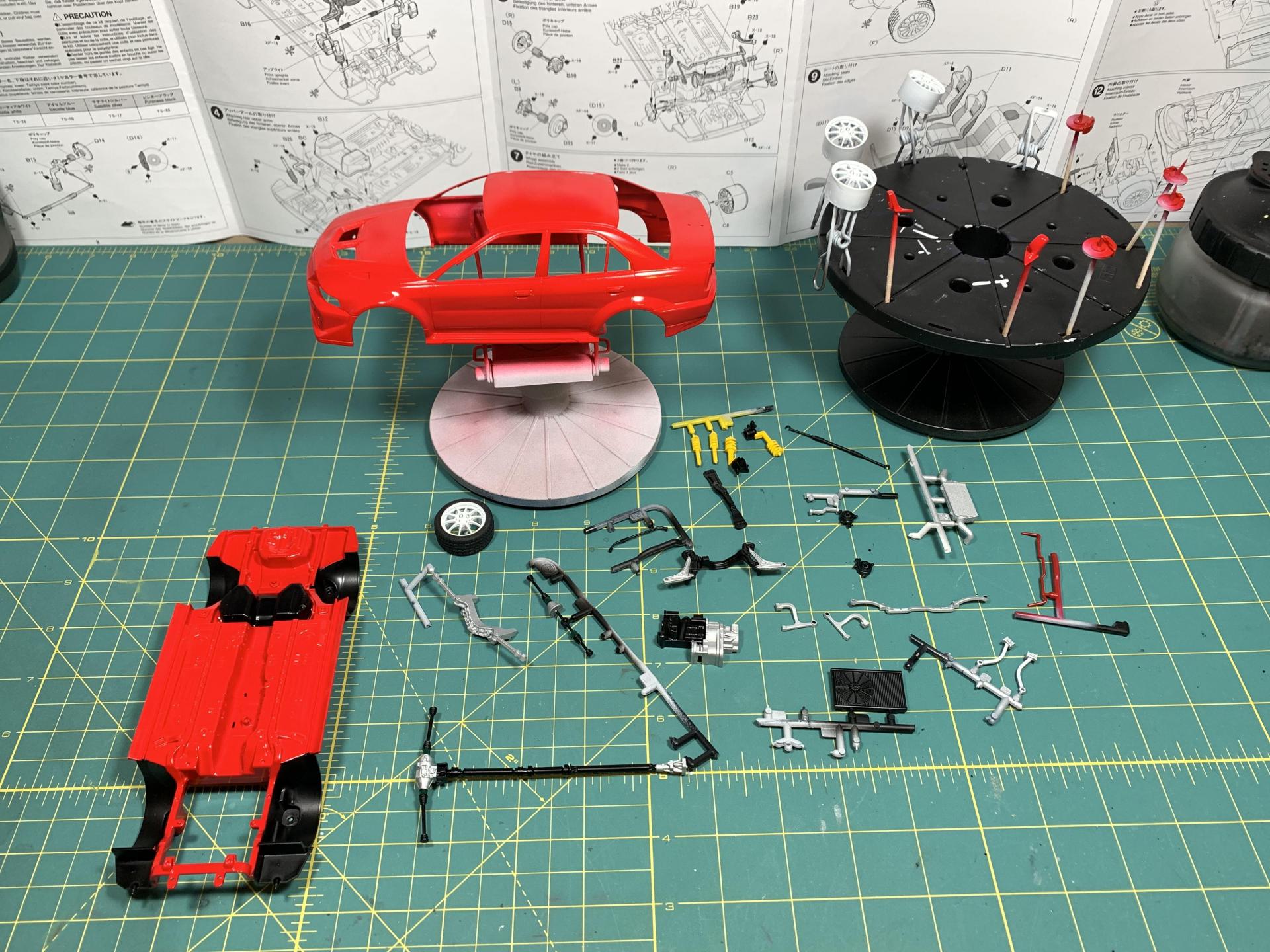

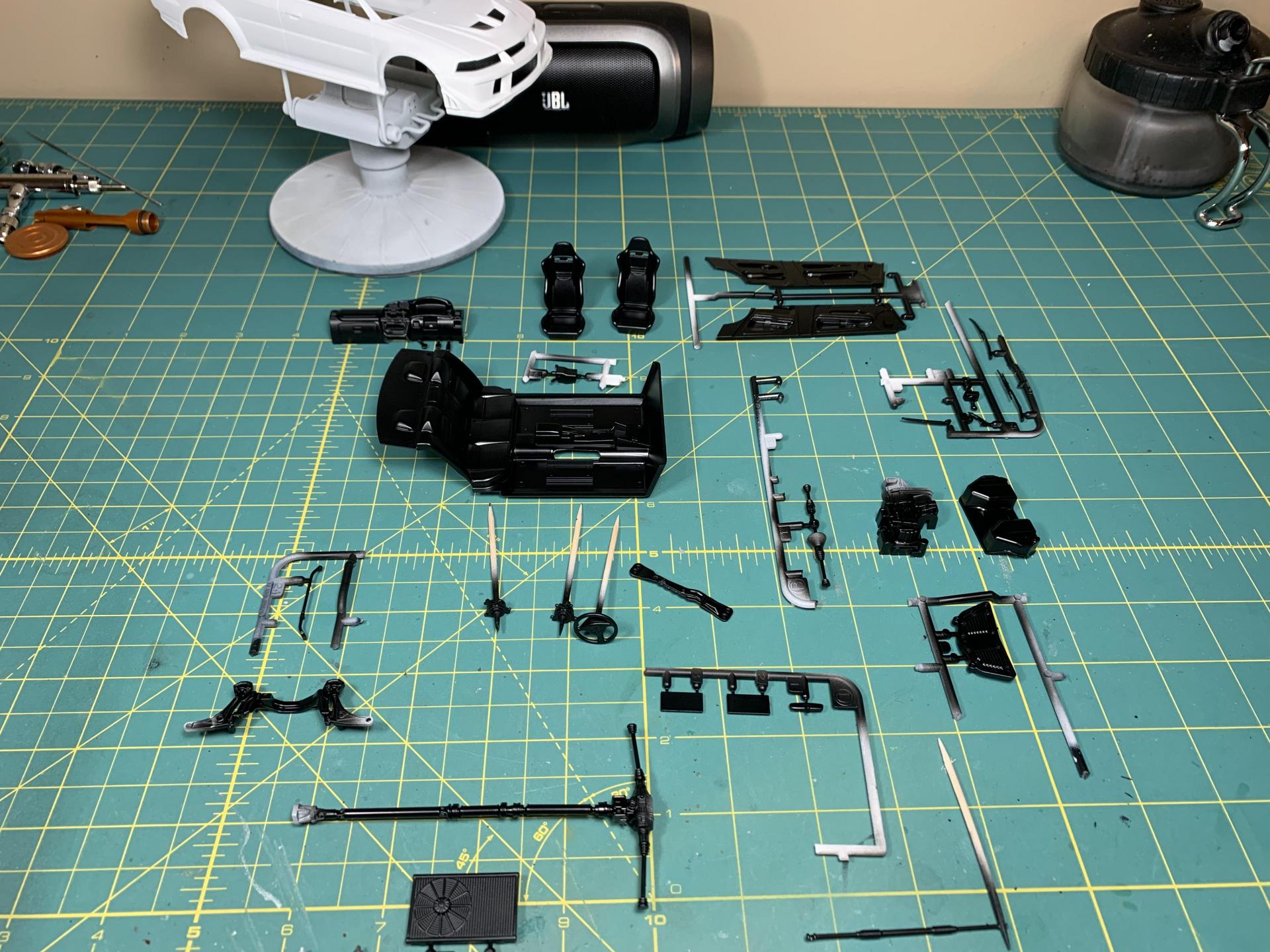

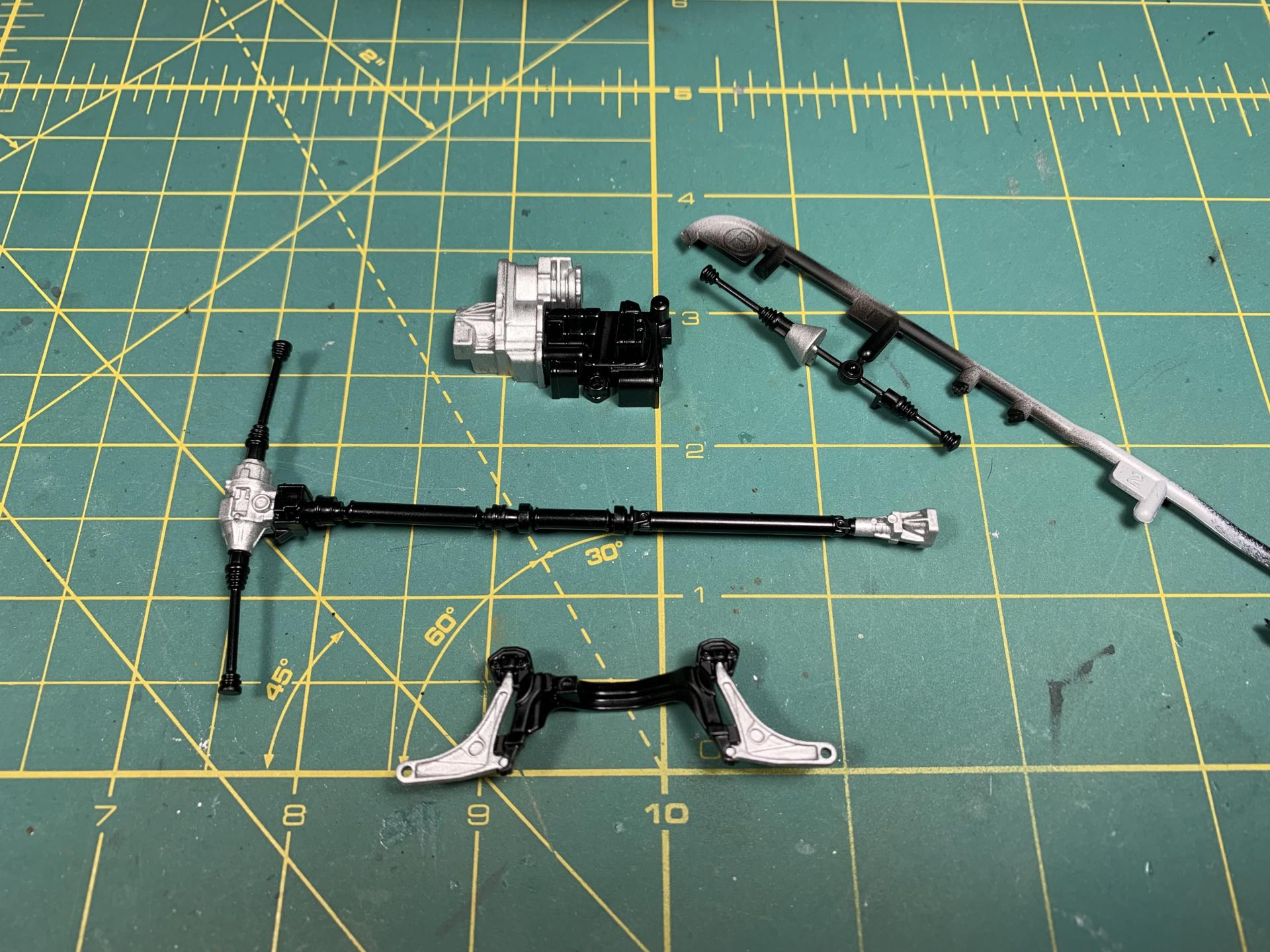

Didn’t get too much exciting stuff done today.  But I did get all the parts that need to be sprayed semi gloss black sprayed today. I also got the rear diff, transfer case, a-arms, and the transmission painted aluminum.

Hoping to get all parts that need to be sprayed aluminum completed tomorrow as well as the suspension sprayed in yellow to replicate some upgraded Bilstein Struts.
