HELP lowering AMT 1965 500 ford galaxie

Recommended Posts

hello forum,

first time posting here i am building a AMT 65 ford galaxie 500 xl for a friend he would like me to keep model all stock but wants to know if i could build model lowered

I need help, tips, or info on how i can do this without loosing the integrity of the model, all help will be appreciated!

thank you all in advance!


Share this post


Link to post
Share on other sites

Can you post a pic of the instructions that involves the suspension? You may be able to just flip the front spindles and block up the rear......

Share this post


Link to post
Share on other sites

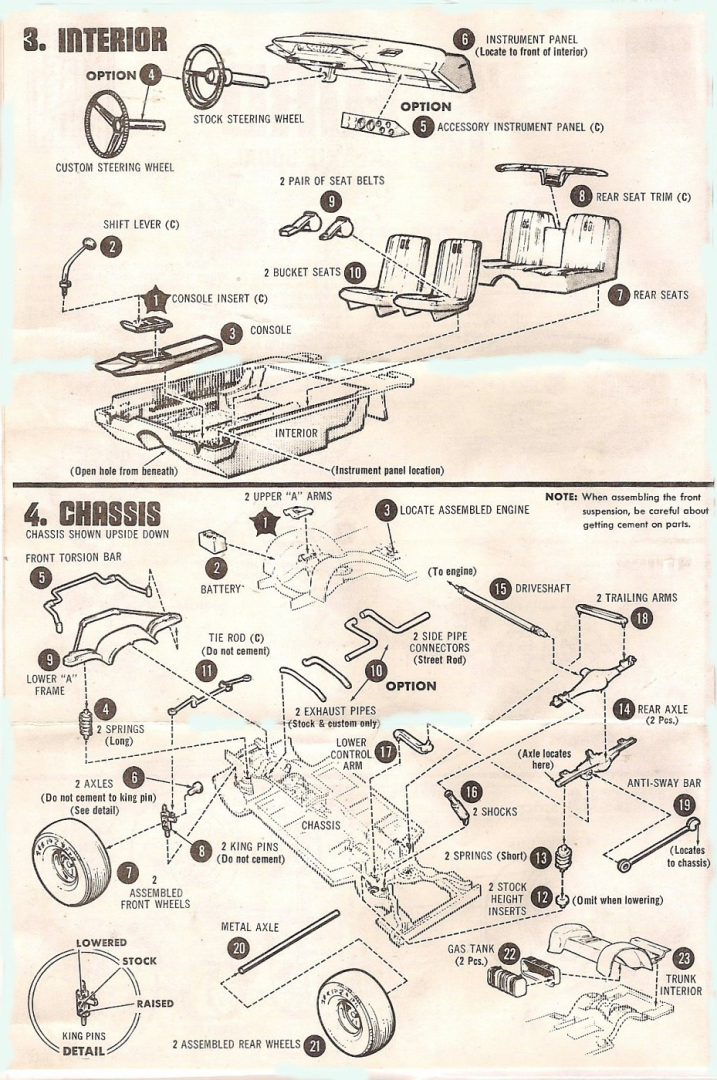

These instructions show that there is already provision for lowering the car provided by the kit.

If this is the model you have, you simply omit the parts #12 in the rear, and select the "lowered" position hole in the front spindles.




Share this post


Link to post
Share on other sites

Take a close look at that detail inset - don't they have the raised and lowered positions backwards? Remember this is an upside down view.

Edited by ChrisBcritter

Share this post


Link to post
Share on other sites

Use the highest position on the front king pin parts to check how low the front end goes with the kit parts- test fit. If it isn't low enough, it shouldn't be too hard to scratch build some king pin replacements that allow the front to sit lower than it does out of the box.

For the rear axle, it comes with inserts to raise the rear springs (part #12) for stock height, and omitting these will lower the rear end- a pair of scratch built styrene lowering blocks mounted between the trailing arms (part #18) and the differential should get things down some in combination with trimming down the springs...you'll want to shorten the shocks too. If the control arms and driveshaft hit the floor pan with your chosen amount of lowering in the rear, notching the floor pan around the control arms and deepening the tunnel the driveshaft goes through with a round file will help.

Share this post


Link to post
Share on other sites
On 10/13/2019 at 3:43 PM, gman said:

Use the highest position on the front king pin parts to check how low the front end goes with the kit parts- test fit. If it isn't low enough, it shouldn't be too hard to scratch build some king pin replacements that allow the front to sit lower than it does out of the box.

For the rear axle, it comes with inserts to raise the rear springs (part #12) for stock height, and omitting these will lower the rear end- a pair of scratch built styrene lowering blocks mounted between the trailing arms (part #18) and the differential should get things down some in combination with trimming down the springs...you'll want to shorten the shocks too. If the control arms and driveshaft hit the floor pan with your chosen amount of lowering in the rear, notching the floor pan around the control arms and deepening the tunnel the driveshaft goes through with a round file will help.

thanx gman I will give it some thought
