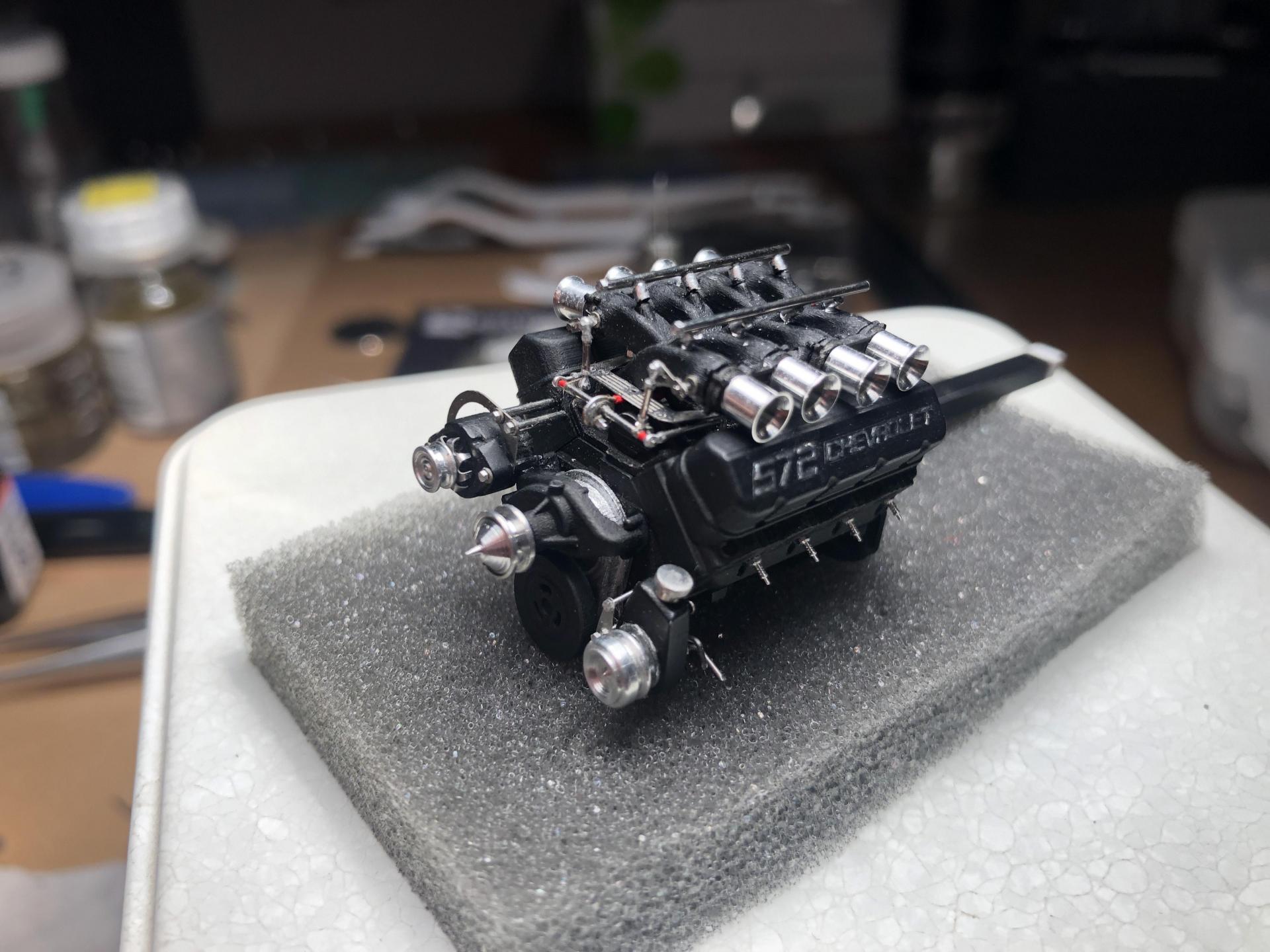

Lorne Posted November 8, 2019 Share Posted November 8, 2019 Hello, the latest update on this big block. On hold for the crank pulley. Trying to figure out how to wire the fuel injectors?? Gotta love the aftermarket stuff for 1/25 scale !! Quote Link to comment Share on other sites More sharing options...
mrm Posted November 8, 2019 Share Posted November 8, 2019 Wiring the fuel is the simplest on this engine. Fuel Line goes in the back of one of the fuel rails that are already on it, gets through a braided line into the other rail On the front and out the back returns to the tank. Engines like that never have pumps or anything near by. Maybe a pressure gauge at one end of the two fuel rails. Quote Link to comment Share on other sites More sharing options...
Nonlocality Posted November 8, 2019 Share Posted November 8, 2019 59 minutes ago, Lorne said: Hello, the latest update on this big block. On hold for the crank pulley. Trying to figure out how to wire the fuel injectors?? Gotta love the aftermarket stuff for 1/25 scale !! What all did you put on it? Quote Link to comment Share on other sites More sharing options...
Lorne Posted November 9, 2019 Author Share Posted November 9, 2019 Ram air intake and engine is TDR innovations. R&B motion rods, nuts, bolts. Alternator came from TDR also. Scratch built the power steering pump sanded it down to its shape then detailed it with R&B and photo etch from MCG and Detail masters. Photo's of various big block engines gets the idea going. thanks for your interest Quote Link to comment Share on other sites More sharing options...
