Revell Land Rover 109" Station wagon

Recommended Posts

Another model supplied by Revell for a magazine build article




Share this post


Link to post
Share on other sites
1 hour ago, dublin boy said:

Needs a Rover V8 Geoff...

If it was a Phase One,it would have a 3.5 V8, the V8 won't fit in the Series 3 engine bay, which is why the Phase one engine bay is longer,bringing the front panel flush with the front wings,plus the inner wings are totally different  in fact the V8 Land Rovers were basically Range Rovers with a different body.


Edited by GeeBee

Share this post


Link to post
Share on other sites

It'll be nice to see how this kit looks!, i have the Hasegawa -Italeri? version, as well as the original Groovy Rover from Monogram.....they are actually really nice kits. Thanks for sharing!

Share this post


Link to post
Share on other sites

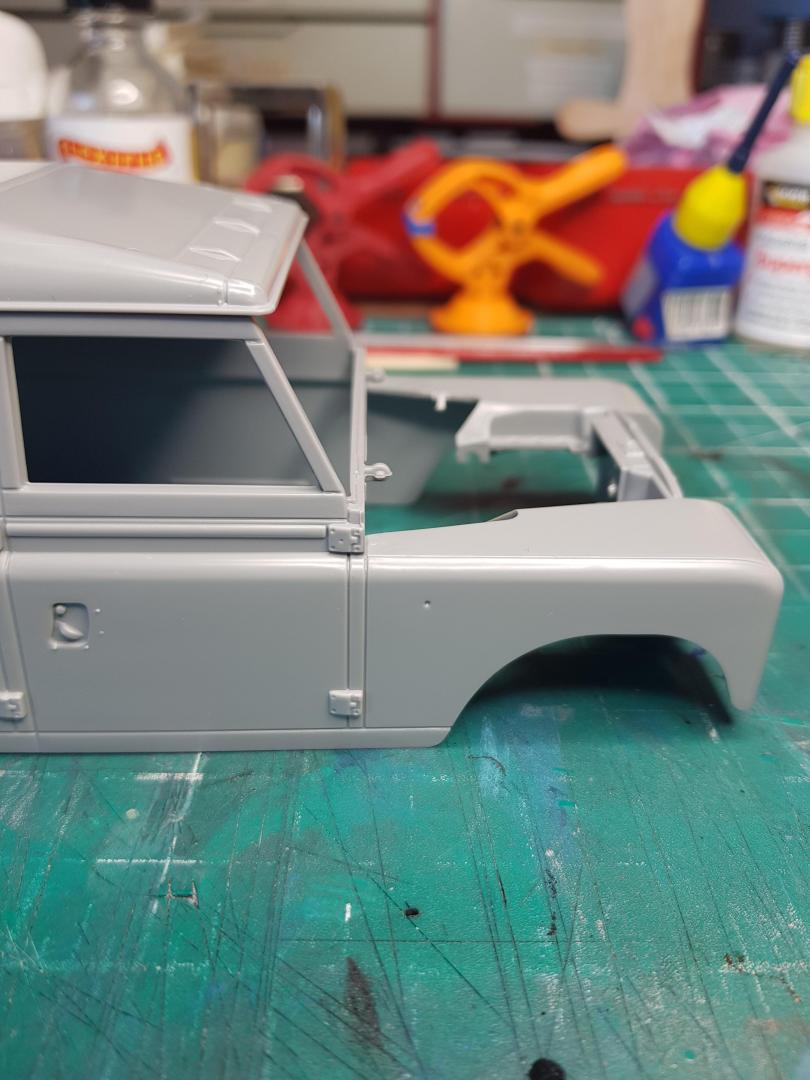

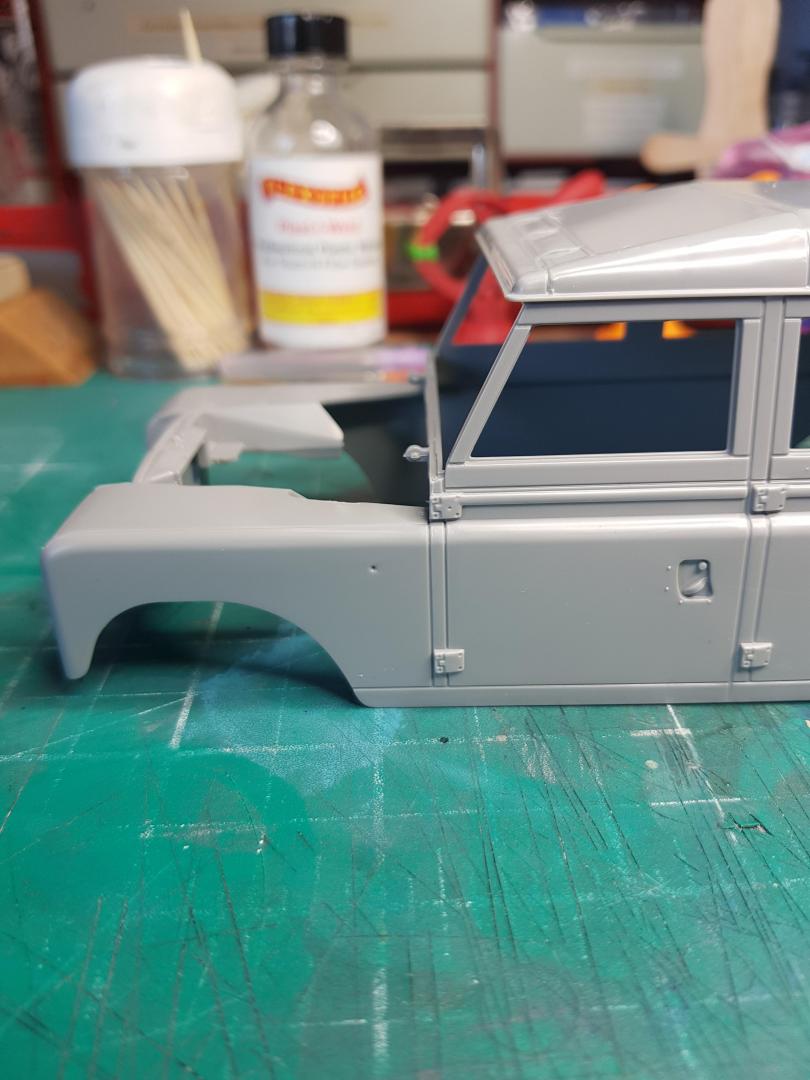

Looking over the Revell Land Rover this morning, already spotted a mistake, depending on whether it is left hand drive or Right hand drive, the air intake for the carburetor will be on one side only, Revell seems to put a small locating mark molded in the body on both sides, so a little bit of filler should sort out it, why Revell didn't mark them on the inside so they could be drilled out.




Share this post


Link to post
Share on other sites
35 minutes ago, GeeBee said:

Looking over the Revell Land Rover this morning, already spotted a mistake, depending on whether it is left hand drive or right hand drive.

I don’t know if you saw it on Britmodeller, Geoff, but for the folks here, there’s also a small error with the transfer box selector levers. They are always on the right hand side of the transmission tunnel, whether or not the vehicle is RHD or LHD. Revell gives you two tunnel parts, so just always use the one called out for RHD...

best,

M.

Share this post


Link to post
Share on other sites
6 hours ago, Matt Bacon said:

I don’t know if you saw it on Britmodeller, Geoff, but for the folks here, there’s also a small error with the transfer box selector levers. They are always on the right hand side of the transmission tunnel, whether or not the vehicle is RHD or LHD. Revell gives you two tunnel parts, so just always use the one called out for RHD...

best,

M.

Yes, I did see that,even though I don't post on Britmodeller, I can see Revells reasoning, they based the model on a LHD vehicle, I suspect they thought like the pedals, everything on the Land Rover would be swapped over, it's a shame they didn't check before hand  it's not as though there isn't any 1:1 RHD Land Rovers out there.

Edited by GeeBee

Share this post


Link to post
Share on other sites

Doesn't seem a lot of work for one day, but a lot of these parts need a lot of cleaning up before there ready for primer, plus I really didn't get a lot of time over the weekend to get into the hobby room


Share this post


Link to post
Share on other sites

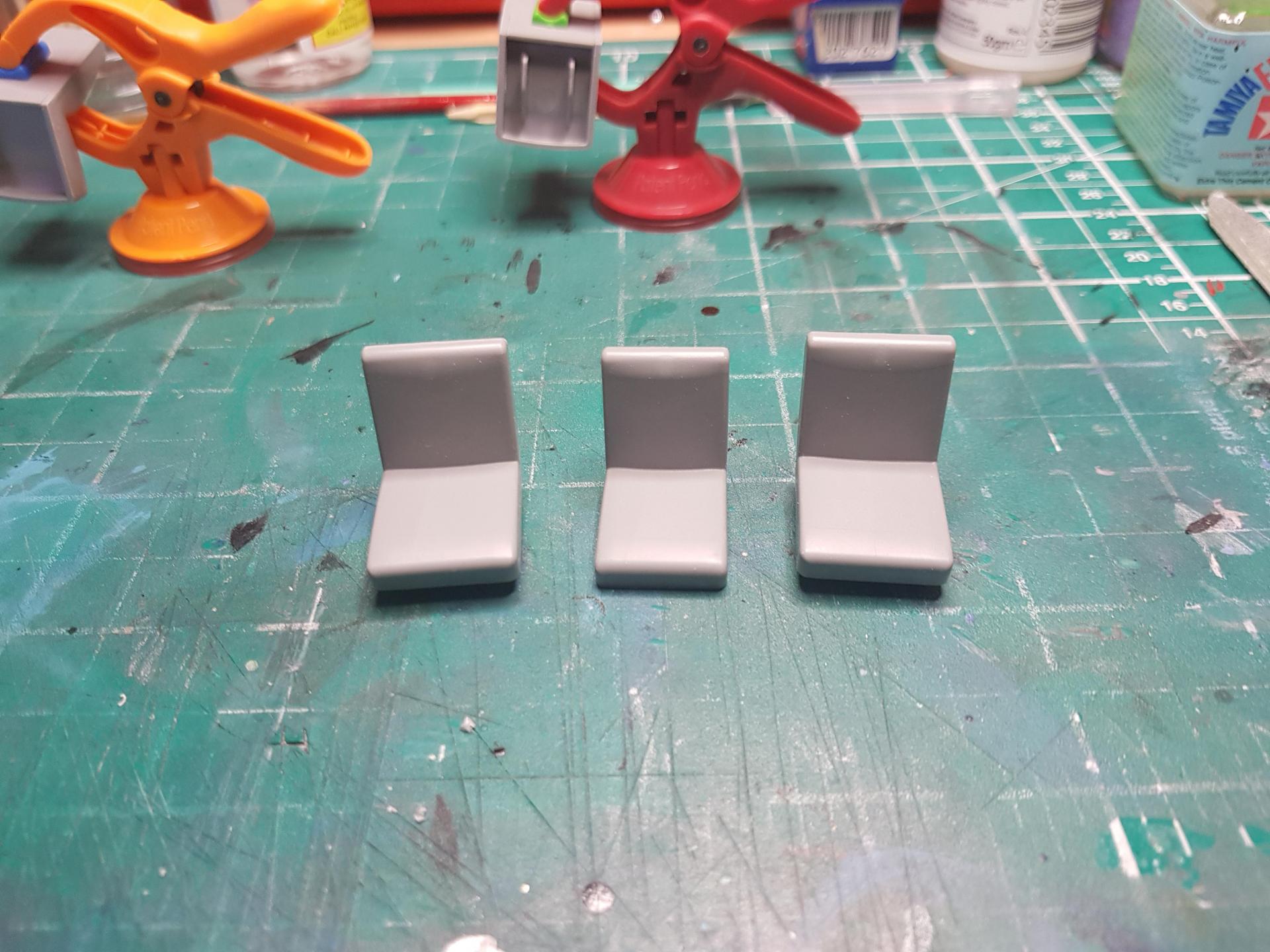

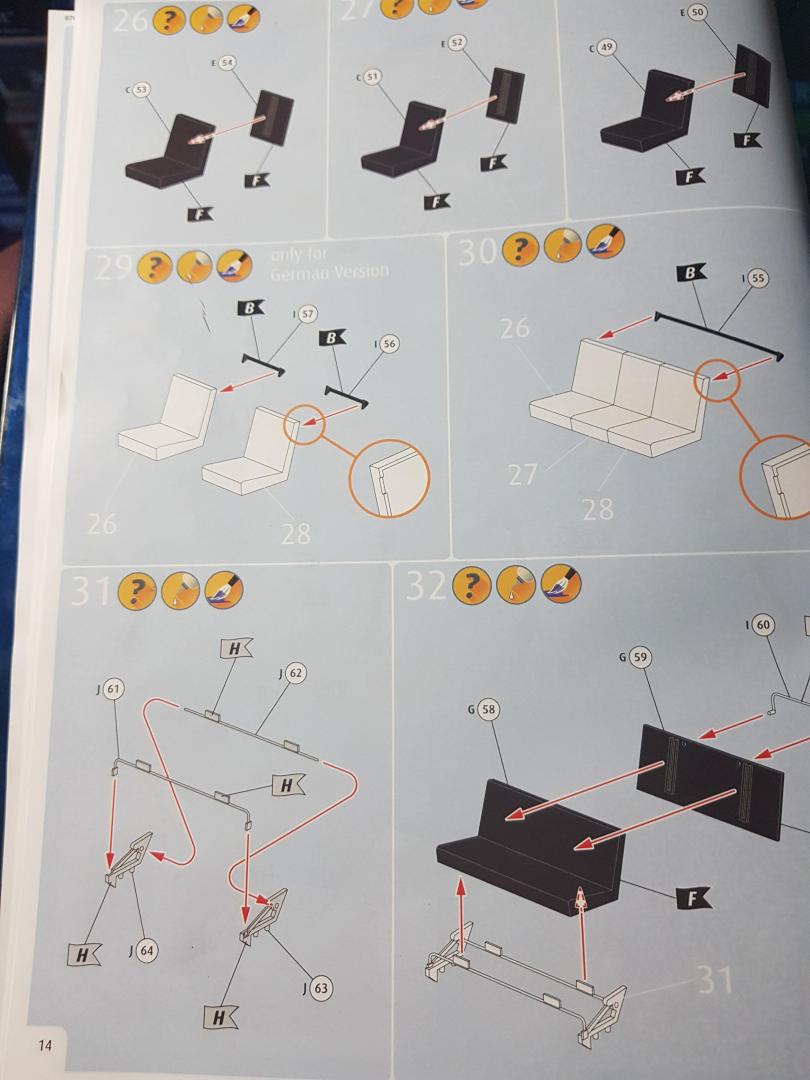

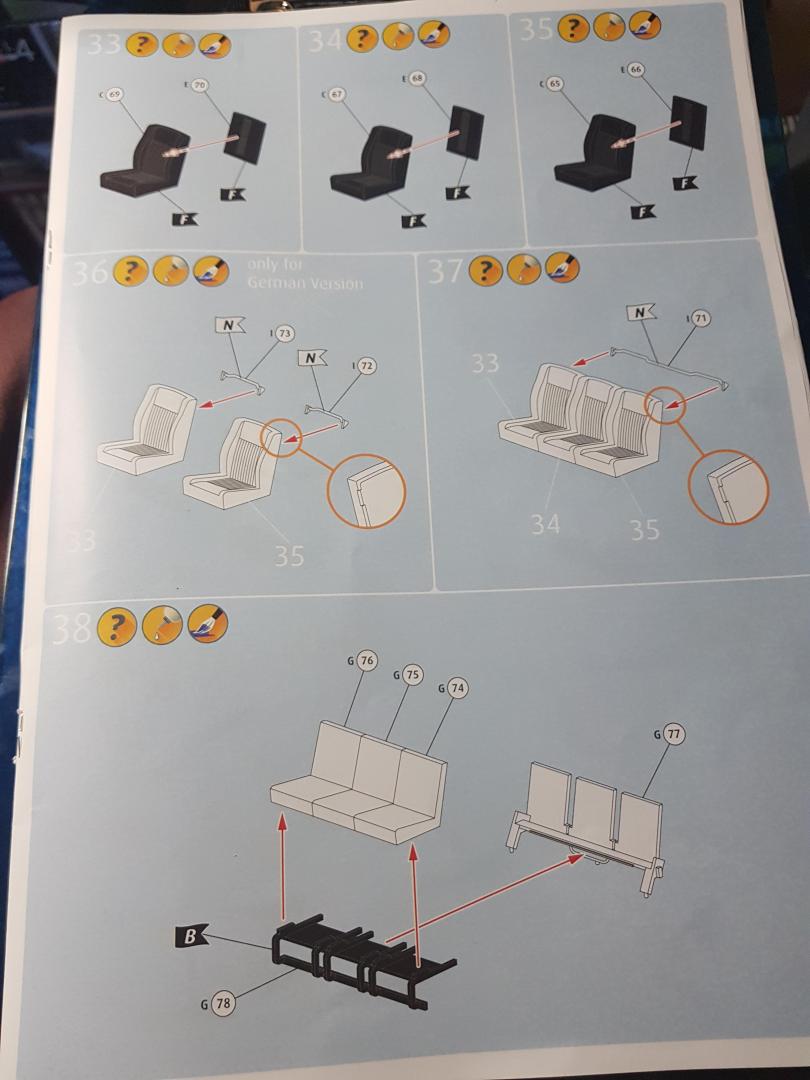

Sometimes it's worth reading the Instructions before putting any parts together, although not mentioned in the instructions, Revell have supplied seats to make a basic and Deluxe interior, Its a shame they didn't supply a Deluxe bonnet  hopefully someone's out there will do a resin aftermarket one, looks like the spares box will be gaining a few more parts.





Share this post


Link to post
Share on other sites

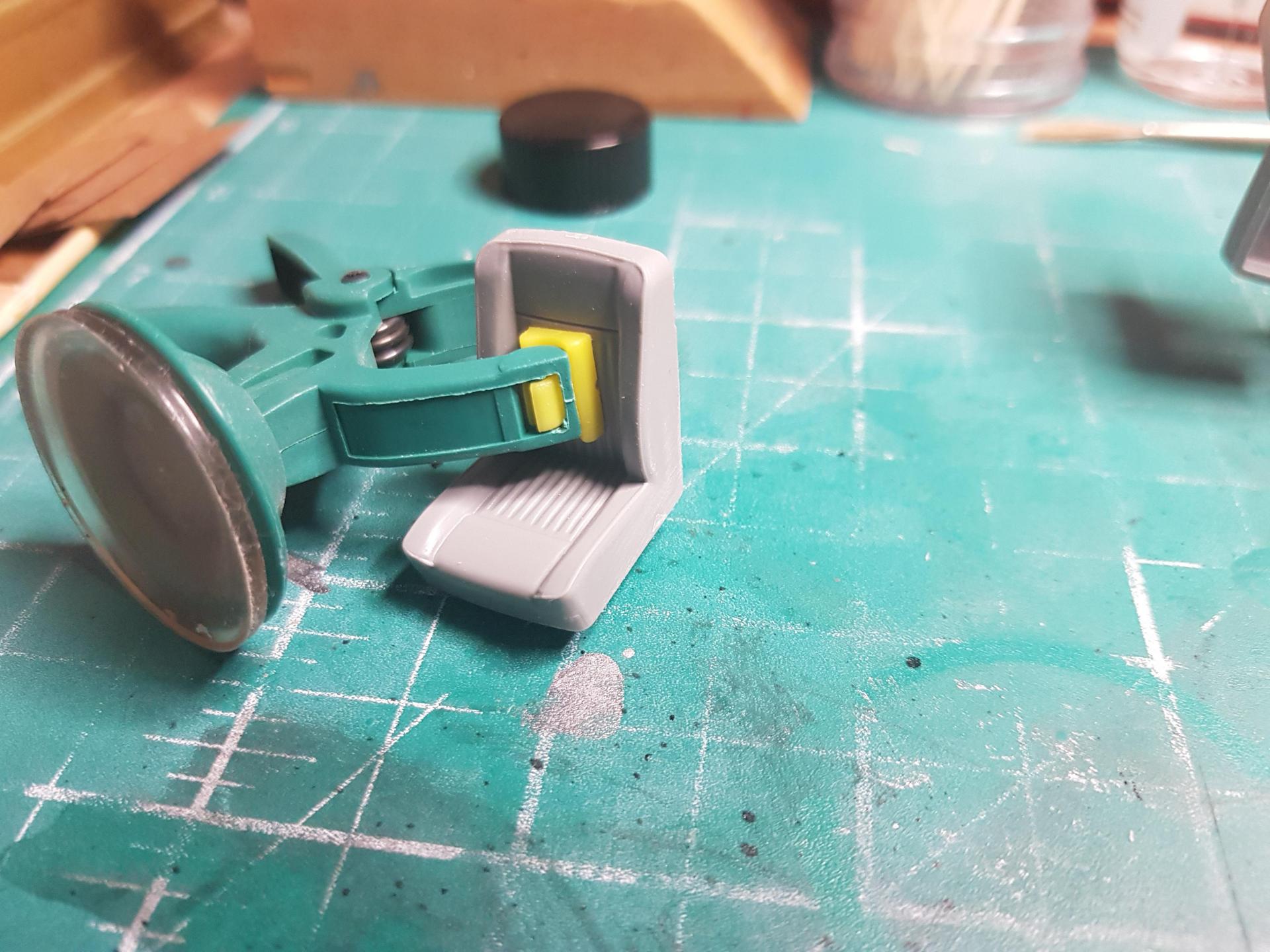

Looking forward to watching this commission build come together. Work of this sort serves as an inspiration and reference for all of us. This looks like a very nice kit. What are those lovely little clamps with the soft pads you are using?

Share this post


Link to post
Share on other sites

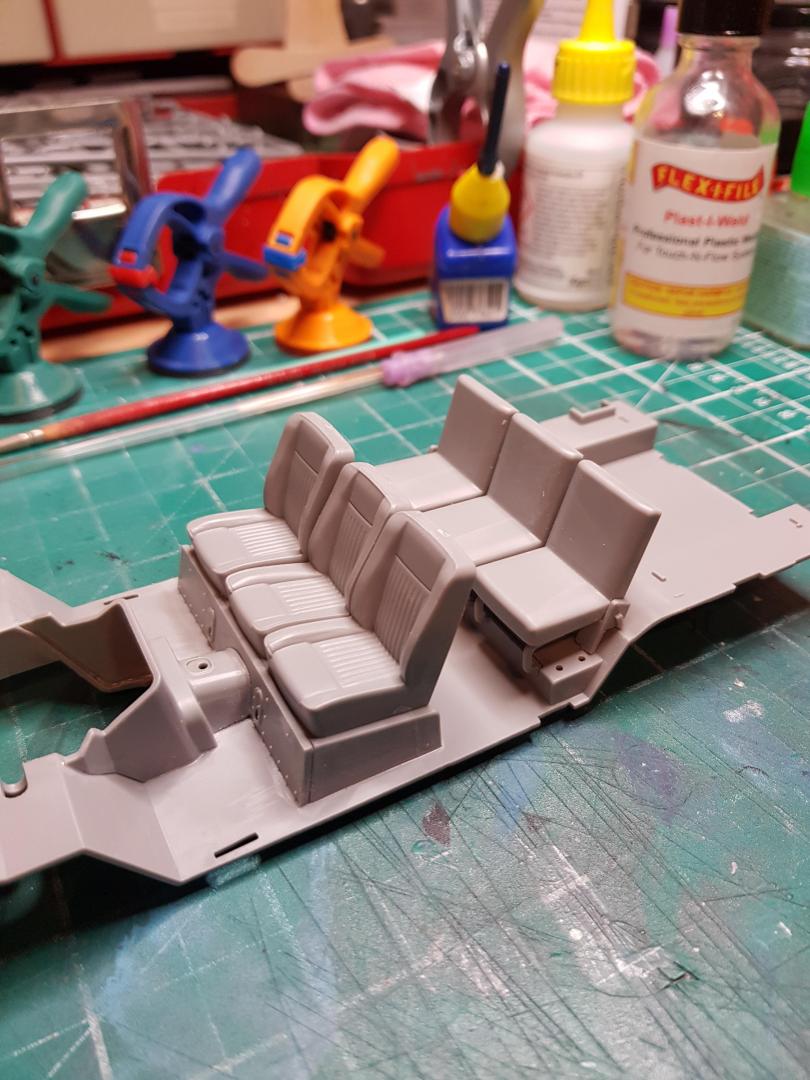

Seats dry fitted in place, an angina attack stopped play....

Hopefully I can get back to it tomorrow.


Share this post


Link to post
Share on other sites

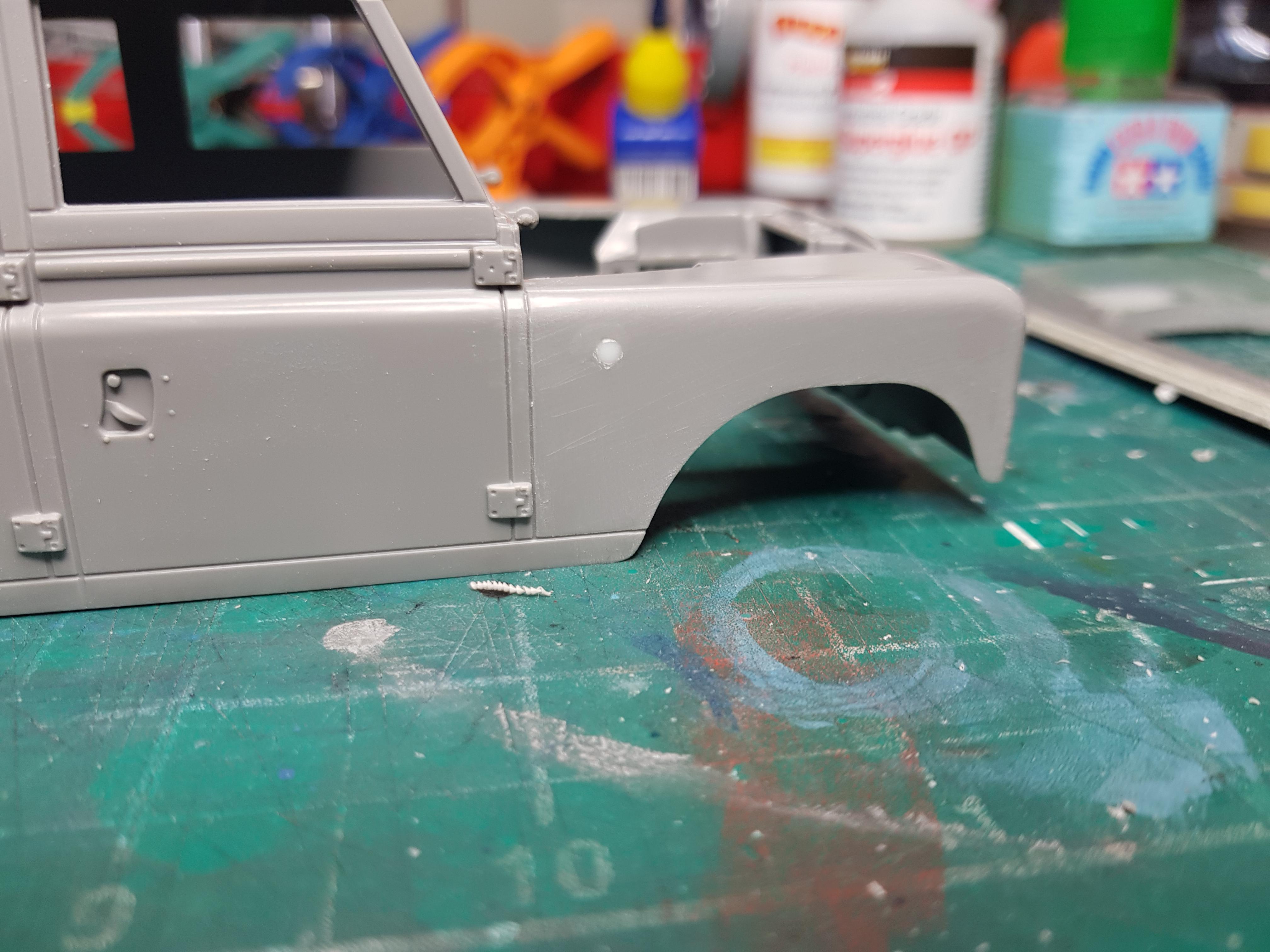

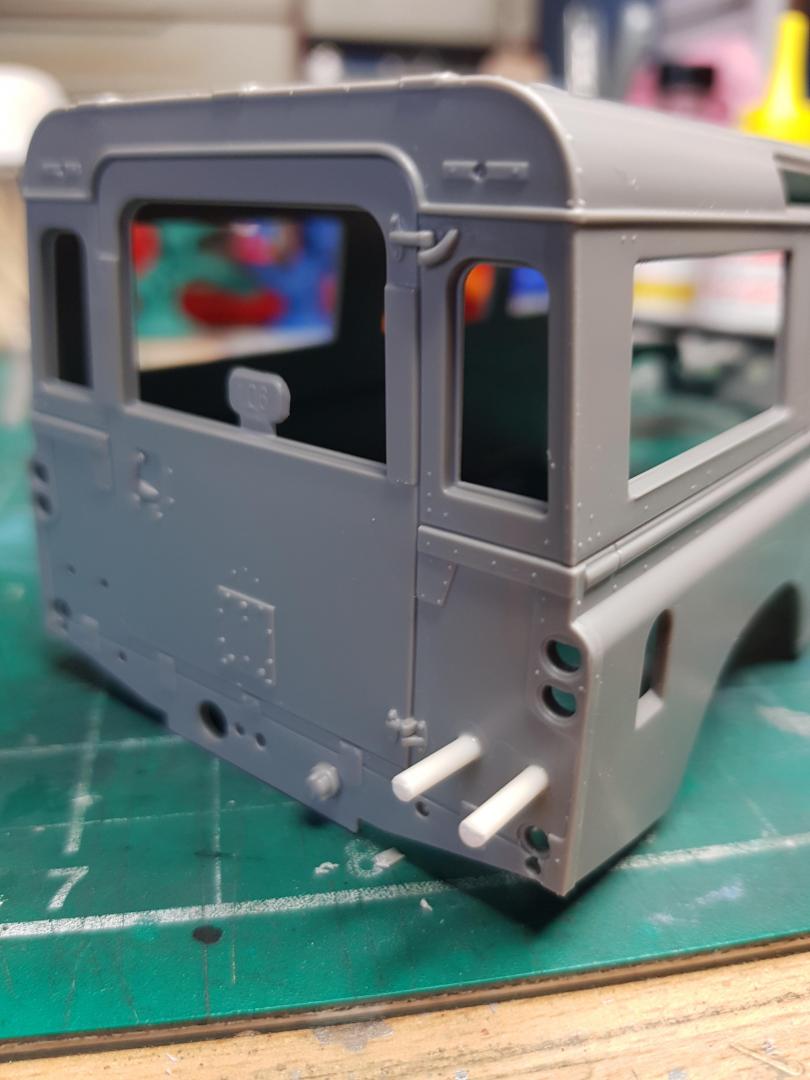

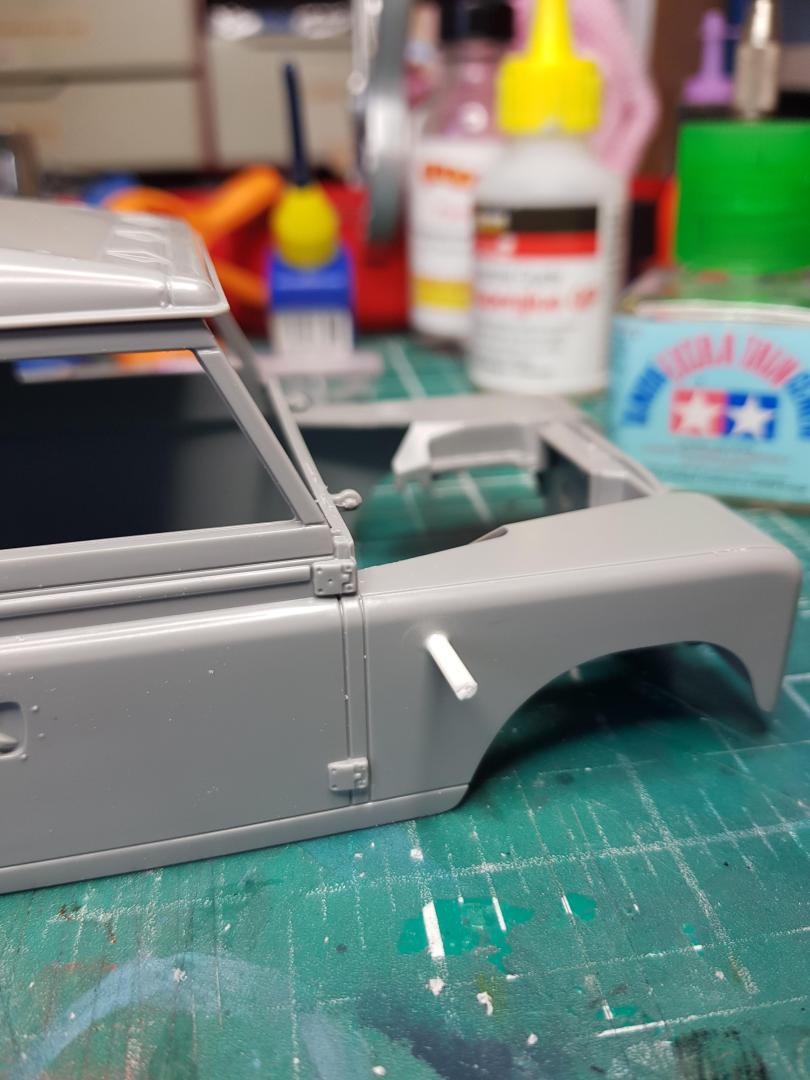

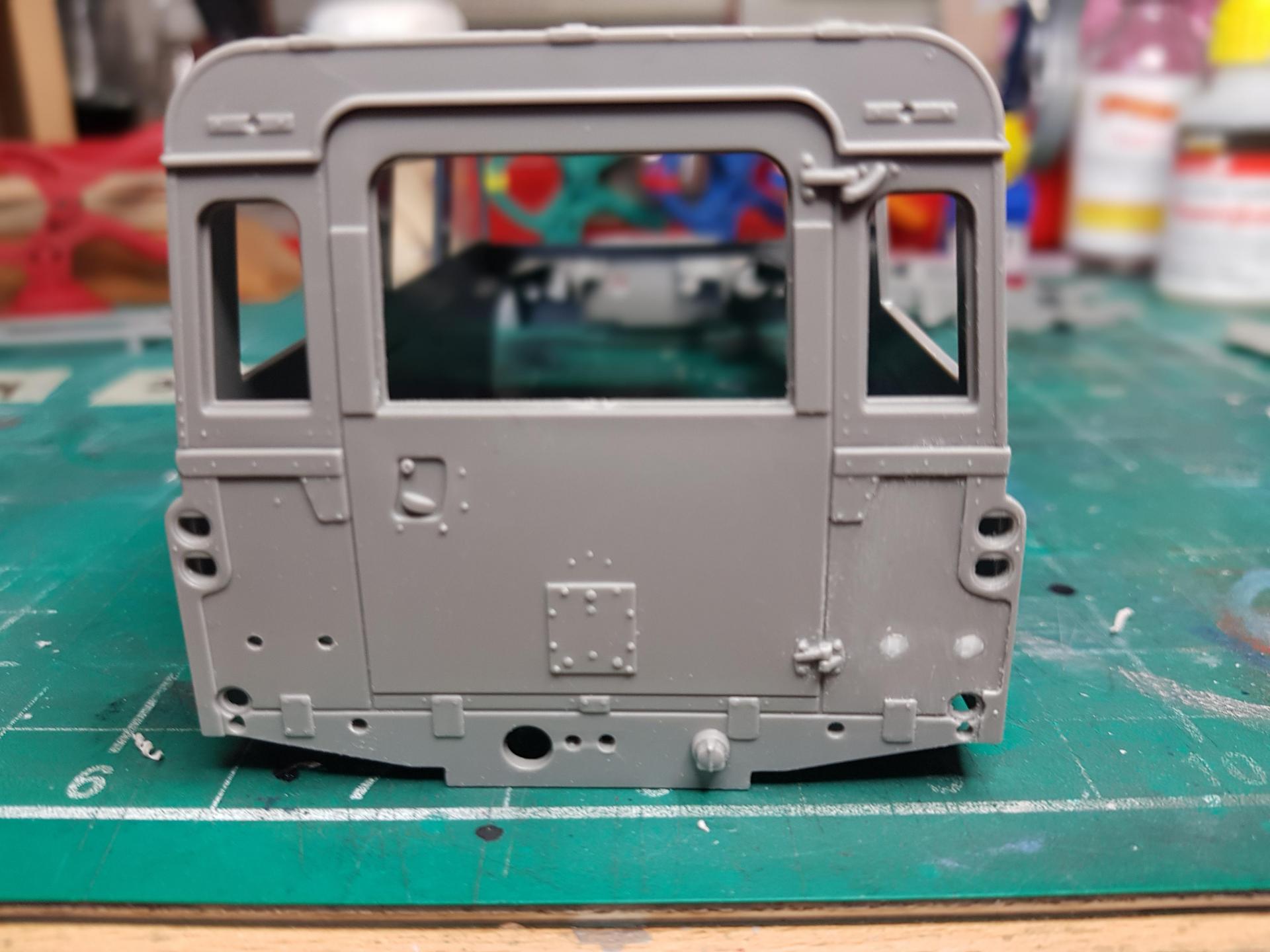

Why Revell decided to put these drill out marks on the outside of the body is beyond me, the easiest way to deal with them is to drill them out with a 2mm drill and insert some 2mm styrene rod, cut flush then sand smooth.





Share this post


Link to post
Share on other sites

I'm liking the looks of this Land Rover, Geoff!  I may have to get one to go with the Monogram version I built.  Maybe paint it the same colors, too.

Share this post


Link to post
Share on other sites
3 hours ago, mrmike said:

I'm liking the looks of this Land Rover, Geoff!  I may have to get one to go with the Monogram version I built.  Maybe paint it the same colors, too.

I'm hoping that the fact that you have to drill out so many holes in the floorpan for the rear seats that Revell have other versions in the planning, if the 109 kit sells well, hopefully Revell will se fit to release a 88" version.

Share this post


Link to post
Share on other sites
4 hours ago, GeeBee said:

I'm hoping that the fact that you have to drill out so many holes in the floorpan for the rear seats that Revell have other versions in the planning, if the 109 kit sells well, hopefully Revell will se fit to release a 88" version.

As I understand it, the classic English 109 has longitudinal benches in the back, and the one piece round cornered rear windows, so that it reached 12-seater capacity and therefore qualified as a commercial minibus for tax purposes... The jump seats (were) are a European and US thing...

best,

M.



Share this post


Link to post
Share on other sites
27 minutes ago, Matt Bacon said:

As I understand it, the classic English 109 has longitudinal benches in the back, and the one piece round cornered rear windows, so that it reached 12-seater capacity and therefore qualified as a commercial minibus for tax purposes... The jump seats (were) are a European and US thing...

best,

M.



You're correct in saying the 12 seater was tax except (New Car Tax) as it was classed as a bus, but you could buy a10 seat station wagon in the U.K., Those had the four jump seats in the back.





Share this post


Link to post
Share on other sites

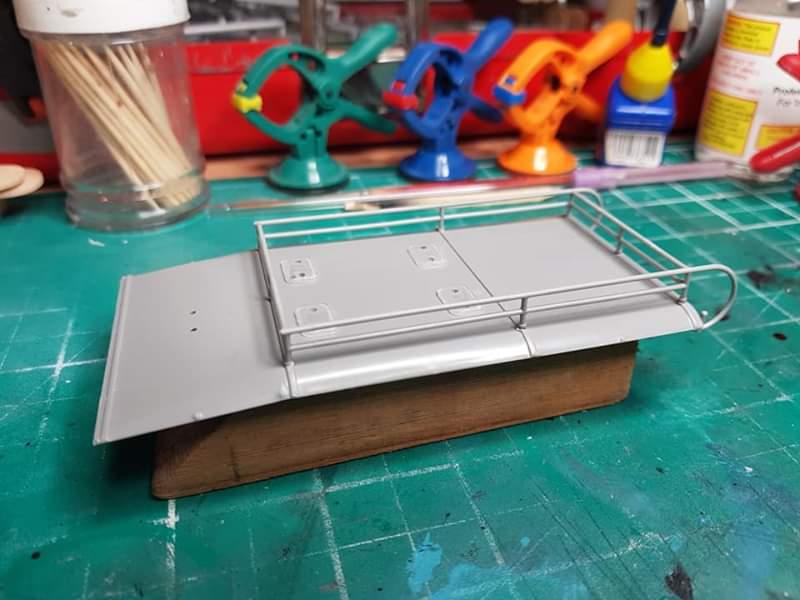

No time to spend time in the hobby room today, I did manage to get in there later this evening as soon as things had quieted down, used the safari roof panel to use so the roof rack could be fixed together, as soon as the joints are strong it can be removed from the roof panel and painted.








Share this post


Link to post
Share on other sites

I’m really enjoying seeing this come together. A buddy of mine had a shorter wheelbase version one of these that he drove around the Upper West Side of Manhattan for his business...he let me drive it once and it was FUN!  Agricultural - VERY heavy steering, but great fun!

Share this post


Link to post
Share on other sites

Decided to close the hobby room for Christmas, mainly because I needed time with friends and family and also had some last minute photography work to get sorted, managed to get a load of parts prepared and ready for primer.




Share this post


Link to post
Share on other sites

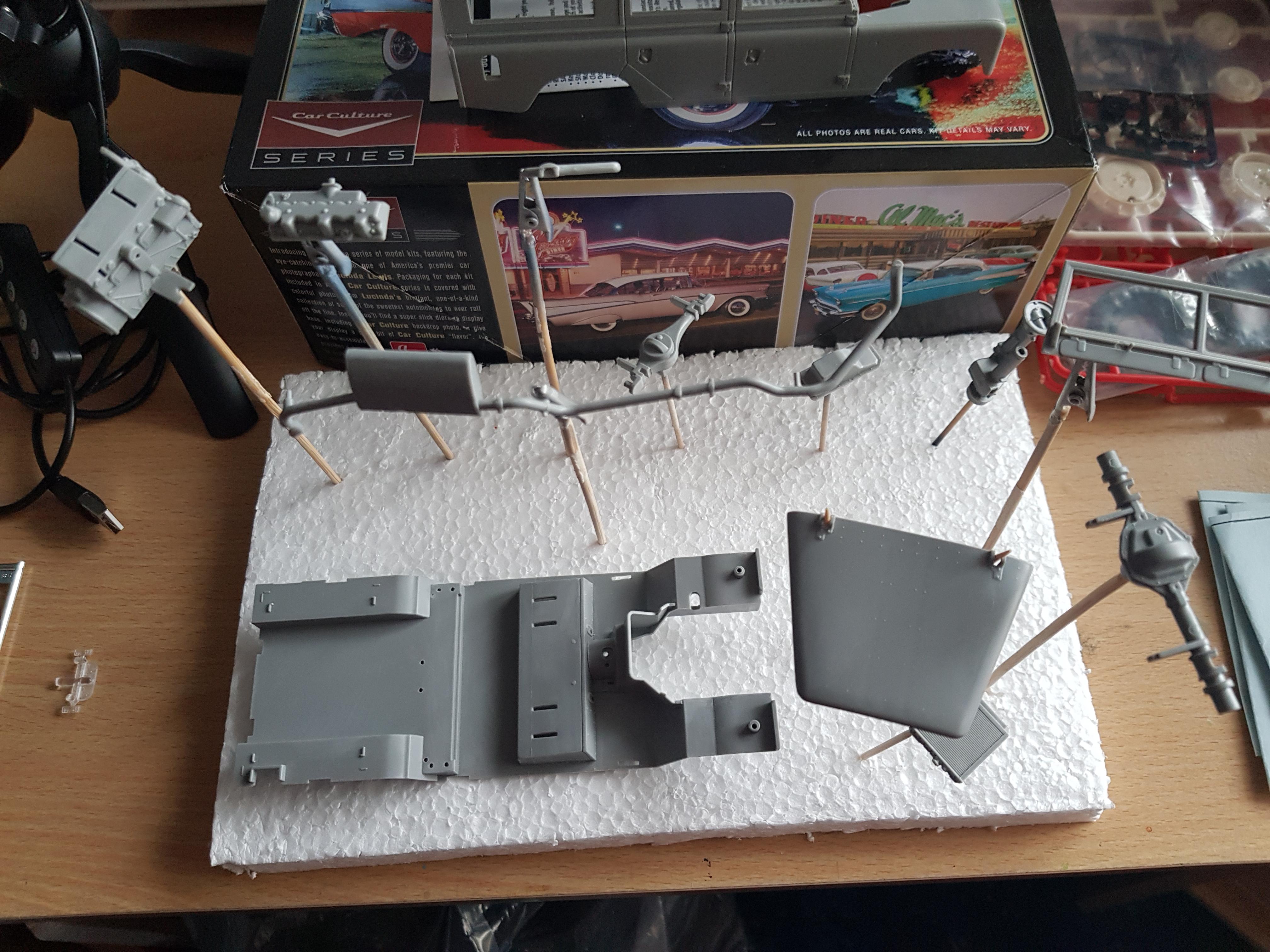

Finally got all the parts prepared and ready for primer




Share this post


Link to post
Share on other sites
9 hours ago, Roadrunnertwice said:

Nice work on this kit. It whets my appetite to get one of m own!

It's a good kit, the instructions can be a little confusing with all the LHD and RHD diagrams, some parts need to be chucked in the bin, they supply two transmission tunnels, one's useless, Land Rover never made a LHD tunnel, there's two sets of seats, standard an deluxe, it's a shame they didn't include a deluxe bonnet though, drilling marks in the body for LHD or RHD options need sorting, why they put them on the outside of the body I'll never know, but it's the only Land Rover kit out there, and once built it really does look the part, when i build one for myself I'll be doing a few things differently,but this one has to built pretty much OOB.

Edited by GeeBee

Share this post


Link to post
Share on other sites

Watching your build Jeff!  I recently acquired the Series III LWB and it is a massive kit at 184 pieces!  I had to compare the body of the Monogram Land Rover Series III with the LWB since I thought the LWB was narrower and it is not.  Can't wait to get started on it!

Share this post


Link to post
