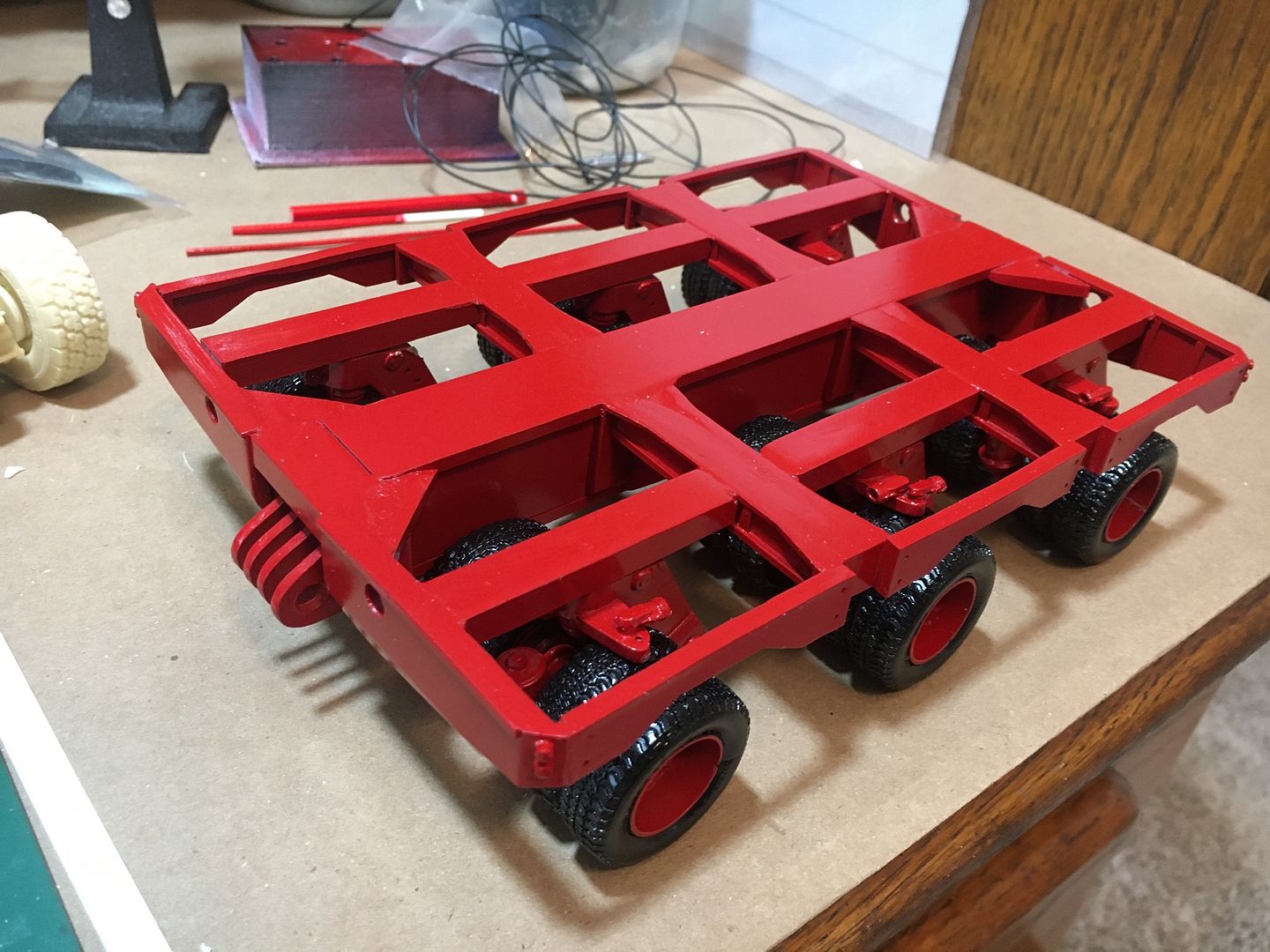

Tom this project is going to use up the entire length of road way that I have where the lowboy is. Here’s transporter #1 with black wheels.
8307E1F8_F57E_4F35_9F70_FB859313F063.jpe

Share this post


Link to post
Share on other sites
On 6/20/2020 at 6:10 PM, tbill said:

Looking good! Kiss that shelf space goodbye, lol, us truck builders kill display space at an alarming rate, haha.



So true!!!  Great looking build. Can’t wait to see more.

Share this post


Link to post
Share on other sites

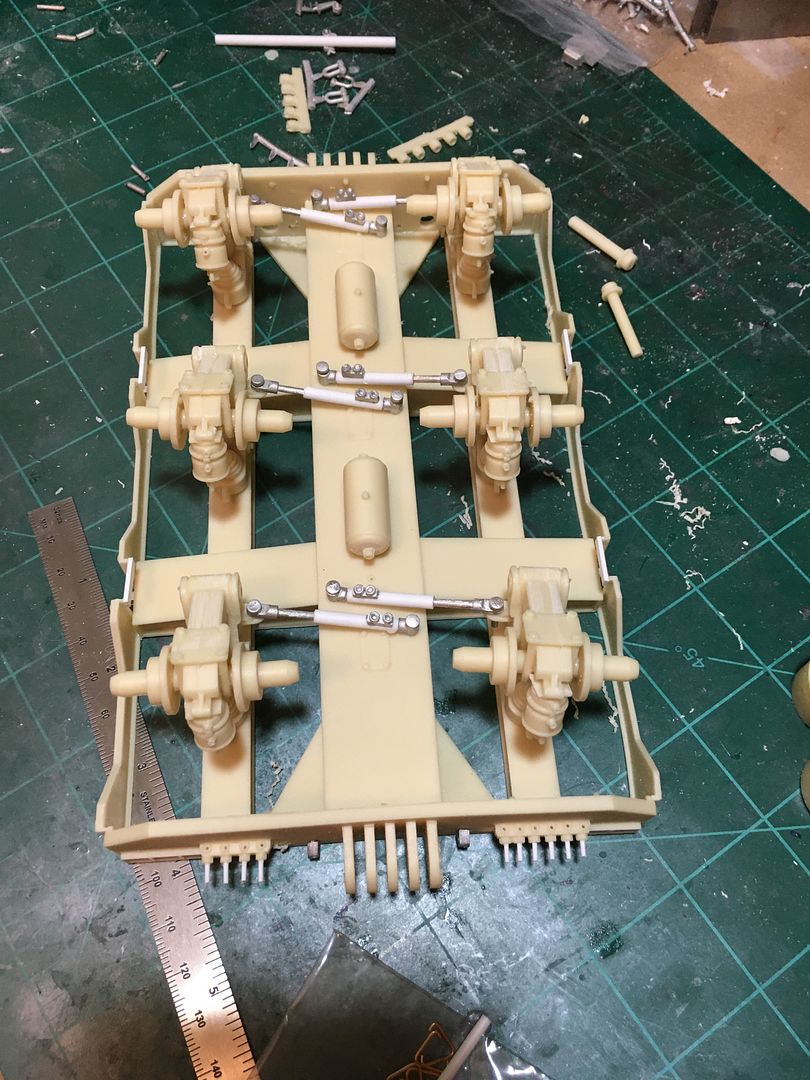

Thanks Brian. Worked on building the steering hydraulics for all 6 wheel assemblies. I’m getting close to being ready to paint this one but I’m probably going to have to wait on the weather to clear up.
7252ACD8_888B_4C1B_B3B9_20C120D134F5.jpe

Share this post


Link to post
Share on other sites
On 6/23/2020 at 3:08 PM, Mopar - D said:

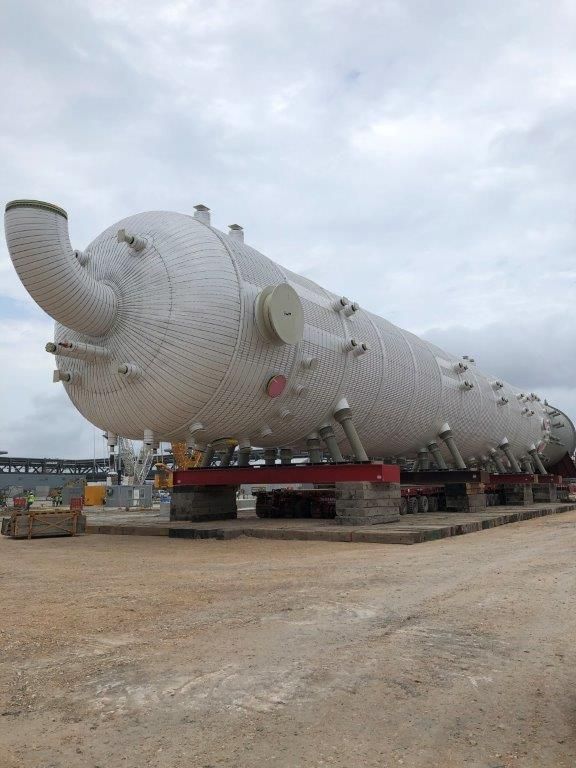

Here’s a sample of what I’m working towards.




Which end of the house are you going to built the addition to?

Share this post


Link to post
Share on other sites

Wow that's a seriously cool build

We dont have anything like that in the Northeast, what's it used for

Share this post


Link to post
Share on other sites

Jeff it’s a C2 splitter for a Oilfin Recovery unit. It’s a chemical plant that makes plastic.

Share this post


Link to post
Share on other sites

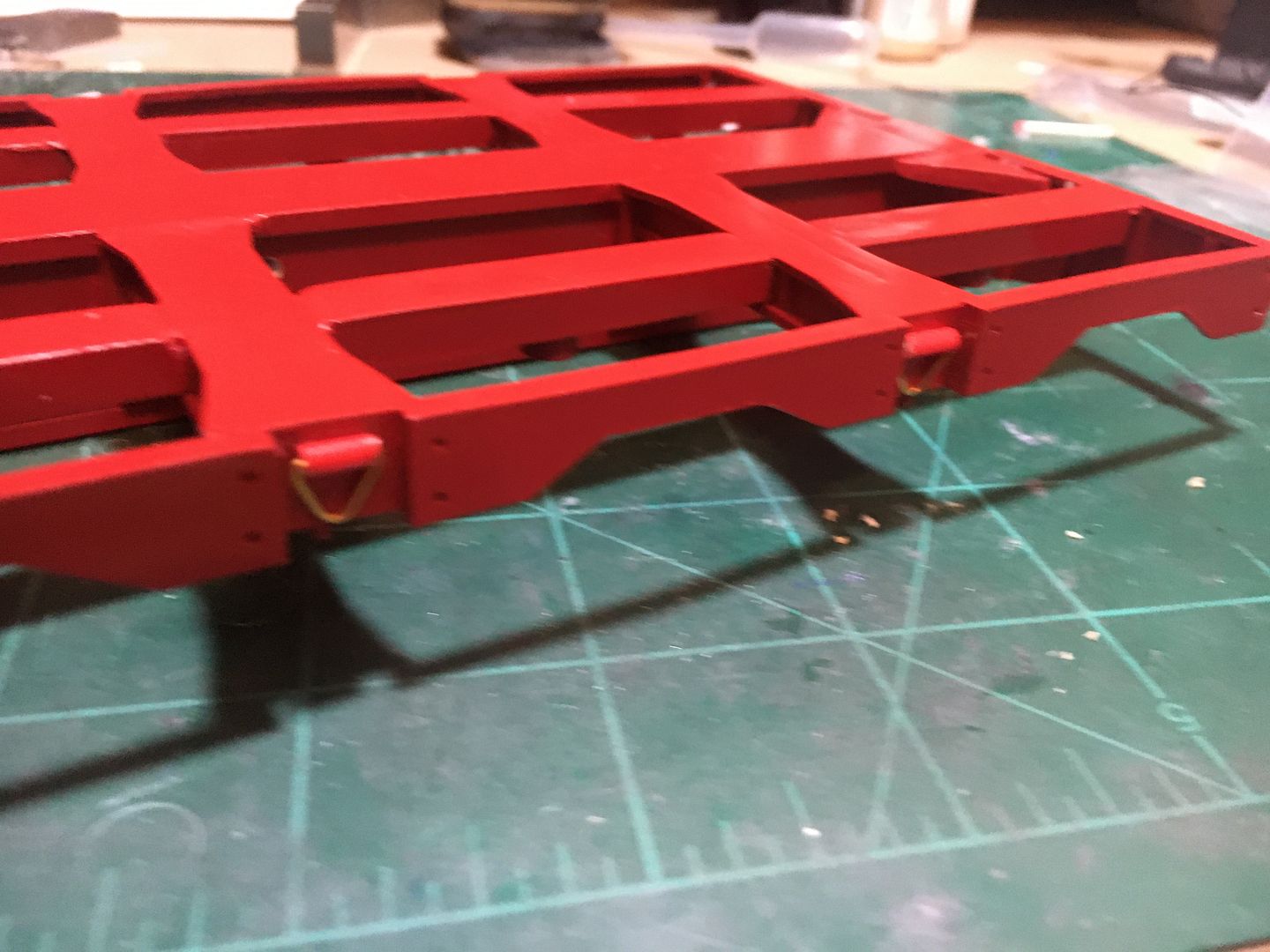

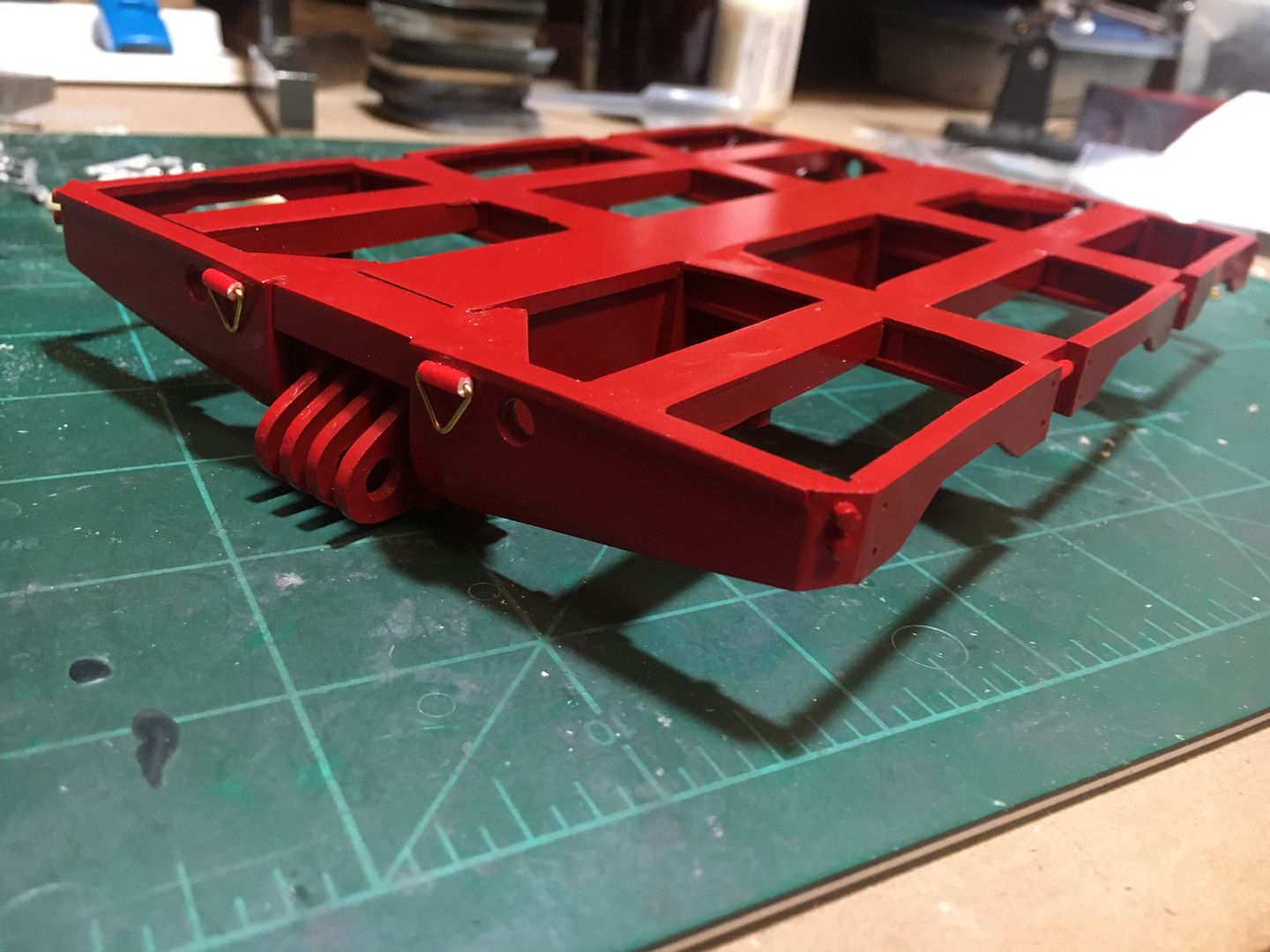

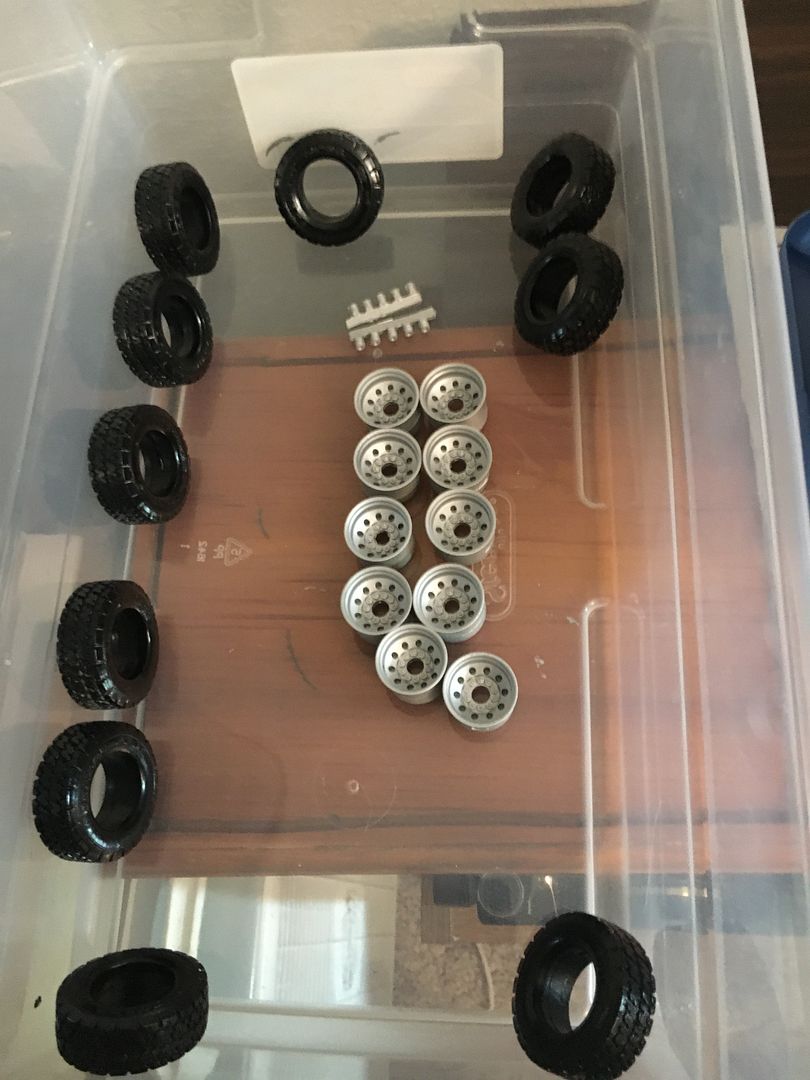

Small update for today added the hold down brackets on all sides. More to come I’ve got transporter #3 ready for paint just waiting on the weather to clear up.
7010ED29_8371_4AB3_B43E_A6221631386D.jpe
DAAACB90_57CB_4B86_A4C8_2C809AB7292D.jpe

Share this post


Link to post
Share on other sites

Dan thanks  ! I rode thru an oil refinery once picking up hot oil for asphalt w step dad,  equipment is mind boggling

Share this post


Link to post
Share on other sites

Dan,

     I like what you are doing here. If I read your post correctly. You are using some of the old KFS low loader stuff along with the newer version  . Am I correct on that ?

I have two complete sets of the original low loader . Those modules require a bit of work to clean up and fit properly. But worth the effort.

 Yours are looking good !



Be Well

  Gator

Share this post


Link to post
Share on other sites

Gator yes you’re correct I’ve got 2 sets (Old & new) of each that I’m going to use.


Thanks for all the comments I’m starting on the vessel while I’m getting the 2nd transporter ready for paint.

Share this post


Link to post
Share on other sites

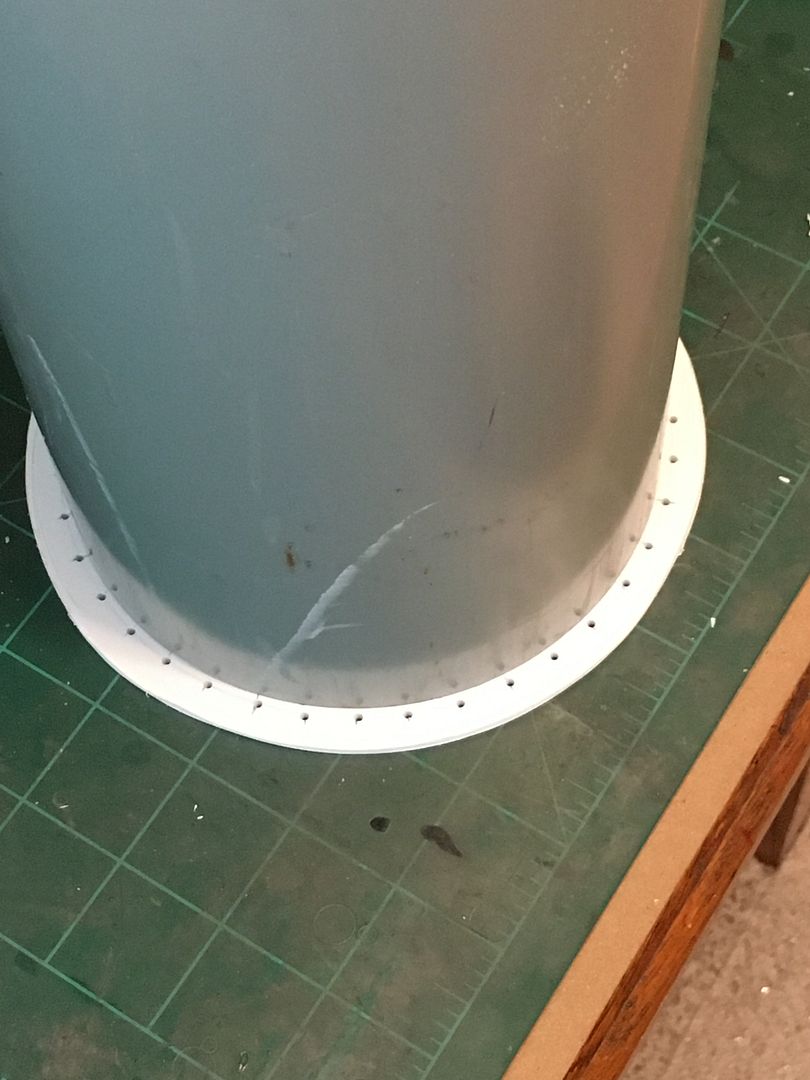

Here’s the start of building my vessel with the first of 2 anchor bolt rings that will be spaced 12” apart at the bottom of the vessel. 40 anchor bolts to hold it down on the foundation.


47C0D549_9A0A_49AA_B01A_210289FA8A24.jpe

Share this post


Link to post
Share on other sites

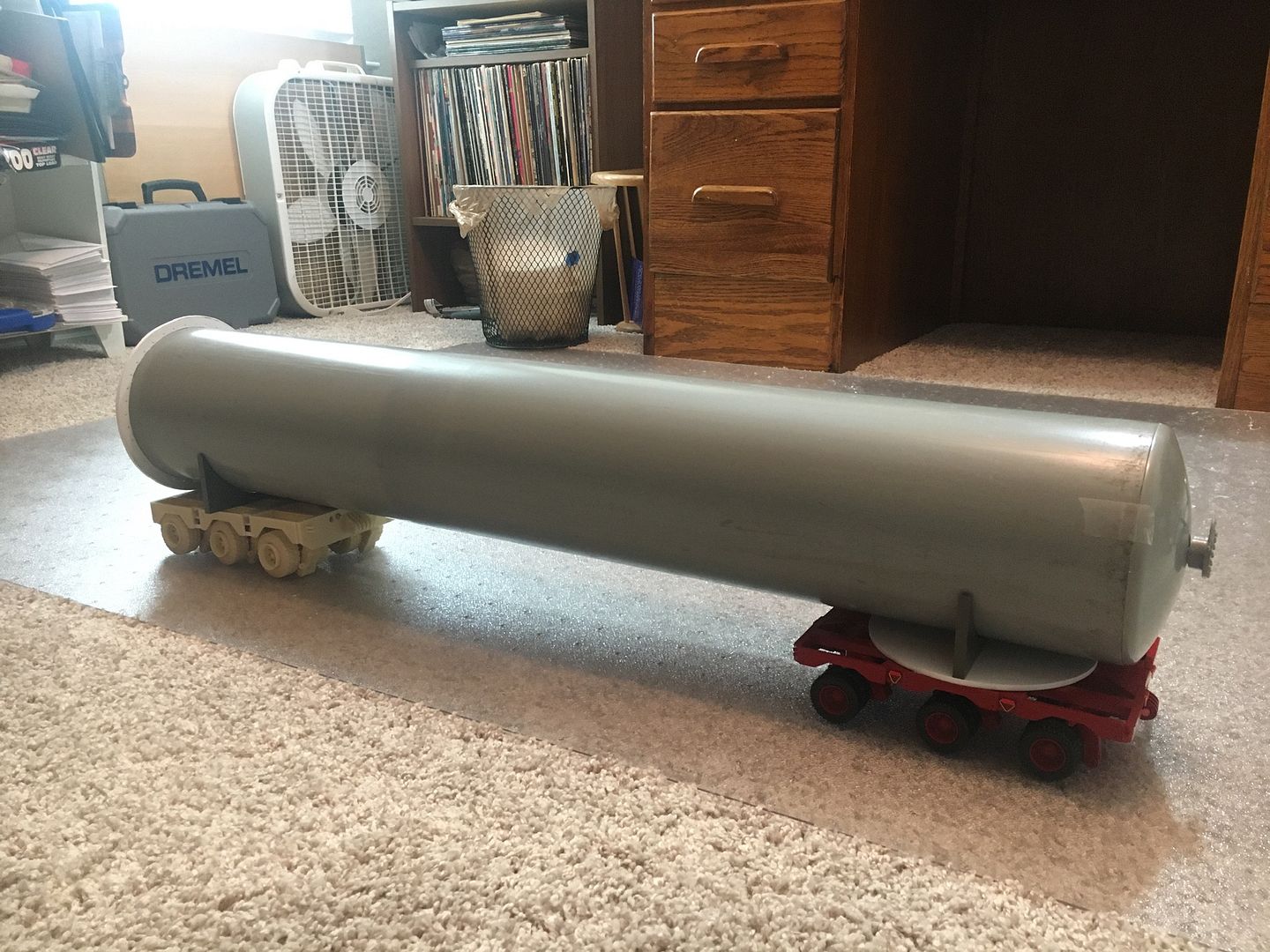

Here’s a little mock up of the vessel on the transporters. I’ve still have to built 2 more transporters to build and the Mack to tow it.
3E40F979_FD80_491D_9391_765672587A48.jpe

Share this post


Link to post
Share on other sites

That's HUUUUUUUGE!!!  It's certainly not a cheap project but surely interesting and out of the ordinary!  You still have a lot of fun in front of you but everything looks very well done so far sir!

Share this post


Link to post
Share on other sites



 How long is that vessel ? Going to make a great looking load !



Be Well

   Gator

Share this post


Link to post
Share on other sites

Thanks Francis, the cost impact has not been to bad seeing I’ve been picking up all the parts over the last 5 years a little here and a little there.


Gator the length of the vessel is 32” long or in 1/25 scale its 66.6’ long and a 10.5’ diameter.  As far as vessels go this is a short one but with a 3” heavy wall thickness making it a high pressure type vessel.

Share this post


Link to post
Share on other sites
On 6/15/2020 at 9:35 AM, Mopar - D said:

Thanks for your comments Jeff. I’ve got the shelf space covered with my new model room wall of shelf’s.


9FF23323_BF42_4F33_AA7F_7B65C8D64639.jpe

This is really quite the project Dan. Really good to see you back here again! Say.....I remember helping you put the windshield back into that red rollback wrecker a few years back in Houston. lol

Share this post


Link to post
Share on other sites

Thanks Joe and yes you did help me with the windshield on the roll back.

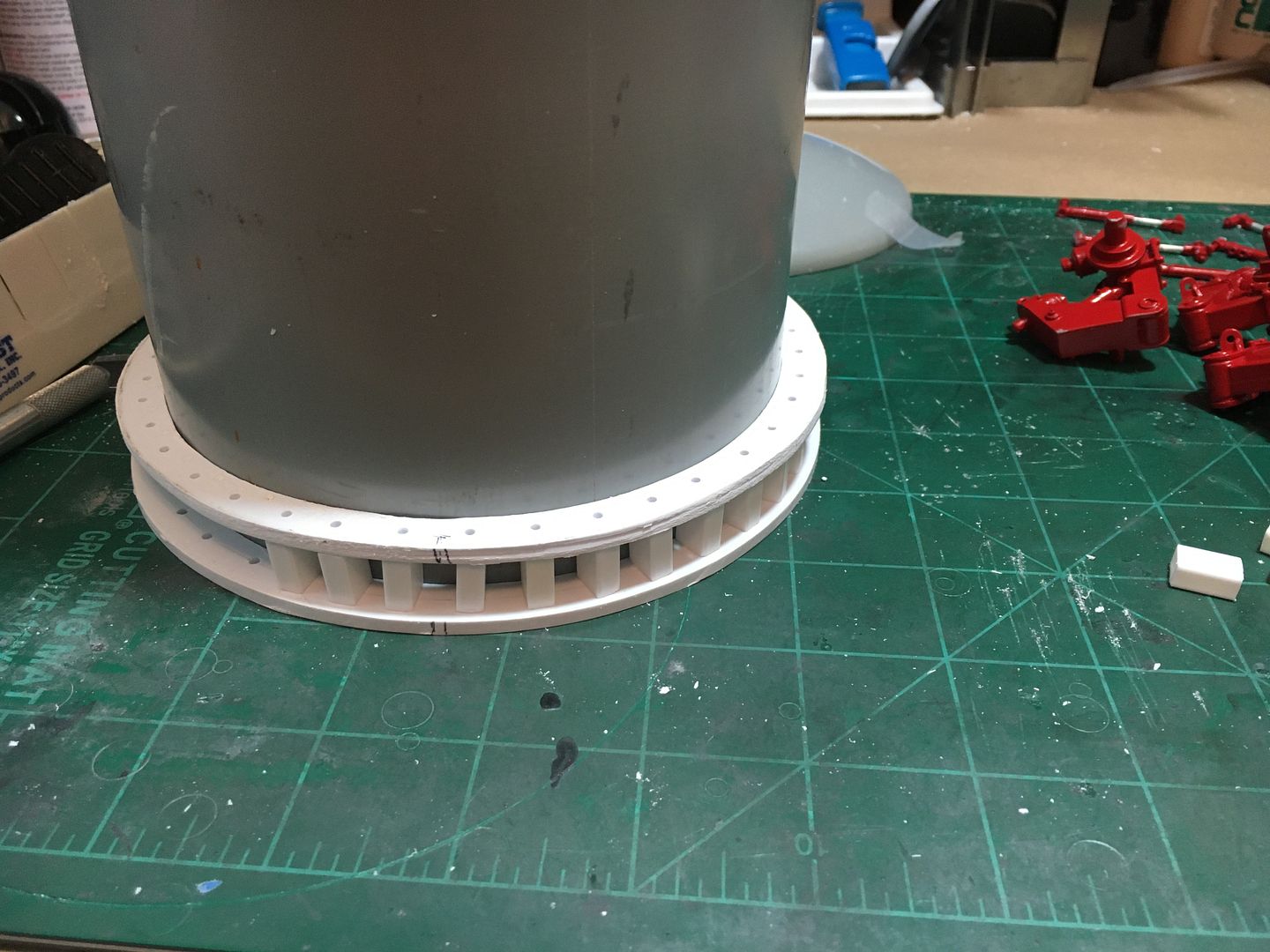

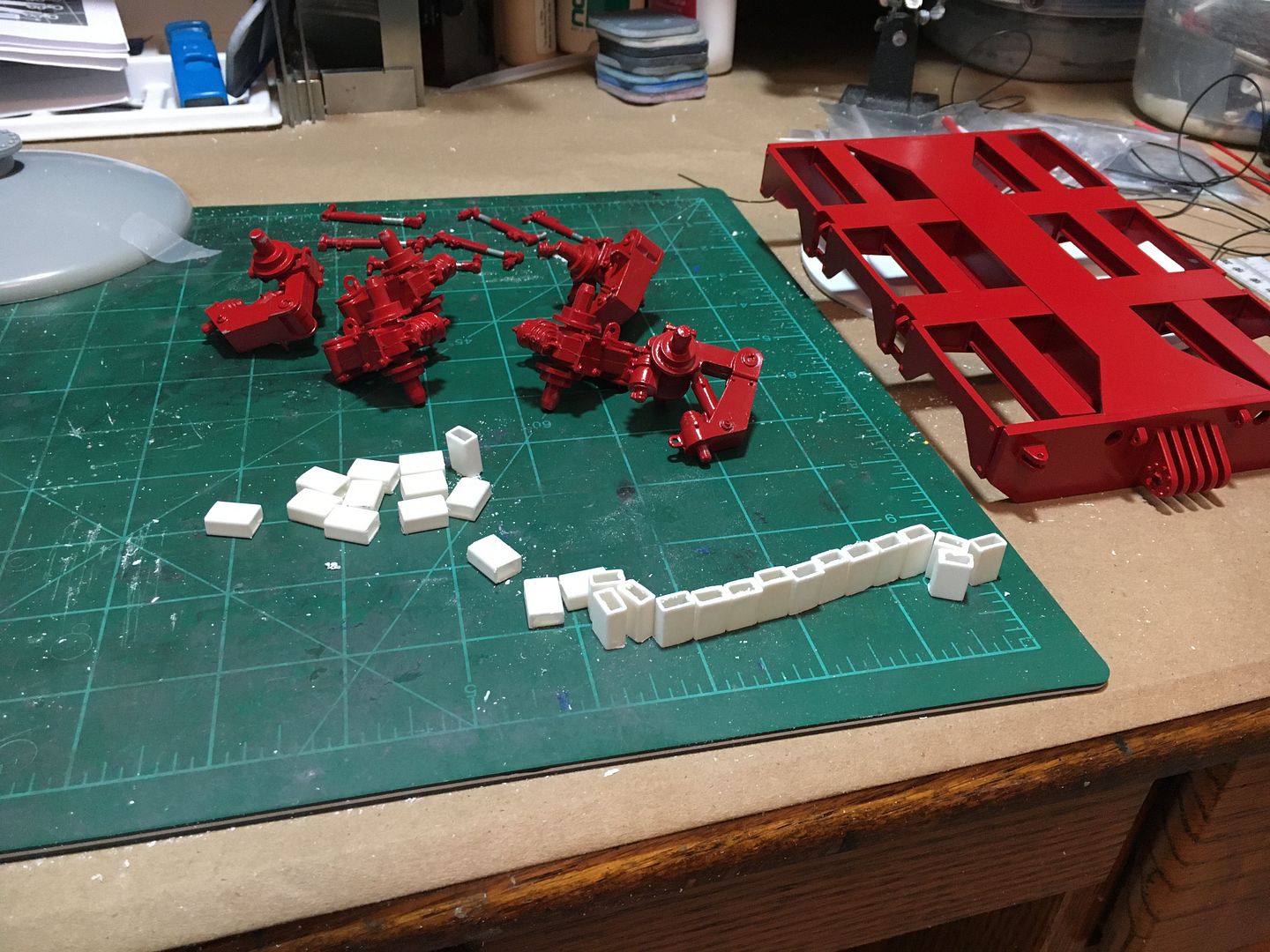

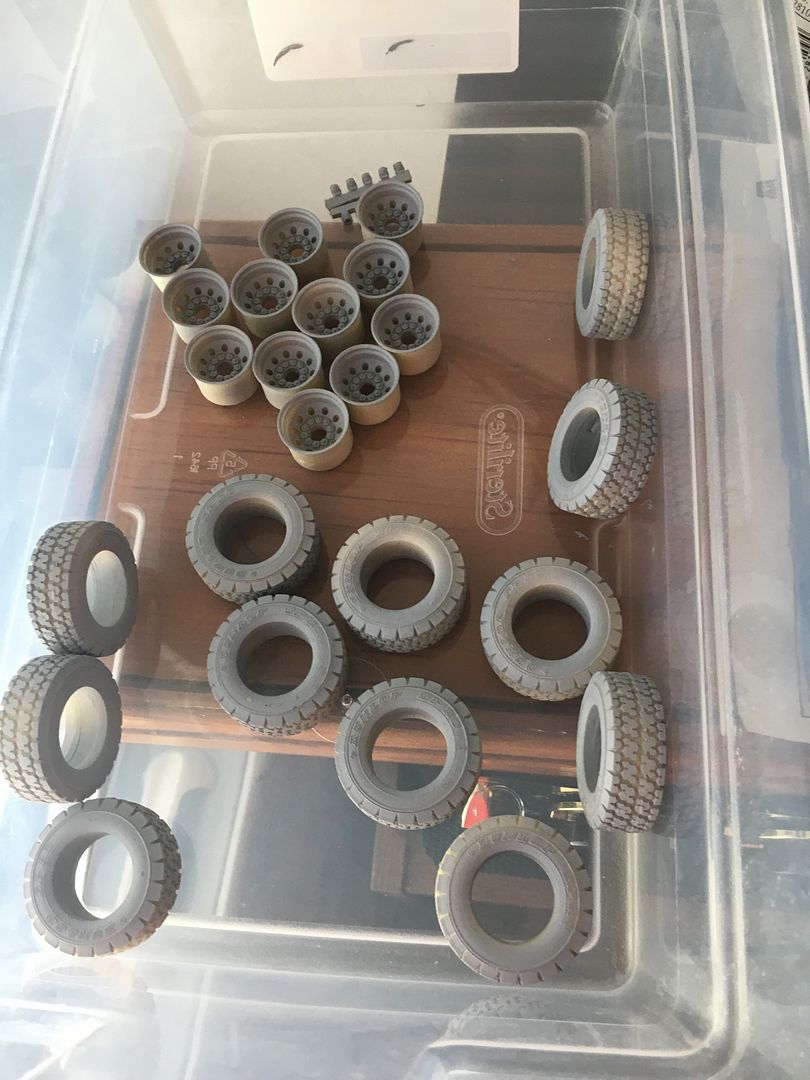

Been working on the vessel anchor bolt rings with 40 anchor bolts that holds it on the foundation. Also working on the shoulders in between the rings. Plus some primer and red on transporter #3.
6725ACA0_DF67_46DA_B126_9A3F376AF6D4.jpe
08827EE1_2D7B_4F04_8FE0_0EDCB9033523.jpe
8FF1905D_EAAD_4EA2_A224_D337658E6153.jpe

Share this post


Link to post
Share on other sites

Wow, that's a serious payload!

It look like a simple tube, but it takes a lot of time to make all these details.



Hermann.

Share this post


Link to post
Share on other sites

Niiiice! Dan, how did you get the spacing of the bolt holeson the rings? I have to learn how to do that as I also have a tubular project with flanges on the back burner.

Share this post


Link to post
Share on other sites
Posted (edited)

Thanks Herman,

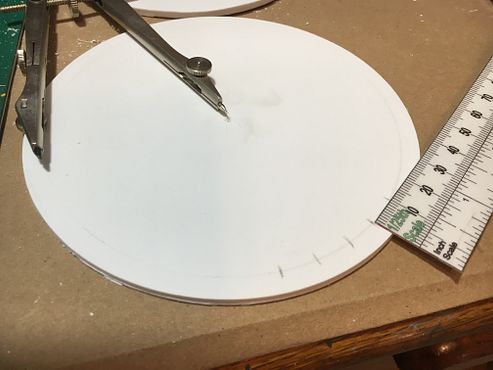

Pat, this is how I laid out the bolt template first I used the compass to setup the diameter and then divided length of the diameter for the spacing. As you can see I marked to bolt holes before cutting the center part out
B1CC685F_FA9F_4247_9F89_9E77A3B4C0E1.jpe

Edited by Mopar - D

Share this post


Link to post
Share on other sites

Noise....!! , How many prime movers are you putting on this one..??





Cheers From Down Under.. Paul.

Share this post


Link to post
Share on other sites

Paul, there’s going to be 4 transporters

thanks Jeff

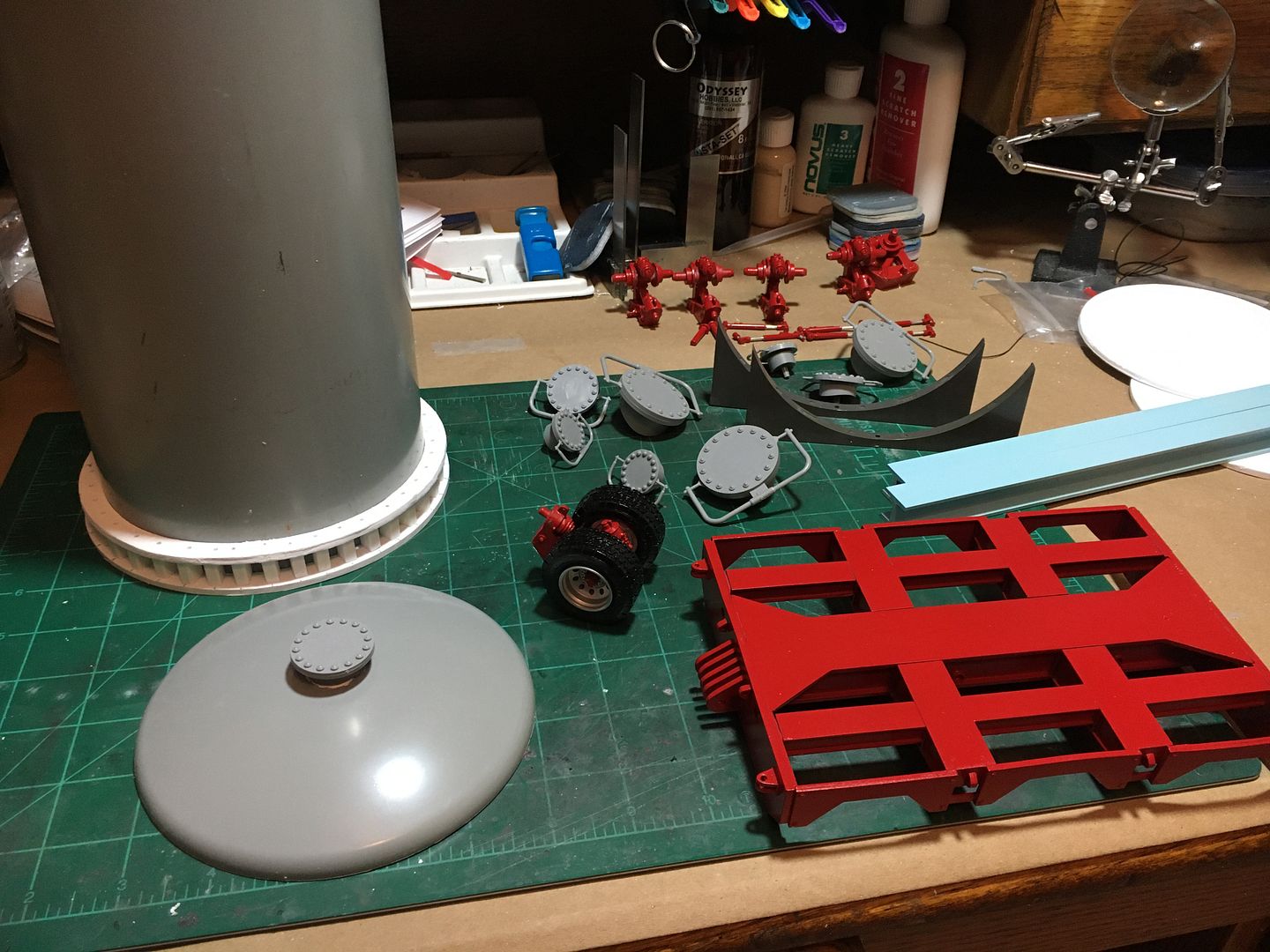

I was able to get some more painting done and finished the anchor bolt rings. I also added the top nozzle with a blind flange. Next will be to install the remaining nozzles and man ways. Then I will put the insulation on it.
