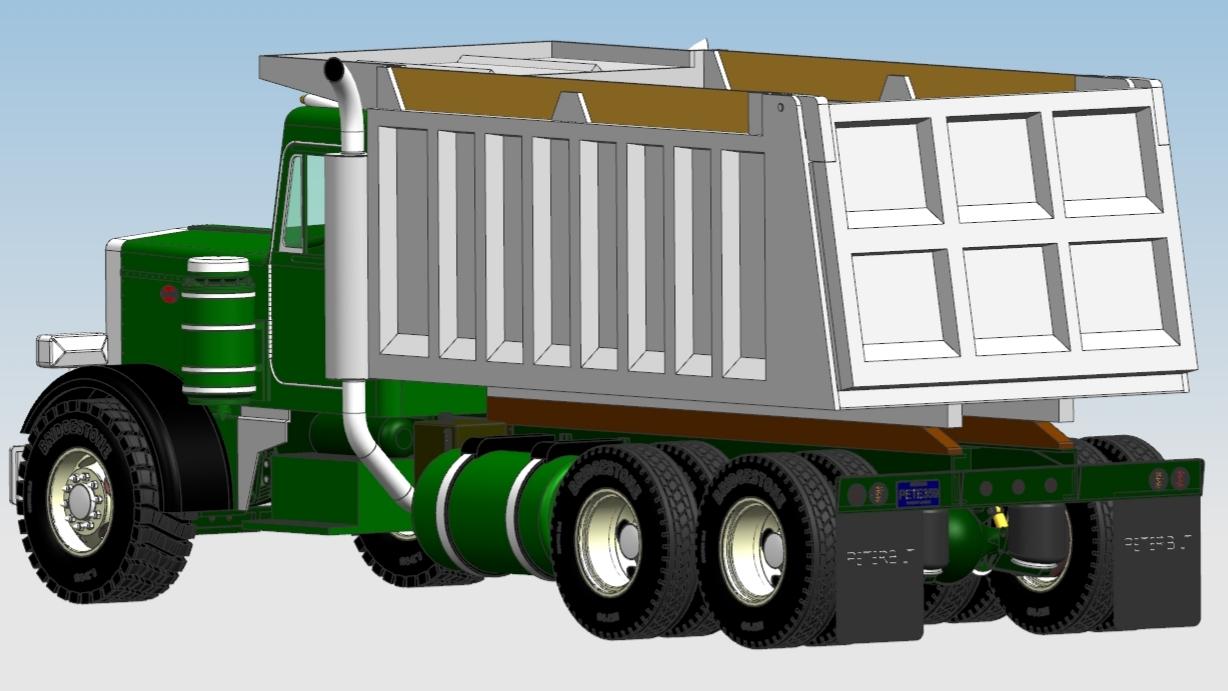

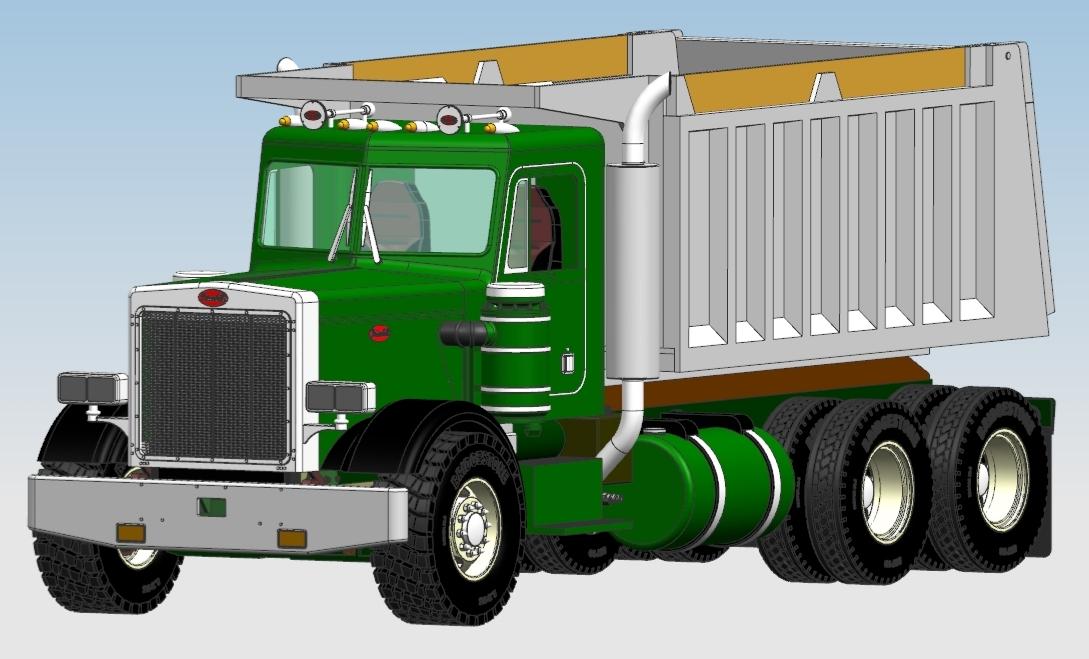

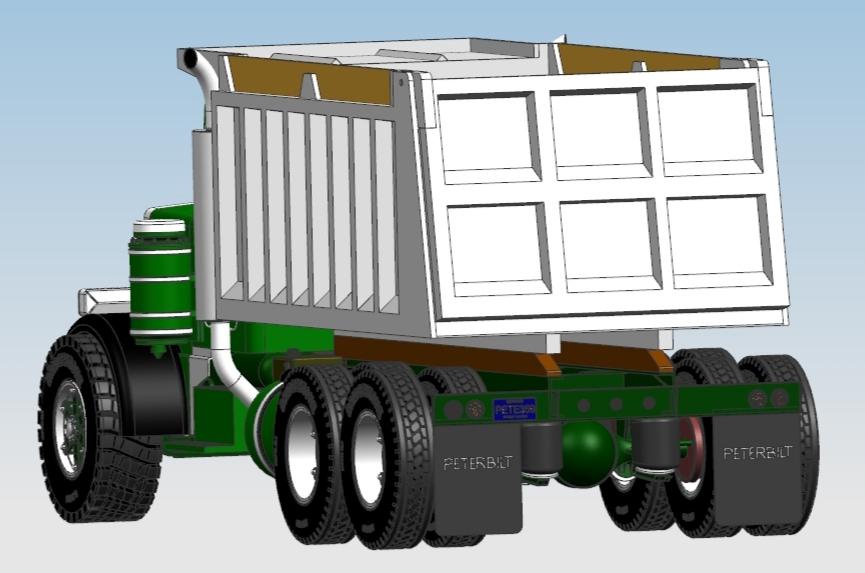

ShakyCraftsman Posted October 21, 2020 Share Posted October 21, 2020 (edited) Hey all Here's a little something I've been working on in Unigraphics NX11. It is the AMT Peterbilt 359 day cab kit along with the dump box from the AMT Autocar dump truck. Here are some pictures for you to look at. Let me know what you think. front isometric view with five hole 22.5 Peterbilt wheels and tires. rear isometric view. side view with the 5 hole Peterbilt 22.5 wheels and tires. side view with 24.5 6 spoke (Mack style) wheels and tires. rear isometric view of the truck with the 24.5 wheels and tires. I know that Pete's never came with 6 spokes, but look cool.? Ron G Edited October 21, 2020 by ShakyCraftsman Quote Link to comment Share on other sites More sharing options...
Jim B Posted October 21, 2020 Share Posted October 21, 2020 Nice concepts. Putting the spokes on the rear gives it that East Coast look. Quote Link to comment Share on other sites More sharing options...
ShakyCraftsman Posted October 21, 2020 Author Share Posted October 21, 2020 32 minutes ago, Jim B said: Nice concepts. Putting the spokes on the rear gives it that East Coast look. Yeah, next up is to make some 5 spoke wheels. Ron G Quote Link to comment Share on other sites More sharing options...
DRIPTROIT 71 Posted October 22, 2020 Share Posted October 22, 2020 (edited) I like Peterbilts with spoke wheels myself. Looks like a great project! Edited October 22, 2020 by DRIPTROIT 71 Quote Link to comment Share on other sites More sharing options...
ReduitRetro Posted October 23, 2020 Share Posted October 23, 2020 Looks like its going to be a great project for sure, definitely a fan of the spoke wheel option on this build. I'll be following this one! Quote Link to comment Share on other sites More sharing options...
Chariots of Fire Posted October 25, 2020 Share Posted October 25, 2020 Pull the frame in just a little or you won't be able to dump the load without interference. Quote Link to comment Share on other sites More sharing options...
Force Posted October 25, 2020 Share Posted October 25, 2020 Yes, you need a bit more overhang of the dump body. Quote Link to comment Share on other sites More sharing options...
kilrathy10 Posted October 30, 2020 Share Posted October 30, 2020 I do like that program... Very nice renderings... Quote Link to comment Share on other sites More sharing options...
