Rough Terrain Freightliner


Recommended Posts

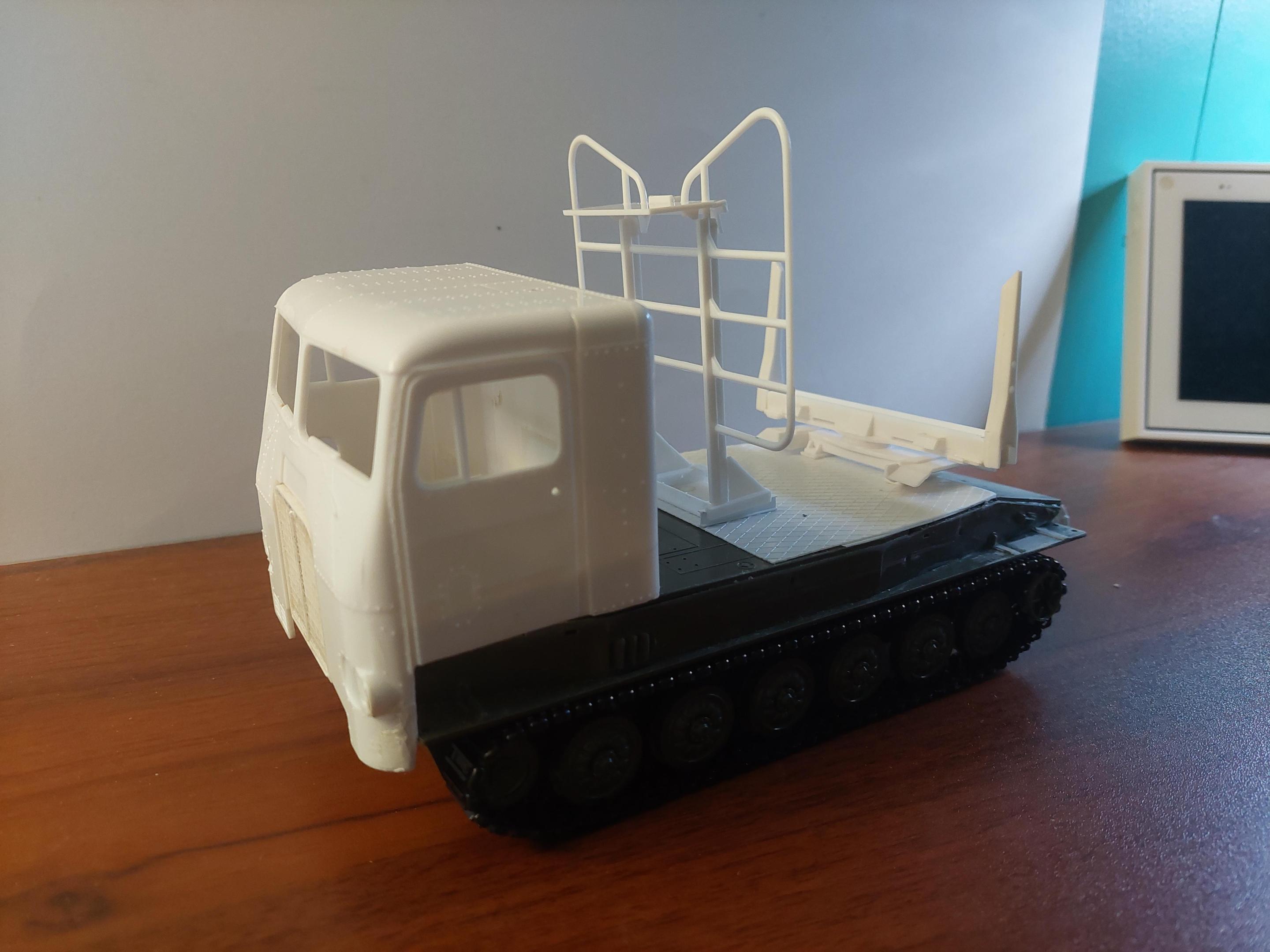

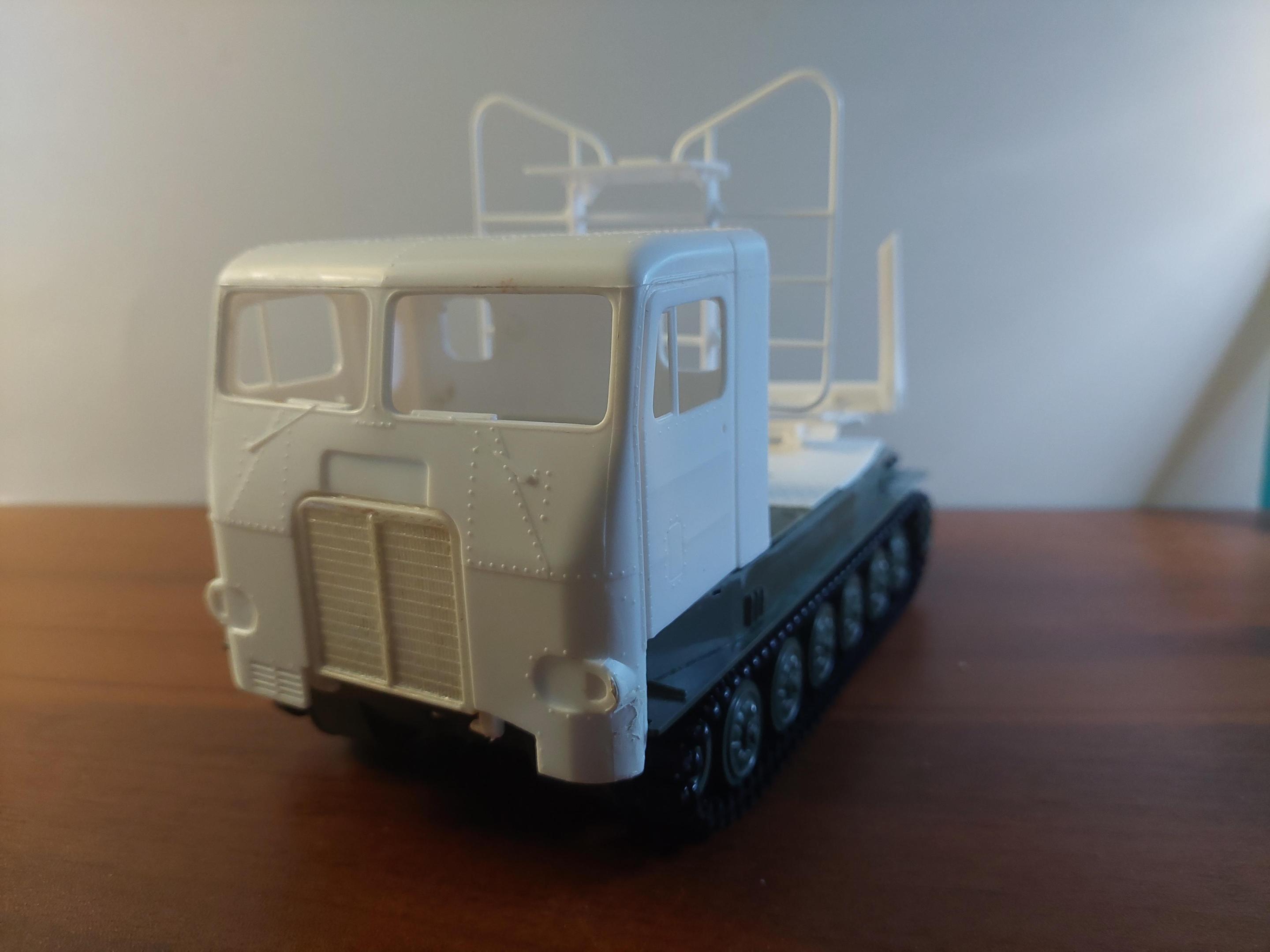

This idea uses 3 kits. The base is a 1:32 amphibious tank. The body needed to be spun so the taper is in the back along with the drive cogs. Then fill in the big void left over from the turret. Built a tail roller and added tread plate over the repair. I found the easiest part ( and it was all luck) when I cut the cab so it would mount up, it fit exactly like I needed it , interior and all associated parts too. Started mounting the Peerless logging equipment on board today, and so far no glitches.🤞😃20211005_181817.thumb.jpg.286ae22855400df7441fb3b5bae2baac.jpg20211005_150953.thumb.jpg.81cd2fe02188d0f1616fb59731981671.jpg20211005_150848.thumb.jpg.288f922efa588f3a0758cb1d392c4c01.jpg

Link to comment
Share on other sites

this is gonna a be a fun build ! cool idea using the tracks and cab together, it really fits well

Some utilities company is laying groundwork for upgrades nearby.There's similar tracked vehicles driving around the woods on wood platforms.

Link to comment
Share on other sites

Posted (edited)
19 hours ago, gotnitro? said:



Some utilities company is laying groundwork for upgrades nearby.There's similar tracked vehicles driving around the woods on wood platforms.

In the early 90's I worked as a driver for an electrical contractor for the power company, they had a few Husky 8's and some bigger tracked vehicles to bring in float flat beds on those wooden crane mats.

Edited by BIGTRUCK
  • Like 1
Link to comment
Share on other sites

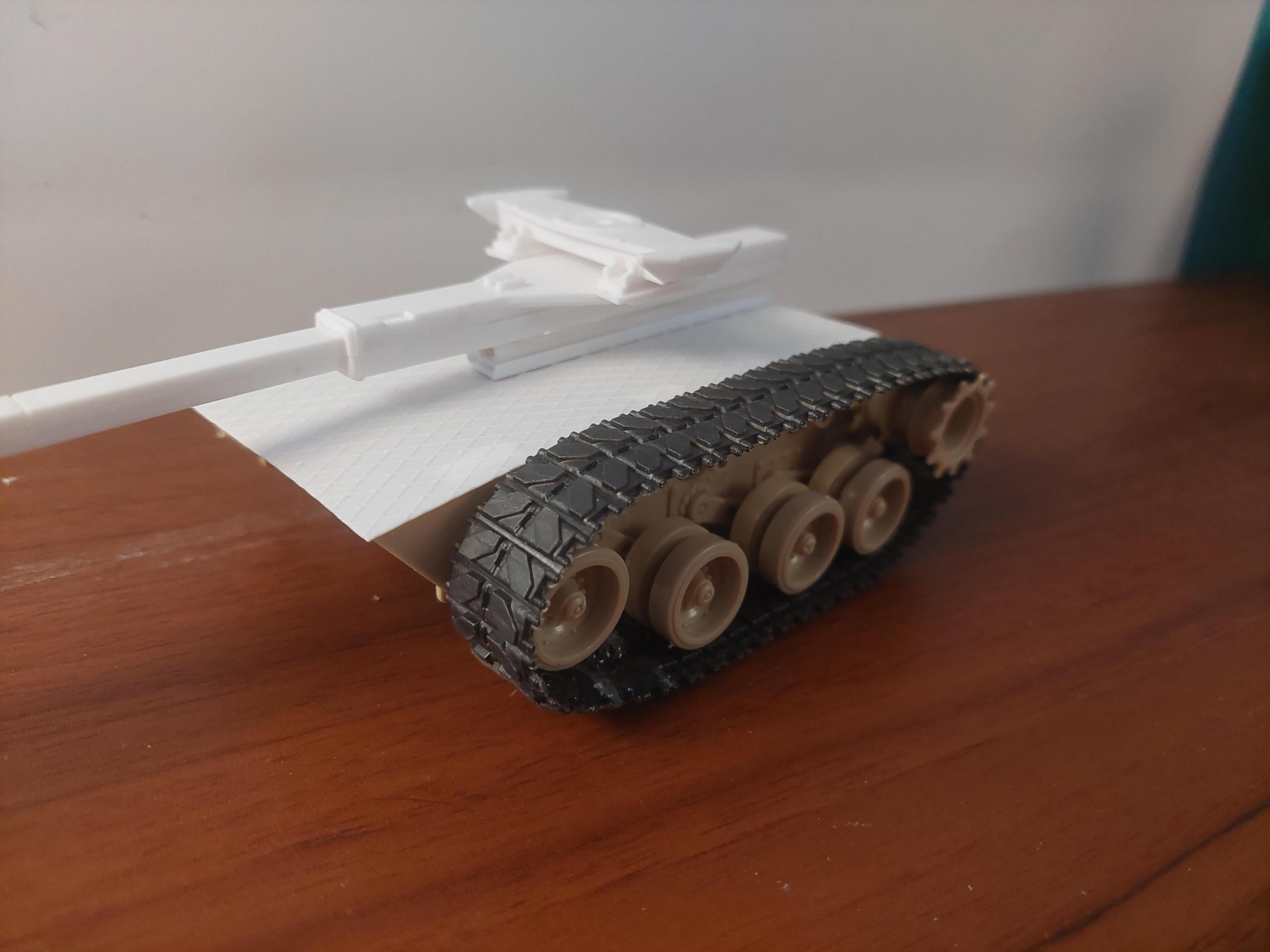

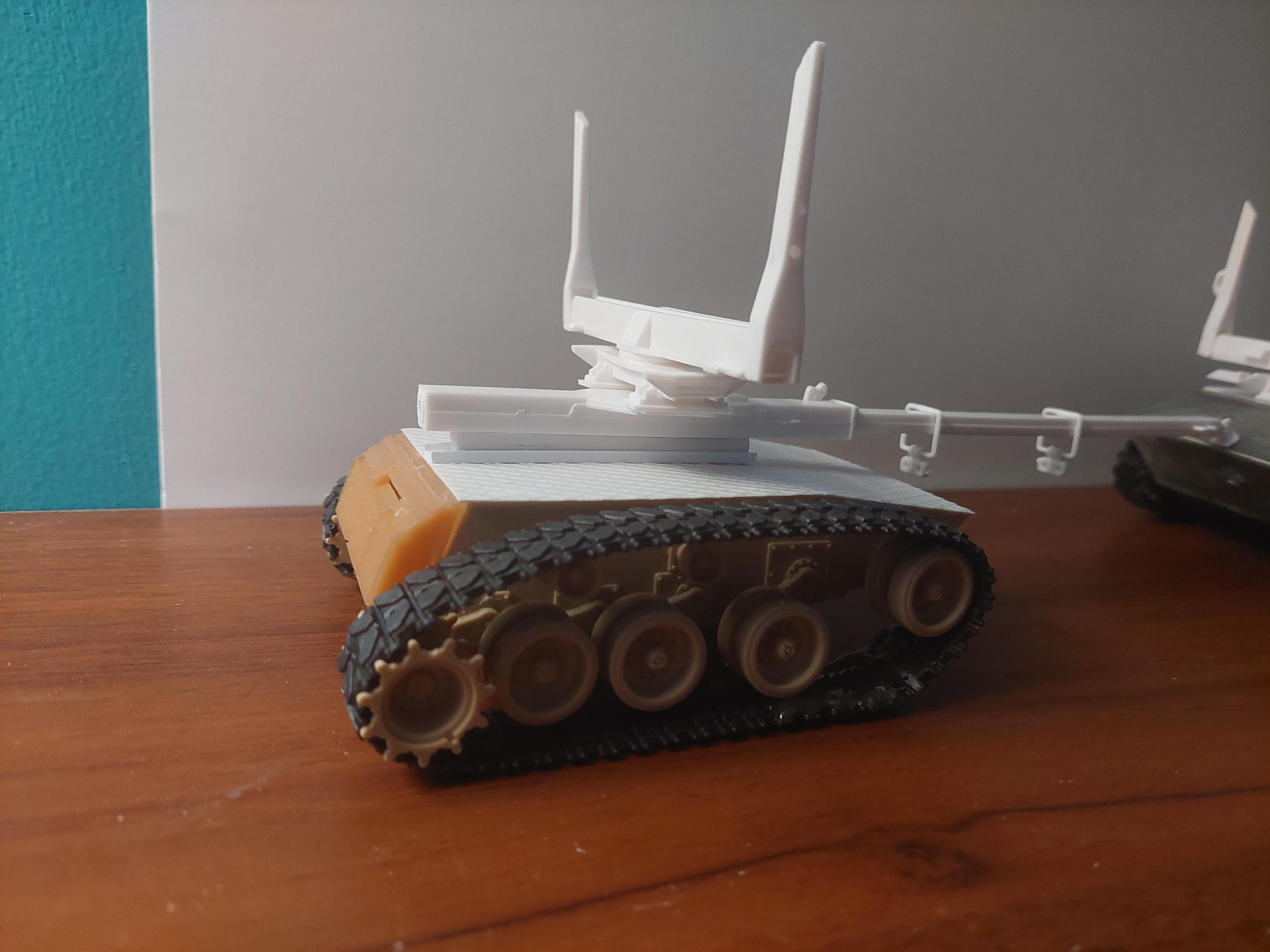

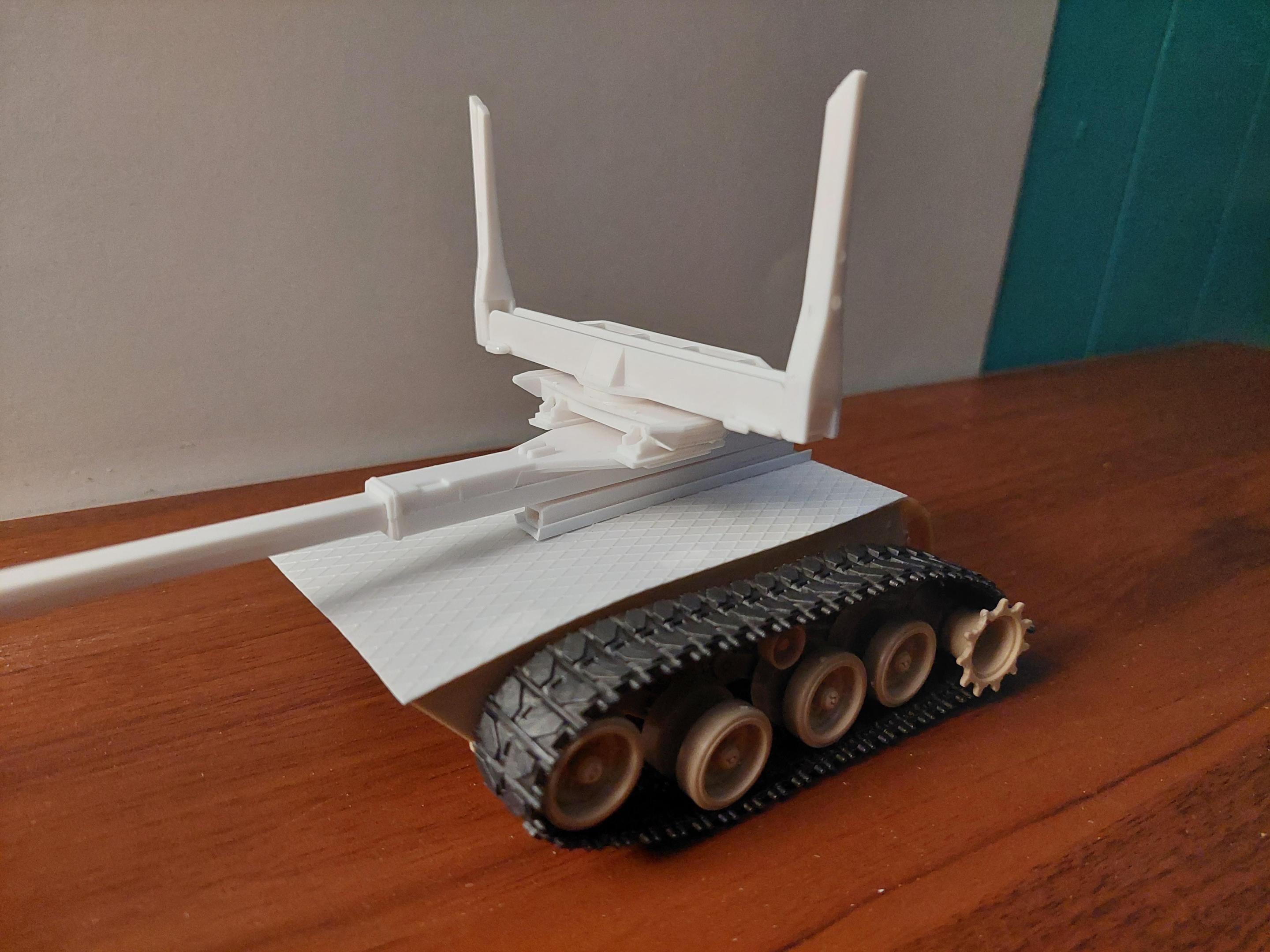

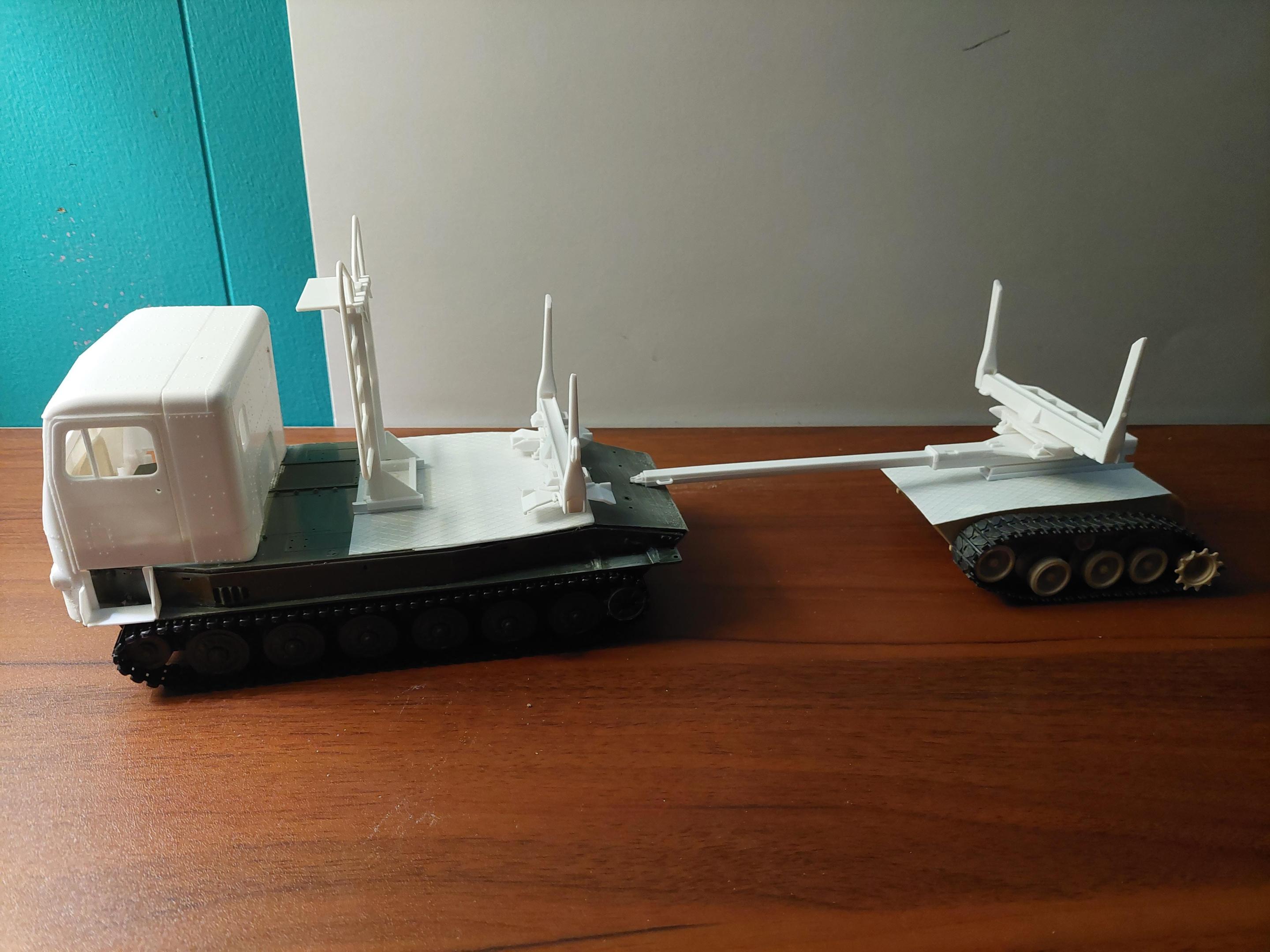

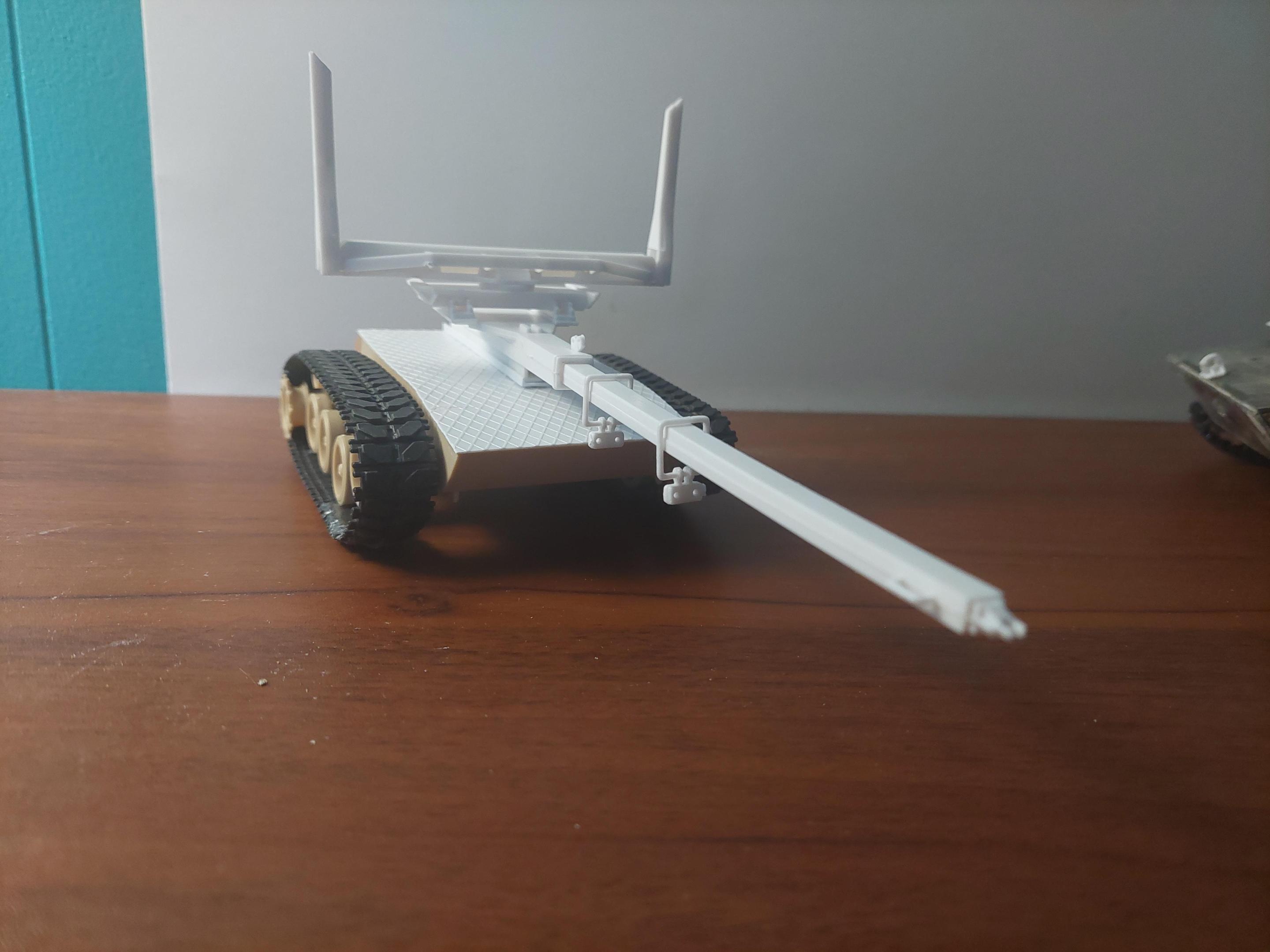

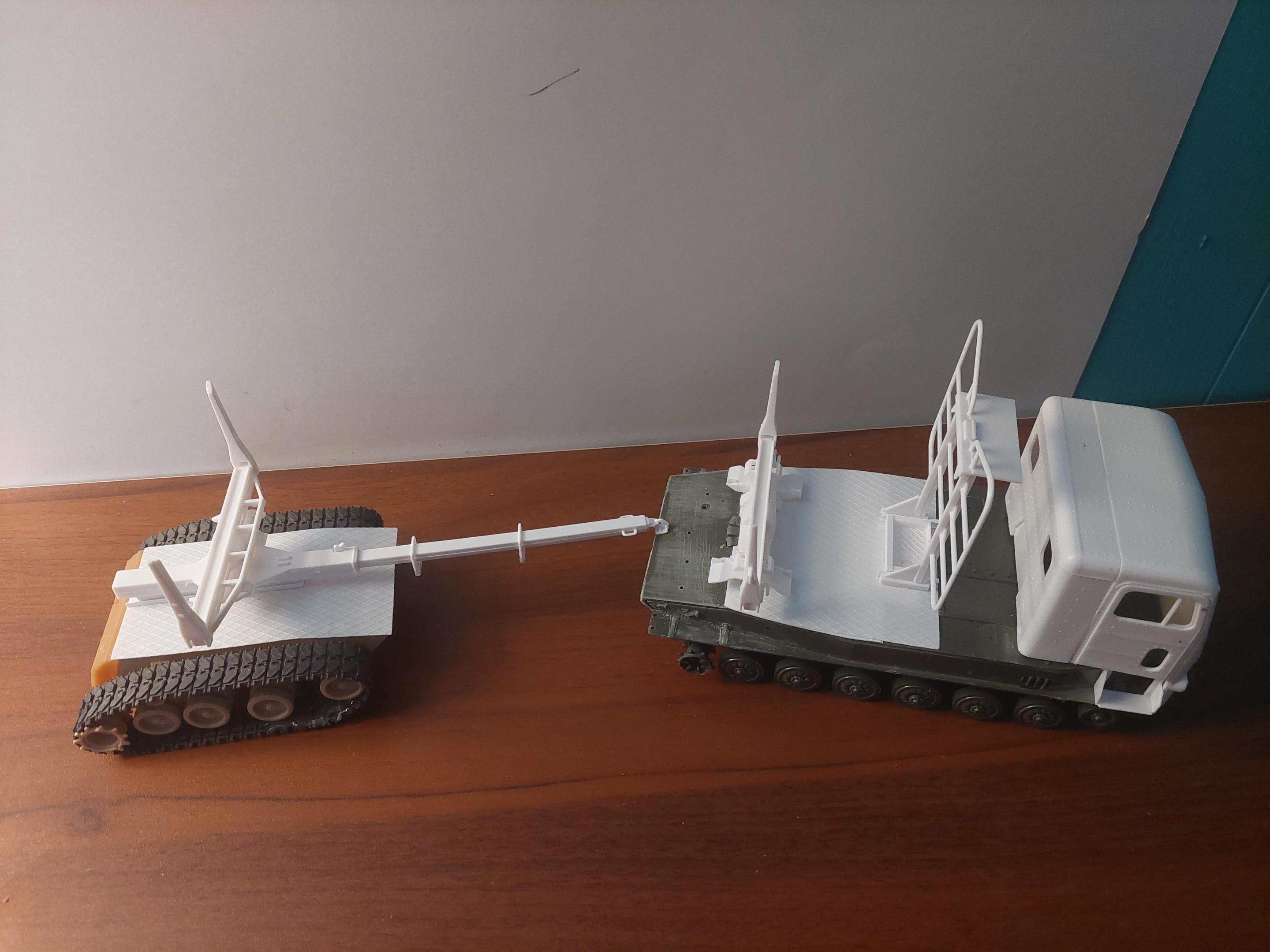

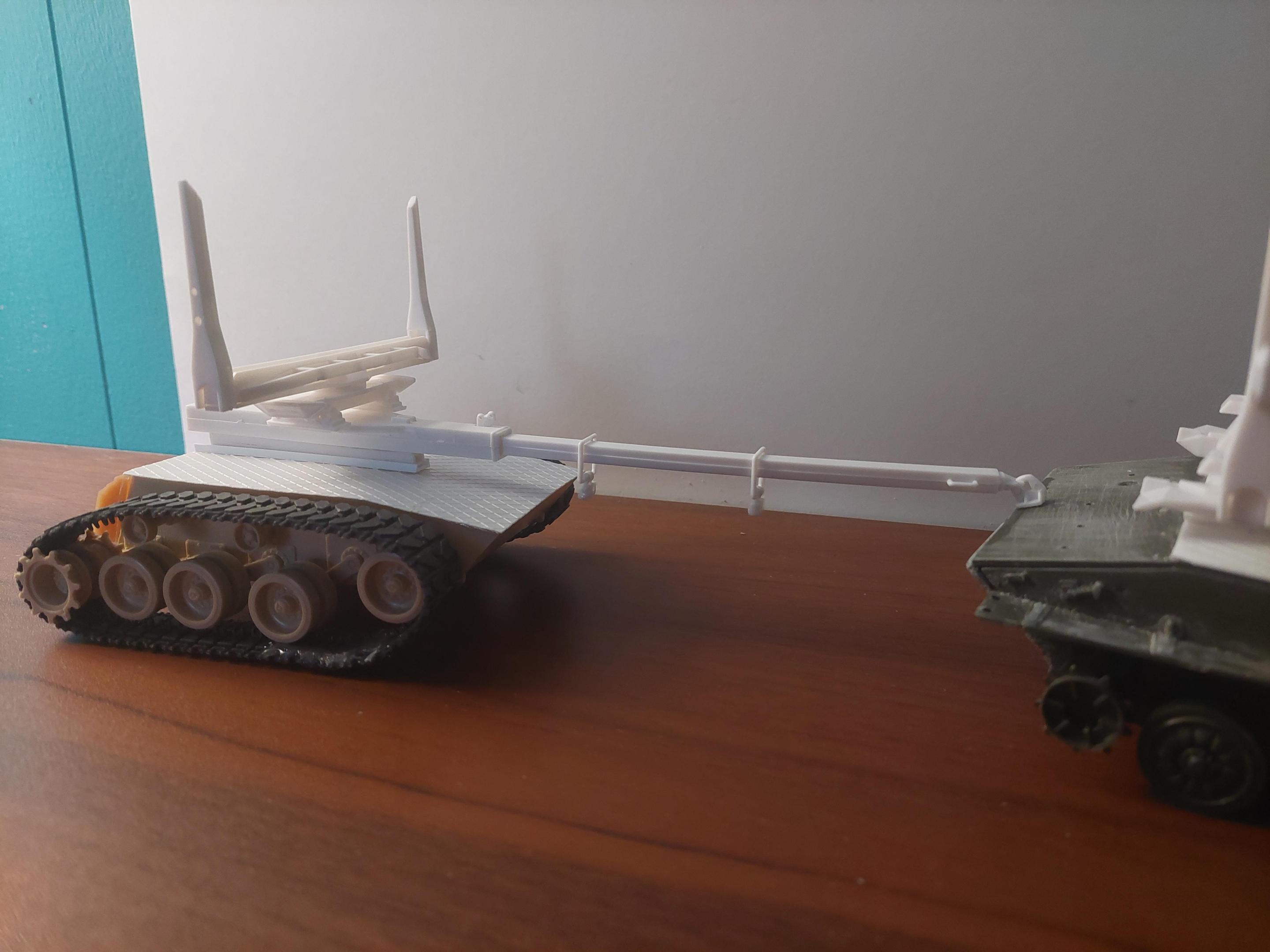

Added another kit into the mix, an M1 A1 Abrams tank by Academy in 1:35th to be converted into my rear power . After much cutting and many test fits this is pretty close to where its going. The tracks are a loose fit as they needed to be shortened and are just on for the mock up. Now I have many tank parts left over if anyone is needing.



Link to comment
Share on other sites

4 hours ago, Bainford said:

Very cool project. Is the trailer portion powered? A hydraulic pump on the tractor, some hoses to a hydraulic motor on the trailer would do it.

I have a long way to go, I have hangers to  hold up lines. The hard part was getting the tracks on the rear unit rejoined as they were trimmed down to fit the cut-down body. This build is still pretty much in the trial and error stage..😀





Link to comment
Share on other sites

I like it. You may want to swap the drive wheel with the forward idler wheel, the drive wheel would never be that close to the ground, always up high to avoid getting rocks and garbage caught in it.

I love the creativity and the direction this is going, keep up the good work.

Edited by Oldmopars
Link to comment
Share on other sites

18 hours ago, Oldmopars said:

 The drive wheel would never be that close to the ground

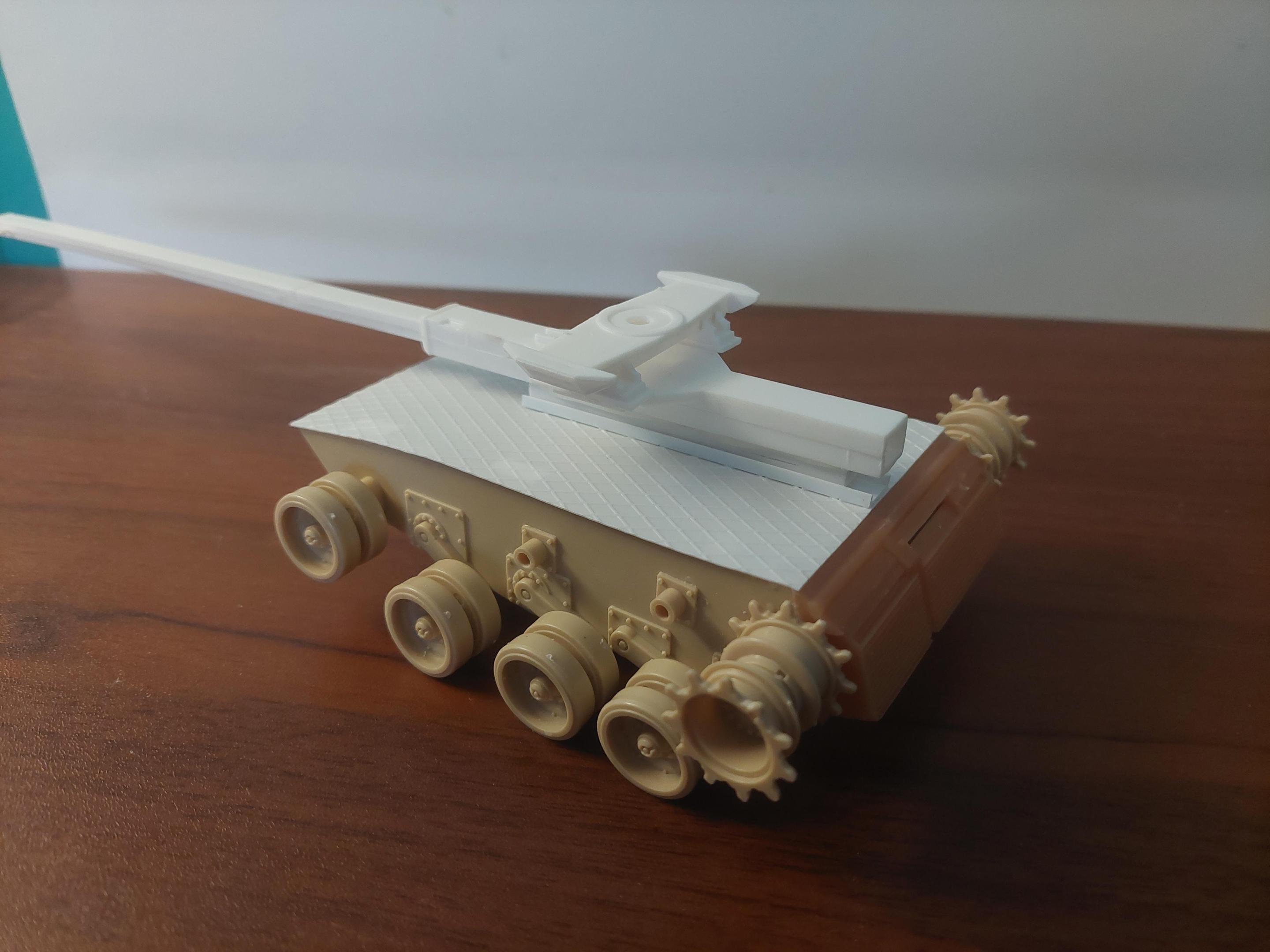

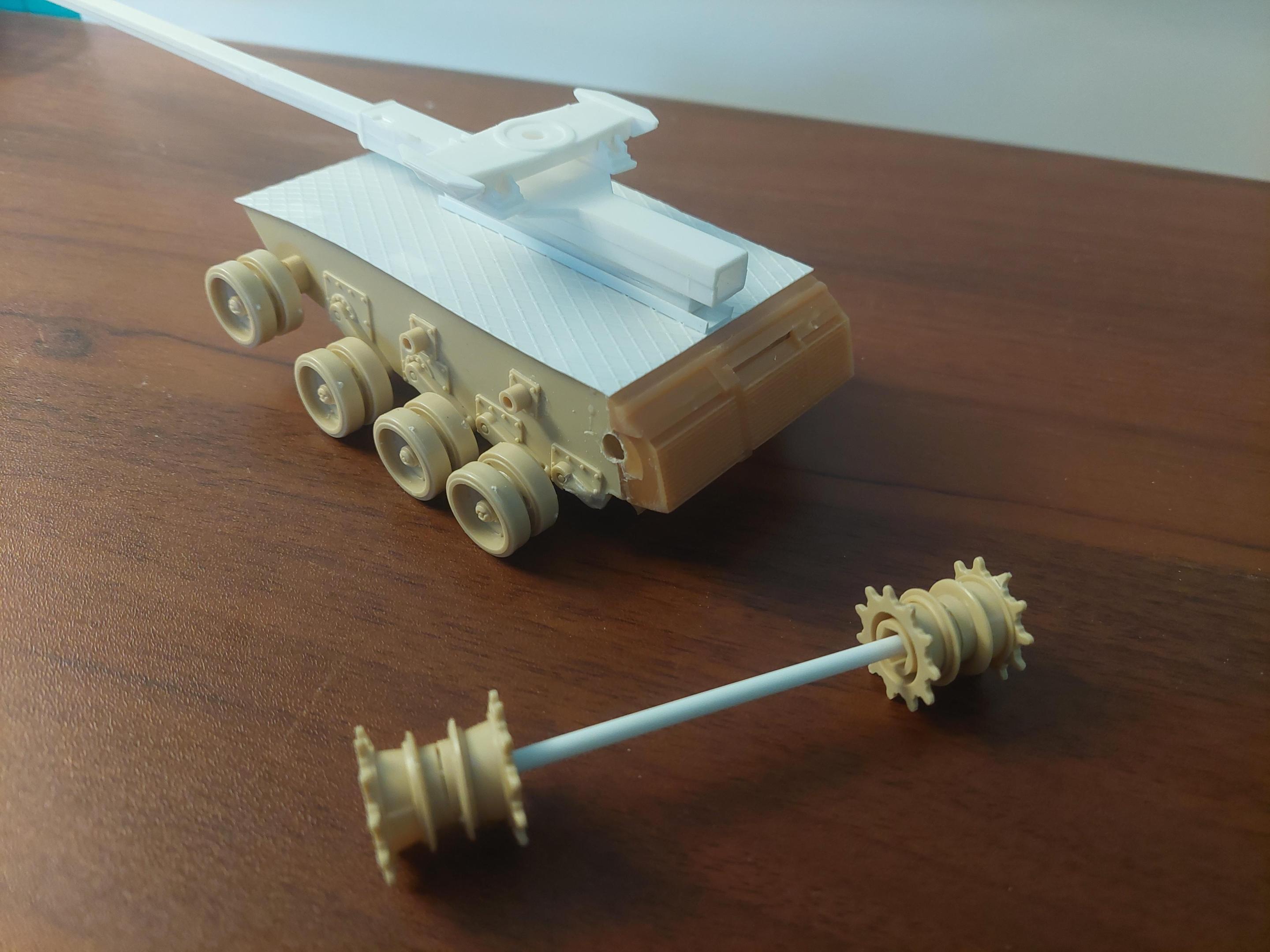

I wanted to keep the drive on both units to the back but I can raise the drives up some and back to tighten the tracks. Cut off the wheel dowel pins and install the drive wheels on evergreen rod. Thanks for the heads up.




Link to comment
Share on other sites

On 10/22/2021 at 4:04 PM, BIGTRUCK said:

I wanted to keep the drive on both units to the back but I can raise the drives up some and back to tighten the tracks. Cut off the wheel dowel pins and install the drive wheels on evergreen rod. Thanks for the heads up.




you got it going your way now , only thing i see u need to do and im sure u already know is the trailer stinger needs to be at least another 2 inches added to the front (dont want the rear to close to the truck) and at least another 2 to 3 inches out the back . another thing are u gonna also haul the trailer on the back of the truck ?  if so make sure u got the right width on the rear tracks..i know i rattle to much but im a scratch builder and just trying to help..

Edited by yh70
  • Like 1
Link to comment
Share on other sites
