'49 Ford glue bomb restoration


dino246gt
 Share

Recommended Posts

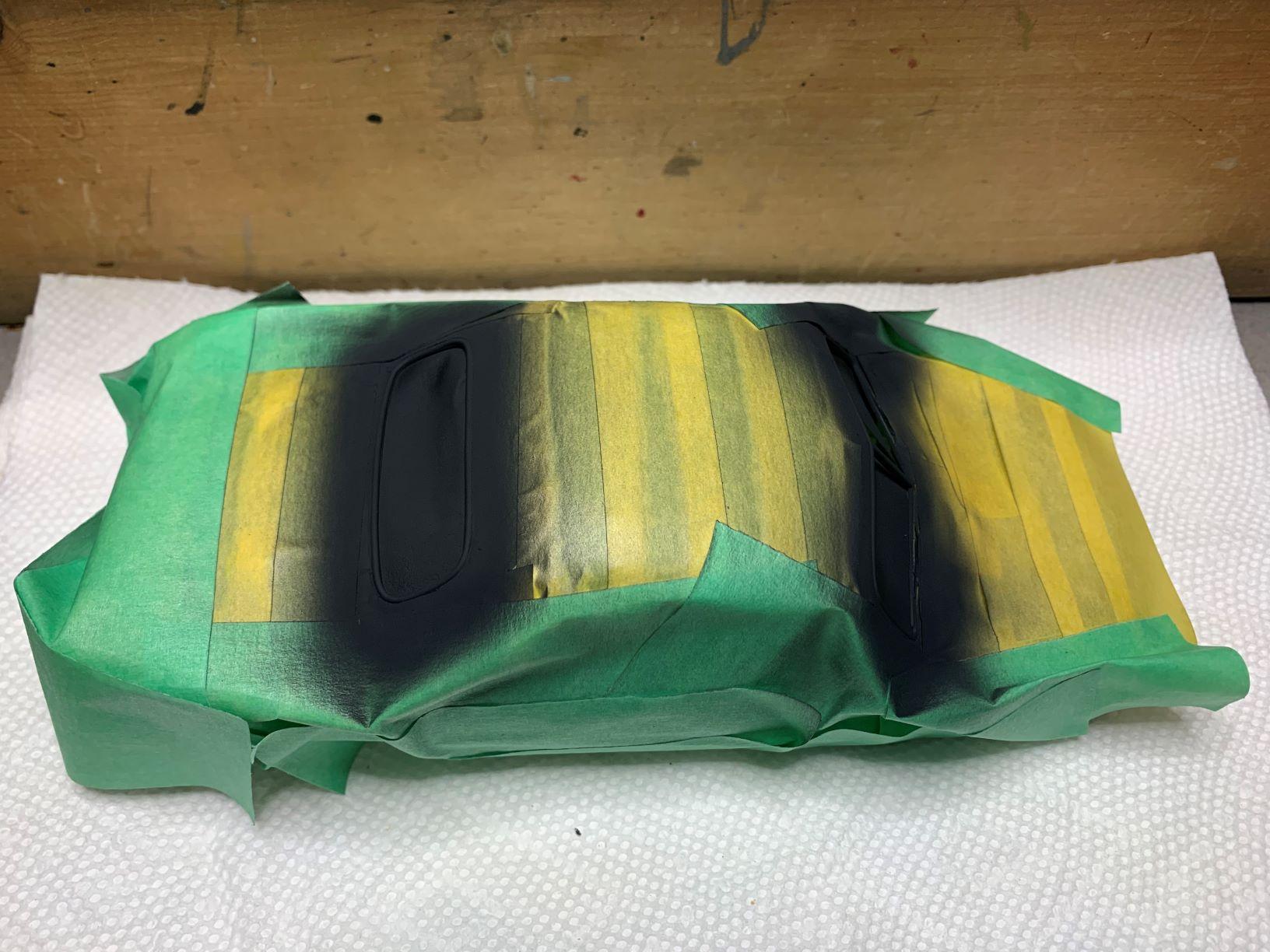

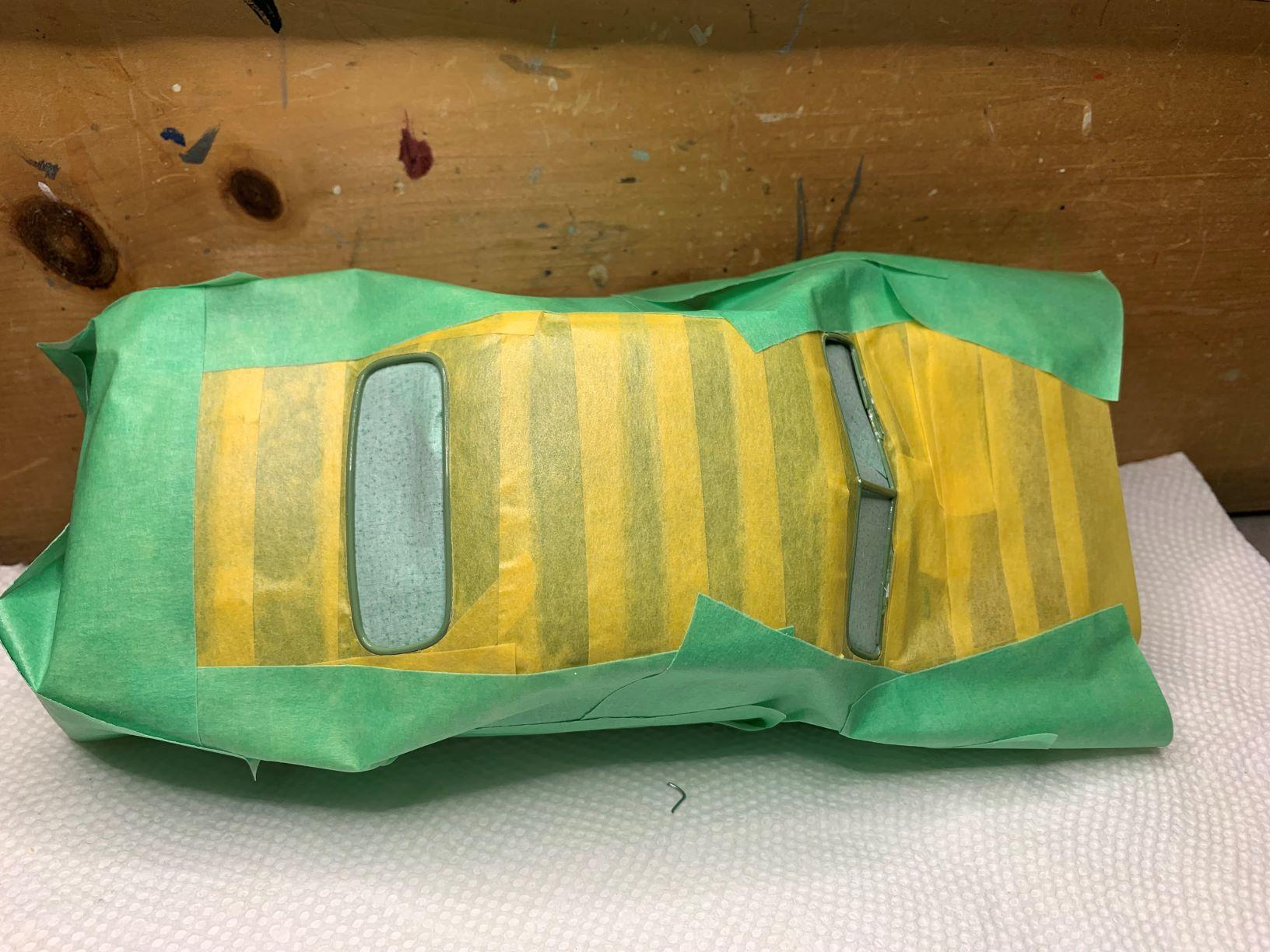

I wanted rubber, not chrome around the windows, so I masked,

AND airbrushed Tamiya acrylic rubber thinned 50/50.

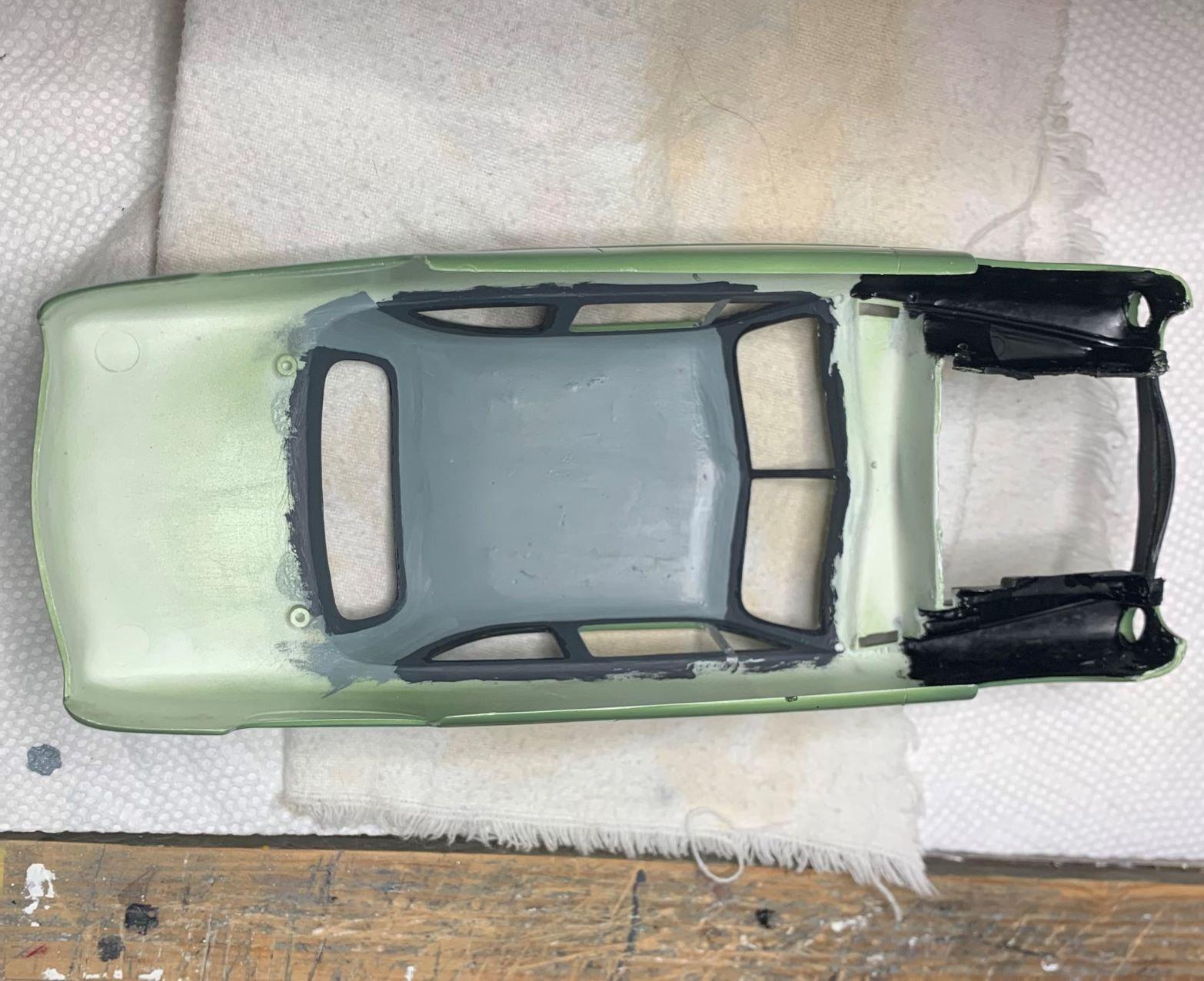

Then I brushed acrylics to the headliner and around the windows inside. (this is the car upside down looking in)

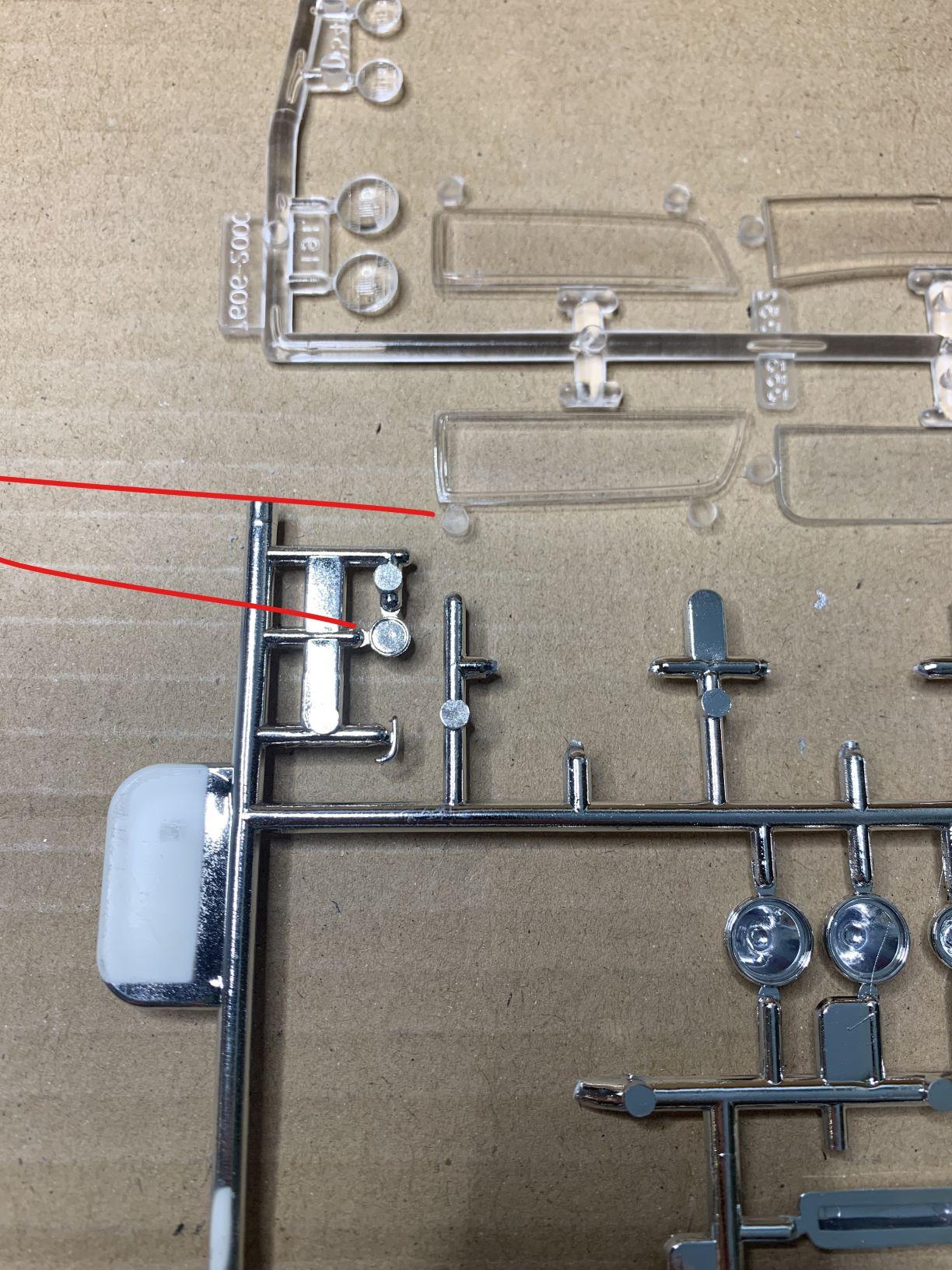

I made a dome light with a '32 Ford kit's chrome mirror and a piece of the clear throw-away things.

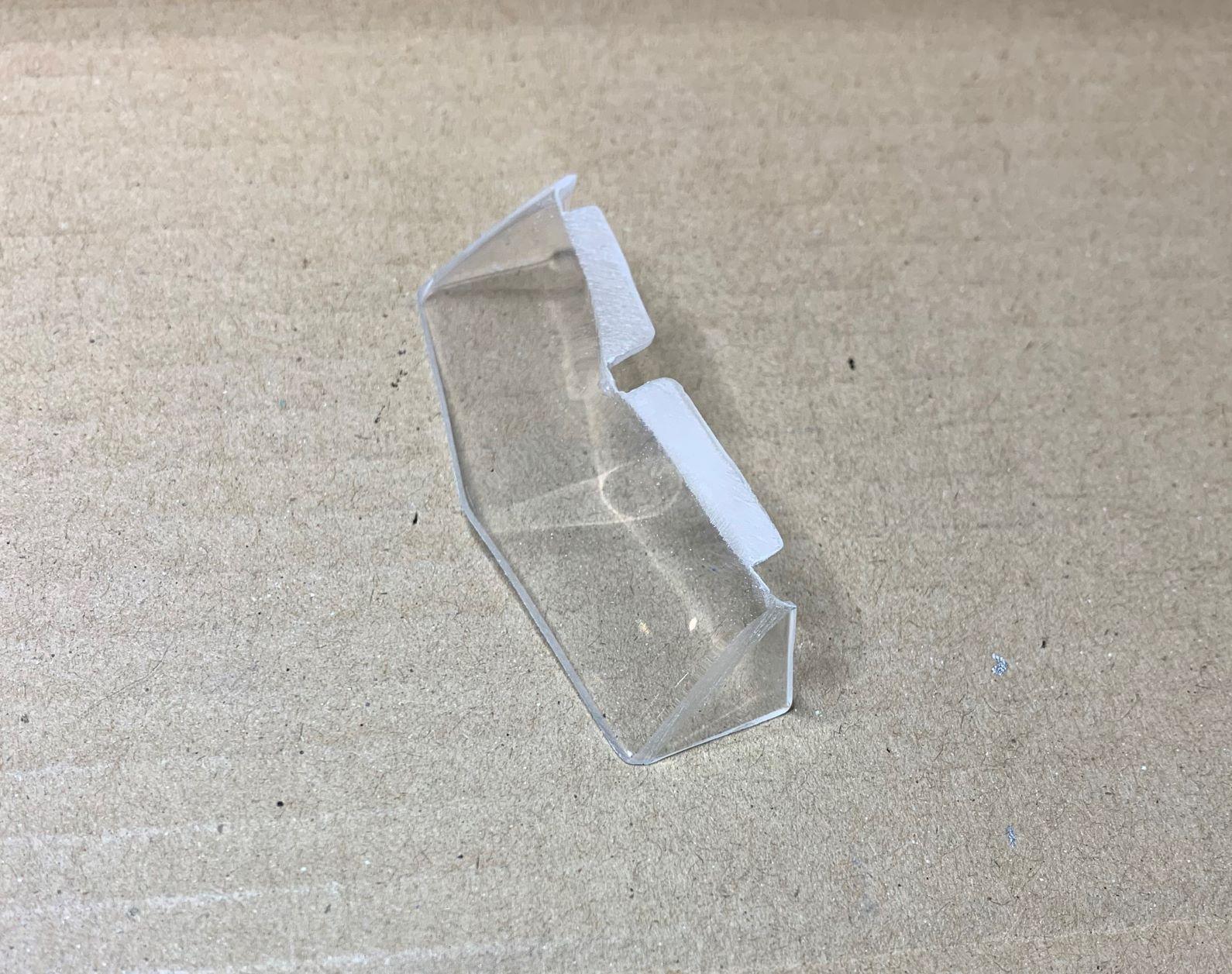

I reshaped the windshield for somewhat of a sunvisor look inside. (actually turned out pretty good once painted.






Link to comment
Share on other sites

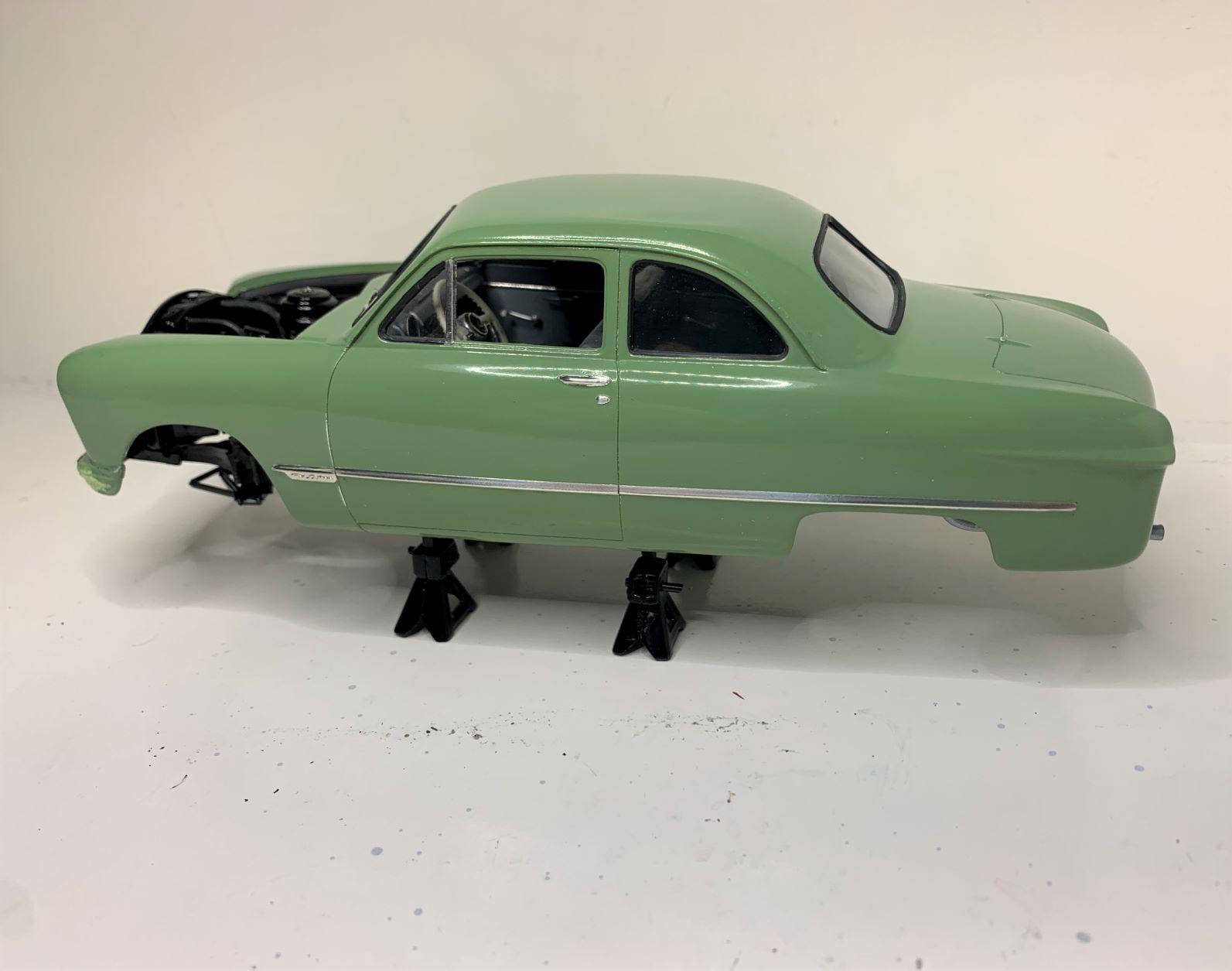

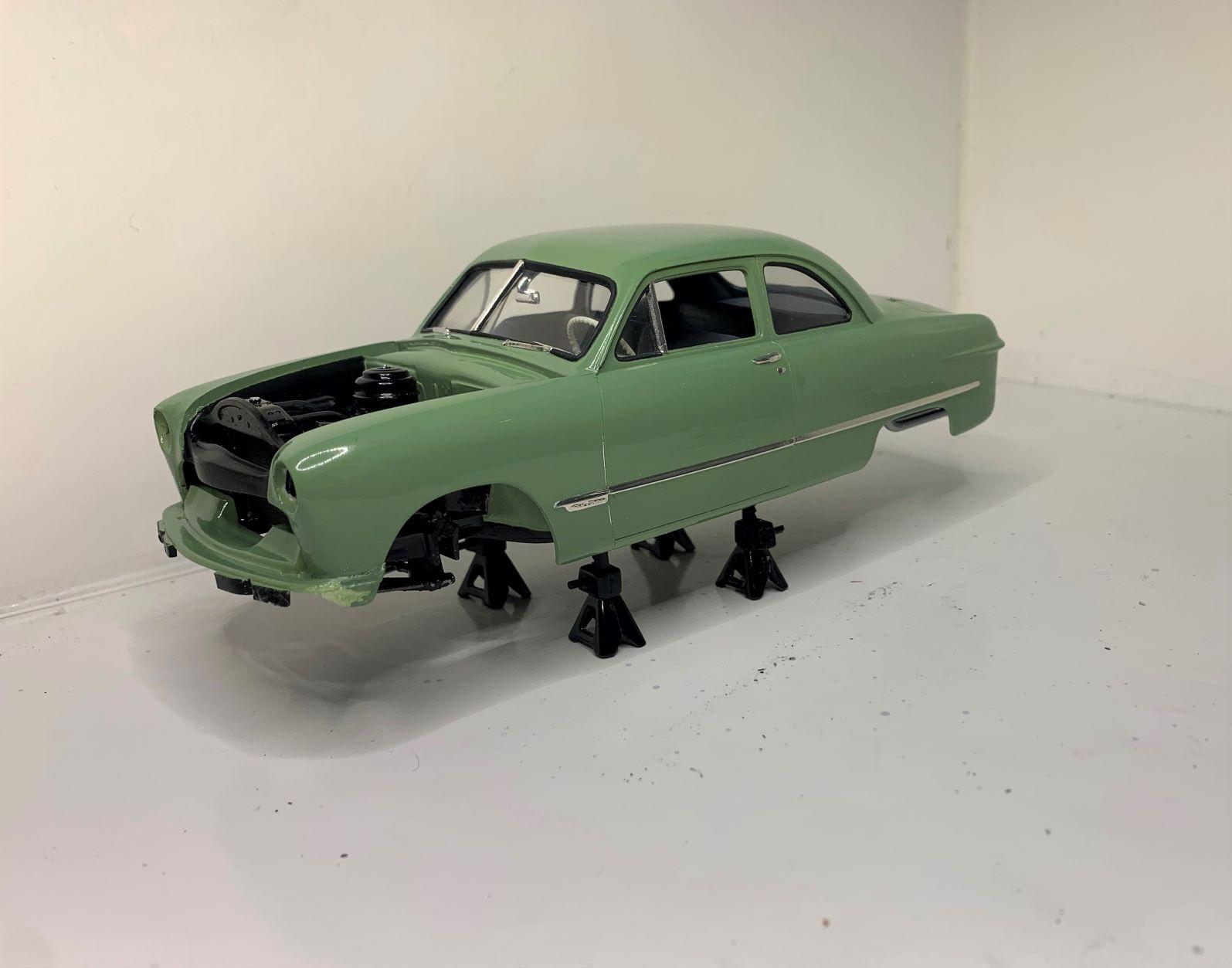

I got the glass, interior and chassis all glued together!

I believe that's called the marriage.

Now just the "honeymoon" left!!!

I want to have this finished by the weekend.



Link to comment
Share on other sites

Posted (edited)

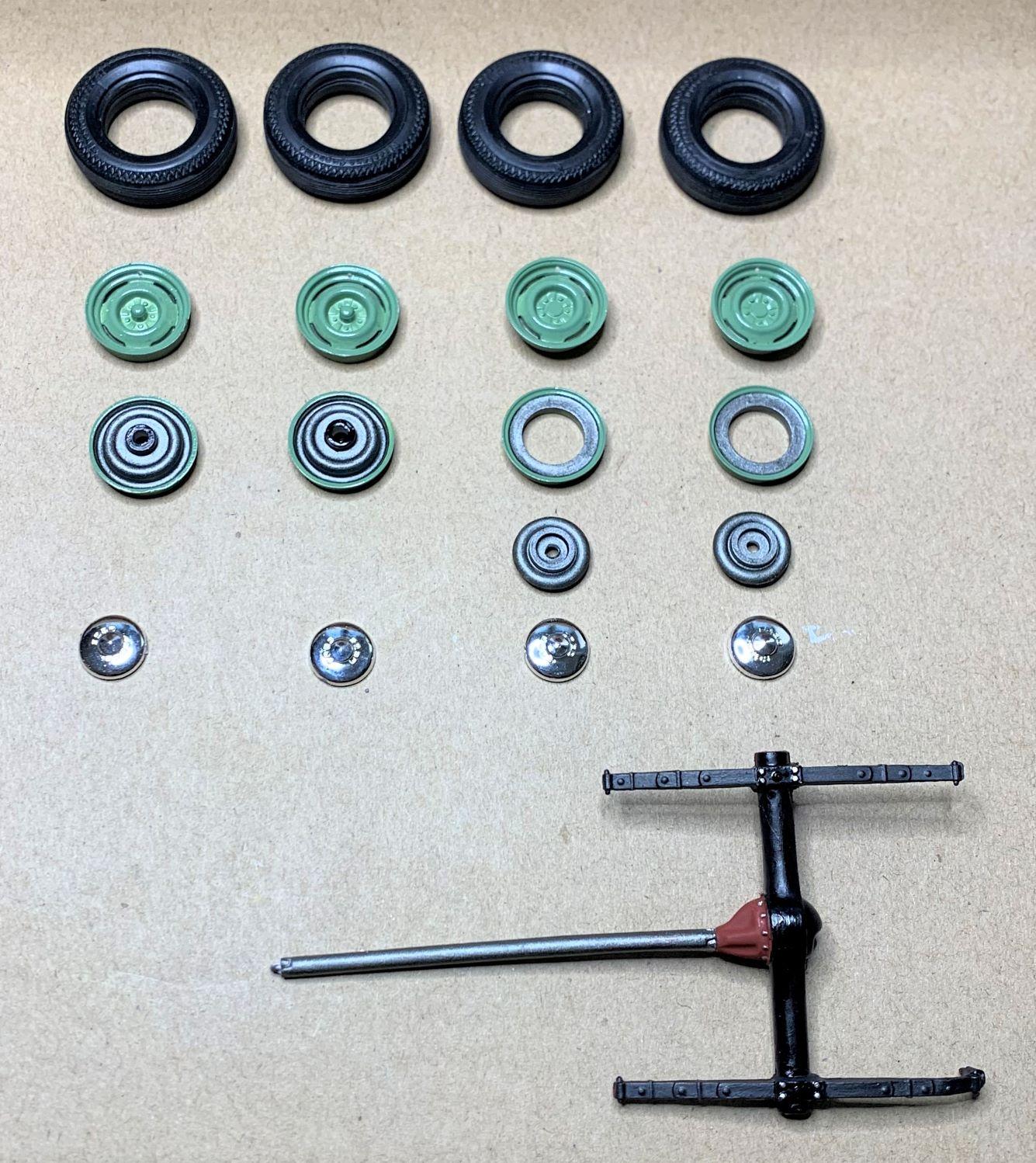

The rims I had, well the fronts were damaged from sprue removal, so I'm using those as the rears, I can glue them with the damage up, hidden by the body.

Won't matter that the fronts are in back and vise versa because I'm using hub caps, but I did have to switch the back halves of the rims.

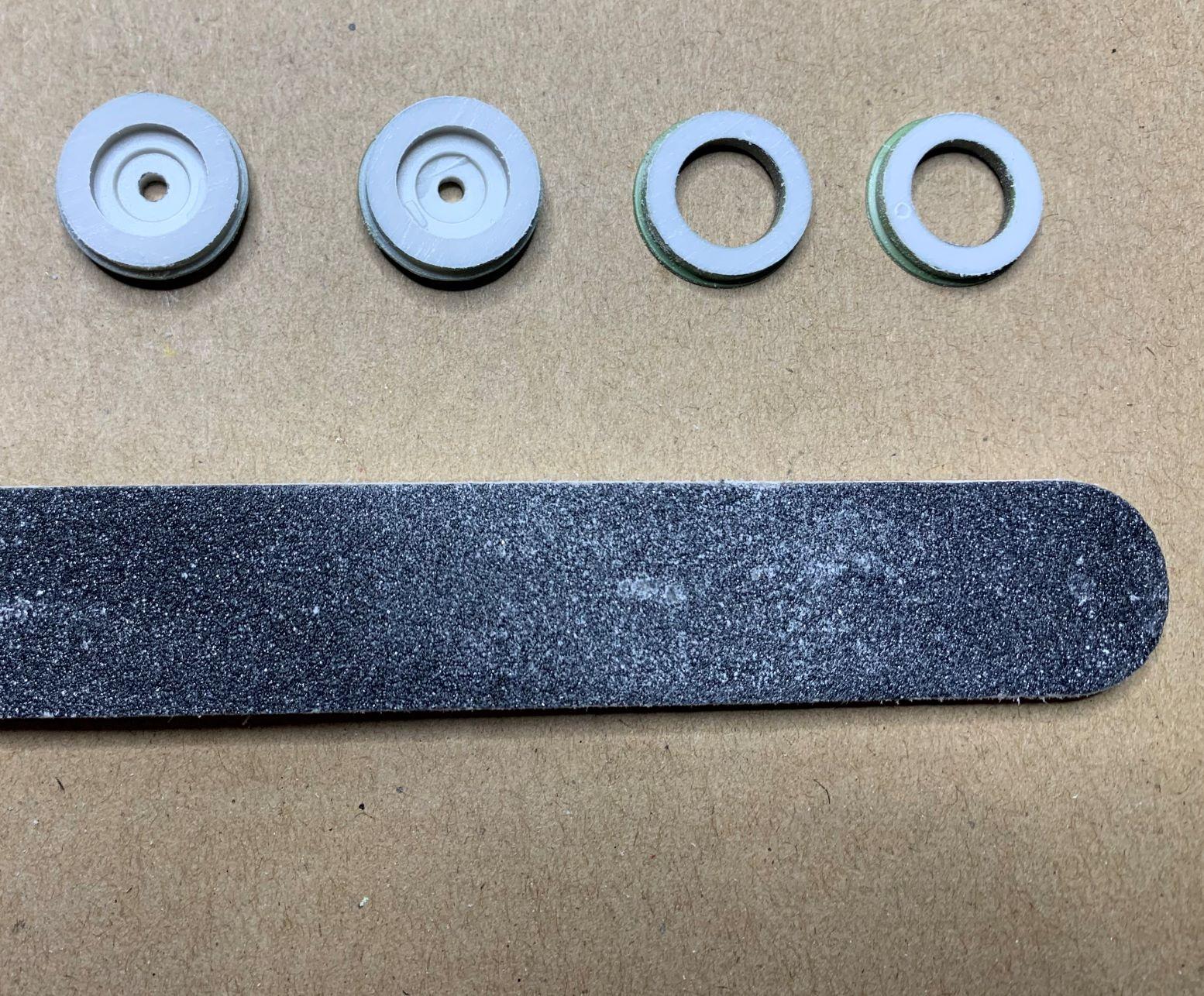

I sanded where the halves meet so the rims fit deeper into the tires, I like that look.

I found some cool old Firestone tires in the parts box which I cleaned up and used.

Drilled for valve stems, I use the same .030 ignition wire for these, a bit over size, but still cool to my eye, also did a black wash to highlight those 4 slots on the rims.




Edited by dino246gt
spelling
Link to comment
Share on other sites

Posted (edited)

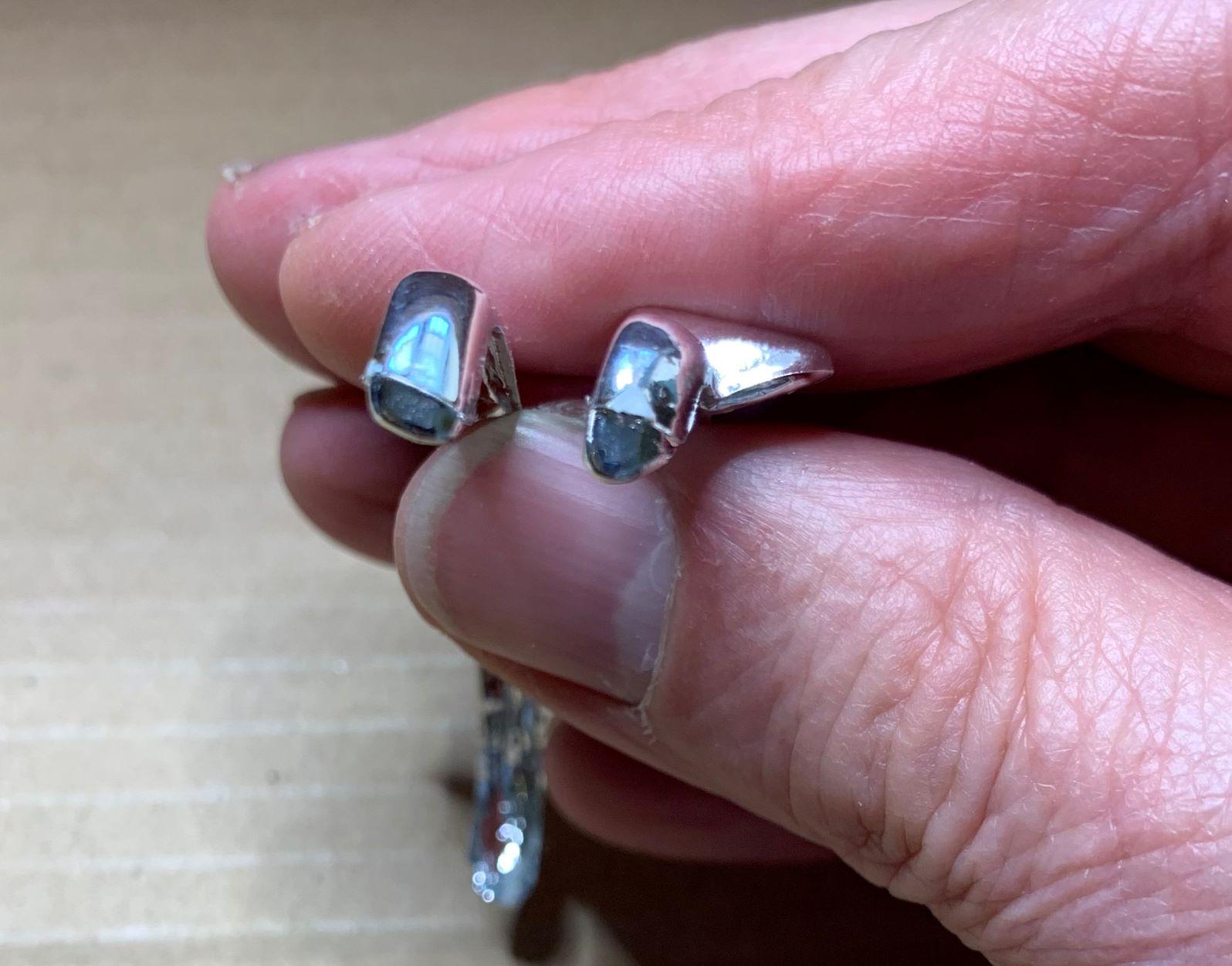

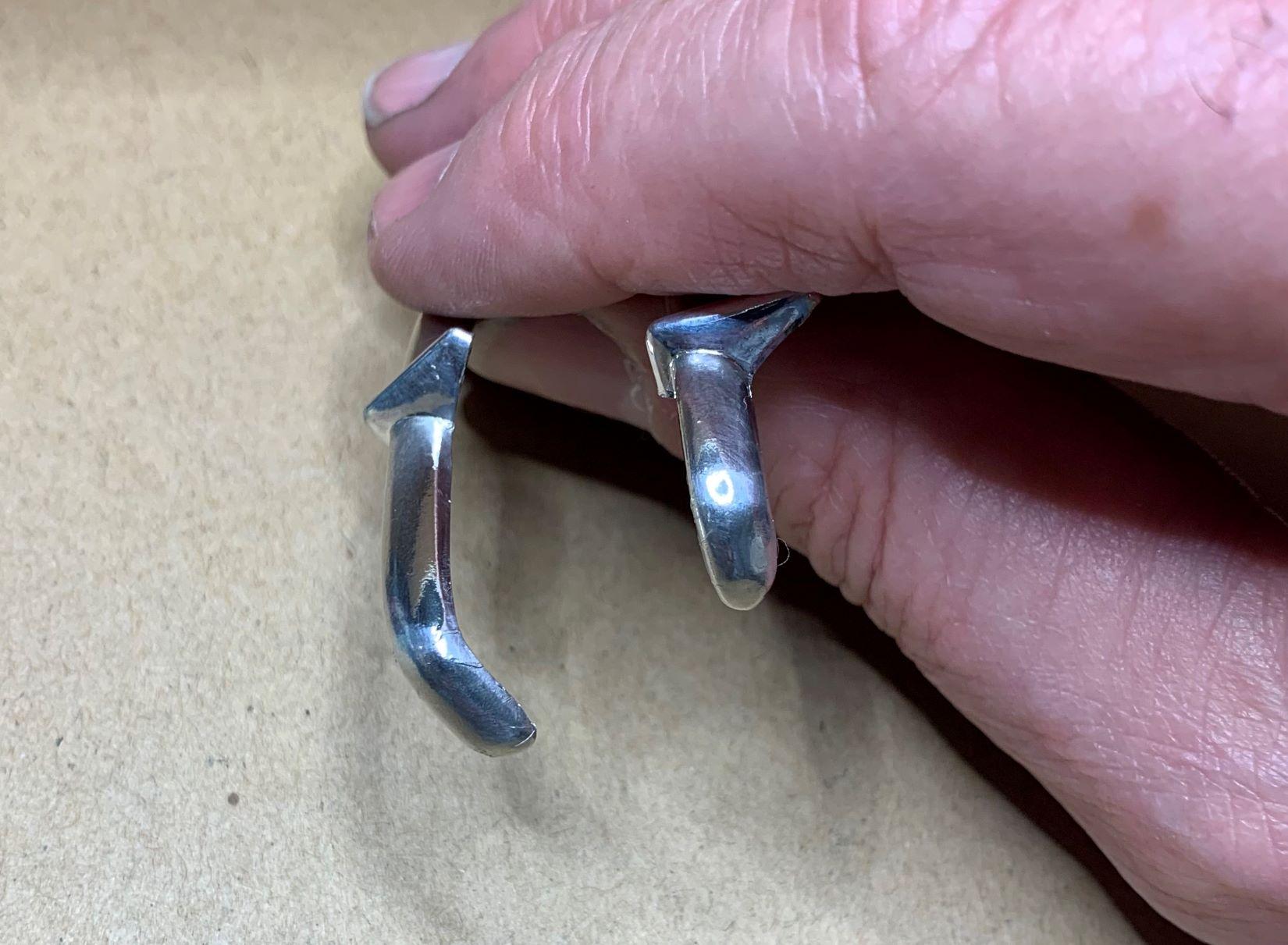

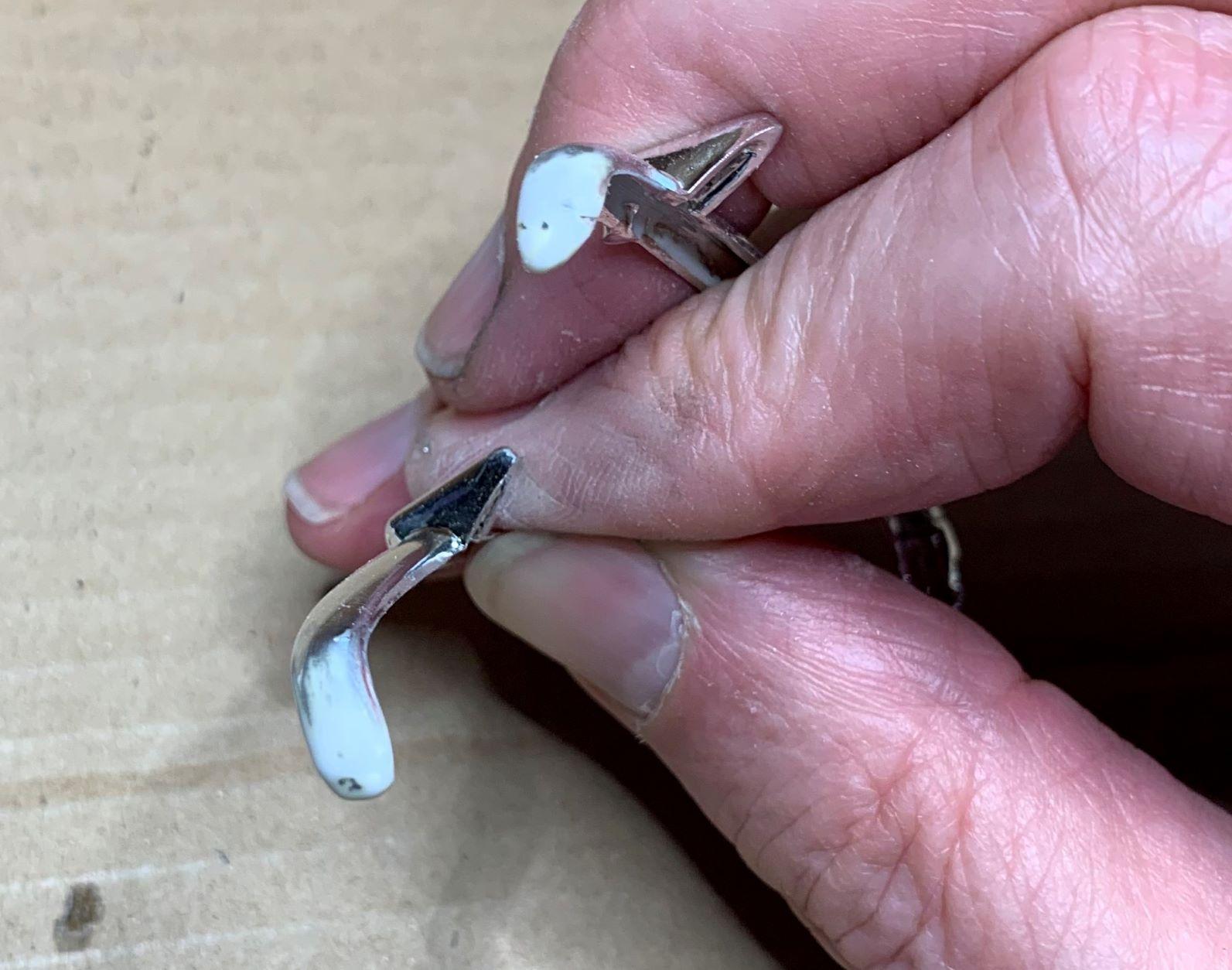

The bumpers were also in poor shape, as usual the wrap-around corners need sanding.

I foiled all 4 sanded corners.

Of course I got little wrinkles where I tried to wrap the foil, but I think it's less of a "flaw" than the huge mold lines from the kit.

After I install them, I'll polish the foil with Novus 2 for a better shine.




Edited by dino246gt
  • Like 1
Link to comment
Share on other sites

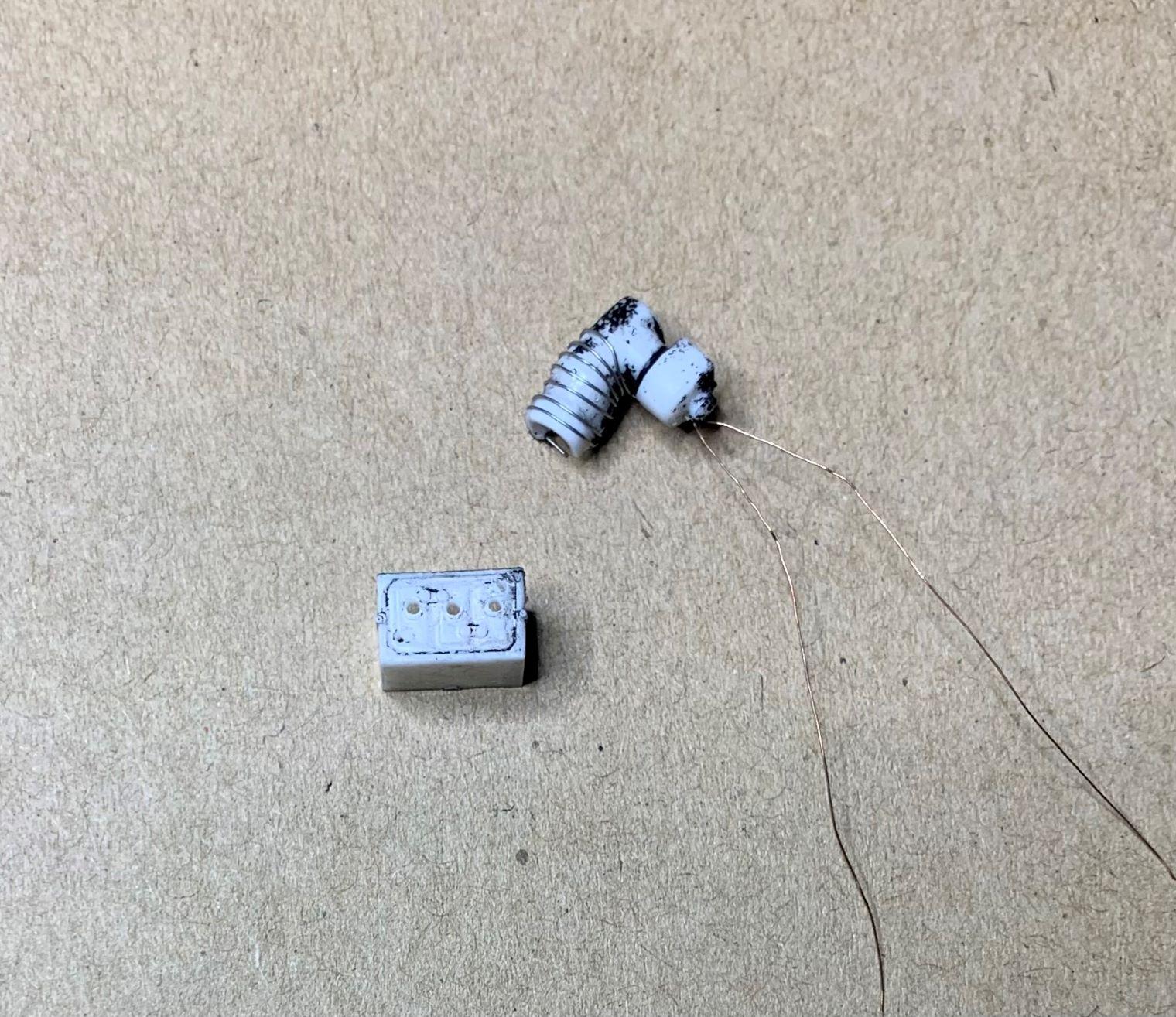

I drilled out the old battery and added some simple detail to the heater motor.

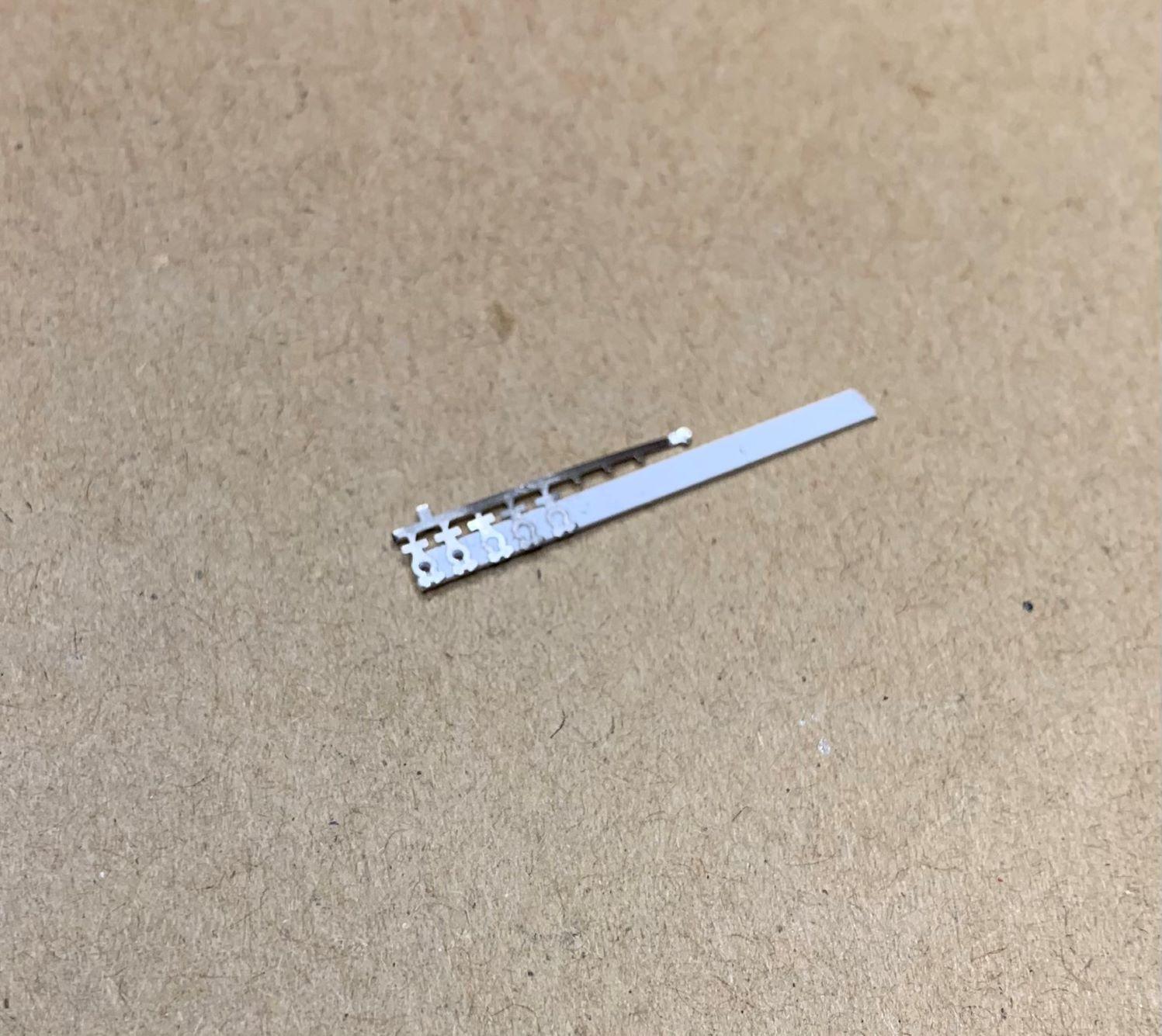

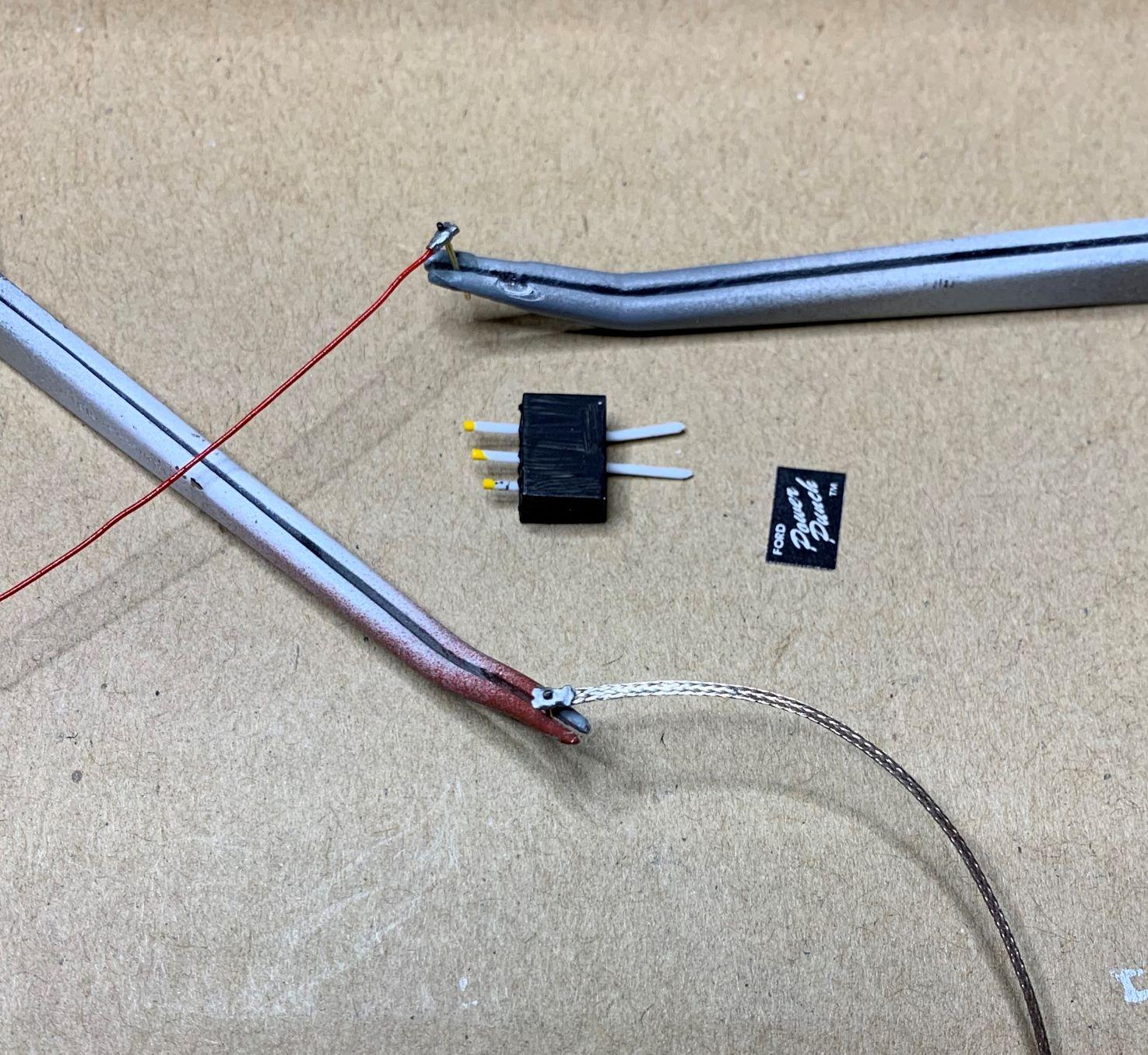

I glued photo-etch cable ends to a strip of .020 styrene then drilled and filed the styrene to follow the shape of the photo-etched parts.

I added a center post, red wire and flat ground cable, then painted some .030 styrene rod with ends painted yellow for caps. Logo is just printed on a piece of plain paper.

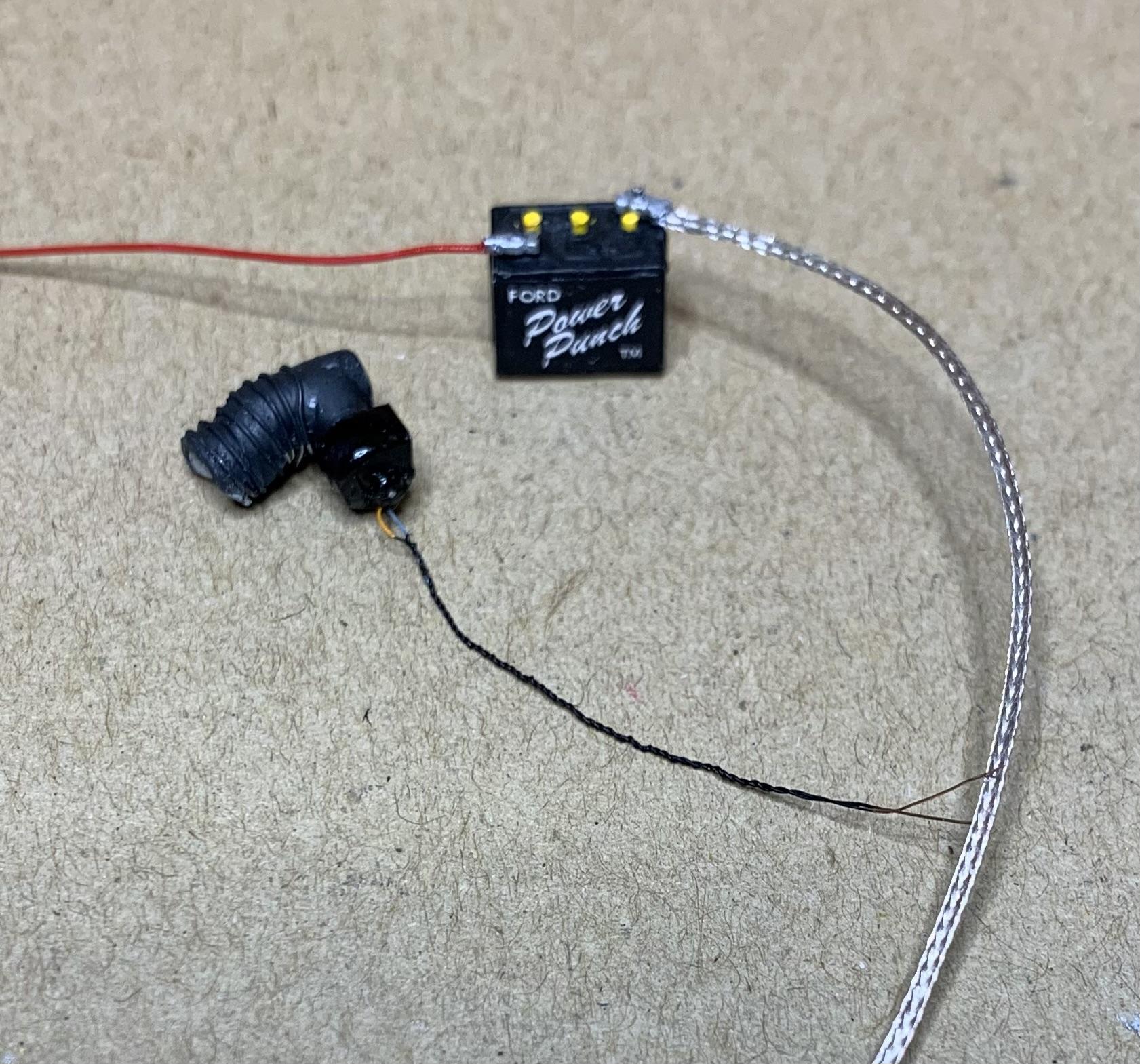

Here's the battery assembled and the heater motor.

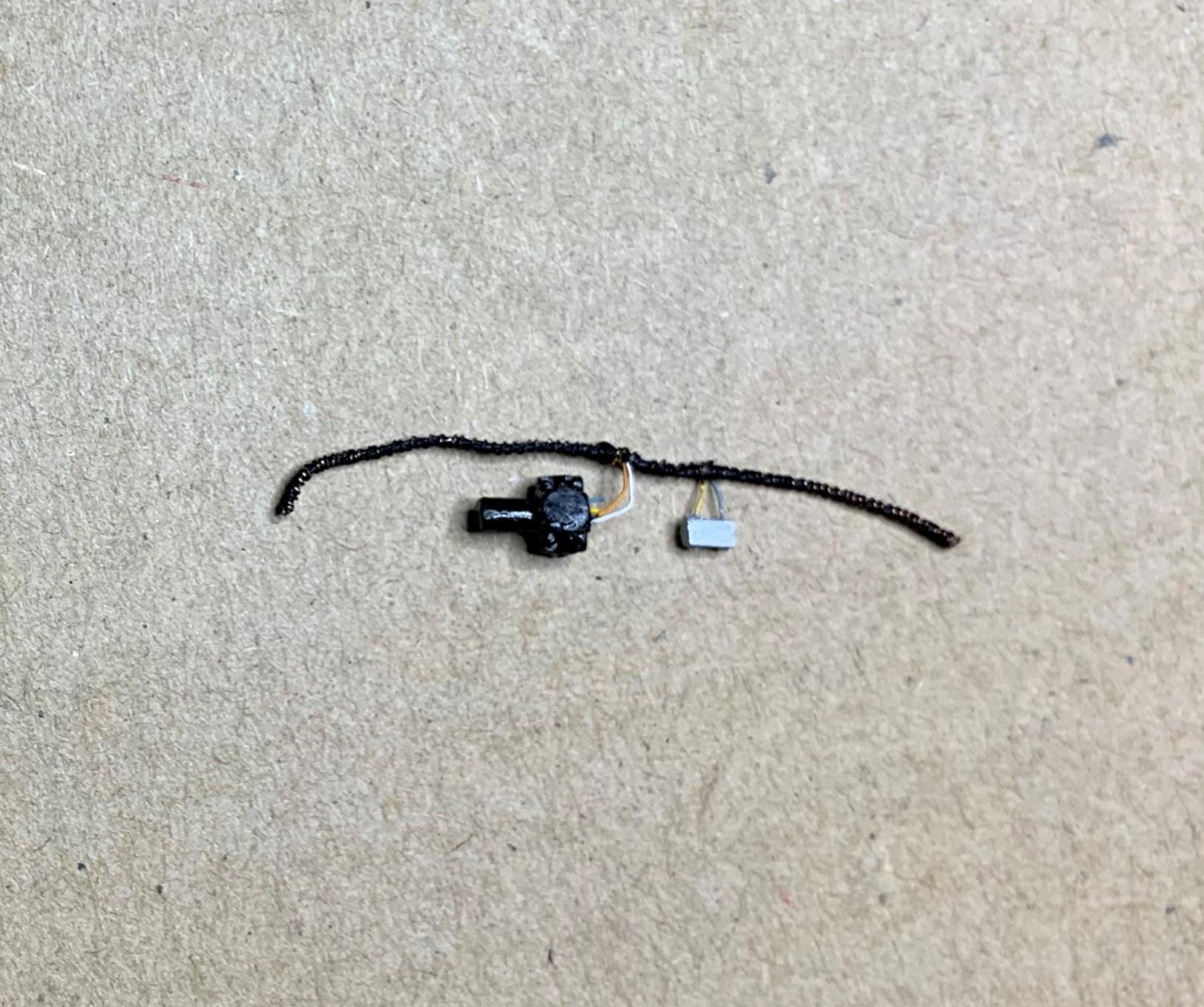

I also made up some "stuff" to put on the firewall, just scraps and sprue.








  • Like 1
Link to comment
Share on other sites

Very nicely done..Maybe when Dino gives me the other one he will mistakenly give me this one instead..Here is hoping..Sure is a sweet build..Dino does unbeliebable work..Shop of Ezmerlian is one of the best shops around..

Link to comment
Share on other sites

Posted (edited)

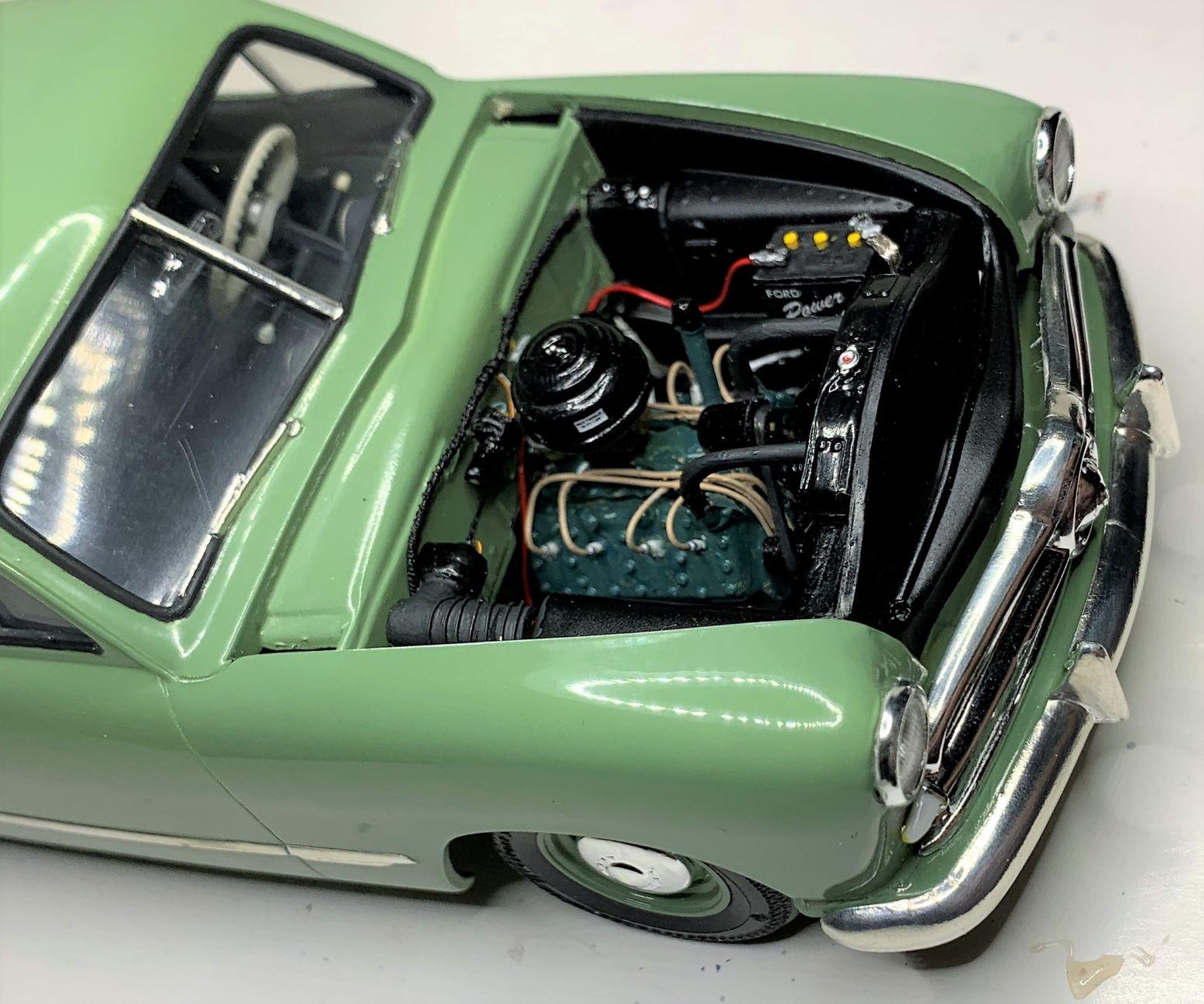

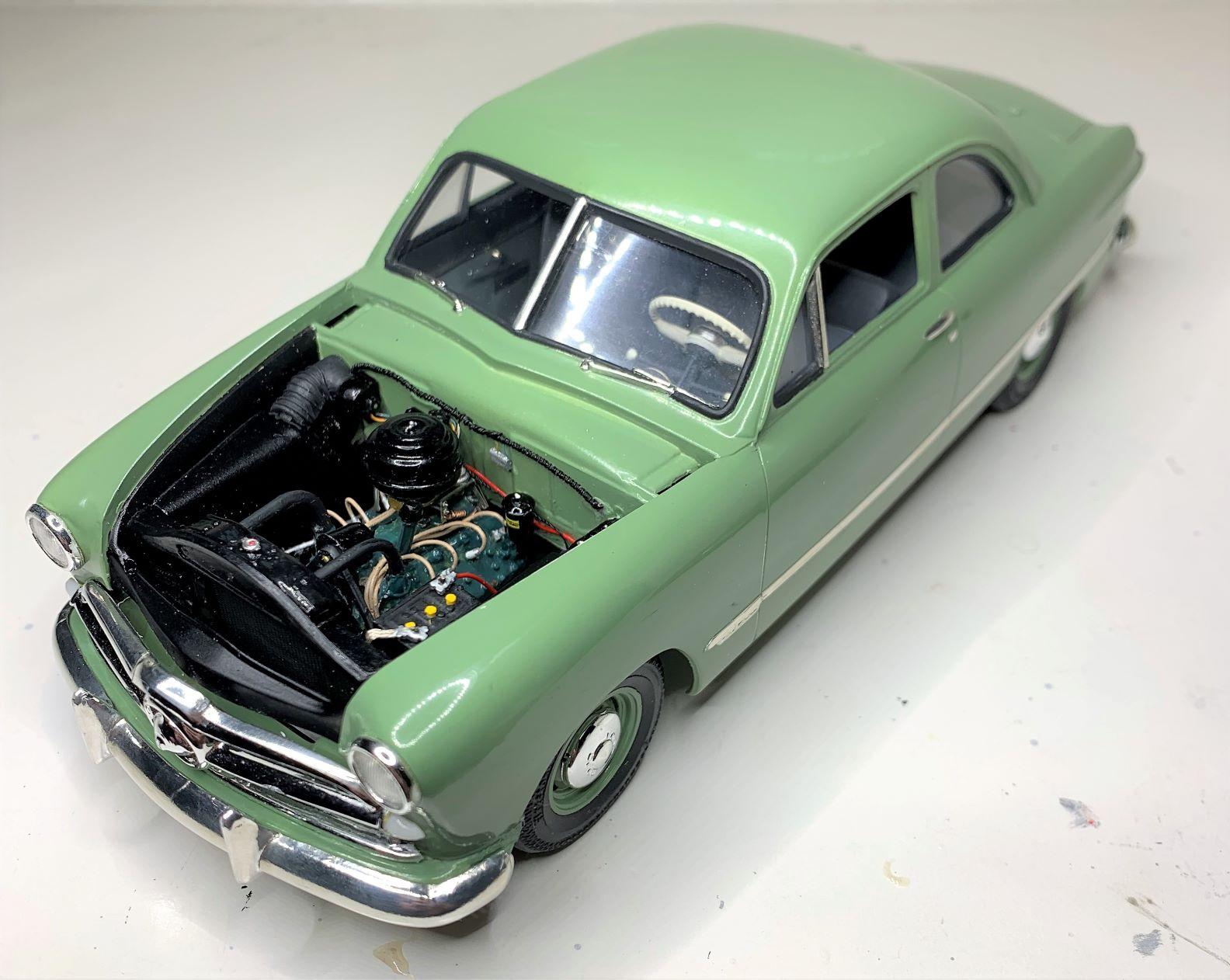

Here's how all that stuff looks installed:

Remember I didn't have a kit, so a lot of this is made from scraps, and what the glue bomb had attached.

Do NOT have the trunk chrome handle, but I think I can trade for one with Jerry G.






Edited by dino246gt
  • Like 1
Link to comment
Share on other sites

Posted (edited)

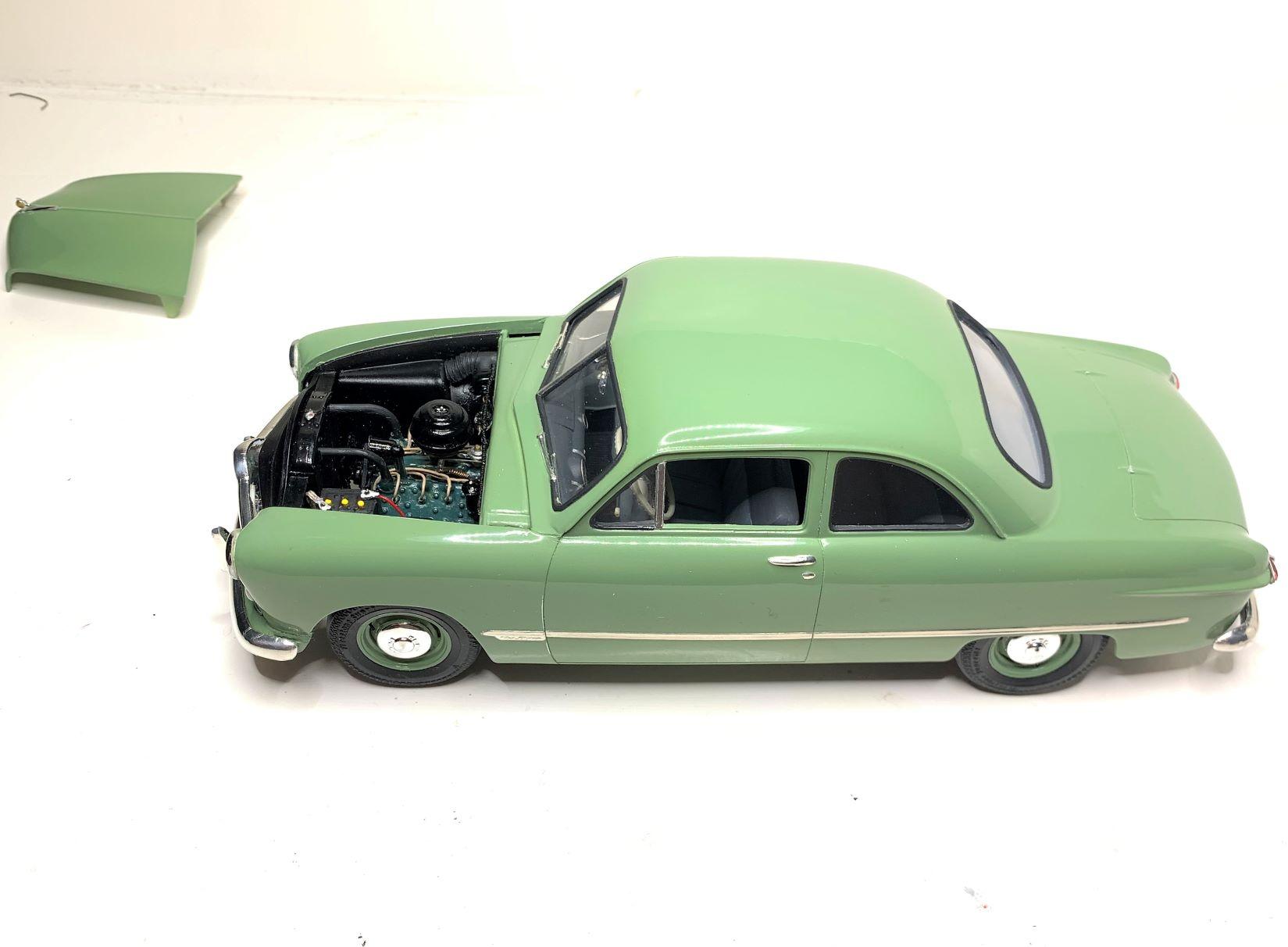

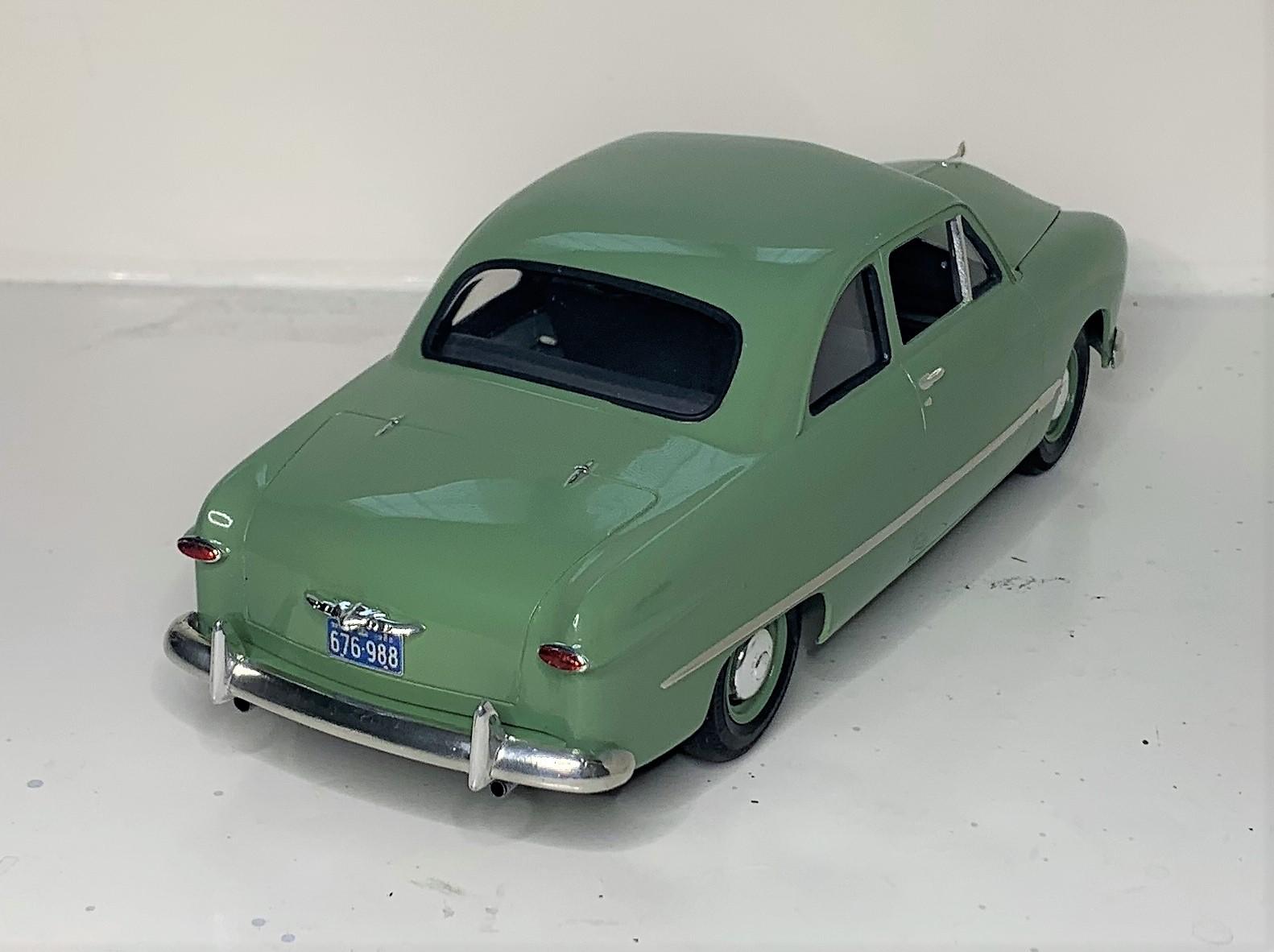

I was able to score a trunk emblem from Jerry G. Thanks Jerry!

I also foiled the rear trunk hinges, so I think this little glue bomb has been rescued!






13 IMG_3383.JPG

Edited by dino246gt
  • Like 2
