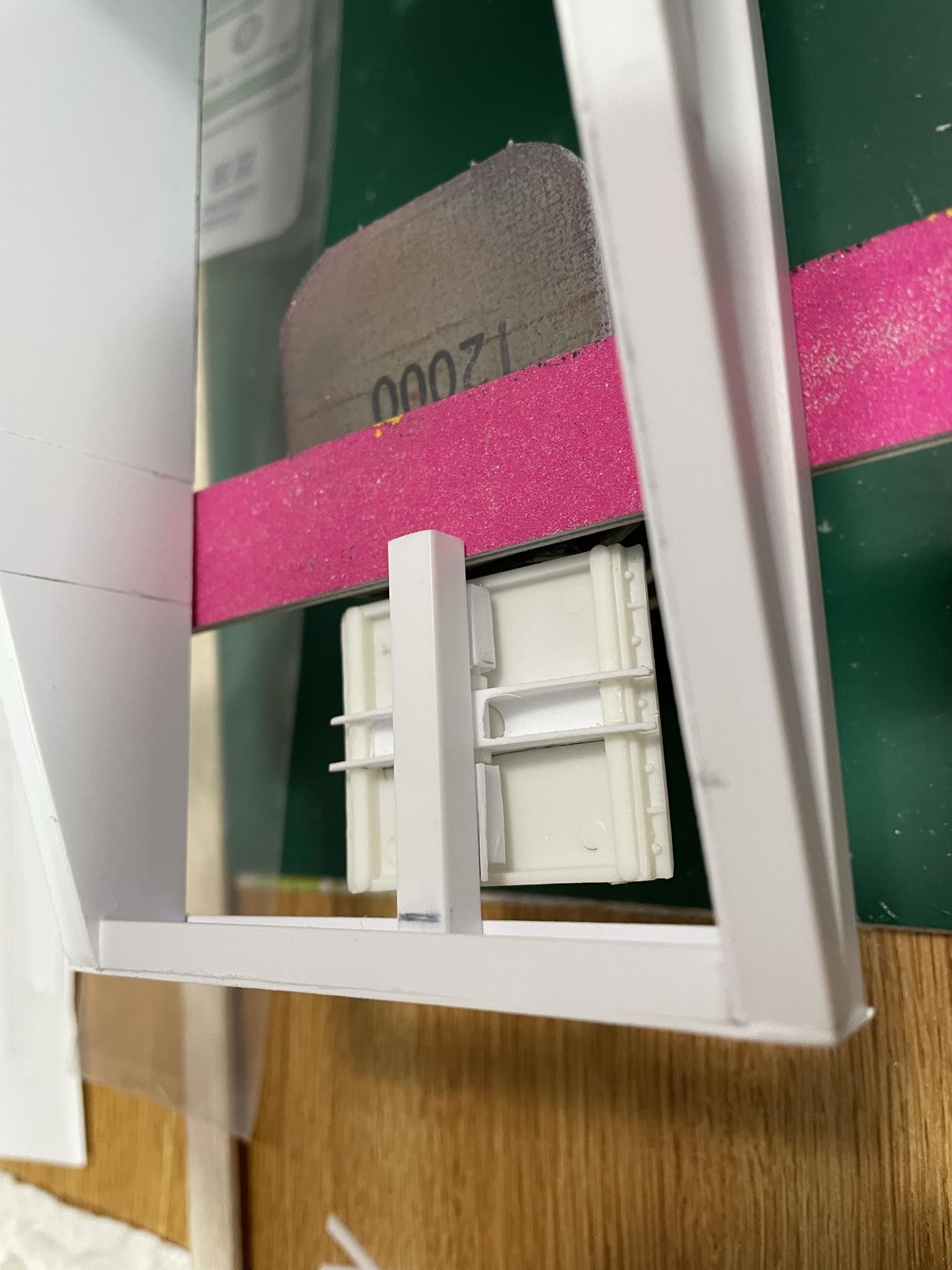

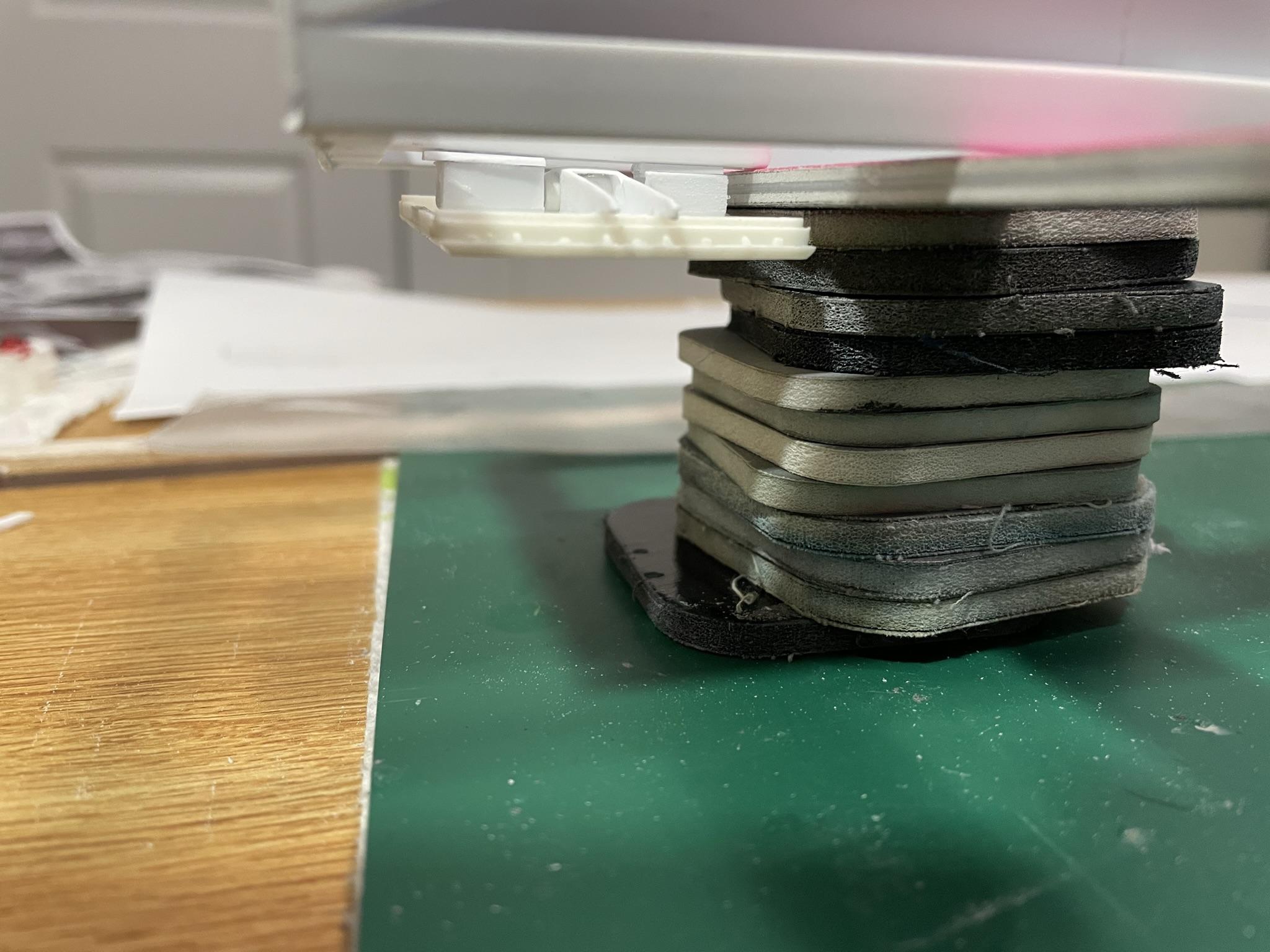

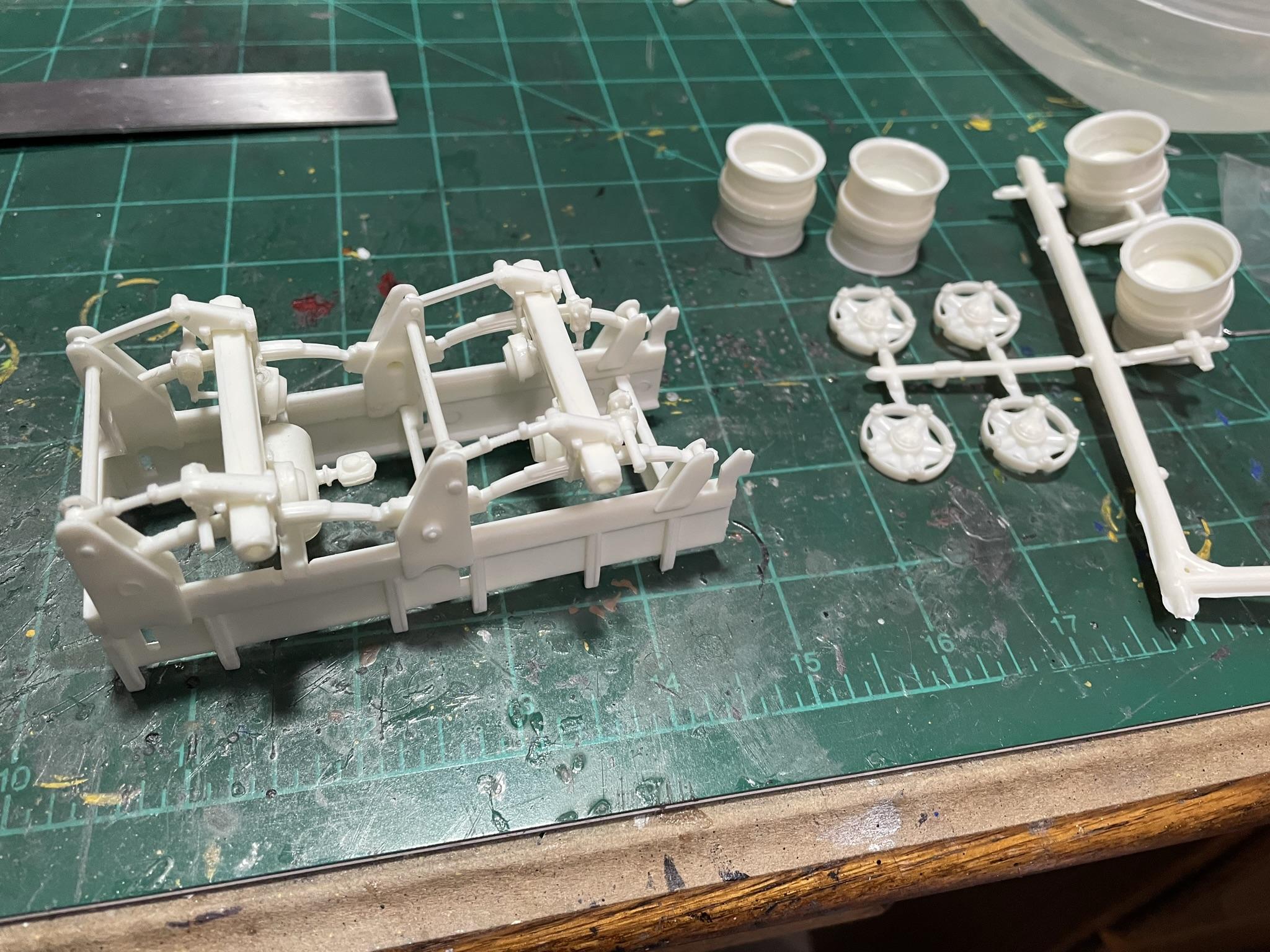

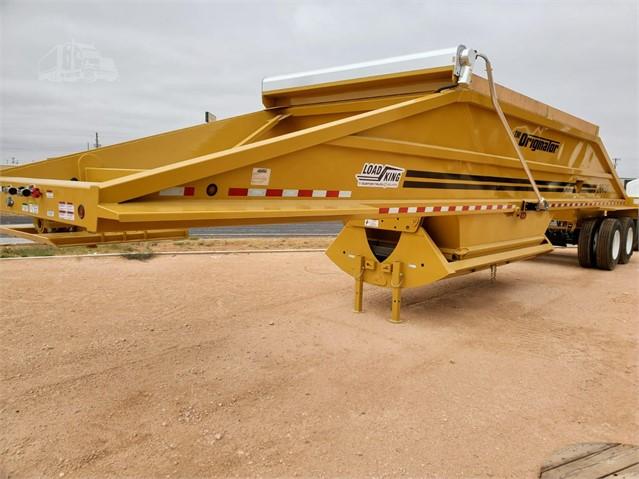

Mopar - D Posted May 3, 2022 Share Posted May 3, 2022 (edited) My Super Bee Trucking fleet is in need of a bottom dump trailer so I’m going to build them one. I’m still researching some of the details but I’ve started with using the rear suspension from the AMT Fruehauf tanker kit. I’m looking to use the Load King trailer design for my trailer. I’ve started on the rear suspension so far. Lot more to come. As always your comments are always welcome and appreciated. Edited May 3, 2022 by Mopar - D Quote Link to comment Share on other sites More sharing options...
Oldcarfan27 Posted May 3, 2022 Share Posted May 3, 2022 Looks like you've got your work cut out for you. Can't wait to see it being built. Very inspiring! Quote Link to comment Share on other sites More sharing options...
Oldcarfan27 Posted May 3, 2022 Share Posted May 3, 2022 BTW, what's the GTX for? Gonna have Hemi powered drop gates? 1 Quote Link to comment Share on other sites More sharing options...
Mopar - D Posted May 3, 2022 Author Share Posted May 3, 2022 8 hours ago, Oldcarfan27 said: BTW, what's the GTX for? Gonna have Hemi powered drop gates? Patrick I was at Modelmania this weekend and I picked up the tanker and the GTX was on sale for $10 so I picked it up. Quote Link to comment Share on other sites More sharing options...
slusher Posted May 4, 2022 Share Posted May 4, 2022 Real interesting project Dan. What are the belly dump trailers used for? To spread the load over a distance? Quote Link to comment Share on other sites More sharing options...
yh70 Posted May 4, 2022 Share Posted May 4, 2022 you can do it... Quote Link to comment Share on other sites More sharing options...
gotnitro? Posted May 4, 2022 Share Posted May 4, 2022 (edited) I see your feeding your squirrels frosted flakes again !! Looking forward to your belly dump trailer Edited May 4, 2022 by gotnitro? 1 Quote Link to comment Share on other sites More sharing options...
DrKerry Posted May 4, 2022 Share Posted May 4, 2022 Very kool, can't wait to see more!!! Quote Link to comment Share on other sites More sharing options...

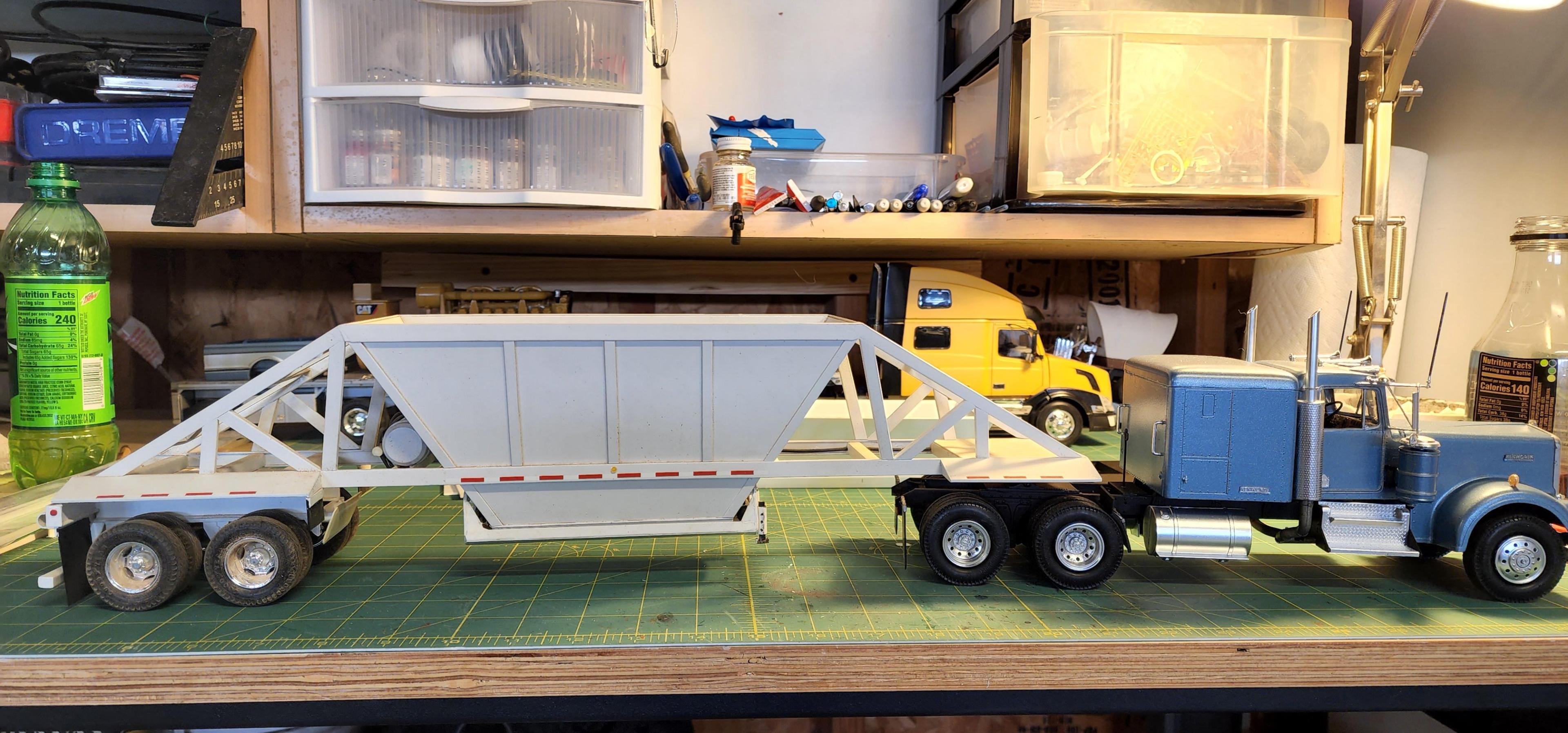

Jhill Posted May 4, 2022 Share Posted May 4, 2022 Nice, I like the solid sides! I have one on the bench now, and one I built over 10yrs ago. Current one is referenced off a Brazos, don't recall what the older built was referenced from! 1 Quote Link to comment Share on other sites More sharing options...
Mopar - D Posted May 4, 2022 Author Share Posted May 4, 2022 7 hours ago, slusher said: Real interesting project Dan. What are the belly dump trailers used for? To spread the load over a distance? Thanks Carl I’ve seen them used on highways and also for land development. Just up to street from me there’s a new subdivision going in and they have been raising the hole area a couple feet and they have been using these bottom dumps to bring in the fill dirt. They were running about 30 or more trucks for months 6 to 7 days a week. 5 hours ago, yh70 said: you can do it... Thanks Dave. 4 hours ago, gotnitro? said: I see your feeding your squirrels frosted flakes again !! Looking forward to your belly dump trailer lol! 2 hours ago, DrKerry said: Very kool, can't wait to see more!!! Thanks Kerry. 1 hour ago, Jhill said: Nice, I like the solid sides! I have one on the bench now, and one I built over 10yrs ago. Current one is referenced off a Brazos, don't recall what the older built was referenced from! Nice bottom dumps Jim. Do the bottom gates open up. I’m going to try and make mine to open up. There’s a lot of angles on theses trailers. Lol. Quote Link to comment Share on other sites More sharing options...

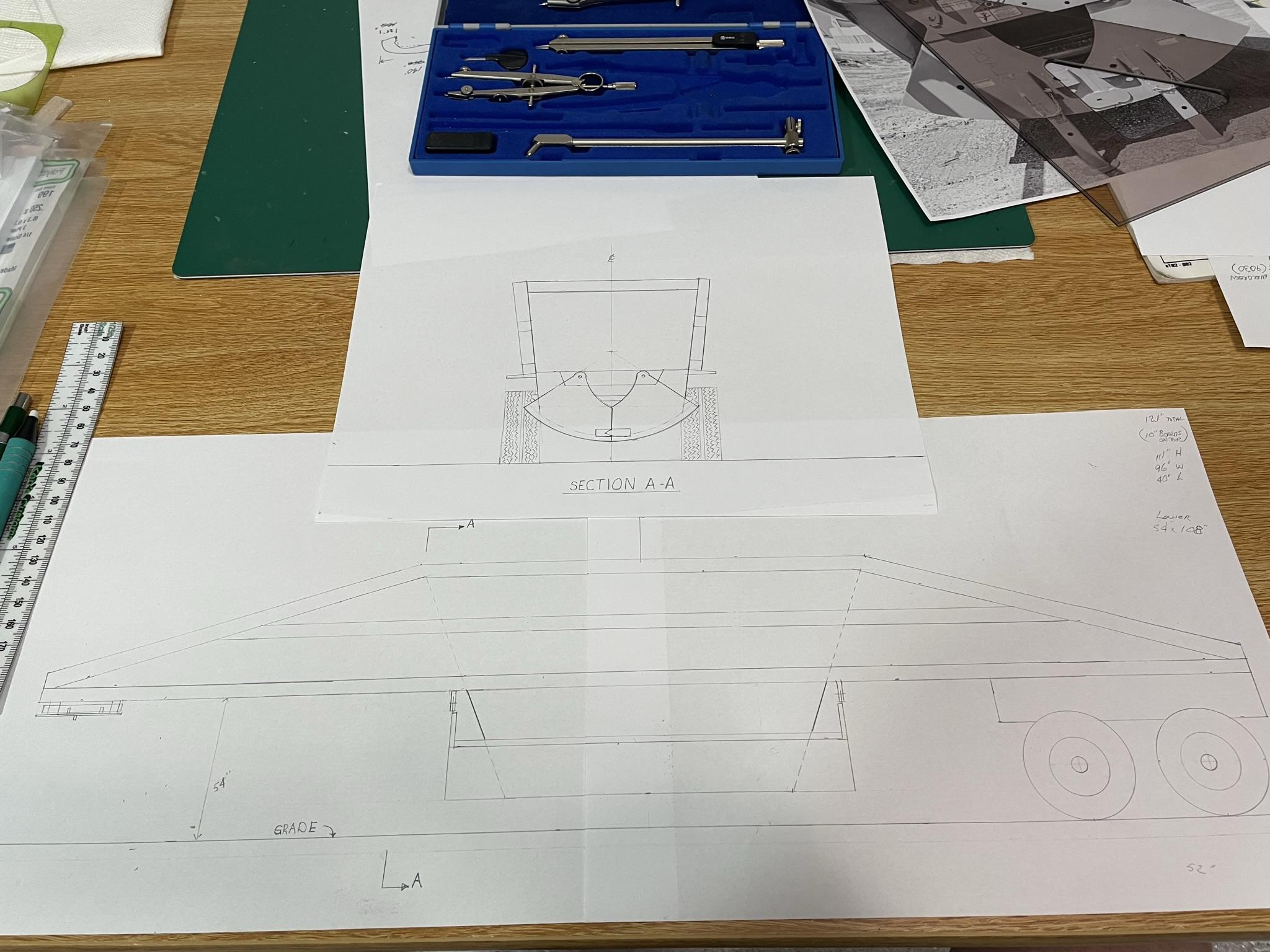

Mopar - D Posted May 4, 2022 Author Share Posted May 4, 2022 This trailer has so many different angles I decided that I needed to draw it in scale before I just started cutting evergreen plastic pieces lol. My progress is on paper but I’m about ready to start cutting some plastic but after making the drawings I will need to go out and get some more evergreen plastic to be able to finish it. Here’s my drawings so far. 2 Quote Link to comment Share on other sites More sharing options...
Jhill Posted May 4, 2022 Share Posted May 4, 2022 2 hours ago, Mopar - D said: Thanks Carl I’ve seen them used on highways and also for land development. Just up to street from me there’s a new subdivision going in and they have been raising the hole area a couple feet and they have been using these bottom dumps to bring in the fill dirt. They were running about 30 or more trucks for months 6 to 7 days a week. Thanks Dave. lol! Thanks Kerry. Nice bottom dumps Jim. Do the bottom gates open up. I’m going to try and make mine to open up. There’s a lot of angles on theses trailers. Lol. They do! Quote Link to comment Share on other sites More sharing options...
Warren D Posted May 4, 2022 Share Posted May 4, 2022 Interesting build. Not sure but I think Doug Wagner at Keystone/AITM makes one but maybe not this same manufacturer. Quote Link to comment Share on other sites More sharing options...
Mopar - D Posted May 4, 2022 Author Share Posted May 4, 2022 30 minutes ago, Jhill said: They do! Thanks for sharing Jim I’m planning to do something similar with mine so that they will open up. 4 minutes ago, Warren D said: Interesting build. Not sure but I think Doug Wagner at Keystone/AITM makes one but maybe not this same manufacturer. Warren your correct Doug Wagner at Keystone has one but I’m looking for more details than what I see in his pictures plus I’m not into sanding the 3D parts smooth. Quote Link to comment Share on other sites More sharing options...
Warren D Posted May 5, 2022 Share Posted May 5, 2022 10 hours ago, Mopar - D said: Warren your correct Doug Wagner at Keystone has one but I’m looking for more details than what I see in his pictures plus I’m not into sanding the 3D parts smooth. I hear you on that! I have yet to find a way to get the nooks and crannies smooth. It seems to require filler primer and lots of sanding. While I often curse resin, it's actually easier to work with. Quote Link to comment Share on other sites More sharing options...
gotnitro? Posted May 5, 2022 Share Posted May 5, 2022 Glad you mentioned the Wagner model, I thought I'd read there was w belly dump offered . Going from plans to sheet will yield a better model anyway. Quote Link to comment Share on other sites More sharing options...
Mopar - D Posted May 5, 2022 Author Share Posted May 5, 2022 Thanks Jeff it’s going to be the first time that I’ve drawn up what I want to build. In doing so I’ve been able to identify different parts that I would of had to figure out how to make during the build and could of caused some reworking. Quote Link to comment Share on other sites More sharing options...

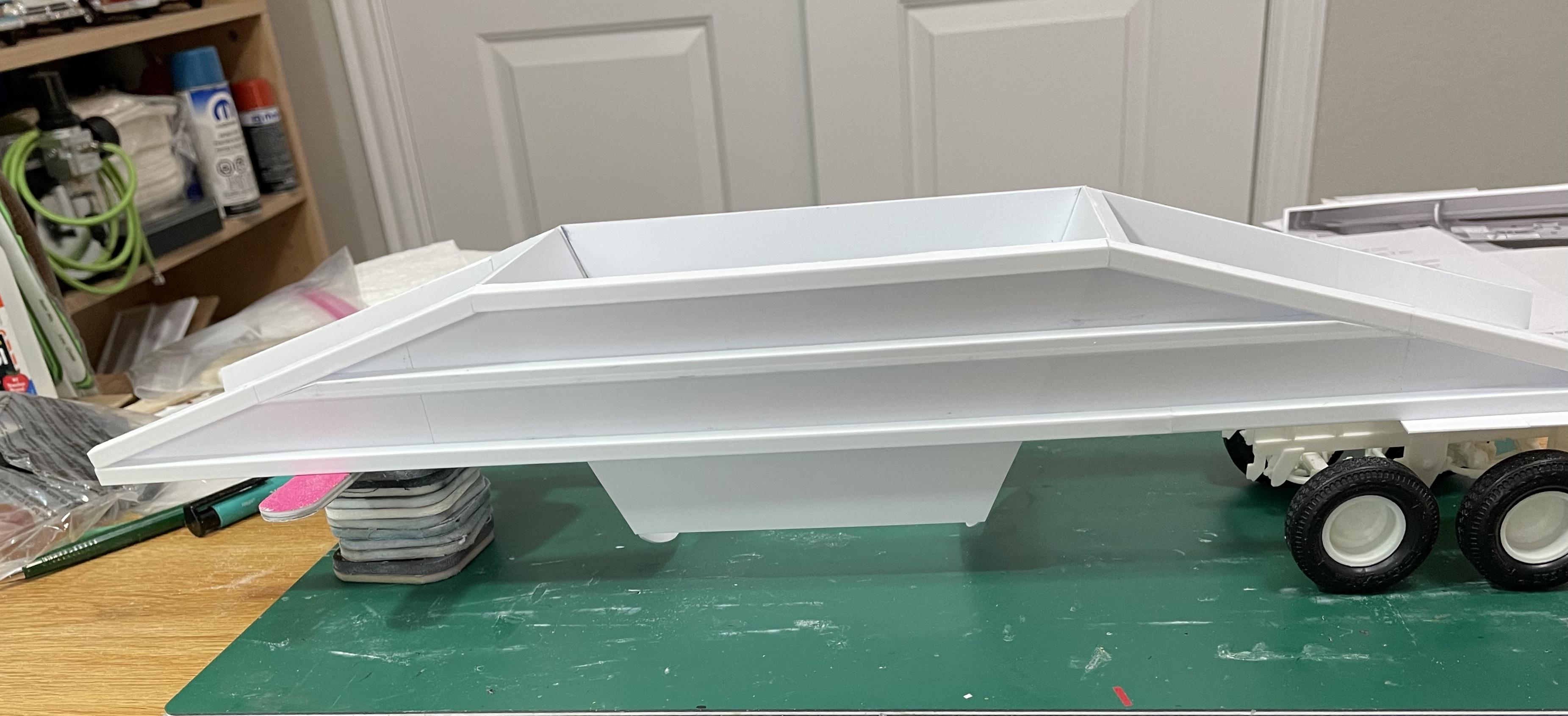

Mopar - D Posted May 5, 2022 Author Share Posted May 5, 2022 After picking up more evergreen I worked on the left side of the trailer. 1 Quote Link to comment Share on other sites More sharing options...
Oldcarfan27 Posted May 6, 2022 Share Posted May 6, 2022 On 5/4/2022 at 8:15 AM, gotnitro? said: I see your feeding your squirrels frosted flakes again !! Looking forward to your belly dump trailer Well, they are Grrreeaatt!!! 1 Quote Link to comment Share on other sites More sharing options...

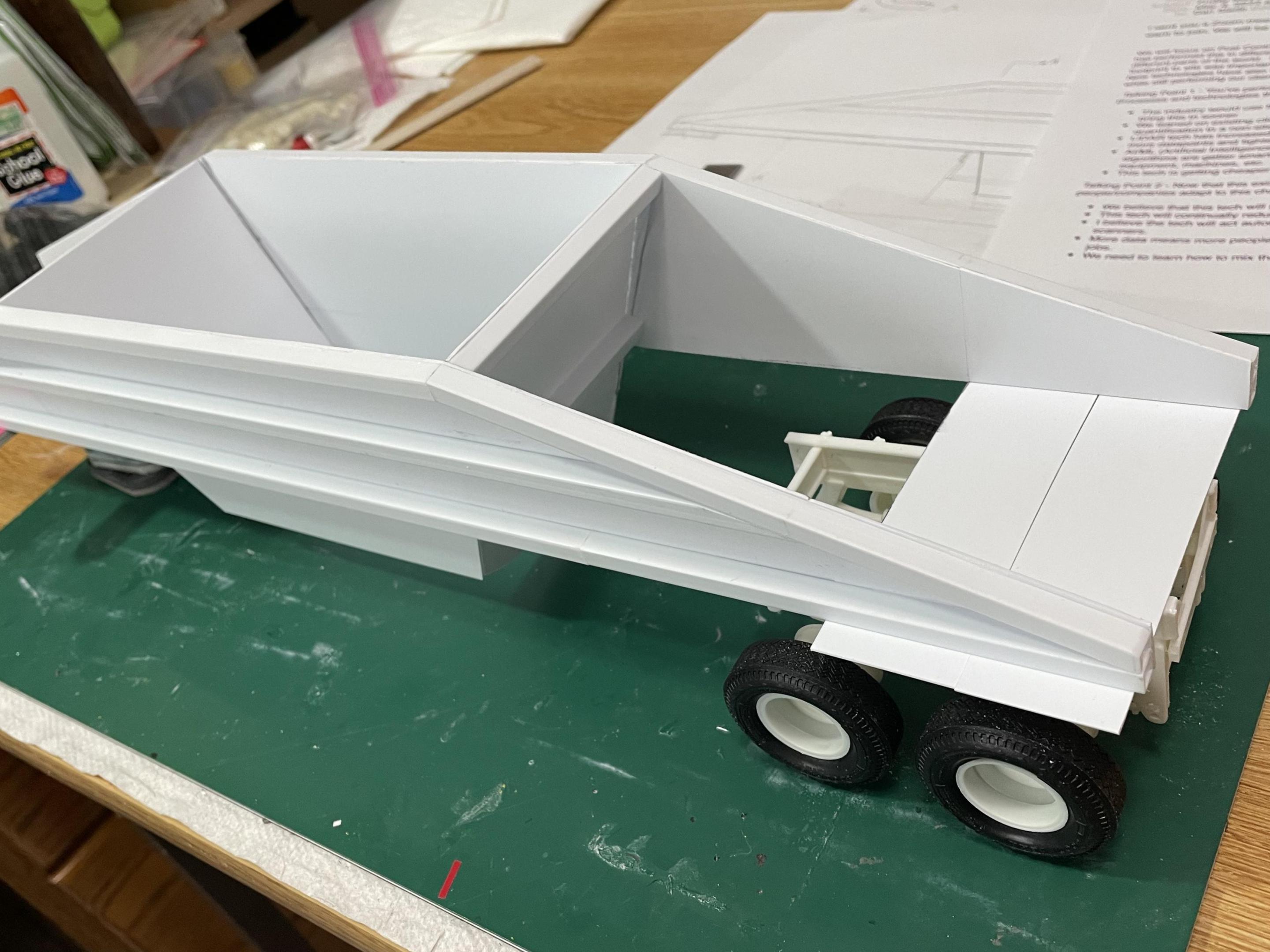

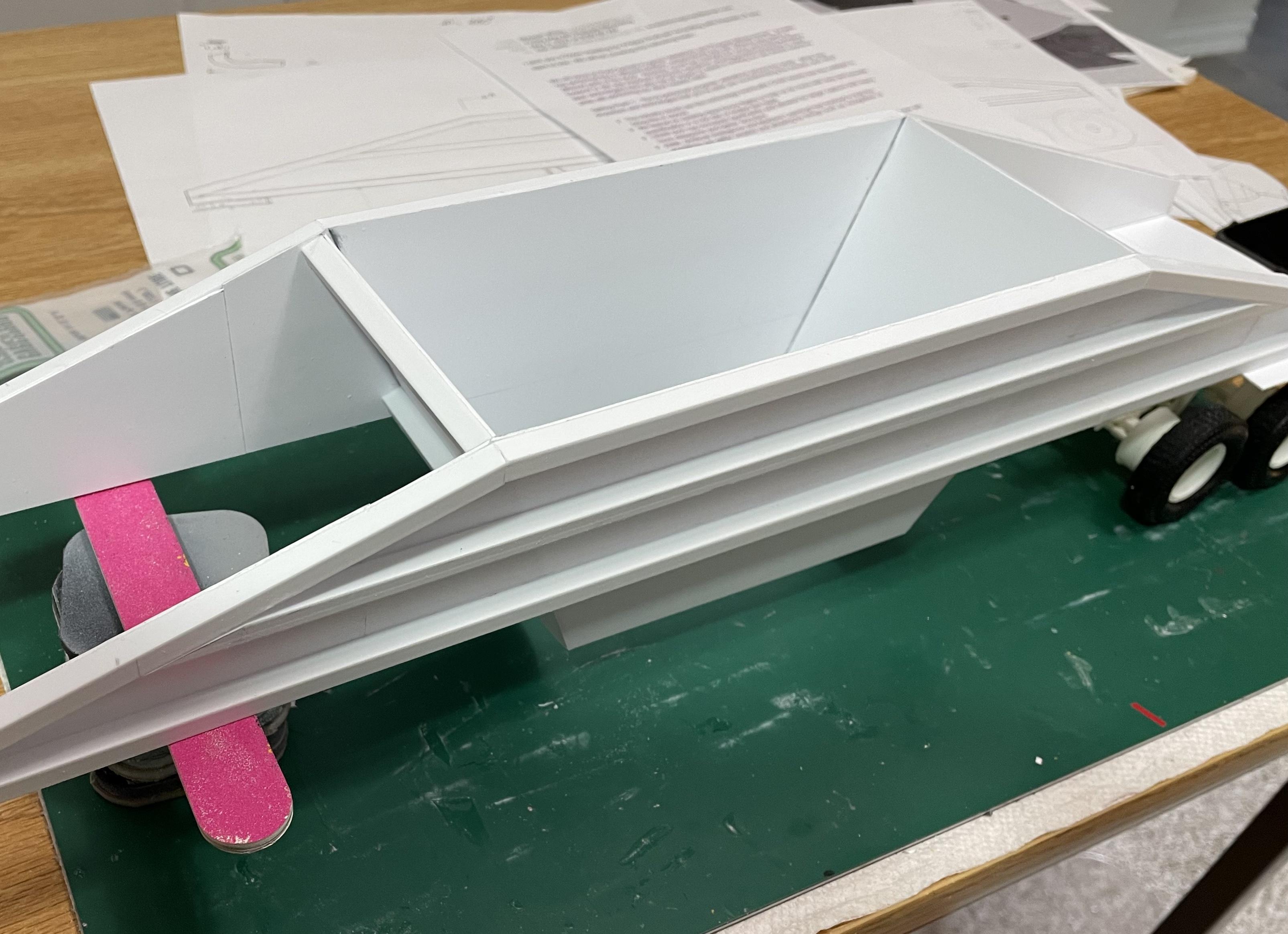

Mopar - D Posted May 7, 2022 Author Share Posted May 7, 2022 I’ve found that there’s not very many square angles on this lol. I now have the main shell together with the dimensions that I was looking for. I did go through 3 paper cut outs for the front and back panels. Now to start on all the bracing and gusset plates. 2 Quote Link to comment Share on other sites More sharing options...
gotnitro? Posted May 7, 2022 Share Posted May 7, 2022 Man that shell looks grrrreeaaattt ! Those trailers really don't have as much structure overall like id assumed , very interesting Are the square sides evergreen box tube Quote Link to comment Share on other sites More sharing options...
slusher Posted May 7, 2022 Share Posted May 7, 2022 wow, impressive work Dan, you made a lot of progress! Quote Link to comment Share on other sites More sharing options...
Mopar - D Posted May 8, 2022 Author Share Posted May 8, 2022 9 hours ago, gotnitro? said: Man that shell looks grrrreeaaattt ! Those trailers really don't have as much structure overall like id assumed , very interesting Are the square sides evergreen box tube Thanks Jeff Yes I used evergreen square tube #254 it’s 1/4” and evergreen plan sheet #9030. 8 hours ago, slusher said: wow, impressive work Dan, you made a lot of progress! Thanks Carl I think I think I have as much time in drawing the plans up as I do in building it so far. Quote Link to comment Share on other sites More sharing options...
Mopar - D Posted May 9, 2022 Author Share Posted May 9, 2022 I worked on the 5ft wheel plate that will let the trailer rotate side to side. Quote Link to comment Share on other sites More sharing options...
