Ford Bronco 4 door version.


Recommended Posts

I originally had one stock version and one Baja version with incorrect body. Then I recieved second Bronco as trophy, which had both bodies. Since I had three kits with three stock bodies and one with Baja body, I decided to make one to a 4 door version.

First step was to cut two bodies and combine them. I decided to make rear doors little bit shorter. After gluing the halves, I measured that body was lengthened by 3,3 centimeters. That was important measurement as it would be needed later.

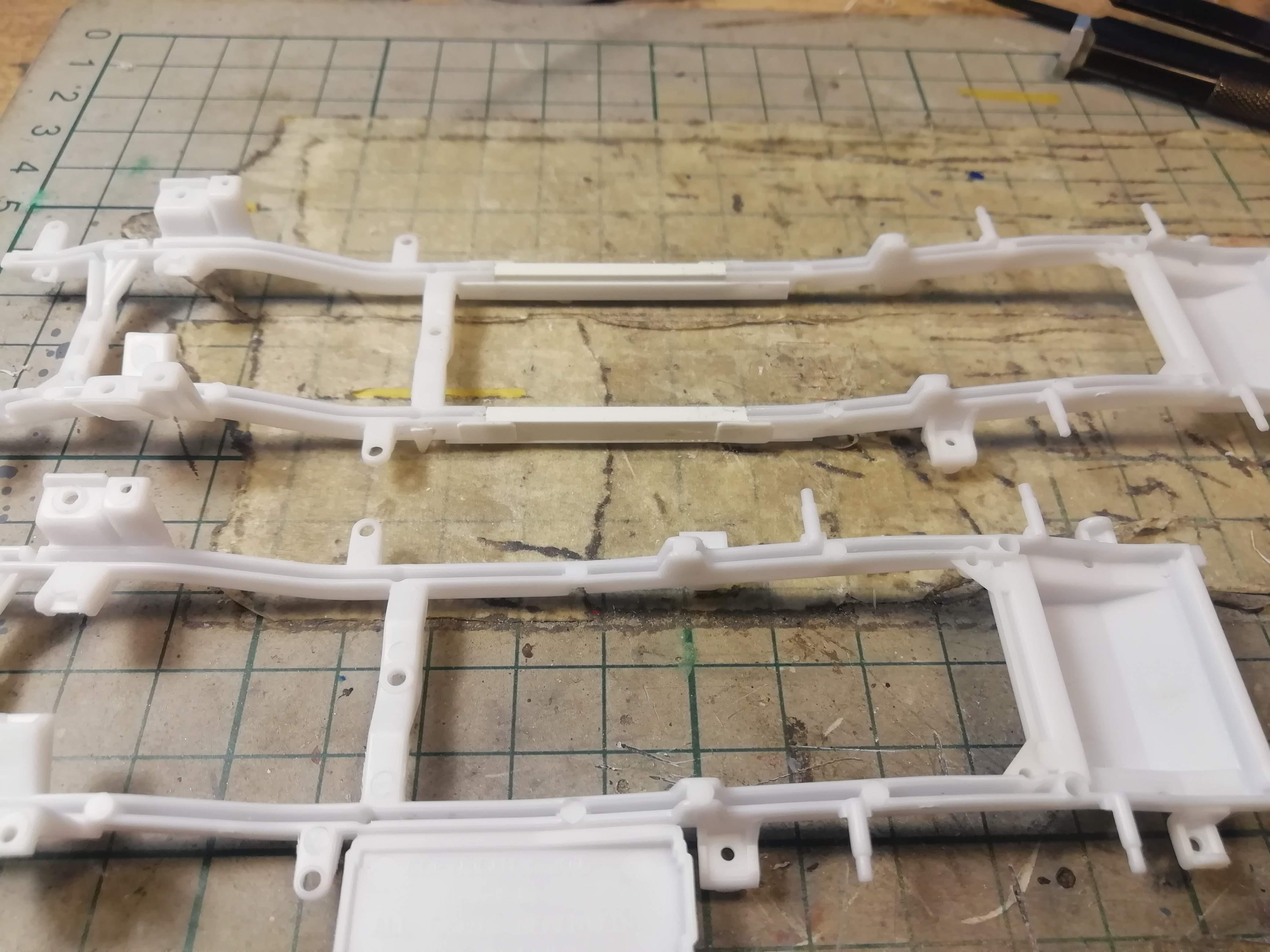

Then the same measurement was used to stretch the frame. I used evergreen L profile and straights for the extra bits. I cut it so that the middle exhaust support would be moved back. More on that later.

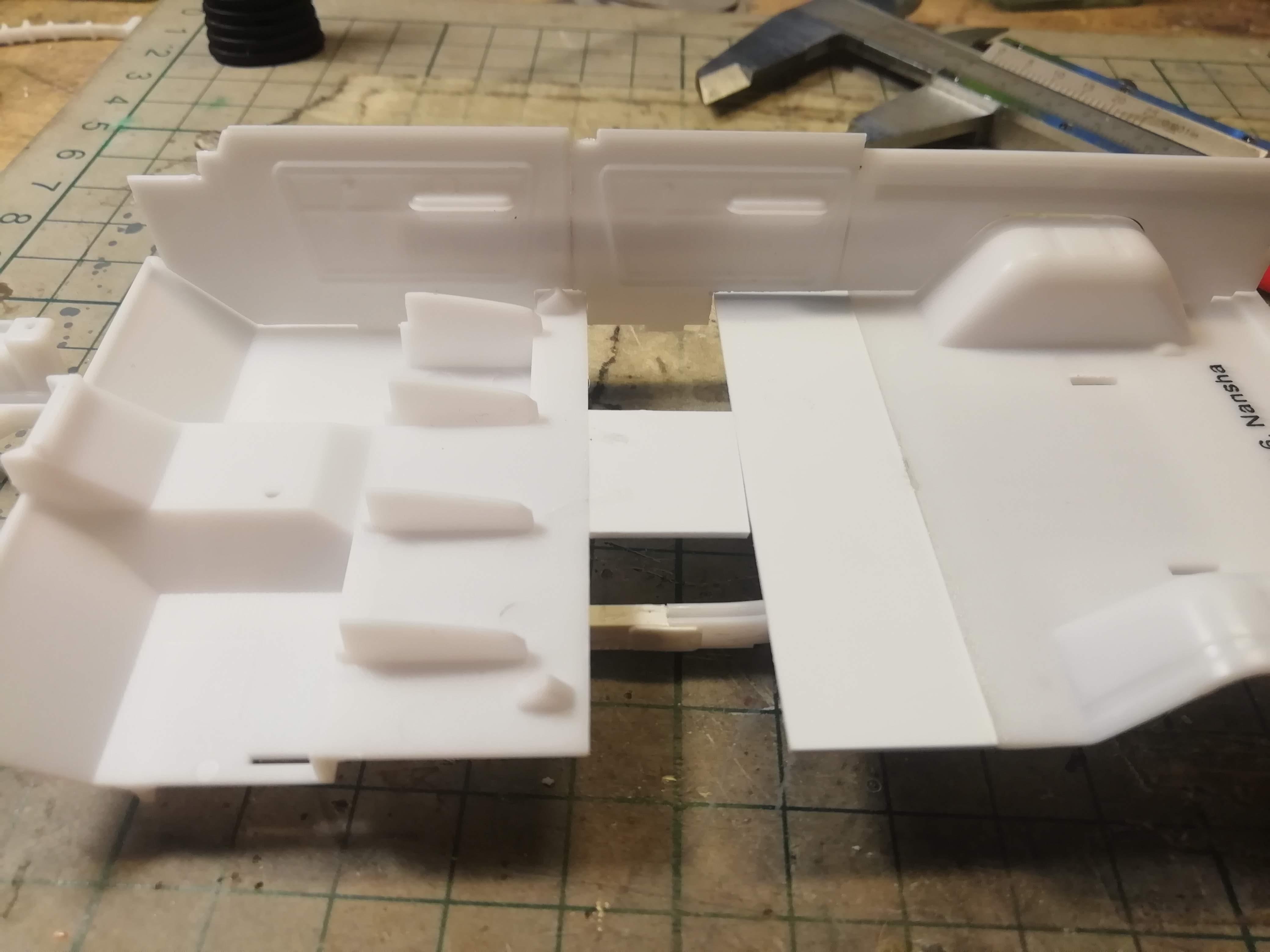

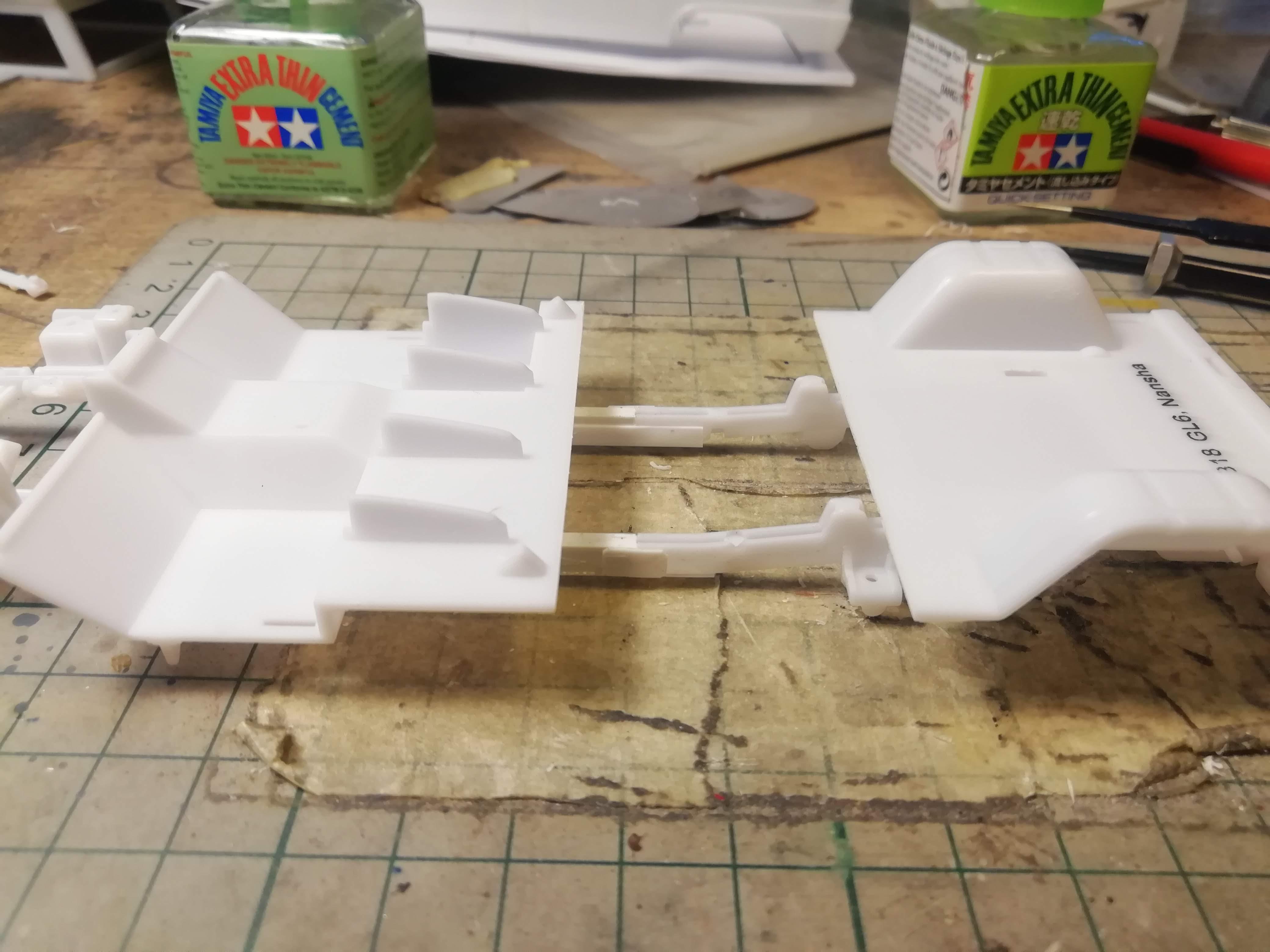

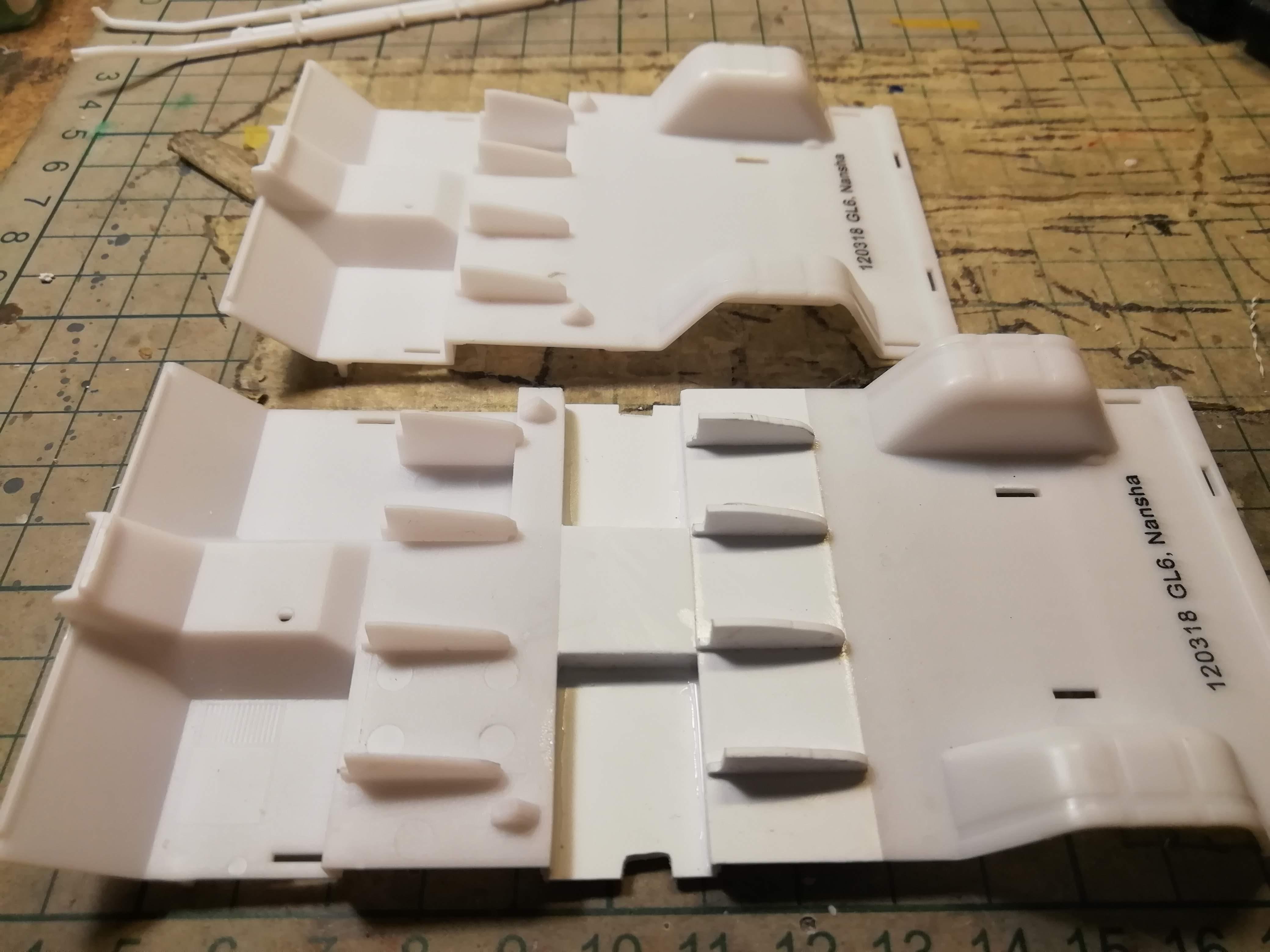

Then it was time to cut the floor and door panels. Both floors halves had locating pins at the frame, so locating them was easy. Then it was matter of filling the hole with new floor bits. I made the floor to have same kind of foor space, as in front seats.



I had to use two door pieces per side. That means that I have to fabricate new door panels to the donor car. Door panels had locating slots, that were used to tell me correct lenght that I needed to make the cuts.



I also copied the shape of the front seats mounts and made couple more. Missing are seat belt things, but I added them later.


Afted that, it was time to focus on mechanical side. Lengthening of tailshaft was done using evergreen rods. For the exhaust pipes, I again used two sets. Locating slots for the exhausts came in handy. When I cut the pipes, rear section were placed on its place. Then I measured what th front needed to be. Only one section had to be added in between passenger side mufflers. I used part of that tailshaft.

IMG_20220525_214148.thumb.jpg.4a97d04569db8ec664758987898e7d14.jpgIMG_20220525_213741.thumb.jpg.2917fee44fbc884e5d21ac615f5c8744.jpg

I also added some floor strenghtening, frame support and body mounts.

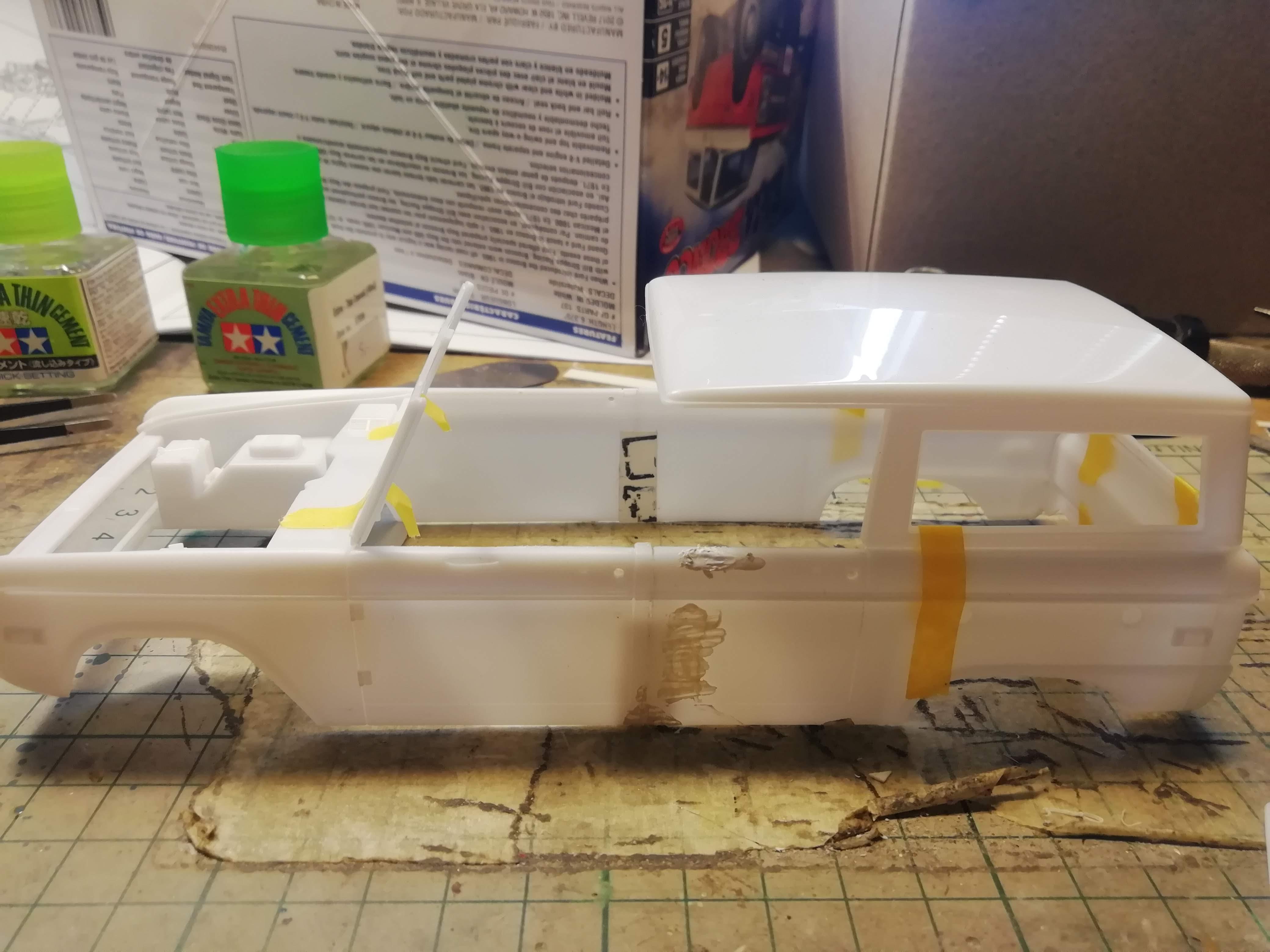

Last big thing was to extend the roof using again donor kits roof. That one will obviously be a roofless racing version, since I've robbed stock exhaust, stock seats and stock doorpanels. Missing are the hinges, which I've added later. If you notice, the roof seems to be lifted a tiny bit. I later cut 1 mm from the windshield frame. I made the wheels arches bigger, to house Baja wheels. I also found some flares from my parts bin. I don't want to glue before the paint, since they will be diffent color.



Now it's time to fill the gaps and sand. I used tamiya epoxy putty on the roof, because I don't want the putty to shrink. Middle of the roof needs alot of filling, because otherwise it would have a nasty dip in it. First sanding was done with 80 grit. Then I used metal ruler the same way the carpenters use scrapers to finish wooden surfaces. There will be another layer of different putty so make roof smooth and the arch contistent.IMG_20220531_145911.thumb.jpg.e8d11c3a2a3c8d7dd424642fec236f77.jpg

I hope I managed to open my process a bit. Feel free to ask questions.

Edited by Jurva
Typos fixed.
  • Like 1
Link to comment
Share on other sites

1 hour ago, Chuckyg1 said:

This is looking cool already. The roof looks a little tall to my eye.

I agree with the roof. It isn't so bad irl. Its stock height in the picture, but I cut 1mm from windshield frame.

Link to comment
Share on other sites

Finally got the roof ready for paint. It took several coats of filler and filler primer to get it smooth. Wasn't easy to get it "straight" as it is roundish in 2 ways. Roof will be white. Body is TS-34 Camel Yellow.





Link to comment
Share on other sites

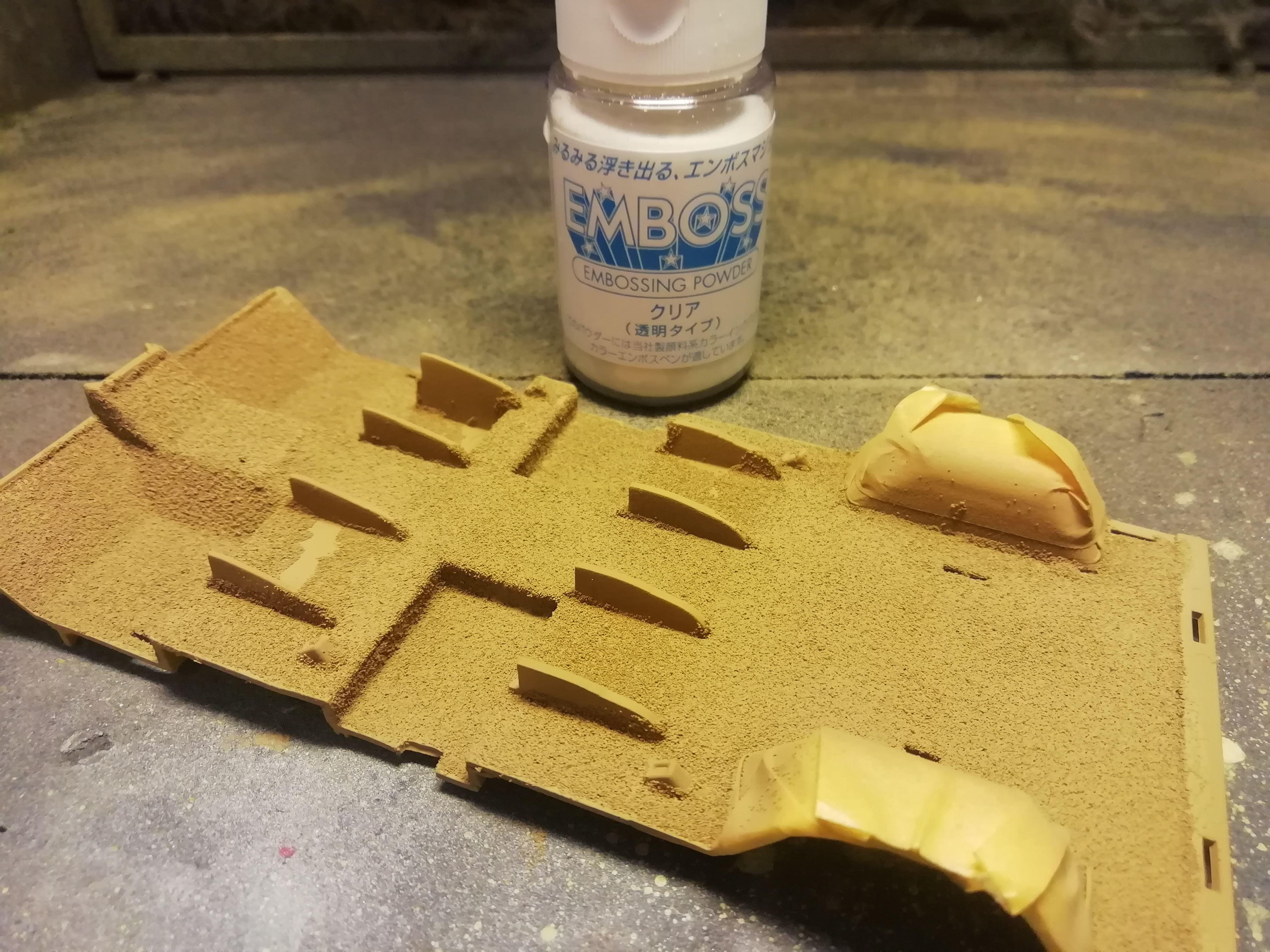

Some progress done here. Made interior carpet using embossing powder. I added two layers of it, and then painted it with Tamiya dark yellow. Collected some stowage for the roof rack and for interior. Some are 1/35 Miniart and Meng stuff. Other from various other kits. Made couple of bags from Tamiya putty. I will make resin copies for the future.





Edited by Jurva
Typos.
Link to comment
Share on other sites

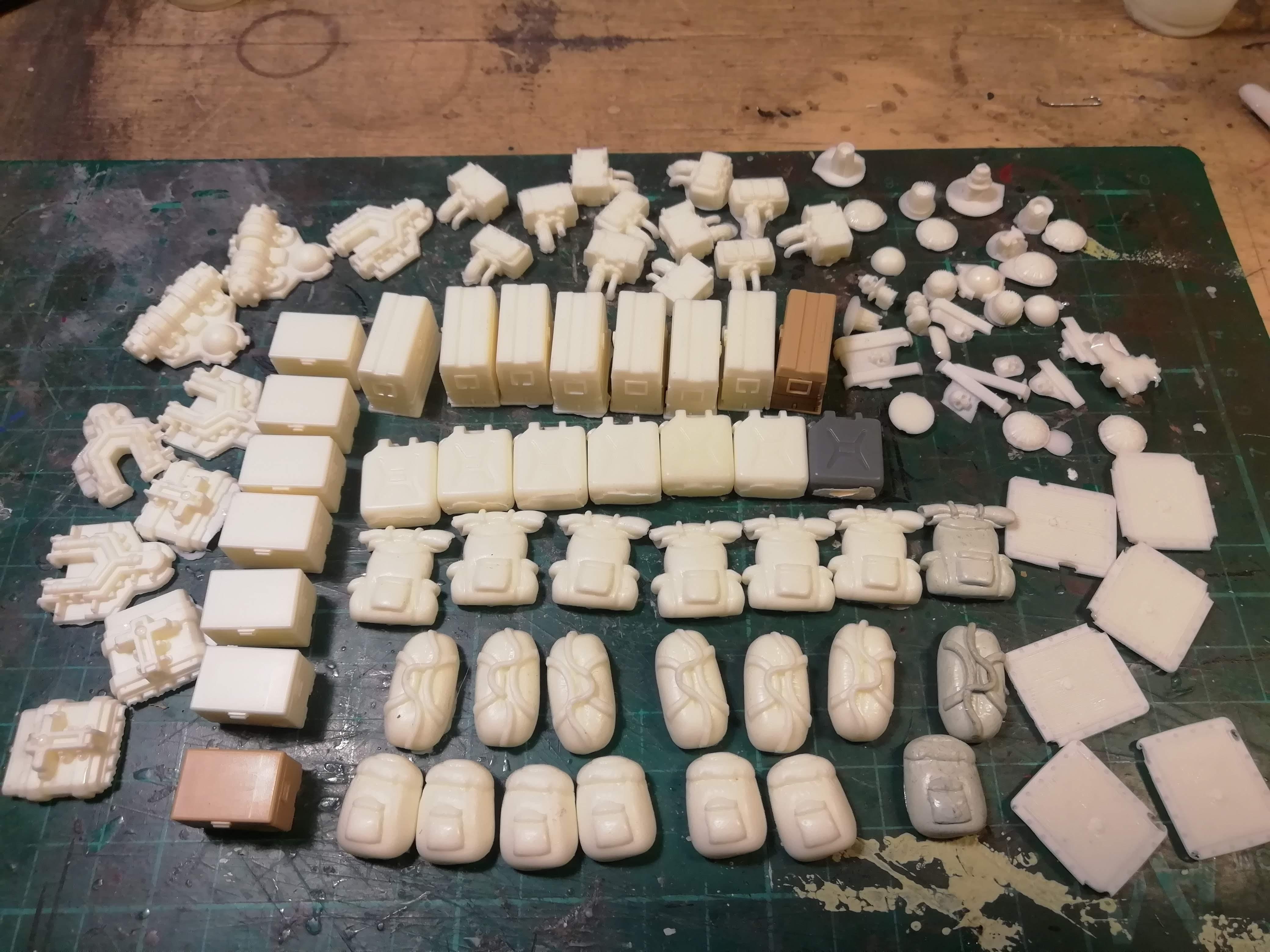

Well, got some casting done. Did some spare stowage for the future projects. Always have old molds, where to dumb extra resin. I'll give some of the greeblies to my friend, who likes to build weird stuff.
